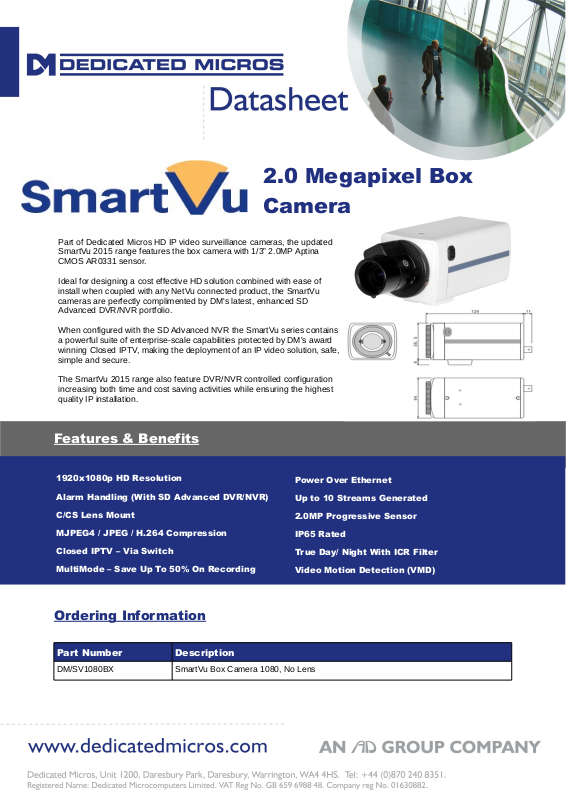

2.0 Megapixel Box
Camera
Features & Benefits
Ordering Information
Part Number Description
DM/SV1080BX SmartVu Box Camera 1080, No Lens
Part of Dedicated Micros HD IP video surveillance cameras, the updated
SmartVu 2015 range features the box camera with 1/3” 2.0MP Aptina
CMOS AR0331 sensor.
Ideal for designing a cost effective HD solution combined with ease of
install when coupled with any NetVu connected product, the SmartVu
cameras are perfectly complimented by DM's latest, enhanced SD
Advanced DVR/NVR portfolio.
When configured with the SD Advanced NVR the SmartVu series contains
a powerful suite of enterprise-scale capabilities protected by DM's award
winning Closed IPTV, making the deployment of an IP video solution, safe,
simple and secure.
The SmartVu 2015 range also feature DVR/NVR controlled configuration
increasing both time and cost saving activities while ensuring the highest
quality IP installation.
1920x1080p HD Resolution
Alarm Handling (With SD Advanced DVR/NVR)
C/CS Lens Mount
MJPEG4 / JPEG / H.264 Compression
Closed IPTV – Via Switch
MultiMode – Save Up To 50% On Recording
Power Over Ethernet
Up to 10 Streams Generated
2.0MP Progressive Sensor
IP65 Rated
True Day/ Night With ICR Filter
Video Motion Detection (VMD)
Page 2
Dedicated Micros Technology Benefits
Housing Options
2010 Camera House
DM/2010-606 = Housing with Wall Bracket for 12V-24V
Operation
DM/2010-707 = Housing with Wall Bracket for 110V-230V
Operation
2015 Camera House
DM/2015-606 = Weatherproof Housing 12-24v; Heater and
Bracket
DM/2015-707 = Weatherproof Housing 110-230v; Heater and
Bracket
NetVu Remote Codec
When utilised with a NetVu connected server each camera
can work as a remote codec. This is the most efficient
means of connection to a DM Closed IPTV server as rather
than simply request a stream from the IP camera, and then
recode the stream as necessary the remote codec format
makes individual requests for streams of frames directly
from the codec in the camera.
Using this process the camera becomes an integral
extension to the DVR/NVR distributing the processing
requirements allowing a greater number of cameras to be
connected and managed from one unit as stream
communication becomes more efficient, reducing potential
bottlenecks.
Ease Of Installation
Dedicated Micros technology removes the need for prior IT
networking knowledge facilitating ease of install while
ensuring the highest quality IP solution.
The updated SmartVu range offer remote zoom and auto
focus meaning convenient focusing of the cameras is
possible over the network, eliminating the need for physical
fine tuning at each camera.
Port specific auto detect and auto configure cameras using
Closed IPTV
A shared user interface helps minimise operator training
whilst powerful features such as direct configuration of PTZ
cameras and domes from connected DVR/NVRs helps
reduce installation time providing benefits to both end user
and installer/integrator.
Customisable
PowerScripting enables user customisation of complex,
logical, alarm handling routines and integration of data from
external sources. Extra value is created for the user through
integration with business processes e.g. access control,
building management, process control and manpower
management. The result is a measurable return on
investment tied in with operational process such as retail loss
prevention.
MultiMode Recording And Streaming
Allows an event trigger from VMD, analytics and alarms to
affect an instantaneous change in bit rate, frame rate and
resolution. Full HD streams are generated when needed, e.g.
for identification purposes, otherwise a standard definition
stream saves up to 50% of the user’s storage capacity.
Closed IPTV
All DM products are underpinned by the Closed IPTV
technology. This encompasses a number of features to
ensure security is at the forefront of the solution.
• Trusted Endpoints (a unique secret signature that is shared
with the switch and the NVR) ensure any attempt to interfere
with the Closed IPTV network will trigger an immediate
security alert.
• Removing access to the corporate network via an exposed
endpoint (e.g. a camera)
• Restrict Multicast – No one network endpoint can gain
access to video from any other cameras or endpoints on the
network.
• Firewall settings – Prevents any endpoint from opening a
connection to a TCP server on the network
Page 3
Technical Specification
Camera Specification
Image Sensor 1/3” 2.0MP HD Progressive Scanning CMOS AR0331
Effective Pixels 1920x1080p
AGC Auto / Manual
Day/Night control Auto
Day / Night Auto / Color / B/W / External
WDR N/A
S/N Ratio <50dB
Min. Illumination Colour Mode 0.01UX(F1.2); B/W Mode 0.001LUX(F1.2)
Compression MPEG4, JPEG, H.264 (Up To 10 Different Streaming Profiles)
IR Distance N/A
Interface One 10M/100M Self Adaption Ethernet Port, RJ-45
Protocol TCP/IP, HTTP, ICMP, SMTP, RTP, RTSP, SNMP, ARP, DDNS, DNS, POE,
P2P,802, SCTP, NTP
Lens
Focal Length N/A
Lens Mount C/CS
Image Format 1/3”
Focus N/A
Zoom N/A
General Specifications
Audio N/A
Power 12V DC Terminal Input / PoE Class 3 5W
Electronic Shutter Auto / User 1/5 - 1/50,000 ; 50/60Hz Software Selectable
Gain control Auto / Fixed 8~102dB
Light Compensation BLC /HLC
Network Protocols: HTTP, TCP/IP, UDP/IP, RTSP, FTP, PoE, NTP. Unicast And Multicast
Supported.
Operating Temperature Operating: -30°C to 60°C / Storage: -30°C to 60°C
Operating Humidity 0~90%RH (Non-Condensing)
Approvals CE / FCC / RoHS Compliant / IP65
Product Dimensions 129 x 64 x 58.5mm
Product Weight 0.4KG
Warranty
1 year plus additional free 1 year when product registered
V. MKT-SVU-1080-BX001E © Copyright AD Group
Design and specifications are subject to change without notice E&O.E
