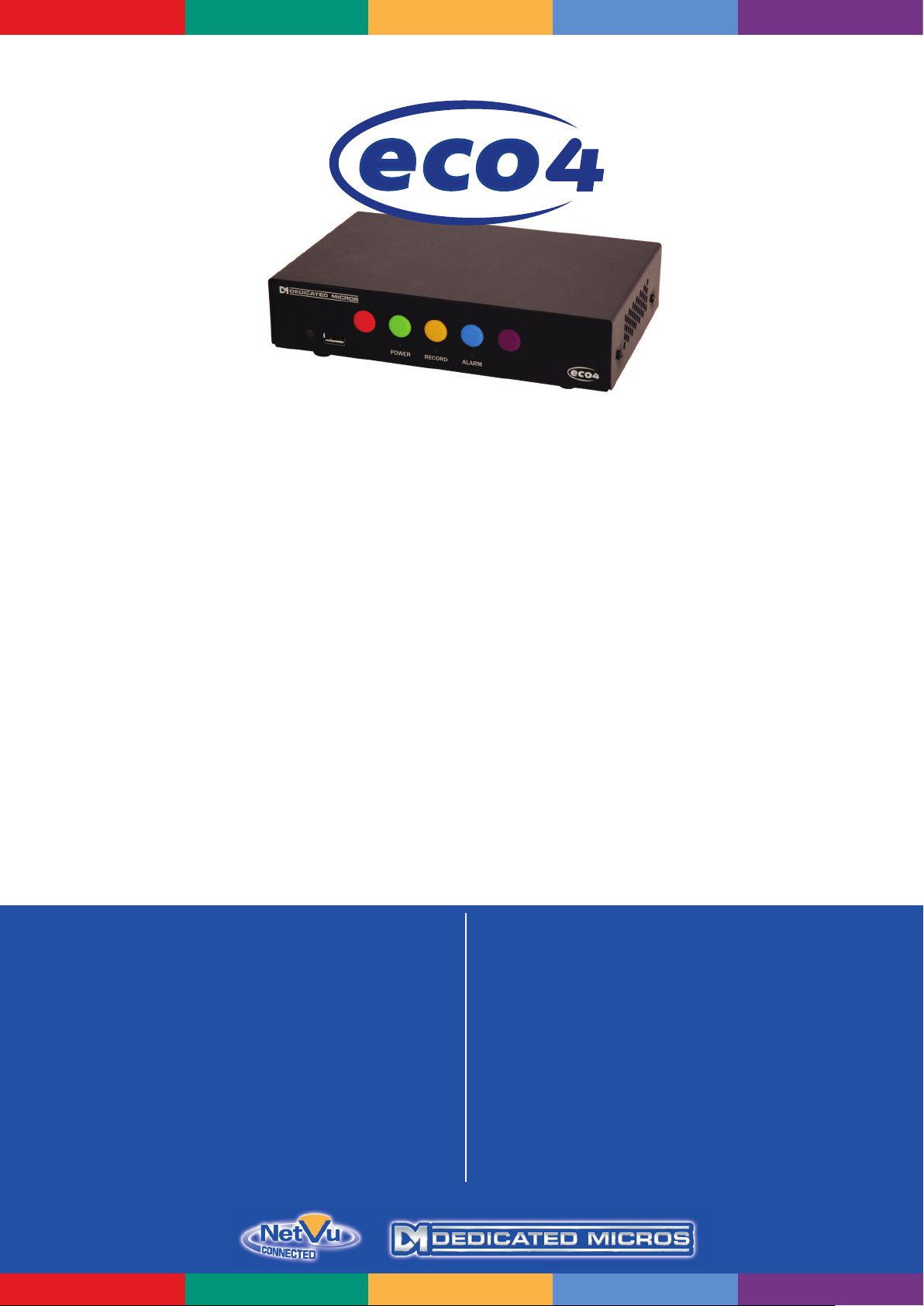

Dedicated Micros new entry level Eco4 is a low cost analogue DVR designed for small-scale security environments.
Following the success of the original Eco4, the new model is a powerful, yet compact, solution, built around the company’s NetVu
Connected technology platform and offers instant access to all of its controls through a simple colour-coded on-screen display and 5
front panel buttons.
9090
SMALL & COMPACT
The small size and weight of the new Eco4 DVR at only
203x152x51 mm (8x6x2 inches) and 1.1 kg (2.51 lbs) makes it an
ideal choice for applications where space is at a premium.
9089
NEVER MISS A SECOND
Enjoy real-time live and playback viewing on every connected
camera at CIF resolution. Up to 4CIF resolution is also available
on every connected camera.
9094
FLEXIBLE STORAGE OPTIONS
The Eco4 is available in a 500GB storage model or without
on-board storage to enable users to utilise their own storage
options via USB.
9093
FANLESS DESIGN FOR SILENT OPERATION
The intelligent design of the Eco4, combined with the low heat
output of the on-board processor enables the DVR to run
silently, ideal for environments that demand low noise
pollution levels.
11173
ESSENTIAL SECURITY
Despite its diminutive size the Eco4 includes all the essential
security features you would expect from a leading DVR; Alarms
& Relays, Motion Detection, Networking and remote viewing,
audio input/output and telemetry support.
11174
VIEW FROM ANYWHERE WITH NETVU OBSERVER
With Dedicated Micros powerful NetVu Connected technology
built-in, users can view their live or recorded security footage
from anywhere in the world on a PC (using NetVu ObserVer) or
mobile device.
9095
CHOOSE YOUR OWN FORMAT
Continuing to provide our customers with choice, Dedicated
Micros’ Eco4 supports three standard compression formats;
MPEG-4, H.264 and MJPEG.*
11175
EASY EVENT ARCHIVING
Event sequences and incidents can be saved to external ash
memory or hard drive through the USB port.
11176
FEATURES
■ 4 Channels, up to 100pps (@ CIF Resolution) across the
unit
9101
■ Simultaneous live viewing and Recording
9103
■ Simple graphical interface controlled via USB Mouse
9104
■ USB ports for download of video archive to external
storage device
9096
■ Composite or SVGA main monitor outputs
9105
■ Serial Telemetry Control including Pelco P & D
9097
■ On-board Help Videos
9107
■ Audio In/Out
9106
■ Global MPEG4, MJPEG or H.264 record settings*
9098
■ Seamless operation with all NetVu Connected
products
9099
■ TransCoding - High quality recording and simultaneous
video transmission using MPEG4 or JPEG for playback
9100
■ Color-coded soft key menus, identical local and
remote interfaces
9135
SPECIFICATION
CAMERAS
4 camera inputs available. Auto detection on power up. Alarm
on Camera Fail. Time base correct video inputs for guaranteed
recording performance.
9136
RECORDING
Simultaneous live viewing, playback and recording.
Alarmed or manually selected images can be protected from
being overwritten.
11177
RECORD RATE
True global record rates of up to 100pps (PAL), 120pps (NTSC) at
CIF. Assuming all camera channels are populated:
• CIF available at 25pps (PAL), 30pps (NTSC) per camera
• 2CIF available at 12pps (PAL), 15pps (NTSC) per camera
• D1/4CIF available at 6pps (PAL), 7pps (NTSC) per camera
9109
MONITOR VIEWING
9110
Main Monitor: Composite or SVGA Output
STORAGE
The unit is supplied with 500GB a storage option.
The unit can also be supplied diskless for use with an external
USB HDD (external USB HDD needs to be supplied seperately)
9137
REAL TIME LIVE MULTISCREEN DISPLAY
The Eco4 displays images with realtime updates in live mode. Up
to a quad screen.
9111
REMOTE VIEWER
Integrated into the conguration web pages, the remote viewing
client reects the local on-screen user interface.
11178
ON-BOARD HELP VIDEOS
The Eco4 includes on board help videos for assistance on both
User and Conguration features. The help videos cover all
major operation and conguration topics include: Basic Live and
Playback control, telemetry control, alarm conguration, event
reviewing and archiving.
9138
TRANSCODING
High quality recording and simultaneous video transmission using
MPEG4 or JPEG for remote playback. The Eco4 has a unique
TransCoding engine which can convert evidential quality recorded
JPEG images into an MPEG4 data stream on playback. This is
especially useful when playing back recordings over a bandwidth
limited network connection.
9139
E-MAIL NOTIFICATION
Emails can be sent on alarm or other critical events.
Noties the following events on a camera by camera basis:
• Alarm
• Activity
• Camera fail
• Power up
Access to mail server via Ethernet is required for this feature.
9114
AUDIO
9115
Line in: 1x 1V pk-pk, RCA phono socket
9116
Line out: 1x 1V pk-pk, RCA phono socket
9120
EVENT COPYING
Front panel keypad, an attached telemetry keyboard, the supplied
IR remote, USB mouse or USB QWERTY Keyboard.
9120
NETWORK PROTOCOLS
DCCP, DHCP, HTTP, HTTPS, IPv4, SMTP, Bonjour, ICMP, DNS, NTP, TCP,
UPP, UDP, ICMP, DHCP, ARP, RTP, Telnet, FTP, AoE, SNMP.
9140
COMMON CONFIGURATION INTERFACE
A Common Conguration interface is displayed when the
units’conguration screens are accessed locally at the unit or
remotely via a web browser. This unied system ensures that the
installer is familiar with the conguration screens irrespective of
their location to the unit, minimising training and familiarisation
time and increasing the speed of installation and alteration
to features.
9112
ALARMS AND RELAYS
9113
4 Normally open/closed tamper proof alarm inputs. One global
keyswitch can be assigned to operate from any of these inputs
and is congurable with entry/exit route timers. 2 relay outputs
are congurable to trigger in response to events.
9121
ACTIVITY DETECTION
Activity detection will switch the selected camera from normal
record prole to alarm record prole.
9141
SCHEDULING
Choice of day, night or weekend scheduling offers the ability to
automatically alter the record rate for background alarm and
activity recording. Activation is via a timer or keyswitch
alarm input.
9142
TIMED EXPIRY
Timed expiry option allows images to be held for a selected
number of days. Images on the disk which are older than the
number of days selected are not accessible.
9143
TELEMETRY
Built-in RS485/Twisted pair protocols provide direct control of
the numerous domes including but not limited to the following:
• Dedicated Micros Dennard 2040 to Dennard 2060
• Honeywell / VCL Orbiter & Jupiter Microspheres™
• GE CyberDome™ • BBV RS485 StarCard • Bosch/Philips G3
• American Dynamics • Panasonic • Pelco P, Pelco D
9122
LOCAL CONTROL
Eco4 can be controlled via IR remote, USB mouse or using a USB
QWERTY Keyboard.
9123
COMPRESSION
JPEG & MPEG-4 & H.264 format les*.
9124
DATA PORTS
9125
Serial Ports: 1x RS485, 1x RS232
9126
Ethernet: 1x Ethernet RJ-45 10/100 Ethernet connection.
9127
USB: 3 x USB 2.0 Connector
9128
IR Remote: 1x IR sensor at front of unit
9129
WEIGHTS & MEASURES
Dimensions: 42mm (H) x 205mm (W) x 143mm (D)
Weight: 1.14 kg (2.51 lbs)
9130
POWER SUPPLY
120, 40W, External Power Supply
9131
TEMPERATURE RANGE
Operating Temperature: 6oC to 40oC
Relative humidity: 10% - 85% Non-condensing
9132
WARRANTY
1 year + 1 year extended warranty upon registering the unit
9133
* H.264 support available in a software release shortly after product launch
Model Code Description
9134
DM/ECO4/USB 4Ch DVR 100pps CIF, No HDD, SVGA, USB
DM/ECO4/500 4Ch DVR 100pps CIF, 500GB, SVGA, USB
