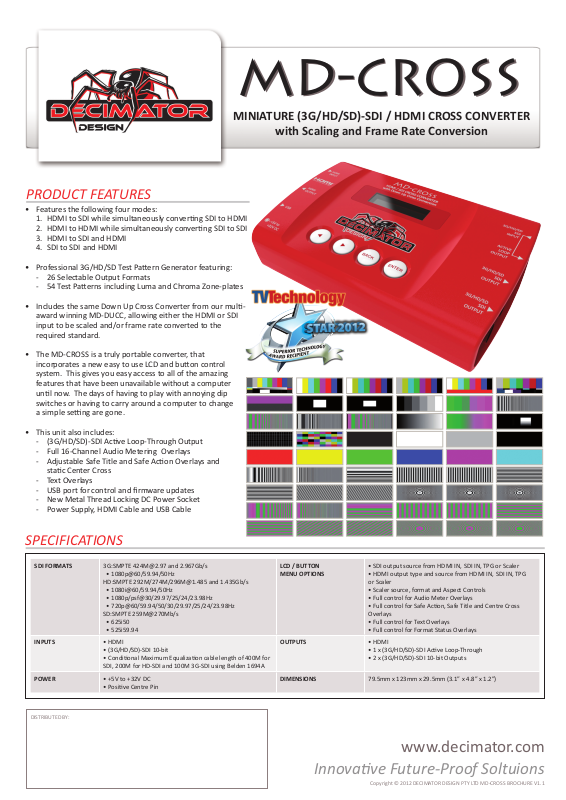

MD-CROSS
MINIATURE (3G/HD/SD)-SDI / HDMI CROSS CONVERTER with Scaling and Frame Rate Conversion
PRODUCT FEATURES
•Features the following four modes:
1.HDMI to SDI while simultaneously converting SDI to HDMI
2.HDMI to HDMI while simultaneously converting SDI to SDI
3.HDMI to SDI and HDMI
4.SDI to SDI and HDMI
•Professional 3G/HD/SD Test Pattern Generator featuring: - 26 Selectable Output Formats
- 54 Test Patterns including Luma and Chroma Zone-plates
•Includes the same Down Up Cross Converter from our multiaward winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
•The MD-CROSS is a truly portable converter, that
incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.
• This unit also includes:
- (3G/HD/SD)-SDI Active Loop-Through Output
- Full 16-Channel Audio Metering Overlays
-Adjustable Safe Title and Safe Action Overlays and static Center Cross
-Text Overlays
-USB port for control and firmware updates
-New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
SPECIFICATIONS
SDI FORMATS |
3G:SMPTE 424M@2.97 and 2.967Gb/s |
LCD / BUTTON |
• SDI output source from HDMI IN, SDI IN, TPG or Scaler |
|
|
• 1080p@60/59.94/50Hz |
MENU OPTIONS |
• HDMI output type and source from HDMI IN, SDI IN, TPG |
|
|
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s |
|
or Scaler |
|
|
• 1080i@60/59.94/50Hz |
|
• Scaler source, format and Aspect Controls |
|
|
• 1080p/psf@30/29.97/25/24/23.98Hz |
|
• Full control for Audio Meter Overlays |
|
|
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz |
|
• Full control for Safe Action, Safe Title and Centre Cross |
|
|
SD:SMPTE 259M@270Mb/s |
|
Overlays |
|
|
• 625i50 |
|
• Full control for Text Overlays |
|
|
• 525i59.94 |
|
• Full control for Format Status Overlays |
|
INPUTS |
• HDMI |
OUTPUTS |
• HDMI |
|
|
• (3G/HD/SD)-SDI 10-bit |
|
• 1 x (3G/HD/SD)-SDI Active Loop-Through |
|
|
• Conditional Maximum Equalization cable length of 400M for |
|
• 2 x (3G/HD/SD)-SDI 10-bit Outputs |
|
|
SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A |
|
|
|
POWER |
• +5V to +32V DC |
DIMENSIONS |
79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”) |
|
|
• Positive Centre Pin |
|
|
|
|
|
|
|
|
|
|
|
|
|
DISTRIBUTED BY: |
|
|
|
|
|
|
|
|
www.decimator.com |
|
|
|
Innovative Future-Proof Soltuions |
|
|
|
|
|
Copyright © 2012 DECIMATOR DESIGN PTY LTD MD-CROSS BROCHURE V1.1 |
|
|
|
|
|
