DEAN 2424G, 1824 User Manual
24G Series Flatbottom Gas Fryers (CE)
Installation & Operation Manual
Models 1824 & 2424G
CE ONLY
*8195705*
Service Hotline 1-318-865-1711
Price: $10.00
819-5705
JUNE 2002
Please read all sections of this manual and retain for future reference.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Dean Factory Authorized Service Center (FASC) or other qualified
professional should perform installation, maintenance, and repairs. Installation, maintenance,
or repairs by unqualified personnel may void the manufacturer’s warranty. See Chapter 1 of
this manual for definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of
the country and/or region in which the appliance is installed.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and
technical procedures and may not conform to onsite management operational procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesired operation. While
this device is a verified Class A device, it has been shown to meet Class B limits.
Canada
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set
out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A
et B prescrites dans la norme NMB-003 edictee par le Ministre des Communications du Canada.
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating and
service instructions thoroughly before installing or servicing this equipment. Only qualified
service personnel may convert this appliance to use a gas other than that for which it was
originally configured. See Chapter 1 of this manual for definition of qualified service personnel.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
upon the gas line connection. Single fryers equipped with legs must be stabilized by installing
anchor straps. All fryers equipped with casters must be stabilized by installing restraining
chains. If a flexible gas line is used, an additional restraining cable must be connected at all
times when the fryer is in use.
DANGER
The front ledge of the fryer is not a step. Do not stand on the fryer. Serious injury can result
from slips or contact with the hot oil.
DANGER
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
DANGER
Instructions to be followed in the event the operator smells gas or otherwise detects a gas leak
must be posted in a prominent location. This information can be obtained from the local gas
company or gas supplier.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container
at the end of frying operations each day. Some food particles can spontaneously combust if left
soaking in certain shortening material. Additional information can be obtained in the filtration
manual included with the system.
WARNING
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Dean Service Hotline at 1-800-551-8633.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the frypot. Banging fry baskets on the strip to dislodge shortening will distort
the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for
cleaning.
IMPORTANT
Safe and satisfactory operation of Dean equipment depends upon its proper installation.
Installation MUST conform with local codes, or in the absence of local codes, to European
Community (CE) Standards.
NOTICE
The Commonwealth of Massachusetts requires any and all gas products to be installed by a
licensed plumber or pipe fitter.
24G Series Flatbottom Gas Fryers (CE)
Installation & Operation Manual
TABLE OF CONTENTS
Page #
1. INTRODUCTION 1-1
1.1 Applicability and Validity 1-1
1.2 Ordering Parts 1-1
1.3 Service Information 1-1
1.4 Safety Information 1-2
1.5 Service Personnel 1-2
2. IMPORTANT INFORMATION 2-1
2.1 Receiving and Unpacking Equipment 2-1
2.2 General 2-1
2.3 Principles of Operation 2-3
2.4 Rating Plate 2-3
2.5 Pre-Installation 2-4
2.6 Equipment Installed at High Altitudes 2-5
2.7 Air Supply and Ventilation 2-5
2.8 Conversion of Units 2-6
3. INSTALLATION INSTRUCTIONS 3-1
3.1 Installing the Fryer 3-1
3.2 Leg and Caster Installation 3-1
3.3 Leveling the Fryer 3-2
3.4 Gas Connections 3-4
3.5 Adjustments/Adaptation to Different Gases 3-8
3.6 Gas Inputs 3-8
3.7 Gas Conversion Procedures 3-10
3.8 Gas Conversion Components 3-11
3.9 Electrical Connections 3-12
24G Series Flatbottom Gas Fryers (CE)
Installation & Operation Manual
TABLE OF CONTENTS (CONT.)
Page #
4. FRYER OPERATIONS 4-1
4.1 Initial Start-up 4-1
4.2 Boil-Out Procedure 4-3
4.3 Final Preparation 4-6
5. THERMATRON OPERATION 5-1
5.1 Operating Fryers with Thermatron Controllers 5-1
6. PREVENTATIVE MAINTENANCE 6-1
6.1 General 6-1
7. TROUBLESHOOTING 7-1
7.1 Pilot Burner Malfunction 7-1
7.2 Main Burner Malfunctions 7-2
7.3 Thermatron Calibration 7-3

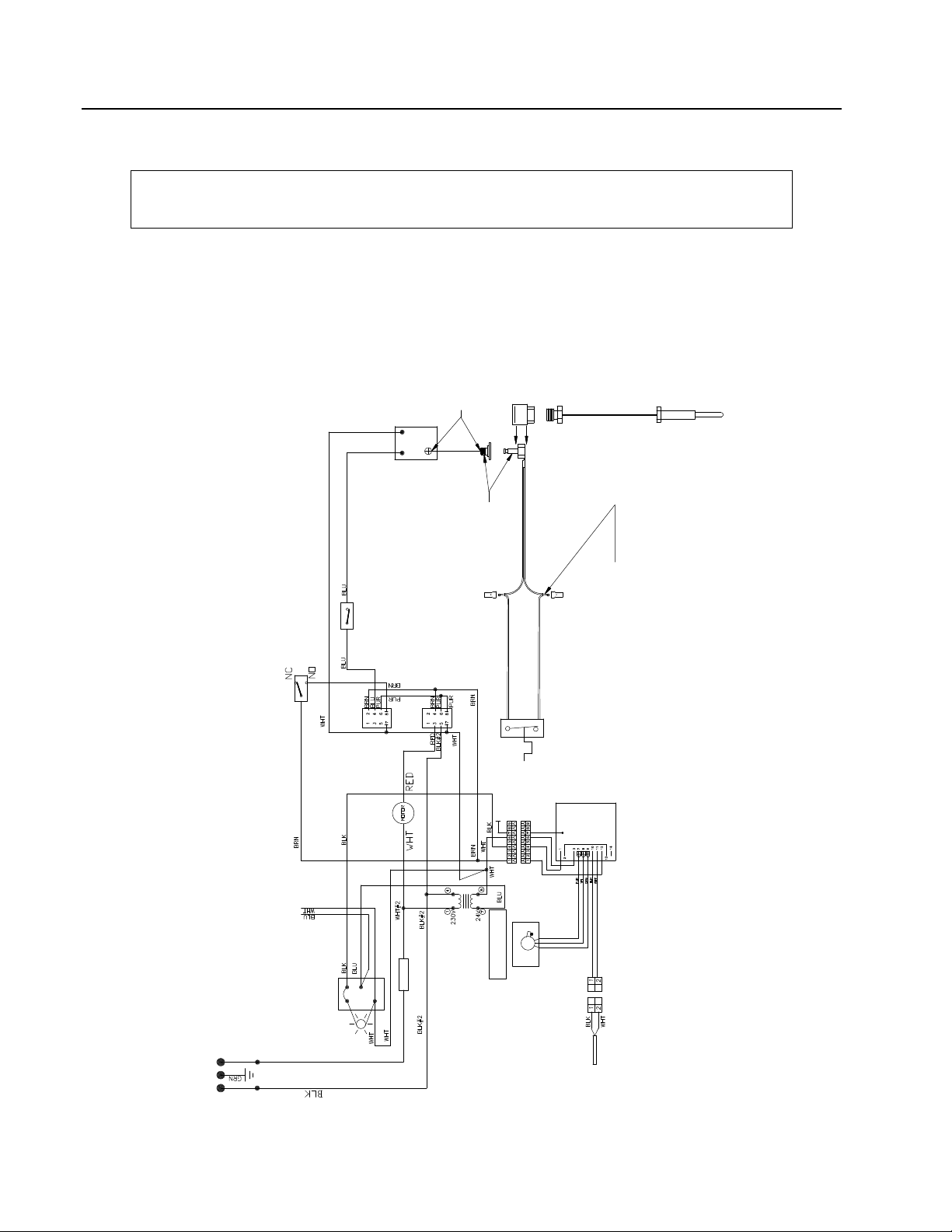

7.4 Wiring Diagrams 7-4
7.5 Recommended Spare Parts 7-6
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 1: INTRODUCTION
1.1 Applicability and Validity
The Dean 24G Series Flatbottom gas model family has been approved by the European Union
(EU) for sale and installation in the following EU countries: AT, BE, KE, KD, ES, FI, FR, GB,
IE, IT, LU, NL, NO, PT and SE.
This manual is applicable to and valid for all Dean 24G Flatbottom gas units sold in Englishspeaking countries, including those in the European Union. Where conflicts exist between
instructions and information in this manual and local or national codes of the country in which
the equipment is installed, installation and operation shall comply with those codes.
This appliance is only for professional use and shall be used by qualified personnel as defined
in Section 1.5.
1.2 Ordering Parts
Customers may order parts directly from their local Authorized Parts Distributor. For this address
and phone number, contact your maintenance and repair center or call the factory. The factory
address and phone numbers are on the back cover of this manual.
To speed up your order, the following information is required:
Model Number
Serial Number
Optional Equipment
Item Part Number
Quantity Needed
Type
1.3 Service Information
Call the 1-800-551-8633 or (318) 865-1711 Service Hotline number for the location of your nearest
maintenance and repair center. Always give the model and serial numbers of your fryer.
To assist you more efficiently, the following information will be needed:
Model Number
Serial Number
Optional
Equipment
Nature of Problem
Type
Additional information (i.e. cooking environment, time of day, and other pertinent
information) may be helpful in solving your service problem.
1-1
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 1: INTRODUCTION
1.4 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
CAUTION
Example of a CAUTION box.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
WARNING
Example of a WARNING box.
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to malfunction.
DANGER
Hot cooking oil causes severe burns. Never attempt to move a fryer containing hot
cooking oil or to transfer hot cooking oil from one container to another.
1.5 Service Personnel
1.5.1 Definitions
A. Qualified and/or Authorized Operating Personnel
1. Qualified/authorized operating personnel are those who have carefully read the information
in this manual and have familiarized themselves with the equipment functions, or have had
previous experience with the operation of equipment covered in this manual.
1-2
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 1: INTRODUCTION
1.5.1 Definitions (cont.)
B. Qualified Installation Personnel
1. Qualified/authorized personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had
previous experience with the operation of the equipment covered in this manual.
C. Qualified Service Personnel
1. Qualified service personnel are those who are familiar with Dean equipment and have been
authorized by Dean to perform service on Dean equipment. All authorized service
personnel are required to be equipped with a complete set of service parts manuals and stock
a minimum amount of parts for Dean equipment. A list of Dean Factory Authorized Service
Centers (FASCs) was included with the fryer when shipped from the factory. Failure to use
qualified service personnel will void the Dean warranty on your equipment.
1-3
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.1 Receiving and Unpacking Equipment
A. Check that the container is upright. Use an outward prying motion - no hammering - to remove
the carton. Unpack the fryer carefully and remove all accessories from the carton. Do not discard
or misplace accessories. They will be needed.
B. After unpacking, immediately check the equipment for visible signs of shipping damage. If
damage has occurred, contact the carrier and file the appropriate freight claims. Do not contact
the factory. Shipping damage responsibility is between the carrier and the dealer.
If your equipment arrives damaged:
1. File claim for damages immediately, regardless of extent of damage.
2. Visible loss or damage: Be sure this is noted on the freight bill or express receipt and is
signed by the person making the delivery.
3. Concealed loss or damage: If damage is unnoticed until equipment is unpacked, notify
freight company or carrier immediately, and file a concealed damage claim. The claim
should be filed within 15 days of date of delivery. Be sure to retain container for inspection.
NOTE: Dean Does Not Assume Responsibility for Damage or Loss Incurred in
C. Move the fryer to the location of installation and install legs and/or casters as described in
D. Remove all plastic skin from sides, front, and doors of the fryer(s). Failure to do this prior to
2.2 General
Transit.
Chapter 3.2.
initial fryer operation will make it very difficult to remove later.
Qualified, licensed, and/or authorized installation or service personnel only (as defined in
Section 1.5) should perform the following:
?? Installation and service on Dean equipment.
?? Conversion of this appliance from one gas type to another.
Failure to use qualified, licensed, and/or authorized installation or service personnel to install,
convert to another gas type or otherwise service this equipment will void the Dean warranty
and may result in damage to the equipment or injury to personnel.
2-1
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.2 General (cont.)
Where conflicts exist between instructions and information in this manual and local code or
national codes, or regulations, installation and operation shall comply with the codes or
regulations in force in the country in which the equipment is installed.
DANGER
Building codes prohibit a fryer with its open tank of hot oil/shortening from being installed
beside an open flame of any type, including those of broilers and ranges.
Upon arrival, inspect the fryer carefully for visible or concealed damage. (See Receiving and
Unpacking Equipment in Section 2.7.)
CAUTION
Dean appliances equipped with legs are for stationary installations. Appliances fitted with
legs must be lifted during movement to avoid damage to the appliance and bodily injury.
For moveable installations, optional equipment casters must be used. Questions? Call 1-
800-551-8633
2.2.1 Fryer Description
Dean 24G Series Flatbottom gas fryers are energy efficient, open frypot, gas-fired units. All units
are shipped completely assembled, with accessories packed inside the frypot. All units are adjusted,
tested, and inspected at the factory prior to crating for shipment.
Base units described below are designed for use in a commercial food preparation environment after
installation as outlined in this manual.
MODEL 1824G 2424G
FRYING VESSEL
Frying Area:
Oil Capacity
ENERGY REQUIREMENTS:
Gas (Nat or Pro.)
Electrical
APPROXIMATE SHIPPING WEIGHT (kg)
45.7 x 61 cm
23-35 kg
120,000 BTU/Hr
230V/50~1Ø
129 138
61 x 61 cm
33-45 kg
2-2
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.3 Principles of Operation
The frypot is constructed of welded steel with heat transfer ducting on the frypot-bottom for efficient
heating of oil without scorching.

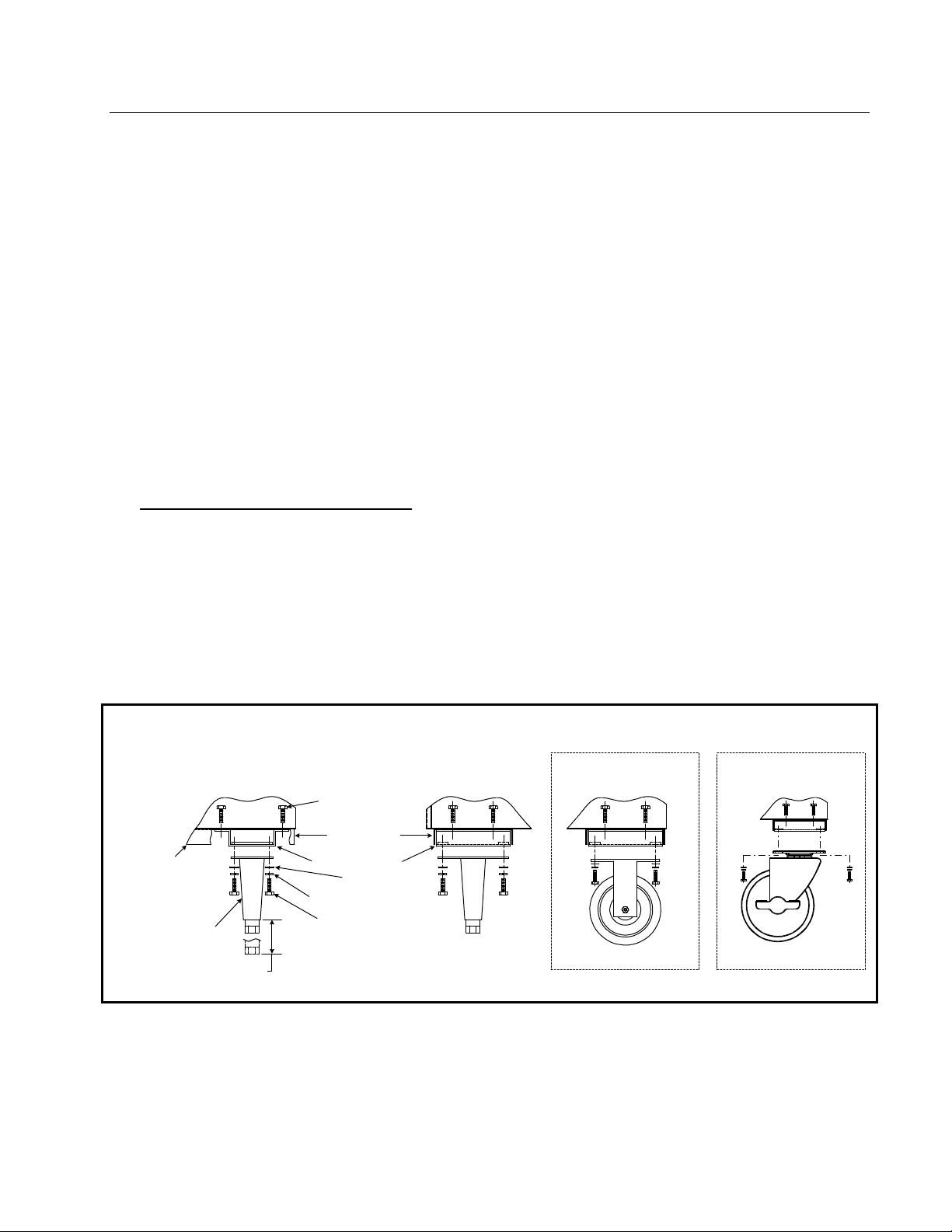

Base units come with painted cabinetry or optional stainless steel. Base units come with 15-cm (6inch) adjustable legs or optional 13-cm (5-inch) casters. Multiple units come with casters.
Dean 24G Series Flatbottom gas fryers come with an operating thermostat for reliable temperature
control. Fryers can be ordered with a Thermatron temperature controller (optional) and/or boil-out
feature (optional-only available with Thermatron controller), or a computer controller (optional).
A draft inducer draws air over the burners for combustion. Air movement directs the combustion
products back and forth across the frypot bottom by means of a set of baffles, transferring the heat
evenly across the frypot bottom. Cold air is prevented from entering the combustion chamber and
cooling the oil during the coasting cycle.
2.3.1 Automatic Safety Features
?? High oil temperature detection to shut off power to the main burners through the solenoid-
actuated gas valve.
?? Combination safety gas valve includes built-in pressure regulator and pilot safety.
?? Sail switch built into outlet duct shuts off gas to the burners in the event of blower failure.
?? Optional safety switch built into the drain valve prohibits burner ignition if the valve is not
completely closed.
2.4 Rating Plate
The rating plate can be found on the inside panel of the fryer door. Information on this plate
includes the model and serial numbers, kW/hr (BTU/hr) of the burners, outlet gas pressure in mbars
(inches W.C.), and configuration: natural or propane gas. Rating plate data is essential for proper
unit identification, communicating with the factory or requesting special parts and/or information.
The rating plate is located inside the front door panel. Information provided includes the model and
serial number of the fryer, kW/hr (BTU/hr) of the burners, outlet gas pressure in mbars (inches
W.C.) and whether the unit has natural or propane gas orifices.
DANGER
Fryers MUST be connected ONLY to the gas-type identified on the attached rating
plate.
2-3
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.5 Pre-Installation
DANGER
No structural material on the fryer should be altered or removed to accommodate
placement of the fryer under a hood. Questions? Call the Frymaster/Dean Service
Hotline at 1-800-551-8633.
DANGER
Do not connect this appliance to the gas supply before reviewing all information in
this chapter.
A. General: Only licensed personnel (as defined in Section 1.5) should install any gas-fired
equipment.
1. A manual gas shut-off valve must be installed in the gas supply line ahead of the fryers for
safety and ease of future service.
2. Dean 24G Series Flatbottom gas fryers require 230VAC and are equipped with a 16-3 SJT
power cord.
B. Clearances: The fryer area must be kept free and clear of all combustibles. This unit is design-
certified for the following installations:
1. Commercial installation only (not for household use).
2. Non-combustible floor installation equipped with factory-supplied 15 cm (6-inch) adjustable
legs or 13 cm (5-inch) casters;
3. Combustible construction with a minimum clearance of 15 cm (6-inch) side and 15 cm (6inch) rear, and equipped with factory-supplied 15 cm (6-inch) adjustable legs or 13 cm (5inch) casters.
C. Installation Standards
1. CE/EXPORT STANDARDS: Fryer installation must conform with local codes, or in the
absence of local codes, to the appropriate national or European Community (CE) standards.
2-4
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.6 Equipment Installed at High Altitudes
1. The fryer input rating (kW/hr) is for elevations up to 610 m (2,000 feet). For elevations
above 610 m (2,000 feet), the rating should be reduced 4 percent for each additional 305-m
(1,000 feet) above sea level. The correct orifices are installed at the factory if the operating
altitude is known at the time of the customer’s order.
2.7 Air Supply and Ventilation
DANGER
This appliance must be installed with sufficient ventilation to prevent the occurrence
of unacceptable concentrations of substances harmful to the health of personnel in
the room in which it is installed.
1. Keep the area around the fryer clear to prevent obstruction of combustion and ventilation
airflow.
2. Do not connect this fryer to an exhaust duct.
3. Correct installation and adjustment will ensure adequate airflow to the fryer system.
4. A commercial, heavy-duty fryer must vent its combustion wastes to the outside of the
building. A deep-fat fryer must be installed under a powered exhaust hood, or an exhaust
fan must be provided in the wall above the unit, as exhaust gas temperatures are
approximately 260-316°C (500-600°F). Check air movement during installation. Strong
exhaust fans in the exhaust hood or in the overall air conditioning system can produce slight
air drafts in the room.
5. Do not place the fryer’s flue outlet directly into the plenum of the hood, as it will affect the
gas combustion of the fryer.
6. Never use the interior of the fryer cabinet for storage or store items on shelving over or
behind the fryer. Exhaust temperatures can exceed 316°C (600°F) and may damage or melt
items stored in or near the fryer.
7. Adequate distance must be maintained from the flue outlet of the fryer(s) to the lower edge
of the exhaust filter bank. Per NFPA Standards No. 96, a minimum of 45-cm (18 inches)
should be maintained between the flue(s) and the lower edge of the exhaust hood filter.
8. Filters and drip troughs should be part of any industrial hood, but consult local codes before
constructing and installing any hood. The duct system, the exhaust hood and the filter bank
must be cleaned on a regular basis and kept free of grease.
2-5
24G SERIES FLATBOTTOM GAS FRYERS (CE)
CHAPTER 2: IMPORTANT INFORMATION
2.8 Conversion of Units
Pressure:
1 mbar = 10,2 mm W.C. = 0,4-inch W.C.
20 mbar = 204 mm W.C. = 8-inch W.C.
1-inch W.C. = 25,4 mm W.C. = 2,5 mbar
Heat Input:
1 kW = 3410 BTU/hr
100 BTU/hr = 0,0293 kW
Temperature:
0° Celsius = 32° Fahrenheit
Temperature in degrees Celsius = (Temperature in degrees Fahrenheit (F) – 32) x 0,555
100° Celsius = (212° Fahrenheit – 32) x 0,555
2-6
Loading...
