PRODUCT OVERVIEW

The dCS Delius is derived from our award winning dCS Elgar Plus, the world’s first 24/192-DSD audiophile D/A converter. Delius has been designed to closely approach the ultimate performance level of Elgar Plus, consistent with a lower

parts cost.

All dCS DACs feature our patented d CS Ring DAC technology. This unveils the intricate low level musical detail that is dCS’ hallmark.

Delius will accept digital data at 44.1kS/s from your CD player and interpolate the 16 bits, giving your CD collection a new lease of life. Delius will also convert

24 bit 96kS/s data from DVD players, revealing the increased depth and spaciousness inherent in the more complex source information. With the current

software version, Delius also has the ability to act as a master clock for your

transport, increasing the clocking precision of the overall system.

Units fitted with the IEEE 1394 interface option can convert DSD data (a single bit data stream, sampled at 2.822MS/s) from a suitably equipped Upsampler or SACD player to extra wide-band audio, taking advantage of the extended bandwidth inherent in the DSD format.

All dCS DACs use the same digital processing engine running the same DSP code. The extensive use of programmable logic makes dCS products extremely flexible and easy to upgrade. You can load updated Delius software from a dCS CD using a CD player, or dCS service agents can download software to the

SUC port, using a PC.

Manual filename: Delius Manual v2.3x.doc Page 3 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

FREDERICK DELIUS (1862 –1934)

The dCS Delius is named after Frederick Delius, the English composer. Fritz

Theodor Albert Delius was born of German parents in Bradford, Yorkshire on January 29 “Frederick” in 1902.

His father, a wool merchant, encouraged him to play the piano and violin, although he had other plans for his son’s career. After college, Fritz represented his father’s business for three years, travelling through Sweden, Norway, France and Germany. This lifestyle gave Delius an enduring cosmopolitan and romantic outlook that is reflected in his musical style.

His consuming interest in music developed, to the detriment of his responsibilities to his father’s wool business. In frustration, his father sent him to manage his orange plantation near Jacksonville, Florida, USA . Young Fritz was deeply affected by the singing of the local slaves and the beauty of the unspoilt

Florida scenery. This environment was the inspiration for his Florida Suite. He

bought a piano and concentrated on his music, at the expense of the orangegrowing business.

, 1862. He changed his name to the more English-sounding

In 1885 at the age of 23, Fritz spent a year teaching music in Danville, Virginia. The following year, he finally persuaded his father to finance his musical studies at Leipzig Conservatory, where he met and became fast friends with Edvard Grieg, the Norwegian composer.

He moved to Paris in 1888, where he found himself among kindred spirits such

as Ravel and Gauguin. His love of the city inspired him to write Paris: The Song of a Great City.

In 1897, he and German artist Jekla Rosen settled in the quiet village of Grezsur-Loing, near the forest of Fontainbleau, in France. They married seven years later. Delius’ music was brought to the British public by the conductor Sir Thomas Beecham.

The major influences on Delius’ work were the everglades of Florida, the cool green forests of northern Europe and the snowy fjords of Norway, a passion he shared with Grieg. He loved the tranquillity of the countryside, normally avoiding the bustling cities, except for his extended sojourn in Paris. His love of nature is

epitomised in pieces such as On Hearing the First Cuckoo in Spring, Brigg

Fair: an English Rhapsody, Over the Hills and Far Aw ay, In a Summer Garden, Summer Night on the River, Sea Drift and A Song Before Sunrise. His stage works include Koanga, a love story strongly influenced by

Afro-American song and dance.

During the First World War, Frederick and Jelka were forced to retreat from their idyllic Grez to take refuge in England and Norway. After the war, they returned to Grez, and his work continued apace.

In 1922, Delius displayed the first symptoms of infection with syphilis. This marked the beginning of a slow physical degeneration, leading to blindness and paralysis in his later years. His mind was undimmed by his illness, and he continued composing. Six years later, he was reduced to dictating to his assistant, composer Eric Fenby. His work during this difficult period is widely considered to be some of his best.

Manual filename: Delius Manual v2.3x.doc Page 4 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

His illness also took its toll on Jelka, the strain of caring for him ruined her health. Frederick Delius died on June 10 devoted Jelka. He was buried in Limpsfield, Surrey, England.

Recommended recordings

Delius – Orchestral Works

Florida Suite / Over the Hills and Far Away English Northern Philharmonia Naxos 553535

Delius: Paris / Brigg Fair / Eventyr / Irmelin / La Calinda

New Zealand Symphony Orchestra conducted by Myer Fredman Naxos 553001

Delius: Brigg Fair / Dance Rhapsody No.2 / Two Pieces

Conducted by Sir Thomas Beecham Angel Classics 67553

Beecham Conducts Delius

Conducted by Sir Thomas Beecham EMI CDS 7 47509 2

1934 in Grez, attended by his

Delius – Orchestral Works

EMI Classics ZDMB 5 65119 2

Manual filename: Delius Manual v2.3x.doc Page 5 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

CONTENTS

Product Overview..............................................................................................3

Frederick Delius (1862 –1934) ..........................................................................4

Recommended recordings 5

Contents.............................................................................................................6

About this Manual 9

What does the coloured text mean? 9 About Sample Rates x 9

Step-by-Step Guide .........................................................................................10

Preliminaries 10 Step 1 – Selecting a Digital Input 11

Connecting to a Single AES or SPDIF source 11 Connecting to a Dual AES Source x 11 Connecting to an IEEE 1394 DSD Source 11

Step 2 – Connecting the Analogue Outputs 12

Using a preamplifier x 12 Using a power amplifier directly x 12

Step 3 - Setting the Output Level 13 Step 4 - Using Delius in Master Mode 14 Other Settings 15

Typical Applications........................................................................................16

Using a 1394-Equipped Delius in Master Mode with Verdi 16 Using a 1394-Equipped Delius and Purcell with Verdi 17 Using a Standard Delius and Purcell with a CD Player 18

The Software – The Menu...............................................................................20

Using the Function Menu 21

Opening the Menu 21 Types of Menu Page 21 Closing the Menu 21

Menu Sequence 22

Filter – Anti-Imaging Filter Setting 22

Selecting a Filter x 22

MS – Master/Slave Operation 23

Setting to Master Mode x 23

Mute - Mute Fade Time 24 Fade – Fade Behaviour After Re-Lock 24 Dual AES – Dual AES Mode 25 Swap - Swap Channels 26 Disp - Default Display 26 Out - Output Level 26 Bright x - Display Brightness 27 Phase – Overall Phase 27 De-Emph - De-Emphasis Behaviour 27 Balance - Channel Balance Using Rotary Knob 28 Bal Mode - Balance Information Display 28 Global – Global/Local Volume 28 TimeOut – Menu Time Out Setting 29 PLL - PLL Tracking bandwidth 29 NAud - Non Audio Muting 29

Override Non-Audio Muting x 29 Disabling Non-Audio Muting x 30 Restoring Non-Audio Muting x 30

Ch.Check - Channel Check Test 30 Ph.Check - Phase Check Test 30

Manual filename: Delius Manual v2.3x.doc Page 6 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Burn In - Burn-In Signal Generation 31 Test - Display Test 32 Issue – Software Issue State 32 Temp – Unit Internal Temperature 32 Serial – Unit Serial Number 32 Contact - Contact information 32 CDUpdate – Software Update By CD 33 Factory – Restoring Factory Defaults 35 Rst Sync – Setting all Inputs to Slave Mode 35

The Hardware – Controls and Connectors ...................................................36

Front Panel 36

Key to Front Panel 36

Power Button x 36 Input Button ( Mute Button (

Status Indicator x 37 Remote Control Sensor x 37

Main Display x x 38

Input Indicator x 38

Function Button ( Rotary Control x 38

Rear Panel 39

Key to Rear Panel 39 Balanced Analogue Outputs 39 Unbalanced Analogue Outputs 40 AES/EBU Digital Inputs 40 SPDIF Digital Inputs 40

Toslink and ST Optical Inputs 40 REC Digital Output 41 1394 Interface 41 Wordclock Digital Input / Output 41 SUC 41

IEC Power Inlet 42 Mains Fuse 42 Additional Information 42

Remote Control 43

Standby Button 43 Function Button 43 Input Selector Buttons 44 Vol/Bal Button 44 Mute Button 44 Purcell Button and LED 44 Phase Button 44 Filter Button 44 Display button 44

Up and Down (

↑ / ↓) buttons 44

Step Back)36 Step)37

Select)38

Delius Technical Information...........................................................................46

Converter Type 46 Digital Interface Specifications 46 Sample Rates 47 Frequency Response (set to Filter 1) 47 Volume Control 48 Balance Control 48 De-Emphasis 48 Analogue Outputs 48 Clocking 48

Synchronising to source x 48

Power requirements 49 Size and Weight 49 Operating Conditions 49

Manual filename: Delius Manual v2.3x.doc Page 7 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

General Technical Information.......................................................................50

IEEE 1394 Overview 50

Synchronising IEEE 1394 interfaces 50 Automatic Input Selection 50

dCS IR Remote Control Codes 52

Upsampler 52 DACs 53 Transports 54

Using your dCS Delius for the first time..........................................................56

What’s in the Box? 56 Safety Notice 56 Mains Voltage Setting 57 Positioning the Unit 57

Options.............................................................................................................58

IEEE 1394 Interface 58 Mains Supply Voltage 58 Having Your Options Changed 58

Maintenance and Support...............................................................................60

Service & Maintenance 60

Obtaining Service 60

Mains Fuse 60

Replacing a Blown Fuse x 60

Fitting or Replacing the Batteries in the Remote Control 61

Opening the battery compartment and removing batteries 61 Fitting new batteries and closing the case 61

Updating your Delius 62

Software Updates x 62 Hardware Updates x 62

Safety and Electrical Safety 63 Cleaning the Case 63

Troubleshooting ..............................................................................................64

Fault Indication 64

Power interruption 64 Power up test errors 64 Non-Audio disk 64 The unit is overheating 64

Troubleshooting Guide 65

The unit fails to power up 65 The unit fails to lock to a digital audio source or displays “No Input” 65 The unit locks but the audio output is low or absent 65 The output is monophonic 65 The unit fails to respond to the controls 66 The Main Display turns on briefly when a control is operated, then turns off 66 The Left and Right channels are swapped 66 One audio output channel is low or absent 66 The sound has a peculiar tonal balance 66 Crackles or pops occur while playing music 67 Erratic operation when locked to 96 or 88.2kS/s on Toslink or ST inputs 67 The unit will not decode Dual AES 67 The unit drops out of Dual AES mode into AES1 or AES2 67 A digital recorder fails to record from the REC Output 67 The Remote Control fails to control the unit 68 While playing a DVD, a burst of noise is heard, Delius mutes and changes sample rate 68

CD Update is interrupted or fails 68 CD Update is interrupted and fails to recover 68

Troubleshooting the IEEE 1394 Interface 69

Upsampler or Transport displays “Inactive”69 The Unit keeps displaying “No Comms” 69 The Unit keeps displaying “Search..” 69 The DAC displays “Verdi Wordclock Missing” 69 The DAC displays “Missing Wordclock between Clk Out & Verdi Clk In” 69

Manual filename: Delius Manual v2.3x.doc Page 8 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

The DAC displays “Please check source slaved to DAC Wordclock Out” 69 The DAC displays “Wrong Wordclock @ Verdi Clk In” 69 The DAC remains muted 70 The DAC takes a long time to unmute 70

If You Need More Help ....................................................................................71

Other Information 71

Indexes and Software Version Numbers.......................................................72

Software History 72 Definitions and Abbreviations 73 Key to Cable Identification 74 List of Tables 75 List of Figures 75 Keywords and Phrases 76

About this Manual

If you have not used a Delius before, please read the section “Using your dCS Delius for the first time” on page 56.

This manual has been arranged with the most commonly used sections placed first:

• table of contents (page 6)

• step-by-step (page 10) and applications guides (page 16)

• detailed software and hardware information (page 20)

• technical information (page 46)

• information for first time users (page 56)

• options, maintenance and troubleshooting (page 58)

• index section (page 72)

What does the coloured text mean?

If you are reading a colour print or a soft copy of this manual, you will notice that some types of text are in colour:

• Brown text in bold is a reference to another section or page. Sometimes, if

you are reading a soft copy of the manual, page numbers are hyperlinks – click on them and you will go there.

• Blue text is used for controls and connectors, described in the hardware

section.

White text in bold on black is used for alternative control functions, such

•

as menu operation.

• Pink text is a menu page or setting.

• Green text in bold shows what appears on the display.

• Purple text in bold is used for indicators.

IMPORTANT! Important information is presented like th is - ignoring this may cause yo u to

damage the unit, or invalidate the warranty.

The manual is designed to be helpful. If there are points you feel we could cover better, or that we have missed out - please tell us.

About Sample Rates x

All references to sample rates in this manual use the unit kS/s (kilo Samples per second) rather than the technically incorrect kHz.

Manual filename: Delius Manual v2.3x.doc Page 9 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

STEP-BY-STEP GUIDE

This section guides you through setting up the unit for basic operation. You may

find this useful if you have not used the Delius for a while.

Preliminaries

The Control Summary sheet details the menu structure and outlines the use of

the front panel controls. For more information, see the Menu section on page

20.

For digital interfaces, use with cables designed for digital audio:

• for AES/EBU interfaces use 110Ω screened, twisted pair cables fitted with

one male XLR connector and one female XLR connector.

• for SDIF, Wordclock or SPDIF BNC interfaces, use 75Ω coax cables fitted

with BNC plugs.

• for SPDIF RCA interfaces, use 75Ω coax cables fitted with RCA Phono

plugs.

• for TOSLINK optical interfaces, use Toslink fibre-optic cables.

• for IEEE 1394 interfaces, use the IEEE 1394 cable provided with the unit.

For analogue inputs / outputs, use with screened cables of the correct type:

• for balanced inputs / outputs, use screened, twisted pair cables fitted with

one male XLR connector and one female XLR connector.

• for unbalanced inputs / outputs, use coax cables fitted with RCA Phono

plugs.

do this: Connect the power cable supplied to the Power inlet on the Delius rear panel,

plug the other end into a convenient power outlet.

IMPORTANT! Please do not use an excessively thick power cable as this may damage the

power inlet connector.

do this: Press the Power button and wait about 30 seconds while Delius configures

itself.

The display will show in sequence: Delius, Testing ... and No Input.

If the unit is likely to be set in an unfamiliar state, you can reset it as follows:

do this: Press the Function button once, then press the Input button repeatedly until

the display shows Factory. Press the

reboots.

The PWR, MUTE and one of the input indicators will be lit.

Select button and wait while the unit

Manual filename: Delius Manual v2.3x.doc Page 10 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Step 1 – Selecting a Digital Input

Switch on the source equipment. If appropriate, load a disk / tape and set the machine in PLAY mode to ensure it is generating a digital audio data stream.

Choose one of the following three sections:

Connecting to a Single AES or SPDIF source

Most source equipment (such as CD transports, DVD players) is fitted with a single wire digital output, usually on an RCA phono connector.

do this: Connect your source equipment to the matching input on the Delius rear panel

using a suitable cable.

do this: Press the Input button repeatedly until your chosen input is displayed on the

input indicator, to the right of the display. This will be either AES 1, AES 2,

RCA1, RCA2, TOS, or BNC.

The unit will lock to the source, displaying in sequence Locking, d xxx (the sample rate) then the default display (probably 16/44, depending on the Disp

menu setting and the source format).

Connecting to a Dual AES Source x

do this: Check that your source equipment is capable of Dual AES operation. do this: Connect the AES 1 (or AES A) output on your source equipment to the AES 1

input on the Delius rear panel and the AES 2 (or AES B) output to the AES 2

input, using two XLR cables. Ensure the cables are not swapped.

do this: Press the Input button repeatedly until both AES 1 and AES 2 input indicators

are lit.

The unit will lock to the source, displaying in sequence Locking, d xxx (the BASE sample rate) then the default display (probably 24/192 depending on the

Disp menu setting and the source format).

Connecting to an IEEE 1394 DSD Source

(This section applies to units fitted with the IEEE 1394 interface option.)

do this: Check that your source equipment (probably an SACD player or a dCS

Upsampler) is capable of DSD operation over a 1394 link, generates a 44.1kHz wordclock and is set up correctly.

do this: Connect one 1394 output on your source equipment to one 1394 input on the

Delius rear panel. Also connect the wordclock output on your source equipment to the Wordclock In connector on the Delius rear panel.

do this: Press the Input button repeatedly until the 1394 input indicator is lit.

The unit may display Wait ..., No-WClk or Search.. messages before finally settling down to the source name (probably Purcell or Verdi). If necessary, use the Input button to select the 1394 source you want to listen to. You may find Delius settles more quickly if you set it to 1394 mode before setting the source

to DSD mode (or switching the source on).

do this: Proceed to Step 2.

Manual filename: Delius Manual v2.3x.doc Page 11 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Step 2 – Connecting the Analogue Outputs

Choose one of the following two sections:

Using a preamplifier x

do this: Set the preamplifier volume control to minimum. do this: Connect either the balanced (XLR connectors) or unbalanced (RCA phono

connectors) outputs on Delius rear panel to matching line level inputs on your

preamplifier (probably labelled CD or AUX).

do this: Turn Delius rotary control clockwise to set the Volume to maximum (Vol 0.0 on

the display).

do this: Slowly increase the preamplifier volume until the music is at the right level.

Using a power amplifier directly x

do this: Turn Delius rotary control counter-clockwise to set the Volume to minimum

(Vol -60.0 on the display).

do this: Connect either the balanced (XLR connectors) or unbalanced (RCA phono

connectors) outputs on Delius rear panel to matching inputs on your power

amplifier. Switch on the power amplifier.

do this: Turn Delius rotary control slowly clockwise until the music is at the right level.

A basic setup with a CD player is shown in Figure 1.

do this: Proceed to Step 3.

DIGITAL OUT

16 bit

44.1kS/s

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

L R

Balanced

Outputs

To Power Amplifier or Preamplifier

WORDCLOCK

AES1 AES2

R RCA2

R L

Unbalanced

- or Outputs

PUSH

RCA1

PUSH

Hand Crafted by

The Red Hot CD Player Co.

DIGITAL OUT

BNC

TOSLINK

REC

IN - WORDCLOCK - OUT

SUC

1394

Figure 1 – Basic setup with a CD player

Manual filename: Delius Manual v2.3x.doc Page 12 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Step 3 - Setting the Output Level

If the preamplifier volume setting for a comfortable listening level is too high or

too low, you may need to change the Output Level setting. Similarly, if you are driving a power amplifier directly and Delius Volume setting for a comfortable

listening level is higher than –10.0 or lower than –20.0 try changing the Output

Level setting.

IMPORTANT! Do not play music at a high level while changing the Output Level setting.

do this: Press the Function button once, then press the Mute button repeatedly until

the display shows Out:2V or Out:6V. If the Volume setting is too high, press the Select button to change to Out:2V. If the Volume setting is too low, press

Select button to change to Out:6V.

the

Manual filename: Delius Manual v2.3x.doc Page 13 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Step 4 - Using Delius in Master Mode

If your CD transport (or other source equipment sampling at 44.1kS/s) has a

Wordclock input, you can reduce the jitter in your system by using Delius in

Master mode and slaving the source to it. If not, you can miss out this step.

IMPORTANT! You can only use Master Mode if your source sample rate is 44.1kS/s.

do this: Connect Delius Wordclo ck Out connector to the wordclock input on the source

equipment. You may need to set the source equipment to slave to wordclock.

do this: Press the Function button to open the menu, then repeatedly press the Mute

button until the display shows MS:Slav. Press the

Select button repeatedly until

the display changes to MS:Mastr.

do this: Allow the menu to time-out.

IMPORTANT! If you are using an Upsampler, this MUST be set to convert a 44.1kS/s source

to either 44.1kS/s, 88.2kS/s, 176.4kS/s or DSD. If not, Delius will be unable to lock.

The equipment will take several seconds to re-lock and settle down, then Delius

will unmute.

A Master mode setup using a CD player is shown in Figure 2.

DIGITAL OUT

16 bit

44.1kS/s

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

L R

Balanced

Outputs

To Power Amplifier or Preamplifier

WORDCLOCK

AES1 AES2

R RCA2

PUSH

R L

Unbalanced

- or Outputs

Hand Crafted by

The Red Hot CD Player Co.

44.1kS/s

Wordclock

DIGITAL OUT

BNC

RCA1

PUSH

TOSLINK

REC

IN - WORDCLOCK - OUT

Figure 2 – Using Master Mode with a CD player

SUC

1394

Manual filename: Delius Manual v2.3x.doc Page 14 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Other Settings

The basic set-up procedure is complete.

Many more features are available through the Menu. See the Menu section

starting on page 20 for more information.

Manual filename: Delius Manual v2.3x.doc Page 15 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

TYPICAL APPLICATIONS

Using a 1394-Equipped Delius in Master Mode with Verdi

This setup allows you to play SACDs through the 1394 interface and CDs through the AES1 interface, with Delius in Master Mode.

dCS Verdi SACD Transport

CAUTION: VI SIBLE AND INVISIB LE LASER RADIATION. WHEN OPEN,

DO NOT STARE INTO BEAM.

AES 2 AES 3

AES 1

XLR

cable

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

XLR

AES1 AES2

cables

Balanced

Outputs

- or -

Unbalanced

Outputs

To Power Amplifier or Preamplifier

Figure 3 – Using Delius in Master Mode with Verdi

RCA TOSLINK

BNC ST

PUSH

RCA phono

cables

CLASS 1

LASER PRODUCT

SDIF

IN - WORD C L OCK - OUT

CH2

CH1

BNC

cable

DIGITAL OUT

REC

BNC

RCA1

IN - WORDCLOCK - OUT

TOSLINK

RCA2

1394

SUC

1394

cable

SUC

dCS Delius DAC

Connect up as shown above.

do this: Open Delius’ menu and run the Factory routine. Use the Input button to select

the AES 1 input. Set the MS page to MS:Mastr and wait for the unit to settle.

do this: Use the Input button to select the 1394 input wait for the unit to settle. Set the

MS menu page to MS:Mastr and wait for the unit to settle again.

do this: Use the Input button to select the AES1 input for playing CDs or the 1394

interface for playing SACDs.

Verdi v1.2x with Delius v2.2x will automatically select the right input.

do this: Use the Volume control to set a comfortable listening level. Open the menu

again and choose a different Filter if you wish.

Manual filename: Delius Manual v2.3x.doc Page 16 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Using a 1394-Equipped Delius and Purcell with Verdi

This setup allows you to play SACDs and CDs through the 1394 interface, upsampling the CDs to DSD with a Purcell. Delius is in Master Mode.

dCS Verdi SACD T ran sport

CAUTION: VI SIBLE AND INVISI BLE LASER RADIATION. WHEN OPEN,

DO NOT STARE INTO BEAM.

TOSLINK

CH1

SDIF

IN - WORD C LOCK - OU T

BNC

IN - WORD C L OCK - OUT

BNC

cable

DIGITAL OUT

REC

RCA TOSLINK

AES 1

AES 2 AES 3

BNC ST

XLR

cable

DIGITAL INPUTS DIGITAL OUTPUTS POWER

RCA

AES RCA

PUSH

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

XLR

BNC

TOSLINK

cables

- or -

Unbalanced

Balanced

Outputs

WORDCLOCK

AES1 AES2

PUSH

RCA phono

Outputs

OUT

PUSH

cables

AES1 AES2

RCA1

RCA2

To Power Amplifier or Preamplifier

CLASS 1

LASER PRODUCT

CH2

1394

OPTION

1394

SUC

1394 cable

SUC

1394

cable

SUC

dCS Purcell Upsamp ler

dCS Delius DAC

Figure 4 - Using Delius in Master Mode with Verdi and Purcell

do this: Connect up as shown above. do this: Open Delius’ and Purcell’s menu and run the Factory routines.

Purcell set-up:

do this: Use the Input button to select the AES 1 input. Use the Output button to select

44.1→→→→DSD.

Delius set-up:

do this: Use the Input button to select the 1394 input wait for the unit to settle. Set the

MS menu page to MS:Mastr and wait for the unit to settle again. Use the Input

button to select either the SACD feed (Verdi) or the upsampled CD feed (Purcell).

Verdi v1.2x with Delius v2.2x will automatically select the active input.

do this: Use the Volume control to set a comfortable listening level. Open the menu

again and choose a different Filter if you wish.

Manual filename: Delius Manual v2.3x.doc Page 17 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Using a Standard Delius and Purcell with a CD Player

If your Delius and Purcell are not 1394-equipped, you can still upsample the

output from a standard CD player to 24 bit 192kS/s.

DIGITAL OUT

WORD CLK IN

16 bits

44.1kS/s

DIGITAL INPUTS DIGITAL OUTPUTS POWER

RCA

AES RCA

PUSH

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

L R

Balanced

Outputs

ST A B

BNC

TOSLINK

R RCA2

R L

Unbalanced

- or -

WORDCLOCK

AES1 AES2

PUSH

Outputs

OUT

To Power Amplifier or Preamplifier

PUSH

Hand Crafted by

The Red Hot CD Player Co.

AES1 AES2

24 bits

192kS/s

RCA1

TOSLINK

BNC

IN - WORDCLOCK - OUT

DIGITAL OUT

REC

OPTION

1394

dCS Purcell Upsampler

SUC

1394

dCS Delius DAC

SUC

Figure 5 – Using Delius with Purcell and a CD player

do this: Connect up as shown above.

Purcell setup:

do this: Open the menu and run the Factory routine. You can connect any of Purcell’s

digital inputs to the CD player - use Purcell’s Input button to select it. Use the

Output button to set the 44.1→→→→192 conversion.

Delius setup:

do this: Open the menu, run the Factory and RstSync routines. Use the Input button to

select AES 1 AND AES 2 inputs. Use the Volume control to set a comfortable listening level. Open the menu again and choose a different Filter if you wish.

Manual filename: Delius Manual v2.3x.doc Page 18 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Manual filename: Delius Manual v2.3x.doc Page 19 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x

dCS Ltd September 2004

THE SOFTWARE – THE MENU

Press "Fun ction St ep >" t o mov e along t he Menu, press "< Function Step" t o mov e back. Press "Function Select" to set a menu option or change options.

Menu Filter x Master/Slave Mute: Fade Dual AES

First pa ge of t he

Select s an optio nal

filter if av ailable

Filter 1 MS:Mast Mute:Nor Fade:On Off Filter 2 MS:Slav Mute:Fst Fade:Off On

.... MS:Sync Mute:Slw Auto

Filter n Lock

Changes the

behaviour of the

selected input

Sets the Mute fade-

out rate

De Emph Phase Bright x Out Disp Swap

Sets the

DeEmphasi s curv e

(32 - 48kS/s)

Off Phse:Nor Bright 7 Out: 2V Disp:Vol Swap:Off

Auto Phse:Inv .... Out: 6V Disp:Fs Swap:On

50/15us Bright 0 Disp:Fs+

CCITT Disp:Inp

Changes the out put

phase for b oth

channels

Sets the display

brightne ss

Sets the analogue

output levels

Audio fades up

during un muting

after relock

Sets the default

display

Enables Dual AES

operati on

Reverse the Left

and Right outputs

Balance Bal mode Global TimeOut PLL NAud

Allows Balance

adjustm ent by

rotary control

Sets the ba lance

display mode

Bal:Bar Vol:Glob Normal PLL:Fine NAud:Mut

Bal:Num Vol:Inp Long PLL:W ide NAud:I gn

Stores global or

input-related

settings

Sets the Function

Menu time-out

delay

Sets the PLL

tracki ng bandwidt h

Control s muti ng when receivin audio data (e.g. CD

Use with care!

Temp Issue Test Burn In Ph.Check Ch.Check

Displays the

internal

temper ature

Celsius 2.3x

Fahrenhe it Db 2.06

Displays the

software version

number

Runs a display test

routine

Outputs modulated

pink noise to burn-

in your system

CAUTION! LOUD!

Outputs n oise on

both chann els then

inverts R

Outputs tone on L

channel onl

Serial Contact CDUpdate Factory Rst Sync End

Displays the unit

full serial numb er

DEL-?-?-?-?-?

Displays dCS email

address

= feature is not available in DSD mode

update from a dCS

Starts software

Restores stan dard

factory settings

Resets all inputs to

Slav e mode

Closes the F uncti on

ROM)

then R

channel only

non

Figure 6 – Function Menu flow chart

Manual filename: Delius Manual v2.3x.doc Page 20 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Using the Function Menu

The Function Menu gives the user access to a wide range of additional features. It also allows new features and performance enhancements to be added at a later date by software upgrades.

Opening the Menu

The Function Menu is controlled by three buttons:

Types of Menu Page

• the Function button opens the menu and doubles as the

Select button.

• the Step →→→→ button pages forward through the Menu – referred to in the text

as the

Step button.

• the ←←←← Step button pages backward through the Menu – referred to in the

text as the

Step Back button.

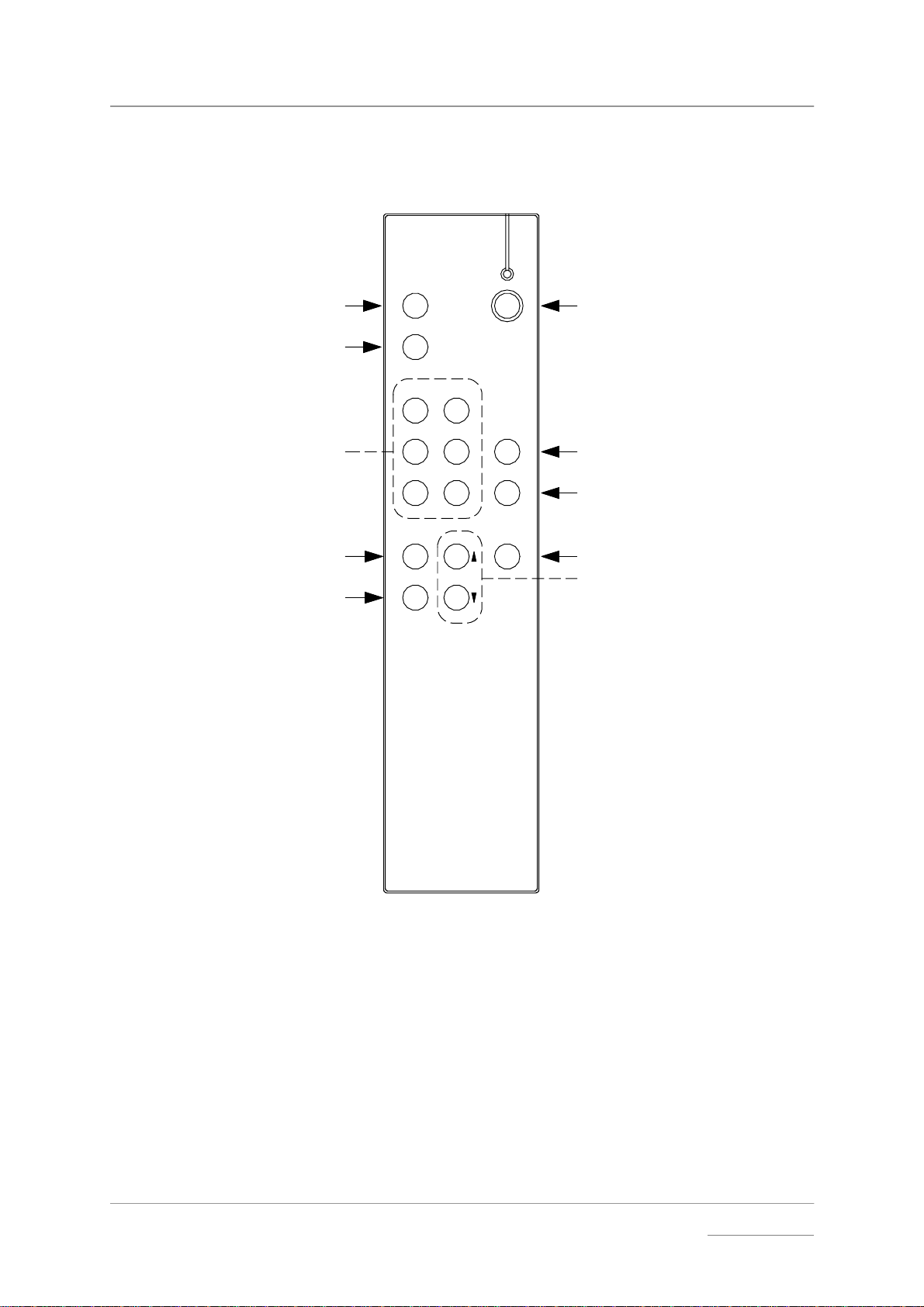

If you have a dCS Remote Control, you can use this to access the menu:

• the Function button opens the Menu and doubles as the

• the ↑↑↑↑ button pages forward through the Menu - the

• the ↓↓↓↓ button pages backward through the Menu - the

Select button.

Step button.

Step Back button.

• to control an Upsampler instead of a DAC, first press the Purcell button to

turn the blue LED on.

When you first open the Function Menu, the display will show Menu.

Successive presses of the

Step button page through the Menu. You cannot go

directly to any particular page, but must enter at the top of the Menu and then page through until you reach the page you want.

There are three types of page in the Menu - Parameter Pages, Information Pages and Test Pages.

Parameter pages allow the user to check and also change the current settings

of the operating parameters, for example Filter. When a parameter page is

displayed, the first press of the Subsequent presses of the

Select button change the page setting.

Select button shows the current setting.

Information pages display information about the unit, for example Software

Issue. When an information page is displayed, pressing the

Select button

displays the information held on that page.

Test pages allow the user to initiate a number of useful routines, for example

Channel Chec k. When a Test page is displayed, pressing the

Select button

starts the test routine.

Closing the Menu

There are two ways to close the menu and return to normal operation. The easiest way is to wait 5 seconds for the unit to time-out and revert to the standard display. Alternatively, use the

display shows End and then press the

Step button to page forward until the

Select button once.

If the unit times out before the operation in hand has been completed, simply reenter the menu, page forward (or backward) and continue where you left off. If you find the 5 second time-out difficult to use, you can extend it to 30 seconds

by changing the TimeOut setting to Long.

Manual filename: Delius Manual v2.3x.doc Page 21 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Menu Sequence

Use the flow chart (page 20) or the Control Summary sheet to guide you

through the Menu more quickly.

The following explanation deals with the Function Menu pages in the sequence they occur in the Menu with the last operation being closing the Menu. After you have become more familiar with the Menu, you will find it more convenient to perform all the Function Menu operations in one go before finally closing the Menu.

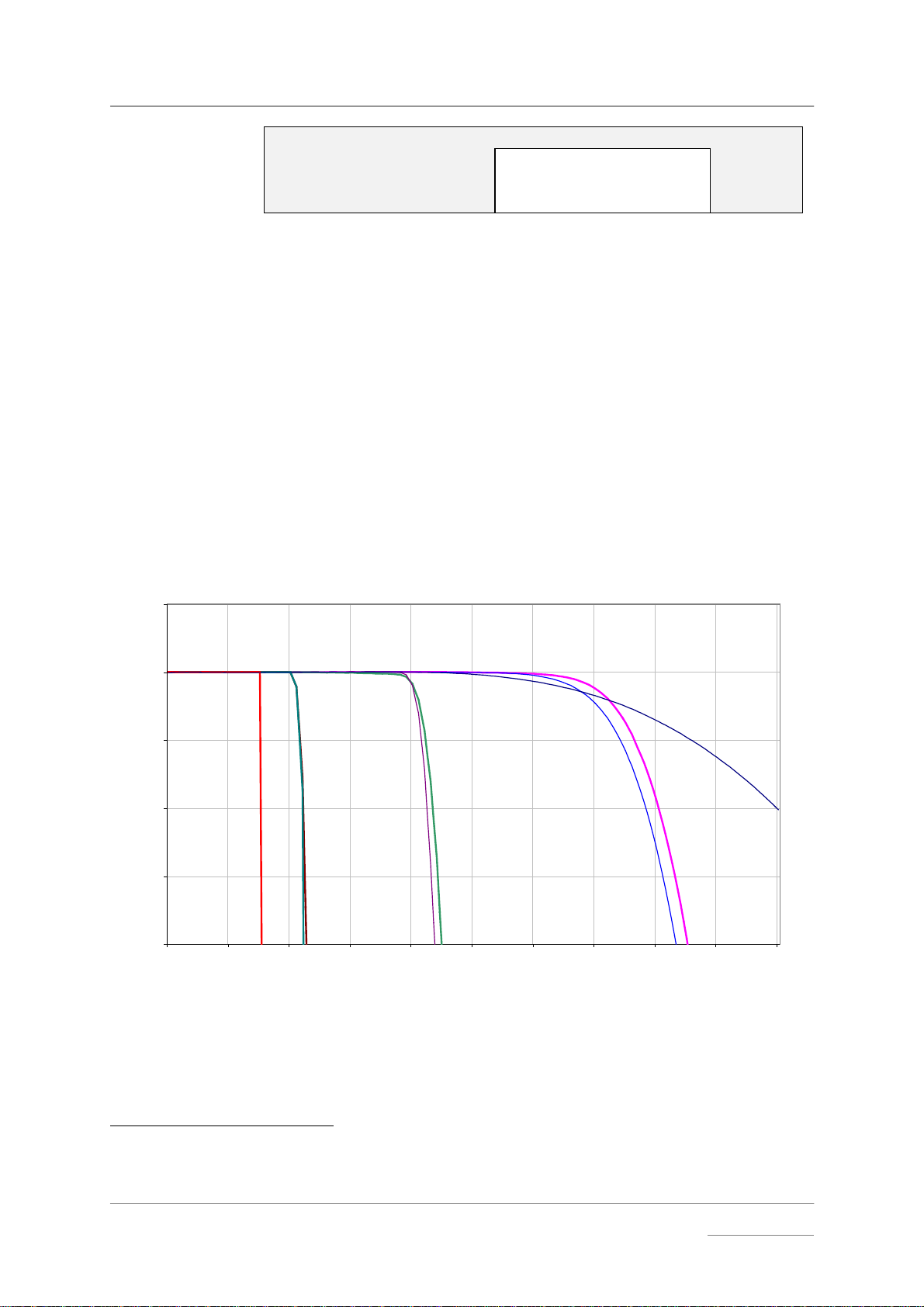

Filter

Filter – Anti-Imaging Filter Setting

FilterFilter

Delius offers a choice of 4 interpolation filters for 5 sample rates (32kS/s,

44.1kS/s, 48kS/s, 88.2kS/s and 96kS/s) and 6 for two (192kS/s and 176.4kS/s). The filters offer differing responses. In each case, Filters 1-4 are symmetrical filters (with time response before a transition the mirror image of time response

after). Filter 1 offers the sharpest cut-off, least Nyquist imaging but longest energy smear. F ilter 4 gives the gentlest roll-off (usually with significant Nyquist imaging) but the shortest transient response with least energy smear. Filter 5 is a Gaussian filter, and Filter 6 is an asymmetrical filter – there is almost no time

response prior to the initial step.

For units fitted with a 1394 interface, DSD mode also offers four filters, but

these are intended to progressively reduce the out-of-band noise level. Filter 1

generally gives the widest bandwidth, but results are system dependent – if

your system gives undesirable effects with Filter 1, try (in this order) Filter 2 then Filter 3 then Filter 4. These reduce the out-of-band energy at the expense of reduced bandwidth. Filter 4 is really intended for metering

applications, not for listening.

. The use of each page is shown on an individual basis,

Delius remembers the last filter selection made for every sample rate. So, if you choose Filter 4 for 96kS/s and Filter 6 for 192kS/s, these separate settings will

be stored and loaded when the incoming sample rate changes (usually when selecting a different input or changing the Upsampler settings).

Selecting a Filter x

We encourage you to experiment with the filters, to find the one that sounds best for your particular application. Do not assume that one filter is best for all applications!

do this: Assume for the purpose of this illustration that the sample rate is 96kS/s and

Filter is currently set to Filter 1. Open the Function Menu and step through

until the display shows Filter 1.

A minor software update may change the order of the menu items or add an option. If this happens, the

Control Summary sheet may be updated before the manual.

The reports we receive from users suggest that Filter 2 is well suited to some classical music, and that Filters

3 and sometimes 4 suit rock. Filters 5 and 6 are too new to have reports on, although the user may wish to refer to “Effects in High Sample Rate Audio Material”, by M.J.Story, R.Kelly, D.A.McLeod, M.N.Harris, presented at the 20 dCS web-site.

Tonmeister Tagung at Karlsruhe in November 1998. This paper is available from the

Manual filename: Delius Manual v2.3x.doc Page 22 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

do this: Press the Select button slowly several times. The display will in turn show:

Filter 2, Filter 3, ... and finally Filter 1 again. Select the filter you want to use

then wait for the Function Menu to time-out.

There is a slight delay whilst the unit changes filters, during which it will not respond to further button presses. Selecting the most appropriate filter is simply a matter of flipping through the options as you play a CD and choosing the one that you think sounds best. Try listening for changes in imaging, ambience and low level information, bass definition and vocal clarity.

You can change filters more quickly from the listening position using the Filter button on the Remote Control, see page 44.

MS – Master/Slave Operation

MSMS

This is set on a per input basis, and determines whether that input acts as a master or a slave. The options available (independently, for each input) are:

MS:Slav (Slave) In slave mode (most DACs operate in this mode)

the PLL locks to the incoming signal, and tracks it. This setting is not available in DSD mode.

MS:Mastr (Master) In master mode, Delius acts as a master clock,

and outputs an autonomous 44.1kHz clock on

Wordclock Out. This might go, for example, to a CD

transport. The CD transport output is then locked to the DAC VCXO, and the DAC only has to decode the data coming in – it knows the clock frequency.

MS:Sync In sync mode, the PLL locks to a master clock (or other

clock source) connected to Wordclock In while taking

data from the selected input. The source must also be locked to the master clock, or generating the clock. If the Wordclock is not at a standard frequency, is out of capture range or is a “superclock”, the unit will display

Locking…, Fs=??? for 1 minute, then Revert to Slav e

for 10 seconds and reset itself to MS:Slav.

There are some restrictions on master mode operation. The source (usually a

CD transport or player) must run at 44.1kS/s ONLY. Delius may be used in this

mode with an Upsampler, but the Upsampler output must be set to 44.1kS/s,

88.2kS/s, 176.4kS/s or DSD.

Setting to Master Mode x

If you wish to use master mode (we recommend this for CD transports that will accept a 44.1kHz word clock), then do the following:

do this: Connect the CD transport (or other source equipment) to Delius and select that

input.

do this: Connect Wordclock Out to the wordclock input on the CD transport. do this: Open the Menu and step through until the display shows MS: Slav. do this: Press the

Select button to change the display to MS: Mastr.

(Run through this sequence again if you want to change back to MS:Slav.)

If a source is connected and selected, Delius will display d 44.1, then MS:Mastr and 44.1kS/s alternately for about 10 seconds. After that it will enable its

outputs and is ready for listening.

Manual filename: Delius Manual v2.3x.doc Page 23 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

If you are using an Upsampler set for 176.4kS/s Dual AES output, select the

Dual AES input. The displays will then be d 88.2, then MS:Mastr and 176.4kS

alternately for about 10 seconds.

If you are using an Upsampler set for DSD output and your Delius is fitted with a 1394 interface, select the 1394 input. The displays will then be Wait…, then

MS:Mastr and 1394 alternately for about 10 seconds.

If you attempt to use a input sample rate that is not a multiple of 44.1kS/s (for example 192kS/s), the unit will detect this and the following message will scroll across the display:

“Can’t Use Input Frequency in Master Mode. Press ..... Button to Slave”

If you press the button mentioned in the scrolling message (Function for Delius,

Phase for Elgar), the selected input will be reset to Slav.

If you get stuck, use the Rst Sync menu to reset the unit.

Mute

Mute - Mute Fade Time

MuteMute

This sets the length of the fade-out time before muting and the fade-in time before unmuting.

do this: Open the Function Menu and step through until you come to the Mute page.

Press the

Select button repeatedly and the display will cycle through:

Mute:Nor Normal muting – audio fades up and down in 0.5

Mute:Fst Fast muting – audio fades up and down instantly. Mute:Slw Slow muting – audio fades up and down in 2 seconds.

do this: Choose whichever you prefer and wait for time-out.

Fade

Fade – Fade Behaviour After Re-Lock

FadeFade

This feature fades the audio signal up gradually after locking to a source or changing inputs

do this: Open the Function Menu and step through until you reach the Fade page. The

display shows Fade-Off or Fade-On.

do this: Press the

Select button to toggle between these settings and wait for time out.

With Fade set to On, the unit will take longer to respond to some commands as

nothing will change until the fade up / down is complete.

seconds.

Manual filename: Delius Manual v2.3x.doc Page 24 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Dual AES

Dual AES – Dual AES Mode

Dual AESDual AES

The Dual AES interface was developed by dCS to allow 88.2 or 96kS/s data

streams to be recorded on equipment designed for 44.1 or 48kS/s operation. It allows a stereo pair of 24/96 data to be recorded on a 4-track digital recorder. Dual AES mode has become a de-facto standard, appearing on an ever increasing array of products. Since then, we have developed the Dual AES interface further to operate at up to 192kS/s, doubling the available audio bandwidth a second time.

All dCS non-optical single-wire interfaces are capable of 24/96 operation, but

some of our audiophile customers have told us there are extra sonic improvements to be gained from using Dual AES for 24/96 instead. The reason for this is certainly not obvious – the digits appear to be the same, it is not related to jitter.

For 24/192 operation there is no choice but Dual AES. Even our high-speed single wire interfaces are not currently fast enough.

There are certain requirements for successful Dual AES operation. Obviously, the source must generate a true Dual AES data stream, not two single AES outputs. The two cables should be similar in length (less than 3m difference). The two cables must be connected the right way around or the channels will be swapped.

Changing inputs between single wire and Dual AES may cause the DAC to

default to single AES mode. To avoid this problem, the Dual AES page offers

the following four options:

Off Disables Dual AES mode for when no Dual AES capable

sources are in use.

On Allows Dual AES mode to be manually selected from the

front panel Input button (see page 36) or the Remote Control, (see page 44).

Auto Delius detects single wire or Dual AES mode from the

message flags in the data stream and sets the mode accordingly. If a Dual AES source is detected but only one wire is connected, it will lock to the source as single

AES but flash either the AES1 or AES2 indicator to warn

you that one cable is missing.

Lock If both AES 1 and AES 2 are active, selecting either AES

input in this mode forces the unit into Dual AES mode. If

only one wire is connected, the unit warns you of this by

flashing the indicator for the missing wire. Lock mode is

particularly useful when using an Upsampler – upsampling everything to 176.4 or 192kS/s Dual AES. In

this case, leave Delius set to Lock mode and select

inputs on the Upsampler.

IMPORTANT! Note that not all Dual AES capable equipment sets the message flags

correctly. If this is the case, do not use Auto mode. You can use it with confidence on dCS equipment.

do this: To select the Dual AES mode you require, open the Function Menu and step

through until the display shows Dual AES.

do this: Press the

options. When you reach the one you want, wait for the menu to time out.

Manual filename: Delius Manual v2.3x.doc Page 25 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

Select button repeatedly and the display will cycle through the

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Swap

Swap - Swap Channels

SwapSwap

If you have run the Channel Check test and decided the channels are reversed, you can swap the channels back digitally as follows.

do this: Assuming the unit is set for swap off, open the Function Menu and step through

until the display shows Swap:Off.

do this: Press the

Select button once.

The display will change to Swap:On.

do this: Run through this sequence again if you want to swap back.

The Swap setting is NOT remembered when you switch off. If your channels are

swapped, check the wiring between units and correct the error.

Disp

Disp - Default Display

DispDisp

This feature allows you to choose what Delius displays when music is playing

do this: Open the Function Menu and step through until you come to the Disp page.

Press the

Select button repeatedly and the display will cycle through the

following :

do this: Choose whichever you prefer and wait for time-out.

Out

Out - Output Level

OutOut

Disp:Vol The display reverts to Volume after time-out (e.g.

Vol -12.0).

Disp:Fs The display reverts to Sample Rate after time-out (e.g.

44.1kS/s).

Disp:Fs+ The display reverts to Input Bits + Sample Rate (format)

after time-out (e.g. 24/192). If receiving digital silence, 0

input bits will be correctly displayed.

Disp:Inp The display reverts to the selected input after time-out

(e.g. AES1).

The Analogue Output levels should be set to suit your system – there are two

levels: 6V (high) or 2V (low). The difference between the two settings is 9.5dB. For best results, Delius’ volume control should be set to no lower than –20.0 for

normal listening levels with typical music. We suggest you start with 2V and increase the level to 6V if this is inadequate.

Before changing the output level, please ensure you are not playing music at a high level – the extra 9.5dB is noticeably louder. To change the setting (starting

from 2V):

do this: Open the Function Menu and step through until the display shows Out: 2V. do this: Press the

Select button once. The display will change to Out: 6V.

do this: Run through this sequence again if you want to change back to 2V.

Manual filename: Delius Manual v2.3x.doc Page 26 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Bright x

Bright x - Display Brightness

Bright xBright x

This adjusts the brightness of the main display, with settings between 7 (brightest) and 0 (off, unless something is touched).

do this: Open the Menu and step through until the display shows Bright x, where x is a

number between 7 and 0.

do this: Press the

Select button repeatedly and the display cycles through Bright 7,

Bright 6, ......., Bright 1, Bright 0 and back to Bright 7.

After time-out, a setting of Bright 0 blanks the display unless the unit is not

locked. Operating any control or locking to a source while in this mode turns the display back on momentarily.

Phase

Phase – Overall Phase

PhasePhase

This option allows you to invert (reverse the phase of) both channels to correct a system phasing error.

do this: Assuming the unit is set for phase normal, open the Function Menu and step

through until the display shows Phse:Nor.

do this: Press the

Select button once to phase invert.

The PHSE indicator will light and the display will change to Phse:Inv.

do this: Run through this sequence again if you want to change back.

De-Emph

De-Emph - De-Emphasis Behaviour

De-EmphDe-Emph

Recording with high frequency emphasis is a hangover from the days of recording onto noisy magnetic tapes. To combat tape hiss, the high frequency part of the music was recorded at a higher level (pre-emphasis). The high frequency response was corrected at playback by a de-emphasis filter, reducing the hiss level as well. Digital radio also can use CCITT pre-emphasis, to help keep the bit rate down.

Some early CDs were recorded with 50/15µs emphasis, but more recent disks

have a flat frequency response. The emphasis used during recording is encoded in message flags, buried in the data stream. On some disks, these

flags are incorrect, resulting in a bumpy frequency response. Delius can apply

de-emphasis for sources with sample rates of 32, 44.1 or 48kS/s – it is not used for 96kS/s or SACD recordings.

The options available are:

Off Applies no de-emphasis and ignores message flags. Auto Automatically applies the de-emphasis curve indicated by

50/15us Applies 50/15µs de-emphasis curve and ignores

CCITT Applies CCITT J17 de-emphasis curve and ignores

the message flags in the data stream.

message flags.

To change the De-Emph setting, do the following:

do this: Open the Function Menu and step through until the display shows DeEmph.

Manual filename: Delius Manual v2.3x.doc Page 27 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

do this: Press the Select button repeatedly. The display will cycle through the options.

When you reach the required setting, wait for time-out or move on through the menu.

Usually, it is most convenient to use Auto mode. If the de-emphasis flag is

wrong, this can be corrected manually using the other 3 settings.

Balance

Balance - Channel Balance Using Rotary Knob

BalanceBalance

This allows you to adjust the Left / Right Balance to centre the stereo image using the Rotary Control.

do this: Open the Function Menu and step through until the display shows Balance. do this: Press the

Select button once.

The display will change to either two percentages (Left and Right levels) or a

bargraph type display, depending on the Balance Mode setting.

do this: Adjust the balance with the Rotary control.

After the Menu has timed out, the Rotary control reverts to Volume adjustment.

It is usually more convenient to adjust the Balance from the listening position using the Remote Control, see Vol/Bal button on page 44.

Bal Mode

Bal Mode - Balance Information Display

Bal ModeBal Mode

Use this to select one of two types of balance display.

do this: Open the Function Menu and step through until the display shows Bal:Bar or

Bal:Num.

do this: Press

Select to change between the two.

Bal:Bar displays the channel balance as two bars, this may be easier to read

from a distance:

▌▌▌▌▐▐▐▐ Balance Central ▌▌▌▌ Balance to left

▐▐▐▐ Balance to right

Bal:Num displays channel balance as two percentages:

100% 100% Balance central 100% 0% Balance to left 0% 100% Balance to right

Global

Global – Global/Local Volume

GlobalGlobal

Delius can store Volume settings in two ways:

• Applying the same Volume setting to all inputs (Global volume).

• Using different settings for each input (Local volume, or Input specific). This

is useful where the average loudness (and so the preferred Volume setting)

changes from source to source.

To change this setting:

do this: Open the Function Menu and step through until you reach the Vol page. The

display shows Vol:Glob or Vol:Inp.

do this: Press the

Manual filename: Delius Manual v2.3x.doc Page 28 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

Select button to choose one of these settings and wait for time out.

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

TimeOut

TimeOut – Menu Time Out Setting

TimeOutTi meOut

If you find the 5 second time out period for the menu is too short, use this option to change the time out period to 30 seconds.

do this: Open the Menu and step through until the display shows Timeout. do this: Press the do this: Press the

Select button once and the display will show Normal. Select button again and the display will change to Long.

do this: Repeat this if you want to change back.

PLL

PLL - PLL Tracking bandwidth

PLLPLL

In slave mode, the PLL (Phase Locked Loop) synchronises Delius’ internal

crystal clocks to the incoming data stream. The system runs through two different modes while locking. The final mode (fine lock) has a very narrow bandwidth which rejects jitter generated by the source. This is the normal PLL setting and gives best results with a stable source. It takes about 6 seconds to lock.

Some CD players (even some very expensive ones!) generate a high level of

jitter and this can cause Delius to intermittently lose fine lock and mute the

Analogue Outputs. This menu option forces the PLL to stay in a wide-band

mode, allowing it to track larger variations in the source sample rate. In this mode, the unit locks in less than 100 milliseconds.

To change the setting:

do this: Open the Function Menu and step through until the display shows PLL: Fine or

PLL: Wide.

do this: Press the

Select button to change between these two settings. Select PLL:Wide

if you are having locking problems.

If you are using Delius in master mode or with a Master Clock, the PLL should be set to PLL:Fine, otherwise the jitter improvement will be lost.

NAud

NAud - Non Audio Muting

NAud NAud

Delius is normally set to mute if the Non-Audio message flag in the incoming

data stream is On – identifying the source as a corrupt data stream, CD-ROM or other non-audio format.

We have found that some audio CDs actually have the Non-Audio flag set! To

listen to such disks, the automatic muting must be TEMPORARILY disabled.

IMPORTANT! Listening to a CD-ROM is very unpleasant and can cause damage to your

ears, power amplifier and loudspeakers. Use this mode with care. You should turn Non-Audio Muting back on as soon as possible – we advise you not to leave Delius in this mode.

Override Non-Audio Muting x

The most convenient way to over-ride the Non-Audio muting for individual tracks is as follows.

do this: When NonAudio is displayed, press the Mute button. Delius will play the track

normally. Press the Mute button again to mute the outputs and restore Non-

Audio muting.

The over-ride is cancelled at power down or when the unit re-locks, avoiding the risk that the unit will be left for extended periods without protection.

Manual filename: Delius Manual v2.3x.doc Page 29 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Disabling Non-Audio Muting x

If for some reason, you need to disable Non-Audio muting for longer periods, you can turn it off in the Function Menu as follows.

do this: Open the Function Menu and step through until the display shows NAud:Mut. do this: To ignore the non-audio flag, press the

Select button once and the display will

change to NAud:Ign. Delius is now set to ignore non-audio message flags – and your protection

against playing non-audio data is removed. When powered up in this mode,

“Ignoring Non-Audio Flag” scrolls across the display to warn you.

Restoring Non-Audio Muting x

To turn non-audio muting back on:

do this: Open the Function Menu and step through until the display shows NAud:Ign. do this: Press the

Ch.Check

Ch.Check - Channel Check Test

Ch.CheckCh.Check

Select button once and the display will change to NAud:Mut.

Use this feature to check if the stereo outputs on your system are swapped. It is disabled when in DSD/SACD mode.

do this: Set up your system to play music at a comfortable level. do this: Open the Menu and step through until the display shows:

Ch.Check

do this: Press the Select button once to start the test. After briefly displaying Wait, the

following sequence occurs:

Left

A modulated tone should appear on the left channel only for several seconds.

None

Both outputs are muted for a second.

Right

A modulated tone should appear on the right channel only for several seconds.

Done

This is displayed briefly at the end of the test.

If the channels are swapped, check for wiring errors from the unit output

onwards. If you correct this temporarily using the Swap function on a dCS DAC, note that the Swap setting is NOT remembered at power down.

Ph.Check

Ph.Check - Phase Check Test

Ph.CheckPh.Check

Use this feature to check if one channel in your system is phase inverted

. It is

disabled when in DSD/SACD mode.

do this: Set up your system to play music at a comfortable level.

The ear responds to positive pressure substantially more than it does to negative pressure for low

frequencies, so it is worth getting the phasing correct.

Manual filename: Delius Manual v2.3x.doc Page 30 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

do this: Open the Menu and step through until the display shows:

Ph.Check

do this: Press the Select button once to start the test.

After briefly displaying Wait, the following sequence occurs:

Normal

In-phase noise appears on both channels for several seconds.

None

Both outputs are muted for a second.

Inverted

A second burst of noise appears on both channels with the right channel inverted for several seconds.

Done

This is displayed briefly at the end of the test.

If both channels are in-phase the first burst of noise will produce a stable central image but the second burst will not. If one channel is out of phase, the second burst will produce a stable stereo image but the first will not.

If there is a phasing error, check for wiring errors from the unit output onwards.

You cannot correct this error on a dCS DAC using the Phase feature as this

inverts both channels.

Burn In

Burn In - Burn-In Signal Generation

Burn InBurn In

IMPORTANT! Read all the steps in this section before starting the System Burn-in routine.

The Burn-in routine outputs a signal at maximum volume.

IMPORTANT! This routine is NOT suitable for burning-in loudspeakers. Ensure your

loudspeakers are disconnected, or your power amplifier is switched off before starting this routine.

Use this feature to burn-in your system components with modulated pink noise. It is disabled when in DSD/SACD mode.

do this: Set up your system volume control to the usual setting. do this: Open the Menu and step through until the display shows:

Burn In

do this: Press the Select button once to start the burn-in routine.

Delius will show the warning messages Caution and Loud in the main display

for 20 seconds and then the burn-in signal will ramp-up from zero to maximum level over a period of about 10 seconds.

The display cycles through Burn in, Caution and Loud while the Burn In

routine is running.

Manual filename: Delius Manual v2.3x.doc Page 31 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

do this: To stop the Burn-in signal, press either a Step or Select button once. The

display will briefly show:

Done

Test

Test - Display Test

TestTest

This runs a test routine to ensure the display is working correctly.

do this: Open the Menu and step through until the display shows Test. do this: Press the

Select button once to start the test.

• The main display lights up then fades from bottom to top.

• The indicator LEDs light up briefly in sequence.

• All indicators light up, along with small squares on the main display. This

flashes off and on once.

• The display shows Done.

Issue

Issue – Software Issue State

IssueIssue

This displays the issue number of the software fitted to your unit. You will need to check this if you are considering a software upgrade or if your unit malfunctions.

do this: Open the Menu and step through until the display shows Issue. do this: Press the

Select button once to display the software issue.

do this: For units fitted with a 1394 interface, press the

the 1394 interface software issue.

Temp

Temp – Unit Internal Temperature

TempTemp

This displays the temperature inside the unit, close to the crystal oscillators.

do this: Open the Menu and page through until the display shows Temp. do this: Press the

Press

Serial

Serial – Unit Serial Number

SerialSerial

Select button once to display the temperature in degrees Fahrenheit.

Select again to change to degrees Celsius.

This displays the full serial number, including the hardware configuration code. We will need this information to assemble upgraded software to suit your unit.

do this: Have a pen and paper handy to note down the number. Open the Menu and

step through until the display shows Serial.

do this: Press the

Select button once and the serial number will scroll across the

display.

Contact

Contact - Contact information

ContactContact

This displays dCS’ email address and web-site URL.

Select button again to display

do this: Open the Menu and step through until the display shows Contact. do this: Press the

Select button once and the contact information will scroll across the

display.

Manual filename: Delius Manual v2.3x.doc Page 32 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

CDUpdate

CDUpdate – Software Update By CD

CDUpdateCDUpdate

Current software for dCS Elgar Plus, Elgar, Delius or Purcell and all Verdi, La Scala or Verona software features a CD U pdate menu page. You can update

the software inside any of these products loaded with CD Update software quickly and easily from a CD supplied by dCS.

IMPORTANT! Please follow the latest update instructions supplied with the CD. The

following is for guidance only.

You will need a standard CD Transport, a CD player or a dCS Verdi to play the

CD. A few CD players are not suitable because they upsample to 48kS/s or change some of the data bits in other ways (one example is the ML37). Don’t worry - the CD Update routine detects these and stops, preventing any changes to the internal software.

If you are updating a dCS Upsampler or DAC:

do this: Connect an AES or RCA digital output from the Transport to the Upsampler or

DAC and select the input you have just connected. Disconnect any 1394

interface cables.

If you are updating a dCS DAC connected to the Transport through another

device:

do this: Connect an AES or RCA digital output from the other device to the DAC and

select the input you have just connected. Set the other device to bit-for-bit mode

(Cloning on a dCS Upsampler). Disconnect any 1394 interface cables.

If in doubt, connect the DAC directly to the transport.

If you are updating a dCS Verona:

do this: Disconnect ALL cables from the unit, except the power cable. Open the Menu

on the unit to be updated and step through until the display shows CDUpdate.

do this: Make sure the transport is in STOP mode. do this: Press the do this: When the unit displays Cable, connect a BNC cable from the Ext Ref Input to a

BNC SPDIF digital output on the transport. The unit will lock to the transport,

then display Wait.

If you are updating a dCS Transport, the Transport plays the CD and updates itself, missing out some of the early steps. Disconnect any 1394 interface

cables.

For all dCS units:

do this: RELAX! The update procedure is easy. do this: Mute your power amplifier. do this: Insert a dCS CD (containing software for the unit you want to update) into the

transport, making sure it is in STOP mode.

do this: Open the Menu on the unit to be updated and step through until the display

shows CDUpdate.

do this: Press the

Select button to start the routine.

The unit will display Wait while it prepares the flash memory for the update. After 3-4 minutes, the unit will scroll P lea se St art CD .

do this: Press PLAY.

IMPORTANT! Do not press PLAY before the unit to be updated is ready. This can cause

the download to fail. Use only dCS CDs.

The unit will now inspect the CD, and will display Scanning, while it reads

administrative data.

Manual filename: Delius Manual v2.3x.doc Page 33 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

If there is anything wrong with the dCS CD that has been loaded or it does not match the product, the unit will display Wrong! or Wrong CD or No Index and

revert to normal operation. Don’t worry – the internal software is unchanged. Check the CD for dust or scratches.

If it is not a dCS CD at all, the unit will keep repeating Please Start CD, for about 30 seconds or display Wrong CD and then revert to normal operation.

If the data is correct, the unit will display Track n, where n is a number.

do this: You can move the Transport on to track n, or wait for it to get there of its own

accord.

If the unit has to wait for the right track, it will display Found Track 1, then

Found Track 2, etc, until it finds the right one. Vx.xx will appear on the display

(this is the new software issue number). If the unit displays No Track, repeat

the procedure but manually advance the transport to track n.

Next, the update progress is displayed in one of the following formats:

• The display counts up from 0% 0/7 to 99% 0/7, displays Copying, counts

up from 0% 1/7 to 99% 1/7, displays Copying and so on until the last

section is loaded and copied. Some models may use less than 8 sections.

• A moving dot counts down slowly from about 3 to 0.

After about 15 minutes, the update is complete and the unit will reboot itself.

do this: If the CD is still playing, you can stop it now. do this: If the unit being updated has a 1394 interface, wait until the unit has settled

(about 30 seconds), switch it off for 10 seconds, then on again.

If the unit detects no change in the 1394 interface code, it will boot up as usual and be ready for use.

If the 1394 interface code has been updated, the unit will load the new code into

the flash memory on the 1394 interface board – this takes about 10 minutes.

While this is taking place, the unit will display a progress bar. Next the unit will

display in sequence: Done 5, Done 4, …, Done 1 then reboot itself again.

The unit is ready for use.

OOPS! If the CD transport stops or becomes disconnected during an update, don’t

worry! The original software is backed up inside the unit. Proceed as follows:

The checking routine will find a sequencing error and Non Seq or Bad CD! will

appear on the display.

do this: Turn the power off and on to reboot. This message will scroll across the display:

Bad CheckSum – Press Function button to attempt recovery or Bad CheckSum – Press Mute button to attempt recovery or Bad CheckSum – Press Menu button to attempt recovery,

depending on the model.

do this: Press the appropriate button once.

The original software is retrieved from the internal backup while displaying

Wait... . This may take a few minutes. When recovery is complete, the unit

re-boots.

do this: Run the CD Update routine again to load the new software.

Manual filename: Delius Manual v2.3x.doc Page 34 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Factory

Factory – Restoring Factory Defaults

FactoryFactory

This feature sets most of the parameters back to the factory default settings. This can be useful if the settings are accidentally changed and you need to reset the unit to a standard configuration, or your children play with it.

do this: Open the Menu and step back until the display shows Factory. do this: Press

Select and leave the menu to time out.

After a few seconds, the unit will re-boot and return to normal operation set up as follows:

• Input to AES1. The Input selection is automatic if the unit is connected by

a 1394 cable to another dCS unit with current software.

• Filters to Filter1

• Phase to Normal

• Swap to Off

• Master/Slave to MS:Slav on all inputs

• Brightness to Bright 4

• Display to Fs+

• Mute to Off, Normal speed

• Dual AES to Auto if an Upsampler is detected, otherwise Off

• Fade to On

• De-Emphasis to Auto

• Balance to centre

• Balance display to Bal:Num

• Volume to –30, Global

• Timeout to Normal

• PLL mode to Fine

• Non-Audio to Mute

• Delius only: Output level to Out :2V

• Other settings as you last used them.

Rst Sync

Rst Sync – Setting all Inputs to Slave Mode

Rst SyncRst Sync

This feature resets the 1394 input to Sync mode and all other inputs to slave

mode. This can be useful if you have problems setting master mode, or your children play with it.

do this: Open the Menu and step through until the display shows Rst Sync. do this: Press

Select and leave the menu to time out.

The display will show Reset. After a few seconds, the unit will re-boot and

return to normal operation set up as follows:

• Master/Slave to MS:Sync on 1394 input

• Master/Slave to MS:Slav on all inputs except 1394

• Other settings as you last used them.

Manual filename: Delius Manual v2.3x.doc Page 35 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

THE HARDWARE – CONTROLS AND CONNECTORS

Front Panel

B C D F G H IE

Function

step

Key to Front Panel

A Power / Standby button B Input selector or C Mute or D Status indicator

E Remote Control sensor

F Main Display G Input indicator H Function or I Rotary control

Power Button x

This button doubles as a power on / off switch and a standby mode switch.

do this: To switch on, press the Power button briefly. If power is available, the PWR

indicator will light and Delius will run through the power up routine.

Mute

PWR

STBY

MUTE

PHSE

High Resolution Digital to Analogue Converter

dCS Delius

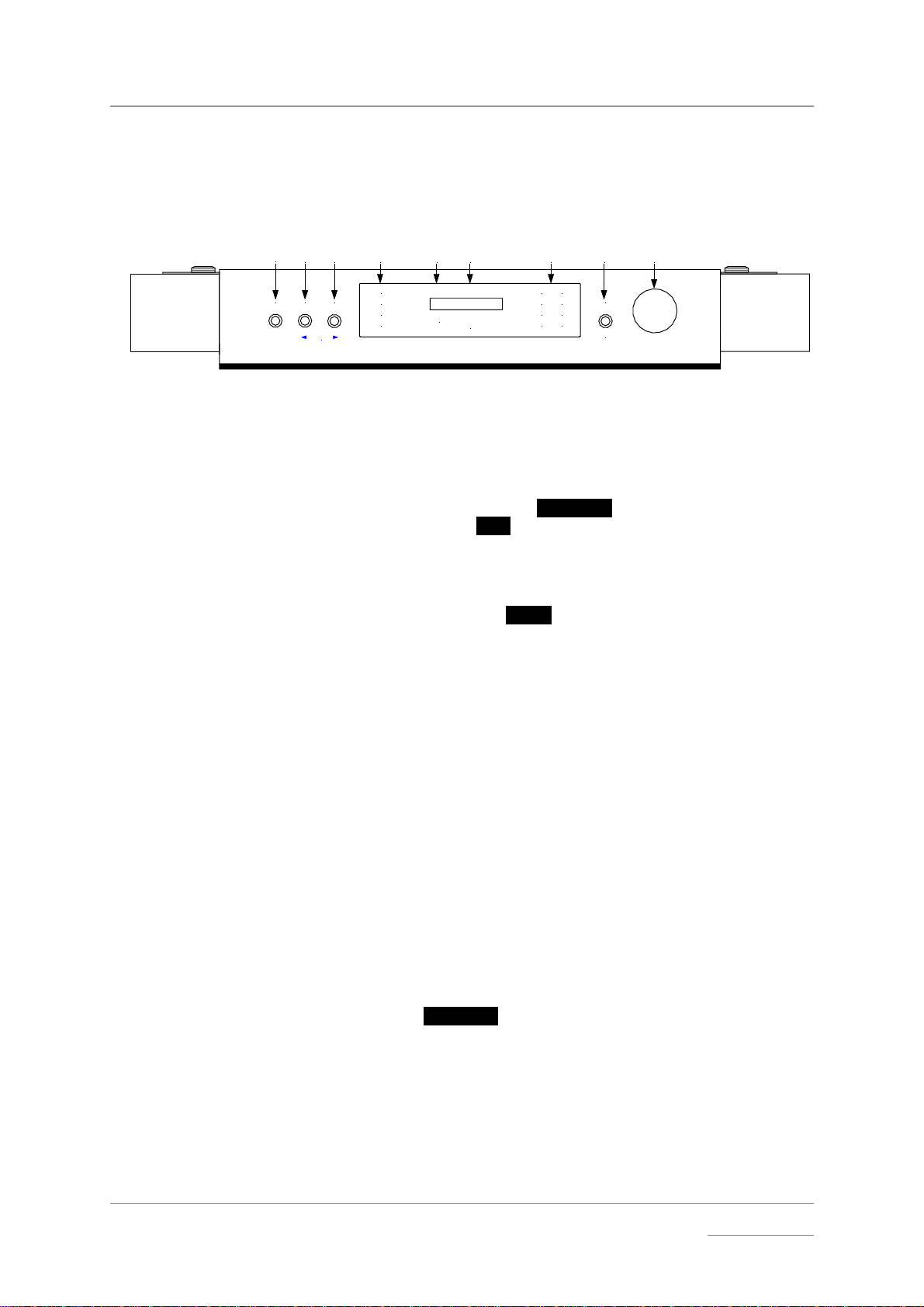

Figure 7 – dCS Delius Front Panel

Step button

Select button

AES2

AES1

RCA1

TOS

BNC

RCA2

1394

FunctionPower Input

Select

Step Back button

Note that the Power button will not click when turning power on – this is normal.

do this: When you have finished listening, press the Power button briefly to set the unit

to standby mode.

The Analogue Outputs will mute, all displays will turn off except the PWR and

STBY indicators. In this mode, Delius uses less power but stays warm.

do this: To restore normal operation, press the Power button briefly again.

The STBY indicator will turn off and Delius will power up ready for use.

do this: To switch off completely, press the Power button and hold it for a few seconds

until the Main Display shows Power Dn, then release it.

Input Button (

Step Back)

The Input button controls which digital input is selected, as shown by the Input

Indicator.

do this: Press the Input button repeatedly until the required input is shown on the Input

indicator.

Manual filename: Delius Manual v2.3x.doc Page 36 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

The choices for a standard Delius are AES1 (XLR), AES2 (XLR), Dual AES (AES 1 + AES 2 simultaneously on 2 x XLR), RCA1, RCA2, Toslink or BNC.

Dual AES is available only if both AES1 and AES2 inputs are connected to a

Dual AES source.

An IEEE 1394 interface is available as an option. Use the Input button to select

one of the sources connected to the 1394 interface.

The Input button doubles as the Menu

Step Back button, used for paging

backwards through the Function Menu (see page 21).

Mute Button (

Step)

do this: If the unit is locked to a digital source, press the Mute button to mute or unmute

the Analogue Outputs. The Mute indicator will light when the outputs are muted.

If the unit is not locked to a digital source, the Analogue Outputs are

automatically muted, the Mute indicator is lit and the Mute button has no effect.

do this: See NAud on page 29 if you need to over-ride an incorrectly set Non-Audio flag

on a disk or tape.

The Mute button doubles as the

Step button, used for paging forwards through

the Function Menu (see page 21).

Status Indicator x

This consists of 4 indicators:

• PWR is lit when power is connected and the unit is turned on.

• STBY is lit when the unit has been placed in Standby mode. The PWR

indicator will also be lit but all other indicators and controls will be inactive. The Analogue Outputs will be muted and the unit will be operating in a reduced power, “keep warm” condition. To return to normal operation, press

the Power button. If power is turned off or fails, Standby mode is cancelled.

• MUTE is lit whenever the Analogue Outputs are muted. This occurs if you

have pressed the Mute button during normal operation or if the unit is not locked to a digital source (displaying No Input). If a non-audio source such as a CD-ROM is being played, Delius will normally mute automatically to

protect your ears, power amplifier and loudspeakers.

• PHSE is lit if the phase of the Analogue Outputs has been inverted by changing the Phse setting in the Menu, see page 27.

Remote Control Sensor x

Point the end of the Remote Control unit towards the sensor for best control

range.

Manual filename: Delius Manual v2.3x.doc Page 37 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Main Display xx

The main display tells you what Delius is doing.

• When not locked to a digital source, the display shows No Input.

• During normal operation, the display will show Volume (Vol), Sample Rate

(Fs), Wordlength & Sample Rate (Fs+) or Input (Inp), depending on the setting of the Display menu option, see page 26.

• While locking to a source, the display shows in sequence Locking, followed by d xxx (detecting the base sample rate) and finally the normal display.

• When adjusting the Volume setting, the display changes to Vol -xx.x It

changes back to the normal display 5 seconds after the last change.

• When adjusting the Balance setting, the display changes to either

xxx% xxx% or a double bar. The Balance display mode is set by the Bal

item in the Menu, see page 28. The display changes back to normal 5

seconds after the last change.

• When accessing the Function Menu (see page 20), menu options are

displayed here.

• If an error occurs during power up or normal use, the details of the fault will be displayed. See “Fault Indication” on page 64.

Input Indicator x

This bank of indicators shows which digital input is selected.

For Dual AES operation, both AES1 and AES2 indicators will be lit at the same

time.

Function Button (

Press the Function button to open the Function Menu (see page 21) and

change or select settings in the menu.

Rotary Control x

This control is dual function. In normal use, it sets the Volume or Balance, but

while the menu is open, it scrolls through that. The rotary control has no end stop – it will turn continuously.

The Volume and Balance functions are implemented digitally. For best results, set the Volume to a fairly high level (say between -20.0 and -10.0) while playing

music at typical listening levels. If using a preamplifier Volume control instead,

set Delius Volume to 0.0 (maximum).

Select)

Manual filename: Delius Manual v2.3x.doc Page 38 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Rear Panel

Key to Rear Panel

ANALOGUE OUTPUTS DIGITAL INPUTS POWER

L R

Warning: Shock Haz ard - Do no t open. No u ser servicea ble parts ins ide. Designed to comply with BS415, EN6006 5, IEC65. dCS DELIUS DAC Desig ned and Manufact u red in England by dCS Ltd Caution: To avoid risk of fire replace only with same fuse type and rating 2AT. Caution: This equipment MUST be earthed.

K L M N P R

AES1 AES2

R RCA2

PUSH

RCA1

TOSLINK

O Q S T

BNC

IN - WORDCLOCK - OUT

U V W X

DIGITAL OUT

REC

Serial No.

SUC

1394

Power Supply 50/60Hz, 30W

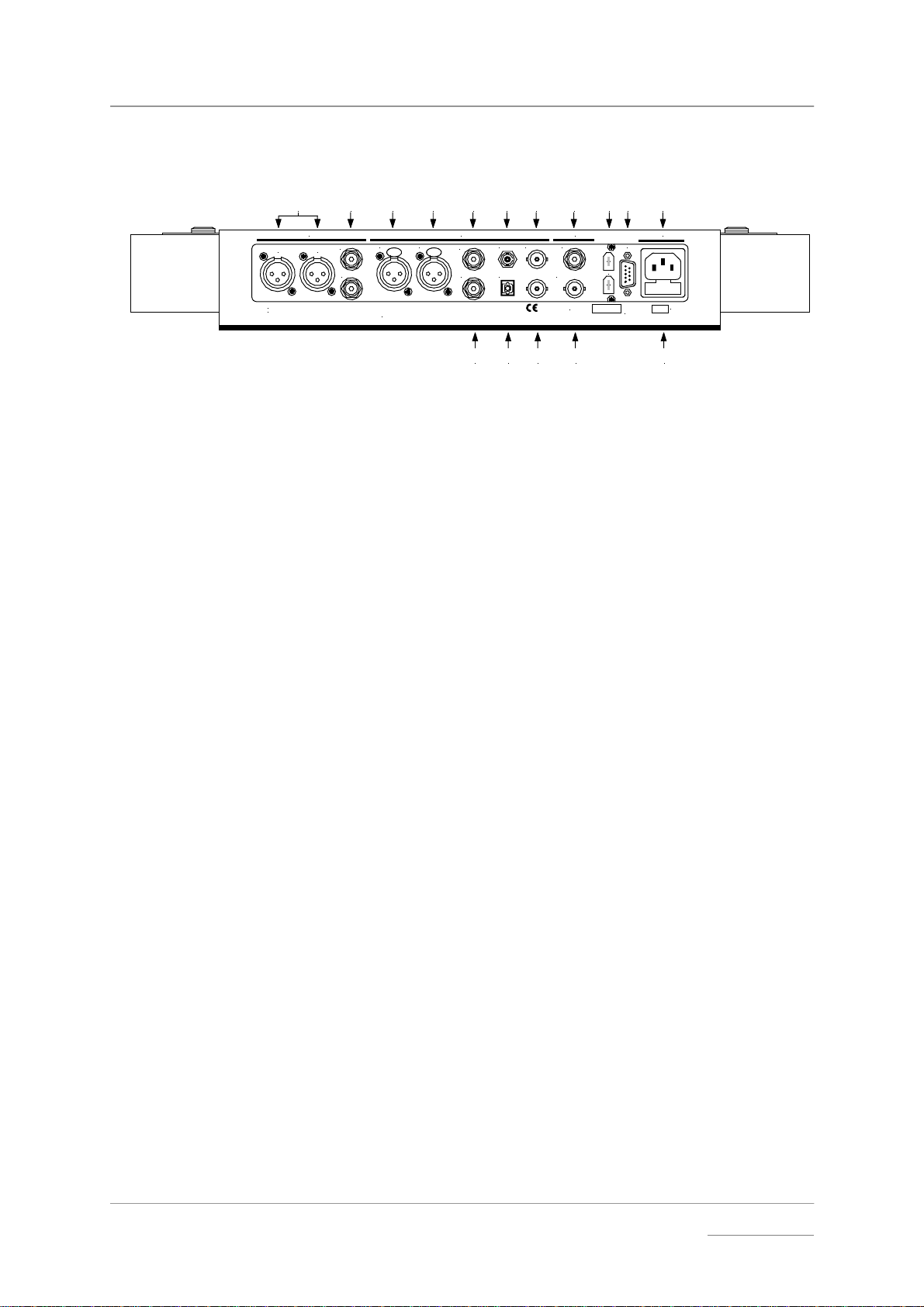

Figure 8 – dCS Delius Rear Panel

J Balanced Analogue Outputs L & R on XLR male

connectors

K Unbalanced Analogue Outputs L & R on RCA

phono connectors

L & M AES/EBU digital inputs AES 1 & AES 2 on XLR

female connector

N & O SPDIF digital inputs RCA1 & RCA2 on RCA phono

connectors

P Spare

Q SPDIF optical input on Toslink connector R SPDIF digital input on BNC connector S Wordclock digital Input T Wordclock digital Output U SPDIF digital output REC on RCA phono

connector

V Optional IEEE 1394 interface on two 6-way

connectors

W SUC - Software Upgrade Connector, 9-way male

‘D’ type connector

XIEC Power inlet

Y Mains fuse holder

(Upgrader’s note: Units manufactured before February 2001 were fitted with

Wordclock In, but this was labelled OPTION. This location was blanked off on

some early units.)

Balanced Analogue Outputs

If your pre or power amplifier has balanced inputs, connect Delius’ Balanced Analogue Outputs to them. For best results, connection of these outputs to unbalanced inputs is not recommended – use the Unbalanced Analogue Outputs instead. Use good quality, screened, XLR audio cables.

Manual filename: Delius Manual v2.3x.doc Page 39 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Unbalanced Analogue Outputs

For unbalanced equipment, use the Unbalanced Outputs with good quality, screened, RCA phono audio cables. The Unbalanced Outputs are very high

quality! It is much better to use these for equipment with a single-ended input, than to use half of a balanced output. Doing so may cause ground loop hum pickup.

AES/EBU Digital Inputs

The AES 1 and AES 2 inputs may be used individually for digital signals with

sample rates up to 96kS/s. The data format is AES3.

In Dual AES mode, both inputs must be used together. The Dual AES interface

allows a 192, 176.4, 96 or 88.2 kS/s 24 bit signal to be encoded as two

standard 96, 88.2, 48 or 44.1 kS/s 24 bit AES data streams respectively. Delius decodes the dual data stream and converts it to wide band analogue. See Dual

AES on page 25 for more information.

IMPORTANT! Please ensure the two AES inputs are correctly connected to the source for

Dual AES operation or the channels will be swapped. This usually involves connecting AES 1 (or AES A) on the source to AES 1 on Delius and AES 2 (or AES B) on the source to A ES 2 on Delius.

Use with 110 ohm screened, twisted pair cable designed for digital audio or RF. Do not use unscreened cables as they may pick up interference from other appliances.

SPDIF Digital Inputs

The RCA1, RCA2 and BNC inputs are used individually for digital signals with

sample rates up to 96kS/s. The data format is IEC60958, otherwise known as SPDIF. RCA connectors are the type commonly found on consumer equipment.

Use with 75 ohm co-axial cables designed for digital audio or RF use. Some types of audio cable are not suitable and may cause crackling noises or other malfunctions.

Toslink and ST Optical Inputs

The Toslink and ST inputs are used for optically transmitted digital signals with

sample rates up to 48kS/s. In practice, the interfaces are tested up to 96kS/s

but dCS cannot guarantee this with non-dCS source equipment. The data format

is IEC60958, otherwise known as SPDIF.

Use the Toslink input with Toslink fibre optic cables designed for digital audio use. Use the ST input with ST style fibre optic cables. Pull off the plastic cover before use.

Manual filename: Delius Manual v2.3x.doc Page 40 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

REC Digital Output

The REC output buffers and loops through the selected single wire input data

with sample rates up to 96kS/s. The data format is the same as the selected input (i.e. AES3 or IEC60958), the electrical format is SPDIF. It may be connected to a digital recorder or another DAC. Use with 75 ohm co-axial cables designed for digital audio or RF use.

IMPORTANT! This output is intended for use with Single AES, RCA, BNC, Toslink or ST

inputs ONLY. If the selected input is in any other format, the REC output will carry either the left channel data or full scale noise.

IMPORTANT! If the selected input is SPDIF and the Copy Prohibit flag in the source data is

set, the REC output will be the same and you will not be able to record the data.

1394 Interface

Units fitted with an IEEE 1394 multi-channel interface feature two 6-way 1394 connectors. The active source is selected by the Input button, see page 36.

In this release, the unit accepts DSD data at 2.822MS/s from either 1394

connector. For correct operation, the source must generate a 44.1kHz wordclock (or be locked to a master clock running at 44.1kHz) and this must be

connected to Delius’ Wordclock In connector. We recommend using the 1.8

metre long, 6-way IEEE 1394 cable assembly and the BNC cable assembly

provided. See the “IEEE 1394 Overview” section on page 50 for more

information.

Wordclock Digital Input / Output

The Wordclock Input accepts a Wordclock at sample rates up to 96kS/s. It allows Delius and your source equipment (e.g. CD or DVD player) to be

synchronised to a master clock. This arrangement helps reduce jitter, which can

degrade the audio output. See the MS menu page on page 23 for details.

The Wordclock Output is intended to synchronise other equipment to Delius. In

Master mode, the unit outputs a 44.1kHz master clock for other equipment to

lock to. In Slave or Sync modes, this output is disabled. See the MS menu page starting on page 23 for more details.

There is no data on the Wordclock interface. Use with 75 ohm co-axial cables

designed for digital audio or RF use.

SUC

The Software Upgrade Connector is intended to be used by dCS service agents to load new software into Delius.

IMPORTANT! Do not connect any other equipment to the SUC connector as this may

damage both Delius and the equipment so connected. Do not operate Delius with a PC connected. Failure to observe this warning will void the unit’s warranty, and may cause unpleasant effects in your system.

Manual filename: Delius Manual v2.3x.doc Page 41 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

IEC Power Inlet

Use with a 3 - pin IEC type power cable.

Mains Fuse

Replace only with a 20 x 5mm 0.5A T HRC fuse. Please see page 60 for

replacement details.

Additional Information

The rear panel displays the following information about the unit:

• Supply voltage setting, frequency range and rated power.

• Model: dCS Delius

• The short form of the unit serial number.

We will need the serial number (preferably the full serial number from the menu) to give you support over the phone, or to ship you software updates.

Manual filename: Delius Manual v2.3x.doc Page 42 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Remote Control

Standby P ur cell

Function

AES1 AES2

RCA1 RCA2 Phase

FilterBNC Input

θ η

V ol/B al Display

Mute

dCS

Figure 9 – The Remote Control

Standby Button

(α) Puts Delius in Standby mode – this saves energy but keeps the unit warm

and ready for use. Press again to return to normal operation.

Function Button

(β) Opens the Function Menu (see page 21). Use the ↑

page through the menu and press Function again to change a setting. Note

that the menu may time out if there is no activity for 5 seconds.

Manual filename: Delius Manual v2.3x.doc Page 43 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

↑ and ↓↓↓↓ buttons (κ) to

↑↑

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Input Selector Buttons

(γ) Select individual inputs with the AES1, AES2, RCA1, RCA2 & BNC

buttons. The Input button steps through all the available inputs in sequence, giving access to those without an individual button. For Dual AES, connect a suitable source, select AES2 and press the Input button.

Vol/Bal Button

(δ) Switches between Volume mode and Balance mode. Use the ↑

buttons

Balance mode times out after 5 seconds, reverting to Volume mode.

Mute Button

(ε) Press this to mute or unmute the Analogue Outputs.

Purcell Button and LED

Purcell units fitted with software version 1.20 or later and all Grieg units will accept commands from the Remote Control. Press the Purcell button

the blue LED will light up for about 5 seconds. During this time, the Standby,

Function, Input selector, Filter, ↑↑↑↑, ↓↓↓↓ and Display buttons will control the

Upsampler instead of Delius.

Sending a Purcell command will keep the Remote Control in Purcell mode (and the LED on) for another 5 seconds. Press the Purcell button again while the blue LED is lit to return to Delius mode (or just wait 5 seconds).

If the blue LED is on, the Upsampler will respond. If it is off, Delius will respond.

Phase Button

(θ) Changes the Phase of the analogue outputs to Inverted. The Phase

indicator on the Front Panel will light. Press again to return to Normal.

↑ and ↓↓↓↓

↑↑

(κ) or the Rotary Control on the front panel to alter the settings.

(ζ) and

Filter Button

(η) Changes the interpolation filter setting, giving a different trade-off between

Nyquist image suppression and energy smear. Each sample rate has a

separate Filter setting stored, so Delius must be locked to a suitable source

before the Filter setting can be changed. This feature is duplicated in the Menu,

see Filter on page 22.

Display button

(ι) Each press reduces the display brightness on a scale from Bright 7 to

Bright 0.

Up and Down (↑↑↑↑ / ↓↓↓↓) buttons

Use these buttons

the Function Menu, see page 21.

(κ) to change Volume and Balance settings or scroll along

Manual filename: Delius Manual v2.3x.doc Page 44 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Manual filename: Delius Manual v2.3x.doc Page 45 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

DELIUS TECHNICAL INFORMATION

Converter Type

• 5-bit, approximately 3MS/s oversampled, dCS patented Ring DAC topology.

Digital Interface Specifications

AES/EBU (AES3)

Type Impedance 110 Sensitivity (unloaded) 1 ~ 10 V pk-pk Maximum Wordlength 24 bits Connectors XLR3 female (2) Connections

Table 1 – AES/EBU Interface Electrical Characteristics

SPDIF (electrical)

Type

Impedance 75 75 Sensitivity (unloaded) 0.5 1.0 V pk-pk Maximum Wordlength 24 24 bits Connectors

Table 2 – SPDIF Interface Electrical Characteristics

Pin 1 Ground or shield Pin 2 +Signal Pin 3 -Signal

Balanced, differential

Input REC Output

Single ended, ground

RCA Phono

& BNC

Inputs

Ω

referred

Ω

RCA Phono

SPDIF (optical)

Type Wavelength 660 850 nm Maximum Wordlength 24 24 bits Connector Toslink

Table 3 – Optical Interface Electrical Characteristics

SDIF / Wordclock

Type

Impedance 100 25 Sensitivity (unloaded) TTL TTL Connectors BNC BNC

Table 4 – SDIF / Wordclock Interface Electrical Characteristics

Manual filename: Delius Manual v2.3x.doc Page 46 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

Toslink Input ST Input

Optical

EIAJ CP-340

Input Output

Single ended, ground

referred

(if fitted)

Ω

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

IEEE 1394

Type Data format Connectors 6-way (2)

Table 5 – IEEE 1394 Interface Electrical Characteristics

Sample Rates

• 32, 44.1, 48, 88.2 or 96kS/s on single wire interfaces and SDIF-2 /

Wordclock Input, auto selected. Optical inputs are not guaranteed at

88.2kS/s and 96kS/s.

• 88.2, 96, 176.4 or 192kS/s on Dual AES interface, auto selected.

• 2.822MS/s for DSD, requires a 44.1kHz wordclock.

• 44.1kHz for Wordclock Output in master mode, not temperature

compensated.

Frequency Response (set to Filter 1)

• Fs=32kS/s +/-0.1dB, 10Hz to 15kHz

• Fs=44.1 or 48kS/s +/-0.1dB, 10Hz to 20kHz

• Fs=88.2 or 96kS/s +/-0.1dB, 10Hz to 35kHz

• Fs=176.4 or 192kS/s +0.25/-0.35dB, 10Hz to 55kHz

• DSD +0.2/-0.35dB, 10Hz to 55kHz

I/O

High speed, multi-channel

dCS encrypted DSD

Filter 1 Frequency Responses

-6

32k

Level (dB)

-12

-18

-24

0.02 10 20 30 40 50 60 70 80 90 100

48k

44.1k

96k

88.2k

Tone Frequency (kHz)

192k176.4k

Figure 10 – Frequency responses at all sample rates, set to Filter 1

DSD

The point of high sample rates is not to have a ruler flat response with a brick-wall filter. The roll-off is

deliberate. See for example “Effects in High Sample Rate Audio Material” by M.J.Story, R.Kelly, D.A.Macleod & M.N.Harris, presented at the 20

Manual filename: Delius Manual v2.3x.doc Page 47 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

Tonmeister Tagung at Karlsruhe in 1998.

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Volume Control

• Digitally implemented, 0 to –60dB in 0.5dB steps

Balance Control

• Digitally implemented, 0 to –40dB in variable steps, each side.

• Mutes one channel at minimum settings.

De-Emphasis

• Auto-selected, 50/15µs, CCITT J17 or none, available at 32, 44.1 or 48kS/s.

Analogue Outputs

Balanced Unbalanced

Type

Source impedance

Balanced,

not floating

< 1Ω + 100µH< 1Ω + 100µH

Single ended,

ground referred

(20Hz-20kHz) Maximum load 600 600 Noise, unweighted

< -110 < -105 dB0

Ω

(20Hz-20kHz) Spurious responses

< -100 < -100 dB0 (20Hz-20kHz) L-R crosstalk,

< -90 < -90 dB (20Hz-20kHz) Level for full scale

6 or 2 6 or 2 V rms

(set by the Out menu)

Connectors XLR male (2) RCA Phono (2) Connections +Signal on pin 2

Table 6 – Analogue Output Electrical Characteristics

Clocking

The sample clock quality significantly determines the output performance of the converter. The highest quality clocks that are available are crystals, so we use

these. Delius uses two on-board voltage controlled crystal oscillators (VCXO’s)

as clock sources - one for the 44.1kS/s related outputs and one for the 48kS/s related outputs.

Only one VCXO is active at a time. In slave mode, the active VCXO is synchronised to the clock signal extracted from the input by a phase locked loop (PLL). This PLL is of a special narrow bandwidth type, that provides a significant degree of "clock cleaning”. The PLL is also very robust, and will lock to very poor signals if necessary. Data is decoded using a much wider band (faster) PLL, so AES3 type low frequency jitter on the input clock can be handled, and will be cleaned.

Synchronising to source x

Pull-in range ± 300 ppm about nominal frequency

Lock-in time < 6 seconds for most situations

-Signal on pin 3

Manual filename: Delius Manual v2.3x.doc Page 48 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Power requirements

Units may be set for 100, 115/120, 200, 215/220 or 230/240V (+/-10%), 50/60Hz AC operation.

Size and Weight

Purcell &

Verona

Typical power

consumption

16W 20W

Maximum power

consumption

Delius 21W 25W

Elgar Plus 34W 40W

Verdi &

La Scala

25W 50W

Table 7 – Power consumption for consumer products

Length Depth Height Weight

Purcell &

Verona

Delius

461mm

(18.15”)

461mm

(18.15”)

413mm

(16.18”)

413mm

(16.18”)*

69mm

(2.70”)

69mm

(2.70”)

8.5kg

(18.7lbs)

8.8kg

(19.4lbs)

Operating Conditions

Elgar Plus

Verdi &

La Scala

461mm

(18.15”)

461mm

(18.15”)

406mm

(16.0”)

415mm

(16.34”)**

75mm

(2.94”)

137mm

(5.39”)

12.0kg

(26.4lbs)

17kg

(37.4lbs)

Table 8 – Size and weight for consumer products

• *Delius only: the control knob protrudes out of the front by 20mm (0.79”).

• **Verdi & La Scala only: the control knob protrudes out of the front by 13mm

(0.51”).

• Allow extra depth for cable connectors.

• Ambient temperature range: 0°C (32°F) to 50°C (122°F), non-condensing.

• Do not install the unit near heat sources such as radiators, air ducts, power

amplifiers or direct strong sunlight.

• If in doubt, the easy test is - Delius is happy to work anywhere a human is.

Manual filename: Delius Manual v2.3x.doc Page 49 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

GENERAL TECHNICAL INFORMATION

IEEE 1394 Overview

The IEEE 1394 interface is a high speed multi-channel system. It has the capacity to carry over 50 channels of DSD (Direct Stream Digital) or over 30 channels of 24 bit / 192kS/s audio data through a single cable.

From October 2001 onwards, a pair of 6-way electrical IEEE 1394 interfaces

running at 200Mbit/s are available on the following dCS products:

• dCS Elgar Plus DAC, standard fit with software version 4.10 or later.

• dCS Delius DAC, optional fit with software version 2.10 or later.

• dCS Purcell Upsampler, optional fit with software version 2.11 or later.

• dCS Verdi SACD/CD Transport, standard fit.

• dCS Verdi La Scala Upsampling SACD/CD Transport, standard fit.

In the current implementation, Purcell can upsample standard digital formats

(such as CD at 44.1kS/s 16 bits) to DSD at 2.822MS/s and output a stereo pair

of DSD data onto its 1394 interface. Verdi can read DSD data from an SACD

and output a stereo pair of DSD data onto its 1394 interface. The data is encrypted to conform to the conditions of the DSD licensing arrangements.

Either Elgar Plus or Delius will accept DSD data from the 1394 interface and

convert it to high quality analogue.

The hardware interface is very flexible and software configurable. We will add other features and data formats at a later date, adopting industry standard formats as they stabilise.

Synchronising IEEE 1394 interfaces

The IEEE 1394 system is great for carrying large amounts or digital audio data – but is inherently very jittery. To ensure low-jitter conversion to analogue, each unit linked by the 1394 system must be synchronised to the others by another connection.

• A DAC in slave mode should be sync’ed to Verdi by connecting Verdi’s

WClk Out to the DAC’s WClk In.

• A DAC in master mode should sync Verdi by connecting the DAC’s WClk

Out to Verdi’s WClk In.

• An Upsampler should be slaved to Verdi, usually by the selected PCM input

(AES or RCA).

Automatic Input Selection

From October 2002 onwards, the software on the following products has been

enhanced to automatically select the interface carrying data from Verdi:

• dCS Elgar Plus DAC, standard fit with software version 4.20 or later.

• dCS Delius DAC, optional fit with software version 2.20 or later.

• dCS Verdi SACD/CD Transport, standard fit with software version 1.20 or

later.

• dCS Verdi La Scala Upsampling SACD/CD Transport, standard fit, with the

Easy Play menu set to Verdi.

The system relies on a 1394 link between Verdi and the DAC. The DAC will automatically change inputs whenever Verdi changes layer or starts playing.

Manual filename: Delius Manual v2.3x.doc Page 50 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

If the Verdi starts playing an SACD, the DAC selects that 1394 channel.

If the Verdi starts playing a CD and:

• there is a second source on the 1394 bus (such as a Purcell), the DAC will

select the other source.

• there are more than two other sources on the 1394 bus (such as a Purcell

or another Verdi), the DAC will select one of the other sources. You may

have to manually select the source you want.

• Verdi is the only source on the 1394 bus, the DAC will scan the PCM inputs

and select the first active one it finds. The priority order is: AES1 (and Dual

AES) first, AES2, RCA1, RCA2, TOS, ST, BNC. If the active input is not

derived from Verdi, you may have to manually select the source you want.

If none of the PCM inputs are active, the DAC will remain selected to the original 1394 channel.

This arrangement works best with only two inputs connected to the DAC –

Verdi’s 1394 feed for SACD’s and either a PCM feed from Verdi or an upsampled feed from Verdi. The DAC can be in master or slave mode – we

recommend master mode.

If you are using a Purcell in Dual AES mode (rather than DSD mode), you should set the DAC’s Dual AES menu page to either Lock or Auto.

The DAC has enough information about the system set-up to report connection and setting errors. These are:

• Verdi Wordclock Missing

• Please Check Source Slaved to Delius / Elgar Plus Wordclock Out

• Missing Wordclock between ClkOut and Verdi Clk In

• Wrong Fs @ Verdi Clk In

Manual filename: Delius Manual v2.3x.doc Page 51 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

dCS IR Remote Control Codes

This section gives details of the Remote Control codes generated by dCS IR Remote Control units, for use with programmable remote controls. All dCS

Remote Control units use the RC5 system and a carrier frequency of 37.9kHz.

For more information on the use of dCS Remote Control units, please refer to

the manual for that unit.

IMPORTANT! Please note that dCS cannot accept responsibility for any difficulties

experienced with other manufacturer’s remote control units.

Upsampler

For Purcell, the category code is 29 (decimal).

These Upsampler codes are in use on the E lgar Plus / Delius Remote v2.0 and

Transport Remote v2.0.

Button Code

Decimal

Hexadecimal

Purcell

RC button

1 01 RCA1 / RCA2 3 03 AES1 / AES2 6 06 BNC

7 07 Display 12 0C Standby 14 0E Filter 16 10 (up) 17 11 (down) 26 1A Function 27 1B Input 32 20 32kS/s out 33 21 44.1kS/s out 34 22 48kS/s out 35 23 88.2kS/s out 36 24 96kS/s out 37 25 176.4kS/s out 38 26 192kS/s out 39 27 DSD/1394 out 41 29 Standby ON 42 2A Standby OFF 43 2B Power OFF 44 2C Filter 1 45 2D Filter 2 46 2E Filter 3 47 2F Filter 4

Manual filename: Delius Manual v2.3x.doc Page 52 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

DACs

For all DACs, the category code is 13 (decimal).

These DAC codes up to decimal 27 are in use on the Elgar Plus / Delius Remote v2.0, Transport Remote v2.0 and Elgar Remote v1.0. Elgar Plus v4.20 or later and Delius v2.20 or later will respond to codes over decimal 27.

Button or Function Code

Decimal Hexadecimal

Elgar Plus / Delius

RC function

1 01 RCA1 Coax1

2 02 - Opt2

3 03 AES1 AES1

4 04 AES2 AES2

5 05 - Opt1

6 06 BNC Coax2

7 07 Display Display

8 08 Vol/Bal Vol/Bal

9 09 Phase Phase 12 0C Standby Standby 13 0D Mute Mute 14 0E Filter Filter 15 0F RCA2 16 10 (up) (up) 17 11 (down) (down) 26 1A Function 27 1B Input Input 32 20 Dual AES 33 21 SDIF 34 22 1394 CH 0 35 23 1394 CH 1 36 24 1394 CH 2 37 25 1394 CH 3 38 26 1394 CH 4 39 27 Mute On 40 28 Mute Off 41 29 Standby On 42 2A Standby Off 43 2B Power Off 44 2C Filter 1 45 2D Filter 2 46 2E Filter 3 47 2F Filter 4 48 30 Filter 5 49 31 Filter 6 50 32 Master 51 33 Slave -

Elgar

RC button

Manual filename: Delius Manual v2.3x.doc Page 53 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Transports

For Verdi & La Scala, the category code is 20 (decimal).

These Transport codes are in use on the Transport Remote v2.0.

Button Code

Decimal

Hexadecimal

Verdi

RC button

0 00 Keypad 0/10

1 01 Keypad 1

2 02 Keypad 2

3 03 Keypad 3

4 04 Keypad 4

5 05 Keypad 5

6 06 Keypad 6

7 07 Keypad 7

8 08 Keypad 8

9 09 Keypad 9 10 0A Standby ON 11 0B Standby OFF 12 0C Standby (toggle) 15 0F Display 25 19 Stop Rewind 26 1A Stop Fast Forward 29 1D Repeat 32 20 Next Track 33 21 Previous Track 34 22 Next Index 35 23 Previous Index 36 24 Play Mode 41 29 Program 43 2B Fast Forward 50 32 Rewind 53 35 Play 54 36 Stop/Eject 55 37 Power OFF 58 3A Clear 59 3B A/B 60 3C SACD/CD 61 3D Select CD layer 62 3E Select SACD layer

The Power Off code was 63 decimal in Verdi v1.20 – 1.25. Some Pronto units were found to send code 20-63

for no apparent reason, so we changed the code to 55 decimal.

Manual filename: Delius Manual v2.3x.doc Page 54 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Manual filename: Delius Manual v2.3x.doc Page 55 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

USING YOUR dCS DELIUS FOR THE FIRST TI ME

Thank you for purchasing this dCS Delius. Before attempting to use your Delius,

please read at least the rest of this section and the “Step-by-Step Guide” on

page 10. This will enable you to set the unit up quickly with your hi-fi system.

What’s in the Box?

The box should contain the following:

• dCS Delius

• User Manual

• Control Summary

• Power Cable

• Spare Fuses (2)

Units supplied with a Remote Control following:

• Remote Control unit

• 3 x AAA batteries

• Pozidriv screwdriver (1 pt)

should also be supplied with the

For safety reasons, the Remote Control is shipped with the batteries packed separately. For fitting details, see the “Maintenance and Support” section,

starting on page 60.

Units fitted with an IEEE 1394 interface

should also be supplied with the

following:

• IEEE 1394 cable assembly

• BNC cable

Check the contents of the inner carton very carefully against the list above.

Notify your dealer as soon as possible if anything is missing or damaged. dCS

suggest that all of the original packaging is retained for use when transporting

any units. Replacement packaging can be ordered from dCS or our distributors.

Safety Notice

Delius contains no user serviceable parts. Do not attempt to open the case as

there are potentially dangerous voltages present inside. In the event of the unit developing a fault, please consult your dealer.

IMPORTANT! This equipment MUST be connected to a safety earth (or ground) via the

power cable.

The Remote Control is an optional extra with Purcell units and is not supplied with Verona.

The IEEE 1394 interface is an optional extra with Purcell or Delius units and is not yet available with Verona.

Manual filename: Delius Manual v2.3x.doc Page 56 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Mains Voltage Setting

Before connecting the power cable to your Delius for the first time, please check

that it has been set to the correct operating voltage for your local mains supply. 50Hz or 60Hz operation is not important – the unit can use either. The unit's present voltage setting is shown on the label beneath the mains inlet on the rear panel. If this does not match your local supply voltage, DO NOT attempt to use

the unit. Contact your dealer to arrange to have the unit reset. Using the Delius

with the wrong mains setting for your local supply may result in serious damage to the unit and will invalidate the warranty. DO NOT attempt to reset the unit yourself.

IMPORTANT! Please use a sensible power cable, such as the one supplied with the unit.

Some audiophile power cables presently available are excessively heavy, their weight can damage the power inlet connector. Such damage is not covered by the warranty.

Positioning the Unit

Place Delius on a firm, vibration free base so as to allow convenient connection to your digital source. We suggest that you avoid siting Delius either directly

above or below preamplifiers or tuners, if either of these will be used in your

system at the same time as Delius.

Manual filename: Delius Manual v2.3x.doc Page 57 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

OPTIONS

The following options may be fitted to new units or retrofitted at a later date.

Option code Option

1394 IEEE 1394 interface

V5 Mains voltage set to 230/240V

V4 Mains voltage set to 215/220V

V3 Mains voltage set to 200V

V2 Mains voltage set to 115/120V

V1 Mains voltage set to 100V

Table 9 – Options available

IEEE 1394 Interface

We can fit an IEEE 1394 interface to enable the unit to generate / receive DSD data on either of two 6-way connectors. The cost of this option depends on the

age of your unit. Note the full serial number of your unit and contact your dCS distributor for advice. This option must be fitted at dCS to allow full checking. See the “Rear Panel” section on page 39 and “IEEE 1394 Overview” on page

50.

Mains Supply Voltage

Any unit may be set for operation from 230/240V, 215/220V, 200V, 115/120V or 100V A.C. Units are shipped set for the mains supply voltage according to the destination. The voltage setting can be updated later by your dealer, if necessary. Specify the new country of use or the new voltage setting.

Having Your Options Changed

dCS support modifications, updates and option changes to supplied units. Major changes are normally carried out at dCS as we have extensive test facilities and can verify the changes. Please contact your dealer / distributor or dCS for

details.

IMPORTANT! Please do not attempt the changes yourself. The unit’s performance or

reliability may be impaired and the warra nty will be invalidated.

Manual filename: Delius Manual v2.3x.doc Page 58 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Manual filename: Delius Manual v2.3x.doc Page 59 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

MAINTENANCE AND SUPPORT

Service & Maintenance

dCS audio products are designed not to need regular maintenance, and contain

no user serviceable parts apart from the mains fuse.

Obtaining Service

If you experience problems with your Delius, you should check the “Troubleshooting” section on page 64. You may be able to resolve the situation

yourself (for example, by changing a menu setting).

If this does not resolve the problem, contact your authorised dCS dealer for advice, quoting the model, the full serial number (see Serial on page 32), the software version number (see Issue on page 32) and giving a detailed

description of the fault. If further action is necessary, your dealer will advise you fully.

Mains Fuse

There is a mains fuse below the power inlet, accessible from the outside of the unit. If the fuse blows, it may be changed by the user. The current consumption of the unit is very low, so it only blows if power surges occur, or there is a fault in the unit. Usually, power surges cause no other damage, but if the fuse blows repeatedly on replacement, some other damage will have been done and the

unit must be returned to dCS for repair.

Fuse Type: 20 x 5mm 0.5 amp T HRC fuse

IMPORTANT! If the fuse should fail, it is essential that it be replaced with one of the same

type and rating. Failure to do so could result in damage to the unit, risk of fire or electric shock and will invalidate the guarantee.

Replacing a Blown Fuse x

Referring to Figure 11, remove the power cable, use a small flat bladed

screwdriver to pry up the tab on the fuse carrier (A) and pull it out. Push the blown fuse out of the clip in the carrier (B) and dispose of it. Fit a new fuse in the clip (C) and push the carrier back into the unit so that it clicks home. Spare fuses are provided with the unit.

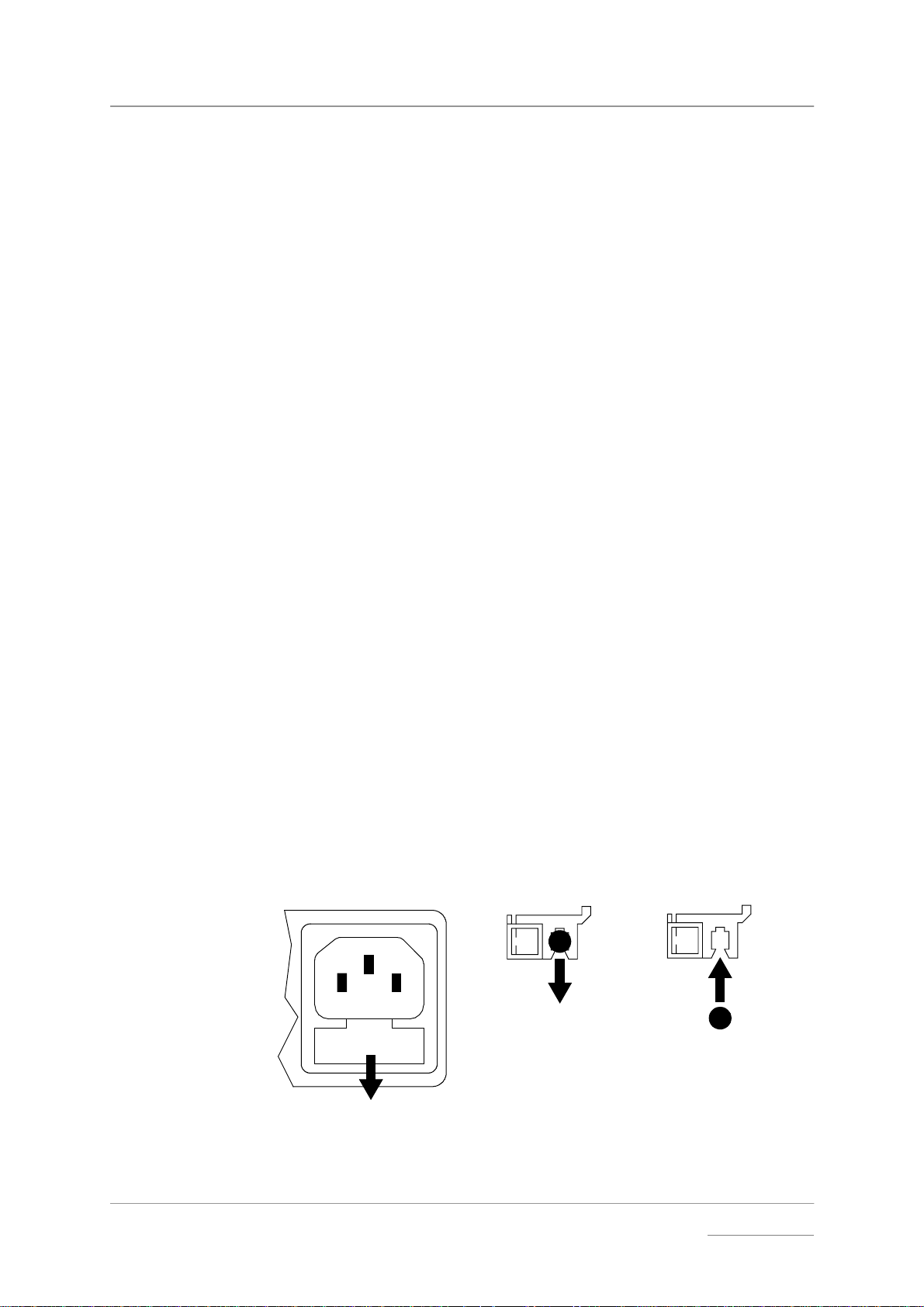

Figure 11 – Changing the Mains Fuse

IMPORTANT! Disconnect the power cable before changing the fuse.

Manual filename: Delius Manual v2.3x.doc Page 60 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Fitting or Replacing the Batteries in the Remote Control

For safety reasons, the Remote Control is supplied with the 3 batteries packed separately. Any replacement batteries must be type AAA, MN2400 or equivalent alkaline leak-proof batteries.

Opening the battery compartment and removing batteries

do this: Turn the Remote Control unit over and remove the 4 screws shown in Figure

12 using the 1-point Pozidriv screwdriver supplied. Please do not use a Philips

head screwdriver as this will damage the screw heads. Lift off the battery cover.

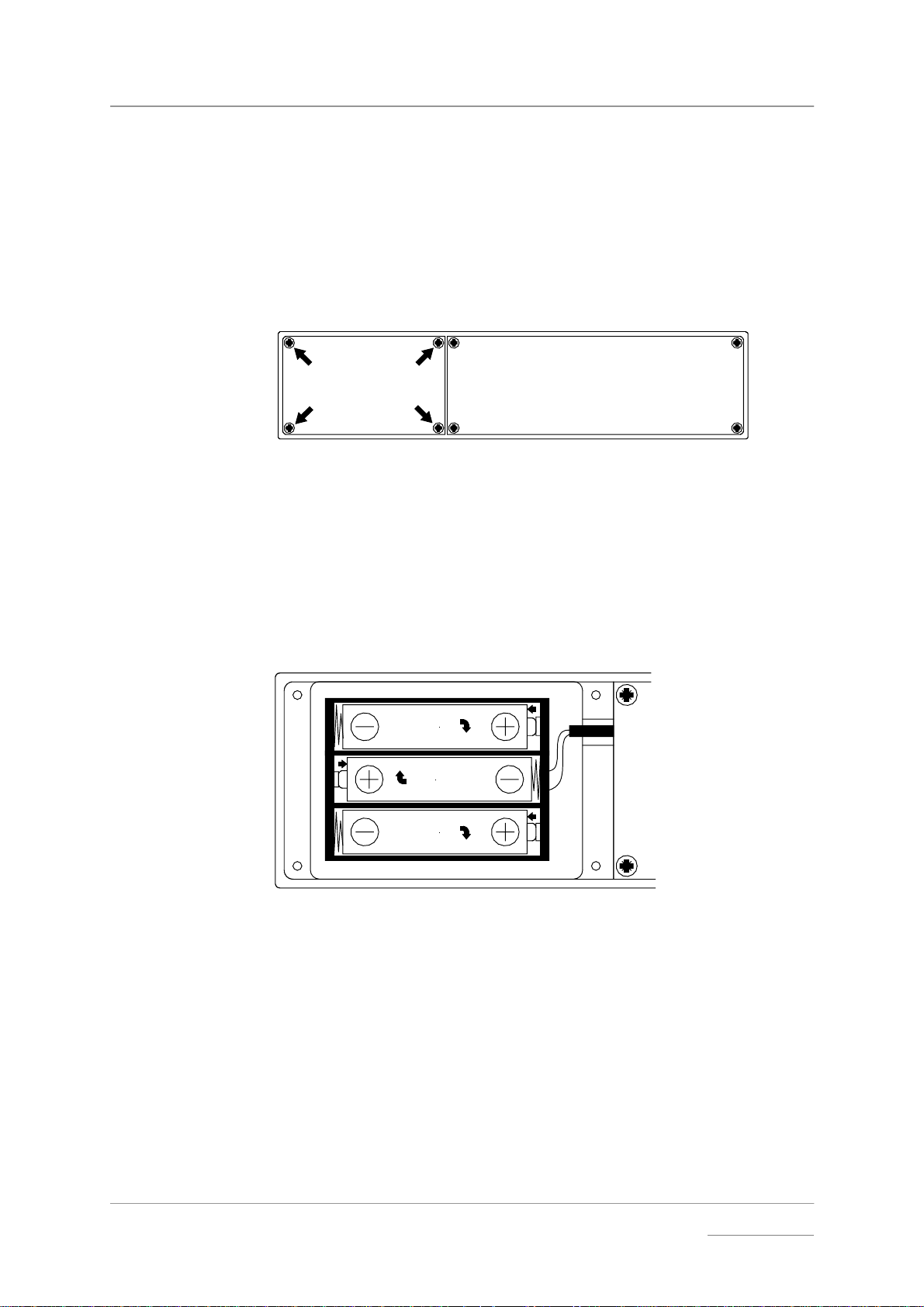

Figure 12 – Removing the Remote Control battery cover

do this: To remove discharged batteries, press the + end back against the spring and

pull that end out of the unit. A small key or screwdriver may be used if the battery is a tight fit. Dispose of the discharged batteries safely.

Fitting new batteries and closing the case

do this: To fit a new battery, press the - end (the flat end) against one of the spring

contacts in the battery holder then press the battery into its slot. Battery polarity is indicated on the battery holder and on the diagram below. Always fit a complete set of 3 new batteries.

AAA

1.5V

AAA

1.5V

Figure 13 – Changing the Remote Control unit batteries

IMPORTANT! Please ensure the batteries are fitted the right way around – failure to do so

may damage the Remote Control and invalidate the warranty. Damage caused by leaking batteries is not covered by the warranty.

do this: To re-assemble the case, fit the battery cover, ensuring the side with the

recessed holes is outward. Replace the 4 screws, taking care not to overtighten them. The Remote Control is ready for use.

Manual filename: Delius Manual v2.3x.doc Page 61 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Updating your Delius

dCS products make extensive use of software configurable chips – FPGAs and

DSPs. This gives us the ability to update our products to add extra features, update digital interface standards or make performance improvements by loading new software. Occasionally, a hardware update may be necessary also to increase the “capacity” of the electronics, add extra connectors or extra front panel controls.

Software Updates x

Please note that not all software updates make an earth-shattering change. You should have a clear idea of what you expect to gain before updating to the latest issue.

If the software loaded in your unit is (for example) version 3.45:

• A change to version 3.46 indicates a minor update for internal dCS use – to

make testing easier, or more thorough, or to cater for some minor hardware change. Do not update your unit.

• A change to version 3.50 is a more serious update, offering extra

functionality. If you want to use the extra features, update your unit. The manual will be updated for this (check the web-site).

• A change to version 4.00 is a major update. It will require updated hardware

and the manual will be updated

If you have older hardware, some of the features added by new software may

not be available due to (for example) a missing connector. For recent

hardware, this is mentioned in the “Upgrader’s notes” in this manual. If you

need the missing feature, contact your dealer or dCS to arrange a hardware

update.

• If the software currently loaded includes a CD Update page, you can

update the software yourself. Contact dCS for a CD and follow the instructions in the CD Update section on page 33, or the instructions

supplied with the CD. The update program will check your hardware configuration and install the latest software compatible with it.

• If you do not have the CD Update feature loaded or have difficulty with it, a

dCS distributor can download files from a PC into any unit fitted with a SUC

connector. Contact your dealer for details.

• For older units without a SUC connector, your distributor can install new

firmware in your unit. Firmware updates are low-cost from dCS. Contact your

dealer for details.

Hardware Updates x

You may wish to have your hardware updated from time to time to take

advantage of new features in the latest software. dCS offer this service - we will

retest, reset any adjustable items to current shipping standards, and install any modifications or updates that have occurred since your unit was first shipped.

The price will depend on the hardware changes necessary – please contact

your dealer or dCS for details and pricing. In order to ensure speedy turn around, please contact us prior to returning the unit to get a Service Return

number.

Manual filename: Delius Manual v2.3x.doc Page 62 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Safety and Electrical Safety

There are no user serviceable parts inside Delius and so there is no need to

remove the covers. If for some reason you do:

IMPORTANT! Disconnect the power cable before removing any covers or changing the

fuse.

There are no substances hazardous to health inside Delius.

Cleaning the Case

Do not apply any of the following cleaning products to the case as they will damage or alter the finish:

• Corrosive or abrasive agents

• Spirit or alcohol based cleaners

• Wax polish

do this: To remove dust, wipe with a moist, soft cloth. do this: To remove deposits from the case, first disconnect the power cable then spray

very lightly with a proprietary glass cleaner containing ammonia and wipe off gently with a soft cloth, taking care to avoid scratches. Do not spray the cleaner onto the connectors or the rear panel.

Manual filename: Delius Manual v2.3x.doc Page 63 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

TROUBLESHOOTING

Fault Indication

Delius detects the following fault conditions:

Power interruption

If the AC supply is momentarily interrupted or is more than 20% below it’s rated

voltage, the unit displays PowerDn and mutes the audio outputs to protect your

loudspeakers from damage. This may be caused by loose AC power wiring, local power-line overloads or heavy-duty appliances like air conditioners. If this message appears frequently (other than when switching the unit off), please consult your dealer.

Power up test errors

If Delius detects a fault during its power up test routine, it will remain muted and

display one of these messages:

• DSPs Not Loaded (#01)

• FPGAs Not loaded (#02)

• Bad Checksum. Press any key to attempt recovery (#03)

• DSP-Err1 (#04)

This can be caused by power line transients occurring during system

configuration. For Bad Checksum, press any button to try to clear the fault.

Otherwise, try switching off, waiting 20 seconds, then switching on again. If the fault persists, please consult your dealer.

Non-Audio disk

Playing a Non-Audio CD (e.g. CD-I, CD-R, Photo CD, etc.) causes Delius to remain muted and display Nonaudio.

If you are SURE the disk is playable audio, Delius can be set to ignore this flag. The Non-Audio flag may have been incorrectly set on the CD. See NAud on

page 29.

IMPORTANT! The Non-Audio Muting feature protects your ears and equipment from

damage. Think carefully before turning it off.

The unit is overheating

If the internal temperature sensor detects a high running temperature (over

70°C or 158°F), the unit displays Too Hot!.

If this occurs, there is insufficient ventilation, causing the unit to overheat. Switch off and allow the unit to cool for 10 minutes. Check that air flow around the unit is not restricted and that it is not located above a power amplifier or other source of heat. Continuous operation at these high temperatures may result in permanent damage and will invalidate the warranty. See “Operating

Conditions” on page 49.

Manual filename: Delius Manual v2.3x.doc Page 64 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Troubleshooting Guide

If you experience difficulties when using Delius, the following suggestions may

help resolve the problem.

The unit fails to power up

• Ensure there is power available on the mains cable. Connect the power

cable, wait 10 seconds then press the Power/Standby button.

• Check the rated supply voltage shown on the rear of the unit matches the

local supply voltage.

• Check that the fuse has not blown - if so, correct any obvious cause then

replace the fuse as described on page 60.

The unit fails to lock to a digital audio source or displays “No Input”

• Ensure the correct input is selected (see page 36).

• Check that the digital audio cable is of the correct type, correctly connected

and not damaged. Try another cable. Damaged cables are a VERY common cause of malfunctions!

• Check that the source is switched on.

• Some CD players do not generate a digital output unless the disc is playing

- set the player in “play” mode and check that the unit locks.

• Occasionally, we find a CD player whose sample rate is outside the

standard +/-300ppm tolerance specified for CD players. If Delius locks to

another source but not to your CD player, the player may need servicing.

• If you are using Master mode or a Master Clock, try slaving to the audio

input. If the unit locks, check the Wordclock connections.

The unit locks but the audio output is low or absent

• Check that the MUTE indicator is off. If not, press the Mute button.

• Check that the audio output cables are correctly connected, the equipment

following Delius is switched on and correctly set up.

• Ensure the Volume and Balance controls are correctly set (see Rotary

Control on page 38 and Bal Mode on page 28)

• Ensure the source is sending audio data (see NAud on page 29).

• Ensure the Output Level is correctly set - turn the Volume control down by

10dB before changing this setting.

The output is monophonic

• The source is Dual AES but Delius is set to Single AES (AES1 or AES2

indicator lit) – see page 25.

• If both AES1 & AES2 indicators are flashing, the unit is set to Dual AES –

Lock but one AES cable is either disconnected or faulty (see page 25)

• The source disk / tape may actually be monophonic.

Manual filename: Delius Manual v2.3x.doc Page 65 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

The unit fails to respond to the controls

• Check that the STBY indicator is not lit - if so press the Power/Standby

button to return to normal operation. Alternatively, switch off, wait 10 seconds and switch on – Standby mode will be cancelled.

• While locking to a source or changing some settings (e.g. Filter), the

microcontroller inside Delius is busy and will not respond to new commands

for a few seconds.

• If the Mute fade-out rate is set to Mute-Slw, the unit may be unresponsive

for a few seconds while slow muting is in progress (see page 24)

• Short mains supply drop-outs may cause the microcontroller to lock up.

Switch off the unit, wait 10 seconds then switch on again. If this does not clear the fault, please contact your dealer.

The Main Display turns on briefly when a control is operated, then turns off

• This happens when the Display Br ightness is set to Bright 0. Change to

any other brightness setting to stop the display blanking out (see page 26).

The Left and Right channels are swapped

• Check that the audio output cables are not reversed.

• Open the menu and page through until the Swap page is displayed. If it is

set to Swap-On, change it to Swap-Off.

• Check that the channels are not swapped elsewhere in the system.

• If you are using Dual AES mode, ensure that AES 1 input is connected to

the output on the source equipment carrying the Left channel data (probably

labelled AES1 or AES A) and the AES 2 input is connected to the output on

the source equipment carrying the Right channel data (probably labelled AES2 or AES B). See the manual for the source equipment for information,

and also page 25.

One audio output channel is low or absent

• Check that the Balance control is correctly set (see Rotary Control on

page 38).

• Check that the audio output cables are connected correctly and are not

damaged.

• Check that the balance is not offset elsewhere in the system.

The sound has a peculiar tonal balance

• Set De-Emphasis to Auto – see page 27.

• If this fails to correct the problem, the De-Emphasis flags in the data stream

may be incorrectly set (this is rare but it does happen). To find the correct

De-Emphasis characteristic, change the De-Emphasis setting to 50/15µs,

CCITT or Off in turn until the correct setting is found. When you change to a

different disk or tape, we recommend setting De-Emph to Auto again.

Manual filename: Delius Manual v2.3x.doc Page 66 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Crackles or pops occur while playing music

• The source may have a high level of jitter. Try setting the PLL parameter to

PLL:Wide. See page 29.

• The digital audio cable connecting Delius to the source may be damaged,

intermittent or of the wrong type. Some expensive cables are not correctly designed for digital audio use. Try another cable.

• The CD may be dirty - clean it very carefully using a radial motion.

• The disk / tape may be damaged or contain corrupted data.

• The audio output level may be enough to overload a preamplifier or power

amplifier.

Erratic operation when locked to 96 or 88.2kS/s on Toslink or ST inputs

• Check your optical connections are clean and properly installed.

• The Toslink and ST receiver devices are industry standard types which are

not guaranteed to operate correctly at 96 or 88.2kS/s. Connect to a different input instead.

The unit will not decode Dual AES

• Dual AES mode may be disabled. Open the menu and set the Dual AES page to On (see page 25). Connect a valid 88.2, 96, 176.4 or 192kS/s Dual

AES source to both AES 1 and AES 2 inputs. Press the Input selector button repeatedly until both AES1 and AES2 indicators are lit.

• Your source equipment may have two AES outputs but might not be

capable of Dual AES operation. Check the manual for the source equipment.

The unit drops out of Dual AES mode into AES1 or AES2

• Dual AES mode is only available if AES data streams are available on both

AES 1 and AES 2 inputs. If either of these are interrupted or become

corrupted while in Dual AES mode, the unit may default to single AES mode

and select the valid input. Check for faulty wiring to the input which has

been deselected. Once both data streams are stable again, Dual AES mode may be selected using the Input button or the Remote Control. See page

25.

• If you are driving Delius direct from an Upsampler always set to output Dual AES, you may find that changing inputs on the Upsampler causes Delius to

fall out of Dual AES mode. To prevent this, Delius may be locked in Dual

AES mode. Open the menu and page through until you reach the Dual AES

page. Change the setting to Lock. Select AES 1 or AES 2 input on Delius and it will enter Dual AES mode automatically (see page 25).

A digital recorder fails to record from the REC Output

• If Delius is selected to an SPDIF input (RCA, BNC, ST or TOSLINK) and

the source data (CD for example) is copy protected, your recorder will be prevented from recording the data. This prevents copyright infringement. Note that AES data streams have no Copy Prohibit flag.

• In some DAT machines, the digital input is connected directly to a digital

output without buffering. This arrangement does not comply with the

IEC60958 standard. Connecting another device to this may overload Delius’

REC output and corrupt the digital data.

• The REC output is usable with single AES, RCA, BNC, Toslink or ST

inputs ONLY.

Manual filename: Delius Manual v2.3x.doc Page 67 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

The Remote Control fails to control the unit

• The Remote Control is normally shipped with the batteries packed

separately for safety reasons. If you are using the Remote Control for the

first time, you must fit the batteries first – see page 61.

• If the Remote Control has not been used for a long time or has gradually lost range, the batteries should be replaced - see page 61.

• If you have just replaced the batteries but the unit still does not work, check that the batteries are fitted the right way around - see page 61. If two or

more batteries were fitted the wrong around, the Remote Control may be permanently damaged. If this occurs, contact your dealer for advice.

• For correct operation, there must be a clear line of sight between the

infrared transmitter at the end of the Remote Control and the infrared

receiver in Deliu s, located on the left hand side of the display. If the line of

sight is blocked (for example by a coffee table) the Remote Control may operate erratically or not at all.

• While the unit is displaying Locking or Wait ..., the system timing is

fluctuating and this may temporarily disrupt the operation of the Remote Control. Once the unit locks, normal operation will be resumed.

While playing a DVD, a burst of noise is heard, Delius mutes and changes sample rate

• We have found that some DVDs have been compiled with tracks recorded

at different sample rates (e.g. 96kS/s & 48kS/s). There is no warning of this sudden change in sample rate (this could be done by using the Non-Audio flag or by changing the sample rate code in the data stream), so the DAC tries to decode corrupted data momentarily before registering loss of sync, muting and re-locking. The root cause of the problem is a lack of a formal interface standard covering sample rates above 48kS/s. When a new

standard is agreed, Delius’ software can be updated to comply with it. This

is unlikely to improve the situation with existing disks. Meanwhile, we suggest you reduce the volume at the end of the track where a change

occurs and increase it when Delius displays a new sample rate.

CD Update

CD Update is interrupted or fails

CD UpdateCD Update

• If a software update from a dCS CD is interrupted, the original software may be recovered by switching Delius off and on, then waiting a few

minutes. See CD Update on page 33.

• If you are using an Upsampler or other device, ensure it is set to bit-for-bit (Clone) mode.

• If your CD player upsamples to 48kS/s or 88.2kS/s or adds dither (a few

types do this), the update program will reject the data. Use or borrow an “ordinary” CD player.

CD Update

CD Update is interrupted and fails to recover

CD UpdateCD Update

• It is just possible (but very unlikely) that the recovery will fail if the recovery

code was being over-written when the interruption occurred. If you are very unlucky and this happens, ask your dealer for help. New software must be loaded from an EPROM.

Manual filename: Delius Manual v2.3x.doc Page 68 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Troubleshooting the IEEE 1394 Interface

This section covers difficulties that may be encountered using a dCS Verdi SACD Transport (v1.20 or later), a dCS Verdi La Scala Upsampling SACD Transport or a dCS Purcell Upsampler to drive a dCS Elgar Plus DAC (v4.20 or later) or Delius DAC (v2.20 or later) with DSD data over an IEEE 1394 interface.

Upsampler or Transport displays “Inactive”

• This can happen momentarily during locking. If it does not change to

Active, open the Transport or Upsampler’s menu and ensure the Transmit

page is set to Active.

The Unit keeps displaying “No Comms”

• This will appear briefly while the 1394 system is checking for connections.

• If the No Comms message does not clear, ensure that all units in the 1394

chain are switched on and securely connected by 1394 cables.

The Unit keeps displaying “Search..”

• This will appear briefly after the 1394 system has established

communications.

• If the Search message does not clear, ensure that you have not connected

both 1394 connectors from one unit to both 1394 connectors on another unit or set up a loop. This prevents the 1394 bus settling.

• Check that the 1394 cables are correctly fitted.

The DAC displays “Verdi Wordclock Missing”

• With the DAC in slave mode, check there is an undamaged BNC cable connecting Verdi’s WClk Out to the DAC’s WClk In.

• Ensure the cable is D.C. coupled. A.C. coupled cables are not suitable for

use with Wordclock or SDIF.

The DAC displays “Missing Wordclock between Clk Out & Verdi Clk In”

• With the DAC in master mode, check there is an undamaged BNC cable connecting the DAC’s WClk Out to Verdi’s WClk In.

• Ensure the cable is D.C. coupled. A.C. coupled cables are not suitable for

use with Wordclock or SDIF.

The DAC displays “Please check source slaved to DAC Wordclock Out”

• With the DAC in master mode, check there is an undamaged BNC cable connecting the DAC’s WClk Out to the source’s WClk In.

• Ensure the cable is D.C. coupled. A.C. coupled cables are not suitable for

use with Wordclock or SDIF.

The DAC displays “Wrong Wordclock @ Verdi Clk In”

• Verdi / La Scala has detected a clock frequency other than 44.1kHz on it’s

WClk In connector. Ensure the clock source is set to 44.1kHz.

• With the DAC in master mode, check there is an undamaged BNC cable connecting Verdi / La Scala’s WClk Out to the DAC’s WClk In.

• Ensure the cable is D.C. coupled. A.C. coupled cables are not suitable for

use with Wordclock or SDIF.

Manual filename: Delius Manual v2.3x.doc Page 69 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

The DAC remains muted

• If the DAC is displaying the Volume setting, change the Disp menu page setting to Disp:Fs and check for error messages.

• If all else is in order, switch off the Transport, the Upsampler and the DAC

then switch them on again. If this situation keeps recurring, please consult your dealer.

The DAC takes a long time to unmute

• The 1394 interface can take around 30 seconds to settle and unmute.

• Try setting the DAC to 1394 mode before setting the Upsampler to DSD

mode.

• If your system is in standby mode or switched off, try turning the DAC on

before the Upsampler or Transport.

If this information does not resolve the problem, please contact your dealer for advice.

Manual filename: Delius Manual v2.3x.doc Page 70 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

IF YOU NEED MORE HELP

In the first instance, you should contact your dealer. If they cannot resolve the

issue, contact dCS. Our office hours are 8:30 a.m. to 5:00 p.m. Monday to

Friday, UK time (GMT in Winter or GMT + 1hr in Summer). Contact us by phone or fax on:

Inside the UK Outside the UK Telephone Fax

Table 10 – dCS Contact Information

You can write to us at:

dCS Ltd

Mull House Great Chesterford Court Great Chesterford Saffron Walden CB10 1PF UK

01799 531 999 +44 1799 531 999 01799 531 681 +44 1799 531 681

Other Information

Our email address:

Our web-site is: www.dcsltd.co.uk

The web-site is regularly updated. You will find full details of all dCS products here, plus the latest dCS news.

dCS produce technical notes from time to time, on issues related to ADCs,

DACs and DDCs. If you are interested in these, please check our web-site.

more@dcsltd.co.uk

Manual filename: Delius Manual v2.3x.doc Page 71 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

INDEXES AND SOFTWARE VERSION NUMBERS

Software History

This manual is for Delius software version 2.3x.

Version 2.3x differs from 2.2x versions as follows:

In PCM mode, Delius can now lock to an external word clock that is at an exact

multiple of the sample rate. For example:

• with a data rate of 96kS/s, the word clock may be at 32, 48 or 96kHz

(previously 96kHz only).

• with Dual AES data at 176.4kS/s, the word clock may be at 44.1 or 88.2kHz

(previously 88.2kHz only).

• with Dual AES data at 192kS/s, the word clock may be at 32, 48 or 96kHz

(previously 96kHz only).

Note that DSD mode still requires a 44.1kHz word clock only.

Version 2.2x differs from 2.1x versions as follows:

• (Units with 1394 option only) Delius responds to status messages sent over

the 1394 interface from a Verdi (v1.2x) to allow automatic switching between SACD and CD modes. This also allows Delius to report any cabling

faults.

• 1394 Src menu deleted – 1394 sources are selected with the Input button

or automatically selected by a Verdi.

• Clock menu deleted. In Master mode, Delius outputs a Wordclock at

44.1kHz only. Wordclock Out is disabled in Slave or Sync modes.

• Part No. menu deleted.

• After a Factory reset, the inputs are set up to match the other dCS units in

the system.

• 1394 operation generally improved, system messages changed.

Version 2.1x differs from 2.0x versions as follows:

• menu order rearranged.

• improved IEEE 1394 interface behaviour.

• Reset Sync menu added.

Version 2.0x differs from 1.1x versions in supporting DSD at 2.822MS/s over

the optional IEEE 1394 interface. (Upgrader’s note: the 1394 interface hardware may be retrofitted to any unit.)

Version 1.13 differs from version 1.11 in supporting synchronisation to the

Wordclock Input.

(Upgrader’s note: on units manufactured before February 2001, the Wordclock Input was labelled OPTION or was blanked off.)

Version 1.11 differs from version 1.0x as follows:

• in supporting Master Mode clock operation (it can give out a clock for CD

players, for example, to lock to),

• in supporting updates of the software by CD,

• and in offering more filters (6 instead of 4 at 176.4 kS/s and 192 kS/s)

• in allowing partial resets.

Manual filename: Delius Manual v2.3x.doc Page 72 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Definitions and Abbreviations

ADC Analogue to Digital Converter, sometimes referred

to as an A/D Converter.

AES3 A standard professional stereo digital audio format

consisting of one serial PCM data line. It uses a balanced cable to extend transmission distance and includes a comprehensive messaging system.

DAC Digital to Analogue Converter, sometimes referred

to as a D/A Converter.

dB A relative signal level or ratio in decibels. The

context may indicate the reference level.

dB0 Level in decibels, referred to a full scale sine wave

in a sampled system. So, 0dB0 is full scale.

dBu A signal level relative to 0.775V rms, making no

allowance for external loading.

DDC Digital to Digital Converter, sometimes referred to

as a D/D Converter.

DSD Direct Stream Digital - a single bit digital audio

format, sampled at 2.822MS/s.

kS/s Sample rate in kilo-samples per second. This

replaces kHz, which is technically incorrect when referring to sample rates.

SDIF-2 Sony Digital InterFace – a stereo digital audio

format consisting of 2 serial PCM or DSD data lines. Usually used with a Word Clock.

SPDIF Sony / Philips Digital InterFace – a stereo digital

audio format for consumer equipment, consisting of one serial PCM data line. Similar to AES3, but unbalanced and with different messaging.

Word Clock A synchronisation signal consisting of a square-

wave, the frequency of which is the sample rate. Usually transmitted through co-axial cable and BNC connectors.

Manual filename: Delius Manual v2.3x.doc Page 73 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Key to Cable Identification

If you are reading a colour print or a soft copy of this manual, cable types shown

in figures can be identified from Table 11.

Cable Type Colour / Style

XLR Analogue Brown, solid RCA Phono Analogue Brown, long dash

XLR Digital (AES3) Blue, solid BNC Digital Pale blue, solid RCA Phono Digital (SPDIF) Pale blue, short dash Optical (SPDIF) Dark magenta, solid

IEEE 1394 Red, solid

Sync Link Green, solid Wordclock Dark green, solid AES Reference Dark green, long dash GPS Reference Dark green, short dash

RS-232 Purple, solid

Table 11 – Cable colours and styles

Where more than one cable of any type is used in a drawing, they can be identified by a coloured sleeve at the source and a coloured arrow head at the destination.

Manual filename: Delius Manual v2.3x.doc Page 74 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

List of Tables

Table 1 – AES/EBU Interface Electrical Characteristics ................................... 46

Table 2 – SPDIF Interface Electrical Characteristics ........................................ 46

Table 3 – Optical Interface Electrical Characteristics........................................ 46

Table 4 – SDIF / Wordclock Interface Electrical Characteristics ....................... 46

Table 5 – IEEE 1394 Interface Electrical Characteristics.................................. 47

Table 6 – Analogue Output Electrical Characteristics ....................................... 48

Table 7 – Power consumption for consumer products ...................................... 49

Table 8 – Size and weight for consumer products ............................................ 49

Table 9 – Options available ............................................................................... 58

Table 10 – dCS Contact Information.................................................................. 71

Table 11 – Cable colours and styles ................................................................. 74

List of Figures

Figure 1 – Basic setup with a CD player ........................................................... 12

Figure 2 – Using Master Mode with a CD player............................................... 14

Figure 3 – Using Delius in Master Mode with Verdi........................................... 16

Figure 4 - Using Delius in Master Mode with Verdi and Purcell......................... 17

Figure 5 – Using Delius with Purcell and a CD player ....................................... 18

Figure 6 – Function Menu flow chart ................................................................. 20

Figure 7 – dCS Delius Front Panel ..................................................................... 36

Figure 8 – dCS Delius Rear Panel...................................................................... 39

Figure 9 – The Remote Control ......................................................................... 43

Figure 10 – Frequency responses at all sample rates, set to Filter 1 .............. 47

Figure 11 – Changing the Mains Fuse .............................................................. 60

Figure 12 – Removing the Remote Control battery cover................................. 61

Figure 13 – Changing the Remote Control unit batteries .................................. 61

Manual filename: Delius Manual v2.3x.doc Page 75 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Keywords and Phrases

1394 input, selecting......................................11

1394 interface ..........................................41, 50

1394 interface, synchronising........................50

1394 interface, troubleshooting .....................69

1394 mode.....................................................72

1394 option ....................................................58

Active message .............................................69

ADC ...............................................................73

AES input, selecting ......................................11

AES inputs .....................................................40

AES/EBU .......................................................40

AES3..............................................................73

Analogue outputs, balanced ..........................39

analogue outputs, connecting to ...................12

Analogue outputs, unbalanced......................40

anti-image filter ..............................................21

audio absent problem ....................................65

automatic input selection .........................50, 72

Bad CD! message .........................................33

Bad Checksum message.........................33, 64

Bal menu........................................................27

Balance display mode .............................27, 38

Balance display, bars ....................................27

Balance display, numbers .............................27

Balance menu................................................27

Balance setting ........................................38, 48

Balance, setting from front panel...................27

balanced or unbalanced outputs? .................39

balanced outputs ...........................................39

batteries for remote control............................61

batteries, polarity ...........................................61

biography, Frederick Delius .............................4

blank display ............................................26, 66

blue LED, remote...........................................44

BNC input ......................................................40

Bright x menu ................................................26

Burn In menu .................................................30

burn-in routine................................................30

button, Display, remote..................................44

button, Filter, remote .....................................44

button, Function .............................................38

button, Function, remote................................43

button, Input...................................................36

button, Input, remote .....................................44

button, Menu Select.......................................20

button, Menu Step .........................................20

button, Menu Step Back ................................20

button, Mute...................................................37

button, Mute, remote .....................................44

button, Phase, remote ...................................44

button, Power................................................ 36

button, Purcell, remote.................................. 44

button, Select ................................................ 38

button, Standby, remote................................ 43

button, Step................................................... 37

button, Step Back.......................................... 37

button, Vol/Bal, remote ................................. 44

buttons, Up and Down, remote ..................... 44

cable identification ........................................ 74

cables.................................... 10, 39, 40, 41, 65

Can’t Use Frequency message .................. 23

cannot record from REC out ......................... 67

cannot set Filter ............................................ 44

Caution message .......................................... 30

CD player ........................................................ 3

CD player problems ...................................... 65

CD player, jittery ........................................... 28

CD Update fails............................................. 68

CD Update is interrupted ........................ 33, 68

CD Update menu .......................................... 32

CD-ROM, playing.................................... 28, 37

Ch.Check menu ............................................ 29

changing option............................................. 58

channel check routine ................................... 29

channels, swapping ...................................... 25

cleaning the case .......................................... 63

clock cleaning ............................................... 48

clocking ......................................................... 48

closing the Function Menu............................ 20

connecting the analogue outputs .................. 12

contact information.................................. 31, 71

Contact menu................................................ 31

contents of box.............................................. 56

control, rotary ................................................ 38

converter type ............................................... 46

Copy Prohibit flag.......................................... 67

crackles and pops ......................................... 67

crystal oscillator ............................................ 48

d xxx message .............................................. 38

DAC............................................................... 73

DAC remains muted, 1394 input................... 70

DAC takes time to unmute, 1394 input ......... 70

dB.................................................................. 73

dBu................................................................ 73

DDC .............................................................. 73

De-Emph menu ............................................. 26

de-emphasis ..................................... 26, 48, 66

de-emphasis Off............................................ 26

de-emphasis options ..................................... 26

de-emphasis, 50/15µs .................................. 26

de-emphasis, Automatic ............................... 26

de-emphasis, CCITT ..................................... 26

Manual filename: Delius Manual v2.3x.doc Page 76 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

de-emphasis, recommendation .....................27

definitions.......................................................73

Delius, biography .............................................4

Delius, music by...............................................5

digital interface specifications........................46

Disp menu......................................................25

display blanking .......................................26, 66

display brightness ....................................26, 44

Display button, remote...................................44

display defaults ..............................................25

display test routine.........................................31

display, Balance ............................................38

display, main..................................................38

display, Volume .............................................38

displaying format ...........................................25

displaying sample rate ...................................25

displaying selected input ...............................25

displaying volume ..........................................25

do not swap Dual AES cables .................24, 40

do not use with Dual AES..............................41

DSD .........................................3, 41, 47, 50, 73

DSP-Err1 message........................................64

DSPs Not Loaded message ..........................64

Dual AES .....................................24, 38, 40, 47

Dual AES Auto mode fails .............................24

Dual AES cable match...................................24

Dual AES drop out.........................................67

Dual AES input, selecting ..............................11

Dual AES Lock mode ....................................24

Dual AES menu .............................................24

Dual AES Off .................................................24

Dual AES On .................................................24

Dual AES options ..........................................24

Dual AES problems .......................................67

Dual AES requirements .................................24

Dual AES, Auto mode....................................24

Dual AES, do not swap cables ................24, 40

Dual AES, do not use with.............................41

Dual AES, using ............................................18

DVD player ......................................................3

DVD sample rate changes.............................68

earthing..........................................................56

emphasis message flag wrong ......................26

factory default settings...................................34

Factory menu.................................................34

Fade in after re-lock.......................................23

Fade menu.....................................................23

fade out time before mute..............................23

fade up time after mute..................................23

fails to respond ..............................................66

fault indication................................................64

Filter button, remote ......................................44

Filter menu.....................................................21

Filter, anti-image ............................................21

Filter, choosing ..............................................21

filter, energy smear ................................. 21, 44

Filter, interpolation ........................................ 21

Filter, transient response .............................. 21

first-time use ................................................. 56

flashing AES indicator ................................... 24

Found Track message .................................. 33

FPGAs Not Loaded message ....................... 64

Frederick Delius, biography ............................ 4

frequency response ...................................... 47

front panel ..................................................... 36

Fs=??? message ......................................... 22

full scale ........................................................ 73

Function button ............................................. 38

Function button, remote ................................ 43

Function Menu .............................................. 20

Function Menu, closing ................................. 20

Function Menu, opening ............................... 20

Function Menu, using.................................... 20

fuse, mains.................................................... 60

fuse, replacing............................................... 60

fuse, spare .................................................... 56

Global menu.................................................. 27

grounding ...................................................... 56

guide to basic setup ...................................... 10

hardware updates ......................................... 62

hum pickup.................................................... 40

IEEE 1394 interface ................................ 41, 50

IEEE 1394 interface option ........................... 58

Ignoring Non-Audio Flag message ............... 29

Inactive message .......................................... 69

indicator, input............................................... 38

indicator, MUTE ............................................ 37

indicator, PHSE............................................. 37

indicator, PWR .............................................. 37

indicator, Status ............................................ 37

indicator, STBY ............................................. 37

Input button ................................................... 36

Input button, remote ...................................... 44

input indicator................................................ 38

input selection ................................... 11, 36, 44

input selection, automatic ............................. 50

input, BNC..................................................... 40

input, RCA..................................................... 40

input, ST optical option ................................. 40

input, Toslink optical ..................................... 40

input, Wordclock ........................................... 41

inputs, AES ................................................... 40

Issue menu ................................................... 31

issue, software .............................................. 31

jitter ............................................................... 28

jitter, low frequency ....................................... 48

Manual filename: Delius Manual v2.3x.doc Page 77 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

jitter, reducing ................................................41

learning remotes ............................................52

levels, analogue output..................................25

lock failure......................................................65

lock-in time ....................................................48

Locking message.....................................38, 68

locking problems............................................28

Locking… message......................................22

Loud message ...............................................30

low audio problem .........................................65

main display.............................................26, 38

maintenance ..................................................60

master clock ..................................................41

master mode..................................................72

master mode limitations.................................22

master mode with Upsampler........................22

master mode, lock failure ..............................65

master mode, PLL setting..............................28

master mode, setting .....................................22

master mode, using ...........................14, 16, 17

Menu Select button........................................20

Menu Step Back button .................................20

Menu Step button ..........................................20

menu time out ..........................................20, 28

menu times out too soon ...............................28

menu, scrolling.........................................38, 44

message, Active ............................................69

message, Inactive..........................................69

message, Missing Wordclock between Clk Out

…................................................................69

message, No Comms ....................................69

message, Please check source slaved to DAC

Wordclock Out ...........................................69

message, Search...........................................69

message, Verdi Wordclock Missing ..............69

message, Wrong Wordclock @ Verdi Clk In .69 Missing Wordclock between Clk Out …

message from DAC....................................69

mode, master.................................................22

mode, slave ...................................................22

mode, standby ...............................................36

mono output...................................................65

MS menu .......................................................22

music by Delius ...............................................5

Mute button....................................................37

Mute button, remote ......................................44

mute fade time ...............................................23

MUTE indicator ..............................................37

Mute menu.....................................................23

muting, automatic ..........................................37

muting, Non-Audio .........................................37

NAud menu....................................................28

no audio output ..............................................65

No Comms message .................................... 69

No Input message ................................... 37, 38

No Track message ........................................ 33

noisy ST or Toslink input............................... 67

Non Seq message ........................................ 33

Nonaudio message ....................................... 64

Non-Audio muting ............................. 28, 37, 64

Non-Audio muting, disable............................ 29

Non-Audio muting, override .......................... 28

Non-Audio muting, restoring ......................... 29

normal display ............................................... 25

one channel absent....................................... 66

opening the Function Menu .......................... 20

operating conditions ...................................... 49

optical input is noisy...................................... 67

option, IEEE 1394 interface .......................... 58

option, supply voltage ................................... 58

options........................................................... 58

options, changing .......................................... 58

Out menu ...................................................... 25

output level, setting ................................. 13, 25

output, REC .................................................. 41

output, Wordclock ......................................... 41

outputs, balanced.......................................... 39

outputs, unbalanced...................................... 40

oversampling................................................. 46

packaging...................................................... 60

packaging, replacement................................ 56

Ph.Check menu ............................................ 29

Phase button, remote.................................... 44

phase check routine ...................................... 29

phase locked loop ......................................... 48

Phase menu .................................................. 26

phase, changing............................................ 26

PHSE indicator.............................................. 37

Please check source slaved to DAC Wordclock

Out message from DAC ............................ 69

Please Start CD message ............................ 33

PLL................................................................ 67

PLL menu...................................................... 28

PLL tracking bandwidth................................. 28

positioning the unit ........................................ 57

power amplifier, using ................................... 12

Power button................................................. 36

power inlet..................................................... 42

power interruption ......................................... 64

power off ....................................................... 36

power on ....................................................... 36

power requirements ...................................... 49

power up failure ............................................ 65

PowerDn message.................................. 36, 64

powering up .................................................. 10

preamplifier, using................................... 12, 38

pull-in range .................................................. 48

Purcell button, remote................................... 44

Manual filename: Delius Manual v2.3x.doc Page 78 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Purcell, controlling with remote .....................44

PWR indicator................................................37

RC5 codes .....................................................52

RCA inputs.....................................................40

rear panel.......................................................39

REC output ....................................................41

recommended recordings by Delius ................5

remote control..........................................43, 61

remote control codes .....................................52

remote control does not work ........................68

remote control sensor ....................................37

remote control, replacing batteries ................61

resetting to factory state ................................34

resetting to slave mode .................................34

response is slow ............................................22

Revert to Slave message .............................22

Ring DAC...................................................3, 46

Rotary Control................................................38

Rst Sync menu ..............................................34

safety .............................................................56

safety, electrical .............................................63

sample clock ..................................................48

sample rate ..............................9, 40, 41, 47, 73

SDIF-2 ...........................................................73

Search message............................................69

Select button............................................20, 38

selecting 1394 input.......................................11

selecting a single wire input...........................11

selecting an input...........................................11

selecting Dual AES input ...............................11

Serial menu....................................................31

serial number, full ..........................................31

serial number, short.......................................42

service ...........................................................60

setting output level.........................................13

setting, supply voltage ...................................57

settings after Factory reset ............................34

size ................................................................49

slave mode, resetting to ................................34

slave mode, setting........................................22

slow response................................................66

software issue................................................31

software update by CD ..................................32

software update fails......................................68

software updates ...........................................62

software upgrade connector ..........................41

software version ............................................72

source, synchronising to ................................48

SPDIF ......................................................40, 73

SPDIF input, selecting ...................................11

SPDIF inputs..................................................40

SPDIF output .................................................41

specification ...................................................46

specification, AES3 I/O ..................................46

specification, analogue outputs .....................48

specification, IEEE 1394 interface ................ 46

specification, optical I/O ................................ 46

specification, SDIF / wordclock I/O ............... 46

specification, SPDIF I/O................................ 46

ST optical input option .................................. 40

Standby button, remote................................. 43

standby mode ................................... 36, 37, 43

Status indicator ....................................... 36, 37

STBY indicator .............................................. 37

Step Back button........................................... 37

Step button.............................................. 20, 37

step-by-step guide ........................................ 10

SUC connector.............................................. 41

supply voltage option .................................... 58

supply voltage setting ............................. 42, 57

swap channels ........................................ 25, 29

Swap menu ................................................... 25

swapped channels ........................................ 66

sync to Wordclock In..................................... 22

synchronising 1394 interface ........................ 50

system burn-in .............................................. 30

technical notes .............................................. 71

Temp menu ................................................... 31

temperature scale ......................................... 31

temperature, internal..................................... 31

temperature, operating.................................. 49

Test menu ..................................................... 31

time out ......................................................... 43

Timeout menu ............................................... 28

tonal balance, peculiar .................................. 66

Too Hot! message......................................... 64

Toslink optical input ...................................... 40

Track n message .......................................... 33

troubleshooting ....................................... 64, 65

troubleshooting 1394 interface ..................... 69

unbalanced outputs....................................... 40

Up and Down buttons, remote ...................... 44

updates ............................................... 3, 42, 62

updates, hardware ........................................ 62

updates, software.......................................... 62

updating software by CD............................... 32

updating your Delius ..................................... 62

upgrader’s note ....................................... 39, 72

using Dual AES............................................. 18

using for the first time.................................... 56

using master mode ................................. 14, 16

using with Verdi............................................. 16

using with Verdi and Purcell.................... 17, 18

VCXO ............................................................ 48

Verdi Wordclock Missing message from DAC

................................................................... 69

Vol xx.x display ............................................. 38

Vol/Bal button, remote .................................. 44

Manual filename: Delius Manual v2.3x.doc Page 79 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

dCS Delius User Manual Manual for Software Issue 2.3x dCS Ltd September 2004

Volume...............................................27, 38, 48

Volume display ..............................................38

Volume, global ...............................................27

Volume, local .................................................27

Volume, per input ..........................................27

Vx.xx message ..............................................33

weight ............................................................49

Word Clock ....................................................73

Wordclock input ............................................ 41

Wordclock output .................................... 41, 47

Wrong CD message...................................... 33

Wrong Wordclock @ Verdi Clk In message

from DAC................................................... 69

Wrong! message ........................................... 33

xxx%xxx% message ..................................... 38

Manual filename: Delius Manual v2.3x.doc Page 80 email: more@dcsltd.co.uk English version web-site: www.dcsltd.co.uk

DCS (AUDIO) DELIUS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
