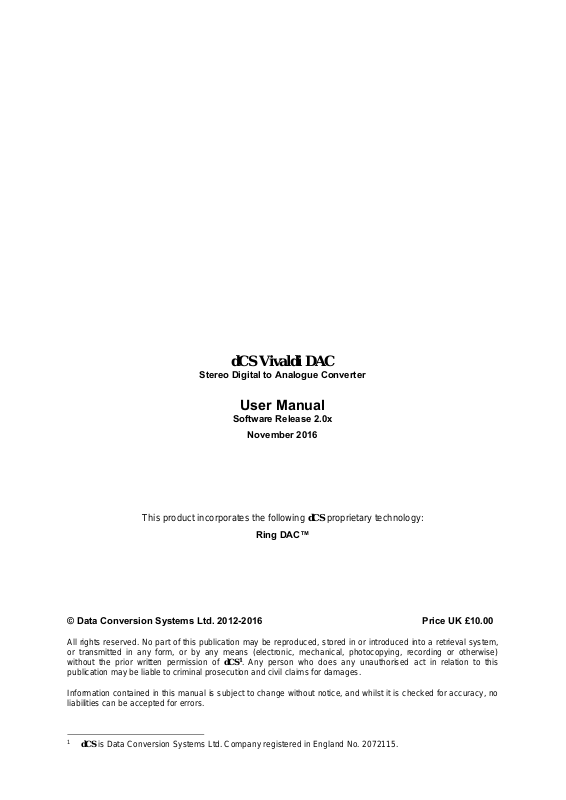

DCS Vivaldi DAC User Manual

Stereo Digital to Analogue Converter
This product incorporates the following dCS proprietary technology:
dCS Vivaldi DAC
User Manual
Software Release 2.0x
November 2016
Ring DAC™
© Data Conversion Systems Ltd. 2012-2016
All rights reserved. No part of this publication may be reproduc ed, stored in or introduced into a retrieval s ystem, or transmitted in any form, or by any means (electronic, mechanical, photocopying, recording or otherwise) without the prior written permission of dCS publication may be liable to criminal prosecution and civil cla ims for damages.
Information contained in this manual is subject to change without notice, and whilst it is checked for accuracy, no liabilities can be accepted for errors.
1
dCS is Data Conversion Systems Ltd. Company registered in England No. 2072115.
Price UK £10.00
. Any person who does any unauthorised act in relation to this
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Vivaldi DAC Manual v2_0x Page 2 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Contents
Using the dCS Vivaldi DAC for the first time ....................................................................................... 5
What’s in the box? 5 Positioning the unit 5 Important Safety Instructions 6 Safety Notice 7
Step-by-Step Guide ................................................................................................................................ 8
Preliminaries 8
Fitting the Remote Control handset batteries 9
STEP 1 – Connecting a PCM Input 10
Connecting to a Dual AES Source 10 Connecting to a Single AES or SPDIF source 11 Connecting to an SDIF/DSD Source 11
STEP 2 – Setting up the USB source 12
Compatibility 12 Connecting the USB interface 12 Loading the Windows driver for USB Class 2 12 Basic setup with a PC 13 A word about Music Playing Software 13
Selecting the Vivaldi DAC as your Audio Output device 14 STEP 3 – Connecting the Analogue Outputs 15 STEP 4 - Setting the Output Level 15 STEP 5 – Choosing a Sync Mode 16
Using the DAC’s AES & SPDIF inputs in Master Mode 16
Using a Master Clock in a CD/SACD system 17

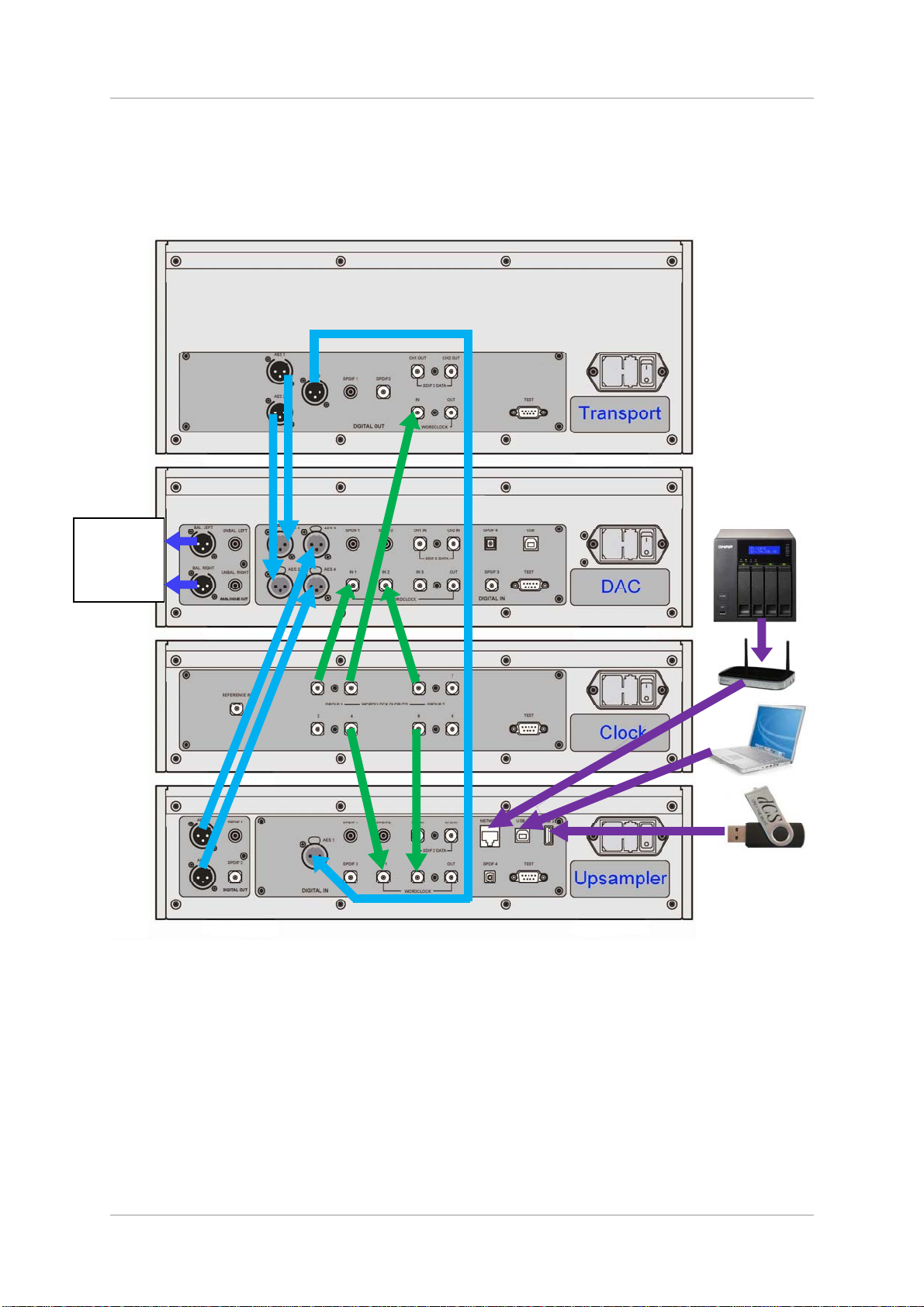

A full Vivaldi system 18 Advanced options 20
Customising the input configuration 20
Front Panel ............................................................................................................................................ 21
Remote Control Receiver 21 Display 21
Power Button 22 Menu Button 22 Filter Button 22 Input button 23 Mute Button 23
Rotary Control 23

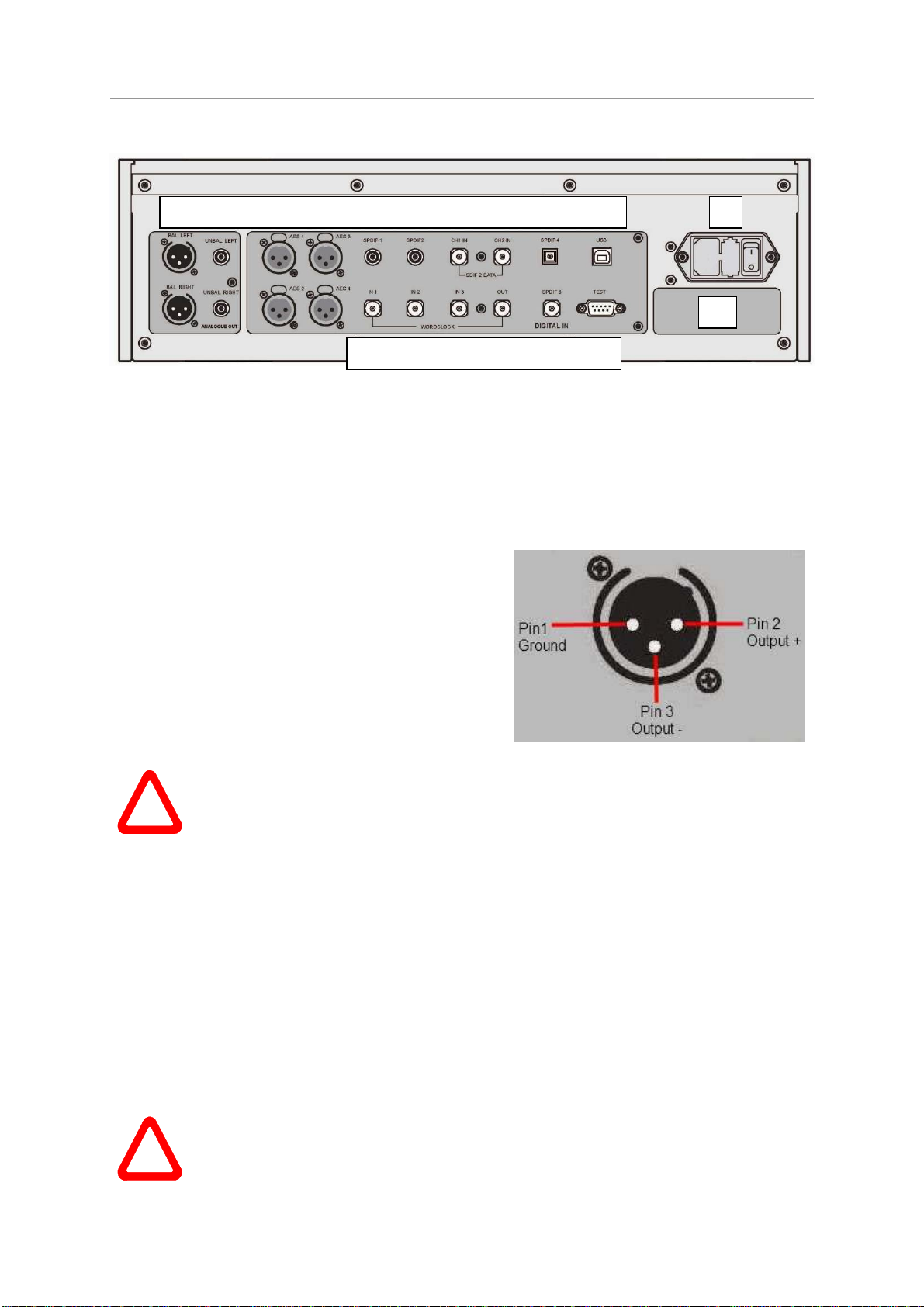

Rear Panel ............................................................................................................................................. 24
Analogue Outputs 24 AES Digital Inputs 24 SPDIF Digital Inputs 25
SDIF-2 Digital Interface 25
USB Interface 25 Word Clock Inputs and Output 26
Test interface 26
Mains inlet 26 Label 26
Remote Control ..................................................................................................................................... 27
The Menu ............................................................................................................................................... 28
Using the Menu 29 INFORMATION Menu 30
Unit Status 30
Version 30
Contact 30
Update 30
Vivaldi DAC Manual v2_0x Page 3 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
SETTINGS Menu 31
Mapper 31
Sync Mode 31
Output Level 32
Dual AES1+2 32
Dual AES3+4 32
Phase 32
Channel Swap 32
Balance 32
USB Class 33
Buffer 33
EasyPlay 33
RS232 Mode 33 CONFIGURATION Menu 34
Settings Lock 34
Save Configuration 34
Restore Configuration 34
Reset Input Names 34
Factory Reset 34 DISPLAY SETTINGS Menu 35
Brightness 35
Display On/Off 35 GENERATOR Menu 35
Channel Check 35
Phase Check 35
Burn In 35
Specification ......................................................................................................................................... 36
Maintenance and Support .................................................................................................................... 38
Service and Maintenance 38 Replacing a Blown Mains Fuse 38 Cleaning the case 38 Limited Warranty 39 If you need more help 40 Software History 41
Index ...................................................................................................................................................... 42
Vivaldi DAC Manual v2_0x Page 4 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
USING THE dCS VIVALDI DAC FOR THE FIRST TIME
Congratulations on purchasing your dCS Vivaldi DAC. Before using your unit, please read this section and the Step by Step Guide. This will enable you to
set the unit up quickly and safely with your hi-fi system. From time to time, dCS will release updated software on CD that you can install yourself using the
Update feature. Please check our web-site occasionally to see if new Vivaldi DAC software is
available, or consult your dealer.
What’s in the box?
Check that the box contains the following items:
• dCS Vivaldi DAC
• Manual and Menu / Setup Guide
• Power cable
• 2 AES/EBU cables
• BNC cable
• USB cable
• 2 spare fuses
• dCS Premium Remote Control Handset with 2x AAA batteries
Notify your dealer as soon as possible if anything is missing or damaged. We suggest that you retain the original packaging for possible future use. If this is not possible, replacement packaging can be ordered from dCS or our distributors. Details can be found on our web site at www.dcsltd.co.uk.
Positioning the unit
For best sound quality, the units in the Vivaldi range are designed to be mounted on separate shelves of a rack, although they may be stacked directly on top of each other if this is absolutely necessary. Place each unit on a firm, vibration free base, allowing convenient connection to the other parts of your system. To prevent overheating, we recommend that you leave some free space around the unit to allow for ventilation.
The unit is supplied with 4 feet fitted. If you prefer a 3-feet layout, unscrew the two back feet, remove the two black cores using a 2.5mm A/F Allen key, fit one of the cores in the middle position and replace the foot. Take care not to cross-thread the foot!
With all feet screwed fully home, the unit will sit level on a flat surface. If you need to do any levelling, you can unscrew any of the feet up to 3 complete turns, to give up to 3mm (1/8”) of height adjustment.
Vivaldi DAC Manual v2_0x Page 5 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Important Safety Instructions
The following statements are required to comply with U.S. safety standard UL60065.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has two blades and a third grounding prong. The third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Vivaldi DAC Manual v2_0x Page 6 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Safety Notice
In the event of the unit developing a fault, please contact your dealer in the first instance. If you decide to remove safety covers for any reason, disconnect the power cable first. Note that
removing covers voids the warranty. To maintain protection from electric shock, the unit MUST be connected to mains earth (ground) via
the power cable. Also, unearthed systems do not give the best sonic performance.
Protect the product from dripping or splashing liquids. Liquid-filled objects such as vases must not be placed on the product.
This product is not suitable for operation at altitudes above 2000m.
This product is lead-free and complies with the RoHS directive.
Before connecting the power cable to the unit for the first time, please check that it has been set to the correct operating voltage for your mains supply. The unit’s voltage setting is shown on the serial number label. If this does not match your local supply voltage, DO NOT attempt to use the unit. Contact your dealer to have the unit reset. Using the unit with the wrong mains setting for your local supply may result in serious damage to the unit and will invalidate the warranty. Do not attempt to reset the voltage yourself.
We do not recommend the use of mains regenerators. However, if you do wish to use a mains regenerator with variable voltage and frequency, we recommend that you set the voltage to match your local voltage and the frequency to either 50Hz or 60Hz ONLY.
Damage caused to your Vivaldi DAC by misuse of a mains regenerator or by a
!
malfunctioning mains regenerator is not covered by the warranty.
Disposal at end-of-life: the symbol indicates that this product should not be treated as normal household waste. It should be recycled, so please take it to an approved collection facility.
Vivaldi DAC Manual v2_0x Page 7 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
STEP-BY-STEP GUIDE
This section guides you through setting up the unit for basic operation.
Preliminaries
The Menu Guide sheet details the menu structure. For digital interfaces, use with cables designed for digital audio:
• for AES/EBU interfaces use 110Ω screened, twisted pair cables fitted with one male XLR
connector and one female XLR connector.
• for SDIF-2, Word Clock or SPDIF BNC interfaces, use 75Ω coax cables fitted with BNC plugs.
SDIF-2 and Word Clock interfaces require a simple DC-coupled connection. The
!
• for SPDIF RCA interfaces, use 75Ω coax cables fitted with RCA Phono plugs.
• for TOSLINK optical interfaces, use Toslink fibre-optic cables.
• for the USB interface, use a standard USB2.0 cable fitted with one type A and one type B
connector. The internal screen must be connected at both ends.
interfaces may malfunction or not work at all if capacitor coupled cables or cables with built-in networks are used.
For analogue outputs, use with screened cables of the correct type:
• for balanced outputs, use screened, twisted pair cables fitted with one male XLR connector and
one female XLR connector.
• for unbalanced outputs, use coax cables fitted with RCA Phono plugs.
Connect the power cable to the power inlet on the DAC rear panel, plug the other end into a convenient power outlet.
Please do not use an excessively heavy or inflexible power cable as this may damage
!
Press the Power button – the unit will display Vivaldi DAC. Wait about 30 seconds while the DAC configures itself.
If the unit is likely to be set in an unfamiliar state, you can run the Factory Reset routine by pressing the buttons in this sequence: Menu, ►, ►, Menu, ◄, ◄, Menu.
Wait a few seconds while the unit resets itself.
the power inlet connector.
The cables supplied with the unit are “commercial grade”, because most owners will have their own “audiophile grade” cables or will prefer to make their own cable choices.
Vivaldi DAC Manual v2_0x Page 8 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Fitting the Remote Control handset batteries
Use a small coin to release the screw securing the back plate.
If the remote control does not appear to work after fitting the batteries, make sure that the batteries are fitted the correct way, as shown above. If in doubt, please ask your dealer for advice.
Failure to fit the batteries correctly can damage your Remote Control. Such damage is
!
not covered by the warranty.
Please dispose of used batteries properly at a waste disposal site, not in the household waste.
Lift the screw a little and slide the back plate off.
Fit 2 AA size batteries by pressing the flat end (-) against the spring and pressing the battery into the slot, so that the + end makes contact with the stud.
Slide the back plate into place and tighten the screw.
Vivaldi DAC Manual v2_0x Page 9 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x
Amp
November 2016
STEP 1 – Connecting a PCM Input
If you want to use the USB input only, go to Step 2. Switch on the source equipment. If appropriate, load a disk / tape and set the machine in PLAY mode
to ensure it is generating a digital audio data stream. Choose one or more of the following sections:
Connecting to a Dual AES Source
• Check that your source equipment (probably a dCS SACD Transport or a dCS Upsampler) is
capable of Dual AES operation and is set up correctly.
• Connect the AES1 output on your source equipment to the AES1 input on the DAC rear panel and
the AES2 output to the AES2 input, using two XLR cables. Ensure the cables are not swapped.
• Press the Input button repeatedly until AES1+2 is displayed.
Analogue
Outputs
to
lifier

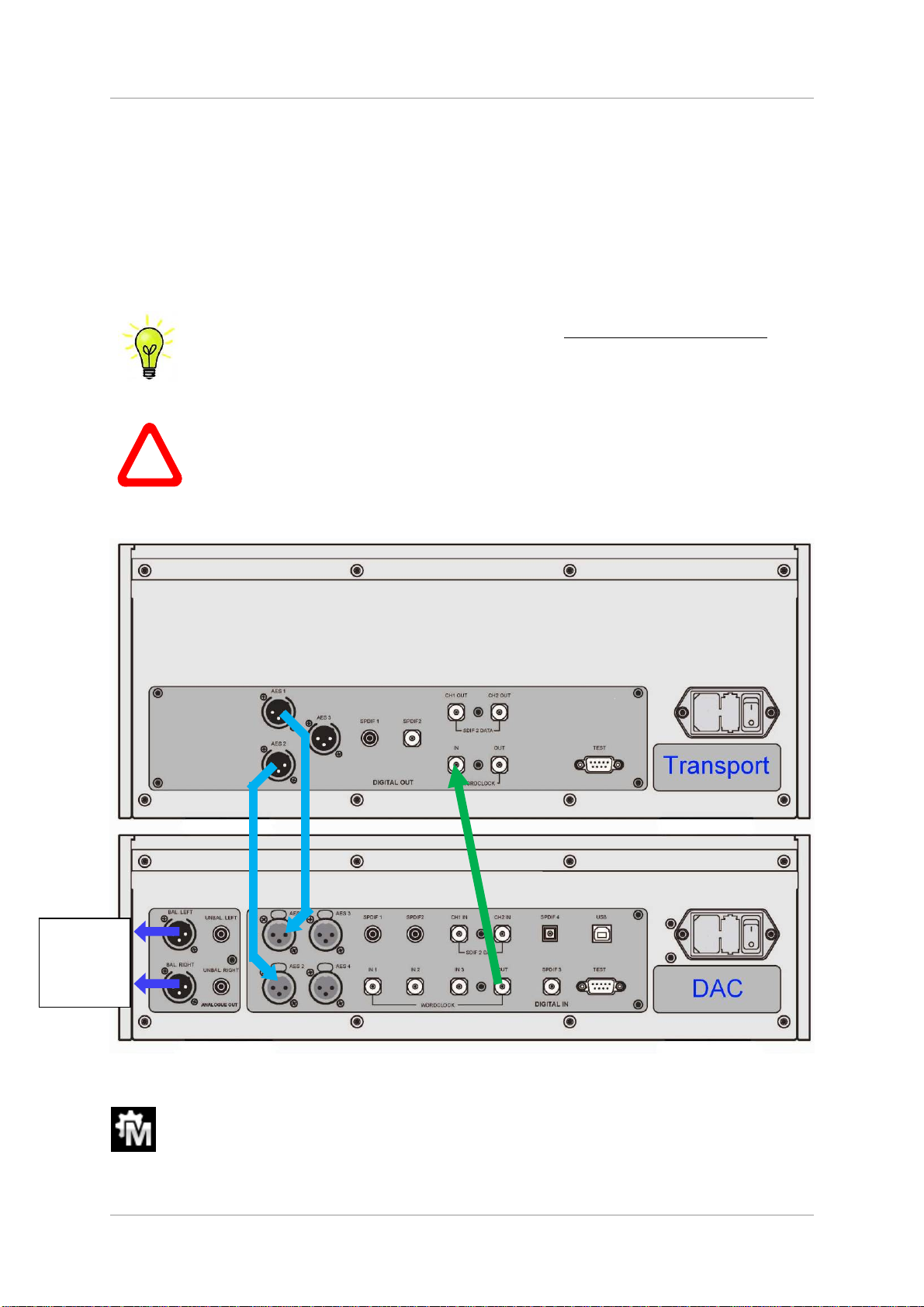

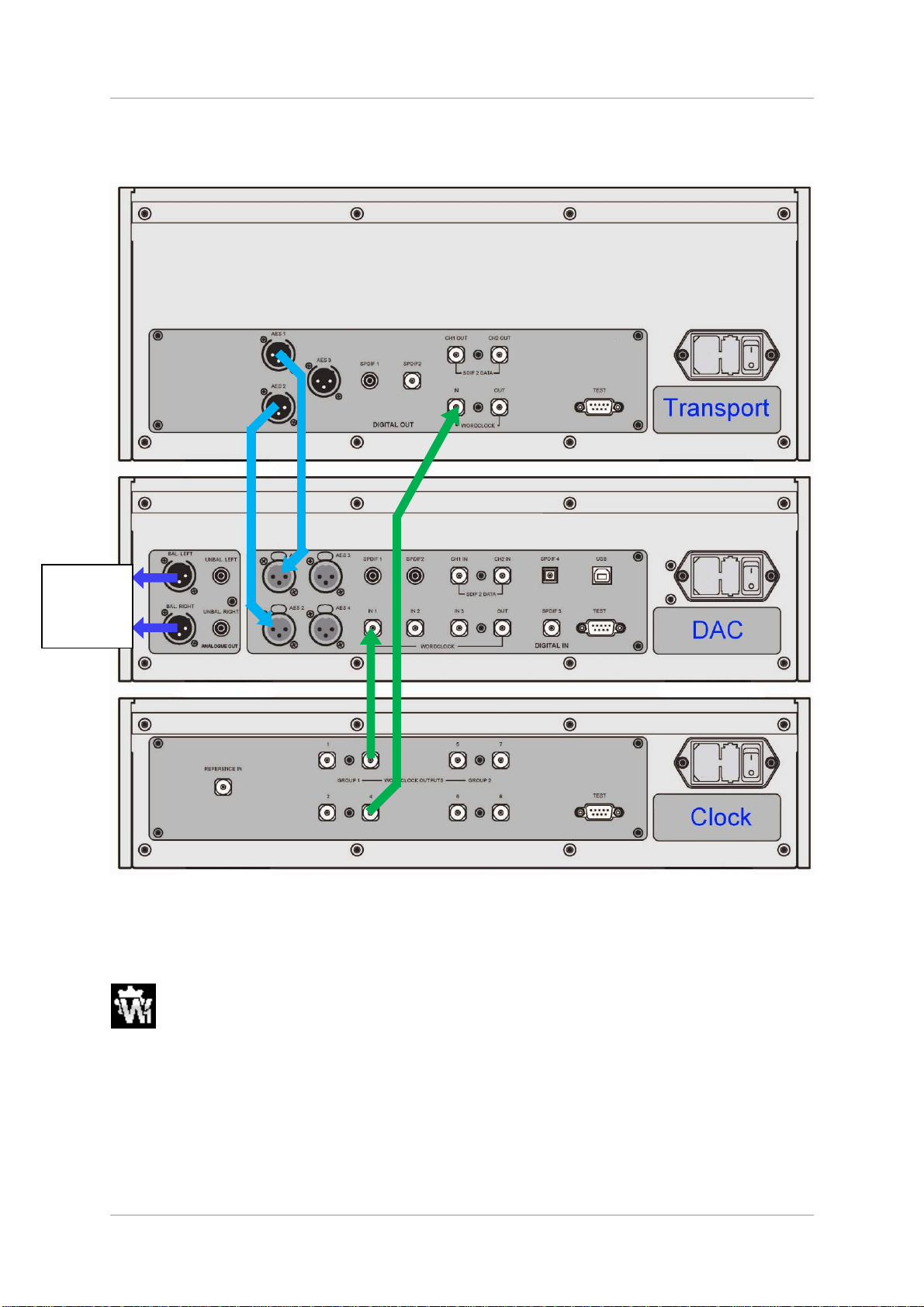

Figure 1 – Using the Vivaldi Transport with the DAC
The DAC will lock to the source, displaying 24/352.8 for example, if the source is generating 24 bit data at 352.8kS/s.
The Vivaldi DAC has a second Dual AES input on AES3 and AES4. You can connect a second Dual AES source to these inputs and use the Input button to select AES3+4.
The most common set-up is to connect a Vivaldi Transport to AES1+2 and a Vivaldi Upsampler to
AES3+4.
Vivaldi DAC Manual v2_0x Page 10 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Connecting to a Single AES or SPDIF source
Most source equipment (such as CD transports, DVD players) is fitted with a single wire digital output, usually on an RCA phono connector.
• Connect your source equipment to the matching input on the DAC rear panel using a suitable
cable.
• Press the Input button repeatedly until your chosen input is displayed. This will be either AES1,
AES2, AES3, AES4, SPDIF1 (RCA), SPDIF2 (RCA), SPDIF3 (BNC), or Toslink.
The DAC will lock to the source, displaying 16/44.1 for example, if the source is a CD player.
Connecting to an SDIF/DSD Source
Check that your source equipment is capable of SDIF PCM or DSD operation.
SDIF (Sony Digital InterFace) is not the same as SPDIF (Sony/Philips Digital InterFace)
!
• Connect the CH1 output on your source equipment to the CH1 input on the DAC rear panel and the CH2 output to the CH2 input, using two BNC cables. Connect the word clock output on your source equipment to one of the Word Clock Input connectors on the DAC rear panel.
• Ensure the cables are not swapped.
• Press the Input button repeatedly until SDIF-2 appears on the display.
and the two are not compatible. Please ensure that you connect to the correct BNC sockets.
Set the Settings > Sync Mode menu page to Word Clock 1, 2 or 3 as appropriate.
PCM or DSD mode is automatically detected. The DAC will lock to the source, displaying 16/44.1 for example, if the source is a CD player. DSD is displayed if the source is sending DSD data.
Vivaldi DAC Manual v2_0x Page 11 English version
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
STEP 2 – Setting up the USB source
If you do not want to use a USB source, go to STEP 3.
Compatibility
The USB interface can be connected to Windows™ 10, Windows™ 8.1, Windows™ 7 (SP1), Windows™ Vista (SP2), Mac™ OSX (10.5.4 or later) systems or a sound server, running music streaming software.
The interface should work with Linux Ubuntu servers and computers fitted with USB 2.0 interfaces that natively support USB Audio Class 1 or Class 2 operation, but this has not been extensively tested.
Connecting the USB interface
One of the USB Audio classes must be set during system set-up. The DAC is shipped set to USB Audio Class 2.
USB Audio Class 1: The interface operates without a special driver at up to 96kS/s.
To select Class 1, open the menu, navigate to the Settings > USB Class menu page. The button sequence is: Menu, ►, Menu, ◄, ◄, ◄, ◄, and then use the Menu button to select the Class 1 icon. Wait 10 seconds while the Class 1 code is loaded.
USB Audio Class 2: The interface operates at up to 384kS/s (including DSD/64 & DSD/128 over
PCM). For Mac OSX, version 10.6.3 or later is required. For Windows, the dCS USB Class 2 Driver 2016 must be installed onto the computer before
use (see below). To select Class 2, open the menu, navigate to the Settings > USB Class menu page. The
button sequence is: Menu, ►, Menu, ◄, ◄, ◄, ◄, and then use the Menu button to select the Class 2 icon. Wait 10 seconds while the Class 2 code is loaded.
The Vivaldi DAC / Upsampler v2.0x onwards is not compatible with the 2014 version of the USB Class 2 driver.
Loading the Windows driver for USB Class 2
• If ASIO4ALL or any other ASIO driver (e.g. for a sound card) is loaded on your computer, please
uninstall it - otherwise the dCS driver will not work correctly.
• Power up the DAC and the computer.
• Make sure the DAC is set to USB Audio Class 2 - otherwise the driver installation will fail.
• Connect the DAC’s USB port to the computer’s USB port.
• Go to http://www.dcsltd.co.uk/products/vivaldi-dac/, click the Support link, then click the Download
button next to USB Class 2 Driver 2016.
• Unzip the file dCS_USBAudio_Driver_DriverSetup_v3.34.0.exe to a temporary directory and run the file.
• Follow the on-screen prompts.
• When prompted, connect the DAC’s USB port to the computer’s USB port.
• Wait until installation is complete, then re-start the computer.
If you connect a Vivaldi DAC set for USB Audio Class 2 to a Windows computer without
!
Vivaldi DAC Manual v2_0x Page 12 English version
first loading the driver, the computer will not be able to find the DAC.
dCS Vivaldi DAC User Manual Software Issue 2.0x November 2016
Basic setup with a PC
Figure 2 – Connecting the USB interface.
• Connect one of the computer’s USB ports to the USB port on the DAC’s rear panel.
• Press the Input button repeatedly until USB is displayed. If the source is transmitting PCM data,
the DAC will lock to the source and the sample rate will be displayed.
The DAC’s USB interface operates in asynchronous mode. This allows the clock inside the DAC to control the delivery of data from the computer, avoiding the use of the computer’s inaccurate and jittery clock.
A word about Music Playing Software
There are countless programs that can play music on Windows
TM
PC and Apple MacTM OSX systems. Unfortunately, not all of them present the data completely unprocessed to the USB ports. For example, Windows Media Player re-samples all data to 24 bits at the original sample rate, while iTunes converts data as necessary to the output sample rate set in the OSX Audio MIDI Set-up panel.
With such a proliferation of playing software, and updates being issued frequently, it is impossible for dCS to be fully up-to-date with the behaviour and performance of all programs. If you have questions or problems, we would urge you to take them up with your software vendor. What we will say is that different programs operate very differently and it is well worth finding out exactly how your particular program processes the audio.
We suggest that you use a premium music streaming program, such as JRiver Media Center (Windows or Mac) or Audirvana (Mac), rather than relying on the software bundled with the operating system.
Vivaldi DAC Manual v2_0x Page 13 English version
Loading...
+ 29 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
