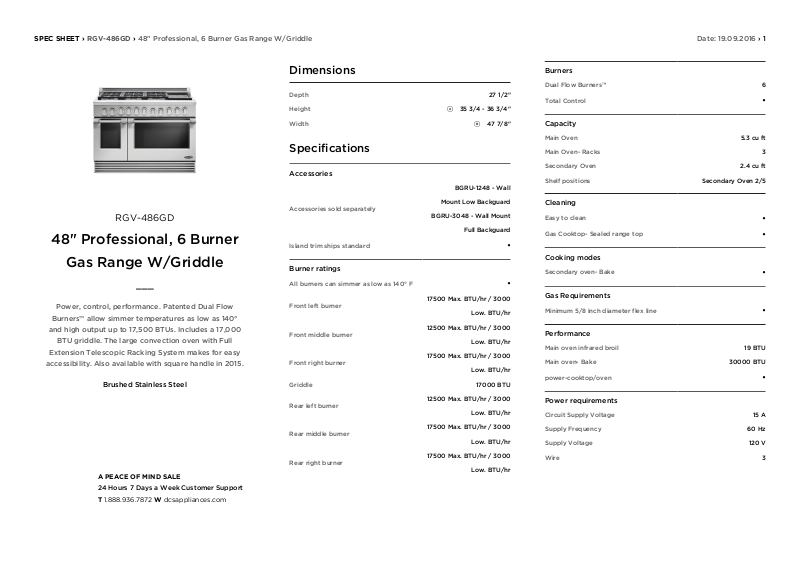

SPEC SHEET › RGV-486GD › 48" Professional, 6 Burner Gas Range W/Griddle Date: 19.09.2016 › 1
RGV-486GD
48" Professional, 6 Burner
Gas Range W/Griddle
___
Power, control, performance. Patented Dual Flow
Burners™ allow simmer temperatures as low as 140°
and high output up to 17,500 BTUs. Includes a 17,000
BTU griddle. The large convection oven with Full
Extension Telescopic Racking System makes for easy
accessibility. Also available with square handle in 2015.
Brushed Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Dimensions
Depth 27 1/2"
Height
Width
A35 3/4 - 36 3/4"
B47 7/8"
Specifications
Accessories
BGRU-1248 - Wall
Accessories sold separately
Island trim ships standard
Burner ratings
All burners can simmer as low as 140° F
Front left burner
Front middle burner
Front right burner
Griddle 17000 BTU
Rear left burner
Rear middle burner
Rear right burner
Mount Low Backguard
BGRU-3048 - Wall Mount
Full Backguard
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
Burners
Dual Flow Burners™ 6
Total Control
•
Capacity
Main Oven 5.3 cu ft
Main Oven- Racks 3
Secondary Oven 2.4 cu ft
Shelf positions Secondary Oven 2/5
Cleaning
Easy to clean
Gas Cooktop- Sealed range top
•
•
•
Cooking modes
Secondary oven- Bake
•
•
Gas Requirements
Minimum 5/8 inch diameter flex line
Performance
Main oven infrared broil 19 BTU
Main oven- Bake 30000 BTU
power-cooktop/oven
Power requirements
Circuit Supply Voltage 15 A
Supply Frequency 60 Hz
Supply Voltage 120 V
Wire 3
•
•
SPEC SHEET › RGV-486GD › 48" Professional, 6 Burner Gas Range W/Griddle Date: 19.09.2016 › 2
Ventilation
Minimum 1200 CFM VS48
Recommended
SKU 71041
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
- 48 inch Pro Wall Mount
Vent Hood IVS52 - 52 inch
Pro Island Vent Hood
