DCS RGV364GDN Quick Reference Guide

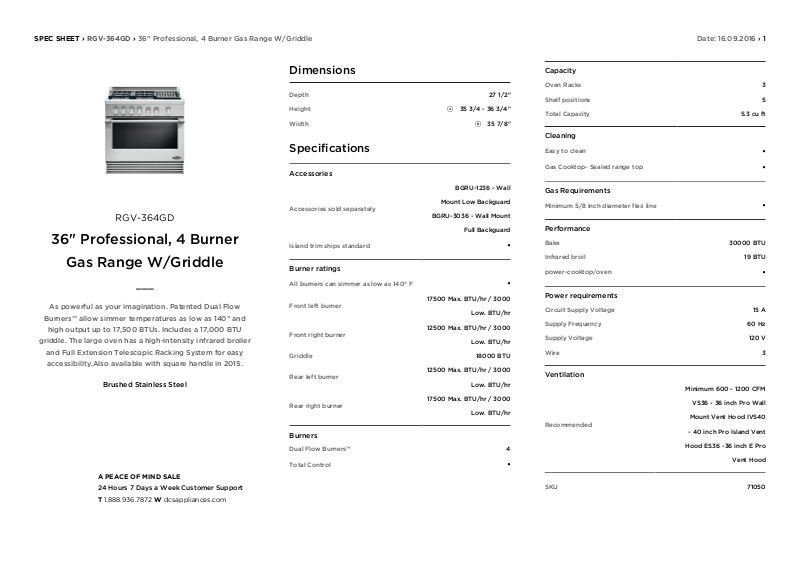

SPEC SHEET › RGV-364GD › 36" Professional, 4 Burner Gas Range W/Griddle Date: 16.09.2016 › 1
RGV-364GD
36" Professional, 4 Burner
Gas Range W/Griddle
___
As powerful as your imagination. Patented Dual Flow
Burners™ allow simmer temperatures as low as 140° and
high output up to 17,500 BTUs. Includes a 17,000 BTU
griddle. The large oven has a high-intensity infrared broiler
and Full Extension Telescopic Racking System for easy
accessibility.Also available with square handle in 2015.
Brushed Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Dimensions
Depth 27 1/2"
Height
Width
A35 3/4 - 36 3/4"
B35 7/8"
Specifications
Accessories
BGRU-1236 - Wall
Accessories sold separately
Island trim ships standard
Burner ratings
All burners can simmer as low as 140° F
Front left burner
Front right burner
Griddle 18000 BTU
Rear left burner
Rear right burner
Burners
Dual Flow Burners™ 4
Total Control
Mount Low Backguard
BGRU-3036 - Wall Mount
Full Backguard
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
Capacity
Oven Racks 3
Shelf positions 5
Total Capacity 5.3 cu ft
Cleaning
Easy to clean
Gas Cooktop- Sealed range top
•
•
Gas Requirements
Minimum 5/8 inch diameter flex line
•
Performance
•
Bake 30000 BTU
Infrared broil 19 BTU
power-cooktop/oven
•
•
Power requirements
Circuit Supply Voltage 15 A
Supply Frequency 60 Hz
Supply Voltage 120 V
Wire 3
Ventilation
Minimum 600 - 1200 CFM
VS36 - 36 inch Pro Wall
Recommended
•
SKU 71050
Mount Vent Hood IVS40
- 40 inch Pro Island Vent
Hood ES36 -36 inch E Pro
Vent Hood
SPEC SHEET › RGV-364GD › 36" Professional, 4 Burner Gas Range W/Griddle Date: 16.09.2016 › 2
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
