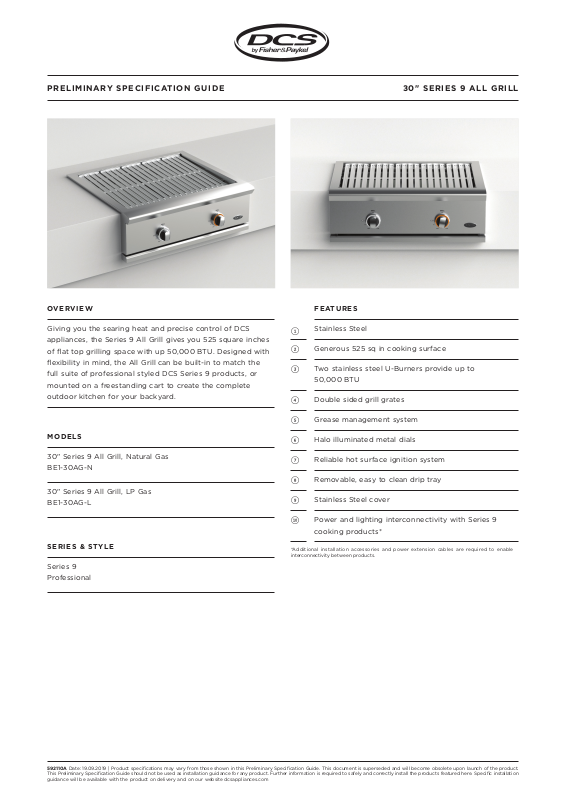

DCS BE130AGL, BE130AGN PRODUCT SPECIFICATIONS
PRELIMINARY SPECIFICATION GUIDE |
|
30" SERIES 9 ALL GRILL |
|
|
|
|
|
|
|
|
|
OVERVIEW
Giving you the searing heat and precise control of DCS appliances, the Series 9 All Grill gives you 525 square inches of flat top grilling space with up 50,000 BTU. Designed with flexibility in mind, the All Grill can be built-in to match the full suite of professional styled DCS Series 9 products, or mounted on a freestanding cart to create the complete outdoor kitchen for your backyard.
MODELS
30" Series 9 All Grill, Natural Gas
BE1-30AG-N
30" Series 9 All Grill, LP Gas
BE1-30AG-L
1
2
3
4
5
6
7
8
9
!0
FEATURES
Stainless Steel
Generous 525 sq in cooking surface
Two stainless steel U-Burners provide up to 50,000 BTU
Double sided grill grates
Grease management system
Halo illuminated metal dials
Reliable hot surface ignition system
Removable, easy to clean drip tray
Stainless Steel cover
Power and lighting interconnectivity with Series 9 cooking products*
SERIES & STYLE
*Additional installation accessories and power extension cables are required to enable interconnectivity between products.
Series 9
Professional
592110A Date: 19.09.2019 | Product specifications may vary from those shown in this Preliminary Specification Guide. This document is superseded and will become obsolete upon launch of the product. This Preliminary Specification Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website dcsappliances.com
PRELIMINARY SPECIFICATION GUIDE |
30" SERIES 9 ALL GRILL |
||||
|
SPECIFICATIONS |
|
GAS AND ELECTRICAL |
|
|
Model No. |
BE1-30AG-N, BE1-30AG-L |
|
|
|
|
Dimensions |
H 10 1/2" (266mm) x W 30" (762mm) x |
|
|
|
|
|
D 26 7/8" (683mm) |
|
|
|
|
Electrical |
|
|
|
|
|
Supply |
120V, 60Hz |
|
|
|
|
Gas – Natural |
|
|
A |
|
|
Supply |
6" to 9" W.C. |
|
B |
|
|
|
|
|
|
||
Inlet |
1/2" NPT male with 3/8" flare adapter |
|
|
|
|
Gas – LPG |
|
|
|
|
|
Supply |
12" to 14" W.C. |
|
|
|
|
Inlet |
1/2" NPT male with 3/8" flare adapter |
|
|
|
|
|
|
|
ISO VIEW |
|
|
|
|
|
|
in |
mm |
|
|
A |
Width of connection cutout |
4 |
102 |
|
|
B |
Depth of connection cutout |
4 |
102 |
|
PRODUCT DIMENSIONS |
CAVITY DIMENSIONS: STANDARD INSTALLATION |
|
||
|
C |
B |
C |
|
|
|
|
|
|
||
|
|
|
A |
|
|
A |
|
|
B |
|
|
ISO VIEW ISO VIEW
|
|
|
|
in |
mm |
|
|
|
|
in |
mm |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
Overall height |
10 1/2 |
266 |
A |
Overall height of cavity |
10 1/8 |
|
257 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
B |
Overall width |
30 |
762 |
B |
Overall width of cavity |
28 1/2 |
|
724 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
Overall depth (excl. dials) |
26 7/8 |
683 |
C |
Overall depth of cavity |
22 3/4 |
|
578 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
592110A Date: 19.09.2019 | Product specifications may vary from those shown in this Preliminary Specification Guide. This document is superseded and will become obsolete upon launch of the product. This Preliminary Specification Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website dcsappliances.com
