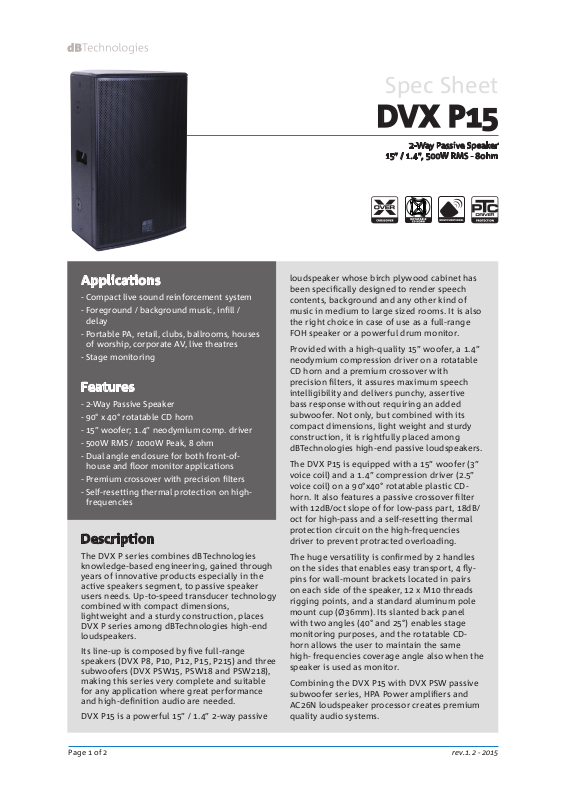

Spec Sheet

DVX P15

2-Way Passive Speaker

15” / 1.4”, 500W RMS - 8ohm

Applications

- Compact live sound reinforcement system

- Foreground / background music, inll /

delay

- Portable PA, retail, clubs, ballrooms, houses
of worship, corporate AV, live theatres

- Stage monitoring

Features

- 2-Way Passive Speaker

- 90° x 40° rotatable CD horn

- 15” woofer; 1.4” neodymium comp. driver

- 500W RMS / 1000W Peak, 8 ohm

- Dual angle enclosure for both front-of-

house and oor monitor applications

- Premium crossover with precision lters

- Self-resetting thermal protection on high­frequencies

Description

The DVX P series combines dBTechnologies
knowledge-based engineering, gained through
years of innovative products especially in the
active speakers segment, to passive speaker
users needs. Up-to-speed transducer technology
combined with compact dimensions,
lightweight and a sturdy construction, places
DVX P series among dBTechnologies high-end
loudspeakers.

Its line-up is composed by ve full-range

speakers (DVX P8, P10, P12, P15, P215) and three
subwoofers (DVX PSW15, PSW18 and PSW218),
making this series very complete and suitable
for any application where great performance

and high-denition audio are needed.

DVX P15 is a powerful 15” / 1.4” 2-way passive

loudspeaker whose birch plywood cabinet has

been specically designed to render speech

contents, background and any other kind of
music in medium to large sized rooms. It is also
the right choice in case of use as a full-range
FOH speaker or a powerful drum monitor.

Provided with a high-quality 15” woofer, a 1.4”
neodymium compression driver on a rotatable
CD horn and a premium crossover with

precision lters, it assures maximum speech

intelligibility and delivers punchy, assertive
bass response without requiring an added
subwoofer. Not only, but combined with its
compact dimensions, light weight and sturdy
construction, it is rightfully placed among
dBTechnologies high-end passive loudspeakers.

The DVX P15 is equipped with a 15” woofer (3”
voice coil) and a 1.4” compression driver (2.5”

voice coil) on a 90°x40° rotatable plastic CD­horn. It also features a passive crossover lter

with 12dB/oct slope of for low-pass part, 18dB/
oct for high-pass and a self-resetting thermal
protection circuit on the high-frequencies
driver to prevent protracted overloading.

The huge versatility is conrmed by 2 handles
on the sides that enables easy transport, 4 y-

pins for wall-mount brackets located in pairs

on each side of the speaker, 12 x M10 threads

rigging points, and a standard aluminum pole
mount cup (Ø36mm). Its slanted back panel
with two angles (40° and 25°) enables stage
monitoring purposes, and the rotatable CD­horn allows the user to maintain the same
high- frequencies coverage angle also when the
speaker is used as monitor.

Combining the DVX P15 with DVX PSW passive

subwoofer series, HPA Power ampliers and

AC26N loudspeaker processor creates premium
quality audio systems.

Page 1 of 2

rev.1.2 - 2015

DVX P15

Technical Specications

Acoustical Data

Speaker Type 2-Way Active Speaker
Frequency Response [- 10dB] 60 - 20.000 Hz

[- 6dB] 70 - 20.000 Hz

Max SPL 133 dB

RMS / Peak Power 500W / 1000W
HF 1.4” Neodymium, 2.5” voice coil

Directivity 90° x 40°

Horn CD Horn Aluminium
Rotatable Horn YES

LF 15”, 3” voice coil

Impedence 8 ohm
Protection Self-resetting thermal protection on high-frequencies
Crossover Frequency 1400 Hz

Filter 18dB/oct HIGH PASS; 12dB/oct LOW PASS
Audio connector 2 x SPEAKON In parallel

Mechanics

Housing Birch plywood, black
Angles Up Monitor use 40°, 25°

Rigging Points 12 x M10, 4 x y-pins
Handles 2 x housing (1 x side)
Dimension (WxHxD) 430 x 690 x 450mm - 16.9 x 27.2 x 17.7in

Weight 26.1Kg - 57.5lbs.

Overall Dimensions

All dimensions

in mm [inch]

BOTTOM

[17.72]

450

SIDE REAR

690

[27.16]

[16.93]

FRONT

40°

430

25°

TOP

Accessories

DTF 15 Easy mount bracket for DVX D15HP
TC 15 Padded cover for DVX D15HP
TE M10 Eye-bolt set (4 pcs) with M10-thread
WB 09 Universal wall mount bracket, swivel and tilt Ø35mm pole mount
