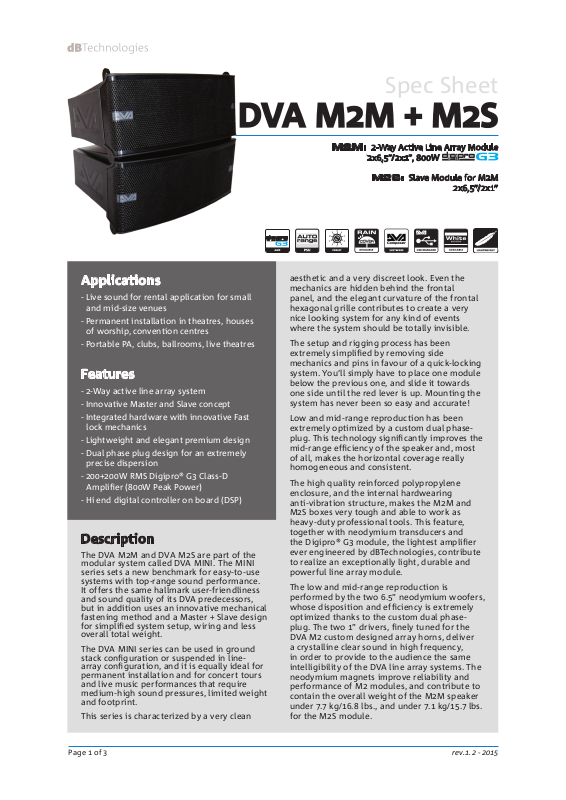

DB Technologies DVA-M2M+M2S Datasheet

Spec Sheet

DVA M2M + M2S

M2M: 2-Way Active Line Array Module

2x6,5”/2x1”, 800W

M2S: Slave Module for M2M

2x6,5”/2x1”

Applications

- Live sound for rental application for small
and mid-size venues

- Permanent installation in theatres, houses
of worship, convention centres

- Portable PA, clubs, ballrooms, live theatres

Features

- 2-Way active line array system

- Innovative Master and Slave concept

- Integrated hardware with innovative Fast
lock mechanics

- Lightweight and elegant premium design

- Dual phase plug design for an extremely
precise dispersion

- 200+200W RMS Digipro® G3 Class-D

Amplier (800W Peak Power)

- Hi end digital controller on board (DSP)

Description

The DVA M2M and DVA M2S are part of the
modular system called DVA MINI. The MINI
series sets a new benchmark for easy-to-use
systems with top-range sound performance.
It offers the same hallmark user-friendliness
and sound quality of its DVA predecessors,
but in addition uses an innovative mechanical
fastening method and a Master + Slave design

for simplied system setup, wiring and less

overall total weight.

The DVA MINI series can be used in ground

stack conguration or suspended in line­array conguration, and it is equally ideal for

permanent installation and for concert tours
and live music performances that require
medium-high sound pressures, limited weight
and footprint.

This series is characterized by a very clean

aesthetic and a very discreet look. Even the
mechanics are hidden behind the frontal
panel, and the elegant curvature of the frontal
hexagonal grille contributes to create a very
nice looking system for any kind of events
where the system should be totally invisible.

The setup and rigging process has been

extremely simplied by removing side

mechanics and pins in favour of a quick-locking
system. You’ll simply have to place one module
below the previous one, and slide it towards
one side until the red lever is up. Mounting the
system has never been so easy and accurate!

Low and mid-range reproduction has been
extremely optimized by a custom dual phase-

plug. This technology signicantly improves the
mid-range efciency of the speaker and, most

of all, makes the horizontal coverage really
homogeneous and consistent.

The high quality reinforced polypropylene
enclosure, and the internal hardwearing
anti-vibration structure, makes the M2M and
M2S boxes very tough and able to work as
heavy-duty professional tools. This feature,
together with neodymium transducers and

the Digipro® G3 module, the lightest amplier

ever engineered by dBTechnologies, contribute
to realize an exceptionally light, durable and
powerful line array module.

The low and mid-range reproduction is
performed by the two 6.5” neodymium woofers,

whose disposition and efciency is extremely

optimized thanks to the custom dual phase-

plug. The two 1” drivers, nely tuned for the

DVA M2 custom designed array horns, deliver
a crystalline clear sound in high frequency,
in order to provide to the audience the same
intelligibility of the DVA line array systems. The
neodymium magnets improve reliability and
performance of M2 modules, and contribute to
contain the overall weight of the M2M speaker
under 7.7 kg/16.8 lbs., and under 7.1 kg/15.7 lbs.
for the M2S module.

Page 1 of 3

rev.1.2 - 2015

DVA M2M + M2S

Technical Specications

System Specications

Speaker Type M2M 2-Way Active Line Array Module

M2S Slave Module (no internal Xover) for M2M Line Array Module

Acoustical Data

Frequency Response [- 6dB] 78 - 19.00 0 Hz
[- 10dB] 68 - 20.000 Hz

Max SPL One Unit 126 dB

HF 2x1”
Type HF Neodymium
Voice Coil HF 1”

LF 2 x 6.5”
Type LF Neodymium
Voice Coil LF 1.5”

Directivity 90° x 15° Single unit

Amplier

Amp Technology Digipro® G3

Amp Class Class D

RMS Power HF Amp 200 W (100 W for M2M + 100 W for M2S)
LF Amp 200 W (100 W for M2M + 100 W for M2S)

Cooling Convection

Processor

Controller DSP 56 bit

AD/DA Converter 24 bit/48 kHz

System Presets 9 presets (8 x HF and Low- Mid corrections, 1x for serv ice use)

Limiter Multiband, RMS/Peak, Thermal

Crossover Frequency LF-HF 1800 Hz

Slope LF-HF 24 dB/Octave

Input

Signal Input 1x XLR fem, Bal.

Signal Output 1x XLR male, Bal.

Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~)

Power Socket 1x PowerCon In 1x PowerCon Out

Signal Input M2S 1 Custom Connector

Mechanics

Housing Polypropylen PP

Handles 2 x back side

Fittings Integrated hardware with fast lock mechanics

Splay Angles 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°

Dimension (WxHxD) 460 x 190 x 345 mm

18.1 x 7.5 x 13.6 in

Weight M2M 7.7 kg - 16.8 lbs.
M2S 7.1 kg - 15.7 lbs.

Page 2 of 3

rev.1.2 - 2015
