Z5377
E6 Swivel bracket

Mounting instructions (1.2 EN)

Contents

1. Product description and scope of supply......................................................3

2. Intended use..........................................................................................................3

3. Safety precautions...............................................................................................4

4. Assembly................................................................................................................4

5. Operation..............................................................................................................4

6. Maintenance and care.......................................................................................5

7. Disposal..................................................................................................................5

Manufacturer's declarations..................................................................................6

General Information

Z5377 E6 Swivel bracket
Mounting instructions

Version 1.2 EN, 02/2014, D2985.EN .01

Copyright © 2014 d&b audiotechnik GmbH; all rights reserved.

Keep this manual with the product or in a safe place
so that it is available for future reference.

d&b audiotechnik GmbH
Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany
Telephone [phone], Fax [phone]
E-mail: [email protected], Internet: www.dbaudio.com

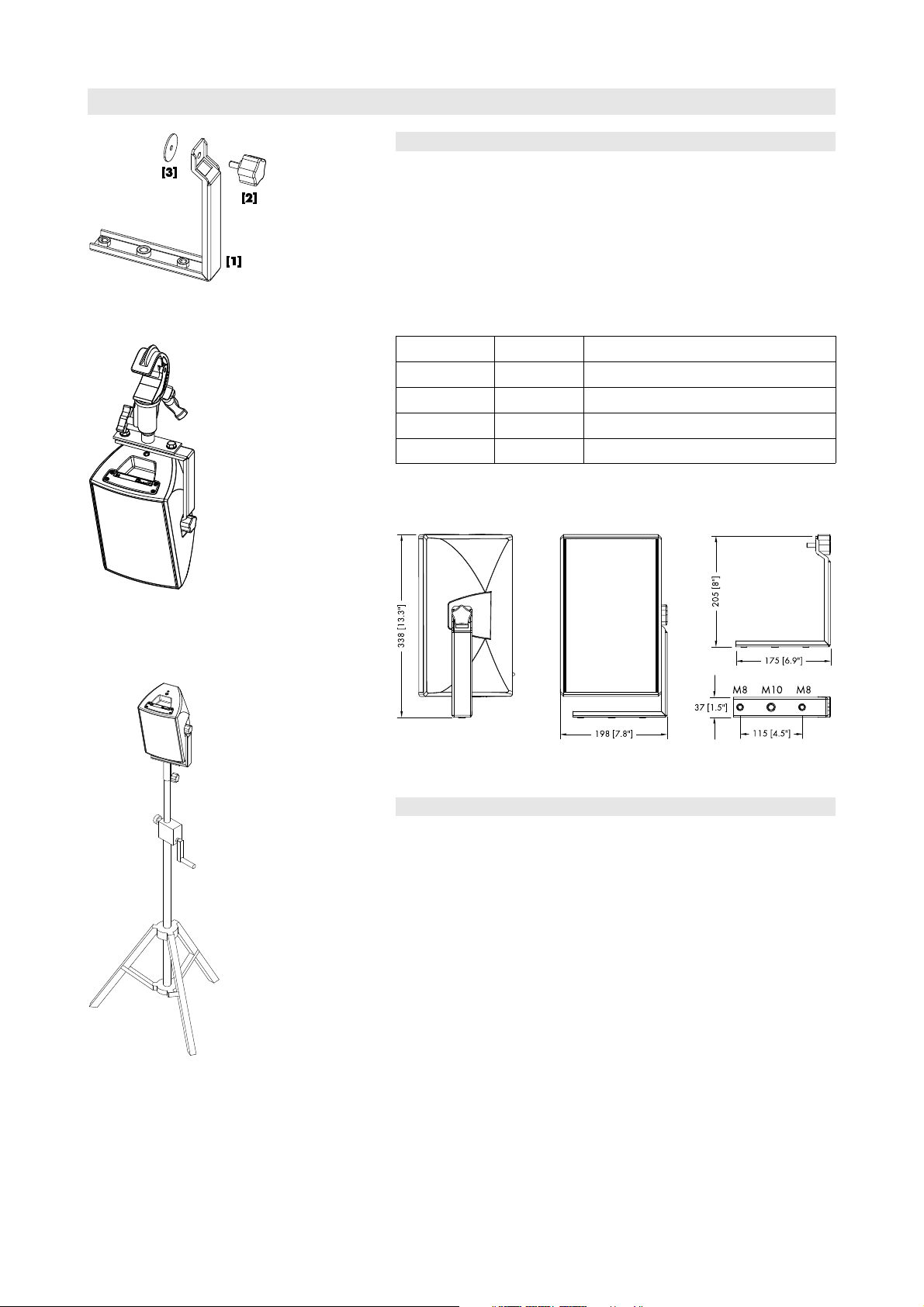

Fig. 1: Z5377 E6 Swivel bracket

Z5377, E6 Swivel bracket

1. Product description and scope of supply

The Z5377 E6 Swivel bracket allows E6 loudspeaker cabinets to be
mounted and set to different horizontal or vertical angles. For this
purpose two M8 threaded inserts at the d&b standard spacing of
115 mm (4.5") together with a center M10 thread are integrated in the
tie bar of the bracket.

Scope of supply

Please verify the shipment for completeness and proper condition of the
items.

Qty. d&b Code Description

1 Z5377

1 Q9049.40

1

1 D2985.INT. Mounting instructions

Weight and dimensions

Weight.............................................................................................................0.5 kg (1.1 lb)

E6 Swivel bracket [1]

Hand bolt M8 x 16 [2]

Rubber washer [3]

Fig. 2: Z5377 E6 Swivel bracket with
Z5010 TV spigot with fixing plate
Z5012 Pipe clamp for TV spigot

Fig. 4: Dimensions in mm [inch]

2. Intended use

The E6 Swivel bracket must only be used in conjunction with d&b E6
loudspeakers as described in these mounting instructions.

Installation and set up should only be carried out by qualified and
authorized personnel observing the valid national Rules of Prevention of
Accident (RPA).

It is the responsibility of the person installing the assembly to ensure that
the suspension/fixing points are suitable for the intended use.

The swivel bracket can be mounted to bars and trusses with a tube
diameter of up to 70 mm (2.75") using the following d&b accessories:

- Z5010, TV spigot with fixing plate

Fig. 3: Z5377 E6 Swivel bracket with
Z5024 Loudspeaker stand adapter with
fixing plate

- Z5012, Pipe clamp for TV spigot

The swivel bracket can be fitted to a loudspeaker stand using the Z5024
or Z5034 Loudspeaker stand adapters.

Observe the maximum permitted load of the mounting accessories as
stated in the respective mounting instructions.

Z5377 Mounting instructions (1.2 EN) Page 3 of 6

3. Safety precautions

General safety

Always carry out a visual and functional inspection of the bracket
before use. In case you have any doubt as to the proper functioning
and safety of the bracket, do not use it. Please also refer to section 6.
Maintenance and care on page 5.

Load safety information

The maximum permitted working load of the bracket is 5 kg (11 lb)
(according to BGV C1) which corresponds to the weight of one E6
loudspeaker.
Always align the bracket vertically when using it, whether it is
suspended or placed on top of a loudspeaker stand.

4. Assembly

NOTICE

Please do not use other fixing screws than those supplied and
specified.

Make sure the handle always faces to the top whether the cabinet is
intended to be flown or mounted on a high stand as shown in Fig. 2
and 3 on page 3.

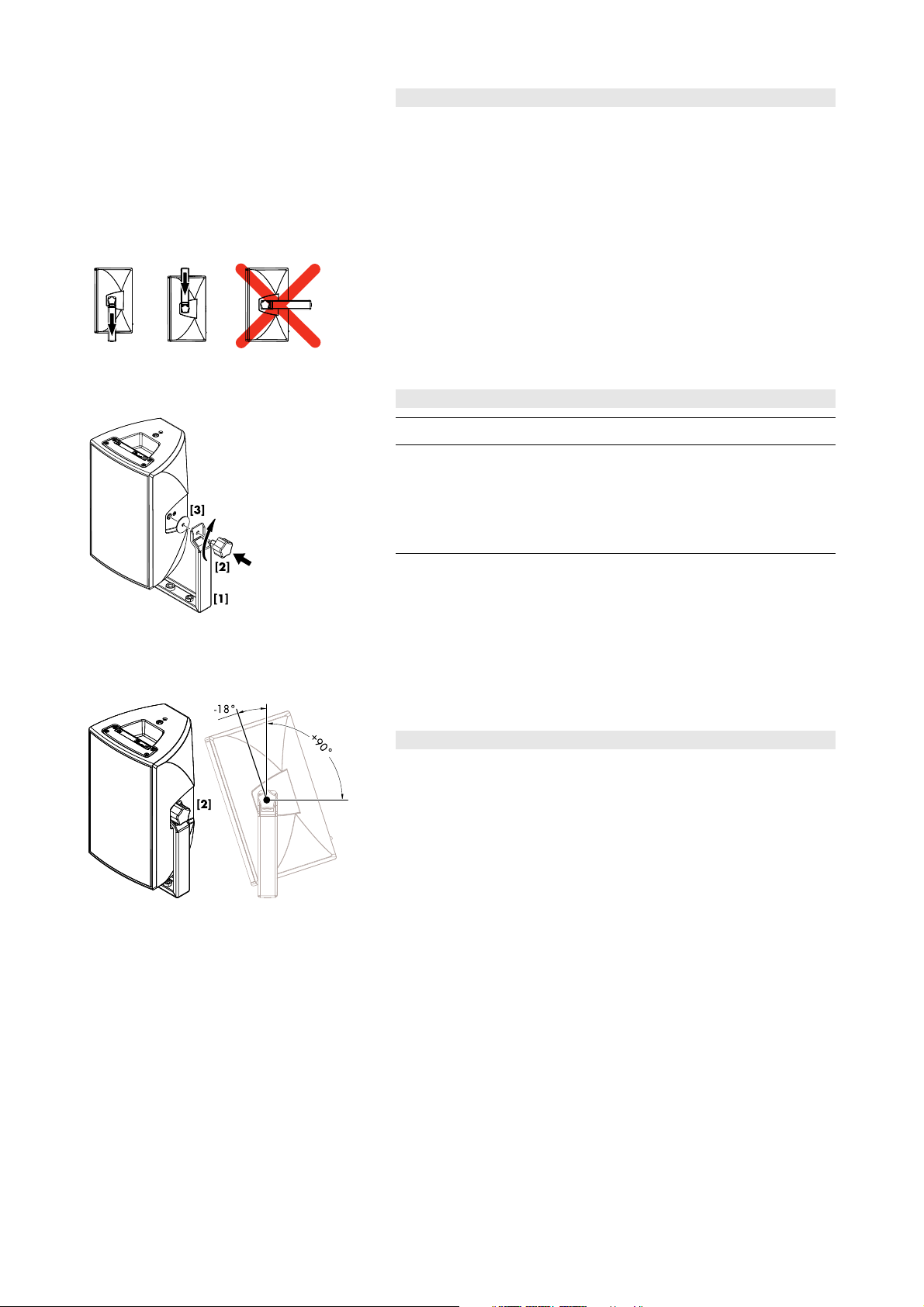

Fig. 5: Assembly

Fig. 6: Operation

The bracket [1] is locked in place on one side of the cabinet using the
hand bolt [2].

No tools required.

1. Fit the bracket [1] into the recessed area of the cabinet side

panel.

2. Fix the bracket to the cabinet using the M10 hand bolt [2].

5. Operation

The center of gravity of the E6 loudspeaker is in line with the bracket’s
axis of rotation. This prevents the vertical flying angle setting from
limiting freedom of movement by creating a twisting force on the
mounting support.

The vertical angle can be set in a range of +90° to –18°.

Vertical alignment

1. Slacken the hand bolt [2].

2. Set the cabinet to the desired vertical angle.

3. Retighten the hand bolt.

Horizontal alignment

The loudspeaker is aligned horizontally via the Loudspeaker stand
adapter or the TV spigot mounting.

Z5377 Mounting instructions (1.2 EN) Page 4 of 6

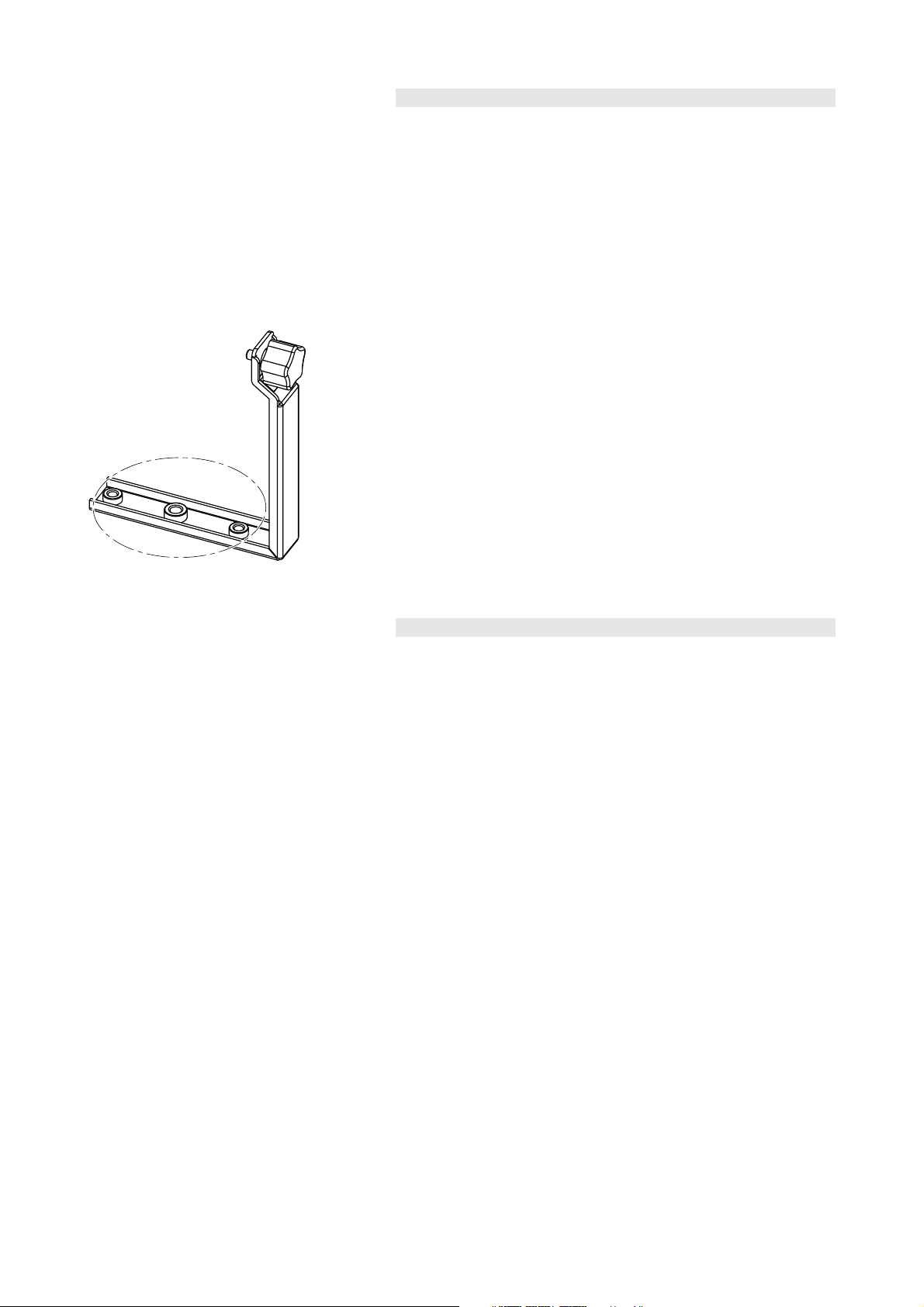

Fig. 7: Threaded inserts in the tie bar

6. Maintenance and care

Storing/Transport

The surface treatment temporarily protects the swivel bracket against
moisture. However, ensure the bracket is in a dry state when storing
and transporting it.

During transport ensure the bracket is not stressed or damaged by
mechanical forces. Use suitable transport cases.

Cleaning

Regularly clean and lubricate the swivel bracket using WD-40®or a
similar product.

Inspections

To eliminate the potential risk of accident due to malfunctioning of the
bracket, regularly carry out a visual and functional inspection of the
bracket.

If the bracket fails to operate correctly and/or safely, it
must be withdrawn from use immediately.

Carry out a visual inspection of the bracket regarding obvious
deformation and damage (e.g. cracks and corrosion).

Carry out a visual inspection of the weld strength and the threaded
inserts in the tie bar of the bracket for damage (e.g. cracks and
corrosion).

7. Disposal

Please dispose of this product according to the respective national
regulations.

Ensure that damaged rigging components are disposed of so that they
cannot be used again.

Z5377 Mounting instructions (1.2 EN) Page 5 of 6

Manufacturer's declarations

EC Declaration of conformity

within the meaning of the EC Machine Directive 98/37/EEC

We hereby declare that the equipment designated below is designed and built in the version sold by us in such a way as
to comply with the relevant fundamental safety and health criteria of the applicable EC Directive(s). This declaration shall
cease to be valid if alterations are made to the equipment without our prior agreement.

This declarations covers:

d&b E6 Swivel bracket, Z5377

To be used as described in these mounting instructions.

National standards and technical specifications applied:

DIN EN ISO 12100, DIN EN 1050, BGV C1

D2985.EN .01, 02/2014 d&b audiotechnik GmbH

Backnang, June 9, 2010

(Frank Bothe, Managing Director)
