Mounting Tripod Kit
Tripod
Anemometer
Extension
Tube
Long
Extension
Tube
(swaged end)
5/16" Flat Washers
5/16" Lock Washers
5/16"
Lock Washer
1/4" Bolt screws
Hex Nut
Label
Pitch Pads
5/16" Heavy Duty
Hex Nuts
5/16" Bolt screws
Bracket
U-Bolt
1/4" x 2" Lag Screws
5/16" Square Nuts
8" Cable Ties
Saddle
Vertical
Stop
Plate
Hex Nuts
Heavy Duty
Installation Manual
For use with Davis’s wireless and cabled Vantage Pro2 weather stations, the
Mounting Tripod simplifies installation. The tripod supports the Integrated
Sensor Suite (ISS) or other station, and features an adjustable foot pad
which enables mounting on level surfaces or roof peaks.

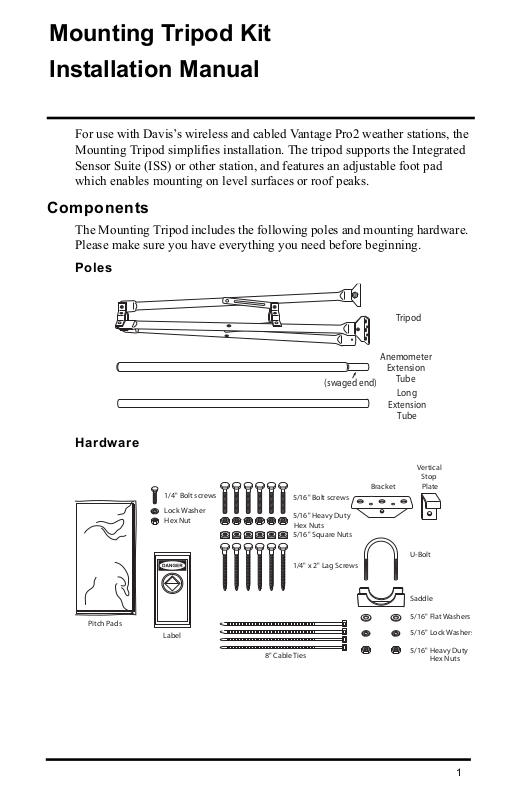

Components
The Mounting Tripod includes the following poles and mounting hardware.
Please make sure you have everything you need before beginning.
Poles
Hardware
1
Tripod Assembly
5/16" Bolt
Hex Nut
Square Nut
Assemble nuts and bolts
in Tripod brackets.
Do not tighten.
Use Vertical Stop Plate
on one of the lower
bracket bolts.
Slide Long Extension Tube
through center of Tripod brackets.
Tighten nuts and bolts.
Vertical
Stop Plate
Long
Extension
Tube
Tools for Setup
• Adjustable wrench
• Compass or local area map
• Drill with 3/16" or 13/64" (5 mm) bit for the 1/4" lag screws
Tripod Assembly
Follow the instructions below to assemble the tripod.
1. Unfold the tripod so the two foot pads which come pre-installed on the tripod legs are flat on the ground.
2. Thread a hex nut almost all the way onto all six of the 5/16" bolts.
3. Insert one of the 5/16" bolts into the hole in vertical stop plate.
4. Insert the 5/16" bolt with vertical stop plate into one of the holes in the tripod's lower bracket and thread a square nut onto the end of the bolt, on the inside of the bracket.
Do not thread the square nut too far up the bolt.
5. Repeat this procedure for the remaining 5/16" bolts. Place them into the holes in both the top and bottom tripod brackets, threading a square nut on the end of each bolt.
Do not thread the square nuts too far up the bolts.
6. Insert the long extension tube into the tripod, sliding it through the brackets.
The vertical stop plate should keep the tube from sliding all the way
through.
7. Secure the extension tube by tightening the square and hex nuts on the 5/16" bolts until the bolts hold the tube in place securely.
2
Mounting the Tripod
ROOF MOUNTING DECK MOUNTING
ISS ISS
Long Extension Tube
(use level or plumb line
to nd true vertical)
Deck or other
at surface
Tighten nut when
proper angle of feet
determined
Long Extension Tube
1/4 x2”
Lag Screw
(6 places)
Flat
Washer
1/4 x2”
Lag Screw
(6 places)
Flat
Washer
Hex
Nut
Lock
Washer
1/4" Bolt
Foot Bracket
Front Leg
Pitch Pad
8. Attach the foot bracket to the tripod leg as shown.
Apply pitch pads to the bottom of the
foot bracket and the two foot
brackets that come pre-installed on
the tripod.
Mounting the Tripod
Mount the tripod with long extension tube on the desired surface, as shown
below. On the following pages are instructions for securing your sensor array
or ISS onto the long extension tube.
Note: Any metal object may attract a lightning strike, including your weather
station or tripod. If lightning strikes your station or strikes somewhere
nearby, the station's internal electronics may suffer anywhere between little
to extensive damage. The station itself has been designed with
considerable surge protection, but to safeguard nearby equipment and
structures, we recommend following local recommendations on properly
grounding your installation.
3
Mounting the Tripod
1/4" Hex Nut
1/4" Lock Washer
Metal Backing Plate
U-Bolts
Rain Collector
Mounting Base
1/4" Flat Washer
1/4" Lock Washer
1/4" Hex Nut
Anemometer
Mounting Base
For more information, contact your local lightning protection authority and/or
refer to the following articles:
• MIL-HDBK-419A: Grounding, Bonding, and Shielding for Electronic
ment and Facilities, 29 Dec 1987.
Equip
• National Fire Protection Association, 1997: Standard for Installation of
Lightning Protection Systems, 1997 ANSI/NFPA 780, National Fire
Protection Association, Quincy, MA.
• NEC, National Electrical Code, 1996 Edition: National Fire Protection
Information, Quincy, MA.
Attaching the Vantage Pro2 ISS to the Anemometer Extension Tube
For Vantage Pro2, the anemometer extension tube provided as part of the
unting tripod will be used to support the ISS, which does not come with its
mo
own pole. You can mount your ISS on this tube with both sides together or
separate. For better access to the hardware securing the rain collector side,
remove the rain collector cone by rotating it counter-clockwise and lifting it
off of the base.
Mount your ISS and anemometer
on the anemometer extension tube together
or separately. See the illustration below for more information. Make sure the
swaged end of the tube is pointing downward as you secure the ISS to it.
Option 1: Installing ISS and Anemometer Together
Remember when mounting both sides together that whichever side of the ISS
is mounted first, the U-bolt from the opposite side ALSO must be placed
around the pole before you tighten anything. (If it is not, there is no way to
slide it in later.)
4
Mounting the Tripod
When both sides of the ISS are mounted together with the anemometer arm
pointing north, the solar panel on the rain collector side is facing south. In the
Northern Hemisphere, this positions the solar panel for optimal exposure to
the sun. In the Southern Hemisphere, you will need to position the solar panel
facing north for optimal sun exposure.
Try to install the ISS so the anemometer arm is aiming north. If the arm
doesn’t point north, re-orient the wind vane.
1. Place the U-bolt for the anemometer around the pole so that its round end
fits in the top groove of the side of the rain collector side’s plastic mounting
base. The groove is right above two large holes.
2. While holding the mounting base of the rain collector against the pole,
place the two ends of the remaining U-bolt around the pole and through the
two holes in the base.
3. Slide the metal backing plate over the bolt ends as they stick out over the
rain collector base. Secure the metal backing plate with a lock washer and
hex nut on each of the bolt ends as shown previously.
Note: Do not tighten the hex nuts yet. Leave the hex nuts loose to swivel the ISS base on the pole.
4. The two ends of the anemometer’s U-bolt should now be pointing away
from the mounted rain collector side. Slide the anemometer’s mounting
base over the protruding bolt ends.
CAUTION: The anemometer cable should be routed in the anemometer base so that there is room to
accommodate the U-bolt. Fold the anemometer cable deep into the anemometer base’s recess
to make sure the U-bolt does not pinch or rub the anemometer cable.
5. Place a flat washer, a lock washer and a hex nut on each of the bolt ends as
shown above. Do not tighten the nuts yet.
6. Raise the ISS unit to the desired height on the pole and swivel it so the
anemometer arm is pointing north.
7. Using an adjustable wrench or 7/16" wrench, tighten all four hex nuts until
the ISS is firmly fastened on the pole.
8. Re-attach the rain collector cone by setting the cone back on the base so its
latches slide downward into the latch openings on the base, then rotate the
cone clockwise.
Option 2: Installing ISS and Anemometer Separately
1. While holding the mounting base against the pole, place the two ends of a
U-bolt around the pole and through the two holes in the base.
2. Slide the metal backing plate over the bolt ends as they stick out toward the
rain collector cone. Secure the metal backing plate with a washer, a lock
washer, and a hex nut on each of the bolt ends. Do not tighten the nuts yet.
3. For the wireless ISS, swivel the ISS base so the solar panel is facing south
(in the Northern Hemisphere), or north (in the Southern Hemisphere).
5
Securing the ISS on the Tripod
Long Extension Tube
(secure in the tripod)
5/16"
5/16" Lock
Washers
5/16" Flat
Washers
Saddle
Tighten until
5/16" x 1-1/2" U-bolt
dents the tubing slightly
1 1/4"
Support Tube
(swaged end pointing
downward)
ISS
Heavy Duty
Hex Nuts
4. Tighten the hex nuts using an adjustable wrench or 7/16" wrench.
5. Re-attach the rain collector cone.
6. Set the cone back on the base so its latches slide downward into the latch
openings on the base. Rotate the cone clockwise.
7. While holding the mounting base against the pole, place a U-bolt around the
pole and through the two holes in the base.
8. Place a flat washer, a lock washer and a hex nut on each of the bolt ends.
9. Swivel the anemometer until the arm is pointing north. See the Vantage
Pro2 ISS Installation Manual for more information about orienting the
wind vane to point north.
10.Using an adjustable wrench or 7/16" wrench, tighten the hex nuts.
Securing the ISS on the Tripod
Now the ISS is firmly attached to the anemometer extension tube.
1. Insert the swaged end of
the anemometer extension
tube down into the long
extension tube in tripod.
2. Consulting a compass or
local map, turn assembly
until the anemometer arm
points directly north.
3. Place the U-bolt provided
with the tripod around the
tubes where they overlap.
Secure the saddle onto the
U-bolt with the flat washers, lock washers, and hex
nuts as shown.
4. Tighten the hex nuts quite
firmly, until the U-bolt
begins to dent the tubing
slightly. We recommend
the use of a torque wrench with 25 lb-ft of pressure to fasten the hex nuts.
The support tube should be crimped on the extension tube securely to
prevent any rocking or rotating.
Note: Do not use over 25 lb-ft torque wrench, it may damage the U-bolts.
6
Attaching a Complete System Shelter
5/16
"
Heavy
Duty
Hex
Nuts
Lock
Washers
Flat
Washers
1-1/8"
Saddle
1-1/2" x 5/16" U-Bolts;
tighten until bolts dent
tubing slightly
1 1/4"
Long
Extension
Tube
Su ppo rt
Tub e
Attaching a Complete System Shelter
Install a complete system shelter or multi-purpose shelter the same way you
would an ISS assembly.
5. We recommend the use of a torque wrench with 25 lb-ft of pressure to
fasten the hex nuts.
The support tube should be crimped on the extension tube securely to
prevent any rocking or rotating.
Note: Do not use over 25 lb-ft torque wrench, it may damage the U-bolts.
7
Contacting Davis Instruments
If you have questions about installing your weather system on a tripod or
encounter problems installing a weather station on the tripod, please contact
Davis Technical Support.
Note: Please do not return items to the factory for repair without prior authorization.
(510) 732-7814 – Technical Support phone, Monday – Friday, 7:00 a.m. – 5:30
p.m. Pacific Time.
(510) 670-0589 – Technical Support Fax.
support@davisnet.com – E-mail to Technical Support.
info@davisnet.com – General e-mail.
www.davisnet.com – Download manuals and specifications from the Support
section. Watch for FAQs and other updates. Subscribe to the e-newsletter.
Product Number: #7716
Davis Instruments Part Number: 7395.299
Mounting Tripod Kit Installation Manual
Rev. G Manual (12/10/08)
This product complies with the essential protection requirements of the EC EMC Directive 2004/108/EC.
© Davis Instruments Corp. 2008. All rights reserved.
3465 Diablo Avenue, Hayward, CA 94545-2778 U.S.A.
510-732-9229 • Fax: 510-732-9188
E-mail: info@davisnet.com • www.davisnet.com
