DAVIS Mega-Light Ultimate Cockpit User Manual

Replacement Parts

Contact your dealer or Davis Instruments for replacement parts.

3330 Spare Bulbs: extra bright bulb and super low current bulb

R3300A Triangular Cord Hanger

R3300B Cigarette Lighter Plug with fuse

R3300C Spare Lens

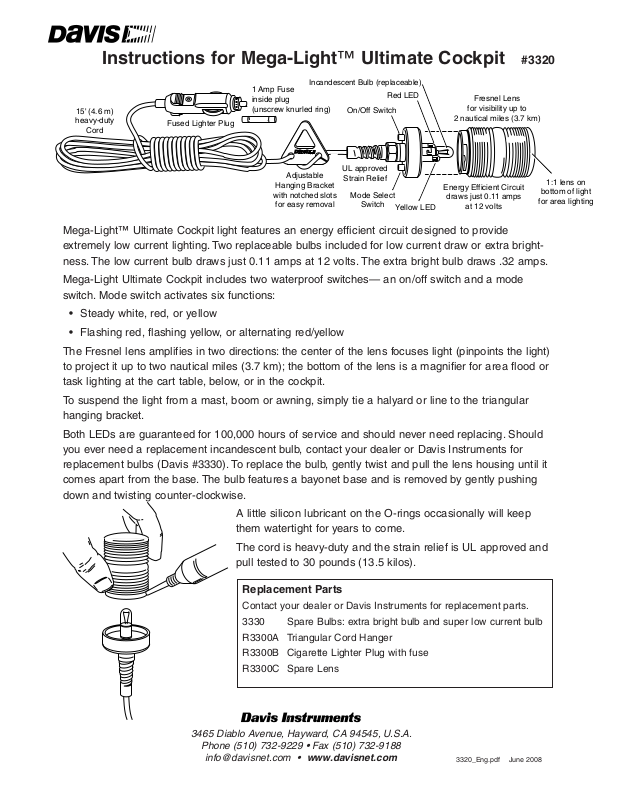

Instructions for Mega-Light™ Ultimate Cockpit

#3320

Mega-Light™ Ultimate Cockpit light features an energy efficient circuit designed to provide
extremely low current lighting. Two replaceable bulbs included for low current draw or extra bright­ness. The low current bulb draws just 0.11 amps at 12 volts. The extra bright bulb draws .32 amps.

Mega-Light Ultimate Cockpit includes two waterproof switches— an on/off switch and a mode
switch. Mode switch activates six functions:

• Steady white, red, or yellow

• Flashing red, flashing yellow, or alternating red/yellow

The Fresnel lens amplifies in two directions: the center of the lens focuses light (pinpoints the light)
to project it up to two nautical miles (3.7 km); the bottom of the lens is a magnifier for area flood or
task lighting at the cart table, below, or in the cockpit.

To suspend the light from a mast, boom or awning, simply tie a halyard or line to the triangular
hanging bracket.

Both LEDs are guaranteed for 100,000 hours of service and should never need replacing. Should
you ever need a replacement incandescent bulb, contact your dealer or Davis Instruments for
replacement bulbs (Davis #3330). To replace the bulb, gently twist and pull the lens housing until it
comes apart from the base. The bulb features a bayonet base and is removed by gently pushing
down and twisting counter-clockwise.

A little silicon lubricant on the O-rings occasionally will keep
them watertight for years to come.

The cord is heavy-duty and the strain relief is UL approved and
pull tested to 30 pounds (13.5 kilos).

15' (4.6 m)
heavy-duty

Cord

Fused Lighter Plug

1 Amp Fuse
inside plug
(unscrew knurled ring)

Adjustable

Hanging Bracket

with notched slots

for easy removal

UL approved

Strain Relief

Energy Efficient Circuit

draws just 0.11 amps

at 12 volts

1:1 lens on

bottom of light

for area lighting

On/Off Switch

Mode Select

Switch

Red LED

Yellow LED

Incandescent Bulb (replaceable)

Fresnel Lens

for visibility up to

2 nautical miles (3.7 km)
