Introduction

The PD-4A is a 19” Rack Mount Redundant Power Centre with the ability to supply multiple
12V power outputs from a 100-240V AC Input or DC-12V/25A terminal.

The PD-4A redundant power supply unit protects your power system against unforeseen events
by supplying power to devices the instant they begin to fail. The PD-4A is an essential accessory
for Datavideo Mobile Studio applications, together with the Video switcher, LCD, recorders and
etc, the PD-4A makes the integration of a Mobile Studio easier and more professional.

The built-in time delay power on control initiates each DC output terminal in sequence, and
each terminal is installed with an auto-recover fuse to safely protect every connected working
device.

Features

• Power supply up to 384 Watts for most production requirements

• Power indicator and auto-recovery fuse protection for each output terminal

• Sequential Power On for each DC output terminal by 1 second duration

• Switchable AC 110/220V or DC 12V input source (110V and 220V devices are different

models)

• Provides safety net AC and DC protections to prevent power loss

• Eco-Friendly by complying with Safety / EMI and RoHS certification

• Chassis ground terminal

• Embedded four units of heat sink fan design

• Built-in abnormal warning buzzer

7

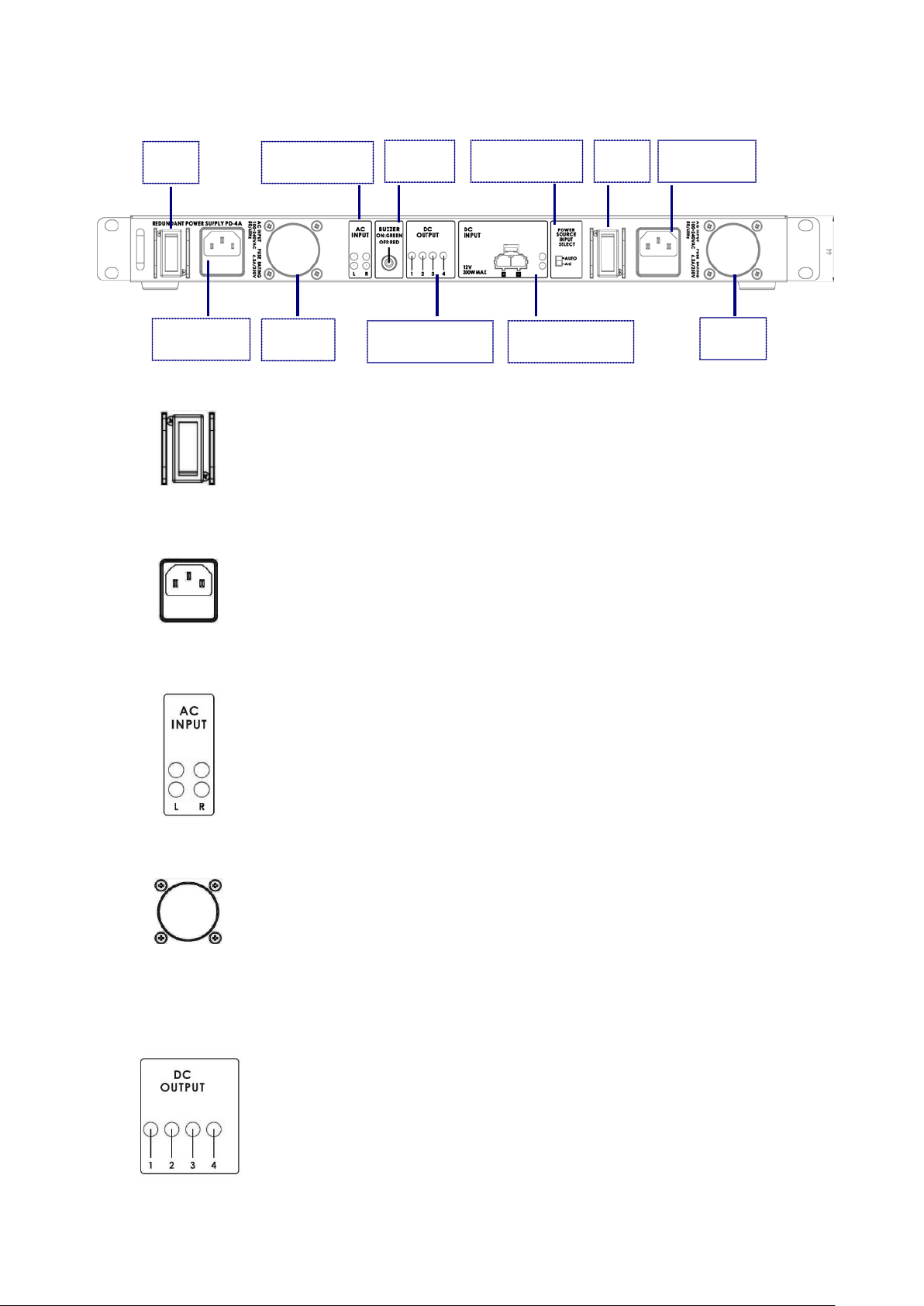

Front Panel

On / Off Switch
AC In with built-in fuse

AC INPUT LED indicator
Cooling Fan

DC OUTPUT LED Indicators (1-4)

Power Source
Input Select

DC Outputs LED
Indicator 1~4

AC Input.
100~240VAC

DC Input
12V 300W (MAX)

Power
Switch

Power
Switch

AC Input
100~240VAC

AC Input
LED Indicator

Buzzer
On/Off

Cooling

Fan

Cooling

Fan

Powers the PD-4A On / Off when using AC Power.

Note: The On / Off Switch is not functional if the power input is DC.

AC Inlet for connecting to suitable mains power outlet – 100­240VAC. The socket contains a fuse holder with a 6.3A/250V fuse.

L (LEFT AC Input) / R (RIGHT AC Input)

• Green: Good AC Input and DC output power

• Blinking Red: AC Input failed (When input falls below 80±5VAC)

The PD-4A has two built-in cooling fans; please ensure that the two
fans are not blocked and the airflow is available.

Note: Fan starts when internal ambient temperature reaches 70℃.

1~4 XLR DC output LED indicators
LED Indicator is ON during normal operation
LED Indicator is OFF if the output is overloaded or faulty

8

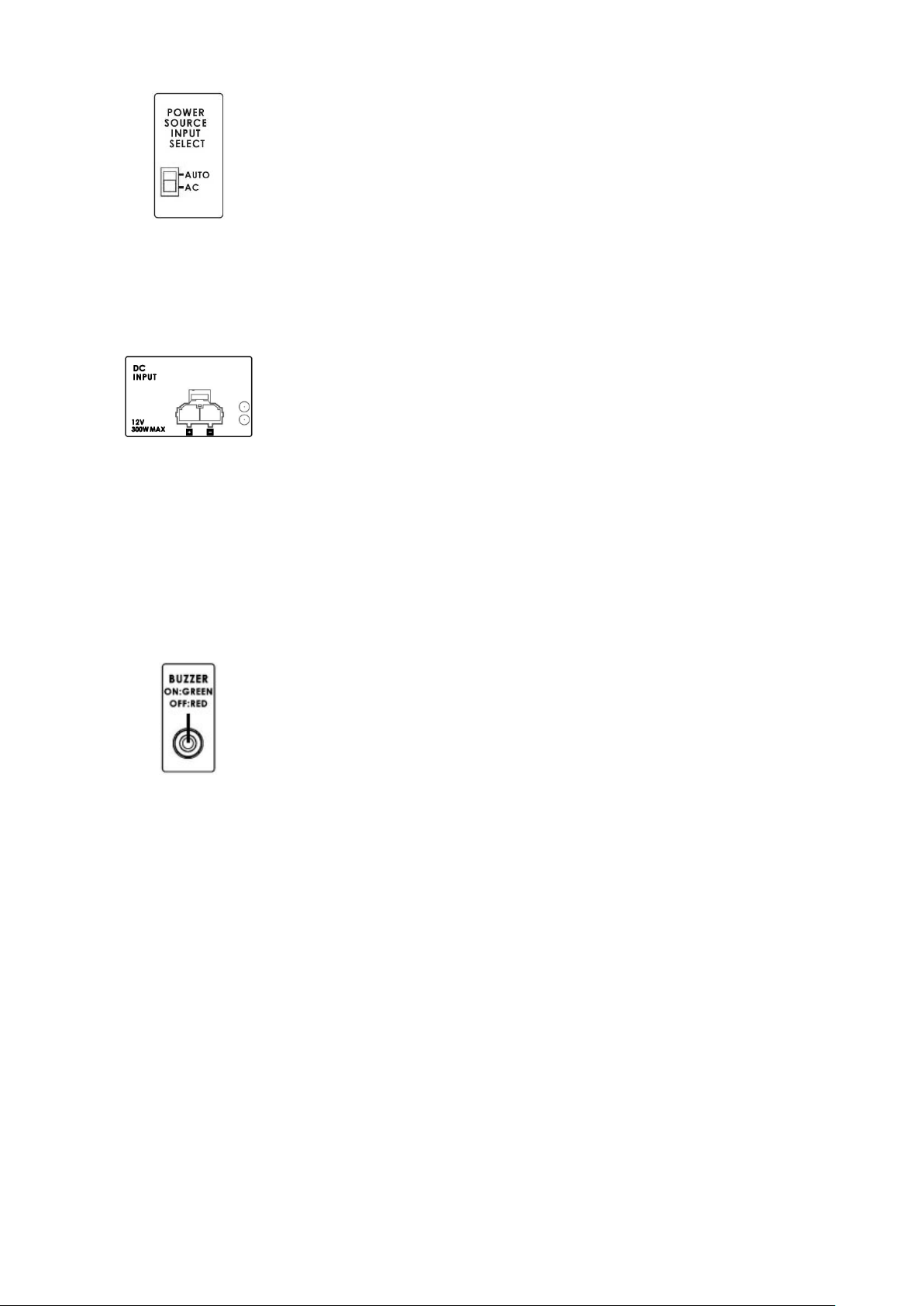

Power Source Input Select (AUTO / AC)

The Input select switch can be set to AC or AUTO depending on the

DC Input (Euro Type Terminal)

BUZZER ON/OFF( Push button)

or when the internal ambient

The buzzer does not sound.

power input that you intend to use.

AUTO: When DC power (12V) converted from AC input drops below

9.5V, the external DC input will start supplying current to DC outputs
until its alternative rises above 11.3V.

AC: The DC outputs are supplied by DC power (12V) converted from
AC input.

The PD-4A can be powered from a suitable 12V power source. When
working from DC the PD-4A will not regulate the power outlets.

Please ensure that the 12V power source that you use is regulated.
If you intend to run the PD-4A from a car or van power outlet make
sure that a suitable regulator is used on the power feed.

LED Indicator
Green: DC input LED indicator
Blinking Red: Internal ambient temperature exceeds 70°C degrees.

ON: Green (Press the push button)

Buzzer sounds when the AC fails
temperature exceeds approximately 70℃ degrees.

OFF: RED (Press the push button)

9

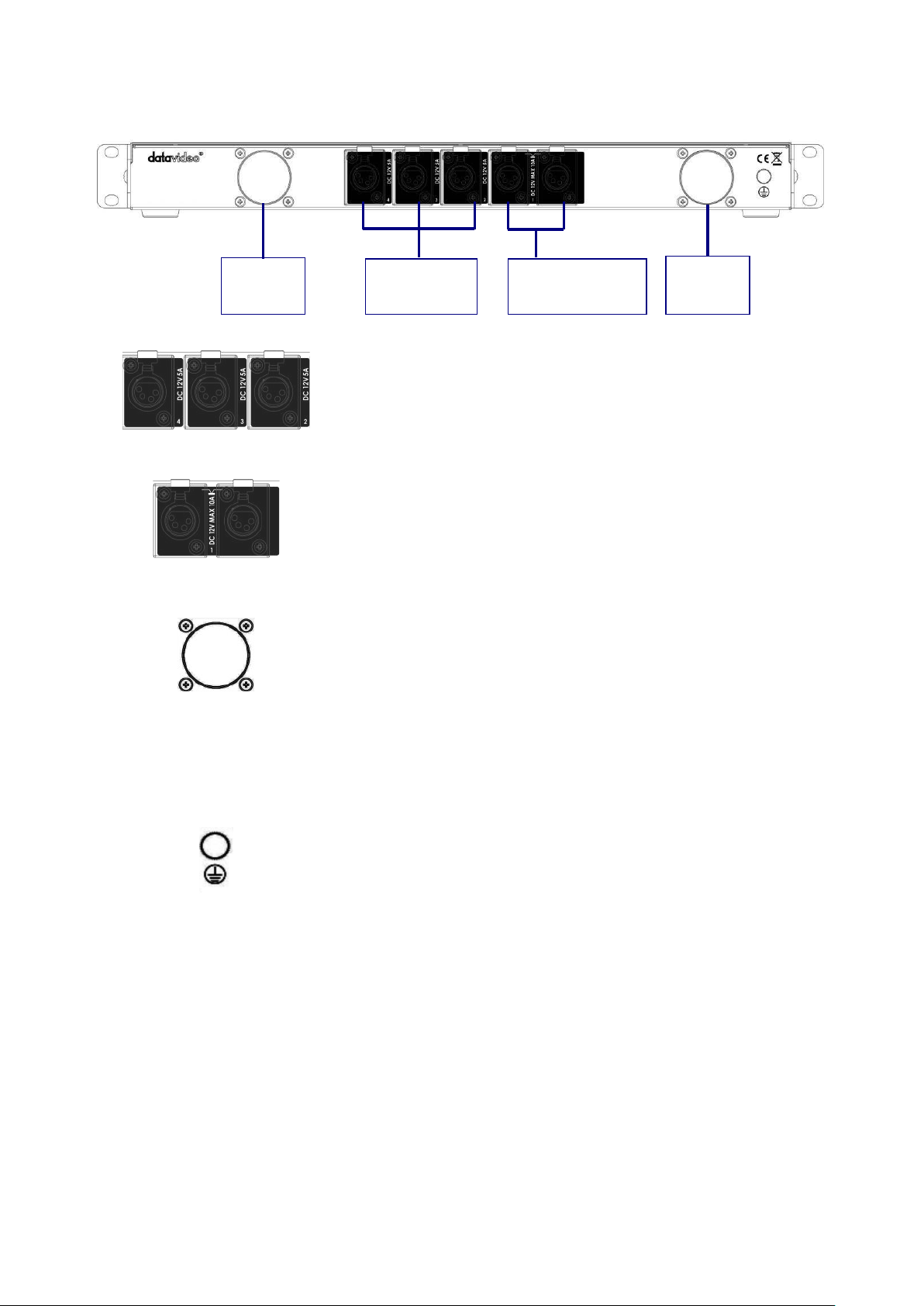

Rear Panel

DC Out 12V 5A

DC Out 12V 10A

Cooling Fan

Ground Terminal

to an appropriate point. When connecting, use the socket

Cooling

DC12V / 10A MAX

DC 12V / 5A

Cooling

Fan

XLR Output

3 x 12V 5A DC Output via XLR In-Line Socket

2 x MAX 12V 10A DC Output via XLR In-Line Socket

XLR Output

Fan

The PD-4A has two built-in cooling fans; please ensure that
the two fans are not blocked and the airflow is available.

Note: Fan starts when internal ambient temperature
reaches 50℃.

When connecting this unit to any other component, make
sure that it is properly grounded by connecting this terminal

and be sure to use wire with a cross-sectional area of at least

1.0 mm2.

10

Datavideo Product Voltage Requirements

Input

AC input outlet

Two AC input with Power switch

AC input current rating

100 - 240VAC

AC input fuse rating

100 – 240VAC MAX 6.3A

AC frequency

50Hz or 60Hz

DC input

One DC 12V, supports non-regulated DC 12V output

DC input watt

300W

Output

DC Output

12V±5%, 5A XLR AC Female Jack x 3

power on stage by 1 second duration.

General

Output Efficiency

More than 80%

DC Output Noise

+5%, -3%

Operating Temperature

0 to 40 ℃ ambient

Operating Humidity

5% to 90% RH, Non-condensing

Storage Temperature

-20 to 85 degrees C

Storage Humidity

5% to 90% RH, Non-condensing

Size

440*44*330mm (W*H*D)

Weight

6.2Kg

AC overload protection

Non-recovery fuse on the AC input outlet

DC overload protection

Auto-recovery fuse on each DC output terminal

This table is a guideline for Datavideo products; if you are using products from other
manufacturers, please check their voltage requirements carefully before connecting to the PD­4A.

DC 12V 3A BAC-03, VP-332, DAC-15, DAC-10, DAC-6, DAC-5, TLM-70D, TLM-404,

TLM-702, TLM-350, SE-500, DVK-100, RMC-140, ITC-100, STC-100, DN­100, CP-100, DAC-30, CKL-100, TLM-700, TLM-433

DC 12V 5A DN-300, TLM-170MD

DC 12V10A SE-1000, SE-2000, SE-3000, SE-900, SE-800, MP-6000

Specifications

12V±5%, 10A XLR DC Female Jack x 2
(Two of the outputs can combine the rating become one
12V±5%, 10A DC outputs)
Sequential-On design of each DC output terminal during

11

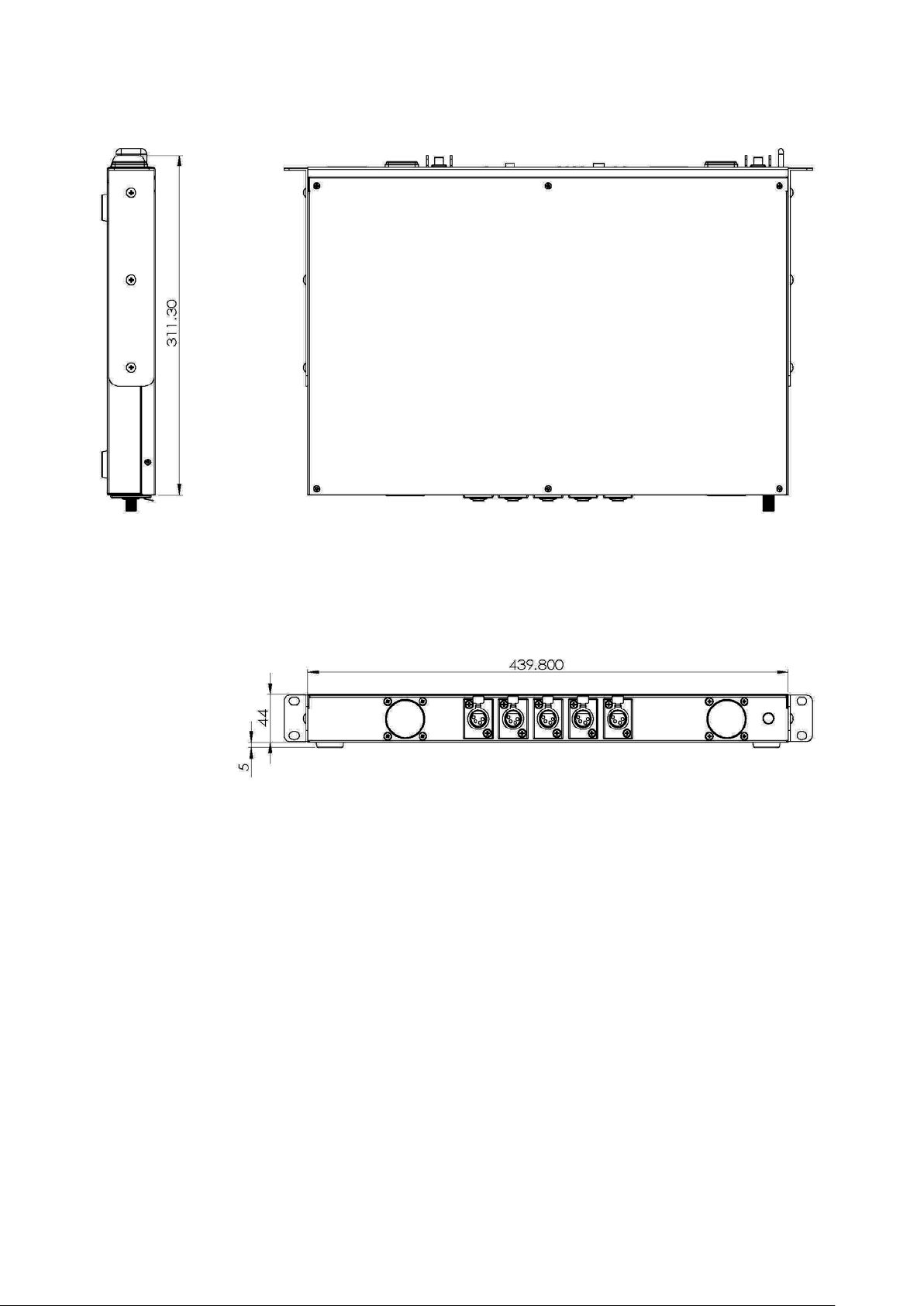

Dimensions

All measurements in millimeters (mm)

DATAVIDEO WORLDWIDE OFFICES

Service & Support

It is our goal to make owning and using Datavideo products a satisfying experience. Our support sta󰀨 is available

to assist you to set up and operate your system. Contact your local office for specific support requests. Plus,
please visit www.datavideo.com to access our FAQ section.

China Shanghai

Datavideo Technologies China Co
601,Building 10,No.1228,
Rd.Jiangchang,
Jingan District,Shanghai
Tel: [phone]
Fax:+ 86 21-5603 6770
E-mail: [e-mail]

China Beijing

Datavideo Technologies China Co
No. 812, Building B, Wankai Center,

No.316, Wan Feng Road, Fengtai District,
Beijing, China
Tel: [phone]
Fax:[phone]
E-mail: [e-mail]

China Chengdu

Datavideo Technologies China Co
B-823,Meinian square,No.1388,
Middle of Tianfu Avenue,Gaoxin District,
Chengdu,Sichuan
Tel: [phone]
Fax:[phone]
E-mail: [e-mail]

China Fuzhou

Datavideo Technologies China Co
A1-2318-19 Room,No.8, Aojiang Road,
Taijiang District,Fuzhou,Fujian,China

Tel: [phone]
Fax:[phone]
E-mail: [e-mail]

China Jinan

Datavideo Technologies China Co

902, No. 1 business building,
Xiangtai Square, No. 129,
Yingxiongshan Road, Shizhong District,
Jinan City, Shandong Province, China

Tel: [phone]
E-mail: [e-mail]

Hong Kong

Datavideo Hong K ong Ltd

G/ F.,26 Cross Lane
Wanchai, Hong Kong

Tel: [phone]
Fax:+ 852-2833-9916
E-mail: info@dat avideo.com.hk

India Noida

Datavideo India Noida
A-132, Sec-63,Noida-201307,

India

Tel: [phone]
Fax:[phone]
E-mail: [e-mail]

India Kochi

Datavideo India Kochi

2nd Floor- North Wing, Govardhan Building,
Opp. NCC Group Headquaters, Chittoor Road,
Cochin- 682035

Tel: [phone]
Fax:[phone]

Netherlands

Data video Technologies Europe BV
Floridadreef 106
3565 AM Ut rech t,
Th e Netherlands
Tel: [phone]
Fa x: [phone]
E-mail: info@dat av ideo.n l

Singapore

Datavideo Visual Technology(S) Pte Ltd
No. 178 Paya Lebar Road #06-07
Singapore 409030

Tel: [phone]
Fa x:[phone]
E-mail:[e-mail]

Singapore

Data video Technologies (S) PTE Ltd
No. 178 Paya Lebar Road #06-03
Singapore 409030

Tel: [phone]
Fa x:[phone]
E-mail:s ales@dat av ideo.sg

Taiwan

Datavideo Technologies Co. Lt d
10F. No. 176, Jian 1st Rd.,Chung Ho

District, New Taipei City 235, Taiwan

Tel: [phone]

Fax:[phone]
E-mail:service@dat avideo.com.tw

United States

Datavideo Corporat ion
7048 Elmer Avenue.
Whittier, C A 90602,
U.S.A.
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]-mail: [e-mail]

United Kingdom

Data video U K Limited
Brookfield House, Brookfield Industrial
Estate, Peakdale Road, Glossop,
Derbyshire, SK13 6LQ
Tel: [phone]
Fa x: [phone]
E-mail: sales@dat avideo.co. uk

France

Datavideo France s.a.r.l.
Cité Descartes 1, rue Albert Einstein
Champs sur Marne 774477 –
Marne la Vallée cedex 2
Tel: [phone]
Fa x: [phone]
E-mail: [e-mail]

Please visit our website for latest manual update.

www.datavideo.com/product/PD-4A

All the trademarks are the properties of their respective owners. Datavideo Technologies Co., Ltd. All rights reserved 2018

Sep-22.2017
