Datavideo MS-2850A Users Manual
HD/SD 8/12-CHANNEL
MOBILE VIDEO STUDIO
MS-2850
Instruction manual
Contents
FCC Compliance Statement ......................................................................................................... 4
Warnings and Precautions ........................................................................................................... 4
Warranty ........................................................................................................................................ 5
Standard Warranty ............................................................................................................... 5
Three Year Warranty............................................................................................................ 5
Disposal ......................................................................................................................................... 5
Introduction ................................................................................................................................... 6
Features............................................................................................................................... 6
Compatible Video Standards ................................................................................................ 7
Installation ................................................................................................ ................................ ..... 8
Transport & Placement ........................................................................................................ 8

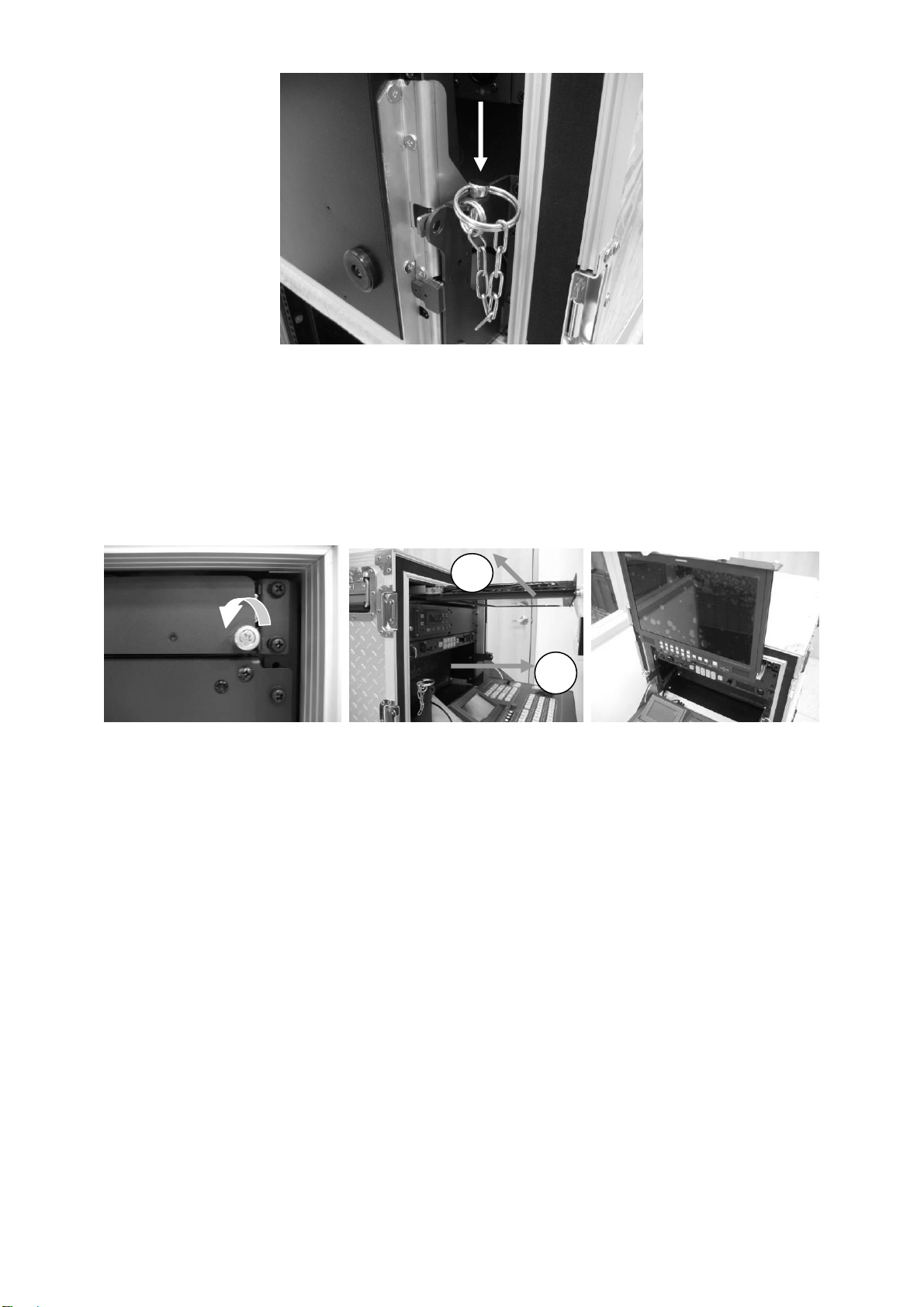

Opening the case ................................................................................................................. 8
Unpacking the SE-2850 Control Panel Keyboard ................................................................. 8
Setting up the TLM-170LM / 170V – 17” LCD monitor .......................................................... 9
MS-2850A..................................................................................................................................... 10
Front Panel ........................................................................................................................ 10
Rear Panel ......................................................................................................................... 10
MS-2850B..................................................................................................................................... 11
Front Panel ........................................................................................................................ 11
Rear Panel ......................................................................................................................... 11
MS-2850C..................................................................................................................................... 12
Front Panel ........................................................................................................................ 12
Rear Panel ......................................................................................................................... 12
MS-2850D..................................................................................................................................... 13
Front Panel ........................................................................................................................ 13
Rear Panel ......................................................................................................................... 13
MS-2850E ..................................................................................................................................... 14
Front Panel ........................................................................................................................ 14
Rear Panel ......................................................................................................................... 14
MS-2850F ..................................................................................................................................... 15
Front Panel ........................................................................................................................ 15
Rear Panel ......................................................................................................................... 15
MS-2850G .................................................................................................................................... 16
Front Panel ........................................................................................................................ 16
Rear Panel ......................................................................................................................... 16
MS-2850H..................................................................................................................................... 17
Front Panel ........................................................................................................................ 17
Rear Panel ......................................................................................................................... 17
Powering On ................................................................................................................................ 18
Powering Off ............................................................................................................................... 18
Packing Away .............................................................................................................................. 18
Dimensions ................................................................................................................................. 19
Weights ........................................................................................................................................ 19
2
Specifications.............................................................................................................................. 19
Service & Support ....................................................................................................................... 20
Disclaimer of Product and Services
The information offered in this instruction manual is intended as a guide only. At all times, Datavideo
Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies
cannot exclude that some information in this manual, from time to time, may not be correct or may be
incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo
Technologies always recommend that you double check the information in this document for accuracy before
making any purchase decision or using the product. Datavideo Technologies is not responsible for any
omissions or errors, or for any subsequent loss or damage caused by using the information contained within
this manual. Further advice on the content of this manual or on the product can be obtained by contacting
your local Datavideo Office or dealer.
3
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Warnings and Precautions
The MS-2850 is HEAVY – approximately 70Kg. Two or more people are required to move this unit.
The MS-2850 should be always moved and placed in an upright position; do not place or try to move the unit
in any other position as damage or injury could result. There are two sets of carry handles on either side of
the case, please use these handles to safely share the weight between the people lifting the unit.
Always use a trolley to safely transport the unit over distances of 2 metres or more.
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and
reliable operation of this unit, and to protect it from overheating, do not block or cover these openings.
Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of
the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This
unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your
local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be
walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the
products plugged into the extension cord do not exceed the extension cord rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed
15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch
dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill
liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself.
Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage
points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following
conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those
controls that are covered by the operating instructions in this manual; improper adjustment of other
4
controls may result in damage to the unit and may often require extensive work by a qualified
technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.
Warranty
Standard Warranty
Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of
purchase.
The original purchase invoice or other documentary evidence should be supplied at the time of any
request for repair under warranty.
The product warranty period begins on the purchase date. If the purchase date is unknown, the product
warranty period begins on the thirtieth day after shipment from a Datavideo office.
All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty
from the date of purchase.
Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under
warranty.
Viruses and malware infections on the computer systems are not covered under warranty.
Any errors that are caused by unauthorized third-party software installations, which are not required by
our computer systems, are not covered under warranty.
All mail or transportation costs including insurance are at the expense of the owner.
All other claims of any nature are not covered.
All accessories including headphones, cables, and batteries are not covered under warranty.
Warranty only valid in the country or region of purchase.
Your statutory rights are not affected.
Three Year Warranty
All Datavideo products purchased after July 1st, 2017 are qualified for a free two
years extension to the standard warranty, providing the product is registered with
Datavideo within 30 days of purchase.
Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard
Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered
for 1 year.
The three-year warranty must be registered on Datavideo's official website or with your local Datavideo
office or one of its authorized distributors within 30 days of purchase.
Disposal
For EU Customers only - WEEE Marking
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a designated collection point for the recycling
of waste electrical and electronic equipment. The separate collection and recycling of your
waste equipment at the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for recycling, please contact your local
city office, your household waste disposal service or the shop where you purchased the product.
CE Marking is the symbol as shown on the left of this page. The letters "CE" are the
abbreviation of French phrase "Conformité Européene" which literally means "European
Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE
Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official
documents.
5
Introduction
Datavideo MS-2850 HD/SD mobile video studio series is a ready to go solution. It is designed around the
SE-2850 8-channel (upgradeable to 12 channels) broadcast-quality video switcher. It is perfect for outdoor
events, conferences, education, places of worship and many more applications. Producing superb quality
pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such
as dual picture in picture, downstream keyer (DSK), CG and logo insertion.
The switcher is integrated with the essential elements required for live production including a recorder, a
multi-view monitor and an intercom system.
MS-2850 can be equipped with the Datavideo VSM-100 Sampling Vector Scope Monitor which allows you
to accurately analyze and calibrate video signals to ensure consistent video color and luminance levels.
For an overview on all configurations, please visit the Datavideo website.
That’s Datavideo; sharing the value!
To get more value out of your equipment, please take a few minutes to read through this overview manual,
and the other associated user manuals supplied within the product Manual Binder. This will help you
familiarize yourself with all aspects of the MS-2850 portable production unit.
Features
Available in 6 versions: MS-2850A, MS-2850B, MS-2850C, MS-2850D, MS-2850G or MS-2850H

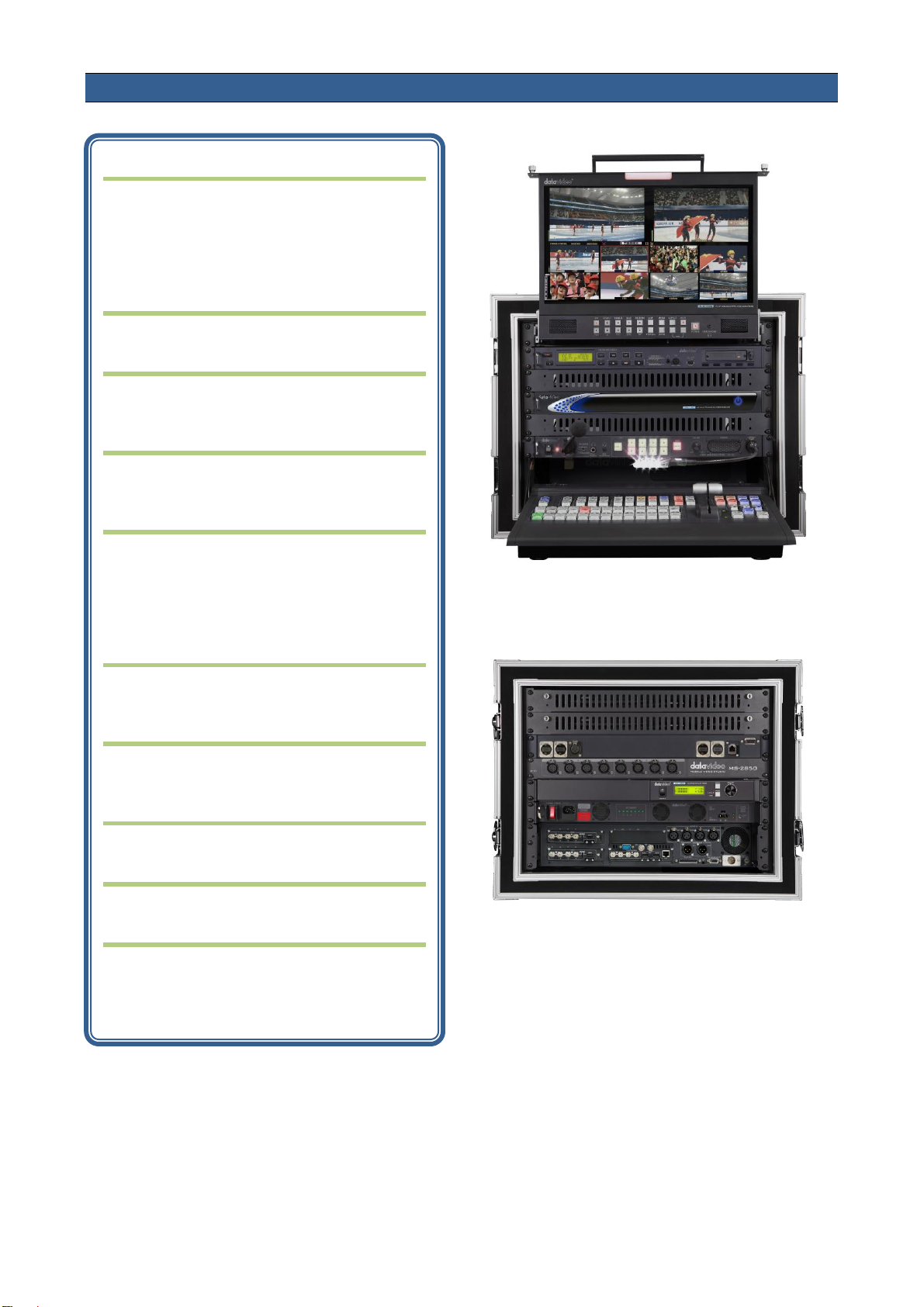

MS-2850A without VSM-100 Vectorscope and Waveform monitor and PD-6 DC Power Center

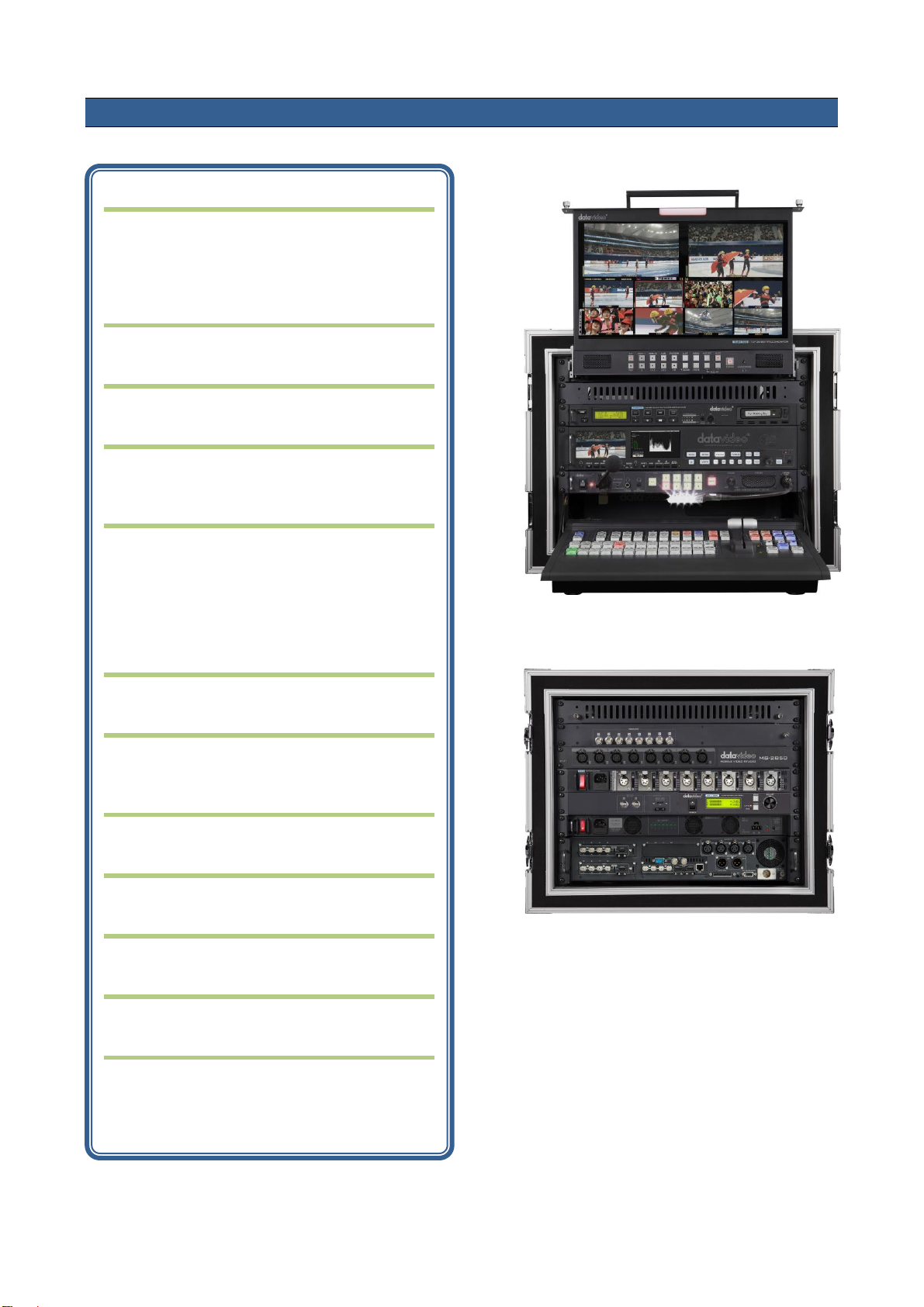

MS-2850B with additional VSM-100 Vectorscope and Waveform monitor and PD-6 DC Power Center
Both also contain
SE-2850 – HD/SD 8 channel digital video switcher (upgradable to 12 channels).
TLM-170LM – 17" HD/SD 1U rackmount LCD underscan/overscan monitor.
HDR-70 – HD-SDI 4:2:2 I frame only recorder with removable drive enclosure.
ITC-100 – 8 Channel talkback unit with integrated bi-colour tally system.
AD-100M – Audio delay unit allows delay of program audio by up to 17 frames.
PD-2A – Power Distribution Center with automatic AC to DC failover switch.
8U flight case – Foam filled, impact protective, for secure and safe transport.
MS-2850C without VSM-100 Vectorscope and Waveform monitor and PD-6 DC Power Center
MS-2850D with additional VSM-100 Vectorscope and Waveform monitor and PD-6 DC Power Center
Both also contain
SE-2850 – HD/SD 8 channel digital video switcher (upgradable to 12 channels).
TLM-170LM – 17" HD/SD 1U rackmount LCD underscan/overscan monitor.
HDR-70 – HD-SDI 4:2:2 I frame only recorder with removable drive enclosure.
ITC-100 – 8 Channel talkback unit with integrated bi-colour tally system.
AD-200 – Audio delay unit allows delay of program audio by up to 17 frames.
PD-2A – Power Distribution Center with automatic AC to DC failover switch.
8U flight case – Foam filled, impact protective, for secure and safe transport.

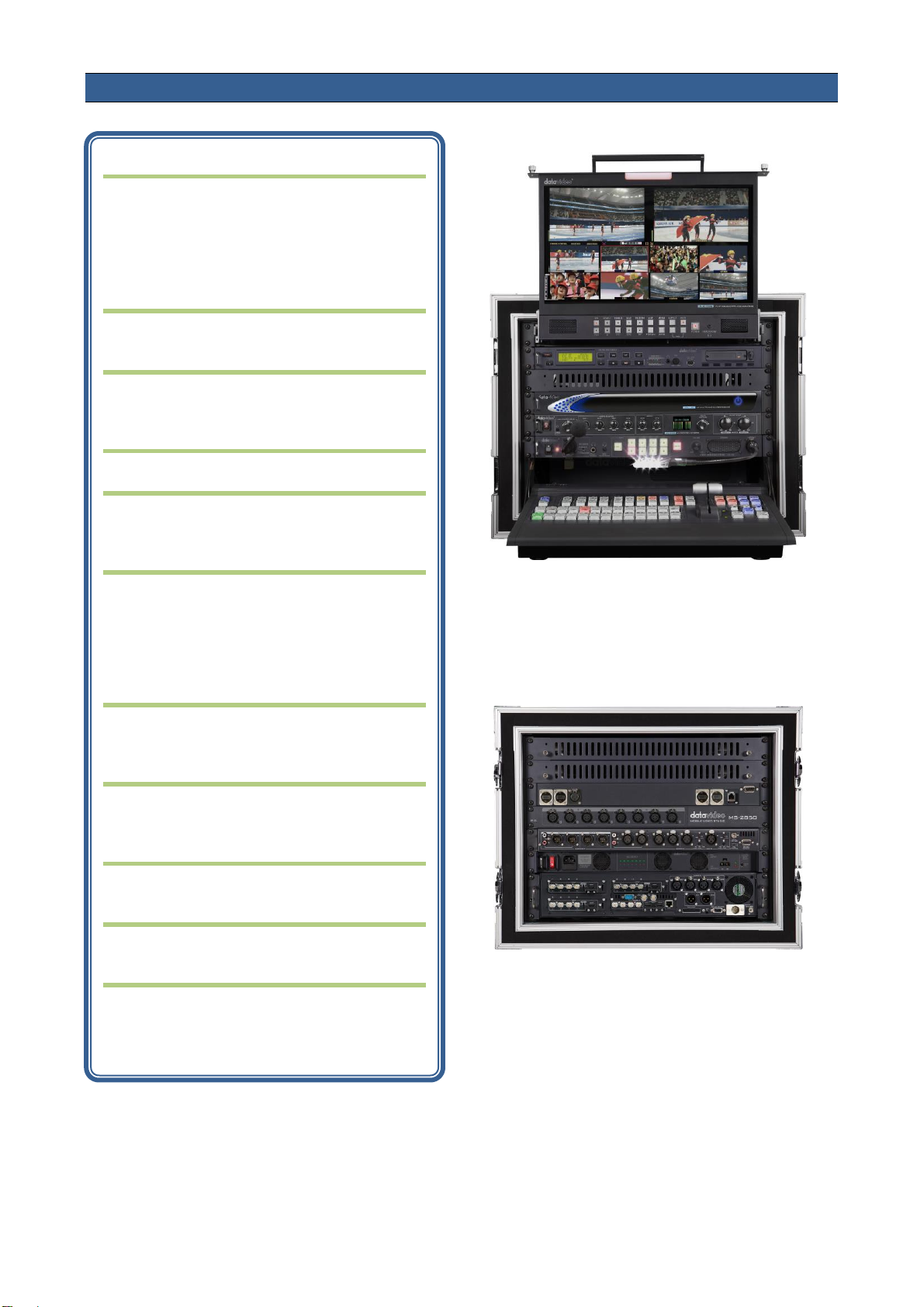

MS-2850E with AD-100M Audio Delay Box with Microphone Input
MS-2850F with AD-200 Audio Delay Box with Level Adjustment
6
Loading...
