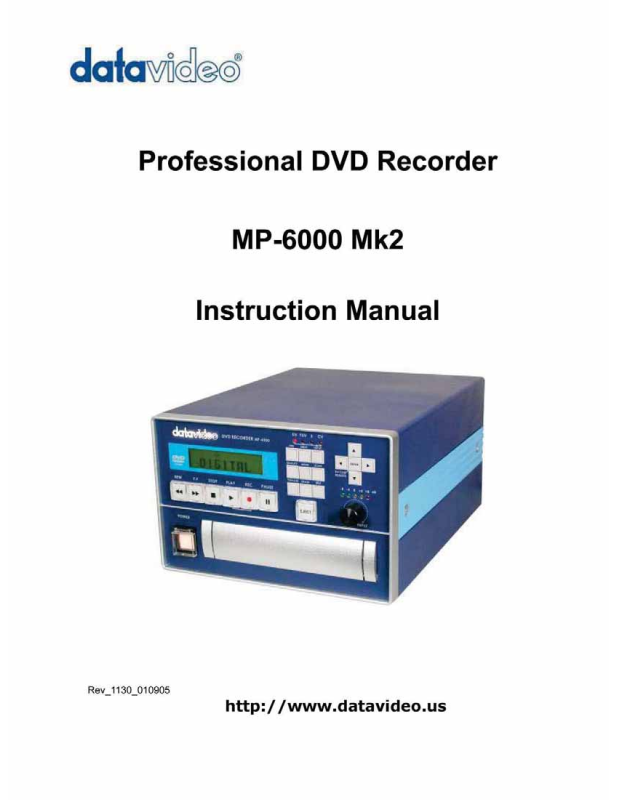

Datavideo MP-6000 Mk2 User Manual

Table of contents

Warnings and Precautions ----------------------------------------------------------------------------------- 3

Warranty --------------------------------------------------------------------------------------------------------- 4

What is in the package --------------------------------------------------------------------------------------- 5

Introduction ------------------------------------------------------------------------------------------------------ 5

Features ----------------------------------------------------------------------------------------------------------- 6

Functions --------------------------------------------------------------------------------------------------------- 6

Front Panel ----------------------------------------------------------------------------------------------- 7

Rear Panel ---------------------------------------------------------------------------------------------- 10

Installation------------------------------------------------------------------------------------------------------- 12

Quick Start Guide -------------------------------------------------------------------------------------------- 15

Setting Up ------------------------------------------------------------------------------------------------------ 18

Connecting ---------------------------------------------------------------------------------------------- 18

Powering Up -------------------------------------------------------------------------------------------- 18

On screen display-------------------------------------------------------------------------------------- 18

LCD Display --------------------------------------------------------------------------------------------- 19

Setting the Time & Date ------------------------------------------------------------------------------ 20

Setting the Video Input ------------------------------------------------------------------------------- 23

Setting the Record Quality--------------------------------------------------------------------------- 24

Recording a Disc --------------------------------------------------------------------------------------------- 24

Inserting a Disc ----------------------------------------------------------------------------------------- 24

Recording from an Analogue Source-------------------------------------------------------------- 26

Recording from a DV IEEE 1394 Source -------------------------------------------------------- 27

Reviewing a Recording------------------------------------------------------------------------------- 28

Finalizing a DVD+R Disc----------------------------------------------------------------------------- 29

Finalizing a DVD+RW Disc (Make Compatible) ------------------------------------------------ 31

Editing a Title-------------------------------------------------------------------------------------------------------- 32

Editing a Title Description---------------------------------------------------------------------------- 32

Editing a Title Icon ------------------------------------------------------------------------------------- 34

Color Correction---------------------------------------------------------------------------------------------------- 36

Audio Level Adjustment ------------------------------------------------------------------------------------------ 37

Setting the Video Standard (PAL/NTSC)--------------------------------------------------------------------- 38

GPI Functions------------------------------------------------------------------------------------------------------- 38

Additional Features of DVD+RW Discs----------------------------------------------------------------------- 40

Formatting a new DVD+RW Disc ------------------------------------------------------------------ 40

Erasing a DVD+RW Disc----------------------------------------------------------------------------- 41

Erasing the Last Title from a DVD+RW Disc ---------------------------------------------------- 42

Factory Reset (Return to default) ------------------------------------------------------------------------------ 44

RS 232 Information------------------------------------------------------------------------------------------------ 46

Specifications ------------------------------------------------------------------------------------------------------- 47

Service and Support --------------------------------------------------------------------------------------------- 48

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a

damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious

damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure

safe and reliable operation of this unit, and to protect it from overheating, do not block or cover

these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation

openings on the bottom of the cabinet will be blocked. This unit should never be placed near or

over a heat register or radiator. This unit should not be placed in a built-in installation unless

proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on the marking label

of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer

or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will

be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on

the products plugged into the extension cord do not exceed the extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not

exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may

touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.

Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product

yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to

dangerous voltage points or other risks, and will void your warranty. Refer all service issues to

qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the following

conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating conditions. Adjust

only those controls that are covered by the operating instructions in this manual; improper

adjustment of other controls may result in damage to the unit and may often require

extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

What’s in the Package

The following is a packing list, if any items are missing from your box please contact your dealer

immediately.

Item Description Q’ty

1 MP-6000 unit 1

2 Y/C Cable s-plug to s-plug 1.2m 1

3 Stereo Audio RCA 2 Phono to 2 Phono Cable 1

4 BNC to BNC 1.2m 3

5 IEEE 1394 6Pin to 4Pin Cable 1.8m 1

6 IEEE 1394 6Pin to 6Pin Cable 1.8m 1

7 AC power cord 1

8 AC/DC Switching Adaptor 12V / 4.2A 1

9 Instruction Manual 1

Introduction

The MP-6000 is a DVD+R/RW drive based high quality digital audio and video recorder. It integrates a high

performance MPEG-2 Codec for Real-Time Recording of live audio/video material from DV or Analogue

camcorders, VCRs, Betacam VTRs or other a/v sources on to DVD+R/RW disc in real time. The created

DVD discs can be played in most DVD players. It will also create index images automatically.

Features

- Multi Format - DV, YUV, Y/C (S-Video) and Composite video inputs.

- IEEE-1394 6-pin FireWire (iLink) input port with 12V bus power. Available in DV25 NTSC 4:1:1 / PAL

4:2:0 formats.

- YUV, Y/C, Composite video outputs with selectable NTSC/PAL video system.

- Features Video color processor control of Brightness, Color, Contrast, and Tint (Tint is NTSC only).

- Two channels Balanced (XLR) and unbalanced (RCA) analog audio input and output for

interconnection with professional digital audio equipment.

- Analog audio input level calibration and audio output level meter on front panel.

- RS-232 Front panel control interface for external remote thru PC or other devices.

- GPI (General Purpose Interface) for connecting an external foot switch or other trigger devices.

- Built in TBC

- Built in 3D noise filter

- Built in 3D Y/C separation filter/Comb filter (Composite and S-Video only)

Functions: Front Panel

Power On / Off

Fast Rewind Mode at 2X,4X,8X,16X,30X,60X,100X speed

Fast Forward Mode at 2X,4X,8X,16X,30X,60X,100X speed

Stop

Play a Title/Track

Record. Press and hold the REC button and press on the “

button to start recording a clip.

Pause/Play a Title/Track

”

EJECT button. Press to Open/Close Disc Tray

Jump to Previous track (Title)

Jump to Next track (Title)

Input Source Select of DV, S, CV, or YUV

Please note, system will take about 2-3 seconds to switch between

video sources

Selects the recording video quality at HQ, SP, LP, EP or SLP.

“MENU” KEY has several different functions,

1. COLOR CORRECTION:

To adjust Brightness, Contrast, Color, and Tint

2. GPI FUNCTION:

To set up GPI trigger modes, Record/Pause or Play/Pause with the

setting in rear panel DIP SWITCH.

When GPI DIP SWITCH is set to OFF, there are two different

functions

a. Press GPI TRIGGER BUTTON once, will start RECORDING.

Press it again will PAUSE recording.

b. Press GPI TRIGGER BUTTON once, will start playback. Press it

again will PAUSE playback.

When GPI DIP SWITCH is set to ON, there is only one function

a. Press and hold GPI TRIGGER BUTTON will start to RECORD.

Release GPI TRIGGER BUTTON will PAUSE recording.

3. VIDEO STANDARD:

Select video output as NTSC 0, 7.5 IRE or PAL

4. SYSTEM SETUP:

a. Set time: Manually set up timing.

b. System info: Check system information.

c. Factory Reset: Change all the setting to Factory Default.

d. Quit:

5. MAKE COMPATIBLE: This function is similar to “FINALIZE”, but it

only works when you insert a DVD+RW disc. The purpose is to make

this disc more compatible to playback by other DVD players.

Pause the desired image as the Icon for the Title

Finalize a DVD+R Disc (DVD+RW does not need finalizing)

Erase Disc (DVD+RW only)

Press Title button, it will go to the track list of the disc. Press it again; it

will go back to the video clip you were playing.

Move Cursor UP, Down, Left, Right

There are two functions of ENTER key.

1. ENTER button Confirms Select Option.

2. Enable/Disable DV device control functions when input source is

set to DV

Audio Input level calibration

4-Pin XLR locked 12Volt Power connector

Connecting 12VDC 2.5A input from an external DC adaptor.

Black Burst output terminal for video monitoring

Component Y.U.V. Video input/output terminal.

Composite Video & S-Video (Y/C) Input and Output

IEEE-1394 6-pin FireWire (iLink) DV Input and loop thru output

Available in DV25 NTSC 4:1:1 or PAL 4:2:0 format

Note: This IEEE1394 interface does not take control command or

video signal from a PC / MAC.

Two channels Unbalanced L/R Audio input and Output

Balanced Audio Input

Supports two channels XLR Balanced Audio Input

Balanced Audio Output

Supports two channels XLR Balanced Audio output

Cooling fan

Please ensure this is not blocked during operation

Installation

The following are simple examples of how to integrate the MP 6000 into any video setup. Obviously there

are too many possible combinations to cover them all in detail, but these examples cover the most

frequently used input and output combinations.

1. Connecting composite video and stereo audio outputs from the MP-6000 to a TV set / monitor.

Alternatively you may prefer to connect the audio outputs to an amplifier or speakers.

2. Connecting YUV output from the MP-6000 to a Projector.

3. Connecting Y/C or Composite video and stereo audio outputs from an analogue camcorder or

DVD player to the MP-6000.

4. Connecting a DV (IEEE1394) output from a DV camcorder or DV Deck to the MP-6000. With this

connection you can also use DV device control from the MP 6000 to cue up the tape.

5. Connecting a Betacam VTR to the MP-6000.
