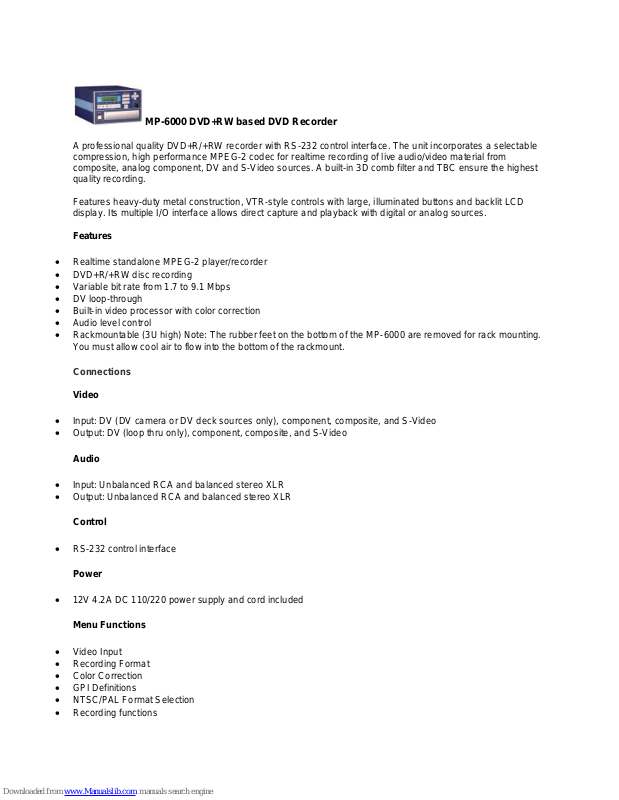

MP-6000 DVD+RW based DVD Recorder
A professional quality DVD+R/+RW recorder with RS-232 control interface. The unit incorporates a selectable
compression, high performance MPEG-2 codec for realtime recording of live audio/video material from
composite, analog component, DV and S-Video sources. A built-in 3D comb filter and TBC ensure the highest
quality recording.
Features heavy-duty metal construction, VTR-style controls with large, illuminated buttons and backlit LCD
display. Its multiple I/O interface allows direct capture and playback with digital or analog sources.
Features
• Realtime standalone MPEG-2 player/recorder
• DVD+R/+RW disc recording
• Variable bit rate from 1.7 to 9.1 Mbps
• DV loop-through
• Built-in video processor with color correction
• Audio level control
• Rackmountable (3U high) Note: The rubber feet on the bottom of the MP-6000 are removed for rack mounting.
You must allow cool air to flow into the bottom of the rackmount.
Connections
Video
• Input: DV (DV camera or DV deck sources only), component, composite, and S-Video
• Output: DV (loop thru only), component, composite, and S-Video
Audio
• Input: Unbalanced RCA and balanced stereo XLR
• Output: Unbalanced RCA and balanced stereo XLR
Control
• RS-232 control interface
Power
• 12V 4.2A DC 110/220 power supply and cord included
Menu Functions
• Video Input
• Recording Format
• Color Correction
• GPI Definitions
• NTSC/PAL Format Selection
• Recording functions
Page 2
• Safe Record
Recording Mode
Video Resolution
Mode
Bitrate
in PAL (50Hz)
in NTSC (60Hz)
HQ
9.17 Mbps
720 x 576
720 x 480
60 minutes
SP
5.07 Mbps
720 x 576
720 x 480
120 minutes
LP
3.38 Mbps
480 x 576
480 x 480
180 minutes
EP
2.54 Mbps
360 x 576
360 x 480
240 minutes
ELP
1.69 Mbps
352 x 288
352 x 240
360 minutes
96 kHz
4 Hz - 44 kHz
48 kHz
4 Hz - 22 kHz
Video CD
44.1 kHz
4-20 kHz
• One-Touch Record
• Append
• Erase
• Disc Write Protection
• Instant Content Menu Access
• Selectable Index Pictures
RKM-6000 rackmount accessory
Recording Specifications
Playback/Recording Compatibility
Recording Time (on 4.7GB disc)
• Plays back DVD+R, DVD+RW, DVD-R, DVD-RW, DVD Video, Super VCD, Video CD, Audio CD, CD-R and
CD-RW
• Records to DVD+R and DVD+RW
Audio Format & Performance (D/A = 24-bit, A/D = 16-bit)
DVD
Page 3
Audio CD
# of Tracks
Time per track
Total time recorded
Time to finalize
1
5:00
5:00
1:30
1
60:00
60:00
Finalize Times for High-Quality (HQ) DVD+R Recordings
44.1 kHz
4-20 kHz
10
Note: DV output does not function when playing back a DVD.
5:00
50:00
3:30
3:00
F.A.Q’s
Q: What kind of disc media is supported with the MP-6000?
A: The MP-6000 uses DVD+R or DVD+RW media. It will not support dual-layer or DVD-R/DVD-RW media.
Q: Does the MP-6000 have a DVD menu?
A: Yes, the MP-6000 creates a thumbnail view of every clip recorded on the disc.
Q: Can the MP-6000 record video from a black and white video source?
A: Yes, because the MP-6000 has a built-in TBC which does not require color burst.
Q: Can I connect the MP-6000 directly to my PC or Mac computer via the firewire cable?
A: No, the firewire connections on the MP-6000 can only be used with a DV camera or DV deck.
Q: I have all of my cables connected but I am unable to see my source video.
A: Check the input setting on your MP-6000. If the correct input type is not selected, then the source video will
not be detected by the recorder.
Q: I am trying to start the recording process but when I press "play" and "record" at the same time
nothing happens.
A: Press the "play" button while holding down the "record" button. This should cause the unit to begin the
recording process.
Q: Can I disable the DVD menu?
A: No, the DVD menu is created automatically with every burned disc.
Q: Can the MP-6000 be used in extreme temperatures?
A: The MP-6000 must be operated within the following temperature ranges 5 to 45 degrees Celsius (41 to 113
degrees Fahrenheit)
Q: Can I playback JPEG images on a CD with the MP-6000?
A: No, it is not recommended. We have had reports of discs getting stuck in the drive when these types of discs
are inserted into the machine.
Page 4
Q: How can I be sure the finalization process has been completed?
A: The on-screen display will show a progress indicator that will get to about 98% then will disappear from the
screen. We recommend that you wait approximately a minute until you see a "DVD+R" icon that will appear for
a couple of seconds on your monitor. The icon is an indication that the finalization process has been completed
and the disc can then be ejected.
Q: Does the MP-6000 accept HD?
A: No, it only records standard definition.
Q: Is there a way to turn off the record logo on the video output?
A: You cannot turn off the record logo on the video output if it is Analog; however, the record logo does not
appear on the video output if it is DV.
Q: Does the MP-6000 support 16:9 recording/playback?
A: The MP-6000 will accept 16:9 signals, but it will constrain the recording/playback to a 4:3 aspect ratio.
Q: Does the MP-6000 menu support languages other than English?
A: No, English is the only language that is supported by the MP-6000 menu.
