Data Sheet, V2.1, Jun. 2003

XC164CS

16-Bit Single-Chip Microcontroller

Microcontrollers

Never stop thinking.

Page 2

Edition 2003-06 Published by Infineon Technologies AG,

St.-Martin-Strasse 53, D-81541 München, Germany

Attention please!

The information herein is given to describe certain components and shall not be considered as warranted characteristics.

Terms of delivery and rights to technical change reserved. We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding

circuits, descriptions and charts stated herein.

Information

For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon Technologies Representatives worldwide (see address list).

Warnings

Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office.

Infineon Technologies Components may only be used in life-support devices or systems with the express written approv al of Infine on T ec hnologies , if a failu re of such co mponents ca n reasonab ly be exp ected to cause the f ailu re of that lif e-s upport device or sys tem, or to affect the sa f ety or ef f ec tiveness of that device or sy ste m. Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered.

Page 3

Data Sheet, V2.1, Jun. 2003

XC164CS

16-Bit Single-Chip Microcontroller

Microcontrollers

Never stop thinking.

Page 4

XC164 Revision History: 2003-06 V2.1

Previous Version: 2003-01 V2.0

2002-03 V1.0

Page Subjects (major changes since last revision)

1 AD conversion times updated 6, 45 RSTIN note added 45 Digital supply voltage range for IO pads improved 48 Note 2 added 49ff Specification of Sleep and Power-down mode supply current improved 53 Conversion time formulas improved 54 Note 4 changed 55 Converter timing example improved 58 Note 1 added 63 Table 19 changed

Controller Area Network (CAN): License of Robert Bosch GmbH

We Listen to Your Comments

Any information within this document that you feel is wrong, unclear or missing at all? Your feedback will help us to continuously improve the quality of this document. Please send your proposal (including a reference to this document) to:

[email protected]

Page 5

XC16416-Bit Single-Chip Microcontroller

XC166 Family

XC164

1 Summary of Features

• High Performance 16-bit CPU with 5-Stage Pipeline – 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution) – 1-Cycle Multiplication (16 × 16 bit), Background Division (32 / 16 bit) in 21 Cycles – 1-Cycle Multiply-and-Accumulate (MAC) Instructions – Enhanced Boolean Bit Manipulation Facilities – Zero-Cycle Jump Execution – Additional Instructions to Support HLL and Operating Systems – Register-Based Design with Multiple Variable Register Banks – Fast Context Switching Support with Two Additional Local Register Banks – 16 Mbytes Total Linear Address Space for Code and Data – 1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)

• 16-Priority-Level Interr upt S ystem with u p to 75 Sources, Sample- Rate down to 50 ns

• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space

• Clock Generation via on-chip PLL (factors 1:0.15 … 1:10), or via Prescaler (factors 1:1 … 60:1)

• On-Chip Memory Modules – 2 Kbytes On-Chip Dual-Port RAM (DPRAM) – 2 Kbytes On-Chip Data SRAM (DSRAM) – 2 Kbytes On-Chip Program/Data SRAM (PSRAM) – 128 Kbytes On-Chip Program Memory (Flash Memory or Mask ROM)

• On-Chip Peripheral Modules – 14-Channel A/D Converter with Programmable Resolution (10-bit or 8-bit) and

Conversion Time (down to 2.55 µs or 2.15 µs) – Two 16-Channel General Purpose Capture/Compare Units (12 Input/Output Pins) – Capture/Compare Unit for flexible PWM Signal Generation (CAPCOM6)

(3/6 Capture/Compare Channels and 1 Compare Channel) – Multi-Functional General Purpose Timer Unit with 5 Timers – Two Synchronous/Asynchronous Serial Channels (USARTs) – Two High-Speed-Synchronous Serial Channels – On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects

(Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality – On-Chip Real Time Clock

• Idle, Sleep, and Power Down Modes with Flexible Power Management

• Programmable Watchdog Timer and Oscillator Watchdog

Data Sheet 1 V2.1, 2003-06

Page 6

XC164

Derivatives

• Up to 12 Mbytes External Address Space for Code and Data – Programmable External Bus Characteristics for Different Address Ranges – Multiplexed or Demultiplexed External Address/Data Buses – Selectable Address Bus Width – 16-Bit or 8-Bit Data Bus Width – Four Programmable Chip-Select Signals

• Up to 79 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis

• On-Chip Bootstrap Loader

• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards

• On-Chip Debug Support via JTAG Interface

• 100-Pin TQFP Package, 0.5 mm (19.7 mil) pitch

Ordering Information

The ordering code for Infineon microcontrollers provides an exact reference to the required product. This ordering code identifies:

Summary of Features

• the derivative itself, i.e. its function set, the temper ature range, and the supp ly voltage

• the package and the type of delivery.

For the available ordering codes for the XC164 please refer to the “Product Catalog Microcontrollers”, which summarizes all available microcontroller variants.

Note: The ordering codes for Mask-ROM versions are defined for each product after

verification of the respective ROM code.

This document describes several derivatives of the XC164 group. Table 1 enumerates these derivatives and summ arizes the differences. As this document r efers to all of these derivatives, some descriptions may not apply to a specific product.

For simplicity all versions are referred to by the term XC164 throughout this document.

Data Sheet 2 V2.1, 2003-06

Page 7

XC164

Derivatives

Table 1 XC164 Derivative Synopsis Derivative

SAK-XC164CS-16F40F,

Program Memory On-Chip RAM Interfaces

128 Kbytes Flash 2 Kbytes DPRAM,

SAK-XC164CS-16F20F

SAK-XC164CS-16R40F,

128 Kbytes ROM 2 Kbytes DPRAM,

SAK-XC164CS-16R20F

SAF-XC164CS-16F40F,

128 Kbytes Flash 2 Kbytes DPRAM,

SAF-XC164CS-16F20F

SAF-XC164CS-16R40F,

128 Kbytes ROM 2 Kbytes DPRAM,

SAF-XC164CS-16R20F

SAK-XC164CS-8F40F,

64 Kbytes Flash 2 Kbytes DPRAM,

SAK-XC164CS-8F20F

Summary of Features

2 Kbytes DSRAM, 2 Kbytes PSRAM

ASC0, ASC1, SSC0, SSC1, CAN0, CAN1

SAK-XC164CS-8R40F, SAK-XC164CS-8R20F

SAF-XC164CS-8F40F, SAF-XC164CS-8F20F

SAF-XC164CS-8R40F, SAF-XC164CS-8R20F

This Data Sheet i s vali d for de vices starting with a nd incl uding de sign st ep AD of th e Flash v ersion , and design step AA of the ROM version.

64 Kbytes ROM 2 Kbytes DPRAM,

2 Kbytes DSRAM, 2 Kbytes PSRAM

64 Kbytes Flash 2 Kbytes DPRAM,

2 Kbytes DSRAM, 2 Kbytes PSRAM

64 Kbytes ROM 2 Kbytes DPRAM,

2 Kbytes DSRAM, 2 Kbytes PSRAM

ASC0, ASC1, SSC0, SSC1, CAN0, CAN1

Data Sheet 3 V2.1, 2003-06

Page 8

XC164

Derivatives

General Device Information

2 General Device Informati o n

2.1 Introduction

The XC164 derivatives are high-performance m embers of the Infineon X C166 Family of full featured single-chip CMOS microcontrollers. These devices extend the functionality and performan ce of the C166 Family in terms of instructions (MA C unit), periphe rals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program ROM or Flash, program RAM, and data RAM.

AGND

DDI/P

SSI/P

PORT0 16 bit

XTAL1 XTAL2

AREF

Port 20 5 bit

NMI RSTIN

RSTOUT EA

ALE RD WR/WRL

Port 5 14 bit

XC164

TRST JTAG Debug

PORT1 16 bit

Port 3 14 bit

Port 4 8 bit

Port 9 6 bit

Via Port 3

Figure 1 Logi c Symbol

Data Sheet 4 V2.1, 2003-06

Page 9

XC164

Derivatives

General Device Information

2.2 Pin Configuration and Definition

The pins of the XC164 are described in detail in Table 2, including all their alternate functions. Figure 2 summarizes all pins in a condensed way, showing their location on the 4 sides of the package. E*) and C*) mark pins to be used as alternate external interrupt inputs, C*) marks pins that can have CAN interface lines assigned to them.

/MTSR1/EX2IN

/CC23/EX0I N

RSTIN

P20.12/RSTOUT

NMI P0H.0/ AD8 P0H.1/ AD9

P0H.2/AD10 P0H.3/AD11

SSP

V P9.0/CC16IO/C*) P9.1/CC17IO/C*) P9.2/CC18IO/C*) P9.3/CC19IO/C*)

P9.4/CC20I O P9.5/CC21I O

P5.10/AN10/T6EUD P5.11/AN11/T5EUD

DDP

SSP

DDP

P5.0/AN0 P5.1/AN1 P5.2/AN2 P5.3/AN3 P5.4/AN4 P5.5/AN5

6P1/MRST1/ EX1I N

SSIVDDI

XTAL1

XTAL2

P1H.7/A15/CC27/EX7IN

P1H.6/A14/CC26/EX6IN

P1H.5/A13/CC25/EX5IN

P1H.4/A12/CC24/EX4IN

P1H.3/A11/T7IN/SCLK1/EX3IN/E*)

100999897969594939291908988878685848382818079787776

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

P1H.0/A8/C6P0

P1H.2/A10/C6P2

P1H.1/A9/C

XC164

SSPVDDP

TRAP/CC22

P1L.6/A6/COUT63

P1L.5/A5/COUT62

P1L.4/A4/CC62

P1L.3/A3/COUT61

P1L.2/A2/CC61

P1L.1/A1/COUT60

P1L.0/A0/CC60

P0H.7/AD15

P0H.6/AD14

P1L.7/A7/

P0H.5/AD13

P0H.4/ AD1 2

P0L.7/A D7

P0L.6/A D6

P0L.5/A D5

P0L.4/A D4

P0L.3/A D3

P0L.2/A D2

P0L.1/A D1

P0L.0/A D0

P20.5/E A

P20.4/A LE

P20.1/WR

P20.0/R D

P4.7/A23 /C*)

P4.6/A22 /C*)

P4.5/A21/C*)

P4.4/A20/C*)

P4.3/A19 /CS0

P4.2/A18 /CS1

P4.1/A17 /CS2

P4.0/A16 /CS3

P3.15/C LKOUT /FO

P3.13/SCLK0/E*)

/WRL

SSP DDP

26272829303132333435363738394041424344454647484950

SSI

DDI

SSP

TRST

DDP

P3.6/T3I N

P3.8/MRST0

P3.9/MTS R0

P3.2/CAP IN/TD I

P3.3/T3OUT/TDO

P3.4/T3EUD/TMS

P3.1/T6OUT/ RxD 1/TC K/ E* )

P3.7/T2IN/BRKIN

P3.5/ T4 I N/TxD1/BRKOUT

/WRH/E*)

P3.10/TxD0/E*)

P3.11/RxD0/E*)

P3.12/BHE

AREF

AGND

P5.6/AN6

P5.7/AN7

P5.12/AN12/T6IN

P5.13/AN13/T5IN

P5.14/AN14/T4EUD

P5.15/AN15/T2EUD

Figure 2 Pin Configuration (top view)

Data Sheet 5 V2.1, 2003-06

Page 10

XC164

Derivatives

Table 2 Pin Definitions and Functions Symbol Pin

Num.

RSTIN 1 I Reset Input with Schmitt-Trigger characteristics. A low level

Input Outp.

Function

at this pin while the oscillator is running resets the XC164. A spike filter suppresses input pulses <10 ns. Input pulses >100 ns safely pass the filter. The minimum duration for a safe recognition should be 100 ns + 2 CPU clock cycles.

General Device Information

Note: The reset duration must be sufficient to let the

hardware configuration signals settle. External circuitry must guarantee low level at the RSTIN pin at least until both power supply voltages have reached the operating range.

P20.12 2 IO For details, please refer to the description of P20. NMI 3 I Non-Maskable Interrupt Input. A high to low transition at this

pin causes the CPU to vector to the NMI trap routine. When the PWRDN (power down) instruction is executed , the NM I pin must be low i n order to force the XC164 into power down mode. If NMI is high, when PWRDN is executed, the part will continue to run in normal mode. If not used, pin NMI should be pulled high externally.

P0H.0P0H.3

4…7 IO For details, please refer to the description of PORT0.

Data Sheet 6 V2.1, 2003-06

Page 11

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

Input Outp.

Function

Port 9 is a 6-bit bidirectional I/O port. Each pin can be programmed for input (output driver in high-impedance state) or output (configurable as push/pull or open drain driver). The input threshold of Port 9 is selectable (standard or special). The following Port 9 pins also serve for alternate functions:

P9.0

P9.1

P9.2

P9.3

P9.4 P9.5

14 15

I/O I I I/O O I I/O I I I/O O I I/O I/O

CC16IO CAPCOM2: CC16 Capture Inp./Compare Outp., CAN2_RxDCAN Node 2 Receive Data Input, EX7IN Fast External Interrupt 7 Input (alternate pin B) CC17IO CAPCOM2: CC17 Capture Inp./Compare Outp., CAN2_TxD CAN Node 2 Transmit Data Output, EX6IN Fast External Interrupt 6 Input (alternate pin B) CC18IO CAPCOM2: CC18 Capture Inp./Compare Outp., CAN1_RxDCAN Node 1 Receive Data Input, EX7IN Fast External Interrupt 7 Input (alternate pin A) CC19IO CAPCOM2: CC19 Capture Inp./Compare Outp., CAN1_TxD CAN Node 1 Transmit Data Output, EX6IN Fast External Interrupt 6 Input (alternate pin A) CC20IO CAPCOM2: CC20 Capture Inp./Compare Outp. CC21IO CAPCOM2: CC21 Capture Inp./Compare Outp.

General Device Information

P5.0 P5.1 P5.2 P5.3 P5.4 P5.5 P5.10 P5.11 P5.6 P5.7 P5.12 P5.13 P5.14 P5.15

18 19 20 21 22 23 24 25 26 27 30 31 32 33

Port 5 is a 14-bit input-only port. The pins of Port 5 also serve as anal og input channels for the

A/D converter, or they serve as timer inputs: I I I I I I I I I I I I I I

AN0

AN1

AN2

AN3

AN4

AN5

AN10, T6EUD GPT2 Timer T6 Ext. Up/Down C trl. Inp.

AN11, T5EUD GPT2 Timer T5 Ext. Up/Down C trl. Inp.

AN6

AN7

AN12, T6IN GPT2 Timer T6 Count/Gate Input

AN13, T5IN GPT2 Timer T5 Count/Gate Input

AN14, T4EUD GPT1 Timer T4 Ext. Up/Down C trl. Inp.

AN15, T2EUD GPT1 Timer T2 Ext. Up/Down C trl. Inp.

Data Sheet 7 V2.1, 2003-06

Page 12

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

TRST 36 I Test-System Reset Input. A high level at this pin activates

P3.1

P3.2 P3.3 P3.4 P3.5

P3.6 P3.7

P3.8 P3.9 P3.10

P3.11 P3.12

P3.13 P3.15

40 41 42 43

44 45

46 47 48

49 50

51 52

Input Outp.

O I/O I I I I O O I I I O O I I I I/O I/O O I I/O I O O I I/O I O O

Function

the XC164’s debug system. For normal system operation,

pin TRST should be held low.

Port 3 is a 14-bit bidirectional I/O port. Each pin can be

programmed for input (output driver in high-impedance

state) or output (configurable as push/pull or open drain

driver). The input threshold of Port 3 is selectable (standard

or special).

The following Port 3 pins also serve for alternate functions:

T6OUT GPT2 Timer T6 Toggle Latch Output,

RxD1 ASC1 Data Input (Async.) or Inp./Outp. (Sync.),

EX1IN Fast External Interrupt 1 Input (alternate pin A),

TCK Debug System: JTAG Clock Input

CAPIN GPT2 Register CAPREL Capture Input,

TDI Debug System: JTAG Data In

T3OUT GPT1 Timer T3 Toggle Latch Output,

TDO Debug System: JTAG Data Out

T3EUD GPT1 Timer T3 External Up/D own Control Input,

TMS Debug System: JTAG Test Mode Selection

T4IN GPT1 Timer T4 Count/Gate/Reload/Capture Inp

TxD1 ASC0 Clock/Data Output (Async./Sync.),

BRKOUT Debug System: Break Out

T3IN GPT1 Timer T3 Count/Gate Input

T2IN GPT1 Timer T2 Count/Gate/Reload/Capture Inp

BRKIN Debug System: Break In

MRST0 SSC0 Master-Receive/Slave-Transmit In/Out.

MTSR0 SSC0 Master-Transmit/Slave-Receive Out/In.

TxD0 ASC0 Clock/Data Output (Async./Sync.),

EX2IN Fast External Interrupt 2 Input (alternate pin B)

RxD0 ASC0 Data Input (Async.) or Inp./Outp. (Sync.),

EX2IN Fast External Interrupt 2 Input (alternate pin A)

BHE External Memory High Byte Enable Signal,

WRH External Memory High Byte Write Strobe,

EX3IN Fast External Interrupt 3 Input (alternate pin B)

SCLK0 SSC0 Master Clock Output / Slave Clock Input.,

EX3IN Fast External Interrupt 3 Input (alternate pin A)

CLKOUT System Clock Output (=CPU Clock),

FOUT Programmable Frequency Output

General Device Information

Data Sheet 8 V2.1, 2003-06

Page 13

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

Input Outp.

Function

Port 4 is an 8-bit bidirectional I/O port. Each pin can be

programmed for input (output driver in high-impedance

state) or output (configurable as push/pull or open drain

driver). The input threshold of Port 4 is selectable (standard

or special).

Port 4 can be used to output the segment address lines, the

optional chip select lines, and for serial interface lines:

P4.0 P4.1 P4.2 P4.3 P4.4

P4.5

P4.6

P4.7

53 54 55 56 57

O O O O O O O O O I I O I I O O I O I O I

A16 Least Significant Segment Address Line,

CS3 Chip Select 3 Output

A17 Segment Address Line,

CS2 Chip Select 2 Output

A18 Segment Address Line,

CS1 Chip Select 1 Output

A19 Segment Address Line,

CS0 Chip Select 0 Output

A20 Segment Address Line,

CAN2_RxDCAN Node 2 Receive Data Input,

EX5IN Fast External Interrupt 5 Input (alternate pin B)

A21 Segment Address Line,

CAN1_RxDCAN Node 1 Receive Data Input,

EX4IN Fast External Interrupt 4 Input (alternate pin B)

A22 Segment Address Line,

CAN1_TxD CAN Node 1 Transmit Data Output,

EX5IN Fast External Interrupt 5 Input (alternate pin A)

A23 Most Significant Segment Address Line,

CAN1_RxDCAN Node 1 Receive Data Input,

CAN2_TxD CAN Node 2 Transmit Data Output,

EX4IN Fast External Interrupt 4 Input (alternate pin A)

General Device Information

Data Sheet 9 V2.1, 2003-06

Page 14

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

P20

P20.0 P20.1

P20.4

P20.5

P20.12

63 64

Input Outp.

O O

Function

Port 20 is a 6-bit bidirectional I/O port. Each pin can be

programmed for input (output driver in high-impedance

state) or output. The input threshold of Port 20 is selectable

(standard or special).

The following Port 20 pins also serve for alternate functions:

RD External Memory Read Strobe, activated for

every external instruction or data read access.

WR/WRL External Memory Write Strobe.

In WR-mode this pin is activated for every external data write access. In WRL-mode this pin is activated for low byte data write accesses on a 16-bit bus, and for every data write access on an 8-bit bus.

ALE Address Latch Enable Output.

Can be used for latching the address into external memory or an address latch in the multiplexed bus modes.

EA External Access Enable pin.

A low level at this pin during and after Reset forces the XC164 to latch the configuration fr om PORT0 and pin RD, and to begin instruction execution out of external memory. A high level forces the XC164 to latch the configuration from pins RD, ALE, and WR, and to begin instruction execution out of the internal program memory. "ROMless" versions must have this pin tied to ‘0’.

RSTOUT Internal Reset Indication Output.

Is activated asynchronously with an external hardware reset. It may also be activated (selectable) synchronously with an internal software or watchdog reset. Is deactivated upon the execution of the EINIT instruction, optionally at the end of reset, or at any time (before EINIT) via user software.

General Device Information

Note: Port 20 pins may input configuration values (see EA).

Data Sheet 10 V2.1, 2003-06

Page 15

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

PORT0

P0L.0-7 P0H.0-3

P0H.4-7

67 - 74 4 - 7

75 - 78

Input Outp.

IO PORT0 consists of the two 8-bit bidirectional I/O ports P0L

Function

and P0H. Each pin can be programmed for input (output

driver in high-impedance state) or output.

In case of an external bus configuration, PORT0 serves as

the address (A) and address/data (AD) bus in multiplexed

bus modes and as the data (D) bus in demultiplexed bus

modes.

Demultiplexed bus modes:

Data Path Width: 8-bit 16-bit

P0L.0 – P0L.7: D0 – D7 D0 - D7

P0H.0 – P0H.7: I/O D8 - D15

Multiplexed bus modes:

Data Path Width: 8-bit 16-bit

P0L.0 – P0L.7: AD0 – AD7 AD0 - AD7

P0H.0 – P0H.7: A8 - A15 AD8 - AD15

General Device Information

PORT1

P1L.0 P1L.1 P1L.2 P1L.3 P1L.4 P1L.5 P1L.6 P1L.7

P1H

79 80 81 82 83 84 85 86

…

I/O O I/O O I/O O O I

I/O

Note: At the end of an external reset (EA = 0) PORT0 also

may input configuration values

PORT1 consists of the two 8-bit bidirectional I/O ports P1L

and P1H. Each pin can be programmed for input (output

driver in high-impedance state) or output.

PORT1 is used as the 16-bit address bus (A) in

demultiplexed bus modes (also after switching from a

demultiplexed to a multiplexed bus mode).

The following PORT1 pins also serve for alt. functions:

CC60 CAPCOM6: Input / Output of Channel 0

COUT60 CAPCOM6: Output of Channel 0

CC61 CAPCOM6: Input / Output of Channel 1

COUT61 CAPCOM6: Output of Channel 1

CC62 CAPCOM6: Input / Output of Channel 2

COUT62 CAPCOM6: Output of Channel 2

COUT63 Output of 10-bit Compare Channel

CTRAP CAPCOM6: Trap Input

CTRAP is an input pin with an internal pullup resistor. A low

level on this pin switches the CAPCOM6 compare outputs to

the logic level defined by software (if enabled).

CC22IO CAPCOM2: CC22 Capture Inp./Compare Outp.

…continued…

Data Sheet 11 V2.1, 2003-06

Page 16

XC164

Derivatives

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

PORT1

Input Outp.

Function

…continued…

(cont’d) P1H.0

P1H.1

P1H.2

P1H.3

P1H.4 P1H.5 P1H.6 P1H.7

93 94 95 96

I I I/O I I I/O I I I/O I I/O I I I/O I I/O I I/O I I/O I

CC6POS0 CAPCOM6: Position 0 Input,

EX0IN Fast External Interrupt 0 Input (default pin),

CC23IO CAPCOM2: CC23 Capture Inp./Compare Outp.

CC6POS1 CAPCOM6: Position 1 Input,

EX1IN Fast External Interrupt 1 Input (default pin),

MRST1 SSC1 Master-Receive/Slave-Transmit In/Out.

CC6POS2 CAPCOM6: Position 2 Input,

EX2IN Fast External Interrupt 2 Input (default pin),

MTSR1 SSC1 Master-Transmit/Slave-Receive Out/Inp.

T7IN CAPCOM2: Timer T7 Count Input,

SCLK1 SSC1 Master Clock Output / Slave Clock Input,

EX3IN Fast External Interrupt 3 Input (default pin),

EX0IN Fast External Interrupt 0 Input (alternate pin A)

CC24IO CAPCOM2: CC24 Capture Inp./Compare Outp.,

EX4IN Fast External Interrupt 4 Input (default pin)

CC25IO CAPCOM2: CC25 Capture Inp./Compare Outp.,

EX5IN Fast External Interrupt 5 Input (default pin)

CC26IO CAPCOM2: CC26 Capture Inp./Compare Outp.,

EX6IN Fast External Interrupt 6 Input (default pin)

CC27IO CAPCOM2: CC27 Capture Inp./Compare Outp.,

EX7IN Fast External Interrupt 7 Input (default pin)

General Device Information

XTAL2 XTAL199100

O I

XTAL2: Output of the oscillator amplifier circuit

XTAL1: Input to the oscillator amplifier and input to

the internal clock generator To clock the device from an external source, drive XTAL1, while leaving XTAL2 unconnected. Minimum and maximum high/low and rise/fall times specified in the AC Characteristics must be observed.

AREF

AGND

DDI

28 - Reference voltage for the A/D converter. 29 - Reference ground for the A/D converter. 35, 97 - Digital Core Supply Voltage (On-Chip Modules):

+2.5 V during normal operation and idle mode. Please refer to the Operating Conditions

Data Sheet 12 V2.1, 2003-06

Page 17

XC164

Derivatives

General Device Information

Table 2 Pin Definitions and Functions (cont’d) Symbol Pin

Num.

DDP

9, 17, 38, 61, 87

V V

SSI SSP

34, 98 - Digital Ground. 8, 16,

37, 62, 88

Input

Function

Outp.

- Digital Pad Supply Voltage (Pin Output Drivers): +5 V during normal operation and idle mode. Please refer to the Operating Conditions

Connect decoupling capacitors to adjacent VDD/VSS pin pairs as close as possible to the pins. All VSS pins must be connected to the gro und-line o r groundplane.

The CAN interface lines are assigned to ports P4 and P9 under software control.

Data Sheet 13 V2.1, 2003-06

Page 18

XC164

Derivatives

Functional Description

3 Functional Description

The architecture of the XC164 combines advantages of RISC, CISC, and DSP processors with an advanced peripheral subsystem in a very well-balanced way. In addition, the on-chip memory blocks allow the design of compact systems-on-silicon with maximum performance (computing, control, communication).

The on-chip memory blocks (program code-memory and SRAM, dual-port RAM, data SRAM) and the set of g eneric perip herals are connected to the CPU via separate bu ses. Another bus, the LXBus, connects additional on-chip resoures as well as external resources (see Figure 3).

This bus structure enhances the overall system performance by enabling the concurrent operation of several subsystems of the XC164.

The following block diagram gives an overview of the different on-chip components and of the advanced, high bandwidth internal bus structure of the XC164.

PSRAM DPRAM DSRAM

XTAL

ProgMem

Flash / RO M

128 KBytes

OCDS

Debug Support

Osc / PLL

Clock Generation

ADC

8/10-Bit

12/1 6

Channels

P 20

GPT

T2 T3 T4

T5 T6

RTC WDT

BRGen

ASC1

(USART)

BRGen

Port 5

ASC0

(USART)

PMU

SSC0

(S PI)

BRGen

CPU

C166SV2-Core

Interrupt & PEC

SSC1

(SPI)

BRGen

CC1

T0 T1

148

DMU

Interrupt Bu s

Peripheral Data Bus

CC2

T7 T8

CC6

T12 T13

PORT1 PORT0Port 3Port 4Port 9

EBC

XBUS Control

External Bus

Control

Twin CAN

A B

MC B04323_x4.vsd

Figure 3 Block Diagram

Data Sheet 14 V2.1, 2003-06

Page 19

XC164

Derivatives

Functional Description

3.1 Memory Subsystem and Organization

The memory space of the XC164 is configured in a Von Neumann architecture, which means that all internal and external resources, such as code memory, data memory, registers and I/O ports, are organized within the same linear address space. This common memory space includes 16 Mbytes and is arranged as 256 segments of 64 Kbytes each, where each segment consists of four data pages of 16K bytes each. The entire memory space can be accessed bytewise or wordwise. Portions of the onchip DPRAM and the register spaces (E/SFR) have additionally been made directly bitaddressable.

The internal data memory areas and the Special Function Register areas (SFR and ESFR) are mapped into segment 0, the system segment.

The Program Mana gement Uni t ( PMU) handl es all code fetches and, therefore, contr ols accesses to the program memories, such as Flash memory, ROM, and PSRAM.

The Data Management Unit (DMU) handles all data transfers and, therefore, controls accesses to the DSRAM and the on-chip peripherals.

Both units (PMU and DMU) are connected via the high-speed system bus to exchange data. This is requ ired if operands are re ad from p rogram memory, code or data i s written to the PSRAM, code is fetched from external memory, or data is read from or written to external resources, including pe ripherals on the LX bus ( such as TwinCAN). The system bus allows concurrent two-way communication for maximum transfer performance.

128 Kbytes of on-chip Flash memory or mask-programmable ROM stor e code o r constant data. The on-chip Flash memory is organized as four 8-Kbyte sectors, one 32-Kbyte sector, and one 64-Kbyte sector. Each sector can be separately write protected1), erased and programmed (in blocks of 128 Bytes). The complete Flash or ROM area can be read-protected. A password sequence temporarily unlocks protected areas. The Flash module combines very fast 64-bit one-cycle read accesses with protected and efficient writing algorithms for programming and erasing. Thus, program execution out of the internal Flash results in maximum performance. Dynamic error correction provides extremely high read data security for all read accesses. Programming typically takes 2 ms per 128-byte block (5 ms max.), erasing a sector typically takes 200 ms (500 ms max.).

2 Kbytes of on-chip Program S RAM (PSRAM ) are provided to store user code or data. The PSRAM is accessed via the PMU and is therefore optimized for code fetches.

2 Kbytes of on-chip Data SRAM (DSRAM ) are provided as a storage for general user data.The DSRAM is accessed via the DMU and is therefor e optimized for data accesses.

2 Kbytes of on-chip Dual-Port RAM (DPRAM) are provided as a storage for user defined variables, for the system stack, general purpose register banks. A register bank can consist of up to 16 wordw ide (R0 to R15) and/or bytew ide (RL0, RH0, …, RL7, RH7)

Each two 8-Kbyte sectors are combined for write-protection purposes.

Data Sheet 15 V2.1, 2003-06

Page 20

XC164

Derivatives

Functional Description

so-called General Purpose Registers (GPRs). The upper 256 bytes of the DPRAM are directly bitaddressable. When used by a GPR, any location in the DPRAM is bitaddressable.

1024 bytes (2 × 512 bytes) of the address space are reserved for the Special Function Register areas (SFR space and ESFR space). SFRs are wordwide registers which are used for controlling and monitoring functions of the different on-chip units. Unused SFR addresses are reserved for future m embers of the XC166 Family. Therefore, they shou ld either not be accessed, or written with zeros, to ensure upward comp atibility.

In order to meet the needs of designs where more memory is required than is provided on chip, up to 12 Mbytes (approximately, see Table 3) of exter nal RAM and/or R OM can be connected to the microcontroll er. Th e External Bus Interfa ce also pr ovides access to external peripherals.

Table 3 XC164 Memory Map Address Area Start Loc. End Loc. Area Size

Flash register space FF’F000

Reserved (Acc. trap) Reserved for PSRAM

F8’0000 E0’0800

Program SRAM E0’0000

Reserved for pr. mem.

C2’0000

Program Flash/ROM C0’0000

Reserved

BF’0000 External memory area 40’0000 External IO area

20’0800 TwinCAN registers 20’0000 External memory area 01’0000 Data RAMs and SFRs 00’8000 External memory area 00’0000

Accesses to the shaded areas generate external bus accesses.

The areas marked with “<“ are slightly smaller than indicated, see column “Notes”.

Not defined register locations return a trap code.

Several pipeline optimizations are not active within the external IO area. This is necessary to control external peripherals properly.

H H

H H H H H H H

FF’FFFF FF’EFFF F7’FFFF E0’07FF DF’FFFF C1’FFFF BF’FFFF BE’FFFF 3F’FFFF 20’07FF 1F’FFFF 00’FFFF 00’7FFF

Notes

H H H

H H

4 Kbytes Flash only <0.5 Mbytes Minus Flash regs <1.5 Mbytes Minus PSRAM

2 Kbytes Maximum < 2 Mbytes Minus Flash/ROM

128 Kbytes

64 Kbytes <8 Mbytes Minus res. seg. <2 Mbytes Minus TwinCAN

2 Kbytes

<2 Mbytes Minus segment 0

32 Kbytes Partly used

32 Kbytes

Data Sheet 16 V2.1, 2003-06

Page 21

XC164

Derivatives

Functional Description

3.2 External Bus Controller

All of the external memory accesses ar e perform ed by a particular on-chi p Ex ternal Bu s Controller (EBC). It can be programmed either to Single Chip Mode when no external memory is required, or to one of four different external memory access modes1), which are as follows:

– 16 … 24-bit Addresses, 16-bit Data, Demultiplexed – 16 … 24-bit Addresses, 16-bit Data, Multiplexed – 16 … 24-bit Addresses, 8-bit Data, Multiplexed – 16 … 24-bit Addresses, 8-bit Data, Demultiplexed

In the demultiplexed bus modes, addresses are output on PORT1 and data is input/ output on PORT0 or P0L, respectively. In the multiplexed bus modes both addresses and data use PORT0 for input/output. The high order address (segment) lines use Port 4. The number of active segment address lines is selectable, re stricting the extern al address space to 8 Mbytes … 64 Kbytes. This is required when interface lines are assigned to Port 4.

Up to 4 external CS signals (3 windows plus default) can be generated in order to save external glue logic. E xternal modules can di rectly be connecte d to the common address/ data bus and their individual select lines.

Important timing characteristics of the external bus interface have been made programmable (via registers TCONCSx/FCONCSx) to allow the user the adaption of a wide range of different types of memories and external peripherals.

In addition, up to 4 independent address windows may be defined (via registers ADDRSELx) which control the access to different resources with different bus characteristics. These address windows are arranged hierarchically where window 4 overrides window 3, and window 2 overrides window 1. All accesses to locations not covered by these 4 address windows are controlled by TCONCS0/FCONCS0. The currently active window can generate a chip select signal.

The external bus timing is related to the rising edge of the reference clock output CLKOUT. The external bus protocol is compatible w ith that of the standard C166 Family.

The EBC also controls accesses to resources connected to the on-chip LXBus. The LXBus is an internal representation of the external bus and allows accessing integrated peripherals and modules in the same way as external components.

The TwinCAN module is connected and accessed via the LXBus.

Bus modes are switched dynamically if several address windows with different mode settings are used.

Data Sheet 17 V2.1, 2003-06

Page 22

XC164

Derivatives

Functional Description

3.3 Central Processing Unit (CPU)

The main core of the CPU consists of a 5-stage execution pipeline with a 2-stage instruction-fetch pipeline, a 1 6-bit arithme tic an d logic u nit (ALU), a 32-bi t/40-bi t multi ply and accumulate unit (MA C), a register- fi le providi ng th ree r egister banks, and dedicated SFRs. The ALU features a multiply and divide unit, a bit-mask generator, and a barrel shifter.

System-Bus

Internal Program M em o ry

CPU

Prefetch Unit

Branch Unit

FIFO

IDX0 IDX1

QX0 QX1

Multiply Unit

+/-

MAH

CSP

CPUCON 1 CPUCON2

CPUID

Return Stack

QR0 QR1

+/-+/-

MRW

MCW MSW

MAL

MAC

PMU

IFU

Injection/Exception

DPP0 DPP1 DPP2 DPP3

Division Unit Multiply Unit

MDC PSW

Zeros

data in

VECSEG

TFR

Handler

SPSEG

SP STKOV STKUN

ADU

Bit-Mask-Gen.

Barrel-Shifter

+/-

MDLMDH

Ones

ALU

address

data out

data in

address

da ta ou t

DPRAM

2-Stage

Prefetch

Pipeline

5-Stage

Pipeline

IPIP

R15 R14

GPRs

R1 R0

R15 R14

GPRs

R1 R0

R15 R14

R1 R0

address

R15 R14

GPRs

R1 R0

data in

Buffer

address

data out

data in

data out

SRAM

DMU

Peripheral-Bus

System-Bus

Figure 4 CPU Block Diagram

Based on these hardware provisions, mo st of the XC164’s instructions can be executed in just one machine cycle which requir es 25 ns at 40 MHz CPU clock. For example, shift and rotate instructions are always processed during one machine cycle independent of the number of bits to be shifted. Also multiplication and most MAC instructions execute in one single cycle. All multi ple -cycl e instructions have been optimized so that they can be executed very fast as well: for e xample, a 32-/16-bit division is started within 4 cycles, while the remaining 15 cycles are executed in the background. Another pipeline

Data Sheet 18 V2.1, 2003-06

Page 23

XC164

Derivatives

optimization, the branch target prediction, allows eliminating the execution time of branch instructions if the prediction was correct.

The CPU has a register context consisting of up to thr ee register banks with 16 wordwide GPRs each at its disposal. One of these register banks is physically allocated within the on-chip DPRAM area. A Context Pointer (CP) register determines the base address of the active register bank to be accessed by the CPU at any time. The number of register banks is only restricted by the available internal RAM space. For easy parameter passing, a register bank may overlap others.

A system stack of up to 32 Kwords is provided as a storage for temporary data. The system stack can be allocated to an y location within th e address space ( preferably in the on-chip RAM area), and it is accessed by the CPU via the stack pointer (SP) register. Two separate SFRs, STKOV and STKUN, are implicitly compared against the stack pointer value upon each stack access for the detecti on of a stack overflow or under fl ow.

The high performance o ffered by the hardware implementation of the C PU can efficiently be utilized by a programmer via the highly efficient XC164 instruction set which includes the following instruction classes:

– Standard Arithmetic Instructions – DSP-Oriented Arithmetic Instructions – Logical Instructions – Boolean Bit Manipulation Instructions – Compare and Loop Control Instructions – Shift and Rotate Instructions – Prioritize Instruction – Data Movement Instructions – System Stack Instructions – Jump and Call Instructions – Return Instructions – System Control Instructions – Miscellaneous Instructions

Functional Description

The basic instruction l ength is ei ther 2 or 4 bytes. Possibl e oper and t ypes are bits, b ytes and words. A variety of direct, indirect or immediate addressing modes are provided to specify the required operands.

Data Sheet 19 V2.1, 2003-06

Page 24

XC164

Derivatives

Functional Description

3.4 Interrupt System

With an interrupt response time of typically 8 CPU clocks (in case of internal program execution), the XC164 is capable of reacting very fast to the occurrence of nondeterministic events.

The architecture of the XC164 supports several mechanisms for fast and flexible response to service requests that can be generated from various sources internal or external to the microcontroller. Any of these interrupt requests can be programmed to being serviced by the Interrupt Controller or by the Peripheral Event Controller (PEC).

In contrast to a standard interrupt service where the current program execution is suspended and a branch to the interrupt vector table is performed, just one cycle is ‘stolen’ from t he curr ent CPU a ctivity to perfor m a PEC service. A PEC service i mplies a single byte or word data transfer between any two memory locations with an additional increment of either th e PEC source, or the destin ation pointer, or both. An individual PEC transfer counter is implicitly decremented for each PEC service except when performing in the continuous transfer mode. When this counter reaches zero, a standard interr upt is performed to the corresponding source related vector location. PEC services are very well suited, for example, for supporting the transmission or reception of blocks of data. The XC164 has 8 PEC channels each of which offers such fast interrupt-driven data transfer capabilities.

A separate control register which contains an interrupt request flag, an interrupt enable flag and an interrupt priori ty bitfield exists for each of the possible interrupt node s. Via its related register, each node can be programmed to one of sixteen interrupt priority levels. Once having been accepted by the CPU, an interrupt service can only be interrupted by a higher prioritized service request. For the standard interrupt processing, each of the possible interrupt nodes has a dedicated vector location.

Fast external interrupt inputs are provided to service external interrupts with high precision requirements. These fast interrupt inputs feature programmable edge detection (rising edge, falling edge, or both edges).

Software interrup ts are supported by means of the ‘TRAP’ instruction in combinati on with an individual trap (interrupt) number.

Table 4 shows all of the possible XC164 interrupt sources and the corresponding

hardware-related interrupt flags, vectors, vector locations and trap (interrupt) numbers.

Note: Interrupt nodes which are not assigned to peripherals (unassigned nodes), may

be used to generate software controlled interrupt requests by setting the respective interrupt request bit (xIR).

Data Sheet 20 V2.1, 2003-06

Page 25

XC164

Derivatives

Functional Description

Table 4 XC164 I nterrupt Nodes Source of Interrupt or PEC

Service Request

Control Register

Vector Location

CAPCOM Register 0 CC1_CC0IC xx’0040 CAPCOM Register 1 CC1_CC1IC xx’0044 CAPCOM Register 2 CC1_CC2IC xx’0048 CAPCOM Register 3 CC1_CC3IC xx’004C CAPCOM Register 4 CC1_CC4IC xx’0050 CAPCOM Register 5 CC1_CC5IC xx’0054 CAPCOM Register 6 CC1_CC6IC xx’0058 CAPCOM Register 7 CC1_CC7IC xx’005C CAPCOM Register 8 CC1_CC8IC xx’0060 CAPCOM Register 9 CC1_CC9IC xx’0064 CAPCOM Register 10 CC1_CC10IC xx’0068 CAPCOM Register 11 CC1_CC11IC xx’006C CAPCOM Register 12 CC1_CC12IC xx’0070 CAPCOM Register 13 CC1_CC13IC xx’0074 CAPCOM Register 14 CC1_CC14IC xx’0078 CAPCOM Register 15 CC1_CC15IC xx’007C CAPCOM Register 16 CC2_CC16IC xx’00C0 CAPCOM Register 17 CC2_CC17IC xx’00C4 CAPCOM Register 18 CC2_CC18IC xx’00C8 CAPCOM Register 19 CC2_CC19IC xx’00CC CAPCOM Register 20 CC2_CC20IC xx’00D0 CAPCOM Register 21 CC2_CC21IC xx’00D4 CAPCOM Register 22 CC2_CC22IC xx’00D8 CAPCOM Register 23 CC2_CC23IC xx’00DC CAPCOM Register 24 CC2_CC24IC xx’00E0 CAPCOM Register 25 CC2_CC25IC xx’00E4 CAPCOM Register 26 CC2_CC26IC xx’00E8 CAPCOM Register 27 CC2_CC27IC xx’00EC CAPCOM Register 28 CC2_CC28IC xx’00E0 CAPCOM Register 29 CC2_CC29IC xx’0110

H H H

H H H H

H H H

Number

10H / 16 11H / 17 12H / 18 13H / 19 14H / 20 15H / 21 16H / 22 17H / 23 18H / 24 19H / 25 1AH / 26 1BH / 27 1CH / 28 1DH / 29 1EH / 30 1FH / 31 30H / 48 31H / 49 32H / 50 33H / 51 34H / 52 35H / 53 36H / 54 37H / 55 38H / 56 39H / 57 3AH / 58 3BH / 59 3CH / 60 44H / 68

D D D D D D D D D D

D D

D D D D D D D D D D D D

Trap

Data Sheet 21 V2.1, 2003-06

Page 26

XC164

Derivatives

Functional Description

Table 4 XC164 Interrupt Nodes (cont’d) Source of Interrupt or PEC

Service Request

Control Register

Vector Location

CAPCOM Register 30 CC2_CC30IC xx’0114 CAPCOM Register 31 CC2_CC31IC xx’0118 CAPCOM Timer 0 CC1_T0IC xx’0080 CAPCOM Timer 1 CC1_T1IC xx’0084 CAPCOM Timer 7 CC2_T7IC xx’00F4 CAPCOM Timer 8 CC2_T8IC xx’00F8 GPT1 Timer 2 GPT12E_T2IC xx’0088 GPT1 Timer 3 GPT12E_T3IC xx’008C GPT1 Timer 4 GPT12E_T4IC xx’0090 GPT2 Timer 5 GPT12E_T5IC xx’0094 GPT2 Timer 6 GPT12E_T6IC xx’0098 GPT2 CAPREL Reg. GPT12E_CRIC xx’009C A/D Conversion Comp l. ADC_CIC xx’00A0 A/D Overrun Error ADC_EIC xx’00A4 ASC0 Transmit ASC0_TIC xx’00A8 ASC0 Transmit Buffer ASC0_TBIC xx’011C ASC0 Receive ASC0_RIC xx’00AC ASC0 Error ASC0_EIC xx’00B0 ASC0 Autobaud ASC0_ABIC xx’017C SSC0 Transmit SSC0_TIC xx’00B4 SSC0 Receive SSC0_RIC xx’00B8 SSC0 Error SSC0_EIC xx’00BC PLL/OWD PLLIC xx’010C ASC1 Transmit

ASC1_TIC xx’0120 ASC1 Transmit Buffer ASC1_TBIC xx’0178 ASC1 Receive ASC1_RIC xx’0124 ASC1 Error ASC1_EIC xx’0128 ASC1 Autobaud ASC1_ABIC xx’0108 End of PEC Subch. EOPIC xx’0130 CAPCOM6 Timer T12 CCU6_T12IC xx’0134

H H H H

H H

H H H H

H H H

H H

H H H H H H H H

Number

45H / 69 46H / 70 20H / 32 21H / 33 3DH / 61 3EH / 62 22H / 34 23H / 35 24H / 36 25H / 37 26H / 38 27H / 39 28H / 40 29H / 41 2AH / 42 47H / 71 2BH / 43 2CH / 44 5FH / 95 2DH / 45 2EH / 46 2FH / 47 43H / 67 48H / 72 5EH / 94 49H / 73 4AH / 74 42H / 66 4CH / 76 4DH / 77

D D D D

D D D D D D D D D

D D

D D D D

D D

Trap

Data Sheet 22 V2.1, 2003-06

Page 27

XC164

Derivatives

Functional Description

Table 4 XC164 Interrupt Nodes (cont’d) Source of Interrupt or PEC

Service Request

CAPCOM6 Timer T13 CCU6_T13IC xx’0138 CAPCOM6 Emergency CCU6_EIC xx’013C CAPCOM6 CCU6_IC xx’0140 SSC1 Transmit SSC1_TIC xx’0144 SSC1 Receive SSC1_RIC xx’0148 SSC1 Error SSC1_EIC xx’014C CAN0 CAN_0IC xx’0150 CAN1 CAN_1IC xx’0154 CAN2 CAN_2IC xx’0158 CAN3 CAN_3IC xx’015C CAN4 CAN_4IC xx’0164 CAN5 CAN_5IC xx’0168 CAN6 CAN_6IC xx’016C CAN7 CAN_7IC xx’0170 RTC RTC_IC xx’0174 Unassigned node --- xx’0100 Unassigned node --- xx’0104 Unassigned node --- xx’012C Unassigned node --- xx’00FC Unassigned node --- xx’0160

Register VECSEG defines the segment where the vector table is located to. Bitfield VECSC in register CPUCON1 defines the distance between two adjacent vectors. This table represents the default setting, with a distance of 4 (two words) between two vectors.

The interrupt nodes assigned to ASC1 are only available in derivatives including the ASC1. Otherwise, they are unassigned nodes.

Control Register

Vector Location

H H H

H H

H H H H

Number

4EH / 78

Trap

4FH / 79 50H / 80 51H / 81 52H / 82

53H / 83 54H / 84 55H / 85 56H / 86

57H / 87 59H / 89 5AH / 90

5BH / 91 5CH / 92 5DH / 93 40H / 64 41H / 65

H H

4BH / 75 3FH / 63 58H / 88

D D D D D D D D D D D

D D D

Data Sheet 23 V2.1, 2003-06

Page 28

XC164

Derivatives

Functional Description

The XC164 also provides an excellent mechanism to identi fy and to pr ocess exceptions or error conditions that arise during run-time, so-called ‘Hardware Traps’. Hardware traps cause immediate non-maskable system reaction which is similar to a standard interrupt service (branching to a dedicated vector table location). The occurence of a hardware trap is additionally signified by an individual bit in the trap flag register (TFR). Except when another higher prioritized trap service is in progress, a hardware trap will interrupt any actual pro gram executi on . In turn , hardware trap ser vices can normall y not be interrupted by standard or PEC interrupts.

Table 5 shows all of the possible exceptions or error conditions that can arise during run-

time:

Table 5 Hardware Trap Summary Exception Condition Trap

Flag

Reset Functions:

– – Hardware Reset – Software Reset – W-dog Timer Overflow

Trap Vector

RESET RESET RESET

Vector Location

xx’0000 xx’0000 xx’0000

H H H

Trap Number

Trap Priority

III III III

Class A Hardware Traps: – Non-Maskable Interrupt – Stack Overflow – Stack Underflow – Software Break

NMI

STKOF

STKUF

SOFTBRK

NMITRAP STOTRAP STUTRAP SBRKTRAP

xx’0008 xx’0010 xx’0018 xx’0020

H H H H

04 06 08

H H H H

II II II II

Class B Hardware Traps: – Undefined Opcode – PMI Access Error – Protected Instruction

UNDOPC

PACER

PRTFLT

BTRAP BTRAP BTRAP

xx’0028 xx’0028 xx’0028

H H H

0A 0A

H H H

I I I

Fault

– Illegal Word Operand

ILLOPA

BTRAP

xx’0028

Access

Reserved – – [2CH –

3CH]

Software Traps – TRAP Instruction

–– Any

[xx’0000H – xx’01FCH]

[0BH – 0FH]

Any [00H – 7FH]

–

Current CPU

Priority in steps of 4

Data Sheet 24 V2.1, 2003-06

Page 29

XC164

Derivatives

Functional Description

3.5 On-Chip Debug Support (OCDS)

The On-Chip Debug Support system provides a broad range of debug and emulation features built into the XC164. The user software running on the XC164 can thus be debugged within the target system environment.

The OCDS is controlled by an external debugging device via the debug interface, consisting of the IEEE-1149-conf orming JTAG port a nd a break inter face. The debugger controls the OCDS via a set of dedicated registers accessible via the JTAG interface. Additionally, the OCDS system can be controlled by the CPU, e.g. by a monitor program. An injection interface allows the execution of OCDS-gener ated i nstructions by the CP U.

Multiple breakpoints can be triggered by on-chip hardware, by software, or by an external trigger input. Single stepping is supported as well as the injection of arbitrary instructions and read/write access to the compl ete inter nal address space. A breakpoi nt trigger can be answered with a CPU-halt, a monitor call, a data transfer, or/and the activation of an external signal.

Tracing data can be obt ained via the JTA G interface or via the external bus i nte rface for increased performance.

The debug interface uses a set of 6 interface signals (4 JTAG lines, 2 break lines) to communicate with external circuitry. These interface signals are realized as alternate functions on Port 3 pins.

Complete system emulation is supported by the New Emulation Technology (NET) interface. Via this full-featured emulation interface (including internal buses, control, status, and pad signals) the XC164 chip can be connected to a NET carrier chip.

The use of the XC164 production chip together with the carrier chip provides superior emulation behavior, because the emulation system shows exactly the same functionality as the production chip (use of the identical silico n).

Data Sheet 25 V2.1, 2003-06

Page 30

XC164

Derivatives

Functional Description

3.6 Capture/Compare Units (CAPCOM1/2)

The CAPCOM units support generation and control of timing sequences on up to 32 channels with a maximum resolution of 1 system clock cycle (8 cycles in staggered mode). The CAPCOM units are typically used to handle high speed I/O tasks such as pulse and waveform generation, pulse width modulation (PMW), Digital to Analog (D/A) conversion, software timing, or time recording relative to external events.

Four 16-bit timers (T0/T1, T7/T8) with reload registers provide two independent time bases for each capture/compare register array.

The input clock for the timers is programmable to several prescaled values of the i nternal system clock, or may be derived from an overflow/u nderflow of timer T6 in module GPT2. This provides a wide range of variation for the timer period and resolution and allows precise adjustments to the application specific requirements. In addition, external count inputs for CAPCOM timers T0 and T7 allow event scheduling for the capture/compare registers relative to external events.

Both of the two capture/compare register arrays contain 16 dual purpose capture/ compare registers, each o f which may be i ndividual ly all ocated to either CAP COM timer T0 or T1 (T7 or T8, respectively), and programmed for capture or compare function. 12 registers of the CAPCOM2 module have each one port pin associated with it which serves as an input pin for triggering the capture function, or as an output pin to indicate the occurrence of a compare event.

Table 6 Compare Modes (CAPCOM1/2) Compare Modes Function

Mode 0 Interrupt-only compare mode;

several compare interrupts per timer period are possible

Mode 1 Pin toggles on each compare match;

several compare events per timer period are possible

Mode 2 Interrupt-only compare mode;

only one compare interrupt per timer period is generated

Mode 3 Pin set ‘1’ on match; pin reset ‘0’ on compare timer overflow;

only one compare event per timer period is generated

Double Register Mode

Single Event Mode Generates single edges or pulses;

Two registers operate on one pin; pin toggles on each compare match; several compare events per timer period are possible

can be used with any compare mode

Data Sheet 26 V2.1, 2003-06

Page 31

XC164

Derivatives

Functional Description

When a capture/compare register has been selected for capture mode, the current contents of the allocated timer will be latched (‘captured’) into the capture/compare register in response to an external event at the port pin which is associated with this register. In addition, a specific interrupt request for this capture/compare register is generated. Either a posi tive, a negativ e, or both a positive and a negati ve external sign al transition at the pin can be selected as the triggering event.

The contents of all registers which have been selected for one of the five compare mode s are continuously compared with the contents of the allocated timers.

When a match occurs between the timer value and the value in a capture/compare register, specific actions will be taken based on the selected compare mode.

Reload Reg. TxREL

SYS

TxIN

GPT1 Timer T3 Over/U nderflow

: 1

Inpu t

Control

CAPCOM Timer Tx

In te rr u p t Request (T x IR)

CCzIO

Mode

Capture Inputs

Compare Outputs

CCzIO

SYS

GPT1 Timer T3 Over/U nderflow

: 1

Control

(C ap t u re

Compare)

Inpu t

Control

x=0, 7 y=1, 8 n = 0/3 … 10 z = 0 … 31 (for interrupts),

= 16 … 27 (for pins)

Figure 5 CAPCOM1/2 Unit Block Diagram

16-Bit

Capture/

Compare

Registers

CAPCOM Timer Ty

Reload Reg. TyREL

Capture/Compare

Interrupt Requests

(CC z IR)

In te rr u p t Request (T y IR)

MCB02143_X4.VSD

Data Sheet 27 V2.1, 2003-06

Page 32

XC164

Derivatives

Functional Description

3.7 The Capture/Compare Unit CAPCOM6

The CAPCOM6 unit supports generation and cont rol of t im ing sequences o n up to three 16-bit capture/compare channels plus one independent 10-bit compare channel. In compare mode the CAPCOM6 unit provides two output signals per channel which have inverted polarity and non-overlapping pulse transitions (deadtime control). The compare channel can generate a single PWM output signal and is further used to modulate the capture/compare output signals. In capture mode the contents of compare timer T12 is stored in the capture registers upon a signal transition at pins CCx.

Compare timers T12 (16-bit) and T13 (10-bit) are free running timers which are clocked by the prescaled system clock.

Period Register

T12P

Mode

Select Register

CC6MSEL

Trap Register

CTRAP

Offset Register

T12OF

CPU

The timer registers (T12, T13) are not directly accessible. The period and offset registers are loading a value into the timer registers.

Compare

Timer T12

Prescaler

16-Bit

Cntrol Register

CTCON

Compare

Timer T13

10-Bit

Period Register

T13P

CC Channel 0

CC60

CC Channel 1

Control

CC61

CC Channel 2

CC62

Compare Reg ister

CMP13

Port

Control

Logic

Block

Commutation

Control

CC6MCON.H

CC60 COUT60

CC61 COUT61

CC62 COUT62

COUT63

CC6POS0 CC6POS1 CC6POS2

MCB04109

Figure 6 CAPCOM6 Block Diagram

For motor control applications both subunits may generate versatile multichannel PWM signals which are basically either controlled by compare timer T12 or by a typical hall sensor pattern at the interrupt inputs (block commutation).

Data Sheet 28 V2.1, 2003-06

Page 33

XC164

Derivatives

Functional Description

3.8 General Purpose Timer (GPT12E) Unit

The GPT12E unit re presents a very flexibl e multifunctional tim er/counter structure which may be used for many different time related tasks such as event timing and counting, pulse width and duty cycle measurements, pulse generation, or pulse multiplication.

The GPT12E unit incorporates five 16-bit timers which are organized in two separate modules, GPT1 and GPT2. Each timer in each module may operate independently in a number of different modes, or may be concatenated with another timer of the same module.

Each of the three timers T2, T3, T4 of module GPT1 can be configured individually for one of four basic modes of operation, which are Timer, Gated Timer, Counter, and Incremental Interface Mode. In Timer Mode, the input clock for a timer is derived from the system clock, divided by a programmable prescaler, while Counter Mode allows a timer to be clocked in reference to external events. Pulse width or duty cycle measurement is supported in Gated Timer Mode, where the operation of a timer is controlled by the ‘gate’ level on an external input pin. For these purposes, each timer has one associated port pin (TxIN) which serves as gate or clock input. The maximum resolution of the timers in module GPT1 is 4 system clock cycles.

The count direction (up/down) for each timer is programmable by software or may additionally be altered dynamically by an external signal on a port pin (TxEUD) to facilitate e.g. position tracking.

In Incremental Interface Mode the GPT1 timers (T2, T3, T4) can be directly connected to the incremental position sensor signals A and B via their respective inputs TxIN and TxEUD. Direction and count signals are internally derived from these two input signals, so the contents of the respective timer Tx corresponds to the sensor position. The third position sensor signal TOP0 can be connected to an interrupt input.

Timer T3 has an output toggle latch (T3OTL) which changes its state on each timer overflow/underflow. The state of this latch may be output on pin T3OUT e.g. for time out monitoring of external hardware components. It may also be used internally to clock timers T2 and T4 for measuring long time periods with high resolution.

In addition to their basic operating modes, timer s T2 and T4 may be configured as reload or capture registers for timer T3. When used as capture or reload registers, timers T2 and T4 are stopped. The contents of timer T3 is captured into T2 or T4 in response to a signal at their associated input pins (TxIN). Time r T3 is re loaded with the content s of T2 or T4 triggered either by an external signal or by a selectable state tra nsition of its toggle latch T3OTL. When both T2 and T4 are configured to alternately reload T3 on opposite state transitions of T3OTL with the low and high times of a PWM signal, this signal can be constantly generated without software intervention.

Data Sheet 29 V2.1, 2003-06

Page 34

XC164

Derivatives

SYS

T2IN

T2EUD

SYS

T3IN

T3EUD

SYS

Functional Description

: 1

GPT1 Timer T2

Mode

Control

: 1

Mode

Control

: 1

U/D

Reload Capture

Toggle FF

GPT1 Timer T3 T3OTL

U/D

Capture Reload

In te rr u p t Request (T 2 IR)

In te rr u p t Request (T 3 IR)

T6O UT

T4IN

T4EUD

Mode

Control

GPT1 Timer T4

U/D

In te rr u p t Request (T 4 IR)

Mct04825_xc.vsd

n = 2 … 12

Figure 7 Block Diagram of GPT1

With its maximum resolution of 2 system clock cycles, the GPT2 module provides precise event control and time measurement. It includes two timers (T5, T6) and a capture/reload reg ister (CA PREL). B oth t imers can be clocked w ith an input clock which is derived from th e CPU clock via a pr ogrammable prescaler or with external signals. The count direction (up/down) for each timer is programmable by software or may additionally be altered dynamically by an external signal on a port pin (TxEUD). Concatenation of the timers is supported via the output toggl e latch (T6OTL) o f timer T6, which changes its state on each timer overflow/underflow.

The state of this latch may be used to clock timer T5, and/or it may be output on pin T6OUT. The overflows/underflows of timer T6 can additionally be used to clock the CAPCOM1/2 timers, and to cause a reload from the CAPREL register.

The CAPREL register may capture the contents of timer T5 based on an external sign al transition on the corresponding port pin (CAPIN), and timer T5 may optionall y be cleared

Data Sheet 30 V2.1, 2003-06

Page 35

XC164

Derivatives

Functional Description

after the capture procedure. This allows the XC164 to measure absolute time differences or to perform pulse multiplication without software overhead.

The capture trigger (timer T5 to CAPREL) may also be generated upon transitions of GPT1 timer T3’s inputs T3IN and/or T3EUD. This is especially advantageous when T3 operates in Incremental Interface Mode.

SYS

T5IN

T5EUD

T3IN/

T3EUD

CAPIN

: 1

Mode

Control

MUX

CT3

G PT 2 Time r T5

U/D

GPT2 CAPR EL

Clear

Capture

In te r rup t Request (T 5 IR)

In te r rup t Request (CRIR)

In te r rup t Request (T 6 IR)

SYS

T6IN

T6EUD

: 1

Mode

Control

n = 1 … 11

Figure 8 Block Diagram of GPT2

Clear

G PT 2 Time r T6

U/D

Toggle FF

T6OTL

T6OUT

Other Modules

Mcb03999_xc.vsd

Data Sheet 31 V2.1, 2003-06

Page 36

XC164

Derivatives

Functional Description

3.9 Real Time Clock

The Real Time Clock (RTC) module of the XC164 is directly clocked via a separate clock driver with the prescaled on-chip oscillator frequency (f independent from the selected clock generation mode of the XC164.

The RTC basically consists of a chain of divider blocks:

• a selectable 8:1 divider (on - off)

• the reloadable 16-bit timer T14

• the 32-bit RTC timer block (accessible via registers RTCH and RTCL), made of: – a reloadable 10-bit timer – a reloadable 6-bit timer – a reloadable 6-bit timer – a reloadable 10-bit timer

All timers count up. Each timer can generate an interrupt request. All requests are combined to a common node request.

RUN

PRE

RTC

= f

/ 32). It is therefore

OSC

RTC

T14REL

T14-Register CN T -R e g iste r

T14

1 MUX 0

Inte rru p t Su b N o d e

CNT

IN T 0

10 Bits 6 Bits 6 B its 10 B its

CNT

INT1

REL-Register

CNT

IN T 2

CNT

IN T3

mcb04805_xc.vsd

RTCINT

Figure 9 RTC Block Diagram

Note: The registers associated with the RTC are not affected by a reset in order to

maintain the correct system time even when intermediate resets are executed.

Data Sheet 32 V2.1, 2003-06

Page 37

XC164

Derivatives

The RTC module can be used for different purposes:

• System clock to determine the current time and date, optionally during idle mode, sleep mode, and power down mode

• Cyclic time based interrupt, to provide a system time tick independent of CPU frequency and other resources, e.g. to wake up regularly from idle mode.

• 48-bit timer for long term measurements (maximum timespan is >100 years).

• Alarm interrupt for wake-up on a defined time

Functional Description

Data Sheet 33 V2.1, 2003-06

Page 38

XC164

Derivatives

Functional Description

3.10 A/D Converter

For analog signal measurement, a 10-bit A/D converter with 14 multiplexed input channels and a sample and hold circ uit has been integr ated on- chip. It uses the method of successive approximation. The sample time (for loading the capacitors) and the conversion time is programmable (in two modes) and can thus be adjusted to the external circuitry. The A/D converter can also operate in 8-bit conversion mode, where the conversion time is further reduced.

Overrun error detection/protection is provided for the conversion result register (ADDAT): either an interrupt request will be generated when the result of a previous conversion has not been read from the result register at the time the next conversion is complete, or the next conversion is suspended in such a case until the previous result has been read.

For applications which requ ire l ess analog input channels, the r emai ning channe l inpu ts can be used as digital input port pins.

The A/D converter of the XC164 supports four different conversion modes. In the standard Single Channel conversion mode, the analog level on a specified channel is sampled once and converted to a digital result. In the Single Channel Continuous mode, the analog level on a specified channel is repeatedly sampled and converted without software intervention. In the Auto Scan mode, the analog levels on a prespecified number of channels are sequentially sampled and converted. In the Auto Scan Continuous mode, the prespecified channels are repeatedly sampled and converted. In addition, the conversion of a specific channel can be inserted (injected) into a running sequence without disturbing this sequence. This is called Channel Injection Mode.

The Peripheral Event Controller (PEC) may be used to automatically store the conversion results into a table in memory for later evaluation, without requiring the overhead of entering and exiting interrupt routines for each data transfer.

After each reset and also during normal operation the ADC automatically performs calibration cycles. This automatic self-calibration constantly adjusts the converter to changing operating conditions (e.g. temperature) and compensates process variations.

These calibration cycles are part of the con version cycle, so they do not affect the norm al operation of the A/D converter.

In order to decouple analog inputs from digital noise and to avoid input trigger noise those pins used for analog input can be disconnected from the digital IO or input stages under software cont rol. This can be selected for each pin sep arately via regi ster P5DIDIS (Port 5 Digital Input Disable).

The Auto-Power-Down feature of the A/D converter minimizes the power consumption when no conversion is in progress.

Data Sheet 34 V2.1, 2003-06

Page 39

XC164

Derivatives

Functional Description

3.11 Asynchronous/Synchronous Serial Interfaces (ASC0/ASC1)

The Asynchronous/Synchronous Ser ial Interface s ASC0/ASC1 (USARTs) provide serial communication with other microcontrollers, processors, terminals or external peripheral components. They are upward compatible with the serial ports of the Infineon 8-bit microcontroller families and support full-duplex asynchronous communication and halfduplex synchronous communication. A dedicated baud rate generator with a fractional divider precisely generates all standard baud rates without oscillator tuning. For transmission, reception, error handling, and baudrate detection 5 separate interrupt vectors are provided.

In asynchronous mode, 8- or 9-bit data frames (with optional parity bit) are transmitted or received, preceded by a start bit and terminated by one or two stop bits. For multiprocessor communication , a mechanism to distinguish address from data bytes has been included (8-bit data plus wake-up bit mode). IrDA data transmissions up to

115.2 kbit/s with fixed or programmable IrDA pulse width are supported.

In synchronous mode, bytes (8 bits) are tr ansmitted or r ecei ved synchronously to a sh ift clock which is generated by the ASC0/1. The LSB is always shifted first.

In both modes, transmission and reception of data is FIFO-buffered. An autobaud detection unit allows to detect asynchronous data frames with its baudrate and mode with automatic initialization of the baudrate generator and the mode control bits.

A number of optional ha rdware error detection capabilities has been included to increase the reliability of data transfers. A parity bit can automatically be generated on transmission or be checked on reception. Framing error detection allows to recognize data frames with missing stop bits. An overrun error will be generated, if the last character received has not been read out of the receive buffer register at the time the reception of a new character is complete.

Summary of Features

• Full-duplex asynchronous operating modes – 8- or 9-bit data frames, LSB first, one or two stop bits, parity generation/checking – Baudrate from 2.5 Mbit/s to 0.6 bit/s (@ 40 MHz) – Multiprocessor mode for automatic address/data byte detection – Support for IrDA data transmission/reception up to max. 115.2 kbit/s (@ 40 MHz) – Loop-back capability – Auto baudrate detection

• Half-duplex 8-bit synchronous operating mode at 5 Mbit/s to 406.9 bit/s (@ 40 MHz)

• Buffered transmitter/receiver with FIFO support (8 entries per direction)

• Loop-back option available for testing purposes

• Interrupt generation on transmitter buffer empty condition, last bit transmitted condition, receive buffer full condition, error condition (frame, parity, overrun error), start and end of an autobaud detection

Note: The serial interface ASC1 is not available in all derivatives of the XC164.

Data Sheet 35 V2.1, 2003-06

Page 40

XC164

Derivatives

Functional Description

3.12 High Speed Synchronous Serial Channels (SSC0/SSC1)

The High Speed Synchronous S erial Channels SSC0/SSC1 support full- duplex and halfduplex synchronous communication. It may be configured so it interfaces with serially linked peripheral components, full SPI functionality is supported.

A dedicated baud rate generator allows to set up all standard baud rates without oscillator tuning. For transmission, reception and error handling three separate interrupt vectors are provided.

The SSC transmits or receives characters of 2 … 16 bits length synchronously to a shift clock which can be generated by the SSC (master mode) or by an external master (slave mode). The SSC can start shifting with the LSB or with the MSB and allows the selection of shifting and latching clock edges as well as the clock polarity.

A number of optional ha rdware error detection capabilities has been included to increase the reliability of data transfers. Transmit error and receive error supervise the correct handling of the data buffer. Phase error and baudrate error detect incorrect serial data.

Summary of Features

• Master or Slave mode operation

• Full-duplex or Half-duplex transfers

• Baudrate generation from 20 Mbit/s to 305.18 bit/s (@ 40 MHz)

• Flexible data format – Programmable number of data bits: 2 to 16 bits – Programmable shift direction: LSB-first or MSB-first – Programmable clock polarity: idle low or idle high – Programmable clock/data phase: data shift with leading or trailing clock edge

• Loop back option available for testing purposes

• Interrupt generation on transm itter buffer empty condition, recei ve buffer full condition, error condition (receive, phase, baudrate, transmit error)

• Three pin interface with flexible SSC pin configuration

Data Sheet 36 V2.1, 2003-06

Page 41

XC164

Derivatives

Functional Description

3.13 TwinCAN Module

The integrated TwinCAN modul e handles the complete ly auto nomous transm ission and reception of CAN frames in accordance with the CAN specification V2.0 part B (active), i.e. the on-chip TwinCAN module can receive and transmit standard frames with 11-bit identifiers as well as extended frames with 29-bit identifiers.

Two Full-CAN nodes share the TwinCAN module’s resources to optimize the CAN bus traffic handling and to minimize the CPU load. The module provides up to 32 message objects, which can be assigned to one of the CAN nodes an d can be combined to FIFOstructures. Each object provides separate masks for acceptance filtering.

The flexible combination of Full-CAN functionality and FIFO architecture reduces the efforts to fulfill the real-time requirements of complex embedded control applications. Improved CAN bus monitoring functionality as well as the number of message objects permit precise and comfortable CAN bus traffic handling.

Gateway functionality allows automatic data exchange between two separate CAN bus systems, which reduces CPU load and improves the real time behavior of the entire system.

The bit timing for b oth CAN nodes i s derived from the master clock a nd is programmab le up to a data rate of 1 Mbit/s. Each CAN node uses two pins of Port 4, Port 7, or Port 9 to interface to an external bus transceiver. The interface pins are assigned via software.

TwinCAN M odule Kernel

Clock

Control

Address

Decoder

Interrup t

Control

CAN

Node A

M essage

Object

TwinCAN Control

CAN

Node B

Buffer

Figure 10 TwinCAN Module Block Diagram

TXDCA

RXDCA

Port

Control

TXDCB

RXDCB

MCB04515

Data Sheet 37 V2.1, 2003-06

Page 42

XC164

Derivatives

Summary of Features

• CAN functionality according to CAN specification V2.0B active.

• Data transfer rate up to 1 Mbit/s

• Flexible and powerful message transfer control and error handling capabilities

• Full-CAN functionality and Basic CAN functionality for each message object

• 32 flexible message objects – Assignment to one of the two CAN nodes – Configuration as transmit object or receive object – Concatenation to a 2-, 4-, 8-, 16-, or 32-message buffer with FIFO algorithm – Handling of frames with 11-bit or 29-bit identifiers – Individual programmable acceptance mask register for filtering for each object – Monitoring via a frame counter – Configuration for Remote Monitoring Mode

• Up to eight individually programmable interrupt nodes can be used

• CAN Analyzer Mode for bus monitoring is implemented

Functional Description

Note: When a CAN node has the interface lines assigned t o Port 4, the segment address

output on Port 4 must be limit ed. CS lines can be used to increase the tota l amount of addressable external memory.

3.14 Watchdog Timer

The Watchdog Timer represents one of the fail-safe mechanisms which have been implemented to prevent the controller from malfunctioning for longer periods of time.

The Watchdog Timer is always enabled after a reset of the chip, and can be disabled until the EINIT instruction has been executed (compatible mode), or it can be disabled and enabled at any time by executing instructions DISWDT and ENWDT (enhanced mode). Thus, the chip’s start-up procedure is always monitored. The software has to be designed to restart the Watchdog Timer before it overflows. If, due to hardware or software related failures, the software fails to do so, the Watchdog Timer overflows and generates an internal hardware reset and pulls the RSTOUT pin low in order to allow external hardware components to be reset.

The Watchdog Timer is a 16-bit timer , clocked with the system clock divided by 2/4/128/

256. The high byte of the Watchdog Timer register can be set to a prespecified reload

value (stored in WDTREL) in order to allow further variation of the monitored time interval. Each time it is serviced by the application software, the high byte of the Watchdog Timer is reloaded and the low byte is cleared. Thus, time intervals between 13 µs and 419 ms can be monitored (@ 40 MHz). The default Watchdog Timer interval after reset is 3.28 ms (@ 40 MHz).

Data Sheet 38 V2.1, 2003-06

Page 43

XC164

Derivatives

Functional Description

3.15 Clock Generation

The Clock Generation Unit uses a programmable on-chip PLL with multiple prescalers to generate the clock signals for the XC164 with high flexibility. The master clock fMC is the reference clock signal, and is used for TwinCAN and is output to the external system. The CPU clock f directly (1:1) or via a 2:1 prescaler (f

The on-chip oscillator can drive an external crystal or accepts an external clock signal. The oscillator clock frequency can be mu ltiplied by the on -chip P LL (by a prog rammable factor) or can be divided by a programmable prescaler factor.

If the bypass mode is used (direct drive or prescaler) the PLL can deliver an independent clock to monitor the clock signal generated by the on-chip oscillator. This PLL cl ock is independent from the XTAL1 clock. When the expected oscillator clock transitions are missing the Oscillator Watchdog (OWD) activates the PLL Unlock / OWD interrupt node and supplies the CPU with an emergency clock, the PLL clock signal. Under these circumstances the PLL will oscillate with its basic frequency.

The oscillator watch dog can be disabled by switching the PLL off. This r educes power consumption, but also no interrupt request will be generated in case of a missing oscillator clock.

and the system clock f

CPU

SYS

= f

are derived from the master clock either

SYS

= fMC / 2). See also Section 5.1.

CPU

Note: At the end of an external reset (EA = ‘0’) the oscillator watchdog may be disabled

via hardware by (externally) pulling the RD line low upon a reset, similar to the standard reset configuration.

3.16 Parallel Ports

The XC164 provides up to 79 I/O lines which are organized into six input/output ports and one input port. All port lines are bit-addressable, and all input/output lines are individually (bit-wis e) program mable as inputs or outputs via direction registers. The I/O ports are true bidirectional ports which are switched to high impedance state when configured as inputs. The output drivers of some I/O ports can be configured (pin b y pin) for push/pull operation or open-drain operation via control registers. During the internal reset, all port pins are configured as inputs (except for pin RSTOUT

The edge characteristics (shape) and driver characteristics (output current) of the port drivers can be selected via registers POCONx.

The input threshold of some ports is selectable (TTL or CMOS like), where the special CMOS like input threshold reduces noise sensitivity due to the input hysteresis. The input threshold may be selected individually for each byte of the respective ports.

All port lines have programmable alternate input or output functions associated with them. All por t lines that are no t used for these al ternate functions may be used as general purpose IO lines.

Data Sheet 39 V2.1, 2003-06

Page 44

XC164

Derivatives

Functional Description

Table 7 Summary of the XC164’s Parallel Ports Port Control Alternate Functions PORT0 Pad drivers Address/Data lines or data lines PORT1 Pad drivers Address lines

Capture inputs or compare outputs, Serial interface lines, Fast external interrupt inputs

Port 3 Pad drivers,

Open drain, Input threshold

Timer control signals, serial interface lines, Optional bus control signal BHE/WRH, System clock output CLKOUT (or FOUT), Debug interface lines

Port 4 Pad drivers,

Open drain, Input threshold

Segment address lines Optional chip select signals CAN interface lines

Port 5 --- Analog input channels to the A/D converter,

Timer control signals

Port 9 Pad drivers,

Open drain,

Capture inputs or compare outputs CAN interface lines

Input threshold

Port 20 Pad drivers,

Open drain

Bus control signals RD, WR/WRL, ALE, External access enable pin EA, Reset indication output RSTOUT

For multiplexed bus cycles.

For demultiplexed bus cycles.

For more than 64 Kbytes of external resources.

Can be assigned by software.

Data Sheet 40 V2.1, 2003-06

Page 45

XC164

Derivatives

Functional Description

3.17 Power Management

The XC164 provides several means to control the power it consumes either at a given time or averaged over a certain timespan. Three mechanisms can be used (partly in parallel):

• Power Saving Modes switch the XC164 into a special operating mode (control via instructions). Idle Mode stops the CPU while the peripherals can continue to operate. Sleep Mode and Power Down Mode stop all cl ock signals and all operation (R TC may optionally continue running). Sleep Mode can be terminated by external interrupt signals.

• Clock Generation Management controls the distribution and the frequency of internal and external clock signals. While the clock signals for currently inactive parts of logic are disabled automatically, the user can reduce the XC164’s CPU clock frequency which drastically reduces the consumed power. External circuitry can be controlled via the programmable frequency output FOUT.

• Peripheral Management permits temporary disabling of peripheral modules (control via register SYSCON3). Each peripheral can separately be disabled/enabled.

The on-chip RTC supports intermittend operation of the XC164 by generating cyclic wake-up signals. This offers full performance to quickly react on action requests while the intermittend sleep phases greatly reduce the average power consumption of the system.

Data Sheet 41 V2.1, 2003-06

Page 46

XC164

Derivatives

Functional Description

3.18 Instruction Set Summary

Table 8 lists the instructions of the XC164 in a condensed way.

The various addressing modes that can be used with a specific instruction, the operation of the instructions, parameters fo r conditional execution of instr uctions, and the opcodes for each instruction can be found in the “Instruction Set Manual”.

This document also provides a detailled description of each instruction.

Table 8 Instruction Set Summary Mnemonic Description Bytes

ADD(B) Add word (byte) operands 2 / 4 ADDC(B) Add word (byte) operands with Carry 2 / 4 SUB(B) Subtract word (byte) operands 2 / 4 SUBC(B) Subtract word (byte) operands with Carry 2 / 4 MUL(U) (Un)Signed multiply direct GPR by direct GPR (16-16-bit) 2 DIV(U) (Un)Signed divide regi ster MDL by direct GPR (16-/16 -bit) 2 DIVL(U) (Un)Signed long divide reg. MD by direct GPR (32-/16 -bit) 2 CPL(B) Complement direct word (byte) GPR 2 NEG(B) Negate direct word (byte) GPR 2 AND(B) Bitwise AND, (word/byte operands) 2 / 4 (X)OR(B) Bitwise (exclusive)OR, (word/byte operands) 2 / 4 BCLR / BSET Clear/Set direct bit 2 BMOV(N) Move (negated) direct bit to direct bit 4 BAND / BOR /

BXOR BCMP Compare direct bit to direct bit 4 BFLDH / BFLDL Bitwise modify masked high/low byte of bit-addressable

CMP(B) Compare word (byte) operands 2 / 4 CMPD1/2 Compare word data to GPR and decrement GPR by 1/2 2 / 4 CMPI1/2 Compare word data to GPR and increment GPR by 1/2 2 / 4 PRIOR Determine number of shift cycles to normalize direct

SHL / SHR Shift left/right direct word GPR 2 ROL / ROR Rotate left/right direct word GPR 2

AND/OR/XOR direct bit with direct bit 4

direct word memory with immediate data

word GPR and store result in direct word GPR

ASHR Arithmetic (sign bit) shift right direct word GPR 2 MOV(B) Move word (byte) data 2 / 4 MOVBS/Z Move byte operand to word op. with sign/zero extension 2 / 4

Data Sheet 42 V2.1, 2003-06

Page 47

XC164

Derivatives

Table 8 Instruction Set Summary (cont’d) Mnemonic Description Bytes

JMPA/I/R Jump absolute/indirect/relative if condition is met 4 JMPS Jump absolute to a code segment 4 JB(C) Jump relative if direct bit is set (and clear bit) 4 JNB(S) Jump relative if direct bit is not set (and set bit) 4 CALLA/I/R Call absolute/indirect/relative subroutine if condition is met 4 CALLS Call absolute subroutine in any code segment 4 PCALL Push direct word register onto system stack and call

absolute subroutine TRAP Call interrupt service routine via immediate trap number 2 PUSH / POP Push/pop direct word register onto/from system stack 2 SCXT Push direct word register onto system stack and update

(and pop direct word register from system stack)

Functional Description

RETS Return from inter-segment subroutine 2 RETI Return from interrupt service subroutine 2 SBRK Software Break 2 SRST Software Reset 4 IDLE Enter Idle Mode 4 PWRDN Enter Power Down Mode (supposes NMI SRVWDT Service Watchdog Timer 4 DISWDT/ENWDT Disable/Enable Watchdog Timer 4 EINIT Signify End-of-Initialization on RSTOUT-pin 4 ATOMIC Begin ATOMIC sequence 2 EXTR Begin EXTended Register sequence 2 EXTP(R) Begin EXTended Page (and Register) sequence 2 / 4 EXTS(R) Begin EXTended Segment (and Register) sequence 2 / 4 NOP Null operation 2 CoMUL / CoMAC Multiply (and accumulate) 4 CoADD / CoSUB Add / Subtract 4 Co(A)SHR/CoSHL (Arithmetic) Shi ft right / Shift left 4

-pin being low) 4

CoLOAD/STORE Load accumulator / Store MAC register 4 CoCMP/MAX/MIN Compare (maximum/minimum) 4 CoABS / CoRND Absolute value / Round accumulator 4 CoMOV/NEG/NOP Data move / Negate accumulator / Null operation 4

Data Sheet 43 V2.1, 2003-06

Page 48

XC164

Derivatives

Electrical Parameters

4 Electrical Parameters

4.1 Absolute Maximum Ratings

Table 9 Absolute Maximum Rating Parameters Parameter Symbol Limit Values Unit Notes

min. max.

Storage temperature T Junction temperature T Voltage on V

pins with

DDI

respect to ground (VSS) Voltage on V

pins with

DDP

respect to ground (VSS) Voltage on any pin with

respect to ground (VSS)

ST J

DDI

DDP

-65 150 °C–

-40 150 °C under bias

-0.5 3.25 V –

-0.5 6.2 V –

-0.5 V

DDP

V–

+ 0.5

Input current on any pin

– -10 10 mA –

during overload condition Absolute sum of all input

– – |100| mA – currents during overload condition

Note: Stresses above those listed under “Absolute Maximum Ratings” may cause

permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During absolute maximum rating overload conditions ( the voltage on

pins with respect to ground (

DDP

) must not exceed the value s

DDP

defined by the absolute maximum ratings.

4.2 Package Properties

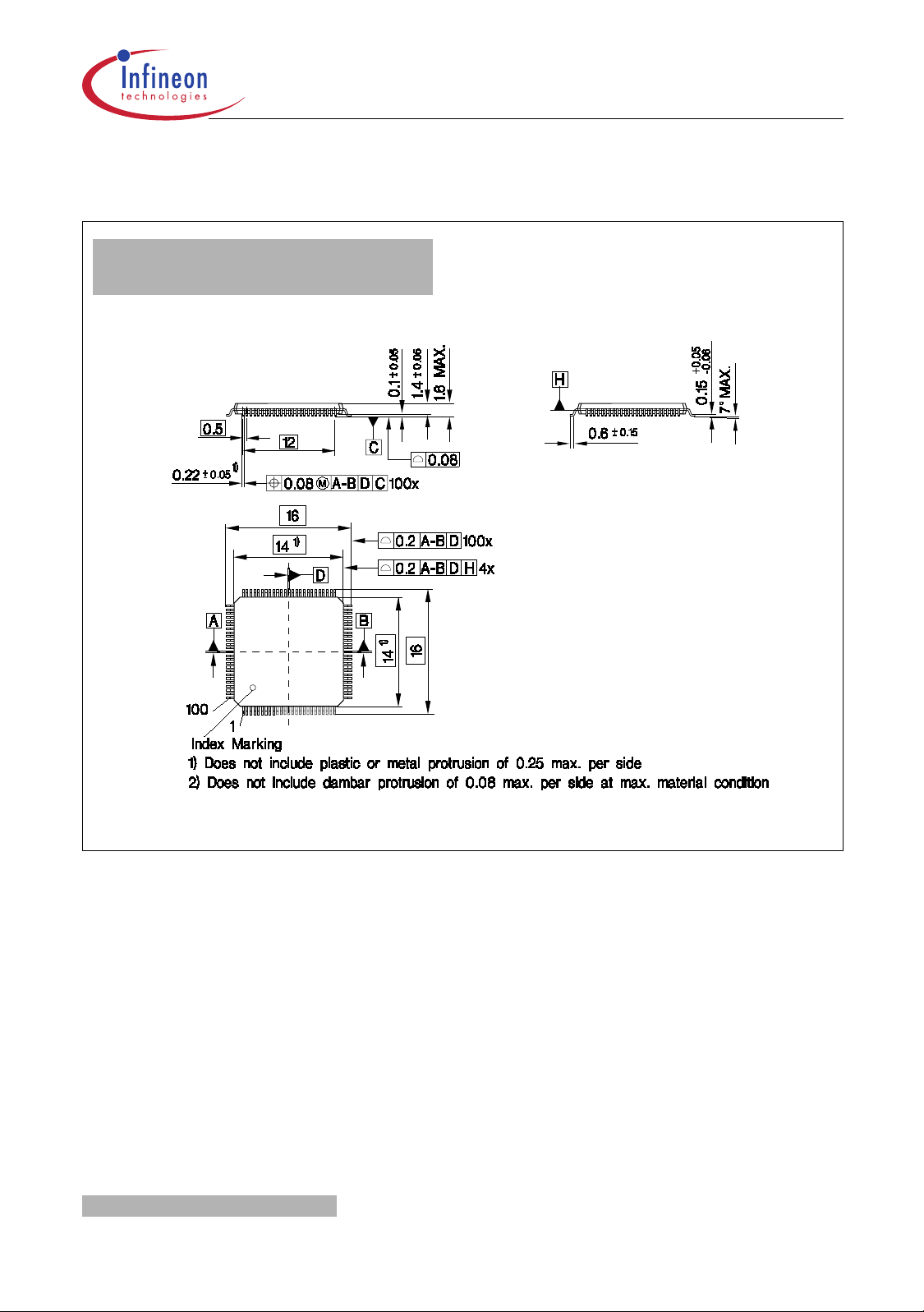

Table 10 Package Parameters (P-TQFP-100-16) Parameter Symbol Limit Values Unit Notes

)

min. max.

Power dissipation P Thermal Resistance R

Data Sheet 44 V2.1, 2003-06

DISS THA

–0.8W– – 29 K/W Chip-Ambient

Page 49

XC164

Derivatives

Electrical Parameters

4.3 Operating Conditions

The following operating conditions must not be exceeded to ensure correct operation of the XC164. All parameters specified in the following sections refer to these operating conditions, unless otherwise noticed.

Table 11 Operating Condition Parameters Parameter Symbol Limit Values Unit Notes

min. max.

Digital supply voltage for the core

Digital supply voltage for IO pads

Supply Voltage Difference ∆V Digital ground voltage V Overload current I

DDI

DDP

2.35 2.7 V Active mode,

= f

CPU

CPUmax

4.4 5.5 V Active mode

-0.5 – V V

DDP

- V

DDI

0 V Reference voltage

-5 5 mA Per IO pin

4)5)

-2 5 mA Per analog input

4)5)

Overload current coupling factor for analog inputs

Overload current coupling factor for digital I/O pins

Absolute sum of overload

OVA

–1.0 × 10-4– IOV > 0 –1.5 × 10-3– IOV < 0

OVD

–5.0 × 10-3– IOV > 0 –1.0 × 10-2– IOV < 0

Σ|IOV|– 50 mA

currents External Load

Capacitance Ambient temperature T

– 50 pF Pin drivers in

default mode

070°C SAB-XC164 …

-40 85 °C SAF-XC164 …

-40 125 °C SAK-XC164 …

External circuitry must guarantee low level at the RSTIN pin at least until both power supply voltages have reached the operating level.

This limitation must be fulfi lled under all operatin g conditions including po wer-ramp-up, power-ramp-down, and power-save modes.

= 40 MHz for devices marked …40F, f

CPUmax

= 20 MHz for devices marked …20F.

CPUmax

Data Sheet 45 V2.1, 2003-06

Page 50

XC164

Derivatives

Overload conditions occur if the standard operating conditions are exceeded, i.e. the voltage on any pin

> V

exceeds the specified range: of input overload currents on all pins may not exceed 50mA. The supply voltages must remain within the specified limits. Proper operation is not guaranteed if overload conditions occur on functional pins such as XTAL1, RD etc.

Not 100% tested, guaranteed by design and characterization.

An ov er l o ad c u rr en t ( IOV) through a pin injects a certain error current (I current adds to th e respect ive pin’ s leakage cu rrent ( current and is defi ned by the ove r loa d cou pli ng fac tor compared to the polarity of the overload current that produces it. The total cur rent thr ough a pin i s | voltage on analog inputs.

The timing is valid for pin drivers opera ting in default current mode (sele cted after res et). R edu cin g the ou tput current may lead to increased delays or reduced driving capability (

TOT

+ 0.5 V (IOV>0) or VOV< VSS - 0.5 V (IOV< 0). The absolute sum

DDP

). The amount of error current depe nds on the overl oad

. The polarity of the inj ected error cur rent is inve r se

| = |IOZ| + (|IOV| × KOV). The additi onal er ror cu rrent may d istor t the in put

INJ

Electrical Parameters

, WR,

) into the adjacent pins. This error

4.4 Parameter Interpretation

The parameters listed in the following partly represent the characteristics of the XC164 and partly its demands on the system. To aid in interpreting the parameters right, when evaluating them for a design, they are marked in column “Symbol”:

CC (Controller Characteristics): The logic of the XC164 will provide signals with the respective characteristics.

SR (System Requirement): The external system must provide signals with the respective characteristics to the XC164.

Data Sheet 46 V2.1, 2003-06

Page 51

XC164

Derivatives

Electrical Parameters

4.5 DC Parameters

DC Characteristics

(Operating Conditions apply)

Parameter Symbol Limit Values Unit Test Condition

Input low voltage TTL (all except XTAL1)

Input low voltage XTAL1 V Input low voltage

(Special Threshold) Input high voltage TTL

(all except XTAL1) Input high voltage XTAL1 V

Input high voltage (Special Threshold)

min. max.

SR -0.5 0.2×V

SR -0.5 0.3 ×V

ILC

SR -0.5 0.45

ILS

SR 0.2×V

+ 0.9

SR 0.7

IHC

× V

DDI

SR 0.8×V

IHS

- 0.2

DDP

- 0.1

× V

DDP

+ 0.5

DDI

+ 0.5

DDP

+ 0.5

DDP

V–

DDP

V–

DDI

V–

Input Hysteresis (Special Threshold)

Output low voltage V

Output high voltage

Input leakage curr ent (Port 5)

Input leakage current (all other)

Configuration pull-up current

HYS 0.04

× V

DDP

–VV

Series

DDP

resistance = 0 Ω

CC – 1.0 V IOL ≤ I

–0.45VIOL ≤ I

CC V

DDP

–VIOH ≥ I

- 1.0

DDP

–VIOH ≥ I

- 0.45

CC – ±300 nA 0 V < VIN < V

OZ1

±200 nA 0 V < VIN < V

CC – ±500 nA 0.45 V < VIN <

OZ2

DDP CPUH CPUL

–-10µA VIN = V

-100 – µA VIN = V

I I

in [V],

OLmax OLnom

OHmax

OHnom

≤ 125 °C

≤ 85 °C

IHmin ILmax

12)

3) 4)

DDP,

Data Sheet 47 V2.1, 2003-06

Page 52

XC164

Derivatives

Electrical Parameters

DC Characteristics (cont’d)

(Operating Conditions apply)

Parameter Symbol Limit Values Unit Test Condition

min. max.

Configuration pull-down current

Level inactive hold current

Level active hold current

10)

11)

XTAL1 input current I Pin capacitance

12)

CPDL

CPDH

LHI

–10µA VIN = V

120 – µA VIN = V –-10µA V

0.5 × V

LHA IL

-100 – µA V CC – ±20 µA0 V < VIN < V CC – 10 pF

OUT

ILmax IHmin

DDP

= 0.45 V

DDI

(digital inputs/outputs)

Keeping signal levels within the limits specified in this table, ensures operation without overload conditions.

For signal levels outside these specifications, also refer to the specification of the overload current

This parameter is tested for P2, P3, P4, P9.

The maximum deliverable output current of a port driver depends on the selected output driver mode, see

Table 12, Current Limits for Port Output Drivers. The limit for pin groups must be respected.

As a rule, with decreasing output current the output levels approach the respective supply level (V

VOH→V

This specification is not valid for outputs which are switched to open drain mode. In this case the respective output will float and the voltage results from the external circuitry.

An additional error current (I the definition of the overl oad cou pli ng factor

This specification is valid during Reset for configuration on RD, WR, EA, PORT0.

The maximum current may be drawn while the respective signal line remains inactive.

The minimum current must be drawn to drive the respective signal line active.

10)

This specification is valid during Reset for configuration on ALE.

11)

This specification is valid during Reset for pins P4.3-0, which can act as CS outputs.

12)

Not 100% tested, guaranteed by design and characterization.

). However, only the levels for nominal output currents are guaranteed.

DDP

) will flow if an overload current flows through an adjacent pin. Please refer to

INJ

OL→VSS

Data Sheet 48 V2.1, 2003-06

Page 53

XC164

Derivatives

Electrical Parameters

Table 12 Current Limits for Port Output Drivers Port Output Driver

Mode

Maximum Output Current (I

OLmax

, -I

OHmax

)

Nominal Output Current (I

OLnom

, -I

OHnom

)

Strong driver 10 mA 2.5 mA Medium driver 4.0 mA 1.0 mA Weak driver 0.5 mA 0.1 mA

An output current above |I For any group of 16 neighboring port output pins the total output current in each direction (Σ must remain below 50 mA.

| may be drawn from up to three pins at the same time.

OXnom

and Σ-IOH)

Power Consumption XC164

(Operating Conditions apply)

Parameter Symbol Limit Values Unit Test Condition

min. max.

Power supply current (active) with all peripherals active

Pad supply current I Idle mode supply current

with all peripherals active Sleep and Power-down mode

supply current caused by leakage

DDI

DDP

IDX

PDL

– 15 +

2.6 × f

CPU

–5 mA – 15 +

1.2 × f

– 128,000

-α

× e

CPU

mA V

in [MHz]

CPU

in [MHz]

CPU

DDI=VDDImax

in [°C]

α =

4670/(273+TJ)

Sleep and Power-down mode supply current caused by leakage and the RTC running, clocked by the main oscillator

PDM

– 0.6 +

0.02×f + I

PDL

OSC

mA V

DDI=VDDImax

in [MHz]

OSC

During Flash programming or erase operations the supply current is increased by max. 5 mA.

The supply current is a function of the operating frequency. This dependency is illustr a ted in Figure 11. These paramet ers are tested at

all inputs at

The pad supply voltage pins (V amount of current is consumed even though no outputs are driven, because the drivers’ input stages are switched and also the Flash module draws some power from the

The total supply current in Sleep and Power-down mode is the sum of the temperature dependent leakage current and the frequency dependent current for RTC and main oscillator (if active).

Data Sheet 49 V2.1, 2003-06

or VIH.

DDP

and ma ximum C PU c lock frequen cy w ith al l outp uts di sconn ected and

DDImax

) mainly provides the current consumed by the pin output drivers. A small

supply.

DDP

Page 54

XC164

Derivatives

This parameter is determined mainly by the transistor leakage currents. This current heavily depends on the

junction tempera ture (see Figure 13). The jun ction tempe rature

is the same as the ambient tempe ratur e T

Electrical Parameters

if no current flows through the port output drivers. Otherwise, the resulting temperature difference must be taken into account.

All inputs ( in clu din g pin s c onfi gured as inputs) a t 0 V to 0.1 V or at V pins configured as outputs) disconnected. This parameter is tested at 25 °C and is valid for

This parame ter is d etermine d main ly by the c urren t cons umed by the osci llat or swi tched t o low gain mo de (see

- 0.1 V to V

DDP

, all outputs (inc lud ing

DDP

≥ 25 °C.

Figure 12). This current, however, is influenced by the external oscillator circuitry (crystal, capacitors). The

given values refer to a typical circuitry and may change in case of a not optimized external oscillator circuitry.

Data Sheet 50 V2.1, 2003-06

Page 55

XC164

Derivatives

140

120

100

I [mA]

Electrical Parameters

DDImax

DDItyp

IDXmax

10 20 30 40

CPU

Figure 11 Supply/Idle Current as a Function of Operating Frequency

IDXtyp

[MHz]

Data Sheet 51 V2.1, 2003-06

Page 56

XC164

Derivatives

I [mA]

3.0

2.0

1.0

0.1 32 kHz

PDAmax

Electrical Parameters

4 8 12 16

PDMmax

PDMtyp

[MHz]

OSC

Figure 12 Sleep and Power Down Supply Current due to RTC and Oscillator

running, as a Function of Oscillator Frequency

PDO

[mA]

1.5

1.0

0.5

-50

0 50 100 150

[°C]

Figure 13 Sleep and Power Down Leakage Supply Current as a Function of

Temperature

Data Sheet 52 V2.1, 2003-06

Page 57

XC164

Derivatives

Electrical Parameters

4.6 A/D Converter Characteristics

Table 13 A/D Converter Characteristics

(Operating Conditions apply)

Parameter Symbol Limit Values Unit Test

min. max.

Analog reference supply V

Analog reference ground V

AREF

AGND

4.5 V

DDP

+ 0.1

- 0.1 VSS + 0.1 V

SR Analog input voltage range V Basic clock frequency f Conversion time for 10-bit

result Conversion time for 8-bit

result

t t t t

Calibration time after reset t

BC C10P C10 C8P C8 CAL

AIN

SR V

AGND

AREF

0.5 20 MHz CC 52×tBC + tS + 6×t CC 40×tBC + tS + 6×t CC 44×tBC + tS + 6×t CC 32×tBC + tS + 6×t CC 484 11,696 tBC

– Post-calibr. on

SYS

– Post-calibr. off

SYS

– Post-calibr. on

SYS

– Post-calibr. off

SYS

Total unadjusted error TUE CC – ±2LSB Total capacitance

of an analog input Switched capacitance

of an analog input Resistance of

the analog input path Total capacitance

of the reference input Switched capacitance

of the reference input Resistance of

the reference input path

AINT

AINS

AIN

AREFT

AREFS

AREF

–15pF

–10pF

–2kΩ

–20pF

–15pF

–1kΩ

Condition

Data Sheet 53 V2.1, 2003-06

Page 58

XC164

Derivatives

TUE is tested at V

AREF

= V

DDP

+0.1V, V

= 0 V. It is guaranteed by design for all other voltages within

AGND

Electrical Parameters

the defined voltage range.

If the analog reference supply voltage drops below 4.5V (i.e.

voltage by up to 0.2V (i.e.

AREF

= V

+ 0.2 V) the maxi mum T UE is incre ase d to ±3 LSB. This range is not

DDP

≥ 4.0 V) or exceeds the power supply

AREF

100% tested. The s pec if i e d T UE is gua r an te ed on l y, if t h e a bs olu t e su m of inp u t ov erl o ad cu rr e nts on Po rt 5 pi ns ( se e specification) does not exceed 10 mA, and if V

AREF

and V

remain stable during the respective period of

AGND

time. During the reset calibration sequence the maximum TUE may be ±4 LSB.

may exceed V

AIN

these cases will be X000

The limit val ues for f

This parameter includes the sample time tS, the time for determining the digi tal r esult and the time to load the result register with the conversion result ( Values for the basic clock When the post-calibration is switched off, the conversion time is reduced by 12 x

The actual duration of the reset calibration depends on the noise on the reference signal. Conversions

or V

AGND

or X3FFH, respectively.

must not be excee ded when sel ecting the per iphe ral fr equenc y and the ADCTC setti ng.

up to the absolute maximum ratings. However, the conversion result in

AREF

SYS

= 1 / f

SYS

depend on programming and can be taken from Table 14.

executed during the reset calibration increase the calibration time. The TUE for those conversions may be increased.

Not 100% tested, guaranteed by design and characterization. The given parameter values cover the complete operating range. Under relaxed operating conditions (temperatur e, su ppl y vo ltage) reduced va lue s ca n be use d for cal cul atio ns . At room temp er at ure and nominal supply voltage the following typical values can be used:

AINTtyp

= 12 pF, C

AINStyp

= 7 pF, R

AINtyp

= 1.5 kΩ, C

AREFTtyp

= 15 pF, C

AREFStyp

= 13 pF, R

AREFtyp

= 0.7 kΩ.

Source

AIN

Ext

AINT

AIN, On

AINS

A/D Converter

AINS

mcs04879_p.vsd

Figure 14 Equivalent Circuitry for Analog Inputs

Data Sheet 54 V2.1, 2003-06

Page 59

XC164

Derivatives

Electrical Parameters

Sample time and conversion time of the XC164’s A/D Converter are programmable. In compatibility mode, the above timing can be calculated using Table 14. The limit values for fBC must not be exceeded when selecting ADCTC.

Table 14 A/D Converter Computation Table ADCON.15|14

(ADCTC)

00 f 01 f 10 f 11 f

These selections are available in compatibility mode. An improved mechanism to control the ADC input clock can be selected.

A/D Converter Basic Clock fBC

/ 4 00 tBC × 8

SYS

/ 2 01 tBC × 16

SYS

/ 16 10 tBC × 32

SYS

/ 8 11 tBC × 64

SYS

ADCON.13|12 (ADSTC)

Sample time

Converter Timing Example:

Assumptions: f Basic clock f

Sample time t

SYS BC

= 40 MHz (i.e. t = f

/ 2 = 20 MHz, i.e. tBC = 50 ns.

SYS

= tBC × 8 = 400 ns.

= 25 ns), ADCTC = ‘01’, ADSTC = ‘00’.

Conversion 10-bit: With post-calibr. t Post-calibr. off t Conversion 8-bit: With post-calibr. t Post-calibr. off t

C10P C10

C8P C8

= 52 × tBC + tS + 6 × t = 40 × tBC + tS + 6 × t

= 44 × tBC + tS + 6 × t = 32 × tBC + tS + 6 × t

= (2600 + 400 + 150) ns = 3.15 µs.

SYS

= (2000 + 400 + 150) ns = 2.55 µs.

SYS

= (2200 + 400 + 150) ns = 2.75 µs.

SYS

= (1600 + 400 + 150) ns = 2.15 µs.

SYS

Data Sheet 55 V2.1, 2003-06

Page 60

XC164

Derivatives

Timing Parameters

5 Timing Parameters

5.1 Definition of Internal Timing

The internal operation of the XC164 is controlled by the internal master clock fMC. The master clock signal fMC can be generated from the oscillator clock signal f

different mechanisms. The duration of master clock periods (TCMs) and their variation (and also the derived external timing) depend on the used mechanism to generate fMC. This influence must be regarded when calculating the timings for the XC164.

Phase Locked Loop Operation (1:N)

OSC

TCM

OSC

via

Direct Clock Drive (1:1)

OSC

TCM

Prescaler Opera tio n (N:1)

OSC

TCM

Figure 15 Generation Mechanisms for the Master Clock

Note: The example for PLL operation shown in Figure 15 refers to a PLL factor of 1:4,

the example for prescaler operation refers to a divider factor of 2:1.

The used mechanism to generate the master clock is selected by register PLLCON. CPU and EBC are clocked with the C PU clock signa l f

same frequency as the master clock (f two: f

= fMC / 2. This factor is selected by bit CPSYS in register SYSCON1.

CPU

= fMC) or can be the master clock divided by

CPU

. The CPU clock can have the

CPU

The specification of the external timing (AC C haracteristics) depends on the per iod of the CPU clock, called “TCP”.

The other peripherals are supplied with the system clock signal f frequency as the CPU clock signal f

Data Sheet 56 V2.1, 2003-06

CPU

which has the same

SYS

Page 61

XC164

Derivatives

Timing Parameters

Bypass Operation

When bypass operation is confi gured (PLLCTR L = 0xB) the master clock is derived from the internal oscillator (input clock signal XTAL1) through the input- and outputprescalers:

= f

If both divider factors are selected as ’1’ (PLLIDIV = PLLODIV = ’0’) the frequency of f directly follows the frequency of f duty cycle of the input clock f

/ ((PLLIDIV+1)×(PLLODIV+1)).

OSC

so the high and low time of fMC is defined by the

OSC

The lowest master clock frequency is achieved by selecting the maximum values for both divider factors:

= f

/ ((3+1)×(14+1)) = f

OSC

/ 60.

Phase Locked Loop (PLL)

When PLL operation is configured (PLLCTRL = 11B) the on-chip phase locked loop is enabled and provides the master clock. The PLL multiplies the input frequency by the factor F (fMC = f

× F) which results from the input divider, the multiplication factor,

OSC

and the output divider (F = PLLMUL+1 / (PLLIDIV+1 × PLLODIV+1)). The PLL circuit synchronizes the master clock to the input clock. This synchronization is done smoothly, i.e. the master clock frequency does not change abruptly.

Due to this adaptation to the input clock the frequency of fMC is constantly adjusted so it is locked to f

. The slight variation causes a jitter of fMC which also affects the duration

OSC

of individual TCMs. The timing li sted in th e AC Characteristi cs re fers to TCPs. Because f

, the timing must be calculated using the minimum TCP possi ble under the respective

is derived from

CPU

circumstances. The actual minimum value for TCP depends on the jitter of the PLL. As the PLL is constantly adjusting its output fr equency so it cor responds to the applied i nput freque ncy (crystal or oscillator) the relative deviation for periods of m ore than one TCP is lower than for one single TCP (see formula and Figure 16).

This is especially important for bus cycles using waitstates and e.g. for the operation of timers, serial interfaces, etc. For all slower operations and longer periods (e.g. pulse train generation or measurement , lower baudrates, etc.) the deviation caused by the PLL jitter is negligible.

The value of the accumulated PLL jitter depends on the number of consecutive VCO output cycles within the respective timeframe. The VCO output clock is divided by the output prescaler (K = PLLODIV+1) to generate the master clock signal

. Therefore,

the number of VCO cycles can be represented as K × N, where N is the number of consecutive fMC cycles (TCM).

Data Sheet 57 V2.1, 2003-06

Page 62

XC164

Derivatives

Timing Parameters

For a period of N × TCM the accumulated PLL jitter is defined by the deviation DN: DN [ns] = ±(1.5 + 6.32 × N / fMC); fMC in [MHz], N = number of consecutive TCMs. So, for a period of 3 TCMs @ 20 MHz and K = 12: D3 = ±(1.5 + 6.32 × 3 / 20) = 2.448 ns. This formula is applicable for K × N < 95. For longer periods the K×N=95 value can be

used. This steady value can be approximated by: D

A cc . jitter

±8

±7

±6

±5

±4

±3

±2

K=6K=12K=15 K=8K=10

[ns] = ±(1.5 + 600 / (K × fMC)).

Nmax

K=5

±1

510 20

mcb04413_xc .vsd

Figure 16 Approximated Accumulated PLL Jitter

Note: The bold lines indicate the minimum accumulated jitter which can be achieved by

selecting the maximum possible output prescaler factor K.

Different frequency bands can be selected for the V CO, so the operati on of the PLL can be adjusted to a wide range of input and output frequencies:

Table 15 VCO Bands for PLL Operation

PLLCON.PLLVB VCO Frequency Range Base Frequency Range

00 100 … 150 MHz 20 … 80 MHz 01 150 … 200 MHz 40 … 130 MHz 10 200 … 250 MHz 60 … 180 MHz 11 Reserved

Values guarnteed by design characterisation.

Data Sheet 58 V2.1, 2003-06

Page 63

XC164

Derivatives

Timing Parameters

5.2 External Clock Drive XTAL1

Table 16 E xternal Clock Drive Characteristics

(Operating Conditions apply)

Parameter Symbol Limit Values Unit

min. max.

Oscillator period t

t t t t

ILC

High time Low time Rise time Fall time

The maximum limit is only relevant for PLL operation to ensure the minimum input frequency for the PLL.

The clock input signal must reach the defined levels V

SR 20 250

OSC

SR 6 – ns

SR – 8 ns

and V

IHC

0.5

DDI

OSC

MCT05138

IHC

ILC

Figure 17 External Clock Drive XTAL1

Note: If the on-chip oscillator is used together with a crystal or a ceramic resonator, the

oscillator frequency is limited to a range of 4 MHz to 16 MHz. It is strongly recommended to measure the oscillation allowance (negative resistance) in the final target system (layout) to determine the optimum parameters for the oscillator operation. Please refer to the limits specified by the crystal supplier. When driven by an external clock signal it will accept the specified frequency range. Operation at lower input frequencies is possible but is guaranteed by design only (not 100% tested).

Data Sheet 59 V2.1, 2003-06

Page 64

XC164

Derivatives

5.3 Testing Waveforms

2.0 V

0.8 V

0.45 V

Figure 18 Input Output Waveforms

Timing Parameters

Input signal (driven by tester)

Output signal (measured)

+ 0.1 V

Load

- 0.1 V

Load

For timing purposes a port pin is no longer floating when a 100 mV change from load voltage occurs, but begins to float when a 100 mV change from the loaded

Figure 19 Float Waveforms

Timing

Reference

Points

- 0.1 V

+ 0.1 V

level occurs (

/ = 20 mA).

OH OL

MCA00763

Data Sheet 60 V2.1, 2003-06

Page 65

XC164

Derivatives

Timing Parameters

5.4 AC Characteristics

Table 17 CLKOUT Reference Signal Parameter Symbol Limits Unit

min. max.

CLKOUT cycle time tc5 CC 40/30/25 CLKOUT high time tc6 CC 8 – ns CLKOUT low time tc7 CC 6 – ns CLKOUT rise time tc8 CC – 4 ns CLKOUT fall time tc9 CC – 4 ns

The CLKOUT cycle time is influenced by the PLL jitter (given values apply to f For longer periods the relative deviation decreases (see PLL deviation formula).

= 25/33/40 MHz).

CPU

CLKOUT

Figure 20 CLKOUT Signal Timing

MCT04415

Data Sheet 61 V2.1, 2003-06

Page 66

XC164

Derivatives

Timing Parameters

Variable Memory Cycles

External bus cycles of the XC164 are executed in five subsequent cycle phases (AB, C, D, E, F). The duration of each cycle phase is programmable (via the TCONCSx registers) to adapt the external bus cycles to the respective external module (memory, peripheral, etc.).

This table provides a summary of the phases and the respective choices for their duration.

Table 18 P rogrammable Bus Cycle Phases (see timing diagrams) Bus Cycle Phase Parameter Valid Values Unit

Address setup phase, the standard duration of this

1 … 2 (5) TCP phase (1 … 2 TCP) can be extended by 0 … 3 TCP if the address window is changed

Command delay phase tp Write Data setup / MUX Tristate phase tp Access phase tp Address / Write Data hold phase tp

C D E F

0 … 3 TCP

0 … 1 TCP

1 … 32 TCP

0 … 3 TCP

Note: The bandwidth of a parameter (minimum and maximum value) covers the whole

operating range (temperature, voltage) as well as process variations. Within a given device, however, this bandwidth is smaller than the specified range. This is also due to interdependencies between certain parameters. Some of these interdependencies are described in additional notes (see standard timing).

Data Sheet 62 V2.1, 2003-06

Page 67

XC164

Derivatives

Timing Parameters

Table 19 External Bus Cycle Timing (Operating Conditions apply) Parameter Symbol L imits Unit

min. max.

Output valid delay for:

CC 113ns

RD, WR(L/H) Output valid delay for:

CC -1 7 ns

A23…A16, BHE, ALE Output valid delay for:

CC 116ns

A15…A0 (on PORT1) Output valid delay for:

CC 316ns

A15…A0 (on PORT0) Output valid delay for:

CC 114ns

CS Output valid delay for:

CC 317ns

D15…D0 (write data, mux-mode) Output valid delay for:

CC 317ns

D15…D0 (write data, demux-mode) Output hold time for:

CC -3 3ns

RD, WR(L/H) Output hold time for:

CC 0 8ns

A23…A16, BHE, ALE Output hold time for:

CC 1 13 ns

A15…A0 (on PORT0)

Output hold time for:

CC -3 3ns

CS Output hold time for:

CC 1 13 ns

D15…D0 (write data) Input setup time for:

SR 24 – ns

READY, D15…D0 (read data) Input hold time

READY, D15…D0 (read data)

Read data are l atched with the sam e (inter nal) c lock edge tha t tri ggers th e addres s chan ge and t he ri sing e dge

. Theref ore addres s chang es be fore the end of RD have no impact on (dem ultiple xed) read cycles . Read

of RD data can be removed after the rising edge of RD

SR -5 – ns

Note: The shaded parameters have been verified by characterization.

They are not 100% tested.

Data Sheet 63 V2.1, 2003-06

Page 68

XC164

Derivatives

CLKOUT

A23-A16,

BHE, CSx

WR(L/H)

ALE

tc11|tc

Timing Parameters

High Address

AD15-AD0

Low Address Data In

(read)

AD15-AD0

(write)

Figure 21 Multiplexed Bus Cycle

Data OutLow Address

Data Sheet 64 V2.1, 2003-06

Page 69

XC164

Derivatives

CLKOUT

A23-A0,

BHE, CSx

WR(L/H)

ALE

tc11|tc

Timing Parameters

Address

D15-D0

(read)

D15-D0

(write)

Figure 22 Demultiplexed Bus Cycle

Data In

Data Out

Data Sheet 65 V2.1, 2003-06

Page 70

XC164

Derivatives

6 Packaging

P-TQFP-100-16

(Plastic Metric Quad Flat Package)

Packaging

Figure 23 Package Outlines P-TQFP-100-16

Sorts of Packing

Package outlines for tubes, trays etc. are contained in our Data Book “Package Information”.

SMD = Surface Mounted Device

Data Sheet 66 V2.1, 2003-06

Dimensions in m

Page 71

http://www.infineon.com

Published by Infineon Technologies AG
