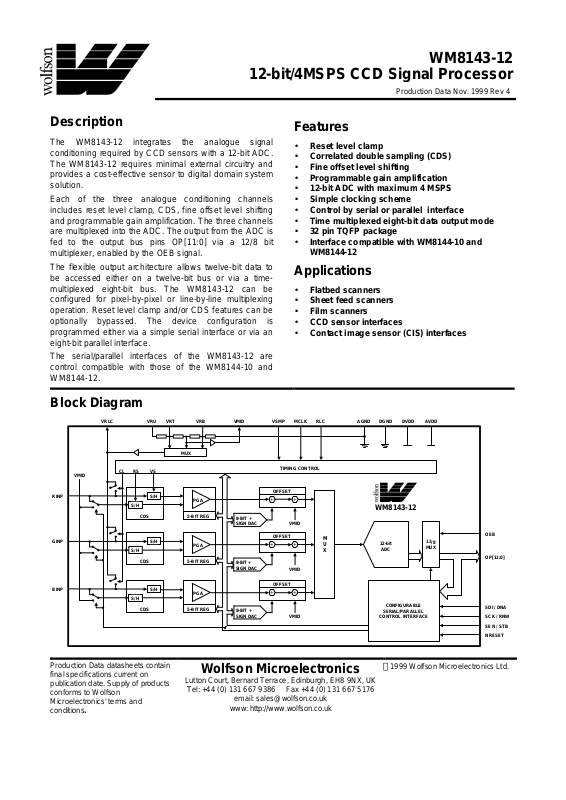

WM8143-12

12-bit/4MSPS CCD Signal Processor

Production Data Nov. 1999 Rev 4

Description

The WM8143-12 integrates the analogue signal
conditioning required by CCD sensors with a 12-bit ADC.
The WM8143-12 requires minimal external circuitry and
provides a cost-effective sensor to digital domain system
solution.

Each of the three analogue conditioning channels
includes reset level clamp, CDS, fine offset level shifting
and programmable gain amplification. The three channels
are multiplexed into the ADC. The output from the ADC is
fed to the output bus pins OP[11:0] via a 12/8 bit
multiplexer, enabled by the OEB signal.

The flexible output architecture allows twelve-bit data to
be accessed either on a twelve-bit bus or via a time­multiplexed eight-bit bus. The WM8143-12 can be
configured for pixel-by-pixel or line-by-line multiplexing
operation. Reset level clamp and/or CDS features can be
optionally bypassed. The device configuration is
programmed either via a simple serial interface or via an
eight-bit parallel interface.

The serial/parallel interfaces of the WM8143-12 are
control compatible with those of the WM8144-10 and
WM8144-12.

Features

• Reset level clamp

• Correlated double sampling (CDS)

• Fine offset level shifting

• Programmable gain amplification

• 12-bit ADC with maximum 4 MSPS

• Simple clocking scheme

• Control by serial or parallel interface

• Time multiplexed eight-bit data output mode

• 32 pin TQFP package

• Interface compatible with WM8144-10 and

WM8144-12

Applications

• Flatbed scanners

• Sheet feed scanners

• Film scanners

• CCD sensor interfaces

• Contact image sensor (CIS) interfaces

Block Diagram

VRLC VRU VRT VRB VMID

RS

VMID

RINP

GINP

BINP

CL

Production Data datasheets contain
final specifications current on
publication date. Supply of products
conforms to Wolfson
Microelectronics' terms and
conditions.

VS

S/H

S/H

CDS

S/H

S/H

CDS

S/H

S/H

CDS

MUX

5-BIT REG

5-BIT REG

5-BIT REG

PGA

PGA

PGA

8-BIT +
SIGN DAC

8-BIT +
SIGN DAC

8-BIT +
SIGN DAC

VSMP MCLK RLC DGND DVDD AVDD

TIMING CONTROL

OFFSET

+ +

VMID

OFFSET

+ +

VMID

OFFSET

+ +

VMID

M
U
X

AGND

Wolfson Microelectronics

Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK

Tel: [phone] Fax [phone]

email: [email protected]

www: http://www.wolfson.co.uk

WM8143-12

12-bit

ADC

CONFIGURABLE

SERIAL/PARALLEL

CONTROL INTERFACE

12/8

MUX

1999 Wolfson Microelectronics Ltd.

OEB

OP[11:0]

SDI / DNA
SCK / RNW
SEN / STB
NRESET

WM8143-12 Production Data

AGND - 0.3V, AGND +7V

DGND - 0.3V, DGND +7V

DGND - 0.3V, DVDD +0.3V

DGND - 0.3V, DVDD +0.3V

AGND - 0.3V, AVDD +0.3V

AVDD +0.3V

Pin Configuration Ordering Information

DEVICE TEMP. RANGE PACKAGE

SEN/STB

SDI/DNA

OEB

RINP

GINP

BINP

VRLC

VMID

WM8143-12CFT/V 0 - 70oC 32 Pin TQFP

SCK/RNW

RLC

VSMP

MCLK

DGND

OP[0]
OP[1]

DVDD

24

25
26
27
28
29
30
31
32

1

OP[2]

21

22

23

WM8143-12

4

3

2

OP[5]

OP[4]

OP[3]

20

5

OP[6]

19

6

OP[7]

18

7

OP[8]

17

8

OP[9]

VRT

16

VRB

15

VRU

14

AGND

13

AVDD

12
11

NRESET
OP[11]

10

9

OP[10]

Absolute Maximum Ratings

Analogue Supply Voltage ..........

Digital Supply Voltage ...............

Digital Inputs..........................

Digital Outputs .......................

Reference Inputs ....................

RINP, GINP, BINP.................. AGND - 0.3 V,

Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously
operating at or beyond these limits. Device functional operating limits and guaranteed performance specifications are
given under Electrical Characteristics at the test conditions specified

Operating Temperature Range, TA .......... 0°C to +70°C

Storage Temperature.......................... -50°C to +150°C

Lead Temperature (10 second soldering) ......... +260°C

ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore
generically susceptible to damage from excessive static voltages. Proper ESD precautions must
be taken during handling and storage of this device.

As per JEDEC specifications A112-A and A113-B, this product requires specific storage
conditions prior to surface mount assembly. It has been classified as having a Moisture
Sensitivity Level of 2 and as such will be supplied in vacuum-sealed moisture barrier bags.

Recommended Operating Conditions

PARAMETER SYMBOL TEST

Supply Voltage
Operating Temperature Range
Input Common Mode Range

AVDD, DVDD 4.75 5.25 V

TA 0 70

VCMR 0.5 4.5 V

Wolfson Microelectronics PD. Rev 4 Nov. 99

CONDITIONS

2

MIN TYP MAX UNIT

o

C

Production Data WM8143-12

Gx

Electrical Characteristics

Test Characteristics

AVDD = DVDD = 4.75V to 5.25V, AGND = DGND = 0V … TA = 0oC to +70oC, MCLK = 8MHz, unless otherwise stated

PARAMETER SYMBOL TEST

MIN TYP MAX UNIT

CONDITIONS

Supply Current - Active
Supply Current - Standby

Digital Inputs

High Level Input Voltage
Low Level Input Voltage
High Level Input Current
Low Level Input Current
Input Capacitance

Digital Outputs

High Level Output Voltage
Low Level Output Voltage
High Impedance Output

Current

Input Multiplexer

CDS Mode Full Scale Input
Range (V

VS-VRS

)

Channel to Channel Gain
Matching

Input Video Set-up Time
Input Video Hold Time
Reset Video Set-up Time
Reset Video Hold Time

Reference String

Reference Voltage - Top
Reference Voltage - Bottom
DAC Reference Voltage
R.L.C. Switching Impedance
Reset Level Clamp Options

Impedance VRT to VRB
Impedance VRU to AGND

8-Bit DACs

Resolution
Zero Code Voltage

V

IH

V

IL

I

IH

I

IL

V

OH

V

OL

I

OZ

IOH = 1mA DVDD-0.75 V
IOL = 1mA DGND+0.75 V

0.8*DVDD V

x denotes the

channel selected

tVSU 10 ns

tVH 15 ns

tRSU CDS Mode only 10 ns

tRH CDS Mode only 15 ns

VRT VRU = 5V 3.47 3.5 3.53 V
VRB VRU = 5V 1.47 1.5 1.53 V

VMID VRU = 5V 2.47 2.5 2.53 V

VRLC VRU = 5V

Voltage set

by register

configuration

1.46 1.5 1.54 V

2.46 2.5 2.54 V

3.46 3.5 3.54 V

250 500 750

1000 1500 2000

8 Bits

MID

V

-20 V

25 40 mA

4 10 mA

0.2*DVDD V
1 µA
1 µA

5 pF

1 µA

2

Vp-p

1 %

500

MID

+20 mV

Ω

Ω
Ω

Wolfson Microelectronics PD. Rev 4 Nov. 99

3

WM8143-12 Production Data

Test Characteristics

AVDD = DVDD = 4.75V to 5.25V, AGND = DGND = 0V … TA = 0oC to +70oC, MCLK = 8MHz, unless otherwise stated

PARAMETER SYMBOL TEST

CONDITIONS

Full Scale Voltage Error
Differential Non Linearity
Integral Non Linearity

12-bit ADC performance including CDS, PGA and Offset Functions
NO MISSING CODES GUARANTEED

Resolution
Maximum Sampling Rate
Zero Scale Transition Error

Voltage at VINP

Full Scale Transition Error
Voltage at VINP

Differential Non Linearity

PGA Gain
Monotonicity Guaranteed

Red Channel Max Gain

Green Channel Max Gain
Blue Channel Max Gain

Switching Characteristics

MCLK Period
MCLK High
MCLK Low
Data Set-up Time
Data Hold Time
Output Propagation Delay
Output Enable Time
Output Disable Time

Serial Interface

SCK Period
SCK High
SCK Low
SDI Set up Time
SDI Hold Time
Set up Time - SCK to SEN

DNL 0.1 0.5 LSB

INL 0.25 1 LSB

AVDD = DVDD = 5V 12 Bits
AVDD = DVDD = 5V 4 MSPS

DAC Code = 000H,

AVDD = DVDD = 5V,

measured relative to

VRB

DAC Code = 000H,

AVDD = DVDD = 5V,

measured relative to

VRT

DNL AVDD = DVDD = 5V +1.5 LSB

Gr Mode 1

AVDD = DVDD = 5V
Gg 7.5 8 Times
Gb 7.5 8 Times

tPER 125 ns
tCKH 37.5 ns

tCKL 37.5 ns

tDSU 10 ns

tDH 10 ns

tPD I
tPZE 50 ns
tPEZ 25 ns

tSPER 125 ns

tSCKH 37.5 ns

tSCKL 37.5 ns

tSSU 10 ns

tSH 10 ns

tSCE 20 ns

= 1mA, IOL = 1mA 75 ns

OH

MIN TYP MAX UNIT

0 20 mV

± 25 ±100 mV

± 25 ±100 mV

7.5 8 Times

Wolfson Microelectronics PD. Rev 4 Nov. 99

4

Production Data WM8143-12

Test Characteristics

AVDD = DVDD = 4.75V to 5.25V, AGND = DGND = 0V … TA = 0oC to +70oC, MCLK = 8MHz, unless otherwise stated

PARAMETER SYMBOL TEST

Set up Time - SEN to SCK
SEN Pulse Width

Parallel Interface

RNW Low to OP[11:4] Tri­state

Address Setup Time to STB
Low

DNA Low Setup Time to STB
Low

Strobe Low Time
Address Hold Time from STB

High
DNA Low Hold Time from

STB High
Data Setup Time to STB Low
DNA High Setup Time to STB

Low
Data Hold Time from STB

High
Data High Hold Time from

STB High
RNW High to OP[11:4]

Output

tSEC 20 ns

tSEW 50 ns

tOPZ 20 ns

tASU 0 ns

tADLS 10 ns

tSTB 50 ns

tAH 10 ns

tADLH 10 ns

tDSU 0 ns

tADHS 10 ns

tDH 10 ns

tADHH 10 ns

tOPD 0 ns

MIN TYP MAX UNIT

CONDITIONS

Wolfson Microelectronics PD. Rev 4 Nov. 99

5

WM8143-12 Production Data

Pin Description

PIN NAME TYPE DESCRIPTION

1 OP[2] Digital OP
2 OP[3] Digital OP
3 OP[4] Digital IO
4 OP[5] Digital IO
5 OP[6] Digital IO
6 OP[7] Digital IO
7 OP[8] Digital IO
8 OP[9] Digital IO

9 OP[10] Digital IO
10 OP[11] Digital IO
11 NRESET Digital IP

12 AVDD Analogue supply
13 AGND Analogue supply
14 VRU Analogue IP
15 VRB Analogue OP
16 VRT Analogue OP
17 VMID Analogue OP
18 VRLC Analogue OP
19 BINP Analogue IP
20 GINP Analogue IP
21 RINP Analogue IP
22 OEB Digital IP
23 SEN/STB Digital IP

24 SDI/DNA Digital IP

25 SCK/RNW Digital IP

26 RLC Digital IP

27 VSMP Digital IP

Tri-state digital 12-bit bi-directional bus. There are four modes:
Tri-state: when OEB = 1
Output twelve-bit: twelve bit data is output from bus
Output 8-bit multiplexed: data output on OP[11:4] at 2 * ADC

conversion Rate

Input 8-bit: control data is input on bits OP[11:4] in

parallel mode when SCK/RNW = 0.

MSB of the output word is OP[11], LSB is OP[0]

Reset input, active low. This signal forces a reset of all internal registers and selects
whether the serial control bus or parallel control bus is used (see SEN/STB)

Positive analogue supply (5V)
Analogue ground (0V)
ADC reference voltages. The ADC reference range is applied between VRT (full

scale) and VRB (zero level). VRU can be used to derive optimal reference voltages
from an external 5V reference

Buffered mid-point of ADC reference string
Selectable analogue output voltage for RLC
Blue channel input video
Green channel input video
Red channel input video
Output tri-state control: all outputs enabled when OEB = 0
Serial interface: enable, active high
Parallel interface: strobe, active low
Latched on NRESET rising edge: If low then device control is by serial interface, if

high then device control is by parallel interface
Serial interface: serial interface input data signal
Parallel interface: high = data, low = address
Serial interface: serial interface clock signal
Parallel interface: high = OP[11:4] is output bus

low = OP[11:4] is input bus

Selects whether reset level clamp is applied on a pixel-by-pixel basis. If RLC is
required on each pixel then this pin can be tied high

Video sample synchronisation pulse. This signal is applied synchronously with
MLCK to specify the point in time that the input is sampled. The timing of internal
multiplexing between the R, G and B channels is derived from this signal.

Wolfson Microelectronics PD. Rev 4 Nov 99

6

Production Data WM8143-12

LSB's

PGA Gain Code

PIN NAME TYPE DESCRIPTION

28 MCLK Digital IP

29 DGND Digital supply
30 OP[0] Digital OP
31 OP[1] Digital OP
32 DVDD Digital supply

Master clock. This clock is applied at eight, six, three or two times the input pixel rate
depending on the operational mode. MCLK is divided internally to define the ADC
sample rate and to provide the clock source for digital logic

Digital ground (0V)
See description for pins 1-10
See description for pins 1-10
Positive digital supply (5V)

Typical Performance

AVDD = DVDD = 5V, T

2

1.5

1

0.5

0

-0.5

-1

-1.5

-2
0 512 1024 1536 2048 2560 3072 3584 4096

8.25
8

7.75

7.5

7.25
7

6.75

6.5

6.25
6

5.75

5.5

5.25
5

4.75

4.5

4.25
4

3.75

3.5

3.25
3

2.75

2.5

2.25
2

1.75

1.5

1.25
1

0.75

0.5

0.25
0

0 1 2 3 4 5 6 7 8 9

25oC

A =

WM8143-12 DNL

ADC Code

PGA Gain Code vs Actual Gain

Actual Gain

RED

GREEN

BLUE

Wolfson Microelectronics PD. Rev 4 Nov. 99

7

WM8143-12 Production Data

System Description

COLOUR CCD

SENSOR

RED

GREEN

BLUE

Figure 1 System Diagram

The WM8143-12 signal processing IC interfaces
typically via buffering and AC coupling to the output of
CCD image sensors. The WM8143-12 also interfaces
to CIS image sensors via DC coupling.

Analogue output signals from the image sensor are
sampled, amplified and offset-corrected by the IC
before being converted into digital form by an on-board
high-speed 12-bit resolution analogue to digital
converter. Figure 1 illustrates a typical system
implementation where the three colour outputs from the
CCD image sensor are buffered and AC coupled to the
analogue inputs of the WM8143-12.

BUFFERING

FOR CCD

RINP

GINP

BINP

WM8143-12

SCK/RNW

SEN/STB

The digital interface to the WM8143-12 can be divided
into three distinct sections: -

• Parallel Data I/O

• Digital Control/Serial Timing

• Analogue Interface Timing

These sections are constructed for ease of use by the
system designer and are described in detail on the
following pages of this datasheet.

OP[11:0]

OEB

SDI/DNA

NRESET

VSMP
MCLK

RLC

PARALLEL
DATA I/O

CONTROL/SERIAL
DATA IN

ANALOGUE
INTERFACE TIMING

Wolfson Microelectronics PD. Rev 4 Nov. 99

8

Production Data WM8143-12

Device Description

The WM8143-12 is configured to output 12-bit data by
writing to Set-up Register 4: Bit4 (Mode12). By default
the device is configured to output 10 bit data.

S/H, Offset DACs and PGA

Each analogue input (RINP, GINP, BINP) of the
WM8143-12 consists of a sample and hold, a
programmable gain amplifier, and a DC offset
correction block. The operation of the red input stage is
summarised in Figure 2.

RINP

VMID

Figure 2 Operation of Red Input Stage

The sample/hold block can operate in two modes of
operation, CDS (Correlated Double Sampling) or Single
Ended.

In CDS operation the video signal processed is the
difference between the voltage applied at the RINP
input when RS occurs, and the voltage at the RINP
input when VS occurs. This is summarised in Figure 3

S/H

VS

S/H

RS

+

-

GAIN=G

+ +

OFFSET

V

ADC

VMIDV

V

RS

The Programmable Gain Amplifier block multiplies the
resulting input voltage by a value between 0.5 and 8.25
which can be programmed independently for each of
the three input channels via the serial (or parallel)
interface.

Table 1 illustrates the PGA Gains Register codes
required for typical gains (see Typical Performance
Graphs). The typical gain may also be calculated using
the following equation:

Typical Gain = 0.5+(Code ∗ 0.25).

CODE TYPICAL

GAIN

CODE TYPICAL

GAIN

00000 0.5 10000 4.5
00001 0.75 10001 4.75
00010 1 10010 5.0
00011 1.25 10011 5.25
00100 1.5 10100 5.5
00101 1.75 10101 5.75
00110 2.0 10110 6.0
00111 2.25 10111 6.25

.

01000 2.5 11000 6.5
01001 2.75 11001 6.75
01010 3.0 11010 7.0

V

VS

RS VS

Figure 3 Video Signal Processed in CDS Mode

When using CDS the actual DC value of the input
signal is not important, as long as the signal extremes
are maintained within 0.5 volts of the chip power
supplies. This is because the signal processed is the
difference between the two sample voltages, with the
common DC voltage being rejected.

In Single Ended operation, the VS and RS control
signals occur simultaneously, and the voltage applied

MID

to the reset switch is fixed at V

. This means that the

voltage processed is the difference between the voltage

MID

applied to RINP when VS/RS occurs, and V

. When
using Single Ended operation the DC content of the
video signal is not rejected.

Wolfson Microelectronics PD. Rev 4 Nov. 99

01011 3.25 11011 7.25
01100 3.5 11100 7.5
01101 3.75 11101 7.25
01110 4.0 11110 8.0
01111 4.25 11111 8.25

Table 1 Typical Gain

The DC value of the gained signal can then be trimmed
by the 8 bit plus sign DAC. The voltage output by this
DAC is shown as V

MID

DAC is (V

/2) or 1.5∗(V

in Figure 2. The range of the

OFFSET

MID

/2) if the DAC_RANGE bit

in Setup Register 4 is set.
The output from the offset DAC stage is referenced to

MID

the V

voltage. This allows the input to the ADC to
maximise the dynamic range, and is shown
diagrammatically in Figure 2 by the final V

9

MID

addition.

WM8143-12 Production Data

For the input stage, the final analogue voltage applied
to the ADC can be expressed as:

Where V

DAC_CODE

*DSIGN)*2(1)V(V*GV

255

is the voltage applied, to the ADC

ADC

V

MID

*

MIDRSVSADC V

][

+−+−=

2

G is the programmed gain

is the voltage of the video sample.

V

VS

is the voltage of the reset sample,

V

RS

DSIGN is the Offset DAC sign bit
DAC_CODE is the offset DAC value.

is the WM8143-12 generated V

V

MID

The ADC has a lower reference of V
and an upper reference of V

RT

voltage.

MID

RB

(typically 1.5 V)

(typically 3.5 V). When

an ADC input voltage is applied to the ADC equal to

RB

the resulting code is 000(hex). When an ADC input

V

RT

voltage is applied to the ADC equal to V

the resulting

code is FFF(hex).

(default)

01

MCLK
VSMP

VS
CL

00

RS
CL
RS
CL

10

RS
CL

11

RS

Reset Level Clamp

Both CDS and Single Ended operation can be used
with Reset Level Clamping. A typical input
configuration is shown in Figure 4.

WM8143-12

RINP

Cin

VMIDVRLC

S/H

VS

S/H

RS

+

Gain=G

-

Figure 4 Typical Input Configuration Using Reset
Level Clamping

The position of the clamp relative to the video sample
is shown diagramatically in Figure 6 and is
programmable by CDSREF1-0 (see Table 6). By
default, the reset sample occurs on the fourth MCLK
rising edge after VSMP. The relative timing between
the reset sample (and CL) and video sample can be
altered as shown in Figure 5. When the clamp pulse is
active the voltage on the WM8143-12 side of Cin, i.e.
RINP, will be forced to be equal to the VRLC clamp
voltage. The VRLC clamp voltage is programmable to
three different levels via the serial interface. The
voltage to which the clamp voltage should be
programmed is dependent on the type of sampling
selected and the polarity of the input video signal.

Figure 5 Reset Sample and Clamp Timing

For CDS operation it is important to match the clamp
voltage to the amplitude and polarity of the video
signal. This will allow the best use of the wide input
common-mode range offered by the WM8143-12. If the
input video is positive going it is advisable to clamp to
VCL (Lower clamp voltage). If the video is negative
going it is advisable to clamp to VCU (Upper clamp
voltage). Regardless of where the video is clamped the
offset DAC is programmed to move the ADC output
corresponding to the reset level to an appropriate value
to maximise the ADC dynamic range. For Single Ended
operation it is recommended that the clamp voltage is
set to VCM (middle clamp voltage).

VIDEO INPUT

CLAMP PULSE

Figure 6 Position of Clamp Relative to Video Input

A reset level clamp is activated if the RLC pin is high
on an MCLK rising edge (Figure 7). By default this
initiates an internal clamp pulse three MCLK pulses
later (shown as CL in Figure 5). The relationship
between CL and RS is fixed. Therefore altering the RS
position also alters the CL position (Figure 5). Table 6
shows the three possible voltages to which the reset
level can be clamped.

Wolfson Microelectronics PD. Rev 4 Nov. 99

10

Production Data WM8143-12

Input video

Fast Monochrome Mode (Mode 3)

MCLK

VSMP

XX

1 X X 0

RLC

r,g,b r,g,b

X

RLC on this pixel

0

r,g,b

No RLC on this pixel

Figure 7 RLC TimingVideo Sampling Options

Video Sampling Options

The WM8143-12 can interface to CCD sensors using
six basic modes of operation (summarised in Table 3).
Mode configurations are controlled by a combination of
control bits and timing applied to MCLK and VMSP
pins. The default operational mode is mode 1: colour
with CDS enabled.

Colour Mode Definition (Mode 1)

Figure 9 summarises the timing relationships. MCLK is
applied at twice the required ADC conversion rate.
Synchronisation of sampling and channel multiplexing
to the incoming video signal is performed by the VSMP
pulse (active high). The three input channels (R,G,B)
are sampled in parallel on the rising edge of MCLK
following a VSMP pulse. The sampled data is
multiplexed into a single data stream at three times the
VSMP rate and passes through the internal pipeline
and emerges on the OP[11:0] bus. Both Correlated
Double Sampling (CDS) and Single Ended modes of
operation are available.

Monochrome Mode Definitions

One input channel is continuously sampled on the
rising edge of MCLK following a VSMP pulse. The user
can specify which input channel (R,G,B) is to be
sampled by writing to the WM8143-12 internal control
registers. There are four separate monochrome modes
with different maximum sample rates and CDS
availability.

Monochrome Mode (Mode 2)

Figure 11 summarises the timing relationships. This
mode allows the maximum sample rate to be increased
to 2.67 MSPS. This is achieved by altering the
MCLK:VSMP ratio to 3:1. In this mode, the timing of
RS and CL must be fixed (refer to Table 3). The
sampled video data will pass through the internal
pipeline and emerge on the OP[11:0] bus.

Max. Speed Monochrome Mode (Mode 4)

Figure 12 summarises the timing relationships. This
mode allows the maximum sample rate to be increased
to 4 MSPS. This is achieved by altering the
MCLK:VSMP ratio to 2:1. The latency through the
device is identical to modes 1 and 2. CDS is not
available in this mode.

Slow Colour Mode (Mode 5)

Figure 13 summarises the timing relationships. This
mode is identical to Mode 1 except that the MCLK to
VSMP ratio is 8 : 1 and the maximum sample rate is 1
MSPS. To obtain a ratio of 4:4 between the video
sample position and the reset sample position, Setup
Register 3 CDSREF1-0 control bits b[5:4] should be set
to 10. The first three of the four output words are valid.

Slow Monochrome Mode (Mode 6)

Figure 14 summarises the timing relationships. This
mode is identical to mode 2 except that the MCLK to
VSMP ratio is 8 : 1 and the maximum sample rate is 1
MSPS. To obtain a ratio of 4:4 between the video
sample position and the reset sample position, Setup
Register 3 CDSREF 1-0 control bits b[5:4] should be
set to 10. The first of the four output words is the only
valid output.

Input Impedance

The input impedance of the WM8143-12 is dependent
upon the sampling frequency of the input signal and the
gain that the PGA is set to. This is due to the effective
capacitance of the ‘sample and hold’ circuits (Figure 8)

.

Figure 10 summarises the timing relationships. The
timing in this mode is identical to mode 1 except that
one input channel is sampled three times (due to the
multiplexer being held in one position) and passes
through the device as three separate samples. The last
two samples can be ignored at the output OP[11:0].

Wolfson Microelectronics PD. Rev 4 Nov. 99

RINP/VMID

VS/RS

Figure 8 Input Impedance S/H Circuit

11

S/H

PGA

C

VMID

WM8143-12 Production Data

When the VS/RS control is activated the switch closes
and the effective impedance of the input is 1/CF where
the value of C changes from 0.3pF for minimum gain to

9.6pF for maximum gain and F is the sample frequency
in Hz. Table 2 illustrates the maximum and minimum
input impedance at different frequencies.

SAMPLING

FREQUENCY

(MHz)

0.5 6.6 208
1 3.3 104
2 1.6 52
4 0.8 26

Table 2 Effects of Frequency on Input Impedance

IMPEDANCE

(MΩΩ) MIN

GAIN

IMPEDANCE

(KΩΩ) MAX

GAIN

Calibration

To achieve optimum performance of the WM8143-12, a
calibration procedure must be implemented. This is
achieved by using a combination of the gain and offset
functions to amplify and shift the input signal so that it
lies within and maximises the input ADC range.

Wolfson Microelectronics PD. Rev 4 Nov. 99

12

Production Data WM8143-12

MODE DESCRIPTION CDS

AVAIL-

ABLE

1 Colour Yes 1.33MSPS Three input channels

2 Monochrome Yes 1.33MSPS One input channel is

3 Fast

Monochrome

4 Max. Speed

Monochrome

5 Slow Colour Yes 1MSPS Identical to Mode 1

6 Slow

Monochrome

* Only indicates relevant register bits

Yes 2.67MSPS Identical to Mode 2

No 4MSPS Identical to Mode 2

Yes 1MSPS Identical to Mode 2

MAX.

SAMPLE

RATE

SENSOR INTERFACE

DESCRIPTION

(R, G, B) are sampled
in parallel at max.

1.33MSPS. The
sampled data is
multiplexed into a
single data stream
before the internal
ADC, giving an
internal serial rate of
max. 4MSPS

continuously sampled.
The internal
multiplexer is held in
one position under
control of the user.

except that max.
sample rate is

2.67MSPS

except that max.
sample rate is 4MSPS

except that max.
sample rate is 1MSPS

except that max.
sample rate is 1MSPS

TIMING

REQUIRE-

MENTS

MCLK max.
8MHz.
MCLK:
VSMP ratio
is 6:1

Identical to
Mode 1

MCLK max.
8MHz.
MCLK:
VSMP ratio
is 3:1

MCLK max.
8MHz.
MCLK:
VSMP ratio
is 2:1

MCLK max.
8MHz.
MCLK:
VSMP ratio
is 8:1

MCLK max.
8MHz.
MCLK:

VSMP ratio
is 8:1

REGISTER

CONTENTS

WITH CDS

REGISTER

CONTENTS

WITHOUT

CDS*

Setup Reg. 1:
03(H)

Setup Reg. 1:
07(H)
Setup Reg. 3:
bits b[7-6]
define which
channel is
sampled

Identical to
Mode 2 plus
Setup Reg. 3:
bits b[5-4] must
be set to 00(H)

Not applicable Setup Reg. 1:

Identical to
Mode 1

Identical to
Mode 2

Setup Reg. 1:
01(H)

Setup Reg. 1:
05(H)
Setup Reg. 3:
bits b[7-6]
define which
channel is
sampled

Identical to
Mode 2

45(H)
Setup Reg. 3:
bits b[7-6]
define which
channel is
sampled

Identical to
Mode 1

Identical to
Mode 2

Table 3 WM8143-12 Mode Summary

Wolfson Microelectronics PD. Rev 4 Nov. 99

13

WM8143-12 Production Data

INPUT

SIGNALS

INTERNAL

SIGNALS

OUTPUT

SIGNALS

MCLK

VSMP

Input

video

ADC input

ADC sample

OP[11:0]

RS

VS

r1,g1,b1

b0

1

r1

16.5 MCLK periods

r2,g2,b2

2

2

b1

g1

3

g2r2

Figure 9 Default Timing in CDS Colour Mode (Mode 1)

INPUT

SIGNALS

MCLK

VSMP

r3,g3,b3

3

b2 b3 r4

r4,g4,b4

4

g3r3

r1

r5,g5,b5

5

4

g4

g1

b1

5

b4

INTERNAL

SIGNALS

ADC input

ADC sample

OUTPUT

Input

video

RS

VS

r1,g1,b1

X

1

r1

16.5 MCLK periods

r2,g2,b2

2

2

X

X

r3,g3,b3

3

3

X X

X X

SIGNALS

OP[11:0] *

X

X

X

* This example shows function when Red channel selected.

'X' indicates an invalid output

X

X

Figure 10 Default Timing in CDS Monochrome Mode (Mode 2)

Wolfson Microelectronics PD. Rev 4 Nov. 99

r4,g4,b4

4

4

r1

X

X

r5,g5,b5

5

5

X

X

X

X

14

Production Data WM8143-12

MCLK

INPUT
SIGNALS

VSMP

Input video

RS

n

n+1

INTERNAL

SIGNALS

OUTPUT
SIGNALS

ADC input

ADC sample

OP[11:0]

VS

n

23.5 MCLK periods

* This example shows function when Red channel selected.

Figure 11 Default Timing in Fast CDS Monochrome Mode (Mode 3)

n

MCLK

INPUT
SIGNALS

INTERNAL

SIGNALS

OUTPUT

VSMP

Input video

ADC input

ADC sample

OP[11:0]

n

1

VS

n

16.5 MCLK periods

n

SIGNALS

* This example shows function when Red channel selected.

Figure 12 Default Timing in Max. Speed non-CDS Monochrome Mode (Mode 4)

Wolfson Microelectronic PD. Rev 4 Nov. 99

15

WM8143-12 Production Data

INPUT

SIGNALS

INTERNAL

SIGNALS

OUTPUT

SIGNALS

MCLK

VSMP

Input

video

RS

ADC input

ADC sample

OP[11:0]

r1,g1,b1

VS

1

b0g1r1

16.5 MCLK periods

'X' indicates an invalid output

r2,g2,b2

2

2

g2

b1

r2 X

X

r3,g3,b3

3

3

g3

b2

r3

r1 g1 b1 X

Figure 13 Default Timing in Slow CDS Colour Mode (Mode 5)

MCLK

INPUT

SIGNALS

VSMP

r4,g4,b4

4

4

b3

X

r4

r5,g5,b5

5

5

g4

X

b4

INTERNAL

SIGNALS

ADC sample

OUTPUT

SIGNALS

Input

video

RS

VS

ADC input

OP[9:0] *

2

1

2

3

3

x x xxxx x x x x x xr4r3r2r1b0

16.5 MCLK periods

r1

* This example shows function when Red channel selected. 'X' indicates an invalid output.

X X

r4,g4,b4 r5,g5,b5r3,g3,b3r2,g2,b2r1,g1,b1

4

X

Figure 14 Default timing in Slow CDS Monochrome Mode (Mode 6)

Wolfson Microelectronics PD. Rev 4 Nov. 99

5

4

5

16

Production Data WM8143-12

Applications Recommendations

Output Data Interface

By default, data is output from the device as a twelve­bit wide word on OP[11:0]. Optionally, data can be
output in an eight-bit word format. Figure 15 shows this
function. Data is presented on pins OP[11:4] at twice
pixel rate.

In mode 3, the output is spread over three MCLK
periods. The first two periods contain byte A data and
the third period has byte B data. Either of the two byte
A data periods are valid.

MCLK

OP[11:4]

A

Figure 15 Eight-bit Multiplexed Bus Output

•

Ad11,d10,d9,d8,d7,d6,d5,d4 - First byte

•

Bd3,d2,d1,d0,PNS,CC1,CC0,ORNG - Second

byte

•

PNS: This bit shows if the device is configured in

parallel or serial mode. 1 = Parallel, 0 = Serial.

•

CC1/CC0: These bits show which channel the

current output was taken from. 00 = RED, 01 =
GREEN, 10 = BLUE.

•

ORNG: This bit indicates if the current output pixel

has exceeded the maximum or minimum range
during processing. 1 = out of range, 0 = within

.

range

Control Interface Selection

WM8143-12 can be controlled via a serial or parallel
interface. The decision on which interface is to be used
is made on the sense of the SEN/STB pin on the rising
edge of the NRESET signal.

SEN/STB CONDITION MODE

0
1

Table 4 WM8143-12 Interface Set-up

It is expected that this would be achieved on system
power-up by attaching a simple RC network to the
NRESET pin. The RC network should delay the set up

NRESET rising edge Serial Interface
NRESET rising edge Parallel Interface

B

on the NRESET pin until the other conditions have
been established. This feature is only activated on a
hardware reset (using the NRESET pin). The software
reset does not sample SEN/STB.

Controlling the WM8143-12

The WM8143-12 can be configured through a serial
interface or a parallel interface. Selection of the
interface type is by the SEN/STB pin which must be
tied high (parallel) or low (serial) as shown in Table 4.

Serial Interface

The serial interface consists of three pins (refer to
Figure 16). A six-bit address is clocked in MSB first
followed by an eight-bit data word, also MSB first. Each
bit is latched on the rising edge of SCK. Once the data
has been shifted into the device, a pulse is applied to
SEN to transfer the data to the appropriate internal
register.

Parallel Interface

The parallel interface uses bits [11:4] of the OP bus as
well as the STB, DNA and RNW pins (refer to Figure

17). Pin RNW must be low during a write operation.
The DNA pin defines whether the data byte is address
(low) or data (high). The data bus OP[11:4] is latched
in during the low period of STB.

Internal Register Definition

Table 5 summarises the internal register content. The
first 5 addresses in the table are used to program setup
registers and to provide a software reset feature ( 00H
is reserved). The remaining 3 entries in the table define
the address location of internal data registers. In each
case, a further three sub-addresses are defined for the
red, green and blue register. Selection between the red,
green and blue registers is performed by address bits
a1 and a0, as defined in the table. Setting both a1 and
a0 equal to 1 forces all three registers to be updated to
the same data value. Blank entries in Table 5 should be
programmed to zero.

SCK

SDI

SEN

a4a5 a3 a2 a1 a0 b7

Address

Figure 16 Serial Interface Timing

b6

b5

b4

Data Word

b2

b1

b3

b0

Wolfson Microelectronics PD. Rev 4 Nov. 99

17

WM8143-12 Production Data

STB

OP[11:4]

DNA

RNW

Address

Figure 17 Parallel Interface Timing

ADDRESS

<a5:a0>

DES-

CRIPTION

DE-

FAULT

(HEX)

000000 Reserved
000001 Setup

Register 1

000010 Setup

Register 2

000011 Setup

Register 3

000100 Software

Reset

000101 Setup

Register 4
1000a1a0 DAC Values
1001a1a0 DAC Signs
1010a1a0 PGA Gains

03 VSMP4M MONO CDS ENADC

00 INVOP MUXOP

11 CHAN[1] CHAN[0] CDSREF[1] CDSREF[0] RLC[1] RLC[0]

00

00 MODE 12 DACRNG

00 DAC[7] DAC[6] DAC[5] DAC[4] DAC[3] DAC[2] DAC[1] DAC[0]
00 DSIGN
00 PGA[4] PGA[3] PGA[2] PGA[1] PGA[0]

Data

BIT

b7 b6 b5 b4 b3 b2 b1 b0

Table 5 Register Map Contents

ADDRESS LSB DECODE a1 a0

Red Register
Green Register
Blue Register
Red, Green and Blue

0 0
0 1
1 0
1 1

Wolfson Microelectronics PD. Rev 4 Nov. 99

18

Production Data WM8143-12

REGISTER BIT NO BIT NAMES(S) DEFAULT DESCRIPTION

Setup Register 1
Address ,<a5:a0>

000001

Setup Register 2
Address ,<a5:a0>
000010

Setup Register 3
Address ,<a5:a0>
000011

Setup Register 4
Address ,<a5:a0>
000101

0 ENADC 1
1 CDS 1

2 MONO 0

6 VSMP4M 0

0 MUXOP 0
2 INVOP 0

1-0 RLC1-0 01

5-4 CDSREF1-0 01

7-6 CHAN1-0 00

1 DACRNG 0

4 MODE 12 0

ADC Standby Control: 0 = Standby, 1 = Active
Correlated Double Sampling Mode:

0 = Single Ended Mode, 1 = CDS Mode
Mono/Colour Select:
0 = Colour, 1 = Monochrome Operation
Required when operating in Mode 4:
0 = Other Modes, 1 = Mode 4
Eight Bit Output Mode: 0 = 12-bit, 1 = 8-bit Multiplexed
Inverts ADC Output: 0 = Non-inverting, 1 = Inverting

Reset Level Clamp Voltage:
00 = 1.5V
01 = 2.5V
10 = 3.5V
11 = Reserved
CDS Mode Reset Timing Adjust:
00 = Advance 1 MCLK Period
01 = Normal
10 = Retard 1 MCLK Period
11 = Retard 2 MCLK Periods
Monochrome Mode Channel Select:
00 = Red channel
01 = Green channel
10 = Blue channel
11 = Reserved
Offset DAC Output Range:
0 = DAC Output Range = Vmid/2 = +/-1.25V
1 = DAC Output Range = 1.5
Enable 12-bit ADC Output:
0 = 10 bit, 1 = 12 bit

∗(Vmid/2) = +/-1.875V

Table 6 Control Bit Descriptions

Wolfson Microelectronics PD. Rev 4 Nov. 99

19

WM8143-12 Production Data

Detailed Timing Diagrams

MCLK

tRH

tRSU

tDSU

tRH

tRSU

tRH

tDH

tVH

tVSU

tVSU tVH

tVH

tVSU

tVH

tVSU

tVSU

tVH

VSMP, RLC

R,G,B Video Inputs

(Default Mode)

(CDSREF[1]=0,CDSREF[0]=0)

(CDSREF[1]=0,CDSREF[0]=1)

(CDSREF[1]=1,CDSREF[0]=0)

(CDSREF[1]=1,CDSREF[0]=1)

R,G,B Video Inputs

R,G,B Video Inputs

R,G,B Video Inputs

R,G,B Video Inputs

tDSU

tDH

tVSU

tVSU

tVSU

tVSU

tVH

tVH

tVH

tVH

tRSU

tRH

tRSU

Figure 18 Detailed Video Input Timing - Modes 1 and 2

MCLK

tDSU

VSMP, RLC

R,G,B Video Inputs

(CDSREF[1]=0,CDSREF[0]=0)

Figure 19 Detailed Video Input Timing - Mode 3

MCLK

t

DSU

VSMP, RLC

R,G,B Video Inputs

VIDEORESET

tDH

tVSU

tVH

t

DH

t

t

VSU

VH

tDSU

tRSU

t

t

VSU

VH

tRH

tDH

tVSU

tVH

Figure 20 Detailed Video Input Timing - Mode 4

Wolfson Microelectronics PD. Rev 4 Nov. 99

20

Production Data WM8143-12

MCLK

tDSU

tDH

VSMP, RLC

R,G,B Video Inputs

(CDSREF[1]=0,CDSREF[0]=0)

R,G,B Video Inputs

(CDSREF[1]=0,CDSREF[0]=0)

R,G,B Video Inputs

(CDSREF[1]=0,CDSREF[0]=0)

R,G,B Video Inputs

(CDSREF[1]=0,CDSREF[0]=0)

Figure 21 Detailed Video Timing - Modes 5 and 6

tPER

MCLK

VSMP, RLC

OP[11:0]

t

DSU

t

PD

RED GREEN BLUE

t

DH

tVSU

tVSU

tVSU

tVSU

tDSU

tVH

tVH

tRSU

tVH

tVH

tRH

tRSU

t

CKH

tRH

tRSU

t

CKL

tRH

tRSU

tRH

tVSU

tVSU

tVSU

tVSU

tDH

tVH

tVH

tVH

tVH

Figure 22 Detailed Digital Timing - Modes 1 and 2

t

tPER

CKHtCKL

MCLK

tDSU

VSMP, RLC

tDH

tPD

OP[11:0]

Figure 23 Detailed Digital Timing – Mode 3

Wolfson Microelectronics PD. Rev 4 Nov. 99

tDSU

tDH

t

PD

21

WM8143-12 Production Data

t

tPER

MCLK

CKHtCKL

tDSU

VSMP, RLC

tDH

tPD

OP[11:0]

Figure 24 Detailed Digital Timing – Mode 4

tPER

MCLK

tDSU

tDH

VSMP, RLC

t

PD

OP[11:0]

X

RED

'X' Indicates Invalid

Figure 25 Detailed Digital Timing – Modes 5 and 6

tSPER

tSCKH

SCK

tSSU

tSH

SDI

tSCKL

tDSU

GREEN

tDH

t

PD

t

t

CKH

CKL

tSCE

BLUE

tSEW

tSEC

X

SEN

Figure 26 Detailed Timing Diagram for Serial Interface

tSTB

STB

OP[11:4]

Data Out

tASU

Z

Address In

tADLS

DNA

RNW

tOPZ

Figure 27 Detailed Timing Diagram for Parallel Interface

Wolfson Microelectronics PD. Rev 4 Nov. 99

22

tSTB

tDSUtAH

Data In

tADHStADLH

tDH

Z

tADHH

Data Out

tOPD

Production Data WM8143-12

Applications Diagram

VRLC

BINP

GINP

RINP

OEB

100nF

DVDD

SCK/RNW

10µF

+

RLC

VSMP

MCLK

DGND

OP[0]
OP[1]

DVDD

SDI/DNA

24

25
26
27
28
29
30
31
32

1

OP[2]

SEN/STB

20

21

22

23

WM8143-12

5

4

3

2

OP[6]

OP[5]

OP[4]

OP[3]

19

6

OP[7]

18

7

OP[8]

VMID

17

8

OP[9]

22µF

+

100nF

+

100nF

100nF

100nF

+

10

µ

F

VRT

16

VRB

15

VRU

14

AGND

13

AVDD

12

NRESET

11

OP[11]

10

9

OP[10]

10µF

+

AVDD

µ

F

10

µ

F

100nF

10

+

100nF

10

µ

F

+

DGND

Note: AGND and DGND should
be starpointed as close as
possible to the AGND pins

AGND

Wolfson Microelectronic PD. Rev 4 Nov. 99

23

WM8143-12

Production Data

Package Dimensions

FT: 32 PIN TQFP (7 x 7 x 1.4 mm)

b

32

D1

D

A2

A1

A

DM002.B

e

1724

1625

E1 E

9

81

Θ

c

L

-C-

SEATING PLANE

C

ccc

Dimensions

Symbols

(mm)

MIN NOM MAX
A
A

1

A

2

b
c
D
D

1

E
E

1

e
L

Θ

----- ----- 1.60

0.05 ----- 0.15

1.35 1.40 1.45

0.30 0.37 0.45

0.09 ----- 0.20

9.00 BSC

7.00 BSC

9.00 BSC

7.00 BSC

0.80 BSC

0.45 0.60 0.75

o

0

3.5

o

7

o

Tolerances of Form and Position

ccc

REF:

NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM.
D. MEETS JEDEC.95 MS-026, VARIATION = BBA. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.

0.10

JEDEC.95, MS-026

Last page of WM8143-12 Datasheet

Wolfson Microelectronics

24

PD. Rev 4 Nov. 99
