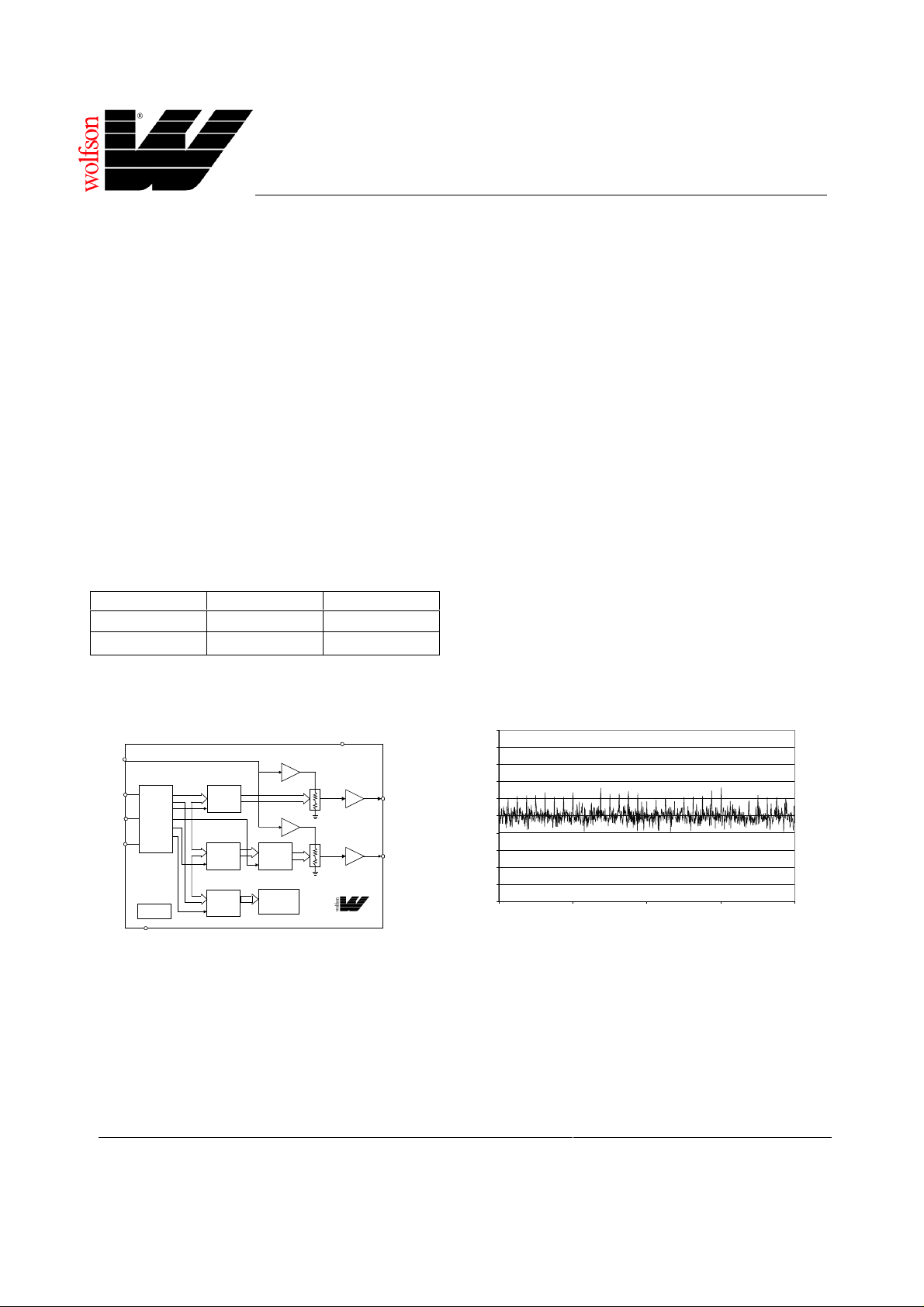

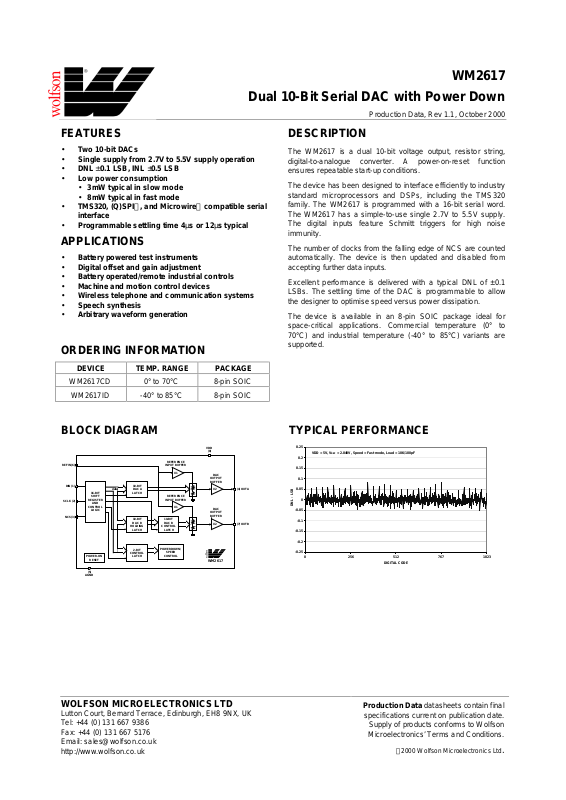

WM2617
Dual 10-Bit Serial DAC with Power Dow n
Production Data, Rev 1.1, Oc tober 2000
FEATURES
• Two 10-bit DACs
• Single supply from 2.7V to 5.5V supply operation
• DNL ±0.1 LSB, INL ±0.5 LSB
• Low power consumption
• 3mW typical in slow mode
• 8mW typical in fast mode
• TMS320, (Q)SPI, and Microwire compatible serial
interface
• Programmable settling time 4µs or 12µs typical
APPLICATIONS
• Battery powered test instruments
• Digital offset and gain adjustment
• Battery operated/remote industrial controls
• Machine and motion control devices
• Wireless telephone and communication systems
• Speech synthesis
• Arbitrary waveform generation
ORDERING INFORMATION
DEVICE TEMP. RANGE PACKAGE
WM2617CD 0° to 70°C 8-pin SOIC
WM2617ID -40° to 85°C 8-pin SOIC
DESCRIPTION
The WM2617 is a dual 10-bit voltage output, resistor string,
digital-to-analogue converter. A power-on-reset function
ensures repeatable start-up condi tions.
The device has been designed to interface effi ciently t o industry
standard microprocessors and DSPs, including the TMS320
family. The W M2617 is programmed with a 16-bit serial word.
The WM2617 has a sim ple-to-use single 2.7V to 5.5V s upply.
The digital inputs feature Schmitt triggers for high noise
immunity.
The number of clocks from the falling edge of NCS are counted
automatically. The device is then updated and disabled from
accepting further data inputs.
Excellent performance is delivered with a typical DNL of ±0.1
LSBs. The settling t ime of the DAC is programmable to al low
the designer to optimise speed versus power dissipation.
The device is available in an 8-pin SOIC package ideal for
space-critical applications. Commercial temperature (0° to
70°C) and industrial temperature (-40° to 85°C) variants are
supported.
BLOCK DIAGRAM TYPICAL PERFORMANCE
VDD
(8)
REFIN(6)
DIN (1)
SCLK (2)
NCS (3)
16-BIT
SHIFT
REGISTER
AND
CONTROL
LOGIC
POWER-ON
RESET
(5)
AGND
10-BIT
data
DAC A
LATCH
10-BIT
DAC B
HOLDING
LATCH
2-BIT
CONTROL
LATCH
REFERENCE
INPUT BUFFER
REFERENCE
INPUT BUFFER
10-BIT
DAC B
CONTROL
LATCH
POWERDOWN/
SPEED
CONTROL
X1
X1
DAC
OUTPUT
BUFFER
X2
DAC
OUTPUT
BUFFER
X2
WM2617
(4) OUTA
(7) OUTB
WOLFSON MICROELECTRONICS LTD
Lutton Court, Bernard Terrace, Edi nburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: [email protected]
http://www.wolfson.co.uk
0.25
VDD = 5V, V
= 2.048V, Speed = Fast mode, Load = 10K /100pF
0.2
0.15
0.1
0.05
0
DNL - LSB
-0.05
-0.1
-0.15
-0.2
-0.25
REF
0 256 512 767 1023
DIGITAL CODE
Production Data datasheets contain final
specifications current on publication date.
Supply of products conforms to Wol fson
Microelectronics’ Term s and Conditions.
2000 Wolfson Microelectronics Ltd.
Page 2
WM2617 Production Data

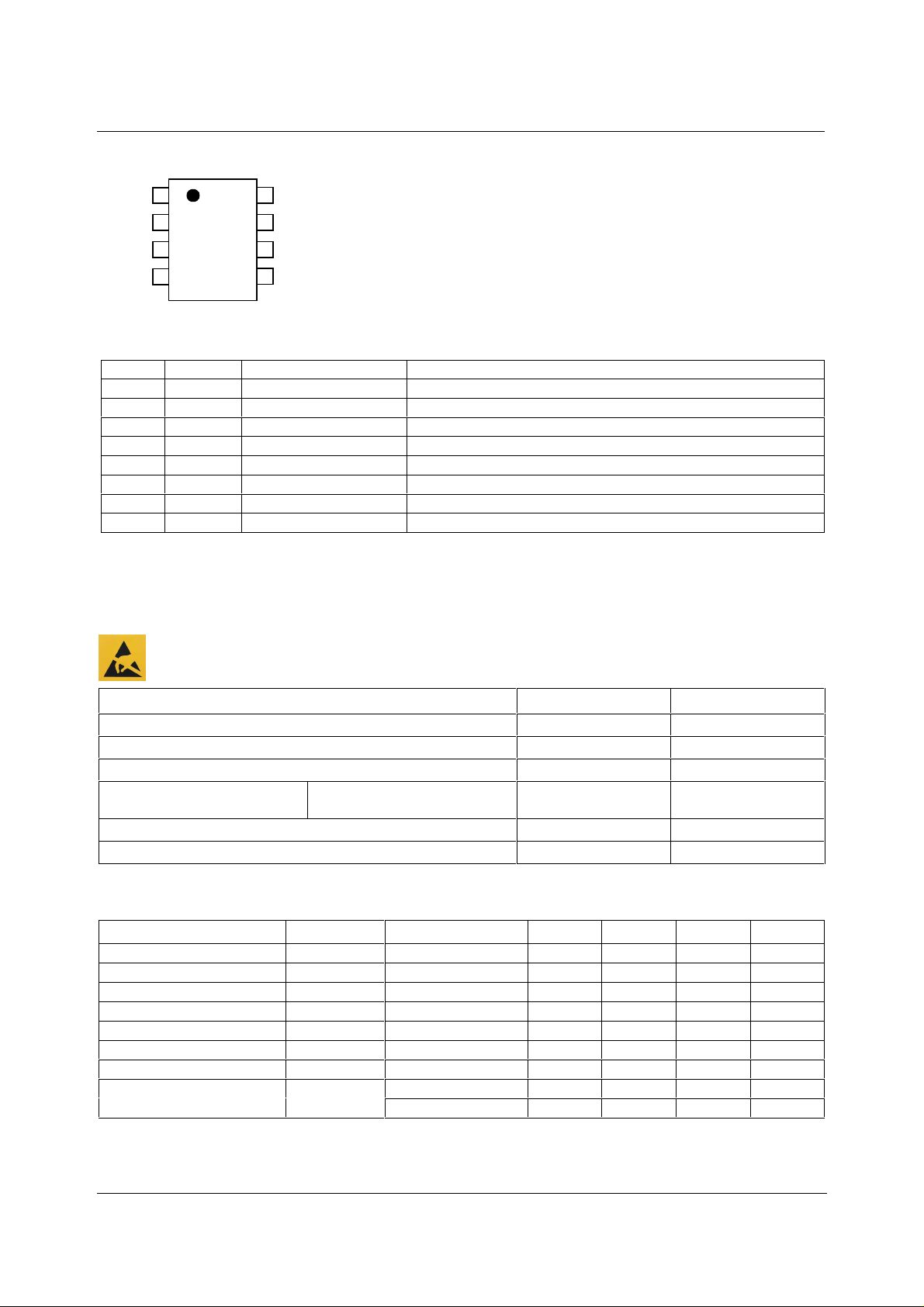

PIN CONFIGURATION
DIN
SCLK
NCS
OUTA
1
2
3
4
VDD
8
OUTB
7
REFIN
6
AGND
5
PIN DESCRIPTION
PIN NO NAME TYPE DESCRIPTION
1 DIN Digital input
2 SCLK Digital input
3 NCS Digital input
4 OUTB Analogue output
5 AGND Supply
6 REFIN Analogue input
7 OUTA Analogue output
8 VDD Supply
Serial data input.
Serial clock input.
Chip select, active low.
DAC B analogue output.
Analogue ground.
Reference voltage input.
DAC A analogue output.
Positive power supply.
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are s tres s rat ings only. P erm anent damage to the device may be c aused by c onti nuously operat ing at
or beyond these limits. Device functional operating lim its and guaranteed performance s pecifications are gi ven under Electrical
Characteristics at the test conditions s pecified
ESD Sensitive Device. Thi s device i s m anufactured on a CMOS process . It i s t herefore generi cally suscept ible
to damage from excessi ve stati c voltages . Proper ES D precautions mus t be tak en during handling and st orage
of this device.
CONDITION MIN MAX
Supply voltage, VDD to AGND
Digital input voltage
Reference input voltage
Operating temperature range, T
A
WM2617CD
WM2617ID
Storage temperature
Lead temperature 1.6mm (1/16 inch) soldering for 10 sec onds
-0.3V VDD + 0.3V
-0.3V VDD + 0.3V
0°C
-40°C
-65°C 150°C
7V
70°C
85°C
260°C
RECOMMENDED OPERATING CONDITIONS
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Supply voltage
High-level digital input voltage
Low-level digital input voltage
Reference voltage to REFIN
Load resistance
Load capacitance
Serial Clock Rate
Operating free-air temperature
Note: Reference voltages greater than VDD/ 2 will caus e saturation for large DAC codes.
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
VDD 2.7 5.5 V
V
V
V
R
C
f
SCLK
T
IH
IL
REF
L
L
A
VDD = 5V 2 V
VDD = 5V 0.8 V
VDD - 1.5 V
2kΩ
100
20
WM2637CD 0 70 °C
WM2637ID -40 85 °C
2
Page 3
WM2617 Production Data
ELECTRICAL CHARACTERISTICS
Test Conditions:
R
= 10kΩ, CL = 100pF. VDD = 5V ± 10%, V
L
free-air temperature range (unless noted otherwise)
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Static DAC Specifications
Resolution
Integral non-linearity
Differential non-linearity
Zero code error
Gain error
D.c. power supply rejection rati o
Zero code error temperature coeffi cient
Gain error temperature coefficient
DAC Output Specifications
Output voltage range
Output load regulation
Power Supplies
Active supply current
Power down supply current
Dynamic DAC Specifications
Slew rate
Settling time
Glitch energy
Reference
Reference input resistanc e
Reference input capacitanc e
Reference feedthrough
Reference input bandwidth
Digital Inputs
High level input current
Low level input current
Input capacitance
= 2.048V and VDD = 3V ± 10%, V
REF
= 1.024V over recommended operati ng
REF
10 bits
INL See Note 1
DNL See Note 2
±0.1 ±0.5
ZCE See Note 3 3
GE See Note 4 0.1
±1
±12
±0.6
LSB
LSB
mV
% FSR
DC PSRR See Note 5 0.5 mV/V
See Note 6 10 ppm/°C
See Note 6 10 ppm/°C
0 VDD - 0.1 V
2kΩ to 10kΩ load
0.1 0.3 %
See Note 7
I
DD
No load, V
VDD = 5.5V, V
VDD = 5.5V, V
= VDD, V
IH
= 2.048V Slow
REF
= 2.048V Fast
REF
IL
= 0V
0.6
1.6
1.0
2.5
mA
mA
See Note 8
No load,
0.01 µA
all digital inputs 0V or VDD
DAC code 32 to 1023, 10%-90%
Slow
Fast
0.3
2.4
0.5
3.0
V/µs
V/µs
See Note 9
DAC code 32 to 1023
Slow
Fast
12
µs
4
µs
See Note 10
Code 511 to 512 10 nV-s
R
C
REFIN
REFIN
V
= 1VPP at 1kHz
REF
10 MΩ
5pF
-60 dB
+ 1.024V dc, DAC code 0
V
= 0.2VPP + 1.024V dc
REF
DAC code 512
Slow
Fast
I
IH
I
IL
C
I
Input voltage = VDD 1 µA
Input voltage = 0V -1 µA
0.5
1.0
MHz
MHz
8pF
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
3
Page 4
WM2617 Production Data
Notes:
1. Integral non-linearity (INL) is the maximum deviation of the output from the line between zero and full scale (excluding
the effects of zero c ode and full scale errors).
2. Differential non-linearity (DNL) is the difference between the meas ured and i deal 1LS B amplitude change of any
adjacent two codes. A guarantee of monotonicity means the output voltage changes in the s ame direction (or remains
constant) as a change in digital input code.
3. Zero code error is the voltage output when the DAC input c ode i s zero.
4. Gain error is the deviation from the ideal full scale output excluding the effec ts of zero code error.
5. Power supply rejection ratio is measured by varying VDD from 4.5V to 5. 5V and measuring the proportion of t hi s signal
imposed on the zero code error and the gain error.
6. Zero code error and Gain error temperature coeffic i ents are normalised to full scale voltage.
7. Output load regulation is the difference between the output voltage at full scale with a 10kΩ load and 2kΩ load. It is
expressed as a percentage of the full s cale output voltage with a 10kΩ load.
8. I
is measured while continuous l y writing code 2048 to the DAC. For VIH < VDD - 0.7V and VIL > 0.7Vsupply current will
DD
increase.
9. Slew rate results are for the lower value of the rising and falling edge slew rates.
10. Settling time is the time taken for the signal to settle to within 0.5LSB of the final meas ured val ue f or both rising and
falling edges. Limits are ensured by design and characterisation, but are not production tested.

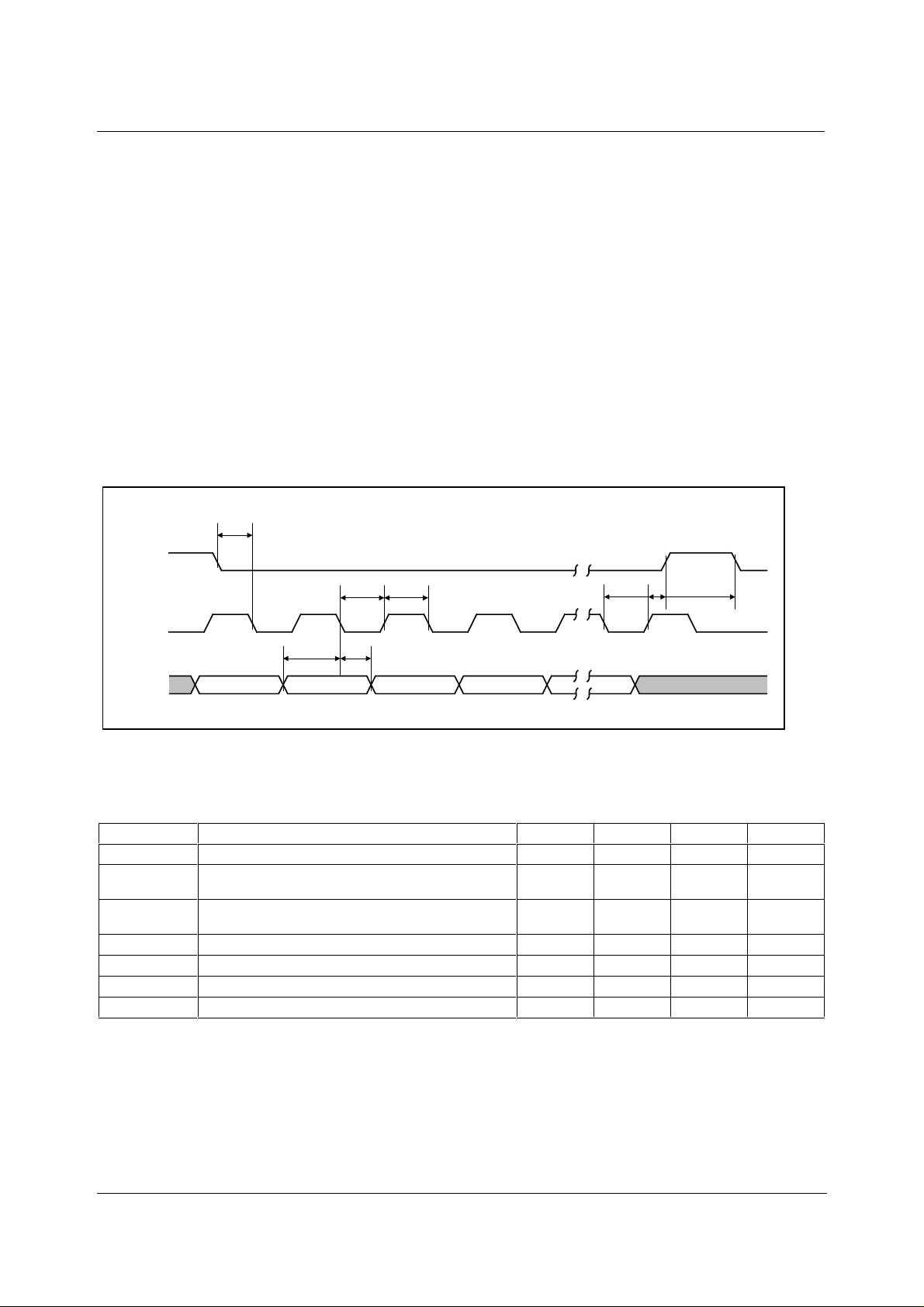

SERIAL INTERFACE
t
SUCSS
NCS
t
WCLtWCH
t
SUCS1
t
SUCS2
SCLK
DIN
t
SUDCLK
D15 D14 D13 D12 D11 D0
t
HDCLK
Figure 1 Timing Diagram
Test Conditions:
= 10kΩ, CL = 100pF. VDD = 5V ± 10%, V
R
L
= 2.048V and VDD = 3V ± 10%, V
REF
= 1.024V over recommended operati ng
REF
free-air temperature range (unless noted otherwise)
SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
t
SUCSS
t
SUCS1
t
SUCS2
t
WCH
t
WCL
t
SUDCLK
t
HDCLK
Setup time NCS low before SCLK l o w
Setup time, fall i ng edge of SCLK to rising edge of
NCS, external end of write
Setup time, rising edge of SCLK to falling edge of
NCS, start of next write cycle
Pulse duration, SCLK high
Pulse duration, SCLK low
Setup time, data ready before SCLK falling edge
Hold time, data held valid after SCLK falling edge
5ns
10 ns
5ns
25 ns
25 ns
5ns
5ns
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
4
Page 5
WM2617 Production Data

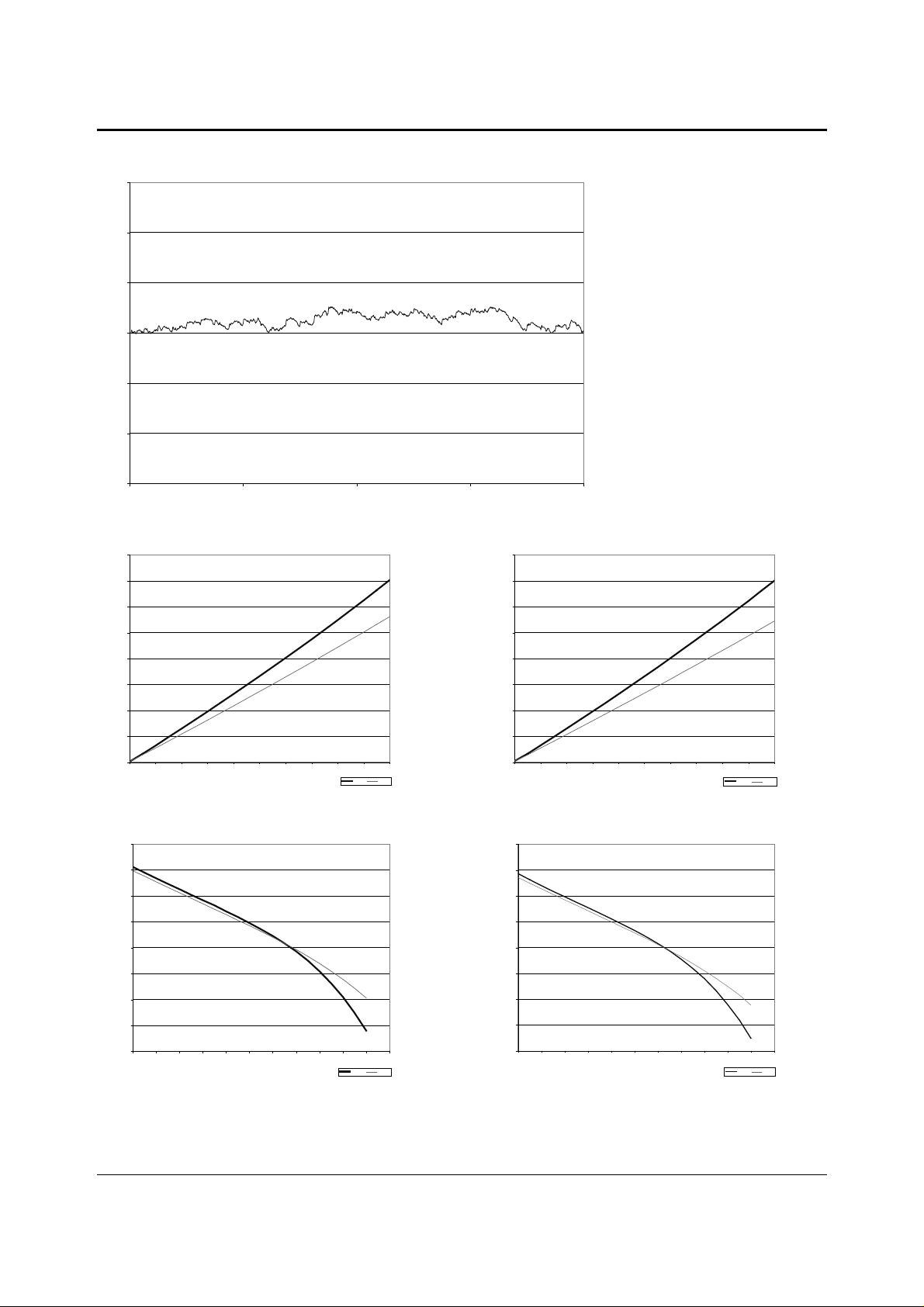

TYPICAL PERFORMANCE GRAPHS
3
VDD = 5V, V
2
1
0
INL - LSB
-1
-2
-3
0 256 512 767 1023
Figure 2 Integral Non-Linearity
0.4
VDD = 3V, V
0.35
0.3
0.25
0.2
0.15
OUTPUT VOLTAGE - V
0.1
0.05
0
012345678910
= 2.048V, Speed = Fast mode, Load = 10K/100pF
REF
= 1V, Input Code = 0
REF
ISINK- mA
DIGITAL CODE
Slow Fast
0.4
VDD = 5V, V
0.35
0.3
0.25
0.2
0.15
OUTPUT VOLTAGE - V
0.1
0.05
0
012345678910
= 2V, Input Code = 0
REF
ISINK - mA
Slow Fast
Figure 3 Sink Current VDD = 3V Figure 4 Sink Current VDD = 5V
2.06
VDD = 3V, V
2.055
2.05
2.045
2.04
2.035
OUTPUT VOLTAGE - V
2.03
2.025
2.02
01234567891011
= 1V, Input Code = 4095
REF
ISOURCE- mA
Slow Fast
4.1
VDD = 5V, V
4.095
4.09
4.085
4.08
4.075
OUTPUT VOLTAGE - V
4.07
4.065
4.06
01234567891011
= 2V, Input Cod e = 4095
REF
ISOURCE - mA
Slow Fast
Figure 5 Source Current VDD = 3V Figure 6 Source Current VDD = 5V
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
5
Page 6
WM2617 Production Data
DEVICE DESCRIPTION
GENERAL FUNCTION
The device uses a resistor s tri ng network buff ered with an op am p to c onvert 10-bi t digit al data t o
analogue voltage levels (see Block Di agram). The output volt age is determined by t he reference
input voltage and the input code according to the following relationship:
Output voltage =
INPUT OUTPUT
11 1111 1111
::
10 0000 0001
10 0000 0000
01 1111 1111
::
00 0000 0001
00 0000 0000 0V
Table 1 Binary Code Table (0V to 2V
code
()
REF
V2
1024
1023
()
REF
V2
1024
()
REF
V2
1024
512
()
V2 =
1024
V2
()
REF
1024
V2
()
REF
1024
Output), Gain = 2
REF
513
REFREF V
511
1
POWER ON RESET
An internal power-on-reset circuit resets the DAC registers to all 0s on power-up.
BUFFER AMPLIFIER
The output buffer has a near rail-to-rail output with short circuit prot ection and c an reliably drive a
2kΩ load with a 100pF load capacitance.
EXTERNAL REFERENCE
The reference voltage input is buff ered which makes the DAC input resistance i ndependent of
code. The REFIN input resistance is 10MΩ and the REFIN input capacitance is typicall y 5pF. The
reference voltage determines the DAC full-scale output.
SERIAL INTERFACE
When chip select (NCS) is low, the input data is read into a 16-bit s hi ft register with the input data
clocked in most significant bit first. The fall ing edge of the SCLK input shifts the data i nto the
input register. After 16 bits have been trans ferred, the next rising edge on SCLK or NCS then
transfers the data to the DA C latch. When NCS is high, input data cannot be clocked into the
input register (see Table 2).
SERIAL CLOCK AND UPDATE RATE
Figure 1 shows the device timing. The maximum serial rate is:
max = MHz20
f
SCLK
The digital update rate is limited to an 800ns period, or 1.25MHz frequency. However, the DAC
settling time to 10 bits limits the update rate for large input step transitions.
1
minWCLminWCH
tt
+
SOFTWARE CONFIGURATION OPTIONS
The 16 bits of data can be transferred with the sequence shown in Table 2. D11-D2 contains the
10-bit data word. D15-D12 hold the programmable options which are summarized i n Tabl e 3.
=
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Program Bits New DAC value (10 bits) x x
Table 2 Register Map
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
6
Page 7
WM2617 Production Data
PROGRAM BITS
D15 D14 D13 D12
1XXX
0XX0
0XX1
X0XX
X1XX
XX0X
XX1X
Table 3 Program Bits D15 to D12 Function
DEVICE FUNCTION
Write to lat ch A with serial interface regis ter data and
latch B updated with buffer latch data.
Write to lat ch B and double buffer latch.
Write to double buf fer latch only.
12µs settling time.
4µs settling time.
Powered-up operation.
Power down mode.
PROGRAMMABLE SETTLING TIME
Settling time is a soft ware selectable 12µs or 4µs, typical to within ±0.5LSB of fi nal value. This is
controlled by the value of D14. A ONE defines a settling t ime of 4µs, a ZERO defines a s ettling
time of 12µs.
PROGRAMMABLE POWER DOWN
The power down function is controlled by D13. A ZERO c onfigures the device as ac tive, or fully
powered up, a ONE configures the device into power down mode. When the power down function
is released the device reverts back to the DAC code set prior to power down.
FUNCTION OF THE LATCH CONTROL BITS (D15 AND D12)
PURPOSE AND USE OF THE DOUBLE BUFFER
Normally only one DAC output can change after a write. The double buffer allows both DAC
outputs to change after a si ngl e write. This is achieved by the two following st eps.
1. A double buffer only write is executed to store the new DAC B data without changi ng the DA C
A and B outputs.
2. Following the previous step, a write to latch A is executed. This writes the serial i nterface
register (SIR) data to latch A and also writes the double buffer c ontents to l atch B. Thus both
DACs receive their new data at the sam e time and so both DA C outputs begin to change at
the same time.
Unless a double buffer only write is issued, the latch B and double buf fer contents are identic al.
Thus, following a write to latch A or B with another write to latch A does not change the latch B
contents.
Three data transfer options are poss ible. A ll trans fers occ ur im mediat ely after NCS goes high (or
on the sixteenth positive SCLK edge, whichever is earlier) and are described in the following
sections.
LATCH A WRITE, LATCH B UPDATE (D15 = HIGH, D12 = X)
The serial interface register (SIR) data are written to latch A and the double buf fer latch cont ents
are written to latch B. The double buffer contents are unaffected. This program bit condition
allows simultaneous output updates of both DACs.
SERIAL
INTERFACE
REGISTER
D12 = X
D15 = HIGH

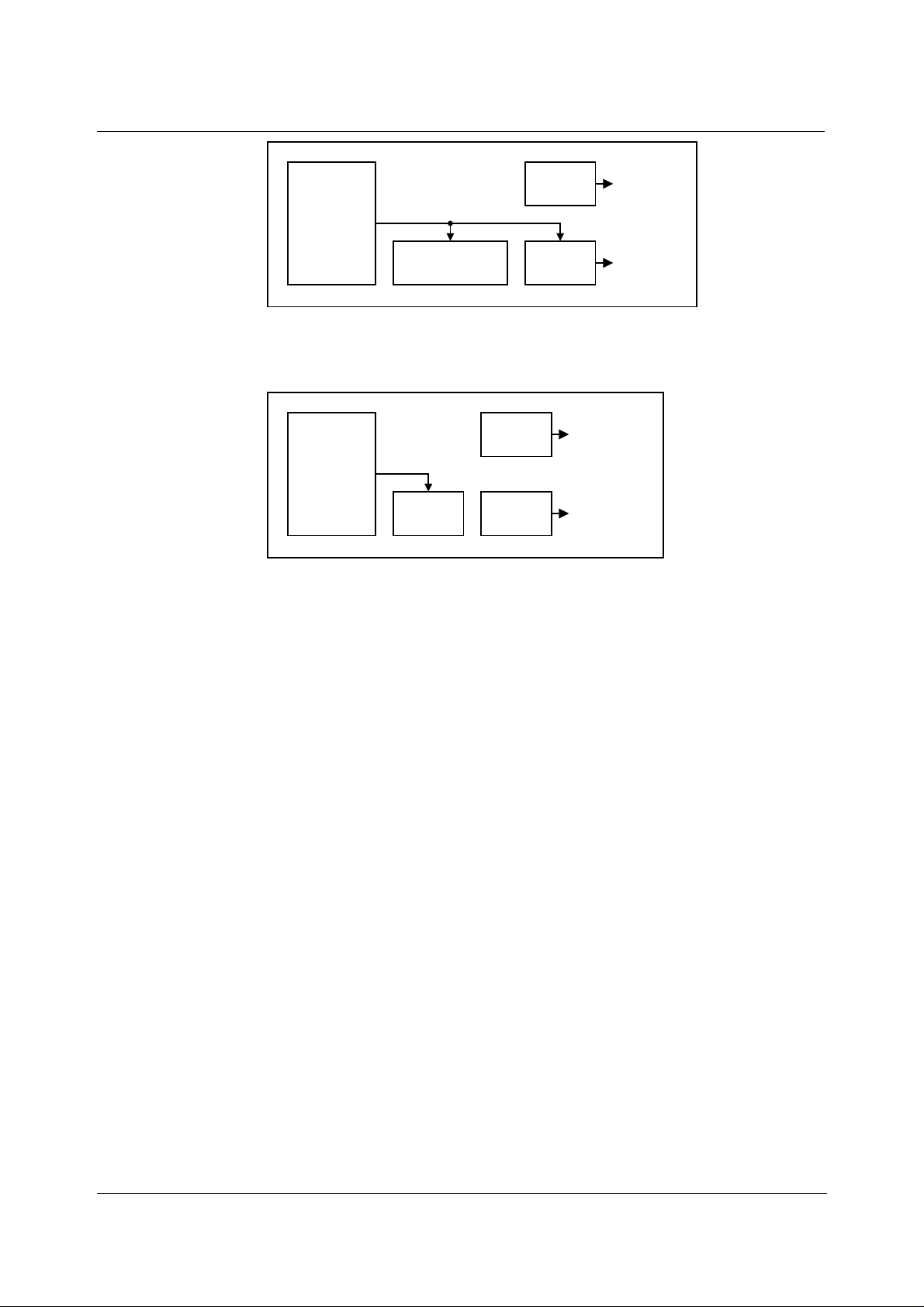

Figure 7 Latch A Write, Latch B Update
LATCH B AND DOUBLE BUFFER WRI TE (D15 = L O W, D12 = LOW)
The SIR data are written to both latch B and the double buffer. Latch A is unaffected.
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
DOUBLE
BUFFER LATCH
LATCH A TO DAC A
LATCH B TO DAC B
7
Page 8
WM2617 Production Data
SERIAL
INTERFACE
REGISTER
D12 = LOW
D15 = LOW
Figure 8 Latch B and Double Buffer Write
DOUBLE BUFFER ONLY WRITE (D15 = LOW, D12 = HIGH)
The SIR data are written to the double buffer onl y. Latch A and B contents are unaffected.
SERIAL
INTERFACE
REGISTER
D12 = HIGH
D15 = LOW

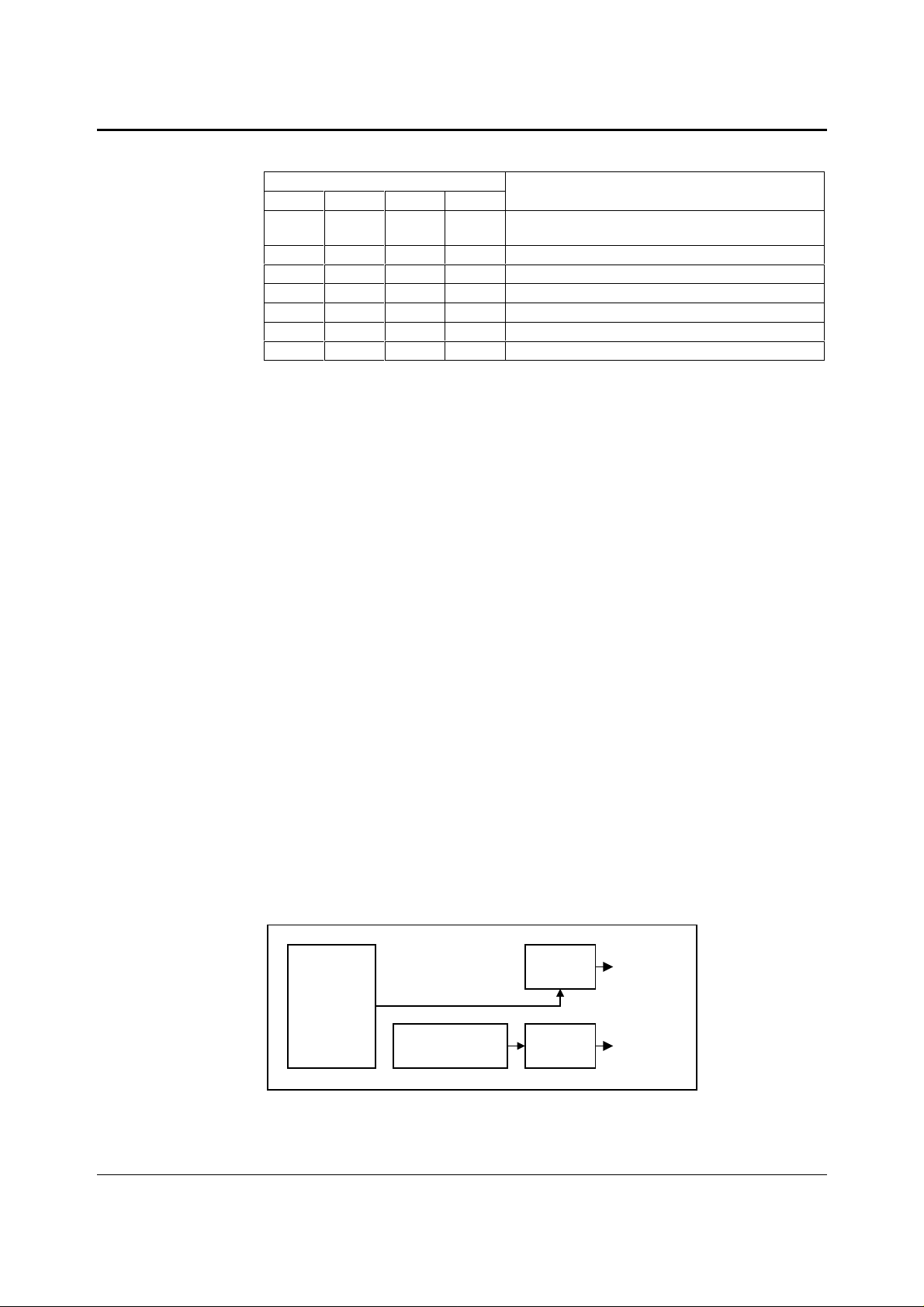

Figure 9 Double Buffer Only Write
OPERATIONAL EXAMPLES
1. changing the latch A data from zero to full code
Assuming that latc h A st arts at zero c ode (e.g., af ter power up), the lat ch c an be f illed with 1s by
writing (bit D15 on the left, D0 on the right)
1X0X 1111 1111 11xx
to the serial interface. Bit D14 can be zero to select sl ow mode or one to select fast mode. The
other X can be zero or one (don’t care).
The latch B contents and DAC B output are not changed by this write unless t he double buffer
contents are different from the latch B contents. This can only be true if the last write was a
double buffer-only write.
2. changing the latch B data from zero to full code
Assuming that latc h B st arts at zero c ode (e.g., af ter power up), the lat ch c an be f illed with 1s by
writing (bit D15 on the left, D0 on the right).
0X00 1111 1111 11xx
to the serial interface. Bit D14 can be zero to select sl ow mode or one to select fast mode. The
data (bits D0 to D11) are written to both t he doubl e buf fer and latch B.
The latch A contents and t he DAC A output are not changed by this write.
3. double buffered change of both DAC out put s
Assuming that DA Cs A and B s tart at zero c ode (e.g. , af ter power up), i f DAC A i s to be driven to
mid-scale and DAC B t o full-scale, and if the outputs are to begin rising at the same ti me, this
can be achieved as follows:
DOUBLE
BUFFER LATCH
DOUBLE
BUFFER
LATCH A TO DAC A
LATCH B TO DAC B
LATCH A TO DAC A
LATCH B TO DAC B
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
8
Page 9
WM2617 Production Data
First,
0d01 1111 1111 11xx
is written (bit D15 on the left, D0 on the right) to the serial interface. This loads the full-scale code
into the double buffer but does not c hange the latch B contents and the DAC B output voltage.
The latch A contents and t he DAC A output are also unaffect ed by t hi s write operation.
Changing from fast to s low to fas t m ode c hanges t he supply c urrent which can gli tc h t he output s,
and so D14 (designated by d in the above data word) should be set to maint ain the speed m ode
set by the previous write.
Next,
1d0X 1000 0000 00xx
is written (bit D15 on the left, D0 on the right) to the serial interface. Bit D14 can be zero to select
slow mode or one to select fas t mode. The X in bit D12 can be zero or one (don’t care). T his
writes the mid-scale c ode (100000000000) to lat ch A and als o copi es t he full -sc ale c ode f rom t he
double buffer to latch B. Both DAC outputs thus begin t o ri se after the second write.
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
9
Page 10
WM2617 Production Data

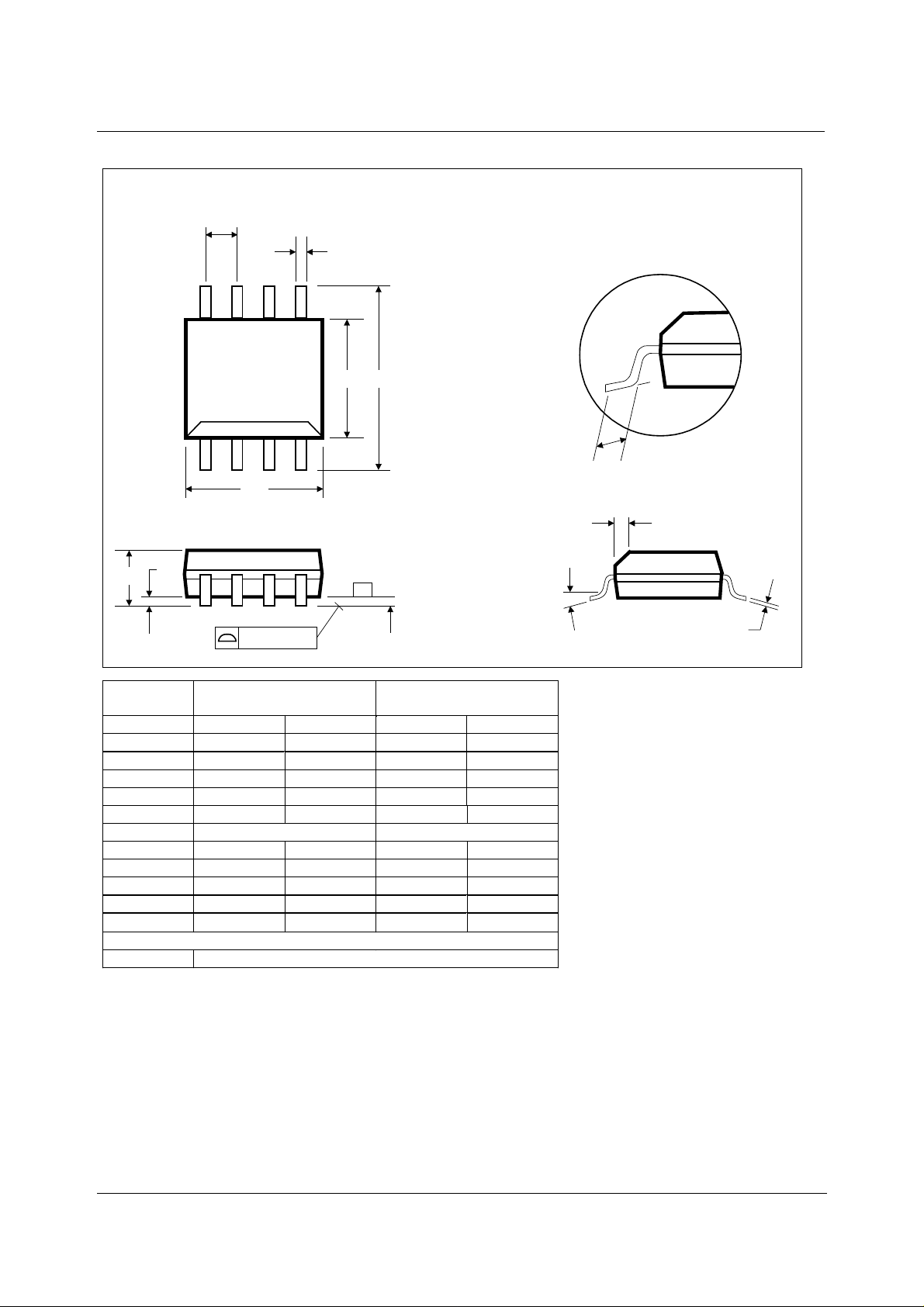

PACKAGE DIMENSIONS
D: 8 PIN SOIC 3.9mm Wide Body
e
D
A1
A
0.10 (0.004)
B
58
41
E H
-C-
SEATING PLANE
h x 45
α
DM009.B
L
o
C
Symbols
Dimensions
(mm)
Dimensions
(Inches)
MIN MAX MIN MAX
A
A
1
B
C
D
e
E
h
H
L 0.40 1.27 0.0160 0.0500
α
REF:
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS (INCHES).
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM (0.010IN).
D. MEETS JEDEC.95 MS-012, VARIATION = AA. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
1.35 1.75 0.0532 0.0688
0.10 0.25 0.0040 0.0098
0.33 0.51 0.0130 0.0200
0.19 0.25 0.0075 0.0098
4.80 5.00 0.1890 0.1968
1.27 BSC 0.050 BSC
3.80 4.00 0.1497 0.1574
0.25 0.50 0.0099 0.0196
5.80 6.20 0.2284 0.2440
o
0
o
8
o
0
o
8
JEDEC.95, MS-012
WOLFSON MICROELECTRONICS LTD PD Rev 1.1 October 2000
10
Loading...
