Page 1

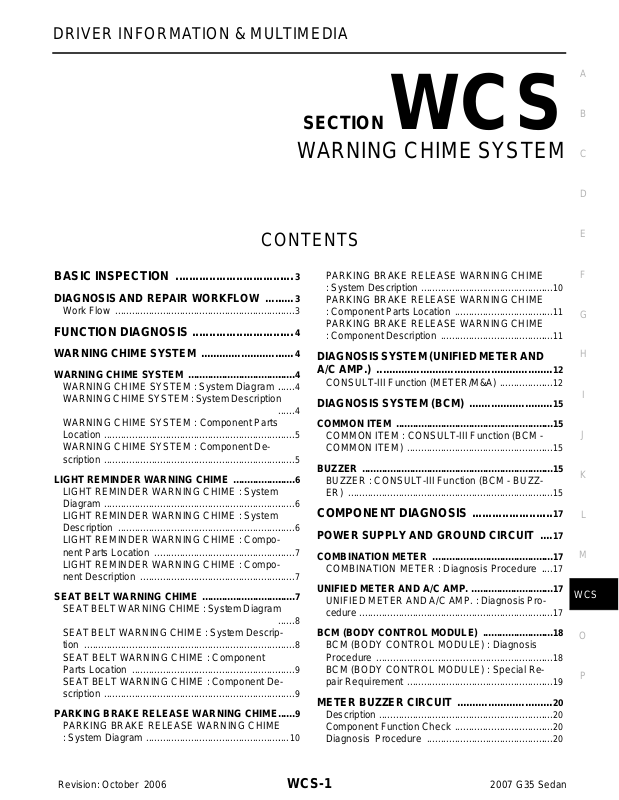

DRIVER INFORMATION & MULTIMEDIA

Revision: October 2006

2007 G35 Sedan

SECTION WCS

CONTENTS

BASIC INSPECTION ....................................3

DIAGNOSIS AND REPAIR WORKFLOW ..........3

Work Flow .................................................................3

FUNCTION DIAGNOSIS ...............................4

WARNING CHIME SYSTEM ...............................4

WARNING CHIME SYSTEM .......................................4

WARNING CHIME SYSTEM : System Diagram .......4

WARNING CHIME SYSTEM : System Description

......

WARNING CHIME SYSTEM : Component Parts

Location ........................ ................ ................ .............

WARNING CHIME SYSTEM : Component De-

scription ........................... ..........................................

LIGHT REMINDER WARNING CHIME .......................6

LIGHT REMINDER WARNING CHIME : System

Diagram ........................... ................ ............. .............

LIGHT REMINDER WARNING CHIME : System

Description ................................................................

LIGHT REMINDER WARNING CHIME : Compo-

nent Parts Location ................... ................................

LIGHT REMINDER WARNING CHIME : Compo-

nent Description ................. .... ... ... .............................

SEAT BELT WARNING CHIME ..................................7

SEAT BELT WARNING CHIME : System Diagram

......

SEAT BELT WARNING CHIME : System Descrip-

tion ............................................................................

SEAT BELT WARNING CHIME : Component

Parts Location ...........................................................

SEAT BELT WARNING CHIME : Component De-

scription ........................... ..........................................

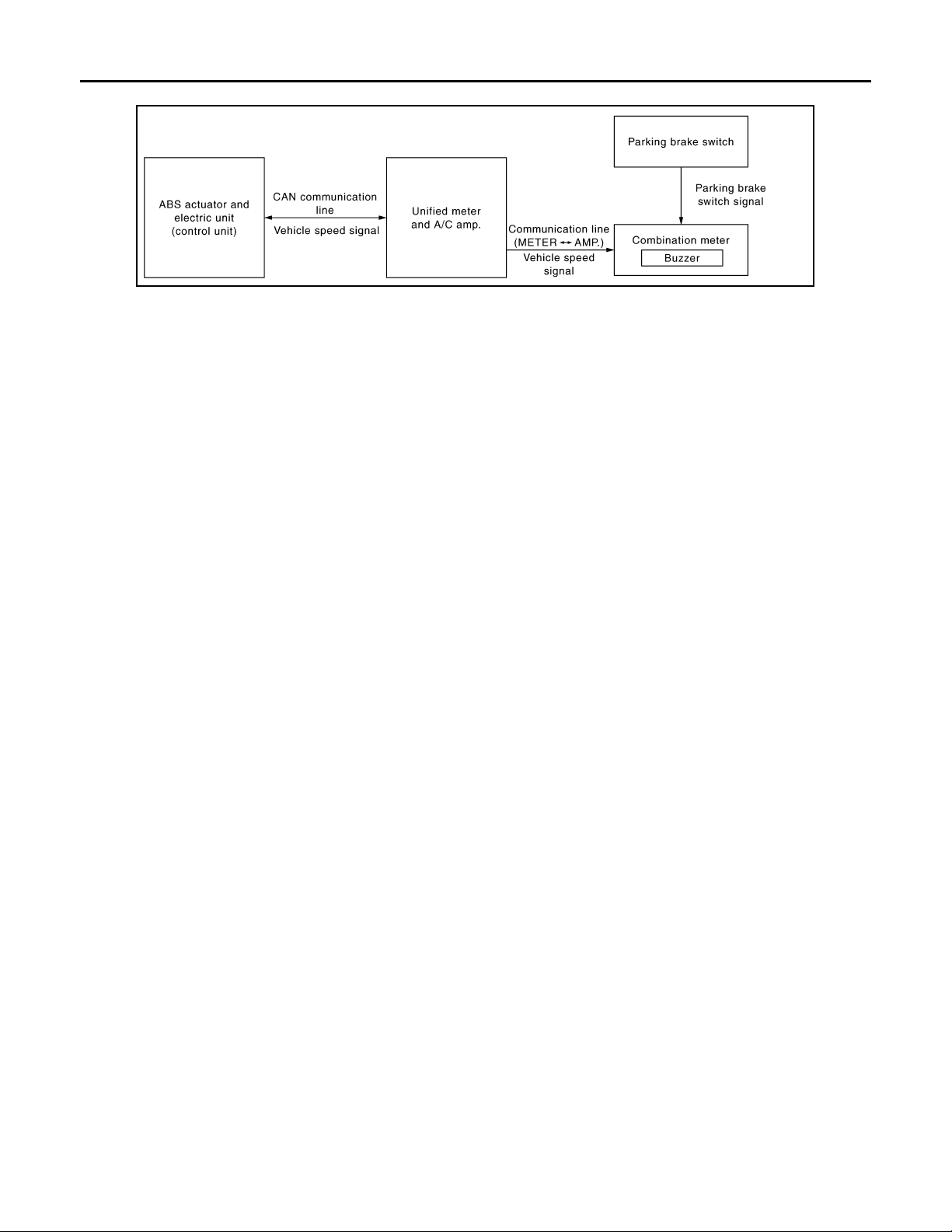

PARKING BRAKE RELEASE WARNING CHIME ......9

PARKING BRAKE RELEASE WARNING CHIME

: System Diagram ....................................................

W ARNING CHIME SYSTEM

PARKING BRAKE RELEASE WARNING CHIME

: System Description ................................................

PARKING BRAKE RELEASE WARNING CHIME

: Component Parts Location ....................................

PARKING BRAKE RELEASE WARNING CHIME

: Component Description .........................................

DIAGNOSIS SYSTEM (UNIFIED METER AND

A/C AMP.) .........................................................

CONSULT-III Function (METER/M&A) ....................12

DIAGNOSIS SYSTEM (BCM) ...........................15

COMMON ITEM .........................................................15

COMMON ITEM : CONSULT-III Function (BCM -

COMMON ITEM) .....................................................

BUZZER .....................................................................15

BUZZER : CONSULT-III Function (BCM - BUZZ-

ER) ..........................................................................

COMPONENT DIAGNOSIS .........................17

POWER SUPPLY AND GROUND CIRCUIT ....17

COMBINATION METER .............. ..............................17

COMBINATION METER : Diagnosis Procedure .....17

UNIFIED METER AND A/C AMP. ..............................17

UNIFIED METER AND A/C AMP. : Diagnosis Pro-

cedure ........................... ... ... .....................................

BCM (BODY CONTROL MODULE) ..........................18

BCM (BODY CONTROL MODULE) : Diagnosis

Procedure ........................ ........................................

BCM (BODY CONTROL MODULE) : Special Re-

pair Requirement .....................................................

METER BUZZER CIRCUIT ...............................20

Description .......................... ... ....... ...... ....... ...... ........20

Component Function Check ....................................20

Diagnosis Procedure ..............................................20

WCS

WCS-1

Page 2

SEAT BELT BUCKLE SWITCH SIGNAL CIR-

Revision: October 2006

2007 G35 Sedan

CUIT ...................................................................

Description ....................... .......................... ............. 21

Component Function Check ................................. 21

Diagnosis Procedure ............................................. 21

Component Inspection ............................................ 21

WARNING CHIME SYSTEM .............................23

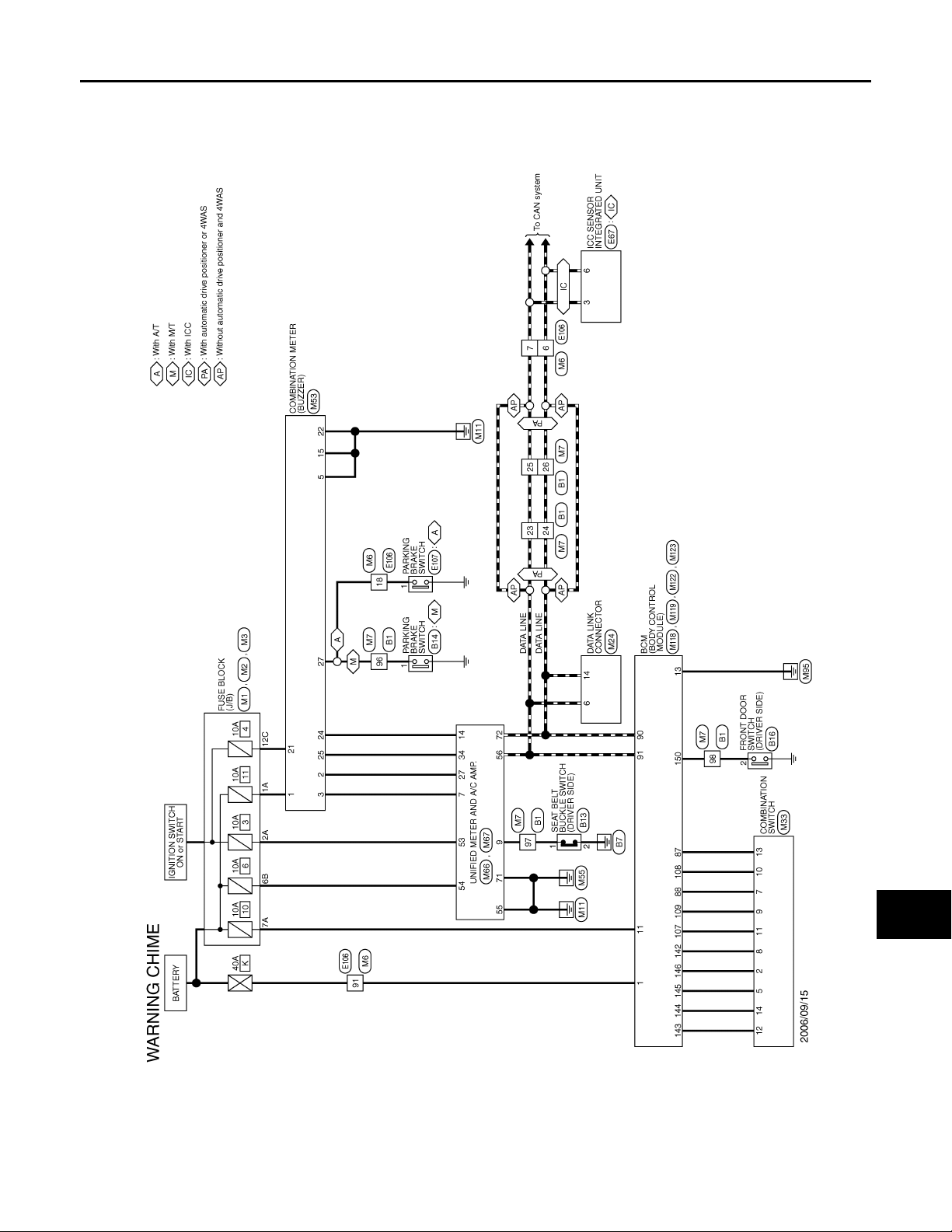

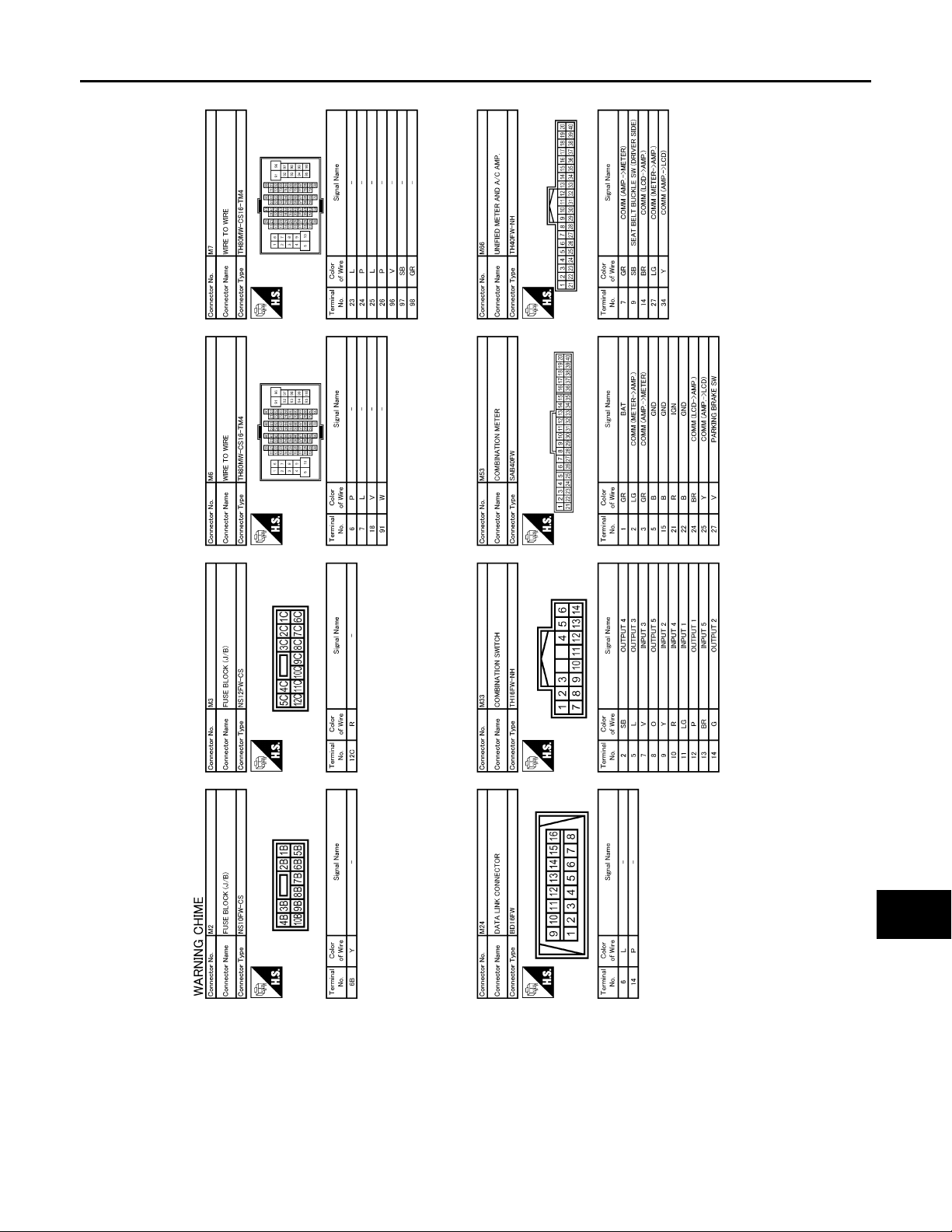

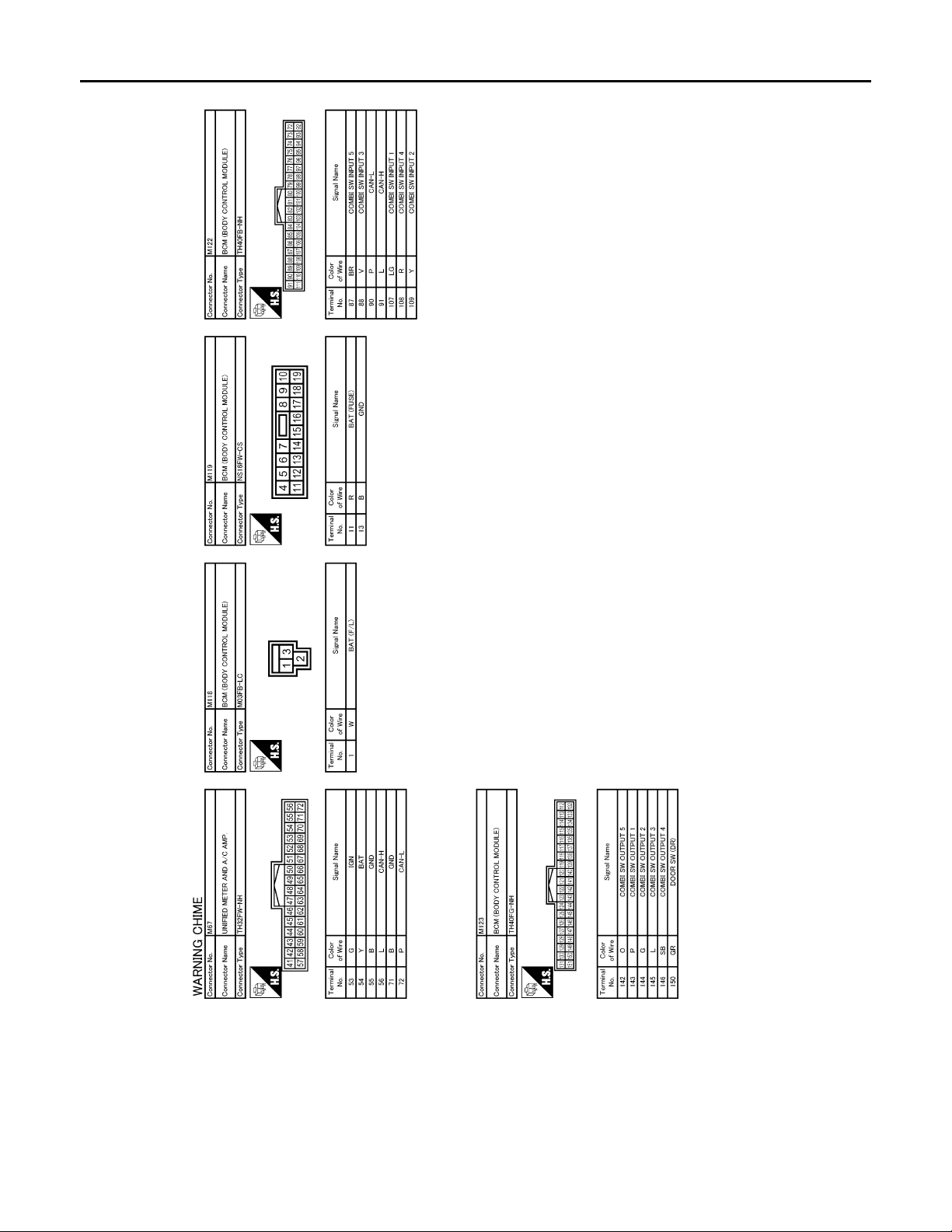

Wiring Diagram — WARNING CHIME — ............... 23

ECU DIAGNOSIS ........................................ 27

COMBINATION METER ....................................27

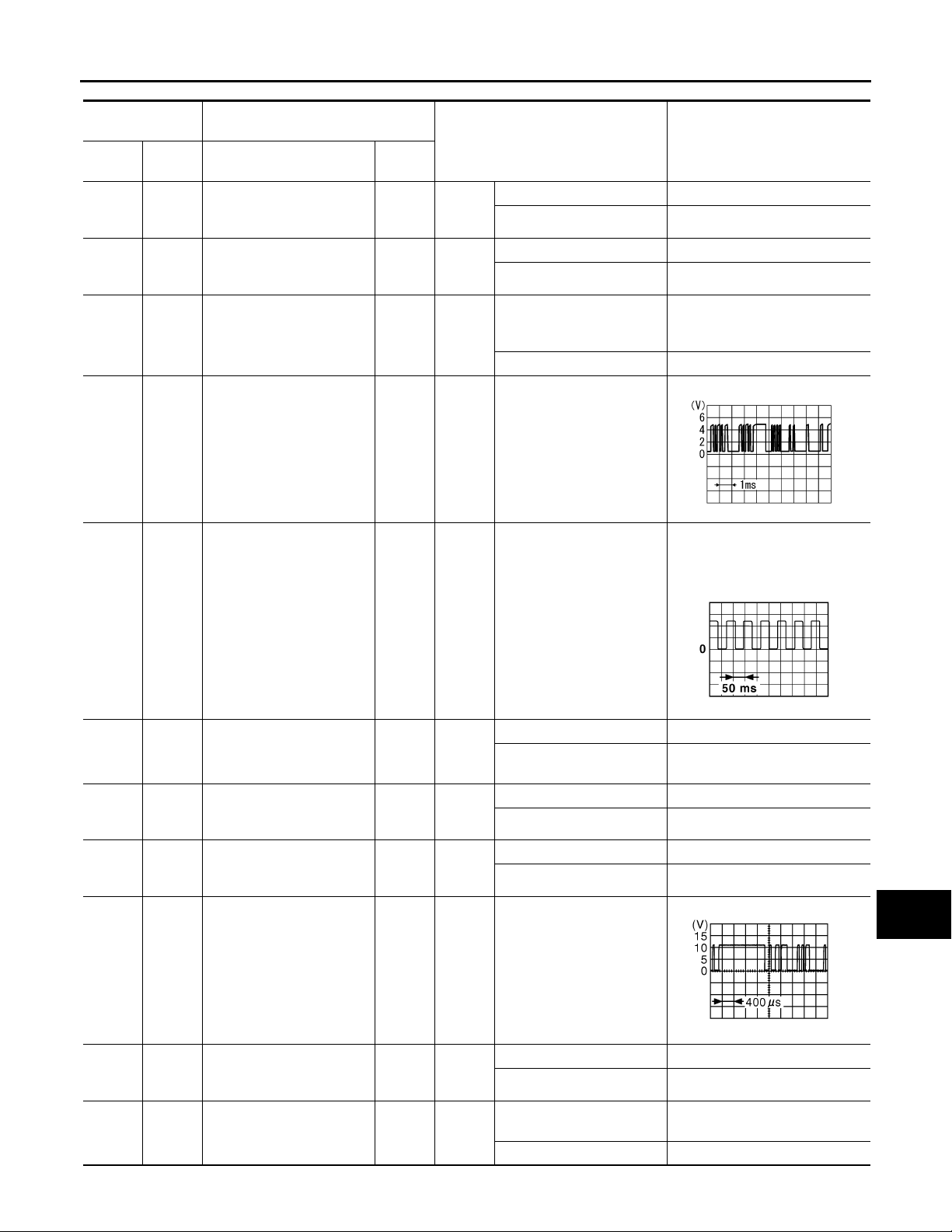

Reference Value ..................... ... ... ... ....................... 27

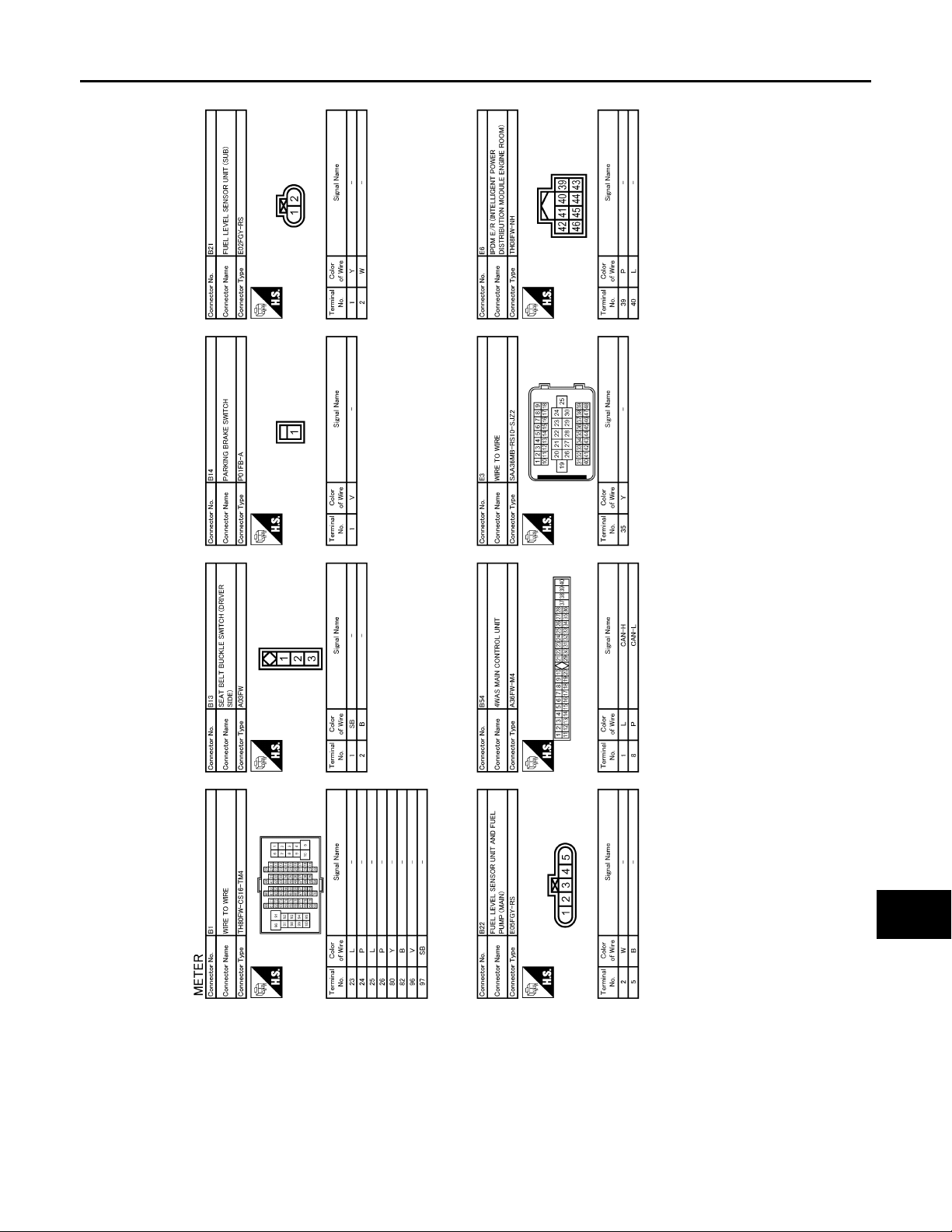

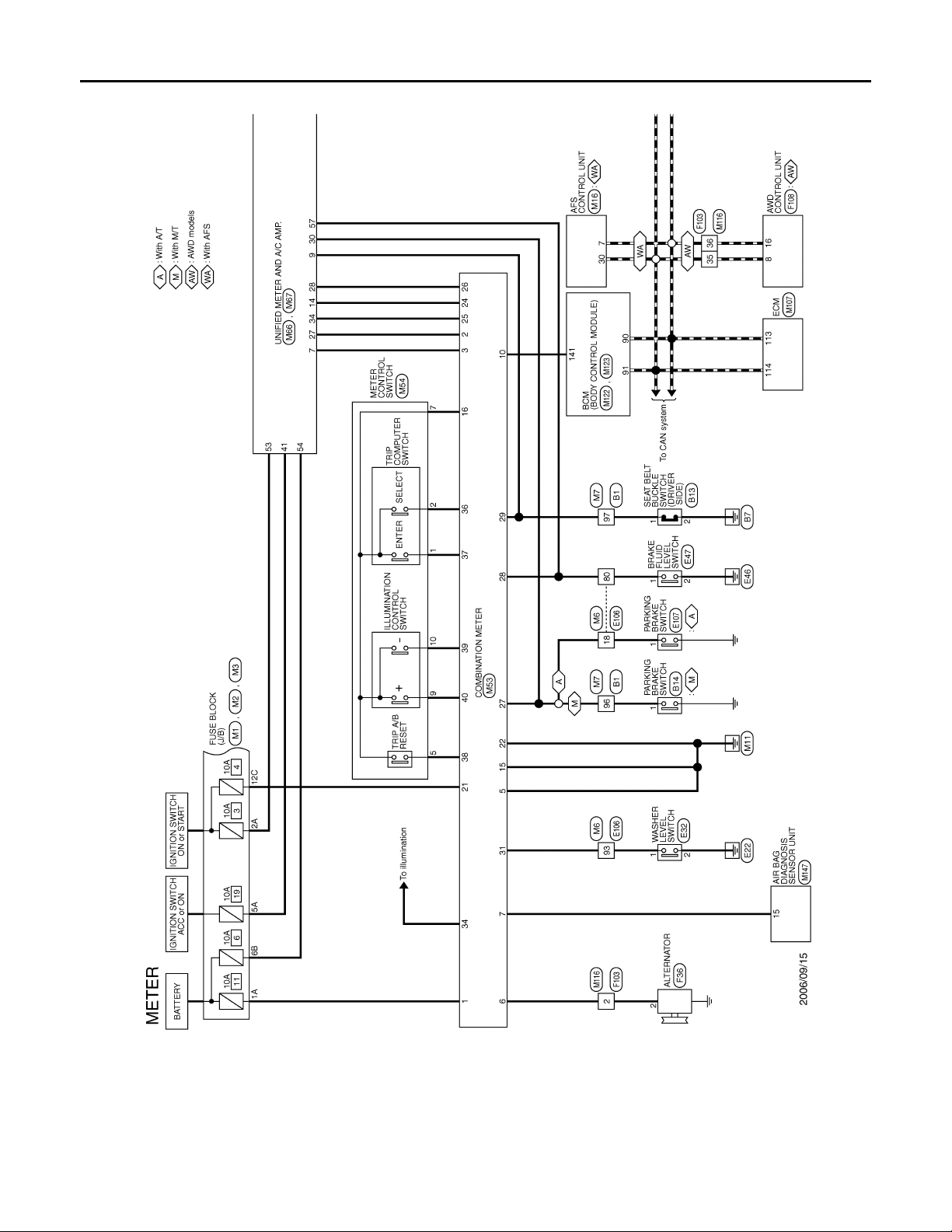

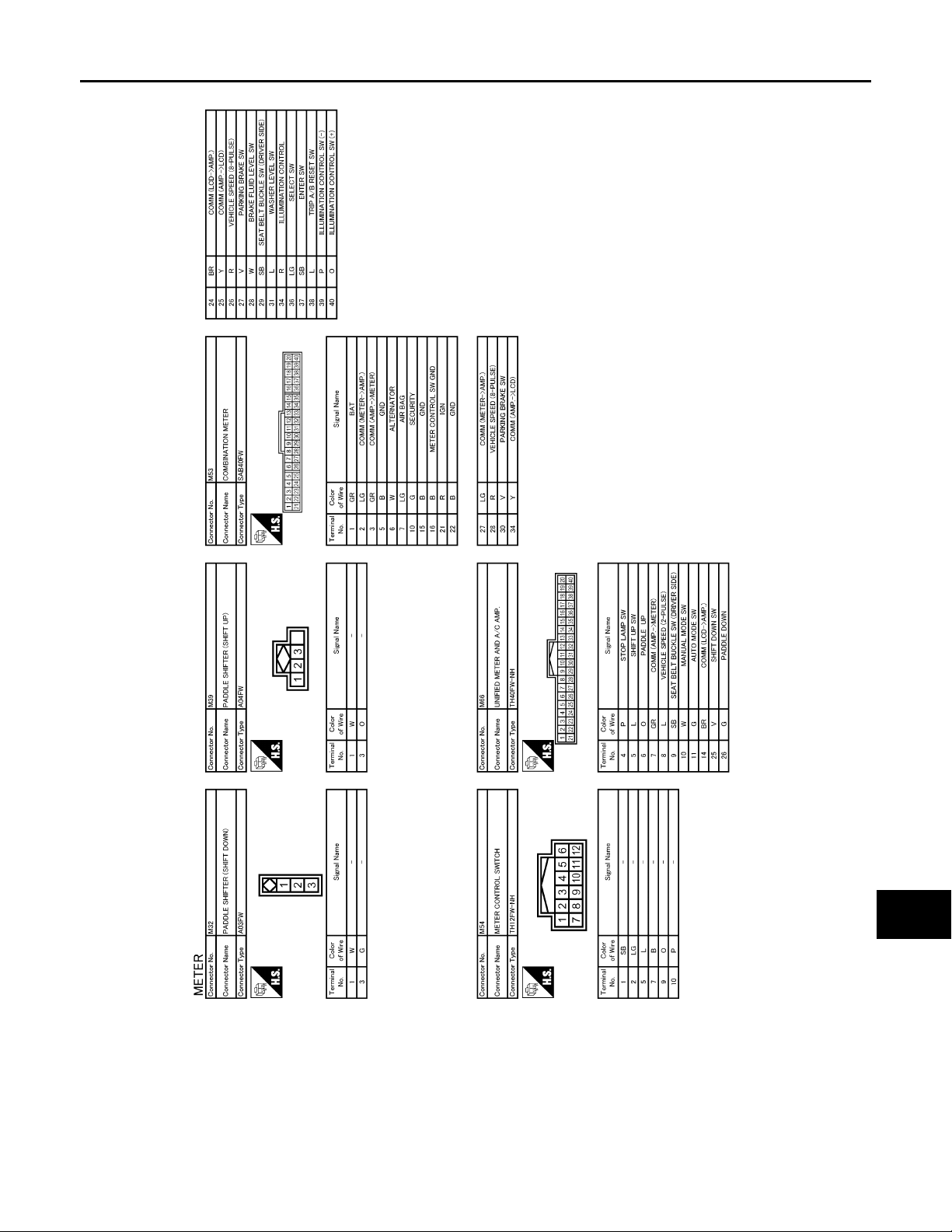

Wiring Diagram — METER — ................................ 30

Fail Safe ................................................................. 39

DTC Index .............................................................. 40

UNIFIED METER AND A/C AMP. ..................... 41

Reference Value ..................... ... ... ... ....................... 41

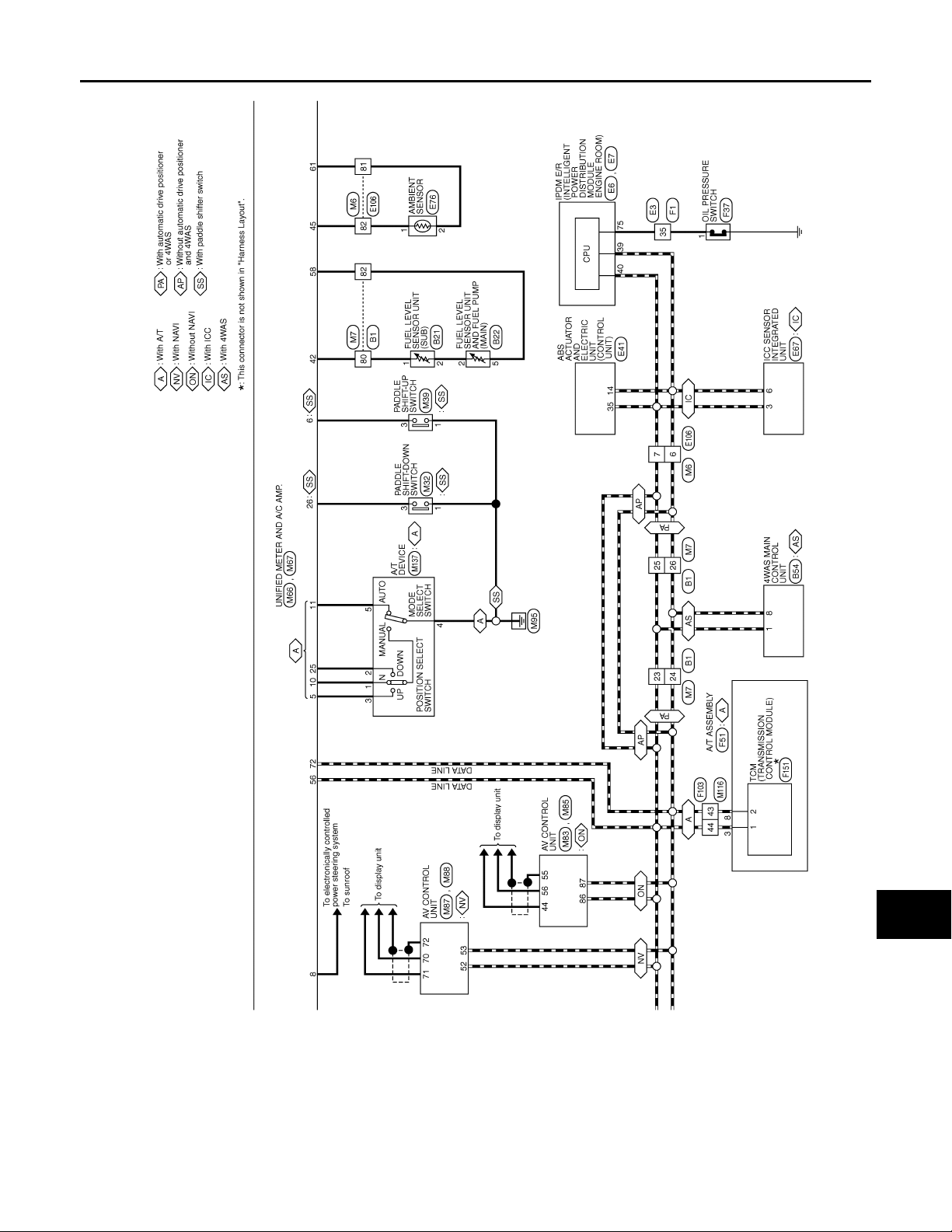

Wiring Diagram — METER — ................................ 48

Fail Safe ................................................................. 57

DTC Index .............................................................. 58

BCM (BODY CONTROL MODULE) ..................59

Reference Value ..................... ... ... ... ....................... 59

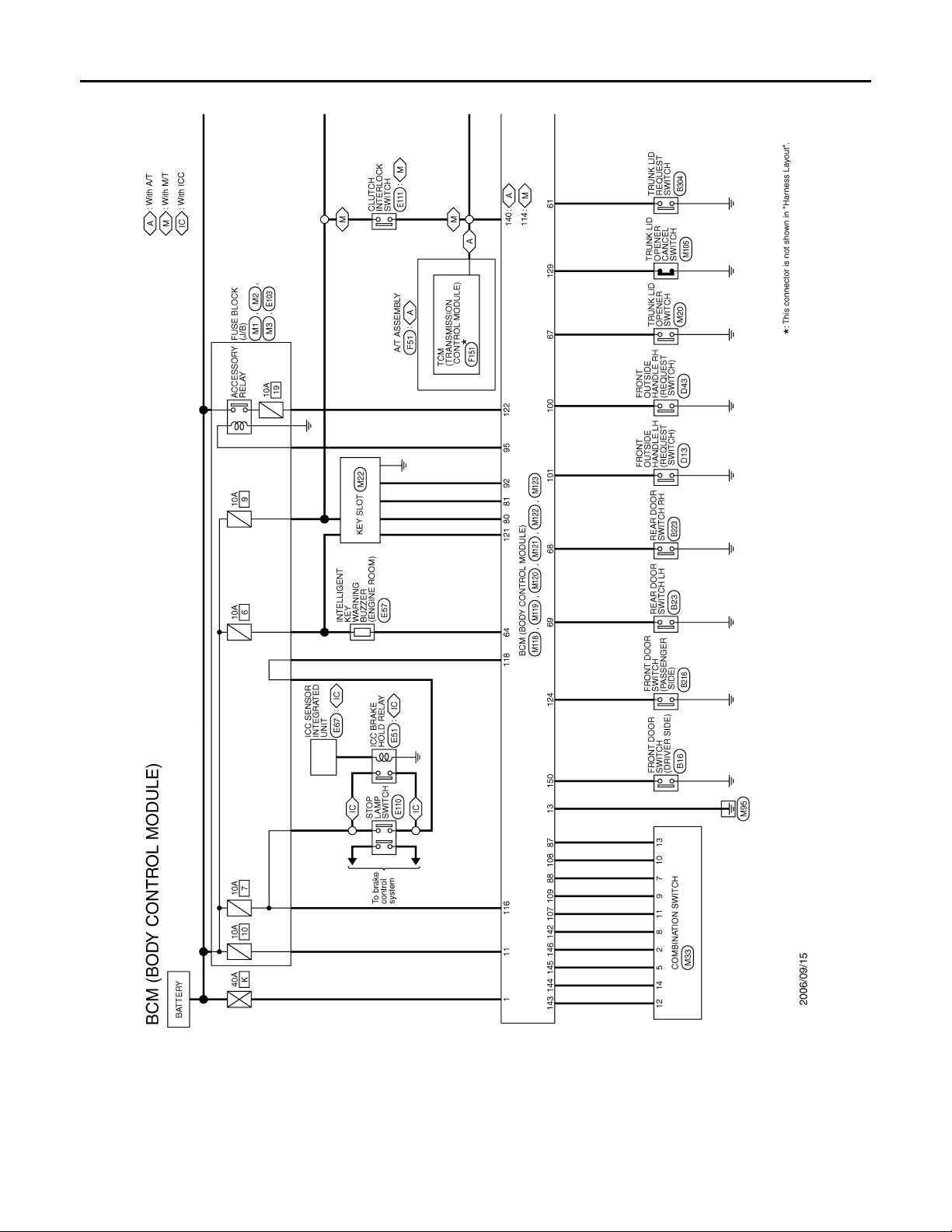

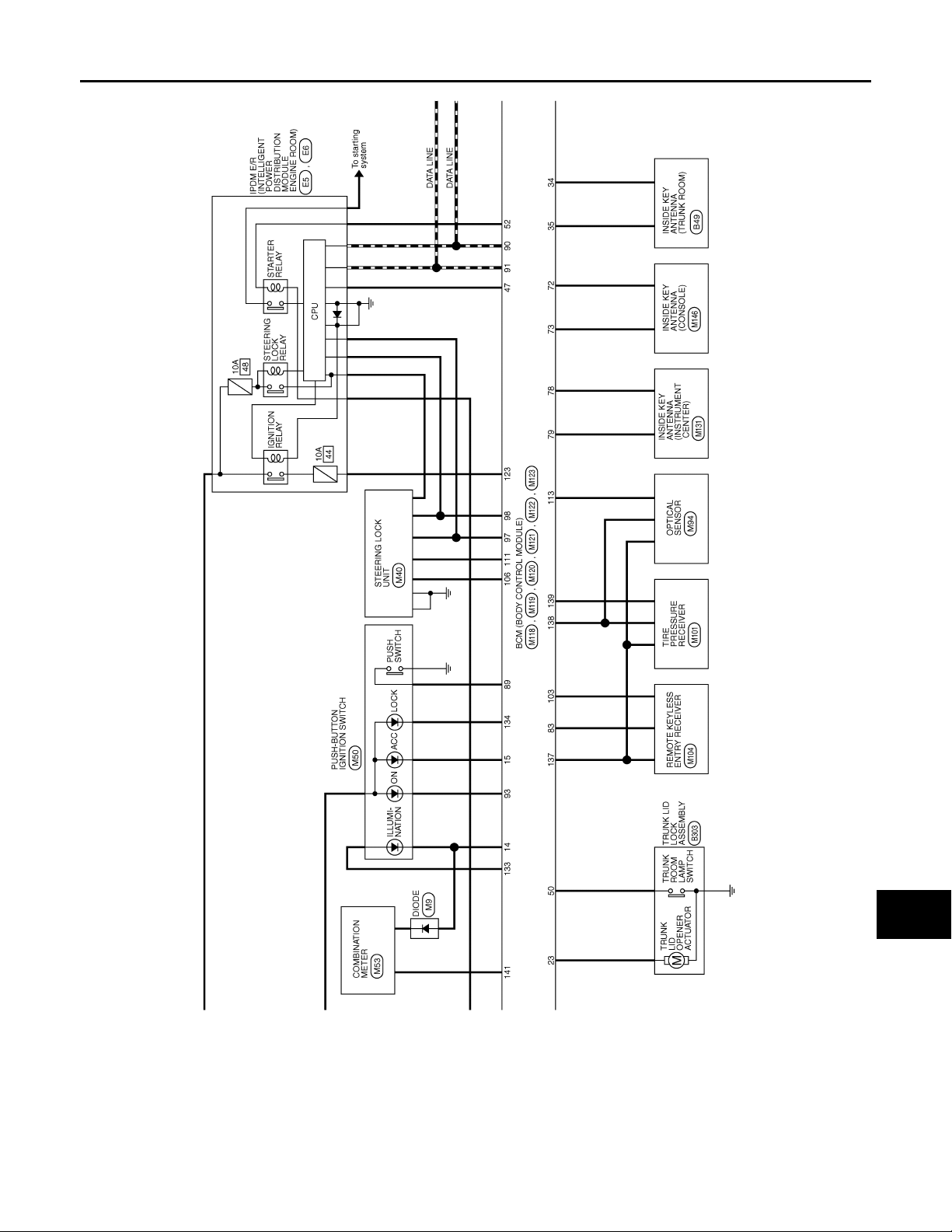

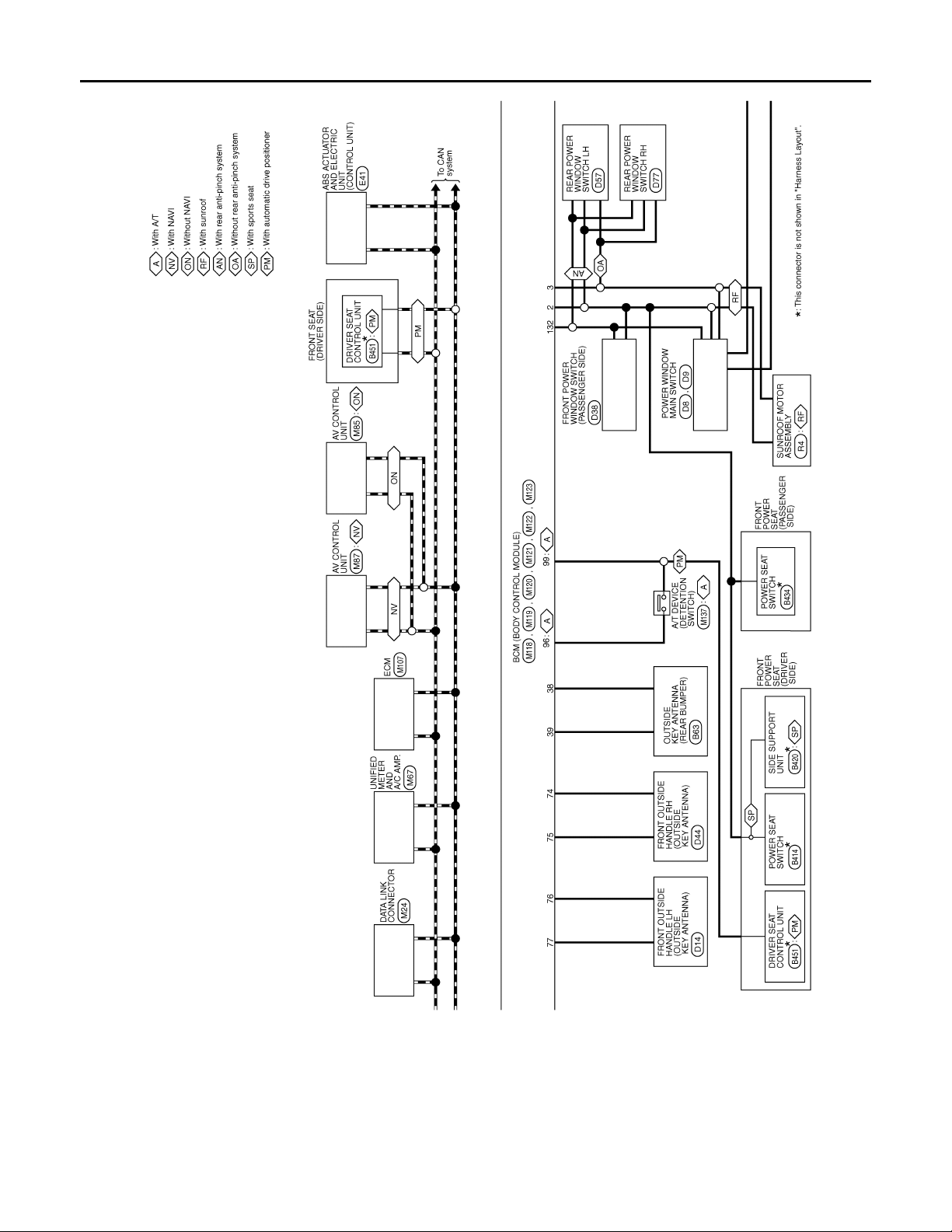

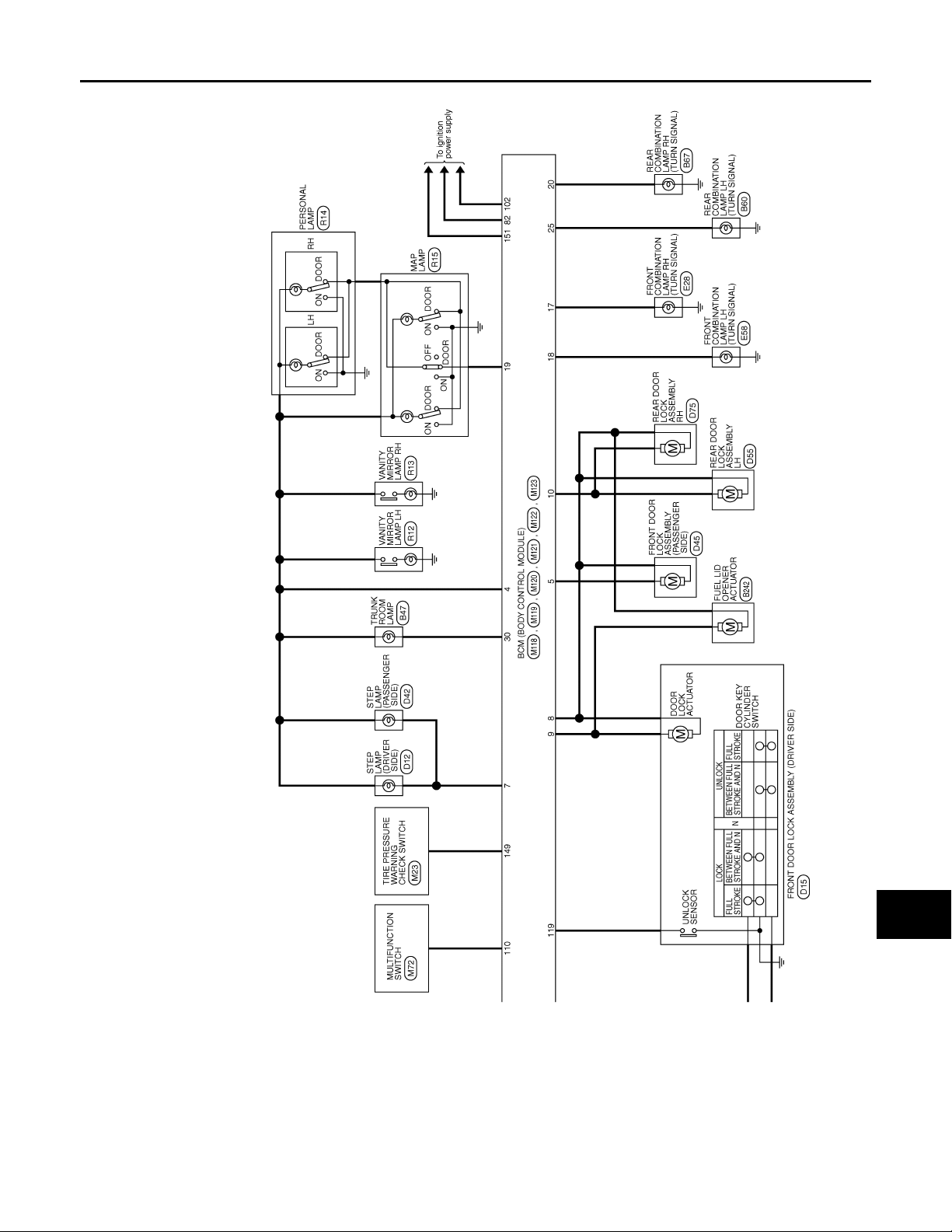

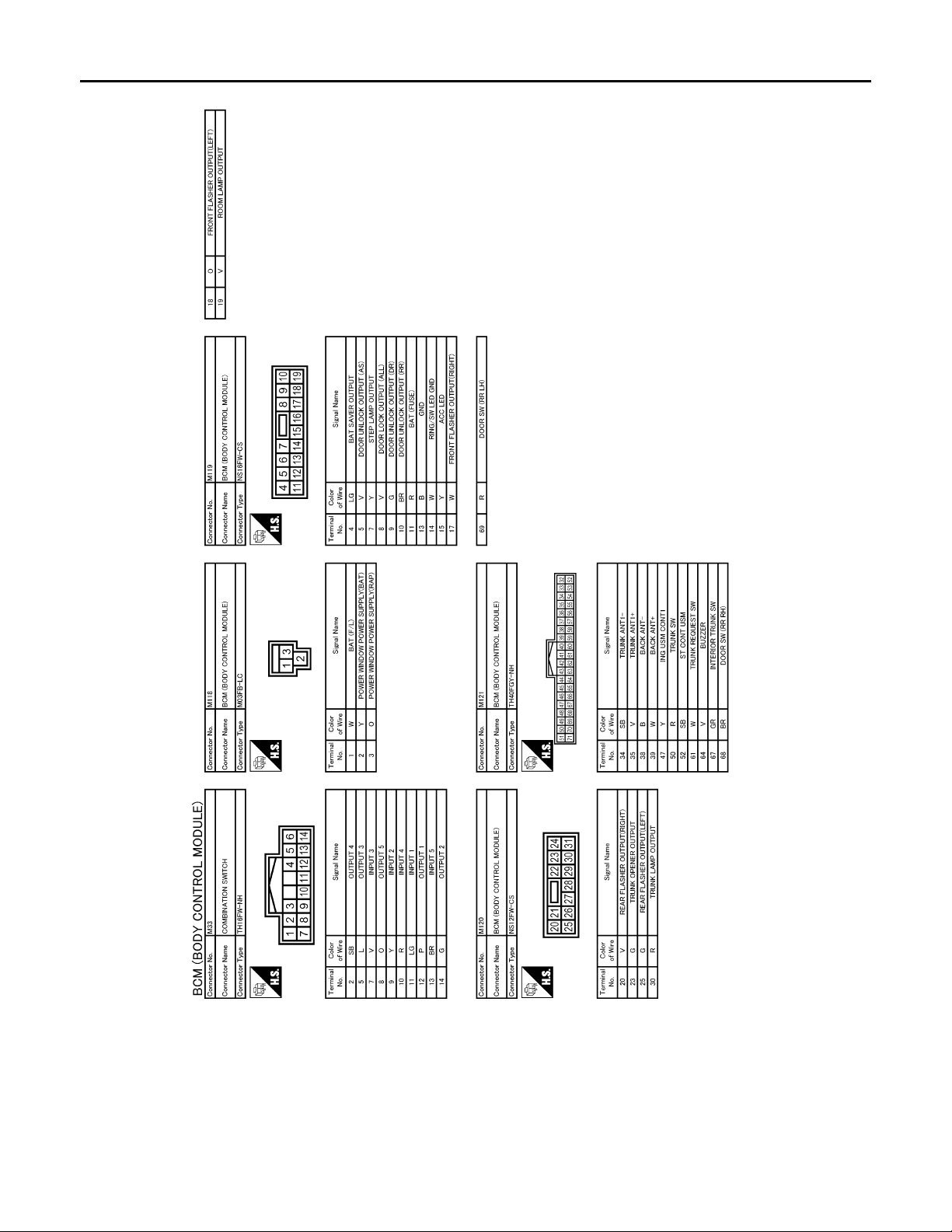

Wiring Diagram — BCM — . .................................... 82

Fail Safe .......................................... ....................... 87

DTC Inspection Priority Chart ...............................89

DTC Index ..............................................................90

SYMPTOM DIAGNOSIS ............................ 93

THE PARKING BRAKE RELEASE WARNING CONTINUES SOUNDING, OR DOES NOT

SOUND ..............................................................

Description ..............................................................93

Diagnosis Procedure ..... ... .......................................93

THE LIGHT REMINDER WARNING DOES

NOT SOUND ......................................................

Description ..............................................................94

Diagnosis Procedure ..... ... .......................................94

THE SEAT BELT WARNING CONTINUES

SOUNDING, OR DOES NOT SOUND ...............

Description ..............................................................95

Diagnosis Procedure ..... ... .......................................95

PRECAUTION ............................................ 96

AIR BAG (PATTERN 2) ..................................... 96

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TEN-

SIONER" ............................. ....................................

WCS-2

Page 3

< BASIC INSPECTION >

Revision: October 2006

2007 G35 Sedan

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow INFOID:0000000000964467

DETAILED FLOW

1.OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.

>> GO TO 2.

2.CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check that any other malfunctions are present.

>> GO TO 3.

3.CHECK CONSULT-III SELF-DIAGNOSIS RESULTS

Connect CONSULT-III and perform self-diagnosis. Refer to WCS-12, " Are self-diagnosis results normal?

YES >> GO TO 4. NO >> Repair or replace the malfunctioning parts and go to 5.

4.NARROW DOWN MALFUNCTIONING PARTS THROUGH SYMPTOM DIAGNOSIS

Perform symptom diagnosis and repair or replace the identified malfunctioning parts.

CONSULT-III Function (METER/M&A)".

>> GO TO 5.

5.FINAL CHECK

Check that the warning buzzer in the combination meter operates normally. Does it operate normally?

YES >> INSPECTION END NO >> GO TO 1.

WCS

WCS-3

Page 4

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

FUNCTION DIAGNOSIS

WARNING CHIME SYSTEM

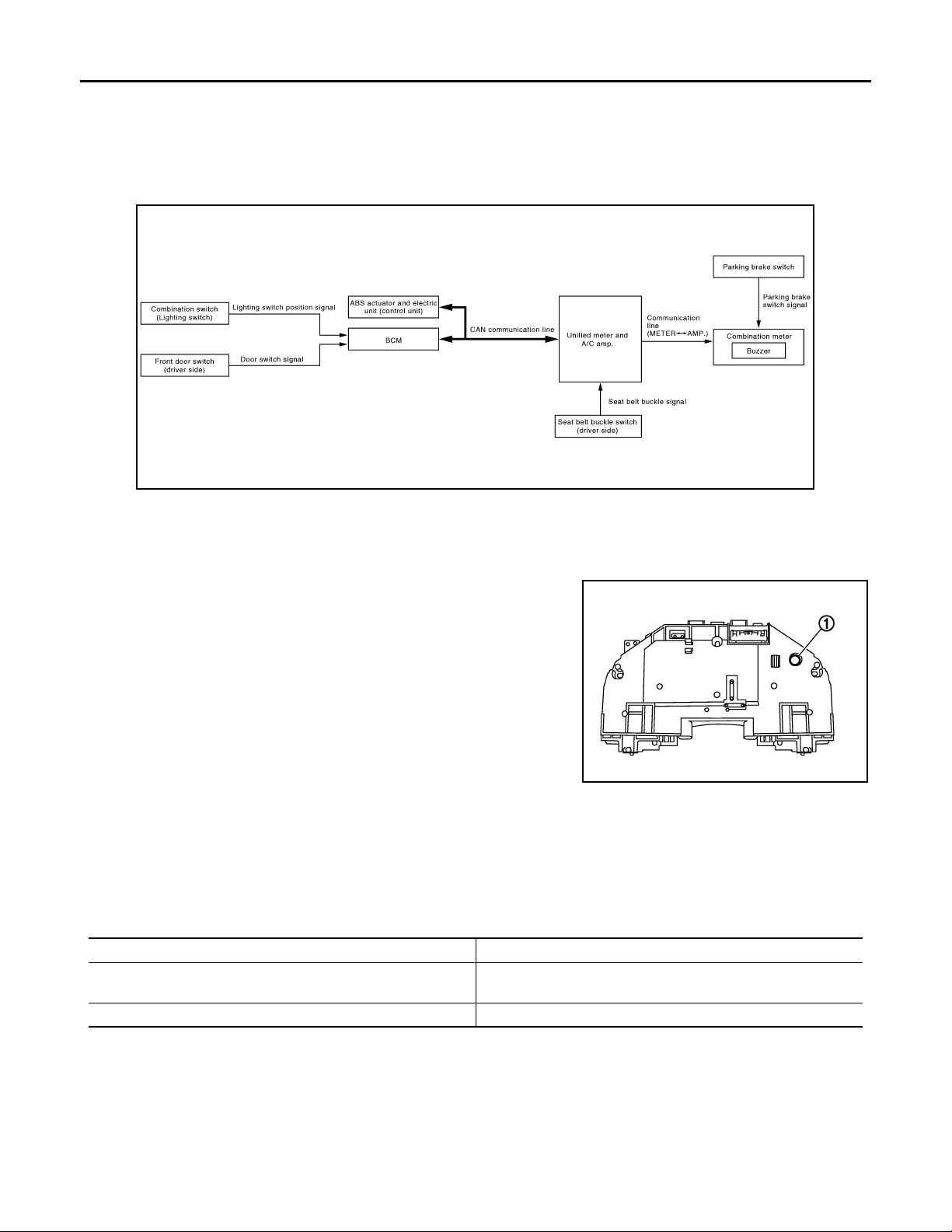

WARNING CHIME SYSTEM : System Diagram INFOID:0000000000964468

JSNIA0034GB

WARNING CHIME SYSTEM : System Description INFOID:0000000000964469

COMBINATION METER

• The buzzer (1) for warning chime system is installed in the combination meter.

• The buzzer sounds when the combination meter receives buzzer output signal from each unit through unified meter and A/C amp.

JSNIA0037GB

UNIFIED METER AND A/C AMP.

The unified meter and A/C amp. transmits the buzzer output signal received from BCM with CAN communication line to the combination meter.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the unified meter and A/C amp. with CAN communication line if it judges that the warning buzzer should be activated.

BCM warning function list

Warning functions Signal name Light reminder warning chime Seat belt warning chime Seat belt buckle switch signal

• Lighting switch position signal

• Door switch signal

WCS-4

Page 5

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

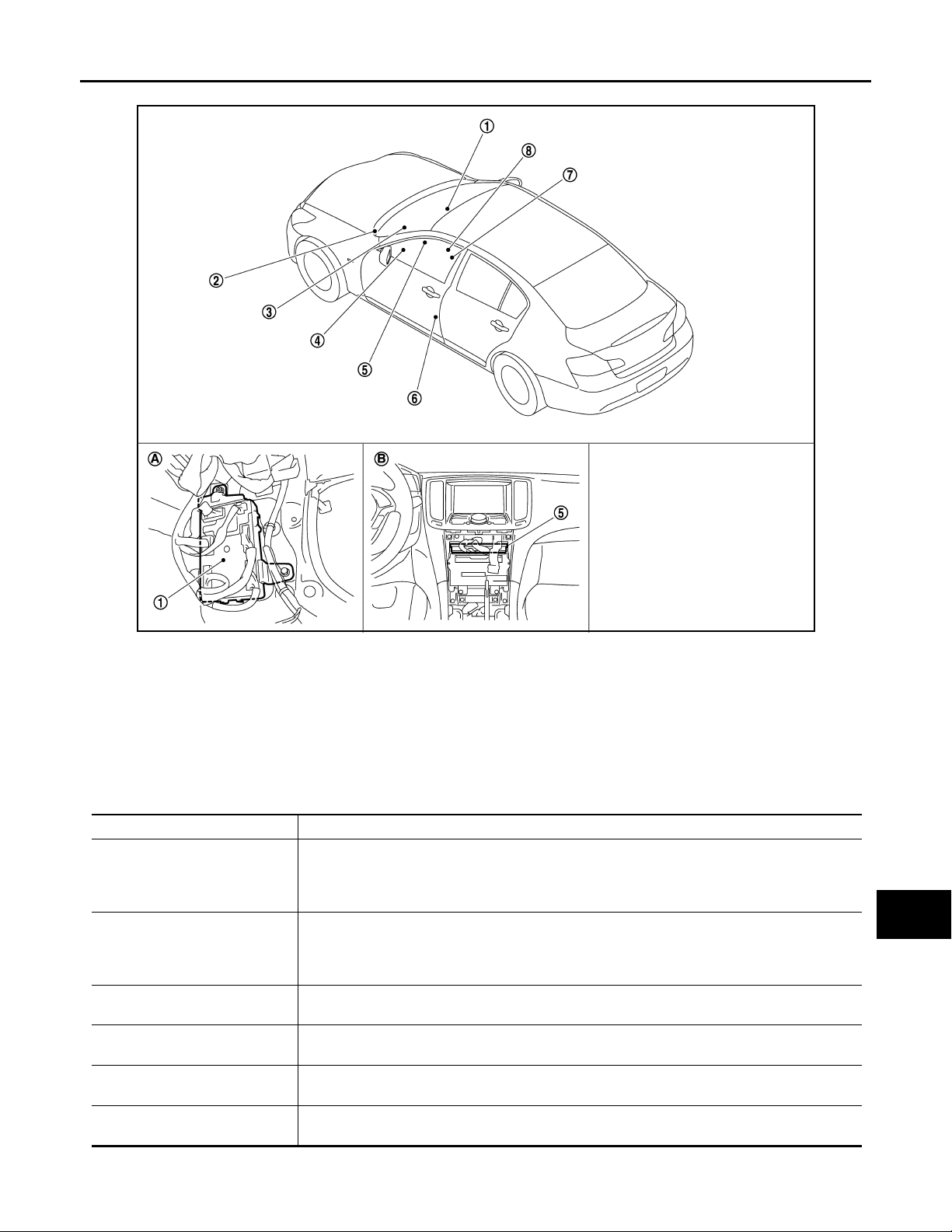

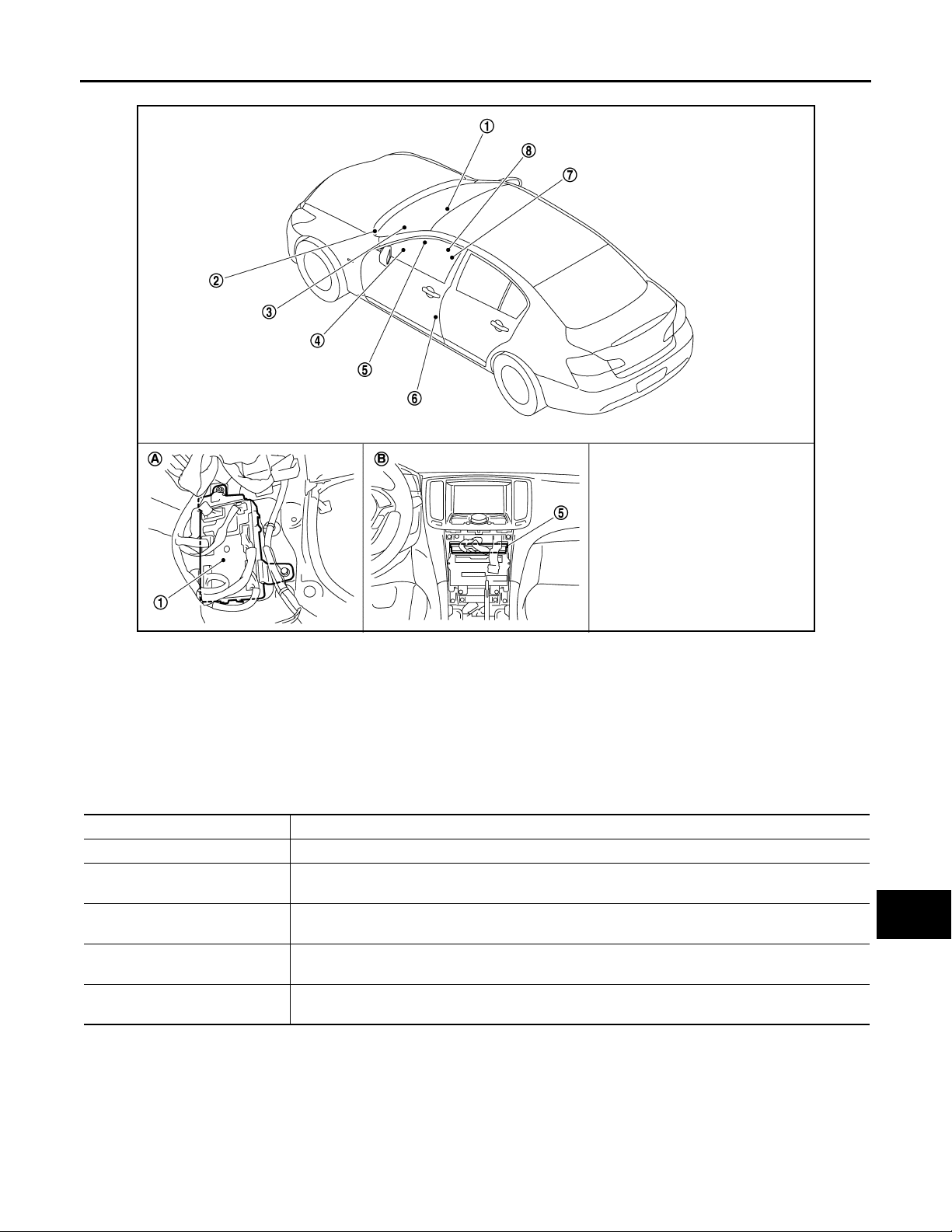

WARNING CHIME SYSTEM : Component Parts Location INFOID:0000000000964470

JSNIA0043ZZ

1. BCM 2. Parking brake switch (A/T) 3. Combination meter Combination switch

4. (Lighting switch)

7. Seat belt buckle switch 8. Parking brake switch (M/T)

A. Dash side lower (passenger side) B. Behind cluster lid C (back)

5. Unified meter and A/C amp. 6. Front door switch (driver side)

WARNING CHIME SYSTEM : Component Description INFOID:0000000000964471

Unit Description

• Receives a buzzer output signal from the uni fied met er and A/C a mp. and s ounds th e buzze r.

Combination meter

Unified meter and A/C amp.

BCM ABS actuator and electric unit

(control unit) Seat belt buckle switch (driver

side) Combination switch

(Lighting switch)

• Judges whether the parking brake is released from the vehicle speed signal received from the unified meter and A/C amp. with CAN com munication line an d the parking brake switch signal from the parking brake switch, and sounds the buzzer if necessary.

• Receives the seat belt buckle swit ch signal fro m the seat bel t buckle swit ch and transm its it to BCM with CAN communication line.

• Receives a buzzer output signal from BCM with CAN communication line and transmits it to the combination meter by means of communication line.

Transmits signals provided by various units to the unified meter and A/C amp. with CAN communication line.

Transmits the vehicle speed signal to BCM with CAN communication line.

Transmits a seat belt buckle switch signal to the unified meter and A/C amp.

Transmits the lighting switch position signal to BCM.

WCS

WCS-5

Page 6

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

Unit Description

Front door switch (driver side)

Parking brake switch Refer to MWI-59, "

Transmits the door switch signal to BCM.

Description".

LIGHT REMINDER WARNING CHIME

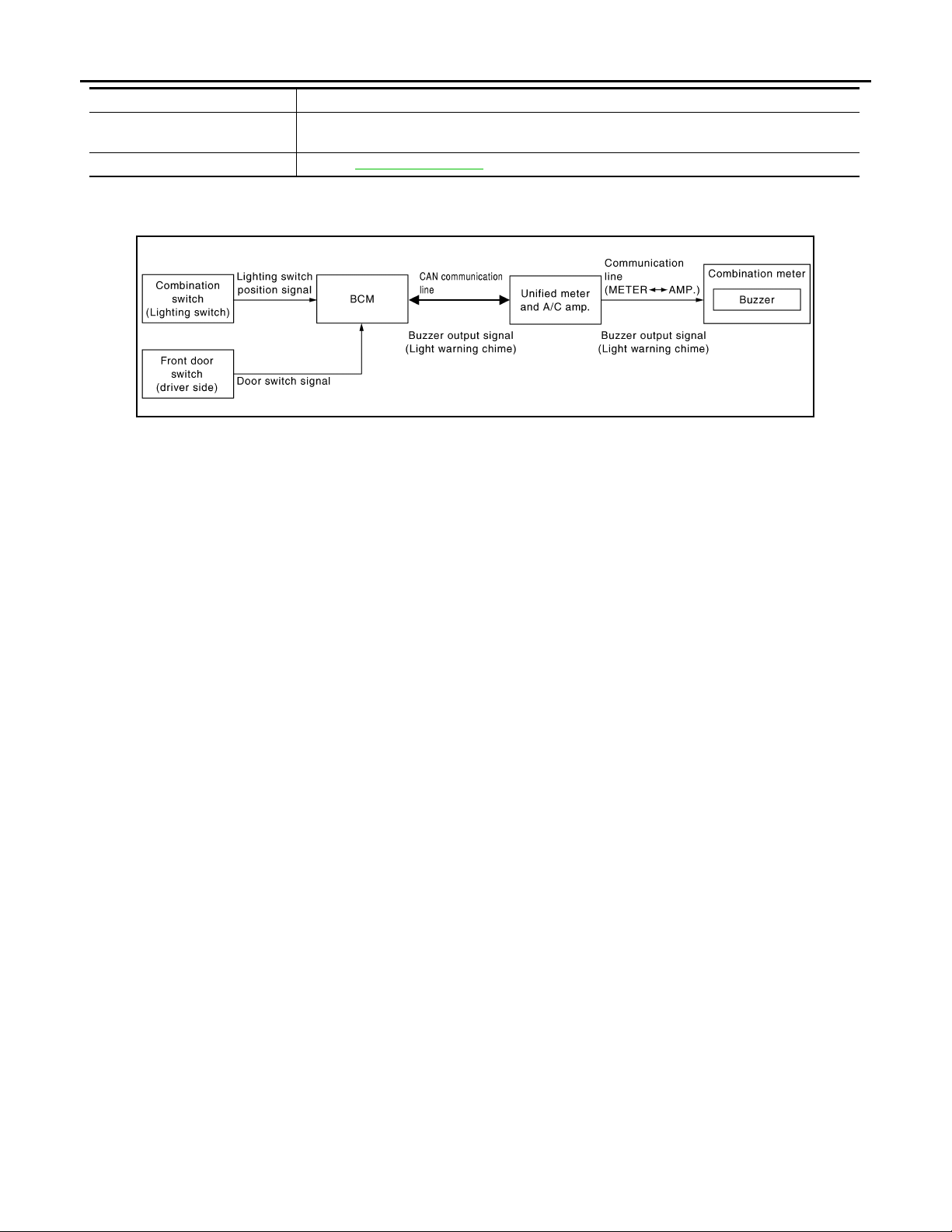

LIGHT REMINDER WARNING CHIME : System Diagram INFOID:0000000000964472

JSNIA0167GB

LIGHT REMINDER WARNING CHIME : System Description INFOID:0000000000964473

DESCRIPTION

With ignition switch in OFF or ACC position, driver door open, and lighting switch in 1ST or 2ND position, the light warning chime will sound.

• BCM detects ignition switch in OFF or ACC position, front door switch (dri ver side) ON, and l ighting switch in 1ST or 2ND position. And then transmits buzzer output signal (light reminder warning chime) to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits buzzer output signal (light reminder warning chime) to combination meter with communication line.

• When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer .

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Lighting switch is at 1st or 2nd position

• Ignition switch is at OFF or ACC

• Front door switch (driver side) is ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

• Lighting switch OFF

• Ignition switch ON

• Front door switch (driver side) is OFF

WCS-6

Page 7

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

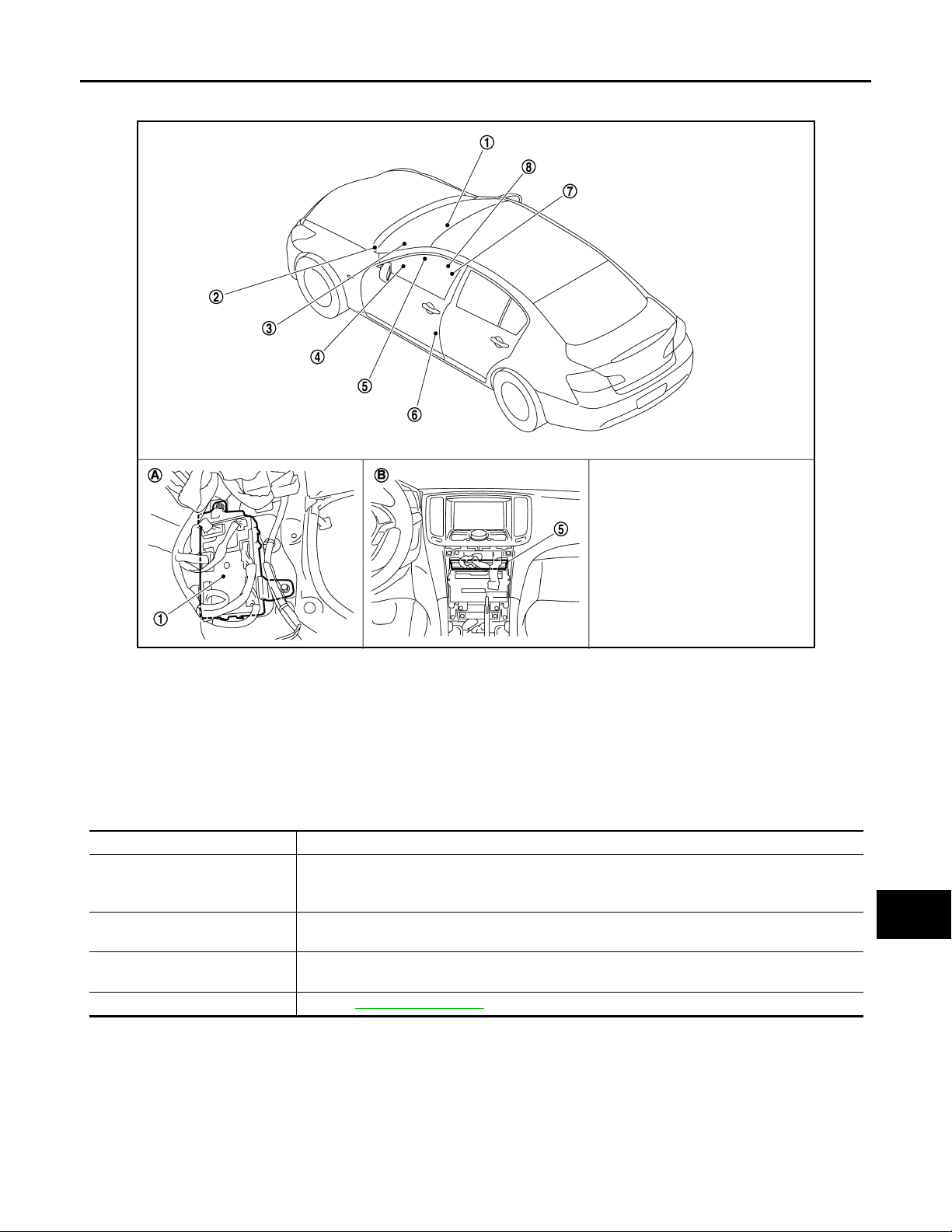

LIGHT REMINDER WARNING CHIME : Component Parts Location INFOID:0000000000964474

JSNIA0043ZZ

1. BCM 2. Parking brake switch (A/T) 3. Combination meter Combination switch

4. (Lighting switch)

7. Seat belt buckle switch 8. Parking brake switch (M/T)

A. Dash side lower (passenger side) B. Behind cluster lid C (back)

5. Unified meter and A/C amp. 6. Front door switch (driver side)

LIGHT REMINDER WARNING CHIME : Component Description INFOID:0000000000964475

Unit Description

Combination meter Receives a buzzer output signal from the unified meter and A/C amp. and sounds the buzzer. Unified meter and A/C amp.

BCM Combination switch

(Lighting switch) Front door switch

(driver side)

Receives a buzzer output sign al from BCM via CAN communica tion line and transmit s it to the combination meter by means of communication line .

Judges the light warning cond itions f rom the signals p rovide d by variou s switch es and t ransmi ts a buzzer output signal to the unified meter and A/C amp. via CAN communication line if necessary.

Transmits the lighting switch position signal to BCM.

Transmits the door switch signal to BCM.

WCS

SEAT BELT WARNING CHIME

WCS-7

Page 8

< FUNCTION DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

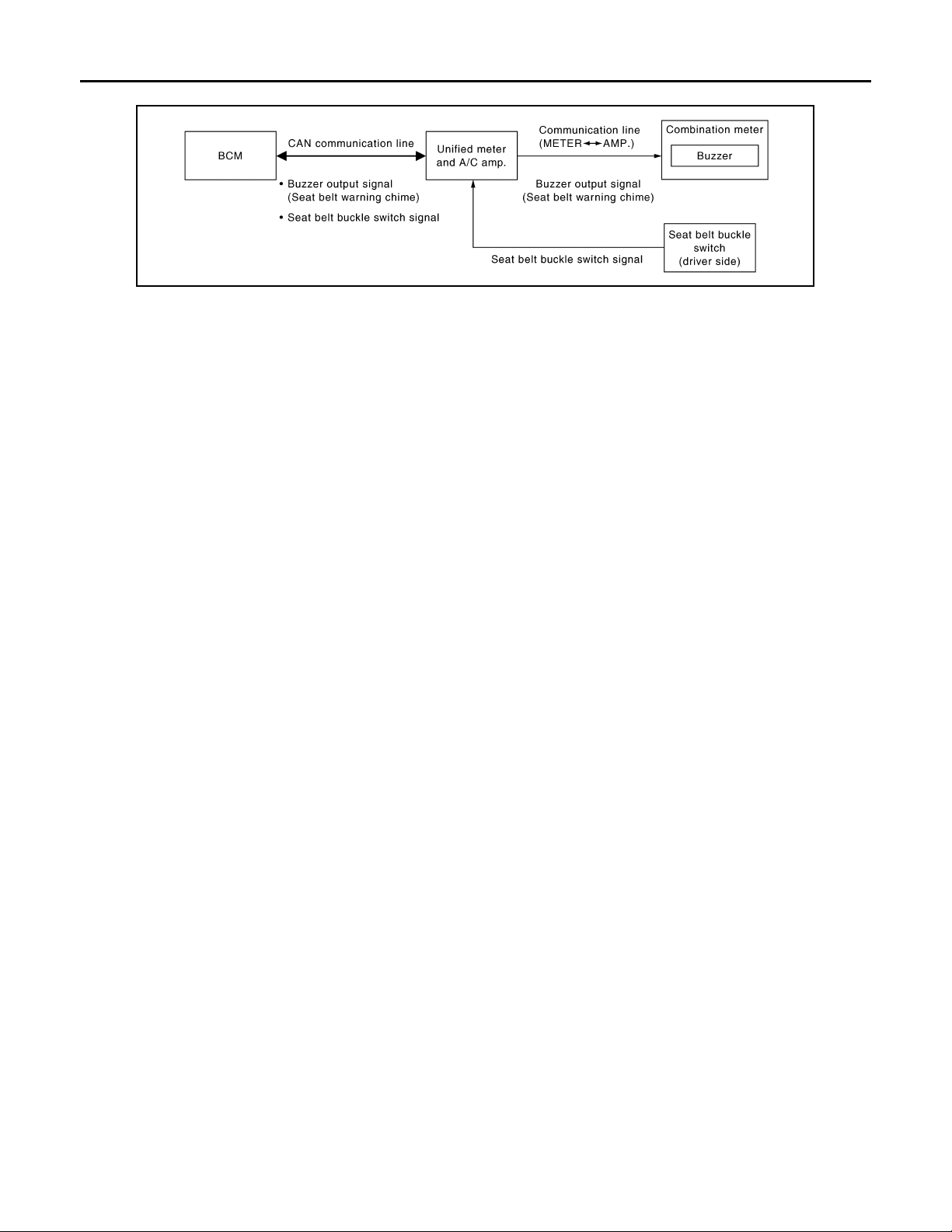

SEAT BELT WARNING CHIME : System Diagram

INFOID:0000000000964476

JSNIA0168GB

SEAT BELT WARNING CHIME : System Description INFOID:0000000000964477

DESCRIPTION

With ignition switch turned ON and driver seat belt unfastened, seat belt warning chime will sound for approximately 6 seconds.

• BCM receives seat belt buckle switch signal from unified meter and A/C amp. with CAN communication line.

• BCM detects ignition switch turned ON and seat belt buckle switch (driver side) ON. And then transmits buzzer output signal (seat belt warning chime) to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits buzzer output signal (seat belt warning chime) to combination meter with communication line.

• When combination meter receives buzzer output signal (seat belt warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Ignition switch OFF→ON

• Seat buckle switch (driver side) is ON (driver seat belt not fastened)

WARNING CANCEL CONDITIONS

Cancels the warning if any of the following conditions is fulfilled.

• Ignition switch OFF

• Seat buckle switch (driver side) is OFF (driver seat belt fastened)

• 90 seconds have passed since the start of the warning

WCS-8

Page 9

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

SEAT BELT WARNING CHIME : Component Parts Location INFOID:0000000000964478

JSNIA0043ZZ

1. BCM 2. Parking brake switch (A/T) 3. Combination meter Combination switch

4. (Lighting switch)

7. Seat belt buckle switch 8. Parking brake switch (M/T)

A. Dash side lower (passenger side) B. Behind cluster lid C (back)

5. Unified meter and A/C amp. 6. Front door switch (driver side)

SEAT BELT WARNING CHIME : Component Description INFOID:0000000000964479

Unit Description

Combination meter Receives a buzzer output signal from the unified meter and A/C amp. and sounds the buzzer.

• Receives the seat belt buckle switch signal from the seat belt buckle switch and transmits it to

Unified meter and A/C amp.

BCM

Seat belt buckle switch (driver side)

BCM via CAN communication line.

• Receives a buzzer output signal from BCM via CAN communication line and transmits it to the combination meter by means of communication line.

Judges the seat belt warning condition from the seat belt buckle switch signal received from the unified meter and A/C amp. and transmits a buzzer output signal to the unified meter and A/C amp via CAN communication line if necess ary.

Refer to WCS-21, "

Description".

PARKING BRAKE RELEASE WARNING CHIME

WCS

WCS-9

Page 10

< FUNCTION DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000000964480

JSNIA0036GB

PARKING BRAKE RELEASE WARNING CHIME : System Description INFOID:0000000000964481

DESCRIPTION

• The unified meter and A/C amp. receives the vehicle speed signal from the ABS actuator and electric unit (control unit) via CAN communication line and transmits it to the combination meter by means of communication line.

• The combination meter judges whether the parking brake is released from the vehicle speed signal received from the unified meter and A/C amp. and the parking brake switch signal from the parking brake switch, and sounds the warning buzzer if necessary.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Vehicle speed is 7 km/h (4.3 MPH) or higher

• Parking brake switch ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

• Vehicle speed is approximately 3 km/h (1.9 MPH) or less

• Parking brake switch OFF

WCS-10

Page 11

WARNING CHIME SYSTEM

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location

INFOID:0000000000964482

JSNIA0043ZZ

1. BCM 2. Parking brake switch (A/T) 3. Combination meter Combination switch

4. (Lighting switch)

7. Seat belt buckle switch 8. Parking brake switch (M/T)

A. Dash side lower (passenger side) B. Behind cluster lid C (back)

5. Unified meter and A/C amp. 6. Front door switch (driver side)

PARKING BRAKE RELEASE WARNING CHIME : Component DescriptionINFOID:0000000000964483

Unit Description

Judges whether the parking brake is released from the vehicle speed signal received from the

Combination meter

Unified meter and A/C amp. ABS actuator and electric unit

(control unit) Parking brake switch Refer to MWI-59, "

unified meter and A/C amp. via CAN communication line and the parking brake switch signal from the parking brake switch, and sounds the buzzer if necessary.

Receives a vehicle speed signal f rom ABS act ua tor a nd el e ctr ic un i t (con t rol uni t) via CAN c ommunication line and transmits it to the combination meter by means of communication line.

Transmits the vehicle speed signal to combination meter via CAN comm unication line.

Description".

WCS

WCS-11

Page 12

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

CONSULT-III Function (METER/M&A) INFOID:0000000000964484

CONSULT-III APPLICATION ITEMS

CONSULT-III can perform the following diagnosis modes with CAN communication with the unified meter and A/C amp.

System Diagnosis mode Description

METER/M&A

SELF DIAG RESULT

Refer to MWI-97, "DTC Index".

DATA MONITOR

Display Item List

Display item [Unit]

SPEED METER [km/h]

SPEED OUTPUT [km/h]

ODO OUTPUT [km/h or mph]

T A CHO METER [rpm]

FUEL METER [lit.]

W TEMP METER [°C]

ABS W/L [On/Off]

VDC/TCS IND [On/Off]

SLIP IND [On/Off]

BRAKE W/L [On/Off]

DOOR W/L [On/Off]

TRUNK/GLAS-H [On/Off]

Self Diagnostic Result Unified meter and A/C amp. checks the conditions and displays memorized error. Data Monitor Displays unified meter and A/C amp. input/output da ta in real time.

X: Applicable

MAIN

SIGNALS

Value of vehicle speed signal received from ABS actuator and electric unit (control

X Fuel level indicated on combination meter.

unit) with CAN communication line.

NOTE:

655.35 is displayed when the malfunction signal is received. Vehicle speed signal value transmitted to other units with CAN communication

line.

NOTE:

655.35 is displayed when the malfunction signal is received. Odometer signal value transmitted to other units with CAN communication line. Value of the engine speed signal received from ECM with CAN communication

line.

NOTE:

8191.875 is displayed when the malfunction signal is received.

Value of engine coolant temperature signal received from ECM with CAN communication line.

NOTE:

215 is displayed when the malfunction signal is input. Status of ABS warning lamp judged from ABS warning lamp signal received from

ABS actuator and electric unit (control unit) with CAN communication line. Status of VDC indicator lamp judged from VDC OFF indicator lamp sign al re-

ceived from ABS actuator and electric unit (control unit) with CAN communication line.

Status of slip indicator lamp judged from slip indicator lamp signal received from ABS actuator and electric unit (control unit) with CAN communication line.

Status of brake warning lamp judged from brake warning lamp signal received from ABS actuator and electric unit (control unit) with CAN communication line.

NOTE:

Displays “Off” if the brake warning lamp is illuminated when the valve check starts, the parking brake switch is turned ON or the b rake flui d level switch is turned ON.

Status of door warning judged from door switch signal received from BCM with CAN communication line.

Status of trunk warning judged from trunk switch signal received from BCM with CAN communication line.

Description

WCS-12

Page 13

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

Display item [Unit]

HI-BEAM IND [On/Off]

TURN IND [On/Off]

FR FOG IND [On/Off]

RR FOG IND [Off]

LIGHT IND [On/Off]

OIL W/L [On/Off]

MIL [On/Off]

CRUISE IND [On/Off]

SET IND [On/Off]

CRUISE W/L [On/Off]

BA W/L [Off]

ATC/T-AMT W/L [On/Off]

4WD W/L [On/Off]

4WD LOCK IND [Off]

FUEL W/L [On/Off]

WASHER W/L [On/Off]

AIR PRES W/L [On/Off]

KEY G/Y W/L [On/Off]

AFS OFF IND [On/Off]

4WAS/RAS W/L [On/Off]

LCD [B&P N, B&P I, ID NG, ROTAT, SFT P, INSRT, BATT, NO KY,OUTKY, LK WN, C&P N,C&P I]

ACC TARGET [On/Off]

ACC DISTANCE [Off, SHOR, MID, LONG]

ACC OWN VHL [On/Off]

ACC SET SPEED [On/Off]

MAIN

SIGNALS

Description

Statu s of high beam indicator lamp judged from high beam request signal receiv ed from BCM with CAN communication line.

Status of turn indicator lamp judged from turn indicator signal received from BCM with CAN communication line.

Status of front fog light indicator lamp judged from front fog light request signal received from BCM with CAN communication line.

This item is displayed, but cannot be monitored. Status of light indicator lamp judged from position light request signal received

from BCM with CAN communication line. Status of oil pressure warning lamp judged from oil pressure switch signal re-

ceived from IPDM E/R with CAN communication line. Status of malfunction indicator lamp judged from malfunctioning indicator lamp

signal received from ECM with CAN communication line. Status of CRUISE indicator judged from ASCD status signal received from ECM

with CAN communication line. Statu s of set indicator judg ed from ASCD SET indicator sign al received from ECM

with CAN communication line. Status of CRUISE warning lamp judged from ASCD status signal received from

ECM with CAN communication line. This item is displayed, but cannot be monitored. Status of A/T check warning lamp judged from A/T check indicator signal received

from TCM with CAN communication line. Status of A WD warning lamp judged from AWD warning lamp signal received from

AWD control unit with CAN communication line. This item is displayed, but cannot be monitored.

Low-fuel warning stat us judged by the identified fuel level. Status of washer warning lamp judged from washer level switch input to combina-

tion meter. Status of tire pressure warning lamp judged from tire pressure signal received

from BCM with CAN communication line. Status of key warning lamp (G/Y) judged from key warning signal received from

BCM with CAN communication line. Statu s of AFS OFF indicat or lamp judged from AFS OFF indicato r lamp signal re-

ceived from AFS control unit with CAN communication line. Status of 4WAS warning lamp judged from 4WAS warning lamp signal received

from 4WAS main control unit with CAN communication line.

Displays status of In telligent Key system warning judged from meter display si gnal received from BCM with CAN communication line.

Status of vehicle ahead detection indicator judged from meter display signal received from ICC sensor integrated unit with CAN communication line.

Status of set distance indicator judged from meter displ ay signal received from ICC sensor integrated unit with CAN communication line.

Status of own vehicle indicator judged from meter display signal received from ICC sensor integrated unit with CAN communication line.

Status of set vehicle speed indicator judged from meter display signal received from ICC sensor integrated unit with CAN communication line.

WCS

WCS-13

Page 14

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

Display item [Unit]

ACC UNIT [On/Off]

SHIFT IND [P, R, N, D, M1, M2, M3, M4, M5]

AT S MODE SW [On/Off]

AT P MODE SW [On/Off]

M RANGE SW [On/Off]

NM RANGE SW [On/Off]

AT SFT UP SW [On/Off]

AT SFT DWN SW [On/Off]

ST SFT UP SW [On/Off]

ST SFT DWN SW [On/Off]

COMP FB SIG [On/Off]

4WD LOCK SW [Off]

PKB SW [On/Off]

BUCKLE SW [On/Off]

BRAKE OIL SW [On/Off]

DISTANCE [km]

OUTSIDE TEMP [°C or °F]

FUEL LOW SIG [On/Off]

BUZZER [On/Off]

NOTE:

Some items are not available according to vehicle specification.

MAIN

SIGNALS

Status of display unit judged from meter display signal received from ICC sensor integrated unit with CAN communication line.

Status of A/T position indi cator judged from shif t position sign al and manual mode indicator signal received from TCM with CAN communication line.

Status of snow mode switch.

This item is displayed, but cannot be monitored.

Stat us of manual mode switch.

Stat us of not manual mode switch.

Status of A/T shift up switch.

Stat us of A/T shift down switch.

Status of paddle shifter up switch.

Status of paddle shifter down switch. A/C compressor activation condition that ECM judges according to the water tem-

perature and the acceleration degree. This item is displayed, but cannot be monitored.

Stat us of parking brake switch.

Stat us of seat belt buckle switch.

Status of brake fluid level switch.

Value of possible driving distance calculated by unified meter and A/C amp. Ambient temperature value converted from ambient sensor signal received from

ambient sensor.

NOTE:

This may not match with the temperature value indicated on the information display. (Because the information display value is a corrected value from the ambient sensor input value.)

Status of fuel level low warning signal to output to AV control unit with CAN communication line.

Buzzer status (in the combination meter) is judged with the buzzer output signal received from each unit with CAN commun ication line and the warning o utput condition of the combination meter.

Description

WCS-14

Page 15

< FUNCTION DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM) INFOID:0000000000964485

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode Function Description WORK SUPPORT Changes the setting for each system function. SELF-DIAG RESULTS Displays the diagnosis results judged by BCM. Refer to BCS-74, " CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from BCM. DATA MONITOR The BCM input/output signals are displayed. ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM. ECU IDENTIFICATION The BCM part number is displayed. CONFIGURATION This function is not used even though it is displayed.

DTC Index".

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

System Sub system selection item

Door lock DOOR LOCK ××× Rear window defogger REAR DEFOGGER ×× Warning chime BUZZER ×× Interior room lamp timer INT LAMP ××× Exterior lamp HEAD LAMP ××× Wiper and washer WIPER ××× Turn signal and hazard warning lamps FLASHER ××× Air conditioner* AIR CONDITONER × Intelligent Key system INTELLIGENT KEY ××× Combination switch COMB SW × BCM BCM × IVIS - NATS IMMU ×× Interior room lamp battery saver BATTERY SAVER ××× Trunk open TRUNK × Vehicle security system THEFT ALM ××× RAP system RETAINED PWR × Signal buffer system SIGNAL BUFFER ××

TPMS

*: This item is displayed, but is not used.

TPMS (AIR PRESSURE MONITOR)

WORK SUPPORT DATA MONITOR ACTIVE TEST

×××

Diagnosis mode

BUZZER

WCS

BUZZER : CONSULT-III Function (BCM - BUZZER) INFOID:0000000000964486

CONSULT-III APPLICATION ITEMS

WCS-15

Page 16

DIAGNOSIS SYSTEM (BCM)

Revision: October 2006

2007 G35 Sedan

< FUNCTION DIAGNOSIS >

Test item Diagnosis mode Description

BUZZER

DATA MONITOR

Data Monitor Displays BCM input data in real time. Active Test Operation of electrical load s can be checked by sending driving signal to them.

Display item

[Unit]

VEH SPEED 1 [Km/h]

PUSH SW [On/Off]

UNLK SEN-DR [On/Off]

KEY SW-SLOT [On/Off]

TAIL LAMP SW [On/Off]

FR FOG SW [On/Off]

DOOR SW-DR [On/Off]

Value of vehicle speed signal received from ABS actuator and electric unit (control unit) with CAN communication line.

Status of push button ignition switch judged by BCM.

Status of unlock sensor judged by BCM.

Status of key slot judged by BCM.

Stat us of each switch judged by BCM using the combination switch readout function.

Status of front fog lamp switch judged by BCM.

Status of driver side door switch judged by BCM.

Description

ACTIVE TEST

Display item

[Unit] IGN KEY WARN ALM The key warning chime operation can be checked by operating the relevant function (On/Off). SEAT BELT WARN TEST The seat belt warning chime operation can be checked by operating the relevant function (On/Off). ID REGIST WARNING The ID regist warning chime operation can be checked by operating the relevant function (On/Off). LIGHT WARN ALM The light warning chime operation can be checked by operating the relevant function (On/Off). RUN FLAT/T WARN BUZZER The run-flat tire warning chime operation can be checked by operating the relevant function (On/Off).

Description

WCS-16

Page 17

POWER SUPPLY AND GROUND CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER

COMBINATION METER : Diagnosis Procedure INFOID:0000000000964487

1.CHECK FUSE

Check for blown fuses.

Power source Fuse No.

Battery 11

Ignition switch ON or START 4

Is the inspection result normal?

YES >> GO TO 2. NO >> Be sure to eliminate cause of malfunction before installing new fuse.

2.CHECK POWER SUPPLY CIRCUIT

Check voltage between combination meter harness connector M53 terminals 1, 21 and ground.

Terminal No. Signal name Ignition switch position Value (Approx.)

1 Battery power supply OFF Battery voltage

21 Ignition signal ON Battery voltage

Is the inspection result normal?

YES >> GO TO 3. NO >> Check harness between combination meter and fuse.

3.CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter connector.

3. Check continuity between combination meter harness connector M53 terminals 5, 15, 22 and ground.

5, 15, 22 - Ground : Continuity should exist.

Is the inspection result normal?

YES >> INSPECTION END NO >> Repair harness or connector.

UNIFIED METER AND A/C AMP.

UNIFIED METER AND A/C AMP. : Diagnosis Procedure INFOID:0000000000964488

1.CHECK FUSE

Check for blown fuses.

Is the inspection result normal?

YES >> GO TO 2. NO >> Be sure to eliminate cause of malfunction before installing new fuse.

2.CHECK POWER SUPPLY CIRCUIT

Check voltage between unified meter and A/C amp. harness connector M67 terminals 54, 41, 53 and ground.

Power source Fuse No.

Battery 6

Ignition switch ACC or ON 19

Ignition switch ON or START 3

WCS-17

WCS

Page 18

POWER SUPPLY AND GROUND CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

Terminal No. Signal name Ignition switch position Value (Approx.)

54 Battery power supply OFF Battery voltage

41 ACC power supply ACC Battery voltage

53 Ignition signal ON Battery voltage

Is the inspection result normal?

YES >> GO TO 3. NO >> Check harness between unified meter and A/C amp. and fuse.

3.CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect unified meter and A/C amp. connector.

3. Check continuity between unified meter and A/C amp. harness connector M67 terminals 55, 71 and ground.

55, 71 - Ground : Continuity should exist.

Is the inspection result normal?

YES >> INSPECTION END NO >> Repair harness or connector.

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE) : Diagnosis Procedure INFOID:0000000000964489

1.CHECK FUSE AND FUSIBLE LINK

Check that the following fuse and fusible link are not blown.

Terminal No. Signal name Fuse and f usible link No.

11 10

Is the fuse fusing?

YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO >> GO TO 2.

Battery power supply

2.CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connectors.

3. Check voltage between BCM harness connector and ground.

Terminals

(+) (−)

BCM

Connector Terminal

M118 1 M119 11

Is the measurement value normal?

YES >> GO TO 3. NO >> Repair harness or connector.

Ground

Voltage

(Approx.)

Battery voltage

3.CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

WCS-18

Page 19

POWER SUPPLY AND GROUND CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

BCM

Connector Terminal

M119 13 Existed

Ground

Continuity

Does continuity exist?

YES >> INSPECTION END NO >> Repair harness or connector.

BCM (BODY CONTROL MODULE) : Special Repair Requirement INFOID:0000000000964490

1.REQUIRED WORK WHEN REPLACING BCM

Initialize IVIS by CONSULT-III. For the details of initialization refer to CONSULT-III operation manual NATSIVIS/NVIS.

>> Work end.

WCS

WCS-19

Page 20

METER BUZZER CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

METER BUZZER CIRCUIT

Description INFOID:0000000000964491

• The buzzer for warning chime system is installed in the combination meter.

• The combination meter sounds the alarm buzzer based on the signals transmitted from various units.

Component Function Check INFOID:0000000000964492

1.CHECK OPERATION OF METER BUZZER

1. Select “BUZZER” of “BCM” on CONSULT-III.

2. Perform “LIGHT WARN ALM” of “ACTIVE TEST”.

Does meter buzzer beep?

YES >> INSPECTION END NO >> GO TO 2.

2.CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “BUZZER” monitor value.

BUZZER Under the condition of buzzer input : ON Except above : OFF

Is the inspection result normal?

YES >> Replace combination meter. NO >> Replace BCM. Refer to BCS-79, "

Removal and Installation".

Diagnosis Procedure INFOID:0000000000964493

1.CHECK POWER SUPPLY OF COMBINATION METER

Check power supply of combination meter. Refer to WCS-17, "

dure".

Is the inspection result normal?

YES >> GO TO 2. NO >> Repair power supply circuit of combination meter.

COMBINATION METER : Diagnosis Proce-

2.CHECK BATTERY POWER SUPPLY OF UNIFIED METER AND A/C AMP.

Check battery power supply of unified meter and A/C amp. Refer to WCS-17, "

AMP. : Diagnosis Procedure".

Is the inspection result normal?

YES >> INSPECTION END NO >> Repair power supply circuit of unified meter and A/C amp.

UNIFIED METER AND A/C

WCS-20

Page 21

SEAT BELT BUCKLE SWITCH SIGNAL CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

SEAT BELT BUCKLE SWITCH SIGNAL CIRCUIT

Description INFOID:0000000000964494

Transmits a seat belt buckle switch signal to the unified meter and A/C amp.

Component Function Check INFOID:0000000000964495

1.CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “BUCKLE SW” monitor value.

BUCKLE SW When seat belt is fastened : OFF When seat belt is unfastened : ON

>> INSPECTION END

Diagnosis Procedure INFOID:0000000000964496

1.CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between unified meter and A/C amp. harness connector M66 terminal 9 and ground.

9 - Ground When driver seat belt is fas-

tened When driver seat belt is unfas-

tened

Is the inspection result normal?

YES >> Replace unified meter and A/C amp. NO >> GO TO 2.

: Approx. 12 V

: Approx. 0 V

2.CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect unified meter and A/C amp. connector and seat belt buckle switch (driver side) connector.

3. Check continuity between unified meter and A/C amp. harness connector M66 terminal 9 and seat belt buckle switch (driver side) harness connector B13 terminal 1.

9 - 1 : Continuity should exist.

4. Check harness continuity between unified meter and A/C amp. harness connector M66 terminal 9 and ground.

9 - Ground : Continuity should not exist.

Is the inspection result normal?

YES >> GO TO 3. NO >> Repair harness or connector.

3.CHECK SEAT BELT BUCKLE SWITCH GROUND CIRCUIT

Check harness continuity between seat belt buckle switch (driver side) harness connector B13 terminal 2 and ground.

2 - Ground : Continuity should exist.

Is the inspection result normal?

YES >> INSPECTION END NO >> Repair harness or connector.

Component Inspection INFOID:0000000000964497

WCS-21

WCS

Page 22

SEAT BELT BUCKLE SWITCH SIGNAL CIRCUIT

Revision: October 2006

2007 G35 Sedan

< COMPONENT DIAGNOSIS >

1.CHECK SEAT BELT BUCKLE SWITCH UNIT

1. Turn ignition switch OFF.

2. Disconnect the seat belt buckle switch connector.

3. Check continuity between terminals 1 and 2.

1– 2 When seat belt is fastened : Continuity should not exist. When seat belt is unfastened : Continuity should exist.

Is the inspection result normal?

YES >> INSPECTION END NO >> Replace the seat belt buckle. Refer to SB-7, "

SEAT BELT BUCKLE : Removal and Installation".

WCS-22

Page 23

< COMPONENT DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

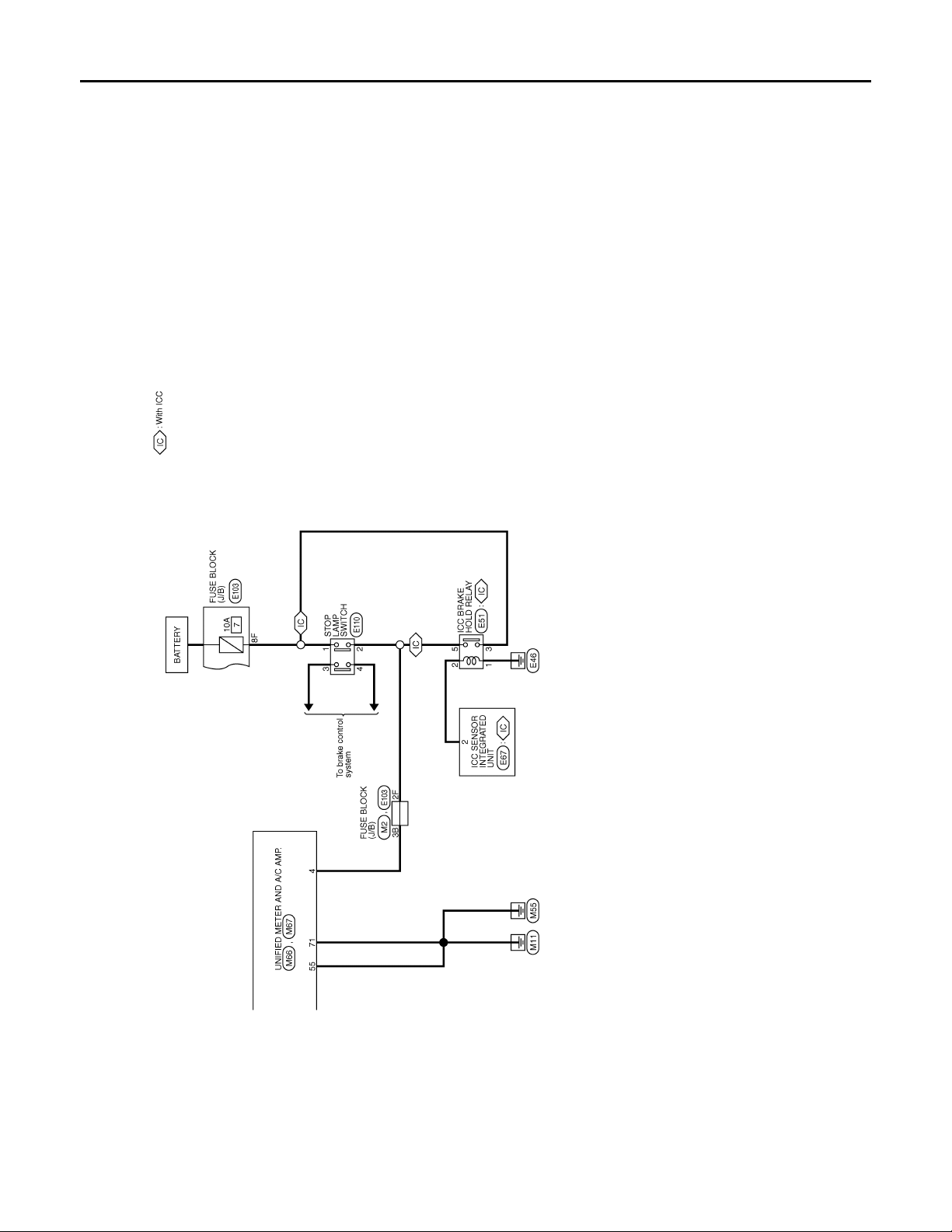

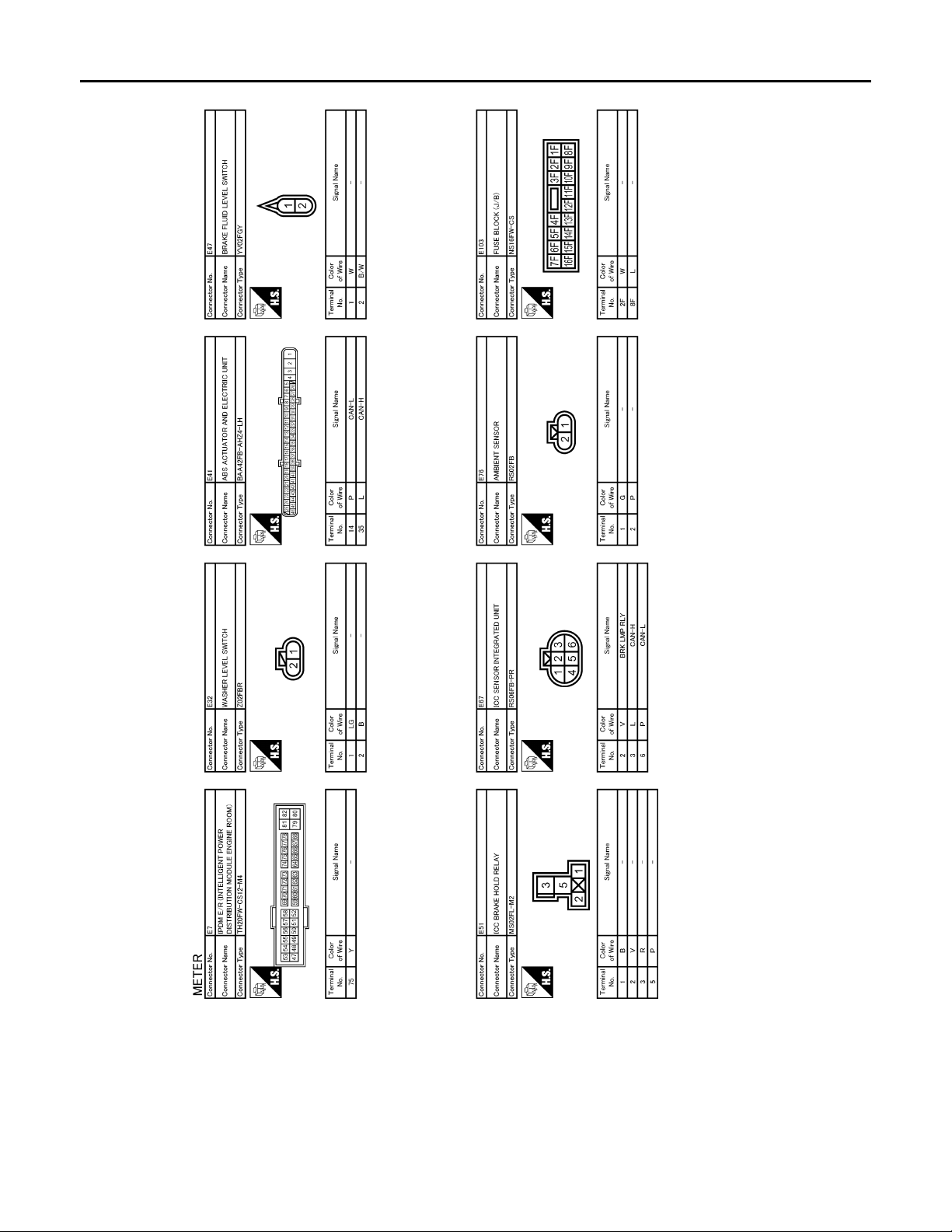

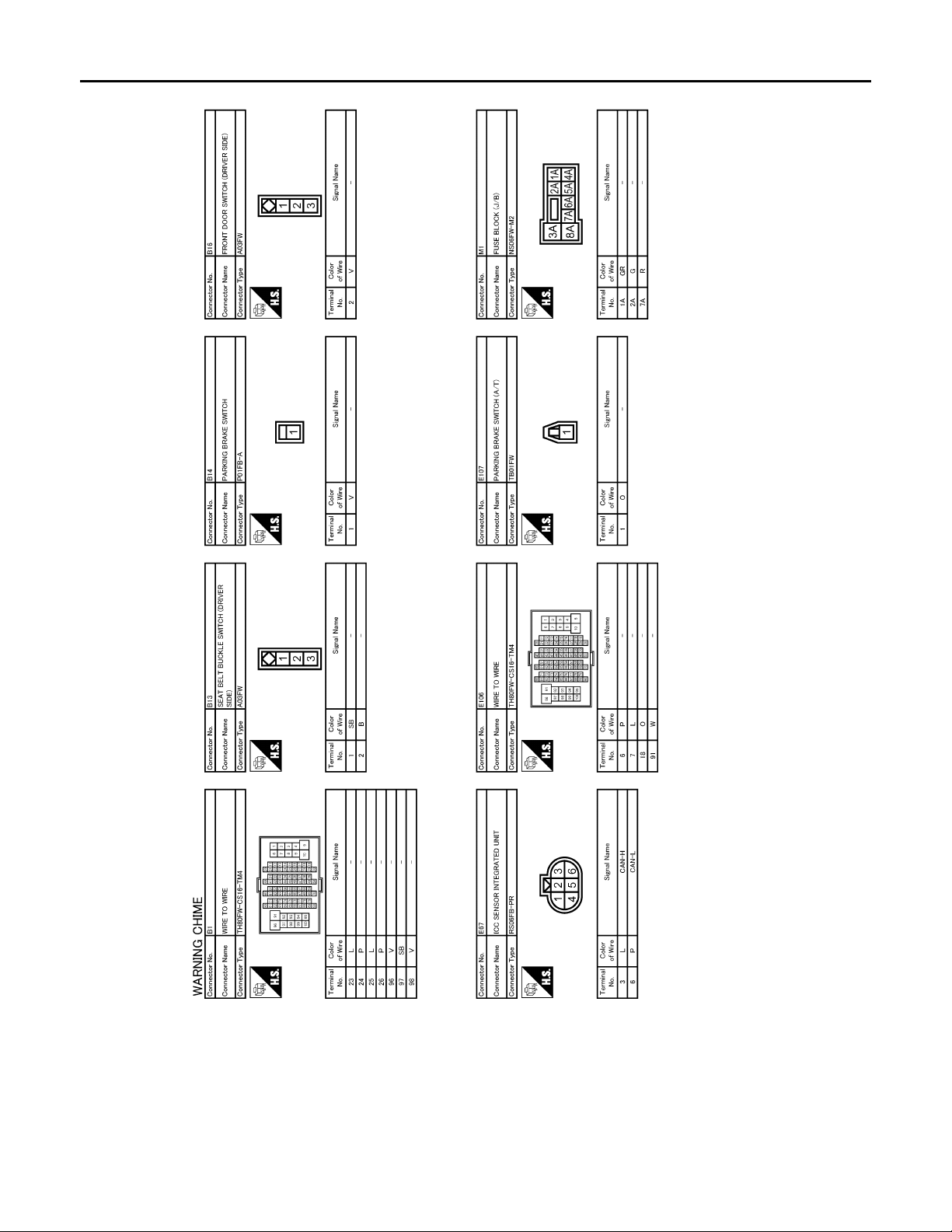

Wiring Diagram — WARNING CHIME — INFOID:0000000000964498

JCNWA0016G

WCS

WCS-23

Page 24

< COMPONENT DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

JCNWA0017G

WCS-24

Page 25

< COMPONENT DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

WCS

JCNWA0018G

WCS-25

Page 26

< COMPONENT DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

WARNING CHIME SYSTEM

JCNWA0019G

WCS-26

Page 27

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

Reference Value INFOID:0000000000964499

VALUES ON THE DAIAGNOSIS TOOL

Refer to MWI-80, "Reference Value".

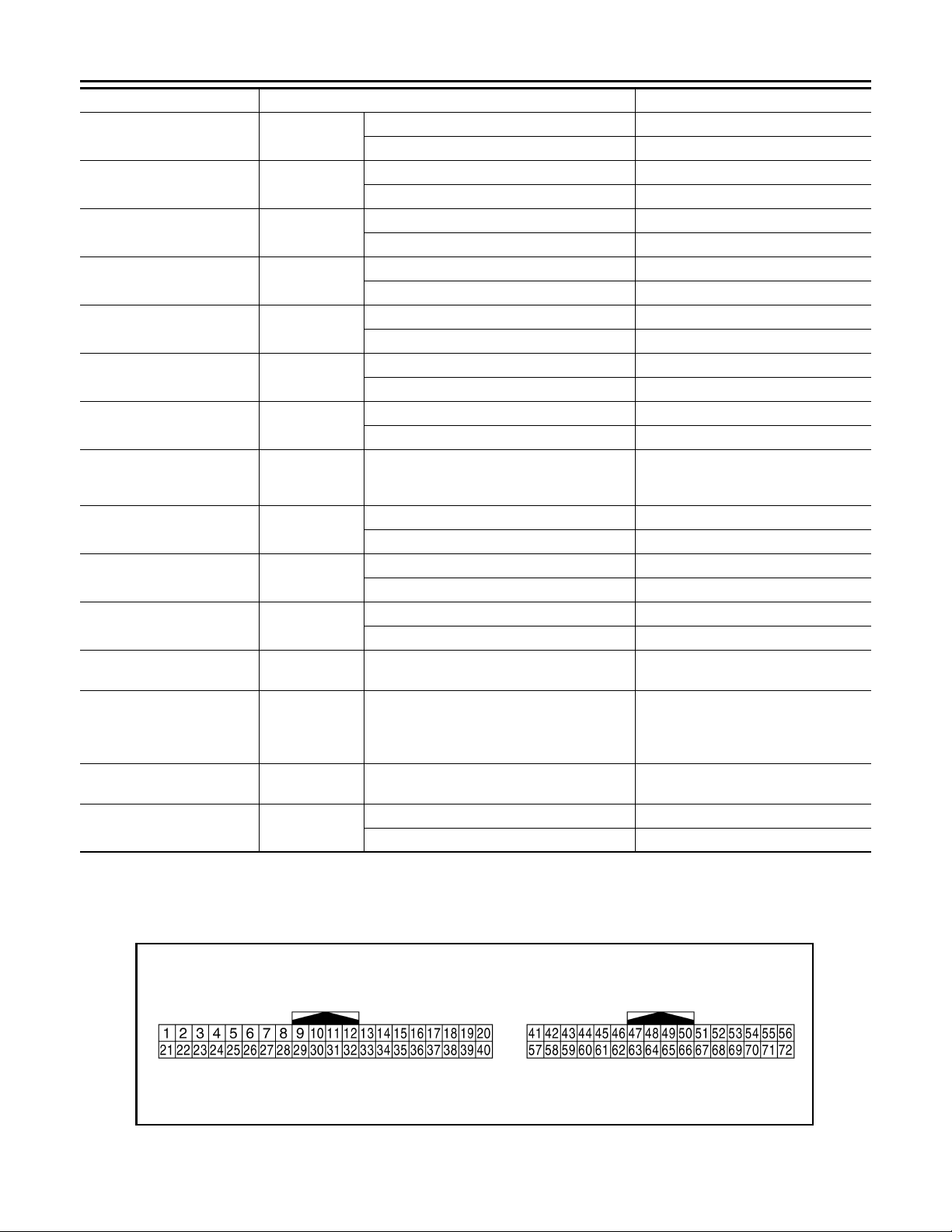

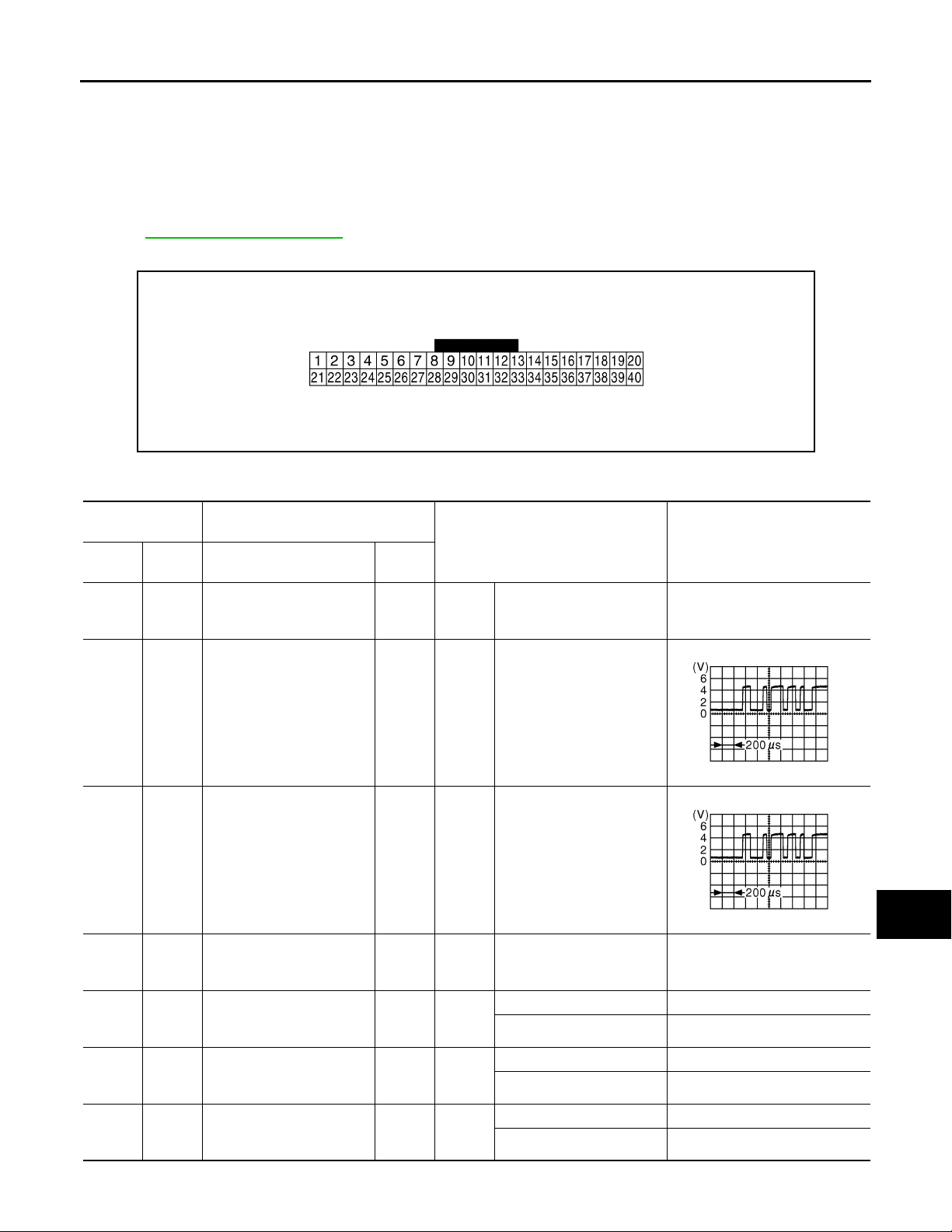

TERMINAL LAYOUT

JSNIA0096ZZ

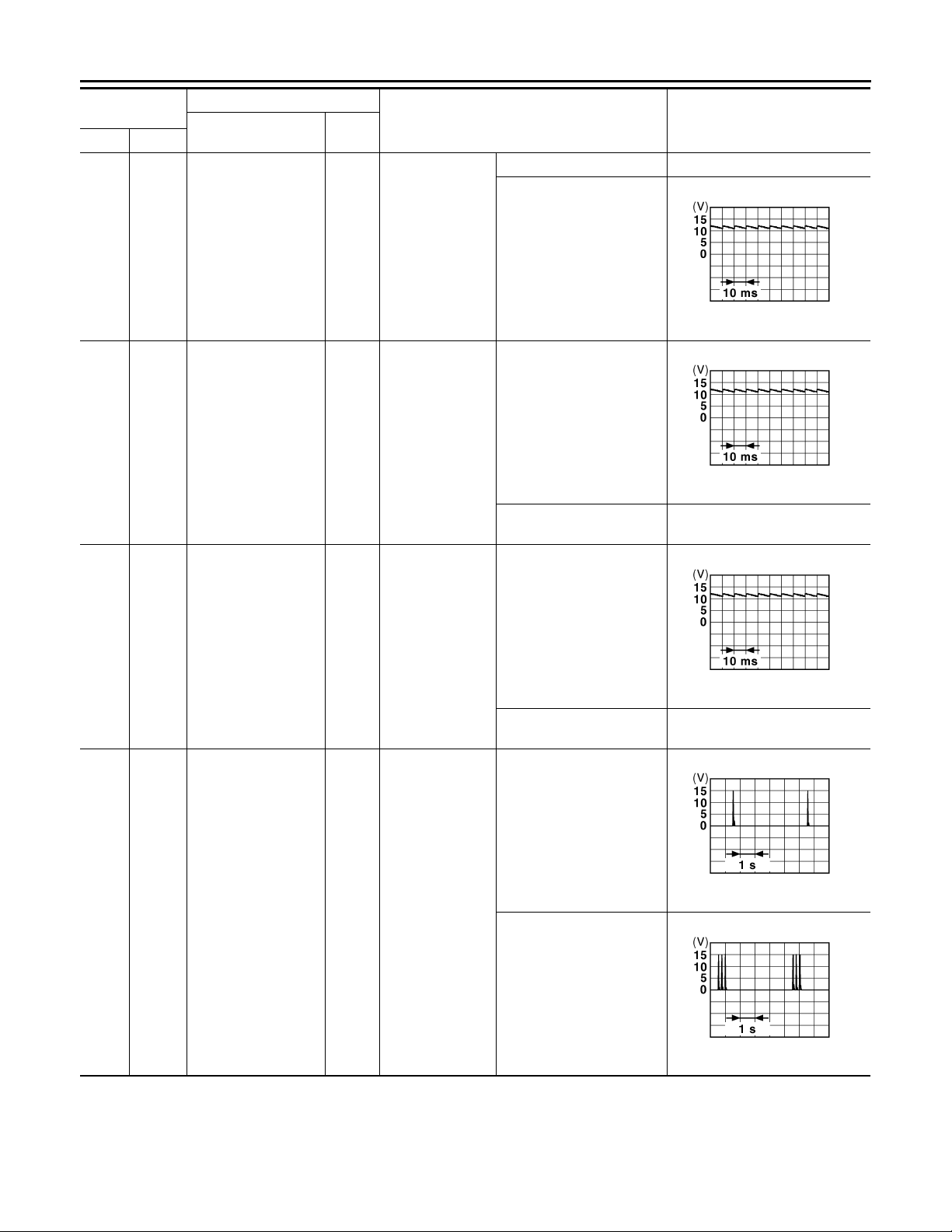

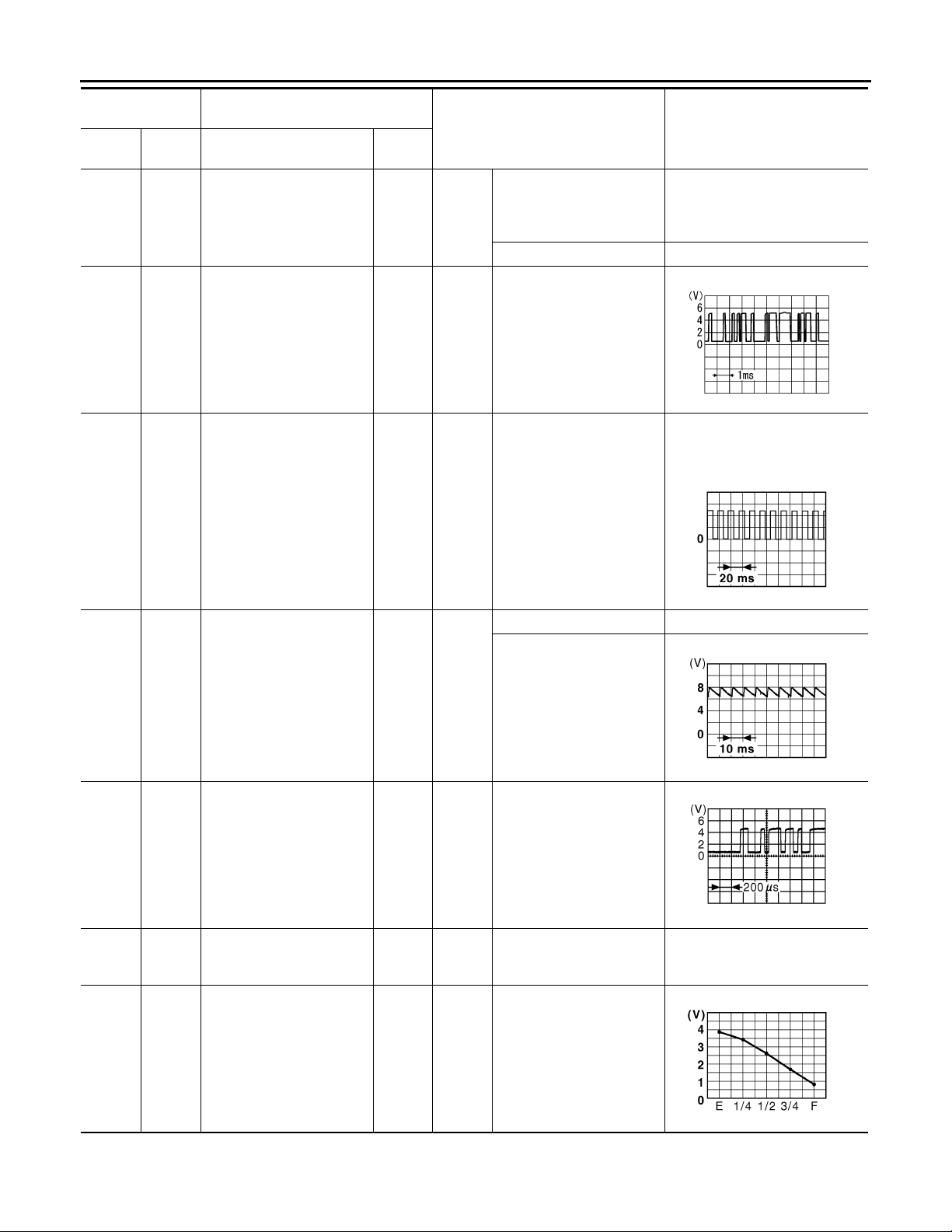

PHYSICAL VALUES

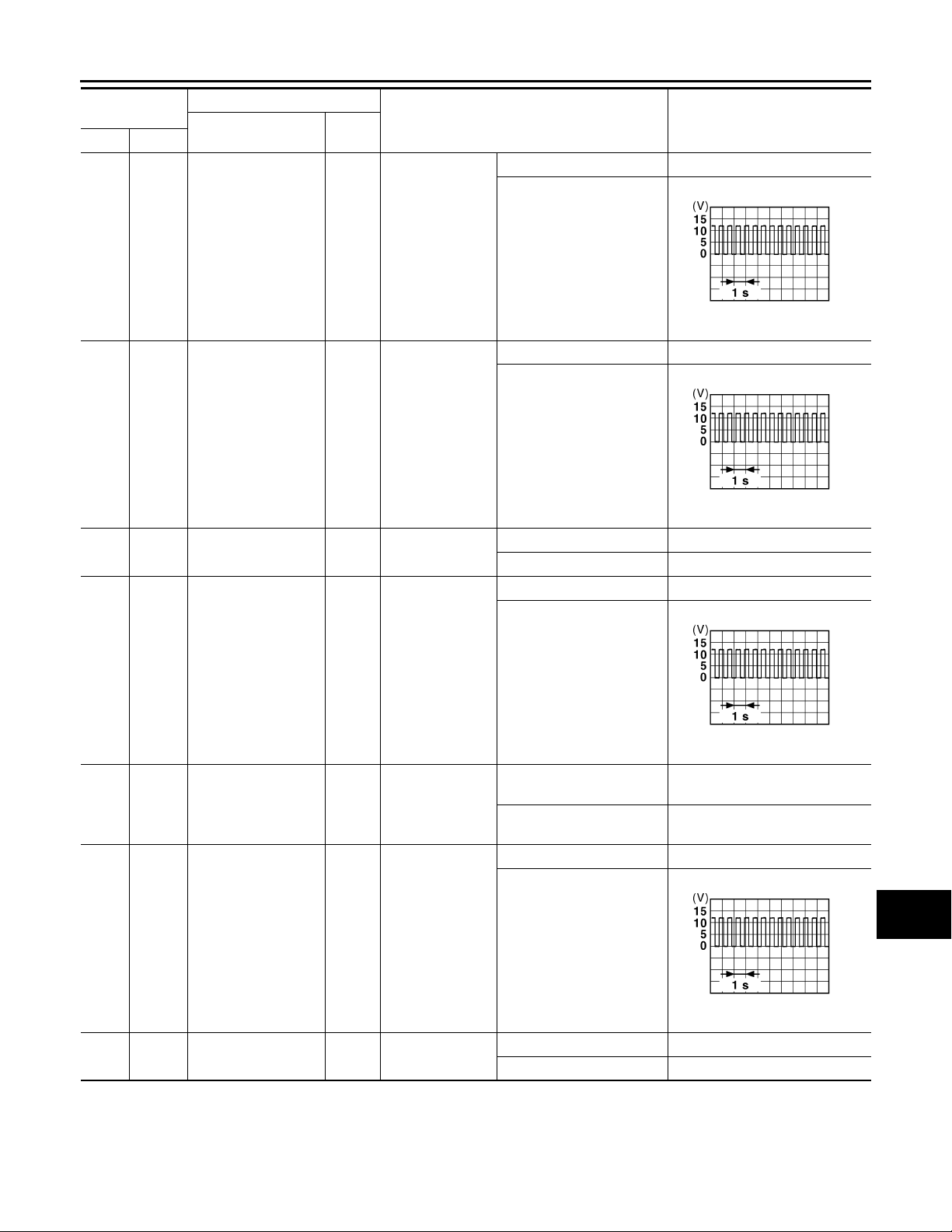

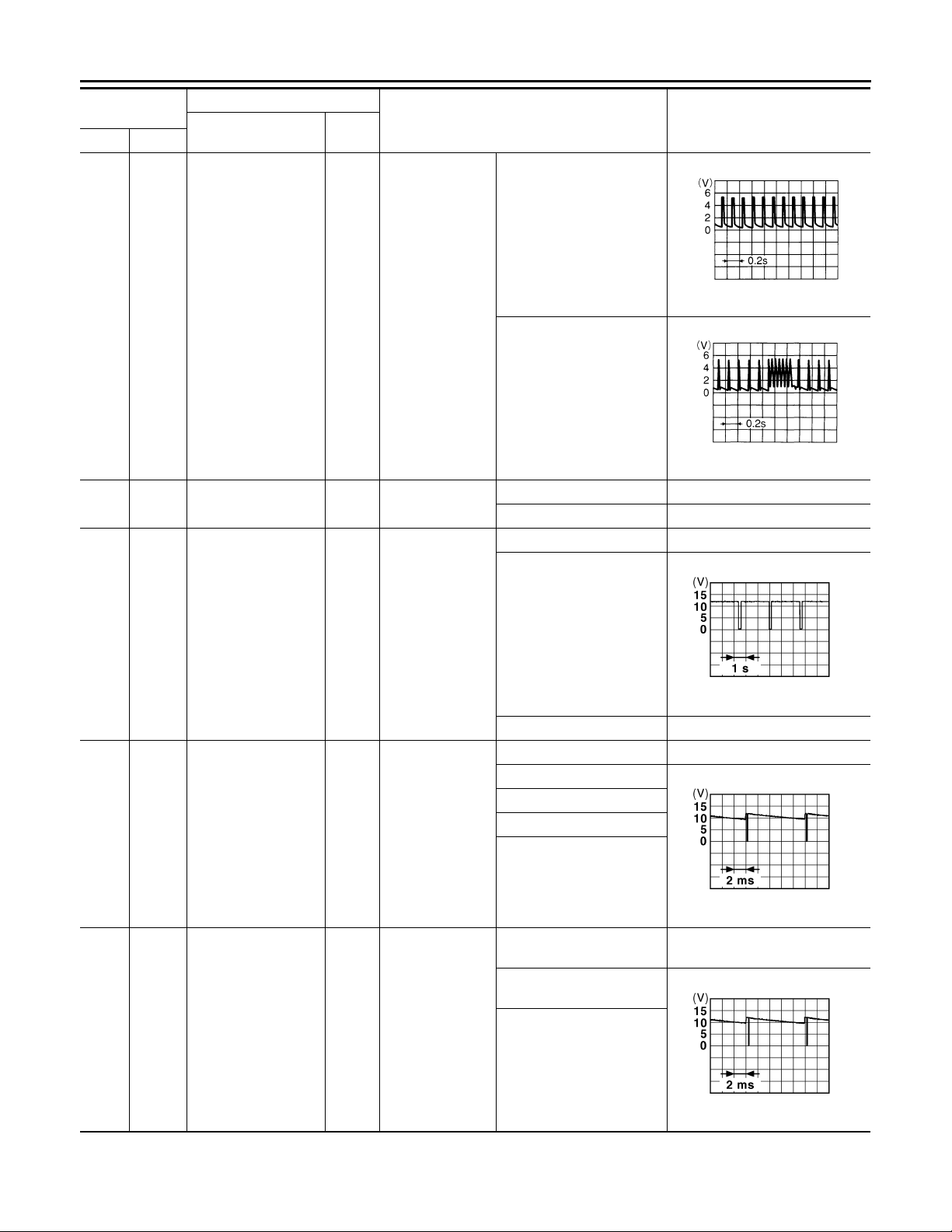

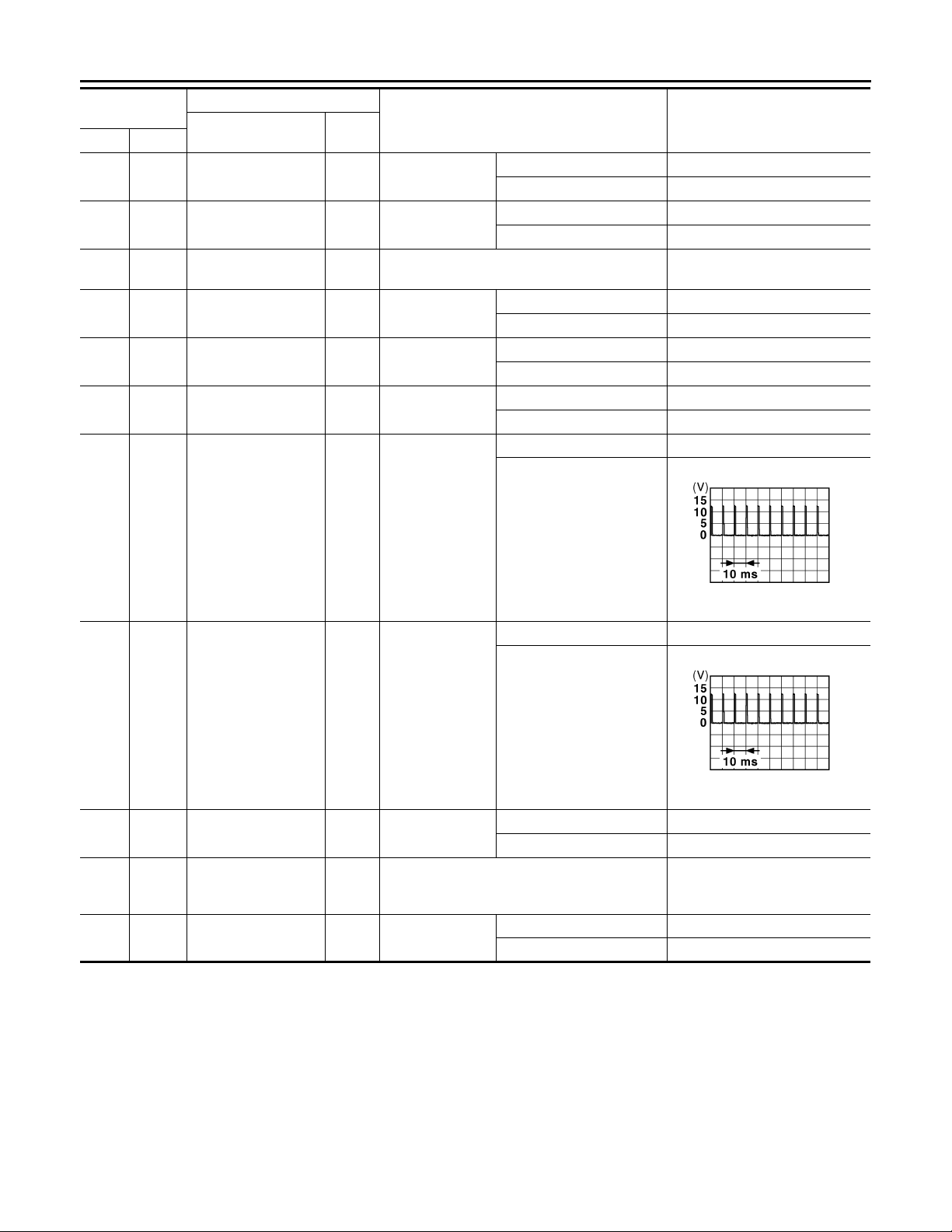

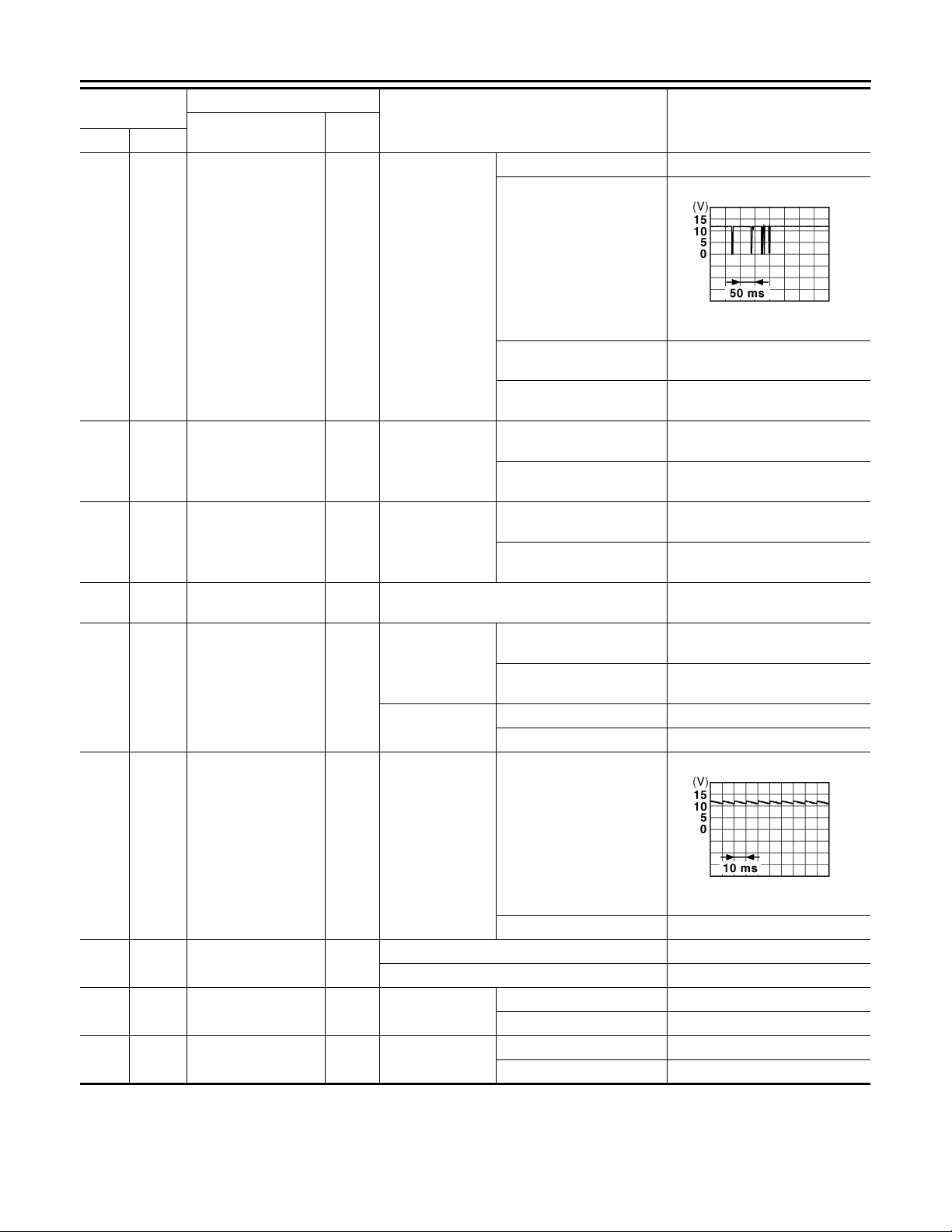

Terminal No.

(Wire color)

+ – Signal name

(GR)

Ground Battery power supply Input

Description

Input/

Output

Ignition switch OFF

Condition

Value

(Approx.)

— Battery voltage

(LG)

(GR)

(B)

(W)

(LG)

(G)

Ground

Ground Ground —

Ground Alternator signal Input

Ground Air bag signal Input

Ground Security signal Input

Communication signal (METER→ AMP.)

Communication signal (AMP.→ METER)

Output

Input

Ignition switch ON

Ignition switch OFF

—

—0 V

Charge warning lamp ON 0 V Charge warning lamp OFF 12 V Air bag warning lamp ON 4 V Air bag warning lamp OFF 0 V Security warning lamp ON 0 V Security warning lamp OFF 12 V

JSNIA0027GB

WCS

WCS-27

Page 28

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

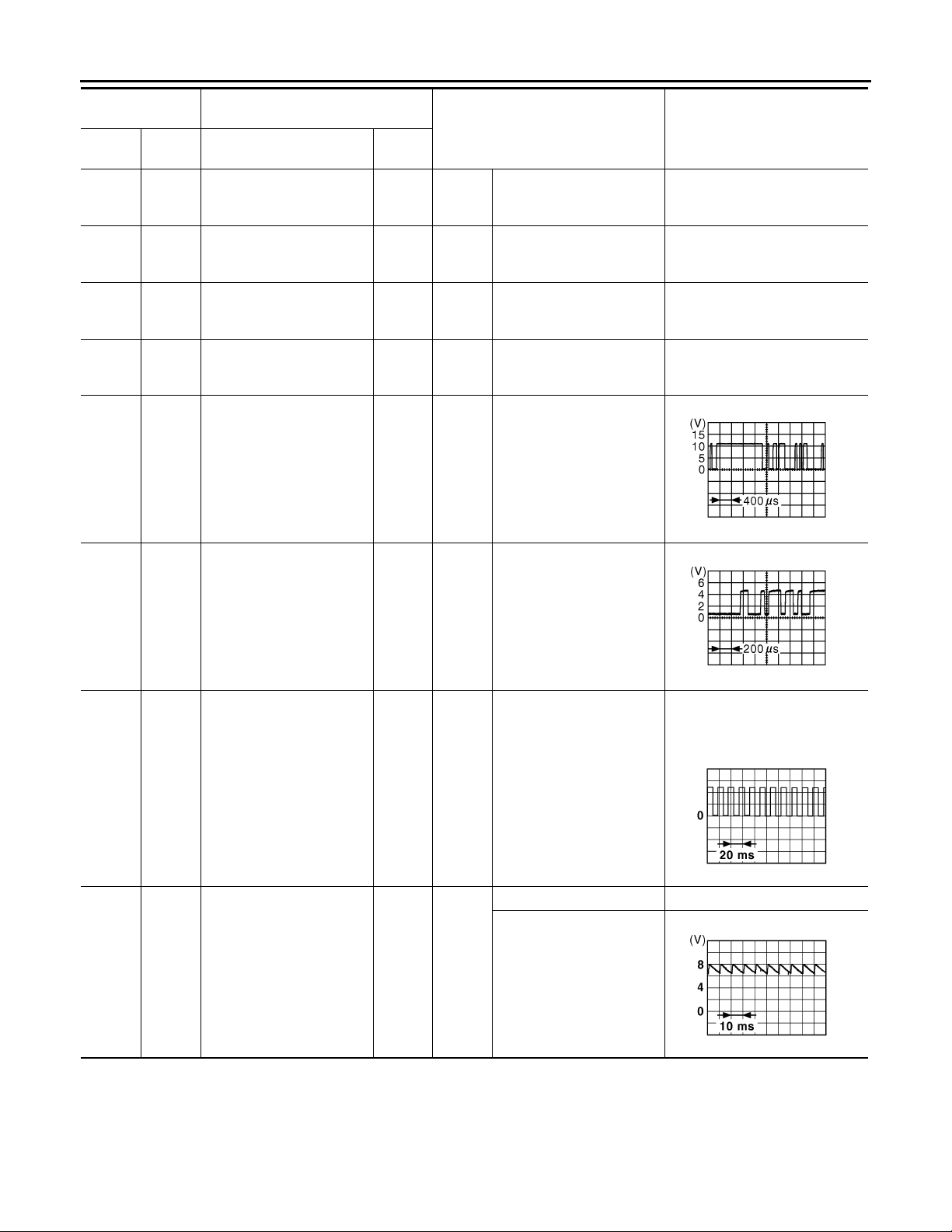

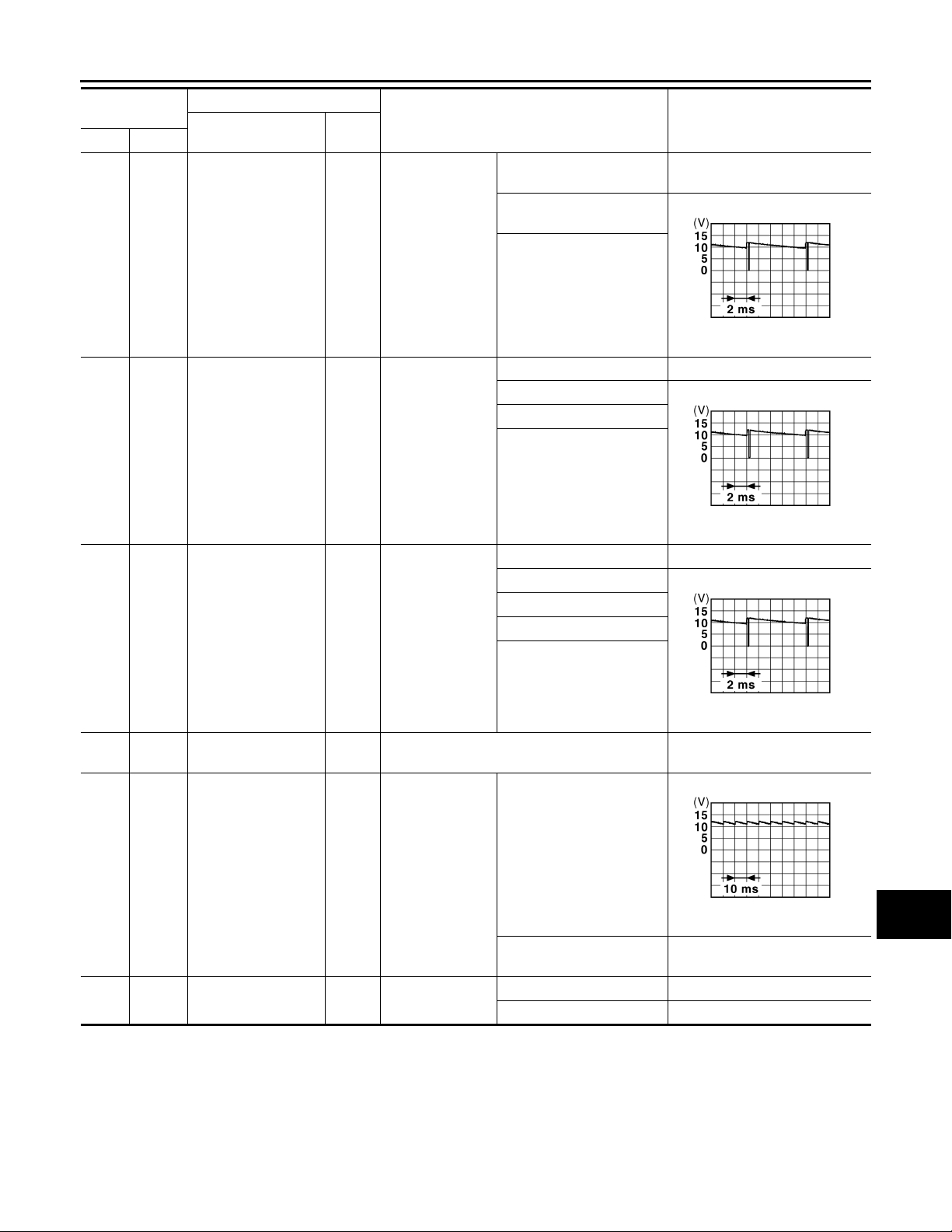

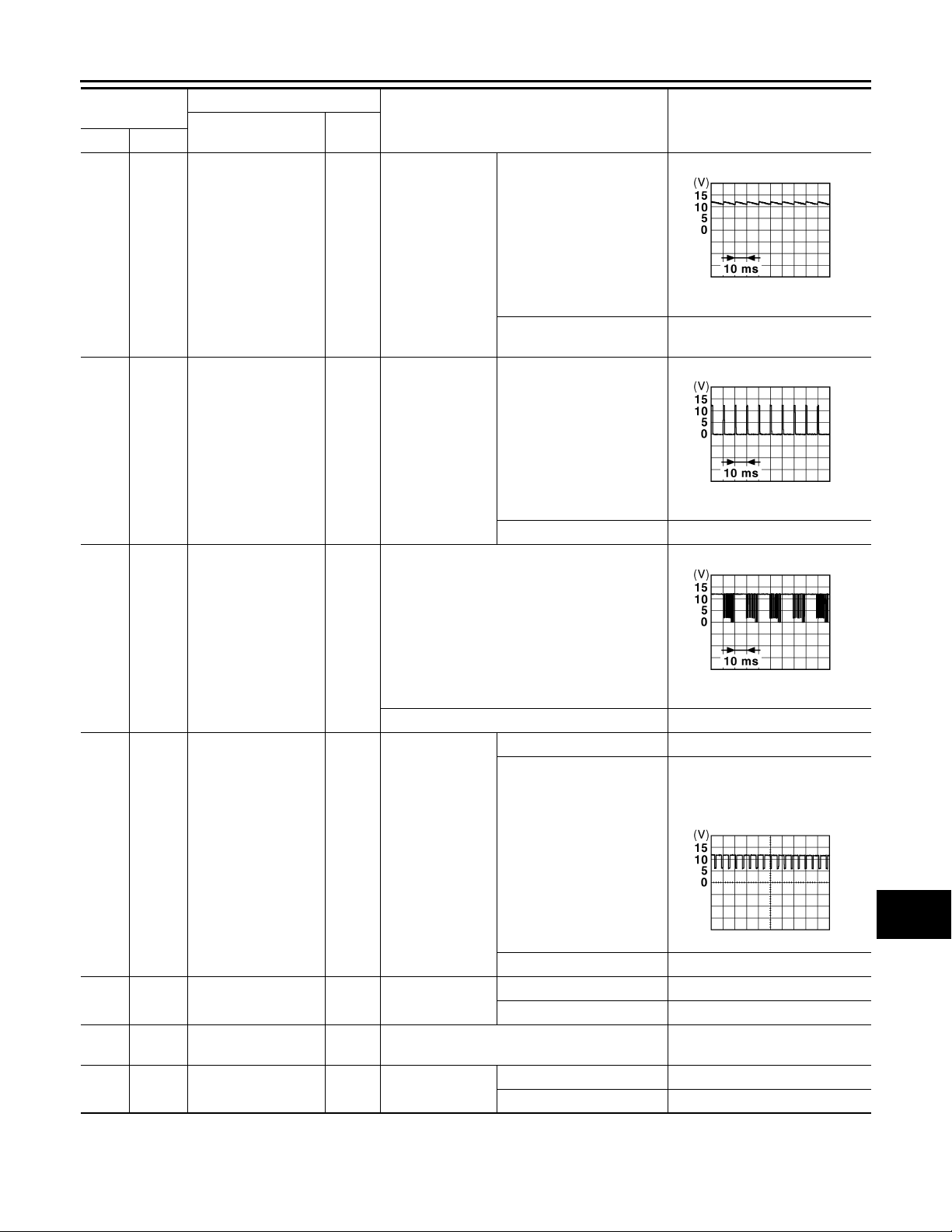

Term inal No.

(Wire color)

+ – Signal name

Ground Ground —

(B)

Ground Meter control switch ground —

(B)

Ground Ignition signal Input

(R)

Ground Ground —

(B)

(BR)

Ground

Communication signal (LCD→ AMP.)

Description

Input/

Output

Ignition switch ON

Condition

Value

(Approx.)

—0 V

—12 V

—0 V

—

JSNIA0028GB

Ground

(Y)

Ground

(R)

Ground Parking brake switch signal Input

(V)

Communication signal (AMP.→ LCD)

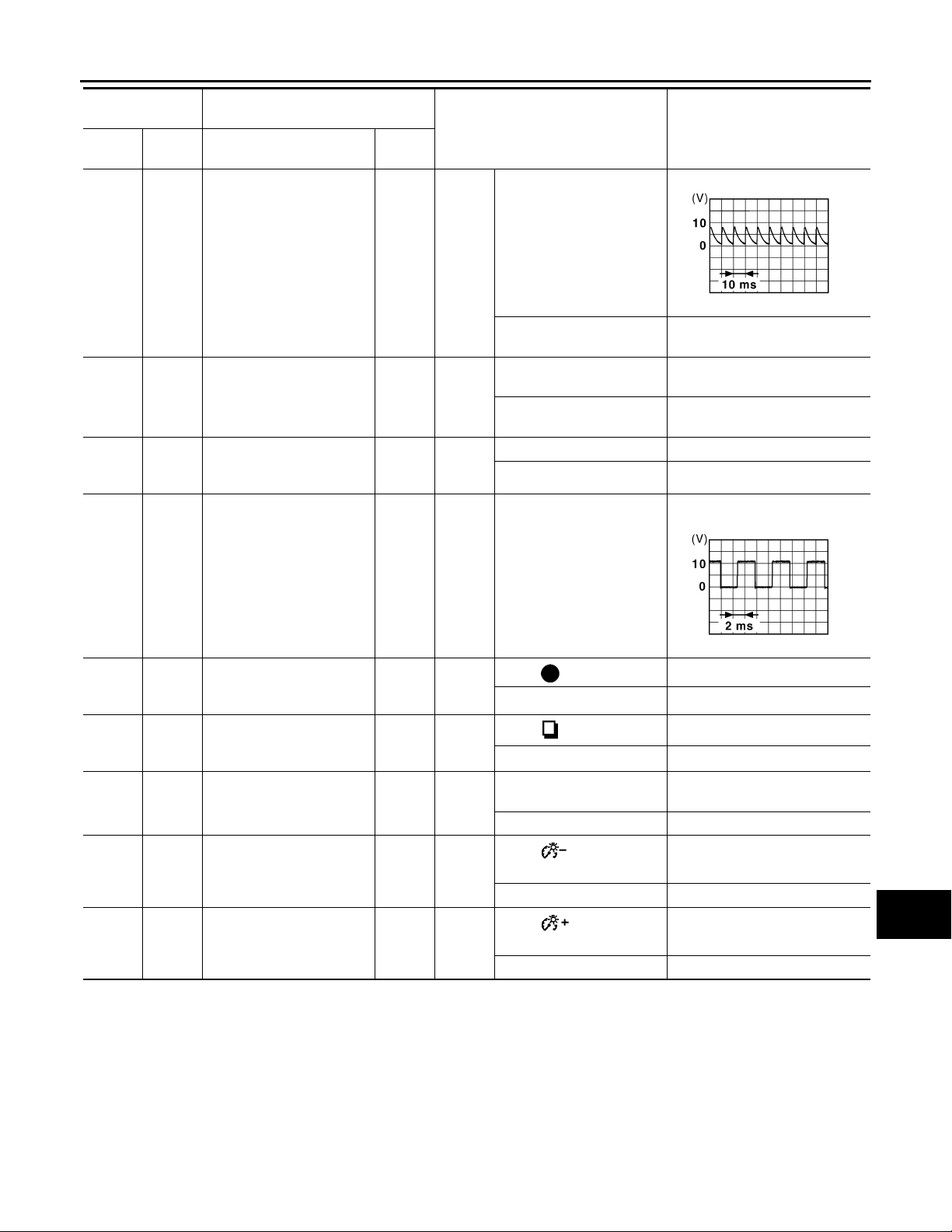

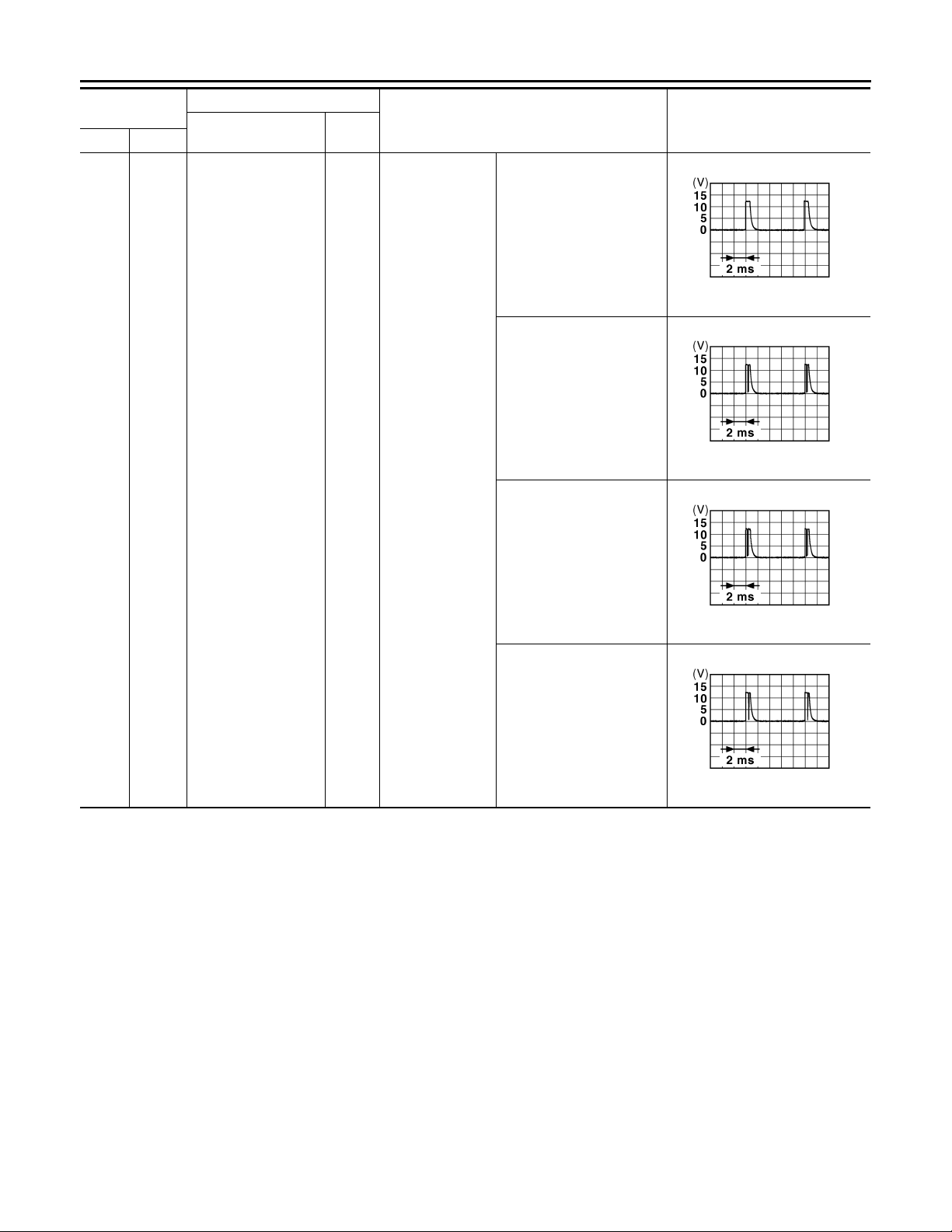

Vehicle speed signal (8-pulse)

Input

Ignition switch ON

—

JSNIA0027GB

NOTE:

The maximum voltage vari es de pending on the specification (destination unit).

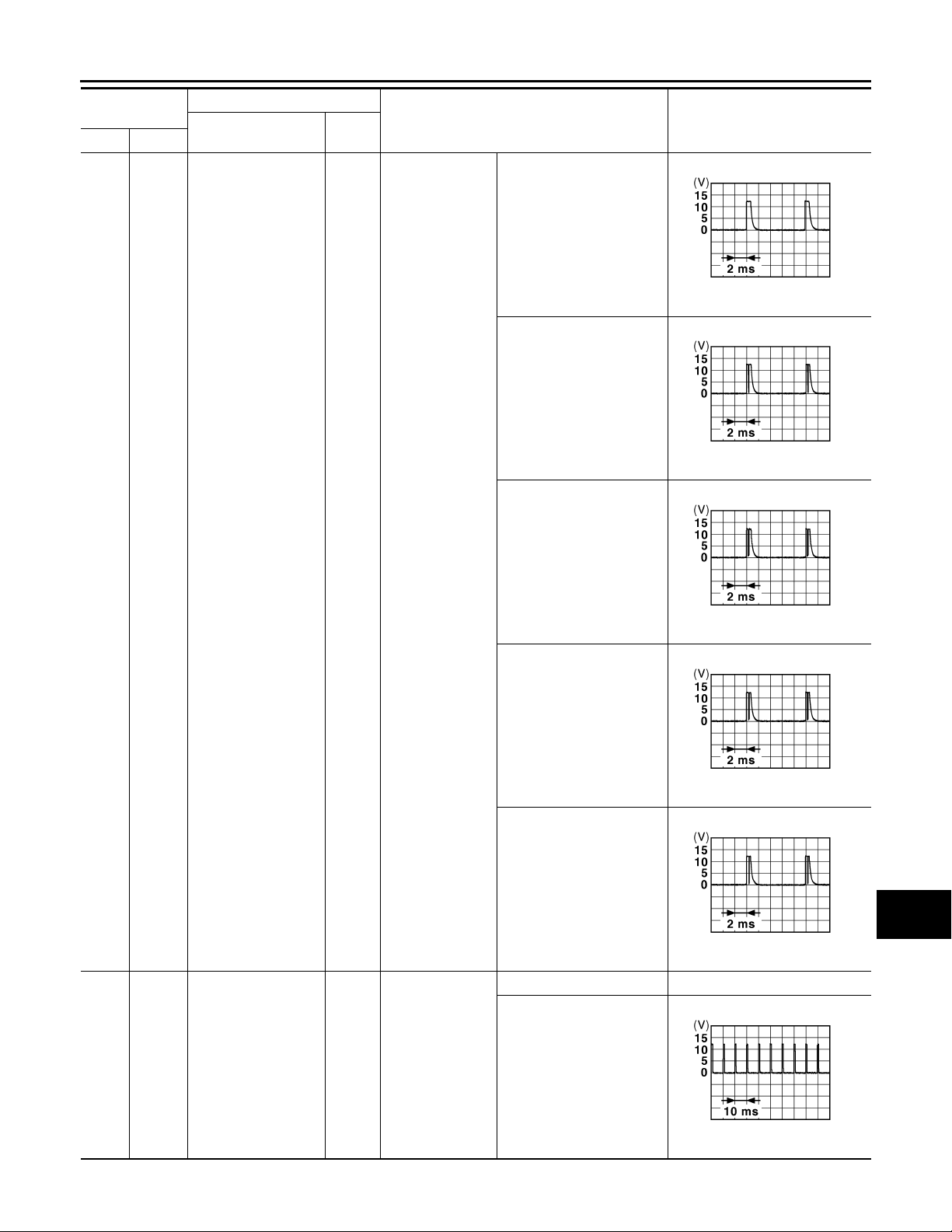

Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)]

JSNIA0012GB

Parking brake ON 0 V

Parking brake OFF

JSNIA0007GB

WCS-28

Page 29

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

Terminal No.

(Wire color)

+ – Signal name

(W)

(SB)

(L)

(R)

Ground

Ground Washer level switch signal Input

Ground Illumination control signal Output

Brake fluid level switch signal

Seat belt buckle switch signal (driver side)

Description

Input/

Output

Input

Ignition switch ON

Condition

Brake fluid level is normal.

The brake fluid level is lower than the low level

When driver seat belt is fastened

When driver seat belt is unfastened

Washer level switch ON 0 V Washer level switch OFF 5 V

NOTE:

When brightness level is midway

Lighting switch ON, then operate the illumination control switch.

Value

(Approx.)

0 V

12 V

0 V

JSNIA0008GB

(LG)

(SB)

(L)

(P)

(O)

Select switch signal Input

(B)

Enter switch signal Input

(B)

Trip A/B reset switch sign al Input

(B)

Illumination control switch

(B)

signal (–)

Illumination control switch

(B)

signal (+)

Input

Ignition switch ON

When is pressed Other than the above 5 V

When is pressed Other than the above 5 V When trip A/B reset switch

is pressed Other than the above 5 V

When switch is pressed

Other than the above 5 V When switch is

pressed Other than the above 5 V

0 V

JSNIA0010GB

WCS

WCS-29

Page 30

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

Wiring Diagram — METER —

INFOID:0000000000964500

JCNWA0001G

WCS-30

Page 31

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

WCS

JCNWA0002G

WCS-31

Page 32

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

JCNWA0003G

WCS-32

Page 33

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

WCS

JCNWA0004G

WCS-33

Page 34

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

JCNWA0005G

WCS-34

Page 35

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

WCS

JCNWA0006G

WCS-35

Page 36

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

JCNWA0007G

WCS-36

Page 37

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

WCS

JCNWA0008G

WCS-37

Page 38

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

JCNWA0009G

WCS-38

Page 39

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

COMBINATION METER

WCS

Fail Safe INFOID:0000000000964501

FAIL SAFE

Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunction. Solution for communication error between the unified meter and A/C amp. and combination meter.

JCNWA0010G

WCS-39

Page 40

COMBINATION METER

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Function Specifications Speedometer Tachometer Fuel gauge Water temperature gauge Illumination control When suspending communication, change to nighttime mode. Information display The display turns off by suspending communication. Buzzer The buzzer turns off by suspending communication.

ABS warning lamp VDC OFF indicator lamp SLIP indicator lamp Brake warning lamp CRUISE warning lamp BA warning lamp High beam indicator Turn signal indicator lamp

Warning lamp/indicator lamp

Front fog indicator lamp Oil pressure warning lamp Malfunction indicator lamp A/T CHECK warning lamp AWD warning lamp Low tire pressure warning lamp Key warning lamp AFS OFF indicator lamp 4WAS warning lamp Master warning lamp

Reset to zero by suspending communication.

The lamp turns on by suspending co mmunication.

The lamp turns off by suspending communication.

DTC Index

Refer to MWI-97, "DTC Index".

INFOID:0000000000964502

WCS-40

Page 41

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

Reference Value INFOID:0000000000964503

VALUES ON THE DIAGNOSIS TOOL

Monitor Item Condition Value/Status

Equivalent to speedometer reading SPEED METER [km/h]

SPEED OUTPUT [km/h]

ODO OUTPUT [km/h] or [mph]

TACHO METER [rpm]

FUEL METER [lit.]

W TEMP METER [°C]

ABS W/L

VDC/TCS IND

SLIP IND

BRAKE W/L

DOOR W/L

TRUNK/GLAS-H

HI-BEAM IND

TURN IND

FR FOG IND

RR FOG IND

LIGHT IND

Ignition switch ON

While driving

—

While driving

— Values according to fuel level

—

ABS warning lamp ON On ABS warning lamp OFF Off VDC indicator lamp ON On VDC indicator lamp OFF Off Slip indicator lamp ON On Slip indicator lamp OFF Off Blake warning lamp ON On Blake warning lamp OFF Off Door warning displayed On Door warning not displayed Off Trunk warning displayed On Trunk warning not displayed Off Hi-beam indicator lamp ON On Hi-beam indicator lamp OFF Off Turn indicator lamp ON On Turn indicator lamp OFF Off Front fog indicator lamp ON On Front fog indicator lamp OFF Of f

NOTE:

This item is displayed, but cannot be monitored.

Light indicator lamp ON On Light indicator lamp OFF Off

NOTE:

655.35 is displayed when th e malf unc -

tion signal is received

Equivalent to speedometer reading

NOTE:

655.35 is displayed when th e malf unc -

tion signal is received

Equivalent to odometer reading in

combination meter

Equivalent to tachometer reading

NOTE:

8191.875 is displayed when the mal-

function signal is receive d

Values according to engine coolant

temperature

NOTE:

215 is displayed when the malfunction

signal is input

Off

WCS

WCS-41

Page 42

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

Monitor Item Condition Value/Status

OIL W/L

MIL

CRUISE IND

SET IND

CRUISE W/L

BA W/L

ATC/T-AMT W/L

4WD W/L

4WD LOCK IND

FUEL W/L

WASHER W/L

AIR PRES W/L

KEY G/Y W/L

AFS OFF IND

4WAS/RAS W/L

UNIFIED METER AND A/C AMP.

Ignition switch ON

Oil pressure warning lamp ON On Oil pressure warning lamp OFF Off Malfunction warning lamp ON On Malfunction warning lamp OFF Off Cruise indicator displayed On Cruise indicator not displayed Off Set indicator lamp ON On Set indicator lamp OFF Off Cruise warning lamp ON On Cruise warning lamp OFF Off

NOTE:

This item is displayed, but cannot be monitored.

A/T check warning lamp ON On A/T check warning lamp OFF Off AWD warning lamp ON On AWD warning lamp OFF Off

NOTE:

This item is displayed, but cannot be monitored.

Low-fuel warning displayed On Low-fuel warning not displayed Off Washer warning displayed On Washer warning not displayed Off Low tire pressure lamp ON On Low tire pressure lamp OFF Off Key warning lamp ON On Key warning lamp OFF Off AFS OFF indicator lamp ON On AFS OFF indicator lamp OFF Off 4WAS warning lamp ON On 4WAS warning lamp OFF Off

Off

WCS-42

Page 43

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

Monitor Item Condition Value/Status

Engine start information display (A/T model) B&P I Engine start information display (M/T model) C&P I Engine start information display (A/T model) B&P N Engine start information display (M/T model) C&P N

Key ID warning display ID NG

Steering lock information display ROTAT

P position warning display SFT P

Intelligent Key insert information display INSRT

Intelligent Key low battery warning display BA TT

Take away warning display NO KY

Key warning display OUTKY

ICC sensor integrated unit warning display LK WN Vehicl e ahead detection indicator displayed On

Vehicl e ahead detection indicator not displayed

When following distance set to "LONG" LONG When following distance set to "MIDDLE" MID When following distance set to "SHORT" SHORT Set distance indicator not displayed Off Own vehicle indicator displayed O n Own vehicle indicator not displayed Off Set vehicle speed indicator not displayed Off Set vehicle speed indicator displayed On Set vehicle speed indicator unit display ON On Set vehicle speed indicator unit display OFF Off Shift position indicator P display P Shift position indicator R display R Shift position indicator N display N Shift position indicator D display D Shift position indicator M1 display M1 Shift position indicator M2 display M2 Shift position indicator M3 display M3 Shift position indicator M4 display M4 Shift position indicator M5 display M5 Snow mode switch ON On Snow mode switch OFF Off

NOTE:

This item is displayed, but cannot be monitored.

LCD

ACC TARGET

ACC DISTANCE

ACC OWN VHL

ACC SET SPEED

ACC UNIT

SHIFT IND

AT S MODE SW

AT P MODE SW

Ignition switch ON

Ignition switch ACC

Ignition switch LOCK

Ignition switch ON

Ignition switch LOCK

Ignition switch ON

Off

WCS

WCS-43

Page 44

UNIFIED METER AND A/C AMP.

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Monitor Item Condition Value/Status

M RANGE SW

NM RANGE SW

AT SFT UP SW

A T SFT DWN SW

ST SFT UP SW

ST SFT DWN SW

COMP FB SIG

4WD LOCK SW

PKB SW

BUCKLE SW

BRAKE OIL SW

DISTANCE [km]

OUTSIDE TEMP [°C] or [°F]

FUEL LOW SIG

BUZZER

NOTE:

Some items are not available according to vehicle specification.

Ignition switch ON

Selector lever manual mode position On Other than the above Off Selector lever manual mode position Off Other than the above On Selector lever + position On Other than the above Off Selector lever – position On Other than the above Off Paddle shifter switch up operation On Other than the above Off Paddle shifter switch down operation On Other than the above Off A/C compressor activation condition On A/C compressor deactivation condition Off

NOTE:

This item is displayed, but cannot be monitored.

Parking brake switch ON On Parking brake switch OFF Off Seat belt not fastened On Seat belt fastened Off Brake fluid level switch ON On Brake fluid level switch OFF Off

Low-fuel warning displayed Buzzer ON On

Buzzer OFF Off

—

Off

Possible driving distan ce calculated by

unified meter and A/C amp.

Equivalent to ambient tempera ture

NOTE:

This may not match the indicated val-

ue on the information display.

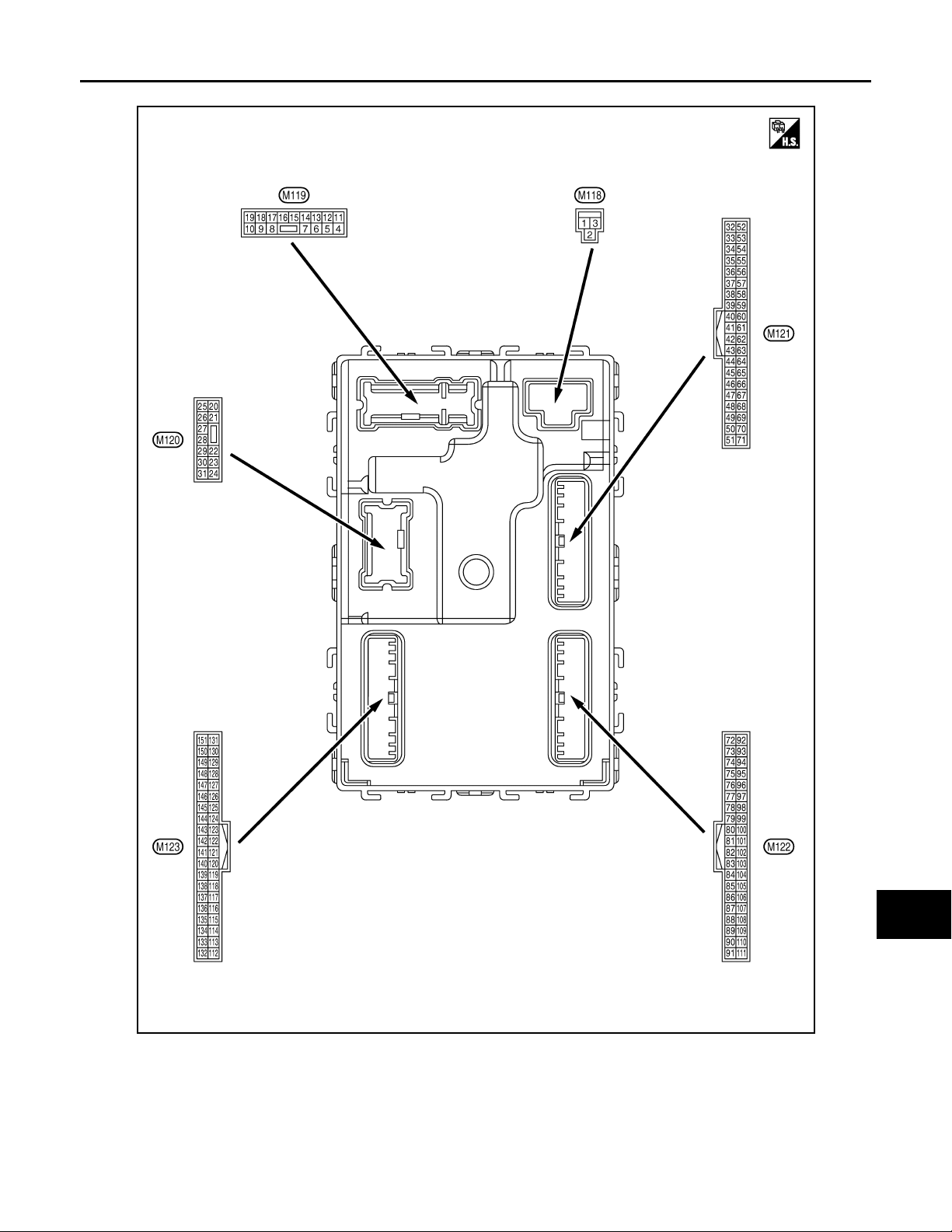

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0097ZZ

WCS-44

Page 45

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

Terminal No.

(Wire color)

+ – Signal name

Ground Stop lamp switch signal Input

(P)

(L)

(O)

(GR)

(L)

Ground

Ground Paddle shifter up signal Input

Ground

Manual mode shift up signal

Communication signal (AMP. → METER)

Vehicle speed signal output (2-pulse)

Description

Input/

Output

Input

Output

Ignition switch OFF

Ignition switch ON

Condition

Brake pedal is depressed 12 V Other than the above 0 V Selector lever UP operation 0 V Other than the above 12 V

• Selector lever DS position

• Paddle shift up operation

Other than the above 12 V

—

NOTE:

The maximum voltage varies depending on the specification (destination unit).

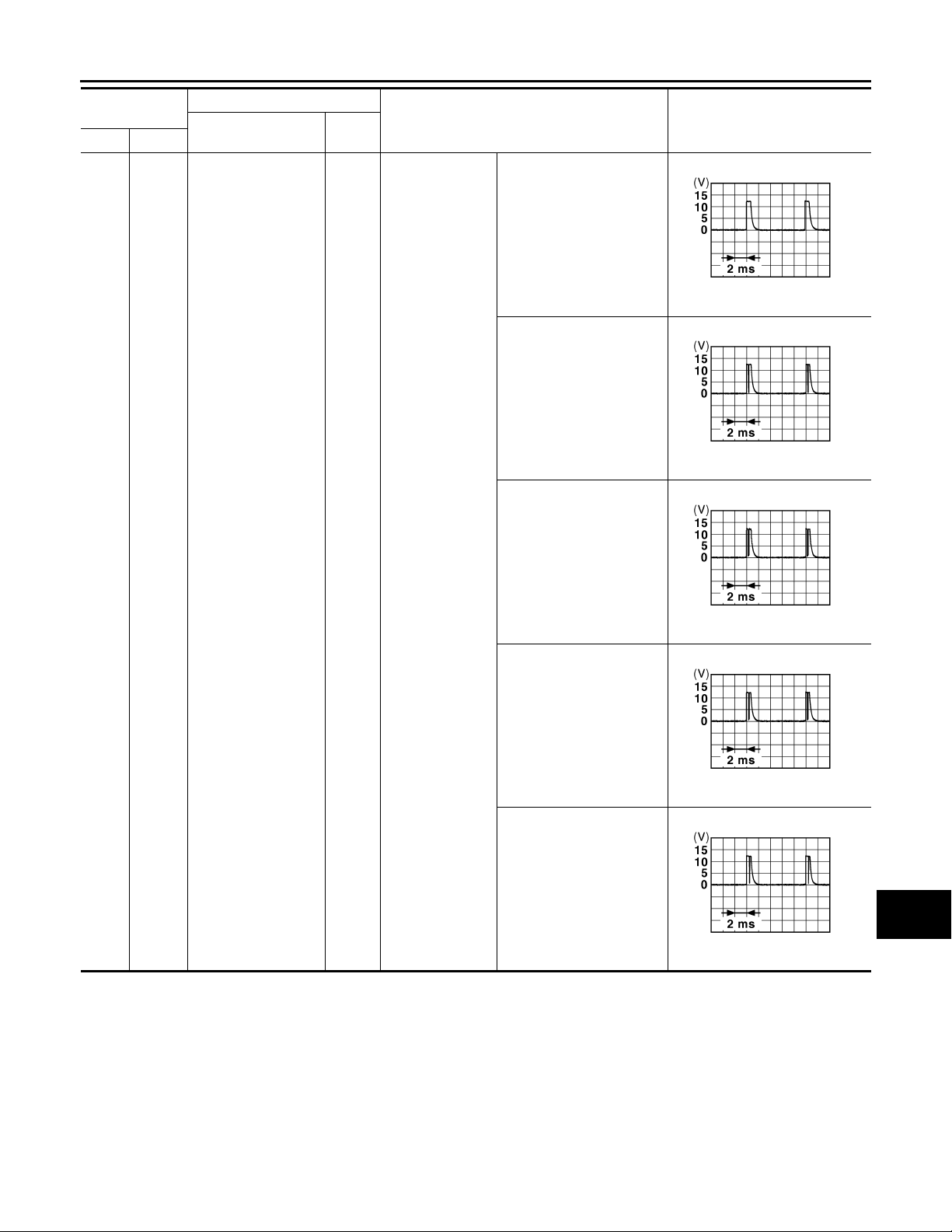

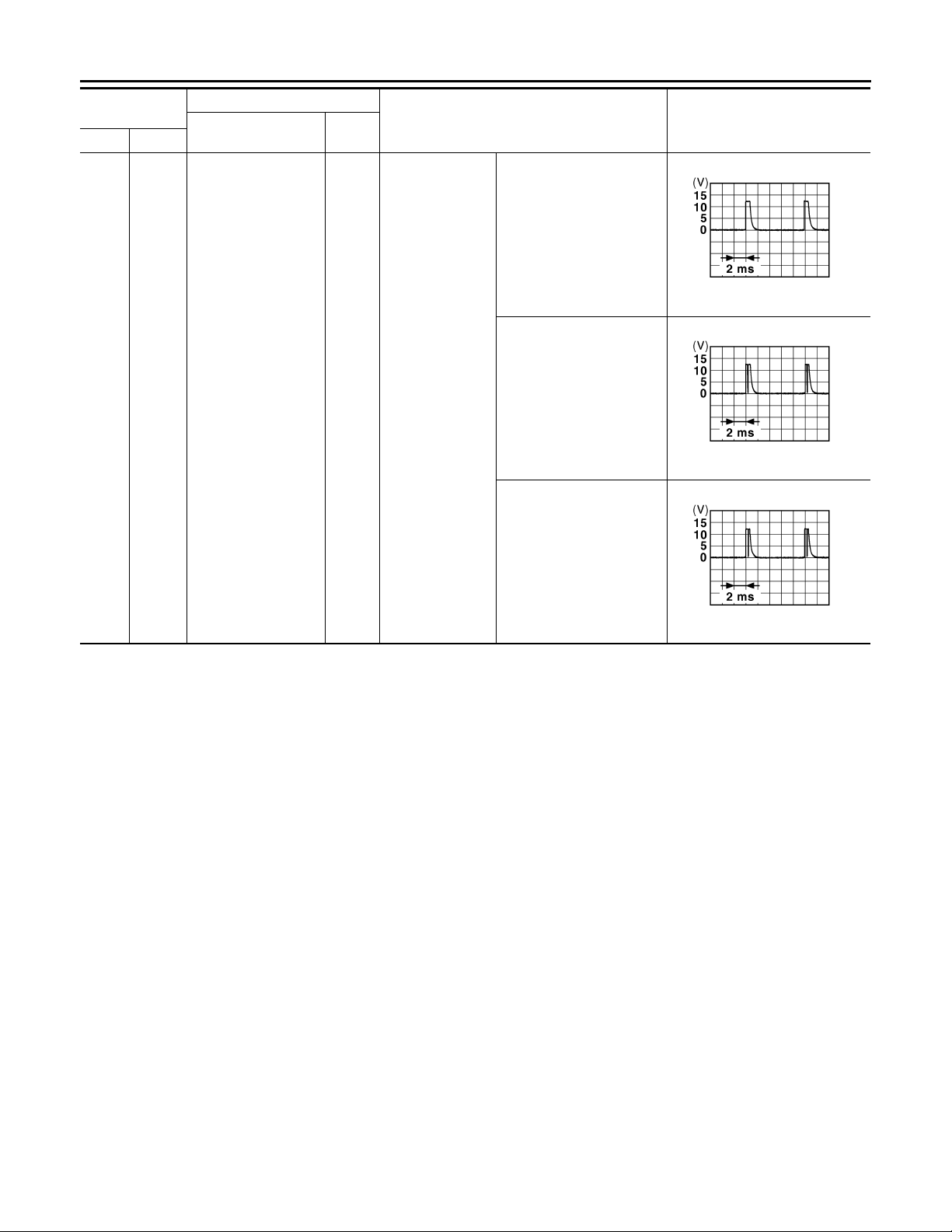

Speedome ter operated [When vehicle speed is approx. 40 km/h (25 MPH)]

Value

(Approx.)

0 V

SKIA3362E

(SB)

(W)

(G)

(BR)

(Y)

(V)

Ground

Ground Manual mode signal Input

Ground Not manual mode signal Input

Ground

Ground A/T snow switch signal Input

Ground

Seat belt buckle switch signal (driver side)

Communication signal (LCD → AMP.)

Manual mode shift down signal

Input

Ignition switch ON

When seat belt is fastened 12 V When seat belt is not fas-

tened Selector lever DS position 0 V

Other than the above 12 V Selector lever DS position 12 V Other than the above 0 V

—

Snow mode switch ON 12 V Snow mode switch OFF 0 V Selector lever down opera-

tion Other than the above 12 V

0 V

JSNIA0015GB

JSNIA0028GB

WCS

WCS-45

Page 46

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

Term inal No.

(Wire color)

Description

+ – Signal name

(G)

(LG)

(R)

Ground Paddle shift down signal Input

Ground

Communication signal (METER → AMP.)

Vehicl e speed signal output (8-pulse)

Input/

Output

Input

Output

Ignition switch ON

Condition

Value

(Approx.)

• Selector lever DS position

• Paddle shift down opera-

0 V

tion

Other than the above 12 V

—

NOTE:

The maximum voltage vari es de pending on the specification (destination unit).

Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)]

SKIA3361E

(V)

(Y)

(V)

(Y)

Ground Parking brake switch signal Input

Ground

Communication signal (AMP. → LCD)

Output

Ground ACC power supply Input

Ground Fuel level sensor signal Input

Ignition switch ON

Ignition switch ACC

Ignition switch ON

JSNIA0012GB

Parking brake ON 0 V

Parking brake OFF

JSNIA0007GB

—

JSNIA0027GB

— Battery voltage

—

JSNIA0013GB

WCS-46

Page 47

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

Terminal No.

(Wire color)

+ – Signal name

Ground Ambient sensor signal Input — —

(P)

(G)

Ground Ignition signal Input

Ground Battery power supply Input

(Y)

Ground Ground —

(B)

Ground CAN-H — — — —

(L)

Description

Input/

Output

Ignition switch ON

Ignition switch OFF

Ignition switch ON

Condition

Value

(Approx.)

JSNIA0014GB

— Battery voltage

—0 V

(W)

(B)

(BR)

(B)

(P)

Brake fluid level is normal.

The brake fluid level is lower than the low level

—0 V

0 V

—

Ignition switch ON

Ground

Ground Ground —

Ground CAN-L — — — —

Brake fluid level switch signal

Fuel level sensor signal ground

Ambient sensor signal ground

Input

JSNIA0008GB

WCS

WCS-47

Page 48

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

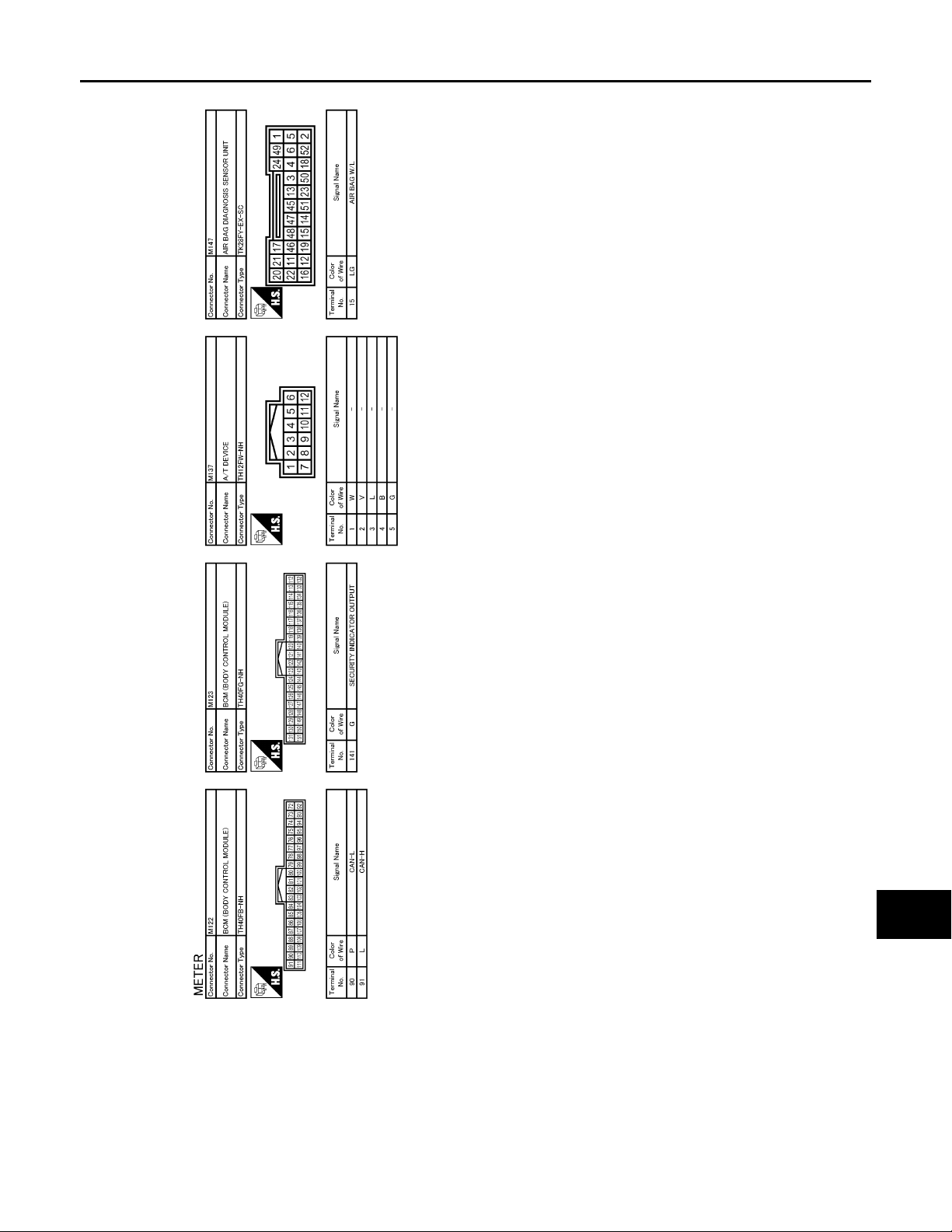

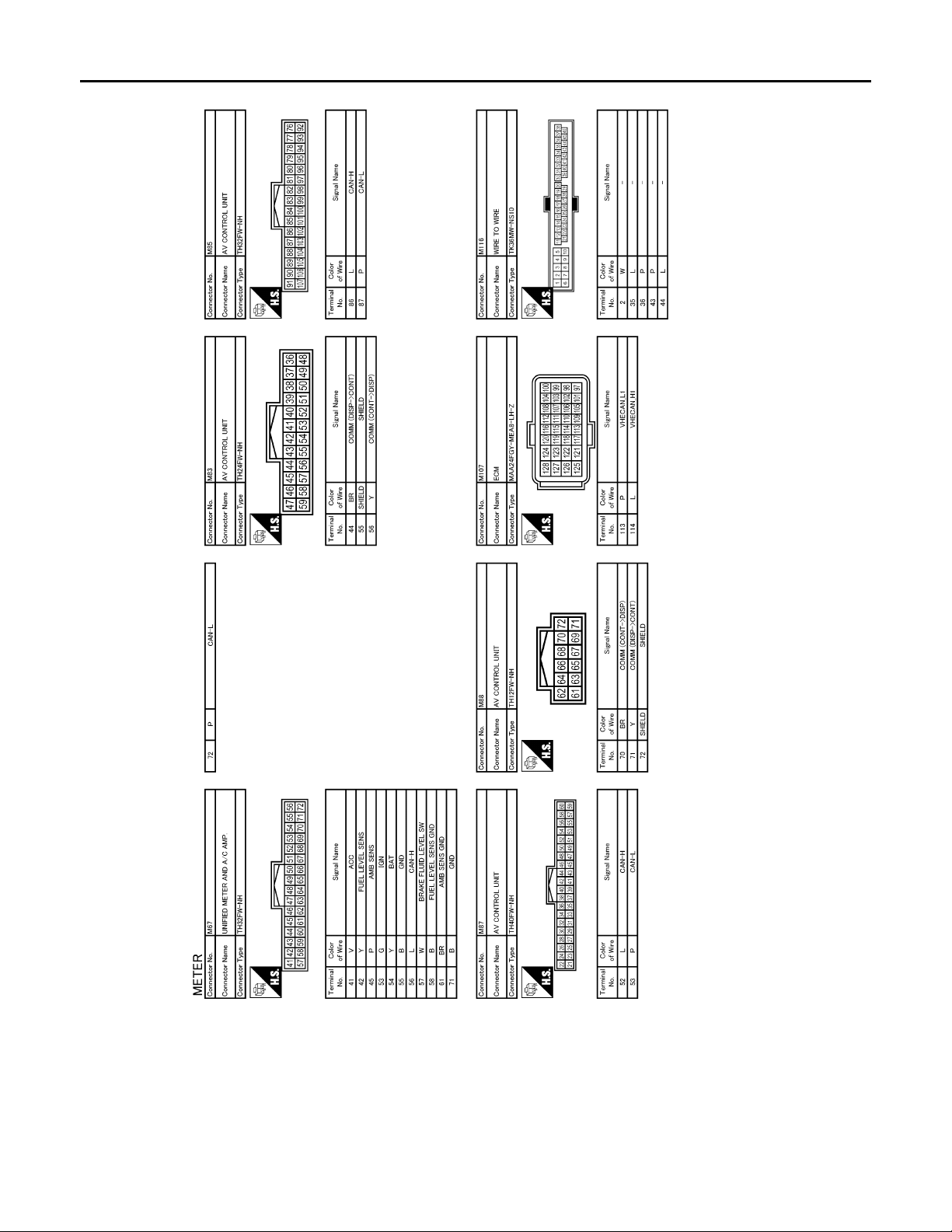

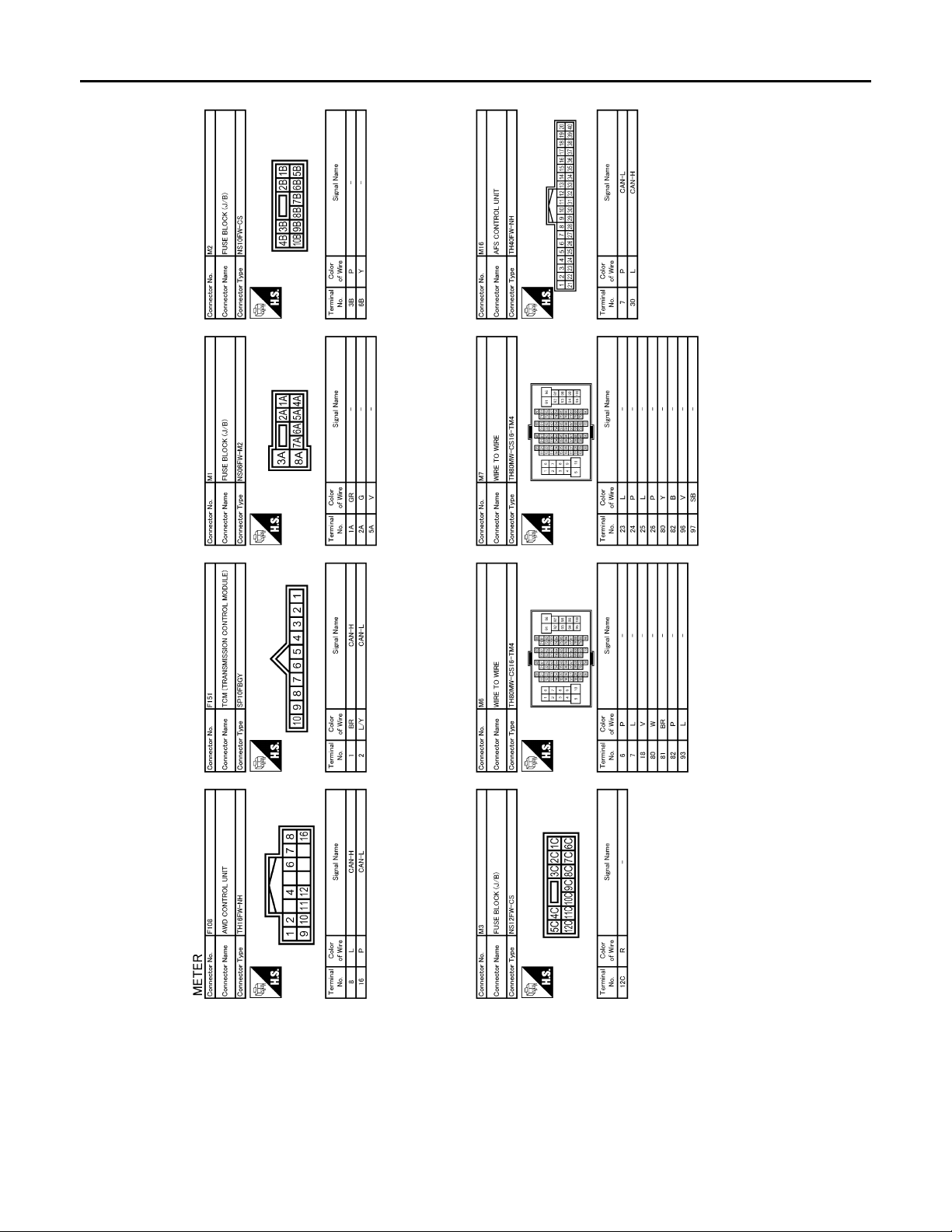

Wiring Diagram — METER —

INFOID:0000000000964504

JCNWA0001G

WCS-48

Page 49

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

WCS

JCNWA0002G

WCS-49

Page 50

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

JCNWA0003G

WCS-50

Page 51

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

WCS

JCNWA0004G

WCS-51

Page 52

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

JCNWA0005G

WCS-52

Page 53

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

WCS

JCNWA0006G

WCS-53

Page 54

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

JCNWA0007G

WCS-54

Page 55

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

WCS

JCNWA0008G

WCS-55

Page 56

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

JCNWA0009G

WCS-56

Page 57

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

UNIFIED METER AND A/C AMP.

WCS

Fail Safe INFOID:0000000000964505

FAIL SAFE

The unified meter and A/C amp. activates the fail-safe control if CAN communication with each unit is malfunctioning.

JCNWA0010G

WCS-57

Page 58

UNIFIED METER AND A/C AMP.

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

ABS warning lamp VDC OFF indicator lamp SLIP indicator lamp Brake warning lamp CRUISE warning lamp BA warning lamp AWD warning lamp Low tire pressure warning lamp

Warning lamp/indicator lamp

4WAS warning lamp AFS OFF indicator lamp The lamp blinking caused by communication malfunction High beam indicator Turn signal indicator lamp Front fog indicator lamp Oil pressure warning lamp Malfunction indicator lamp A/T CHECK warning lamp Key warning lamp Master warning lamp

Reset to zero by suspending communication.

The lamp turns on by suspending communication.

The lamp turns off by suspending communication.

DTC Index

Display contents of CON-

SULT-III

CAN COMM CIRCUIT [U1000]

CONTROL UNIT (CAN) [U1010]

COMM ERROR 1 [B2201]

COMM ERROR 2 [B2202]

VEHICLE SPEED [B2205]

ENGINE SPEED [B2267]

WATER TEMP [B2268]

INFOID:0000000000964506

Time Diagnostic item is detected when ... Refer to

CRNT, 1 - 39

When unified meter and A/C amp. is not transmitting or receiving CAN communication signal for 2 seconds or more.

When detecting error during the initial diagnosis of CAN controller of unified meter and A/C amp.

If a communication error is present i n the co mmun icati on line betwee n unified meter and A/C amp. and combination meter for 2 seconds or more.

The abnormal vehicle speed signal is input from ABS actuator and electric unit (control unit) for 2 seconds or more.

If ECM continuously transmit s abnormal engine speed s ignals for 2 seconds or more.

If ECM continuously transmits abnormal engine coolant temperature signals for 60 seconds or more.

MWI-40

MWI-41

MWI-42

MWI-44

MWI-46

MWI-47

MWI-48

WCS-58

Page 59

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Reference Value INFOID:0000000000964507

VALUES ON THE DIAGNOSIS TOOL

Monitor Item Condition Value/Status

FR WIPER HI

FR WIPER LOW

FR WASHER SW

FR WIPER INT

FR WIPER STOP

INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 Wiper intermittent dial position

TURN SIGNAL R

TURN SIGNAL L

TAIL LAMP SW

HI BEAM SW

HEAD LAMP SW 1

HEAD LAMP SW 2

PASSING SW

AUTO LIGHT SW

FR FOG SW

RR FOG SW

DOOR SW-DR

DOOR SW-AS

DOOR SW-RR

DOOR SW-RL

Other than front wiper switch HI OFF Front wiper switch HI ON Other than front wiper switch LO OFF Front wiper switch LO ON Front washer switch OFF OFF Front washer switch ON ON Other than front wiper switch INT OFF Front wiper switch INT ON Front wiper is not in STOP position OFF Front wiper is in STOP position ON

Other than turn signal switch RH OFF Turn signal switch RH ON Other than turn signal switch LH OFF Turn signal switch LH ON Other than lighting switch 1ST and 2ND OFF Lighting switch 1ST or 2ND ON Other than lighting switch HI OFF Lighting switch HI ON Other than lighting switch 2ND OFF Lighting switch 2ND ON Other than lighting switch 2ND OFF Lighting switch 2ND ON Other than lighting switch PASS OFF Lighting switch PASS ON Other than lighting switch AUTO OFF Lighting switch AUTO ON Front fog lamp switch OFF OFF Front fog lamp switch ON ON

NOTE:

The item is indicated, but not monitored. Driver door closed OFF Driver door opened ON Passenger door closed OFF Passenger door opened ON Rear RH door closed OFF Rear RH door opened ON Rear LH door closed OFF Rear LH door opened ON

OFF

WCS

WCS-59

Page 60

BCM (BODY CONTROL MODULE)

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Monitor Item Condition Value/Status

DOOR SW-BK

CDL LOCK SW

CDL UNLOCK SW

KEY CYL LK-SW

KEY CYL UN-SW

KEY CYL SW-TR

HAZARD SW

REAR DEF SW

H/L WASH SW

TR CANCEL SW

TR/BD OPEN SW

TRNK/HAT MNTR

RKE-LOCK

RKE-UNLOCK

RKE-TR/BD

RKE-PANIC

RKE-P/W OPEN

RKE-MODE CHG

OPTICAL SENSOR

REQ SW-DR

REQ SW-AS

REQ SW-BD/TR

NOTE:

The item is indicated, but not monitored. Other than power door lock switch LOCK OFF Power door lock switch LOCK ON Other than power door lock switch UNLOCK OFF Power door lock switch UNLOCK ON Other than driver door key cylinder LOCK position OFF Driver door key cylinder LOCK position ON Other than driver door key cylinder UNLOCK position OFF Driver door key cylinder UNLOCK position ON

NOTE:

The item is indicated, but not monitored. Hazard switch is not pressed OFF Hazard switch is pressed ON

NOTE:

The item is indicated, but not monitored.

NOTE:

The item is indicated, but not monitored. Trunk lid opener cancel switch OFF OFF Trunk lid opener cancel switch ON ON Trunk lid opener switch OFF OFF While the trunk lid opener switch is turned ON ON Trunk lid closed OFF Trunk lid opened ON LOCK button of Intelligent Key is not pressed OFF LOCK button of Intelligent Key is pressed ON UNLOCK button of Intelligent Key is not pressed OFF UNLOCK button of Intelligent Key is pressed ON TRUNK OPEN button of Intelligent Key is not pressed OFF TRUNK OPEN button of Intelligent Key is pressed ON PANIC button of Intelligent Key is not pressed OFF PANIC button of Intelligent Key is pressed ON UNLOCK button of Intelligent Key is not pressed OFF UNLOCK button of Intelligent Key is pressed and held ON LOCK/UNLOCK button of Intelligent Key is not pressed and held si-

multaneously LOCK/UNLOCK button of Intelligent Key is pressed and held simul-

taneously Outside of the vehicle bri ght Close to 5 V Outside of the vehicle dark Close to 0 V Driver door request switch is not pressed OFF Driver door request switch is presse d ON Passenger door request switch is not pressed OFF Passenger door request switch is pressed ON Trunk request switch is not pressed OFF Trunk request switch is pressed ON

OFF

WCS-60

Page 61

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Monitor Item Condition Value/Status

PUSH SW

IGN RLY2 -F/B

ACC RLY -F/B

CLUCH SW

BRAKE SW 1

DETE/CANCL SW

SFT PN/N SW

S/L -LOCK

S/L -UNLOCK

S/L RELAY-F/B

UNLK SEN-DR

PUSH SW -IPDM

IGN RLY1 -F/B

DETE SW -IPDM

SFT PN -IPDM

SFT P -MET

SFT N -MET

ENGINE STATE

S/L LOCK-IPDM

S/L UNLK-IPDM

S/L RELAY-REQ

Push-button ignition switch (push switch) is not pressed OFF Push-button ignition switch (pus h switch) is pressed ON Ignition switch in OFF or ACC position OFF Ignition switch in ON position ON Ignition switch in OFF position OFF Ignition switch in ACC or ON position ON The clutch pedal is not depressed OFF The clutch pedal is depressed ON The brake pedal is not depressed ON The brake pedal is depressed OFF Selector lever in P position OFF Selector lever in any position other than P ON Selector lever in any position other than P and N OFF Selector lever in P or N position ON Steering is locked OFF Steering is unlocked ON Steering is unlocked OFF Steering is locked ON Ignition switch is OFF or ACC position OFF Ignition switch is ON position ON Driver door is unlocked OFF Driver door is locked ON Push-button ignition switch (push-switch) is not pressed OFF Push-button ignition switch (push-s witch) is pressed ON Ignition switch is OFF or ACC position OFF Ignition switch is ON position ON Selector lever in P position OFF Selector lever in any position other than P ON Selector lever in any position other than P and N OFF Selector lever in P or N position ON Selector lever in any position other than P OFF Selector lever in P position ON Selector lever in any position other than N OFF Selector lever in N position ON Engine stopped STOP While the engine stalls STALL At engine cranking CRANK Engine running RUN Steering is locked OFF Steering is unlocked ON Steering is unlocked OFF Steering is locked ON Ignition switch in OFF or ACC position OFF Ignition switch in ON position ON

WCS

WCS-61

Page 62

BCM (BODY CONTROL MODULE)

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Monitor Item Condition Value/Status VEH SPEED 1 While driving Equivalent to speedometer reading VEH SPEED 2 While driving Equivalent to speedometer reading

Driver door is locked LOCK

DOOR STAT-DR

DOOR STAT-AS

ID OK FLAG

PRMT ENG STRT

PRMT RKE STRT

KEY SW -SLOT

RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2

AIR PRESS FL

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL

ID REGST FL1

ID REGST FR1

ID REGST RR1

ID REGST RL1

WARNING LAMP

BUZZER

Wait with selective UNLOCK operation (5 seconds) READY Driver door is unlocked UNLK Passenger door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Passenger door is unlocked UNLK Ignition switch in ACC or ON position RESET Ignition switch in OFF position SET The engine start is prohibited RESET The engine start is permitted SET

NOTE:

The item is indicated, but not monitored. Intelligent Key is not inserted into key slot OFF Intelligent Key is inserted into key slot ON

NOTE:

The item is indicated, but not monitored. Ignition switch ON (Only when the signal from the transmitter is re-

ceived) Ignition switch ON (Only when the signal from the transmitter is re-

ceived) ID of front LH tire transmitter is registered DONE ID of front LH tire transmitter is not registered YET ID of front RH tire transmitter is registered DONE ID of front RH tire transmitter is not registered YET ID of rear RH tire transmitter is registered DONE ID of rear RH tire transmitter is not registered YET ID of rear LH tire transmitter is registered DONE ID of rear LH tire transmitter is not registered YET Tire pressure indicator OFF OFF Tire pressure indicator ON ON Tire pressure warning alarm is not sounding OFF Tire pressure warning alarm is sounding ON

RESET

Air pressure of front LH tire

Air pressure of front RH tire

Air pressure of rear RH tire

Air pressure of rear LH tire

—

WCS-62

Page 63

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

TERMINAL LAYOUT

BCM (BODY CONTROL MODULE)

WCS

PHYSICAL VALUES

JPMIA0062ZZ

WCS-63

Page 64

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground Battery power supply Input Ignition switch OFF Battery voltage

(W)

Ground

(Y)

Ground

(O)

Ground

(LG)

Ground

(V)

Ground Step lamp Output S tep lamp

(Y)

Ground

(V)

Ground

(G)

Ground

(BR)

Ground Battery power supply Input Ignition switch OFF Battery voltage

(R)

Ground Ground — Ignition switch ON 0 V

(B)

Ground

(W)

P/W power supply (BAT)

P/W power supply (RAP)

Interior room lamp power supply

Passenger door UNLOCK

All doors, fuel lid LOCK

Driver door, fuel lid UNLOCK

Rear RH door and rear LH door UNLOCK

Push-button ignition switch illumination ground

Description

Signal name

Input/

Output+–

Output Ignition switch OFF Battery voltage

Output Ignition switch ON Battery voltage

After passing the interior room lamp battery sav-

Output

Output Passenger door

Output All doors, fuel lid

Output

Output Tail lamp

er operation time Any other time after passi ng the interior room

lamp battery saver operation time

Driver door, fuel lid

Rear RH door and rear LH door

Condition

UNLOCK (Actuator is activated)

Other than UNLOCK (Actuator is not activated)

ON 0 V OFF Battery voltage LOCK (Actuator is activat-

ed) Other than LOCK (Actuator

is not activated) UNLOCK (Actuator is acti-

vated) Other than UNLOCK (Actu-

ator is not activated) UNLOCK (Actuator is acti-

vated) Other than UNLOCK (Actu-

ator is not activated)

OFF 0 V

Value

(Approx.)

0 V

Battery voltage

0 V

Battery voltage

0 V

Battery voltage

0 V

Battery voltage

0 V

NOTE:

When the illumination brightening/dimming level is in the neutral position

Ground ACC indicator lamp Output Ignition switch

(Y)

JSNIA0010GB

OFF Battery voltage ACC or ON 0 V

WCS-64

Page 65

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground Turn signal (front RH) Output

(W)

Ground Turn signal (front LH) Output

(O)

(V)

Ground

Room lamp timer control

Description

Signal name

Input/

Output+–

Output

Ignition switch ON

Interior room lamp

Condition

Turn signal switch OFF 0 V

Turn signal switch RH

Turn signal switch OFF 0 V

Turn signal switch LH

OFF Battery voltage ON 0 V Turn signal switch OFF 0 V

Value

(Approx.)

6.5 V

PKID0926E

Ground Turn signal (rear RH) Output

(V)

Ground Trunk lid opening. Output Trunk lid

(G)

Ground Turn signal (rear LH) Output

(G)

Ground Trunk room lamp Output Trunk room lamp

(R)

Ignition switch ON

Turn signal switch RH

Open (Trunk lid opener actuator is activated)

Close (Trunk lid open er a ctuator is not activated)

Turn signal switch OFF 0 V

Turn signal switch LH

ON 0 V OFF Battery voltage

Battery voltage

0 V

6.5 V

PKID0926E

WCS

WCS-65

Page 66

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground

(SB)

Description

Signal name

Trunk room antenna 1 (-)

Input/

Output+–

Output

Ignition switch OFF

Condition

When Intelligent Key is in the passenger compartment

When Intelligent Key is not in the passenger compartment

When Intelligent Key is in the passenger compartment

Value

(Approx.)

JMKIA0062G

JMKIA0063G

(V)

(B)

Ground

Trunk room antenna 1 (+)

Rear bumper antenna (-)

Output

Ignition switch OFF

When the trunk lid request switch is operated with ignition switch OFF

JMKIA0062G

When Intelligent Key is not in the passenger compartment

JMKIA0063G

When Intelligent Key is in the antenna detection area

JMKIA0062G

When Intelligent Key is not in the antenna detection area

JMKIA0063G

WCS-66

Page 67

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

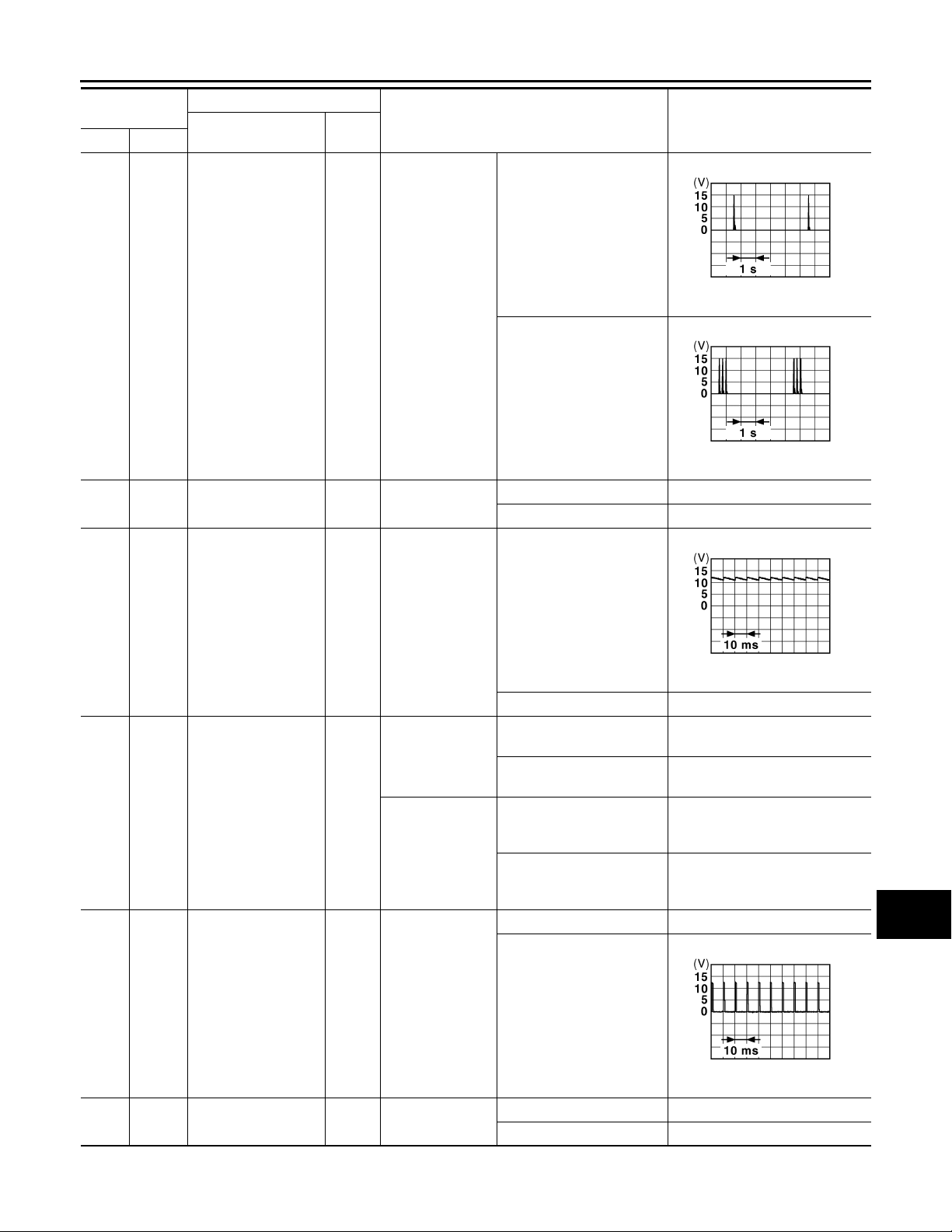

Terminal No.

(Wire color)

Ground

(W)

Ground

(Y)

Description

Signal name

Rear bumper antenna (+)

Ignition relay (IPDM E/R) control

Input/

Output+–

When the trunk

Output

Output Ignition switch

lid request switch is operated with ignition switch OFF

Condition

When Intelligent Key is in the antenna detection area

When Intelligent Key is not in the antenna detection area

OFF or ACC Battery voltage ON 0 V

Value

(Approx.)

JMKIA0062G

JMKIA0063G

Ground

(R)

Ground Starter relay control Output

(SB)

Ground Trunk request switch Input

(W)

Trunk room lamp switch

Input

Trunk room l amp switch

Ignition switch OFF (M/T models)

Ignition switch ON (A/T models)

Trunk request switch

OFF (Trunk is closed)

ON (Trunk is open) 0 V When the clutch pedal is

depressed When the clutch pedal is

not depressed When selector lever is in P

or N position and the brake is depressed

When selector lever is in P or N position and the brake is not depressed

ON (Pressed) 0 V

OFF (Not pressed)

Battery voltage

0 V

Battery voltage

0 V

11.8 V

JPMIA0011GB

WCS

Ground

(V)

Request switch buzzer

Output

Request switch buzzer

WCS-67

JPMIA0016G

1.0 V Sounding 0 V Not sounding Battery voltage

Page 68

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

(GR)

Ground

Ground Rear RH door switch Input

(BR)

Description

Signal name

Trunk lid opener switch

Input/

Output+–

Input

Trunk lid opener switch

Rear RH door switch

Condition

Pressed 0 V

Not pressed

OFF (When rear RH door closes)

ON (When rear RH door opens)

Value

(Approx.)

JPMIA0011GB

11.8 V

JPMIA0011GB

11.8 V

0 V

Ground Rear LH door switch Input

(R)

Ground

Room antenna 2 (-) (center console)

Output

Rear LH door switch

Ignition switch OFF

OFF (When rear LH door closes)

ON (When rear LH door opens)

When Intelligent Key is in the passenger compartment

When Intelligent Key is not in the passenger compartment

JPMIA0011GB

11.8 V

0 V

JMKIA0062G

JMKIA0063G

WCS-68

Page 69

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

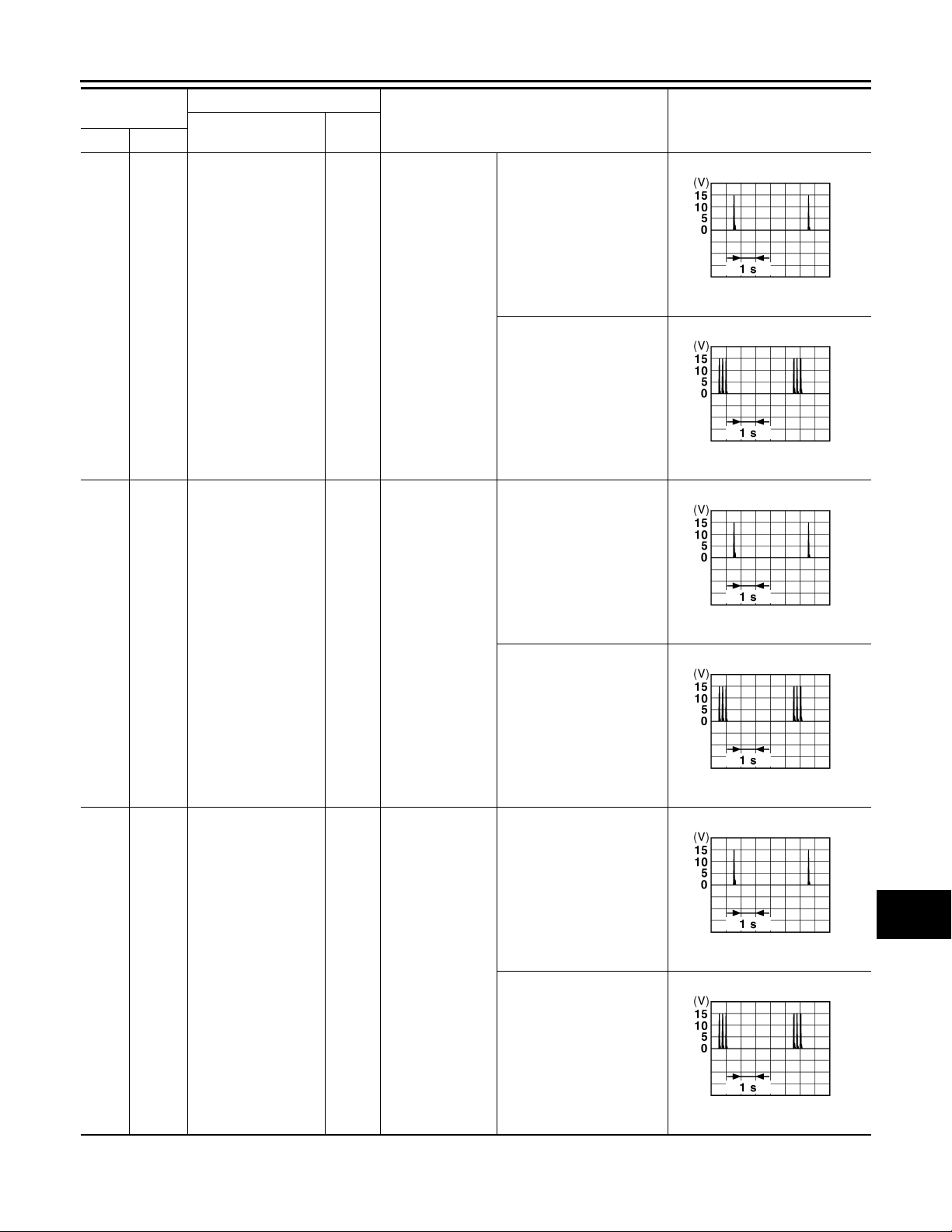

Terminal No.

(Wire color)

Ground

(G)

Description

Signal name

Room antenna 2 (+) (center console)

Input/

Output+–

Output

Ignition switch OFF

Condition

When Intelligent Key is in the passenger compartment

When Intelligent Key is not in the passenger compartment

When Intelligent Key is in the antenna detection area

Value

(Approx.)

JMKIA0062G

JMKIA0063G

(SB)

(BR)

Ground

Passenger door antenna (-)

Passenger door antenna (+)

Output

When the passenger door request switch is operated with ignition switch OFF

When Intelligent Key is not in the antenna detection area

When Intelligent Key is in the antenna detection area

When Intelligent Key is not in the antenna detection area

JMKIA0062G

JMKIA0063G

JMKIA0062G

WCS

JMKIA0063G

WCS-69

Page 70

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

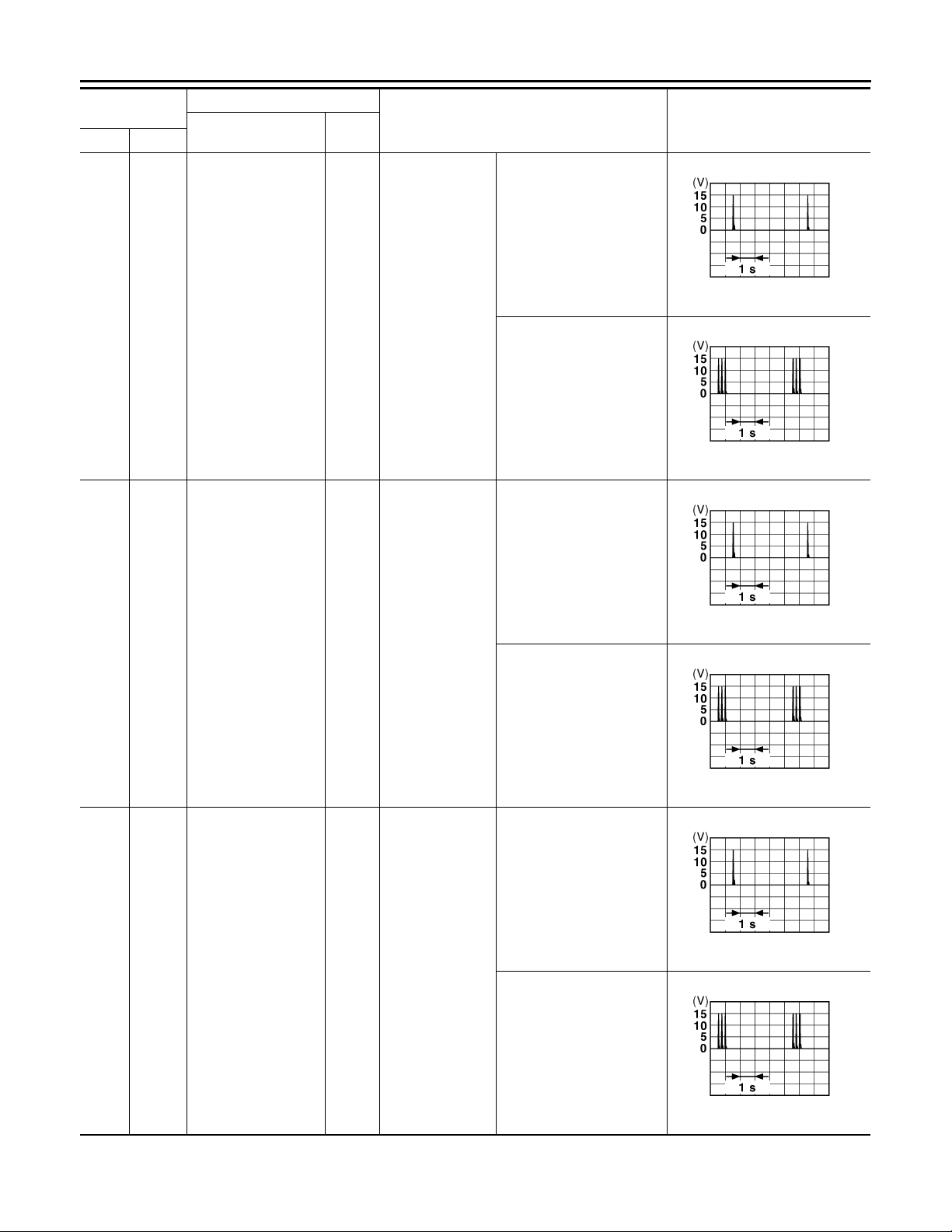

Terminal No.

(Wire color)

Ground

(V)

Description

Signal name

Driver door antenna (-)

Input/

Output+–

Output

When the driver door request switch is operated with ignition switch OFF

Condition

When Intelligent Key is in the antenna detection area

When Intelligent Key is not in the antenna detection area

Value

(Approx.)

JMKIA0062G

JMKIA0063G

(LG)

(Y)

Ground

Driver door antenna (+)

Room antenna (-) (instrument panel)

Output

When the driver door request switch is operated with ignition switch OFF

Ignition switch OFF

When Intelligent Key is in the antenna detection area

JMKIA0062G

When Intelligent Key is not in the antenna detection area

JMKIA0063G

When Intelligent Key is in the passenger compartment

JMKIA0062G

When Intelligent Key is not in the passenger compartment

JMKIA0063G

WCS-70

Page 71

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

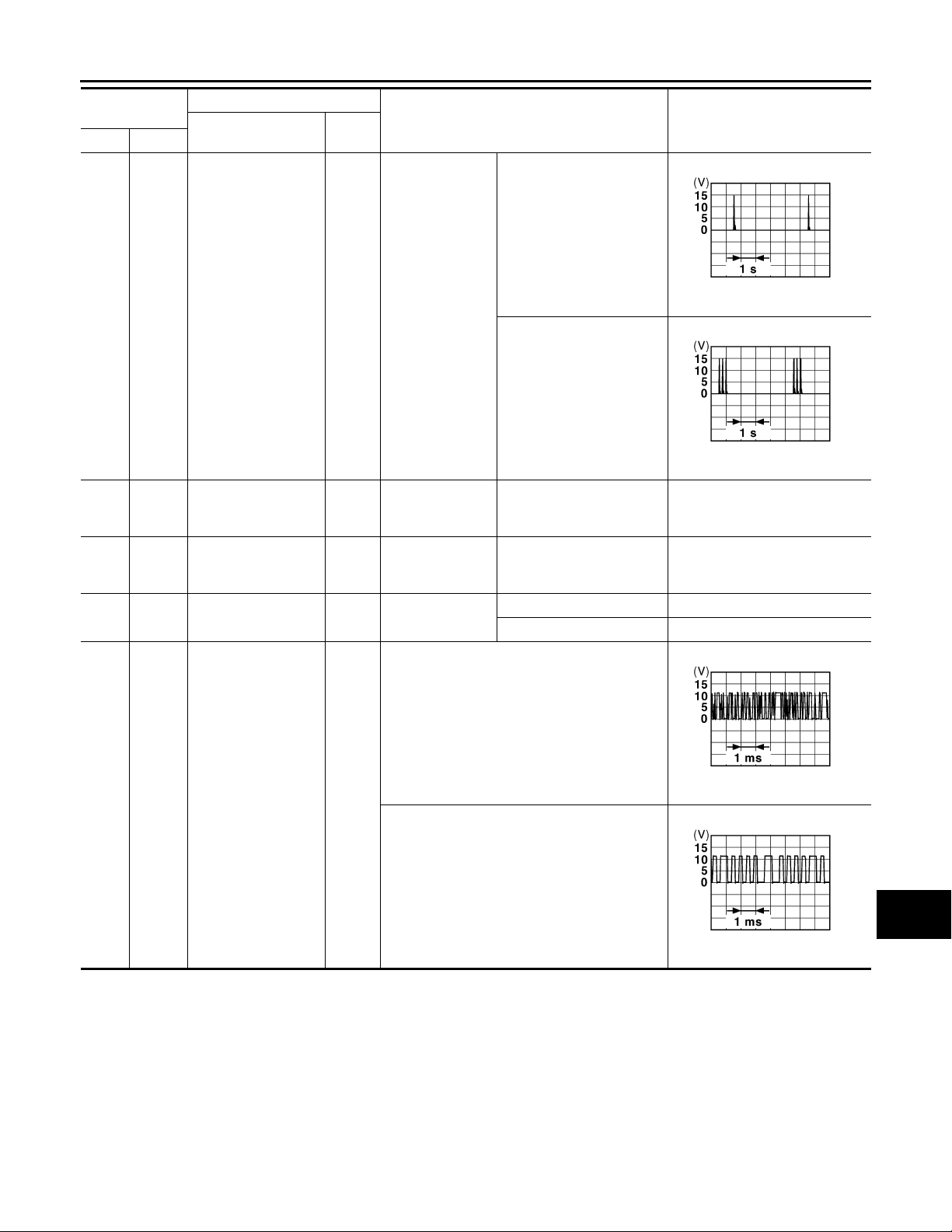

Terminal No.

(Wire color)

Ground

(BR)

(W)

(R)

Ground

(GR)

Description

Signal name

Room antenna (+) (instrument panel)

NATS antenna amp (built in key slot)

Ignition relay (relay box) control

Input/

Output+–

Output

Input/

Output

Input/

Output

Output Ignition switch

Ignition switch OFF

During waiting

Condition

When Intelligent Key is in the passenger compartment

When Intelligent Key is not in the passenger compartment

Ignition switch is pressed while inserting the Intelligent Key into the key slot.

OFF or ACC 0 V ON Battery voltage

Just after pressing ignition switch. Pointer of tester should move.

Value

(Approx.)

JMKIA0062G

JMKIA0063G

(Y)

Ground

Remote keyless entry receiver signal

Input/

Output

During waiting

When operating either button on Intelligent Key

JMKIA0064G

JMKIA0065G

WCS

WCS-71

Page 72

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground

(BR)

Description

Signal name

Combination switch INPUT 5

Input/

Output+–

Input

Combination switch

Condition

All switch OFF (Wiper intermittent dial 4)

Front fog lamp switch ON (Wiper intermittent dial 4)

Any of the conditions below with all switch OFF

• Wiper intermittent dial 1

• Wiper intermittent dial 2

• Wiper intermittent dial 6

• Wiper intermittent dial 7

Value

(Approx.)

JPMIA0041G

1.4 V

JPMIA0037G

1.3 V

JPMIA0040G

1.3 V

WCS-72

Page 73

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground

(V)

Description

Signal name

Combination switch INPUT 3

Input/

Output+–

Input

Combination switch

Condition

All switch OFF (Wiper intermittent dial 4)

Lighting switch HI (Wiper intermittent dial 4)

Lighting switch 2ND (Wiper intermittent dial 4)

Value

(Approx.)

1.4 V

1.3 V

JPMIA0041G

JPMIA0036G

Ground

(BR)

Ground CAN - L

(P)

Ground CAN - H

(L)

Ground Key slot illumination Output

(LG)

Push-button ignition switch (push switch)

Input

Input/

Output

Input/

Output

Push-button ignition switch (push switch)

Key slot illumination

JPMIA0037G

1.3 V

Any of the conditions below with all switches OFF

• Wiper intermittent dial 1

• Wiper intermittent dial 2

• Wiper intermittent dial 3

JPMIA0040G

1.3 V

Pressed 0 V Not pressed Battery voltage

——

OFF 0 V

WCS

Blinking

JPMIA0015G

6.5 V

ON Battery voltage

WCS-73

Page 74

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Ground ON indicator lamp Output Ignition switch

(V)

Ground ACC relay control Output Ignition switch

(O)

(L)

(P)

(R)

100 (G)

Ground

(GR)

Description

Signal name

A/T device (detention switch) power supply

Steering lock condition No. 1

Steering lock condition No. 2

Selector lever P position switch

Passenger door request switch

Input/

Output+–

Output — Battery voltage

Input S teering lock

Input Selector lever

Input

Passenger door request switch

Condition

OFF or ACC 0 V ON Battery voltage OFF 0 V ACC or ON Battery voltage

LOCK status 0 V UNLOCK status Battery voltage LOCK status Battery voltage UNLOCK status 0 V P position 0 V Any position other than P Battery voltage ON (Pressed) 0 V

OFF (Not pressed)

(Approx.)

Value

101

(SB)

102 (O)

103

(LG)

106 (W)

Ground

Driver door request switch

Blower fan motor relay control

Remote keyless entry receiver power supply

Steering wheel lock unit power supply

ON (Pressed) 0 V

Input

Output Ignition switch

Output Ignition switch OFF Battery voltage

Output Ignition switch

Driver door request switch

OFF (Not pressed)

OFF or ACC 0 V ON Battery voltage

OFF or ACC Battery voltage ON 0 V

JPMIA0016G

1.0 V

JPMIA0016G

1.0 V

WCS-74

Page 75

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

107

Ground

(LG)

Description

Signal name

Combination switch INPUT 1

Input/

Output+–

Input

Combination switch (Wiper intermittent dial 4)

Condition

All switch OFF

Turn signal switch LH

Turn signal switch RH

Value

(Approx.)

1.4 V

1.3 V

JPMIA0041G

JPMIA0037G

JPMIA0036G

Front wiper switch LO

Front washer switch ON

1.3 V

JPMIA0038G

JPMIA0039G

WCS

WCS-75

Page 76

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

108

Ground

(R)

Description

Signal name

Combination switch INPUT 4

Input/

Output+–

Input

Combination switch

Condition

All switch OFF (Wiper intermittent dial 4)

Lighting switch AUTO (Wiper intermittent dial 4)

Value

(Approx.)

JPMIA0041G

1.4 V

JPMIA0038G

1.3 V

Lighting switch 1ST (Wiper intermittent dial 4)

Any of the conditions below with all switches OFF

• Wiper intermittent dial 1

• Wiper intermittent dial 5

• Wiper intermittent dial 6

JPMIA0036G

1.3 V

JPMIA0039G

1.3 V

WCS-76

Page 77

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

109

Ground

(Y)

Description

Signal name

Combination switch INPUT 2

Input/

Output+–

Input

Combination switch (Wiper intermittent dial 4)

Condition

All switch OFF

Lighting switch PASS

Lighting switch 2ND

Value

(Approx.)

1.4 V

1.3 V

JPMIA0041G

JPMIA0037G

JPMIA0036G

110

Ground Hazard switch Input Hazard switch

(G)

Front wiper switch INT

Front wiper switch HI

Pressed 0 V

Not pressed

1.3 V

JPMIA0038G

JPMIA0040G

WCS

JPMIA0012G

1.1 V

WCS-77

Page 78

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

111

Ground

(Y)

113

Ground Optical sensor signal Input

(P)

114

Ground

(R)

116

Ground Stop lamp switch 1 Input — Battery voltage

(SB)

118

Ground Stop lamp switch 2 Input

(P)

Steering lock unit communication

Clutch interlock switch

Description

Signal name

Input/

Output+–

Input/

Output

Input

Steering lock

Ignition switch ON

Clutch interlock switch

Stop lamp switch

ICC brake hold relay (With ICC)

Condition

LOCK status Battery voltage

LOCK or UNLOCK

For 15 seconds after UNLOCK

15 seconds or later after UNLOCK

When bright outside of the vehicle

When dark outside of the vehicle

OFF (Clutch pedal is not depressed)

ON (Clutch pedal is depressed)

OFF (Brake pedal is not depressed)

ON (Brake pedal is depressed)

OFF 0 V ON Battery voltage

Value

(Approx.)

JMKIA0066G

Battery voltage

0 V

Close to 5 V

Close to 0 V

0 V

Battery voltage

0 V

Battery voltage

119

Ground

(SB)

121

Ground Key slot switch Input

(R)

122

Ground ACC feedback signal Input Ignition switch

(V)

123

Ground IGN feedback signal Input Ignition switch

(W)

Front door lock assembly driver side (unlock sensor)

Input Driver door

When Intelligent Key is inserted into key slot Battery voltage When Intelligent Key is not inserted into key slot 0 V

WCS-78

LOCK status

JPMIA0011GB

11.8 V

UNLOCK status 0 V

OFF 0 V ACC or ON Battery voltage OFF or ACC 0 V ON Battery voltage

Page 79

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

124

Ground

(LG)

129

Ground

(O)

Description

Signal name

Passenger door switch

Trunk lid opener cancel switch

Input/

Output+–

Input

Passenger door switch

Trunk lid opener cancel switch

Condition

OFF (When passenger door closes)

ON (When passenger door opens)

CANCEL

ON 0 V

0 V

Value

(Approx.)

11.8 V

1.1 V

JPMIA0011GB

JPMIA0012G

132

(V)

133 (W)

134

(GR)

137

(O)

138

(V)

Ground

Ground LOCK indicator lamp Output

Ground

Power window switch communication

Push-button ignition switch illumination

Receiver and sensor ground

Receiver and sensor power supply output

Input/

Output

Input Ignition switch ON 0 V

Output Ignition switch

Ignition switch ON

Ignition switch OFF or ACC 0 V

ON (When tail lamps OFF) 5.5 V

NOTE:

The pulse width of this wa ve is varied by the illumination brightening/dimming level.

Push-button ignition switch illumination

LOCK indicator lamp

ON (When tail lamps ON)

OFF 0 V ON 0 V OFF Battery voltage

OFF 0 V ACC or ON 5.0 V

10.2 V

JPMIA0013G

JPMIA0159G

WCS

WCS-79

Page 80

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

139

Ground

(L)

140

(GR)

Ground

Description

Signal name

Tire pressure receiver signal

Selector lever P/N position signal

Input/

Output+–

Input/

Output

Ignition switch ON

Input Selector lever

Condition

Standby state

When receiving the signal from the transmitter

P or N position 12.0 V Except P and N positions 0 V ON 0 V

Value

(Approx.)

OCC3881D

OCC3880D

141 (G)

142 (O)

143

(P)

Ground

Security indicator signal

Combination switch OUTPUT 5

Combination switch OUTPUT 1

Output Security indicator

Combination

Output

switch (Wiper intermittent dial 4)

Output

Combination switch

Blinking

OFF Battery voltage All switch OFF 0 V Lighting switch 1ST Lighting switch HI Lighting switch 2ND

Turn signal switch RH

All switch OFF (Wiper intermittent dial 4)

0 V

Front wiper switch HI (Wiper intermittent dial 4)

Any of the conditions below with all switch OFF

• Wiper intermittent dial 1

• Wiper intermittent dial 2

• Wiper intermittent dial 3

• Wiper intermittent dial 6

• Wiper intermittent dial 7

10.7 V

JPMIA0014G

11.3 V

JPMIA0031G

10.7 V

JPMIA0032G

WCS-80

Page 81

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

144

Ground

(G)

145

Ground

(L)

146

Ground

(SB)

149

Ground

(W)

Description

Signal name

Combination switch OUTPUT 2

Combination switch OUTPUT 3

Combination switch OUTPUT 4

Tire pressure warning check switch

Input/

Output+–

Output

Input — 5 V

Combination switch

Combination switch (Wiper intermittent dial 4)

Condition

All switch OFF (Wiper intermittent dial 4)

Front washer switch ON (Wiper intermittent dial 4)

Any of the conditions below with all switches OFF

• Wiper intermittent dial 1

• Wiper intermittent dial 5

• Wiper intermittent dial 6

All switches OFF 0 V Front wiper switch INT Front wiper switch LO

Lighting switch AUTO

All switch OFF 0 V Front fog lamp switch ON Lighting switch 2ND Lighting switch PASS

Turn signal switch LH

0 V

Value

(Approx.)

10.7 V

JPMIA0033G

JPMIA0034G

JPMIA0035G

150

(GR)

Ground Driver door switch Inpu t

151

Ground

(G)

Rear window defogger relay

Output

Driver door switch

Rear window defogger

WCS-81

OFF (When driver door closes)

ON (When driver door opens)

Active 0 V Not activated Battery voltage

0 V

11.8 V

JPMIA0011GB

WCS

Page 82

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Wiring Diagram — BCM —

INFOID:0000000000964508

JCMWA0005G

WCS-82

Page 83

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

WCS

JCMWA0006G

WCS-83

Page 84

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

JCMWA0007G

WCS-84

Page 85

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

WCS

JCMWA0008G

WCS-85

Page 86

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

JCMWA0009G

WCS-86

Page 87

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

WCS

Fail Safe INFOID:0000000000964509

Display contents of CONSULT Fail-safe Cancellation B2013: ID DISCORD BCM-S/L Inhibit engine cranking Erase DTC B2014: CHAIN OF S/L-BCM Inhibit engine cranking Erase DTC B2190: NATS ANTTENA AMP Inhibit engine cranking Erase DTC

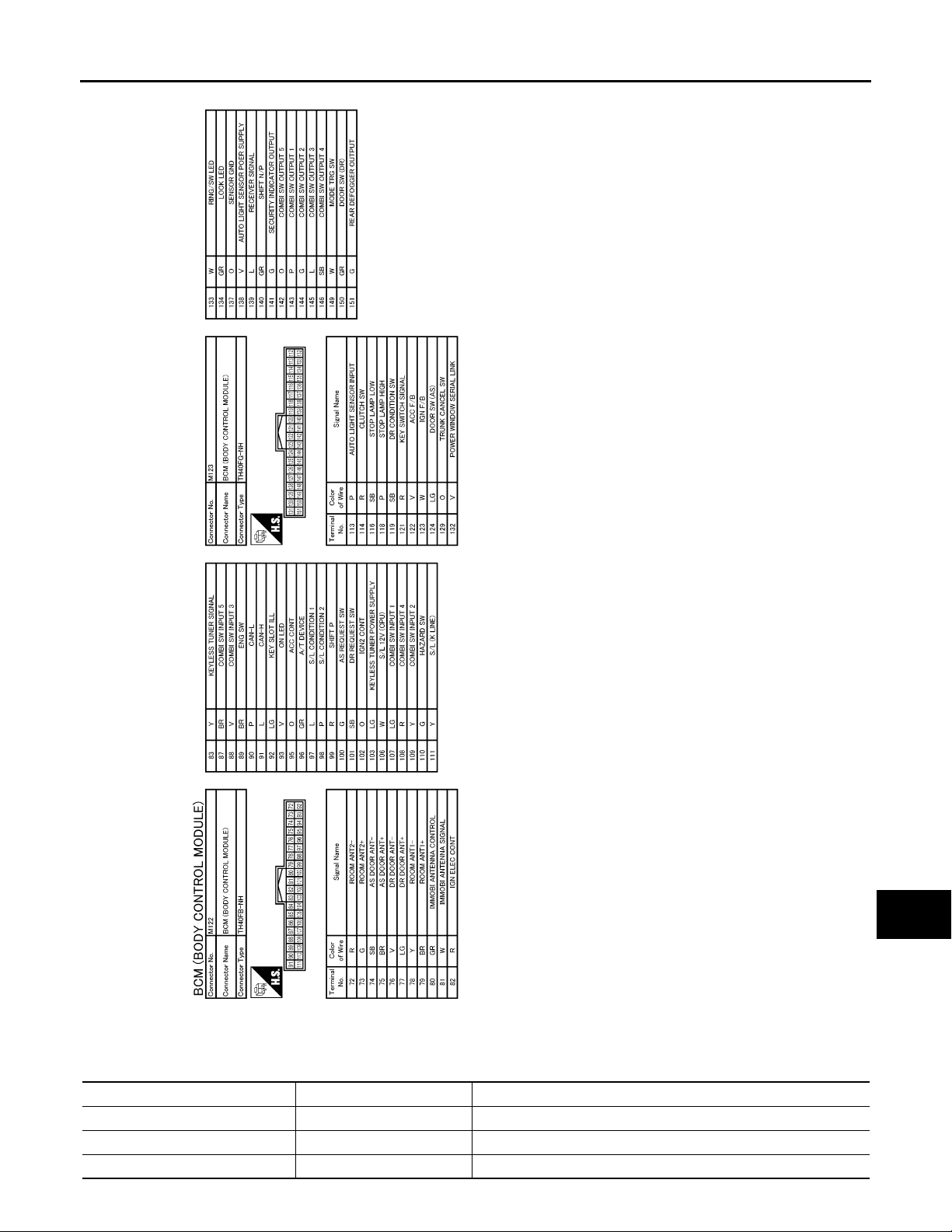

JCMWA0010G

WCS-87

Page 88

BCM (BODY CONTROL MODULE)

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Display contents of CONSULT Fail-safe Cancellation B2191: DIFFERENCE OF KEY Inhibit engine cranking Erase DTC B2192: ID DISCORD BCM-ECM Inhibit engine cranking Erase DTC B2193: CHAIN OF BCM-ECM Inhibit engine cranking Erase DTC

B2557: VEHICLE SPEED Inhibit steering lock

B2560: STARTER CONT RELAY Inhibit engine cranking

B2563: HI VOLTAGE

B2601: SHIFT POSITION Inhibit steering lock

B2602: SHIFT POSITION Inhibit steering lock

B2603: SHIFT POSI STATUS Inhibit steering lock

B2604: PNP SW Inhibit steering lock

B2605: PNP SW Inhibit steering lock

B2606: S/L RELAY Inhibit engine cranking

B2607: S/L RELAY Inhibit engine cranking

• Inhibit engine crank ing

• Inhibit steering lock

When normal vehicle speed signals h ave been received f rom ABS actuator and electric unit (control unit) for 500 ms

500 ms after the following CAN signal communication status has become consistent

• Starter control relay signal

• Starter relay status signal 500 ms after the power supply voltage decreases to less than 18 V 500 ms after the following signal reception status becomes consis-

tent

• Selector lever P position swi tch sign al

• P range signal (CAN) 5 seconds after the following BCM recognition conditions are ful-

filled

• Ignition switch is in the ON position

• Selector lever P position switch signal: Except P position (battery voltage)

• Vehicle speed: 4 /h or more

500 ms after the following BCM recognition conditions are fulfilled

• Ignition switch is in the ON position

• Selector lever P position switch signal: Except P position (battery voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

500 ms after any of the following BCM recognition conditions is fulfilled

•Status 1

- Ignition switch is in the ON position

- Selector lever P/N position signal: P and N position (battery voltage)

- P range signal or N range signal (CAN): ON

•Status 2

- Ignition switch is in the ON position

- Selector lever P/N position signal: Except P and N positions (0 V)

- P range signal and N range signal (CAN): OFF

500 ms after any of the following BCM recognition conditions is fulfilled

• Ignition switch is in the ON position

- Power position: IGN

- Selector lever P/N position signal: Except P and N positions (0 V)

- Interlock/PNP switch signal (CAN): OFF

•Status 2

- Ignition switch is in the ON position

- Selector lever P/N position signal: P or N position (battery voltage)

- PNP switch signal (CAN): ON

500 ms after the following CAN signal communication status has become consistent

• Steering lock relay signal (Request signal)

• Steering lock relay signal (Condition signal)

500 ms after the following CAN signal communication status has become consistent

• Steering lock relay signal (Request signal)

• Steering lock relay signal (Condition signal)

WCS-88

Page 89

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

Display contents of CONSULT Fail-safe Cancellation

500 ms after the following signal communication status becomes

B2608: STARTER RELAY Inhibit engine cranking

B2609: S/L STATUS

B260A: IGNITION RELAY Inhibit engine cranking

B260F: ENG STATE SIG LOST

B2612: S/L STATUS

B2617: STARTER RELAY CIRC Inhibit engine cranking

B2618: BCM Inhibit engine cranking

B2619: BCM Inhibit engine cranking B261E: VEHICLE TYPE Inhibit engine cranking BCM initialization

B26E1: ENG STATE NO RECIV Inhibit engine cranking

• Inhibit engine cranking

• Inhibit steering lock

Maintains the power supply position attained at the t ime of DTC detection

• Inhibit engine cranking

• Inhibit steering lock

consistent

• Starter motor relay control signal

• Starter relay stat us signal (CAN)

When the following steering lock conditions agree

• BCM steering lock control status

• Steering lock condition No. 1 signal status

• Steering lock condition No. 2 signal status

500 ms after the following conditions are fulfilled

• IGN relay (IPDM E/R) control signal: OFF (Battery voltage)

• Ignition ON signal (CAN to IPDM E/R): OFF (Reque s t sign al )

• Ignition ON signal (CAN from IPDM E/R): OFF (Condition signal)

When any of the following cond itions is fulfilled

• Power position changes to ACC

• Receives engine status signal (CAN)

When any of the following cond itions is fulfilled

• Steering lock unit status signal (CAN) is received normally

• The BCM steering lock control status matches the steering lock status recognized by the steering lock unit status signal (CAN from IPDM E/R)

1 second after the starter motor relay control inside BCM becomes normal

1 second after the ignition relay (IPDM E/R) control inside BCM becomes normal

1 second after the steering lock unit power supply output control inside BCM becomes normal

When any of the following cond itions is fulfilled

• Power position changes to ACC

• Receives engine status signal (CAN)

DTC Inspection Priority Chart INFOID:0000000000964510

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

Priority DTC

• B2562: LOW VOLTAGE

• B2563: HI VOLTAGE

• U1000: CAN COMM CIRCUIT

• U1010: CONTROL UNIT (CAN)

• B2190: NATS ANTTENA AMP

• B2191: DIFFERENCE OF KEY

• B2192: ID DISCORD BCM-ECM

• B2193: CHAIN OF BCM-ECM

WCS

WCS-89

Page 90

BCM (BODY CONTROL MODULE)

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

Priority DTC

• B2013: ID DISCORD BCM-S/L

• B2014: CHAIN OF S/L-BCM

• B2553: IGNITION RELAY

• B2555: STOP LAMP

• B2556: PUSH-BTN IGN SW

• B2557: VEHICLE SPEED

• B2560: STARTER CONT RELAY

• B2601: SHIFT POSITION

• B2602: SHIFT POSITION

• B2603: SHIFT POSI STATUS

• B2604: PNP SW

• B2605: PNP SW

• B2606: S/L RELAY

• B2607: S/L RELAY

• B2608: STARTER RELAY

• B2609: S/L STA TUS

• B260A: IGNITION RELAY

• B260B: STEERING LOCK UNIT

• B260C: STEERING LOCK UNIT

• B260D: STEERING LOCK UNIT

• B260F: ENG STATE SIG LOST

• B2611: ACC RELAY

• B2612: S/L STA TUS

• B2614: ACC RELAY CIRC

• B2615: BLOWER RELAY CIRC

• B2616: IGN RELAY CIRC

• B2617: STARTER RELAY CIRC

• B2618: BCM

• B2619: BCM

• B261A: PUSH-BTN IGN SW

• B261E: VEHICLE TYPE

• B26E1: ENG STATE NO RECIV

• C1729: VHCL SPEED SIG ERR

• U0415: VEHICLE SPEED SIG

• C1704: LOW PRESSURE FL

• C1705: LOW PRESSURE FR

• C1706: LOW PRESSURE RR

• C1707: LOW PRESSURE RL

• C1708: [NO DATA] FL

• C1709: [NO DATA] FR

• C1710: [NO DATA] RR

• C1711: [NO DATA] RL

• C1712: [CHECKSUM ERR] FL

• C1713: [CHECKSUM ERR] FR

• C1714: [CHECKSUM ERR] RR

• C1715: [CHECKSUM ERR] RL

• C1716: [PRESSDATA ERR] FL

• C1717: [PRESSDATA ERR] FR

• C1718: [PRESSDATA ERR] RR

• C1719: [PRESSDATA ERR] RL

• C1720: [CODE ERR] FL

• C1721: [CODE ERR] FR

• C1722: [CODE ERR] RR

• C1723: [CODE ERR] RL

• C1724: [BATT VOLT LOW] FL

• C1725: [BATT VOLT LOW] FR

• C1726: [BATT VOLT LOW] RR

• C1727: [BATT VOLT LOW] RL

• C1734: CONTROL UNIT

• B2621: INSIDE ANTENNA

• B2622: INSIDE ANTENNA

• B2623: INSIDE ANTENNA

DTC Index

INFOID:0000000000964511

WCS-90

Page 91

BCM (BODY CONTROL MODULE)

Revision: October 2006

2007 G35 Sedan

< ECU DIAGNOSIS >

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning ignition switch OFF → ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1 → 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch OFF → ON after returning to the normal condition if the malfunction is detected again.

CONSULT display Fail-safe

No DTC is detected. further testing may be required.

U1000: CAN COMM CIRCUIT — — — BCS-33 U1010: CONTROL UNIT (CAN) — — — BCS-34 U0415: VEHICLE SPEED SIG — — — BCS-35 B2013: ID DISCORD BCM-S/L × ——SEC-43 B2014: CHAIN OF S/L-BCM × ——SEC-44 B2190: NATS ANTTENA AMP × ——SEC-37 B2191: DIFFERENCE OF KEY × ——SEC-40 B2192: ID DISCORD BCM-ECM × ——SEC-41 B2193: CHAIN OF BCM-ECM × ——SEC-42 B2553: IGNITION RELAY — — — PCS-48 B2555: STOP LAMP — — — SEC-47 B2556: PUSH-BTN IGN SW — × — SEC-49 B2557: VEHICLE SPEED ××— SEC-51 B2560: STARTER CONT RELAY ××— SEC-52 B2562: LOW VOLTAGE — — — BCS-36 B2563: HI VOLTAGE ××— BCS-37 B2601: SHIFT POSITION ××— SEC-53 B2602: SHIFT POSITION ××— SEC-56 B2603: SHIFT POSI STATUS ××— SEC-58 B2604: PNP SW ××— SEC-61 B2605: PNP SW ××— SEC-63 B2606: S/L RELAY ××— SEC-65 B2607: S/L RELAY ××— SEC-66 B2608: STARTER RELAY ××— SEC-68 B2609: S/L STATUS ××— SEC-70 B260A: IGNITION RELAY ××— PCS-50 B260B: STEERING LOCK VNIT — × — SEC-74 B260C: STEERING LOCK VNIT — × — SEC-75 B260D: STEERING LOCK VNIT — × — SEC-76 B260F: ENG STATE SIG LOST ××— SEC-77 B2611: ACC RELAY — — — PCS-52 B2612: S/L STATUS ××— SEC-79 B2614: ACC RELAY CIRC — × — PCS-54 B2615: BLOWER RELAY CIRC — × — PCS-57

————

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

WCS

WCS-91

Page 92

< ECU DIAGNOSIS >

Revision: October 2006

2007 G35 Sedan

BCM (BODY CONTROL MODULE)

CONSULT display Fail-safe

B2616: IGN RELAY CIRC — × — PCS-60 B2617: STARTER RELAY CIRC ××— SEC-83 B2618: BCM ××— PCS-63 B2619: BCM ××— SEC-85 B261A: PUSH-BTN IGN SW — × — SEC-86

B261E: VEHICLE TYPE × B2621: INSIDE ANTENNA — — — DLK-58

B2622: INSIDE ANTENNA — — — DLK-60 B2623: INSIDE ANTENNA — — — DLK-62 B26E1: ENG STATE NO RES ××— SEC-78 C1704: LOW PRESSURE FL — — × WT-14 C1705: LOW PRESSURE FR — — × WT-14 C1706: LOW PRESSURE RR — — × WT-14 C1707: LOW PRESSURE RL — — × WT-14 C1708: [NO DATA] FL — — × WT-16 C1709: [NO DATA] FR — — × WT-16 C1710: [NO DATA] RR — — × WT-16 C1711: [NO DATA] RL — — × WT-16 C1712: [CHECKSUM ERR] FL — — × WT-19 C1713: [CHECKSUM ERR] FR — — × WT-19 C1714: [CHECKSUM ERR] RR — — × WT-19 C1715: [CHECKSUM ERR] RL — — × WT-19 C1716: [PRESSDATA ERR] FL — — × WT-22 C1717: [PRESSDATA ERR] FR — — × WT-22 C1718: [PRESSDATA ERR] RR — — × WT-22 C1719: [PRESSDATA ERR] RL — — × WT-22 C1720: [CODE ERR] FL — — × WT-24 C1721: [CODE ERR] FR — — × WT-24 C1722: [CODE ERR] RR — — × WT-24 C1723: [CODE ERR] RL — — × WT-24 C1724: [BATT VOLT LOW] FL — — × WT-27 C1725: [BATT VOLT LOW] FR — — × WT-27 C1726: [BATT VOLT LOW] RR — — × WT-27 C1727: [BATT VOLT LOW] RL — — × WT-27 C1729: VHCL SPEED SIG ERR — — × WT-30 C1734: CONTROL UNIT — — × WT-31

Intelligent Key

warning lamp ON

× (Turn ON for 15

seconds)

Tire pressure

monitor warning

lamp ON

— SEC-88

Reference page

WCS-92

Page 93

THE PARKING BRAKE RELEASE WARNING CONTINUES SOUNDING, OR

Revision: October 2006

2007 G35 Sedan

DOES NOT SOUND

< SYMPTOM DIAGNOSIS >

SYMPTOM DIAGNOSIS

THE P ARKING BRAKE RELEASE W ARNING CONTINUES SOUNDING, OR DOES NOT SOUND

Description INFOID:0000000000964512

• The parking brake warning buzzer sounds continuously during vehicle travel though the parking brake is released

• The parking brake warning buzzer does not sound at all even though driving the vehicle with the parking brake applied.

Diagnosis Procedure INFOID:0000000000964513

1.CHECK PARKING BRAKE WARNING LAMP

1. Start the engine.

2. Check the operation of the brake warning lamp by operating the parking brake.

Parking brake ON : ON Parking brake OFF : OFF

Is the inspection result normal?

YES >> Replace the combination meter. NO >> GO TO 2.

2.CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

Perform a inspection for the parking brake switch signal circuit. Refer to MWI-59, "

model)" or MWI-59, "Diagnosis Procedure (M/T model)".

Is the inspection result normal?

YES >> GO TO 3. NO >> Repair harness or connector.

3.CHECK PARKING BRAKE SWITCH UNIT

Perform a unit inspection for the parking brake switch. Refer to BRC-69, " Is the inspection result normal?

YES >> Replace the combination meter. NO >> Replace the parking brake switch. Refer to PB-7, "

(pedal type) or PB-8, "LEVER TYPE : Removal and Installation" (lever type).

PEDAL TYPE : Removal and Installation"

Component Inspection".

Diagnosis Procedure (A/T

WCS

WCS-93

Page 94

THE LIGHT REMINDER WARNING DOES NOT SOUND

Revision: October 2006

2007 G35 Sedan

< SYMPTOM DIAGNOSIS >

THE LIGHT REMINDER WARNING DOES NOT SOUND

Description INFOID:0000000000964514

Light reminder warning does not sound even though headlamp is illuminated.

Diagnosis Procedure INFOID:0000000000964515

1.CHECK COMBINATION SWITCH (LIGHT SWITCH) OPERATION

Check that the headlamps operate normally by operating the combination switch (light switch). Do they operate normally?

YES >> GO TO 2. NO >> Refer to EXL-179, "

Diagnosis Procedure".

2.CHECK FRONT DOOR SWITCH (DRIVER SIDE) SIGNAL CIRCUIT

Perform the inspection for the front door switch (driver side) signal circuit. Refer to DLK-65, "

dure".

Is the inspection result normal?

YES >> GO TO 3. NO >> Repair harness or connector.

3.CHECK FRONT DOOR SWITCH (DRIVER SIDE) UNIT

Perform a unit inspection for the front door switch (driver side). Refer to DLK-67, " Is the inspection result normal?

YES >> Replace the BCM. Refer to BCS-79, "Removal and Installation". NO >> Replace the front door switch (driver side). Refer to DLK-218, "

Component Inspection".

Removal and Installation".

Diagnosis Proce-

WCS-94

Page 95

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT SOUND

Revision: October 2006

2007 G35 Sedan

< SYMPTOM DIAGNOSIS >

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT SOUND

Description INFOID:0000000000964516

• Seat belt warning does not sound even though driver seat belt is not fastened.

• Seat belt warning sounds even though driver seat belt is fastened.

Diagnosis Procedure INFOID:0000000000964517

1.CHECK SEAT BELT WARNING LAMP

1. Turn ignition switch ON.

2. Check the operation of the seat belt warning lamp in the combination meter.

Seat belt fastened : OFF Seat belt not fastened : ON

Is the inspection result normal?

YES >> GO TO 2. NO >> GO TO 4.

2.CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

Check the buckle switch input signal with the “Data Monitor”. Refer to WCS-21,

"Component Function Check".

Is the inspection result normal?

YES >> Replace the unified meter and A/C amp. NO >> GO TO 3.

3.CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

Perform the inspection for the seat belt buckle switch circuit. Refer to WCS-21, " Is the inspection result normal?

YES >> Replace the unified meter and A/C amp. NO >> Repair harness or connector.

4.CHECK SEAT BELT BUCKLE SWITCH UNIT

Perform a unit inspection for the seat belt buckle switch. Refer to WCS-21, " Is the inspection result normal?

YES >> Replace the combination meter. NO >> Replace the seat belt buckle. Refer to SB-7, "

SEAT BELT BUCKLE : Removal and Installation".

Component Inspection".

Diagnosis Procedure".

WCS

WCS-95

Page 96

AIR BAG (PATTERN 2)

Revision: October 2006

2007 G35 Sedan

< PRECAUTION >

PRECAUTION

AIR BAG (PATTERN 2)

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" INFOID:0000000000964518

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted. Information necessary to service the system safely is included in the SRS and SB section of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision which would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the SRS section.

• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.

WCS-96
