Datasheet VNN7NV04P-E, VNS7NV04P-E Datasheet (ST)

Features

VNN7NV04P-E, VNS7NV04P-E

OMNIFET II

fully autoprotected Power MOSFET

Typ e R

VNN7NV04P-E
VNS7NV04P-E

■ Linear current limitation

■ Thermal shutdown

■ Short circuit protection

■ Integrated clamp

■ Low current drawn from input pin

■ Diagnostic feedback through input pin

■ ESD protection

■ Direct access to the gate of the Power

DS(on)

60 mΩ 6A 40V

I

lim

V

clamp

MOSFET (analog driving)

■ Compatible with standard Power MOSFET in

compliance with the 2002/95/EC European
Directive

2

3

2

SOT-223

1

SO-8

Description

The VNN7NV04P-E, VNS7NV04P-E, are
monolithic devices designed in
STMicroelectronics VIPower™ M0-3 Technology,
intended for replacement of standard Power
MOSFETs from DC up to 50 kHz applications.
Built in thermal shutdown, linear current limitation
and overvoltage clamp protect the chip in harsh
environments.

Fault feedback can be detected by monitoring the
voltage at the input pin.

Table 1. Device summary

Order codes

Package

Tube Tape and reel

SOT-223 - VNN7NV04PTR-E

SO-8 VNS7NV04P-E VNS7NV04PTR-E

July 2011 Doc ID 15632 Rev 3 1/29

www.st.com

1

Contents VNN7NV04P-E, VNS7NV04P-E

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Protection features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1 Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2 SO-8 maximum demagnetization energy . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3 SOT-223 maximum demagnetization energy . . . . . . . . . . . . . . . . . . . . . . 17

4 Package and PCB thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 SO-8 thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2 SOT-223 thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5 Package and packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1 SOT-223 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2 SO-8 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3 SOT-223 packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.4 SO-8 packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E List of tables

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Table 3. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 4. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 5. SO-8 thermal parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 6. SOT-223 thermal parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 7. SOT-223 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 8. SO-8 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 9. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Doc ID 15632 Rev 3 3/29

List of figures VNN7NV04P-E, VNS7NV04P-E

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2. Configuration diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 3. Current and voltage conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 4. Switching time test circuit for resistive load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 5. Test circuit for diode recovery times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 6. Unclamped inductive load test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 7. Input charge test circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 8. Unclamped inductive waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 9. Derating curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 10. Transconductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 11. Static drain-source on resistance vs input voltage (part 1/2) . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 12. Static drain-source on resistance vs input voltage (part 2/2) . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 13. Source-drain diode forward characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 14. Static drain source on resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 15. Turn-on current slope (part 1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 16. Turn-on current slope (part 2/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 17. Transfer characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 18. Static drain-source on resistance vs Id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 19. Input voltage vs input charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 20. Turn-off drain source voltage slope (part 1/2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 21. Turn-off drain source voltage slope (part 2/2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 22. Capacitance variations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 23. Output characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 24. Normalized on resistance vs temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 25. Switching time resistive load (part 1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 26. Switching time resistive load (part 2/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 27. Normalized input threshold voltage vs temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 28. Normalized current limit vs junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 29. Step response current limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 30. SO-8 maximum turn-off current versus load inductance. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 31. SO-8 demagnetization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 32. SOT-223 maximum turn-off current versus load inductance . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 33. SOT-223 demagnetization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 34. SO-8 PC board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 35. Rthj-amb vs PCB copper area in open box free air condition. . . . . . . . . . . . . . . . . . . . . . . 18

Figure 36. SO-8 thermal impedance junction ambient single pulse. . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 37. Thermal fitting model of an OMNIFET II in SO-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 38. SOT-223 PC board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 39. Rthj-amb vs PCB copper area in open box free air condition. . . . . . . . . . . . . . . . . . . . . . . 20

Figure 40. SOT-223 thermal impedance junction ambient single pulse. . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 41. Thermal fitting model of an OMNIFET II in SOT-223 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 42. SOT-223 package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 43. SO-8 package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 44. SOT-223 tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 45. SO-8 tube shipment (no suffix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 46. SO-8 tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E Block diagram and pin description

1 Block diagram and pin description

Figure 1. Block diagram

DRAIN

2

Overvoltage

Clamp

INPUT

1

Gate

Control

Over

Temperature

Current

Limiter

Figure 2. Configuration diagram (top view)

SO-8 Package

SOURCE

SOURCE

SOURCE

INPUT

1

4

1. For the pins configuration related to SOT-223 see outlines at page 1.

(1)

8

5

Linear

DRAIN

DRAIN

DRAIN

DRAIN

3

SOURCE

FC01000

Doc ID 15632 Rev 3 5/29

Electrical specifications VNN7NV04P-E, VNS7NV04P-E

2 Electrical specifications

Figure 3. Current and voltage conventions

I

D

V

DS

I

IN

R

IN

INPUT

V

IN

2.1 Absolute maximum ratings

DRAIN

SOURCE

Table 2. Absolute maximum ratings

Value

Symbol Parameter

Unit

SOT-223 SO-8

V

V

R

IN MIN

V

ESD1

V

ESD2

P

DS

IN

I

IN

I

D

I

R

tot

Drain-source voltage (VIN= 0 V) Internally clamped V

Input voltage Internally clamped V

Input current +/-20 mA

Minimum input series impedance 150 Ω

Drain current Internally limited A

Reverse DC output current -10.5 A

Electrostatic discharge (R = 1.5 KΩ,
C = 100 pF)

Electrostatic discharge on output pin only
(R = 330 Ω, C = 150 pF)

4000 V

16500 V

Total dissipation at Tc=25°C 7 4.6 W

Maximum switching energy (L = 0.7 mH;

E

MAX

R

L

=9A)

I

L

=0Ω; V

=13.5V; T

bat

jstart

=150°C;

40 mJ

Maximum switching energy (L = 0.6 mH;

E

MAX

T

T

T

j

c

stg

R

L

=9A)

I

L

=0Ω; V

=13.5V; T

bat

jstart

=150°C;

Operating junction temperature Internally limited °C

Case operating temperature Internally limited °C

Storage temperature -55 to 150 °C

37 mJ

6/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E Electrical specifications

2.2 Thermal data

Table 3. Thermal data

Val ue

Symbol Parameter

SOT-223 SO-8

Unit

R

thj-case

R

thj-lead

R

thj-amb

1. When mounted on a standard single-sided FR4 board with 0.5 mm2 of Cu (at least 35 µm thick) connected
to all DRAIN pins.

Thermal resistance junction-case max 18 °C/W

Thermal resistance junction-lead max 27 °C/W

Thermal resistance junction-ambient max 96

(1)

90

(1)

2.3 Electrical characteristics

-40 °C < Tj < 150 °C, unless otherwise specified.

Table 4. Electrical characteristics

Symbol Parameter Test conditions Min Typ Max Unit

Off

V

CLAMP

V

CLTH

V

INTH

I

ISS

Drain-source clamp
voltage

Drain-source clamp
threshold voltage

=0V; ID= 3.5 A 40 45 55 V

V

IN

=0V; ID=2mA 36 V

V

IN

Input threshold voltage VDS=VIN; ID=1mA 0.5 2.5 V

Supply current from input
pin

=0V; VIN= 5 V 100 150 µA

V

DS

°C/W

V

INCL

I

DSS

On

R

DS(on)

Dynamic (T

(1)

g

fs

C

OSS

I

=1mA 6 6.8 8 V

Input-source clamp
voltage

Zero input voltage drain
current (V

=0V)

IN

Static drain-source on
resistance

= 25 °C, unless otherwise specified)

j

Forward
transconductance

IN

IIN= -1 mA -1.0 -0.3 V

V

=13V; VIN=0V; Tj=25°C 30 µA

DS

V

=25V; VIN= 0 V 75 µA

DS

=5V; ID= 3.5 A; Tj=25°C 65 mΩ

V

IN

V

=5V; ID= 3.5 A 130 mΩ

IN

V

=13V; ID=3.5A 9 S

DD

Output capacitance VDS=13V; f=1MHz; VIN=0V 220 pF

Doc ID 15632 Rev 3 7/29

Electrical specifications VNN7NV04P-E, VNS7NV04P-E

Table 4. Electrical characteristics (continued)

Symbol Parameter Test conditions Min Typ Max Unit

Switching (Tj= 25 °C, unless otherwise specified)

t

d(on)

t

t

d(off)

t

t

d(on)

t

t

d(off)

t

(dI/dt)

Q

Tu r n- on d el ay t im e

=15V; ID=3.5A;

V

Rise time 470 1500 ns

r

Turn-off delay time 500 1500 ns

Fall time 350 1000 ns

f

DD

V

=5V; R

gen

gen=RIN MIN

(see figure Figure 4)

=150Ω;

Tu r n- on d el ay t im e

=15V; ID=3.5A;

V

Rise time 4.6 14.0 µs

r

Turn-off delay time 5.4 16.0 µs

Fall time 3.6 11.0 µs

f

Turn-on current slope

on

Total input charge

i

DD

V

gen

=5V; R

=2.2KΩ;

gen

(see figure Figure 4)

=15V; ID= 3.5 A; V

V

DD

R

gen=RIN MIN

=12V; ID= 3.5 A; VIN=5V;

V

DD

I

= 2.13 mA (see figure Figure 7)

gen

=150Ω

gen

=5V;

100 300 ns

0.75 2.3 µs

6.5 A/µs

18 nC

Source drain diode (Tj= 25 °C, unless otherwise specified)

(1)

V

SD

t

Qrr Reverse recovery charge 0.28 µC

I

RRM

Protections (-40 °C < T

I

lim

t

dlim

Forward on voltage ISD= 3.5 A; VIN=0V 0.8 V

Reverse recovery time

rr

ISD= 3.5 A; dI/dt = 20 A/µs;

220 ns

VDD= 30 V; L = 200 µH;

Reverse recovery current 2.5 A

< 150 °C, unless otherwise specified)

j

(see test circuit, figure Figure 5)

Drain current limit VIN=5V; VDS=13V 6 9 12 A

Step response current
limit

=5V; VDS=13V 4.0 µs

V

IN

T

jsh

T

I

E

1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %

Overtemperature
shutdown

Overtemperature reset 135 °C

jrs

Fault sink current VIN=5V; VDS=13V; Tj=T

gf

Single pulse avalanche

as

energy

starting T
R

gen=RIN MIN

(see Figure 6 and Figure 8)

=25°C; VDD=24V; VIN=5V;

j

8/29 Doc ID 15632 Rev 3

jsh

=150Ω; L = 24 mH;

150 175 200 °C

15 mA

200 mJ

VNN7NV04P-E, VNS7NV04P-E Protection features

3 Protection features

During normal operation, the input pin is electrically connected to the gate of the internal
Power MOSFET through a low impedance path.

The device then behaves like a standard Power MOSFET and can be used as a switch from
DC up to 50 kHz. The only difference from the user’s standpoint is that a small DC current
I

(typ. 100µA) flows into the input pin in order to supply the internal circuitry.

ISS

The device integrates:

● Overvoltage clamp protection: internally set at 45 V, along with the rugged avalanche

characteristics of the Power MOSFET stage give this device unrivalled ruggedness and
energy handling capability. This feature is mainly important when driving inductive
loads.

● Linear current limiter circuit: limits the drain current I

voltages. When the current limiter is active, the device operates in the linear region, so
power dissipation may exceed the capability of the heatsink. Both case and junction
temperatures increase, and if this phase lasts long enough, junction temperature may
reach the overtemperature threshold T

● Overtemperature and short circuit protection: these are based on sensing the chip

jsh

.

temperature and are not dependent on the input voltage. The location of the sensing
element on the chip in the power stage area ensures fast, accurate detection of the
junction temperature. Overtemperature cutout occurs in the range 150 to 190 °C, a
typical value being 170 °C. The device is automatically restarted when the chip
temperature falls of about 15 °C below shutdown temperature.

● Status feedback: in the case of an overtemperature fault condition (T

tries to sink a diagnostic current I

through the input pin in order to indicate fault

gf

condition. If driven from a low impedance source, this current may be used in order to
warn the control circuit of a device shutdown. If the drive impedance is high enough so
that the input pin driver is not able to supply the current I
however not affects the device operation: no requirement is put on the current capability
of the input pin driver except to be able to supply the normal operation drive current
I

.

ISS

Additional features of this device are ESD protection according to the Human Body model
and the ability to be driven from a TTL logic circuit.

to I

D

whatever the input pin

lim

> T

), the device

j

jsh

, the input pin falls to 0 V. This

gf

Doc ID 15632 Rev 3 9/29

Protection features VNN7NV04P-E, VNS7NV04P-E

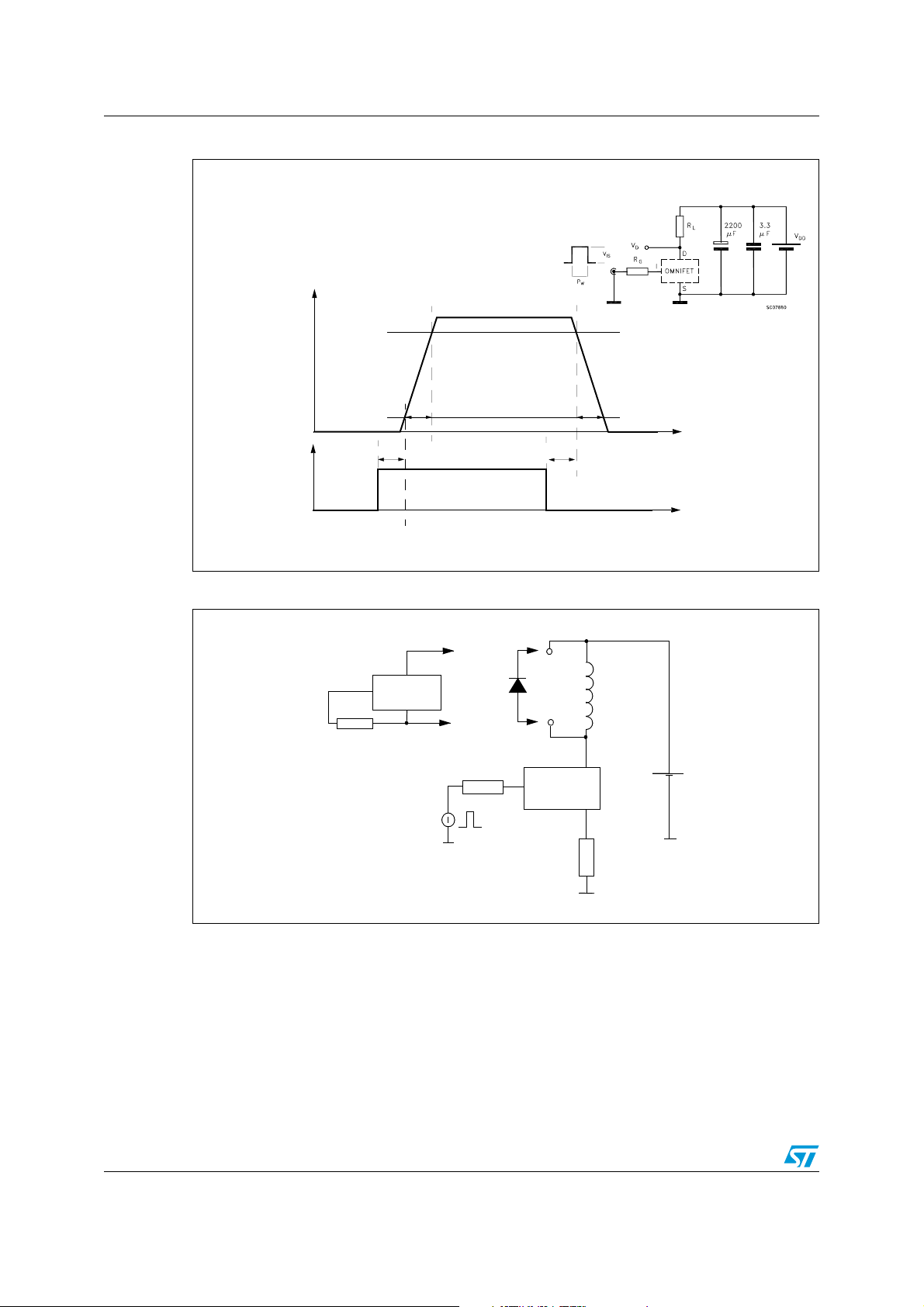

Figure 4. Switching time test circuit for resistive load

I

D

90%

t

r

t

V

gen

d(on)

10%

Figure 5. Test circuit for diode recovery times

A

FAST
DIODE

S

B

R

gen

I

V

gen

150

I

OMNIFET

Ω

D

t

d(off)

A

B

OMNIFET

t

f

D

S

L=100uH

t

t

V

DD

10/29 Doc ID 15632 Rev 3

8.5

Ω

VNN7NV04P-E, VNS7NV04P-E Protection features

Figure 6. Unclamped inductive load test

Figure 7. Input charge test circuit

circuits

V

IN

R

V

IN

P

GEN

W

Figure 8. Unclamped inductive waveforms

Doc ID 15632 Rev 3 11/29

Protection features VNN7NV04P-E, VNS7NV04P-E

3.1 Electrical characteristics curves

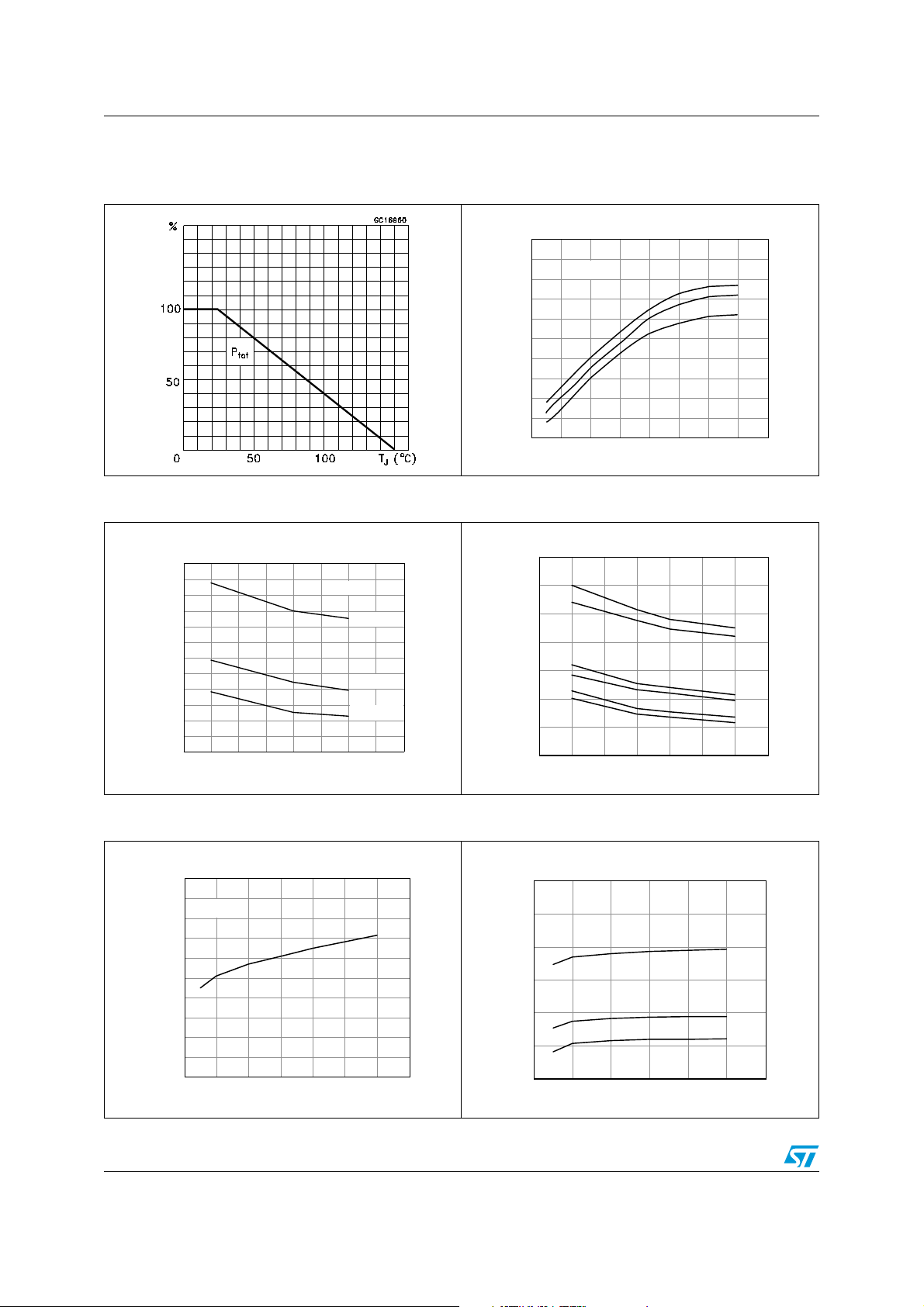

Figure 9. Derating curve Figure 10. Transconductance

Gfs (S)

20

18

16

14

12

10

8

6

4

2

0

Vds=13V

Tj=-40ºC

Tj=25ºC

Tj=150ºC

01234567 8

Id(A)

Figure 11. Static drain-source on resistance

vs input voltage (part 1/2)

Rds(on) (mOhm)

120

110

100

90

80

70

60

50

40

30

20

10

0

33.544.555.566.5 7

Id=3.5A

Tj=150ºC

Tj=25ºC

Tj= - 40ºC

Vin(V)

Figure 13. Source-drain diode forward

characteristics

Vsd (mV)

1000

950

900

850

800

750

700

650

600

550

500

Vin=0V

0 2 4 6 8 101214

Id(A)

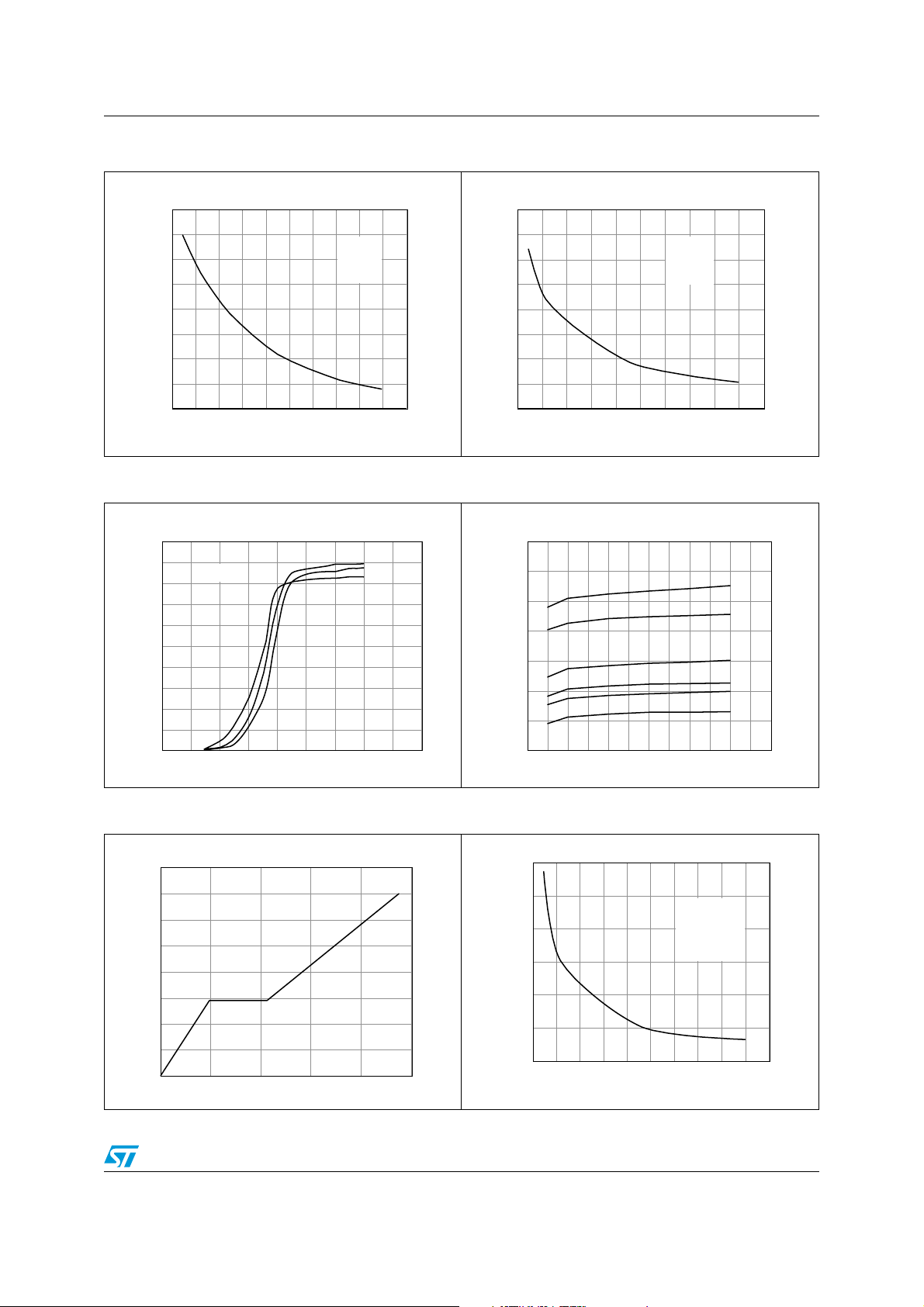

Figure 12. Static drain-source on resistance

vs input voltage (part 2/2)

Rds(on) (mOhm)

140

120

Tj=150ºC

100

80

Tj=25ºC

60

Tj=-40ºC

40

20

0

3 3.5 4 4.5 5 5.5 6 6.5

Id=6A

Id=1A

Id=6A
Id=1A

Id=6A
Id=1A

Vin(V)

Figure 14. Static drain source on resistance

Rds(on) (mohms)

150

125

100

75

50

25

0

Vin=5V

Tj=150ºC

Tj=25ºC

Tj=-40ºC

0123456

Id(A)

12/29 Doc ID 15632 Rev 3

)

)

)

dv/dt(V/us)

VNN7NV04P-E, VNS7NV04P-E Protection features

Figure 15. Turn-on current slope (part 1/2) Figure 16. Turn-on current slope (part 2/2)

di/dt(A/ us)

2.25

2

1.75

1.5

1.25

1

0.75

0.5

0.25

100

200

300

400

500

Rg(ohm)

600

700

Vin=3.5V
Vdd=15V

Id=3.5A

800

900

1000

1100

di/dt(A/us)

8

7

6

5

4

3

2

1

0

100

200

300

400

500

600

Rg(ohm)

Vin=5V

Vdd=15V

Id=3.5A

700

800

900

1000

Figure 17. Transfer characteristics Figure 18. Static drain-source on resistance

vs Id

Idon(A)

10

9

8

7

6

Vds=13.5V

Tj=25ºC

Tj=-40ºC

Tj=150ºC

Rds(on) (mOhm)

140

120

100

80

Vin=3.5V

Tj=150ºC

5

4

3

2

1

0

1 1. 5 2 2.5 3 3.5 4 4.5 5 5.5

Vin(V

60

Tj=25ºC

40

Tj=-40ºC

20

0

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6

Id(A

Figure 19. Input voltage vs input charge Figure 20. Turn-off drain source voltage slope

(part 1/2)

Vin(V)

8

7

6

Vds=12V

Id=3.5A

5

4

3

2

1

0

0 5 10 15 20 25

300

250

200

150

100

Vin=5V

Vdd=15V

Id=3.5A

50

0

100

200

300

400

500

600

700

800

900

Rg(ohm

Vin=5V

Vin=3.5V

Vin=5V
Vin=3.5V

Vin=5V

1000

1100

1100

Doc ID 15632 Rev 3 13/29

Protection features VNN7NV04P-E, VNS7NV04P-E

Figure 21. Turn-off drain source voltage slope

Figure 22. Capacitance variations

(part 2/2)

dv/dt(v/us)

300

250

700

Vin=3.5V
Vdd=15V

Id=3.5A

800

900

1000

1100

200

150

100

50

0

200

400

100

300

500

600

Rg(ohm)

C(pF)

600

500

400

300

200

100

0 5 10 15 20 25 30 35

f=1MHz

Vin=0V

Vds(V)

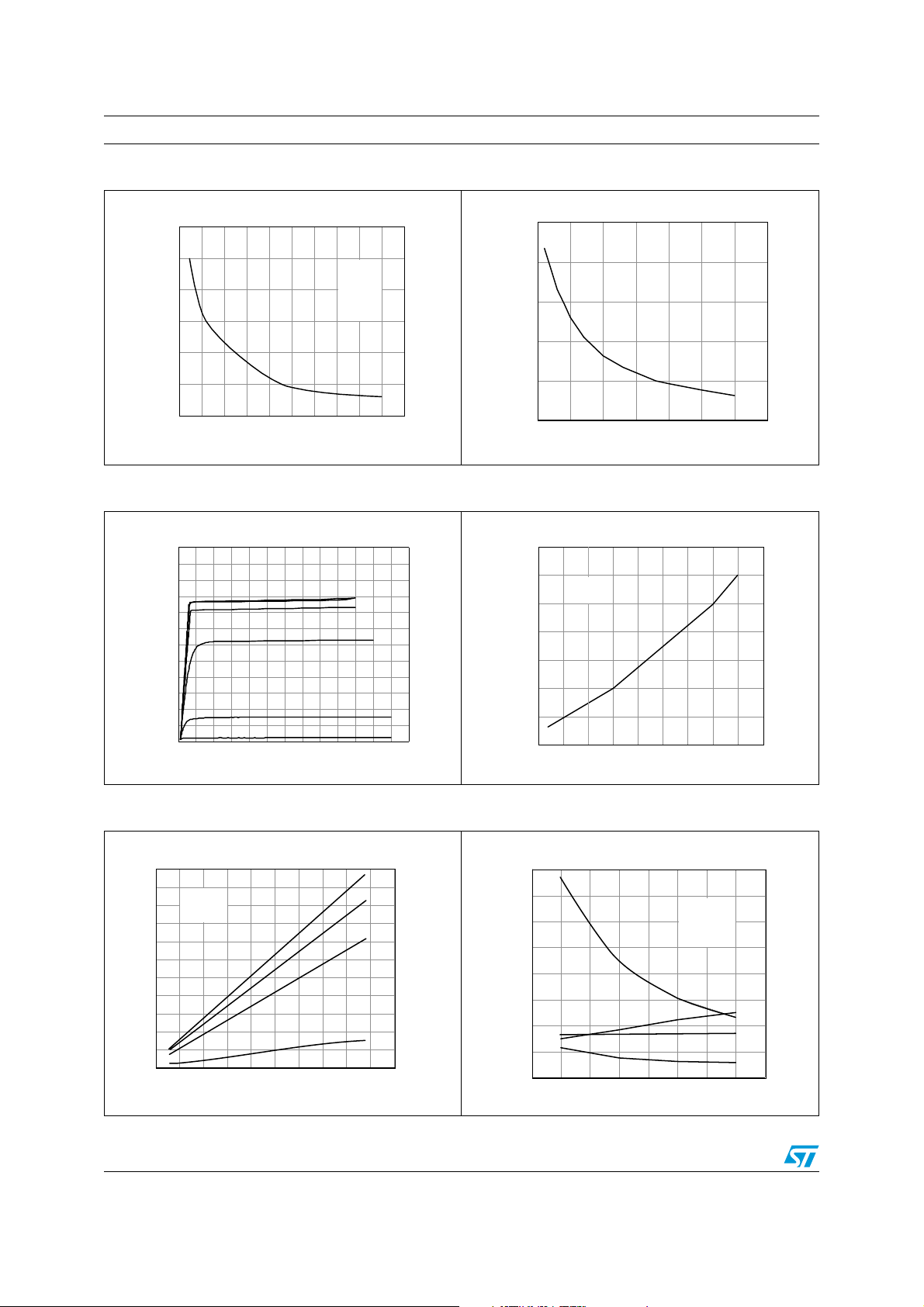

Figure 23. Output characteristics Figure 24. Normalized on resistance vs

temperature

v

ID(A)

12

11

10

9

8

7

6

5

4

3

2

1

0

012345678910111213

Vin=5V

Vin=4.5V

Vin=4V

Vin=3V

Vin=2.5V

Vin=2V

VDS(V)

Rds(on)

2.25

2

1.75

1.5

1.25

0.75

0.5

Vin=5V

Id=3.5A

1

-50 -25 0 25 50 75 100 125 150 175

T(ºC)

Figure 25. Switching time resistive load (part

1/2)

t(us)

5.5

5

4.5

3.5

2.5

1.5

0.5

Vdd=15V

Id=3.5A

Vin=5V

4

3

2

1

0

250

0

500

750

1000

1250

td(off)

td(on)

1500

1750

Rg(ohm)

14/29 Doc ID 15632 Rev 3

2000

2250

tr

tf

2500

Figure 26. Switching time resistive load (part

2/2)

t(ns)

1600

tr

1400

1200

1000

800

600

400

200

0

3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25

td(off)

td(on)

Vin(V)

Vdd=15V

Id=3.5A

Rg=150ohm

tf

VNN7NV04P-E, VNS7NV04P-E Protection features

Figure 27. Normalized input threshold voltage

vs temperature

Vin(th)

1.15

1.1

1.05

Vds=Vin

Id=1mA

1

0.95

0.9

0.85

0.8

0.75

0.7

-50 -25 0 25 50 75 100 125 150 175

T(ºC)

Figure 29. Step response current limit

Tdlim(us)

7

6.5

6

Vin=5V

Rg=150ohm

Figure 28. Normalized current limit vs junction

temperature

Ilim (A)

15

14

13

12

11

10

9

8

7

6

5

Vds=13V

Vin=5V

-50 -25 0 25 50 75 100 125 150 175

Tj (ºC)

5.5

5

4.5

4

3.5

5 10152025 3035

Vdd(V)

Doc ID 15632 Rev 3 15/29

Protection features VNN7NV04P-E, VNS7NV04P-E

3.2 SO-8 maximum demagnetization energy

Figure 30. SO-8 maximum turn-off current versus load inductance

LMAX (A)

I

100

10

A

B

C

1

0.1 1 10 100
L(mH)

Legend

A = Single Pulse at T

B = Repetitive pulse at T

C = Repetitive Pulse at T

Conditions:

V

=13.5V

CC

Values are generated with R
demagnetization) of every pulse must not exceed the temperature specified above for
curves B and C.

Figure 31. SO-8 demagnetization

VIN, I

L

Jstart

= 150 °C

= 100 °C

Jstart

Jstart

= 125 °C

=0Ω. In case of repetitive pulses, T

L

Demagnetization

Demagnetization

(at beginning of each

jstart

Demagnetization

16/29 Doc ID 15632 Rev 3

t

VNN7NV04P-E, VNS7NV04P-E Protection features

3.3 SOT-223 maximum demagnetization energy

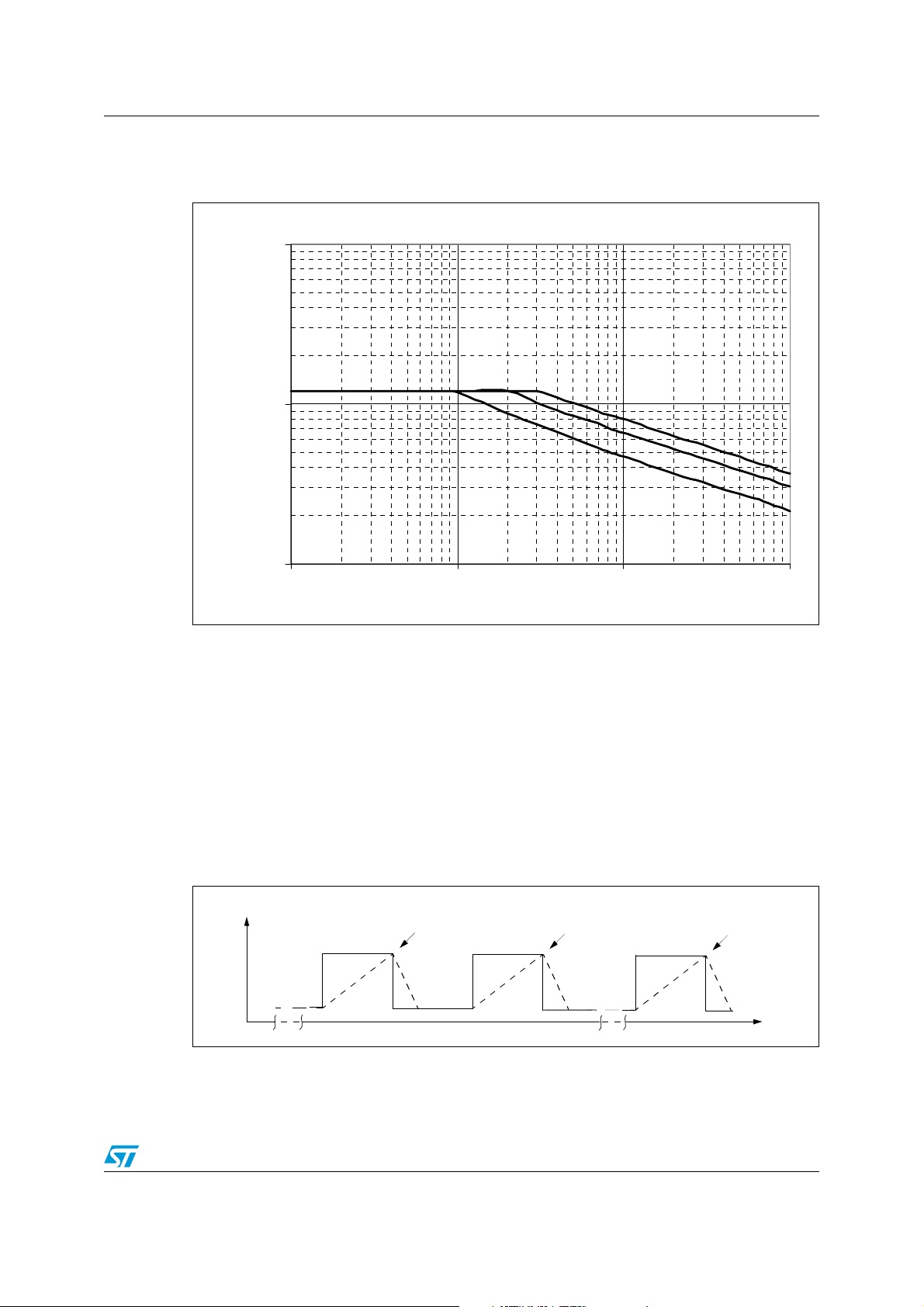

Figure 32. SOT-223 maximum turn-off current versus load inductance

LMAX (A)

I

100

10

1

0.01 0.1 1 10
L(mH)

Legend

A = Single Pulse at T

B = Repetitive pulse at T

C = Repetitive Pulse at T

Conditions:

V

=13.5V

CC

Values are generated with R
demagnetization) of every pulse must not exceed the temperature specified above for
curves B and C.

Figure 33. SOT-223 demagnetization

VIN, I

L

Jstart

= 150 °C

= 100 °C

Jstart

Jstart

= 125 °C

=0Ω. In case of repetitive pulses, T

L

Demagnetization

Demagnetization

(at beginning of each

jstart

Demagnetization

t

Doc ID 15632 Rev 3 17/29

Package and PCB thermal data VNN7NV04P-E, VNS7NV04P-E

4 Package and PCB thermal data

4.1 SO-8 thermal data

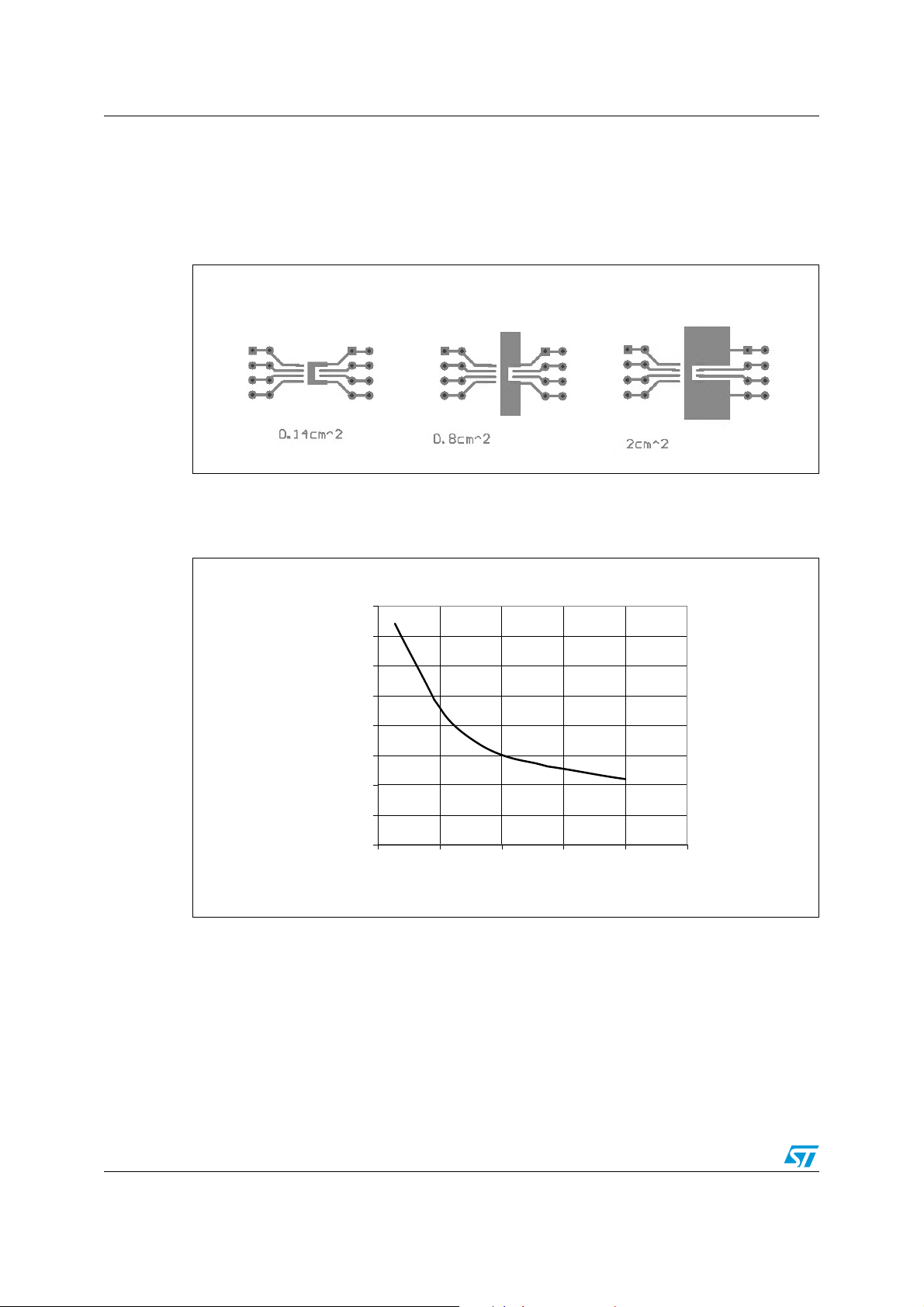

Figure 34. SO-8 PC board

Note: Layout condition of R

thickness = 2 mm, Cu thickness = 35 µm, Copper areas: 0.14 cm

Figure 35. R

thj-amb

RTHj_am b ( ºC/W)

and Zth measurements (PCB FR4 area = 58 mm x 58 mm, PCB

th

2

, 0.8 cm2, 2 cm2).

vs PCB copper area in open box free air condition

SO-8 at 2 pins connected to TAB

110

105

100

95

90

85

80

75

70

00.511.522.5

18/29 Doc ID 15632 Rev 3

PCB Cu heatsink area (cm ^2)

VNN7NV04P-E, VNS7NV04P-E Package and PCB thermal data

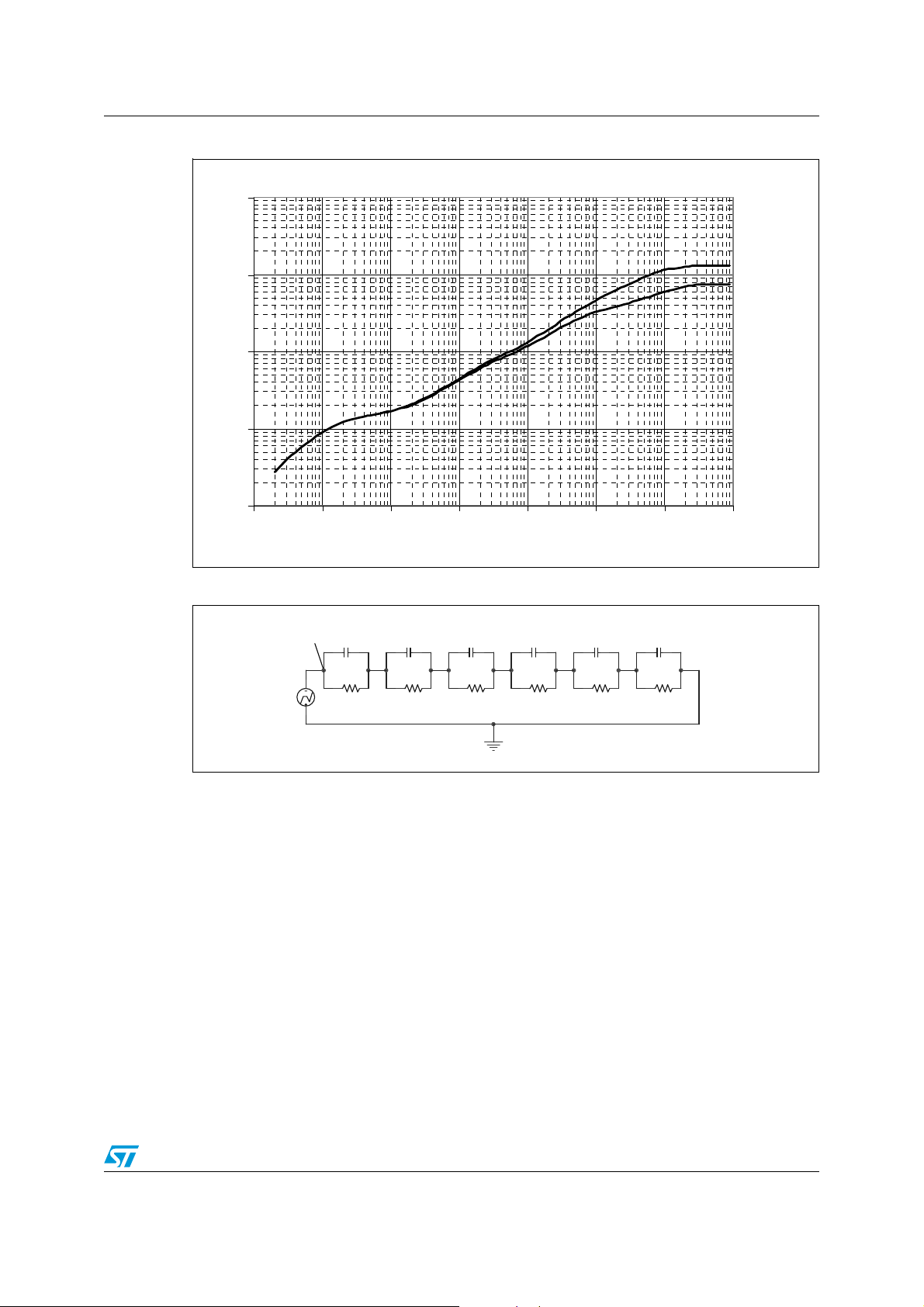

Figure 36. SO-8 thermal impedance junction ambient single pulse

ZTH (°C/W)

1000

100

10

1

0.1

0.0001 0.001 0.01 0.1 1 10 100 1000
Time (s)

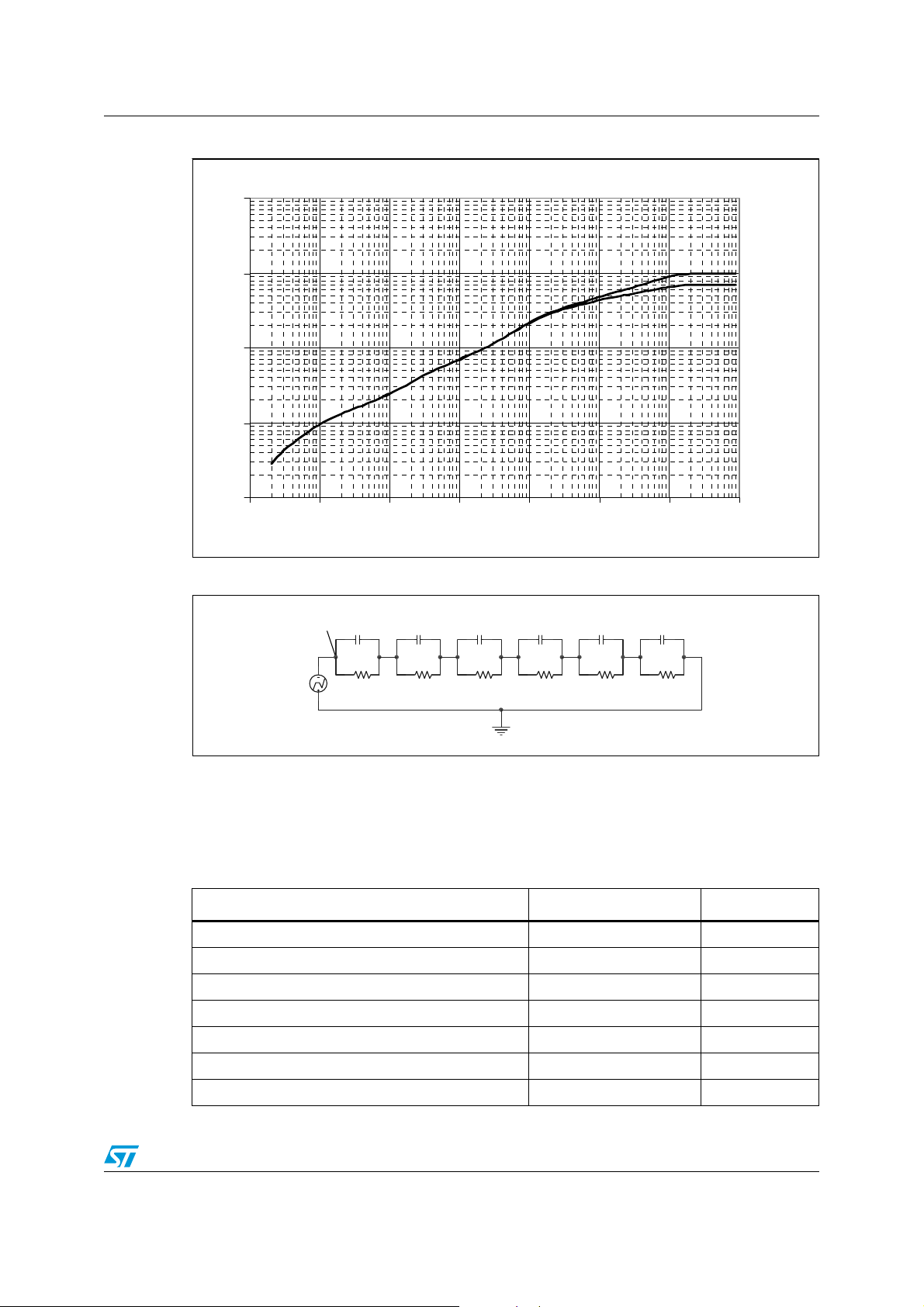

Figure 37. Thermal fitting model of an OMNIFET II in SO-8

Tj

C1

R1 R2

Pd

C2

C3

R3

C4

R4

T_amb

C5

R5

C6

R6

Equation 1 Pulse calculation formula

Z

THδ

where

Table 5. SO-8 thermal parameter

R

δ t

TH

p

δ Z

T⁄=

THtp

1 δ–()+⋅=

Area/island (cm2)Footprint2

R1 (°C/W) 0.2

R2 (°C/W) 0.9

R3 (°C/W) 3.5

R4 (°C/W) 21

R5 (°C/W) 16

R6 (°C/W) 58 28

C1 (W.s/°C) 3.00E-04

Doc ID 15632 Rev 3 19/29

Package and PCB thermal data VNN7NV04P-E, VNS7NV04P-E

Table 5. SO-8 thermal parameter (continued)

Area/island (cm2)Footprint2

C2 (W.s/°C) 9.00E-04

C3 (W.s/°C) 7.50E-03

C4 (W.s/°C) 0.045

C5 (W.s/°C) 0.35

C6 (W.s/°C) 1.05 2

4.2 SOT-223 thermal data

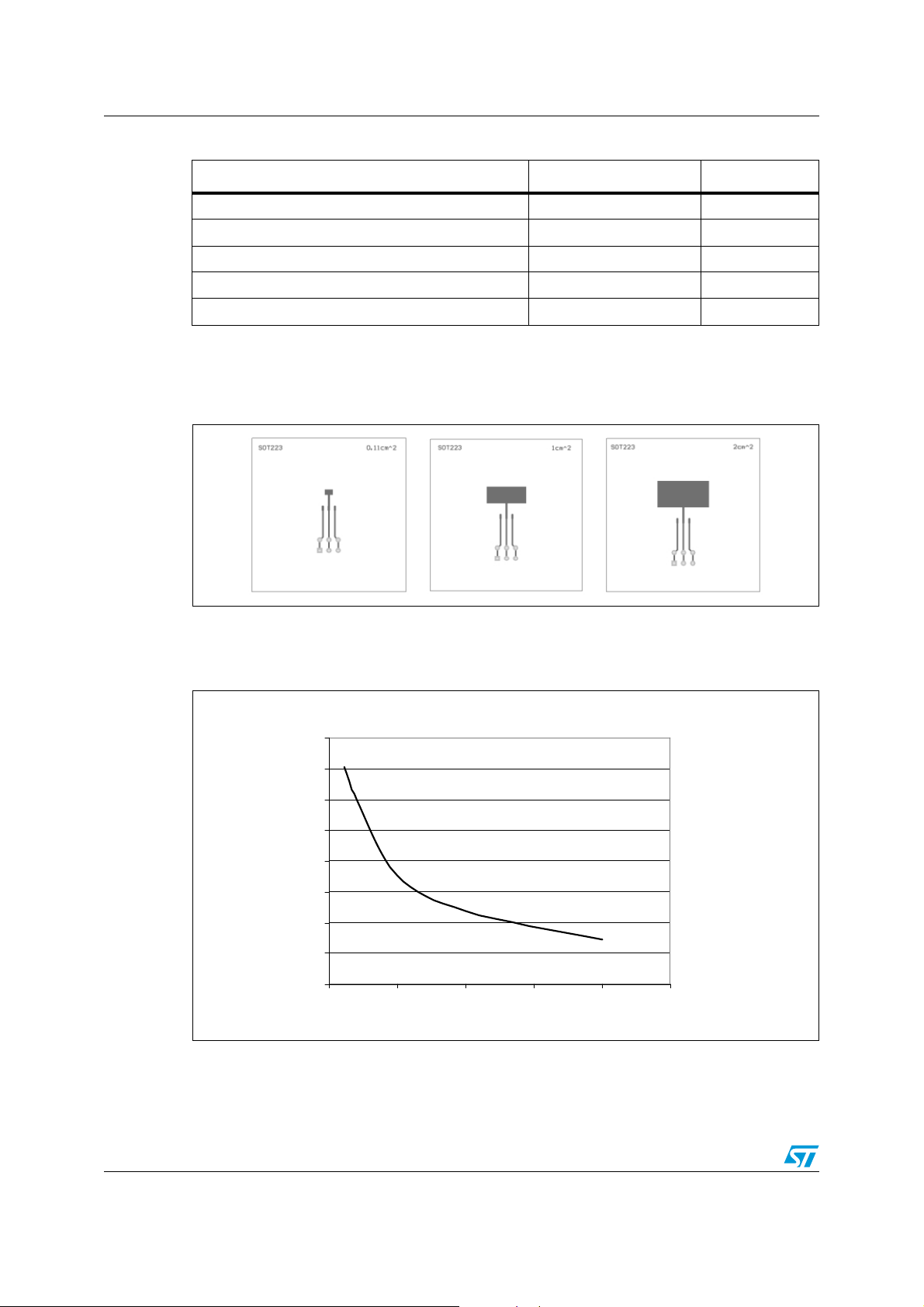

Figure 38. SOT-223 PC board

Note: Layout condition of R

thickness = 2 mm, Cu thickness = 35 µm, Copper areas: 0.11 cm

Figure 39. R

th

vs PCB copper area in open box free air condition

thj-amb

RTH j-a mb (°C/W )

140

130

120

110

100

90

80

70

60

00.511.5 22.5

and Z

measurements (PCB FR4 area = 58 mm x 58 mm, PCB

th

Cu area (cm^2)

2

, 1 cm2, 2 cm2).

20/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E Package and PCB thermal data

Figure 40. SOT-223 thermal impedance junction ambient single pulse

ZTH (°C/W)

1000

100

10

1

0.1

0.0001 0.001 0.01 0.1 1 10 100 1000
Time (s)

Figure 41. Thermal fitting model of an OMNIFET II in SOT-223

Tj

C1

R1 R2

Pd

C2

C3

R3

C4

R4

T_amb

C5

R5

C6

R6

Equation 2 Pulse calculation formula

Z

THδ

where

R

δ t

TH

p

δ Z

T⁄=

THtp

1 δ–()+⋅=

Doc ID 15632 Rev 3 21/29

Package and PCB thermal data VNN7NV04P-E, VNS7NV04P-E

Table 6. SOT-223 thermal parameter

Area/island (cm2)Footprint2

R1 (°C/W) 0.2

R2 (°C/W) 1.1

R3 (°C/W) 4.5

R4 (°C/W) 24

R5 (°C/W) 0.1

R6 (°C/W) 100 45

C1 (W.s/°C) 3.00E-04

C2 (W.s/°C) 9.00E-04

C3 (W.s/°C) 3.00E-02

C4 (W.s/°C) 0.16

C5 (W.s/°C) 1000

C6 (W.s/°C) 0.5 2

22/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E Package and packing information

5 Package and packing information

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com

ECOPACK® is an ST trademark.

5.1 SOT-223 mechanical data

Table 7. SOT-223 mechanical data

Symbol

Min. Typ. Max.

A 1.8

B0.60.70.85

B1 2.9 3 3.15

c 0.24 0.26 0.35

D 6.3 6.5 6.7

millimeters

.

e2.3

e1 4.6

E 3.3 3.5 3.7

H6.777.3

V 10 (max)

A1 0.02 0.1

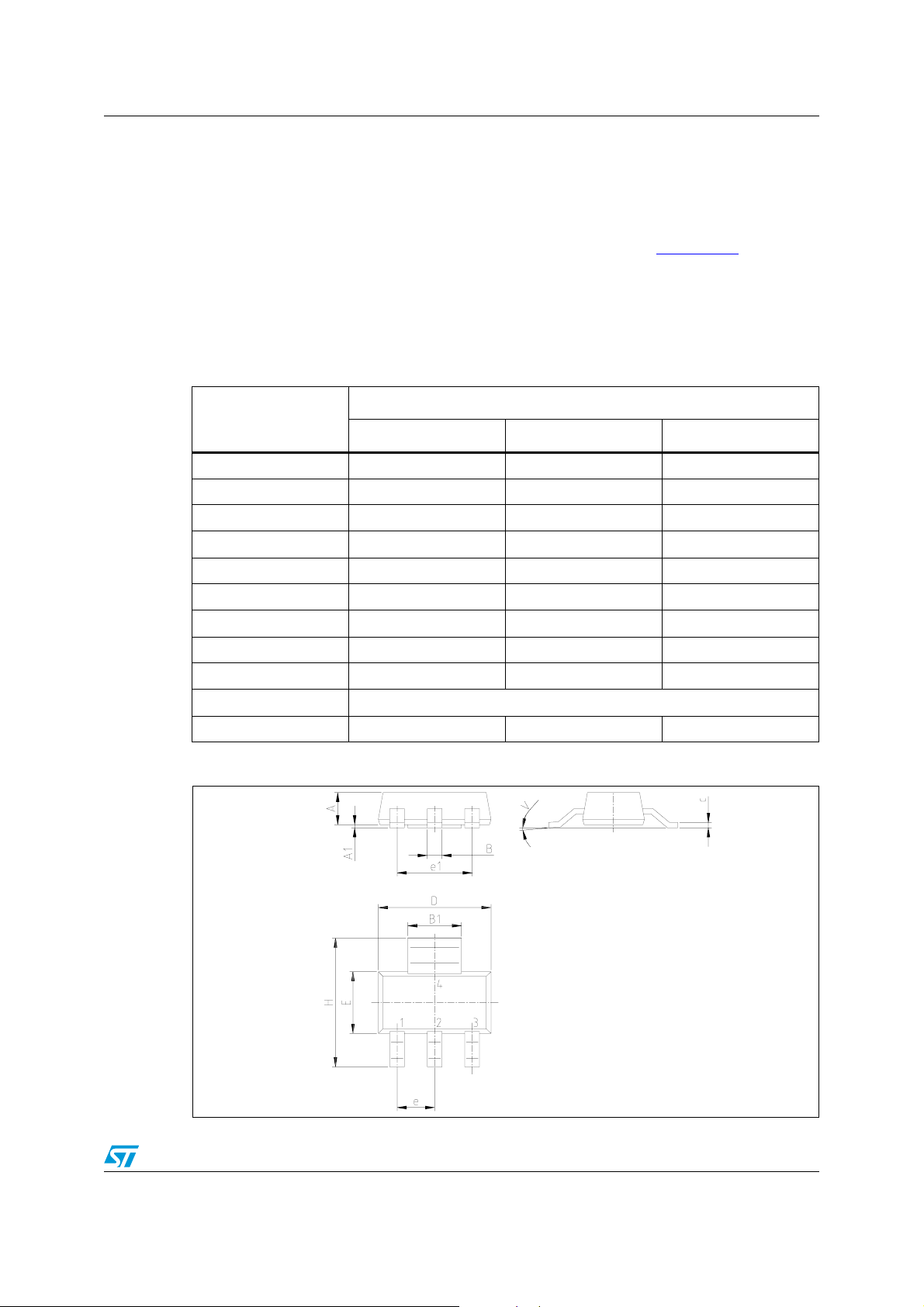

Figure 42. SOT-223 package dimensions

0046067

Doc ID 15632 Rev 3 23/29

Package and packing information VNN7NV04P-E, VNS7NV04P-E

5.2 SO-8 mechanical data

Table 8. SO-8 mechanical data

mm

Dim.

Min. Typ. Max.

A 1.75

a1 0.1 0.25

a2 1.65

a3 0.65 0.85

b0.35 0.48

b1 0.19 0.25

C 0.25 0.5

c1 45 (typ.)

D4.8 5

E5.8 6.2

e1.27

e3 3.81

F3.8 4

L 0.4 1.27

M 0.6

S 8 (max.)

L1 0.8 1.2

24/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E Package and packing information

Figure 43. SO-8 package dimensions

Doc ID 15632 Rev 3 25/29

Package and packing information VNN7NV04P-E, VNS7NV04P-E

5.3 SOT-223 packing information

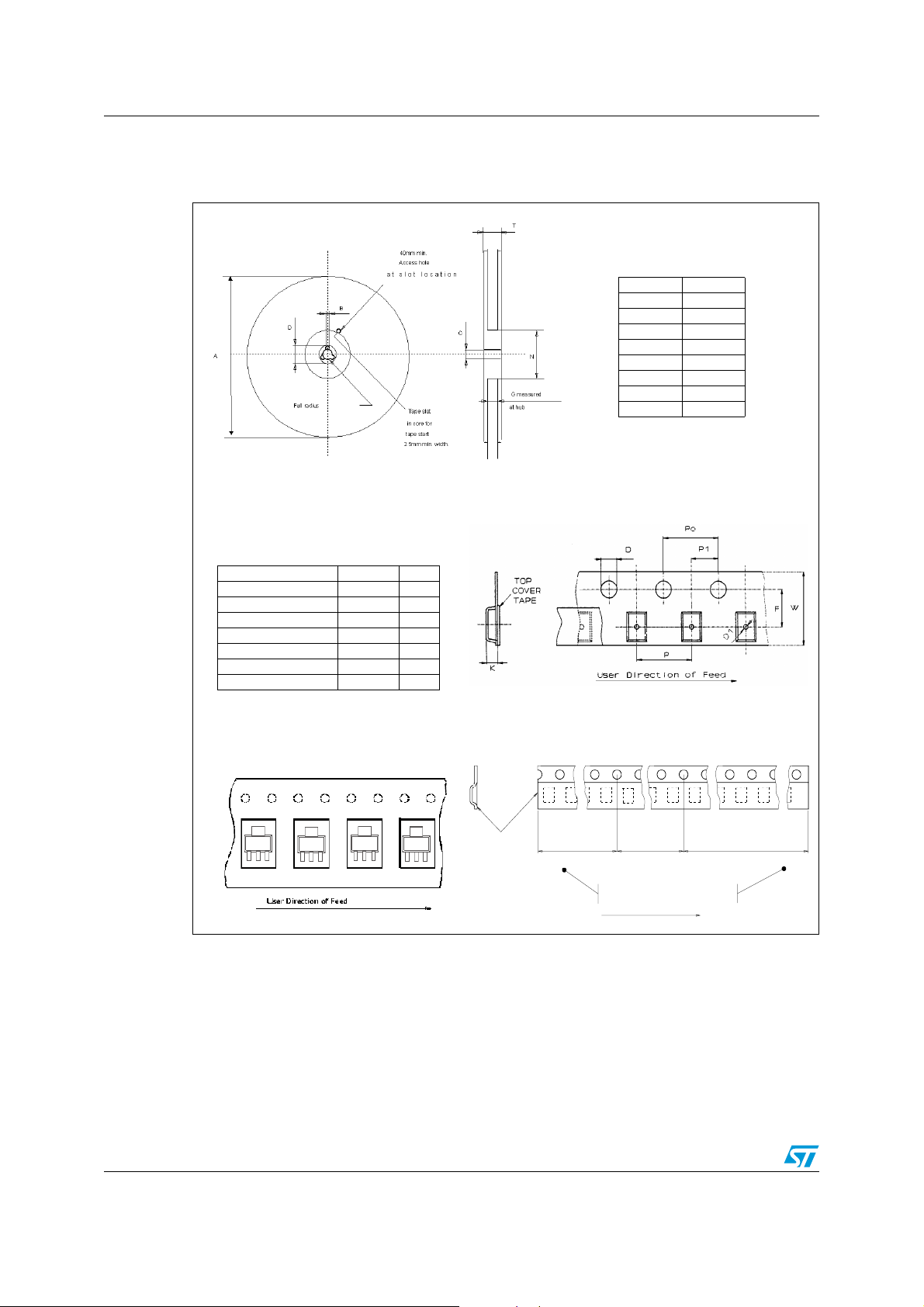

Figure 44. SOT-223 tape and reel shipment (suffix “TR”)

REEL DIMENSIONS

Base Q.ty 1000
Bulk Q.ty 1000
A (max) 330
B (min) 1.5
C (± 0.2) 13
F 20.2
G (+ 2 / -0) 12.4
N (min) 60
T (max) 18.4

TAPE DIMENSIONS

According to Electronic Industries Association
(EIA) Standard 481 rev. A, Feb. 1986

Tape width W 12
Tape Hole Spacing P0 (± 0.1) 4
Component Spacing P 8
Hole Diameter D (± 0.1/-0) 1.5
Hole Diameter D1 (min) 1.5
Hole Position F (± 0.05) 5.5
Compartment Depth K (max) 4.5
Hole Spacing P1 (± 0.1) 2

All dimensions are in mm.

26/29 Doc ID 15632 Rev 3

Top

cover

tape

End

500mm min

Empty components pockets
saled with cover tape.

User direction of feed

Start

No componentsNo components Components

500mm min

VNN7NV04P-E, VNS7NV04P-E Package and packing information

5.4 SO-8 packing information

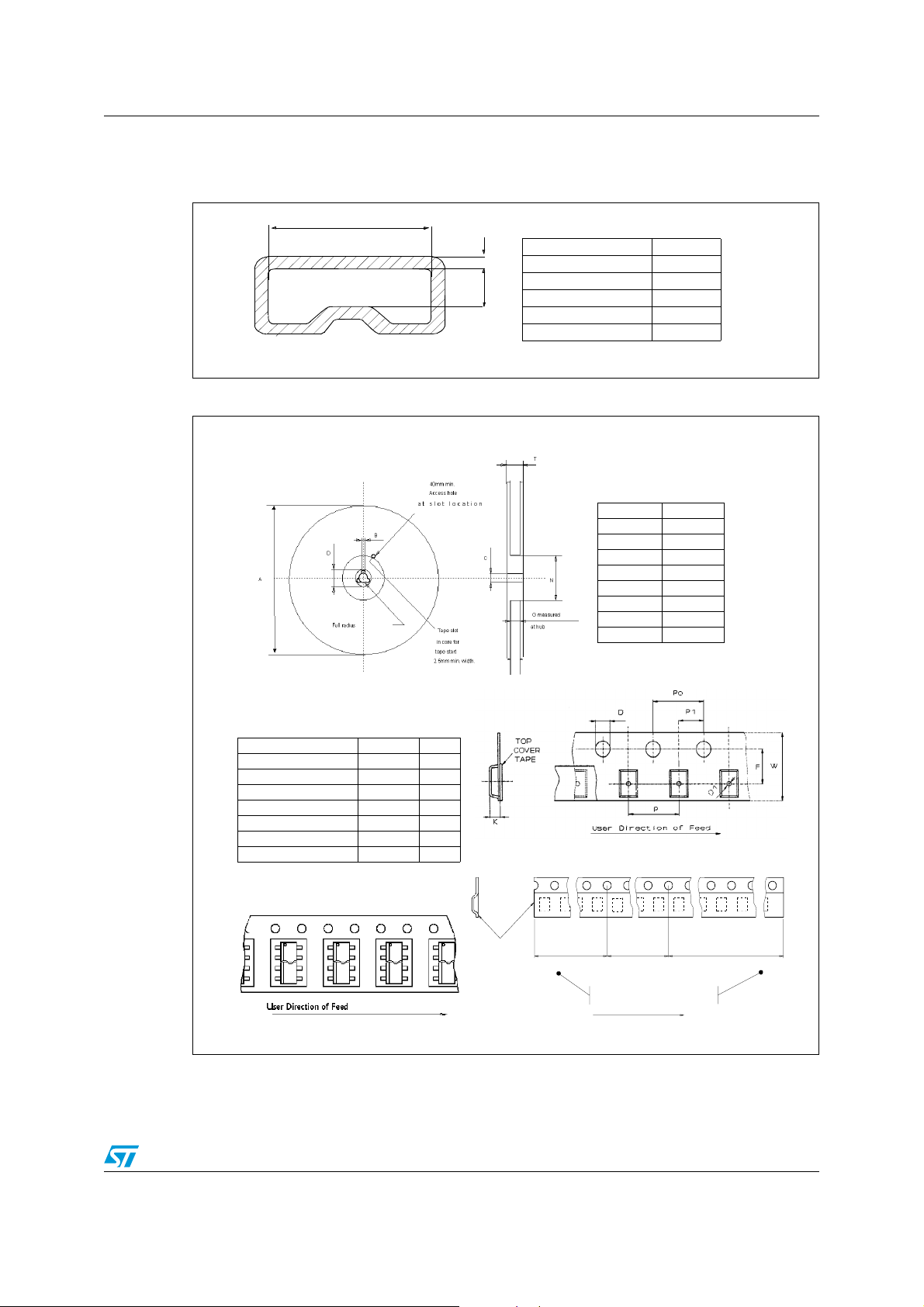

Figure 45. SO-8 tube shipment (no suffix)

B

C

Base Q.ty 100
Bulk Q.ty 2000

A

Tube length (± 0.5) 532
A 3.2
B 6
C (± 0.1) 0.6

Figure 46. SO-8 tape and reel shipment (suffix “TR”)

REEL DIMENSIONS

Base Q.ty 2500
Bulk Q.ty 2500
A (max) 330
B (min) 1.5
C (± 0.2) 13
F 20.2
G (+ 2 / -0) 12.4
N (min) 60
T (max) 18.4

All dimensions are in mm.

TAPE DIMENSIONS

According to Electronic Industries Association
(EIA) Standard 481 rev. A, Feb 1986

Tape width W 12
Tape Hole Spacing P0 (± 0.1) 4
Component Spacing P 8
Hole Diameter D (± 0.1/-0) 1.5
Hole Diameter D1 (min) 1.5
Hole Position F (± 0.05) 5.5
Compartment Depth K (max) 4.5
Hole Spacing P1 (± 0.1) 2

Top

cover

tape

End

500mm min

Empty components pockets
saled with cover tape.

User direction of feed

Start

No componentsNo components Components

500mm min

All dimensions are in mm.

Doc ID 15632 Rev 3 27/29

Revision history VNN7NV04P-E, VNS7NV04P-E

6 Revision history

Table 9. Document revision history

Date Revision Changes

15-Oct-2009 1 Initial release.

26-Oct-2009 2

05-Jul-2011 3

Updated Figure 43: SO-8 package dimensions.
Updated Table 8: SO-8 mechanical data.

Table 4: Electrical characteristics:

–R
–t

: updated maximum values

DS(on)

d(on)

, tr, t

, tf: updated min, typ and max values

d(off)

28/29 Doc ID 15632 Rev 3

VNN7NV04P-E, VNS7NV04P-E

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2011 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 15632 Rev 3 29/29
