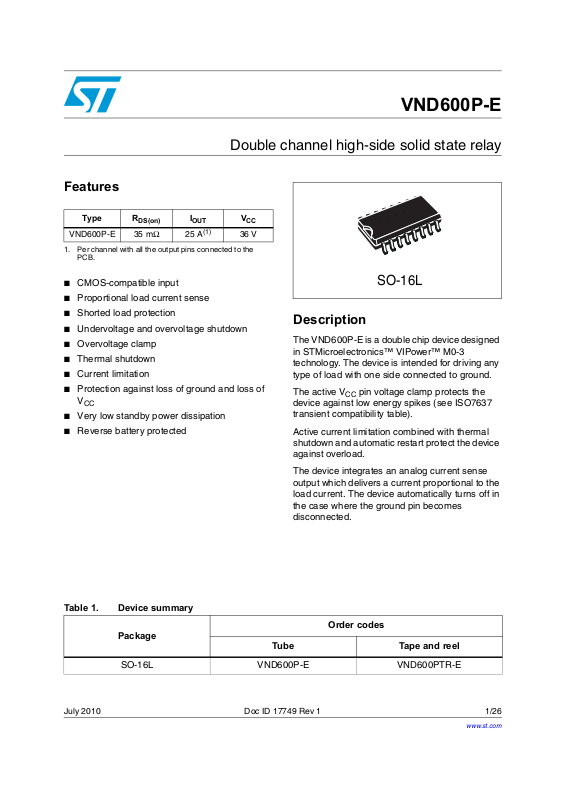

Page 1
Double channel high-side solid state relay
Features
Typ e R
VND600P-E 35 mΩ 25 A
1. Per channel with all the output pins connected to the
PCB.
DS(on)
I
OUT
(1)
V
CC
36 V
VND600P-E
■ CMOS-compatible input
■ Proportional load current sense
■ Shorted load protection
■ Undervoltage and overvoltage shutdown
■ Overvoltage clamp
■ Thermal shutdown
■ Current limitation
■ Protection against loss of ground and loss of
V
CC
■
Very low standby power dissipation
■ Reverse battery protected
SO-16L
Description
The VND600P-E is a double chip device designed
in STMicroelectronics™ VIPower™ M0-3
technology. The device is intended for driving any
type of load with one side connected to ground.
The active V
device against low energy spikes (see ISO7637
transient compatibility table).
Active current limitation combined with thermal
shutdown and automatic restart protect the device
against overload.
The device integrates an analog current sense
output which delivers a current proportional to the
load current. The device automatically turns off in
the case where the ground pin becomes
disconnected.
pin voltage clamp protects the
CC
Table 1. Device summary
Order codes
Package
Tube Tape and reel
SO-16L VND600P-E VND600PTR-E
July 2010 Doc ID 17749 Rev 1 1/26
www.st.com
1
Page 2
Contents VND600P-E
Contents
1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 GND protection network against reverse battery . . . . . . . . . . . . . . . . . . . 16
3.1.1 Solution 1: resistor in the ground line (RGND only) . . . . . . . . . . . . . . . . 16
3.1.2 Solution 2: diode (DGND) in the ground line . . . . . . . . . . . . . . . . . . . . . 17
3.2 Load dump protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3 MCU I/Os protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.4 Maximum demagnetization energy (VCC = 13.5 V) . . . . . . . . . . . . . . . . . 18
4 Package and PCB thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 SO-16L thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Package and packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.1 ECOPACK® packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.2 SO-16L packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2/26 Doc ID 17749 Rev 1
Page 3
VND600P-E List of tables
List of tables
Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table 2. Suggested connections for unused and not connected pins . . . . . . . . . . . . . . . . . . . . . . . . 5
Table 3. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 4. Thermal data (per island) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 5. Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 6. Switching (V
Table 7. V
Table 8. Logic inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 9. Current sense (9 V ≤ V
Table 10. Protections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 11. Truth table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 12. Electrical transient requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 13. Thermal parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 14. SO-16L mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 15. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
output diode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CC
= 13 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CC
≤ 16 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CC
Doc ID 17749 Rev 1 3/26
Page 4
List of figures VND600P-E
List of figures
Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 2. Configuration diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 3. Current and voltage conventions
Figure 4. Switching characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 5. I
OUT/ISENSE
versus I
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
OUT
Figure 6. Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 7. Off-state output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 8. High-level input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 9. Input clamp voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 10. Turn-on voltage slope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 11. Overvoltage shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 12. Turn-off voltage slope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 13. I
Figure 14. On-state resistance vs V
LIM
vs T
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
case
CC
Figure 15. Input high-level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 16. Input hysteresis voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 17. On-state resistance vs T
case
Figure 18. Input low-level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 19. Application schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 20. Maximum turn-off current versus inductance
Figure 21. SO-16L PC board
(1)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 22. Rthj-amb vs PCB copper area in open box free air condition . . . . . . . . . . . . . . . . . . . . . . 19
Figure 23. Thermal impedance junction ambient single pulse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 24. Thermal fitting model of a quad channel HSD in SO-16L . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 25. SO-16L package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 26. SO-16L tube shipment (no suffix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 27. SO-16L tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
(1)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
(1)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4/26 Doc ID 17749 Rev 1
Page 5
VND600P-E Block diagram and pin description
1 Block diagram and pin description
Figure 1. Block diagram
V
CC
OVERVOLTAGE
V
CLAMP
CC
UNDERVOLTAGE
DRIVER 1
INPUT 1
LOGIC
INPUT 2
GND
OVERTEMP. 1
OVERTEMP. 2
Ot1
Ot2
DRIVER 2
Figure 2. Configuration diagram (top view)
V
CC
1
N.C.
GND
INPUT 2
INPUT 1
C. SENSE 1
C. SENSE 2
V
CC
8
PwCLAMP 1
I
OUT1
PwCLAMP 2
I
OUT2
16
9
I
LIM1
V
dslim1
K
I
LIM2
V
dslim2
K
V
CC
OUTPUT 2
OUTPUT 2
OUTPUT 2
OUTPUT 1
OUTPUT 1
OUTPUT 1
V
CC
OUTPUT 1
Ot1
CURRENT
SENSE 1
OUTPUT 2
Ot2
CURRENT
SENSE 2
Table 2. Suggested connections for unused and not connected pins
Connection / pin Current sense N.C. Output Input
Floating X X X
To ground
Through 1 KΩ
resistor
X
Through 10 KΩ
Doc ID 17749 Rev 1 5/26
resistor
Page 6
Electrical specifications VND600P-E
2 Electrical specifications
Figure 3. Current and voltage conventions
I
S1
V
CC1
I
1. V
IN1
V
IN1
I
IN2
V
IN2
= V
- V
Fn
CCn
during reverse battery condition.
OUTn
INPUT1
INPUT2
GROUND1
2.1 Absolute maximum ratings
Stressing the device above the rating listed in the “Absolute maximum ratings” table may
cause permanent damage to the device. These are stress ratings only and operation of the
device at these or any other conditions above those indicated in the operating sections of
this specification is not implied. Exposure to Absolute maximum rating conditions for
extended periods may affect device reliability. Refer also to the STMicroelectronics sure
program and other relevant quality document.
Table 3. Absolute maximum ratings
(1)
I
GND1
V
CC2
OUTPUT1
OUTPUT2
GROUND2
V
CC1
CURRENT SENSE 1
CURRENT SENSE 2
I
GND2
I
OUT1
I
SENSE1
I
OUT2
I
SENSE2
V
SENSE2
V
V
V
OUT2
I
S2
(*)
F1
SENSE1
V
OUT1
V
CC2
Symbol Parameter Value Unit
V
- V
- I
I
OUT
- I
I
V
CSENSE
CC
gnd
OUT
IN
DC supply voltage 41 V
Reverse DC supply voltage - 0.3 V
CC
DC reverse ground pin current - 200 mA
DC output current Internally limited A
Reverse DC output current - 21 A
DC input current +/- 10 mA
Current Sense maximum voltage
Electrostatic discharge
(human body model: R = 1.5 KΩ; C = 100 pF)
V
ESD
– INPUT
– CURRENT SENSE
–OUTPUT
–V
CC
6/26 Doc ID 17749 Rev 1
- 3
+ 15
4000
2000
5000
5000
V
V
V
V
V
V
Page 7
VND600P-E Electrical specifications
Table 3. Absolute maximum ratings (continued)
Symbol Parameter Value Unit
Maximum switching energy
E
MAX
P
T
T
T
tot
stg
(L = 0.12 mH; R
= 150 °C; IL = 40 A)
T
jstart
= 0 Ω; V
L
= 13.5 V;
bat
Power dissipation TC ≤ 25 °C 8.3 W
Junction operating temperature Internally limited °C
j
Case operating temperature - 40 to 150 °C
c
Storage temperature - 55 to 150 °C
136 mJ
2.2 Thermal data
Table 4. Thermal data (per island)
Symbol Parameter Value Unit
R
thj-lead
R
thj-amb
1. When mounted on a standard single-sided FR-4 board with 0.5cm2 of Cu (at least 35 µm thick) connected
to all VCC pins. Horizontal mounting and no artificial air flow.
2. When mounted on a standard single-sided FR-4 board with 6cm2 of Cu (at least 35 µm thick) connected to
all VCC pins. Horizontal mounting and no artificial air flow.
Thermal resistance junction-lead 15 °C/W
Thermal resistance junction-ambient 65
(1)
48
(2)
°C/W
Doc ID 17749 Rev 1 7/26
Page 8
Electrical specifications VND600P-E
2.3 Electrical characteristics
Values specified in this section are for 8 V < V
< 36 V; -40 °C < T
CC
< 150 °C, unless
j
otherwise stated.
Table 5. Power
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
V
V
CLAMP
I
I
I
I
1. V
V
OV
R
L(off1)
L(off2)
L(off3)
L(off4)
Operating supply voltage 5.5 13 36 V
CC
Undervoltage shutdown 3 4 5.5 V
USD
(1)
Overvoltage shutdown 36 V
I
= 5 A; Tj = 25 °C; 35 mΩ
OUT
On-state resistance
ON
(
Clamp voltage I
1)
I
Supply current
S
Off-state output current V
Off-state output current V
Off-state output current
Off-state output current
and VOV are correlated. Typical difference is 5 V.
CLAMP
= 5 A; Tj = 150 °C; 70 mΩ
I
OUT
= 3 A; V
I
OUT
= 20 mA 41 48 55 V
CC
Off-state; V
V
= V
IN
OUT
Off-state; V
V
= V
IN
OUT
On-state; V
I
= 0 A; R
OUT
= V
IN
OUT
= 0V; V
IN
V
= V
IN
OUT
= 125 °C
T
j
V
= V
IN
OUT
= 25 °C
T
j
= 6 V 120 mΩ
CC
= 13 V;
CC
= 0 V
= 13 V;
CC
= 0 V; Tj = 25 °C
= 13V; V
CC
SENSE
= 5 V;
IN
= 3.9 kΩ
= 0 V 0 50 µA
= 3.5 V -75 0 µA
OUT
= 0 V; V
= 0 V; V
CC
CC
= 13 V;
= 13 V;
12 40 µA
12 25 µA
6mA
5µA
3µA
Table 6. Switching (VCC=13V)
Symbol Parameter Test conditions Min. Typ. Max. Unit
t
d(on)
t
d(off)
dV
OUT
dV
OUT
Table 7. VCC output diode
Turn-on delay time RL = 2.6 Ω (see Figure 4)30µs
Turn-off delay time RL = 2.6 Ω (see Figure 4)30µs
/dt
Turn-on voltage slope RL = 2.6 Ω (see Figure 4) See Figure 10 V/µs
(on)
/dt
Turn-off voltage slope RL = 2.6 Ω (see Figure 4) See Figure 12 V/µs
(off)
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
F
Forward on voltage -I
= 2.3 A; Tj = 150 °C — — 0.6 V
OUT
8/26 Doc ID 17749 Rev 1
Page 9
VND600P-E Electrical specifications
Table 8. Logic inputs
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
V
V
I(hyst)
V
Table 9. Current sense (9 V ≤ VCC ≤ 16 V)
Input low-level voltage 1.25 V
IL
Low-level input current V
I
IL
Input high-level voltage 3.25 V
IH
I
High-level input current V
IH
= 1.25 V 1 µA
IN
= 3.25 V 10 µA
IN
Input hysteresis voltage 0.5 V
I
= 1 mA 6 6.8 8 V
Input clamp voltage
ICL
IN
I
= - 1 mA -0.7 V
IN
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
K
dK
1/K1
K
dK
2/K2
K
dK
3/K3
V
SENSE
V
SENSEH
I
1
OUT/ISENSE
Current sense ratio drift
I
2
OUT/ISENSE
Current sense ratio drift
I
3
OUT/ISENSE
Current sense ratio drift
Max analog sense output
voltage
Sense voltage in
overtemperature condition
= 0.5 A; V
OUT
Tj = -40°C...150°C
I
= 0.5A; V
OUT
Tj= -40°C...150°C
I
= 5 A; V
OUT
SENSE
Tj = - 40 °C
= 25 °C...150 °C
T
j
I
= 5 A; V
OUT
= -40°C...150°C
T
j
I
= 15 A; V
OUT
= -40 °C
T
j
= 25°C...150 °C
T
j
I
= 15 A; V
OUT
= -40°C...150°C
T
j
V
= 5.5 V; I
CC
R
SENSE
V
> 8 V, I
CC
R
SENSE
V
= 13 V; R
CC
SENSE
OUT
= 10 kΩ
OUT
= 10 kΩ
= 0.5 V;
SENSE
SENSE
= 0.5V;
3300 4400 6000
- 10 + 10 %
= 4 V;
4200
4900
4400
4900
= 4 V;
= 4 V;
SENSE
= 4 V;
SENSE
= 2.5 A;
= 5 A;
= 3.9 kΩ 5.5 V
SENSE
- 6 + 6 %
4200
4900
4400
4900
- 6 + 6 %
2V
4V
6000
5750
5500
5250
Analog sense output
R
VSENSEH
impedance in
overtemperature condition
t
DSENSE
1. Current sense signal delay after positive input slope.
Current sense delay
response
V
= 13 V; Tj > T
CC
output open
To 9 0 % I
Doc ID 17749 Rev 1 9/26
SENSE
(1)
TSD
;
400 Ω
500 µs
Page 10
Electrical specifications VND600P-E
Table 10. Protections
(1)
Symbol Parameter Test conditions Min. Typ. Max. Unit
T
TSD
T
T
hyst
I
lim
V
demag
V
1. To ensure long term reliability under heavy overload or short circuit conditions, protection and related
diagnostic signals must be used together with a proper software strategy. If the device operates under
abnormal conditions this software must limit the duration and number of activation cycles.
Table 11. Truth table
Shutdown temperature 150 175 200 °C
Reset temperature 135 °C
R
Thermal hysteresis 7 15 °C
V
= 13 V 25 40 70 A
Current limitation
Turn-off output clamp
voltage
Output voltage drop
ON
limitation
CC
5V < V
I
OUT
V
IN
I
OUT
= -40 °C...150 °C
T
j
< 36 V 70 A
CC
= 2 A;
= 0 V; L = 6 mH
= 0.5 A;
V
CC
- 41 V
- 48 V
CC
50 mV
CC
- 55 V
Conditions Input Output Sense
Normal operation
Overtemperature
Undervoltage
Overvoltage
Short circuit to GND
Short circuit to V
CC
L
H
L
H
L
H
L
H
L
H
H
L
H
L
H
L
L
L
L
L
L
L
L
L
H
H
Nominal
V
SENSEH
(T
(T
j>TTSD
< Nominal
0
0
0
0
0
0
0
j<TTSD
) V
0
) 0
SENSEH
Negative output voltage clamp L L 0
10/26 Doc ID 17749 Rev 1
Page 11
VND600P-E Electrical specifications
Table 12. Electrical transient requirements
ISO T/R
Test level
7637/1
Test pulse
1- 25V
2+ 25V
3a - 25 V
3b + 25 V
4- 4V
5 + 26.5 V
1. All functions of the device are performed as designed after exposure to disturbance.
2. One or more functions of the device is not performed as designed after exposure and cannot be returned to
proper operation without replacing the device.
I II III IV Delays and impedance
(1)
(1)
(1)
(1)
(1)
(1)
- 50 V
+ 50 V
- 50 V
+ 50 V
- 5 V
+ 46.5 V
(1)
(1)
(1)
(1)
(1)
(2)
- 75 V
+ 75 V
- 100 V
+ 75 V
- 6 V
+ 66.5 V
(1)
(1)
(1)
(1)
(1)
(2)
- 100 V
+ 100 V
- 150 V
+ 100 V
- 7 V
+ 86.5 V
(1)
(1)
(1)
(1)
(1)
(2)
2ms, 10Ω
0.2 ms, 10 Ω
0.1 µs, 50 Ω
0.1 µs, 50 Ω
100 ms, 0.01 Ω
400 ms, 2 Ω
Figure 4. Switching characteristics
V
OUT
90%
t
f
dV
OUT
/dt
(off)
t
dV
I
SENSE
OUT
80%
/dt
(on)
t
90%
r
10%
t
t
d(on)
DSENSE
t
d(off)
INPUT
t
t
Doc ID 17749 Rev 1 11/26
Page 12
Electrical specifications VND600P-E
Figure 5. I
I
OUT/ISENSE
6500
6000
5500
5000
4500
4000
3500
3000
0 2 4 6 8 10 12 14 16
OUT/ISENSE
versus I
OUT
max.Tj=25...150°C
min.Tj=25...150°C
I
OUT
max.Tj=-40°C
typical value
min.Tj=-40°C
(A)
12/26 Doc ID 17749 Rev 1
Page 13
VND600P-E Electrical specifications
Figure 6. Waveforms
NORMAL OPERATION
INPUT
LOAD CURRENT
SENSE
UNDERVOLTAGE
V
CC
INPUT
LOAD CURRENT
SENSE
V
CC
INPUT
LOAD CURRENT
SENSE
V
USD
V
VCC > V
OV
USD
V
USDhyst
OVERVOLTAGE
V
OVhys t
INPUT
LOAD CURRENT
LOAD VOLTAGE
SENSE
INPUT
LOAD VOLTAGE
LOAD CURRENT
SENSE
T
j
INPUT
LOAD CURRENT
SENSE
SHORT TO GROUND
SHORT TO V
<Nominal
T
TSD
T
R
OVERTEMPERATURE
CC
<Nominal
I
SENSE
=
V
SENSEH
R
SENSE
Doc ID 17749 Rev 1 13/26
Page 14
Electrical specifications VND600P-E
2.4 Electrical characteristics curves
Figure 7. Off-state output current Figure 8. High-level input current
Figure 9. Input clamp voltage Figure 10. Turn-on voltage slope
Figure 11. Overvoltage shutdown Figure 12. Turn-off voltage slope
IL(off1) (uA)
2.5
2.25
2
1.75
1.5
1.25
1
0.75
0.5
0.25
0
-50 -25 0 25 50 75 100 125 150 175
Off state
Vcc=36V
Vin=Vout=0V
Tc (°C)
Vicl (V)
10
9.5
9
8.5
8
7.5
7
6.5
6
5.5
5
Iin=1mA
-50 -25 0 25 50 75 100 125 150 175
Tc ( °C )
Vov (V)
50
48
46
44
42
40
38
36
34
32
30
-50 -25 0 25 50 75 100 125 150 175
Tc (°C)
Iih (uA)
5
4.5
3.5
2.5
1.5
0.5
Vin=3.25V
4
3
2
1
0
-50 -25 0 25 50 75 100 125 150 175
Tc (°C)
dVout/dt(on) (V/ms)
700
650
600
550
500
450
400
350
300
250
-50 -25 0 25 50 75 100 125 150 175
Vcc=13V
Rl=1.3Ohm
Tc (ºC)
dVout/dt(off) (V/ms)
600
550
500
450
400
350
300
250
200
Ri=6.5Ohm
-50 -25 0 25 50 7 5 100 125 150 175
Tc (°C)
14/26 Doc ID 17749 Rev 1
Page 15
VND600P-E Electrical specifications
Figure 13. I
Ilim (A)
20
18
16
14
12
10
8
6
4
2
0
-50 -25 0 25 50 75 100 125 150 175
Figure 15. Input high-level Figure 16. Input hysteresis voltage
Vih (V)
3.6
3.4
3.2
3
2.8
2.6
2.4
2.2
2
-50 -25 0 25 50 75 100 125 150 175
vs T
LIM
Vcc=13V
case
Tc (°C)
Tc (°C)
Figure 14. On-state resistance vs V
Ron (mOhm)
80
70
60
50
40
30
20
10
0
5 10152025303540
Iout=5A
Tc= 150°C
Tc= 25°C
Tc= - 40°C
Vcc (V)
Vhyst (V)
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0.7
0.6
0.5
-50 -25 0 25 50 75 100 125 150 175
Tc (°C)
CC
Figure 17. On-state resistance vs T
Ron (mOhm)
100
90
80
70
60
50
40
30
20
10
0
-75 -50 -25 0 25 50 75 100 125 150 175
Iout=5A
Vcc=8V & 36V
Tc (°C)
case
Figure 18. Input low-level
Vil (V)
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
1
-50 -25 0 25 50 75 100 125 150 175
Tc (°C)
Doc ID 17749 Rev 1 15/26
Page 16
Application information VND600P-E
3 Application information
Figure 19. Application schematic
+5V
R
prot
R
prot
R
prot
μ
C
R
prot
INPUT1
C. SENSE 1
INPUT2
C. SENSE 2
V
V
CC1
CC2
D
ld
OUTPUT1
OUTPUT2
GND2
R
GND
D
GND
R
SENSE1,2
GND1
V
GND
3.1 GND protection network against reverse battery
3.1.1 Solution 1: resistor in the ground line (R
This can be used with any type of load.
The following is an indication on how to dimension the R
1. R
2. R
where -I
maximum rating section of the device datasheet.
Power Dissipation in R
P
= (-VCC)2/ R
D
This resistor can be shared amongst several different HSDs. Please note that the value of
this resistor should be calculated with formula (1) where I
maximum on-state currents of the different devices.
≤ 600 mV / (I
GND
≥ (-VCC) / (-I
GND
is the DC reverse ground pin current and can be found in the absolute
GND
GND
S(on)max
GND
GND
)
)
(when V
< 0: during reverse battery situations) is:
CC
GND
only)
resistor.
GND
S(on)max
becomes the sum of the
Please note that if the microprocessor ground is not shared by the device ground then the
R
produces a shift (I
GND
S(on)max
* R
) in the input thresholds and the status output
GND
values. This shift varies depending on how many devices are ON in the case of several highside drivers sharing the same R
GND
.
If the calculated power dissipation leads to a large resistor or several devices have to share
the same resistor then ST suggests to utilize Solution 2 (see below).
16/26 Doc ID 17749 Rev 1
Page 17
VND600P-E Application information
3.1.2 Solution 2: diode (D
A resistor (R
= 1 kΩ) should be inserted in parallel to D
GND
) in the ground line
GND
inductive load.
This small signal diode can be safely shared amongst several different HSDs. Also in this
case, the presence of the ground network produces a shift (≈600 mV) in the input threshold
and in the status output values if the microprocessor ground is not common to the device
ground. This shift not varies if more than one HSD shares the same diode/resistor network.
Series resistor in INPUT and STATUS lines are also required to prevent that, during battery
voltage transient, the current exceeds the absolute maximum rating.
Safest configuration for unused INPUT and STATUS pin is to leave them unconnected.
3.2 Load dump protection
Dld is necessary (Voltage Transient Suppressor) if the load dump peak voltage exceeds the
V
max DC rating. The same applies if the device is subject to transients on the VCC line
CC
that are greater than the ones shown in the ISO 7637-2: 2004(E) table.
3.3 MCU I/Os protection
If a ground protection network is used and negative transient are present on the VCC line,
the control pins are pulled negative. ST suggests to insert a resistor (R
the microcontroller I/O pins to latch-up.
if the device drives an
GND
) in line to prevent
prot
The value of these resistors is a compromise between the leakage current of microcontroller
and the current required by the HSD I/Os (Input levels compatibility) with the latch-up limit of
microcontroller I/Os.
-V
CCpeak/Ilatchup
≤ R
prot
≤ (V
OHµC-VIH-VGND
) / I
IHmax
Calculation example:
For V
CCpeak
5kΩ ≤ R
Recommended values: R
= -100 V and I
≤ 65 kΩ.
prot
latchup
=10 kΩ.
prot
≥ 20 mA; V
OHµC
≥ 4.5 V
Doc ID 17749 Rev 1 17/26
Page 18
Application information VND600P-E
3.4 Maximum demagnetization energy (VCC = 13.5 V)
Figure 20. Maximum turn-off current versus inductance
LMAX (A)
I
100
A
B
C
10
1
0.01 0.1 1 10 100
L(mH)
(1)
A: T
B: T
C: T
VIN, I
1. Values are generated with RL =0 Ω.
In case of repetitive pulses, T
the temperature specified above for curves A and B.
= 150°C single pulse
jstart
= 100°C repetitive pulse
jstart
= 125°C repetitive pulse
jstart
L
Demagnetization Demagnetization Demagnetization
(at beginning of each demagnetization) of every pulse must not exceed
jstart
t
18/26 Doc ID 17749 Rev 1
Page 19
VND600P-E Package and PCB thermal data
4 Package and PCB thermal data
4.1 SO-16L thermal data
Figure 21. SO-16L PC board
1. Layout condition of R
Cu thickness = 35 µm, Copper areas: 0.5 cm2, 6 cm2).
Figure 22. R
70
thj-amb
RTH j-amb (°C/W)
and Zth measurements (PCB FR4 area = 41 mm x 48 mm, PCB thickness = 2 mm,
th
vs PCB copper area in open box free air condition
(1)
65
60
55
50
45
40
01234567
PCB Cu heatsink area (cm^2)
Doc ID 17749 Rev 1 19/26
Page 20
Package and PCB thermal data VND600P-E
Figure 23. Thermal impedance junction ambient single pulse
ZTH (°C/W)
1000
100
10
1
0.1
0.01
0.0001 0.001 0.01 0.1 1 10 100 1000
Time (s)
Equation 1
Z
THδ
where
: pulse calculation formula
RTHδ Z
THtp
1 δ–()+⋅=
δ tpT⁄=
Footprint
6 cm
2
Figure 24. Thermal fitting model of a quad channel HSD in SO-16L
Tj_1
Pd1
Tj_2
20/26 Doc ID 17749 Rev 1
C1
C1 C2
R1
Pd2
C3 C4
R3R1 R6R5R2
R2
C5 C6C2
R4
T_amb
Page 21
VND600P-E Package and PCB thermal data
Table 13. Thermal parameters
Area / island (cm2) Footprint 6
R1 (°C/W) 0.05
R2 (°C/W) 0.3
R3 (°C/W) 2.2
R4 (°C/W) 12
R5 (°C/W) 15
R6 (°C/W) 37 22
C1 (W.s/°C) 0.001
C2 (W.s/°C) 5E-03
C3 (W.s/°C) 0.02
C4 (W.s/°C) 0.3
C5 (W.s/°C) 1
C6 (W.s/°C) 3 5
Doc ID 17749 Rev 1 21/26
Page 22
Package and packing information VND600P-E
5 Package and packing information
5.1 ECOPACK® packages
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
.
®
is an ST trademark.
Figure 25. SO-16L package dimensions
22/26 Doc ID 17749 Rev 1
Page 23
VND600P-E Package and packing information
Table 14. SO-16L mechanical data
mm.
DIM.
Min. Typ. Max.
A 2.65
a1 0.1 0.2
a2 2.45
b 0.35 0.49
b1 0.23 0.32
C0.5
c1 45° (typ.)
D 10.1 10.5
E 10.0 10.65
e1.27
e3 8.89
F7.4 7.6
L 0.5 1.27
M 0.75
S 8° (max.)
Doc ID 17749 Rev 1 23/26
Page 24
Package and packing information VND600P-E
5.2 SO-16L packing information
Figure 26. SO-16L tube shipment (no suffix)
Base Q.ty 50
Bulk Q.ty 1000
C
B
A
Figure 27. SO-16L tape and reel shipment (suffix “TR”)
Tube length (± 0.5) 532
A 3.5
B 13.8
C (± 0.1) 0.6
All dimensions are in mm.
Reel dimensions
Base Q.ty 1000
Bulk Q.ty 1000
A (max) 330
B (min) 1.5
C (± 0.2) 13
F 20.2
G (+ 2 / -0) 16.4
N (min) 60
T (max) 22.4
Tape dimensions
According to Electronic Industries Association
(EIA) Standard 481 rev. A, Feb. 1986
Tape width W 16
Tape Hole Spacing P0 (± 0.1) 4
Component Spacing P 12
Hole Diameter D (± 0.1/-0) 1.5
Hole Diameter D1 (min) 1.5
Hole Position F (± 0.05) 7.5
Compartment Depth K (max) 6.5
Hole Spacing P1 (± 0.1) 2
All dimensions are in mm.
Top
cover
tape
End
500mm min
Empty components pockets
saled with cover tape.
User direction of feed
Start
No componentsNo components Components
500mm min
24/26 Doc ID 17749 Rev 1
Page 25
VND600P-E Revision history
6 Revision history
Table 15. Document revision history
Date Revision Changes
20-Jul-2010 1 Initial release.
Doc ID 17749 Rev 1 25/26
Page 26
VND600P-E
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
26/26 Doc ID 17749 Rev 1
Loading...
