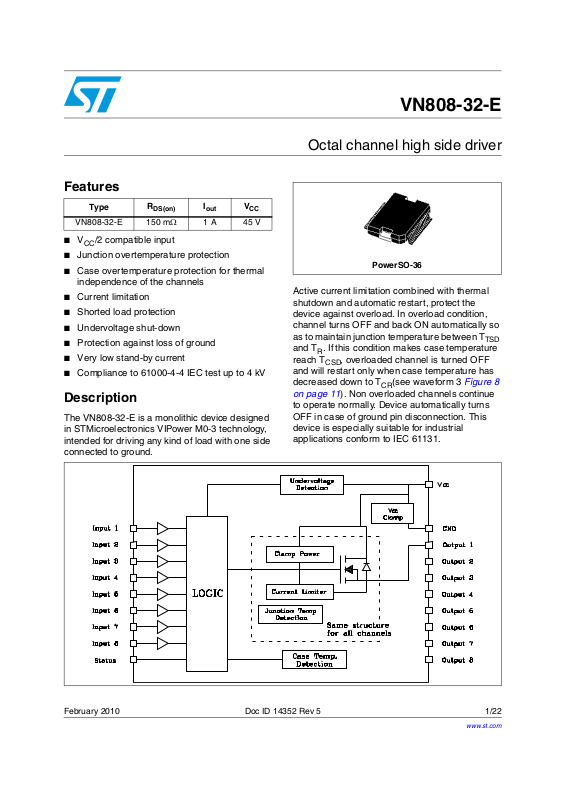

Features

Typ e

VN808-32-E 150 mΩ 1 A 45 V

R

DS(on)

I

out

VN808-32-E

Octal channel high side driver

V

CC

■ V

■ Junction overtemperature protection

■ Case overtemperature protection for thermal

/2 compatible input

CC

independence of the channels

■ Current limitation

■ Shorted load protection

■ Undervoltage shut-down

■ Protection against loss of ground

■ Very low stand-by current

■ Compliance to 61000-4-4 IEC test up to 4 kV

Description

The VN808-32-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground.

PowerSO-36

Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between T

TSD

and TR. If this condition makes case temperature reach T

, overloaded channel is turned OFF

CSD

and will restart only when case temperature has decreased down to T

(see waveform 3 Figure 8

CR

on page 11). Non overloaded channels continue

to operate normally. Device automatically turns OFF in case of ground pin disconnection. This device is especially suitable for industrial applications conform to IEC 61131.

February 2010 Doc ID 14352 Rev 5 1/22

www.st.com

22

Contents VN808-32-E

Contents

1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Pin connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Current, voltage conventions and internal diagram . . . . . . . . . . . . . . . 8

5 Switching time waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6 Reverse polarity protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7.1 Footprint recommended data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.2 Tube shipment information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.3 Tape and reel shipment information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

8 Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2/22 Doc ID 14352 Rev 5

VN808-32-E Maximum ratings

1 Maximum ratings

Table 1. Absolute maximum rating

Symbol Parameter Value Unit

V

-I

I

-I

V

P

L

T

GND

OUT

I

V

ESD

TOT

MAX

T

STG

DC supply voltage 45 V

CC

DC ground pin reverse current TRAN Ground pin reverse current

(pulse duration < 1ms)

-250

-6

DC output current Internally limited A

Reverse DC output current -2 A

DC Input current ± 10 mA

IN

Input voltage range -3/+V

IN

CC

Electrostatic discharge (R = 1.5 kΩ; C = 100 pF) 2000 V

Power dissipation at Tc = 25 °C 96 W

Max inductive load (VCC = 24 V, R TA = 100 °C)

Junction operating temperature Internally limited °C

J

Case operating temperature Internally limited °C

C

LOAD

= 48 Ω,

2H

Storage temperature -40 to 150 °C

Table 2. Thermal data

Symbol Parameter Value Unit

mA

A

V

R

thJC

R

thJA

1. When mounted on FR4 printed circuit board with 0.5cm2 of copper area (at least 35 μm think) connected to all TAB pins.

Thermal resistance junction-case Max 1.3 °C/W

Thermal resistance junction-ambient

(1)

Max 50 °C/W

Doc ID 14352 Rev 5 3/22

Electrical characteristics VN808-32-E

2 Electrical characteristics

(10.5 V < VCC < 32 V; -40 °C < TJ < 125 °C; unless otherwise specified)

Table 3. Power section

Symbol Parameter Test conditions Min Typ Max Unit

Operating supply

CC

voltage

Undervoltage shutdown

On state resistance

ON

I

OUT

I

OUT

V

USD

R

OFF state; V T

I

S

I

LGND

I

L(off)

V

OUT(off)

t

d(Vccon)

Supply current

Output current at turn-off

OFF state output current

OFF state output voltage

Power-on delay time from V

rising edge

CC

CASE

ON state (all channels ON); V

CC

V

CC

V

OUT

V

IN

V

IN

Figure 7 on page 10 1ms

Table 4. Switching (VCC = 24 V)

= 0.5 A; TJ = 25 °C = 0.5 A;

= 24 V;

CC

= 25 °C

= 24 V, T

= V

STAT

= 100 °C

CASE

= VIN = V

= 0 V

= V

= 0 V, I

OUT

= 0 V

;

= 0 A 3 V

OUT

GND

= 24 V

10.5 45 V

710.5V

150 185

280mΩmΩ

15012μA

mA

1mA

05μA

Symbol Parameter Test conditions Min Typ Max Unit

= 48 Ω from 80%

R

t

OFF

dV

OUT/dt(on)

dV

OUT/dt(off)

ON

Turn-on time

Turn-off time RL = 48 Ω to 10% V

Turn-on voltage slope

Turn-off voltage slope

L

Figure 6.

V

OUT

R

= 48 Ω from V

L

= 19.2 V Figure 6.

V

OUT

R

= 48 Ω from V

L

= 2.4 V Figure 6.

V

OUT

4/22 Doc ID 14352 Rev 5

50 100 μs

Figure 6. 75 150 μs

OUT

= 2.4 V to

OUT

= 21.6 V to

OUT

0.7 V/μs

1.5 V/μs

VN808-32-E Electrical characteristics

Table 5. Input pin

Symbol Parameter Test conditions Min Typ Max Unit

V

I

V

I

INH

V

I(HYST)

I

INL

INH

Input low level V

INL

Low level input current

Input high level V

High level input current

= V

V

IN

V

IN

/ 2 - 1 V 80 μΑ

CC

= V

/ 2 + 1 V 150 260 μΑ

CC

Input hysteresis voltage

Input current V

IN

= V

= 32 V 300 μΑ

CC

/2-1 V

CC

/2+1 V

0.6 V

Table 6. Protections

Symbol Parameter Test conditions Min Typ Max Unit

T

CSD

T

CHYST

T

TSD

Case shut-down temperature

Case reset

CR

temperature

Case thermal hysteresis

Junction shutdown temperature

125 130 135 °C

110 °C

715 °C

150 175 200 °C

Junction reset

R

temperature

Junction thermal hysteresis

DC short circuit current

Turn-off output clamp voltage

135 °C

715 °C

V

= 24 V; R

CC

= 0.5 A; L = 6 mH VCC-57 VCC-52 VCC-47 V

I

OUT

= 10 mΩ 11.7A

LOAD

T

HYST

I

V

demag

T

lim

Table 7. Status pin

Symbol Parameter Test conditions Min Typ Max Unit

I

HSTAT

I

LSTAT

V

CLSTAT

= 18...32 V; R

High level output current

V

CC

(Fault condition)

Leakage current Normal operation; V

I

= 1 mA

Clamp voltage

STAT

I

STAT

= -1 mA

= 1 kΩ

STAT

= 32 V 0.1 μA

CC

234mA

6.0 6.8

-0.7

8.0 V V

Doc ID 14352 Rev 5 5/22

Pin connections VN808-32-E

3 Pin connections

Figure 2. Connection diagram (top view)

Table 8. Pin functions

Pin N° Symbol Function

TA B V

1V

2,3,4,5 NC Not connected

6 Input 1 Input of channel 1

7 Input 2 Input of channel 2

8 Input 3 Input of channel 3

9 Input 4 Input of channel 4

10 Input 5 Input of channel 5

11 Input 6 Input of channel 6

12 Input 7 Input of channel 7

13 Input 8 Input of channel 8

14,15,16,17,18 NC Not connected

19 GND Logic ground

20 STATUS Common open source diagnostic for over-temperature

21,22 Output 8 High-side output of channel 8

23,24 Output 7 High-side output of channel 7

CC

Positive power supply voltage

25,26 Output 6 High-side output of channel 6

6/22 Doc ID 14352 Rev 5

VN808-32-E Pin connections

Table 8. Pin functions (continued)

Pin N° Symbol Function

27.28 Output 5 High-side output of channel 5

29,30 Output 4 High-side output of channel 4

31,32 Output 3 High-side output of channel 3

33,34 Output 2 High-side output of channel 2

35,36 Output 1 High-side output of channel 1

Doc ID 14352 Rev 5 7/22

Current, voltage conventions and internal diagram VN808-32-E

4 Current, voltage conventions and internal diagram

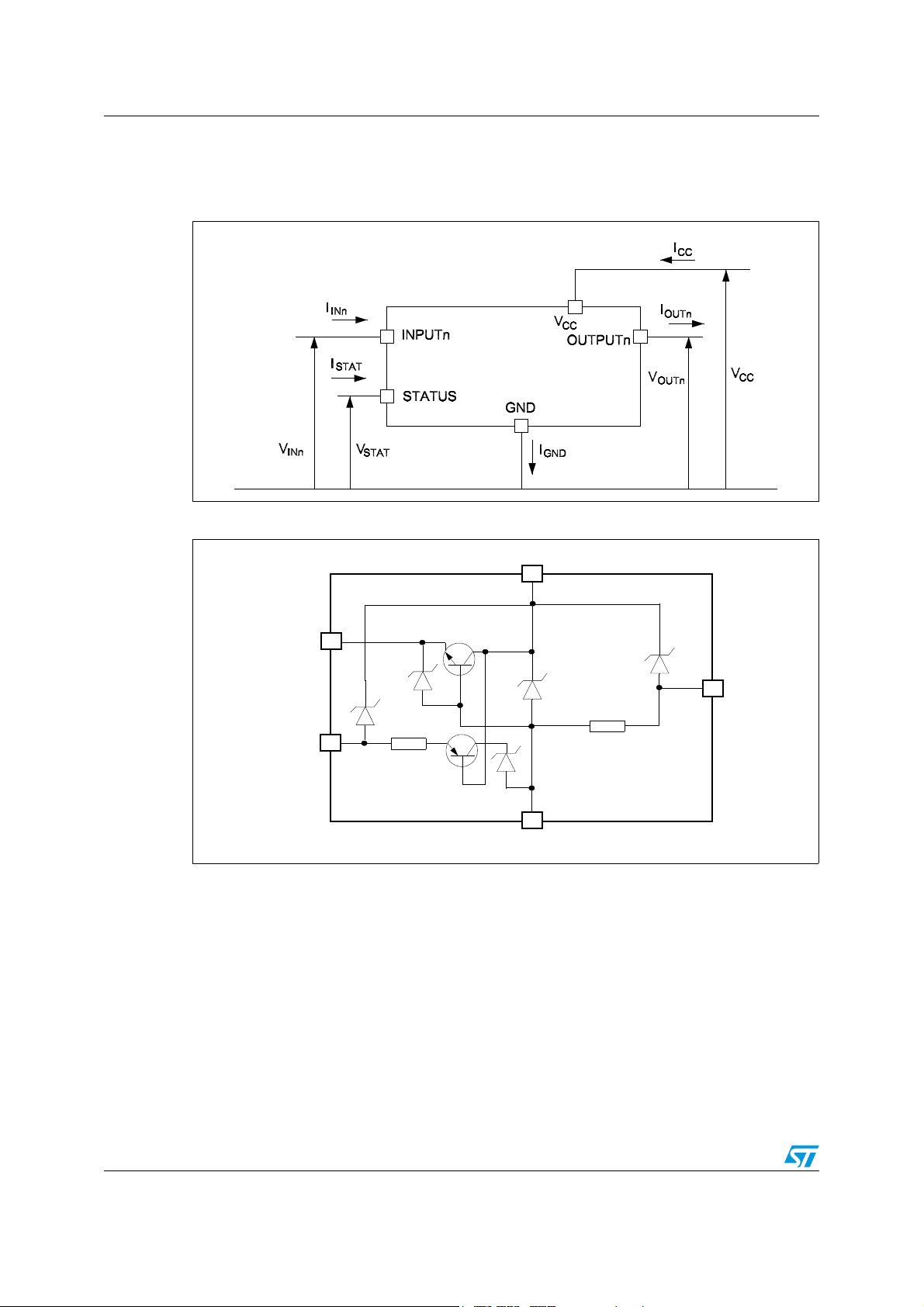

Figure 3. Current and voltage conventions

Figure 4. Equivalent internal block diagram (same structure for all channel)

STATUS

INn

50V

6.8V

13

VCC

52V

50V

110k

Ω

GND

OUTn

8/22 Doc ID 14352 Rev 5

VN808-32-E Current, voltage conventions and internal diagram

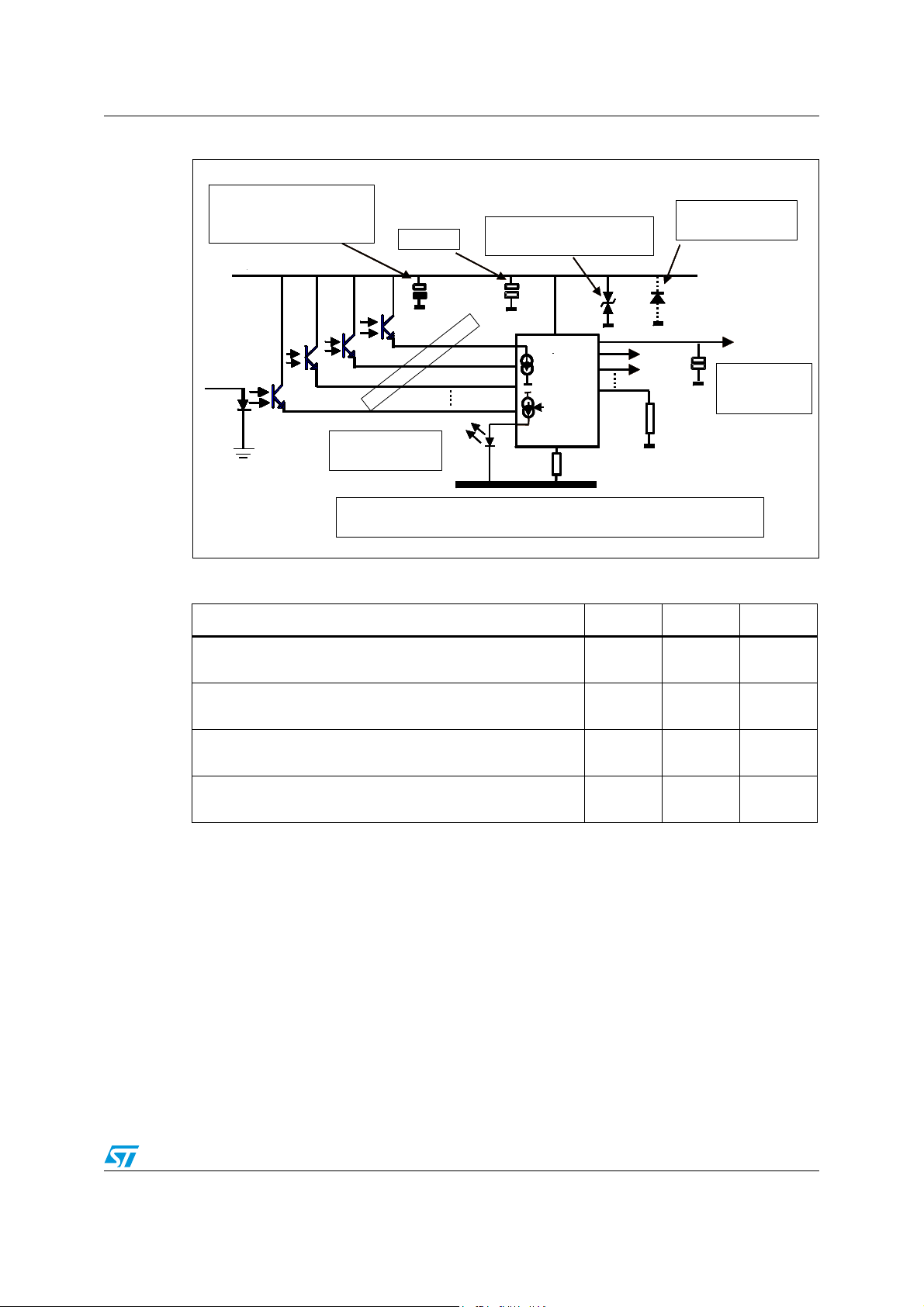

Figure 5. Application example

Filter for bus inductance effect.,

Make supply voltage stable and

Avoid undervoltage shut-down

Vcc24V - 28,2V IEC61131

.

..

Status output current

From 2 to 4 mA

IEC 61000-4-2 ESD test better than 2kV Human Body Model – IEC 61000-4-4 Burst test

V

c

.

o

c

2

/

EMC filter

.

22µF

n

i

e

l

b

i

t

a

p

m

PROTECTIONS INCLUDED IN THE DEVICE:

Protection for IEC 61000-4-5

Surge test suggested 1,5KE39xx

...

.

...

.

100nF

s

t

u

p

Vin 1

Imax 80µA

Vin 2

Vin 3

Vin 8

VN808

VN808-E

Status

RGNDRGND

10Ω protection against disconnection

(OPTIONAL)

Optional protection for

V

CC

.

Load 2

Load 3

.

Load 8

On inductive loads

disconnection.

Load 1

10nF

Protection against

IEC 61000-4-6

Current injection test

Table 9. Truth table

Conditions INPUTn OUTPUTn STATUS

Normal operation

Current limitation

Overtemperature (see waveforms 3, 4 Figure 8) -> TJ > T

Undervoltage

TSD

L

H

L

H

L

H

L

H

L

H

L

X

L L

L

H

X X

Doc ID 14352 Rev 5 9/22

Switching time waveforms VN808-32-E

5 Switching time waveforms

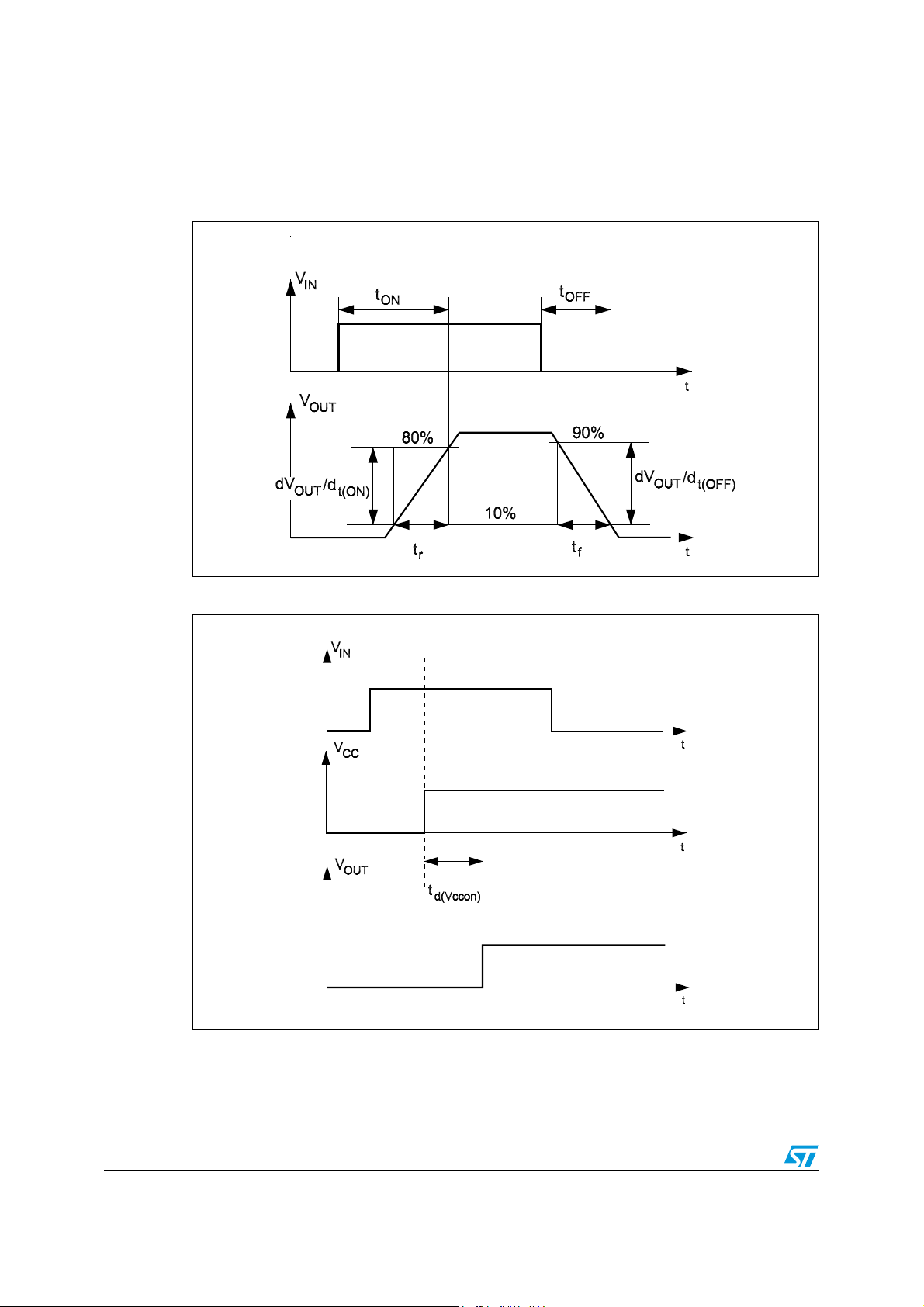

Figure 6. Turn-ON and turn-OFF

Figure 7. V

turn-ON

CC

10/22 Doc ID 14352 Rev 5

VN808-32-E Switching time waveforms

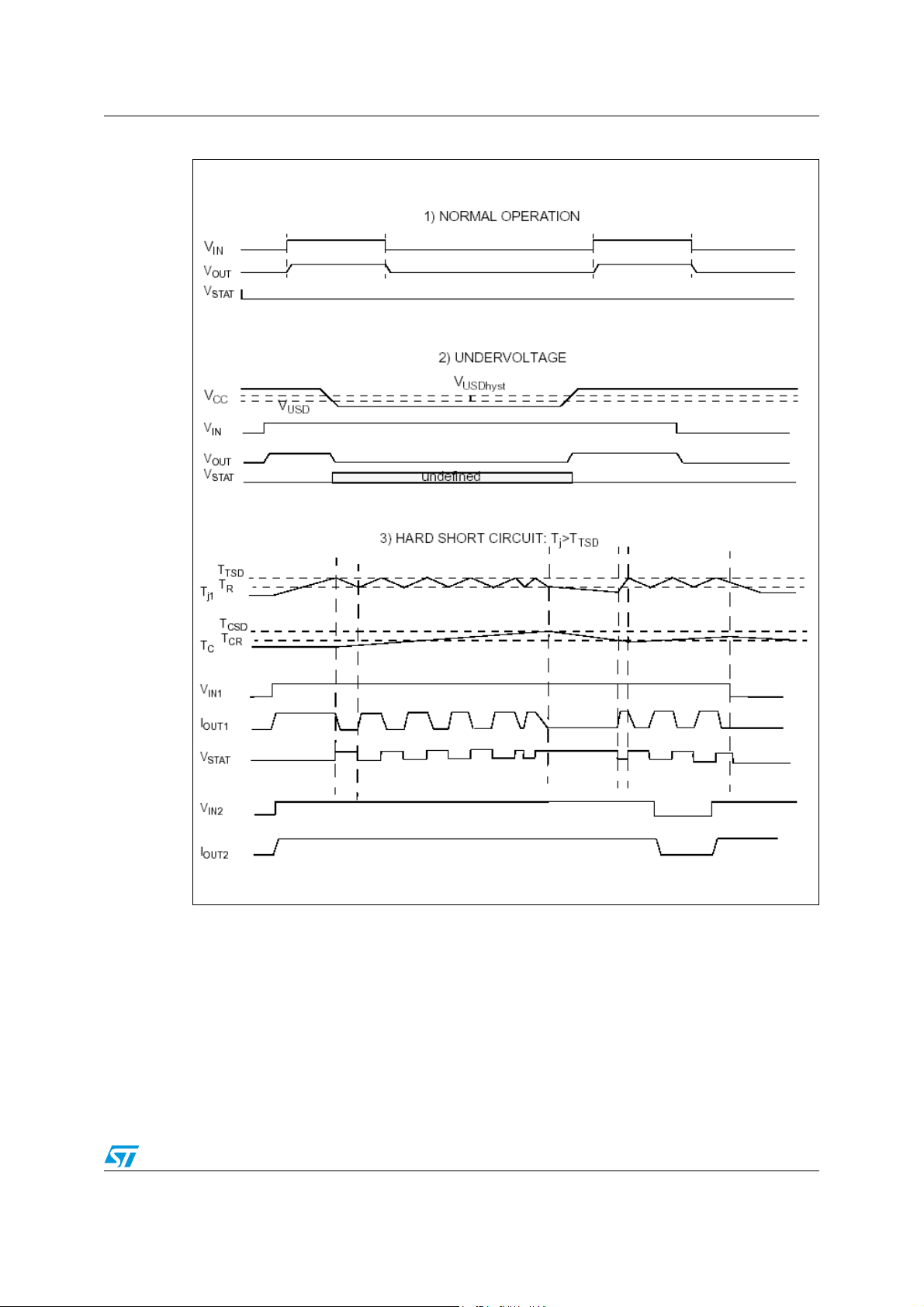

Figure 8. Waveforms

Doc ID 14352 Rev 5 11/22

Switching time waveforms VN808-32-E

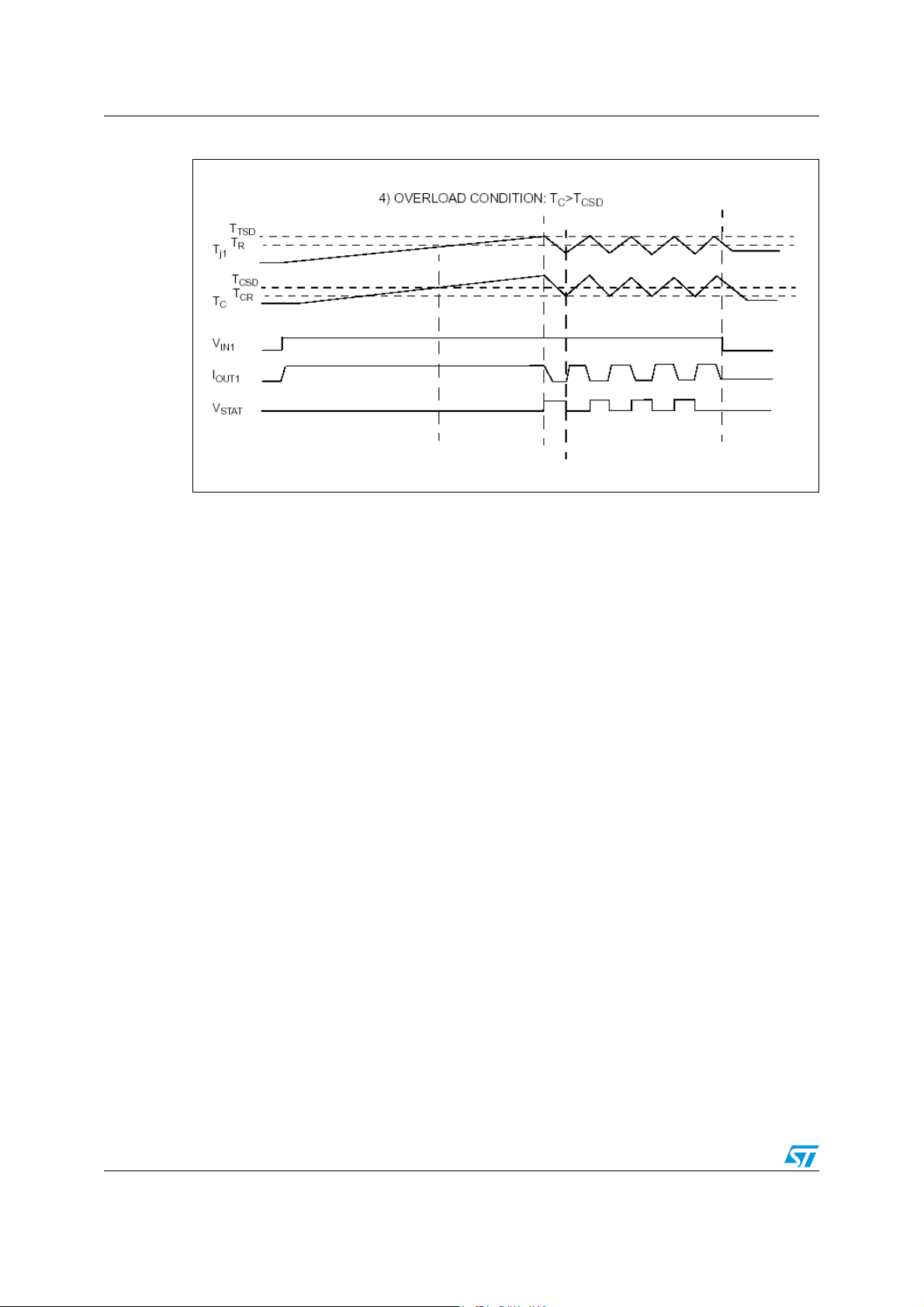

Figure 8. Waveforms (continued)

12/22 Doc ID 14352 Rev 5

VN808-32-E Reverse polarity protection

6 Reverse polarity protection

This schematic can be used with any type of load.

The following is an indication on how to dimension the R

R

= (-VCC) / (-I

GND

where -I maximum rating section of the device datasheet.

Power dissipation in R

PD = (-V

Note: In normal condition (no reverse polarity) due to the diode there will be a voltage drop

between GND of the device and GND of the system.

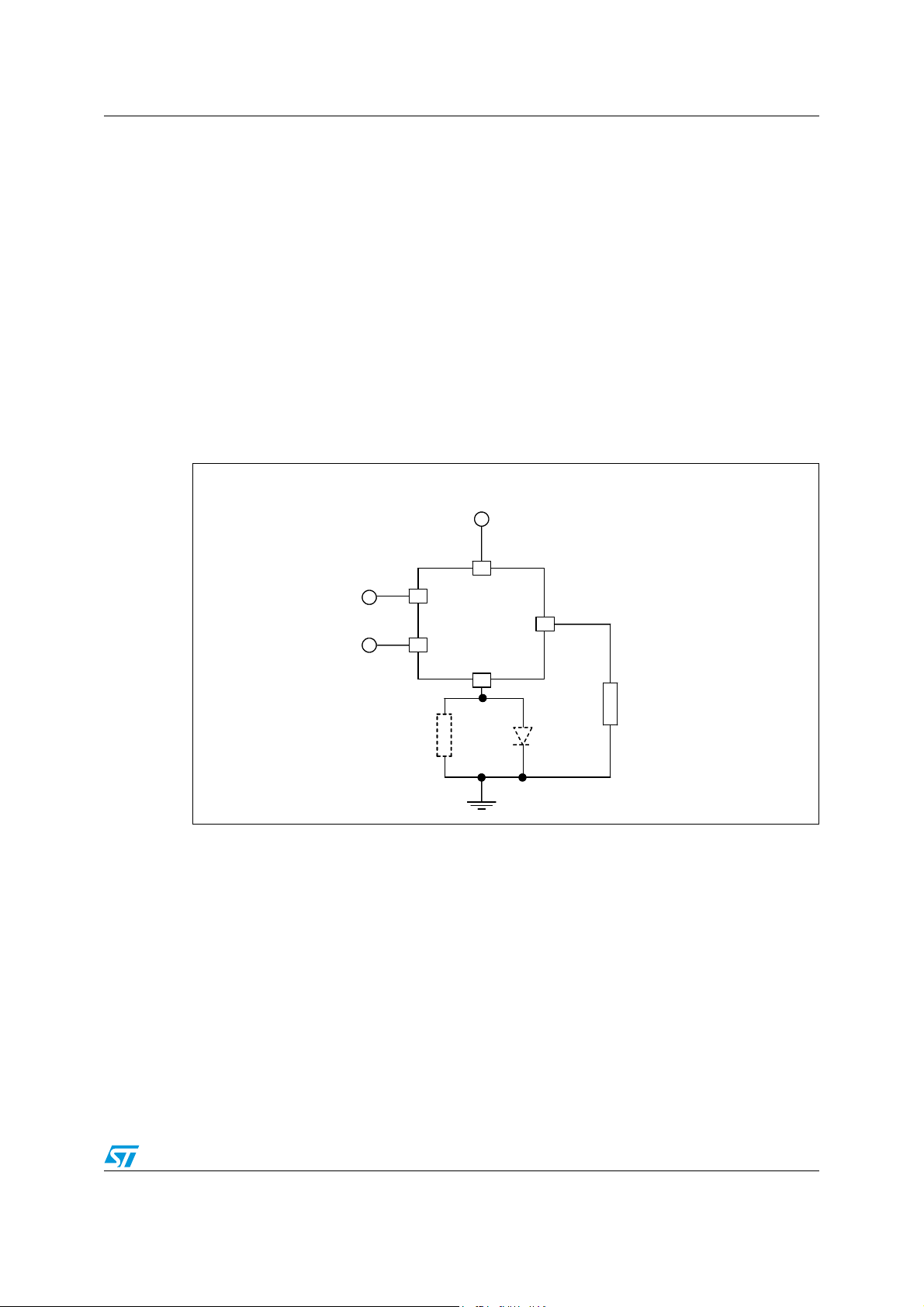

Figure 9. Reverse polarity protection

is the DC reverse ground pin current and can be found in the absolute

GND

)2/R

CC

GND

)

GND

Status

Input

(when VCC< 0: during reverse polarity situations) is:

+ Vcc

i

GND

resistor.

GND

Output

i

R

GND

Diode

Load

Doc ID 14352 Rev 5 13/22

Package mechanical data VN808-32-E

7 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

Table 10. PowerSO-36 mechanical data

mm inch

Dim.

Min. Typ. Max. Min. Typ. Max.

A 3.60 0.1417

a1 0.10 0.30 0.003 0.0118

a2 3.30 0.1299

a3 0 0.10 0 0.0039

b 0.22 0.38 0.008 0.0150

c 0.23 0.32 0.009 0.0126

D (1) 15.80 16.00 0.622 0.6299

D1 9.40 9.80 0.370 0.3858

E 13.90 14.50 0.547 0.5709

E1 (1) 10.90 11.10 0.429 0.4370

E2 2.90 0.1142

E3 5.8 6.2 0.228 0.2441

e 0.65 0.025

e3 11.05 0.435

G 0 0.10 0.000 0.0039

H 15.50 15.90 0.610 0.6260

h 1.10 0.0433

L 0.80 1.10 0.031 0.0433

N 10° 10°

S 0° 8° 0° 8°

14/22 Doc ID 14352 Rev 5

VN808-32-E Package mechanical data

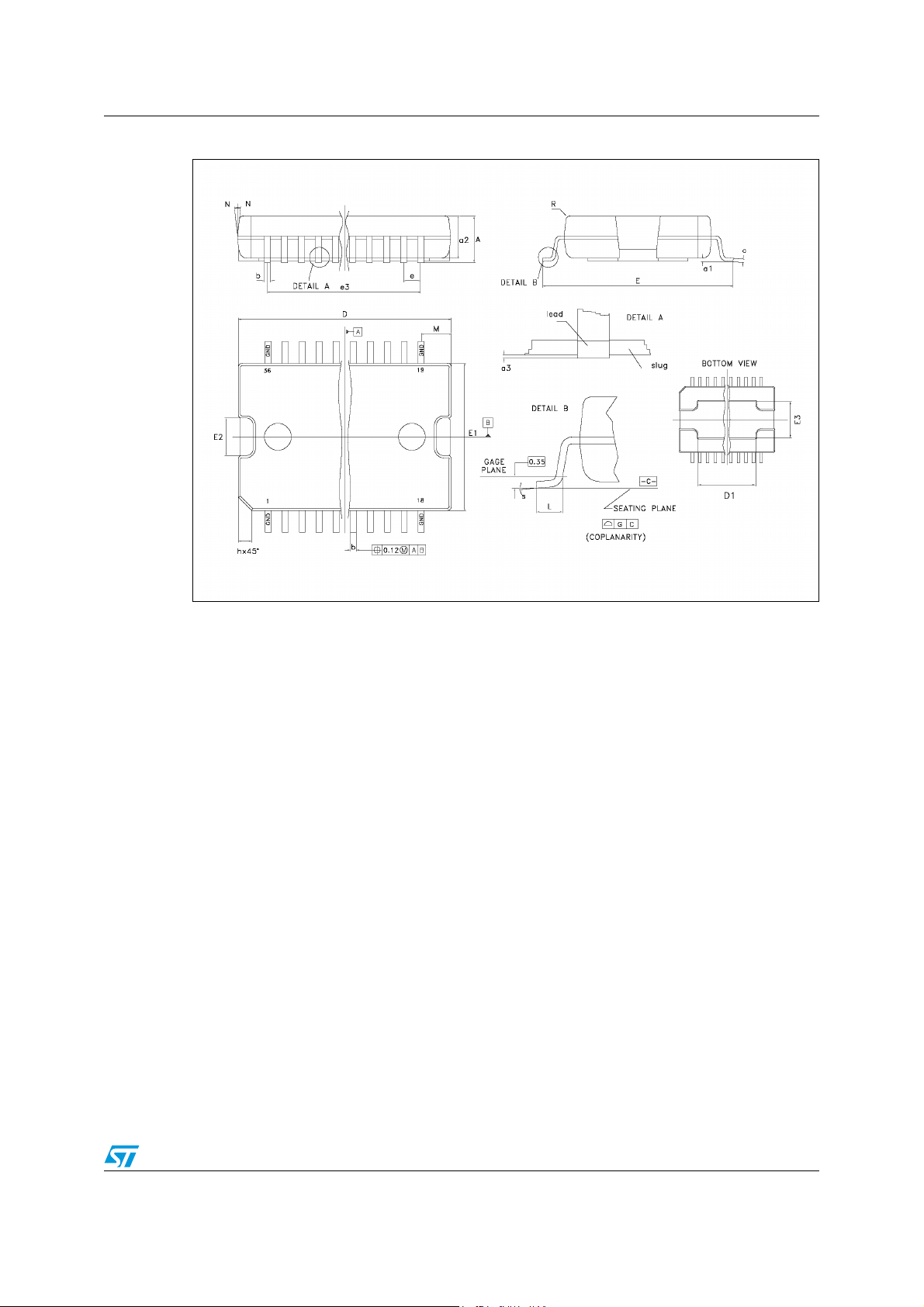

Figure 10. PowerSO-36 drawings

Doc ID 14352 Rev 5 15/22

Package mechanical data VN808-32-E

7.1 Footprint recommended data

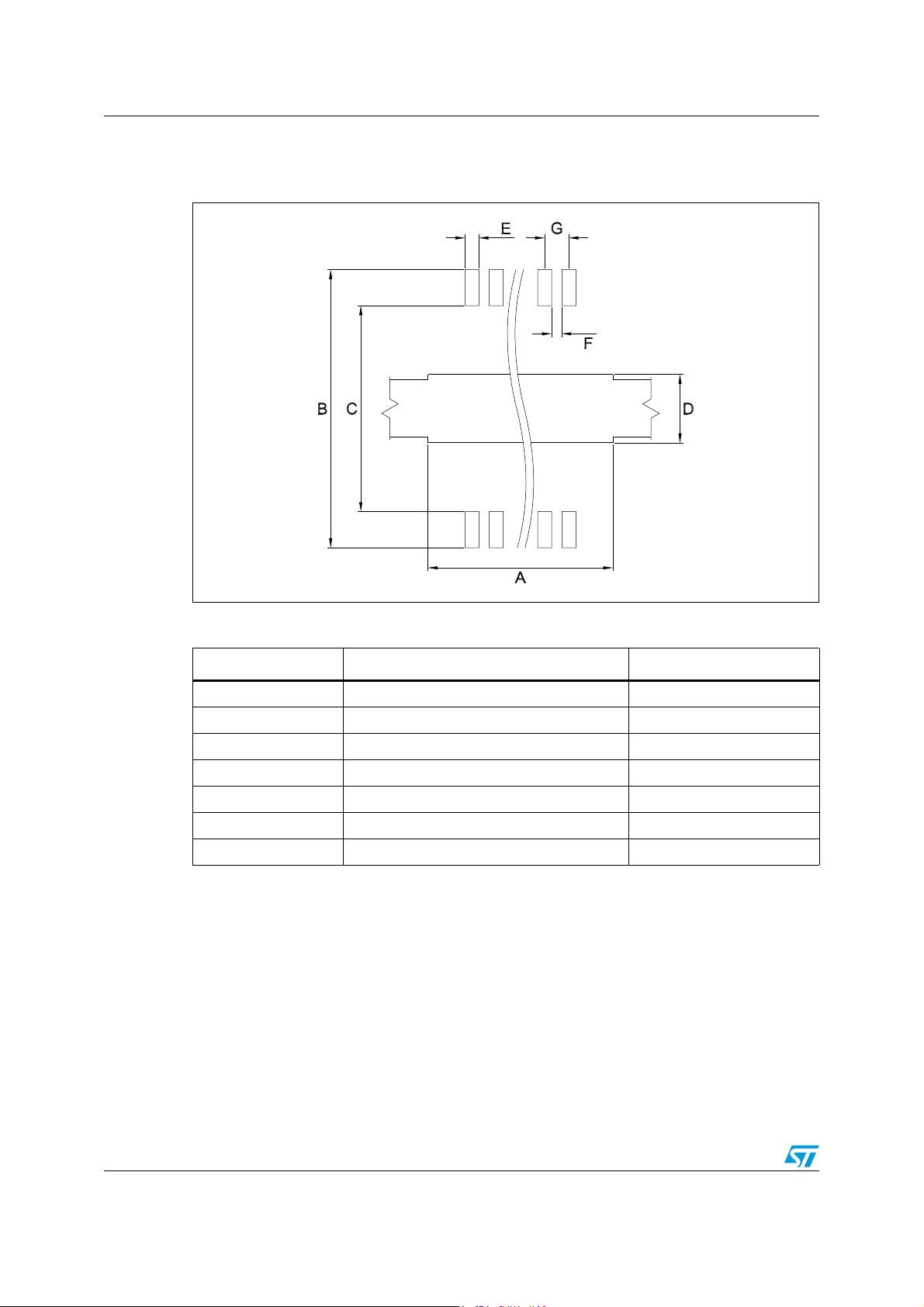

Figure 11. Footprint recommended data

Table 11. Footprint data

Dim. mm. inch

A 9.5 0.374

B 14.7-15.0 0.579-0.591

C 12.5-12.7 0.492-0.500

D 6.3 0.248

E 0.46 0.018

F 0.27 0.011

G 0.65 0.026

16/22 Doc ID 14352 Rev 5

VN808-32-E Package mechanical data

7.2 Tube shipment information

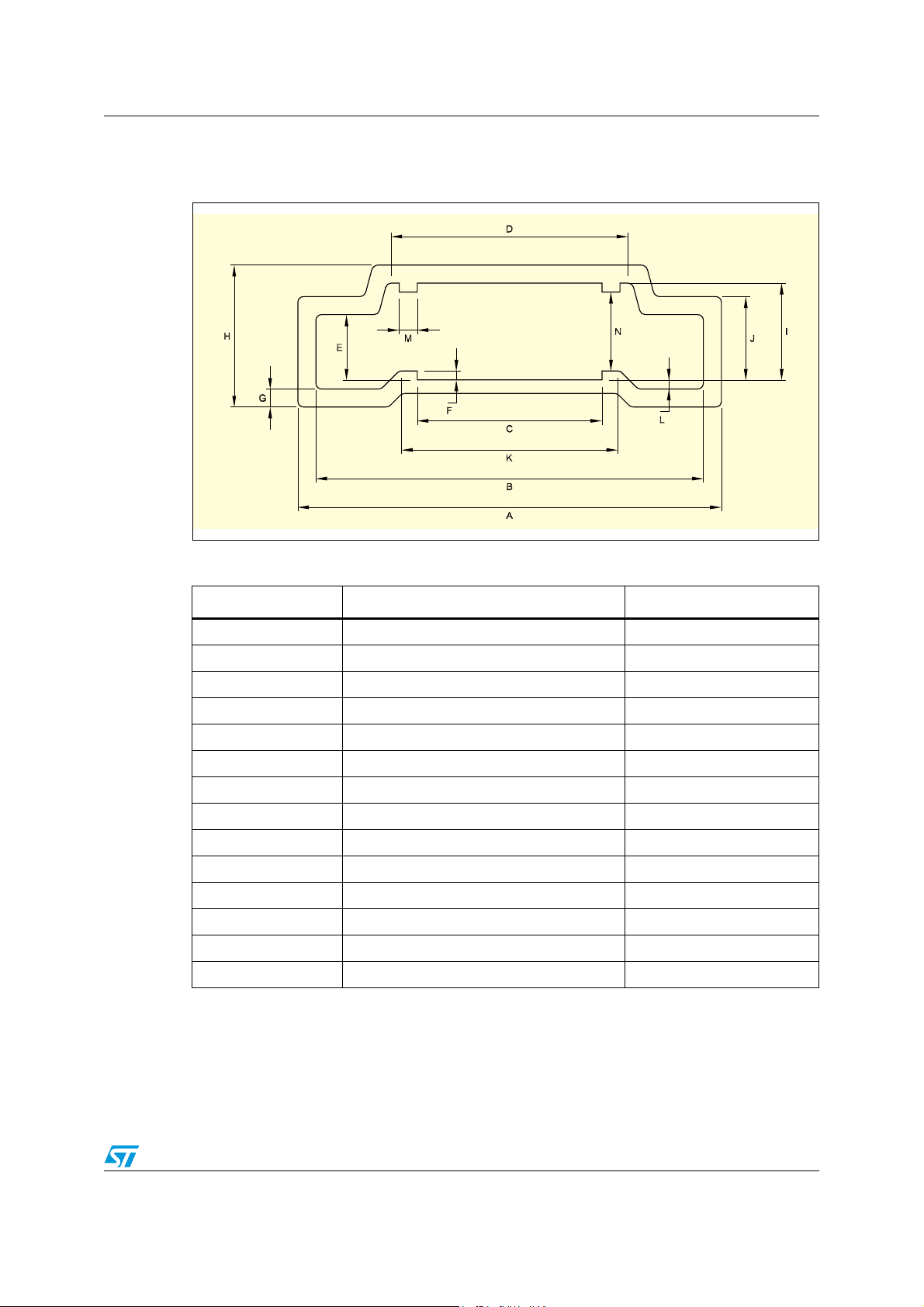

Figure 12. Tube shipment information

Table 12. Tube mechanical data

Dim. mm. inch

A 18.80 0.740

B 17.2 ±0.2 0.677 ±0.008

C 8.20 ±0.2 0.323 ±0.008

D 10.90 ±0.2 0.429 ±0.008

E 2.90 ±0.2 0.114 ±0.008

F 0.40 0.016

G 0.80 0.031

H 6.30 0.248

I 4.30 ±0.2 0.165 ±0.008

J 3.7 ±0.2 0.146 ±0.008

K 9.4 0.370

L 0.40 0.016

M 0.80 0.031

N 3.50 ±0.2 0.138 ±0.008

Base quantity 31 pcs.

Bulk quantity 310 pcs.

Doc ID 14352 Rev 5 17/22

Package mechanical data VN808-32-E

7.3 Tape and reel shipment information

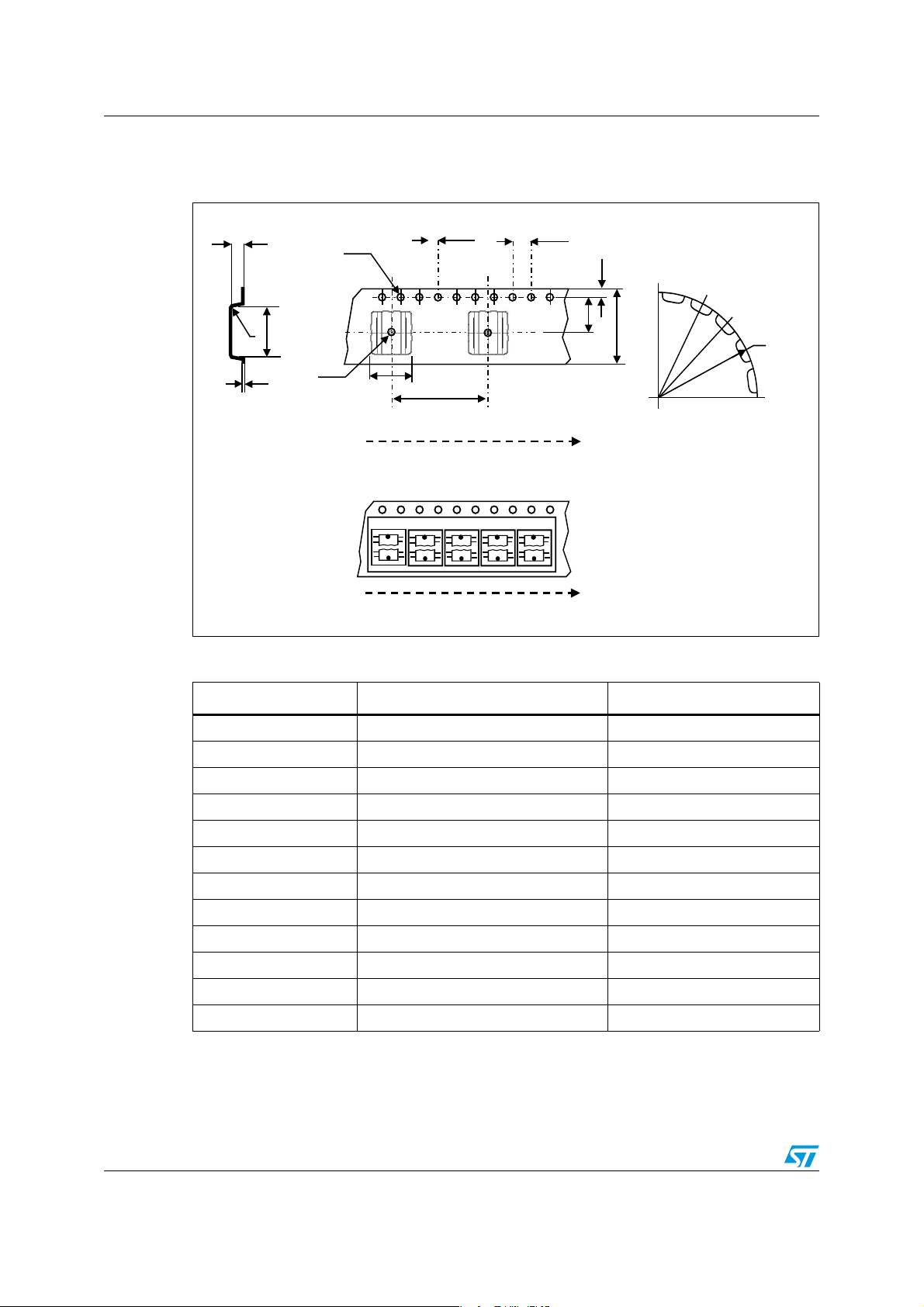

Figure 13. Tape specifications

1

,P

%



1P

&

3

#P

$

5

1

"P

6TFSEJSFDUJPOPGGFFE

Table 13. Tape mechanical data

Dim. mm. inch

D 1.50 +0.1/0 0.059 +0.004/0

E 1.75 ±0.1 0.069 ±0.004

'



8

3

#FOEJOHSBEJVT

Po 4.00 ±0.1 0.157 ±0.004

T max. 0.40 0.016

D1 min. 1.50 0.059

F 11.5 ±0.05 0.453 ±0.002

K max. 6.50 0.256

P2 2.00 ±0.1 0.079 ±0.004

R 50 1.968

W 24.00 ±0.30 0.945 ±0.012

P1 24.00 0.945

Ao, Bo, Ko 0.05 min to 1.0 max. 0.002 min to 0.039 max.

Base quantity 600 pcs.

Bulk quantity 600 pcs.

18/22 Doc ID 14352 Rev 5

VN808-32-E Package mechanical data

$

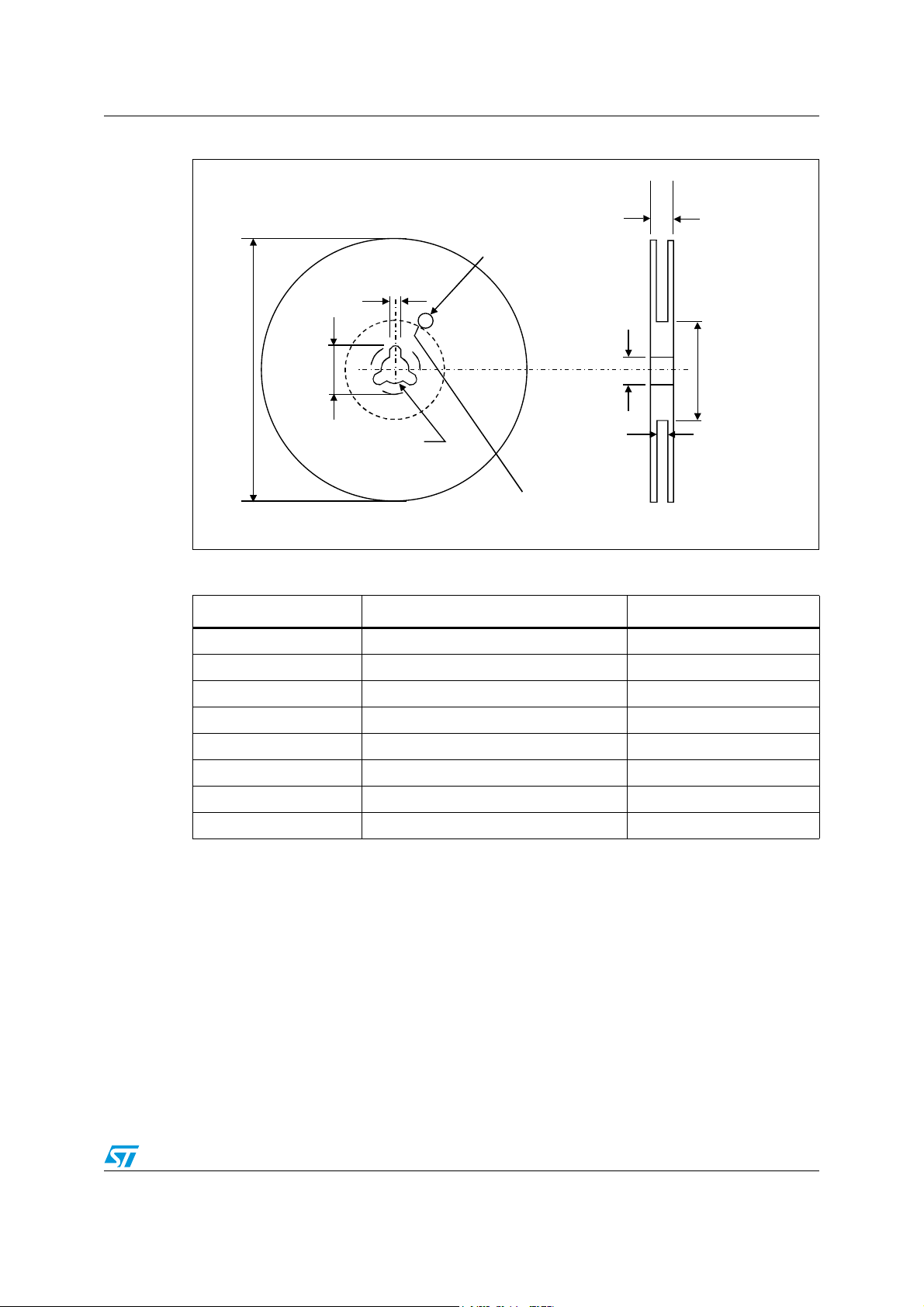

Figure 14. Reel specifications

7

PPLQPLQ

DFFHVVKROH

%

DWVORWORFDWLRQ

&

'

)XOOUDGLXV

Table 14. Reel mechanical data

Dim. mm. inch

Tape size 24.0 ±0.30 0.945 ±0.012

A max. 330.0 12.992

B min. 1.5 0.059

C 13.0 ±0.20 0.512 ±0.008

D min. 20.2 0.795

N min. 60 2.362

G 24.4 +2/-0 0.960 +0.079/-0

T max. 30.4 1.197

1

*PHDVXUHG

DWKXE

7DSHVORWLQFRUHIRUWDSHVWDUW PPLQPLQZLGWK

Doc ID 14352 Rev 5 19/22

Order codes VN808-32-E

8 Order codes

Table 15. Order codes

Order codes Package Packaging

VN808-32-E PowerSO-36 Tube

VN808TR-32-E PowerSO-36 Tape and reel

20/22 Doc ID 14352 Rev 5

VN808-32-E Revision history

9 Revision history

Table 16. Document revision history

Date Revision Changes

25-Jan-2008 1 Initial release

07-Jul-2008 2 Added Section 6 on page 13

04-Aug-2008 3 Added: Figure 11: PowerSO-36 footprint on page 15

25-Aug-2009 4 Updated Section 6: Reverse polarity protection

24-Feb-2010 5 Updated Section 7: Package mechanical data

Doc ID 14352 Rev 5 21/22

VN808-32-E

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

22/22 Doc ID 14352 Rev 5
