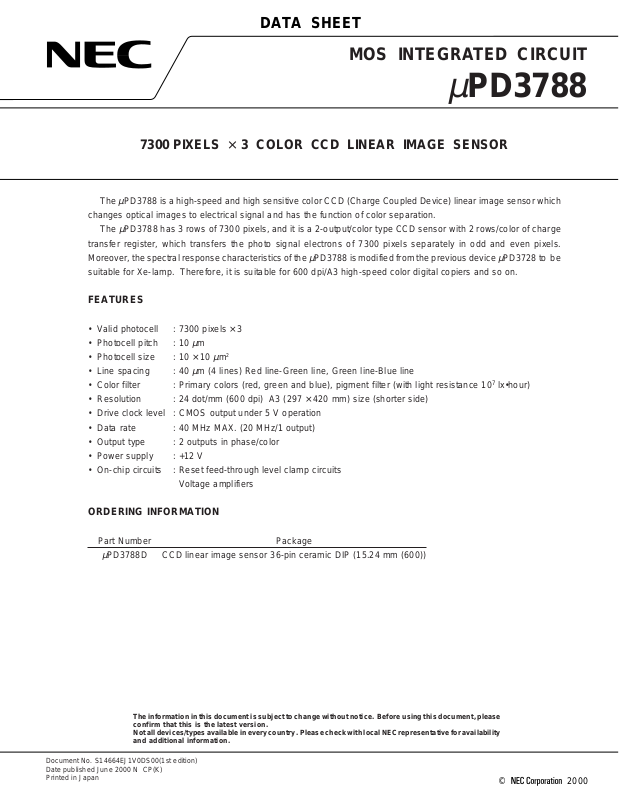

DATA SHEET

MOS INTEGRATED CIRCUIT

µ

PD3788

7300 PIXELS × 3 COLOR CCD LINEAR IMAGE SENSOR

The µPD3788 is a high-speed and high sensitive color CCD (Charge Coupled Device) linear image sensor which

changes optical images to electrical signal and has the function of color separation.

µ

PD3788 has 3 rows of 7300 pixels, and it is a 2-output/color type CCD sensor with 2 rows/color of charge

The
transfer register, which transfers the photo signal electrons of 7300 pixels separately in odd and even pixels.
Moreover, the spectral response characteristics of the µPD3788 is modified from the previous device µPD3728 to be
suitable for Xe-lamp. Therefore, it is suitable for 600 dpi/A3 high-speed color digital copiers and so on.

FEATURES

• Valid photocell : 7300 pixels × 3

• Photocell pitch : 10 µm

2

µ

• Photocell size : 10 × 10

• Line spacing : 40 µm (4 lines) Red line-Green line, Green line-Blue line

• Color filter : Primary colors (red, green and blue), pigment filter (with light resistance 107 lx•hour)

• Resolution : 24 dot/mm (600 dpi) A3 (297 × 420 mm) size (shorter side)

• Drive clock level : CMOS output under 5 V operation

• Data rate : 40 MHz MAX. (20 MHz/1 output)

• Output type : 2 outputs in phase/color

• Power supply : +12 V

• On-chip circuits : Reset feed-through level clamp circuits

Voltage amplifiers

ORDERING INFORMATION

Part Number Package

µ

PD3788D CCD linear image sensor 36-pin ceramic DIP (15.24 mm (600))

m

The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.

Document No. S14664EJ1V0DS00(1st edition)
Date published June 2000 N CP(K)
Printed in Japan

©

2000

COMPARISON CHART

µ

PD3788

Item
ABSOLUTE MAXIMUM Shift register clock voltage (V) –0.3 to +8 –0.3 to +15
RATINGS Reset gate clock voltage (V) –0.3 to +8 –0.3 to +15

Reset feed-through level clamp clock voltage (V) –0.3 to +8 –0.3 to +15

Transfer gate clock voltage (V) –0.3 to +8 –0.3 to +15
ELECTRICAL Saturation exposure (Ix·s) Red TYP. 0.36 0.35
CHARACTERISTICS Green TYP. 0.37 0.39

Blue TYP. 0.80 0.31

Response (V/Ix·s) Red MIN. 3.85 3.9

TYP. 5.5 5.6

MAX. 7.15 7.3

Green MIN. 3.78 3.6

TYP. 5.4 5.1

MAX. 7.02 6.6

Blue MIN. 1.75 4.5

TYP. 2.5 6.4

MAX. 3.25 8.3

Response peak (nm) Red TYP. 645 630

Green TYP. 540 540

Blue TYP. 445 460

Random noise test conditions tcp = 20 ns t7 = 150 ns
TIMING CHART t3 (ns) MIN. 17 20

t7 (ns) MIN. 17 20

t10 (ns) MIN. –20 –10

tCP (ns) MIN. 5 –

TYP. 150 –
STANDARD TOTAL SPECTRAL modified –
CHARACTERISTIC RESPONSE CHARACTERISTICS
CURVES

µ

PD3788

µ

PD3728

2

Data Sheet S14664EJ1V0DS00

BLOCK DIAGRAM

20

φ

CLB 1L GND

30

φφφ

29

φ

28

16

23

µ

PD3788

21

24

GND

V

OUT

2

(Blue, even)

GND

V

OUT

1

(Blue, odd)
GND

OUT

3

V
(Green, odd)

V

OUT

4

(Green, even)
GND

OUT

6

V
(Red, even)

GND

V

OUT

5

(Red, odd)

31

32

CCD analog shift register

Transfer gate

33

. . . . . . . . . .

D27

D128

S1

Photocell

S2

(Blue)

Transfer gate

34

CCD analog shift register

35

36

CCD analog shift register

Transfer gate

. . . . . . . . . .

D27

D128

S1

Photocell

S2

(Green)

Transfer gate

1

CCD analog shift register

2

3

CCD analog shift register

Transfer gate

4

. . . . . . . . . .

D27

D128

S1

Photocell

S2

(Red)

Transfer gate

5

CCD analog shift register

S7300

S7299

S7300

S7299

S7300

S7299

D129

D129

D129

D134

D134

D134

TG1

φ

22

(Blue)

TG2

φ

21

(Green)

φ

TG3

15

(Red)

GND

6

8

7

OD

V

RB

9

φ

10

Data Sheet S14664EJ1V0DS00

13 14

φφφ

12

3

PIN CONFIGURATION (Top View)

CCD linear image sensor 36-pin ceramic DIP (15.24 mm (600))

•µPD3788D

V

1

OUT

Output signal 4 (Green, even)

4

36

V

Output signal 3 (Green, odd)

OUT

3

µ

PD3788

Ground

Output signal 6 (Red, even)

Ground

Output signal 5 (Red, odd)

Ground

Output drain voltage

Reset gate clock

Shift register clock 10

No connection
No connection

No connection
Shift register clock 1
Shift register clock 2

Transfer gate clock 3 (for Red)

GND

V

GND

V

GND

φ

φ

OUT

OUT

V

OD

RB

φ

10

NC
NC
NC

φ
φ

TG3

2

1

1

Red

1

Blue

Green

3

6

4
5

5

6
7
8
9

10
11
12

1

13

2

14
15

35
34
33
32
31
30
29
28

27
26
25
24
23
22

GND
V

OUT

GND
V

OUT

GND

φ

CLB

φ

1L

φ

20

NC
NC
NC
2

φ

1

φ
φ

TG1

Output signal 1 (Blue, odd)

1

Ground
Output signal 2 (Blue, even)

2

Ground
Reset feed-through level

clamp clock
Last stage shift register clock 1

Shift register clock 20

No connection
No connection
No connection
Shift register clock 2
Shift register clock 1
Transfer gate clock 1 (for Blue)

Ground

Ground
No connection
No connection

GND

NC
NC

16
17
18

7300

7300

7300

21
20
19

φ

Transfer gate clock 2 (for Green)

TG2

No connection

NC

No connection

NC

PHOTOCELL STRUCTURE DIAGRAM PHOTOCELL ARRAY STRUCTURE DIAGRAM

(Line spacing)

10 m

7 m

µ

Aluminum
shield

µ

10 m

3

m

µ

Channel stopper

µ

10 m

µ

10 m

µ

Blue photocell array

(40 m)

Green photocell array

(40 m)

Red photocell array

4 lines

µ

4 lines

µ

4

Data Sheet S14664EJ1V0DS00

µ

PD3788

ABSOLUTE MAXIMUM RATINGS (TA = +25 °C)

Parameter Symbol Ratings Unit
Output drain voltage VOD –0.3 to +15 V
Shift register clock voltage V
Reset gate clock voltage V
Reset feed-through level clamp clock voltage V
Transfer gate clock voltage V

φ

1, Vφ1L, Vφ10, Vφ2, Vφ20 –0.3 to +8 V

φ

RB –0.3 to +8 V

φ

CLB –0.3 to +8 V

φ

TG1

to V

φ

TG3 –0.3 to +8 V

Operating ambient temperature TA –25 to +60 °C
Storage temperature Tstg –40 to +100 °C

Caution Exposure to ABSOLUTE MAXIMUM RATINGS for extended periods may affect device reliability;

exceeding the ratings could cause permanent damage. The parameters apply independently.

RECOMMENDED OPERATING CONDITIONS (TA = +25 °C)

Parameter Symbol MIN. TYP. MAX. Unit
Output drain voltage VOD 11.4 12.0 12.6 V
Shift register clock high level V
Shift register clock low level V
Reset gate clock high level V
Reset gate clock low level V
Reset feed-through level clamp clock high level V
Reset feed-through level clamp clock low level V
Transfer gate clock high level

Note

Transfer gate clock low level V
Data rate 2f

φ

1H, Vφ1LH, Vφ10H, Vφ2H, Vφ20H 4.5 5.0 5.5 V

φ

1L, Vφ1LL, Vφ10L, Vφ2L, Vφ20L –0.3 0 +0.5 V

φ

RBH 4.5 5.0 5.5 V

φ

RBL –0.3 0 +0.5 V

φ

CLBH 4.5 5.0 5.5 V

φ

CLBL –0.3 0 +0.5 V

V

φ

TG1H

to V

φ

TG3H 4.5 Vφ1H Vφ1H V

φ

TG1L

to V

φ

TG3L –0.3 0 +0.5 V

φ

RB – 2 40 MHz

(V

φ

10H)(Vφ10H)

Note When Transfer gate clock high level (V

Image lag can increase.

φ

Remark Pin 9 (

10) and pin 28 (φ20) should be open to decrease the influence of input clock noise to output signal

waveform, in case of operating at low or middle speed range; data rate under 24 MHz or so.

φ

TG1H to VφTG3H) is higher than Shift register clock high level (Vφ1H (Vφ10H)),

Data Sheet S14664EJ1V0DS00

5

ELECTRICAL CHARACTERISTICS

µ

PD3788

TA = +25 °C, VOD = 12 V, f

φ

RB = 1 MHz, data rate = 2 MHz, storage time = 10 ms, input signal clock = 5 Vp-p,

light source: 3200 K halogen lamp +C-500S (infrared cut filter, t = 1mm) +HA-50 (heat absorbing filter, t = 3mm)

Parameter Symbol Test Conditions MIN. TYP. MAX. Unit
Saturation voltage Vsat 1.5 2.0 – V
Saturation exposure Red SER 0.36 lx•s

Green SEG 0.37 lx•s
Blue SEB 0.80 lx•s

Photo response non-uniformity PRNU VOUT = 1 V 6 18 %

Note 1

Note 1

Note 1

Note 1

Green RG 3.78 5.4 7.02 V/lx•s
Blue RB 1.75 2.5 3.25 V/lx•s

Note 3

Green 540 nm
Blue 445 nm

Note 2

ADS1 Light shielding 1.0 5.0 mV
ADS2 0.5 5.0 mV
DSNU1 Light shielding 2.0 5.0 mV
DSNU2 1.0 5.0 mV

IL1 VOUT = 1 V 2.0 5.0 %
IL2 1.0 5.0 %
VOS 4.0 5.0 6.0 V
td VOUT = 1 V 20 ns

data rate = 40 MHz

DR11 Vsat/DSNU1 1000 times
DR12 Vsat/DSNU2 2000 times
DR21 Vsat/σbit1 2000 times
DR22 Vsat/σbit2 4000 times
RFTN Light shielding –500 +200 +500 mV

σbit1 Light shielding, bit clamp – 1 .0 – mV
σbit2 mode (tcp = 20 ns) – 0.5 – mV
σline1 Light shielding, line – 4.0 – mV
σline2 clamp mode (t19 = 3 µs) – 2.0 – mV

Average dark signal

Dark signal non-uniformity

Power consumption P W 600 800 mW
Output impedance ZO 0.3 0.5 kΩ
Response Red RR 3.85 5.5 7.15 V/lx•s

Image lag

Offset level
Output fall delay time
Register imbalance RI VOUT = 1 V 0 4.0 %
Total transfer efficiency TTE VOUT = 1 V, 95 98 %

Response peak Red 645 nm

Dynamic range

Reset feed-through noise
Random noise

Note 1

Note 2

Notes 1. ADS1, DSNU1, IL1, DR11, DR21, σbit1 and σline1 show the specification of VOUT1 and VOUT2.

ADS2, DSNU2, IL2, DR12, DR22, σbit2 and σline2 show the specification of VOUT3 to VOUT6.

2. Refer to TIMING CHART 2, 5.

φ

3. When the fall time of

6

1L (t2’) is the TYP. value (refer to TIMING CHART 2, 5).

Data Sheet S14664EJ1V0DS00

INPUT PIN CAPACITANCE (TA = +25 °C, VOD = 12 V)

Parameter Symbol Pin name Pin No. MIN. TYP. MAX. Unit

Shift register clock pin capacitance 1 C

Shift register clock pin capacitance 2 C

Last stage shift register clock pin capacitance C
Reset gate clock pin capacitance C
Reset feed-through level clamp clock pin capacitance C
Transfer gate clock pin capacitance C

φ

1

φ

2

φ

L

φ

RB

φ

CLB

φ

TG

µ

PD3788

φ

1 13 350 500 pF

23 350 500 pF

φ

10 9 350 500 pF

φ

2 14 350 500 pF

24 350 500 pF

φ

20 28 350 500 pF

φ

1L 29 10 pF

φ

RB 8 10 pF

φ

CLB 30 10 pF

φ

TG1 22 100 pF

φ

TG2 21 100 pF

φ

TG3 15 100 pF

Remark Pins 13, 23 (φ1) and pin 9 (φ10) are connected each other inside of the device.

Pins 14, 24 (φ2) and pin 28 (φ20) are connected each other inside of the device.

Data Sheet S14664EJ1V0DS00

7

8

TIMING CHART 1 (Bit clamp mode, for each color)

φ

TG1 to

φ

TG3

1 ( 10)

φ

φ

2 ( 20)

φ

φ

φ

1L

Data Sheet S14664EJ1V0DS00

φ

RB

φ

CLB

V

OUT

1, 3, 5

V

OUT

2, 4, 6

Note Input the

Note Note

91113

7

101214

8

1517192123

1618202224

25

26

27

28

29

30

Optical black

(96 pixels)

119

121

123

125

120

122

124

126

Invalid photocell

(6 pixels)

127

128

129

131132

130

Valid photocell

(7300 pixels)

7425

7427

7429

7431

7426

7428

7430

7432

Invalid photocell

(6 pixels)

7433

7434

7435

7436

7437

7438

φ

RB and

135

246

φ

CLB pulses continuously during this period, too.

µ

PD3788

TIMING CHART 2 (Bit clamp mode, for each color)

t1 t2

µ

PD3788

1 ( 10)

φ

2 ( 20)

φ

φ

OUT

V

V

φ

φ

φ

φ

RB

CLB

1 to

OUT

1L

90 %

10 %

90 %

10 %

90 %

10 %

t1'

90 %

10 %

t5 t6

t3

t10

90 %

t4

t2'

cp

t

t11

t9t8

t7

10 %

t

d

6

RFTN

V

OS

10 %

Symbol MIN. TYP. MAX. Unit
t1, t2 0 50 ns
t1’, t2’ 0 5 ns
t3 17 50 ns
t4 5 200 – ns
t5, t6 0 20 ns
t7 17 150 ns
t8, t9 0 20 ns
t10 –20
t11 –5

Note 1

Note 2

+50 – ns
+50 ns

tcp 5 150 ns

Data Sheet S14664EJ1V0DS00

9

Notes 1. MIN. of t10 shows that the φRB and φCLB overlap each other.

µ

PD3788

90 %

t10

φ

RB

φ

CLB

90 %

2. MIN. of t11 shows that the φ1L and φCLB overlap each other.

φ

φ

1L

CLB

t11

90 %

90 %

10

Data Sheet S14664EJ1V0DS00

TIMING CHART 3 (Bit clamp mode, for each color)

1 ( 10)

2 ( 20)

2 V or more 2 V or more

2 ( 20)

1L

2 V or more 0.5 V or more

φ

φ

φ

φ

φ

φ

φ

µ

PD3788

t12 t14t13

TG1 to TG3

φ

φ

1 ( 10)

2 ( 20)

φ

φφ

φφφ

RB

φ

CLB

1L

90 %
10 %

t15

90 %

Note 1

Symbol MIN. TYP. MAX. Unit
t11 –5
t12 3000 10000 ns
t13, t14 0 50 ns
t15, t16 900 1000 ns

Note 2

+50 ns

t16

90 %

t11

90 %

Notes 1. Input the φRB and φCLB pulses continuously during this period, too.

2. MIN. of t11 shows that the φ1L and φCLB overlap each other.

t11

90 %

90 %

φ

1 (φ10), φ2 (φ20) cross points

φ

φ

1L

CLB

φ

1L, φ2 (φ20) cross points

Remark Adjust cross points (φ1 (φ10), φ2 (φ20)) and (φ1L, φ2 (φ20)) with input resistance of each pin.

Data Sheet S14664EJ1V0DS00

11

12

TIMING CHART 4 (Line clamp mode, for each color)

φ

TG1 to

φ

TG3

φφ

1 ( 10)

φφφ

2 ( 20)

1L

Data Sheet S14664EJ1V0DS00

φ

RB

CLB

φ

V

OUT

1, 3, 5

V

OUT

2, 4, 6

Note Set the

Remark Inverse pulse of the

Note Note

135

246

φ

RB to high level during this period.

φ

TG1 to φTG3 can be used as

7

8

91113

101214

1517192123

1618202224

25

26

φ

CLB.

27

29

28

30

Optical black

(96 pixels)

119

121

123

125

120

122

124

126

Invalid photocell

(6 pixels)

127

128

129

131132

130

Valid photocell

(7300 pixels)

7425

7427

7429

7431

7426

7428

7430

7432

Invalid photocell

(6 pixels)

7433

7434

7435

7436

7437

7438

µ

PD3788

TIMING CHART 5 (Line clamp mode, for each color)

t1 t2

µ

PD3788

φ

1( 10)

φ

φ

φφ

2( 20)

φ

φ

φ

φ

CLB

V

OUT

V

OUT

φ

1L

RB

1 to

90 %

10 %

90 %

10 %

90 %

10 %

t1'

“H”

6

90 %

10 %

t5 t6

t3

RFTN

t4

t2'

t

d

V

OS

10 %

Symbol MIN. TYP. MAX. Unit

t1, t2 0 50 ns
t1’, t2’ 0 5 ns
t3 17 50 ns
t4 5 200 – ns
t5, t6 0 20 ns

Data Sheet S14664EJ1V0DS00

13

TIMING CHART 6 (Line clamp mode, for each color)

µ

PD3788

φ

φ

TG1 to TG3

1 ( 10)

φ

2 ( 20)

φ

φφφ

φ

φ

RB

CLB

1L

t12

90 %
10 %

t15

90 %

90 %

90 %
10 %

t20 t21

Symbol MIN. TYP. MAX. Unit
t12 3000 10000 ns
t13, t14 0 50 ns
t15, t16 900 1000 ns
t17, t18 100 1000 ns
t19 200 t12 ns
t20, t21 0 20 ns

Note

t19

t14t13

t16

t18t17

Note Set the φRB to high level during this period.

φ

Remark Inverse pulse of the

φ

1 (φ10), φ2 (φ20) cross points

1 ( 10)

φφφ

2 V or more 2 V or more

2 ( 20)

φφ

TG1 to φTG3 can be used as φCLB.

φ

1L, φ2 (φ20) cross points

2 ( 20)

φ

1L

φ

2 V or more 0.5 V or more

Remark Adjust cross points (φ1 (φ10), φ2 (φ20)) and (φ1L, φ2 (φ20)) with input resistance of each pin.

14

Data Sheet S14664EJ1V0DS00

µ

PD3788

DEFINITIONS OF CHARACTERISTIC ITEMS

1. Saturation voltage: Vsat
Output signal voltage at which the response linearity is lost.

2. Saturation exposure: SE
Product of intensity of illumination (I

3. Photo response non-uniformity: PRNU
The output signal non-uniformity of all the valid pixels when the photosensitive surface is applied with the light
of uniform illumination. This is calculated by the following formula.

X) and storage time (s) when saturation of output voltage occurs.

PRNU (%) =

4. Average dark signal: ADS
Average output signal voltage of all the valid pixels at light shielding. This is calculated by the following formula.

ADS (mV) =

∆x

× 100

x

∆x : maximum of x

x =
x

V

OUT

Register Dark

DC level

7300

d

j

Σ

j=1

7300

j

: Dark signal of valid pixel number j

d

j

− x 

7300

x

j

Σ

j=1

7300

j

: Output voltage of valid pixel number j

∆x

x

Data Sheet S14664EJ1V0DS00

15

5. Dark signal non-uniformity: DSNU
Absolute maximum of the difference between ADS and voltage of the highest or lowest output pixel of all the valid
pixels at light shielding. This is calculated by the following formula.

DSNU (mV) : maximum of d

− ADS 

j = 1 to 7300

j

dj : Dark signal of valid pixel number j

V

OUT

ADS

Register Dark

DC level

DSNU

µ

PD3788

6. Output impedance: Z

O

Impedance of the output pins viewed from outside.

7. Response: R
Output voltage divided by exposure (Ix

•s).

Note that the response varies with a light source (spectral characteristic).

8. Image lag: IL
The rate between the last output voltage and the next one after read out the data of a line.

φ

TG

Light

OUT

V

V
IL (%) = ×100

V

OUT

ON OFF

V

1

V

OUT

1

16

Data Sheet S14664EJ1V0DS00

µ

PD3788

9. Register imbalance: RI
The rate of the difference between the averages of the output voltage of Odd and Even pixels, against the average
output voltage of all the valid pixels.

n
2

2

(V2j – 1 – V2j)

∑

n

RI (%) =

j = 1

1

∑

n

j = 1

n

V j

×100

n : Number of valid pixels

j : Output voltage of each pixel

V

10. Random noise: σ
Random noise σ is defined as the standard deviation of a valid pixel output signal with 100 times (=100 lines)
data sampling at dark (light shielding).

100

(Vi – V)

σ (mV) = , V =

Σ

i=1

2

100

i: A valid pixel output signal among all of the valid pixels for each color

V

OUT

1

100

100

Σ

i=1

Vi

V

1

V

2

…

V

100

line 1V

line 2

…

line 100

This is measured by the DC level sampling of only the signal level, not by CDS (Correlated Double Sampling).

Data Sheet S14664EJ1V0DS00

17

STANDARD CHARACTERISTIC CURVES (Nominal)

DARK OUTPUT TEMPERATURE

CHARACTERISTIC

8

4

2

1

0.5

Relative Output Voltage

0.25

STORAGE TIME OUTPUT VOLTAGE

CHARACTERISTIC (T

2

1

Relative Output Voltage

0.2

A = +25 °C)

µ

PD3788

0.1
100 20304050

Operating Ambient Temperature T

(without infrared cut filter and heat absorbing filter) (T

100

80

60

40

Response Ratio (%)

20

B

0.1
1510

A(°C) Storage Time (ms)

TOTAL SPECTRAL RESPONSE CHARACTERISTICS

R

G

A

= +25 °C)

B

G

18

0

400

500 600

Wavelength (nm)

Data Sheet S14664EJ1V0DS00

700 800

APPLICATION CIRCUIT EXAMPLE

µ

PD3788

+5 V

+

µµ

10 F/16 V 0.1 F

B4

B6

B5

47 Ω

φ

RB

2 Ω

2 Ω

2

φ φ

2 Ω
2 Ω

PD3788

µ

1

V

OUT

4

2

GND

3

OUT

6

4
5

OUT

5

6

GND

7

V

OD

8

φφ

RB

9

φφ

10 20

10

NC NC

11

NC

12

NC

13

1

φ

14

φ

2

15

TG3

φ φ φ

16

GND

17

NC

18

NC

36

V

OUT

3

35

GND

34

V

OUT

1V

33

GNDGND

32

V

OUT

2V

31

GND

30

φ

CLB

29

1L

28

27
26

NC

25

NC

24

φ

2

23

φ

1

22

TG1

21

TG2

φ

20

NC

19

NC

B3

B1

B2

47 Ω
47 Ω

2 Ω

2 Ω

2 Ω
2 Ω
2 Ω

+

47 F/25 V0.1 F

µ

µ

µµ

10 F/16 V0.1 F

10 Ω

+

φ

+12 V

+5 V

CLB

1
TG

Remarks 1. Pin 9 (φ10) and pin 28 (φ20) should be open to decrease the influence of input clock noise to output

signal waveform, in case of operating at low or middle speed range; data rate under 24 MHz or so.

2. The inverters shown in the above application circuit example are the 74AC04.

Data Sheet S14664EJ1V0DS00

19

µ

PD3788

B1 to B6 EQUIVALENT CIRCUIT

4.7 kΩ

CCD
V

OUT

47 Ω

2SA1005

110 Ω

+12 V

2SC945

47 F/25 V

µ

+

µ

0.1 F

1 kΩ

20

Data Sheet S14664EJ1V0DS00

PACKAGE DRAWING

CCD LINEAR IMAGE SENSOR 36-PIN CERAMIC DIP (15.24mm (600))

(Unit : mm)

94.00±0.50

1

9.5±0.9

14.99±0.3

2

(35.0)

The 1st valid pixel

(4.33)

15.24

µ

PD3788

1.27±0.05

0.46±0.05

88.9±0.6

1 The 1st valid pixel The center of the pin1
2 The 1st valid pixel The center of the package (Reference)
3 The surface of the chip The top of the glass cap (Reference)
4 The bottom of the package The surface of the chip

2.54

20.32

3.50±0.5

0.97±0.3

3.30±0.35

Name Dimensions Refractive index

Glass cap 93.0 × 13.6 × 1.0 1.5

(2.33)

2.0±0.3

0.25±0.05

3

4

Data Sheet S14664EJ1V0DS00

36D-1CCD-PKG1-2

21

µ

PD3788

NOTES ON THE USE OF THE PACKAGE

The application of an excessive load to the package may cause the package to warp or break, or cause chips to

come off internally. Particular care should be taken when mounting the package on the circuit board.

When mounting the package, use a circuit board which will not subject the package to bending stress, or use a

socket.

Note

For this product, the reference value for the three-point bending strength
however, on the inside portion as viewed from the face on which the window (glass) is bonded to the package body
(ceramic).

Note Three-point bending strength test

Distance between supports: 70 mm, Support R: R 2 mm, Loading rate: 0.5 mm / min.

Load Load

is 300 [N]. Avoid imposing a load,

70 mm 70 mm

22

Data Sheet S14664EJ1V0DS00

NOTES FOR CMOS DEVICES

1 PRECAUTION AGAINST ESD FOR SEMICONDUCTORS

Note:
Strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and
ultimately degrade the device operation. Steps must be taken to stop generation of static electricity
as much as possible, and quickly dissipate it once, when it has occurred. Environmental control
must be adequate. When it is dry, humidifier should be used. It is recommended to avoid using
insulators that easily build static electricity. Semiconductor devices must be stored and transported
in an anti-static container, static shielding bag or conductive material. All test and measurement
tools including work bench and floor should be grounded. The operator should be grounded using
wrist strap. Semiconductor devices must not be touched with bare hands. Similar precautions need
to be taken for PW boards with semiconductor devices on it.

2 HANDLING OF UNUSED INPUT PINS FOR CMOS

Note:
No connection for CMOS device inputs can be cause of malfunction. If no connection is provided
to the input pins, it is possible that an internal input level may be generated due to noise, etc., hence
causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels
of CMOS devices must be fixed high or low by using a pull-up or pull-down circuitry. Each unused
pin should be connected to V
being an output pin. All handling related to the unused pins must be judged device by device and
related specifications governing the devices.

DD or GND with a resistor, if it is considered to have a possibility of

µ

PD3788

3 STATUS BEFORE INITIALIZATION OF MOS DEVICES

Note:
Power-on does not necessarily define initial status of MOS device. Production process of MOS
does not define the initial operation status of the device. Immediately after the power source is
turned ON, the devices with reset function have not yet been initialized. Hence, power-on does
not guarantee out-pin levels, I/O settings or contents of registers. Device is not initialized until the
reset signal is received. Reset operation must be executed immediately after power-on for devices
having reset function.

Data Sheet S14664EJ1V0DS00

23

µ

PD3788

•

The information in this document is current as of May, 2000. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC's data sheets or data
books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all products
and/or types are available in every country. Please check with an NEC sales representative for
availability and additional information.

•

No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.

•

NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.

•

Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.

•

While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.

•

NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio

and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots

"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)

"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for

NEC (as defined above).

M8E 00. 4
