Datasheet uda1341ts DATASHEETS (Philips)

INTEGRATED CIRCUITS

DATA SH EET

UDA1341TS

Economy audio CODEC for
MiniDisc (MD) home stereo and
portable applications

Preliminary specification
File under Integrated Circuits, IC22

1998 Dec 18

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

CONTENTS

1 FEATURES

1.1 General

1.2 Multiple format data interface

1.3 DAC digital sound processing

1.4 Advanced audio configuration
2 GENERAL DESCRIPTION
3 ORDERING INFORMATION
4 QUICK REFERENCE DATA
5 BLOCK DIAGRAM
6 PINNING
7 FUNCTIONAL DESCRIPTION

7.1 System clock

7.2 Pin compatibility

7.3 Analog front end

7.4 Programmable Gain Amplifier (PGA)

7.5 Analog-to-Digital Converter (ADC)

7.6 Digital Automatic Gain Control (AGC)

7.7 AGC status detection

7.8 Digital mixer

7.9 Decimation filter (ADC)

7.10 Overload detection (ADC)

7.11 Mute (ADC)

7.12 Interpolation filter (DAC)

7.13 Peak detector

7.14 Quick mute

7.15 Noise shaper (DAC)

7.16 Filter Stream Digital-to-Analog Converter
(FSDAC)

7.17 Multiple format input/output interface

7.18 L3-interface

7.19 Address mode

7.20 Data transfer mode

7.21 Programming the sound processing and other
features

7.21.1 STATUS control

7.21.1.1 Reset

7.21.1.2 System clock frequency

7.21.1.3 DC-filter

7.21.1.4 Data input format

7.21.1.5 Output gain switch

7.21.1.6 Input gain switch

7.21.1.7 Polarity of ADC

7.21.1.8 Polarity of DAC

7.21.1.9 Double speed

7.21.1.10 Power control

7.21.2 DATA0 direct control

7.21.2.1 Volume control

7.21.2.2 Bass boost

7.21.2.3 Treble

7.21.2.4 Peak detection position

7.21.2.5 De-emphasis

7.21.2.6 Mute

7.21.2.7 Mode

7.21.3 DATA0 extended programming registers

7.21.3.1 Mixer gain control

7.21.3.2 MIC sensitivity

7.21.3.3 Mixer mode

7.21.3.4 AGC control

7.21.3.5 AGC output level

7.21.3.6 Input channel 2 amplifier gain

7.21.3.7 AGC time constant

7.21.4 DATA1 control

7.21.4.1 Peak level value
8 LIMITING VALUES
9 THERMAL CHARACTERISTICS
10 DC CHARACTERISTICS
11 AC CHARACTERISTICS (ANALOG)
12 AC CHARACTERISTICS (DIGITAL)
13 APPLICATION INFORMATION
14 PACKAGE OUTLINE
15 SOLDERING

15.1 Introduction

15.2 Reflow soldering

15.3 Wave soldering

15.4 Repairing soldered joints
16 DEFINITIONS
17 LIFE SUPPORT APPLICATIONS

UDA1341TS

1998 Dec 18 2

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

1 FEATURES

1.1 General

• Low power consumption

• 3.0 V power supply

• 256f

• Small package size (SSOP28)

• Partially pin compatible with UDA1340M and

• Fully integrated analog front end including digital AGC

• ADC plus integrated high-pass filter to cancel DC offset

• ADC supports 2 V (RMS value) input signals

• Overload detector for easy record level control

• Separate power control for ADC and DAC

• No analog post filter required for DAC

• Easy application

• Functions controllable via L3-interface.

1.2 Multiple format data interface

• I

• Three combinational data formats with MSB data output

• 1fs input and output format data rate.

1.3 DAC digital sound processing

• Digital dB-linear volume control (low microcontroller

• Digital tone control, bass boost and treble

• Digital de-emphasis for 32, 44.1 or 48 kHz audio sample

• Soft mute.

1.4 Advanced audio configuration

• DAC and ADC polarity control

• Two channel stereo single-ended input configuration

• Microphone input with on-board PGA

, 384fs or 512fs system clock frequencies (f

s

UDA1344TS

2

S-bus, MSB-justified and LSB-justified format

compatible

and LSB 16, 18 or 20 bits data input

load)

frequencies (f

)

s

sys

)

UDA1341TS

• Optional differential input configuration for enhanced
ADC sound quality

• Stereo line output (under microcontroller volume
control)

• Digital peak level detection

• High linearity, dynamic range and low distortion.

2 GENERAL DESCRIPTION

The UDA1341TS is a single-chip stereo Analog-to-Digital
Converter (ADC) and Digital-to-Analog Converter (DAC)
with signal processing features employing bitstream
conversion techniques. Its fully integrated analog front
end, including Programmable Gain Amplifier (PGA) and a
digital Automatic Gain Control (AGC). Digital Sound
Processing (DSP) featuring makes the device an excellent
choice for primary home stereo MiniDisc applications, but
by virtue of its low power and low voltage characteristics it
is also suitable for portable applications such as MD/CD
boomboxes, notebook PCs and digital video cameras.

The UDA1341TS is similar to the UDA1340M and the
UDA1344TS but adds features such as digital mixing of
two input signals and one channel with a PGA and a digital
AGC.

2

The UDA1341TS supports the I
word lengths of up to 20 bits, the MSB-justified data format
with word lengths of up to 20 bits, the LSB-justified serial
data format with word lengths of 16, 18 and 20 bits and
three combinations of MSB data output combined with
LSB 16, 18 and 20 bits data input. The UDA1341TS has
DSP features in playback mode like de-emphasis, volume,
bass boost, treble and soft mute, which can be controlled
via the L3-interface with a microcontroller.

S-bus data format with

3 ORDERING INFORMATION

TYPE

NUMBER

UDA1341TS SSOP28 plastic shrink small outline package; 28 leads; body width 5.3 mm SOT341-1

1998 Dec 18 3

NAME DESCRIPTION VERSION

PACKAGE

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

4 QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

DDA(ADC)

V

DDA(DAC)

V

DDD

I

DDA(ADC)

I

DDA(DAC)

I

DDD

T

amb

Analog-to-digital converter

V

i(rms)

(THD + N)/S total harmonic distortion-plus-noise

S/N signal-to-noise ratio V

α

cs

Programmable gain amplifier

(THD + N)/S total harmonic distortion-plus-noise

S/N signal-to-noise ratio V

Digital-to-analog converter

V

o(rms)

(THD+N)/S total harmonic distortion-plus-noise

S/N signal-to-noise ratio code = 0; A-weighted − 100 − dB

α

cs

ADC analog supply voltage 2.4 3.0 3.6 V
DAC analog supply voltage 2.4 3.0 3.6 V
digital supply voltage 2.4 3.0 3.6 V
ADC analog supply current operation mode − 12.5 − mA

ADC power-down − 6.0 − mA

DAC analog supply current operation mode − 7.0 − mA

DAC power-down − 50 −µA
digital supply current operation mode − 7.0 − mA
operating ambient temperature −20 − +85 °C

input voltage (RMS value) notes 1 and 2 − 1.0 − V

stand-alone mode
to signal ratio

0dB −−85 −80 dB

−60 dB; A-weighted −−37 −33 dB

double differential mode

0dB −−90 −85 dB

−60 dB; A-weighted −−40 −36 dB
= 0 V; A-weighted

i

stand-alone mode − 97 − dB
double differential mode − 100 − dB

channel separation − 100 − dB

1 kHz; f

to signal ratio

= 44.1 kHz

s

0dB −−85 − dB

−60 dB; A-weighted −−37 − dB
= 0 V; A-weighted − 95 − dB

i

output voltage (RMS value) supply voltage = 3 V; note 3 − 900 − mV

0dB −−91 −86 dB

to signal ratio

−60 dB; A-weighted −−40 − dB

channel separation − 100 − dB

Notes

1. The ADC inputs can be used in a 2 V (RMS value) input signal configuration when a resistor of 12 kΩ is used in series
with the inputs and 1 or 2 V (RMS value) input signal operation can be selected via the Input Gain Switch (IGS).

2. The ADC input signal scales inversely proportional with the power supply voltage.

3. The DAC output voltage scales linear with the DAC analog supply voltage.

1998 Dec 18 4

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

5 BLOCK DIAGRAM

handbook, full pagewidth

VINL2

VINL1

V

DDA(ADC)VSSA(ADC)

31

6 8

PGA PGA

2 4

0 dB/6 dB

SWITCH

ADC1

UDA1341TS

V

DDD

10 11

ADC2

DIGITAL AGC

ADC2

V

SSD

ADC1

V

ADCPVADCN

75

0 dB/6 dB

SWITCH

UDA1341TS

VINR2

VINR1

22

AGCSTAT

DATAO

BCK

WS

DATAI

QMUTE

V

ref

VOUTL

18
16
17
19

23

28

26

V

25

DDA(DAC)

DIGITAL MIXER

DECIMATION FILTER

DIGITAL INTERFACE

DSP FEATURES

INTERPOLATION FILTER

NOISE SHAPER

DAC

DAC

L3-BUS

INTERFACE

PEAK

DETECTOR

V

SSA(DAC)

9

OVERFL

13

L3MODE

14

L3CLOCK

15

L3DATA

12

SYSCLK

20

TEST1

21

TEST2

24

VOUTR

27

MGR427

Fig.1 Block diagram.

1998 Dec 18 5

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

6 PINNING

SYMBOL PIN DESCRIPTION

V

SSA(ADC)

VINL1 2 ADC1 input left
V

DDA(ADC)

VINR1 4 ADC1 input right
V

ADCN

VINL2 6 ADC2 input left
V

ADCP

VINR2 8 ADC2 input right
OVERFL 9 decimation filter overflow output
V

DDD

V

SSD

SYSCLK 12 system clock 256f
L3MODE 13 L3-bus mode input
L3CLOCK 14 L3-bus clock input

1 ADC analog ground

3 ADC analog supply voltage

5 ADC negative reference voltage

7 ADC positive reference voltage

10 digital supply voltage
11 digital ground

, 384fs or 512f

s

s

UDA1341TS

SYMBOL PIN DESCRIPTION

L3DATA 15 L3-bus data input and output
BCK 16 bit clock input
WS 17 word select input
DATAO 18 data output
DATAI 19 data input
TEST1 20 test control 1 (pull-down)
TEST2 21 test control 2 (pull-down)
AGCSTAT 22 AGC status
QMUTE 23 quick mute input
VOUTR 24 DAC output right
V

DDA(DAC)

VOUTL 26 DAC output left
V

SSA(DAC)

V

ref

25 DAC analog supply voltage

27 DAC analog ground
28 ADC and DAC reference voltage

handbook, halfpage

V

SSA(ADC)

V

DDA(ADC)

L3CLOCK

VINL1

VINR1

V

ADCN
VINL2

V

ADCP

VINR2

OVERFL

V

DDD

V

SSD

SYSCLK

L3MODE

1
2
3
4
5
6
7

UDA1341TS

8

9
10
11
12
13

MGR428

28
27
26
25
24
23
22
21
20
19
18
17
16
1514

V

ref

V

SSA(DAC)
VOUTL
V

DDA(DAC)
VOUTR

QMUTE
AGCSTAT
TEST2
TEST1
DATAI
DATAO
WS
BCK
L3DATA

handbook, halfpage

V

SSA(ADC)

V

DDA(ADC)

L3CLOCK

1

VINL1

2
3

VINR1

4

V

V

OVERFL

SYSCLK

L3MODE

5

ADCN
VINL2

6
7

ADCP

VINR2

V

DDD

V

SSD

Marked pins are compatible with UDA1340M

UDA1341TS

8

9
10
11
12
13
14

MGR429

28
27
26
25
24
23
22
21
20
19
18
17
16
15

V

ref

V

SSA(DAC)
VOUTL
V

DDA(DAC)
VOUTR

QMUTE
AGCSTAT
TEST2
TEST1
DATAI
DATAO
WS
BCK
L3DATA

Fig.2 Pin configuration.

1998 Dec 18 6

Fig.3 Compatible pins with UDA1340M.

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7 FUNCTIONAL DESCRIPTION

7.1 System clock

The UDA1341TS accommodates slave mode only, this
means that in all applications the system devices must
provide the system clock. The system frequency is
selectable. The options are 256f
The system clock must be locked in frequency to the digital
interface signals.

7.2 Pin compatibility

The UDA1341TS is partially pin compatible with the
UDA1340M and UDA1344TS, making an upgrade of a
printed-circuit board from UDA1340M to UDA1341TS
easier. The pins that are compatible with the UDA1340M
are marked in Fig.3.

7.3 Analog front end

The analog front end of the UDA1341TS consists of two
stereo ADCs with a Programmable Gain Amplifier (PGA)
in channel 2. The PGA is intended to pre-amplify a
microphone signal applied to the input channel 2.

Input channel 1 has a selectable 0 or 6 dB gain stage, to
be controlled via the L3-interface. In this way, input signals
of 1 V (RMS value) or 2 V (RMS value) e.g. from a
CD source can be supported using an external resistor of
12 kΩ in series with the input channel 1. The application
modes are given in Table 1.

Table 1 Application modes using input gain stage

RESISTOR

(12 kΩ)

Present 0 dB 2 V (RMS value) input signal;

Present 6 dB 1 V (RMS value) input signal
Absent 0 dB 1 V (RMS value) input signal
Absent 6 dB 0.5 V (RMS value) input signal

Note

1. If there is no need for 2 V (RMS value) input signal
support, the external resistor should not be used.

INPUT

GAIN

SWITCH

, 384fs or 512fs.

s

MAXIMUM INPUT VOLTAGE

note 1

UDA1341TS

7.5 Analog-to-Digital Converter (ADC)

The stereo ADC of the UDA1341TS consists of two
3rd-order Sigma-Delta modulators. They have a modified
Ritchie-coder architecture in a differential switched
capacitor implementation. The over-sampling ratio is 128.

7.6 Digital Automatic Gain Control (AGC)

Input channel 2 has a digital AGC to compress the
dynamic range when a microphone signal is applied to
input channel 2. The digital AGC can be switched on and
off via the L3-interface. In the on state the AGC
compresses the dynamic range of the input signal of input
channel 2. Via the L3-interface the user can set the
parameters of the AGC: attack time, decay time and output
level. When the AGC is set off via the L3-interface, the gain
of input channel 2 can be set manually. In this case the
gain of the PGA and digital AGC are combined. The range
of the gain of the input channel 2 is from −3 to +60.5 dB in
steps of 0.5 dB.

7.7 AGC status detection

The AGCSTAT signal from the digital AGC is HIGH when
the gain level of the AGC is below 8 dB. This signal can be
used to give the PGA a new gain setting via the
L3-interface and to power e.g. a LED.

7.8 Digital mixer

The two stereo ADCs (including the AGC) can be used in
four modes:

• ADC1 only mode (for line input); input channel 2 is off

• ADC2 only mode, including PGA and digital AGC (for

microphone input); input channel 1 is off

• ADC1 + ADC2 mixer mode, including PGA and AGC

• ADC1 and ADC2 double differential mode (improved

ADC performance).

Important: In order to prevent crosstalk between the line
inputs no signal should be applied to the microphone input
in the double differential mode.

In all modes (except the double differential mode) a
reference voltage is always present at the input of the
ADC. However, in the double differential mode there is no
reference voltage present at the microphone input.

7.4 Programmable Gain Amplifier (PGA)

The PGA can be set via the L3-interface at the gain
settings: −3, 0, 3, 9, 15, 21 or 27 dB.

1998 Dec 18 7

In the mixer mode, the output signals of both ADCs in
channel 1 and channel 2 (after the digital AGC) can be
mixed with coefficients that can be set via the L3-interface.
The range of the mixer coefficients is from 0 to −∞ dB in

1.5 dB steps.

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.9 Decimation filter (ADC)

The decimation from 128f
The first stage realizes 3rd order characteristic,
decimating by 16. The second stage consists of

3 half-band filters, each decimating by a factor of 2.

Table 2 Decimation filter characteristics

ITEM CONDITIONS

Passband ripple 0 to 0.45f
Stop band >0.55f
Dynamic range 0 to 0.45f
Overall gain input channel 1;

7.10 Overload detection (ADC)

This name is convenient but a little inaccurate. In practice
the output is used to indicate whenever that output data, in
either the left or right channel, is bigger than −1 dB (actual
figure is −1.16 dB) of the maximum possible digital swing.
If this condition is detected the OVERFL output is forced
HIGH for at least 512f
This time-out is reset for each infringement.

7.11 Mute (ADC)

On recovery from power-down or switching on of the
system clock, the serial data output DATAO is held LOW
until valid data is available from the decimation filter.

is performed in two stages.

s

sin x

----------- ­x

VALUE

(dB)

s

s

s

±0.05

−60

108

−1.16

0 dB input

cycles (11.6 ms at fs= 44.1 kHz).

s

UDA1341TS

The peak level detector is implemented as a peak-hold
detector, which means that the highest sound level is hold
until the peak level is read out via the L3-interface. After
read-out the peak level registers are reset.

7.14 Quick mute

A hard mute can be activated via the static pin QMUTE.
When QMUTE is set HIGH, the output signal is instantly
muted to zero. Setting QMUTE to LOW, the mute is
instantly in-activated.

7.15 Noise shaper (DAC)

The 3rd-order noise shaper operates at 128f
in-band quantization noise to frequencies well above the
audio band. This noise shaping technique allows for high
signal-to-noise ratios. The noise shaper output is
converted into an analog signal using a filter stream
digital-to-analog converter.

7.16 Filter Stream Digital-to-Analog Converter (FSDAC)

The FSDAC is a semi-digital reconstruction filter that
converts the 1-bit data stream of the noise shaper to an
analog output voltage. The filter coefficients are
implemented as current sources and are summed at
virtual ground of the output operational amplifier. In this
way very high signal-to-noise performance and low clock
jitter sensitivity is achieved. A post filter is not needed due
to the inherent filter function of the DAC. On-board
amplifiers convert the FSDAC output current to an output
voltage signal capable of driving a line output.

. It shifts

s

7.12 Interpolation filter (DAC)

The digital filter interpolates from 1f

to 128fs by means of

s

a cascade of a recursive filter and a Finite Impulse
Response (FIR) filter.

Table 3 Interpolation filter characteristics

ITEM CONDITIONS

Passband ripple 0 to 0.45f
Stop band >0.55f

s

Dynamic range 0 to 0.45f

s

s

VALUE

(dB)

±0.03

−50

108

7.13 Peak detector

In the playback path a peak level detector is build in.
The position of the peak detection can be set via the
L3-interface to either before or after the sound features.

1998 Dec 18 8

7.17 Multiple format input/output interface

The UDA1341TS supports the following data formats:

2

• I

S-bus with word length up to 20 bits

• MSB-justified serial format with word length up to 20 bits

• LSB-justified serial format with word length of

16, 18 or 20 bits

• MSB data output with LSB 16, 18 or 20 bits input.

Left and right data-channel words are time multiplexed.
The formats are illustrated in Fig.4.

The UDA1341TS allows for double speed data monitoring
purposes. In this case the sound features bass boost,
treble and de-emphasis cannot be used. However, volume
control and soft-mute can still be controlled. The double
speed monitoring option can be set via the L3-interface.

The bit clock frequency must be 64 times word select
frequency or less, so f

≤ 64 × fWS.

BCK

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

o

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Dec 18 9

WS

BCK

DATA

LEFT

>=8 >=8

MSB B2 MSBLSB LSB MSBB2

RIGHT

321321

INPUT FORMAT I

ok, full pagewidth

2

S-BUS

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

home stereo and portable applications

WS

BCK

DATA

WS

BCK

DATA

WS

BCK

DATA

WS

BCK

DATA

LEFT

1321

>=8 >=8

MSB B2 MSBLSB LSB MSB B2B2

LEFT

1516 1

MSB LSBB2

LEFT

MSB B2 B3 B4

LEFT

MSB B2 B3 B4 B5 B6

RIGHT

32

MSB-JUSTIFIED FORMAT

2

B15

LSB-JUSTIFIED FORMAT 16 BITS

215161718 1

LSB

B17

LSB-JUSTIFIED FORMAT 18 BITS

2151617181920 1

LSB

B19

LSB-JUSTIFIED FORMAT 20 BITS

RIGHT

MSB LSBB2 B15

RIGHT

MSB B2 B3 B4

RIGHT

MSB B2 B3 B4 B5 B6

B17

B19

21516 1

215161718 1

LSB

2151617181920 1

UDA1341TS

LSB

MGG841

Fig.4 Serial interface formats.

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.18 L3-interface

The UDA1341TS has a microcontroller input mode. In the
microcontroller mode, all the digital sound processing
features and the system controlling features can be
controlled by the microcontroller.

The controllable features are:

• Reset

• System clock frequency

• Power control

• DAC gain switch

• ADC input gain switch

• ADC/DAC polarity control

• Double speed playback

• De-emphasis

• Volume

• Mode switch

• Bass boost

• Treble

• Mute

• MIC sensitivity control

• AGC control

• Input amplifier gain control

• Digital mixer control

• Peak detection position.

Via the L3-interface the peak level value of the signal in the
DAC path can be read out from the UDA1341TS to the
microcontroller.

The exchange of data and control information between the
microcontroller and the UDA1341TS is accomplished
through a serial hardware L3-interface comprising the
following pins:

• L3DATA: microcontroller interface data line

• L3MODE: microcontroller interface mode line

• L3CLOCK: microcontroller interface clock line.

Information transfer through the microcontroller bus is
organized in accordance with the so called ‘L3’ format, in
which two different modes of operation can be
distinguished: address mode and data transfer mode.

UDA1341TS

The address mode is required to select a device
communicating via the L3-bus and to define the
destination registers for the data transfer mode.

Data transfer can be in both directions: input to the
UDA1341TS to program its sound processing and system
controlling features and output from the UDA1341TS to
provide the peak level value.

7.19 Address mode

The address mode is used to select a device for
subsequent data transfer and to define the destination
registers. The address mode is characterized by L3MODE

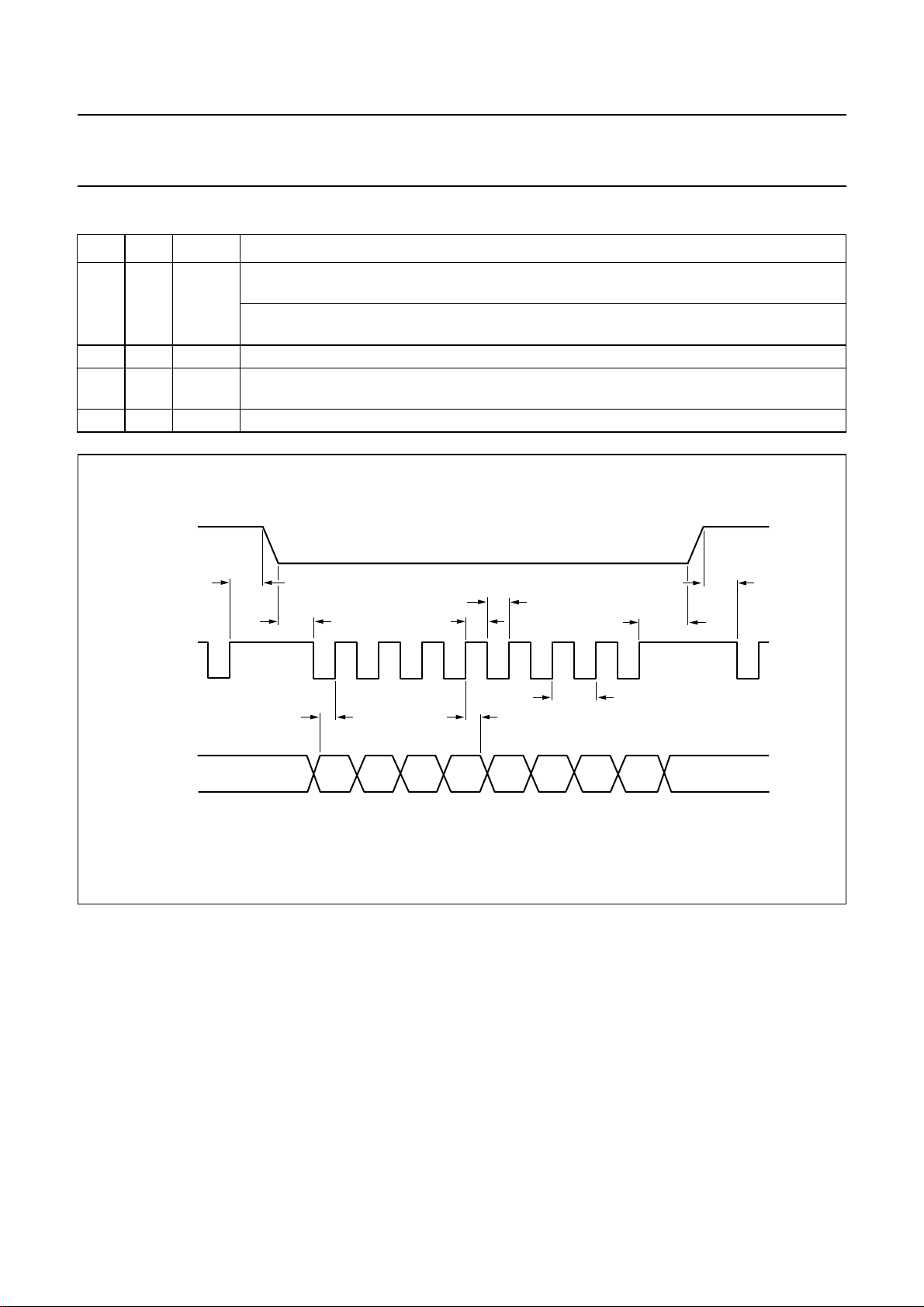

being LOW and a burst of 8 pulses on L3CLOCK,
accompanied by 8 data bits. The fundamental timing is
shown in Fig.5.

Data bits 7 to 2 represent a 6-bit device address, with bit 7
being the MSB and bit 2 the LSB. The address of the
UDA1341TS is 000101.

Data bits 0 to 1 indicate the type of the subsequent data
transfer as shown in Table 4.

In the event that the UDA1341TS receives a different
address, it will deselect its microcontroller interface logic.

7.20 Data transfer mode

The selection activated in the address mode remains
active during subsequent data transfers, until the
UDA1341TS receives a new address command.

The fundamental timing of data transfers is essentially the
same as the timing in the address mode and is given in
Fig.6.

Note that ‘L3DATA write’ denotes data transfer from the
microcontroller to the UDA1341TS and ‘L3DATA peak
read’ denotes data transfer in the opposite direction.
The maximum input clock and data rate is 64f
All transfers are byte-wise, i.e. they are based on groups
of 8 bits. Data will be stored in the UDA1341TS after the
eighth bit of a byte has been received.

A multibyte transfer is illustrated in Fig.7.

.

s

1998 Dec 18 10

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

Table 4 Selection of data transfer

BIT 1 BIT 0 MODE TRANSFER

0 0 DATA0 direct addressing registers: volume, bass boost, treble, peak detection position,

de-emphasis, mute and mode
extended addressing registers: digital mixer control, AGC control, MIC sensitivity control,

input gain, AGC time constant and AGC output level
0 1 DATA1 peak level value read-out (information from UDA1341TS to microcontroller)
1 0 STATUS reset, system clock frequency, data input format, DC-filter, input gain switch, output gain

switch, polarity control, double speed and power control
1 1 not used

handbook, full pagewidth

L3MODE

t

h(L3)A

t

su(L3)A

t

CLK(L3)L

t

CLK(L3)H

t

su(L3)A

t

h(L3)A

L3CLOCK

L3DATA

t

su(L3)DA

BIT 0

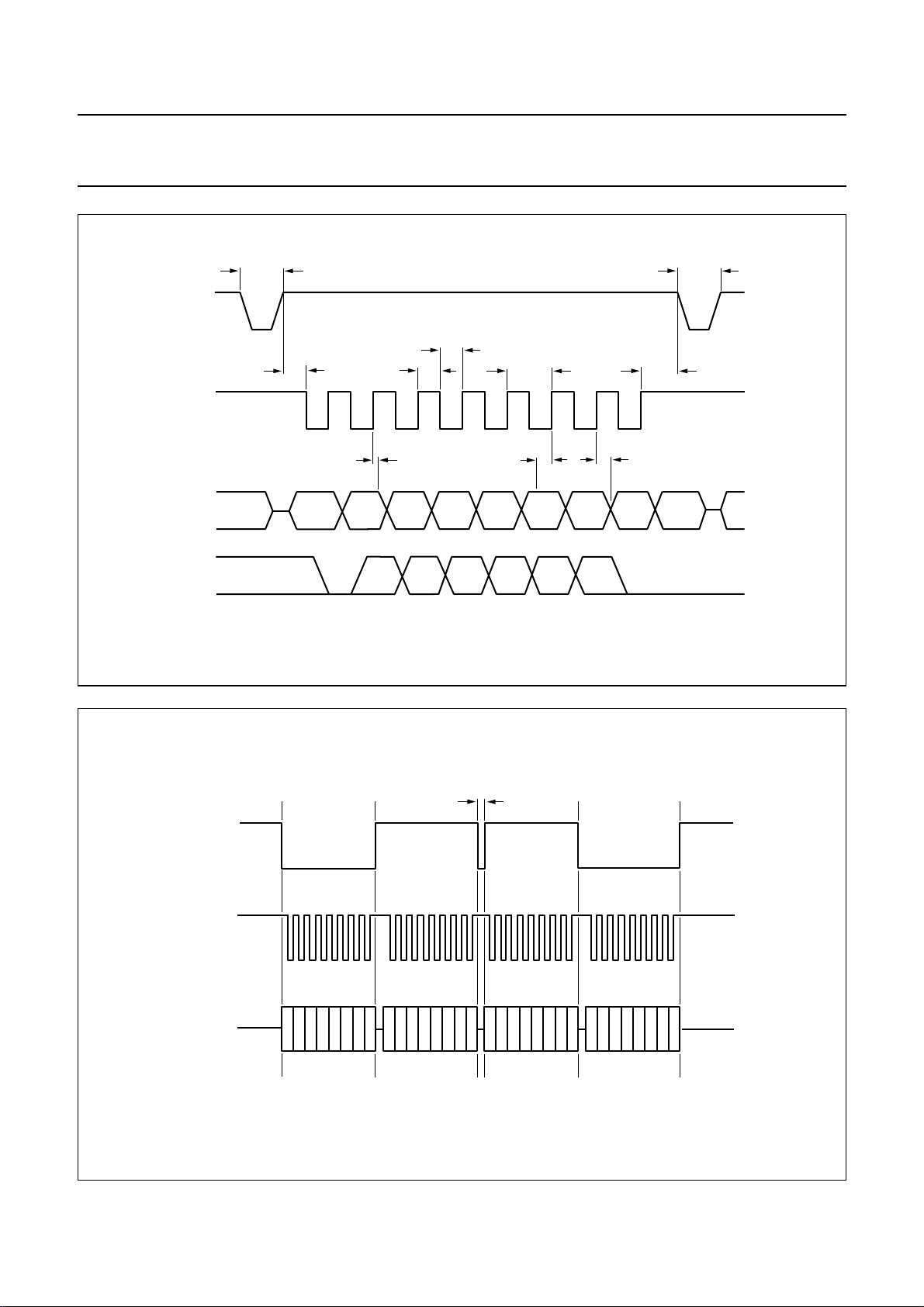

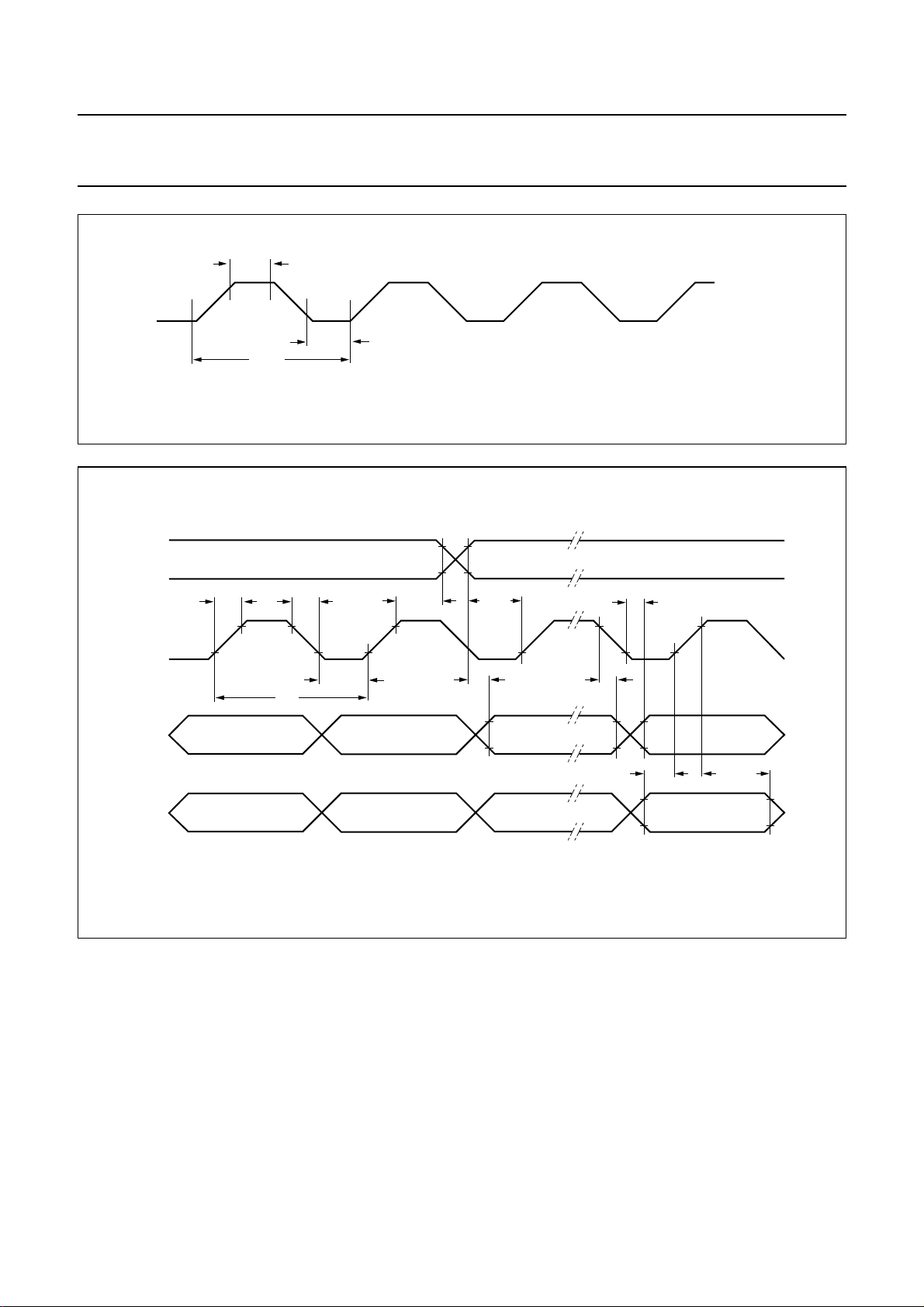

Fig.5 Timing address mode.

t

h(L3)DA

T

cy(CLK)(L3)

BIT 7

MGR431

1998 Dec 18 11

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

handbook, full pagewidth

L3MODE

L3CLOCK

L3DATA

write

L3DATA

read

t

t

su(L3)D

stp(L3)

t

h(L3)DA

BIT 0

t

CLK(L3)H

PL0 PL5PL4PL3PL2PL1

t

CLK(L3)L

t

T

su(L3)DA

cy(CLK)L3

t

BIT 7

t

h(L3)D

h(L3)DA

UDA1341TS

t

stp(L3)

MGR430

handbook, full pagewidth

L3MODE

L3CLOCK

L3DATA

Fig.6 Timing for data transfer mode.

t

stp(L3)

address

addressdata byte #1 data byte #2

MGR432

Fig.7 Multibyte transfer.

1998 Dec 18 12

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21 Programming the sound processing and other features

The sound processing and other feature values are stored
in independent registers.

The first selection of the registers is achieved by the choice
of data type that is transferred. This is performed in the
address mode using bit 0 and bit 1 (see Table 4).
The second selection is performed by the 2 or 3 MSBs of
the data byte (bits 7 and 6 or bits 7, 6 and 5).
The other bits in the data byte (bits 5 to 0 or bits 4 to 0)
represent the value that is placed in the selected registers.

For the UDA1341TS the following modes can be selected:

• STATUS

In this mode the features reset, system clock frequency,
data input format, DC-filter, input gain switch, output
gain switch, polarity control, double speed and power
control can be controlled.

UDA1341TS

• DATA0
There are two addressing modes: direct addressing

mode and extended addressing mode.
Direct addressing mode is using the 2 MSB bits of the

data byte. Via this addressing mode the features
volume, bass boost, treble, peak position, de-emphasis,
mute, and mode can be controlled directly.

Extended addressing mode is provided for controlling
the features digital mixer, AGC control, MIC sensitivity,
input gain, AGC time constants, and AGC output level.
An extended address can be set via the EA registers
(3 bits). The data in the extended registers can be set by
writing data to the ED registers (5 bits).

• DATA1
In this mode the detected peak level value can be read

out.

Table 5 Default settings

SYMBOL FEATURE SETTING OR VALUE

Status

OGS Output gain switch 0 dB
IGS Input gain switch 0 dB
PAD Polarity of ADC non-inverting
PDA Polarity of DAC non-inverting
DS Double speed single speed
PC Power control ADC and DAC on

Direct control

VC Volume control 0 dB
BB Bass boost 0 dB
TR Treble 0 dB
PP Peak detection position after the tone features
DE De-emphasis no de-emphasis
MT Mute no mute
M Mode switch flat

Extended programming

MA Mixer gain channel 1 −6dB
MB Mixer gain channel 2 −6dB
MS MIC sensitivity 0 dB
MM Mixer mode switch double differential
AG AGC control disable AGC
AT AGC attack and decay time 11 ms and100 ns
AL AGC output level −9dBFS

1998 Dec 18 13

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.1 STATUS CONTROL

Table 6 Data transfer of type ‘STATUS’

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 REGISTER SELECTED

0 RST SC1 SC0 IF2 IF1 IF0 DC RST = reset

SC = system clock frequency (2 bits)
IF = data input format (3 bits)
DC = DC-filter

1 OGS IGS PAD PDA DS PC1 PC0 OGS = output gain (6 dB) switch

IGS = input gain (6 dB) switch
PAD = polarity of ADC
PDA = polarity of DAC
DS = double speed
PC = power control (2 bits)

7.21.1.1 Reset

A 1-bit value to initialize the L3-registers with the default
settings except system clock frequency.

Table 7 Reset settings

RST FUNCTION

0 no reset
1 reset

7.21.1.2 System clock frequency

A 2-bit value to select the used external clock frequency.

Table 8 System clock settings

SC1 SC0 FUNCTION

0 0 512f
0 1 384f
1 0 256f
1 1 not used

s
s
s

7.21.1.4 Data input format

A 3-bit value to select the data input format.

Table 10 Data input format settings

IF2 IF1 IF0 FUNCTION

000I
0 0 1 LSB-justified 16 bits
0 1 0 LSB-justified 18 bits
0 1 1 LSB-justified 20 bits
1 0 0 MSB-justified
1 0 1 LSB-justified 16 bits input and

1 1 0 LSB-justified 18 bits input and

1 1 1 LSB-justified 20 bits input and

2

S-bus

MSB-justified output

MSB-justified output

MSB-justified output

UDA1341TS

7.21.1.3 DC-filter

A 1-bit value to enable the digital DC-filter.

Table 9 DC-filtering settings

DC FUNCTION

0 no DC-filtering
1 DC-filtering

1998 Dec 18 14

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.1.5 Output gain switch

A 1-bit value to control the DAC output gain switch.
The default setting is given in Table 5.

Table 11 Gain switch of DAC settings

OGS GAIN OF DAC

00dB
16dB

7.21.1.6 Input gain switch

A 1-bit value to control the ADC input gain switch.
The default setting is given in Table 5.

Table 12 Gain switch of ADC settings

IGS GAIN OF ADC

00dB
16dB

7.21.1.7 Polarity of ADC

A 1-bit value to control the ADC polarity. The default
setting is given in Table 5.

UDA1341TS

7.21.1.9 Double speed

A 1-bit value to enable the double speed playback.
The default setting is given in Table 5.

Table 15 Double speed settings

DS FUNCTION

0 single speed playback
1 double speed playback

7.21.1.10 Power control

A 2-bit value to disable the ADC and/or DAC to reduce
power consumption. The default setting is given in
Table 5.

Table 16 Power control settings

FUNCTION

PC1 PC0

ADC DAC

00 off off
0 1 off on
1 0 on off
1 1 on on

Table 13 Polarity control of ADC settings

PAD POLARITY OF ADC

0 non-inverting
1 inverting

7.21.1.8 Polarity of DAC

A 1-bit value to control the DAC polarity. The default
setting is given in Table 5.

Table 14 Polarity control of DAC settings

PDA POLARITY OF DAC

0 non-inverting
1 inverting

1998 Dec 18 15

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.2 DATA0 DIRECT CONTROL

Table 17 Data transfer of type ‘DATA0’

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 REGISTER SELECTED

0 0 VC5 VC4 VC3 VC2 VC1 VC0 VC = volume control (6 bits)
0 1 BB3 BB2 BB1 BB0 TR1 TR0 BB = bass boost (4 bits)

TR = treble (2 bits)

1 0 PP DE1 DE0 MT M1 M0 PP = peak detection position

DE = de-emphasis (2 bits)
MT = mute

M = mode switch (2 bits)
11000EA2EA1EA0EA=extended address (3 bits)
1 1 1 ED4 ED3 ED2 ED1 ED0 ED = extended data (5 bits)

7.21.2.1 Volume control

A 6-bit value to program the left and right channel volume
attenuation. The range is from 0 to −∞ dB in steps of 1 dB.
The default setting is given in Table 5.

7.21.2.2 Bass boost

A 4-bit value to program the bass boost settings. The used
set depends on the mode bits. The default setting is given
in Table 5.

UDA1341TS

Table 18 Volume settings

VC5 VC4 VC3 VC2 VC1 VC0

000000 0
000001 0
000010 −1
000011 −2

:::::: :
111011 −58
111100 −59
111101 −60
111110 −∞
111111 −∞

VOLUME

(dB)

Table 19 Bass boost settings

BASS BOOST

BB3 BB2 BB1 BB0

0000 0 0 0
0001 0 2 2
0010 0 4 4
0011 0 6 6
0100 0 8 8
0101 0 10 10
0110 0 12 12
0111 0 14 14
1000 0 16 16
1001 0 18 18
1010 0 18 20
1011 0 18 22
1100 0 18 24
1101 0 18 24
1110 0 18 24

FLAT

(dB)

MIN.
(dB)

MAX.

(dB)

1998 Dec 18 16

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.2.3 Treble

A 2-bit value to program the treble setting. The used set
depends on the mode bits. The default setting is given in
Table 5.

Table 20 Treble settings

TREBLE

TR1 TR0

00 0 0 0

01 0 2 2

10 0 4 4

11 0 6 6

7.21.2.4 Peak detection position

A 1-bit value to control the position of the peak level
detector in the signal processing path. The default setting
is given in Table 5.

Table 21 Peak detection position settings

PP FUNCTION

0 before tone features
1 after tone features

FLAT

(dB)

MIN.

(dB)

MAX.

(dB)

UDA1341TS

7.21.2.6 Mute

A 1-bit value to enable the digital mute. The default setting
is given in Table 5.

Table 23 Mute settings

MT FUNCTION

0 no mute
1 mute

7.21.2.7 Mode

A 2-bit value to program the mode of the sound processing
filters of bass boost and treble. The default setting is given
in Table 5.

Table 24 Mode filter switch settings

M1 M0 FUNCTION

0 0 flat
0 1 minimum
1 0 minimum
1 1 maximum

7.21.2.5 De-emphasis

A 2-bit value to enable the digital de-emphasis filter.
The default setting is given in Table 5.

Table 22 De-emphasis settings

DE1 DE0 FUNCTION

0 0 no de-emphasis

0 1 de-emphasis: 32 kHz

1 0 de-emphasis: 44.1 kHz

1 1 de-emphasis: 48 kHz

1998 Dec 18 17

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.3 DATA0 EXTENDED PROGRAMMING REGISTERS

Table 25 Extended control registers

EA2 EA1 EA0 ED4 ED3 ED2 ED1 ED0 REGISTER SELECTED

0 0 0 MA4 MA3 MA2 MA1 MA0 MA = mixer gain channel 1 (5 bits)
0 0 1 MB4 MB3 MB2 MB1 MB0 MB = mixer gain channel 2 (5 bits)
0 1 0 MS2 MS1 MS0 MM1 MM0 MS = MIC sensitivity (3 bits)

MM = mixer mode (2 bits)

1 0 0 AG 0 0 IG1 IG0 AG = AGC control

IG = input amplifier gain channel 2 (2 bits)
1 0 1 IG6 IG5 IG4 IG3 IG2 IG = input amplifier gain channel 2 (5 bits)
1 1 0 AT2 AT1 AT0 AL1 AL0 AT = AGC time constant (3 bits)

AL = AGC output level (2 bits)

Programming via extended addressing is done by first
sending a DATA0 data byte EA (3 bits) which specifies the
addresses of the extended register followed by a DATA0
data byte which specifies the contents of the extended
data register (5 bits). The EA extended addresses and
names of the extended data registers are given in
Table 25.

7.21.3.2 MIC sensitivity

A 3-bit value to program eight gain settings of the
microphone amplifier. These settings are valid only when
AGC control is enabled and not in the double differential
mode. The default setting is given in Table 5.

Table 27 MIC sensitivity settings

UDA1341TS

7.21.3.1 Mixer gain control

Two 5-bit values to program the channel 1 (MA) and
channel 2 (MB) coefficients in the mixer mode. The range
is from 0 to −∞ dB in steps of 1.5 dB. The default settings
are given in Table 5.

Table 26 Mixer gain control channel 1 and channel 2

settings

MA4

MA3

MA2

MA1

MA0

MB4

MB3

MB2

MB1

MB0

00000 0
00001 −1.5
00010 −3.0

::::: :
11101 −43.5
11110 −45.0
11111 −∞

MIXER GAIN

(dB)

MS2 MS1 MS0

000 −3
001 0
010 +3
011 +9
100 +15
101 +21
110 +27
1 1 1 not used

MIC AMPLIFIER GAIN

(dB)

1998 Dec 18 18

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.3.3 Mixer mode

A 2-bit value to program the mode of the digital mixer.
There are four modes: double differential, input channel 1
select, input channel 2 select and digital mixer mode.
The default setting is given in Table 5.

Table 28 Mixer mode switch settings

MM1 MM0 FUNCTION

0 0 double differential mode
0 1 input channel 1 select (input channel 2 off)
1 0 input channel 2 select (input channel 1 off)
1 1 digital mixer mode

(input 1 × MA + input 2 × MB)

7.21.3.4 AGC control

A 1-bit value to enable the AGC input. The default setting
is given in Table 5.

Table 29 AGC control settings

AG FUNCTION

0 disable AGC: manual gain setting through

IG (7 bits)

1 enable AGC: gain control with manual MIC

sensitivity setting

7.21.3.5 AGC output level

A 2-bit value to program the AGC output level. The default
setting is given in Table 5.

UDA1341TS

7.21.3.6 Input channel 2 amplifier gain

A 7-bit value to program the input channel 2 amplifier gain.
The range is from−3 to +60.5 dB in steps of 0.5 dB. These
settings are only valid when AGC control is disabled and
not valid in the double differential mode.

Table 31 Input channel 2 amplifier gain settings

INPUT

CHANNEL 2

IG6 IG5 IG4 IG3 IG2 IG1 IG0

0000000 −3.0
0000001 −2.5
0000010 −2.0
0000011 −1.5
0000100 −1.0
0000101 −0.5
0000110 0.0

::::::: :
1111101 59.5
1111110 60.0
1111111 60.5

7.21.3.7 AGC time constant

A 3-bit value to program the attack and the decay
parameters of the digital AGC. The default setting is given
in Table 5.

AMPLIFIER

GAIN

(dB)

Table 30 AGC output level settings

AL1 AL0

00 −9.0
01 −11.5
10 −15.0
11 −17.5

1998 Dec 18 19

OUTPUT LEVEL

(dB FS)

Table 32 AGC time constant settings

AT2 AT1 AT0

0 0 0 11 100
0 0 1 16 100
0 1 0 11 200
0 1 1 16 200
1 0 0 21 200
1 0 1 11 400
1 1 0 16 400
1 1 1 21 400

ATTACK TIME

(ms)

DECAY TIME

(ns)

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

7.21.4 DATA1 CONTROL

Table 33 Data transfer of type ‘DATA1’

BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 READ-OUT DATA

PL5 PL4 PL3 PL2 PL1 PL0 peak level value (6 bits)

7.21.4.1 Peak level value

A 6-bit value to indicate the peak level value of the
playback data. The largest value of the left and right
channel data in the playback signal path is held since the
last read-out of the microcontroller.

Table 34 Peak level read-out data

PL5 PL4 PL3 PL2 PL1 PL0

000000−∞
0 0 0 0 0 1 n.a.
0 0 0 0 1 0 n.a.
000011−90.31
0 0 0 1 0 0 n.a.
0 0 0 1 0 1 n.a.
0 0 0 1 1 0 n.a.
000111−84.29

:::::::
0 1 0 0 1 1 note 2
0 1 0 1 0 0 note 3

:::::::
111101−2.87
111110−1.48
1 1 1 1 1 1 0.00

PEAK VALUE

(dB)

(1)

UDA1341TS

Notes

1. Peak value (dB) = (Peak level − 63.5) × 5 × log 2.

2. For peak data >010011, the error in the peak value is
11 2log×

<

--------------------------

4

3. For peak data <010100, the error is larger due to

limited bit length.

1998 Dec 18 20

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

8 LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); V
respect to ground; T

=25°C; unless otherwise specified.

amb

DDD=VDDA

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DD

T

xtal(max)

T

stg

T

amb

V

es

supply voltage note 1 − 5.0 V
maximum crystal temperature − 150 °C
storage temperature −65 +125 °C
operating ambient temperature −20 +85 °C
electrostatic handling note 2 −2000 +2000 V

note 3 −250 +250 V

Notes

1. All V

and VSS connections must be made to the same power supply.

DD

2. Equivalent to discharging a 100 pF capacitor via a 1.5 kΩ series resistor.

3. Equivalent to discharging a 200 pF capacitor via a 2.5 µH series inductor.

9 THERMAL CHARACTERISTICS

= 3 V; all voltages measured with

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 90 K/W

10 DC CHARACTERISTICS

V

DDD=VDDA

=3V; T

=25°C; RL=5kΩ; all voltages measured with respect to ground (pins 1, 11 and 27); unless

amb

otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

DDA(ADC)

V

DDA(DAC)

V

DDD

I

DDA(ADC)

ADC analog supply voltage note 1 2.4 3.0 3.6 V
DAC analog supply voltage note 1 2.4 3.0 3.6 V
digital supply voltage note 1 2.4 3.0 3.6 V
ADC analog supply current operation mode − 12.5 − mA

ADC power-down − 6.0 − mA

I

DDA(DAC)

DAC analog supply current operation mode − 7.0 − mA

DAC power-down − 50 −µA

I

DDD

digital supply current operation mode − 7.0 − mA

DAC power-down − 4.0 − mA
ADC power-down − 3.0 − mA

Digital input pins

V

IH

V

IL

|I

| input leakage current −−10 µA

LI

C

i

HIGH-level input voltage 0.8V
LOW-level input voltage −0.5 − 0.2V

DDD

− V

DDD

+ 0.5 V

DDD

V

input capacitance −−10 pF

1998 Dec 18 21

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Digital output pins

V

OH

V

OL

HIGH-level output voltage IOH= −2 mA 0.85V
LOW-level output voltage IOL=2mA −−0.4 V

Analog-to-digital converter

V

ADCP

V

ADCN

R
R

C

o(ref)
i

i

positive reference voltage − V
negative reference voltage 0.0 0.0 0.0 V
V

reference output resistance pin 28 − 24 − kΩ

ref

input resistance measured at 1 kHz

input capacitance − 20 − pF

Programmable gain amplifier (input channel 2)

R

i

input resistance microphone mode − 12.5 − kΩ

double differential mode − >1 − MΩ

stand-alone mode − 12.5 − k
double differential mode − 6.25 − kΩ

−− V

DDD

DDA

− V

Ω

Digital-to-analog converter

R

o

I

o(max)

R

L

C

L

output resistance − 0.13 3.0 Ω
maximum output current (THD + N)/S < 0.1% − 0.22 − mA
load resistance 3 −− kΩ
load capacitance note 2 −−50 pF

Reference voltage

V

ref

reference voltage with respect to V

SSA

0.45V

DDA

0.5V

DDA

0.55V

DDA

V

Notes

1. All power supply pins (VDD and VSS) must be connected to the same external power supply unit.

2. When higher capacitive loads (above 50 pF) must be driven then a resistor of 100 Ω must be connected in series

with the DAC output in order to prevent oscillations in the output operational amplifier.

1998 Dec 18 22

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

11 AC CHARACTERISTICS (ANALOG)

V

DDD=VDDA

(pins 1, 11 and 27); unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Analog-to-digital converter

V

i(rms)

∆V

i

(THD + N)/S total harmonic

S/N signal-to-noise ratio V

α

cs

PSRR power supply rejection ratio f

Manual gain mode (AGC disabled)

G

min

G

max

G

step

Programmable gain amplifier

V

i(rms)

(THD + N)/S total harmonic

=3V; fi= 1 kHz; fs= 44.1 kHz; T

=25°C; RL=5kΩ; all voltages measured with respect to ground

amb

input voltage (RMS value) notes 1 and 2 − 1.0 − V
unbalance between

− 0.1 − dB

channels

stand-alone mode
distortion-plus-noise to
signal ratio

0dB −−85 −80 dB

−60 dB; A-weighted −−37 −33 dB

double differential mode

0dB −−90 −85 dB

−60 dB; A-weighted −−40 −36 dB
= 0 V; A-weighted

i

stand-alone mode − 97 − dB
double differential mode − 100 − dB

channel separation − 100 − dB

ripple

V

ripple(p-p)

= 1 kHz;

=30mV

− 30 − dB

minimum gain −−3−dB
maximum gain − 60.5 − dB
digital gain step − 0.5 − dB

input voltage (RMS value) at full-scale

−3 dB setting − 1414 − mV

0 dB setting − 1000 − mV
3 dB setting − 708 − mV
9 dB setting − 355 − mV
15 dB setting − 178 − mV
21 dB setting − 89 − mV
27 dB setting − 44 − mV

at 0 dB
distortion-plus-noise to
signal ratio

−3 dB setting −−75 − dB
0 dB setting −−85 − dB
3 dB setting −−85 − dB
9 dB setting −−85 − dB
15 dB setting −−80 − dB
21 dB setting −−75 − dB
27 dB setting −−75 − dB

1998 Dec 18 23

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

SYMBOL PARAMETER CONDITIONS MIN. TYP . MAX. UNIT

(THD + N)/S total harmonic

distortion-plus-noise to
signal ratio

Digital-to-analog converter

V

o(rms)

∆V

o

(THD + N)/S total harmonic

S/N signal-to-noise ratio code = 0; A-weighted − 100 − dB

α

cs

PSRR power supply rejection ratio f

Notes

1. The ADC inputs can be used in a 2 V (RMS value) input signal configuration when a resistor of 12 kΩ is used in series
with the inputs and 1 or 2 V (RMS value) input signal operation can be selected via the Input Gain Switch (IGS).

2. The ADC input signal scales inversely proportional with the power supply voltage.

3. The DAC output voltage scales linear with the DAC analog supply voltage.

output voltage (RMS value) note 3 − 900 − mV
unbalance between

channels

distortion-plus-noise to
signal ratio

channel separation − 100 − dB

at −60 dB; A-weighted

−3 dB setting − tbf − dB
0 dB setting −−37 − dB
3 dB setting − tbf − dB
9 dB setting − tbf − dB
15 dB setting − tbf − dB
27 dB setting − tbf − dB

− 0.1 − dB

0dB −−91 −86 dB

−60 dB; A-weighted −−40 − dB

ripple

V

ripple(p-p)

= 1 kHz;

= 100 mV

− 50 − dB

1998 Dec 18 24

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

12 AC CHARACTERISTICS (DIGITAL)

V

DDD=VDDA

unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

System clock timing (see Fig.8)

T

sys

t

CWL

t

CWH

Serial input/output data timing (see Fig.9)
T

cy

t

BCK(H)

t

BCK(L)

t

r

t

f

t

s;DATI

t

h;DATI

t

d;DATO(BCK)

t

d;DATO(WS)

t

h;DATO

t

s;WS

t

h;WS

Microcontroller L3-interface timing (see Figs 5 and 6)
T

cy(CLK)(L3)

t

CLK(L3)H

t

CLK(L3)L

t

su(L3)A

t

h(L3)A

t

su(L3)D

t

h(L3)D

t

su(L3)DA

t

h(L3)DA

t

stp(L3)

= 2.7 to 3.6 V; T

clock cycle time f

LOW-level pulse width f

HIGH-level pulse width f

= −20 to +85 °C; all voltages measured with respect to ground (pins 1, 11 and 27);

amb

= 256f
f
f

f

f

sys
sys
sys
sys
sys
sys
sys

s

= 384f

s

= 512f

s

< 19.2 MHz 0.30T

≥ 19.2 MHz 0.40T

< 19.2 MHz 0.30T

≥ 19.2 MHz 0.40T

78 88 131 ns
52 59 87 ns
39 44 66 ns

− 0.70T

sys

− 0.60T

sys

− 0.70T

sys

− 0.60T

sys

bit clock cycle time 300 −−ns
bit clock HIGH time 100 −−ns
bit clock LOW time 100 −−ns
rise time −−20 ns
fall time −−20 ns
data input set-up time 20 −−ns
data input hold time 0 −−ns
data output delay time

−−80 ns

(from BCK falling edge)
data output delay time

MSB-justified format −−80 ns

(from WS edge)
data output hold time 0 −−ns
word select set-up time 20 −−ns
word select hold time 10 −−ns

L3CLOCK 500 −−ns
L3CLOCK HIGH time 250 −−ns
L3CLOCK LOW time 250 −−ns
L3MODE set-up time addressing mode 190 −−ns
L3MODE hold time addressing mode 190 −−ns
L3MODE set-up time data transfer mode 190 −−ns
L3MODE hold time data transfer mode 190 −−ns
L3DATA set-up time data transfer and

190 −−ns

addressing mode

L3DATA hold time data transfer and

30 −−ns

addressing mode

L3MODE halt time 190 −−ns

sys
sys
sys
sys

ns
ns
ns
ns

1998 Dec 18 25

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

t

t

r

CWH

t

BCK(H)

t

T

sys

CWL

Fig.8 System clock timing.

t

f

t

h;WS

handbook, full pagewidth

handbook, full pagewidth

WS

t

s;WS

t

d(DATO)(BCK)

UDA1341TS

MGL443

BCK

DATAO

DATAI

t

t

T

BCK(L)

cy

d(DATO)(WS)

t

h;DATO

t

s;DATI

t

h;DATI

MGG840

Fig.9 Serial interface timing.

1998 Dec 18 26

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

13 APPLICATION INFORMATION

handbook, full pagewidth

+3 V

8LM32A07

8LM32A07

ground

system

clock

overflow

flag

left

line input

right

left

MIC input

right

L1

L2

C1

47 µF

(16 V)

C6

47 µF

(16 V)

R30

47 Ω

C12

100 µF

(16 V)

C4

47 µF

(16 V)

C7

47 µF

(16 V)

V

DDA

V

DDD

C11
100 µF
(16 V)

SYSCLK

DATAO

DATAI

OVERFL

VINL1

VINR1

VINL2

VINR2

L3MODE

L3CLOCK

L3DATA

BCK

WS

12

18
16
17
19

9

2

4

6

8

13
14
15

100 µF

100 nF

V

SSA(ADC)

1

V

DDA

R21

C2

(16 V)

C21

(63 V)

1 Ω

V

DDA(ADC)VADCNVADCPVSSD

35711

UDA1341TS

27

V

SSA(DAC)

100 nF

100 nF

(63 V)

C27

(63 V)

C10

100 µF
(16 V)

C25

V

25

DDA

V

DDA(DAC)

R29
1 Ω

C9

100 µF

(16 V)

C29

100 nF

(63 V)

MGR433

V

DDD

R28
1 Ω

V

DDD

10

28

26

24

23
22
21
20

V

ref

VOUTL

VOUTR

QMUTE
AGCSTAT
TEST2
TEST1

UDA1341TS

C22
100 nF
(63 V)

C5

47 µF
(16 V)

C8

47 µF
(16 V)

R22
10 kΩ

R27
10 kΩ

R23

100 Ω

R26

100 Ω

C3
47 µF
(16 V)

left

output

right

output

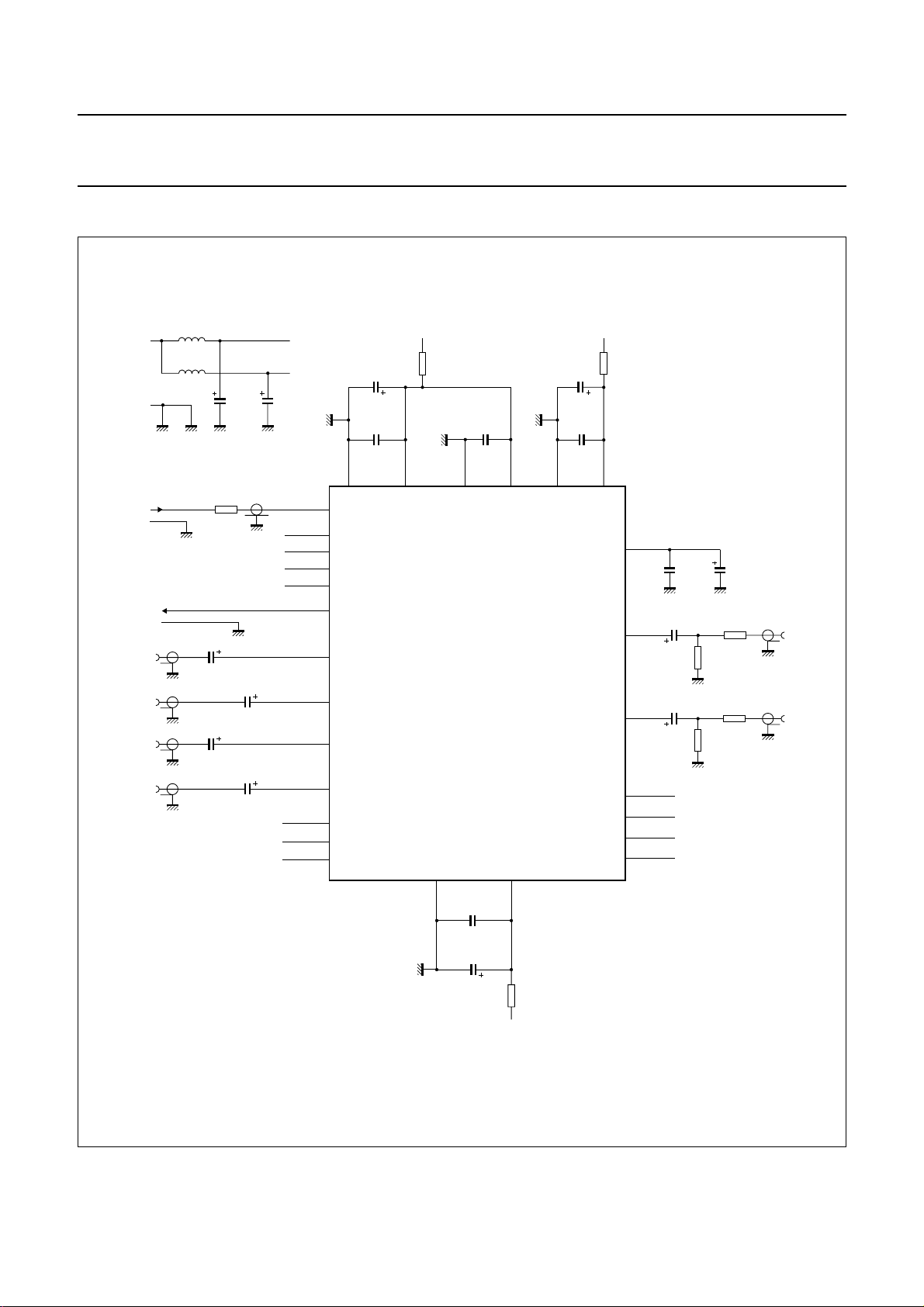

Fig.10 Application diagram.

1998 Dec 18 27

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

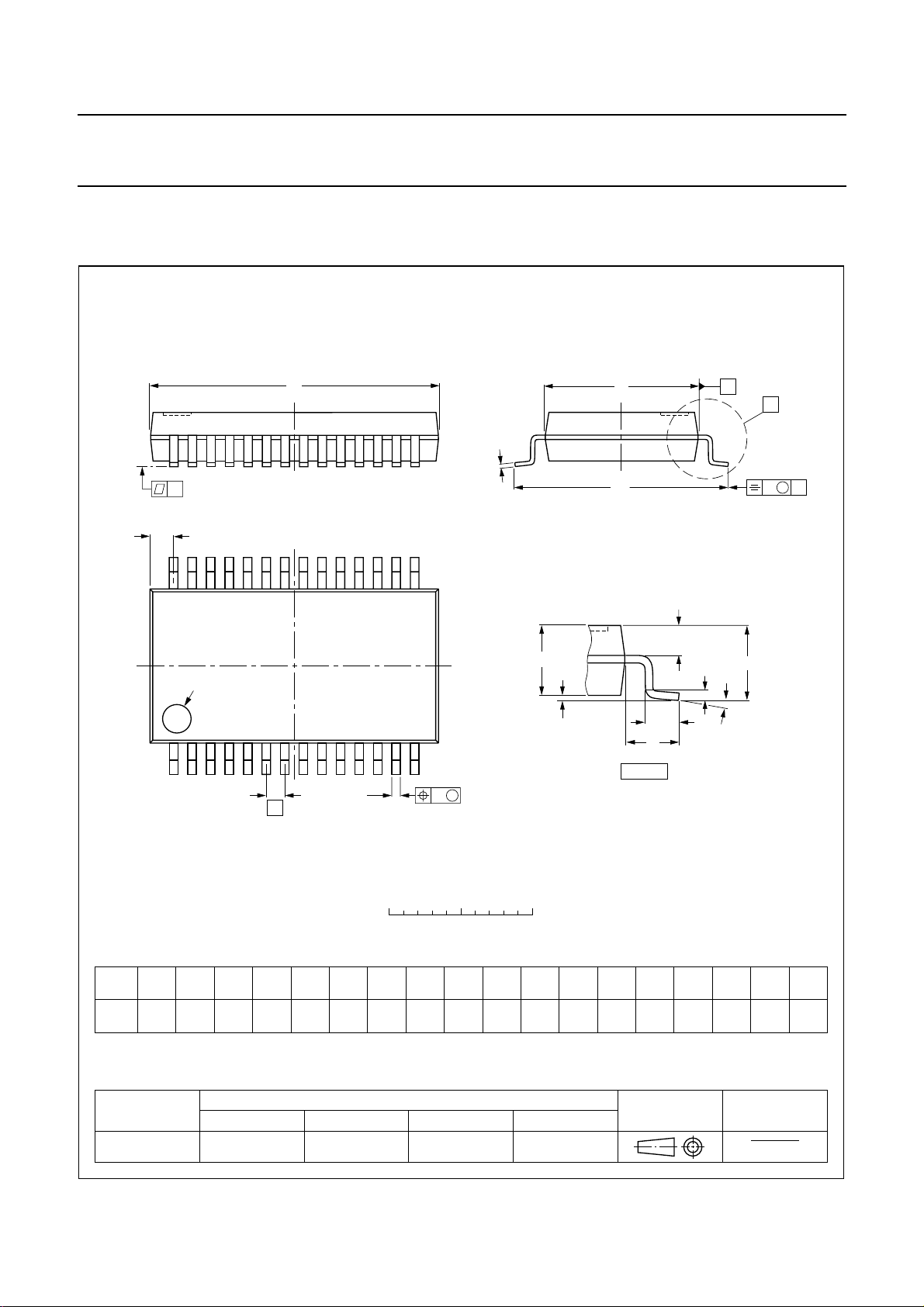

14 PACKAGE OUTLINE

SSOP28: plastic shrink small outline package; 28 leads; body width 5.3 mm

D

c

y

Z

28 15

UDA1341TS

SOT341-1

E

H

E

A

X

v M

A

pin 1 index

114

w M

b

e

DIMENSIONS (mm are the original dimensions)

UNIT A1A2A

mm

Note

1. Plastic or metal protrusions of 0.20 mm maximum per side are not included.

A

max.

2.0

0.21

0.05

1.80

1.65

0.25

b

0.38

0.25

p

cD

0.20

0.09

3

p

0 2.5 5 mm

scale

(1)E(1) (1)

10.4

10.0

eHELLpQZywv θ

5.4

0.65 1.25

5.2

7.9

7.6

Q

A

2

A

1

detail X

1.03

0.9

0.63

0.7

(A )

L

p

L

0.13 0.10.2

A

3

θ

1.1

0.7

o

8

o

0

OUTLINE

VERSION

SOT341-1 MO-150AH

IEC JEDEC EIAJ

REFERENCES

1998 Dec 18 28

EUROPEAN

PROJECTION

ISSUE DATE

93-09-08
95-02-04

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

15 SOLDERING

15.1 Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in

“Data Handbook IC26; Integrated Circuit Packages”

our
(order code 9398 652 90011).

15.2 Reflow soldering

Reflow soldering techniques are suitable for all SSOP
packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

15.3 Wave soldering

Wave soldering is not recommended for SSOP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

UDA1341TS

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The longitudinal axis of the package footprint must

be parallel to the solder flow and must incorporate
solder thieves at the downstream end.

Even with these conditions, only consider wave
soldering SSOP packages that have a body width of

4.4 mm, that is SSOP16 (SOT369-1) or
SSOP20 (SOT266-1).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

15.4 Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1998 Dec 18 29

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)

UDA1341TS

home stereo and portable applications

16 DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

17 LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1998 Dec 18 30

Philips Semiconductors Preliminary specification

Economy audio CODEC for MiniDisc (MD)
home stereo and portable applications

NOTES

UDA1341TS

1998 Dec 18 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone]

Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 655102/750/01/pp32 Date of release: 1998 Dec 18 Document order number: 9397 750 03982
