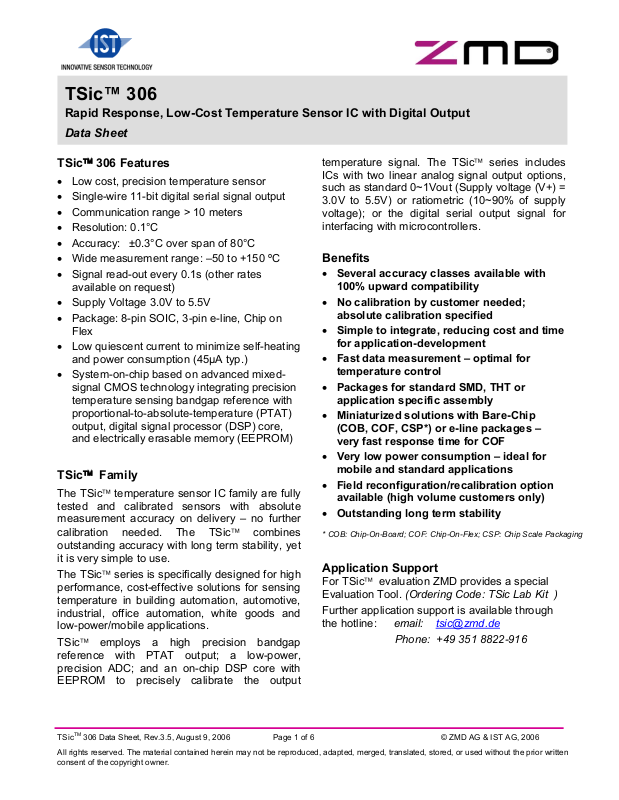

Datasheet TSic 306 Datasheet (ZMD)

TSic™ 306

Rapid Response, Low-Cost Temperature Sensor IC with Digital Output

Data Sheet

TSic 306 Features

•

Low cost, precision temperature sensor

•

Single-wire 11-bit digital serial signal output

•

Communication range > 10 meters

•

Resolution: 0.1°C

•

Accuracy: ±0.3°C over span of 80°C

•

Wide measurement range: –50 to +150 ºC

•

Signal read-out every 0.1s (other rates
available on request)

•

Supply Voltage 3.0V to 5.5V

•

Package: 8-pin SOIC, 3-pin e-line, Chip on
Flex

•

Low quiescent current to minimize self-heating
and power consumption (45µA typ.)

•

System-on-chip based on advanced mixed­signal CMOS technology integrating precision
temperature sensing bandgap reference with
proportional-to-absolute-temperature (PTAT)
output, digital signal processor (DSP) core,
and electrically erasable memory (EEPROM)

TSic Family

The TSic temperature sensor IC family are fully
tested and calibrated sensors with absolute
measurement accuracy on delivery – no further
calibration needed. The TSic combines
outstanding accuracy with long term stability, yet
it is very simple to use.

The TSic series is specifically designed for high
performance, cost-effective solutions for sensing
temperature in building automation, automotive,
industrial, office automation, white goods and
low-power/mobile applications.

TSic employs a high precision bandgap
reference with PTAT output; a low-power,
precision ADC; and an on-chip DSP core with
EEPROM to precisely calibrate the output

temperature signal. The TSic series includes
ICs with two linear analog signal output options,
such as standard 0~1Vout (Supply voltage (V+) =

3.0V to 5.5V) or ratiometric (10~90% of supply
voltage); or the digital serial output signal for
interfacing with microcontrollers.

Benefits

•

Several accuracy classes available with
100% upward compatibility

•

No calibration by customer needed;
absolute calibration specified

•

Simple to integrate, reducing cost and time
for application-development

•

Fast data measurement – optimal for
temperature control

•

Packages for standard SMD, THT or
application specific assembly

•

Miniaturized solutions with Bare-Chip
(COB, COF, CSP*) or e-line packages –
very fast response time for COF

•

Very low power consumption – ideal for
mobile and standard applications

•

Field reconfiguration/recalibration option
available (high volume customers only)

•

Outstanding long term stability

* COB: Chip-On-Board; COF: Chip-On-Flex; CSP: Chip Scale Packaging

Application Support

For TSic evaluation ZMD provides a special
Evaluation Tool. (Ordering Code: TSic Lab Kit )

Further application support is available through
the hotline: email: [e-mail]

Phone: [phone]

TSicTM 306 Data Sheet, Rev.3.5, August 9, 2006 Page 1 of 6 © ZMD AG & IST AG, 2006

All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written
consent of the copyright owner.

TSic™ 306

Rapid Response, Low-Cost Temperature Sensor IC with Digital Output

Data Sheet

Absolute Maximum Ratings

PARAMETER MIN MAX UNITS

Supply Voltage (V+) -0.3 6.0 V

Voltages at analog I/O
– Pins (V

INA

, V

OUTA

)

Storage Temperature
Range (T

stor

)

-0.3

-50 150 °C

V

+0.3 V

DDA

Operating Conditions

PARAMETER MIN TYP MAX UNITS

Supply1 Voltage to
Gnd (V+)

Supply Current (IV+) 2
@ V+ = 3.3V, RT

Ambient
Temperature
(T

)

amb

3

Range

External
Capacitance
between V+ and

4

(CV+)

Gnd

Output Load
Capacitance (C

)

L

Output Load
Resistance between
signal and Gnd (or
V+)

3.0 5.0 5.5 V

30 45 80 µA

-50 150 °C

80 100 470 nF

15 nF

1

MΩ

1

With supply voltage 2.7V – 3.0V

accuracy reduced.

2

Without load

3

Output signal is limited to this ambient
temperature ±3°C (with regard to calibration, offset
and gain)

4

Recommended as close to TSic V+ and Gnd­ Pins as possible

Temperature Accuracy5

5

PARAMETER MIN TYP MAX UNITS

Wide Range Device for -50° to 150°C

T1 +10°C to +90°C -0.3 ±0.3 0.3 °C

T2 -20°C to +110°C -0.3 +0.3 0.95 °C

T3 -50°C to +150°C -0.3 +0.9 2.0 °C

TSicTM 306 Data Sheet, Rev.3.5, August 9, 2006 Page 2 of 6 © ZMD AG & IST AG, 2006

All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner.

Accuracy = specification plus quantization error of

1 bit (0.1°C), 2σ value.
Other TSic products with customer specific calibration
available on request: i.e. with special calibration where
the 80°C span (bandgap) with the high precision
temperature range of ±0.3 °C is shifted to another
(lower or higher) temperature range.
Temperature range limits T1, T2: ±0.1°C; T3: ±3°C

TSic™ 306

Rapid Response, Low-Cost Temperature Sensor IC with Digital Output

Data Sheet

Output Examples for TSicTM Devices

Temp

(oC)

125 257

150 302

Temperature = (Digital Signal / 2047 ∗ 200 - 50)°C

Temp

(oF)

-50 -58 0x000

-10 14

0 32

25 77

60 140

Temperature Measurement Range

-50°C to 150°C or -58°F to 302°F
(Wide Range Device)

TSic-306

Digital

0x199

0x200

0x2FF

0x465

0x6FE

0x7FF

Lifetime for TSicTM Devices

TM

TSic

Operating Temperature expected Lifetime

device lifetime is dependent upon its operating temperature.

140°C...150°C min. 1500h
125°C...140°C min. 3000h

Package Information

TM

TSic
Other packages available on demand: TSic

For further information see also Technical Note:

TSicTM 306 Data Sheet, Rev.3.5, August 9, 2006 Page 3 of 6 © ZMD AG & IST AG, 2006

All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner.

306 SOP8: 150mil, Standard SMT Package, SOIC, Based on IEC 191-2Q, Type 076E35 B.

“TSic™ Die and Package Specifications for TSic

TM

306 e-line; 3 pin THT package; Chip on Flex.

TM

Temperature Sensor IC”

TSic™ 306

Rapid Response, Low-Cost Temperature Sensor IC with Digital Output

Data Sheet

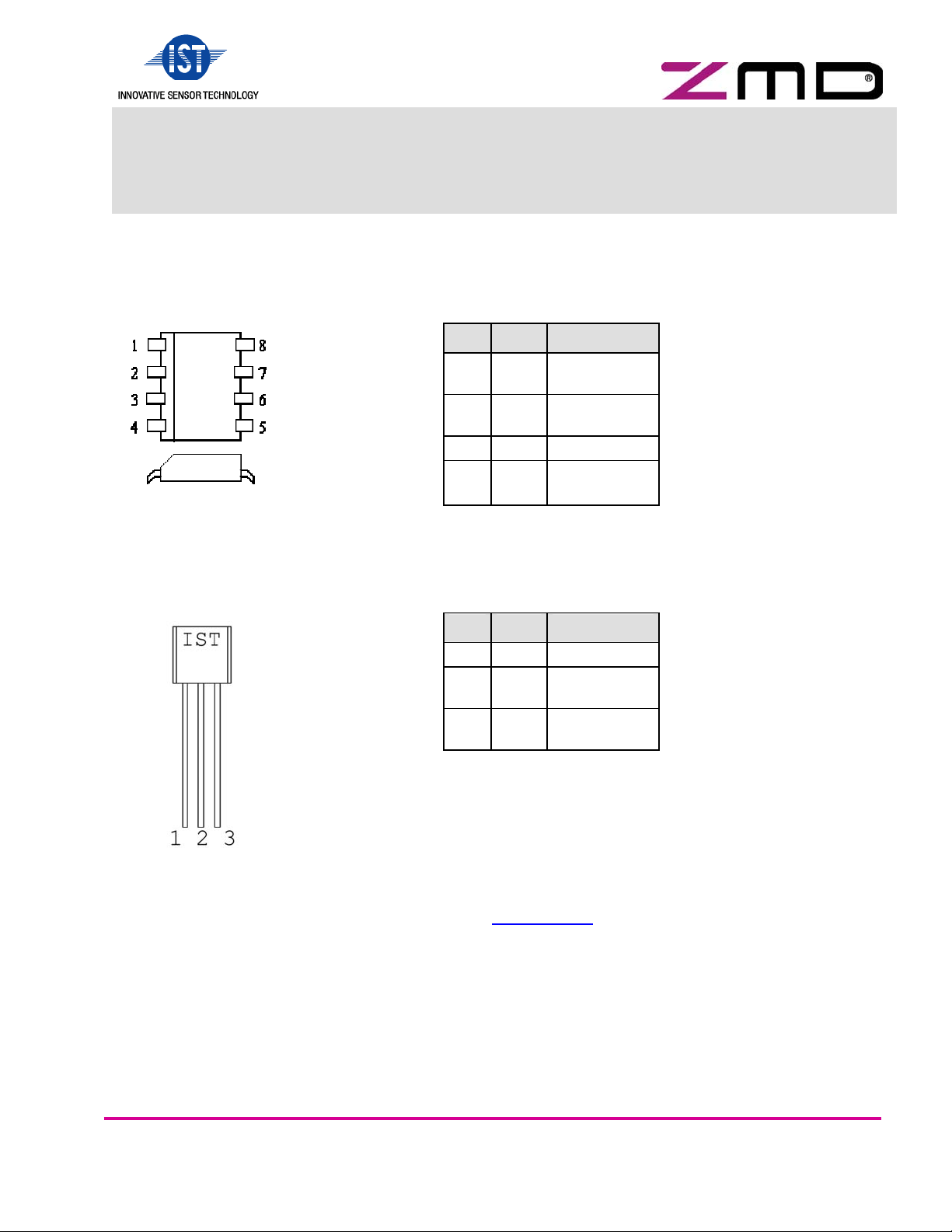

SOP8 Package

E-Line Package

Related products and ordering information

For related products and ordering information see www.zmd.biz and ZMD “TSicTM Ordering Guide”.
