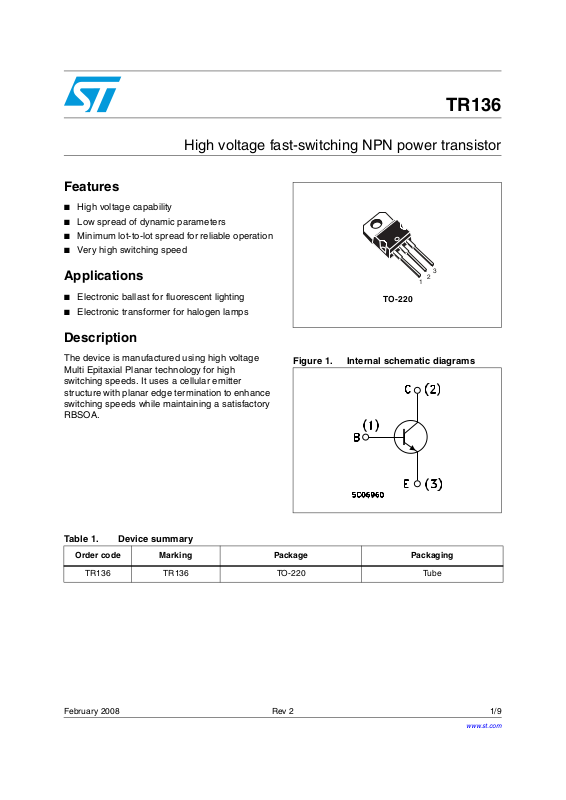

High voltage fast-switching NPN power transistor
3
Features
■ High voltage capability
■ Low spread of dynamic parameters
■ Minimum lot-to-lot spread for reliable operation
■ Very high switching speed
TR136
Applications
■ Electronic ballast for fluorescent lighting
■ Electronic transformer for halogen lamps
Description
The device is manufactured using high voltage
Multi Epitaxial Planar technology for high
switching speeds. It uses a cellular emitter
structure with planar edge termination to enhance
switching speeds while maintaining a satisfactory
RBSOA.
Table 1. Device summary
2
1
TO-220

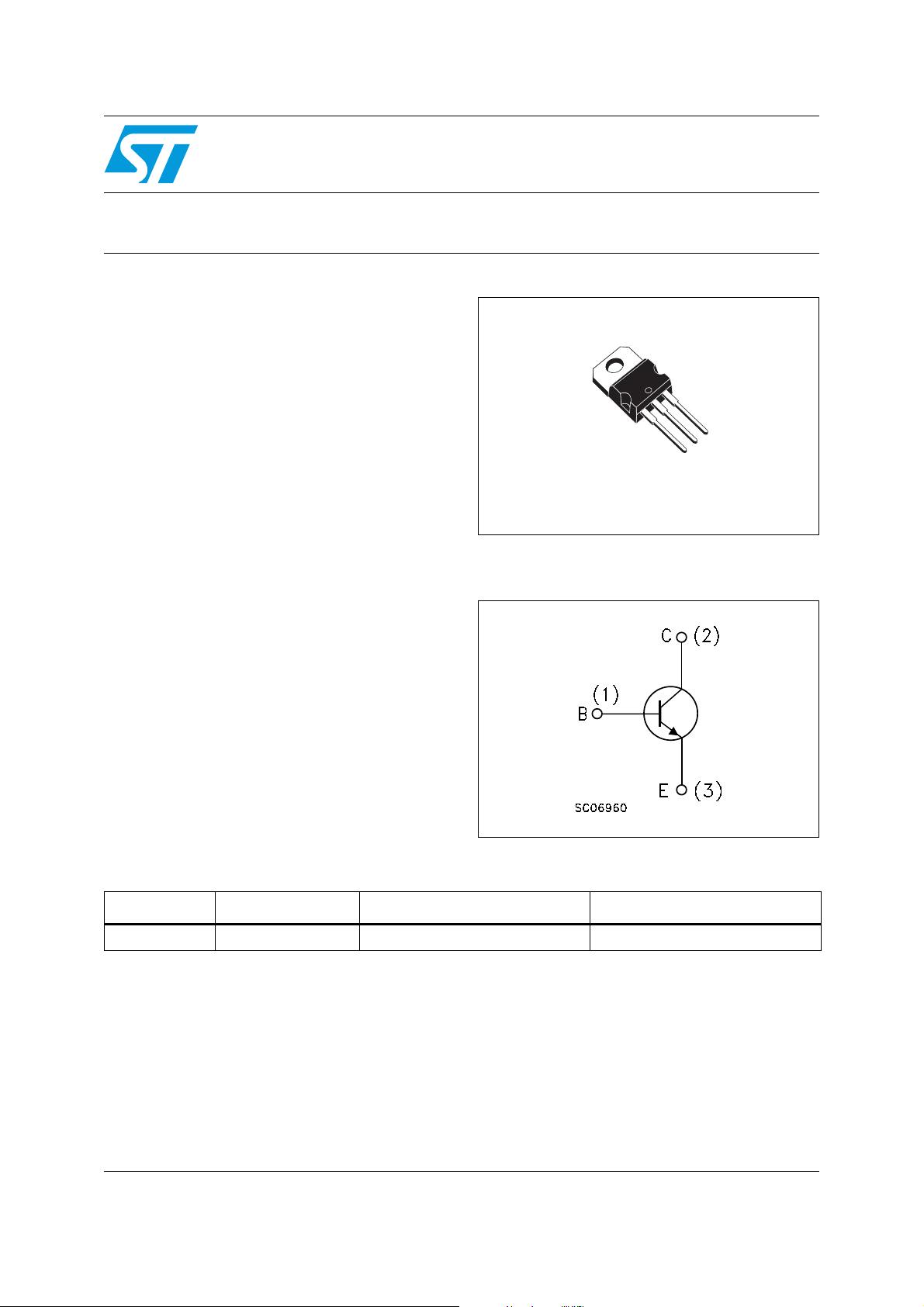

Figure 1. Internal schematic diagrams
Order code Marking Package Packaging
TR136 TR136 TO-220 Tube
February 2008 Rev 2 1/9
www.st.com
9
Page 2
Electrical ratings TR136
1 Electrical ratings
Table 2. Absolute maximum rating
Symbol Parameter Value Unit
V
V
V
CES
CEO
EBO
I
I
CM
I
I
BM
P
T
T
Collector-emitter voltage (VBE = 0) 700 V
Collector-emitter voltage (IB = 0) 400 V
Emitter-base voltage (IC = 0) 9 V
Collector current 3 A
C
Collector peak current (tP < 5ms) 6 A
Base current 1.5 A
B
Base peak current (tP < 5ms) 3 A
Total dissipation at Tc ≤ 25°C 60 W
tot
Storage temperature -65 to 150 °C
stg
Max. operating junction temperature 150 °C
J
2/9
Page 3
TR136 Electrical characteristics
2 Electrical characteristics
(T
= 25°C unless otherwise specified)
case
Table 3. Electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
= 700 V
I
CEV
I
EBO
Collector cut-off current
= -1.5V)
(V
BE
Emitter cut-off current
=0)
(I
C
Collector-emitter
(1)
V
CEO(sus)
V
CE(sat)
V
BE(sat)
h
FE
sustaining voltage
(I
= 0)
B
Collector-emitter
(1)
saturation voltage
Base-emitter saturation
(1)
voltage
DC current gain
Inductive load
t
s
t
f
1. Pulsed duration = 300 ms, duty cycle ≤1.5%
Storage time
Fall time
V
CE
= 700 V TC = 100 °C
V
CE
= 9 V
V
EB
I
= 10 mA
C
= 0.5 A _ IB = 0.1 A
I
C
I
= 0.6 A _ _ IB = 60 mA
C
I
= 2 A _ _ IB = 0.5 A
C
I
= 1 A __ _ IB = 0.2 A
C
I
= 2 A _ _ IB = 0.5 A
C
= 10 mA V
I
C
= 2 A V
I
C
= 1A R
I
C
V
= 200 V L = 50 mH
Clamp
CE
CE
BB
(see Figure 2)
= 5 V
= 5 V
= 0 Ω
1
mA
5
mA
1mA
400 V
0.5
0.7
1
1.2
1.6
10
10 20
0.8
0.16
V
V
V
V
V
µs
µs
3/9
Page 4
Electrical characteristics TR136
2.1 Test circuits

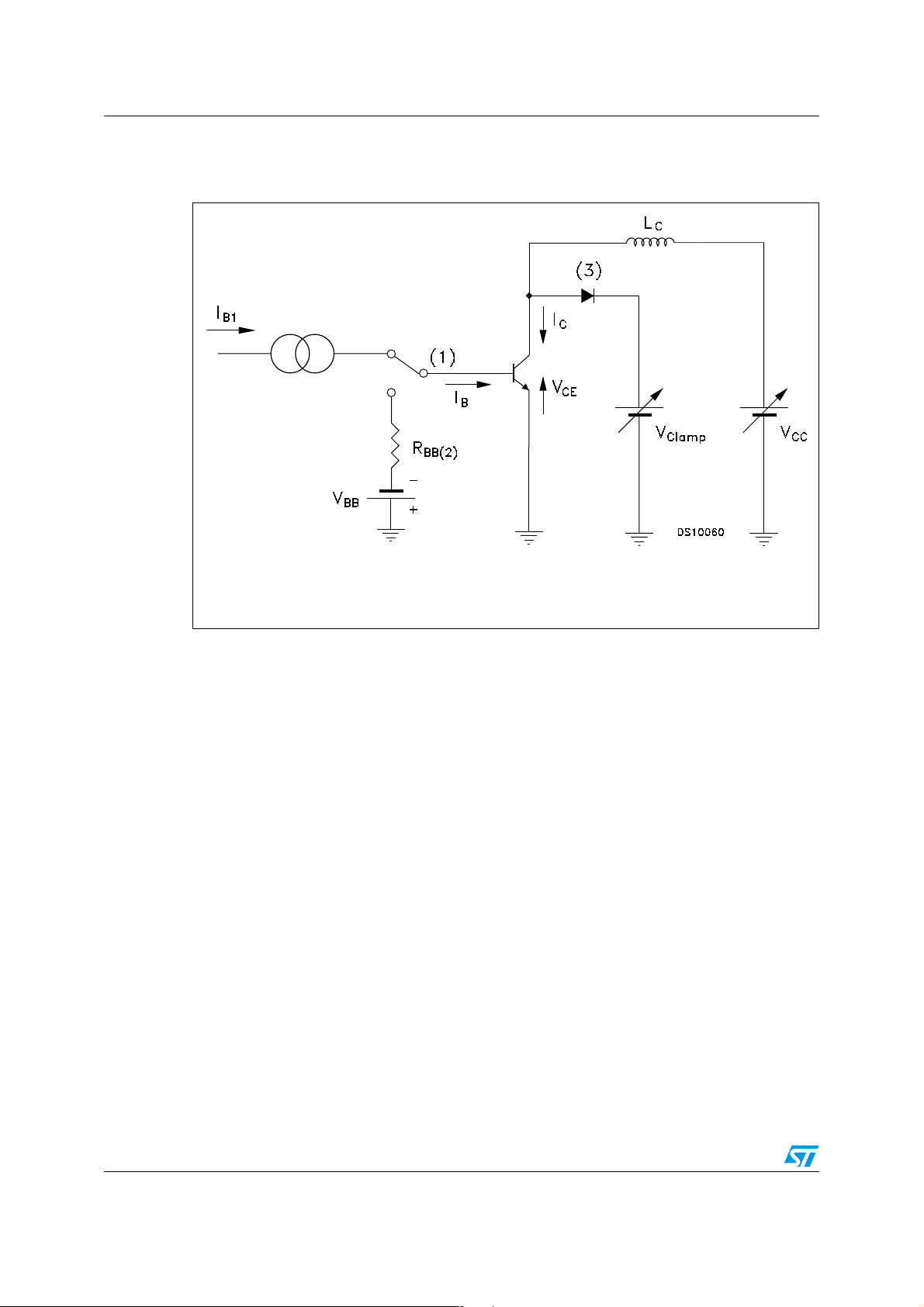

Figure 2. Inductive load switching test circuit
1) Fast electronic switch
2) Non-inductive resistor
3) Fast recovery rectifier
4/9
Page 5
TR136 Package mechanical data
3 Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
5/9
Page 6
Package mechanical data TR136

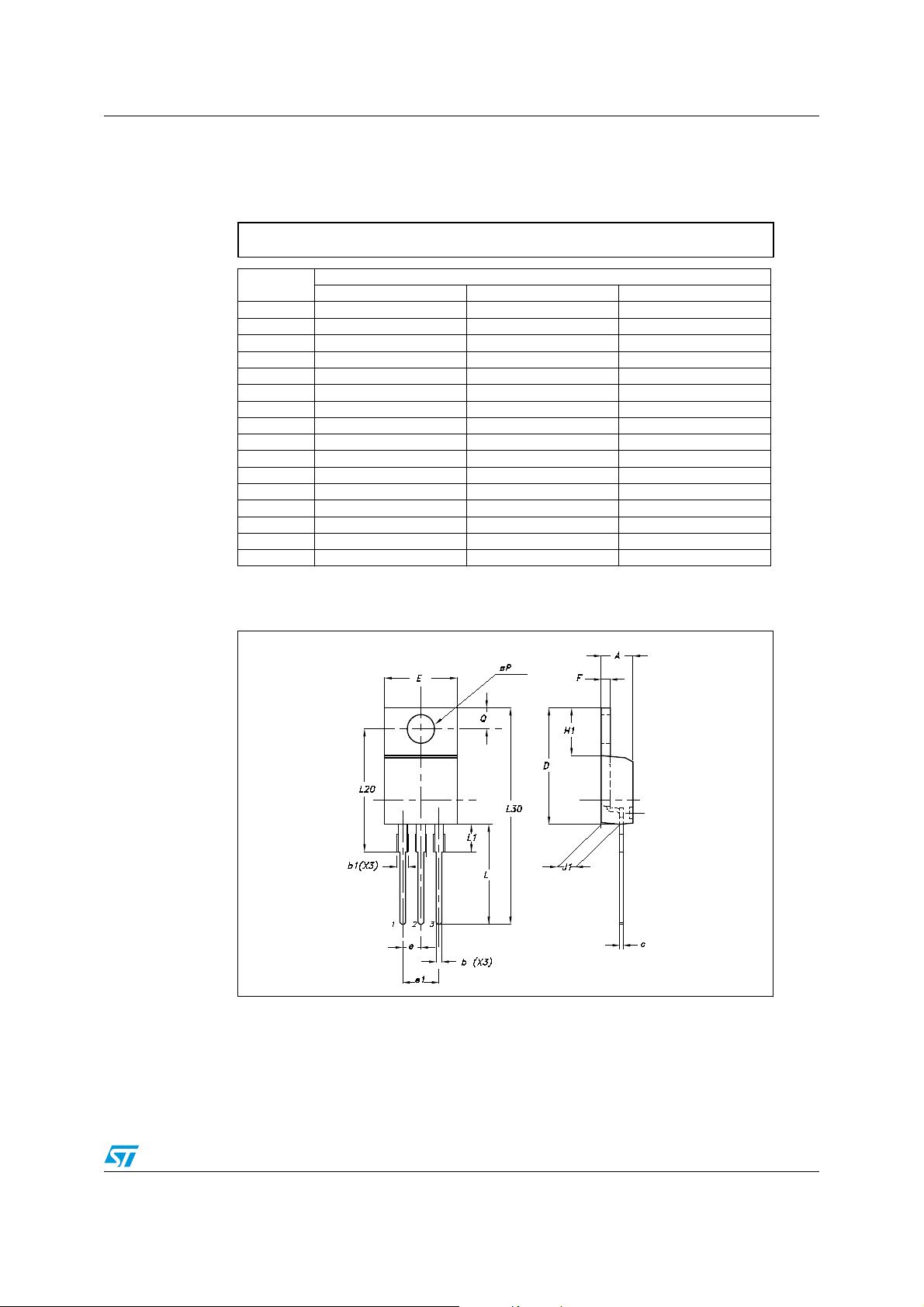

TO-220 mechanical data
Dim
Min Typ Max Min Typ Max
mm inch
A 4.40 4.60 0.173 0.181
b 0.61 0.88 0.024 0.034
b1 1.14 1.70 0.044 0.066
c0.49 0.70 0.019 0.027
D 15.25 15.75 0.6 0.62
D1 1.27 0.050
E 10 10.40 0.393 0.409
e 2.40 2.70 0.094 0.106
e1 4.95 5.15 0.194 0.202
F1.23 1.32 0.048 0.051
H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107
L13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L3028.90 1.137
∅P 3.75 3.85 0.147 0.151
Q2.65 2.95 0.104 0.116
6/9
Page 7
TR136 Package mechanical data

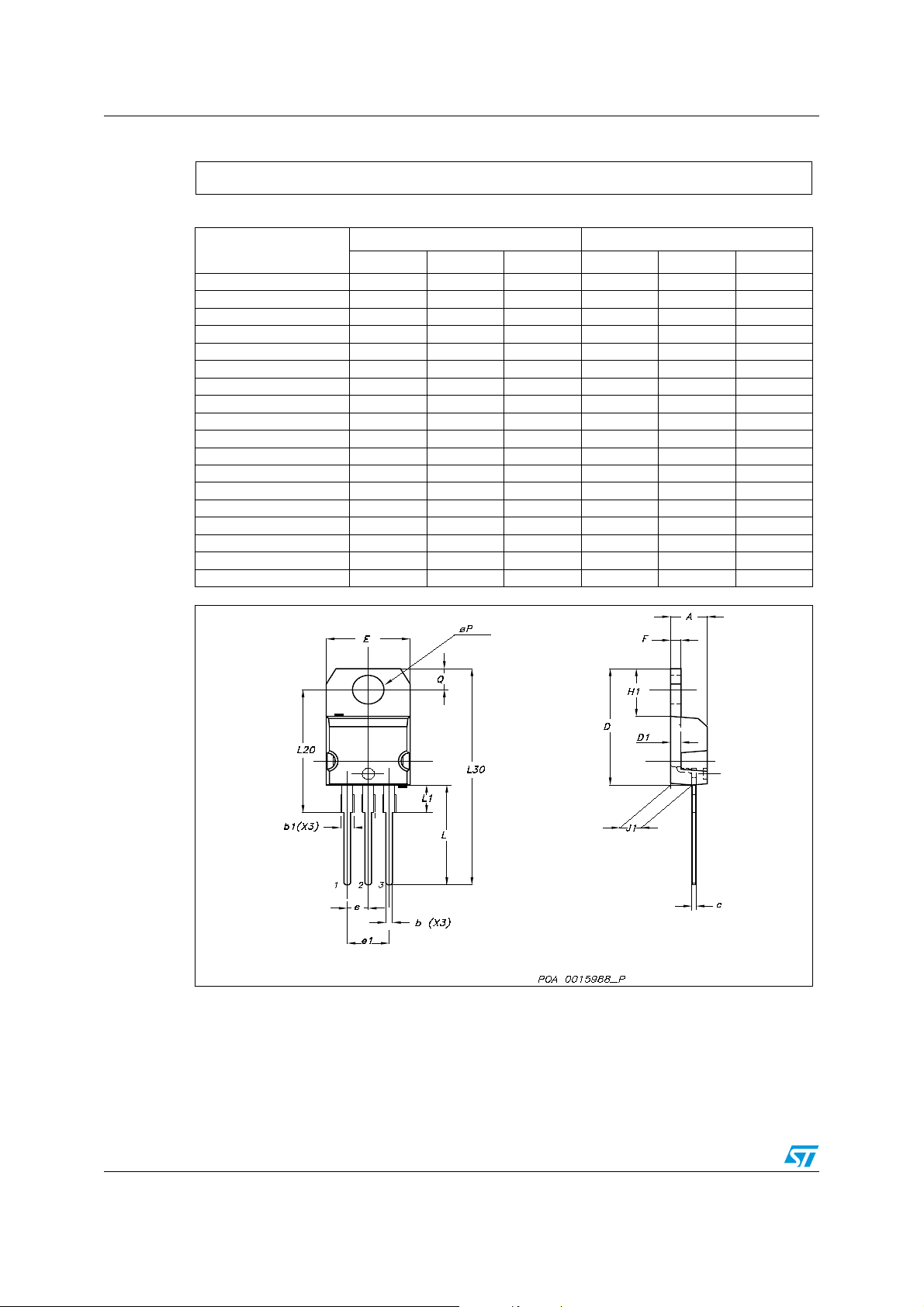

TO-220 type E mechanical data
DIM.
A 4.47 4.67
b 0.70 0.91
b1 1.17 1.37
c0.310.53
D 14.60 15.70
E 9.96 10.36
e2.54
e1 4.98 5.08 5.18
F 1.17 1.37
H1 6.10 6.80
J1 2.52 2.82
L 12.70 13.80
L1 3.20 3.96
L20 15.21 16.77
øP 3.733.94
Q2.59 2.89
MIN. TYP MAX.
mm.
7655923_B
7/9
Page 8
Revision history TR136
4 Revision history
Table 4. Document revision history
Date Revision Changes
08-Oct-2007 1 Initial release
08-Feb-2008 2 Updated TO-220, type E, mechanical data
