Datasheet TPM8.3LLA Datasheet (Philips)

Colour Television Chassis

19190_000_110913.eps

110913

TPM8.3L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

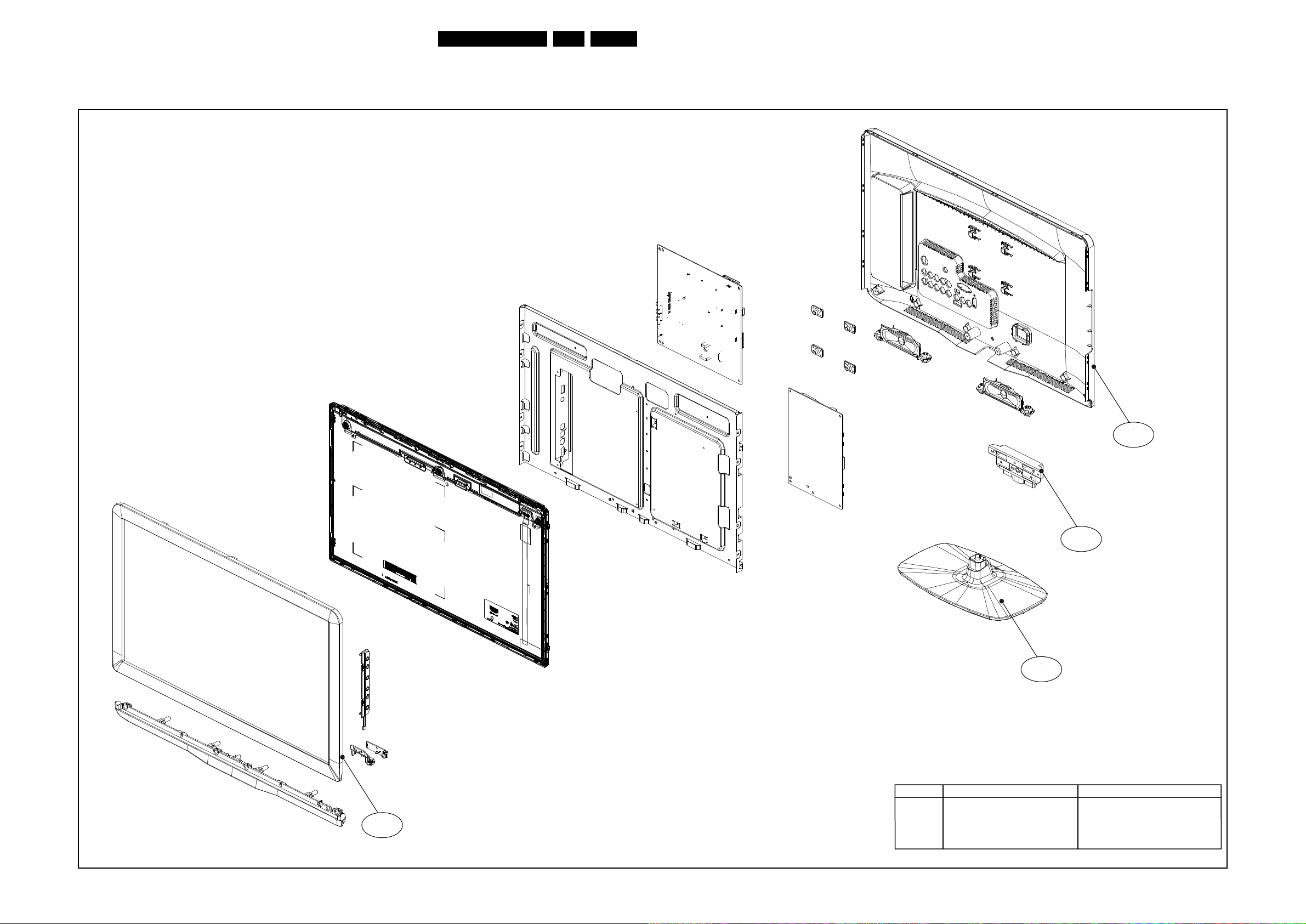

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 12

6. Alignments 20

7. Circuit Descriptions 21

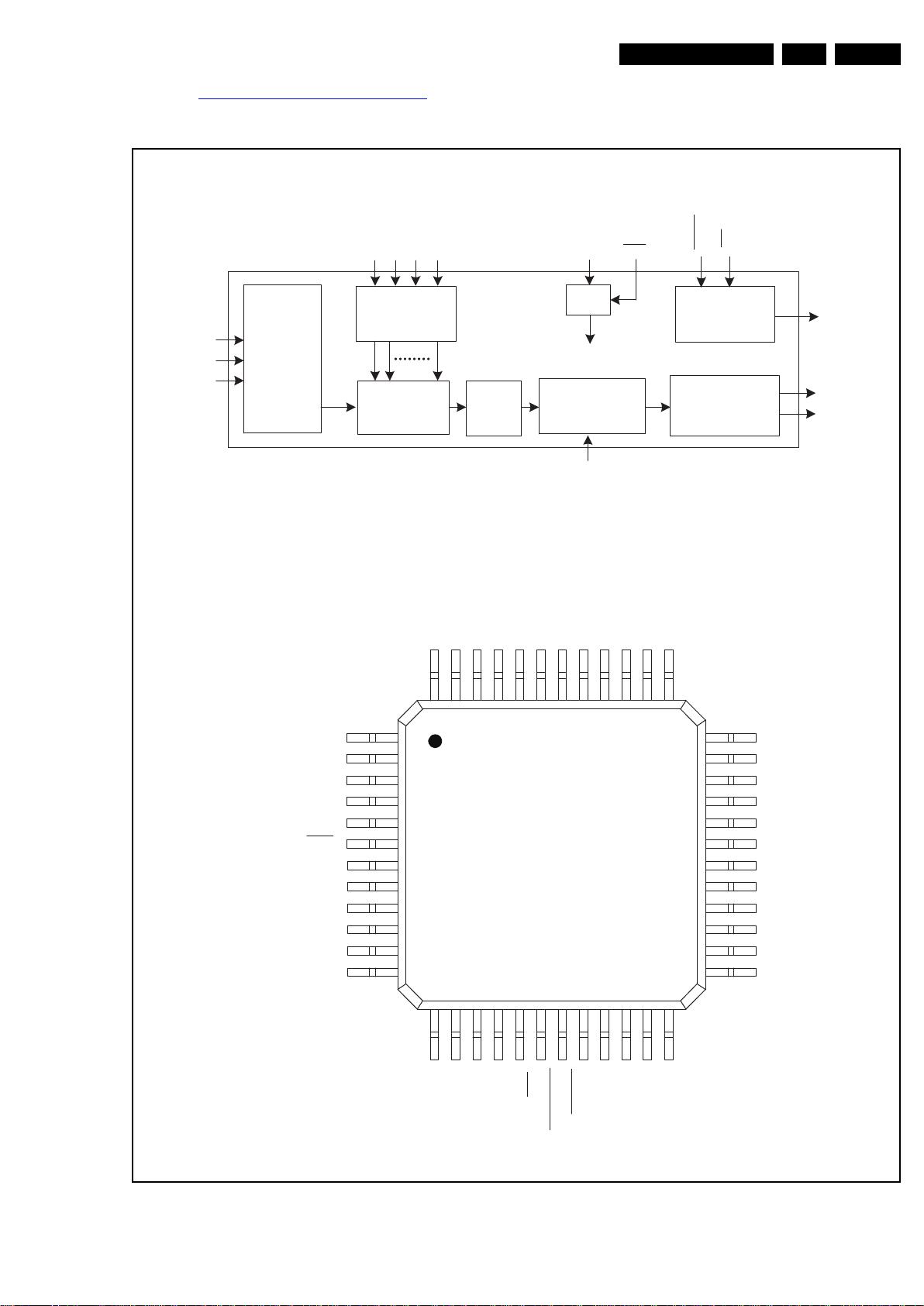

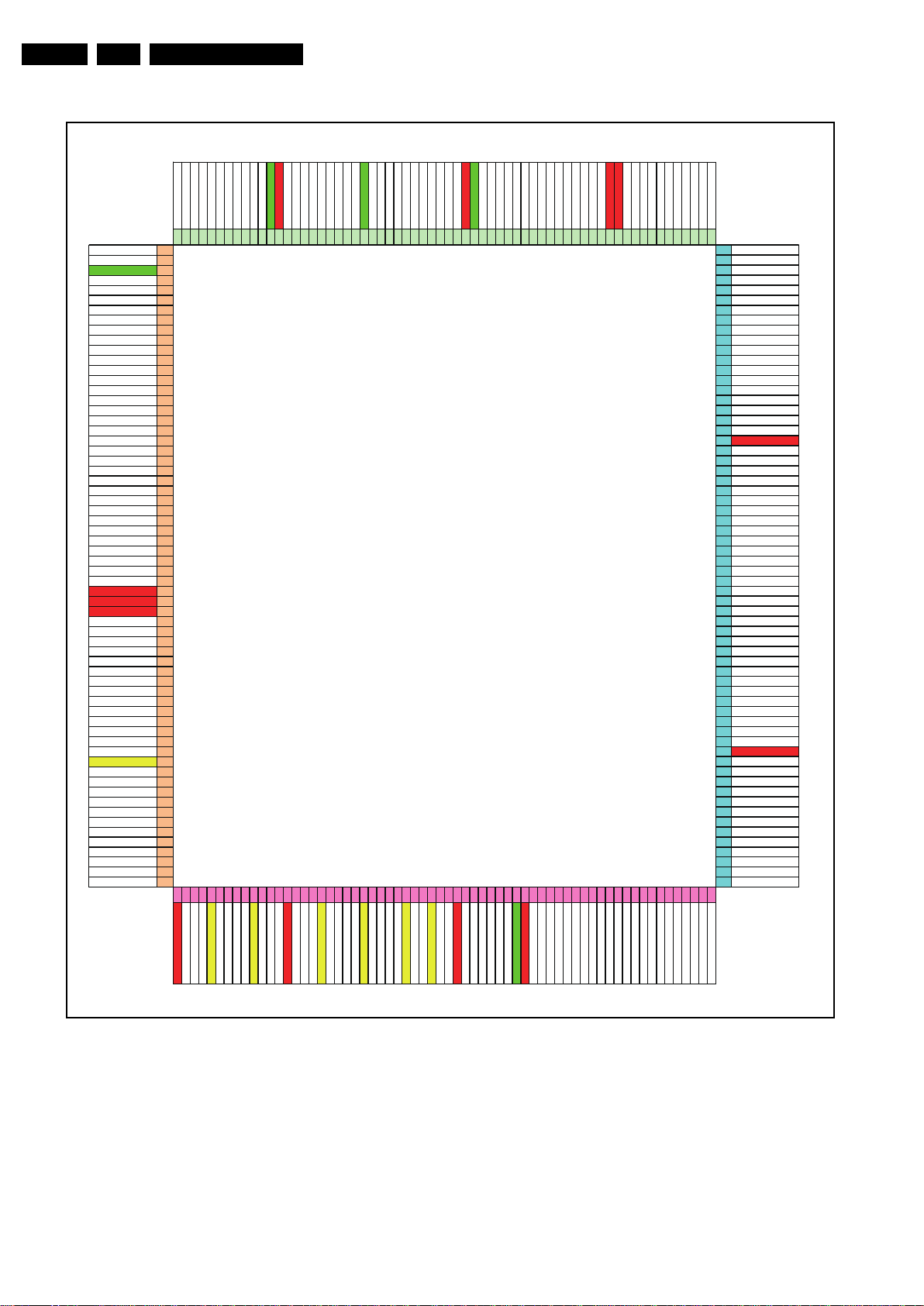

8. IC Data Sheets 27

9. Block Diagrams

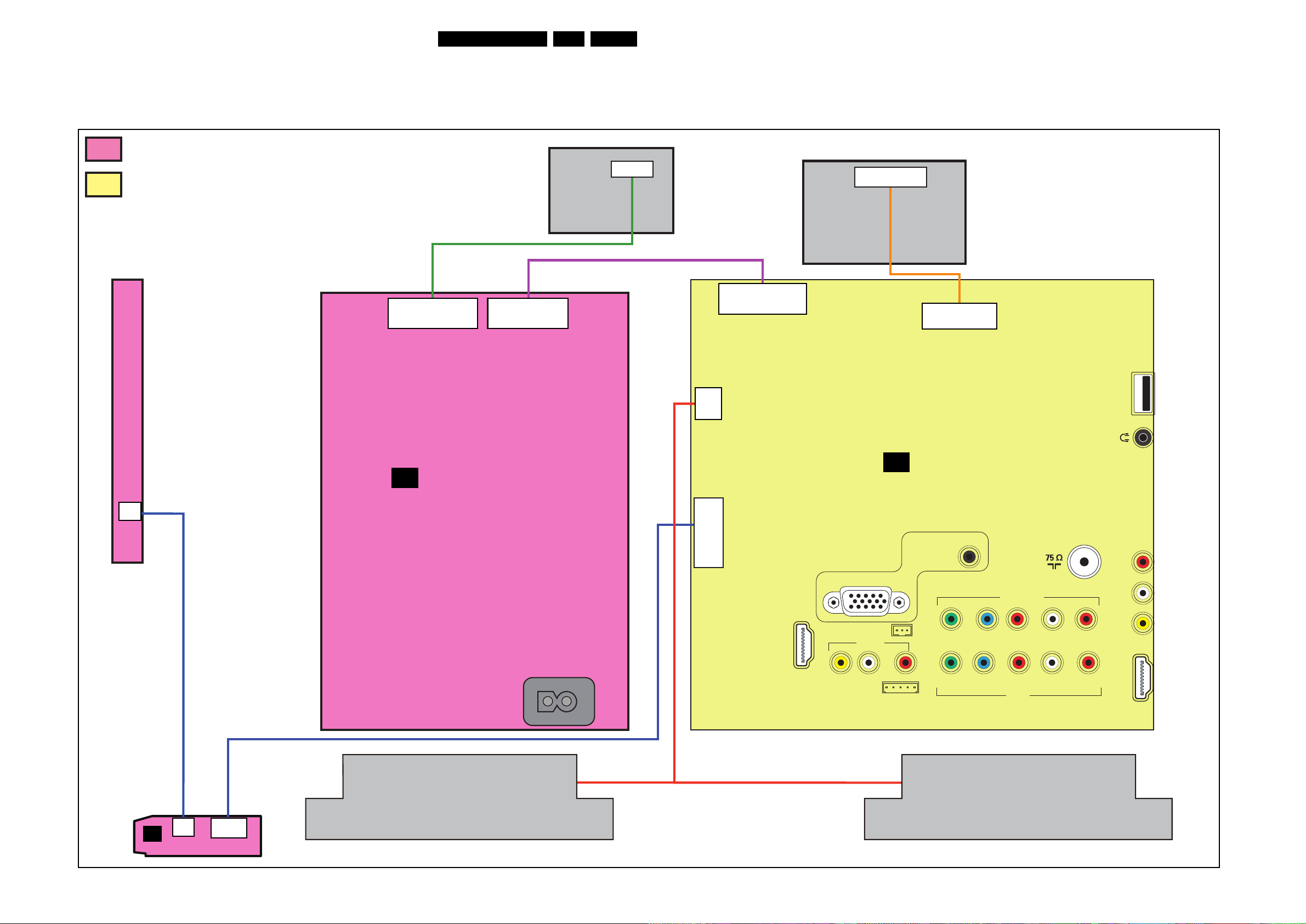

Wiring diagram 22" 33

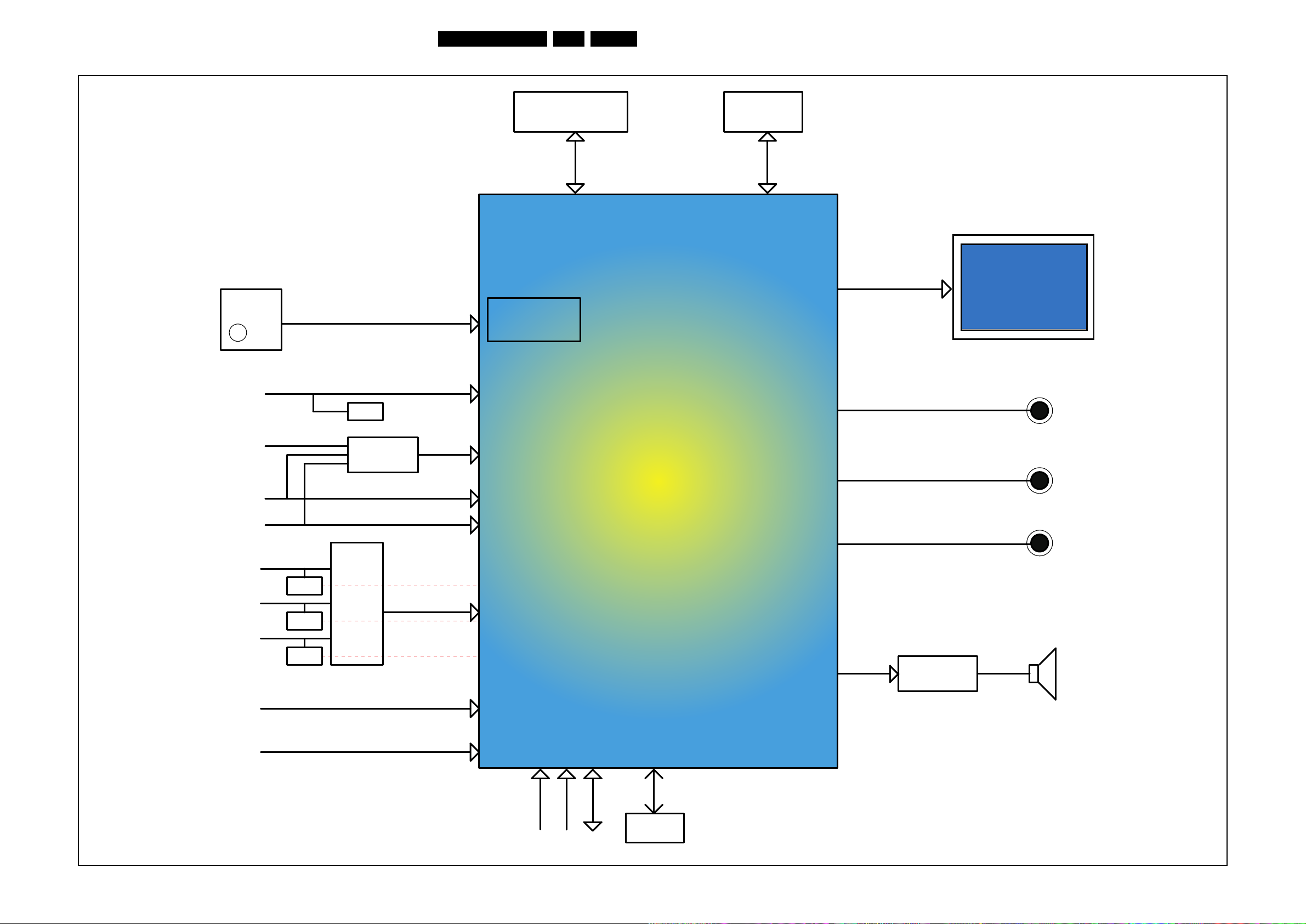

Block Diagram 34

10. Circuit Diagrams and PWB Layouts Drawing PWB

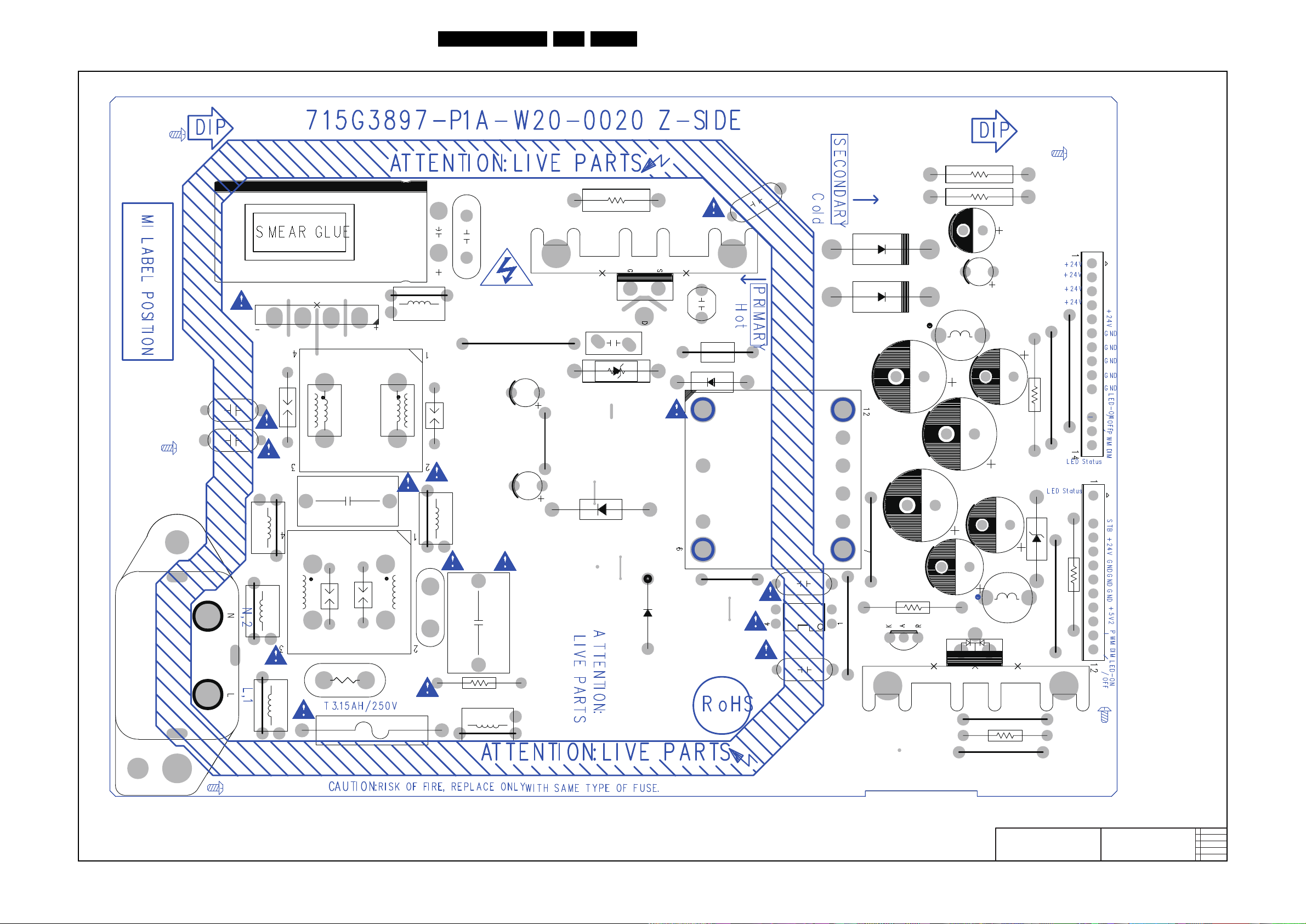

A01 715G3897 PSU 22"

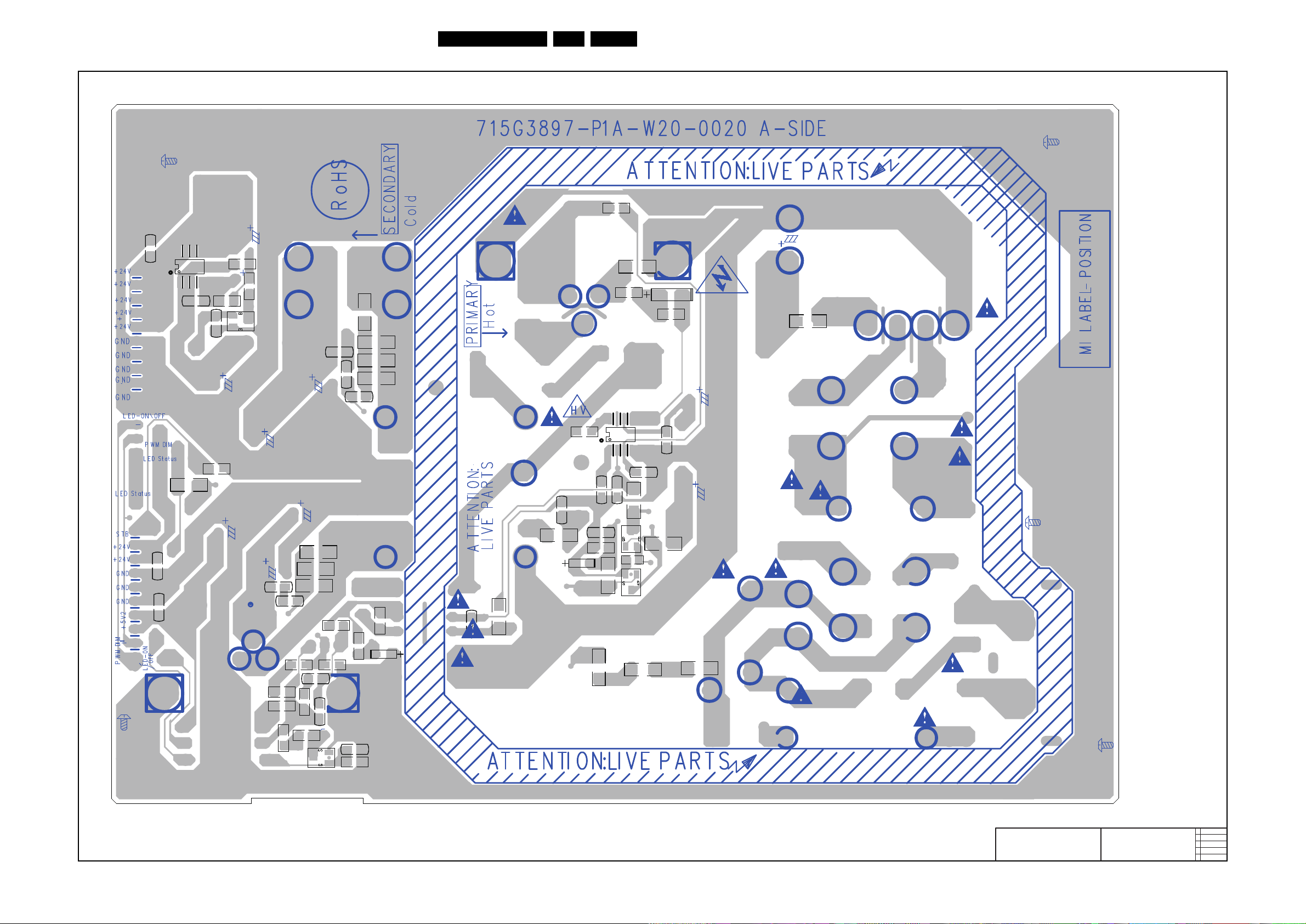

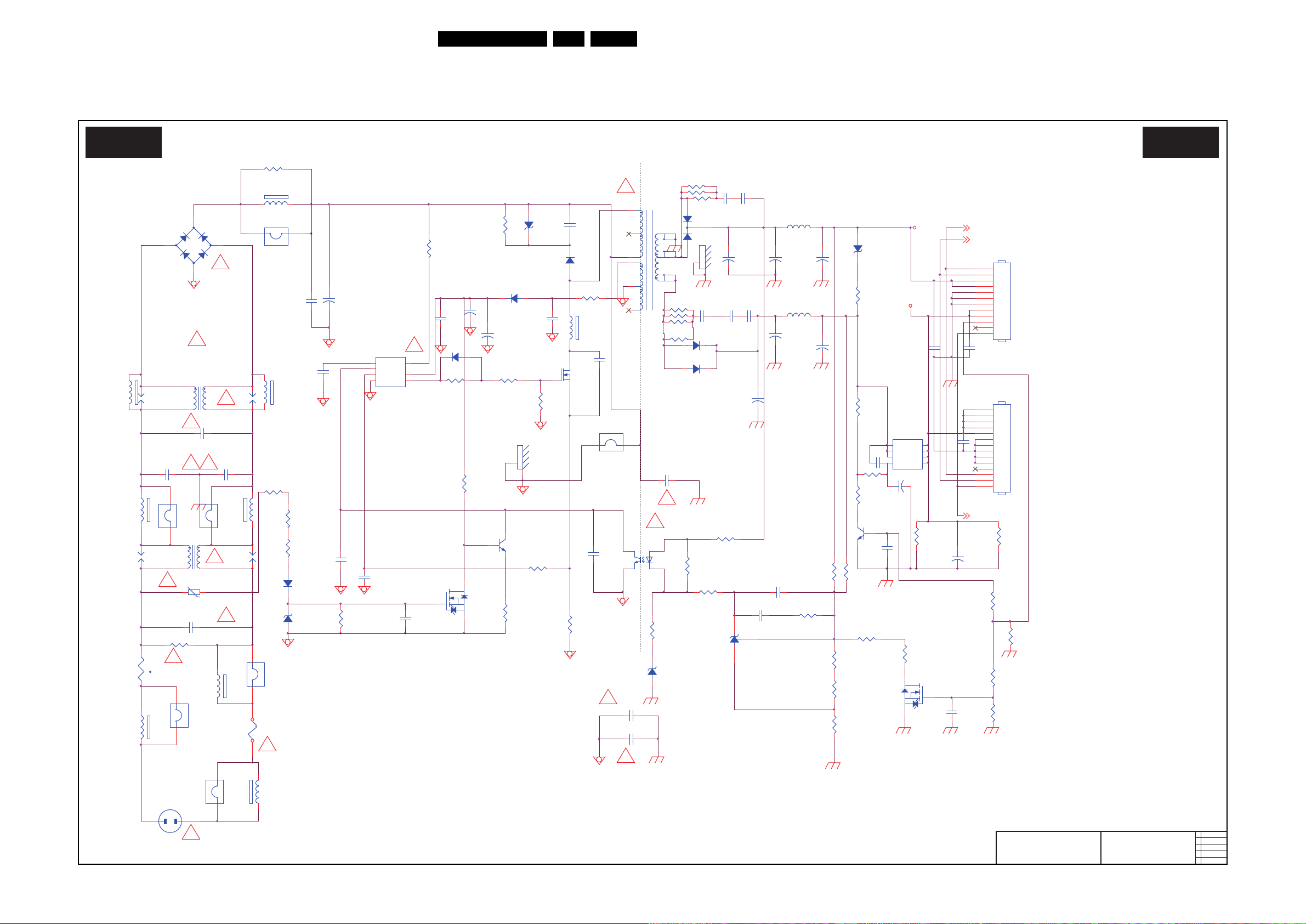

Power (A01) 35 36-37
B 715G5151 SSB 38

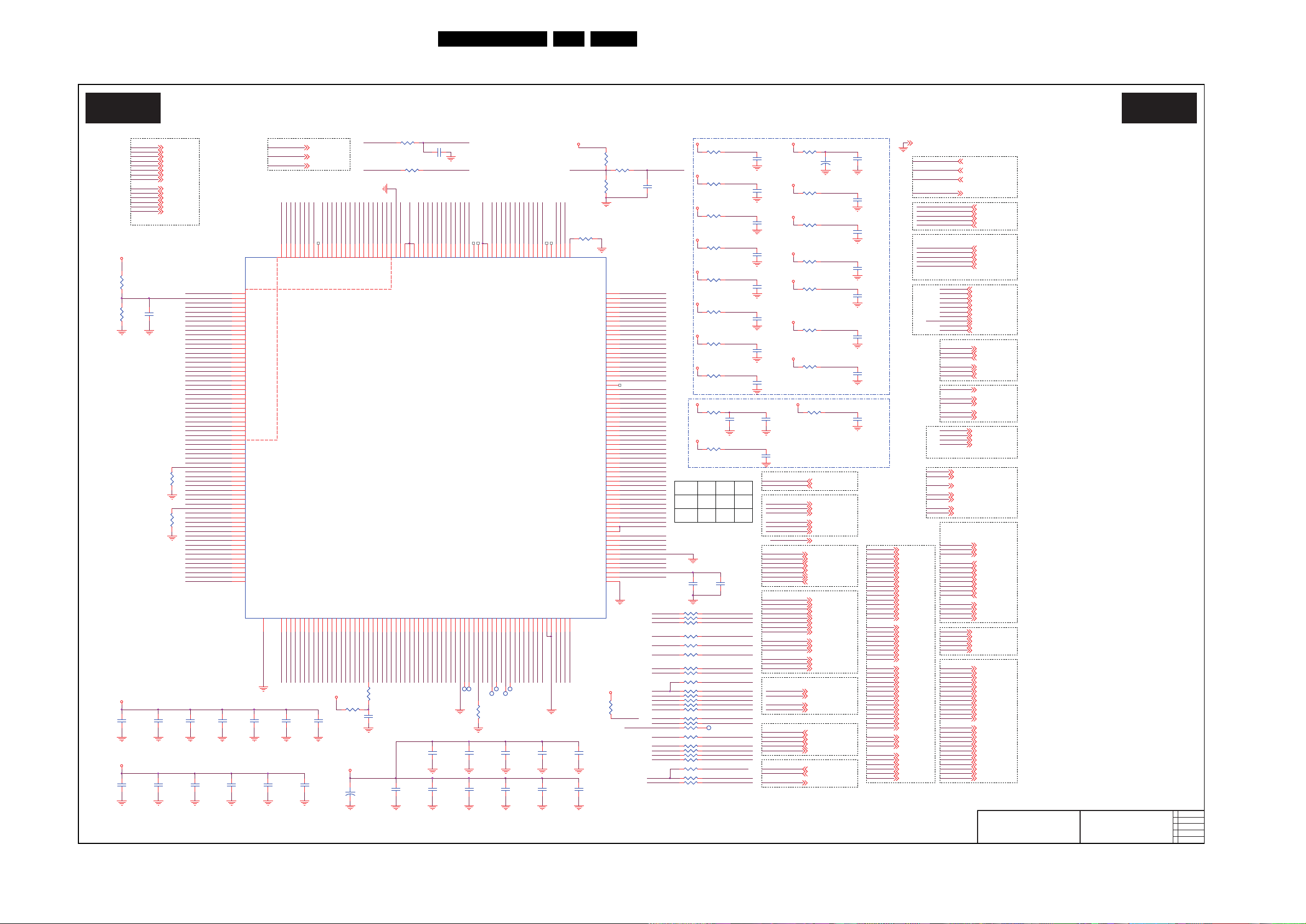

MT5301BCMU (B01) 38 59-60
SoC Peripheral (B02) 39 59-60
DDR2 (B03) 40 59-60
LVDS, JTAG & UART (B04) 41 59-60
USB 1 & USB 2 (B05) 42 59-60
AV1 (side) & Audio-in Multiplexer (B06) 43 59-60
CVI1 & EXT (B07) 44 59-60

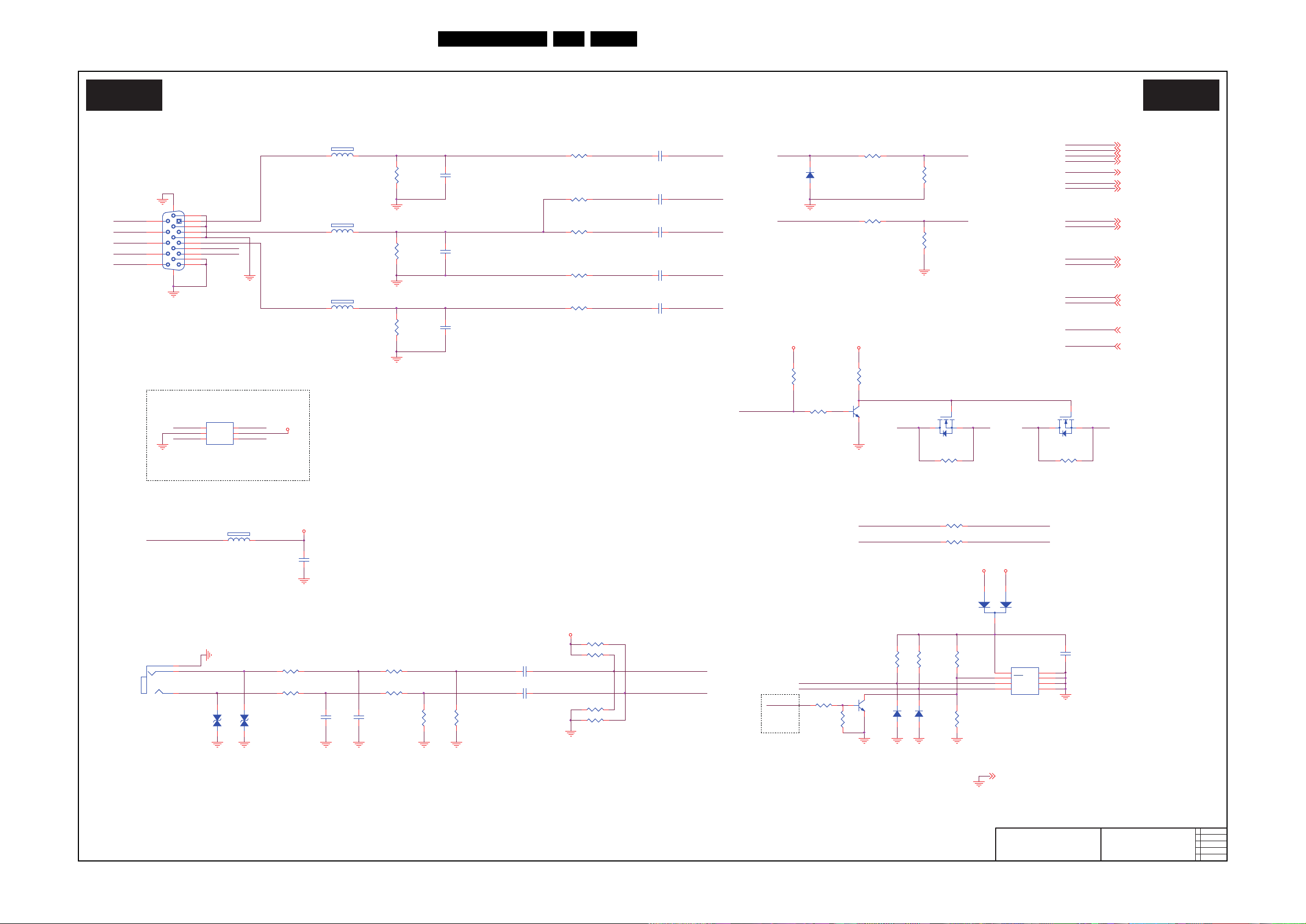

VGA & PC Line-in (B08) 45 59-60
HDMI A & Switch 3:1 (B09) 46 59-60
HDMI B & HDMI C (side) (B10) 47 59-60
Demodulator (DTMB, DVB-T & PAL) (B11) 48 59-60
Half NIM Tuner (B12) 49 59-60
POP Killer & Extender (B13) 50 59-60
IR & Keypad Interface (B14) 51 59-60
AV Out (Rear) (B15) 52 59-60
Headphone Out (B16)53 59-60
I2S Post Amplifier & SPIDF Out (B17) 54 59-60
PSU & Inverter Interface (B18) 55 59-60
Power MOSFET switch (B19) 56 59-60

©

Copyright 2011 Koninklijke Philips Electronics N.V.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, or otherwise without the prior permission of Philips.

35

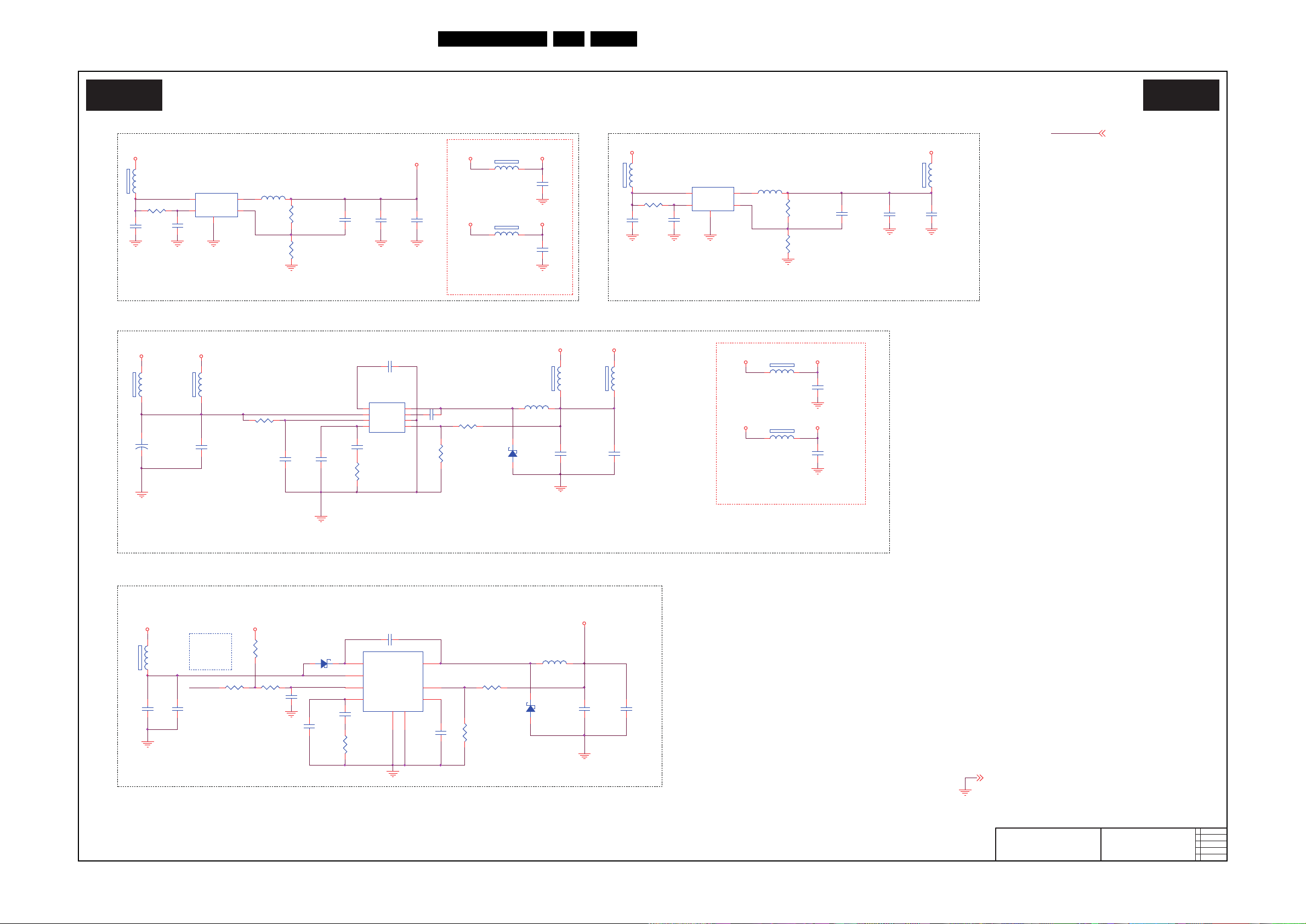

DC-DC Buck & Converter (B20) 57 59-60

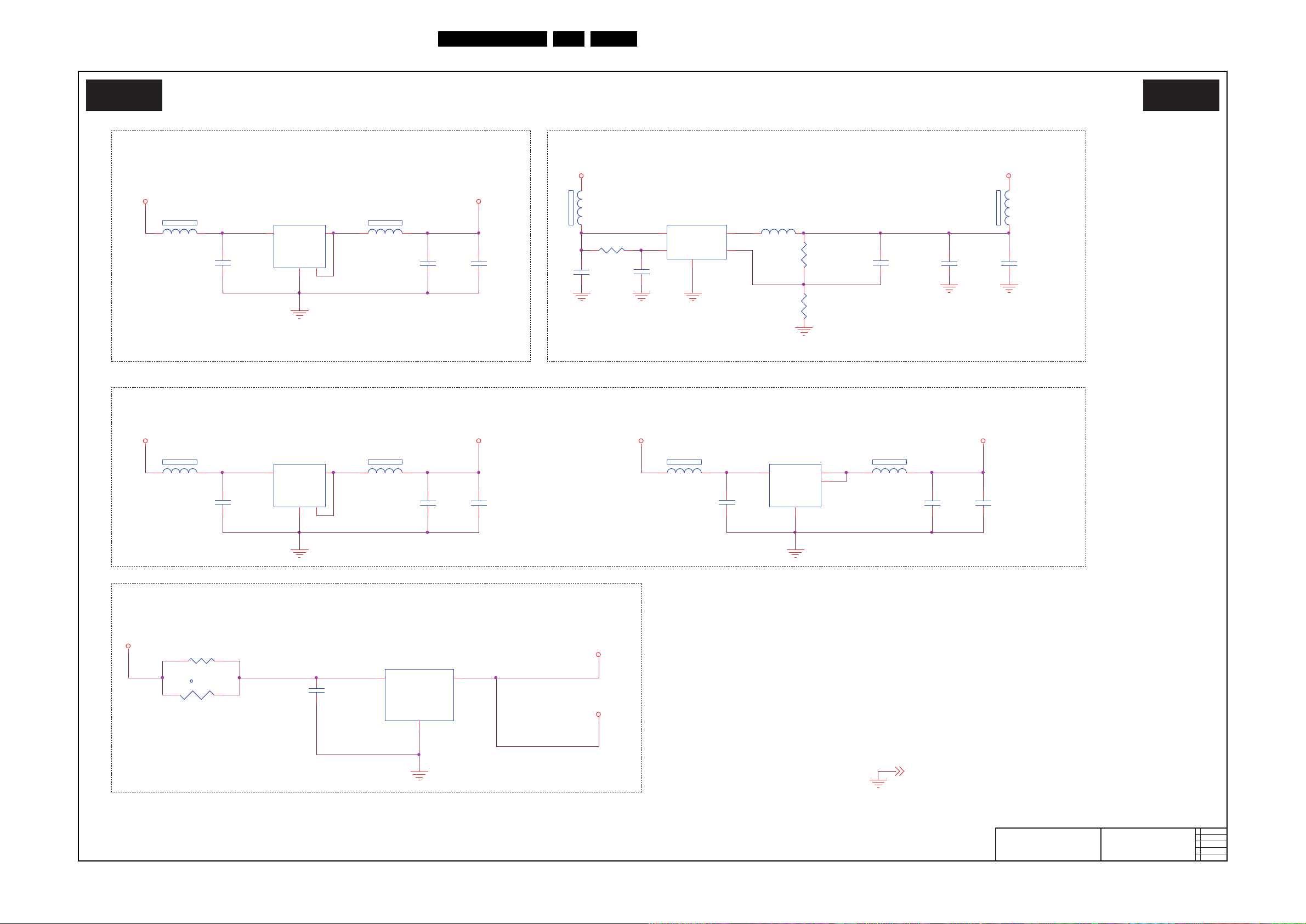

LDO Regulator (B21)58 59-60
J 715G3975 IR/LED board 61

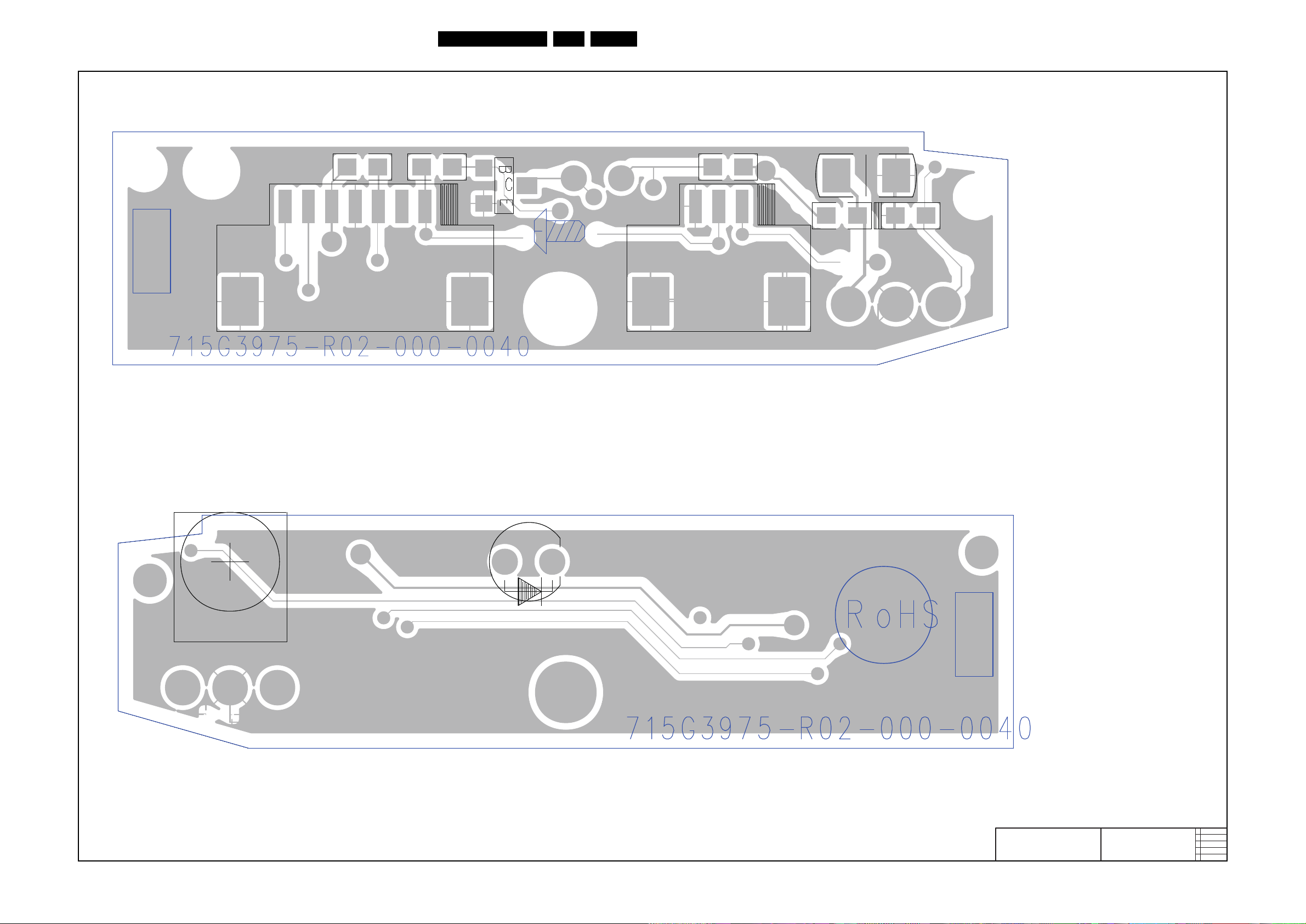

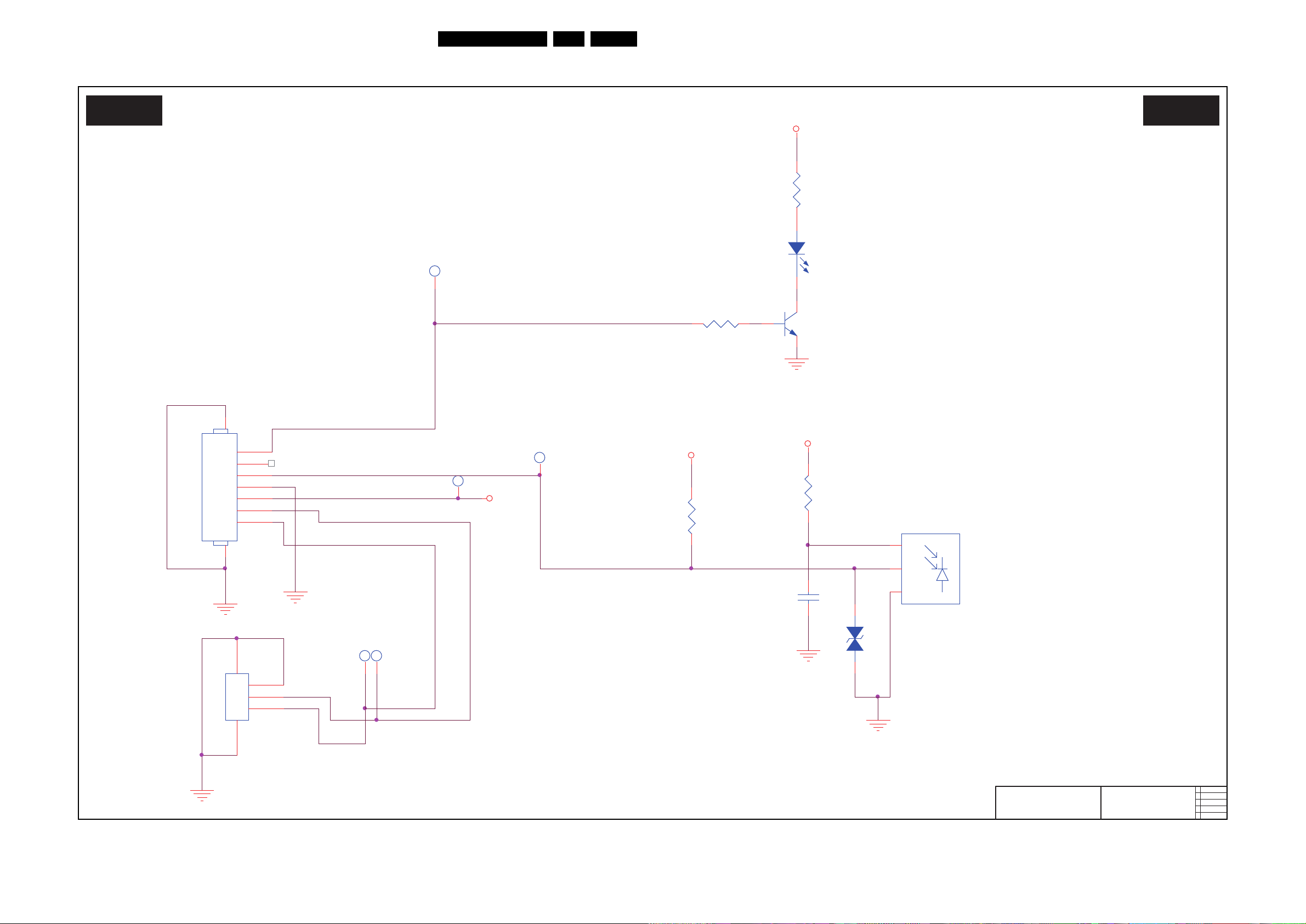

IR/LED board (J) 61 62

11. Styling Sheets
Smart Choice 22" 63

Published by MB/DoZ/WS 1169 BU TV Consumer CarePrinted in the Netherlands Subject to modification EN 3122 785 19190

2011-Sep-30

EN 2 TPM8.3L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in. Here is
product information available, as well as getting started, user
manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers:

Model Number Styling Published in

22PFL3606/77

Note: The given Model Number is subject to change.

Smart Choice 3122 785 19190

2.2 Dir ections for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

2011-Sep-30

2.3 Connections

TV ANTENNA

Y/VIDEOPB PR L R

Y PB PR L R

CVI 2/AV

VIDEO L R

AV out

CVI 1

AUDIO

VGA

PC IN

HDMI 1

SERV.U

HDMI VIDEO L - AUDIO - R

USB

19190_001_110901.eps

110923

9

10

11

1

2

6

7

8

3

4

5

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM8.3L LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - USB 2.0

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

2 - Head phone (Output)

Bk -Head phone 80 - 600 Ω / 10 mW ot

3 - Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Rd -Audio R 0.5 V
Wh -Audio L 0.5 V

4 - HDMI: Digital Video, Digital Audio - In

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j

/ 75 Ω jq

PP

/ 10 kΩ jq

RMS

/ 10 kΩ jq

RMS

2011-Sep-30

EN 4 TPM8.3L LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

2.3.2 Rear Connections

5 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

6 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 kΩ jq

RMS

7 - PC IN:VGA

Figure 2-4 VGA connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.

/ 75 Ω j

PP

/ 75 Ω j

PP

/ 75 Ω j

PP

5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V

DC

+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

8 - Service / UART

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

9 - HDMI1: Digital Video, Digital Audio - In

See 4 - HDMI: Digital Video, Digital Audio - In

10 - AV Out

Ye - Video CVBS 1 V
Rd -Audio R 0.5 V
Wh -Audio L 0.5 V

/ 75 Ω kq

PP

/ 10 kΩ kq

RMS

/ 10 kΩ kq

RMS

11 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu - Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 10 kΩ jq

RMS

/ 10 kΩ jq

RMS

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2011-Sep-30

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

EN 5TPM8.3L LA 3.

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 MΩ and 12 MΩ.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kΩ).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 Ω).

• All capacitor values are given in micro-farads (μ=× 10
nano-farads (n =× 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

-9

), or pico-farads (p =× 10

. Select

2011-Sep-30

-12

-6

),

).

EN 6 TPM8.3L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion

2011-Sep-30

Precautions, Notes, and Abbreviation List

EN 7TPM8.3L LA 3.

DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

D Inter IC Data bus

I

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used
for broadcast grade video.
Uncompressed digital component or
digital composite signals can be used.
The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

2011-Sep-30

EN 8 TPM8.3L LA3.

Precautions, Notes, and Abbreviation List

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or Pre-

conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Téléviseurs
SCL Serial Clock I
SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a 4-

wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY

SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280× 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024× 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2011-Sep-30

4. Mechanical Instructions

19190_100_110901.eps

110926

Mechanical Instructions

EN 9TPM8.3L LA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before removing

the rear cover.

1. Remove fixation screws [1], [2] and [3] that secure the rear
cover. See Figure 4-2

2. The rear cover is secured with locking clips at the side and
top of the cabinet. Pull the rear cover from the TV. This may
require more than average force. Push down the base by
one hand and pull up the bottom right corner of the rear

. Don’t remove the base.

Figure 4-1 Cable dressing 22"

3. Lift the rear cover from the TV. Make sure that wires and

cover by the other hand to release the clips at the right side
of the rear cover, see Figure 4-3
the same method to release the clips at the left side of the
rear cover. Lift bottom side of the rear cover to release clips
at the top side of rear cover, see Figure 4-5

flat foils are not damaged while lifting the rear cover from
the set.

and Figure 4-4, then use

.

2011-Sep-30

EN 10 TPM8.3L LA4.

19190_101_110913.eps

110913

M3 × 8

3

3 × 8

3 × 16

2

4

2

2

2

2

3

4

3

18860_106_100428.eps

100428

18860_107_100428.eps

100428

Pull up

Push down

19190_102_110901.eps

110926

3

3

3

3

1

2

Mechanical Instructions

Figure 4-2 Rear cover removal [1/4]

Push down

Pull up

Figure 4-3 Rear cover removal [2/4]

18860_105_100428.eps

100428

Figure 4-5 Rear cover removal [4/4]

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-6

for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from both the LVDS cables/Flat Foils

connectors that connect to the SSB [1].
Caution: be careful, as these are very fragile connectors!

2. Release the clamps and unplug all other connectors [2].

3. Remove all fixation screws [3] from the SSB.

4. Take out of the SSB. Refer to Figure 4-6

for details.

2011-Sep-30

Figure 4-4 Rear cover removal [3/4]

Figure 4-6 SSB removal

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug power connector from the SSB.

2. Unplug all other connectors from the PSU.

3. Remove all fixation screws from the PSU.

4. The PSU can be taken out of the set now.

Mechanical Instructions

18860_108_100429.eps

100601

1

EN 11TPM8.3L LA 4.

4.3.4 Speakers

1. Unplug speaker connectors from the SSB.

2. Release speaker cables from the clamps.

3. Take the speakers out.
When defective, replace both units.

4.3.5 Base removal

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Be sure to put the set in
the Service Position.

1. Remove the speaker cables as described earlier.

2. Remove the fixation screws.

3. Take the base out.
When defective, replace both units.

4.3.6 IR/LED Board

1. Unplug the connectors from the IR/LED board.

2. Release the clips that hold the board and take it out from
the bezel.

When defective, replace both units.

4.3.7 Keyboard Control Panel

Refer to Figure 4-7

1. Unplug the connector [1] on the IR/LED board that leads to
the Local Control board, as it is not unplug-able at the Local
Control board itself (soldered connector).

2. Release the cable from its clamps/tape.

3. Put your thumbs against the front bezel [1] while pulling the
Local Control board in the direction of the arrows

When defective, replace the whole unit.

.

7. Lift the LCD Panel from the bezel.

8. Remove the fixation screws that secure the panel with the
Metal frame.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

Figure 4-7 Keyboard Control Panel

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the speaker as described earlier.

4. Remove the base as described earlier.

5. Release the control board cable from its clamps and
unplug the control board cable from the IR/LED board.

6. Remove the fixation screws that secure the LCD panel with
the bezel.

2011-Sep-30

EN 12 TPM8.3L LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope. However, several key
ICs are capable of generating test patterns, which can be
controlled via ComPair. In this way it is possible to determine
which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 1kHz left, 400 Hz right.

5.2 Service Modes

The Service Mode feature is split into four parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Table 5-1 Service mode overview

Service Modes Description

SAM Service alignment mode
SDM Service default Mode
CSM Customer Service Mode, a 3-page compact

USB software
upgradeable

NVM-Editor in
SAM

Service Data New Service data in SAM for CTN, Prod.

USB copy/paste
in SAM

UART logging UART logging is available, however no

Blind SAM Remote control sequence “062598” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

SDM and SAM offer features, which can be used by the Service
engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be
made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification
when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer
(SAM).

status overview of the set. These pages will
be written to a dump file on a USB memory
stick upon entering CSM-mode

Software upgrading of flash memories
MTK-chips MT5301B can be done via USB.
The main software can be upgraded via
Autorun.upg

NVM-editor provides address and data field
editing

no., and 12NC programming with a virtual
keyboard

Channel list, NVM data, Readable info

specification of the output, according to
MTK definition.

“Menu” + “Panel code”

• Display information (“SDM” or “SAM” indication in upper
right corner of screen, error buffer, software version,
operating hours, options and option codes, sub menus).

CSM is a Service Mode that can be enabled by the consumer.
CSM displays diagnosis information, which the customer can
forward to the dealer or call centre. In CSM mode, “CSM”, is
displayed in the top right corner of the screen. The information
provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solve customer problems without home visit.

ComPair Mode is used for communication between a computer
and a TV on I
engineer to quickly diagnose the TV set by reading out error
codes, read and write in NVMs, communicate with ICs and the
μP (PWM, registers, etc.), and by making use of a fault finding
database. It will also be possible to up and download the
software of the TV set via I
ComPair has to be connected to the TV set via the ComPair
connector, which will be accessible through the rear of the set
(without removing the rear cover).

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SDM and SAM in a decimal value. Every two soft-resets
increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SDM, SAM, and CSM.
The screen will show: “AAAAAB X.YY”, where:

• AAAAA is the chassis name.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• X is the main version number: this is updated with a major
change of specification (incompatible with the previous
software version). Numbering will go from 01 - 99 and
AA - ZZ.

- If the main version number changes, the new version
number is written in the NVM.

- If the main version number changes, the default settings
are loaded.

• YY is the sub version number: this is updated with a minor
change (backwards compatible with the previous
versions). Numbering will go from 00 - 99.

- If the sub version number changes, the new version
number is written in the NVM.

- If the NVM is fresh, the software identification, version,
and cluster will be written to NVM.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a
predefined setting for measurements to be made. In this
platform, a simplified SDM is introduced (without protection
override and without tuning to a predefined frequency).

2

C /UART level and can be used by a Service

2

C with help of ComPair. To do this,

2011-Sep-30

Service Modes, Error Codes, and Fault Finding

19190_200_110902.eps

110902

19190_201_110902.eps

110926

EN 13TPM8.3L LA 5.

Specifications

• Set linear video and audio settings to 50%, but volume to
25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since
they interfere with diagnosing/repairing a set. These
service unfriendly modes are:
– (Sleep) timer.
– Blue mute/Wall paper.
– Auto switch “off” (when there is no “ident” signal).
– Hotel or hospital mode.
– Child lock or parental lock (manual or via V-chip).
– Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

– Automatic user menu time-out (menu switches back/

OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter:
“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it “off”, push the “MENU”
button again.

After activating this mode, “SDM” will appear in the upper right
corner of the screen (when a picture is available).

On Screen Menu

After activating SDM, the following items are displayed, with
“SDM” in the upper right corner of the screen to indicate that the
television is in Service Default Mode. Menu items and
explanation:

• xxxxx Operating hours (in decimal).

• AAAAAB X.YY See paragraph Software Identification,
Version, and Cluster for the SW name definition.

• ERR Shows all errors detected since the last time the
buffer was erased in format <xxx> <xxx> <xxx> <xxx>
<xxx> (five errors possible).

• OP Used to read-out the option bytes. Ten
codes (in two rows) are possible.

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the OK button to
switch to SAM (do not allow the display to time out between
entries while keying the sequence). Remarks: new RC will
not have I+ button, but function still remains.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button
on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key
in “00”-sequence.
Note: If the TV is switched “off” by a power interrupt while
in SDM, the TV will show up in the last status of SDM menu
as soon as the power is supplied again. The error buffer will
not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “695260”, directly followed by the “Info” button.
Do not allow the display to time out between entries while

ying the sequence.

ke

• Or via ComPair.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

Figure 5-1 SDM menu

How to Navigate

As this mode is read only, there is not much to navigate. To
switch to other modes, use one of the following methods:

• Command MENU from the user remote will enter the
normal user menu (brightness, contrast, colour, etc...) with
“SDM” OSD remaining, and pressing MENU key again will
return to the last status of SDM again.

• To prevent the OSD from interfering with measurements in
SDM, command “OSD” or “i+” (“STATUS” or “INFO” for
NAFTA and LATAM) from the user remote will toggle the
OSD “on/off” with “SDM” OSD remaining always “on”.

Figure 5-2 Example of SAM

2011-Sep-30

EN 14 TPM8.3L LA5.

Service Modes, Error Codes, and Fault Finding

Table 5-2 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts norma l operation hours, but does not count

Main SW ID e.g. “TPM82A 1.02” See paragraph Software Identification, Version, and Cluster for the SW name definition.
ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors possible.
OP1 e.g. “012 004 192 002 156 032 007

026”

OP2 e.g. “056 023 000 106 064 000 000

122”

Clear Press [OK] to clean the Error

Codes immediately

RGB Align Warm R Gain To align the White Tone. See

G Gain
B Gain

Normal R Gain

G Gain
B Gain

Cool R Gain

G Gain
B Gain

Store Store the RGB value

NVM editor Address Select and fill the NVM address

Value Select and fill the NVM value
Store Store the value in the address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

Copy NVM to USB
Copy Readable Info to USB

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Copy NVM from USB
Copy Readable Info from USB

Initialize NVM Press [OK] to Initialize NVM

immediately

EDID Write Enable Press [OK] to enable EDID

writable immediately

Service Data Type Number Press [OK] use key pad edit type

number immediately

Production Number Press [OK] use key pad edit

production number immediately

12NC SSB Press [OK] use key pad edit SSB

immediately

12NC PSU Press [OK] use key pad edit PSU

immediately

12NC Display Press [OK] use key pad edit display

immediately

Stand-by hours.

Option code is hard coded in SW, it cannot be edited in SAM mode. Only to show in
SAM system information.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGH T
key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID writable

Use Key pad to edit several service data

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button twice while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background). To return to the
SAM menu press the MENU button.

• The “INFO [i+]” key from the user remote will toggle the
OSD “on/off” with “SAM” OSD remaining always “on”.

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
to switch to SDM (do not allow the display to time out
between entries while keying the sequence). Remarks:
new RC will not have I+ button, but function still remain.

How to Store SAM Settings

To store the settings changed in SAM mode (except the
RGB ALIGN settings), leave the top level SAM menu by using
the POWER button on the remote control transmitter or the
television set. The mentioned exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as
soon as the power is supplied again. The error buffer will not be
cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the operation settings of the TV. The call centre
can instruct the customer (by telephone) to enter CSM in order
to identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

2011-Sep-30

Service Modes, Error Codes, and Fault Finding

19190_202_110902.eps

110926

19190_203_110902.eps

110902

19190_204_110902.eps

110926

EN 15TPM8.3L LA 5.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language
independent).

• Set the screen mode to full screen (all contents on screen
is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654”
(do not allow the display to time out between entries while
keying the sequence). After entering the Customer Service
Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first
installation of the TV. This date is acquired via time
extraction.

• 1.4 Option Code 1 Gives the option codes of option group
1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group
2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.7 Display Displays the 12NC of the NVM.

• 1.8 PSU Displays the 12NC of the PSU.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the Internet.

• 2.2 Standby SW Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 3.1 Child lock Not active/active. This is a combined item
for locks. If any lock (channel lock, parental lock) is active,
the item shall show “active”.

• 3.2 HDCP keys Indicates if the HDMI keys (or HDCP keys)
are valid or not. In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

Figure 5-3 CSM Menu [1/3]

Figure 5-4 CSM Menu [2/3]

Figure 5-5 CSM Menu [3/3]

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

How to Exit CSM

To exit CSM, use one of the following methods.

Press the MENU/HOME button on the remote control

•
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

5.2.5 Blind SAM Display Option Code Selection

When after an SSB or display exchange, the display option
code is not set properly, it will result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-2

. When the value is
accepted and stored in NVM, the set will switch to Stand-by, to
indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode, he needs to look to the side/bottom sticker to identify the
set, for further actions.

2011-Sep-30

EN 16 TPM8.3L LA5.

19080_206_110323.eps

110401

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Swith On,previously in
TV Operation Mode
(Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2011-Sep-30

Figure 5-6 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO
I2C SERVICE
CONNECTOR

TO TV

PC

HDMI
I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 17TPM8.3L LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to
repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. No
knowledge on I
because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair II interface box is connected to the PC via an
USB cable. For the TV chassis, the ComPair interface box and
the TV communicate via a bi-directional cable via the service
connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television, by a combination of
automatic diagnostics and an interactive question/answer
procedure.

How to Connect

This is described in the chassis fault finding database in
ComPair.

2

C or UART commands is necessary,

Note: When you encounter problems, contact your local
support desk.

Additional cables for VCOM Alignment

• ComPair/I2C interface cable: 3122 785 90004.

• ComPair/VGA adapter cable: 9965 100 09269.

Note: When you encounter problems, contact your local
support desk.

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the Internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A USB flash drive (preferably empty).

Figure 5-7 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs can be
blown!

Note:

1. Only FAT/DOS-formatted flash drives are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “123654” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.5.4 Download the latest software

1. Point the web browser to http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert a USB flash drive into one of the USB ports of the
PC.

5. Decompress the downloaded ZIP file and copy the
“autorun.upg” to the root directory of the USB flash drive.

5.5.5 Update the TV software

, it is

.

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM8.3x xx.
(using DB9 to 2mm pitch JST connector): 3122 785 90630.

1. Insert mains power and wait for system to boot completely.

2. Insert the USB flash drive that contains the software
update files.

3. The TV will detect the USB flash drive automatically. Then
a window jumps out as Figure 5-8

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-8

.

2011-Sep-30

EN 18 TPM8.3L LA5.

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Service Modes, Error Codes, and Fault Finding

5. To proceed, in next menu select [Start] and press OK to
start software updates. See Figure 5-9

.

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-10

.

19080_207_110324.eps

110324

Figure 5-8 Update the TV software [1/3]

Figure 5-9 Update the TV software [2/3]

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• FUS_clustername_version.zip: Contains the
“autorun.upg” which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.
Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
While copying to or from the USB “Repair” Folder to TV, the
files need to be named accordingly:

• Channel List: CM_TP83L_LA_CK.BIN

• NVM: NVM_TPM83L_LA_CK.BIN

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every.

• Activated (SW) protection.

•Failing I

• General I

The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a deadlock
situation. It must always be diagnosable
(e.g. error buffer via OSD or blinking LED or via ComPair).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

Errors code information:

• Error 000: No problem.

• Error 011: I

• Error 012: Tuner error. There is no I

• Error 013: Panel VCC error. This voltage is made in the

2

C device.

2

C error.

2

C bus error. When this error occurs, the TV will

not start up due to the blocked bus.

2

C communication

towards the tuner after start-up.

power supply and results in protection in case of absence.

Figure 5-10 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

2011-Sep-30

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).
Example:
– ERROR: 0 0 0 0 0: No errors detected.
– ERROR: 6 0 0 0 0: Error code 6 is the last and only

detected error.

– ERROR: 9 6 0 0 0: Error code 6 was detected first and

error code 9 is the last detected (newest) error.

• Via the blinking LED procedure
(when you have no picture). See paragraph

5.7 The Blinking LED Procedure

.

•Via ComPair.

Service Modes, Error Codes, and Fault Finding

EN 19TPM8.3L LA 5.

5.6.3 Error codes

Errors code information:

• Error 000: No problem.

• Error 011: I
not start up due to the blocked bus.

• Error 012: Tuner error. There is no I
towards the tuner after start-up.

• Error 013: Panel VCC error. This voltage is made in the
power supply and results in protection in case of absence.

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu.

• By using the following key sequence on the remote control
transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

2

C bus error. When this error occurs, the TV will

2

C communication

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red colour.
Example (2): the content of the error buffer is “12 9 6 0 0” After
entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

Additionally, the entire error buffer is displayed when Service
Mode “SDM” is entered.

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with
ComPair in case the SW is changed, the NVM is replaced with
a new (empty) one, or when the NVM content is corrupted.
After replacing an EEPROM (or with a defective/no EEPROM),
default settings should be used to enable the set to start-up and
allow the Service Default Mode and Service Alignment Mode to
be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4 Option Settings
the instructions. See also Table 6-2

5.8.4 Unstable Picture via HDMI input

Check (via ComPair) if HDMI EDID data is properly
programmed.

5.8.5 No Picture via HDMI input

Check whether the HDCP key is valid. This can be done in
CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Reflash the software.

5.8.7 CSM

When CSM is activated and there is a USB memory stick
connected to the TV, the software will dump the complete CSM
content to the USB memory stick. The file
(CSM_CTN name_serial no.txt) will be saved in the root of the
USB memory stick.

5.8.8 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.8.9 Display option code

.

for

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

Attention: In case the SSB is replaced, always check the
Display Code in CSM, even when picture is available.
Performance with the incorrect display option code can lead to
unwanted side-effects for certain conditions.

2011-Sep-30

EN 20 TPM8.3L LA6.

6. Alignments

Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 195 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 MΩ, Ci < 20 pF.

i

, 50/ 60 ± 3 Hz.

AC

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point

To store the data:

• Press OK on the RC before the cursor is moved to the

left

• Select “Store” and press OK on the RC

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of 61.25 MHz
(channel 3).

6.3.1 Display adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in Table 6-1

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

.

Table 6-1 White tone default settings

Picture mode

Normal
(9000K)

Cool (11000K) 22" 128 126 124
Warm (6500K) 22" 128 106 68

This group setting of colour temperature will be applied
automatically to the TV / VGA / HDMI / AV sources.

Screen
size

22" 128 118 107

Colour temperature

Red Green Blue

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5301B ICs (back-end advanced video picture improvement
IC which offers motion estimation and compensation features
(commercially called HDNM) is made known by the option
codes.

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. They can not be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-2
accepted and stored in NVM, the set will switch to Stand-by, to
indicate that the process has been completed.

Table 6-2 Display code overview

CTN_ALT BOM# Panel Type Display Code

22PFL3606/77 LGD LC216EXN-SDA1 135

. When the value is

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.
A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit (MENU > Setup > TV settings > Reinstall TV
> Start now) is to be set. To set all this, you can use the
ComPair tool or use the “NVM editor” and “Service Data” items
in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM. The loading of the
CTN and production code can also be done via ComPair
(Model number programming).

In case of a display replacement, reset the “Operation hours
display” to “0”, or to the operation hours of the replacement
display.

2

C

2011-Sep-30

7. Circuit Descriptions

19190_205_110902.eps

110926

DDR II × 1

64 M × 16 b /1066 MHz

I2C

DDC

NVM

128kb

RC

KEY UART

24C02

24C02

AUDIO AMP

AD82587

SPK

Digital Audio Output(COIXIAL)

PC IN

DDC

CVI × 2

CVBS × 2

CVBS

YPbPr

RGB

HDMI1

24C02

24C02

HDMI2

HDMI3

DDC

DDC

TMDS361B

SPDIF

I

2

S

LVDS (50/60 Hz)

[RX0 : RX3]

LCD PANEL

NAND FLASH

256 Mb

CVBS Out

USB1 2.0

Analog IF+/-

DDC

DDC

DDC

HeadPhone Out

CD4052BPW

R/L IN

Audio in MUX

A RF
TUNER

USB1 2.0

MT5301B

ATV
DEMOD

Circuit Descriptions

EN 21TPM8.3L LA 7.

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 Power Management

7.4 Circuit Description

7.1 Introduction

The TPM8.3L LA platform uses MT5301B. It supports decoder
and a TV controller offers high integration for advanced
applications. It combines a high definition video decoder, an
audio decoder, a dual-link LVDS/mini-LVDS transmitter, and
an NTST/PAL/SECAM TV decoder with a 3D comb filter
(NTSC/PAL).

7.1.1 Implementation

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

) and circuit diagrams (see chapter

).Where necessary,

you will find a separate drawing for clarification.

Key components of this chassis are:

• MT5301B System-On-Chip (SOC) TV Processor

• F35CT-6-E Tuner (analogue)

• TPA6132A2RTER Head Phone amplifier

• AD82587 audio amplifier

• TMDS361BPAGR HDMI switch

7.1.2 TPM8.3L Architecture Overview

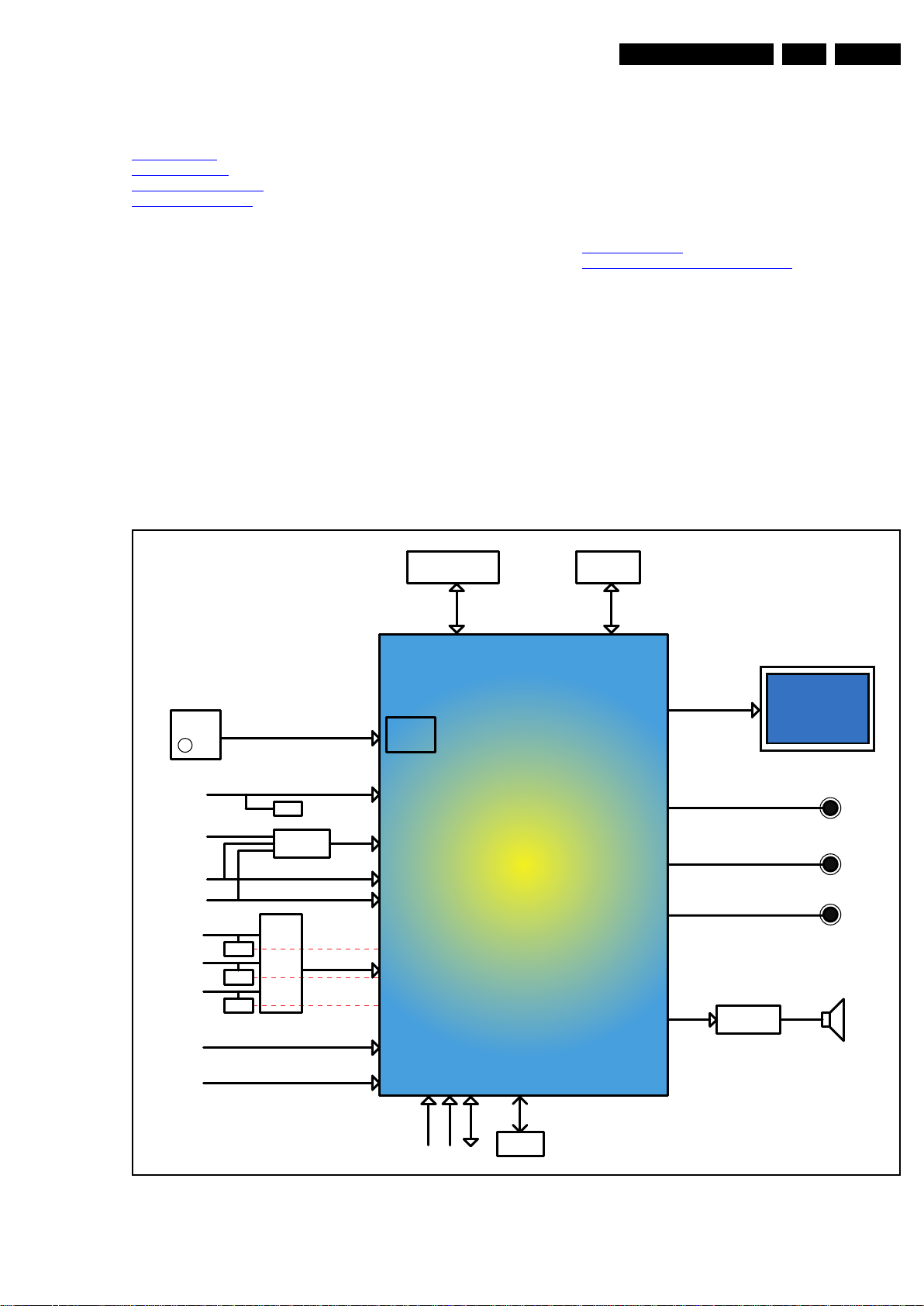

Figure 7-1 Architecture of TPM8.3L LA

2011-Sep-30

EN 22 TPM8.3L LA7.

19190_206_110905.eps

110926

USB

AV OUT

AV IN

HDMI

HDMI1

TUNER

VGA

DDR2

Audio
AMP

HDMI MUX

Audio

AV Out

CVI 2/AV

CVI 1

SERV.U

DC-DC

MT5301BCMU

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-2 SSB layout cells (top view)

2011-Sep-30

Circuit Descriptions

19190_207_110905.eps

110905

5V

Audio AMP
AD82587
U602

5VSB

VCCK

BUCK (2A)
G5657F12U
U704

OPWRSB

LDO
G903T63UF
U705

BS3V3BSV5

DC/DC
AOZ1242
U703

+12V

5V_TUNER

FB720

EEPROM
AT24C128BN-SH-B
U4103

NOR FLASH
MX25L6445EM2I-10G
NC/U405

USB Connect
CN104

USB Connect
CN103

SW
STMPS2171STR

NC/U1001

USB_PWR_ENx

5V_SW

HDMI SW
TMDS361BPAGR
U501

5V_SW

24V 12V

TUNER

5V_SW

L1108

VCCK

MT5301B

U401

DDR2
H5PS1G63EFR-G7C
1Gb-1066MHz
U402

DDRV

DV33SB

AVDD1V2

5V_SW

TDTR-T032D
F35CT-6-E
NC/TU101
TU102

FB603

FB502

FB703

+B_5V

FB1101

FB724

5V_BUCK

NC/FB725

BUCK_USB2

NC/FB701

FB702

+24V +12V

NC/FB709

FB708

+24V_12V

MOS SW
AO4449
NC/Q708

STANDBY

24V_12V_SW

NC/FB721

18V4_BUCK

FB1007

VUSB5V

VUSB1_5V

BUCK
SC189
U702

DDRV

FB101

AMUX_5V

Audio-in SW
CD4052BPWR
U102

FB501

5VDD5V_SW

AVDD1V2

5V_SW

LVDS_PWR_EN

MOS SW
AO4449
Q709

LVDSVDD
5V_BUCK
+12V

NC/FB712

FB711

NC/FB713

LVDS Connect
CN408 (40P)

LVDS Connect
NC/CN409 (30P)

FB716

FB717

DVDD3V3

AVDD3V3

VCCK

5VSB

5V_SW

AO4449
Q707

KCUB_3V3WS_V5

BUCK (2A)
SC189
U701

AVDD3V3

DVDD3V3

R631

AVDD3V3_HP

FB604

DVDD3V3_AMP

DV33_TMDS

NAND FLASH
HY27US08561A-TPCB
U403

FB727

FB726

AMP_PWR

HP AMP
TPA6132A2
U606

ADAC_PWR

DVDD3V3_AMP

NC/FB1112

5VSB

FB728

L704

FB719

FB718

L701

B715F

NC/FB1102

FB710

FB729

BUCK
SC189
U706

FB730

5V_SW

LDO
G903T63UF
U707

LDO
G912T63UF
U708

FB733

V3.3

V1.2

NC/FB1109

VDD12

NC/FB1110

AVDD1V2

FB1107

ASIC_3V3

NC/FB1108

AVDD3V3

FB1111

VDD33

AVDD3V3

FB731

Demod.
ATBM8848
NC/U101

FB732

LDO
G9084-50TU3U
U709

+12V

NC/FB1006

LDO_USB2

FB1008

19"~26"

NC/FB722

19"~26"

>=32"

>=32"

FB723
>=32"

>=26"

>=26"

(Reserved for Tuner and USB)

SW
STMPS2171STR

NC/U1002

VUSB2_5V

USB_PWR_ENx

TH1001

TH1002

5V_MEMC

USB2

USB1

R754

TH1003

EN 23TPM8.3L LA 7.

7.2 Power Supply

7.2.1 Power Supply Unit

Before checking other parts first check whether fuse on the
PSU is not broken. Always replace a defective fuse with one
with the correct specifications! This part is available in the
regular market.
Consult the Philips Service web portal for the order codes of the
boards.

7.3 Power Management

The output voltages to the chassis are:

• +5V-STANDBY for standby mode and panel

• +24V for audio circuit and tuner

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in screen sizes, but please note to always order the
correct replacement.

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by
controller, LED/IR receiver and controls; connector CN701
pin 11 and 12.

• +24V, input from the power supply for audio (in active
mode) and tuner; connector CN701 pins 8 and 9.

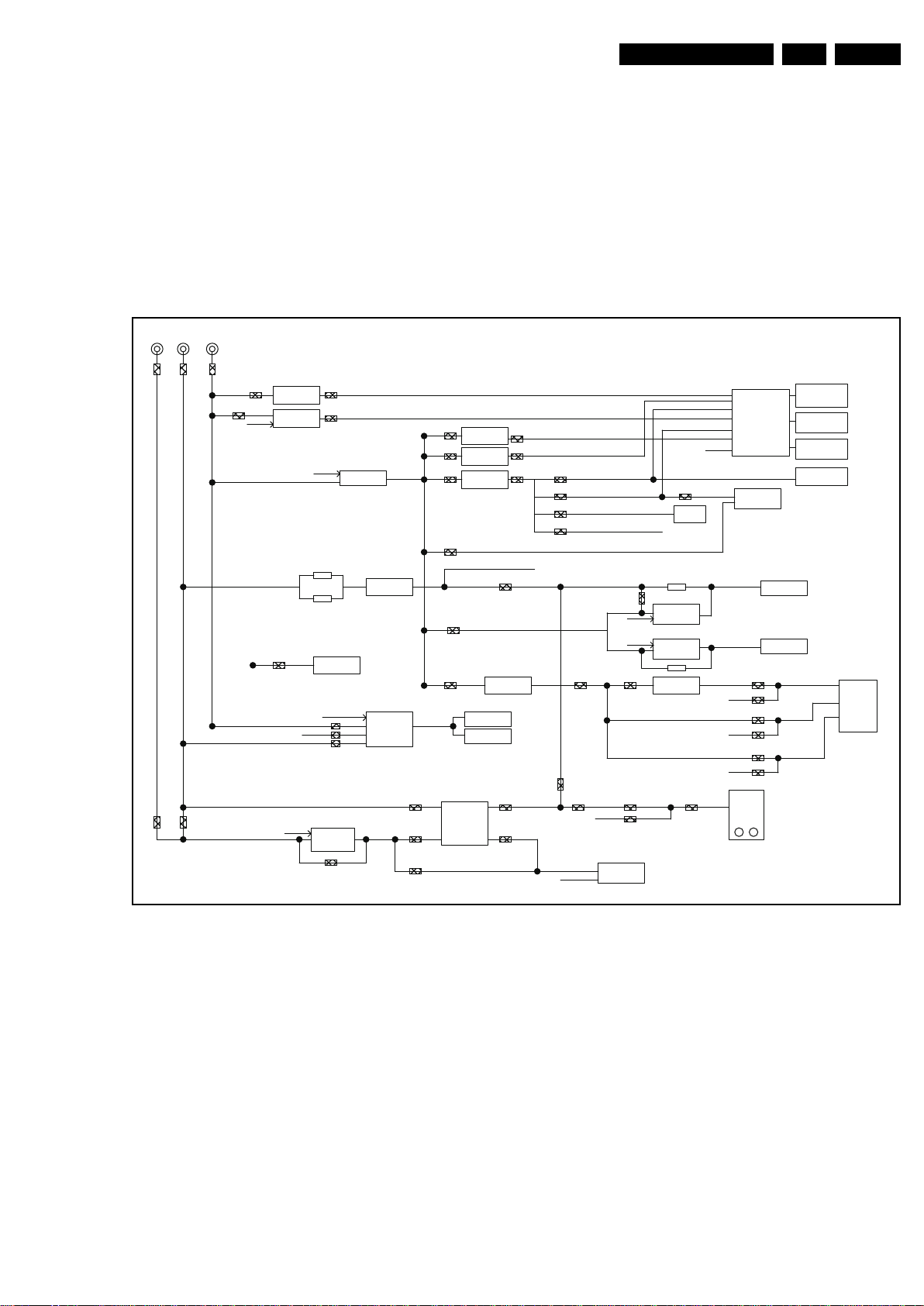

Figure 7-3 Power Architecture

2011-Sep-30

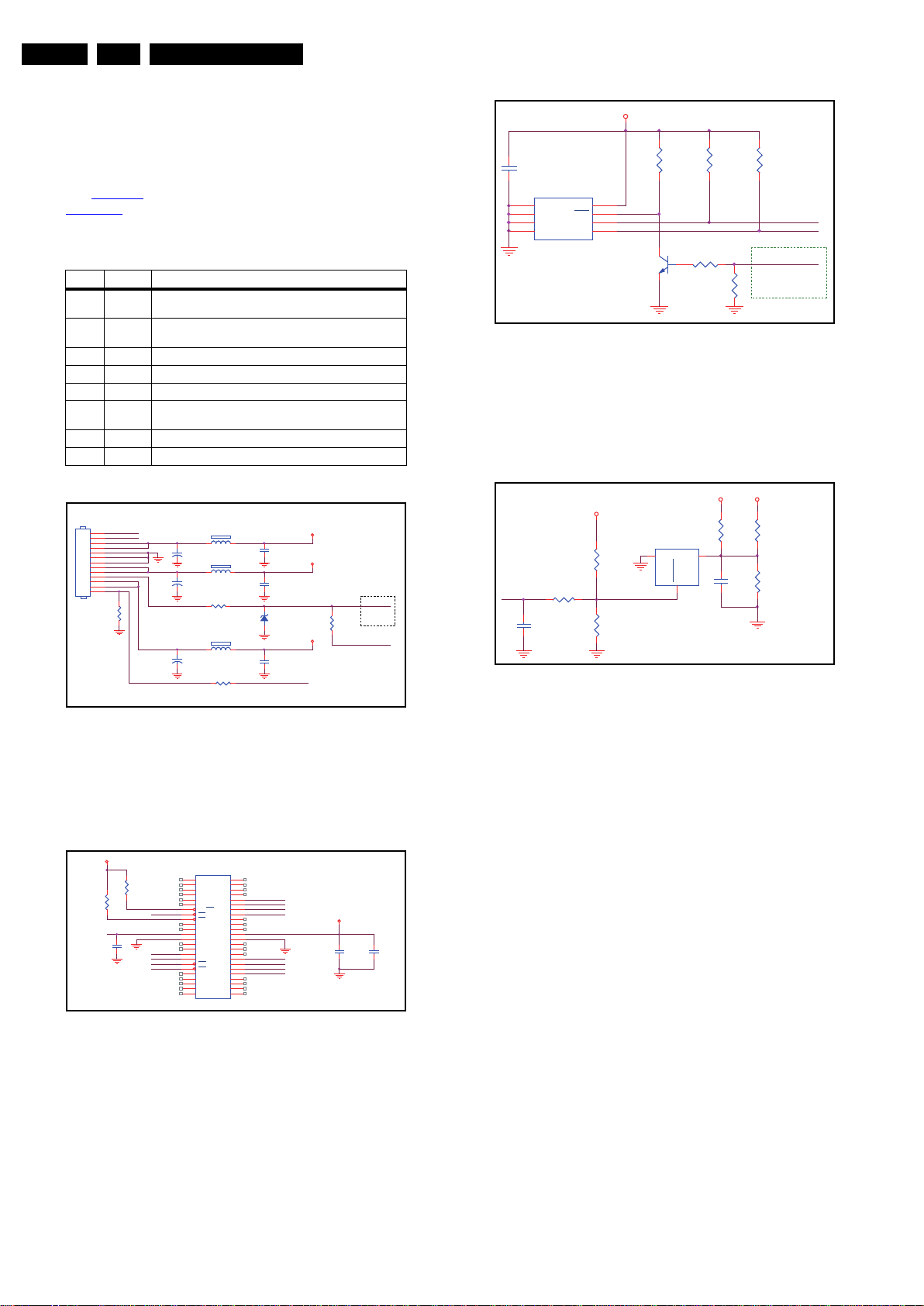

EN 24 TPM8.3L LA7.

19190_208_110905.eps

110905

C706

10uF 10V

NC/C702

100N 50V

BL_CTRL
BRI_ADJ

+

C703

330UF 35V

R738
NC/0R05 1/16W

PWR_OK

+

C705

470UF 10V

CN701

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

R701

10K 1/16W 5%

FB702

120R/6000mA

1 2

C704

100N 50V

ZD701

NC/BZX84C3V6

1 3

+24V

H : ON
L : Standby

+

NC/C701

330UF 35V

+12V

FB703

120R/6000mA

1 2

PSU_STBY

R750
0R05 1/10W

R712

8.2K 1/10W

OPWRSB

NC/FB701

120R/6000mA

1 2

5VSB

19190_212_110905.eps

110905

U4103

CAT24C128YI

4

8

5

6

1
2

3

7

VSS

VCC

SDA

SCL

E0
E1E2WC

R4105

2.7K 1/16W 1%

R4103

10K 1/16W 5%

DVDD3V3

I2C address at A0

R4104

2.7K 1/16W 1%

H: Write Enable

R4106

2.2K 1/16W

C4104

220N16V

OSCL0

R4109

10K 1/16W 5%

Q4101

PMBS3904

L: Write Protect

MEMOR Y_W P#

OSDA0

19190_213_110905.eps

110905

R4110

NC/ 100K 1/ 16W

C4123
NC/ 10P 50V

R4108

0R05 1/16W

R4111
NC/820R 1/10W 1%

R4139

0R05 1/16W

C4107

100N 16V

R4112

NC/1K8 1/10W 1%

R4140

NC/ 5K1 1/ 16W 5%

ORESET#

3V3SB

U4101
MAX809STRG

1

2

3

GND

RESET

VCC

3V3SB

5VSB

7.4 Circuit Description

7.4.1 System power

The main board power is received at connector CN701 from
power board, to receive the power and signals from the PSU.
See Table 7-1

Figure 7-4

Table 7-1 Connector CN701 overview

Item Pin Description

1 1 INVERTER_ON_OFF, Inverter board

2 2 BRIGHT_ADJ, Inverter bright PWM

3 3, 4 +12 V Supply
4 5, 6, 7 Ground
5 8, 9 +24 V Supply
6 10 STANDBY, Standby

7 11, 12 STB_PWR5V, +5VSB Supply
8 13 POWER OK

for the correct pining, The shown test points in

.

control (Low: ON, High: OFF)

control (Max.: 0 V, Min.: 3V3)

control (High: Normal, Low: Stand by)

Circuit Descriptions

Figure 7-6 NVM (U4103)

7.4.4 Reset (U4101)

When the input voltage for the MT5301B main processor drops
below 2.93 V, a system reset will be enforced by U4101.

Figure 7-4 System power

7.4.2 Nand flash Memory (U403)

The set uses a 256 MB NAND flash for software code

DVDD3V3

R4117

4K7 1/16W 5%

R4115

4K7 1/16W 5%

C4108

100N 16V

Figure 7-5 Nand flash Memory (U403)

7.4.3 NVM (U4103)

2011-Sep-30

The system NVM is a 128 KB IC. It contains all system settings.

DVDD3V3

PARB#
POOE#
POCE1#

PACLE
PAALE
POWE#
FLASH_WP#

U403

1

NC1

NC28

2

NC2

NC27

3

NC3

NC26

4

NC4

NC25

5

NC5

I/O7

6

I/O6

NC6

7

RY/BY1

I/O5

8

RE

I/O4

9

NC24

CE1

10

NC23

NC7

11

NC8

PRE

12

VCC1

VCC2

13

VSS2

VSS1

14

NC22

NC9

15

NC21

NC10

16

CLE

NC20

17

ALE

I/O3

18

WE

I/O2

19

WP

I/O1

20

NC11

I/O0

21

NC19

NC12

22

NC18

NC13

23

NC17

NC14

24 25

NC15 NC16

HY27US08561A-TPCB

48
47
46
45
44

PDD7
PDD6

43
42

PDD5

41

PDD4

40

39
38
37
36
35
34
33

PDD3

32

PDD2

31

PDD1

30
29

PDD0

28
27
26

DVDD3V3

DVDD3V3

C4109

100N 16V

19190_211_110905.eps

C4110

10uF 10V

110905

Figure 7-7 Reset (U4101)

7.4.5 Audio Amplifier (U602)

19190_214_110905.eps

110905

OSDA0

AOLRCK

AMP_PLL#

C631

0.47uF 16V

AMP_LB

AMP_DEF

R651 33R 1/16W 5%

AMP_PWR

AMP_LA

AMP_SA0

OSCL0

AMP_SA1

AMP_ERROR#

AMP_PD#

AMP_MONO

H: ON
L: Power Down

AOMCLK

U602

AD82587-LE48NAY

1
2

3

4
5
6
7

8

9
10
11
12

1314151617181920212223

24

25

26

27

28

29

30

31

32

33

34

35

36

3738394041

42

434445

46

47

48

49

VDDLA
NC
NC
NC
NC
PLL
MCLK
CLK_OUT
DGND
DVDD
DEF
SDATA

NC

MONO

LRCIN

BCLKPDERROR

RESET

SA0

SA1NCNC

SCL

SDA

DGND

DVDD

NC

NC

NC

NC

NC

NC

NC

NC

VDDRA

RA

NC

GNDR

NC

RB

VDDRB

VDDLB

LB

NC

GNDL

NC

LA

THERMALPAD

R649

33R 1/ 16W 5%

R650 33R 1/16W 5%

DVDD3V3_AMP

R648

33R 1/ 16W 5%

AMP_PD#

AMP_RB

AMP GND

AMP_RESET#

AMP_PD#

AOSDATA0

DVDD3V3_AMP

AOBCLK

R654

0R05 1/ 16W

AMP_ERROR#

AMP_RA

19190_210_110905.eps

110926

5V_TUNE R

R734

47K 1/16W 5%

U703

AOZ1242AI

1
2

3

45

6

7

8

LX

BST

GND

FBCOMP

EN

VIN

VBIAS

D702

SX34

1 2

C739

NC/1UF 10V

5V_BUCK

C732

180P 50V

C731

1uF 50V

C738

NC/1UF 10V

FB725

NC/120R /3000mA

1 2

C734 1uF 25V

L703

15uH

C737
10uF 25V

FB723

120R/3000mA

1 2

5.2 V Main Power (3 A)

FB724

120R/3000mA

1 2

C736
10uF 25V

C733

1.2nF 50V

R736

56K 1%

BUCK_USB2

FB722

NC/120R /3000mA

1 2

FB721

NC/120R /3000mA

1 2

5V_BUCK

+12V24V_12V_SW

18V4_BUCK

5V_BUCK

C730

1uF 50V

R735

15K 1/16W 5%

R737

10K 1%

C735
100N 50V

FB720

120R/3000mA

1 2

+

C729

100UF 50V

Circuit Descriptions

EN 25TPM8.3L LA 7.

The platform use I

2

S to link audio amplifier IC.

7.4.6 Tuner power

AOZ1242AI provides the tuner power of approximately 5 V.

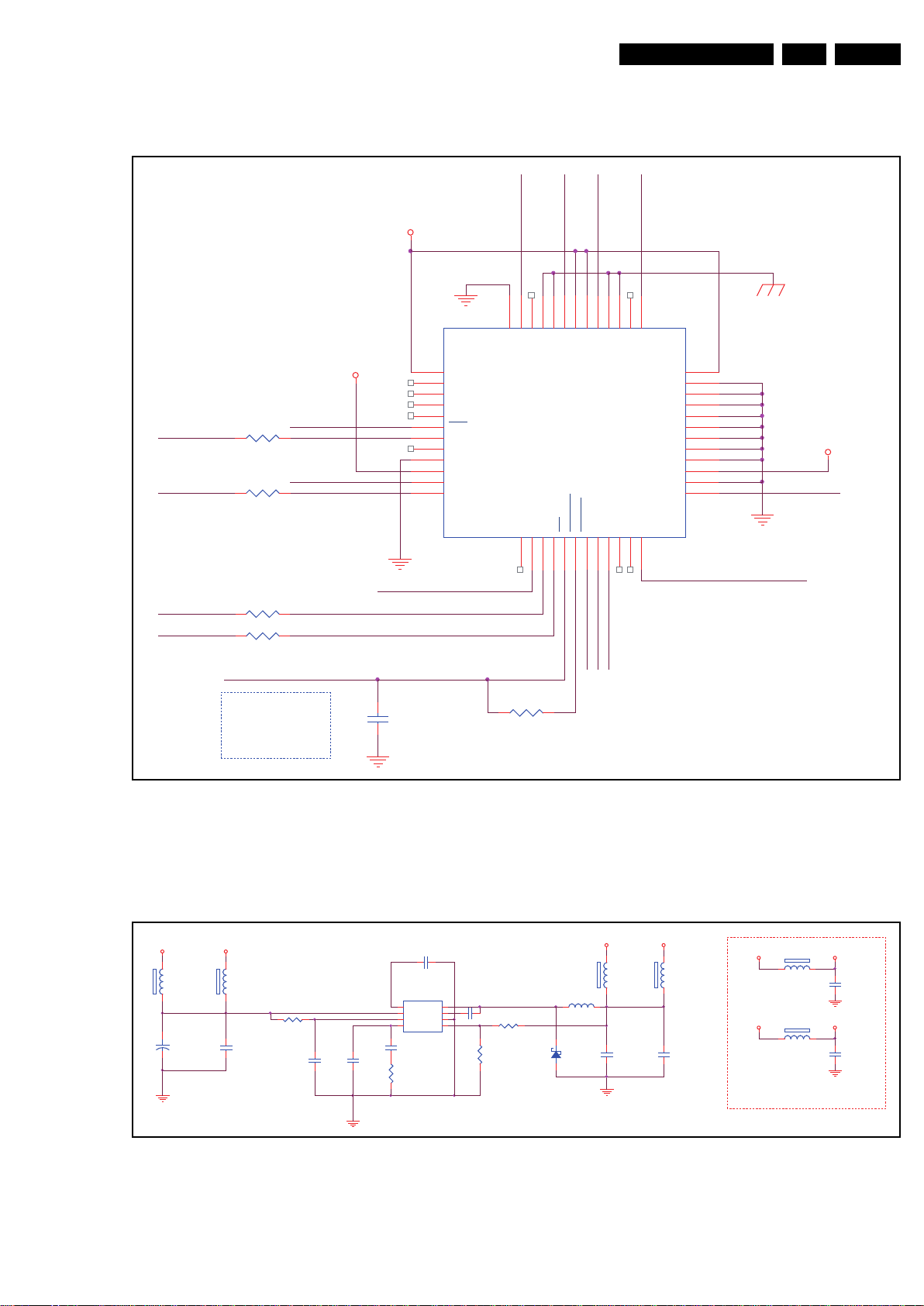

Figure 7-8 Audio Amplifier (U602)

Figure 7-9 Tuner power

2011-Sep-30

EN 26 TPM8.3L LA7.

19190_215_110905.eps

110905

L : Mute

L: MUT E

R628
10K 1/16W 5%

D601
NC/1N4148W

V_MUTE

R665

NC/ 100R 1/ 16W 5%

H: UN-MUTE

Q601

PMBS3904

5V_SW

POP_MUTE#

R621
470K 1/16W 5%

D603
BAT54C

ZD601

BZX84C3V6
1 3

R620
10K 1/16W 5%

Q605

PMBS3904

R630

NC/ 100R 1/ 16W 5%

Q604

PMBS3904

R624

2.2K 1/16W

Q602

PMBS3904

5VSB

D602

BAT54C

C604
1uF 16V

DVDD3V3_AMP

R629
1K 1/16W 5%

AMP_PD#

R622

100R 1/16W 5%

+12V

+12V

Q603

PMBS3906

1

2 3V_MUTE

A_MUTE

R626
1K 1/16W 5%

C603

100N 50V

R618
47K 1/16W 5%

5VSB

H: ON
L: Po wer Dow n

R627

1K 1/16W 5%

V_MUTE

Q606

PMBS3904

5V_SW

R623

470OHM1/10W

V_MUTE

R619
10K 1/16W 5%

H : Un-mute

19190_209_110905.eps

110926

AVDD3V3

C721
10U 16V

3.3 V Main Power

3V3_BUCK

FB717

120R/3000mA

1 2

L701

2.2uH

FB716

120R/3000mA

1 2

C722

1UF 10V

C723

1UF 10V

3V3_BUCK

C717
10U 16V

C720
10U 16V

C719

10N 50V

R728

1K 1/16W 5%

R730

10K +-1% 1/16W

3V3_BUCK5V_SW

R729

23.7K 1%

DVDD3V3

C718

10N 50V

U701 SC189ASKTRT

4

1

3

5

2

VOUT

VIN
EN

LX

GND

FB715

120R/3000mA

1 2

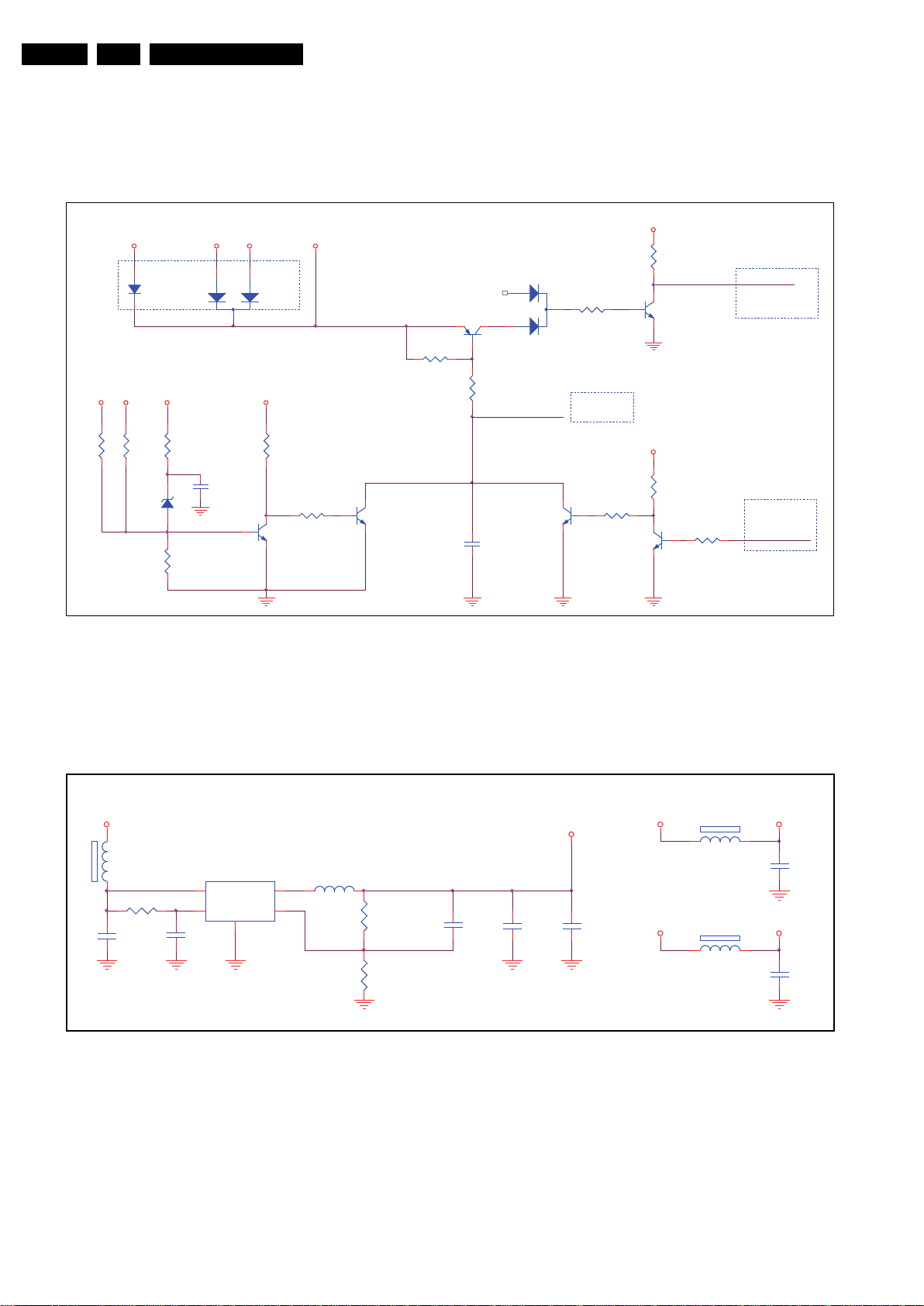

7.4.7 Audio Mute circuit

This circuit will provide a “high-to-low” pulse when the +5 V
SSB power line goes low. This will trigger the related audio
mute circuit, preventing the audio circuit making uncontrolled
sounds.

Circuit Descriptions

7.4.8 AV33 and DV33 (U701)

The circuit around U701 will provide the main 3.3 V power
supply to the SSB.

7.4.9 Tuner

The tuner covers as followed:

• VHF LOW BAND: from 49.75 MHz to 144.25 MHz.

• VHF HIGH BAND: from 156.25 MHz to 448.25 MHz.

• UHF BAND: from 456.25 MHz to 863.25 MHz.

2

C bus control of tuner, address selection.

I

Figure 7-10 Audio Mute circuit

Figure 7-11 AV33 and DV33 (U701)

2011-Sep-30

IC Data Sheets

19160_300_110622.eps

110623

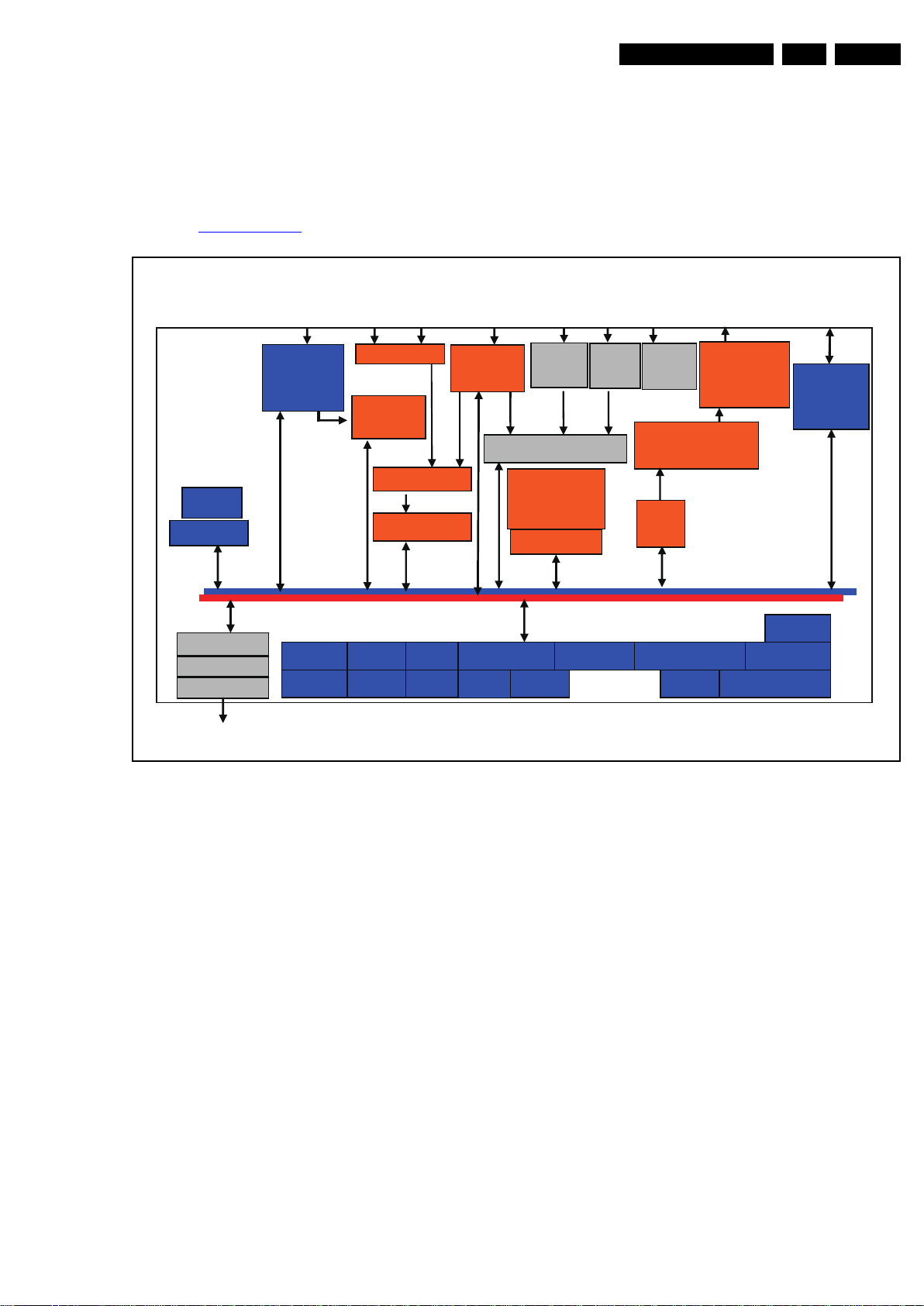

Block diagram

MT5301BCMU

JPEG/MP2/MP

4/DivX/H.264/V

C-1/RM/AVS

Component

Analog Input

16-bit

DDR2/DDR3

DRAM Bus

JTAG

IO Bus

USB2.0

UART

I 2 C

PWM

IrDA

PCR SDIO

Audio DSP

NTSC/PAL

/ SECAM

ATD

Watchdog

CVBS/

YC Input

Audio I/F

SPDIF Out, I2S

RTC

2-D Graphic

OSD

scaler

VADCx4

TV

Decoder

HDMI In

I/F

LVDS, OD,
mini-LVDS,

TCON

Audio

Input

Mix and Post

Processing

DDR2
DDR3

Controller

BIM

ARM11

HDMI

Rx

Panel

VDO-In

NAND Flash

Audio DAC

CKGEN

Audio
Demo

De-interlace

Audio In

Audio

ADC

Serial Flash Servo ADC

Tuner

In

BScan

SPDIF

In

Tuner

In

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram MT5301BCMU B01, MT5301B QFP256 (IC U401)

EN 27TPM8.3L LA 8.

Figure 8-1 Internal block diagram

2011-Sep-30

EN 28 TPM8.3L LA8.

19160_301_110622.eps

110622

Pinning information

GPIO4

GPIO8

GPIO7

GPIO12

GPIO6

GPIO11

GPIO3

GPIO10

GPIO2

GPIO1

GPIO0

VCC3IO

VCCK

GPIO13

POWE_

PAALE

PACLE

POCE1_

PARB_

POOE_

POCE0_

PDD7

VCC3IO

PDD6

PDD5

PDD4

PDD3

PDD2

PDD1

PDD0

CI_INT

GPIO

GPIO

GPIO

VCCK

VCC3IO

GPIO

GPIO

GPIO

GPIO

OS DA2

OS CL2

GPIO

RF_AGC

IF_A G C

AOLRCK

AOSDATA0

AOMCLK

AOBCK

AOSDATA1

AS PDIF

VCCK

VCCK

AR1_ADAC

AR0_ADAC

AL1_ADAC

AL0_ADAC

AVSS33_DAC

AVDD33_DAC

AVDD33_AADC

AIN0_L_AADC

VMID_AADC

AIN0_R_AADC

LOUTP

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

23 9

238

23 7

23 6

23 5

23 4

233

23 2

23 1

23 0

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

FSRC_WR

1 192

AVDD33_XTAL_STB

GPIO14

2 191

XTALI

VCC3IO

3 190

XTALO

AVDD12_VPLL

4 189

AVDD33_DEMOD

AE5P

5 188

AVSS33_DEMOD

AE5N

6 187

AVSS12_DEMOD

AE4P

7 186

AVDD33_IFPGA

AE4N

8 185

ADCINN_DEMOD

AE3P

9 184

ADCINP_DEMOD

AE3N

10 183

AVDD12_DEMOD

AECKP

11 182

AVDD33_CVBS

AECKN

12 181

CVBS0P

AE2P

13 180

CVBS_C

OM

AE2N

14 179

CVBS1P

AE1P

15 178

SY0

AE1N

16 177

SC0

AE0P

17 176

SY1

AE0N

18 175

SC1

AVDD33_LVDSA

19 174

AVDD12_PLL

AVDD33_LVDSA

20 173

VCCK

AO5P

21 172

FS_VDAC

AO5N

22 171

AVDD33_VDAC

AO4P

23 170

VDAC_OUT1

AO4N

24 169

VDAC_OUT2

AO3P

25 168

AVSS12_RGB

AO3N

26 16

7

AVDD12_RGB

AOCKP

27 166

PR0P

AOCKN

28 165

PB0P

AO2P

29 16

4

COM0

AO2N

30 163

Y0P

AO1P

31 162

SOY0

AO1N

32 161

PR1P

AO0P

33 160

PB1P

AO0N

34 159

COM1

VCCK

35 158

Y1P

VCCK

36 157

SOY1

VCCK

37 156

RP

AVDD12_MEMPLL

38 155

COM

AVSS12_MEMPLL

39 154

GP

RODT//RCKE

40 153

SOG

RA8//RA10

41 152

BP

RA13//RBA1

42 151

HSYNC

RA11//RA4

43 150

VSYNC

RA4//RA1

44 149

AVDD33_VGA_STB

RA6//RA6

45 148

AV

DD10_LDO

RA0//RA8

46 147

ADIN4_SRV

RA2//RA11

47 146

ADIN3_SRV

RCAS_//RA12

48 145

ADIN2_SRV

RCS_//RRAS_

49 144

ADIN1_SRV

RRAS_//RCAS_

50 143

ADIN0_SRV

RA9//RWE_

51 142

VC

CK

VCC2IO

52 141

VGA_SCL

RA12//RA0

53 140

VGA_SDA

RA7//RA13

54 139

OPWRSB

RA5//RA9

55 138

OPCTRL1

NC//RRESET_

56 137

OPCTRL0

RA3//RA7

57 136

OIRI

RA

1//RA2

58 135

U0TX

RA10//RA5

59 134

U0RX

RBA1//RA3

60 133

AVDD33_PDM_STB

RBA0//RBA2

61 132

OPCTRL2

RBA2//RBA0

62 131

OPCTRL4

RWE_//RCS_

63 130

OPCTRL3

RCKE//RODT

64 129

OPCTRL5

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

VCCK

RVREF

RDQ4//RDQ4

RDQ3//R D Q6

VCC2IO

RDQ1//RDQ2

RDQ6//RDQ0

RDQ12//RDQ11

RDQ9//RDQ9

VC
C2IO

RDQ14//RDQ13

RDQ11//RDQ15

RDQM1//RDQM1

VCCK

RDQS0//RDQS 0

RDQS0 _ //RDQS 0_

RDQM0//RDQM0

VCC2IO

RDQS1//RDQS 1

RDQS1_//RDQS 1_

RDQ15//RDQ12

RDQ8//R D Q14

VCC2IO

RDQ10//RDQ10

RDQ13//R D Q 8

RDQ7//RDQ1

RDQ0//RDQ3

VCC2IO

RDQ2//RDQ7

RDQ5//RDQ5

VCC2IO

RCLK0//RCLK0

RCLK0_//RCLK0_

VCCK

JTDO

JTCK

JTMS

JTDI

JTRST_

OPWM0

VCC3IO

VCCK

US B_2P_DM1

US B_2P_DP1

US B_2P_DM0

US B_2P_DP0

AVDD33_USB_2P

US B_2P_VRT

AVDD33_HDMI

RX_CB

RX_C

RX_0B

RX_0

RX_1B

RX_1

RX_2B

RX_2

AVDD12_HDMI

HDMI_CEC

HDMI_SDA

HDMI_

SCL

HDMI_HPD

PWR5V

ORESET_

MT5301BCMU

IC Data Sheets

Figure 8-2 Pin configuration

2011-Sep-30

8.2 Diagram I2S Post Amplifier & SPIDF Out B17, AD82587 (IC U602)

19160_303_110622.eps

110926

Block diagram

Pinning information

MCLK

CLK_OUT

DVDD

DGND

DEF

SDATA

MONO

LRCIN

SDA

SCL

SA1

SA0

ERROR

PD

RA

GNDR

RB

LB

VDDRB

VDDLB

LA

GNDL

BCLK

Reset

1
2

3

4
5

6
7

8

9

48

474645

44434241403938

37

DVDD
DGND

N.C.

N.C .

N.C.

N.C.

N.C.

N.C.

N.C.

VDDLA

VDDRA

NC
..

N.C .

AD82587

AD82587

10
11
12

24

23

22

21

20

19

18

17

16

15

14

13

36

35
34

33

32
31
30

29

28
27
26
25

N.C.

N.C.

N.C.

N.C.

N.C.

N.C.

N.C.
N.C.
N.C.
N.C.

PLL

BCLK

SDATA
LRCIN

MONO

Input

Interface

I2C Control

Interface

SDM

PCM to PWM

Reset

PD

MCLK

SCL

SDA

SA0

SA1

Internal
System

Clock

PLL

PLL

L
R

ERROR

Logic

Interface

Loudspeaker

Driver

Audio Signal

Processing

IC Data Sheets

EN 29TPM8.3L LA 8.

Figure 8-3 Internal block diagram and pin configuration

2011-Sep-30

EN 30 TPM8.3L LA8.

18850_304_100107.eps

100809

Block diagram

Pinning information

IC Data Sheets

8.3 Diagram Headphone Out B16, TPA6132A2RTER (IC U606)

HPVDD

–

+

HPVSS

INL-

INL+

Resistor

Array

VDD

Supply
Control

Short-Circuit

Protection

HPVDD

2.2 F

PGND

OUTL

INR-

INR+

G0
G1

Gain

Select

INL-

Resistor

Array

1

SGND

LTUO

16

HPVDD

–
+

HPVSS

Click-and-Pop

Suppression

EN

DNGS

DDV

15

14

Protection

HPVSS

NE

13

Thermal

HPVDD

Charge

Pump

12

HPVDD

OUTR

CPP

1F

CPN

1F

2011-Sep-30

INR-

2

3

4

7

6

5

RTUO

G0

G1

INL+

INR+

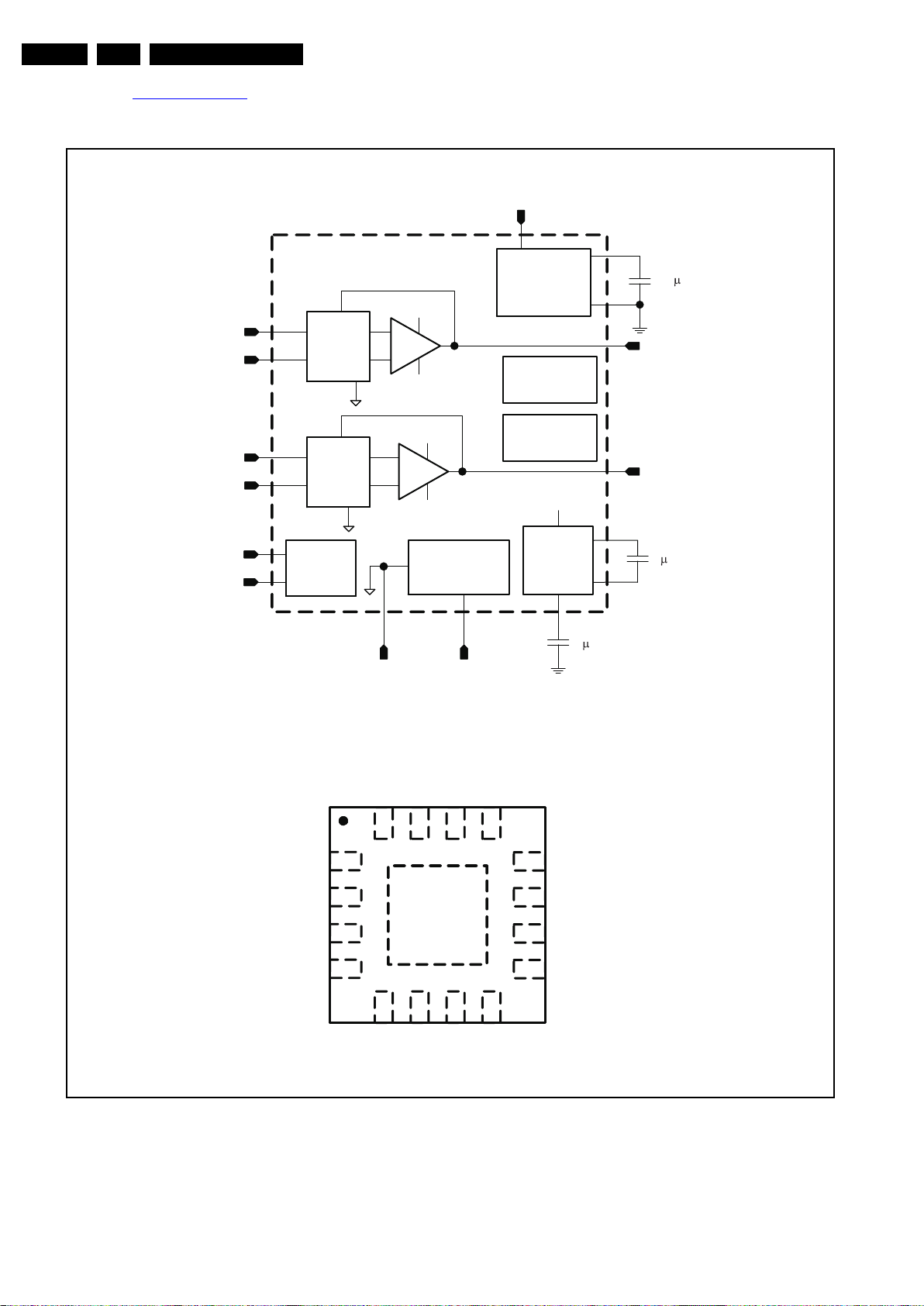

Figure 8-4 Internal block diagram and pin configuration

11

CPP

10

PGND

9

CPN

8

SSVPH

8.4 Diagram HDMI A & Switch 3:1 B04, TMDS361BPAGR (IC U501)

19160_304_110622.eps

110622

Block diagram

Pinning information

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

SDA3

SCL3

GND
CLK–_3
CLK+_3

VCC
D0–_3
D0+_3

GND
D1–_3
D1+_3

VCC
D2–_3
D2+_3

GND

VSadj

7 1

8 1

9 1

0 2

2 1

2 2

3 2

4 2

5 2

6 2

7 2

8 2

2 9

0 3

1 3

2 3

S _ + 2 D K N I

2 D K N I S _ –

C C V

N I S _ + 1 D K

N I S _ – 1 D K

N G D

_ + 0 D K N I S

N I S _ – 0 D K

C V C

L C K N I S _ + K

S _ – K L C K N I

G D N

_ L C S K N I S

I S _ A D S K N

S _ D P H K N I

1 S L C S /

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33

D2+_1
D2–_1
VCC
D1+_1
D1–_1
GND
D0+_1
D0–_1
VCC
CLK+_1
CLK–_1

SCL1
SDA1

HPD1
I2C_SEL
S2/SDA

4 6

3 6

2 6

1 6

0 6

9 5

8 5

7 5

6 5

5 5

4 5

5 3

2 5

1 5

0 5

9 4

D P H 3

+ 2 D 2 _

2 _ – 2 D

V C C

+ 1 D 2 _

2 _ – 1 D

D N G

+ 0 D 2 _

2 _ – 0 D

V C C

K L C 2 _ +

K L C 2 _ –

2 L C S

S 2 A D

D P H 2

P L

TMDS361B

64-pin TQFP

HPD_SINK

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDSRx

R

INT

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDS Rx

R

INT

Dx+_1

Dx–_1

CLK+_1

CLK–_1

Dx+_3

Dx–_3

CLK+_3

CLK–_3

xx2

Rx

Tx

Rx

Tx

SCL1

SDA1

Rx

Tx

Rx

Tx

SCL3

SDA3

HPD1

HPD2

HPD3

VSadj

Dx+_SINK

Dx–_SINK

CLK+_SINK

CLK–_SINK

TMDS Tx

TMDS Tx

Tx

Rx

Tx

Rx

SDA_SINK

SCL_SINK

S1/SCL

S2/SDA

I2C_SEL

Clock Detect

LP

TMDS Rx

w/AEQ

TMDS Rx

w/AEQ

3:1

MUX

and

2

IC Data Sheets

EN 31TPM8.3L LA 8.

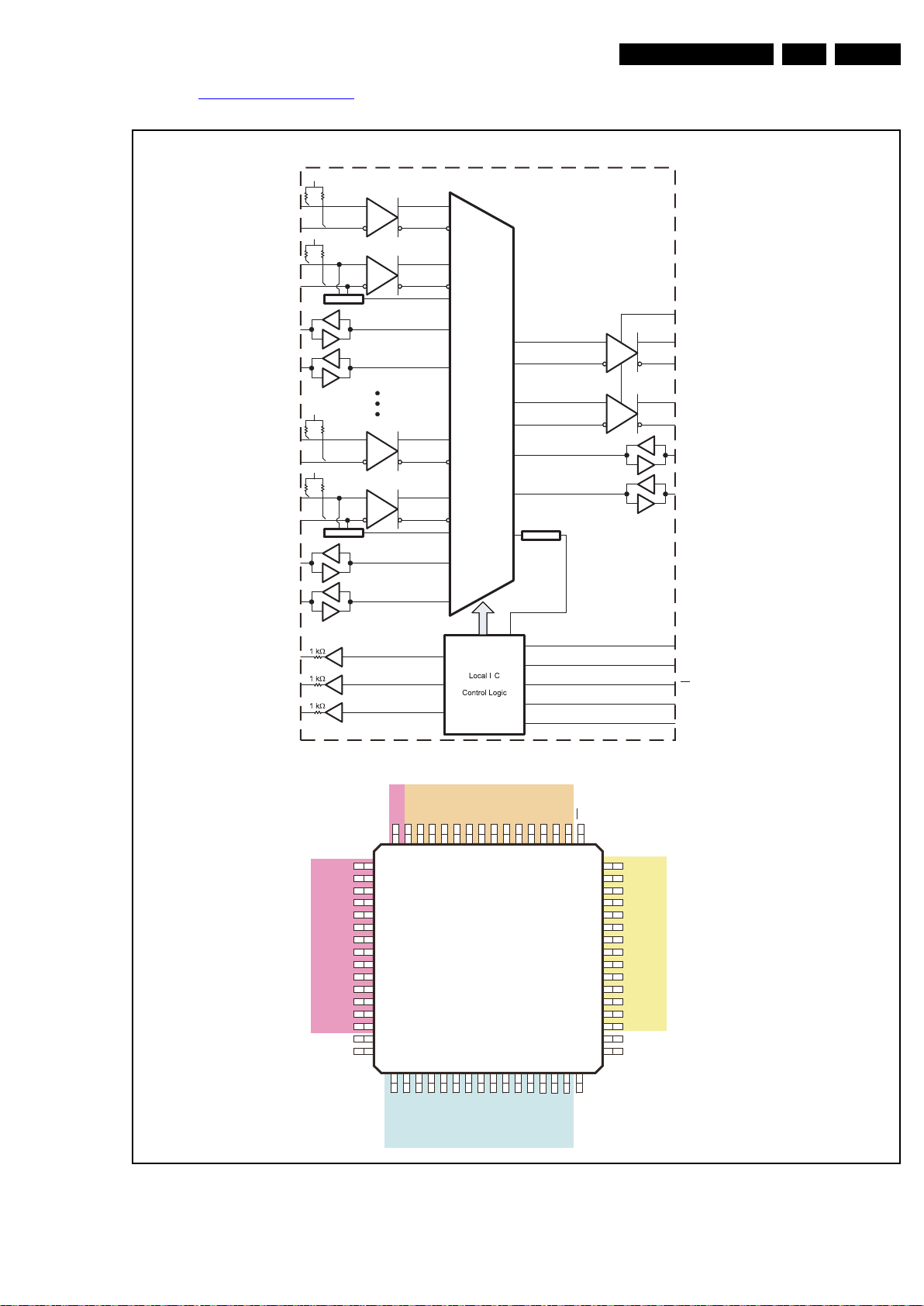

Figure 8-5 Internal block diagram and pin configuration

2011-Sep-30

EN 32 TPM8.3L LA8.

Personal Notes:

10000_012_090121

110

IC Data Sheets

2011-Sep-30

9. Block Diagrams

9-1 Wiring diagram 22"

WIRING DIAGRAM 22"

Board Level Repair

Component Level Repair
Only For Authorized W orkshop

(Smart Choice)

Block Diagrams

CN903

1. +24V

2. +24V

3. +24V

4. +24V

5. +24V

EN 33TPM8.3L LA 9.

LCD DISPLAY

(1050)

TO

BACKLIGHT

CN701

13. PWR_OK

12. 5VSB

11. 5VSB

10. PSU_STBY

9. +24V

8. +24V

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. BRI_ADJ

6. GND

7. GND

8. GND

9. GND

10. GND

11. -

12. LED-ON/OFF

13. DIM

14. LED STATUS

CN902

1. LED STATUS

2. -

3. STB

4. +24V

5. +24V

6. GND

7. GND

8. GND

9. 5V2

10. PWM

11. DIM

12. LED-ON/OFF

1. BL_CTRL

LCD DISPLAY

(1050)

CN408

1. GND

2. TX_AO0N

3. TX_AO0P

4. TX_AO1N

5. TX_AO1P.....35. SELLVDS

36. ODSEL

37. LVDSVDD

38. LVDSVDD

39. LVDSVDD

40. LVDSVDD

KEY BOARD CONTROL PANEL

(1057)

MAIN POWER SUPPLY

A

(1054)

AC Input

CN601

1. SPK_R-

2. SPK_R+

3. SPK_L-

4. SPK_L+

CN401

1. LED_RED

2. LED_WGB

3. OIRI

4. GND

5. 3V3SB

6. 3V3SB

7. GND

8. KEY1

9. KEY2

10. -

11. 5VSB

12. LIT_SENSOR

13. GND

HDMI 1

B

VGA

SERV.U

AV out

VIDEO L R

SSB

(1053 )

AUDIO

PC IN

Y/VIDEOPB PR L R

Y PB PR L R

TV ANTENNA

CVI 2/AV

CVI 1

USB

HDMI VIDEO L - A U D I O - R

CN001

3. GND

J

2. KEY1

IR/LED BOARD

(1056)

1. KEY2

RIGHT SPEAKER

CN301

1. LED_R

2. -

3. RC6

4. GND

5. DV33SB

6. KEY1

7. KEY2

LEFT SPEAKER

19190_400_110906.eps

110926

2011-Sep-30

9-2 Block Diagram

19190_401_110907.eps

110926

DDR II × 1

64 M × 16 b /1066 MHz

I2C

DDC

NVM

128kb

RC

KEY UART

24C02

24C02

AUDIO AMP

AD82587

SPK

Digital Audio Output(COIXIAL)

PC IN

DDC

CVI × 2

CVBS × 2

CVBS

YPbPr

RGB

HDMI1

24C02

24C02

HDMI2

HDMI3

DDC

DDC

TMDS361B

SPDIF

I

2

S

LVDS (50/60 Hz)

[RX0 : RX3]

LCD PANEL

NAND FLASH

256 Mb

CVBS Out

USB1 2.0

Analog IF+/-

DDC

DDC

DDC

HeadPhone Out

CD4052BPW

R/L IN

Audio in MUX

A RF
TUNER

USB1 2.0

MT5301B

ATV
DEMODULATOR

Block Diagrams

EN 34TPM8.3L LA 9.

2011-Sep-30

Circuit Diagrams and PWB Layouts

2011-03-15

1

715G3897

Power

Power

A01 A01

19190_500_110907.eps

110907

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC901

LD7576AGR

R934

10 OHM 1/4W

C937

100N 50V

L904

3.5uH

R901

3.3M 1/4W(N C )

R933

1K 1/4W 5%(NC)

12

ZD906

P6KE150A

!

12

ZD902

P6KE20A

+

C913

1000uF 35V

12

FB904

BEAD(NC)

!

1 2

ZD903

UDZSNP6.2B

Q906
RK7002FD5T116(NC)

C932

100N 50V(NC )

R930

330K 1/8W 5%(NC)

R924

13K7 1/8W 1%(NC)

C911

2N2 50V

C902

2N2 50V

+

C905

1000uF/16V(NC)

F901

FUSE

D908

1N4148(NC)

STB

R929

68K OHM

C900

470pF/250V

C934

100N 50V

C904

2.2nF 100V

C918

2.2nF 100V

R937

100KOHM +-5% 2WS(NC)

Status

R928

3K9 1/8W 1%

R931

1K5 +-5% 1/8W

R914

1K 1/10W(N C )

+

C920

22uF/50V(NC)

C915

0.0022uF/500V

R941

47K +-5% 1/8W

R900
2M4 5% 1/2W

C909

1500pF / 250V(N C )

R925

0R39 5% 1W

C935

1500pF / 250V(N C )

12

J915

JUMPER

1 2

J902

JUMPER

!

R936

330 OHM 1/4W(N C )

C901

470pF/250V

C917

47N 50V

D906

SF35G

C926

100N 50V

2

1

3

4

-

+

BD901

GBU408

L903

3.5uH

R923

3K3 +-5% 1/8W

!

R907

3.3M 1/4W(N C )

12

FB908

BEAD

SG901

GS41-201MA

C916

220P 50V

R932

2K4 1/8W 1%

R903100 OHM 1/4W

1 2

FB901

BEAD(NC)

SG902

GS41-201MA

+

C922

470UF 16V

R939

1K 1/4W 5%

C910

1N 50V(NC )

+

C938

2U2 50V

1

2

3

4

5

6

7

8

9

10

11

12

CN902

C929

330N 25V(NC )

+5.2V

HOT COLD

R942

1KOHM +-5% 2WS(NC)

R922

1 MOHM +-5% 1/4W(NC)

!

R912

100 OHM 1/4W(N C )

!

C951

10N 50V

R944

47K +-5% 1/8W

12

FB909

BEAD

!

C933

220P 100V(NC)

D907

SF35G

1 2

J906

JUMPER

C925
100PF 1KV

C924

0.22UF275V(NC)

!

R906

0R051/8W

1

2

4

3

L902

LF-009561

C919

100N 50V

1

23

4

IC902

EL817M(X)

!

12

FB905

BEAD(NC)

R946

430 OHM 1/4W

Q903

STP10NK70ZFP

!

D904

1N4148W

!

R915

3.3 OHM 1/4W

!

+

C930

100uF 35V(NC)

D903

FR103

C906

1500pF / 250V

R902

22R +-5% 1/8W

C908

0.33UF

Q905

PMBT3904

!

+24V

R910

20K +-5% 1/8W

Q901

RK7002FD5T116(NC)

1
2

3

4
5
6
7

8

9
10
11
12
13
14

CN903

Wire Harness

R904100 OH M 1/4W

!

Q902

PMBS3904(NC)

!

R926

0R051/8W

!

!

R927

100R 1/8W 5%

12

t

TH901

SCK13074MMY502

1

2

3

D905

SRF1060

12

CN901

SOCKET

12

J919

JUMPER

1 2

ZD904

UDZSNP6.2B(NC)

R921100 OHM 1/4W

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q904

AO4421

12

FB906

BEAD(NC)

1 2

J907

JUMPER

12

FB907

BEAD(NC)

R911

3.3M 1/4W(N C )

+

C914

470UF 35V

+

C921

1000uF 25V

12

J910

JUMPER(NC)

R918

100OHM +-5% 1/8W

+

C907

100uF 450V

R909

200OHM +-5% 1/8W

R916100 OHM 1/4W

R919

10R 1/8W 5%

12

FB903

BEAD(NC)

R908

430KOHM +-5% 1/8W(NC)

C927

100N 50V

12

J920

JUMPER

R905100 OH M 1/4W

HV

C939

2U2 25V(NC )

R913

330K +-5% 1/8W(NC)

1

2

HD905

R940

47K +-5% 1/8W

C928

100N 50V(NC )

1

2

HQ903

R945

1KOHM +-5% 2WS(NC)

R935

100R 1/8W 5%(NC)

C912

220P 50V

+

C923

1000uF 35V(NC)

R917100 OHM 1/4W

DIM

LED-ON/OFF

D901

FR107

12

FB902

BEAD(NC)

1

2

4

3

L905

LF-009561(NC)

1

2

3

5

6

7

8

9
10

11
12

4

T901

POWER X'FMR

C936

2.2nF 100V

RV901

TVR14511KFC4FY

SG904

GS41-201MA(NC)

SG903

GS41-201MA(NC)

C903

10nF

R920

22K 1/4W

+

C931

22uF/50V

IC903

KIA431A-AT/P

10. Circuit Diagrams and PWB Layouts

10-1 A01 715G3897 PSU 22"

Power

EN 35TPM8.3L LA 10.

2011-Sep-30

Power layout top

19190_501_110908.eps

110908

2011-02-25

1

715G3897

Power

layout top

D906

D907

IC903

IC902

TH901

C915

C913

C921

RV901

HQ903

C908

D901

ZD906

C925

R900

L903

L904

D905

C903

CN901

J903

L902

R925

SG902

SG901

C922

C914

FB901

C906

C900

C901

J910

BD901

F901

Q903

J904

FB903

J915

L905

C923

CN902

CN903

C924

R937

D903

FB905

J909

J905

J906

J912

C935

SG904

SG903

C907

R942

D908

R945

J919

FB906

J920

FB907

J914

FB908

FB909

HD905

C909

R946

C931

C920

J901

C905

ZD902

J921

J922

FB902

FB904

J902

J907

J913

R929

C930

R933

R939

C938

T901

Circuit Diagrams and PWB Layouts

EN 36TPM8.3L LA 10.

2011-Sep-30

Power layout bottom

19190_502_110908.eps

110908

2011-02-25

1

715G3897

Power

layout bottom

J916

J918

J917

Q904

R904
R903

R916

R917

R927

R931

R919

R909

R923

R926

R928

R932

R910

R915

R908

C917

C919

C926

C951

C927

C928

C910

C912

C929

C933

R905

R921

R902

R901

R907

R922

R920

R936

D904

ZD903

ZD904

C902

C904

C911

C918

R934

Q901

R914

C916

C936

C937

R940

R941

R944

R911

R906

Q902

C932

C934

R924

R930

R935

R918

Q906

C939

Q905

IC901

R912

R913

Circuit Diagrams and PWB Layouts

EN 37TPM8.3L LA 10.

2011-Sep-30

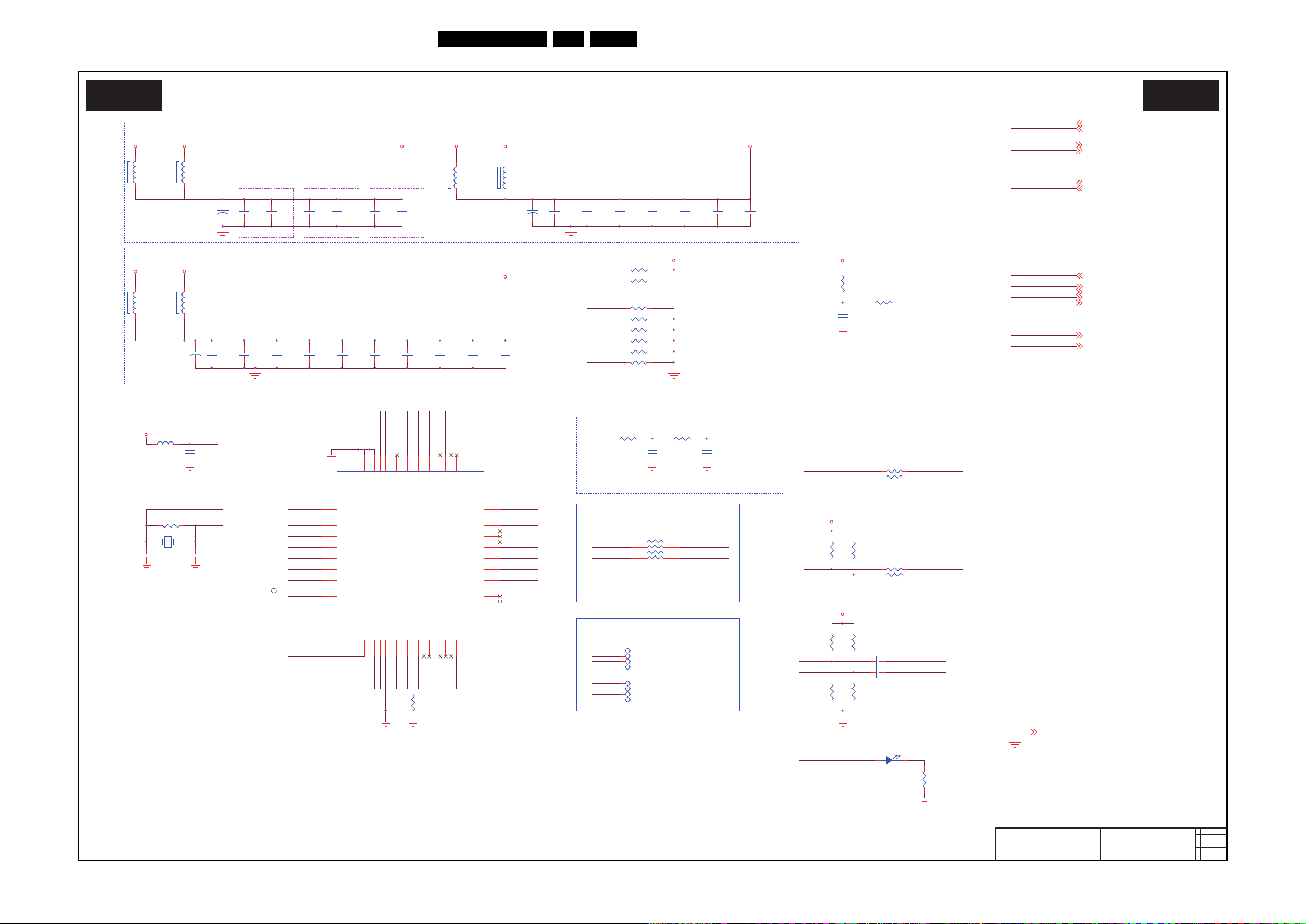

Circuit Diagrams and PWB Layouts

19190_503_110908.eps

110926

MT5301BCMU

B01 B01

2011-09-01

2

715G5151

MT5301BCMU

DEMOD_TSDATA0 14

PWR5V_C 13

AR1O 19

IF_AGC

T2S_TIF-

TX_AECKN 7

RDQ8

BL_DIM_PWM

POCE1#

HPHONE_DET

1_CAS#

C4036

100N16V

VGA_SCL 11

1_BA2 6

TX_AO2N 7

TX_AO0N 7

SOY0 10

BP

USB_PWR_OC P1

RF_AGC

R4043 0R05 1/16W

RDQ15 6

M_RX1_CB 12

RDQ11

1_RAS#

PDD2

PDD7

R4050

0R05 1/16W

VSYNC

1_A10

VCCK

USB_DM1

DVDD3V3

VGA_RX_TX_EN

3V3SB

RDQ0 6

RDQ14 6

USB_DP0 8

AL0O

1_A11

Y0P

PDD3

ADC-in & GPIO

1_A8 6

TX_AO3P

TX_AO4N

C4013

10uF 10V

AVDD3V3

TX_AO0P 7

JTDI 7

AVDD33_VDAC

IF_AGC_S2T

DEMOD_RESET

TX_AE0N

VGA_SDA

OXTALI

DDRV

RDQ12

AVDD1V2

VSYNC 11

RDQS0# 6

IF_AGC_S2T 15

1_CS#

TX_AO0N

TX_AO4N

ADC_KEY

AVDD12_VPLL

LED_WGB

C4044

100N16V

C4031

4.7UF 16V

H

RDQ2 6

1_A13 6

JTMS 7

OXTALO 5

1_BA1

OPWRSB

R4001

0R05 1/16W

HDMI C

1_CKE 6

PACLE 5

1_A8

PSU_STBY

OPCTRL4

1_A10

ADIN1

RDQS0

8282_RST

R4051

0R05 1/16W

R4023
560R 1%

RDQ12 6

PDD4 5

VCCK

RDQ10

R4058 0R05 1/16W

C4028

0.1uF 50V

Demod TS

HDMI_SCL 12

RDQ7

AVDD12_DEMOD

TX_AE1N

AL1O

AVDD33_DAC

TUNER _BPOUT

ORESET#

R4019

0R05 1/16W

C4005

100N16V

R4022

0R05 1/16W

RDQ5 6

PDD3 5

PDD0 5

LIT_SENSOR 17

DTMB_PAL_SW

R4036 N C / 0R 05 1/ 16W

1_A12 6

OXTALO

DDRV

OPCTRL5

M_RX1_0

GPIO_10

CVBS_COM

GPIO_10

AIN0_L_AADC

R4014

0R05 1/16W

R4011 N C / 0R 05 1/ 16W

RDQ10 6

1_ODT

USB_DP0

BL_ON/OFF #

AVDD12_HDMI

RDQ6

R4021

0R05 1/16W

TX_AO2P 7

T2S_TIF- 15

TX_AO1N

AIN_CTL2

1_A12

USB_DP0

DDRV

RCLK0

TX_AO0P

TX_AE4P 7

AVDD33_AADC

DEMOD_TSDATA0

RDQS1

VCCK

C4009

100N16V

CVI1

TX_AE2N 7

RF_AGC_S2T 15

RDQ5

ARC_OE#

TX_AECKP

R4005
1K 1/16W 5%

STBY GPIO

AVDD1V2

3V3SB

1_A11 6

TX_AO4P 7

M_RX1_0B 12

M_RX1_ 2 12

VGA_SCL

RDQ2

DEMOD_TSVALID

USB_PWR_OC P0

PB1P

AVDD33_VDAC

AR0O

AVDD33_HDMI

TX_AOC KN 7

OXTALI

ADIN2

EXT_CVBS

RDQ9

R4016

0R05 1/16W

PDD5 5

AVDD33_USB_2P

SPDIF_OUT

AVDD33_CVBS

C4029

0.1uF 50V

PWR5V_A 12

USB_PWR_EN 1 8

AVDD33_XTAL_STB

1_A2

GPIO_14

PDD4

PDD1

AIN_CTL1

PAALE

PWR_OK

C4006

100N16V

TX_AE4N 7

PAALE 5

USB_DM1 8

HPHONE_D ET 19

TX_AO1P

ADIN3

OIRI

BST_CTL

R4026 0R05 1/16W

SOG 11

AIN0_L_AADC

VCCK

TX_AE2N

1_A10 6

LED_RED_OFF# 17

AVDD33_REG_STB

TX_AO2P

M_RX1_0

R4009

10K 1/16W 5%

C4010

100N16V

Strapping & GPIO

1_A12

GPIO_6

BL_ON/OFF #

SC1

IF_AGC

M_RX1_2B

C4015

100N16V

DDRV

USB_DM0 8

HDMI_S2

RDQ14

RDQ15

R4025 0R05 1/16W

HDMI_SDA 12

USB_PWR_OC P1 8

OPCTRL0

R4039 0R 05 1/ 16W

R4027 0R05 1/16W

R4049

0R05 1/16W

M_RX1_ 1 12

1_A5

GPIO_3

PARB#

JTDI

C4033

100N16V

C4035

100N16V

Tuner-DIF

Standby Po wer

AVDD33_LVDSTX

AIN_CTL2

AOSDATA1

HDMI B

1_WE# 6

RDQS1# 6

PDD1 5

HDMI_S112

TX_AO2N

PR1P

HDMI_SDA

OPCTRL4

ADC_KEY

AVDD33_IF PGA

DVDD3V3

1_CKE

C4020

10uF 10V

AVDD3V3

M_RX1_CB

M_RX1_2

AOBCLK

AL0O

C4017

100N16V

USB_PWR_EN 1 8

JTDI

HSYNC

AOSDATA1

R4059

1.3K 1%

RDQS1

1_BA2

TX_AE0P

1_A9

C4040

100N16V

R4020

0R05 1/16W

I2S

CVBS_COM 9

1_RAS#6

PB1P 10

HDMI_HPD1 12

U0TX 7

OSCL0 5,7,12,14, 15,20

RDQ1

TX_AOCKP

TX_AE4P

IF_AGC_S2T

LIT_SENSOR

JTRST#

R4008
1K 1/16W 1%

R4007
1K 1/16W 1%

TP24T POINT R(NC)

HDMI_S2

AVDD1V2

1_A9

GPIO_7

MEMORY_WP#

GPIO_8

RDQ7

TX_AO3P

HDMI

RDQS06

TX_AO1N 7

AOBCLK 20

JTDO 7

POP_MUTE#

DEMOD_RESET

1_A3 6

DEMOD_TSCLK 14

OXTALI 5

TX_AE4N

Y1P

M_RX1_0B

RF_AGC_S2T

PAALE

1_ODT

VCCK

TX_AE2P

DDRV

USB_PWR_EN 0

C4016

100N16V

L

AVDD3V3

RDQ6 6

PDD7 5

DEMOD_TSSYNC

JTRST#

HPHONE_DET

L

VGA_SDA 11

AIN_CTL1 9

JTMS

U0RX

C4024

100N16V

C4011

100N16V

1_WE#

PARB#

OPWM0_100HZ

R4042 0R05 1/16W

R4013

0R05 1/16W

R4046

0R05 1/16W

TX_AO4N 7

SPDIF_OUT 20

USB_PWR_EN 0 8

OPWRSB 21, 23

OPCTRL5

DTMB_PAL_SW

VCCK

TX_AE1N

R4030 0R 05 1/ 16W

C4032

100N16V

RDQ9 6

USB_PWR_EN 0 8

1_A5

GP

GPIO_4

SPDIF_OU T

TX_AE0P

RDQ0

TX_AO2P

EXT_FSEL

C4046

100N16V

MT5301BCMU

U401

132456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263

64

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

256
255
254
253
252
251
250
249
248
247
246
245
244
243
242
241
240
239
238
237
236
235
234
233
232
231
230
229
228
227
226
225
224
223
222
221
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193

65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

80
81
82
83
84
85
86
87
88
89

90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

257

FSRC_WR

VCC3IO

GPIO14

AVDD12_VPLL

AE5P

AE5N

AE4P

AE4N

AE3P

AE3N

AECKP

AECKN

AE2P

AE2N

AE1P

AE1N

AE0P

AE0N

AVDD33_LVDSA

AVDD33_LVDSA

AO5P

AO5N

AO4P

AO4N

AO3P

AO3N

AOCKP

AOCKN

AO2P

AO2N

AO1P

AO1N

AO0P

AO0N

VCCK

VCCK

VCCK

AVDD12_MEMPLL

AVSS12_MEMPLL

RODT//RCKE

RA8//RA10

RA13//RBA1

RA11//RA4

RA4//RA1

RA6//RA6

RA0//RA8

RA2//RA11

RCAS_//RA12

RCS_//RRAS_

RRAS_//RCAS_

RA9//RWE_

VCC2IO

RA12//RA0

RA7//RA13

RA5//RA9

NC//RRESET_

RA3//RA7

RA1//RA2

RA10//RA5

RB

A1//RA3

RBA0//R BA2

RBA2//R BA0

RWE_//RCS_

RCKE//RODT

AVDD33_XTAL_STB

XTALI

XTALO

AVDD33_DEM OD

AVSS33_DEMOD

AVSS12_DEMOD

AVDD33_IF PGA

ADCINN_DEMOD

ADCINP_DEMOD

AVDD12_DEM OD

AVDD33_CVBS

CVBS0P

CVBS_COM

CVBS1P

SY0

SC0

SY1

SC1

AVDD12_PLL

VCCK

FS_VDAC

AVDD33_VDAC

VDAC_OUT 1

VDAC_OUT 2

AVSS12_RGB

AVDD12_RGB

PR0P

PB0P

COM0

Y0P

SOY0

PR1P

PB1P

COM1

Y1P

SOY1RPCOMGPSOGBPHSYNC

VSYNC

AVDD33_VGA_STB

AVDD10_LDO

ADIN4_SRV

ADIN3_SRV

ADIN2_SRV

A

DIN1_SRV

ADIN0_SRV

VCCK

VGA_SCL

VGA_SDA

OPWRSB

OPCTRL1

OPCTRL0

OIRI

U0TX

U0RX

AVDD33_PDM _STB

OPCTRL2

OPCTRL4

OPCTRL3

OPCTRL5

GPIO4
GPIO8
GPIO7

GPIO12

GPIO6

GPIO11

GPIO3

GPIO10

GPIO2
GPIO1
GPIO0

VCC3IO

VCCK
GPIO13
POWE_

PAALE

PACLE

POCE1_

PARB_
POOE_

POCE0_

PDD7

VCC3IO

PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

CI_INT

GPIO
GPIO
GPIO

VCCK

VCC3IO

GPIO
GPIO
GPIO

GPIO
OSDA2
OSCL2

GPIO

RF_AGC

IF_AGC

AOLRCK

AOSDATA0

AOMCLK

AOBCK

AOSDATA1

ASPDIF

VCCK

VCCK
AR1_ADAC
AR0_ADAC
AL1_ADAC
AL0_ADAC

AVSS33_DAC

AVDD33_DAC

AVDD33_AADC

AIN0_L_AADC

VMID_AADC

AIN0_R_AAD C

LOUTP

VCCK
RVREF
RDQ4//RDQ4
RDQ3//RDQ6
VCC2IO
RDQ1//RDQ2
RDQ6//RDQ0
RDQ12// RDQ11
RDQ9//RDQ9
VCC2IO
RDQ14// RDQ13
R

DQ11//R DQ15
RDQM1//RDQM1
VCCK
RDQS0//RDQS0
RDQS0_//RDQS0_
RDQM0//RDQM0
VCC2IO
RDQS1//RDQS1
RDQS1_//RDQS1_
RDQ15// RDQ12
RDQ8//RDQ14
VCC2IO
RDQ10// RDQ10
RDQ13//RDQ8
RDQ7//RDQ1
RDQ0//RDQ3
VCC2IO
RDQ2//RDQ7
RDQ5//RDQ5
VCC2IO
RCLK0// RCLK0
RCLK0_// RCLK0_
VCCK
JTDO
JTCK
JTMS
JTDI
JTRST_
OPWM0
VCC3IO
VCCK
USB_2P_DM1
USB_2P_DP1
USB_2P_DM0
USB_2P_DP0
AVDD33_USB_2P
USB_2P_VRT
AVDD33_HD MI
RX_CB
RX_C
RX_0B
RX_0
RX_1B
RX_1
RX_2B
RX_2
AVDD12_HD MI
HDMI_CEC
HDMI_SDA
HDMI_SCL
HDMI_HPD
PWR5V
ORES

ET_

EPAD_GND

R4040 0R05 1/16W

E-Fuse

3V3SB

AVDD3V3

LED_WGB 17

1_A11

HDMI_SCL

AOLRCK

PDD0

HDMI_S1

GPIO_1

C4007

100N16V

1_A6 6

AIN0_R_AAD C 9

RDQ4

PB0P

M_RX1_2B

1_A13

U0TX

GPIO_14

AV1

Y0P 10

PDD4

AR1O

JTDO

+

C4043
220UF 16V

TP23
T POI N T R(N C )

C4026

0.1uF 50V

Normal GPIO

PB0P 10

RDQ15

TX_AOCKN

OIRI

PDD5

M_RX1_CB

VCCK

VGACOM

AVDD33_REG_STB

AOMCLK

OPCTRL1

RDQM0 6

GND 5,6,7,8,9,10,11,12,13, 14,15,16,17,18,19,20,21,22,23,24

1_CKE

PWR5V_C

PDD3

AIN_CTL1

VDAC_FS

OXTALO

PDD2

GPIO_13
POWE#

C4050

100N16V

AVDD3V3

TX_AO3N

1_A2

GPIO_7

TX_AOCKN

C4003
1uF 16V

3V3SB

DVDD3V3

GP 11

PARB# 5

DDC_W P# 11,12,13

SOY0

GPIO_11

PDD5

OPCTRL0

POP_MUTE#

AV1_CVBS

VCCK

C4025

100N16V

PR1P 10

PDD2 5

1_A6

AVDD33_DEMOD

BP

DTMB_PAL_SW

Y1P 10

AOLRCK 20

POOE# 5

VGA_RX_TX_EN 11

VGACOM

AVDD12_MEMPLL

RDQS0#

C4018

100N16V

R4052 N C / 0R 05 1/ 16W

R4017

0R05 1/16W

C4041

10uF 10V

3.3V IO Power (Close to SoC)

1_CAS#6

RP

RDQ9

1_A1

AVDD12_HD MI

T2S_TIF+

1_A3

AVDD33_DEM OD

TX_AO1N

R4035 0R 05 1/ 16W

R4034 0R 05 1/ 16W

1_A9 6

POWE# 5

COM1

VSYNC

AOSDATA1

R4045

0R05 1/16W

AADC

AVDD1V2

DDRV

M_RX1_ C 1 2

AOSDATA1 5

RDQM1

1_A4

ADIN4

AIN_CTL0

AVDD33_LVDSTX

GPIO_0

RDQ3

EXT_CVBS 10

TX_AECKP 7

AR0O 18

AOMCLK 20

POP_MUTE# 16,18

OPCTRL5 5

RDQ12

DDC_WP#

USB_PWR_EN 0

M_RX1_C

ARC_OE#

TX_AO1P

R4018

0R05 1/16W

DRAM IO Power (Close to SoC)

JTAG

VCCK

AIN_CTL2 9

POOE#

AVDD33_PDM_STB

VCCK

ADAC

AVDD12_DEM OD

VGA_RX_TX_EN

R4057 NC/ 0R 05 1/ 16W

C4001

47N16V

AV3

HSYNC 11

RDQ1 6

ARC_OE# 20

EXT_CVBS

AVDD12_MEMPLL

GPIO_13

BST_CTL

GPIO_0

RDQM0

LED_WGB

C4014

100N16V

AVDD3V3

RCLK0# 6

RDQS16

TX_AOC KP 7

M_RX1_1B 12

AVDD12_RGB

AR0O

OSCL0

LVDS_PWR_EN

1_A6

COM1

AVDD33_XTAL_STB

TP34

T POI N T R(N C )

R4002 10K 1/ 16W 5%

L

RDQ4 6

TX_AE3N7

OSDA0 5,7, 12,14,15,20

RDQS0

USB_PWR_EN 1

TX_AE4P

M_RX1_1B

USB_DP1

TX_AE0P 7

RDQ10

1_A7GPIO_2

ADIN1

1_A7

GPIO_11

OSDA0

VMID_AADC

AVDD33_AADC

RDQ5

TOC_ KEY

TX_AE1N 7

U0RX 7

AIN0_L_AADC 9

SOG

RDQS1#

AR1O

LED_RED_OFF#

AOSDATA0

M_RX1_2

Analog Normal Power

1_ODT 6

AVDD33_HD MI

TX_AECKP

RF_AGC_S2T

1_CS#

DEMOD_TSVALID 14

PWR5V_B 13

BL_DIM_PWM 21

USB_DP1 8

ADIN0

OPCTRL1

DEMOD_TSSYNC

LIT_SENSOR

R4012
0R05 1/16W

TP22

T POI N T R(N C )

R4024
4K3 1/16W 5%

C4008

100N16V

1_A2 6

TX_AO3P7

COM1 10

RDQ0

GPIO_12

BL_DIM_PWM

AIN0_R_AAD C

DEMOD_TSVALID

M_RX1_0B

VGA

RDQ7 6

SOY1 10

RDQ6

AOMCLK

ORESET#

ADIN2

PR1P

AL1O

RF_AGC

R4006 4K7 1/16W 5%

H

AV1_CVBS 9

1_A5 6

1_CAS#

DEMOD_TSDATA0

AVDD12_VPLL

TX_AE2N

ADIN4

PDD6

VCCK

TX_AE0N

DDRV

C4047

100N16V

RDQ13 6

BST_CTL 15

RDQ3

RDQM0

M_RX1_C

GPIO_1

USB_PWR_OC P0

1_BA0

1_BA2

PACLE

RCLK0#

R4004 10K 1/ 16W 5%

R4033 0R05 1/16W

C4021

100N16V

AV2

RDQS0#

PDD7

+

C4019
100uF/16V

HDMI_S1

BP 11

PDD6 5

RCLK0

EXT_FSEL

AVDD12_RGB

R4060 N C / 0R 05 1/ 16W

DVDD3V3

1_A4 6

AL0O 18

TX_AE3N

Y1P

GPIO_3

AIN0_R_AAD C

C4037

100N16V

R4029 0R05 1/16W

TX_AO3N7

TX_AECKN

T2S_TIF-

GPIO_8

USB_VRT

TX_AO4P

C4004

100N16V

CVI2

JTCK 7

MEMOR Y_WP# 5

HDMI_S212

JTCK

HDMI_SCL

MEMORY_WP#

PSU_STBY

1_RAS#

PR0P

LVDS_PWR_EN

1_A0

TX_AO0P

M_RX1_1

OPCTRL5

TX_AE3P

JTCK

RDQ4

C4034

100N16V

C4002 47N 16V

PWM

AVDD1V2

TX_AO1P 7

ORESET# 5

DTMB_PAL_SW15

TX_AE3P

PDD6

C4049

100N16V

RDQM1 6

MONI TOR_OUT 18

OPCTRL4 5

DDC_WP#
USB_PWR_OC P1

RP

VCCK

PB0P

AVDD12_PLL

R4041 0R05 1/16W

VGACOM 11

JTRST# 7

AVDD12_PLL

USB_PWR_EN 0

GPIO_2

TX_AE1P

TX_AO3N

AOSDATA0

OPWM0_100HZ

1_A0

R4047

0R05 1/16W

R4032 0R 05 1/ 16W

System IO

RP 11

RDQ11 6

USB_DP1

C4048

100N16V

R4028 0R05 1/16W

PWR_OK 21

VGA_SDA

RCLK0#

TX_AE1P

USB_PWR_EN 1

POCE1#

USB_DM0

R4015

0R05 1/16W

C4051

100N16V

DDR2

RDQ3 6

ADC_KEY 17

AV1_CVBS

HDMI_HPD1

C4039

100N16V

NAND

HDMI A

RDQ8 6

TX_AE2P 7

AOSDATA0 20

HSYNC

TX_AE2P

RDQ11

TX_AO0N

DEMOD_RESET 14

T2S_TIF+ 15

POCE1# 5

AVDD33_PDM _STB

TP25T POINT R(NC)

RDQ13

PACLE

OPWRSB

TOC_KEY

GPIO_12

OSCL0

TX_AO2N

HDMI_S2

C4027

0.1uF 50V

1_BA0 6

TX_AE0N 7

COM0 10
PR0P 10

RDQ14

SOY1

T2S_TIF+

DVDD3V3

DDRV

RDQ13

1_A1 6

1_CS#6

TX_AE1P 7

DEMOD_TSCLK

TX_AE4N

AVDD3V3

TX_AE3P7

USB_PWR_OC P0 8

CVBS_COM

TX_AO4P

JTDO

POWE#

U0TX

AOLRCK

SC0

DVDD3V3

BL_ON/OFF # 21

PWR5V_A

1_A1

PDD0

TX_AECKN

C4042

100N16V

C4045

100N16V

C4030

0.1uF 50V

H

GPIO_6

USB_DM1

HDMI_S1

1_A0 6

EXT_FSEL 10

AVDD33_DAC

OPCTRL4

DDRV

RDQ1

C4023

100N16V

Core Power (Cl ose to SoC)

1_BA1 6

RCLK0 6

AIN_CTL0 9

8282_RST7

GPIO_4

SOY1

TX_AOCKP

8282_RST

TP33
T POINT R(NC)

TP32

T POINT R(NC)

AVDD3V3

M_RX1_2B 12

1_BA0

PB1P

Y0P

U0RX

DEMOD_TSCLK

RDQS1#

RDQM1

AVDD1V2

LVDS_PWR_EN 22

1_A3

AVDD33_CVBS

1_BA1

MONITOR_OUT

COM0

R4048

0R05 1/16W

C4038

100N16V

R4010

5.1K 1%

USB1 & 2

AVDD33_IFPGA

HDMI_HPD1

LED_RED_OF F#

ADIN0

SY1

PWR5V_A

PDD1

AOBCLK

C4012

10uF 10V

5V_SW

PWR5V_B

MONITOR_OUT

ADIN3

PWR5V_B

R4038 0R05 1/16W

R4054 0R05 1/16W

1_A7 6

OIRI 17

PSU_STBY

HDMI_CEC

R4031 0R 05 1/ 16W

HDMI_CEC 12

DTMB_PAL_SW15

OSDA0

1_A8

VGA_SCL

TX_AE3N

RVREF5

PWR5V_C

RDQ2

RDQ8

R4055
0R05 1/16W

AVDD3V3

R4044

47 OHM 1/16W

M_RX1_ 0 12

1_WE#

PR0P

COM0

USB_DM0

SOG

DVDD3V3

POOE#

M_RX1_1

C4022

100N16V

LVDS

TOC_KEY 17

GP

AIN_CTL0

DDRV

AVDD33_USB_2P

JTMS

PWR_OK

R4037 0R 05 1/ 16W

PSU_STBY 21,22

M_RX1_1B

SOY0

DVDD3V3

HDMI_SDA

DEMOD_TSSYNC 14

AL1O 19

1_A13

HDMI_CEC

USB_PWR_EN 1

1_A4

EN 38TPM8.3L LA 10.

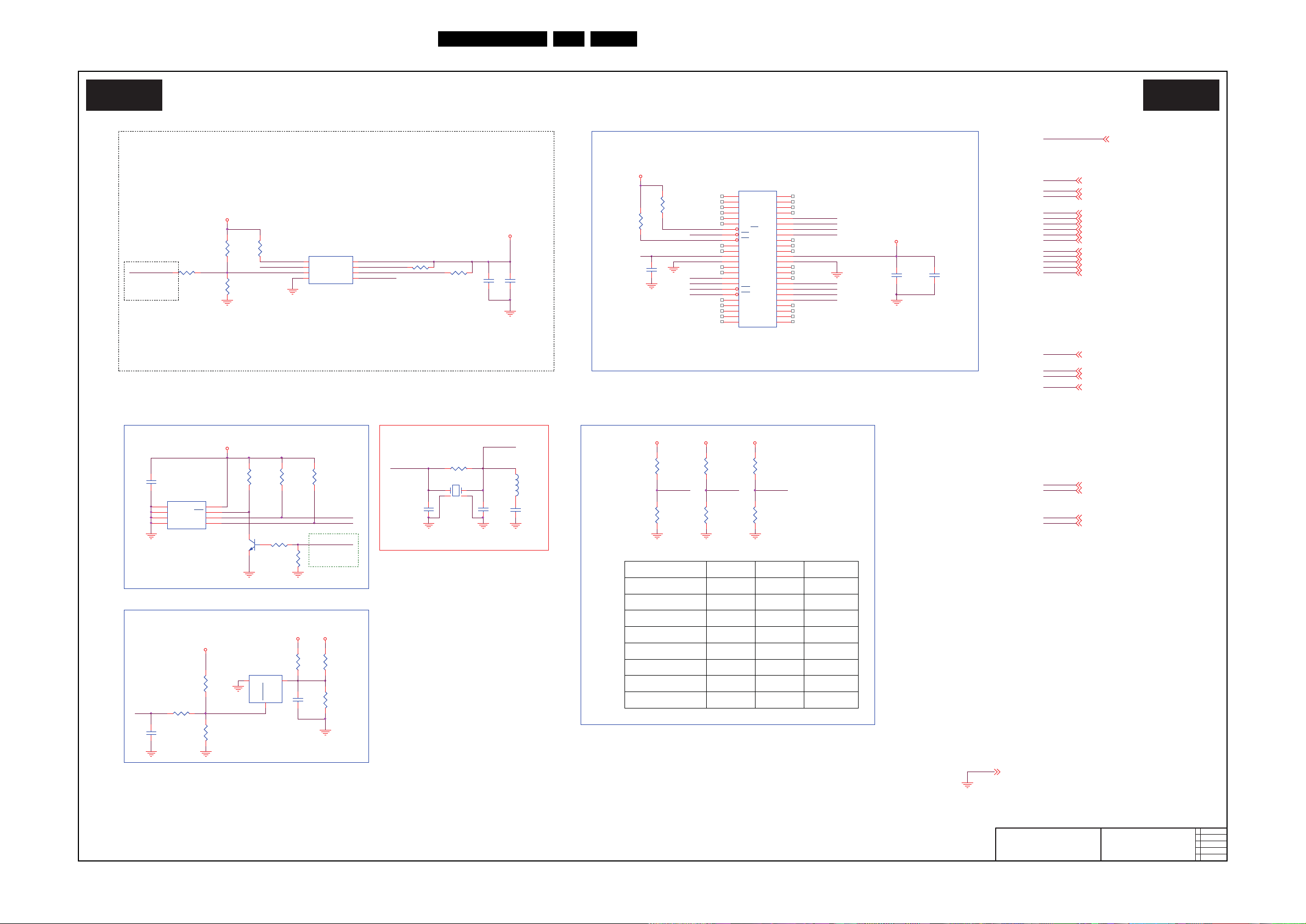

10-2 B 715G5151 SSB

MT5301BCMU

2011-Sep-30

SoC Peripheral

19190_504_110908.eps

110908

SoC Peripheral

B02 B02

2011-09-01

2

715G5151

SoC Peripheral

AOSDATA1

Q4101

PMBS3904

C4103

NC/100N 16V

R4140

NC/ 5K1 1/ 16W 5%

1

OPCTRL5

POWE# 4

R4141
NC/ 10K 1/ 16W

R4136

NC/ 4K7 1/ 16W 5%

H: Write Enable

MEMORY_WP# 4

1
1

0

OPCTRL5 4

C4108

100N 16V

R4101
4K7 1/16W 5%

OPCTRL4

FLASH_WP#

DVDD3V3

R4112

NC/1K8 1/10W 1%

0

OXTALO 4

POOE#

1

Serial Flash

ICE mode + 27M +ROM boot

POCE1#

PDD7

MEMOR Y_W P#

1

R4103
10K 1/16W 5%

DVDD3V3

OSDA0 4,7,12,14,15,20

PARB#

OSDA0

C4105

27pF

OPCTRL4

0

PDD6

PDD4

R4115

4K7 1/16W 5%

3V3SB

PDD3 4

PACLE

PDD1

R4119

10K 1/16W 5%

R4107 NC/1M 1/16W

U4101
MAX809STRG

1

2

3

GND

RESET

VCC

POCE1# 4

C4102

NC/10U 16V

PDD2

POOE#

C4110

10uF 10V

OPCTRL4

ORESET#

R4109

10K 1/16W 5%

OXTALI 4

PAALE

AOSDATA1

scan mode

PDD4

DVDD3V3

X41 01

27MHz

1
2

3

4

NVRAM

OLT mode

R4121

10K 1/16W 5%

POCE1#

OXTALO

R4110

NC/ 100K 1/ 16W

0

1

C4109

100N 16V

0

PDD6 R4135

NC/ 4K7 1/ 16W 5%

ICE mode + 27M +serial boot

ICE mode + 54M +ROM boot

PACLE 4

R4108

0R05 1/16W

STBC CRYSTAL

DVDD3V3

POOE# 4

L: Write P rotect

PDD0

PDD5 4

POOE#

PARB# 4

PDD7

U4103

CAT24C128YI

4

8

5

6

1
2

3

7

VSS

VCC

SDA

SCL

E0
E1E2WC

0

1

0

R4105

2.7K 1/16W 1%

DVDD3V3

OXTALI

R4120

NC/10K 1/16W 5%

GND 4,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24

OPCTRL5

PDD5

R4117

4K7 1/16W 5%

DVDD3V3

OPCTRL4 4

POWE#

PDD3

0

PDD3

R4102

4.7K 1/16W

cpu model mode

AOSDATA1

OSDA0

DVDD3V3

L4101

NC/0U82

C4125
NC/1N 50V

MEMOR Y_W P#

R4137

NC/ 0R 05 1/ 16W

PAALE 4

PDD5

U405

NC/MX25L6406EM2I-12G

1
2

3

4 5

6

7

8

CS#
SO/SIO1

WP#
GND SI/SIO0

SCLK

HOLD#

VCC

5VSB

PDD1

OPCTRL5

DVDD3V3

C4106

33P50V

1

OXTALI

R4118

NC/10K 1/16W 5%

0

PDD6

0

3V3SB

OSCL0

POWE#

Reset IC

0

3V3SB

ICE mode + 54M +serial boot

PDD0

PDD7

PDD1 4

PAALE

OSCL0

R4106 2.2K 1/16W

U403

HY27US08561A-TPCB

39

1
2

3

4
5

46

17

16
18

26

11

19

7

14
15

27

28

20
21
22

32

33

36

12

8

37

31
30

29

13

45
44
43
42
41
40

23
24 25

9

34

35

47

38

6

10

48

NC23

NC1
NC2
NC3
NC4
NC5

NC26

ALE

CLE
WE

NC17

NC8

WP

RY/BY1

NC9
NC10

NC18

NC19

NC11
NC12
NC13

I/O3

NC20

VSS2

VCC1

RE

VCC2

I/O2
I/O1
I/O0

VSS1

NC25

I/O7
I/O6
I/O5
I/O4

NC24

NC14
NC15 NC16

CE1

NC21

NC22

NC27

PRE

NC6

NC7

NC28

OSCL0 4,7,12,14,15,20

1

R4104

2.7K 1/16W 1%

256Mbit Nand Flash

R4123

NC/ 10K 1/ 16W 5%

PDD2 4

R4111
NC/820R 1/10W 1%

Strapping

OXTALO

PDD2

H : Write Enable
L : Write Protect

POCE0#

Strapping

1

ORESET#

0

ORESET# 4

1

C4104

220N16V

R4122

10K 1/16W 5%

AOSDATA1 4

PDD4 4

MEMOR Y_W P#

C4123
NC/ 10P 50V

R4139

0R05 1/16W

PDD6 4

PACLE

PARB#

1

3V3SB

Close to SoC

PDD0 4

PDD7 4

FLASH_WP#

C4107

100N 16V

Boundary scan mode

Circuit Diagrams and PWB Layouts

EN 39TPM8.3L LA 10.

2011-Sep-30

DDR2

19190_505_110908.eps

110908

DDR2

B03 B03

2011-09-01

2

715G51511

DDR2

RDQS1# 4

B_ODT

B_CS#

RDQ14

RDQ10

C4122

100N16V

1_RAS#

B_BA0

1_A3

B_A9

B_A8

Damping for DDR2#1 ADDR/CMD

B_BA1

E9
G7
G9

RDQ2 4

1_A9 4

RDQ7

C4118

100N16V

RDQ7 4

B_WE#

1_A3 4

1_A2

1_A4

1_A8

1_A7

1_A8

R4128 0R05 1/ 16W

B_A5

RP4104 0OH M 1/16W

1

2

3

4

8

7

6

5

B_A11

RDQ13

RP4105 0OH M 1/16W

1

2

3

4

8

7

6

5

B_CKE

RDQ2

J9
M9

C4116

100N16V

RDQS0#

1_BA1

RP4103 0OH M 1/16W

1

2

3

4

8

7

6

5

CLK0

E1

RDQ11

1_CS#4

1_A2

RDQ0

RDQM1

RDQ12

1_WE#

1_A1

1_BA0 4

B_A13

DDRV

B_A8

C4121

100N16V

RDQ4 4

1_A2 4

B_BA2

1_A1 4

CLK0#

RDQ4

RCLK0#

RDQS1

B_A12

1_A3

C1
C3

1_RAS#4

B_CKE

C4117

100N16V

B_A10

B_BA1

C4113

100N16V

RDQ14

1_A1

1_RAS#

C4115

100N16V

RDQ10 4

B_CAS#

RDQ15

1_A10

1_A6

1_A7 4

RDQ15 4

1_CAS#4

1_A5 4

RDQ0

B_A7

B_BA0

RCLK0# 4

RDQS1#

RDQ1 4

RDQ6

Close to MT5310

B_BA2

B_A1

RVREF1

1_A4 4

R4130

100R 1/ 16W 5%

1_A10 4

C4120

100N16V

RP4102 0OH M 1/16W

1

2

3

4

8

7

6

5

RDQS1#

Close to DDR2

1_A13 4

RDQM0 4

1_A8 4

1_A12 4

1_ODT

1_A13

RDQ5 4

RDQ13

RDQ1

DDRV

1_A11

B_A4

B_A1

B_A2

1_CAS#

1_A5

1_A5

RDQS0# 4

RDQ11

B_A4

G1
G3

RP4101 0OH M 1/16W

1

2

3

4

8

7

6

5

RDQS1

U402

K4T1G164QF-BCF8

A1

A2

A3
A7

A8

A9

B1

B2

B3

B7

B8

B9

C1

C2

C3
C7

C8

C9

D1

D2

D3

D7

D8

D9

E1

E2

E3
E7

E8

E9

F1

F2

F3

F7

F8

F9

G1

G2

G7

G8

G9

H1

H2

H3

H7

H8

H9

J1

J2

J3
J7

J8

J9

K2 K3

K7

K8

K9

L1

L2
L3

L7

L8

M2

M3
M7

M8

M9 N1

N2
N3

N7

N8

P2
P3
P7

P8

P9R1

R2
R3

R7

R8

G3

VDD

NC

VSS

VSSQ

UDQS

VDDQ

DQ14

VSSQ

UDM

UDQS

VSSQ

DQ15

VDDQ

DQ9

VDDQ
VDDQ

DQ8

VDDQ

DQ12

VSSQ

DQ11

DQ10

VSSQ

DQ13

VDD

NC

VSS

VSSQ

LDQS

VDDQ

DQ6

VSSQ

LDM

LDQS

VSSQ

DQ7

VDDQ

DQ1

VDDQ

DQ0

VDDQ

DQ4

VSSQ

DQ3

DQ2

VSSQ

DQ5

VDDL

VREF

VSS

VSSDL

CK

VDD

CKE WE

RAS

CK

ODT

BA2

BA0
BA1

CAS

CS

A10/AP

A1
A2

A0

VDD VSS

A3
A5

A6

A4

A7
A9

A11

A8

VSSVDD

A12

NC
NC

NC

VDDQ

1_A0

RDQ3

R4132

1.1KOH M +-1% 1/10W

DDRV

RCLK0#

B_A11

1_A9

RDQ9 4

1_BA2 4

B_A6

B_RAS#

R1

GND 4,5,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24

Damping & Termination for CLK

B_A3

B_RAS#

RDQ9

RDQS0#

RP4106 0OH M 1/16W

1

2

3

4

8

7

6

5

1_A11 4

1_A13

R4129 0R05 1/ 16W

1_A6

1_ODT

1_A10

C4114

100N16V

1_WE# 4

RDQ5

B_A13

RCLK0

B_A2

B_A0

RDQ14 4

CLK0#

RDQ1

RDQ8

B_A10

1_A7

RDQ12 4

RDQM0

B_CS#

1_BA2

C4119

100N16V

J1

1_A12

RDQ10

RDQM1

RDQ8

1_BA1

B_A5

DDRV

B_WE#

B_A9

RDQS0

RDQM0

1_CKE

RDQ9

CLK0

B_A0

RDQ6

RDQ7RDQ5

1_CKE 4

RDQ3

1_A0

1_BA2

1_BA0

1_A11

R4131

1.1KOH M +-1% 1/10W

RDQ8 4

1_CS#

RDQS0

RDQ4

RDQ12

1_CAS#

1_A12

1_CKE

RDQ15

B_CAS#

1_A4

B_A7

RDQ0 4

1_BA0

1_BA1 4

RDQ13 4

B_A12

1_CS#

1_ODT 4

B_A3

RDQS04

1_A6 4

RDQ3 4

RDQ6 4

RDQS14

1_A9

RCLK0

RCLK0 4

1_WE#

B_A6

CAPs Close to DDR2#1

RDQ11 4

B_ODT

A1

A9
C7
C9

1_A0 4

RDQM1 4

RDQ2

Circuit Diagrams and PWB Layouts

EN 40TPM8.3L LA 10.

2011-Sep-30

LVDS, JTAG & UART

19190_506_110908.eps

110908

LVDS, JTAG & UART

B04 B04

2011-09-01

2

715G5151

LVDS, JTAG & UART

TX_AE1N

TX_AE3N

R652

100R 1/16W 5%

R422 100R 1/16W 5%

R405

NC/ 1K 1/ 16W 5%

TX_AOC KN

TX_AO4N

TVTREF#1

TX_AE4N

TX_AE1P
TX_AE0P

CN408
S1312-40SVA-1R

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41 42

TX_AO0P 4

TX_AECKN 4

TX_AE2P 4

RX_5VPP 11

R41410K 1/16W 5%

FB403

NC/120R/3000mA

1 2

I2C for MEMC board

DVDD3V3

TX_AO4P 4

TX_AO3N

TX_AO2P 4

8282_RST4

TX_AO1N

TX_AO1P

OSDA0

R41310K 1/16W 5%

U0RX 4

TX_AE3N4

TX_AE1P 4

OSDA0

JTCK 4

TX_AE3N

TX_AO0N

TX_AECKP 4

TX_AO2N 4

TX_AE4P

TX_AOC KP

R423

0R05 1/16W

TX_AO3P4

TX_AE4N 4

R415
10K 1/16W 5%

3V3SB

JTRST# 4

TX_AECKN

TX_AO4N

TX_AE3N

TX_AO1P

R409

0R05 1/16W

TX_AO3P

R41110K 1/16W 5%

TX_AO3N4

TX_AOC KP

TX_AE3P

TX_AOC KN

8282_RST

TX_AO4P 4

TX_AO0P

RX_5VPP

LVDSVDD

TX_AO2P

TX_AOC KP

C401

NC/ 10U 10V

5VSB

TX_AOCKN 4

TX_AO3N

Q402

NC/2N7002

FB402

NC/120R/3000mA

1 2

R406

0R05 1/16W

TX_AOC KP

TX_AE4P

TX_AO3P

ODSEL

R424
10K 1/16W 5%

3V3SB

TX_AE2N 4

R416
1K 1/16W 5%

JTRST#

Panel_12V_5V

U404

AOZ8105CI

1
2
3 4

5

6

I/O1
GND
I/O2 I/O3

VDD

I/O4

TX_AO4P

TX_AO4P

3V3SB

TX_AE0N 4

FB401

120R/6000mA

1 2

TX_AE1N 4

TX_AO0P

TX_AECKN 4

TX_AOC KN

Q403

PMBS3906

1

23

JTDO 4

TX_AECKN

DVDD3V3

TX_AE2P

TX_AO2P 4

TX_AE1P 4

RX_5VPP

R421

3.3K 1/16W

JTCK

ITV_IR

TX_AE4N 4

TX_AECKP

TX_AE1N

LVDSVDD

TX_AO1P

TX_AO2P

R425
10K 1/16W 5%

R420 100R 1/16W 5%

TX_AE1N 4

TX_AO0P

TX_AE2P

8282_RST

DVDD3V3

TX_AO1N 4

JTDO

JTAG (ICE) Debug

TX_AO1N

TX_AO3P

TX_AO4P

TX_AOCKP 4

TX_AEC KN

TX_AE2N 4

JTMS

R402

NC/0R05 1/16W

CN412

CONN

1
2

3

4
5

DVDD3V3

C403

100N 50V

TX_AE3P4

ITV_IR 17

JTDI

TX_AO3P4

TX_AO0P 4

TX_AE1N

TX_AE0P

R41210K 1/16W 5%

HD 8-Bit LVDS Connector 19" + 22"

U0RX

Q401

NC/2N7002

R417

10K 1/16W 5%

CN406
NC/ 60947 20P 1. 25MM

1

3

5
7

9
11
13
15
17
19

2
4
6

8

10
12
14
16
18
20

2122

TX_AE0P 4

TX_AE0N

DVDD3V3

TX_AO4N 4

OSCL0

R407

0R05 1/16W (N C )

iTV Level 1

JTDI

JTDO

U0RX

TX_AO1N

CN410

CONN

1

2

3

TX_AE4P 4

TX_AE2P 4

TX_AECKP 4

TX_AO4N

OSCL0

DVDD3V3

TX_AO1N

CN409
NC/CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

5V_SW

TX_AO2N

R419

3.3K 1/16W

TX_AO0P

U0TX

RX_5VPP

TX_AE0N

OSDA0 4,5,12,14,15,20

TX_5VPP

TX_AO2N

TX_AECKP

R418
10K 1/16W 5%

UART De bug Tool (STBY)

TX_AO2N 4

TX_AO2N

JTAG_DBGACK

U0TX 4

FHD 8/10- Bit LVD S Connector

JTAG_DBGRQ

5V_MEMC

TX_AE0N 4

OSCL0 4,5,12,14,15,20

TX_AE0P

JTCK

TX_AO2P

ESD

TX_AO2P

TX_AO3P

TX_AEC KP

ITV_IR

TX_AOCKN 4

TX_AE4N

R410
33R 1/16W 5%

TX_AE2N

TX_AE2N

JTMS

TX_5VPP

C402

100N 50V

R408

0R05 1/16W

GND 4,5,6,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24

TX_AO4N 4

TX_AO1N 4

TX_AE2N

U0TX

5VSB

TX_AE3P

TX_AE4N

TX_AE4P 4

TX_AE0N

SELLVDS

ITV_IR

TX_AE0P 4

TX_AO0N

TX_AE1P

TX_AE3N4

TX_AE1P

TX_5VPP

CN411

NC/CONN

1

2

3

4

7 6

5

TX_AE2P

TX_AO1P

TX_AO0N 4

TX_AO0N

TX_AO2N

RX_5VPP

JTMS 4

TX_AE3P

TX_5VPP

TX_AO3N

SELLVDS

TX_AO3N

JTRST#

TX_AE3P4

TX_AOC KN

TX_AO3N4

TX_AE4P

R403

NC/ 1K 1/ 16W 5%

TX_AO0N 4
TX_AO1P 4

TX_AOCKP 4

TX_5VPP 11

TX_AO0N

TX_AO1P 4

JTDI 4

Circuit Diagrams and PWB Layouts

EN 41TPM8.3L LA 10.

2011-Sep-30

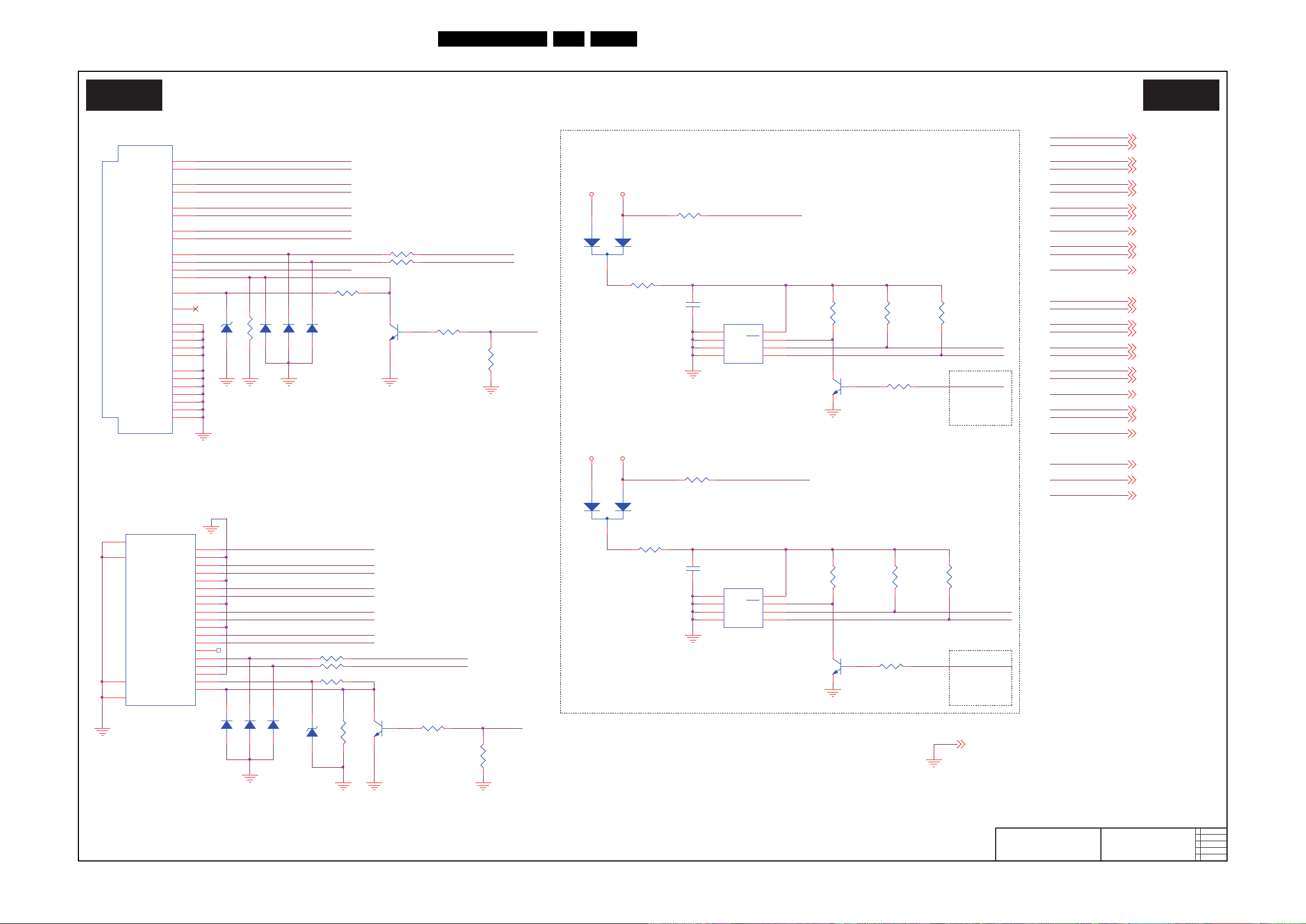

USB 1 & USB 2

19190_507_110908.eps

110926

USB 1 & USB 2

B05 B05

2011-09-01

2

715G5151

USB 1 & USB 2

USB_DP0 4

DVDD3V3

R1010

NC / 15K 1/ 16W 5%

USB_PWR_OCP1

R1002

10K 1/16W 5%

USB_DM0

U1002

STMPS2171STR

1
2
34

5

OUT

GND

FAULTEN

IN

C1003

100N 16V

R1020

NC / 15K 1/ 16W 5%

USB1_D-

C1005

NC / 4P7 50V

LDO_USB2

5V_SW

USB_PWR_OCP0

C1004

NC / 4P7 50V

DVDD3V3

U1001

STMPS2171STR

1
2
34

5

OUT

GND

FAULTEN

IN

USB2_D+

USB_DP0

USB1_D+

R1013
NC / 4K7 1/ 16W 5%

R1016
NC / 4K7 1/ 16W 5%

FB1007

120R/3000mA

1 2

DVDD3V3

R1014

22K 1/16W 5%

123 4

CN103

USB C ON N

1
2

3

4

56

78

C1010

NC / 4P7 50V

USB1

R1015

47K 1/16W 5%

R1018 0R 05 1/ 16W

USB2

ESD

VUSB5V

USB1_D+

USB2_D-

FB1008

120R/3000mA

1 2

H: OK
L: O.C.

GND 4,5,6,7,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24

R1017 0R 05 1/ 16W

R1004

22K 1/16W 5%

R1008 0R 05 1/ 16W

H: POWER ON
L:POWER OFF

FB1006

NC/120R/3000mA

1 2

VUSB1_5V

USB_PWR_EN1

USB_DM0

VUSB1_5V

C1011
10U 16V

USB_PWR_EN0

C1009

NC / 4P7 50V

VUSB2_5V

C1006

100N 16V

H: OK
L: O.C.

VUSB2_5V

+

C1002

47UF 25V

VUSB5V

USB_PWR_OCP0 4

USB_DP1

USB_DP0

USB_PWR_EN0 4

R1011

0R05 1/ 16W

C1001

100N 16V

USB_DM0 4

DVDD3V3

R1019

NC / 15K 1/ 16W 5%

USB2_D+

USB_DM1

R1001

0R05 1/ 16W

C1008

100N 16V

t

TH1002 PTCR

12

USB_PWR_OCP1 4

BUCK_USB2

U1005

AOZ8105CI

1
2
3 4

5

6

I/O1
GND
I/O2 I/O3

VDD

I/O4

USB1_D-

R1009

NC / 15K 1/ 16W 5%

USB2_D-

H: POWER ON
L:POWER OFF

VUSB5V

R1007 0R 05 1/ 16W

USB_DM1 4

USB_PWR_OCP0

R1005

47K 1/16W 5%

VUSB5V

USB_PWR_EN1 4

USB_PWR_OCP1

123 4

CN104

USB C ON N

1
2

3

4

56

78

R1006
NC / 4K7 1/ 16W 5%

R1012

10K 1/16W 5%

USB_DM1

USB_DP1 4

USB_PWR_EN1

USB_DP1

USB_PWR_EN0

+

C1007

47UF 25V

R1003
NC / 4K7 1/ 16W 5%

t

TH1001 PTCR

12

Circuit Diagrams and PWB Layouts

EN 42TPM8.3L LA 10.

2011-Sep-30

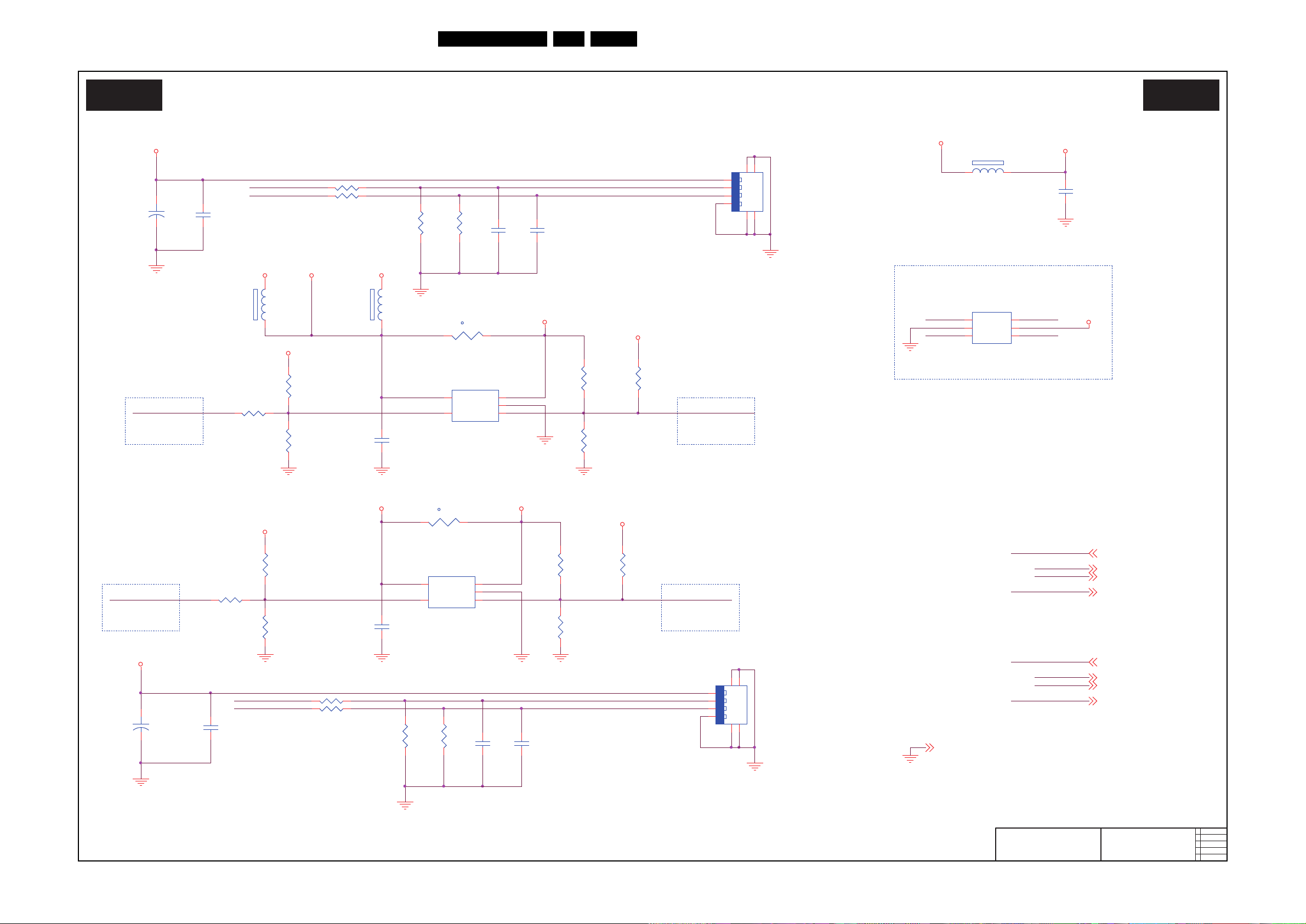

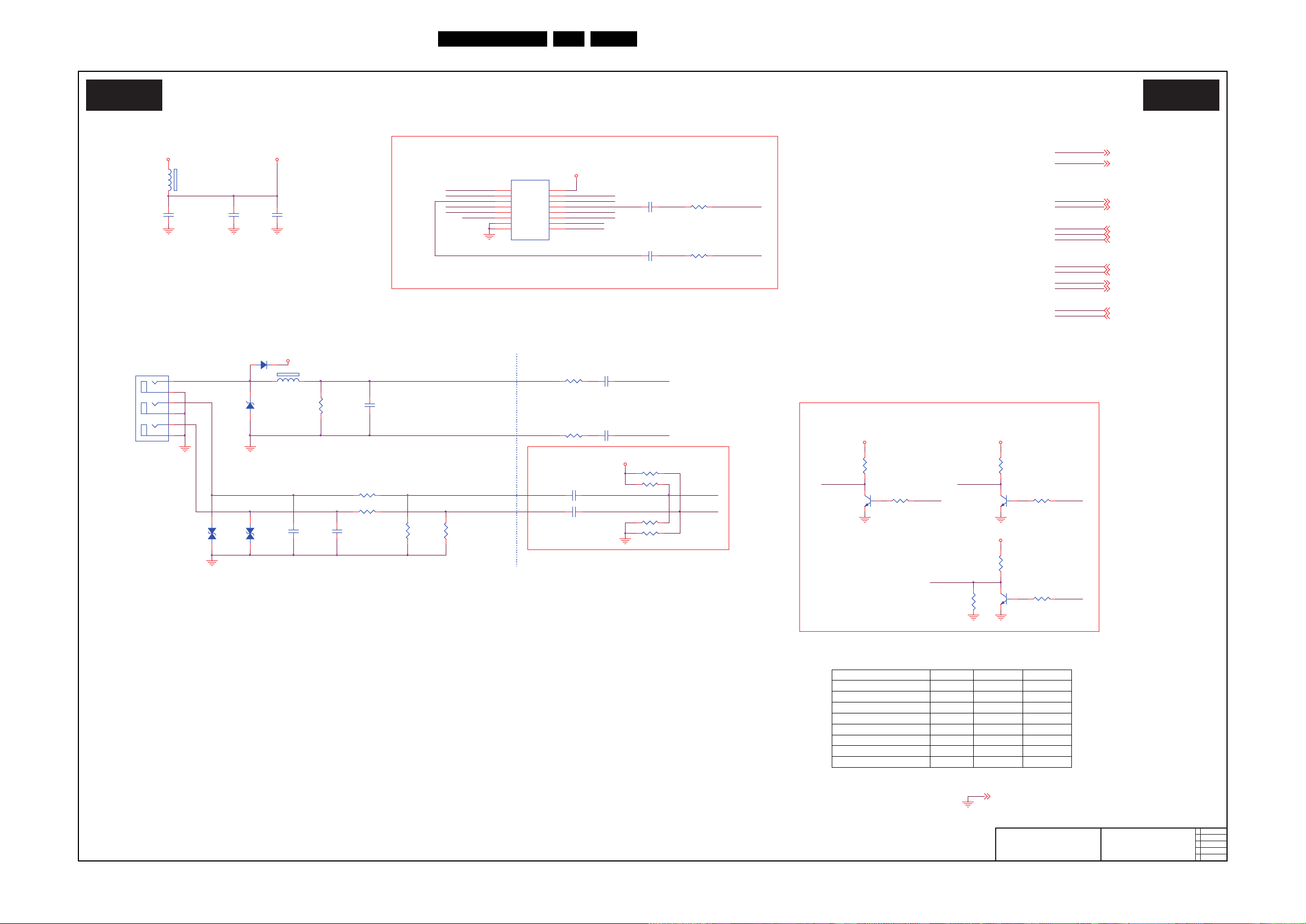

AV1 (side) & Audio-in Multiplexer

19190_508_110908.eps

110926

AV1 (side) & Audio-in Multiplexer

B06 B06

2011-09-01

2

715G5151

AV1 (side) &

Audio-in Multiplexer

AIN0_R_AADC

Close to RCA

0

R101 0R

0

AIN_CTL2

FB114 120R/3000mA

1 2

1

AIN_CTL0 4

(Reserved)

Close to SoC

Audio-in MUX

1

AV1_CVBS 4

R109

5.1K 1%

EXT_L_IN

R102 30K

Q101

PMBS3904

R125

4K7 1/16W 5%

CVI_L_IN1

AMUX_5V

EXT_R_IN 10

CVI_R_IN1

R103

75R 1/16W 1%

AUD_LOUT

AV1_LIN

MUX_C TLA

R106 10K 1/16W 5%

AIN_CTL1

AV1_LIN

C111
10U 16V

1

R127

4K7 1/16W 5%

AV1_CVBS

AIN_CTL1 4

EXT (Rear)

Q102

PMBS3904

C103

100N16V

AIN0_L_AADC

U102

CD4052BPW

2

1

7

6

9

10

3

12
11

8

4 13

14

16
15

5

Y2

Y0

VEE

INH

CTL_B

CTL_A

Yout

X0
X3

VSS

Y3 Xout

X1

VDD

X2

Y1

C107

47N16V

0

0

0

MUX_C TLA

AIN_CTL1

AIN0_R_AADC

1

VGA_R_IN

R112 470K 1/16W 5%

C109
10N 50V

C105
10U 16V

Audio-in MUX CTRL

AMUX_5V

CVBS_COM 4

CVI_L_IN1 10

EXT_R_IN

AIN_CTL2

VGA_R_IN

1

R131

NC/ 4K7 1/ 16W 5%

VGA_R_IN 11

1

AIN0_R_AADC 4

A

B

C

CN121

RCA JACK

2
1
4

3

5

6

AIN_CTL0

AIN0_L_AADC 4

R113 470K 1/16W 5%

0

C110
10N 50V

ZD103

NC/VPORT
0603100KV05

NC/VPORT
0603100KV05

1 2

0

AUD_ROUT

0

AIN_CTL1

CVI_R_IN1

VGA_L_IN

0

FB101

120R/3000mA

12

EXT_R_IN

C108

47N16V

AMUX_5V

C102

100N16V

CVI1

AIN0_L_AADC

C112
10U 16V

1

Close to IC

AIN_CTL2 4

R132

NC/10K 1/16W 5%

R128

10K 1/16W 5%

Audio-in MUX Select Table

AV1 (Side)

VGA_L_IN

1

(Reserved)

0

5V_SW

MUX_C TLB

R126

10K 1/16W 5%

AIN_CTL0

AIN_CTL2

CVBS_COM

MUX_C TLC

AMUX_5V

EXT_L_IN

CVBS-in

R111 470K 1/16W 5%

Q104

NC/PMBS3904

0

0

GND 4,5,6,7,8,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24

AIN_CTL0

AV1_CVBS

R104

68R 1/16W 5%

C101

10uF 10V

1

AV1_RIN

AMUX_5V

PC Line-in

CVBS_COM

CVI_L_IN1

AMUX_5V

AMUX_5V

AV1 Input (Side)

1

(Reserved)

CVI_R_IN1 10

R110 470K 1/16W 5%

AV1_RIN

ZD102

1 2

R108

5.1K 1%

1

(Reserved)

ZD101

NC/UDZSNP5.6B

1 2

MUX_C TLC

R122

0R05 1/16W

R105

0R05 1/16W

VGA_L_IN 11

C106

NC/ 220pF 50V

R/L-in

D102NC/BAS316

1 2

AK

MUX_C TLB

C104
10U 16V

R107 10K 1/16W 5%

EXT_L_IN 10

1

Circuit Diagrams and PWB Layouts

EN 43TPM8.3L LA 10.

2011-Sep-30

CVI1 & EXT

19190_509_110908.eps

110926

CVI1 & EXT

B07 B07

2011-09-01

2

715G5151

CVI1 & EXT

AMUX_5V

D106

NC/BAS316

1 2

AK

FB107 30R/700mA

1 2

D109 NC/BAS316

1 2

A

K

COM1

PB2_5

R148 470K 1/16W 5%

R149 0R05 1/16W

COM1

PB2

R144

5.1K 1%

D104 NC/BAS316

12

A

K

EXT_FSEL 4

R145 470K 1/16W 5%

AMUX_5V

CVI_R_IN1

SOY0

AMUX_5V

R114

NC/75R 1/16W 1%

PR0P

SOY1

C121

1.5nF 50V

R198 18R 1/16W 5%

R/L-in

PB1P 4

CVI1_R_IN

PB1P

R133 0R 05 1/ 16W

R118

NC/ 1K 1/ 16W 5%

Video-in

R135 68R 1/ 16W 5%

COM0

PB1

R157 10K 1/16W 5%

R152 100R 1/16W 5%

ZD112
UDZSNP5.6B

1 2

SOY1 4

EXT_C

C113

100N16V

C134
10N 50V

COM0

R159 0R05 1/ 16W

FB103 30R/700mA

1 2

EXT_CVBS

R156

68R 1/16W 5%

PR2_8

R119

NC/ 5. 6K 1%

C140

22P 50V

PR1

R160

5.1K 1%

Y1P

R139 68R 1/ 16W 5%

PB0P

C130
10U 16V

EXT_L

EXT_R

ZD108
UDZSNP5.6B

1 2

R146 470K 1/16W 5%

C128

22P 50V

FB104 30R/700mA

1 2 R200 18R 1/16W 5%

R217 18R 1/16W 5%

ZD115

NC/VPORT0603100KV05

1 2

R164 470K 1/16W 5%

CN112B

RCA JACK

8

7
10
9

C136
NC/ 10P 50V

PR0P

ZD116

NC/VPORT0603100KV05

1 2

C142
10U 16V

Y0P 4

EXT_R_IN

C129

22P 50V

R161 470K 1/16W 5%

Y0P

C124
15pF 50V

R141 10K 1/16W 5%

C141

22P 50V

AMUX_5V

Y1P 4

CVI_L_IN1 9

EXT_L_IN 9

R153

56R 1/16W 5%

R155 68R 1/16W 5%

D105 NC/BAS316

1 2

A

K

SOY0 4

PR2_8

R154

56R 1/16W 5%

EXT_L_IN

R199 18R 1/16W 5%

EXT_R

EXT_L_IN

SOY0

AMUX_5V

D108 NC/BAS316

1 2

A

K

C131
10U 16V

U103

NC/TS5A3157DCKR

1
2
34

5

6

NO

GND

NCCOM

V+

IN

EXT_R_IN 9

GND 4,5,6,7,8,9,11,12,13,14,15,16,17,18,19,20,21,22,23,24

PR1P

Y2_2

Y2_2

R218 18R 1/ 16W 5%

EXT_CVBS 4

CVI1_L_IN

R115

68R 1/16W 5%

R205

NC/ 220K 1/ 16W 5%

R137

56R 1/16W 5%

R150

56R 1/16W 5%

AMUX_5V

ZD111

NC/VPORT0603100KV05

1 2

D107 NC/BAS316

12

A

K

COM0 4

CVI_R_IN1 9

Y2

C127
10N 50V

PR1P

R142 10K 1/16W 5%

R120

NC/ 22K 1/ 16W 5%

CN111B

RCA JACK

8

7
10
9

C137
NC/10P 50V

C135
10N 50V

C126
10N 50V

R188

0R05 1/16W

FB102 30R/700mA

1 2

C143
10U 16V

AMUX_5V

CVI (Rear)

R/L-in

PB0P

ZD107
UDZSNP5.6B

1 2

R147 470K 1/16W 5%

R143

5.1K 1%

C138
10N 50V

R117

NC/11K 1%

PR2

AMUX_5V

Y1

R162 470K 1/16W 5%

Video-in

C139
10N 50V

Y1P

Q106

NC/PMBS3904

CN111A

RCA JACK

2
1
4

3

6
5

FB105 30R/700mA

1 2

COM1 4

C122
10N 50V

C123
10N 50V

EXT_R_IN

EXT_FSEL

PR2

ZD109
UDZSNP5.6B

12

CVI_L_IN1

PB2_5

R136 100R 1/ 16W 5%

R158 10K 1/16W 5%

PR1P 4

Y2

C133
NC/ 10P 50V

AMUX_5V

PB1P

R116

NC/ 0R 05 1/ 16W

C120
15pF 50V

CVI_R_IN1

CN112A

RCA JACK

2
1
4

3

6
5

R195

5.1K 1%

SOY1

R151 68R 1/16W 5%

PB2

R163 470K 1/16W 5%

PB0P 4
PR0P 4

EXT_L

R219

18R 1/16W 5%

C114

47N16V

R134

56R 1/16W 5%

AMUX_5V

R140 68R 1/16W 5%

R138

56R 1/16W 5%

ZD110

NC/VPORT0603100KV05

1 2

ZD114
UDZSNP5.6B

12

EXT_CVBS

EXT (Rear)

EXT_C

ZD113
UDZSNP5.6B

1 2

E

A

B

C

D

CN113

NC/CONN

1
2

3

4
5
6
7

8

9
10

11
12

13

C125
15pF 50V

C132

1.5nF 50V

AMUX_5V

Y0P

FB106 30R/700mA

1 2

CVI_L_IN1

EXT_FSEL

Circuit Diagrams and PWB Layouts

EN 44TPM8.3L LA 10.

2011-Sep-30

VGA & PC Line-in

19190_510_110908.eps

110926

VGA & PC Line-in

B08 B08

2011-09-01

2

715G5151

VGA & PC Line-in

VGACOM

5V_SW

VGA_L_IN 9

TX_5VPP

C150
NC/ 10P 50V

FB10830R/700mA1 2 R166 68R 1/ 16W 5%

R179 470K 1/16W 5%

R222 1K 1/16W 5%

R183 0R 05 1/ 16W

GP 4

VGA_R_IN

PC_SCL

VSYNC

DDC_WP#

VGA_RX_TX_EN

C149 10N 50V

VGA_R

FB109 30R/700mA1 2

SOG 4

VGA_L_IN

HSYNC

VGA_5V

VGA_B

HS

RP

D101

BAT54C

C145 10N 50V

R123

NC/ 0R 05 1/ 16W

D113

NC/BAS316

1 2

AK

R190 NC/ 0R 05 1/ 16W

C147 1.5nF 50V

RP 4

PC_AU_INR

PC_SCL

VGA_SCL

FB111 120R/3000mA1 2

C148 10N 50V

VGA_B

VGA_RX

HSYNC 4
VSYNC 4

VGA_TXVS

VGA_SCL 4

RX_5VPP

R172 68R 1/ 16W 5%

VGA_5V

TX_5VPP

BP

VGA_TX

R182
NC/2K 1/16W

R173 10K 1/16W 5%

5V_SW

VGA_RX_TX_EN 4

R184
NC/2K 1/16W

VGA_R_IN 9

VGA_R

HS

R194

NC/1K1/16W

U105

AOZ8105CI

1
2
3 4

5

6

I/O1
GND
I/O2 I/O3

VDD

I/O4

R176

5.1K 1%

VGA Input

DDC_WP#

CN101

D-SUB 15P

1

6

2

7

3

8

4

9

5

11
12
13
14
15

10

1716

R174 10K 1/16W 5%

VGA_RX_TX_EN

VGA_SDA

R186

4.7K 1/16W

C152

100N 16V

AMUX_5V

GP

R170 100R 1/ 16W 1%

VGA_SDA 4

VGA_G

UART W B Ad justment

RX_5VPP 7

GP

HSYNC

R167

75R 1/16W 1%

VGA_L_IN

BP 4

PC_SDA

SOG

R175

5.1K 1%

R178 470K 1/16W 5%

R185

10K+-5%1/16W

ESD

R223

4K7 1/16W 5%

R177 470K 1/16W 5%

R191

10K 1/16W 5%

PC_SDA

C146
NC/ 10P 50V

R181 0R 05 1/ 16W

R197 0R05 1/10W

RP

VGA_RX

Q107

NC/PMBS3904

FB110 30R/700mA1 2

VGA_5V

R171

75R 1/16W 1%

DDC_WP# 4,12,13

VSYNC

CN102

PHONE J AC K

1
2

3

SOG

VGA_G

ZD121

NC/VPORT0603100KV05

1 2

BP

R168 0R05 1/ 16W

PC_5VI

R169 68R 1/ 16W 5%

HS

D115

NC/BAS316

1 2

AK

U104

M24C02-WDW6P

1
2

3

45

6

7

8

E0
E1
E2

VSSSDA

SCL

WC

VCC

C154

22P 50V

DVDD3V3

R187
NC/ 100R 1/ 16W 5%

PC Audio-in

VGA SYNC Slicer

GND 4,5,6,7,8,9,10,12,13,14,15,16,17,18,19,20,21,22,23,24

VS

R165

75R 1/16W 1%

PC_SDA

C157
100N 16V

ZD122

NC/VPORT0603100KV05

1 2

Q105

PMBS3904

H : Write

VGACOM 4

TX_5VPP 7

C156
10U 16V

R121

NC/ 0R 05 1/ 16W

C151 10N 50V

R189 N C / 0R 05 1/ 16W

VGA_R_IN

Q109

2N7002

PC_5VI

C144
NC/ 10P 50V

Q108

2N7002

R180 470K 1/ 16W 5 %

VGA_SDA

D114

NC/BAS316

1 2

AK

RX_5VPP

R196 0R05 1/10W

VGACOM

C155
10U 16V

R193

10K 1/16W 5%

VGA_SCL

PC_SCL

C153

22P 50V

L : WP

R192
10K 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 45TPM8.3L LA 10.

2011-Sep-30

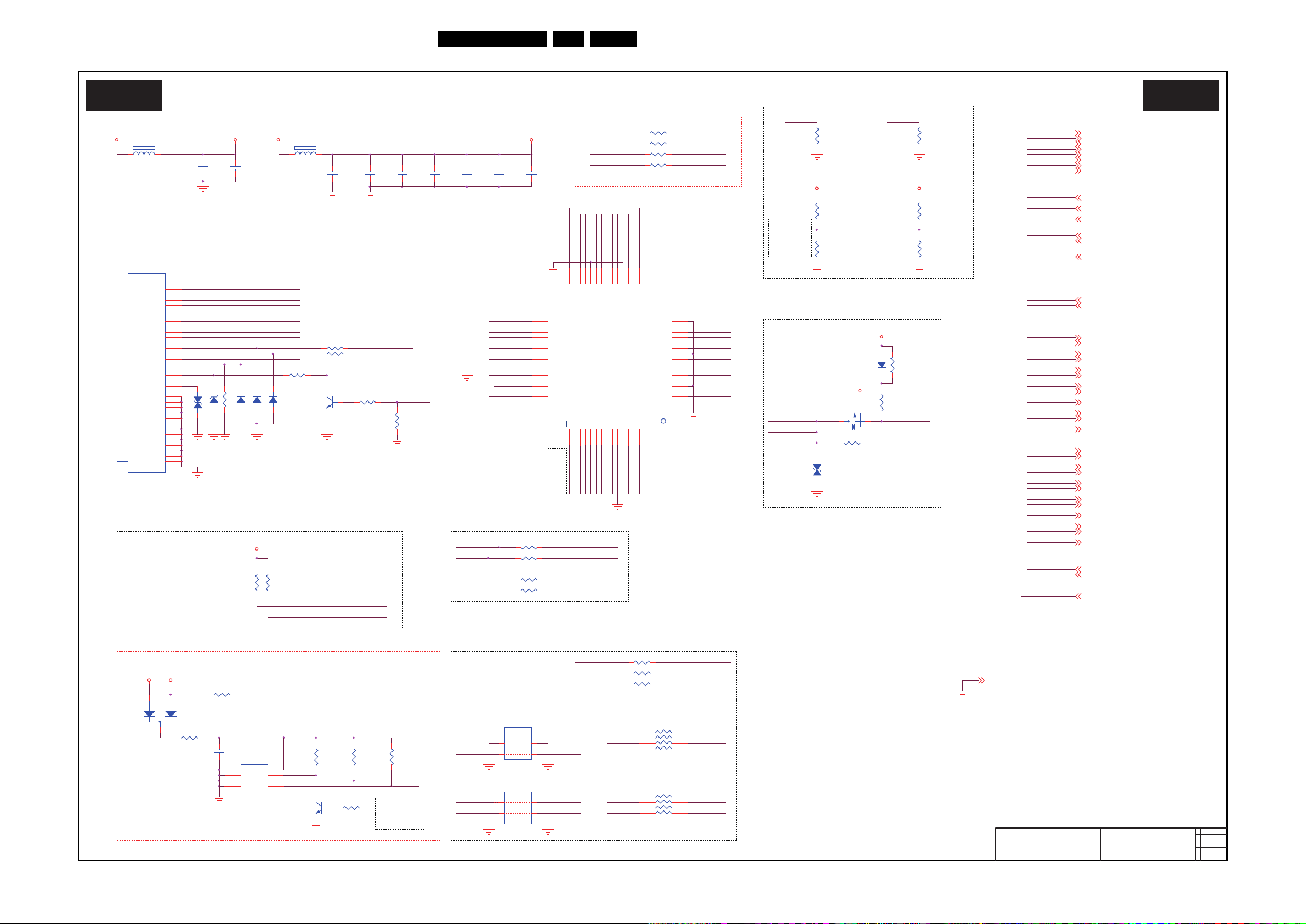

HDMI A & Switch 3:1

19190_511_110908.eps

110926

HDMI A & Switch 3:1

B09 B09

2011-09-01

2

715G5151

HDMI A & Switch 3:1

5VDD

RXB_2+

R510

4K7 1/16W 5%

RXB_1+

HDMI_HPD1

M_RX1_0 4

RXA_2-

HPD_A

M_RX1_1

HDMIB_SCL

M_RX1_2B 4

PWR5V_A

RXA_2+

5V_SW

DV33_TMDS

RXC_2+

C508
100N 16V

RXB_1-

M_RX1_2

R521 NC/0R05 1/ 16W

RXA_0-

Q502

NC/2N7002

HDMI_SDA

RXA_0+

HDMIA_SCL

SDA_A

R524 NC/0R 05 1/ 16W

CEC_C

ARC_A

DV33_TMDS

VS_ADJ

RXC_2+

RXA_0+

R526
0R05 1/10W

M_RX1_1B

HDMI_S1

R502 100R 1/16W 5%

HDMI A (Rear#1) EDI D EEPRO M

HDMI_CEC 4

M_RX1_2B

DV33_TMDS

HPD_A

C510

100N 16V

CEC_B 13

RXB_0-

RXA_1-

RXC_C+ 13

S2_SDA

DV33_TMDS

HDMI_S24

RXC_1+

RXB_1+

RXC_0-

RXA_C+

ZD501NC/BZX384-C5V6

1 2

RXA_1+

M_RX1_2B

R505 1K 1/16W 5%

RXC_C- 13

RXC_1+

RXA_2-

ESD Protecter for Single HDMI_A

HDMIB_SCL

R534

4K7 1/16W 5%

R559 NC/ 100R 1/ 16W 1%

RXB_C+ 13

R513

4.02K 1%

D504

BAS316

12

AK

HDMI_SCL

RXC_2+ 13

HDMIA_SCL

DV33_TMDS

RXA_2+

TMDS361BPAGR

U501

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

171819202122232425262728293031

32

33
34
35
36
37
38
39

40
41
42
43
44
45
46
47
48

495051525354555657585960616263

64

SDA3

SCL3

GND

CLK-_3

CLK+_3

VCC

D0-_3

D0+_3

GND

D1-_3

D1+_3

VCC

D2-_3

D2+_3

GND

VSadj

D2+_SINK

D2-_SINK

VCC

D1+_SINK

D1-_SINK

GND

D0+_SINK

D0-_SINK

VCC

CLK+_SINK

CLK-_SINK

GND

SCL_SINK

SDA_SINK

HPD_SINK

S1/SCL

S2/SDA

I2C_SEL
HPD1

SDA1
SCL1

CLK-_1
CLK+_1
VCC
D0-_1
D0+_1
GND
D1-_1
D1+_1
VCC
D2-_1
D2+_1

LP

HPD2

SDA2

SCL2

CLK-_2

CLK+_2

VCC

D0-_2

D0+_2

GND

D1-_2

D1+_2

VCC

D2-_2

D2+_2

HPD3

ZD502
NC/VPORT0603100KV05

12

DDC_WP#

RXA_2-

R503 1K 1/16W 5%

R517

47K 1/10W 5%

HDMIC_SCL 13

HDMIA_SDA

R507 0R05 1/16W

PWR5V_A 4

HPD_B

R514 1K 1/16W 5%

RXB_0+

RXB_C+

3V3SB

RXA_C-

RXA_C+

M_RX1_CB

HDMIB_SDA

U502

M24C02-WDW6P

1
2

3

4 5

6

7

8

E0
E1
E2
VSS SDA

SCL

WC

VCC

M_RX1_C 4

HDMI_HPD1

M_RX1_0B

RXA_0+

U504

NC/AOZ8804DI

1
2

3

4
5 6

7

8

9

10

CH1
CH2
VN
CH3
CH4 NC

NC

VN

NC

NC

RP502

NC/ 0OH M 1/16W

1
2

3

4

8

7
6
5

C509
100N 16V

DV33_TMDS

M_RX1_2

RXA_C-

RXA_2+

FB502

120R/3000mA

1 2

RXC_0- 13

HPD_C

HDMI_CEC

M_RX1_1

RXC_C­CEC_C

R504470K 1/ 16W 5%

RXB_1+ 13

RXA_C+

RXB_2+

M_RX1_CB

HDMI_S14

HDMIA_SDA

DV33_TMDS

R519

10K 1/10W

D502NC/BAS316

1 2

AK

RXB_0+

RXB_0- 13

HDMI_S2

HDMI_SCL

CEC_B

R560 NC/ 100R 1/ 16W 1%

M_RX1_1B

5VDD_LP#

CEC_A

ZD503

NC/VPORT0603100KV05

1 2

HPD_C 13

ARC_A 20

HDMI_SDA

M_RX1_C

RXA_0-

RXB_2-

M_RX1_1B 4

HDMI_SCL

R508

27K 1/10W 5%

HDMIA_SCL

HDMI_S1

ARC_A

C507
100N 16V

R509

NC/ 0R 05 1/ 16W

HDMIB_SDA 13

RXB_C-

RXA_1-

HDMI_SDA

M_RX 1_2

5VDD

RXB_2- 13

DV33_TMDS

M_RX1_2

HDMI_CEC

DDC_WP#

RXC_0+

R515

10K 1/10W

Q501

PMBS3904

R557 NC/ 100R 1/ 16W 1%

DV33_TMDS

3V3SB

RXA_1+

D503NC/BAS316

1 2

AK

M_RX1_CB 4

RXC_0+ 13

RXA_0+

OSCL0

HPD_B 13

M_RX1_C

CEC_A

RXA_2-

H : Write
L : WP

RXC_0+

M_RX1_0B 4

RXA_C+

RXB_C+
RXB_C-

R558 NC/ 100R 1/ 16W 1%

RXC_1- 13

R520

10K 1/10W

M_RX1_1 4

PWR5V_A

C504
100N 16V

EQ_I2C_SEL

M_RX1_0

HD5V _A

M_RX1_C

RXC_C+

M_RX1_2B

VS_ADJ

R532

NC/ 10K 1/ 10W

R530 0R05 1/ 16W

Option for 3x port

HDMIC_SCL

M_RX 1_1

Single HDMI_A (Bypass Switch)

M_RX1_2 4

HDMIC_SDA 13

M_RX1_1B

R518

1K 1/16W 5%

AVDD3V3

S2_SDA

HDMIA_SDA

R501 100R 1/16W 5%

D501NC/BAS316

1 2

AK

R522 NC/0R05 1/ 16W

H : GPIO
L : I2C

M_RX1_0

RXA_0-

HDMI_SCL 4

RXC_C-

RXB_2-

OSDA0

Opti on for 1x port

RXB_C- 13

RXA_C-

HDMI_SDA 4

RXC_1+ 13

HDMI_HPD1

DV33_TMDS

RXA_1-

RXA_1+

OSCL0 4,5,7,14,15,20

5VDD

RP501

NC/ 0OH M 1/16W

1
2

3

4

8

7
6
5

C503

10uF 10V

CEC_C 13

M_RX1_1B

HDMI_SDA

R511

NC/ 4K7 1/ 16W 5%

GND 4,5,6,7,8,9,10,11,13,14,15,16,17,18,19,20,21,22,23,24

HDMIB_SDA

HPD_A

M_RX1_CB

RXA_1+

HD5V_A

RXB_1-

RXC_C+

RXA_0-

FB501

120R/3000mA

12

R512

10K 1/10W

RXB_2+ 13

5VDD_LP#

M_RX1_0B

C502
100N 16V

M_RX1_2B

RXB_1- 13

S1_SCL

HDMIA_SDA

OSCL0

HDMI_S2

RXA_2+

HPD_C

R516

47K 1/10W 5%

M_RX 1_0

C506
100N 16V

RXB_0+ 13

HDMIC_SDA

M_RX1_0B

CEC_B

U503

NC/AOZ8804DI

1
2

3

4
5 6

7

8

9

10

CH1
CH2
VN
CH3
CH4 NC

NC

VN

NC

NC

M_RX1_0B

RXA_2-

RXA_C-

R506

4K7 1/16W 5%

RXA_C-

OSDA0 4,5,7,14,15,20

R523 NC/ 0R 05 1/ 16W

DDC_WP# 4,11,13

SCL_A

CN501

HDMI

7
9

4
6

1

3

15

5

18

11

19

14
2

13

16

17

8

10
12

20
21
22
23
24
25
26

TMDSD0+

TMDSD0-

TMDSD1+

TMDSD1-

TMDSD2+

TMDSD2-

SCL

DSHLD1

VCC5

CSHLD0

HPD

NC

DSHLD0

CEC

SDA

DDC_GND

DSHLD2

TMDSC+

TMDSC-

SHLD_GND1
SHLD_GND2

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

D505

BAT54C

C501

10uF 10V

HDMI_HPD1 4

Q503

PMBS3904

RXC_1-

EQ_I2C_SEL

HDMI_HPD1

5V_SW

RXA_C+

HPD_B

RXC_2-

RXA_1-

RXA_0-

DV33_TMDS

RXC_0-

C505
100N 16V

RXC_2- 13

R525 NC/0R 05 1/ 16W

M_RX1_1

HDMI A (Rear#1)

DV33_TMDS

HDMIB_SCL 13

RXA_2+

S1_SCL

HDMIA_SCL

M_RX1_CB

RXC_1-

HDMIC_SDA

OSDA0

R531 0R05 1/ 16W

RXC_2-

HDMI_SCL

RXA_0+

RXA_1+

RXA_1-

M_RX 1_C

HDMIC_SCL

M_RX1_0

RXB_0-

H: normal mode

L: low pwr state

Circuit Diagrams and PWB Layouts

EN 46TPM8.3L LA 10.

2011-Sep-30

HDMI B & HDMI C (side)

19190_512_110908.eps

110913

HDMI B & HDMI C (side)

B10 B10

2011-09-01

2

715G5151

HDMI B & HDMI C (side)

PWR5V_B

RXC_0+

DDC_WP#

RXB_C-

RXB_1+

RXC_2-

HDMIC_SDA 12

HDMIB_SDA

RXB_1+ 12

R552 1K 1/ 16W 5%

D515NC/BAS316

1 2

A

K

R543 1K 1/ 16W 5%

RXC_2-

RXC_0+

RXB_C- 12

HDMI C ( side)

L : WP

RXC_0-

RXB_1+

HPD_C

RXB_2+

RXB_0-

D517

BAT54C

5V_SW

R540470K 1/16W 5%

RXB_C-

RXC_C-

CEC_B

L : WP

RXC_2+

H : Write

R535 100R 1/ 16W 5%

RXC_1+

C516

100N 16V

H : Write

R538

4K7 1/16W 5%

R550

47K 1/10W 5%

HD5V_C

HDMIB_SDA

RXB_2-

HDMI C ( Side) ED ID EEP R O M

HDMIB_SCL

RXC_C+ 12

D513NC/BAS316

1 2

A

K

DDC_WP#

R551

1K 1/16W 5%

C515

100N 16V

CEC_C

RXC_1-

RXB_2+

HD5V_B

R528
0R05 1/ 10W

RXB_0+ 12

CN506

HDMI

20

21

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19

22

23

SHLD0

SHLD1

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0

TMDSC-

CEC

NC

SCL

SDA

DDC_GND

VCC5

HPD

SHLD2

SHLD3

HPD_C

R542 100R 1/16W 5%

R549

47K 1/10W 5%

RXC_0-

R553

10K 1/10W

RXC_C- 12

HPD_B

R541 100R 1/16W 5%

R536 100R 1/ 16W 5%

RXB_C+

PWR5V_B

RXB_1-

HDMIB_SCL

R533
0R05 1/ 10W

RXB_2- 12

RXC_2+

R556

1K 1/16W 5%

ZD506NC/BZX384-C5V6

1 2

5V_SW

HDMIC_SCL 12

GND 4,5,6,7,8,9,10,11,12,14,15,16,17,18,19,20,21,22,23,24

HDMIC_SCL
HDMIC_SDA

RXB_1- 12

RXC_2- 12

D510NC/BAS316

1 2

A

K

ZD505NC/BZX384-C5V6

1 2

PWR5V_C

CN502

HDMI

7
9

4
6

1

3

15

5

18

11

19

14
2

13

16

17

8

10
12

20
21
22
23
24
25
26

TMDSD0+

TMDSD0-

TMDSD1+

TMDSD1-

TMDSD2+

TMDSD2-

SCL

DSHLD1

VCC5

CSHLD0

HPD

NC

DSHLD0

CEC

SDA

DDC_GND

DSHLD2

TMDSC+

TMDSC-

SHLD_GND1
SHLD_GND2

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

R545 1K 1/16W 5%

RXC_2+ 12

R537 1K 1/16W 5%

RXB_1-

R544

4K7 1/16W 5%

D516

BAT54C

RXC_0- 12

HDMIB_SCL

CEC_B 12

Q508

PMBS3904

RXB_2+ 12

RXC_C+

PWR5V_C

R547 1K 1/ 16W 5%

D512NC/BAS316

1 2

A

K

RXC_1+ 12

HPD_C 12

HDMI B (r ear#2)

R546470K 1/16W 5%

HDMIC_SDA

CEC_C 12

CEC_C

RXB_0+

DDC_WP#

D514NC/BAS316

1 2

A

K

HDMIC_SCL

RXB_C+ 12

Q506

PMBS3904

Option for 3x port

RXC_1- 12
RXC_0+ 12

HPD_B

R555

47K 1/10W 5%

R554

47K 1/10W 5%

RXC_C+
RXC_C-

RXC_1-

PWR5V_C 4

D511NC/BAS316

1 2

A

K

RXB_C+

U505

M24C02-WDW6P

1
2

3

4 5

6

7

8

E0
E1
E2
VSS SDA

SCL

WC

VCC

HDMIB_SDA 12

HDMIB_SDA

U506

M24C02-WDW6P

1
2

3

4 5

6

7

8

E0
E1
E2
VSS SDA

SCL

WC

VCC

Q507

PMBS3904

HPD_B 12

RXB_0-

R539 1K 1/16W 5%

HDMIC_SDA

R548

10K 1/10W

PWR5V_B 4

HD5V_C

CEC_B

RXB_2-

Q505

PMBS3904

HDMI B (Rear#2) EDID EEPROM

HD5V_B

RXB_0+

HDMIB_SCL 12

DDC_WP# 4,11,12

RXB_0- 12

RXC_1+

HDMIC_SCL

Circuit Diagrams and PWB Layouts

EN 47TPM8.3L LA 10.

2011-Sep-30

Demodulator (DTMB, DVB-T & PAL)

19190_513_110909.eps

110926

Demodulator (DTMB, DVB-T & PAL)

B11 B11

2011-09-01

2

715G5151

Demodulator

(DTMB, DVB-T & PAL)

TSSYNC

T2D_TIF-

TS2

C1118
100N16V

VDD12

DEMOD_TSDATA0

C1127
1uF 16V(NC )

C1115
100N16V

AVDD1V2

TS6

T2D_TIF-

VDD12

R1122
10K 1/16W 5%(NC)

C1134
100N16V(NC)

TESTIO20

R1118

10K +-1% 1/16W

C1138 100N16V

TS3

VDD_DIV

IF_AGC_SW

C1137 100N16V

V3.3

R1126
200R 1/16W 5%(NC)

TSCLK

T2D_TIF+

TS6

IVINN

R1125
330R 1/16W 5%(NC)

DTMB_RESETN

FB1111

NC/120R/3000mA

1 2

close to AT BM8848

DTMB_RESETN

VDD33

TS0

C1106
100N16V

TESTIO23

R1124 100K 1/16W (N C )

R1109 100K 1/16W (N C )

C1124
100N16V

TS7

R1116 0R05 1/16W

DEMOD_TSDATA0 4

T2D_TIF+

IVINP

DEMOD_TSCLK

R1117 0R05 1/16W

+

C1101

NC/ 220U F 16V

R1119
10K +-1% 1/16W

IF_AGC_SW15

VDD12

ASIC_3V3

REFCLK1

VDD12

R1107 100K 1/16W (N C )

TESTIO25

TP07

T POINT R(NC)

IF_AGC_D2T

TS4

V3.3

SCLM

TS2

TESTIO21

GND 4,5,6,7,8,9,10,11,12,13,15,16,17,18,19,20,21,22,23,24

FB1108

NC/120R/3000mA

1 2

U101
NC/ATBM8848

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18

1920212223242526272829303132333435

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

585755

56

5960616263646566676869

717270

73

TSBSYNC
TSBVLD
TSBCLK
TSB7
TSB6
VDD33
TSB5
TSB4
TSB3
VDD12
TSB2
TSB1
TSB0
PWM0
VDD12
CLK_REF_OUT
VDD_DIV
REFCLKI0

REFCLKI1

VDD_OSC

DVDD_ADC

ADVDD_ADC

QVINP

QVINN

IVINP

IVINN

AVDD_REF

REF_BIAS_EXT

VDD12

TESTIO16

TESTIO15

VDD33

TESTIO14

TESTIO13

TESTIO12

TESTIO11

TESTIO10

I2CINT

SCLM

SDAM

VDD12

SCLS

SDAS

DBGBUS17

VDD33

DBGBUS16

DBGBUS15

TESTIO17

TESTIO18

TESTIO19

VDD33

VDD12

DBGBUS14

DBGBUS13

NC

VDD12

NC

NC

VDD33

VDD33

DBGBUS12

DBGBUS11

VDD33

DBGBUS10

VDD33

PWM1

VDD33

VDD12

RESETN

TEST0

TEST1

DBGSEL

GND

R1115

2.7K 1/16W 1%

Tuner I2C

ASIC_3V3

V1.2

VDD12

TP05

T POINT R(NC)

Serial TS

SCLM

VDD_DIV

IF_AGC_SW

VDD33

SDAS

IVINP

C1105
100N16V

R1114

2.7K 1/16W 1%

VDD33

TS5

FB1109

NC/120R/3000mA

1 2

L1101

2.2uH(NC)

R1102

56K 1%(NC)

TP06

T POINT R(NC)

C1126
100N16V

T2D_TIF+ 15

VDD33

VDD33

C1112
100N16V

OSCL0

PWM0

C1123
100N16V

C1120
100N16V

TP04

T POINT R(NC)

Demod I2C

V3.3

TU_SDA

C1133
100N16V(NC)

ASIC_3V3

ASIC_3V3

IF_AGC_D2T

C1117
100N16V

LD1101

NC/LED

1 2

AVDD33

TESTIO24

C1125
100N16V

TP02

T POINT R(NC)

OSCL0 4,5,7,12,15,20

OSDA0

DEMOD_RESET

TU_SCL 15

FB1112

NC/120R/3000mA

1 2

DEMOD_TSVALID 4

TS3

C1129
15pF/50V(NC)

C1110
100N16V

TESTIO22

DEMOD_TSSYNC

DEMOD_RESET 4

C1130
1uF 16V(NC)

Parallel TS

T2D_TIF- 15

SDAM

ASIC_3V3

C1107
100N16V

OSDA0 4,5,7,12,15,20

TU_SDA

FB1107

NC/120R/3000mA

1 2

C1109
100N16V

C1122
100N16V

SDAS

REFCLK1

IF_AGC_D2T 15

TS0

FB1110

NC/120R/3000mA

1 2

GPIOs fr om Demodulator IC

VDD12

TESTIO21

R1105 100K 1/16W (N C )

TP08

T POINT R(NC)

VDD33

TS7

DEMOD_TSCLK

OSDA0

C1102
1uF 16V

TESTIO26

C1114
100N16V

R1106 100K 1/16W (N C )

TS1

TS0

TSVALID

TESTIO24

X1101
NC/30.4MHz

1 2

VDD12

V3.3

R1123 0R05 1/ 16W (N C )

R1113 0R05 1/ 16W

ASIC_3V3

TSCLK

TSVALID

R1120

4.7K 1%

VDD33

TESTIO22

IVINN

DEMOD_TSDATA0

TESTIO27

C1104
1uF 16V

R1127
10K 1/16W 5%(NC)

TU_SDA 15

VDD33

TESTIO26 R1108 100K 1/16W (N C )

VDD33

TP03

T POINT R(NC)

Near to ALBM8848

VDD33

TS4

TESTIO23

REFCLK0

SCLS

TU_SCL

VDD33

C1111
100N16V

TS5

REFCLK0

VDD33

DEMOD_TSVALID

TESTIO21

R1101 N C / 1M 1/16W

DEMOD_TSSYNC

TS1

VDD12

C1116
100N16V

R1121

4.7K 1%

C1113
100N16V

AVDD33

TESTIO25

TESTIO27

TP26

T POINT R(NC )

SDAM

R1112 0R05 1/16W

+

C1119

NC/ 220U F 16V

VDD33

TSSYNC

C1103
1uF 16V

RP1101

NC/ 22oH M 1/16W

1
2

3

4

8

7
6
5

R1103 100K 1/16W

䠄NC䠅

SCLS

DEMOD_RESET

R1104 100K 1/16W (N C )

VDD12

LOCK

TU_SCL

OSCL0

C1128

12PF 50V(NC )

C1121
100N16V

+

C1108

NC/ 220U F 16V

DEMOD_TSCLK 4

VDD33

DEMOD_TSVALID

TESTIO20

PWM0

TP01

T POINT R(NC)

DEMOD_TSSYNC 4

Circuit Diagrams and PWB Layouts

EN 48TPM8.3L LA 10.

2011-Sep-30

Half NIM Tuner

19190_514_110909.eps

110926

Half NIM Tuner

B12 B12

2011-09-01

2

715G5151

Half NIM Tuner

For DTV (bypass AIF & DIF switch)

3V3_BUCK

R1136

100K 1/16W 5%(NC)

R1151 0R 05 1/ 16W

T2S_TIF+

C1149

56pF 50V

OSCL0

T2D_TIF+ 14

C1140

10uF 10V

+B_5V

TIF+

5V_TUNER

OSDA0

IFAGC_T

+B_5V

R1158

10K 1/16W 5%(NC)

TIF +

C1151 100P 50V

RFIN_CTL

C1158

NC/ 100N 16V

Q1108

PMBS3906(NC)

1

23

IF_AGC_SW

T2S_TIF-

TIF-

TIF+

R1140

4K7 1/16W 5%

C1157

NC/ 100N 16V

TU_SCL 14

DTMB_PAL_SW4

R1146 0R05 1/ 16W

R1161
0R05 1/10W

T2D_TIF-

H: IF_AGC_D2T
L: IF_AGC_S2T

+B_5V

TU101

NC/TDTR-T032D

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18

192021

22

RF S/W CTL

Bst CTL

+B1

N.C(RF AGC)

N.C

SCL
SDA

N.C(AIF)

N.C
N.C
N.C

GND

N.C
N.C
N.C

IF AGC

DIF 1(N)

DIF 2(P)

TH1

TH2

TH3

TH4

A Tuner :

OSCL0 4,5,7,12,14,20

R1153 33R 1/16W 5%

C1142

22pF 50V

D+A T uner :

IF_AGC_S2T 4

R1166

10K 1/16W 5%(NC)

RFAGC_I

T2D_TIF-

R1192

20K 1/16W 5%(NC)

C1162
100N 16V(NC )

R1143

4K7 1/16W 5%

R1194 NC / 0R 05 1/ 16W

C1145

100N16V(NC)

Q1107

PMBS3904(NC)

R1144 NC/ 0R 05 1/ 16W

For DTMB

5V_SW

IFAGC_T

C1143

22pF 50V

V3.3

Tuner _I2C 3.3 V to 5V

TU_SCL

R1150 NC / 0R 05 1/ 16W

+B_5V

TU_SCL

FB1101

120R/3000mA

1 2

R1193 NC/ 0R 05 1/ 16W

3V3_BUCK

R1162
0R05 1/10W

+B_5V

R1149 1K 1/16W 5%(NC)

R1198

4K7 1/16W 5%(NC)

Q1103

2N7002

R1131 0R05 1/16W

H: input 2 (cable)
L: input 1 (AIR)

TIF +

TU102

F35CT-6-E

1
2

3

4
5
6
7

8

9
10
11

121314

15

N.C
N.C
N.C

RF AGC

B+(+5V)

SDA
SCL

N.C
N.C

IF+

IF-

TH1

TH2

TH3

TH4

H: ON
L: OFF

T2S_TIF-

T2S_TIF+ 4

OSCL0

TU_5V_SDA

RFAGC_I

L1108 150uH

T2S_TIF- 4

T2D_TIF+

TU_5V_SCL

R1132 0R05 1/16W

R1141 0R05 1/16W

IF_AGC_D2T 14

DTMB_PAL_SW

+

C1139
220UF 16V

OSDA0 4,5,7,12,14,20

+B_5V

T2D_TIF+

T2S_TIF+

TU_SDA 14

R1152 10K 1/16W 5%

L1117

0.12UH

L1111

0.1uH

IF BPF

GND

IF_AGC_SW14

GND_A

+B_5V

R1139 100R 1/16W 5%

Q1101

PMBS3904(NC)

C1159
100N 16V(NC )

R1191

100K 1/16W(N C )

RF_AGC_S2T 4

Q1109

PMBS3906(NC)

1

23

R1142 NC/ 0R 05 1/ 16W

T2D_TIF- 14

R1145 0R05 1/16W

R1188 NC/0R 05 1/ 16W

IFAGC_T

R1159

51R 1/16W 5%

R1160

51R 1/16W 5%

TU_SDA

RF_AGC_S2T

Q1106

PMBS3906(NC)

1

23

C1152

10N 50V

TIF-

R1154 33R 1/16W 5%

L1114

0.22UH

RF_AGC_S2T

RFAGC_I

R1133 0R05 1/16W

R1156 33R 1/16W 5%

BST_CTL 4

IF_AGC_D2T

IF_AGC_S2T

R1130 0R05 1/16W

For T032D Analog, DVB-C/T

TU_5V_SDA

OSDA0

IF_AGC_D2T

TU_5V_SDA

C1154

100P 50V

C1147

47N16V

R1155 33R 1/16W 5%

IF_AGC_SW

TU_SDA

C1148

56pF 50V

R1148

100K 1/16W(N C )

R1138 100R 1/16W 5%TU_5V_SCL

R1137

4K7 1/16W 5%(NC)

Q1102

2N7002

C1150 100P 50V

For ATV only

IF_AGC_S2T

TIF -

TU_5V_SCL

TIF -

C1155
220pF 50V

BST_CTL

GND 4,5,6,7,8,9,10,11,12,13,14,16,17,18,19,20,21,22,23,24

L1116

0.12UH

FB1102

NC/120R/3000mA
1 2

R1195

4K7 1/16W 5%(NC)

RFIN_CTL

RFIN_CTL

BST_CTL

R1147

NC/ 0R 05 1/ 16W

C1153

10N 50V

+B_5V

DTMB_PAL_SW

R1157

68R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 49TPM8.3L LA 10.

2011-Sep-30

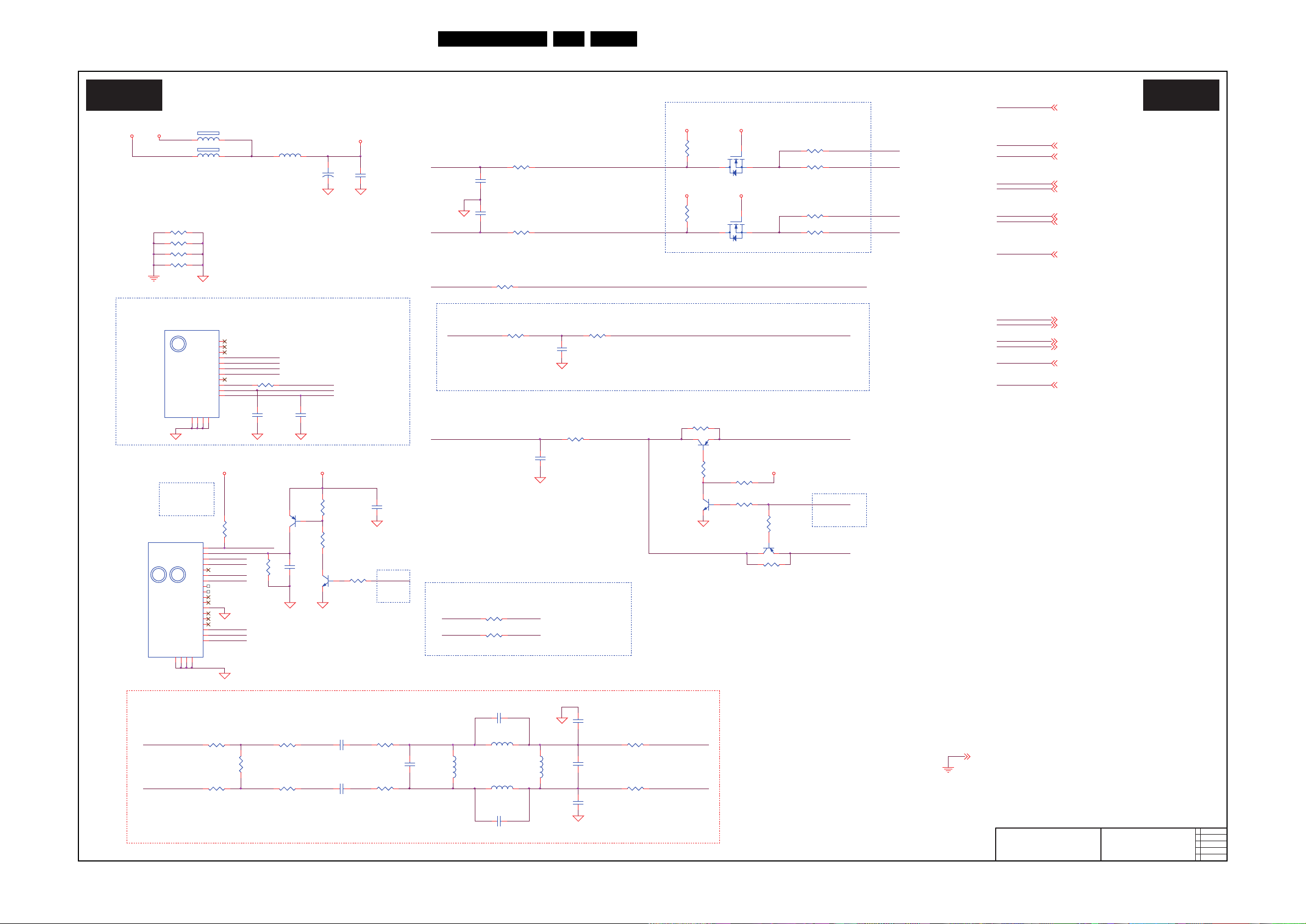

POP Killer & Extender

19190_515_110909.eps

110909

POP Killer & Extender

B13 B13

2011-09-01

2

715G5151

POP Killer & Extender

D601
NC/1N4148W

For AC-on POP noise

D603
BAT54C

POP_MUTE# 4,18

R643
10K 1/16W 5%

GND 4,5,6,7,8,9,10,11,12,13,14,15,17,18,19,20,21,22,23,24

HPHONE_EN

R628
10K 1/16W 5%

Q601

PMBS3904

R620
10K 1/16W 5%

5VSB

L : Mute

Q607

PMBS3904

H: ON
L: Power Down

V_MUTE

H: UN-MUTE

HPHONE_EN 19

R625
10K 1/16W 5%

POP_MUTE#

Q602

PMBS3904

For DC-on/off POP noise

R623

470OHM1/10W

Q603

PMBS3906

1

2 3

R630

NC / 100R 1/ 16W 5%

+12V

A_MUTE

R642
10K 1/16W 5%

Q605

PMBS3904

Q606

PMBS3904

R629
1K 1/16W 5%

L: MU TE

R618
47K 1/16W 5%

R638

47K 1/16W 5%

Q604

PMBS3904

V_MUTE

R626
1K 1/16W 5%

V_MUTE

R619
10K 1/16W 5%

H : Un-m ute

5V_SW

R624

2.2K 1/ 16W

C603

100N 50V

AVDD3V3_HP

R621
470K 1/16W 5%

R665

NC / 100R 1/ 16W 5%

ZD601

BZX84C3V6
1 3

5VSB

C604
1uF 16V

HPHONE_EN

V_MUTE

H: UN-MUTE

DVDD3V3_AMP

5V_SW

POP_MUTE#

R627

1K 1/16W 5%

POP Killer Output

D602

BAT54C

Q609

PMBS3906

1

2 3

V_MUTE

R622

100R 1/ 16W 5%

AMP_PD#

A_MUTE

L: MU TE

+12V

Circuit Diagrams and PWB Layouts

EN 50TPM8.3L LA 10.

2011-Sep-30

IR & Keypad Interface

19190_516_110909.eps

110909

IR & Keypad Interface

B14 B14

2011-09-01

2

715G5151

IR & Keypad Interface

Link to IR/Keypad Bd.

ZD202

NC/BZX384-C5V6

1 2

R221 0R 05 1/ 10W

KEY2

IR Re ceiver

5VSB_2

ADC_KEY

ITV_IR

H : OFF

ADC_KEY 4

C204

100N 16V

ITV_IR

ZD201

NC/BZX384-C5V6

1 2

R208 0R05 1/16W

C205

100N 16V

3V3SB_2

3V3SB_2

OIRI 4

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,18,19,20,21,22,23,24

R203
NC / 10K 1/ 16W 5%

R206

NC / 4K7 1/ 16W 5%

R204

100R 1/ 16W 5%

ITV_IR 7

TOC_KEY

TOC_KEY

C207

33P 50V

LED_RED_OFF#

TOC_KEY 4

R211 NC / 0R 05 1/ 16W

3V3SB_2

LED_WGB

C206

100N 16V

3V3SB_2

LED_RED_OFF#

FB201

120R/3000mA

1 2

CN401

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

FB202

120R/3000mA

1 2

L : ON

LED_RED

ADC_KEY

5VSB_2

LED_WGB

OIRI

OIRI

C203

100N 16V

KEY2

KEY1

C202

100N 16V

R212

10K 1/16W

5V_SW

Q201

NC/2N7002

C201

100N 16V

LED_RED_OFF# 4

5VSB

R224 N C / 0R 05 1/ 10W

R207 0R 05 1/ 16W

3V3SB

LIT_SENSOR

3V3SB_2

LIT_SENSOR 4

KEY1

R201
10K 1/16W 5%

R220 0R 05 1/ 10W

LIT_SENSOR

R202

100R 1/ 16W 5%

LED_WGB 4

Circuit Diagrams and PWB Layouts

EN 51TPM8.3L LA 10.

2011-Sep-30

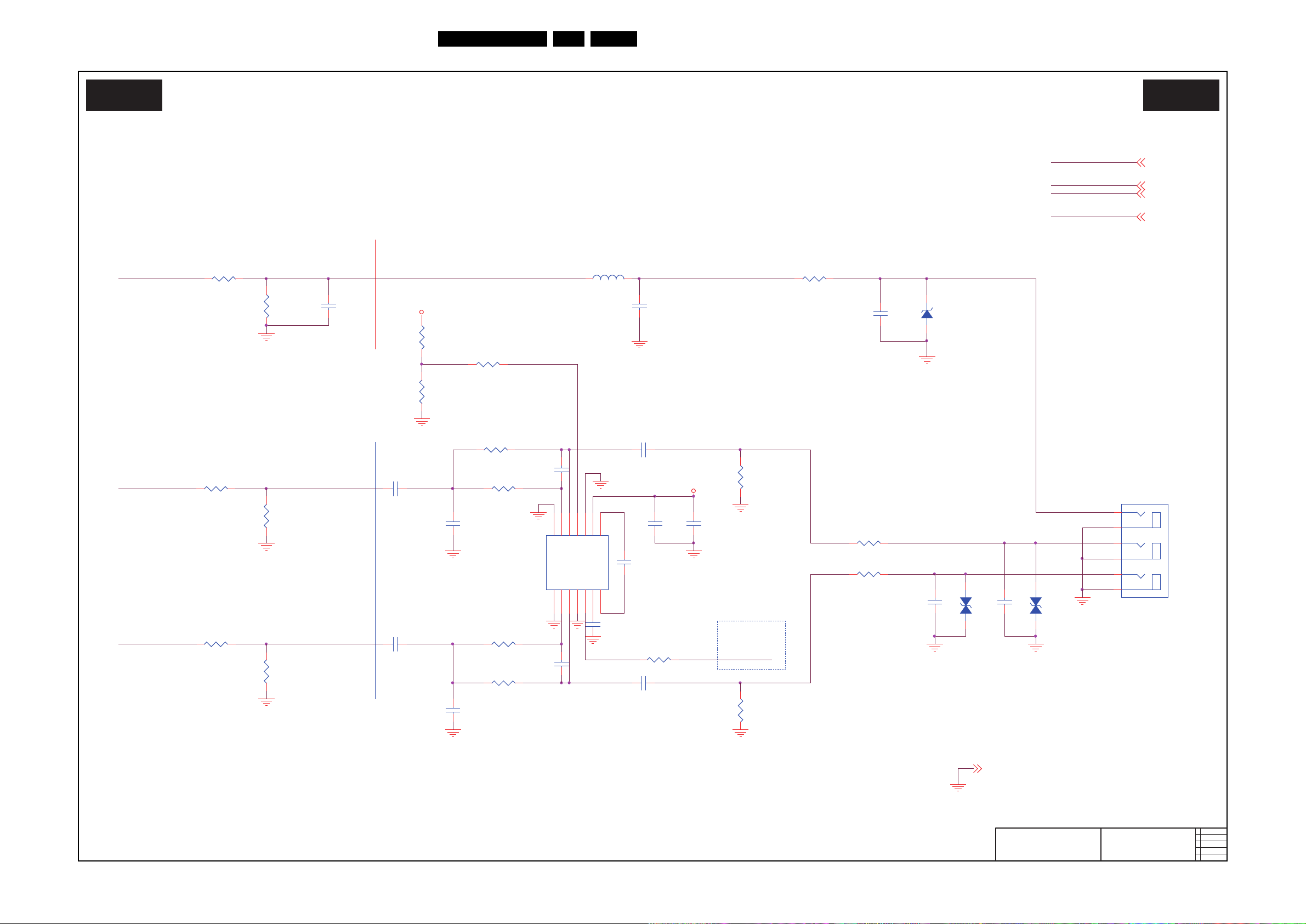

AV Out (Rear)

19190_517_110909.eps

110909

AV Out (Rear)

B15 B15

2011-09-01

2

715G5151

AV Out (Rear)

AV_OUT (CVBS+R/L)

AR0O 4

ZD1101

NC/VPORT0603100KV05

1 2

R1175 9K1 1/ 16W 5%

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,19,20,21,22,23,24

R1181
47K 1/16W 5%

MONITOR_OUT

R1197

2K 1/16W 5%

AL0O

AV_OUT

L : Mute

Nearly I/O CONNECTOR

C1167
47pF 50V

POP_MUTE#

R1184

15K 1/16W 5%

C1182
10N 50V

R1165 0R 05 1/ 16W

R1196

75R 1/ 16W 1%

C1176
1uF 16V

R1187 0R05 1/ 16W

C1174
10U 16V

C1177
NC / 47pF 50V

R1178

15K 1/16W 5%

C1166

220pF 50V

MONITOR_OUT

U605

DRV603PWR

1

2

121196

543

14

7 8

10

13

+INR

-INR

OUTL

UVP

PVDDPVSS

EN

SGND

OUTR

+INL

CN CP

PGND

-INL

L1115

1.8 uH

AL0O

ZD1103
UDZSNP5.6B

1 2

R1189
0R05 1/ 10W

C1163
1N 50V

C1165

220pF 50V

AR0O

R1173

5K1 1/16W 5%

R1171

5K1 1/16W 5%

Close MT5301

R1174
NC / 100K 1/ 16W

Nearly MT5301

EN_AV3

C1171
100N 16V

A

B

C

CN1101

CONN

2
1
4

3

5

6

CVBS OUT

3V3_BUCK

R1176 0R 05 1/ 16W

C1168
47pF 50V

H : Un-m ute

R1179

1.02K 1/ 10W 1%

5V_SW

ZD1102

NC/VPORT0603100KV05

1 2

C1175
1uF 16V

AL0O 4

C1169
10U 16V

R1190
0R05 1/ 10W

C1172
1N 50V

MONITOR_OUT 4

POP_MUTE#

C1164
10U 16V

R/L OUT

C1173
10U 16V

C1170
10U 16V

R1186
47K 1/16W 5%

C1183
10N 50V

R1177 51K 1/ 16W 5%

AR0O

R1182

9K1 1/16W 5%

R1172
NC / 100K 1/ 16W

POP_MUTE# 4,16

Circuit Diagrams and PWB Layouts

EN 52TPM8.3L LA 10.

2011-Sep-30

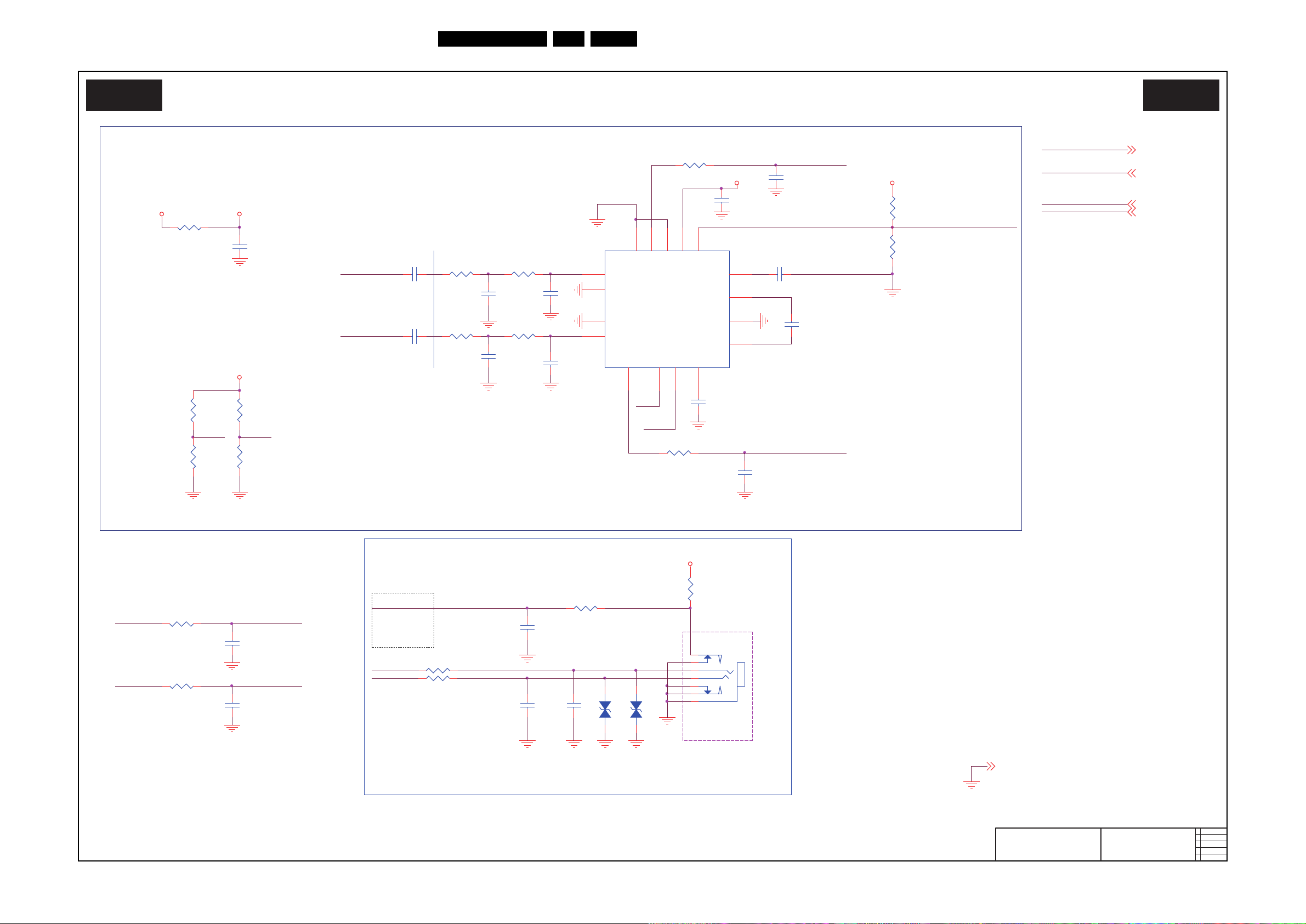

Headphone Out

19190_518_110909.eps

110909

Headphone Out

B16 B16

2011-09-01

2

715G5151

Headphone Out

C609

2.2nF 50V

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,20,21,22,23,24

AL1O 4

OUTL

R637 0R 05 1/ 16W

H : PLUG IN

AVDD3V3_HP

C618

NC/22N 25V

HPHONE_EN

R631 0R 05 1/ 16W

R667

NC/0R05 1/16W

HP_L

C607

2.2nF 50V

AL1O

H/Phone_Out (R/L)

CN602

PHONEJACK

1

7

6

2

3

4

5

R640 22R 1/ 16W 5%

HP_R

OUTR

R633 10K 1/16W 5%

SMD/0402

R632

0R05 1/ 16W

AL1O

OUTR

C611
1N 50V

R636 0R 05 1/ 16W HP_R

G0

C654

100N16V

C655
10N 50V

C615 2.2UF 16V

R634

0R05 1/ 16W

R644
4K7 1/16W 5%

AVDD3V3_HP

C616
1uF 16V

R688 0R05 1/ 10W

Right-angle
type 10.5mm

AVDD3V3_HP

R686
4K7 1/16W 5%

HPHONE_EN 16

HPHONE_DET

OUTL

Near MT5301

G0

AVDD3V3_HP

U606

TPA6132A2RTER

1

3

2

16

12

8

6

4

5

11

9

131514

10

7

17

INL-

INR+

INL+

OUTL

HPVDD

HPVSS

G0

INR-

OUTR

CPP

CPN

EN

SGND

AVDD

PGND

G1

Thermal Pad

C612
10N 50V

R639

22R 1/ 16W 5%

HP_L

L : NC

R635 10K 1/16W 5%

R687 0R05 1/ 10W

3V3_BUCK

ZD602

NC/VPORT0603100KV05

1 2

HPHONE_DET

C610
1N 50V

C606

10uF 10V

AR1O 4

R668

NC / 10K 1/ 16W 5%

G1

G1

AVDD3V3_HP

R645

NC / 10K 1/ 16W 5%

HPHONE_DET 4

C613

2.2U F 16V

C656

100P 50V

R684

0R05 1/ 16W

C650

100N16V

C608

10uF 10V

HPHONE_EN

C614
1uF 16V

C617

NC/22N 25V

Headphone Out_Side Direct ion

C605

100N 16V

AR1O

ZD603

NC/VPORT0603100KV05

1 2

R641

100R 1/ 16W 5%

AR1O

R685
10K 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 53TPM8.3L LA 10.

2011-Sep-30

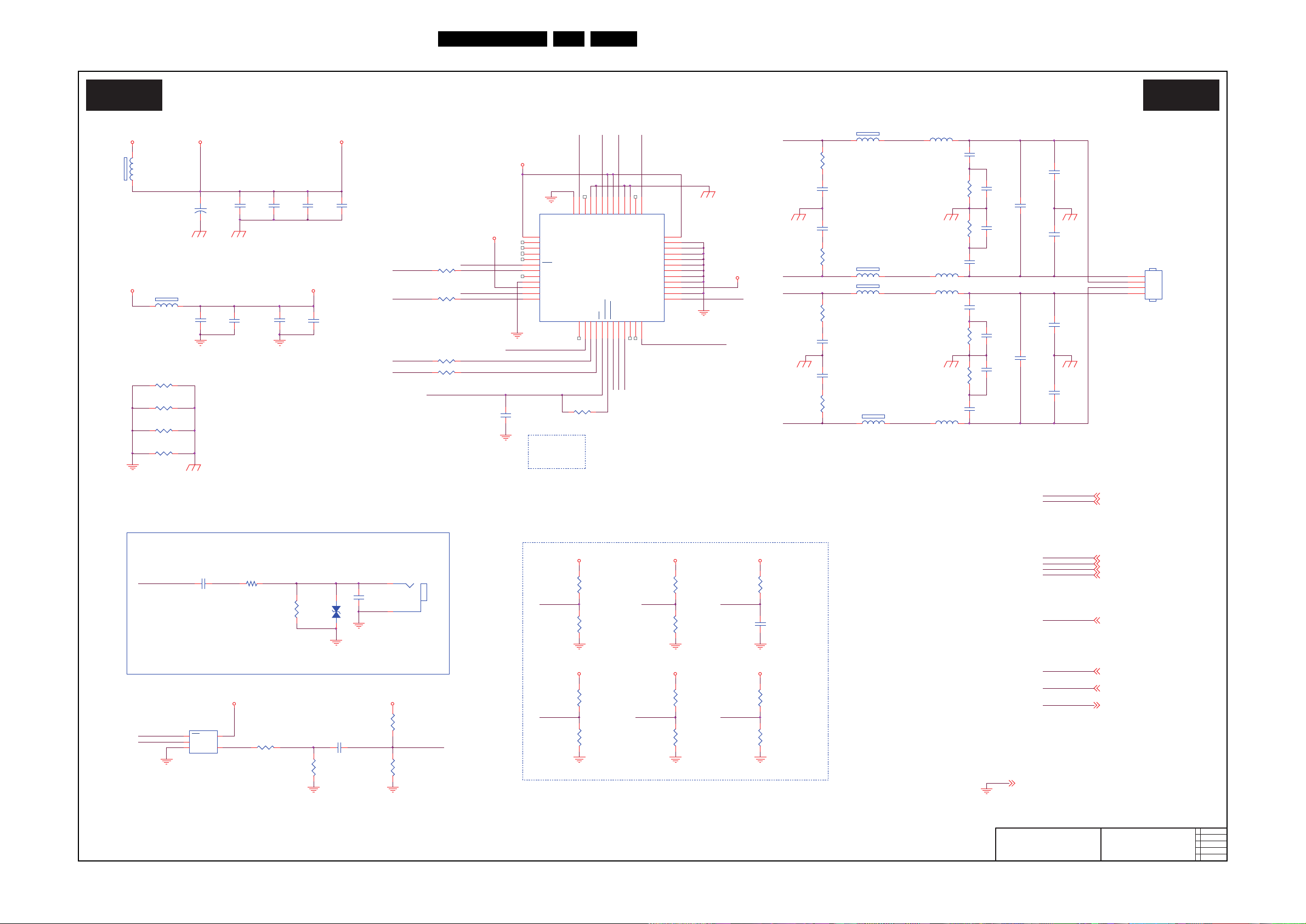

I2S Post Amplifier & SPIDF Out

19190_519_110909.eps

110927

I2S Post Amplifier & SPIDF Out

B17 B17

2011-09-01

2

715G5151

I2S Post Amplifier

& SPIDF Out

DVDD3V3_AMP

AOBCLK

AMP_PD#

R683

0R05 1/10W

FB604

120R/3000mA

1 2

FB605

120R/3000mA

1 2

C633

1N 50V

AMP_PWR

AMP_SA0

AMP_MONO

R673

470K 1/16W 5%

AMP_PWR

C634

100N 50V

DVDD3V3

R689

100K 1/16W

R659

10 OHM 1/10W

SPDIF_OUT

R654

0R05 1/16W

C631

0.47uF 16V

R681

82R 1/16W 5%

R674

NC/ 10K 1/ 16W 5%

C626

100N 50V

C641

1N 50V

SPK_R-

AMP_LB

AMP_PLL#

SPDIF OUT

C644

100N 50V

C628
100N 16V

SPK_L+

DVDD3V3_AMP

C642

1N 50V

C647

220N 50V

U603

SN74LVC1G125DBVR

1
2
3 4

5

OE
A
GND Y

VCC

FB607 120R/3000mA

1 2

OSDA0

R655

10 OHM 1/10W

R678

NC/ 10K 1/ 16W 5%

C638

220N 50V

C632

1N 50V

L603 56UH

R677

10K 1/16W 5%

AMP_DEF

5V_SW

AOBCLK 4
AOLRCK 4

AMP_RESET#

SPDIF_OUT

OSDA0 4,5,7,12,14,15

AMP_LB

SPK_L-

R669

10K 1/16W 5%

OSCL0

R670

NC/ 10K 1/ 16W 5%

AMP_PD#

R660

10 OHM 1/10W

C640

1N 50V

DVDD3V3_AMP

R657

10 OHM 1/10W

24V_12V_SW

AMP_SA1

OSCL0

C652

NC/ 100P 50V

R672

NC/ 10K 1/ 16W 5%

ROUT-

ARC_OE# 4

R646

0R05 1/10W

AOMCLK

AOSDATA0

L602 56UH

C637

100N 50V

R650 33R 1/16W 5%

AMP_MONO

ARC_OE#

R675

100K 1/16W

SPK_L+

AOMCLK 4

AOBCLK

R676

NC/ 10K 1/ 16W 5%

R663

330R 1/16W 5%

AMP_RESET#

CN603

RCA JACK

1

2

C629
1UF 10V

OSDA0

AOSDATA0 4

ROUT+

FB603

120R/3000mA

1 2

C649

1N 50V

SPK_R-

C630
100N 16V

FB608

120R/3000mA

1 2

AMP_PD#

R679

10K 1/16W 5%

AMP_SA0

L604 56UH

C653
1UF 10V

R680

180R 1/16W 5%

SPK_R+

R664

NC/ 100R 1/ 16W 5%

C635

100N 50V

H: ON
L: Power Dow n

R690

NC/ 1. 2K 1/ 16W

DVDD3V3_AMP

AMP_LA

AMP_RA

AMP_PD# 16

SPDIF_OUT 4

AMP_PLL#

ESPO

R651 33R 1/16W 5%

OSCL0 4,5,7,12,14,15

C624

100N 50V

C645

100N 50V

AMP_PD#

AOSDATA0

SPDIF_OUT

AMP_ERROR#

ZD605

NC/VPORT0603100KV05

1 2

R682

0R05 1/10W

C648

1N 50V

AOLRCK

R656

10 OHM 1/10W

DVDD3V3_AMP

LOUT+

R662

10 OHM 1/10W

CN601

CONN

1
2

3

4

AMP_SA1

C636

100N 50V

ARC_A

C643

100N 50V

I2S Post Amplifier

FB606

120R/3000mA

1 2

DVDD3V3_AMP

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,21,22,23,24

ARC_A 12

C627
1UF 10V

U602

AD82587-LE48NAY

1
2

3

4
5
6
7

8

9
10
11
12

1314151617181920212223

24

25

26

27

28

29

30

31

32

33

34

35

36

37383940414243444546474849

VDDLA
NC
NC
NC
NC
PLL
MCLK
CLK_OUT
DGND
DVDD
DEF
SDATA

NC

MONO

LRCIN

BCLKPDERROR

RESET

SA0

SA1NCNC

SCL

SDA

DGND

DVDD

NC

NC

NC

NC

NC

NC

NC

NC

VDDRA

RA

NC

GNDR

NC

RB

VDDRB

VDDLB

LB

NC

GNDL

NC

LA

THERMALPAD

C657

1UF 10V

AMP_RB

R671

10K 1/16W 5%

DVDD3V3_AMP

ARC_OE#

L601 56UH

C646

100N 50V

Amp. GND

R648

33R 1/16W 5%

R649

33R 1/16W 5%

AMP_RA

AMP_LA

DVDD3V3_AMP

R658

10 OHM 1/10W

3V3_BUCK

DVDD3V3_AMP

AOLRCK

R647

0R05 1/10W

R661

10 OHM 1/10W

SPK_R+

LOUT-

18V4_BUCK

SPK_L-

AOMCLK

ARC_A

C625

100N 50V

AMP_DEF

C623

100N 50V

AMP_ERROR#

C639

1N 50V

AMP_RB

+

C622

330UF 35V

C651

100N 16V

Circuit Diagrams and PWB Layouts

EN 54TPM8.3L LA 10.

2011-Sep-30

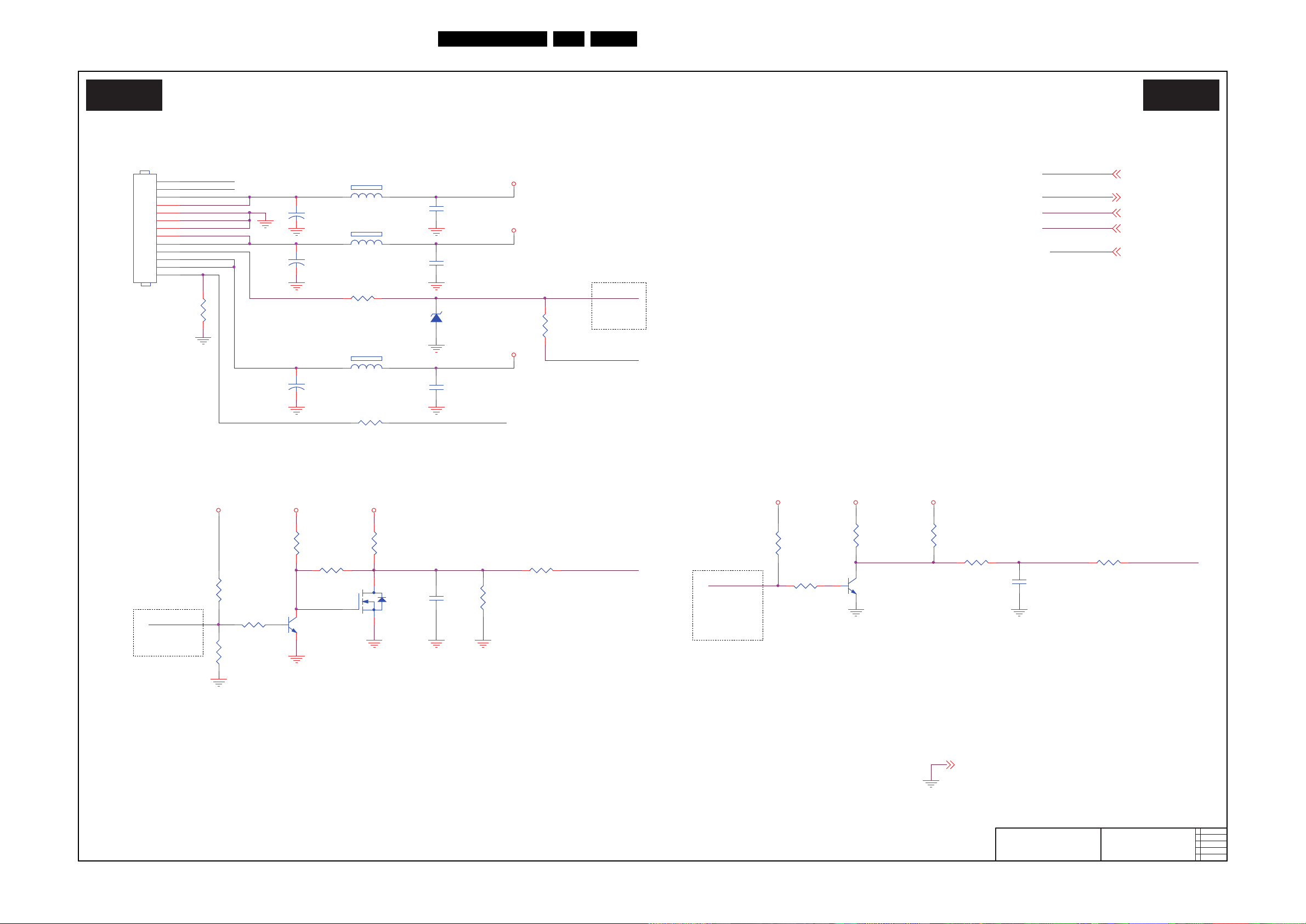

PSU & Inverter Interface

19190_520_110909.eps

110909

PSU & Inverter Interface

B18 B18

2011-09-01

2

715G5151

PSU & Inverter Interface

BL_ON/OFF#

R707

10K 1/16W 5%

LIPS Interface

+24V

C704

100N 50V

CN701

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

+12V

3V3_BUCK

R711

47K 1/16W 5%

5VSB

BL_CTRL

ZD701

NC/BZX84C3V6

1 3

R750
0R05 1/ 10W

OPWRSB

R701

10K 1/16W 5%

H : BL_OFF

R744
10K 1/16W 5%

R738
NC / 0R 05 1/ 16W

R712

8.2K 1/ 10W

H : ON
L : Standby

C708

NC/1UF 10V

R702

NC / 10K 1/ 16W 5%

BRI_ADJ

Brightness Adjust

C702

100N 50V

5VSB

R709
1K 1/16W 5%

R751
0R05 1/ 10W

PWM Control

BL_DIM_PWM 4

PWR_OK

R704
NC / 2. 2K 1/ 16W

5V_SW

Backlight On/Off

BL_ON/OFF# 4

R703

10K 1/16W 5%

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24

PSU_STBY 4,22

5VSB

OPWRSB4,23

BL_CTRL

+

C703

330UF 35V

Q701

PMBS3904

Q703

PMBS3904

BL_DIM_PWM

+

C701

330UF 35V

R708
NC / 2. 2K 1/ 16W

FB702

120R/6000mA

1 2

0% : Max Luma

C707
100N 16V

PSU_STBY

PSU_STBY

R746

4K7 1/16W 5%

FB703

120R/6000mA

1 2

BL_DIM_PWM

BL_ON/OFF#

+

C705

470UF 10V

99% : Min Luma

OPWRSB

R706

2.2K 1/ 16W

FB701

120R/6000mA

1 2

C706

10uF 10V

PWR_OK

Q702

NC/2N7002

R752
0R05 1/ 10W

BRI_ADJ

5V_SWDVDD3V3

R710

0R05 1/ 16W

R705

0R05 1/ 16W

L : BL_ON

PWR_OK 4

Circuit Diagrams and PWB Layouts

EN 55TPM8.3L LA 10.

2011-Sep-30

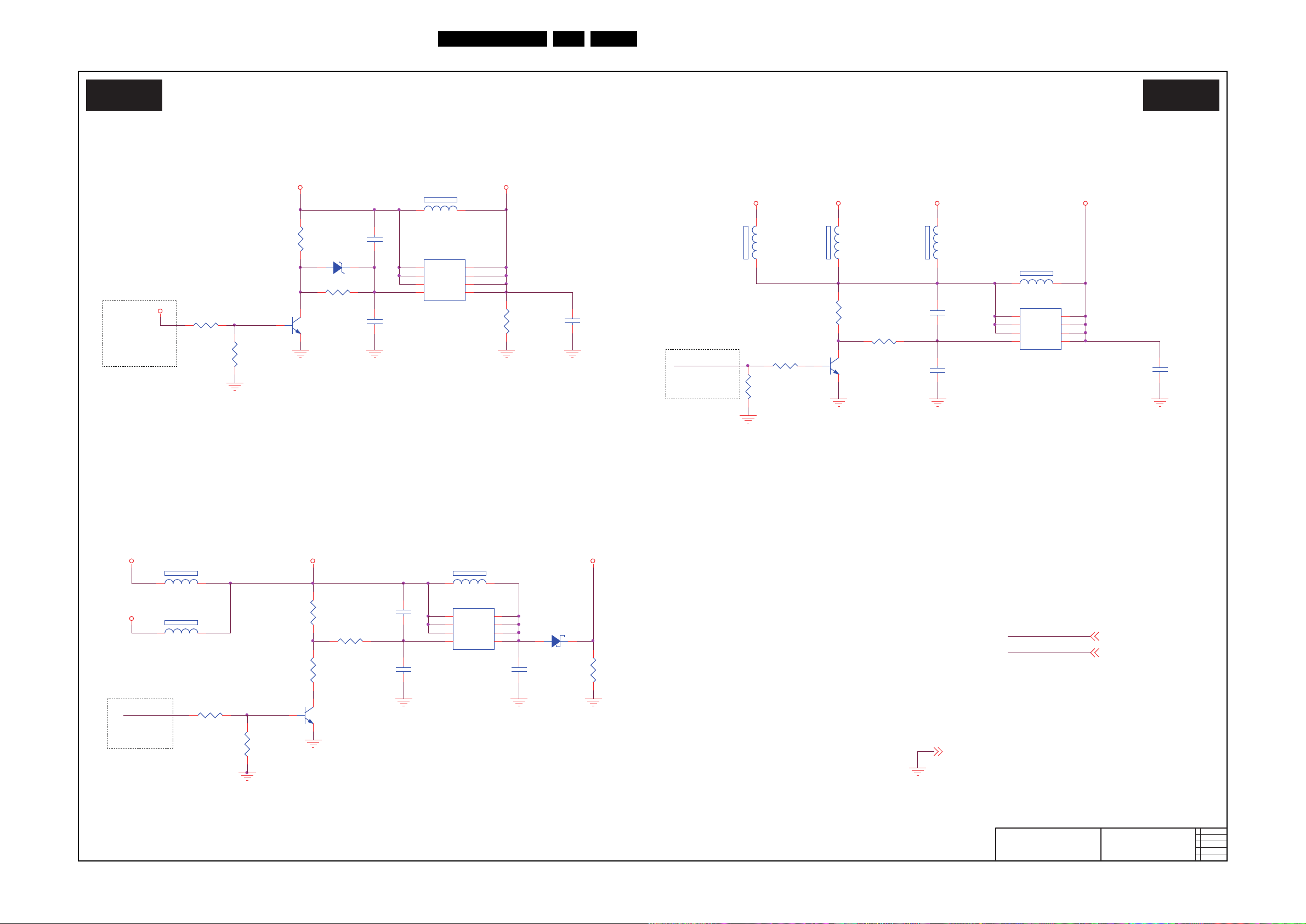

Power MOSFET switch

19190_521_110909.eps

110927

Power MOSFET switch

B19 B19

2011-09-01

2

715G5151

Power MOSFET switch

C715

NC / 220N F 25V

R716

20K 1/16W

FB709

NC/120R/6000mA

1 2

L: Off
H: On

R715

10K 1/16W 5%

R717

10K 1/16W 5%

C709
NC / 470nF 16V

C762

220NF 25V

FB712

NC/120R/6000mA

1 2

Q708

NC / AO4449 -7A/ -30V

1
2

3

4

8

7
6
5

S
S
S

G

D
D
D
D

PSU_STBY 4,21

L: Off
H: On

Panel logi c power control

C710

100N 50V

FB713

NC/120R/6000mA

1 2

R713

1K 1/16W 5%

R714

10K 1/16W 5%

R725
56KOHM 1/16W

+12V

R721

NC / 56KOH M 1/16W

R720

NC / 56KOH M 1/16W

R723

10K 1/4W

Q705

NC/PMBS3904

C714

220NF 25V

PSU_STBY

FB711

120R/6000mA

1 2

PSU_STBY

R727

10K 1/10W

Q706

PMBS3904

C711

NC/330N 50V

System power control

LVDS_PWR_EN

C712

NC/330N 50V

+24V

VCCK

1V2: ON
0V: STANDBY

5V _BUCK

FB710

120R/6000mA

1 2

R724

1K 1/16W 5%

R726 56KOH M 1/16W

R719

NC / 10K 1/ 16W 5%

5V_SW

FB707

NC/120R/6000mA

1 2

5VSB

24V_12V_SW

R722

NC/180K

Q704

PMBS3904

C713

100N 50V

FB708

120R/6000mA

1 2

FB714

NC/120R/6000mA

1 2

+12V5VSB

+24V_12V

LVDS_PWR_EN 4

LVDSVDD

ZD702

NC/BAT54

1 3

LVDS_PWR_EN Q709

AO4449 -7A/-30V

1
2

3

4

8

7
6
5

S
S
S

G

D
D
D
D

Post amplifier power control

Q707

AO4449 -7A/-30V

1
2

3

4

8

7
6
5

S
S
S

G

D
D
D
D

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,23,24

C716

100N 50V

R718

NC / 10K 1/ 16W 5%

D701

SX36

1 2

Circuit Diagrams and PWB Layouts

EN 56TPM8.3L LA 10.

2011-Sep-30

DC-DC Buck & Converter

19190_522_110909.eps

110909

DC-DC Buck & Converter

B20 B20

2011-09-01

2

715G5151

DC-DC Buck & Converter

R733

10K +-1% 1/16W

C725

10N 50V

C737
10uF 25V

5V_BUCK

24V_12V_SW

C732

180P 50V

OPWRSB4,21

FB716

120R/3000mA

1 2

OPWRSB

D702

SX34

1 2

C734 1uF 25V

V1 = 1+ (8.2/10) = 1.82
V2 = 1+ (5.2/10) = 1.52

D703

NC/RB160M-60TE25

1 2

VCCK

C731

1uF 50V

C724
10U 16V

FB718

120R/3000mA

1 2

5V_SW

C717
10U 16V

1V8 or 1V5 DDR Powe r : DDRV

R740 4K7 1/ 16W 5%

C738

NC/1UF 10V

FB724

120R/3000mA

1 2

DDR3 = 900mA

DVDD3V3

R742

10K +-1% 1/16W

SoC_AVDD 3V3 = 740 mA

5V_SW

Vo = 1+(R729/R730)

FB723

120R/3000mA

1 2

C721
10U 16V

+

C729

100UF 50V

3V3_BUCK

C727
10U 16V

C741
10U 16V

C719

10N 50V

Vo = 1+ (R732/R733)

FB722

NC/120R/3000mA

1 2

C746 NC/10N 50V

R745

1K 1/16W 5%

3V3 Main Power :

5V_BUCK

R753

0R05 1/16W

OPWRSB

C748
10U 16V

C723

1UF 10V

R741

12KOHM +-5% 1/16W

R736

56K 1%

R730

10K +-1% 1/16W

L701

2.2uH

C747

100N 16V

C736
10uF 25V

C743

100N 16V

R729

23.7K 1%

C720
10U 16V

FB719

120R/3000mA

1 2

+12V

C733

1.2nF 50V

C739

NC/1UF 10V

R731

1K 1/16W 5%

18V4_BUCK

L703

15uH

R732

8.2K 1%

U701 SC189ASKTRT

4

1

3

5

2

VOUT

VINENLX

GND

R732 = 8.2K
R732 = 5.2K (using 5.1k)

C718

10N 50V

FB725

NC/120R/3000mA

1 2

BUCK_USB2

DDR2 = 650mA

H: ON
L: OFF

5V_TUNER

5VSB U704 G5657F12U

3

5

8

2
7
6

1

4

9

LX

FB

SS

IN
EN
COMP

NC

GND

Thermal Pad

C735
100N 50V

U703

AOZ1242AI

1
2

3

45

6

7

8

LX

BST

GND

FBCOMP

EN

VIN

VBIAS

FB717

120R/3000mA

1 2

R735

15K 1/16W 5%

Soc Core Power : 1.15V (3A)

5V_BUCK

3V3_BUCK

C744

180P 50V

R737

10K 1%

3V3SB

C745

2N2 50V

AVDD3V3

FB720

120R/3000mA

1 2

R743

2.7K 1/16W 1%

L702

2.2uH

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,24

C726

10N 50V

3V3_BUCK

U702 SC189ASKTRT

4

1

3

5

2

VOUT

VINENLX

GND

FB721

NC/120R/3000mA

1 2

C722

1UF 10V

FB715

120R/3000mA

1 2

OPWRSB

FB726

120R/6000mA

1 2

C728
10U 16V

HDMI_SW = 120 mA

R734

47K 1/16W 5%

C730

1uF 50V

C742
10U 16V

D704

SX34

1 2

= 1+(23.3/10) = 3.33

L704

4.7UH

R728

1K 1/16W 5%

C749
10U 16V

USB2.0 = 1000mA
Tuner = 450mA

DDRV

5V2 Main Power (3A)

Circuit Diagrams and PWB Layouts

EN 57TPM8.3L LA 10.

2011-Sep-30

LDO Regulator

19190_523_110909.eps

110909

LDO Regulator

B21 B21

2011-09-01

2

715G5151

LDO Regulator

5VSB

C753

4.7U F 10V

C761
NC/10U 16V

U705

3 2

1

4

VIN VOUT

GND

4

Vout=Fixed 3.3V

STBY Power : 3V3SB

C756

NC/1UF 10V

G903T63UF

5V_USB2 (5V_MEMC) Power

C765
10U 16V

3V3SB

5V_SW

C757
NC / 10U 16V

Demod_3V3 = 85mA.

FB727

120R/3000mA

1 2

C760
NC / 10U 16V

Vout = 3.3V

Vout=Fixed 1.2V

V1.2

C766
10U 16V

5V_SW

FB734

NC/120R/3000mA

1 2

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23

U707

3 2

1

4

VIN VOUT

GND

4

Demod_1V2 = 210mA

R749

2K 1%

FB733

NC/120R/3000mA

1 2

C763

NC / 100N 16V

R754 N C / 15 OH M +-5% 1/4W

FB728

120R/3000mA

1 2

+12V

R747

1K 1/16W 5%

R748

10K +-1% 1/16W

C759

NC/1UF 10V

FB729

120R/3000mA

1 2

Demod 3V3 Power : V3.3

FB730

120R/3000mA

1 2

NC/G9084-50TU3U
TO-263T

C755

10N 50V

V3.3

L705

2.2uH

V3.3

U706 SC189ASKTRT

4

1

3

5

2

VOUT

VIN
EN

LX

GND

U709

3 2

1

VIN VOUT

ADJ/GND

LDO_USB2

t

TH1003

NC/PTCR

12

Dem od 1V 2 Powe r : V1 .2

NC/G912T63U

AVDD1V2

U708

3 2

1

4

VI VO

GND

4

C754

10N 50V

C750

1UF 10V

C751
10U 16V

Analog Power : A VDD1V2

5V_MEMC

FB732

NC/120R/3000mA

1 2

C752
10U 16V

C758
NC/10U 16V

NC/G903T63UF

FB731

NC/120R/3000mA

1 2

Circuit Diagrams and PWB Layouts

EN 58TPM8.3L LA 10.

2011-Sep-30

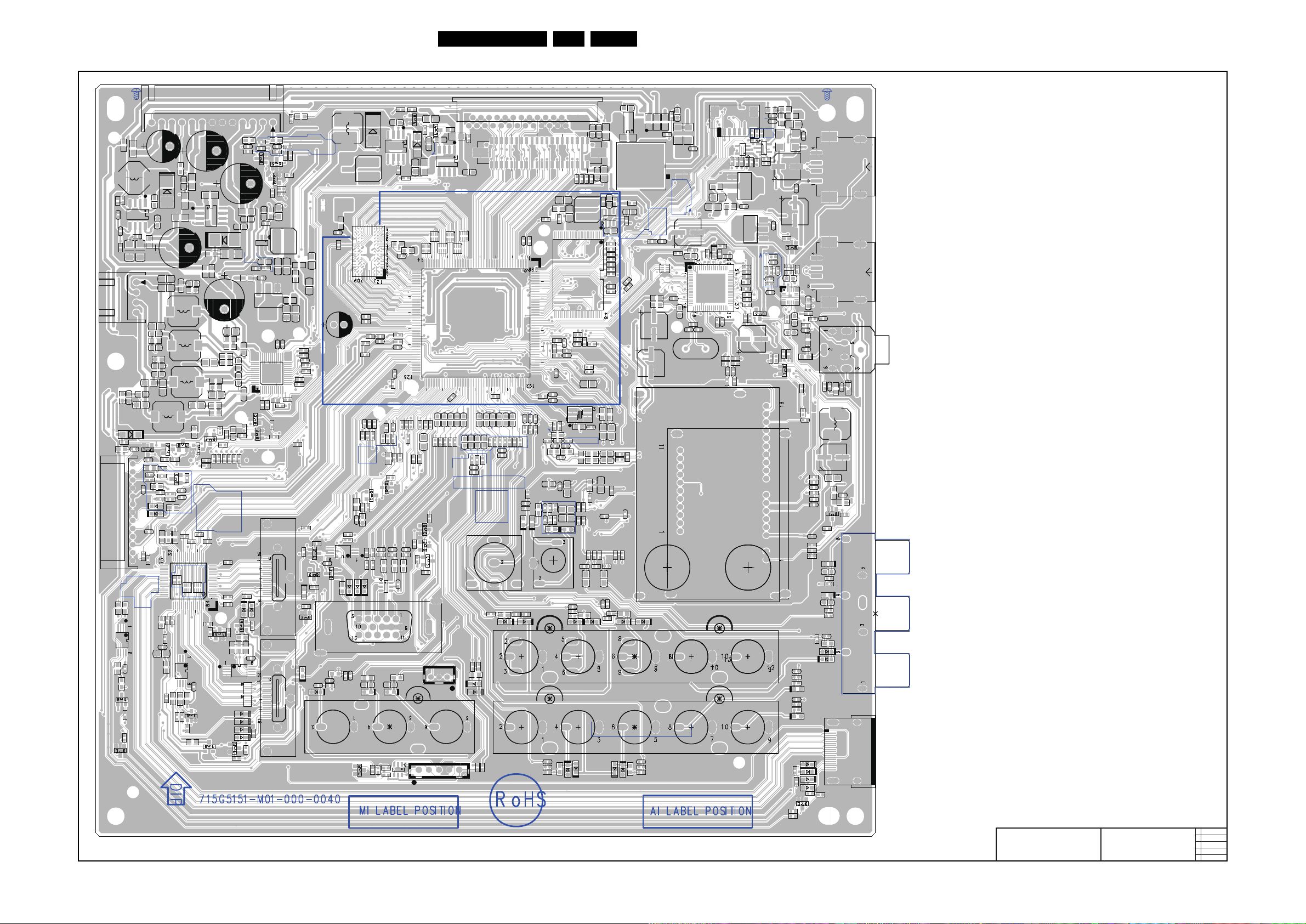

SSB layout top

19190_524_110909.eps

110909

2011-05-18

1

715G5151

SSB

layout top

C655

C637

C623

C625

C702

C710

C714

C715

C717

C1140

R723

D501

U401

C649

C641

C644

C626

C635

C402

C1176

C613

C645

C646

C716

C709

C634

C636

ZD114

ZD501

ZD505

ZD506

C713

R512

R515

R516

R517

R519

R520

R647

R712

FB202

C1127

C1130

C403

C614

C616

C624

C643

C704

C734

C762

C401

C4013

C4031

C632

C633

C638

C639

C640

C642

C647

C648

C720

C721

C741

C751

C752

C766

C765

C760

C761

C705

R101

R102

R221

R4112

R548

R549

R550

R554

R555

R655

R656

R657

R658

R659

R660

R661

R662

D102

D104

D105

D106

D107

D108

D109

D113

D114

D115

D502

D503

D510

D513

D514

D515

ZD101

ZD107

ZD108

ZD109

ZD112 ZD113

ZD201

ZD202

X4101

C1152

C1153

C1183 C1182

C121

C122

C123

C126

C127

C132

C134

C135

C138

C139

C145

C147

C148

C149

C151

ZD1103

C1174

R4111

R4131

R4132

C606

L1115

R532

C735

C730

C731

C101

C111

C130

C104

C105

C155

C156

C102

C103

C1123

C1125

C1137

C1138

C4033

C4036

C4044

C4048

C4049

C4051

C4121

C4118

C1101

C1108

C1119

C746

L1111

R1162
R1161

C718

C719

C754

C755

C501

C706

R111

R145

R146

R147

R161

R162

R163

R538

R1102

R1103

R1104

R1105
R1106
R1107
R1108

R1109

R513

R196

R197

C1011

C4043

C605

C610

C611

C753

C604

C1002

C1007

C1139

R553

R1189

R1190

R220

R526

R528

R533

R687

R688

R750

R751R752

C109

C110

CN603

L703

L704

TH1001

TH1002

C4102

TH1003

R224

R754

CN602

C106

C107

C114

C120

C124 C125

C129

C136

C137

C144

C152

C157

C201

C203
C204

C205

C207

C1157

C502

C510

C515

C516

CN601

ZD102

ZD103

ZD503

ZD110

ZD111

ZD121

ZD122

ZD502

FB401

FB709

FB701

FB702

FB703

U606

R103

R106

R107

R112

R127

R141

R143

R151

R152

R153

R167

R168

R169

R170

R174

R176

R201

R211

R223

R207

R537

R403

R406

R409

R410

R411

R413

R414

R415

R416

R417

R419

R420

R421

R422

R503

R504

R514

R518

R524

R525

R644

R619

R701

R709

R735

U503
U504

U707

U705

U701

D101

Q201

U403

R618

R628

R632

R104

R105

R109

R115

R125

R135

R136

R137

R140

R142

R144

R149

R155

R156

R172

R175

R177R178

R179

R189

R187

R181

R184

R182

R180

R186

R183

R202

R203

R206

R208

R1117

R402

R405

R412

R502

R505

R535

R626

R631

R711

R725

R728

R729

R730

R734

R736

R707

R418

R536

R133

R138

R190

R204

R1013

R1012

R173

R506

R710

R165

R166

R651

R649

R650

R627

R636

R637

R648

R150

R638

R704

R705

R706

R708

R726

R539

R171

R540

R541

CN701

U704

U602

U501

CN409

CN111

CN112

TU101

C1001

C1006

C1008

C108

C1128 C1129

C1142

C1143

C1159

C1145

C1150 C1151

C1154 C1158

C607

C1168

C4125

C1171

C654

C650

C128

C133

C146C150

C153

C154

C202

C206

C4001

C4002

C1167

C4105
C4106

C4123

C617

C618

C628

C629

C651

C652

C653

C707C708

C732

C738

C739

C750

C756

C759

RP501RP502

CN408

CN401

ZD1102

ZD605

C4019

FB1006

FB1007

FB1008

FB101

FB102

FB103

FB104

FB105

FB106

FB107

FB108

FB109

FB110

FB1101

FB111

FB1110

FB201

FB501

FB603

FB604

FB605

FB606

FB607

FB608

FB715

FB716

FB719

FB720

FB721

FB722

FB723

FB724

FB725

FB727

FB728

FB730

FB733

FB734

L1101

FB707

FB708

FB710

FB711

FB712

FB713

FB714

FB726

L1108

U101

R1001

R1002

R1003

R1004

R1005

R1006

R1011

R1014
R1015

R1016

R108

R1101

R1112
R1113

R1118

R1119

R1120

R1121

R1122

R1123

R1124

R1125

R1131

R1137

R1138

R1139

R1140

R1141

R1142

R1143

R1144

R1145

R1146

R1147

R1149

R1157

R1155

R1156

R1160

R534

R633

R665

R134

R139

R154

R4001

R4004

R1196

R4006

R4009
R4010

R4011

R4012

R4017

R4022

R4023

R4028

R4025

R4026

R4027

R4029

R4030

R4031

R4032

R4033

R4035

R4036

R4037

R4038

R4040

R4041

R4042

R4043

R4044

R4048

R4049

R4051

R4107

R4108

R4110

R4118

R4119

R4120

R4121

R4128
R4129

R4130

R501

R523

R542

R543
R544

R545

R546

R547

R551

R552

R556

R643

R654

R663

R664

R670

R672

R675

R677

R678

R679

R1165

R4005

R702

R703

R713 R714

R715

R716

R737

R740

R744

D702

D704

D601

D703

U703

U708

U1001

U1002

ZD702

D505

D516

D517

D602

ZD601

Q1102

Q401

Q402

Q502

Q702

C1177

C609

R645

ZD1101

FB114

L4101

R1176

R4052

R4137

R507

R531

R625

R634

R635

R639

R642

R745

R746

RP4101

RP4102

RP4103

RP4104

RP4105

RP4106

R747

R748

R749

U706

C656

C763

ZD602

ZD603

R630

R641

R686

C657

R689

R690

R681

C1155

R1159

CN501

CN502

RP1101

R4002

R1158

X1101

C4107

U105

Q707

Q708

Q709

L701

L702

L705

LD1101

L601

L602

L603

L604

D701

Q501

Q503

Q505

Q506

Q507

Q508

Q601

Q602

Q603

Q605

Q607

Q1108

Q609

Q1101

Q701

Q703

Q704

L1114

R1191

R198

R199 R200

R217

R218

R188

R222

R4139

R557

R558

R559

R560

Q105

U104

U502

U505

U506

C733

CN506

R4055

R1193

R1194

R1192

CN102

CN104

CN1101

TU102

U402

CN121

CN101

R1195

R4024

R4054

R4057

R680

R738

Q107Q109

Q108

CN113

CN410

CN412

U709

L1116 L1117

R114

R159

R219

R407

R408

R423
R424

R425

R652

U404

Q403

CN411

R753

CN103

R121

R123

R4060

R212

C703

C701

C729

C622

Circuit Diagrams and PWB Layouts

EN 59TPM8.3L LA 10.

2011-Sep-30

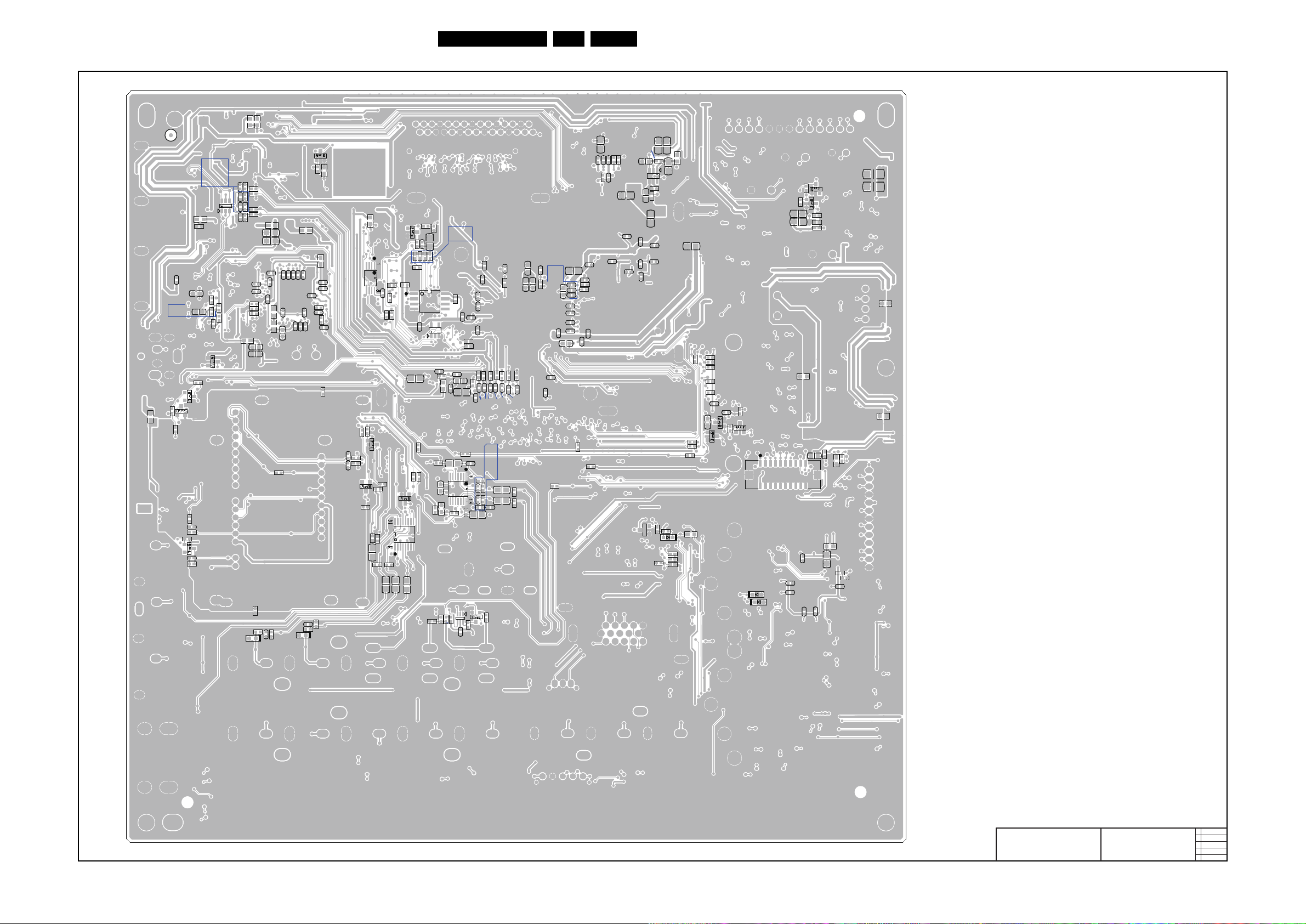

19190_525_110909.eps

110909

2011-05-18

1

715G5151

SSB

layout bottom

C615

C712

C113

C612

C631

R508

R623

R646

R727

C1102
C1103

C1104

C4026

C4027

C4028

C4029

C4030

C603

C4012

C4020

C503

C711

C724

C727

C728

C742

C748

C749

C757

C758

R1179

R682

R683

D504

D511

D512

C1164

C1170

C1173

C1175

C1169

C608

C112

C131

C142

C143

C1105

C1106

C1107

C1109

C1110

C1111

C1112

C1113

C1114

C1115

C1116

C1117

C1118

C1120

C1121

C1122

C1124

C1126

C1133

C1134

C4004

C4005

C4006

C4007

C4008

C4009

C4010

C4011

C4014

C4015

C4016

C4017

C4018

C4021

C4022

C4023

C4024

C4025

C4032

C4034

C4035

C4037

C4038

C4039

C4040

C4042

C4045

C4046

C4047

C4050

C4113

C4114

C4115

C4116

C4119

C4120

C4122

C4117

C725

C726

C4110

C4041

R113

R148 R164

C4003

C737

C736

C140

C1149

C722

C723

C747

C504

C505

C506

C507

C509

CN406

ZD115

ZD116

R110

R119

R120

R128

R157

R509

R510

R511

R629

R685

R668

R622

R720

R116

R118

R126

R122

R131

R195

R185

R192

R193

R194

R1116

R1186

R620

R624

R719

R721

R722

R733

R132

R117

R191

R1114

R160

R621

R724

C141

R522

R1115

C630

R718

R731

R732

R4141

FDT3

C1003

C1004C1005

C1009

C1010

C1147

C1148

C1163

C1165

C1172

C4104

C4108

C4109

C508

C627

C743

C744C745

FB1107

FB1108

FB1109

FB1111

FB1112

FB502

FB717

FB718

FB731

FB732

R1007
R1008

R1009R1010

R1017
R1018

R1019R1020

R1127

R1126

R1130

R1132

R1133

R1136

R1152

R1154

R667

R4109

R521

R1171

R1172

R1173

R1174

R1175

R1178

R1181

R1184

R1182

R1177

R530

R158

R4007

R4008

R4013

R4014

R4015

R4016

R4018

R4019

R4020

R4021

R4034

R4039

R4045

R4046

R4047

R4050

R4103

R4104

R4105

R4106

R4115

R4117

R4122
R4123

R669

R671

R673

R674

R676

R741

R742

R743

U702

D603

ZD701

U4101

Q1103

U605

C1166

R1187

R1197

R4102

R640

R684

FB729

R4058

R717

R1153

R1148

R1150

R1166

R1198

R1188

U1005

Q101

Q102

Q106

Q104

Q4101

Q604

Q606

Q1107

Q1106

Q705

Q706

R4140

U4103

U102

C1162

FB1102

R1151

R205

U103

U603

Q1109

R4059

C4103

R4101

R4135

R4136

FB402

FB403

U405

SSB layout bottom

Circuit Diagrams and PWB Layouts

EN 60TPM8.3L LA 10.

2011-Sep-30

10-3 J 715G3975 IR/LED board

19180_500_110819.eps

110927

IR/LED board

J J

2011-05-20

2

2011-04-19

1

715G3975

IR/LED board

R201

2K7 1/10W 5%

R304

1K 1/10W

Red

TP4

1

R301

6.2K 1/ 10W

----><----|

LED_R

CN301

S1315-07RVB-S01-K

1
2

3

4

98

5
6
7

ZD202

VPORT0603100KV05

12

Q301
BC847C

Key1

CN001

1

2

3

4 5

U201

IRM-3636F45

3

1
2

VS
OUT
GND

DV33SB

RC6

DV33SB

Key2

DV33SB

LED302

LED R ED 204-10SURD/S530-A3

12

R203

100 OHM 1/10W

DV33SB

TP6

1

C201

22U 10V

TP1

1

TP5

1

TP3

1

IR/LED board

Circuit Diagrams and PWB Layouts

EN 61TPM8.3L LA 10.

2011-Sep-30

IR/LED board layout

19180_501_110819.eps

110927

2011-07-14

2

715G3975

IR/LED board

layout top/bottom

C201

R201

R203

R301R304

Q301

CN301

CN001

ZD202

LED302

U201

Layout IR/LED Board (Top Side)

Layout IR/LED Board

(Bottom Side)

Circuit Diagrams and PWB Layouts

EN 62TPM8.3L LA 10.

2011-Sep-30

11. Styling Sheets

19190_800_110913.eps

110927

Smart Choice 22"

Pos No. Description Remarks

30 BEZEL

40 REAR COVER
50 BASE ASSY
91 BASE NECK
1176 REMOTE CONTROL NOT DISPLAYED

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

40

50

91

30

11-1 Smart Choice 22"

Styling Sheets

EN 63TPM8.3L LA 11.

2011-Sep-30
