The SMD Code Book

1st character of code

0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Bases

A-F G-K L-P Q-V W-Z AQ-FQ GQ-LQ MQ-SQ TQ-ZQ ZA-ZF CS-CZ DA-DF DG-DL DM-DS DT-DZ

Other Info

Codebook Introduction Abbreviations HP diode coding SOD-80 (Melf) diodes Plastic Melf/miniMelf Coloured SOD123/323 diodes SMD Electrolytics SMD Ceramic Capacitors SMD Resistors Package Equivalents Date coding

Package dimensions

SOT-23, SOT346 SOT-323, SOT-416 SOT-223, SOT-89 SOT-143, SOT-363 Diodes

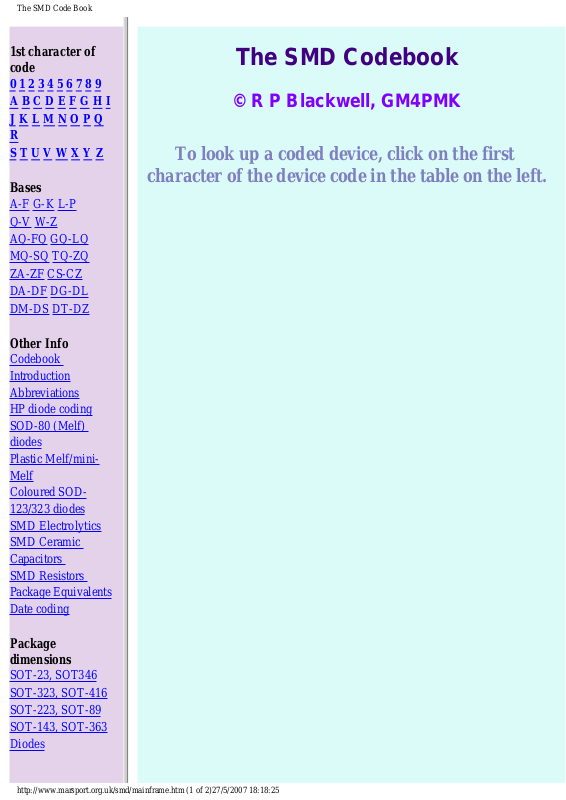

The SMD Codebook

To look up a coded device, click on the first

character of the device code in the table on the left.

http://www.marsport.org.uk/smd/mainframe.htm (1 of 2)27/5/2007 18:18:25

Page 2

The SMD Code Book

back

Wormhole back to Marsport

http://www.marsport.org.uk/smd/mainframe.htm (2 of 2)27/5/2007 18:18:25

Page 3

SMD Codebook Page 0

GM4PMK's SMD Codebook

Codes beginning with '0'

be sure to check the 'O' (letter O) table as well

Code

Device Manf Base Package Leaded Equivalent/Data

0 2SC3603 Nec CX SOT173 Npn RF fT 7GHz 005 SSTPAD5 Sil J PAD-5 5pA leakage diode p01 PDTA143ET Phi N SOT23 pnp dtr 4k7+4k7 t01 PDTA143ET Phi N SOT23 pnp dtr 4k7+4k7

01 Gali-1 MC AZ SOT89 DC-8GHz MMIC amp 12dB gain 010 SSTPAD10 Sil J PAD-10 10pA leakage diode

011 SO2369R SGS R SOT23R 2N2369 02 BST82 Phi M n-ch mosfet 80V 175mA 02 MRF5711L Mot X SOT143 npn RF MRF571 02 GDZ2.0B Vis I SOD323 zener 200mW 2.0V

02 DTCC114T Roh N

50V 100mA npn sw + 10k base

res 02 Gali-2 MC AZ SOT89 DC-8GHz MMIC amp 16dB gain p02 PDTC143ET Phi N SOT23 npn 4k7+4k7 bias res

t02 PDTC143ET Phi N SOT23 npn 4k7+4k7 bias res 03 Gali-3 MC AZ SOT89 DC-3GHz MMIC amp 22dB gain 03 DTC143TE Roh N EMT3 npn dtr R1 4k7 50V 100mA

03 DTC143TUA Roh N SC70 npn dtr R1 4k7 50V 100mA 03 DTC143TKA Roh N SC59 npn dtr R1 4k7 50V 100mA 04 DTC114TCA Roh N SOT23 npn dtr R1 10k 50V 100mA 04 DTC114TE Roh N EMT3 npn dtr R1 10k 50V 100mA 04 DTC114TUA Roh N SC70 npn dtr R1 10k 50V 100mA 04 DTC114TKA Roh N SC59 npn dtr R1 10k 50V 100mA 04 MRF5211L Mot X SOT143 pnp RF MRF521

04 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 17.5 dBm

-04 PMSS3904 Phi N SOT323 2N3904 t04 PMBS3904 Phi N SOT23 2N3904

http://www.marsport.org.uk/smd/smd0.htm (1 of 3)27/5/2007 18:18:30

Page 4

SMD Codebook Page 0

05 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 18 dBm o/p 05 DTC124TE Roh N EMT3 npn dtr R1 22k 50V 100mA

05 DTC124TUA Roh N SC70 npn dtr R1 22k 50V 100mA 05 DTC124TKA Roh N SC59 npn dtr R1 22k 50V 100mA

05 EDZ10B Roh I EMD2 150mW zener 10V 05 VDZ10B Roh I VMD2 150mW zener 10V

05F TSDF1205R Vis WQ SOT143R fT12GHz npn 4V 12mA 06 Gali-6 MC AZ SOT89

DC-4GHz MMIC amp 115 dBm o/

p 06 DTC144TE Roh N EMT3 npn dtr R1 47k 50V 100mA 06 DTC144TUA Roh N SC70 npn dtr R1 47k 50V 100mA 06 DTC144TKA Roh N SC59 npn dtr R1 47k 50V 100mA

-06 PMSS3906 Phi N SOT323 2N3906 t06 PMBS3906 Phi N SOT23 2N3906 p08 PMBFJ108 Phi F SOT23 n-ch jfet J108 p09 PMBFJ109 Phi F SOT23 n-ch jfet J109 020 SSTPAD20 Sil J PAD-20 20pA leakage diode 050 SSTPAD50 Sil J PAD-50 50pA leakage diode 081 SO2369AR SGS R SOT23R 2N2369A 09 DTC115TUA Roh N SC70 npn dtr R2 100k 50V 100mA 09 DTC115TKA Roh N SC59 npn dtr R2 100k 50V 100mA 0A MUN5111DW1 Mot DO SOT363 dual pnp dtr 10k+10k 0A DTC125TUA Roh N SC70 npn dtr R2 100k 50V 100mA 0A DTC125TKA Roh N SC59 npn dtr R2 100k 50V 100mA 0B MUN5112DW1 Mot DO SOT363 dual pnp dtr 22k+22k 0C MUN5113DW1 Mot DO SOT363 dual pnp dtr 47k+47k 0D MUN5114DW1 Mot DO SOT363 dual pnp dtr 10k+47k 0E MUN5115DW1 Mot DO SOT363 dual pnp dtr R1 10k 0F MUN5116DW1 Mot DO SOT363 dual pnp dtr R1 4k7 0G MUN5130DW1 Mot DO SOT363 dual pnp dtr 1k0+1k0 0H MUN5131DW1 Mot DO SOT363 dual pnp dtr 2k2+2k2 0J MUN5132DW1 Mot DO SOT363 dual pnp dtr 4k7+4k7 0K MUN5133DW1 Mot DO SOT363 dual pnp dtr 4k7+47k 0L MUN5134DW1 Mot DO SOT363 dual pnp dtr 22k+47k 0M MUN5135DW1 Mot DO SOT363 dual pnp dtr 2k2+47k

http://www.marsport.org.uk/smd/smd0.htm (2 of 3)27/5/2007 18:18:30

Page 5

SMD Codebook Page 0

Last modified 01/06/2006 by GM4PMK

http://www.marsport.org.uk/smd/smd0.htm (3 of 3)27/5/2007 18:18:30

Page 6

SMD Codebook Page 1

GM4PMK's SMD Codebook

Codes beginning with '1'

be sure to check the 'I' (letter i) table as well

Code Device Manf Base Package Leaded Equivalent/Data 1 2SC3587 Nec CX npn RF fT10GHz 1 BA277 Phi I SOD523 VHF Tuner band switch diode 1

(red)

BB669 Sie I SOD323 56-2.7 pF varicap

10 MRF9411L Mot X SOT143 npn Rf 8GHz MRF941 10 1PS59SB10 Phi C SOT346 30V 0.2A schottky diode 10A PZM10NB2A Phi A SOT346 dual ca 10V 0.3W zener 10V PZM10NB Phi C SOT346 10V 0.3W zener 10Y BZV49-C10 Phi O SOT89 10V 1W zener p10 PMBFJ110 Phi F SOT23 n-ch jfet J110 11 MRF9511L Mot X SOT143 npn RF 8GHz MRF951 11 MUN5311DW1 Mot DP SOT363 npn/pnp dtr 10k+10k 11 PDTA114EU Phi N SOT416 pnp dtr p11 PDTA114TT Phi N SOT23 pnp dtr p11 PMBFJ111 Phi F SOT23 n-ch jfet J111 t11 PDTA114TT Phi N SOT23 pnp dtr 11A PZM11NB2A Phi A SOT346 dual ca 11V 0.3W zener 11A MMBD1501A Nat C SOT23 Si diode 200V 100mA 11V PZM11NB Phi C SOT346 11V 0.3W zener 11Y BZV49-C11 Phi O SOT89 11V 1W zener 12 MUN5312DW1 Mot DP SOT363 npn/pnp dtr 22k+22k 12 DTA123EUA Rho N SC70 pnp dtr 2k2+2k2 50V 100ma 12 DTA123EKA Rho N SC59 pnp dtr 2k2+2k2 res 50V 100ma 12 GDZ2.2B Vis I SOD323 zener 200mW 2.2V p12 PDTC114TT Phi N SOT23 npn dtr p12 PMBFJ112 Phi F SOT23 n-ch jfet J112 t12 PDTC114TT Phi N SOT23 npn dtr 12A MMBD1502A Nat K SOT23 Si diode 200V 100mA

http://www.marsport.org.uk/smd/smd1.htm (1 of 10)27/5/2007 18:18:38

Page 7

SMD Codebook Page 1

12A PZM12NB2A Phi A SOT346 dual ca 12V 0.3W zener 12E ZC2812E Zet D SOT23 dual series RF schottky15V 20mA 12V PZM12NB Phi C SOT346 12V 0.3W zener 12Y BZV49-C12 Phi O SOT89 12V 1W zener 13 DTA143EUA Rho N SC70 pnp dtr 4k7+4k7 50V 100ma 13 DTA143EKA Rho N SC59 pnp dtr 4k7+4k7 50V 100ma 13 DTA143ECA Rho N SOT23 pnp dtr 4k7+4k7 50V 100ma 13t BC846BPN Phi N SOT363 BC546B 13s BAS125 Sie C SOT23 Schottky sw 24V 100mA 13s BAS125W Sie C SOT323 Schottky sw 24V 100mA 13 MA4CS103A M/A C SOT23 Schottky RF 20V 100mA 13 MUN5313DW1 Mot DP SOT363 npn/pnp dtr 47k+47k p13 PMBFJ113 Phi F SOT23 n-ch jfet J113 13A MMBD1503A Nat D SOT23 dual Si diode 200V 100mA 13A PZM13NB2A Phi A SOT346 dual ca 13V 0.3W zener 13E ZC2813E Zet A SOT23 dual ca RF schottky15V 20mA

13R S913TR Vis UQ SOT143R dg mosfet MOSIC 9V uhf tv tuners

13V PZM13NB Phi C SOT346 13V 0.3W zener 13Y BZV49-C13 Phi O SOT89 13V 1W zener 14s BAS125-04 Sie D SOT23 Dual series Schottky 25V 100mA 14s BAS125-04W Sie D SOT323 Dual series Schottky 25V 100mA 14 BAT114-099R Sie DQ Quad Schottky crossover ring 14 DTA114EUA Roh N SC70 pnp dtr 10k + 10k 14 DTA114EKA Roh N SC59 pnp dtr 10k + 10k 14 MUN5314DW1 Mot DP SOT363 npn/pnp dtr 10k R1 14 DTA114ECA Roh N SOT23 pnp dtr 10k + 10k 14 1PS59SB14 Phi D SOT346 dual series 30V 0.2A schottky diode 14A MMBD1504A Nat B dual cc Si diode 200V 100mA 15s BAS125-05 Sie B SOT23 dual cc Schottky 25V 100mA 15s BAS125-05W Sie B SOT323 dual cc Schottky 25V 100mA 15 DTA124EUA Roh N SC70 pnp dtr 30V 50mA 22k+22k 15 DTA124EKA Roh N SC59 pnp dtr 30V 50mA 22k+22k 15 DTA124ECA Roh N SOT23 pnp dtr 30V 50mA 22k+22k 15 MUN5315DW1 Mot DP SOT363 npn/pnp dtr 10k R1 15 MMBT3960 Mot N 2N3960

http://www.marsport.org.uk/smd/smd1.htm (2 of 10)27/5/2007 18:18:38

Page 8

SMD Codebook Page 1

15 1PS59SB15 Phi B SOT346 dual cc 30V 0.2A schottky diode 15 EDZ11B Roh I EMD2 150mW zener 11V 15 VDZ11B Roh I VMD2 150mW zener 11V 15A MMBD1505A Nat A dual ca Si diode 200V 100mA 15A PZM15NB2A Phi A SOT346 dual ca 15V 0.3W zener 15V PZM15NB Phi C SOT346 15V 0.3W zener 15Y BZV49-C15 Phi O SOT89 15V 1W zener p16 PDTC114ET Phi N SOT23 npn dtr t16 PDTC114EU Phi N SOT323 npn dtr 16s BAS125-06 Sie A SOT23 dual ca Schottky 25V 100mA 16s BAS125-06W Sie A SOT323 dual ca Schottky 25V 100mA 16 MUN5316DW1 Mot DP SOT363 npn/pnp dtr 4k7 R1 16 DTA144EUA Roh N SC70 pnp dtr 30V 50mA 47k+47k 16 DTA144EKA Roh N SC59 pnp dtr 30V 50mA 47k+47k 16 1PS59SB16 Phi A SOT346 dual ca 30V 0.2A schottky diode 16V PZM16NB Phi C SOT346 16V 0.3W zener 16Y BZV49-C16 Phi O SOT89 16V 1W zener 17s BAS125-07 Sie S SOT143 dual Schottky 25V 100mA 17s BAS125-07W Sie S SOT343 dual Schottky 25V 100mA p17 PDTC124ET Phi N SOT23 npn dtr t17 PDTC124EU Phi N SOT323 npn dtr 18 BFP181T Tfk X npn Rf fT 7.8GHz 10V 20mA 18 PDTC143ZK Phi N SOT346 npn dtr 4k7+47k p18 PDTC143ZT Phi N SOT23 npn dtr 4k7+47k t18 PDTC143ZT Phi N SOT23 npn dtr 4k7+47k 18E MMBZ5225B Vis C SOT23 zener 300mW 3.0V 18F MMBZ5260B Vis C SOT23 zener 300mW 43V 18V PZM18NB Phi C SOT346 18V 0.3W zener 18Y BZV49-C18 Phi O SOT89 18V 1W zener 19 PDTA143ZK Phi N SOT346 pnp dtr 4k7+47k 19 DTA115EUA Rho N SC70 pnp dtr 100k+100k 50V 100ma 19 DTA115EKA Rho N SC59 pnp dtr 100k+100k 50V 100ma p19 PDTA143ZT Phi N SOT23 pnp dtr 4k7+47k t19 PDTA143ZT Phi N SOT23 pnp dtr 4k7+47k 100 SSTPAD100 Sil J SOT23 PAD-100 100pA leakage diode

http://www.marsport.org.uk/smd/smd1.htm (3 of 10)27/5/2007 18:18:38

Page 9

SMD Codebook Page 1

101 PZM10NB1 Phi C SOT346 10V 0.3W zener 102 PZM10NB2 Phi C SOT346 10V 0.3W zener

103 PZM10NB3 Phi C SOT346 10V 0.3W zener 111 PZM11NB1 Phi C SOT346 11V 0.3W zener 111 DTA113ZUA Roh N SC70 pnp dtr 1k+10k 50V 100mA 112 PZM11NB2 Phi C SOT346 11V 0.3W zener

113 PZM11NB3 Phi C SOT346 11V 0.3W zener 113 DTA143ZUA Roh N SC70 pnp dtr 4k7+47k 50V 100mA

121 PZM12NB1 Phi C SOT346 12V 0.3W zener 121 DTC113ZUA Roh N SC70 npn dtr 1k+10k 50V 100mA 122 PZM12NB2 Phi C SOT346 12V 0.3W zener 123 PZM12NB3 Phi C SOT346 12V 0.3W zener 123 DTC143ZUA Roh N SC70 npn dtr 4k7+47k 50V 100mA 131 PZM13NB1 Phi C SOT346 13V 0.3W zener

132 PZM13NB2 Phi C SOT346 13V 0.3W zener 132 DTA123JUA Roh N SC70 pnp dtr 2k2+47k 50V 100mA

133 PZM13NB3 Phi C SOT346 13V 0.3W zener 142 DTA123JUA Roh N SC70 npn dtr 2k2+47k 50V 100mA 151 PZM15NB1 Phi C SOT346 15V 0.3W zener 152 PZM15NB2 Phi C SOT346 15V 0.3W zener 153 PZM15NB3 Phi C SOT346 15V 0.3W zener 156 DTA144VUA Roh N SC70 pnp dtr 47k+10k 50V 100mA 161 PZM16NB1 Phi C SOT346 16V 0.3W zener 162 PZM16NB2 Phi C SOT346 16V 0.3W zener 163 PZM16NB3 Phi C SOT346 16V 0.3W zener 166 DTC144VUA Roh N SC70 npn dtr 47k+10k 50V 100mA 179 FMMT5179 Zet N 2N5179 181 PZM18NB1 Phi C SOT346 18V 0.3W zener 182 PZM18NB2 Phi C SOT346 18V 0.3W zener 183 PZM18NB3 Phi C SOT346 18V 0.3W zener 1A BC846A Phi N SOT23 BC546A 1A BC846AT Phi N SOT416 BC546A 1Ap BC846A Phi N SOT23 BC546A 1At BC846A Phi N SOT23 BC546A 1At BC846AW Phi N SOT323 BC546A

http://www.marsport.org.uk/smd/smd1.htm (4 of 10)27/5/2007 18:18:38

Page 10

SMD Codebook Page 1

1A- BC846AW Phi N SOT323 BC546A 1A FMMT3904 Zet N SOT23 2N3904 1A MMBT3904 Mot N SOT23 2N3904 1A IRLML2402 IR F SOT23 n-ch mosfet 20V 0.9A p1A PMMT3904 Phi N SOT23 2N3904 p1A PXT3904 Phi N SOT89 2N3904 t1A PMMT3904 Phi N SOT23 2N3904 t1A PMST3904 Phi N SOT323 2N3904

-1A PMST3904 Phi N SOT323 2N3904 1AM MMBT3904L Mot N SOT23 2N3904 1B BC846B Phi N SOT23 BC546B 1B BC846BT Phi N SOT416 BC546B 1Bp BC846B Phi N SOT23 BC546B 1Bt BC846B Phi N SOT23 BC546B 1Bt BC846BW Phi N SOT323 BC546B 1B- BC846BW Phi N SOT323 BC546B 1B FMMT2222 Zet N SOT23 2N2222 1B MMBT2222 Mot N SOT23 2N2222 1B IRLML2803 IR F SOT23 n-ch mosfet 30V 0.9A p1B PMBT2222 Phi N SOT23 2N2222 t1B PMBT2222 Phi N SOT23 2N2222 t1B PMST2222 Phi N SOT233 2N2222

-1B PMST2222 Phi N SOT323 2N2222 1Bs BC817UPN Sie N SC74 1Cp BAP50-05 Phi B SOT23 dual cc GP RF pin diode 1C FMMT-A20 Zet N SOT23 MPSA20 1C MMBTA20L Mot N SOT23 MPS3904 1C IRLML6302 IR F SOT23 p-ch mosfet 20V 0.6A 1Cs BC847S Sie SOT363 BC457 1Dp BC846 Phi N SOT23 BC456 1Dt BC846 Phi N SOT23 BC456 1Dt BC846W Phi N SOT323 BC456 1D- BC846W Phi N SOT323 BC456 1D MMBTA42 Mot N SOT23 MPSA42 300V npn 1D IRLML5103 IR F SOT23 p-ch mosfet 30V 0.6A

http://www.marsport.org.uk/smd/smd1.htm (5 of 10)27/5/2007 18:18:38

Page 11

SMD Codebook Page 1

p1D PMBTA42 Phi N SOT23 MPSA42 300V npn p1D PXTA42 Phi N SOT89 MPSA42 300V npn t1D PMBTA42 Phi N SOT23 MPSA42 300V npn t1D PMSTA42 Phi N SOT323 MPSA42 300V npn 1Ds BC846U Sie N SC74 BC456 1Ds BC846U Sie SOT363 BC456 1DN 2SC4083 Roh N npn 11V 3.2GHz TV tuners 1DR MSD1328R Mot N SOT346 npn gp 25V 500mA 1E BC847A Phi N SOT23 BC547A 1E BC847AT Phi N SOT416 BC547A 1E BC847AT Dio N SOT523 BC547A 1Ep BC847A Phi N SOT23 BC547A 1Et BC847A Phi N SOT23 BC547A 1Et BC847A Phi N SOT323 BC547A 1E- BC847A Phi N SOT323 BC547A 1ER BC847AR Phi R SOT23R BC547A 1E FMMT-A43 Zet N MPSA43 1E MMBTA43 Mot N SOT23 MPSA43 200V npn t1E PMBTA43 Mot N SOT23 MPSA43 200V npn t1E PMSTA43 Mot N SOT323 MPSA43 200V npn 1Es BC847A Sie N SOT23 BC457 1Es BC847AW Sie N SOT323 BC457 1EN 2SC4084 Roh N npn 20V 2.0GHz TV tuners 1F BC847B Phi N SOT23 BC547B 1F BC847BT Phi N SOT416 BC547B 1F BC847BT Dio N SOT523 BC547B 1Fs BC847B Sie N SOT23 BC547B 1Fs BC847BT Sie N SC75 BC547B 1Fs BC847BW Sie N SOT323 BC547B 1Fp BC847B Phi N SOT23 BC547B 1Ft BC847B Phi N SOT23 BC547B 1Ft BC847BW Phi N SOT323 BC547B 1F- BC847BW Phi N SOT323 BC547B 1FR BC847BR Phi R SOT23R BC547B 1F MMBT5550 Mot N SOT23 2N5550 140V npn

http://www.marsport.org.uk/smd/smd1.htm (6 of 10)27/5/2007 18:18:38

Page 12

SMD Codebook Page 1

p1F PMBT5550 Phi N SOT23 2N5550 140V npn t1F PMBT5550 Phi N SOT23 2N5550 140V npn t1F PMST5550 Phi N SOT323 2N5550 140V npn 1FZ FMBT5550 Zet N SOT23 2N5550 140V npn 1G BC847C Phi N SOT23 BC547C 1G BC847CT Phi N SOT416 BC547C 1Gp BC847C Phi N SOT23 BC547C 1Gt BC847CW Phi N SOT323 BC547C 1G- BC847CW Phi N SOT323 BC547C 1Gs BC847C Sie N SOT23 BC547C 1Gs BC847CW Sie N SOT323 BC547C 1GR BC847CR Phi R SOT23R BC547C 1GT SOA06 SGS N SOT23 MPSA06 1G FMMT-A06 Zet N SOT23 MPSA06 1G MMBTA06 Mot N SOT23 MPSA06 p1G PMMTA06 Phi N SOT23 MPSA06 t1G PMMTA06 Phi N SOT23 MPSA06 t1G PMMTA06 Phi N SOT323 MPSA06 1GM MMBTA06 Mot N SOT23 MPSA06 1Hp BC847 Phi N SOT23 BC547 1Ht BC847 Phi N SOT23 BC547 1Ht BC847W Phi N SOT323 BC547 1H- BC847W Phi N SOT323 BC547 1H FMMT-A05 Zet N MPSA05 1H MMBTA05 Mot N SOT23 MPSA05 t1H MMBTA05 Phi N SOT323 MPSA05 1HT SOA05 SGS N SOT23 MPSA05 1J BC848A Phi N SOT23 BC548A 1Js BC848A Sie N SOT23 BC548A 1Js BC848AW Sie N SOT323 BC548A 1J FMMT2369 Zet N SOT23 2N2369 1J MMBT2369 Mot N SOT23 MPS2369 1Js BCV61A Sie VQ SOT143 npn current mirror hFe 180 1Jp BCV61A Phi VQ SOT143 npn current mirror hFe 180

p1J PMBT2369 Phi N SOT23 2N2369

http://www.marsport.org.uk/smd/smd1.htm (7 of 10)27/5/2007 18:18:38

Page 13

SMD Codebook Page 1

t1J PMBT2369 Phi N SOT23 2N2369 t1J PMBT2369 Phi N SOT323 2N2369

1JA MMBT2369A Mot N SOT23 MPS2369A 1JR BC848AR Phi R SOT23R BC548A 1JZ BC848A Zet N SOT23 BC548A 1K BC848B ITT N SOT23 BC548B 1Kp BC848B Phi N SOT23 BC548B 1Ks BC848B Sie N SOT23 BC548B 1Ks BC848BW Sie N SOT323 BC548B 1K MMBT6428 Mot N SOT23 MPSA18 50V p1K PMBT6428 Phi N SOT23 MPSA18 50V t1K PMBT6428 Phi N SOT23 MPSA18 50V t1K PMBT6428 Phi N SOT323 MPSA18 50V 1K FMMT4400 Zet N SOT23 2N4400 1Ks BCV61B Sie VQ SOT143B npn current mirror hFe 290 1Kp BCV61B Phi VQ SOT143B npn current mirror hFe 290 1KR BC848BR Phi R SOT23R BC548B 1KM MMBT6428L Mot N SOT23 MPSA18 50V 1KZ FMMT4400 Zet N SOT23 2N4400 1L BC848C ITT N SOT23 BC548C 1Lp BC848C Phi N SOT23 BC548C 1Ls BC848C Sie N SOT23 BC548C 1Ls BC848CW Sie N SOT323 BC548C 1L MMBT6429 Mot N MPSA18 45V 1L FMMT4401 Zet N 2N4401 1L BCV61C Sie VQ SOT143B npn current mirror hFe 520 1Lp BCV61C Phi VQ SOT143B npn current mirror hFe 520 p1L PMBT6429 Phi N SOT23 MPSA18 45V t1L PMBT6429 Phi N SOT23 MPSA18 45V t1L PMBT6429 Phi N SOT323 MPSA18 45V 1LR BC848CR Phi R SOT23R BC548C 1Mp BC848 Phi N SOT23 BC548 1M MMBTA13 Mot N SOT23 MPSA13 darlington 1M BC848C Dio N SOT523 BC548 1Mp BCV61 Phi VQ SOT143B npn current mirror

http://www.marsport.org.uk/smd/smd1.htm (8 of 10)27/5/2007 18:18:38

Page 14

SMD Codebook Page 1

1M FMMT-A13 Zet N SOT23 MPSA13 p1M PXTA13 Phi N SOT89 MPSA13 darlington p1M PMBTA13 Phi N SOT23 MPSA13 darlington t1M PMBTA13 Phi N SOT23 MPSA13 darlington 1N FMMT-A14 Zet N SOT23 MPSA14 1N MMBTA14 Mot N SOT23 MPSA14 darlington 1N5 ZTX11N15DF Zet N SOT23 npn 15V 3A low saturation V p1N PMBTA14 Mot N SOT23 MPSA14 darlington p1N PXTA14 Mot N SOT89 MPSA14 darlington t1N PMBTA14 Mot N SOT23 MPSA14 darlington 1P FMMT2222A Zet N 2N2222A 1P MMBT2222A Mot N SOT23 2N2222A 1P BC847PN Sie DI pnp/npn separate pair gp AF 1P CMDZ18L CSC I SOD323 zener 250mW Iz 0.5mA 18V p1P PMBT2222A Phi N SOT23 2N2222A p1P PXT2222A Phi N SOT89 2N2222A t1P PMBT2222A Phi N SOT23 2N2222A t1P PMST2222A Phi N SOT323 2N2222A 1Q MMBT5088 Mot N SOT23 MPSA18 Vce 30V p1Q PMBT5088 Phi N SOT23 MPSA18 Vce 30V t1Q PMBT5088 Phi N SOT23 MPSA18 Vce 30V t1Q PMST5088 Phi N SOT323 MPSA18 Vce 30V 1R MMBT5089 Mot N SOT23 MPSA18 Vce 25V t1R PMST5089 Phi N SOT323 MPSA18 Vce 25V 1S MMBT2369A Nat N SOT23 2N2369A 500MHz sw npn 1S MSC3130 Mot H SOT346 npn RF fT 1.4GHz 10V 1T MMBT3960A Mot N 2N3960A 1U MMBT2484L Mot N SOT23 MPSA18 1V MMBT6427 Mot H SOT23 2N6426/7 darlington npn 1Vp BF820 Phi N SOT23 npn 300V 50mA BF420 1Vt BF820 Phi N SOT23 npn 300V 50mA BF420 1Vt BF820W Phi N SOT323 npn 300V 50mA BF420 1V- BF820W Phi N SOT323 npn 300V 50mA BF420 1W FMMT3903 Zet N SOT23 2N3903 1Wp BF821 Phi N SOT23 pnp 300V 50mA BF421

http://www.marsport.org.uk/smd/smd1.htm (9 of 10)27/5/2007 18:18:38

Page 15

SMD Codebook Page 1

1Wt BF821 Phi N SOT23 pnp 300V 50mA BF421 1W t BF822W Phi N SOT323 pnp 300V 50mA BF421 1W - BF822W Phi N SOT323 pnp 300V 50mA BF421 1X MMBT930L Mot N SOT23 MPS3904 1Xp BF822 Phi N SOT23 npn 250V 50mA BF422 1Xt BF822 Phi N SOT23 npn 250V 50mA BF422

1Y MMBT3903 Mot N SOT23 2N3903 1Yp BF823 Phi N SOT23 pnp 250V 50mA BF423

1Yt BF823 Phi N SOT23 pnp 250V 50mA BF423 1Z BAS70-06 Zet A SOT23 dual RF CA schottky diode 1Z MMBT6517 Mot N SOT23 2N6517 npn Vce 350V

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd1.htm (10 of 10)27/5/2007 18:18:38

Page 16

SMD Codebook Page 2

GM4PMK's SMD Codebook

Codes beginning with '2'

Code Device Manf Base Package Leaded Equivalent/Data 2 BAT62-02W Sie I SCD80 BAT16 schottky diode 2 BB182 Phi I SOD523 varicap 2.5-23pF 2

(blue) BAR64-03W Sie I SOD323 pin diode

2 2SC3604 Nec CX npn RF fT8GHz 12dB@2GHz 2

(white)

BB439 Sie I SOD323 29-5 pF varicap

20 MRF5811 Mot X SOT143 npn Rf fT 5GHz 0.2A

-20 PDTC114WU Phi N SOT323 npn dtr 20F TSDF1220R Vis WQ SOT143R fT 12GHz npn 6V 20mA 20V PZM20NB Phi C SOT346 20V 300mW zener 20Y BZV49-C20 Phi O SOT89 20V 1W zener

21 Gali-21 MC AZ SOT89 DC-8GHz MMIC amp 14 dB gain 21 1PS59SB21 Phi C SOT346 schottky diode 40V 0.2A

22 MMBT4209 Nat N SOT23 pnp sw 850MHz 2N4209 22 DTC123EUA Rho N SC70 npn dtr 2k2+2k2 50V 100ma 22 DTC123EKA Rho N SC59 npn dtr 2k2+2k2 50V 100ma 22 GDZ2.4B Vis I SOD323 zener 200mW 2.4V 22V PZM22NB Phi C SOT346 22V 300mW zener 22Y BZV49-C22 Phi O SOT89 22V 1W zener 23 MMBT3646 Nat N SOT23 npn sw 350MHz 2N3646 23 DTC143EUA Roh N SC70 pnp dtr 50V 100mA 4k7+ 4k7 23 DTC143EKA Roh N SC59 pnp dtr 50V 100mA 4k7+ 4k7

-23 PDTA114TU Phi N SOT323 pnp dtr R1 10k t23 PDTA114TU Phi N SOT323 pnp dtr R1 10k 24 RR264M-400 Roh I PMDU hi-rel 400V 0.7A diode 24 MMBD2101 Nat C SOT23 Si diode 100V 200mA 24 DTC114ECA Roh N SOT23 npn dtr 50V 100mA 10k + 10k 24 DTC114EUA Roh N SC70 npn dtr 50V 100mA 10k + 10k 24 DTC114EKA Roh N SC59 npn dtr 50V 100mA 10k + 10k

http://www.marsport.org.uk/smd/smd2.htm (1 of 6)27/5/2007 18:18:44

Page 17

SMD Codebook Page 2

24 2SC5006 Nec N npn RF fT 4.5GHz @3V 7mA

-24 PDTC114TU Phi N SOT323 npn dtr R1 10k t24 PDTC114TU Phi N SOT323 npn dtr R1 10k 24V PZM24NB Phi C SOT346 24V 300mW Zener 24Y BZV49-C24 Phi O SOT89 24V 1W zener 25 MMBD2102 Nat K SOT23 Si diode 100V 200mA 25 DTC124ECA Roh N SOT23 npn dtr 50V 100mA 22k + 22k 25 DTC124EKA Roh N SC59 npn dtr 50V 100mA 22k + 22k 25 DTC124EUA Roh N SC70 npn dtr 50V 100mA 22k + 22k 25 EDZ12B Roh I EMD2 150mW zener 12V 25 VDZ12B Roh I VMD2 150mW zener 12V 26 MMBD2103 Nat D SOT23 dual MMBD1201 26 DTC144EKA Roh N SC59 npn dtr 50V 30mA 47k + 47k 26 DTC144EUA Roh N SC70 npn dtr 50V 30mA 47k + 47k 27 MMBD2104 Nat B SOT23 dual cc MMBD1201 27V PZM27NB Phi C SOT346 27V 300mW Zener 27Y BZV49-C27 Phi O SOT89 27V 1W zener 28 BFP280T Tfk W npn RF fT 7GHz 8V 10mA 28 MMBD2105 Nat A SOT23 dual ca MMBD1201

-28 PDTA114WU Phi N SOT323 pnp dtr 29 MMBD1401 Nat C SOT23 Si diode 200V 100mA 29 DTC115EE Roh N EMT3 npn dtr 100k +100k 50V 20mA 29 DTC115EUA Roh N SC70 npn dtr 100k +100k 50V 20mA 29 DTC115EKA Roh N SC59 npn dtr 100k +100k 50V 20mA 200 SSTPAD200 Sil J PAD-200 200pA leakage diode 201 PZM20NB1 Phi C SOT346 20V 300mW Zener 202 PZM20NB2 Phi C SOT346 20V 300mW Zener 203 PZM20NB3 Phi C SOT346 20V 300mW Zener 221 PZM22NB1 Phi C SOT346 22V 300mW Zener 222 PZM22NB2 Phi C SOT346 22V 300mW Zener 223 PZM22NB3 Phi C SOT346 22V 300mW Zener 241 PZM24NB Phi C SOT346 24V 300mW Zener 242 PZM24NB Phi C SOT346 24V 300mW Zener 243 PZM20NB Phi C SOT346 24V 300mW Zener 271 PZM2.7NB1 Phi C SOT346 2.7V 300mW Zener

http://www.marsport.org.uk/smd/smd2.htm (2 of 6)27/5/2007 18:18:44

Page 18

SMD Codebook Page 2

272 PZM2.7NB2 Phi C SOT346 2.7V 300mW Zener 2A MMBT3906L Mot N SOT23 2N3906 2A MMBT3906W Mot N SOT323 2N3906 2A FMMT3906 Zet N SOT23 2N3906 t2A PMBT3906 Phi N SOT23 2N3906 t2A PMST3906 Phi N SOT323 2N3906

p2A PMBT3906 Phi N SOT23 2N3906 p2A PXT3906 Phi O SOT89 2N3906

2A4 PZM2.4NB2A Phi A SOT346 dual 2.4V cc Zener 2A7 PZM2.7NB2A Phi A SOT346 dual 2.7V cc Zener 2B BC849B ITT N SOT23 BC549B 2Bs BC849B Sie N SOT23 BC549B 2Bs BC849BW Sie N SOT323 BC549B 2Bp BC849B Phi N SOT23 BC549B 2Bt BC849BW Phi N SOT323 BC549B 2B- BC849BW Phi N SOT323 BC549B 2B FMMT2907 Zet N SOT23 2N2907 2B MMBT2907 Mot N SOT23 MPS2907 p2B PMBT2907 Phi N SOT23 2N2907 t2B PMBT2907 Phi N SOT23 2N2907 2BR BC849BR Phi R SOT23R BC549B 2BZ FMMT2907 Zet N SOT23 2N2907 2C BC849C ITT N SOT23 BC549C 2Cs BC849C Sie N SOT23 BC549C 2Cs BC849CW Sie N SOT323 BC549C 2Cp BC849C Phi N SOT23 BC549C 2Ct BC849C Phi N SOT23 BC549C 2Ct BC849CW Phi N SOT323 BC549C 2C- BC849CW Phi N SOT323 BC549C 2C MMBTA70 Mot N SOT23 MPSA70 2CR BC849CR Phi R SOT23R BC549C 2CZ FMMTA70 Zet N SOT23 MPSA70 2D MMBTA92 Mot N SOT23 MPSA92 pnp Vce 300V p2D PMBTA92 Phi N SOT23 MPSA92 pnp Vce 300V p2D PXTA92 Phi O SOT89 MPSA92 pnp Vce 300V

http://www.marsport.org.uk/smd/smd2.htm (3 of 6)27/5/2007 18:18:44

Page 19

SMD Codebook Page 2

t2D PMBTA92 Phi N SOT23 MPSA92 pnp Vce 300V t2D PMSTA92 Phi N SOT323 MPSA92 pnp Vce 300V 2E MMBTA93 Mot N SOT23 MPSA93 pnp Vce 200V 2E FMMT-A93 Zet N SOT23 MPSA93 t2E PMBTA93 Phi N SOT23 MPSA93 pnp Vce 200V t2E PMSTA93 Phi N SOT323 MPSA93 pnp Vce 200V 2F BC850B ITT N SOT23 BC550B 2Fs BC850B Sie N SOT23 BC550B 2Fs BC850BW Sie N SOT323 BC550B 2Fp BC850B Phi N SOT23 BC550B 2Ft BC850B Phi N SOT23 BC550B 2Ft BC850BW Phi N SOT323 BC550B 2F- BC850BW Phi N SOT323 BC550B 2F FMMT2907A Zet N SOT23 2N2907A 2F MMBT2907A Mot N SOT23 MPS2907A 2F MMBT2907AW Mot N SOT323 MPS2907A p2F PMBT2907A Phi N SOT23 2N2907A p2F PXT2907A Phi O SOT89 2N2907A t2F PMBT2907A Phi N SOT23 2N2907A t2F PMBT2907A Phi N SOT323 2N2907A 2FR BC850BR Phi R SOT23R BC550B 2G BC850C ITT N SOT23 BC550C 2Gs BC850C Sie N SOT23 BC550C 2Gp BC850C Phi N SOT23 BC550C 2Gt BC850C Phi N SOT323 BC550C 2Gt BC850CW Phi N SOT323 BC550C 2G- BC850CW Phi N SOT323 BC550C 2G FMMT-A56 Zet N SOT23 MPSA56 2G MMBTA56 Mot N SOT23 MPSA56 2G* ATF52189 Agi ZF SOT89 2GHz 4.5V 0.2A PHEMT p2G PMBTA56 Phi N SOT23 MPSA56 t2G PMBTA56 Phi N SOT23 MPSA56 t2G PMSTA56 Phi N SOT323 MPSA56 2GM MMBTA56 Mot N SOT23 MPSA56 2GR BC850CR Phi R SOT23R BC550C

http://www.marsport.org.uk/smd/smd2.htm (4 of 6)27/5/2007 18:18:44

Page 20

SMD Codebook Page 2

2GT SOA56 SGS N SOT23 MPSA56 2H FMMT-A55 Zet N SOT23 MPSA55 2HT SOA55 SGS N SOT23 MPSA55 2H MMBTA55 Mot N SOT23 MPSA55 t2H PMBTA55 Phi N SOT23 MPSA55 t2H PMSTA55 Phi N SOT323 MPSA55 2J MMBT3640 Mot N SOT23 MPS3640 pnp sw 2K FMMT4402 Zet N SOT23 2N4402 2K MMBT8598 Mot N 2N4125 pnp 60V 2Kp BAT754 Phi C SOT23 30V 200mA schottky 2Kt BAT754 Phi C SOT23 30V 200mA schottky 2KW BAT754 Phi C SOT23 30V 200mA schottky 2L MMBT5401 Mot N SOT23 2N5401 pnp 150V 2L FMMT4403 Zet N SOT23 2N4403 p2L PMBT5401 Phi N SOT23 2N5401 pnp 150V t2L PMBT5401 Phi N SOT23 2N5401 pnp 150V t2L PMST5401 Phi N SOT323 2N5401 pnp 150V 2Lp BAT754A Phi A SOT23 30V 200mA dual schottky ca 2Lt BAT754A Phi A SOT23 30V 200mA dual schottky ca 2LW BAT754A Phi A SOT23 30V 200mA dual schottky ca 2M FMMT5087 Zet N SOT23 2N5087 2M MMBT404 Mot N SOT23 pnp-chopper 24V 150mA 2Mp BAT754C Phi B SOT23 30V 200mA dual schottky cc 2Mt BAT754C Phi B SOT23 30V 200mA dual schottky cc 2MW BAT754C Phi B SOT23 30V 200mA dual schottky cc 2N MMBT404A Mot N SOT23 pnp-chopper 35V 150mA 2Np BAT754S Phi D SOT23 30V 200mA dual schottky series 2Nt BAT754S Phi D SOT23 30V 200mA dual schottky series 2NW BAT754S Phi D SOT23 30V 200mA dual schottky series 2N0 ZXT11N20DF Zet N SOT23 npn 20V 2.5A low sat switch 2P FMMT2222R Zet R SOT23R 2N2222 2P MMBT5086 Mot N SOT23 2N5086 2P CMDZ20L CSC I SOD323 zener 250mW Iz 0.5mA 20V 2Q MMBT5087 Mot N SOT23 2N5087 2R HSMS-8102 HP Z SOT23 10-14GHz schottky mixer pair

http://www.marsport.org.uk/smd/smd2.htm (5 of 6)27/5/2007 18:18:44

Page 21

SMD Codebook Page 2

2T SO4403 SGS N SOT23 2N4403 2T MMBT4403 Mot N SOT23 2N4403 p2T PMBT4403 Phi N SOT23 2N4403 p2T PXT4403 Phi O SOT89 2N4403 t2T PMBT4403 Phi N SOT23 2N4403 t2T PMST4403 Phi N SOT323 2N4403 2T HT2 Zet N SOT23 pnp 80V 100mA 2U MMBTA63 Mot N SOT23 MPSA63 darlington t2U PMBTA63 Phi N SOT23 MPSA63 darlington 2V MMBTA64 Mot N SOT23 MPSA64 darlington p2V PXTA64 Phi O SOT89 MPSA64 darlington t2V PMBTA64 Phi H SOT23 MPSA64 darlington 2V4 PZM2.4NB Phi C SOT346 2.4V 300mW Zener 2V7 PZM2.7NB Phi C SOT346 2.7V 300mW Zener 2W FMMT3905 Zet N SOT23 2N3905 2W MMBT8599 Mot N 2N4125 Vce 80V pnp 2X SO4401 SGS N SOT23 2N4401 2X MMBT4401 Mot N SOT23 2N4401 p2X PMBT4401 Phi N SOT23 2N4401 p2X PxT4401 Phi O SOT89 2N4401 t2X PMBT4401 Phi N SOT23 2N4401 t2X PMST4401 Phi N SOT323 2N4401 2Y4 BZV49-C2V4 Phi O SOT89 2.4V 1W zener 2Y7 BZV49-C2V7 Phi O SOT89 2.7V 1W zener 2Z MMBT6520 Mot N SOT23 2N6520 pnp Vce 350V 2Z BAS70-04 Zet D SOT23 dual series RF schottky 70V 15mA 2Z5 BAS70-05 Zet B SOT23 dual cc RF Schottky 70V 15mA

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd2.htm (6 of 6)27/5/2007 18:18:44

Page 22

SMD Codebook Page 3

GM4PMK's SMD Codebook

Codes beginning with '3'

Code Device Manf Base Package Leaded Equivalent/Data 3

(white)

BAT60A Sie I SOD323 10V 3A sw schottky

3 BAT62-02W Sie I SCD80 30 MUN5330DW1 Mot DP SOT363 npn/pnp dtr 1k0+1k0 30V PZM30NB1 Phi C SOT346 30V 300mW zener 30Y BZV49-C30 Phi O SOT89 30V 1W zener 301 FDV301N Fch M SOT23 n-ch 'digital' fet 25V 0.22A 302 FDV302P Fch M SOT23 p-ch 'digital' fet 25V 0.13A 303 FDV303N Fch M SOT23 n-ch 'digital' fet 25V 0.68A 304 FDV304P Fch M SOT23 p-ch 'digital' fet 25V 0.46A 31 MUN5331DW1 Mot DP SOT363 npn/pnp dtr 2k2+2k2 31 MMBD1402 Nat K SOT23 Si diode 200V 100mA p31 PDTA143XT Phi N SOT23 pnp dtr 4k7+10k t31 PDTA143XT Phi N SOT23 pnp dtr4k7+10k 32 MUN5332DW1 Mot DP SOT363 npn/pnp dtr 4k7+4k7 32 MMBD1403 Nat D SOT23 dual Si diode 200V 100mA 32 BAT32 Sie CS 18GHz zero-bias schottky 32 GDZ2.7B Vis I SOD323 zener 200mW 2.7V p32 PDTC143XT Phi N SOT23 pnp dtr 4k7+10k t32 PDTC143XT Phi N SOT23 pnp dtr 4k7+10ks 33 MUN5333DW1 Mot DP SOT363 npn/pnp dtr 4k7+47k 33 DTA143XE Roh N EMT3 pnp dtr 4k7+10k 50V 100mA 33 DTA143XUA Roh N SC70 pnp sw 4k7+10k bias res 50V 100mA 33 DTA143XKA Roh N SC59 pnp sw 4k7+10k bias res 50V 100mA 33 MMBD1404 Nat B SOT23 dual cc Si diode 200V 100mA

33 Gali-33 MC AZ SOT89 DC-4GHz MMIC amp 19dB gain

33V PZM33NB1 Phi C SOT346 33 300mW zener 33Y BZV49-C33 Phi O SOT89 33V 1W zener 34 MUN5334DW1 Mot DP SOT363 npn/pnp dtr 22k+47k

http://www.marsport.org.uk/smd/smd3.htm (1 of 5)27/5/2007 18:18:50

Page 23

SMD Codebook Page 3

34 MMBD1405 Nat A SOT23 dual ca Si diode 200V 100mA 331 NDS331N Fch M SOT23 n-ch mosfet 1.3A 20V 331 PZM3.3NB1 Phi C SOT346 3.3V 300mW zener 332 PZM3.3NB2 Phi C SOT346 3.3V 300mW zener 332 NDS332N Fch M SOT23 p-ch mosfet 0.4A, 1A pk, 20V 335 NDS335N Fch M SOT23 n-ch mosfet 70 mA, 1.7A pk, 20V 336 NDS336N Fch M SOT23 p-ch mosfet 0.27A, 1.2A pk, 20V 337 NDS337N Fch M SOT23 n-ch mosfet 50 mA, 2.5A pk 20V 338 NDS338N Fch M SOT23 p-ch mosfet 0.13A, 1.6Apk 20V 34 2SC5007 Nec N npn RF fT 7GHz @3V 7mA 340 FDV340P Fch M SOT23 p-ch mosfet 20V 70 mA 35 MUN5335DW1 Mot DP SOT363 npn/pnp dtr 2k2+47k 35 RB050LA-40 Roh I PMDT schottky diode 3A 40V 35 DTA124XE Roh N EMT3 pnp dtr 22k+47k 50V 50mA 35 DTA124XUA Roh N SC70 pnp dtr 22k+47k 50V 50mA 35 DTA124XKA Roh N SC59 pnp dtr 22k+47k 50V 50mA 35 EDZ13B Roh I EMD2 150mW zener 13V 35 VDZ13B Roh I VMD2 150mW zener 13V 351 NDS351N Fch M SOT23 n-ch mosfet 1.1A 30V 352 NDS352N Fch M SOT23 p-ch mosfet 0.5A 20V 355 NDS355N Fch M SOT23 n-ch mosfet 0.1A, 1.6A pk 30V 356 NDS356N Fch M SOT23 p-ch mosfet 0.3A, 1.1A pk 20V 357 NDS357N Fch M SOT23 n-ch mosfet 2.5Apk 30V 358 NDS358N Fch M SOT23 p-ch mosfet 0.2A, 1.6A pk 30V 358 FDN358N Fch M SOT23 p-ch mosfet 0.2A 1.6A pk 30V 360 FDN360P Fch M SOT23 p-ch mosfet 80mA, 2a PK, 30V 361 PZM3.6NB1 Phi C SOT346 3.6V 300mW Zener 362 PZM3.3NB2 Phi C SOT346 3.6V 300mW Zener 36V PZM36NB1 Phi C SOT346 36V 300mW Zener 36Y BZV49-C36 Phi O SOT89 36V 1W zener 391 PZM3.9NB1 Phi C SOT346 3.9V 300mW Zener 392 PZM3.9NB2 Phi C SOT346 3.9V 300mW Zener 39V PZM39NB1 Phi C SOT346 39V 300mW Zener 39Y BZV49-C39 Phi O SOT89 39V 1W zener 3A BC856A ITT N SOT23 BC556A

http://www.marsport.org.uk/smd/smd3.htm (2 of 5)27/5/2007 18:18:50

Page 24

SMD Codebook Page 3

3A BC856AT Phi N SOT416 BC556A 3Ap BC856A Phi N SOT23 BC556A 3At BC856A Phi N SOT23 BC556A 3As BC856A Sie N SOT23 BC556A 3At BC856AW Phi N SOT323 BC556A 3A- BC856AW Phi N SOT323 BC556A 3A MMBTH24 Mot N SOT23 VHF mixer npn fT 600MHz 3A0 PZM3.0NB2A Phi C SOT346 dual 3.0V Zener 3A3 PZM3.3NB2A Phi C SOT346 dual 3.3V Zener 3A6 PZM3.6NB2A Phi C SOT346 dual 3.6V Zener 3A9 PZM3.9NB2A Phi C SOT346 dual 3.9V Zener 3AR BC856AR Phi R SOT23R BC556A 3B BC856B ITT N SOT23 BC556B 3B BC856BT Phi N SOT416 BC556B 3Bp BC856B Phi N SOT23 BC556B 3Bs BC856B Sie N SOT23 BC556B 3Bt BC856B Phi N SOT23 BC556B 3Bt BC856BW Phi N SOT323 BC556B 3B- BC856BW Phi N SOT323 BC556B 3B FMMT918 Zet N SOT23 2N918 3B MMBT918 Mot N SOT23 2N918 3BR BC856BR Phi R SOT23 BC556B 3C FMMTA20R Zet R SOT23R MPSA20 3C BC857 Sie DO pnp separate pair gp AF 3D BC856 Phi N SOT23 BC556 hfe 75 min 3Dp BC856 Phi N SOT23 BC556 hfe 75 min 3Dt BC856 Phi N SOT23 BC556 hfe 75 min 3Dt BC856W Phi N SOT323 BC556 hfe 75 min 3D- BC856W Phi N SOT323 BC556 hfe 75 min 3D MMBTH81L Mot N SOT23 UHF pnp fT 600MHz 3D BC856S Sie DO pnp separate pair gp AF 3E BC857A Phi N SOT23 BC557A 3E BC857AT Phi N SOT416 BC557A 3Ep BC857A Phi N SOT23 BC557A 3Et BC857A Phi N SOT23 BC557A

http://www.marsport.org.uk/smd/smd3.htm (3 of 5)27/5/2007 18:18:50

Page 25

SMD Codebook Page 3

3Et BC857A Phi N SOT323 BC557A 3E- BC857A Phi N SOT323 BC557A 3E MMBTH10 Mot N SOT23 MPSH10 fT 650MHz 3E FMMT-A42 Zet N SOT23 MPSA42 3EM MMBTH10L Mot N SOT23 VHF amp 650MHz fT 3ER BC857AR Phi R SOT23R BC557A 3EZ FMMTH10 Zet N SOT23 npn fT 650MHz 3F BC857B Phi N SOT23 BC557B 3F BC857BT Phi N SOT416 BC557B 3Fp BC857B Phi N SOT23 BC557B 3Fs BC857B Sie N SOT23 BC557B 3Ft BC857B Phi N SOT23 BC557B 3Ft BC857BW Phi N SOT323 BC557B 3Ft BC857BS Phi N SOT363 BC557B 3F- BC857BW Phi N SOT323 BC557B 3FR BC857BR Phi R SOT23R BC557B 3G BC857C Phi N SOT23 BC557C 3Gp BC857C Phi N SOT23 BC557C 3G BC857C Phi N SOT23 BC557C 3Gs BC857C Sie N SOT23 BC557C 3Gt BC857C Phi N SOT23 BC557C 3Gt BC857CW Phi N SOT323 BC557C 3G- BC857CW Phi N SOT323 BC557C 3G MMBTH11 NS N SOT23 3G BC857CT Dio N SOT523 BC557C 3G MGSF3454X Mot DK TSOP6 n-ch enh tmosfet 1.75A 3GR BC857CR Phi R SOT23R BC557CR 3Hp BC857C Phi N SOT23 BC557 3Ht BC857C Phi N SOT23 BC557 3Ht BC857CW Phi N SOT323 BC557 3H MMBTH30 NS N SOT23 3H- BC857CW Phi N SOT323 BC557 3J MMBTH69 Mot N SOT23 pnp UHF fT 2GHz 3J BC858A Phi N SOT23 BC558A 3Js BC858A Sie N SOT23 BC558A

http://www.marsport.org.uk/smd/smd3.htm (4 of 5)27/5/2007 18:18:50

Page 26

SMD Codebook Page 3

3JR BC858AR Phi R SOT23R BC558A 3Js BCV62A Sie VQ SOT143 pnp current mirror hFe 180 3Jp BCV62A Phi VQ SOT143 pnp current mirror hFe 180 3K BC858B Phi N SOT23 BC558B 3Ks BCV62B Sie VQ SOT143 npn current mirror hFe 290 3Kp BCV62B Phi VQ SOT143 npn current mirror hFe 290 3KR BC858BR Phi R SOT23R BC558B 3L BC858C Phi N SOT23 BC558C 3LR BC858CR Phi R SOT23R BC558C 3Ls BCV62C Sie VQ SOT143 pnp current mirror hFe 520 3Lp BCV62C Phi VQ SOT143 pnp current mirror hFe 520 3M BC858 Phi N SOT23 BC558 3M FMMT5087R Zet R SOT23R 2N5087 BC322 3Ms BCV62 Sie VQ SOT143 pnp current mirror 3Mp BCV62 Phi VQ SOT143 pnp current mirror 3N MMBT4402 Nat N SOT23 2N4402 pnp 3P FMT2222AR Zet R SOT23R 2N2222A 3P CMDZ22L CSC I SOD323 zener 250mW Iz 0.5mA 22V 3R MMBT5571 Nat N SOT23 pnp sw 850MHz 3S MMBT5551 Nat N SOT23 npn 160V 3T HT3 Zet N SOT23 npn 80V 100mA 3V BC857AT Dio N SOT523 BC557A 3V0 PZM3.0NB Phi C SOT346 3.0V 300mW Zener 3V3 PZM3.3NB Phi C SOT346 3.3V 300mW Zener 3V6 PZM3.6NB Phi C SOT346 3.6V 300mW Zener 3V9 PZM3.9NB Phi C SOT346 3.9V 300mW Zener 3W FMMT-A12 Zet N MPSA12 3W BC857BT Dio N SOT523 BC557B 3Y3 BZV49-C3V3 Phi O SOT89 3.3V 1W zener 3Y6 BZV49-C3V6 Phi O SOT89 3.6V 1W zener 3Y9 BZV49-C3V9 Phi O SOT89 3.9V 1W zener

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd3.htm (5 of 5)27/5/2007 18:18:50

Page 27

SMD Codebook Page 4

GM4PMK's SMD Codebook

Codes beginning with '4'

Code Device Manf Base Package Leaded Equivalent/Data 4

(white)

BAS140W Sie I SOD323 40V 120mA sw schottky

(yellow)

BB644 Sie I SOD323 Varicap 42-2.5pF

red) BB57-03W Sie I SOD323 Varicap

4 BB664 Sie I SCD80 Varicap 42-2.5pF 4 BB679-02V Inf I SC79 varicap wide range 47pF 28V 40 ZLLS400 Zet C SOT23 schottky 40V 1A 41 BAT14-115S Sie CS SOT173 40GHz schottky diode 41 BAT14-115R Sie CZ SOT173 40GHz schottky ring quad 41A FMMT491A Zet N SOT23 npn 40v 1A max 41D BAT14-115D Sie CY SOT173 40GHz schottky dual 42 BAT14-025S Sie CS SOT173 4GHz schottky diode 42 BAT14-025R Sie CZ SOT173 4GHz schottky ring quad 42 GDZ3.0B Vis I SOD323 zener 200mW 3.0V

42 BAT54AW Phi A SOT323 dual ca BAT85 schottky 30V 0.2A

42D BAT14-025D Sie CY SOT173 4GHz schottky dual 43 BAS40 Sie C SOT23 schottky diode 40V 100mA 43 DTA143EE Mot N SOT416 pnp dtr 4k7 + 4k7 43 DTC143XE Roh N EMT3 npn dtr 4k7+10k 50V 100mA 43 DTC143XUA Roh N SC70 npn dtr 4k7+10k 50V 100mA 43 DTC143XKA Roh N SC59 npn dtr 4k7+10k 50V 100mA

43 BAT54CW Phi B SOT323 dual cc BAT85 schottky 30V 0.2A

43V PZM43NB Phi C SOT346 43V 0.3W zener 43Y BZV49-C43 Phi O SOT89 43V 1W zener 44 BAS40-04 Sie D SOT23 dual series BAS40 44 BAS40-04W Sie D SOT323 dual series BAS40 44 2SC5009 Nec N npn RF fT 12GHz @3V 5mA

44 BAT54SW Phi D SOT323

dual seires BAT85 schottky 30V

0.2A

http://www.marsport.org.uk/smd/smd4.htm (1 of 5)27/5/2007 18:18:56

Page 28

SMD Codebook Page 4

45 BAS40-05 Sie A SOT23 dual ca BAS40 45 BAS40-05W Sie A SOT323 dual ca BAS40 45 BAT14-055S Sie CS SOT173 8GHz schottky diode 45 BAT14-055R Sie CZ SOT173 8GHz schottky ring quad 45 DTC124XE Roh N EMT3 npn dtr 22k+47k 50V 50mA 45 DTC124XUA Roh N SC70 npn dtr 22k+47k 50V 50mA 45 DTC124XKA Roh N SC59 npn dtr 22k+47k 50V 50mA 45 EDZ15B Roh I EMD2 150mW zener 15V 45 VDZ15B Roh I VMD2 150mW zener 15V 45D BAT14-055D Sie CY SOT173 8GHz schottky dual 46 BAS40-06 Sie B SOT23 dual cc BAS40 46 BAS40-06W Sie B SOT323 dual cc BAS40 46 MBT3946DW Mot DP 2N3904/2N3906 pair 47 BAS40-07 Sie S SOT143 dual BAS40 47 BAS40-07W Sie S SOT343 dual BAS40 47V PZM47NB Phi C SOT346 47V 0.3W zener 47Y BZV49-C47 Phi O SOT89 47V 1W zener 49 BAT14-095S Sie CS SOT173 18GHz shottky diode 49 BAT14-095R Sie CZ SOT173 18GHz schottky ring quad 49D BAT14-095D Sie CY SOT173 18GHz schottky dual

49R S849TR Vis

SOT143R

MOSIC: biased n-ch dg uhf mosfet for TV 12V

413 FMMT413 Zet N SOT23 npn avalanche 150v 0.1A 415 FMMT415 Zet N SOT23 npn avalanche 260v 0.1A 417 FMMT417 Zet N SOT23 npn avalanche 320v 0.1A 431 PZM4.3NB1 Phi C SOT346 4.3V 0.3W zener 432 PZM4.3NB2 Phi C SOT346 4.3V 0.3W zener 433 PZM4.3NB3 Phi C SOT346 4.3V 0.3W zener 449 FMMT449 Zet N SOT23 npn 50V 1A low Vce sat 451 FMMT451 Zet N SOT23 npn 60V 1A 455 FMMT455 Zet N SOT23 NPN 140V 1A 458 FMMT458 Zet N SOT23 npn 400V 0.4A 471 PZM4.7NB1 Phi C SOT346 4.7V 0.3W zener 472 PZM4.7NB2 Phi C SOT346 4.7V 0.3W zener 473 PZM4.7NB3 Phi C SOT346 4.7V 0.3W zener 491 FMMT491 Zet N SOT23 ZTX 450/451

http://www.marsport.org.uk/smd/smd4.htm (2 of 5)27/5/2007 18:18:56

Page 29

SMD Codebook Page 4

493 FMMT493 Zet N SOT23 ZTX 453 494 FMMT494 Zet N SOT23 npn 120V 1A 495 FMMT495 Zet N SOT23 npn 170V 1A 497 FMMT497 Zet N SOT23 npn 300V 0.5A 4A MMBV109 Mot C SOT23 MV209 varicap 4A FMMV109 Zet C SOT23 MV209 varicap 4A HD3A Zet C 75V 100mA sw diode 4A BC859A ITT N SOT23 BC559A 4Ap BC859A Phi N SOT23 BC559A 4As BC859AW Sie N SOT323 BC559A 4As BC859A Sie N SOT23 BC559A 4A3 PZM4.3NB2A Phi A SOT346 dual ca 4.3V Zener 4A7 PZM4.7NB2A Phi A SOT346 dual ca 4.7V Zener 4AR BC859AR Phi R SOT23R BC559A 4B MMBV432 Mot B dual cc varicap 1.5-45pF 4B BC859B ITT N SOT23 BC559B 4Bs BC859B Sie N SOT23 BC559B 4Bs BC859BW Sie N SOT323 BC559B 4Bp BC859B Phi N SOT23 BC559B 4Bt BC859B Phi N SOT23 BC559B 4Bt BC859BW Phi N SOT323 BC559B 4B- BC859BW Phi N SOT323 BC559B 4BR BC859BR Phi R SOT23R BC559B 4C BC859C ITT N SOT23 BC559C 4Cs BC859C Sie N SOT23 BC559C 4Cs BC859CW Sie N SOT323 BC559C 4Cp BC859C Phi N SOT23 BC559C 4Ct BC859C Phi N SOT23 BC559C 4Ct BC859CW Phi N SOT323 BC559C 4C- BC859CW Phi N SOT323 BC559C 4C MMVB3102 Mot C SOT23 varicap 6-35pF 4C BC859C Phi N SOT23 BC559C 4CR BC859CR Phi R SOT23R BC559C 4D BC859B Phi N SOT23 BC559B 4Dt BC859W Phi N SOT323 BC559B

http://www.marsport.org.uk/smd/smd4.htm (3 of 5)27/5/2007 18:18:56

Page 30

SMD Codebook Page 4

4D- BC859W Phi N SOT323 BC559B 4D MMBV3401 Mot C SOT23 VHF pin diode 4D HD3A Zet C SOT23 sw diode 75V 100mA 4E BC860A Phi N SOT23 BC560A 4E FMMT-A92 Zet N SOT23 MPSA92 4E MMBV105G Mot C SOT23 MV105 varicap 4ER BC860AR Phi R SOT23R BC560A 4F MMBD353 Mot Z SOT23 dual MBD101 4F BC860B Phi N SOT23 BC560B

4F Gali-4F MC AZ SOT89 DC-4GHz MMIC amp 15 dBm o/p 4Fs BC860B Sie N SOT23 BC560B

4Fs BC860BW Sie N SOT323 BC560B 4Fp BC860B Phi N SOT23 BC560B 4Ft BC860B Phi N SOT23 BC560B 4Ft BC860BW Phi N SOT323 BC560B 4F- BC860BW Phi N SOT323 BC560B 4FR BC860BR Phi R SOT23 BC560B 4G MMBV2101 Mot C SOT23 MV2101 varicap 4G BC860C Phi N SOT23 BC560C 4Gs BC860C Sie N SOT23 BC560C 4Gs BC860CW Sie N SOT323 BC560C 4Gp BC860C Phi N SOT23 BC560C 4Gt BC860C Phi N SOT23 BC560C 4Gt BC860CW Phi N SOT323 BC560C 4G- BC860CW Phi N SOT323 BC560C 4GR BC860CR Phi R SOT23 BC560CR 4H MMBV2103 Mot C SOT23 MV2103 varicap 4Hp BC860 Phi N SOT23 BC560 4Ht BC860W Phi N SOT323 BC560 4H- BC860W Phi N SOT323 BC560 4J FMMT38A Zet N SOT23 BCX38A 4J MMBV2109 Mot C SOT23 MV2109 varicap 4K BAP64-04 Phi D dual series 3GHz pin diode 4K MMSB3000 Mot I SOD123 Si diode 30V 0.2A 4L BAP50-04 Phi D dual series GP RF pin diode

http://www.marsport.org.uk/smd/smd4.htm (4 of 5)27/5/2007 18:18:56

Page 31

SMD Codebook Page 4

4M MMBD101 Mot C SOT23 MBD101 schottky diode 4Ms BAT240A Sie EQ SOT143 dual schottky 250V 0.4A 4P CMDZ24L CSC I SOD323 zener 250mW Iz 0.5mA 24V 4R MMBV3700 Mot C SOT23 200V vhf pin diode 4S MMBD201 Mot C SOT23 MBD201 4T MMBD301 Mot C SOT23 MBD301 UHF schottky diode 4U MMBV2105 Mot C SOT23 MV2105 varicap 4V MMBV2106 Mot C SOT23 MV2106 varicap 4V BCW65AR Zet R SOT23R npn 32V 0.8A 4V3 PZM4.3NB Phi C SOT346 4.3V 0.3W zener 4V7 PZM4.7NB Phi C SOT346 4.7V 0.3W zener

4W MMBV2107 Mot C SOT23 MV2107 varicap 4W BCW67AR Zet R SOT23R pnp 32V 0.8A

4Y MMBV2102 Mot C SOT23 MV2102 varicap 4Y3 BZV49-C4V3 Phi O SOT89 4.3V 1W zener 4Y7 BZV49-C4V7 Phi O SOT89 4.7V 1W zener 4X MMBV2108 Mot C SOT23 MV2108 varicap 4Z MMBV2104 Mot C SOT23 MV2104 varicap

Last Updated on 01/06/2006

http://www.marsport.org.uk/smd/smd4.htm (5 of 5)27/5/2007 18:18:56

Page 32

SMD Codebook Page 5

GM4PMK's SMD Codebook

Codes beginning with '5'

Code Device Manf Base Package Leaded Equivalent/Data

(white)

BAT60B Sie I 10V 3A sw Schottky

(red) BBY57-03W Sie I SOD323 varicap

500 SSTPAD500 Sil J PAD-500 500pA leakage diode 51 BAT15-115S Sie CS SOT173 40GHz schottky diode 51 BAT15-115R Sie CZ SOT173 40GHz schottky ring quad 51D BAT15-115D Sie CY SOT173 40GHz schottky dual 51V PZM51NB Phi C SOT346 51V 0.3W zener 51Y BZV49-C51 Phi O SOT89 51V 1W zener 52 BAT15-025S Sie CS SOT173 4GHz schottky diode 52 BAT15-025R Sie CZ SOT173 4GHz schottky ring quad 52 Gali-52 MC AZ SOT89 DC-2GHz MMIC amp 23 dB gain 52 BAS52-02V Inf I SC79 Schottky diode 45V 750mA

52 DTA123YE Roh N EMT3 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YUA Roh N SC70 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YKA Roh N SC59 pnp dtr 2k2 +10k 50V 100mA 52 GDZ3.3B Vis I SOD323 zener 200mW 3.3V 52D BAT15-025D Sie CY SOT173 4GHz schottky dual 53 CDZ4.7B Roh I VMN2 zener 4.7V 0.15W 53s BAT17 Sie C SOT23 schottky diode 4V 100mA

53R S503TR Vis UQ SOT143R

dg mosfet MOSIC 5V uhf tv tuners

54 DTA114YE Roh N EMT3 pnp dtr 10k + 47k 50V 100mA 54 DTA114YUA Roh N SC70 pnp dtr 10k + 47k 50V 100mA 54 DTA114YKA Roh N SC59 pnp dtr 10k + 47k 50V 100mA 54 RSX201L-30 Roh I PMDS schottky diode 2A 30V 54s BAT17-04 Sie D SOT23 dual series BAT17 54s BAT17-04W Sie D SOT323 dual series BAT17

http://www.marsport.org.uk/smd/smd5.htm (1 of 5)27/5/2007 18:19:02

Page 33

SMD Codebook Page 5

54R S504TR Vis UQ SOT143R

dg mosfet MOSIC 5V uhf tv tuners

55 BAT15-055S Sie CS SOT173 8GHz schottky diode

55 BAT15-055R Sie CZ SOT173 8GHz schottky ring quad

55 Gali-55 MC AZ SOT89 DC-4GHz MMIC amp 21 dB gain

55 EDZ16B Roh I EMD2 150mW zener 16V

55 VDZ16B Roh I VMD2 150mW zener 16V

55 CDZ5.1B Roh I VMN2 zener 5.1V 0.15W

55D BAT15-055D Sie CY SOT173 8GHz schottky dual

55R S505TR Vis UQ SOT143R

dg mosfet MOSIC 5V uhf tv tuners

55s BAT17-05 Sie A SOT23 dual ca BAT17

55s BAT17-05W Sie A SOT323 dual ca BAT17

56 RSX301L-30 Roh I PMDS schottky diode 3A 30V 56 RSX301LA-30 Roh I PMDT schottky diode 3A 30V 56s BAT17-06 Sie B SOT23 dual cc BAT17 56s BAT17-06W Sie B SOT323 dual cc BAT17 56V PZM56NB Phi C SOT346 56V 0.3W zener 56Y BZV49-C56 Phi O SOT89 56V 1W zener 57s BAT17-07 Sie S SOT143 dual BAT17 57 BFQ57 Sie CX SOT173 npn 6.5GHz 16V/35mA 57 RSX501L-20 Roh I PMDS schottky diode 5A 20V 57 CDZ5.6B Roh I VMN2 zener 5.6V 0.15W 58 BFQ58 Sie CX SOT173 npn 6.5GHz 16V/30mA 59 BAT15-095S Sie CS SOT173 18GHz schottky diode 59 BAT15-095R Sie CZ SOT173 18GHz schottky ring quad 59D BAT15-095D Sie CY SOT173 18GHz schottky dual

503 S503T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

504 S504T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

505 S505T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

511 PZM5.1NB1 Phi C SOT346 5.1V 0.3W zener 512 PZM5.1NB2 Phi C SOT346 5.1V 0.3W zener

http://www.marsport.org.uk/smd/smd5.htm (2 of 5)27/5/2007 18:19:02

Page 34

SMD Codebook Page 5

513 PZM5.1NB3 Phi C SOT346 5.1V 0.3W zener

561 PZM5.1NB1 Phi C SOT346 5.6V 0.3W zener

562 PZM5.1NB2 Phi C SOT346 5.6V 0.3W zener

563 PZM5.1NB3 Phi C SOT346 5.6V 0.3W zener

558 FMMT558 Zet N SOT23 pnp 400V 0.15A

589 FMMT589 Zet N SOT23 pnp 30V 1A

591 FMMT591 Zet N SOT23 ZTX550/551

593 FMMT593 Zet N SOT23 ZTX 553 pnp 100V 1A

593 S593T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

594 S594T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

595 S595T Vis W SOT143

biased dg mosfet MOSIC 5V uhf tv tuners

596 FMMT596 Zet N SOT23 pnp 200V 0.3A 5A BC807-16 Phi N SOT23 BC327-16 5As BC807-16 Sie N SOT23 BC327-16 5As BC807-16W Sie N SOT323 BC327-16 5Ap BC807-16 Phi N SOT23 BC327-16 5At BC807-16 Phi N SOT23 BC327-16 5At BC807-16W Phi N SOT323 BC327-16 5A- BC807-16W Phi N SOT323 BC327-16 5A BSS123 Mot M SOT23 n-ch tmosfet Vds 100V 5A MMBD6050 Mot C SOT23 sw diode 70V 0.2A 5A FMMD6050 Zet C SOT23 sw diode 70V 100mA 5A1 PZM5.1NB2A Phi A SOT346 dual ca 5.1V 0.3W zener 5A6 PZM5.6NB2A Phi A SOT346 dual ca 5.6V 0.3W zener 5AR BC807-16R Phi R SOT23R BC327-16 5B MMBT4123 Mot N SOT23 2N4123 5B BC807-25 SGS N SOT23 BC327-25 5Bs BC807-25 Sie N SOT23 BC327-25 5Bs BC807-25W Sie N SOT323 BC327-25 5Bs BC807-25U Sie N SC74 BC327-25 5Bp BC807-25 Phi N SOT23 BC327-25 5Bt BC807-25 Phi N SOT23 BC327-25

http://www.marsport.org.uk/smd/smd5.htm (3 of 5)27/5/2007 18:19:02

Page 35

SMD Codebook Page 5

5Bt BC807-25W Phi N SOT323 BC327-25

5B- BC807-25W Phi N SOT323 BC327-25

5B MMBD6100 Mot B SOT23 cc dual diode 70V 0.2A

5B FMMD6100 Zet B SOT23 cc dual diode 70V 0.2A

5BM MMBD6100 Mot B SOT23 cc dual diode 70V 0.2A

5BR BC807-25R Phi R SOT23R BC327-25

5C BC807-40 SGS N SOT23 BC327-40

5C CDZ6.2B Roh I VMN2 zener 6.2V 0.15W

5Cs BC807-40 Sie N SOT23 BC327-40

5Cs BC807-40W Sie N SOT323 BC327-40

5Cp BC807-40 Phi N SOT23 BC327-40

5Ct BC807-40 Phi N SOT23 BC327-40 5Ct BC807-40W Phi N SOT323 BC327-40 5C- BC807-40W Phi N SOT323 BC327-40 5C MMBD7000 Mot D SOT23 2 ser diodes 100V 0.2A 5C FMMD7000 Zet D SOT23 2 ser diodes 70V 200mA 5CR BC807-40R Phi R SOT23E BC327-40 5D FMMD914 Zet C SOT23 1N914 5D MMBD914 Mot C SOT23 1N914 5D MMSD914 Mot I SOD123 1N914 5D HD2A Zet B dual cc HD2 75V 100mA 5Dp BC807 Phi N SOT23 BC327 5Dt BC807 Phi N SOT23 BC327 5Dt BC807W Phi N SOT323 BC327 5D- BC807W Phi N SOT323 BC327 5E BC808-16 Phi N SOT23 BC328-16 5E CDZ6.8B Roh I VMN2 zener 6.8V 0.15W 5Es BC808-16 Sie N SOT23 BC328-16 5Es BC808-16W Sie N SOT323 BC328-16 5E FMMT-A43R Zet R SOT23R MPSA43 5E BC808-16 Phi N SOT23 BC328-16 5ER BC808-16R Phi R SOT23R BC328-16 5F BC808-25 Phi N SOT23 BC328-25 5F CDZ7.5B Roh I VMN2 zener 7.5V 0.15W

http://www.marsport.org.uk/smd/smd5.htm (4 of 5)27/5/2007 18:19:02

Page 36

SMD Codebook Page 5

5Fs BC808-25 Sie N SOT23 BC328-25

5Fs BC808-25W Sie N SOT323 BC328-25

5F MMBD501 Mot C SOT23 MBD501 hot carrier diode

5F Gali-5F MC AZ SOT89 DC-4GHz MMIC amp 20 dB gain

5FR BC808-25R Phi R SOT23R BC328-25

5G BC808-40 Phi N SOT23 BC328-40

5Gs BC808-40 Sie N SOT23 BC328-40

5Gs BC808-40W Sie N SOT323 BC328-40

5G MMBD353 Mot D dual series MBD101

5GR BC808-40R Phi R SOT23R BC328-40

5H MMBD701 Mot C SOT23 MBD701 UHF schottky diode

5Hp BC808 Phi N SOT23 BC328 5HZ BC808 Zet N SOT23 BC328 5H MMBD4148 Nat C SOT23 1N4148 5I MMSD4148 Mot C 1N4148 5J FMMT38B Zet N BCX38B 5K MMBV809 Mot C SOT23 Hyperabrupt varicap 5Kp BAP64-05 Phi B dual cc 3GHz RF pin diode 5L MMBV609 Mot B SOT23 dual cc Hyperabrupt varicap 5N MMBD452L Mot D SOT23 series UHF schottky diodes 5P FMMT2907AR Zet R SOT23R 2N2907A 5P CMDZ27L CSC I SOD323 zener 250mW Iz 0.5mA 27V 5T BCW66GR Sie R SOT23R npn 45V 0.8A 350mW 5V BCW65BR Zet R SOT23R npn 32V 0.8A 5V1 PZM5.1NB Phi C SOT346 5.1V 0.3W zener 5V6 PZM5.6NB Phi C SOT346 5.6V 0.3W zener 5W BCW67BR Zet R SOT23R pnp 32V 0.8A 5Y1 BZV49-C5V1 Phi O SOT89 5.1V 1W zener 5Y6 BZV49-C5V6 Phi O SOT89 5.6V 1W zener

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd5.htm (5 of 5)27/5/2007 18:19:02

Page 37

SMD Codebook Page 6

GM4PMK's SMD Codebook

Codes beginning with '6'

Code Device Manf Base Package Leaded Equivalent/Data

(red) BBY56-03W Sie I SOD323 varicap

60s BAR60 Sie QQ SOT143 3 pin diodes

605 NDS0605 Fch M SOT23 P-ch mosfet 60V 180mA

61s BAR61 Sie PQ SOT143 3 pin diodes pi atten

61A MMBF4117 Nat F n-ch jfet ultra low i/p Ig

61C MMBF4118 Nat F n-ch jfet ultra low i/p Ig

61A MMBF4119 Nat F n-ch jfet ultra low i/p Ig

61J MMBF4091 Nat F n-ch jfet sw/chopper

61K MMBF4092 Nat F n-ch jfet sw/chopper

61L MMBF4093 Nat F n-ch jfet sw/chopper

61M MMBF4859 Nat F n-ch jfet sw/chopper

61N MMBF5514 Nat F p-ch jfet sw/chopper

61P MMBF5115 Nat F p-ch jfet sw/chopper

61Q MMBF5516 Nat F p-ch jfet sw/chopper

61S MMBF5458 Nat F n-ch jfet gp 2N5458

61T MMBF5459 Nat F n-ch jfet gp 2N5459

61U MMBF5461 Nat F p-ch jfet gp 2N5461

61V MMBF5462 Nat F p-ch jfet gp 2N5462

62 EDZ3.6B Roh I EMD2 150mW zener 3.6V

62 VDZ3.6B Roh I VMD2 150mW zener 3.6V

62 DTC123YE Roh N EMT3 npn dtr 2k2 +10k 50V 100mA

62 DTC123YUA Roh N SC70 npn dtr 2k2 +10k 50V 100mA

62 DTC123YKA Roh N SC59 npn dtr 2k2 +10k 50V 100mA

62 GDZ3.6B Vis I SOD323 zener 200mW 3.6V 62P MMBFJ201 Nat F n-ch jfet gp J201 62Q MMBFJ202 Nat F n-ch jfet gp J202 62R MMBFJ203 Nat F n-ch jfet gp J203 62S MMBFJ270 Nat F p-ch jfet gp J270

http://www.marsport.org.uk/smd/smd6.htm (1 of 7)27/5/2007 18:19:09

Page 38

SMD Codebook Page 6

62T MMBFJ271 Nat F p-ch jfet gp J271

62V PZM62NB1 Phi C SOT346 62V 0.3W zener

62Y BZV49-C62 Phi O SOT89 62V 1W zener

63s BAT64 Sie C SOT23 Schottky 40V 250mA gp

63s BAT64W Sie C SOT323 Schottky 40V 250mA gp

63Q MMBFJ304 Nat F n-ch jfet vhf J304

6-3 1PS70SB40 Phi C SOT323 gp Schottky 40V 120mA

6t3 1PS70SB40 Phi C SOT323 gp Schottky 40V 120mA

64 DTC114YE Roh N EMT3 npn dtr 10k + 47k 50V 100mA

64 DTC114YUA Roh N SC70 npn dtr 10k + 47k 50V 100mA

64 DTC114YKA Roh N SC59 npn dtr 10k + 47k 50V 100mA

64s BAT64-04 Sie D SOT23 dual ser gp Schottky 40V 250mA

64s BAT64-04W Sie D SOT323 dual ser gp Schottky 40V 250mA

6-4 1PS70SB44 Phi D SOT323 dual series gp Schottky 40V 120mA

6t4 1PS70SB44 Phi D SOT323 dual series gp Schottky 40V 120mA

65 RF071M2S Roh I PMDU diode 200V 0.7A HF rectifier

65 EDZ18B Roh I EMD2 150mW zener 18V

65 VDZ18B Roh I VMD2 150mW zener 18V

65s BAT64-05 Sie B SOT23 dual cc gp Schottky 40V 250mA

65s BAT64-05W Sie B SOT323 dual cc gp Schottky 40V 250mA

6-5 1PS70SB45 Phi B SOT323 dual cc gp Schottky 40V 120mA

6t5 1PS70SB45 Phi B SOT323 dual cc gp Schottky 40V 120mA

66 RF101ML2S Roh I PMDS diode 200V 1A HF rectifier

66s BAT64-06 Sie A SOT23 dual ca gp Schottky 40V 250mA 66s BAT64-06W Sie A SOT323 dual ca gp Schottky 40V 250mA 6-6 1PS70SB40 Phi A SOT323 dual ca gp Schottky 40V 120mA 6t6 1PS70SB40 Phi A SOT323 dual ca gp Schottky 40V 120mA 67s BAT64-07 Sie S SOT143 dual gp Schottky 40V 250mA 67s BAT64-07W Sie S SOT343 dual gp Schottky 40V 250mA 67 BFP67 Tfk X npn Rf fT 7.5GHz 10V 50mA 67R BFP67R Tfk WQ npn Rf fT 7.5GHz 10V 50mA 68 RF073M2S Roh I PMDU diode 200V 1A HF rectifier 68Y BZV49-C68 Phi O SOT89 68V 1W zener 68V PZM68NB1 Phi C SOT346 68V 0.3W zener

http://www.marsport.org.uk/smd/smd6.htm (2 of 7)27/5/2007 18:19:09

Page 39

SMD Codebook Page 6

69 RF103L2S Roh I PMDS HF rectifier diode 200V 1A

69 DTA114YE Mot N SOT416 pnp dtr 10k +47k

69 DTC115EE Roh N EMT3 npn dtr 100k+100k 50V 20mA

69 DTC115EUA Roh N SC70 npn dtr 100k+100k 50V 20mA

69 DTC115EKA Roh N SC59 npn dtr 100k+100k 50V 20mA

605 NDS0605 Fch M p-ch sw mosfet 60V

610 NDS0610 Fch M p-ch sw mosfet 60V

614 FMMT614 Zet N SOT23 sw

617 FMMT617 Zet N SOT23 npn sw 15V 3A

618 FMMT618 Zet N SOT23 npn sw 20V 2.5A

619 FMMT619 Zet N SOT23 npn sw 50V 2A

621 PZM6.2NB1 Phi C SOT346 6.2V 0.3W zener

622 PZM6.2NB2 Phi C SOT346 6.2V 0.3W zener

623 PZM6.2NB3 Phi C SOT346 6.2V 0.3W zener

624 FMMT624 Zet N SOT23

625 FMMT625 Zet N SOT23

634 FMMT634 Zet N SOT23 100V 0.9A darlington npn

651 PZT651 Mot N SOT223 npn 60V 1A

681 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener

682 PZM6.8NB2 Phi C SOT346 6.8V 0.3W zener

683 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener

6A MMBF4416 Mot ZC SOT23 2N4416 n-ch vhf jfet

p6A PMBF4416 Phi ZC SOT23 2N4416 n-ch vhf jfet

6A MUN2111 Mot N SOT23 pnp dtr with 10k+10k 6A MUN5111 Mot N SOT323 pnp dtr with 10k+10k 6A BC817-16 Phi N SOT23 BC337-16 6As BC817-16 Sie N SOT23 BC337-16 6As BC817-16 Sie N SOT323 BC337-16 6Ap BC817-16W Phi N SOT23 BC337-16 6At BC817-16 Phi N SOT23 BC337-16 6At BC817-16W Phi N SOT323 BC337-16 6A- BC817-16W Phi N SOT323 BC337-16 6A2 PZM6.2NB2A Phi A SOT346 dual ca 6.2V 0.3W zener 6A8 PZM6.8NB2A Phi A SOT346 dual ca 6.8V 0.3W zener

http://www.marsport.org.uk/smd/smd6.htm (3 of 7)27/5/2007 18:19:09

Page 40

SMD Codebook Page 6

6AR BC817-16R Phi R SOT23 BC337-16

6AZ BC817-16 Zet N SOT23 BC337-16

6B MMBF5484 Mot ZC SOT23 n-ch jfet 2N5484

p6B PMBF5484 Phi ZC SOT23 n-ch jfet 2N5484

6B BC817-25 Phi N SOT23 BC337-25

6Bs BC817-25 Sie N SOT23 BC337-25

6Bs BC817-25W Sie N SOT323 BC337-25

6Bp BC817-25 Phi N SOT23 BC337-25

6Bt BC817-25 Phi N SOT23 BC337-25

6Bt BC817-25W Phi N SOT323 BC337-25

6B- BC817-25W Phi N SOT323 BC337-25

6B MUN2112 Mot N SOT23 pnp dtr 22k+22k

6B MUN5112 Mot N SOT323 MUN2112

6BR BC817-25R Phi R SOT23R BC337-25

6BZ BC817-25 Zet N SOT23 BC337-25

6C BC817-40 Phi N SOT23 BC337-40

6Cs BC817-40 Sie N SOT23 BC337-40

6Cs BC817-40W Sie N SOT323 BC337-40

6Cp BC817-40 Phi N SOT23 BC337-40

6Ct BC817-40 Phi N SOT23 BC337-40

6Ct BC817-40W Phi N SOT323 BC337-40

6C- BC817-40W Phi N SOT323 BC337-40

6C MMBFU310 Mot F SOT23 n-ch jfet U310

6C MUN2113 Mot N SOT23 pnp dtr 47k+47k 6C MUN5113 Mot N SOT323 MUN2113 6CR BC817-40R Phi R SOT23R BC337-40 6CZ BC817-40 Zet N SOT23 BC337-40 6Dp BC817 Phi N SOT23 BC337 6Dt BC817 Phi N SOT23 BC337 6Dt BC817W Phi N SOT323 BC337 6D- BC817W Phi N SOT323 BC337 6D MMBF5457 Mot F SOT23 2N5457 n-ch jfet 6D MUN2114 Mot N SOT23 pnp dtr 10k+47k 6D MUN5114 Mot N SOT323 MUN21141

http://www.marsport.org.uk/smd/smd6.htm (4 of 7)27/5/2007 18:19:09

Page 41

SMD Codebook Page 6

6DZ BC817 Zet N SOT23 BC337

6E FMMT-A93R Zet R SOT23R MPSA93

6E MMBF5460 Mot F SOT23 p-ch jfet 2N5460

6E BC818-16 Phi N SOT23 BC338-16

6Es BC818-16 Sie N SOT23 BC338-16

6Es BC818-16W Sie N SOT323 BC338-16

6E MUN2115 Mot N SOT23 pnp dtr R1 10k

6E MUN5115 Mot N SOT323 MUN2115

6ER BC818-16R Phi R SOT23 BC338-16

6EZ BC818-16 Zet N SOT23 BC338-16

6F MMBF4860 Mot F SOT23 2N4860 n-ch jfet

6F BC818-25 Phi N SOT23 BC338-25

6Fs BC818-25 Sie N SOT23 BC338-25

6Fs BC818-25W Sie N SOT323 BC338-25

6F MUN2116 Mot N SOT23 pnp dtr R1 4k7

6F MUN5116 Mot N SOT323 MUN2116

6F Gali-6F MC AZ SOT89 DC-4GHz MMIC amp 12 dB gain

6FR BC818-25R Phi R SOT23R BC338-25

6FZ BC818-25 Zet N SOT23 BC338-25

6G BC818-40 Phi N SOT23 BC338-40

6Gs BC818-40 Sie N SOT23 BC338-40

6Gs BC818-40W Sie N SOT323 BC338-40

6G MMBF4393 Mot ZC SOT23 n-ch jfet 2N4393

6G MUN2130 Mot N SOT23 pnp dtr 1k0+1k0 6G MUN5130 Mot N SOT323 ial">MUN2130 6GR BC818-40R Phi R SOT23 BC338-40 6GZ BC818-40 Zet N SOT23 BC338-40 p6G PMBF4393 Phi ZC SOT23 n-ch jfet 2N4393 6Hp BC818 Phi N SOT23 BC338 6HZ BC818 Zet N SOT23 BC338 6H MMBF5486 Mot ZC SOT23 n-ch jfet 2N5486 p6H PMBF5486 Phi ZC SOT23 n-ch jfet 2N5486 6H MUN2131 Mot N SOT23 pnp dtr 2k2 +2k2 6H MUN5131 Mot N SOT323 MUN2121

http://www.marsport.org.uk/smd/smd6.htm (5 of 7)27/5/2007 18:19:09

Page 42

SMD Codebook Page 6

6J MMBF4391 Mot F SOT23 n-ch jfet 2N4391

6J MUN2132 Mot N SOT23 pnp dtr 4k7+ 4k7

6J MUN5132 Mot N SOT323 MUN2132

p6J PMBF4391 Phi F SOT23 n-ch jfet 2N4391

6K MMBF4932 Mot F SOT23 n-ch jfet 2N4932

6K MUN2133 Mot N SOT23 pnp dtr 4k7+ 47k

6K MUN5133 Mot N SOT323 MUN2133

p6K PMBF4932 Phi F SOT23 n-ch jfet 2N4932

6L MMBF5459 Mot F SOT23 n-ch jfet 2N5459

6L MUN2134 Mot N SOT23 pnp dtr 22k+47k

6L MUN5134 Mot N SOT323 MUN2134

6M MMBF5485 Nat ZC SOT23 n-ch jfet vhf 2N5485

p6M PMBF5485 Nat ZC SOT23 n-ch jfet vhf 2N5485

6N MMBF4861 Nat F SOT23 n-ch jfet sw/chopper

6Q MMBFJ305 Nat F n-ch jfet vhf J305

6P MMBFJ111 Nat F J111 n-ch jfet

6P BCX71HR Phi R SOT23R BCX79

6R MMBFJ112 Nat F J112 n-ch jfet

6P MMBFJ113 Nat F J113 n-ch jfet

6P CMDZ30L CSC I SOD323 zener 250mW Iz 0.5mA 30V

6S MMBFJ176 Nat F J176 n-ch jfet

6S MMSD71 Mot C gp Si diode

p6S PMBFJ176 Phi F J176 n-ch jfet

6T BCW68GR Sie R pnp 45V 0.8A 350mW 6T MMBFJ310 Mot F SOT23 uhf n-ch jfet J310 6U MMBFJ309 Nat F SOT23 uhf n-ch jfet J309 6V BCW65CR Zet R SOT23R npn 32V 0.8A 6V MMBFJ174 Nat F J174 p-ch jfet sw/chopper 6V2 PZM6.2NB Phi C SOT346 6.2V 0.3W zener 6V8 PZM6.8NB Phi C SOT346 6.8V 0.3W zener 6W BCW67CR Zet R SOT23R pnp32V 0.8A 6W MMBFJ175 Mot F SOT23 J175 p-ch jfet p6W PMBFJ175 Phi F SOT23 J175 p-ch jfet 6X MMBFJ174 Nat F J174 p-ch jfet sw/chopper

http://www.marsport.org.uk/smd/smd6.htm (6 of 7)27/5/2007 18:19:09

Page 43

SMD Codebook Page 6

p6X PMBFJ174 Phi F J174 p-ch jfet sw/chopper

6Y MMBFJ177 Mot F SOT23 J177 p-ch jfet

p6Y PMBFJ177 Phi F SOT23 J177 p-ch jfet

6Y2 BZV49-C6V2 Phi O SOT89 6.2V 1W zener

6Y8 BZV49-C6V8 Phi O SOT89 6.8V 1W zener

6Z MMBF170 Mot M SOT23 tmosfet n-ch Vds 60V

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd6.htm (7 of 7)27/5/2007 18:19:09

Page 44

SMD Codebook Page 7

GM4PMK's SMD Codebook

Codes beginning with '7'

Code Device Manf Base Package Leaded Equivalent/Data 7

(white)

BBY55-02W Sie I SCD80 UHF Varicap

70 BFQ70 Sie CX SOT173 npn fT 5.2GHz 15V 35mA 7-0 1PS70SB10 Phi C SOT323 schottky diode 30V 0.2A 7t0 1PS70SB10 Phi C SOT323 schottky diode 30V 0.2A 71 BFQ71 Sie CX SOT173 npn fT 5.2GHz 15V 30mA 72 BFQ72 Sie CX SOT173 npn fT 5.1GHz 15V 50mA 72 2N7002 Sil M SOT23 n-ch mosfet 60V 170mA 72 GDZ3.9B Vis I SOD323 zener 200mW 3.9V 72 EDZ3.9B Roh I EMD2 150mW zener 3.9V 72 VDZ3.9B Roh I VMD2 150mW zener 3.9V 72 RB161M-20 Roh I PMDU schottky diode 1A 25V 73s BAS70 Sie C SOT23 schottky diode 70V 50mA 73p BAS70 Phi C SOT23 schottky diode 70V 50mA 73t BAS70 Phi C SOT23 schottky diode 70V 50mA 73t BAS70W Phi C SOT323 schottky diode 70V 50mA 73- BAS70W Phi C SOT323 schottky diode 70V 50mA 73 MA4CS101A M/A C SOT23 schottky diode 70V 50mA 73 BFQ73 Sie CX SOT173 npn fT 4.9GHz 15V 75mA 73 2SC5004 Nec N npn RF 5GHz @5V 5mA 73 RB161M-30 Roh I PMDU schottky diode 1A 30V 73S BFQ73S Sie CX SOT173 npn fT 5.3GHz 15V 100mA 74 BFQ74 Sie CX SOT173 npn fT 6GHz 16V 35mA 74s BAS70-04 Sie D SOT23 dual series BAS70 74p BAS70-04 Phi D SOT23 dual series BAS70 74t BAS70-04 Phi D SOT23 dual series BAS70 74t BAS70-04W Phi D SOT323 dual series BAS70 74t BAS70-04W Phi D SOT323 dual series BAS70

74 MA4CS101B M/A D SOT23 dual series MA4CS101A (73)

http://www.marsport.org.uk/smd/smd7.htm (1 of 4)27/5/2007 18:19:15

Page 45

SMD Codebook Page 7

74 DTA114WE Rho N EMT3 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WUA Rho N SC70 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WKA Rho N SC59 pnp dtr 10k + 4k7 50V 100mA 74 2SC5005 Nec N npn RF 5.5GHz @5V 5mA 74 RB160M-40 Roh I PMDU schottky diode 1A 40V 7-4 1PS70SB14 Phi D SOT323 dual series schottky diode 30V 0.2A 7t4 1PS70SB14 Phi D SOT323 dual series schottky diode 30V 0.2A 75 RSX101M-30 Roh I PMDU schottky diode 1A 30V 75s BAS70-05 Sie B SOT23 dual cc BAS70 75s BAS70-05W Sie B SOT323 dual cc BAS70 75p BAS70-05 Phi B SOT23 dual cc BAS70 75t BAS70-05W Phi B SOT323 dual cc BAS70 75t BAS70-05 Phi B SOT23 dual cc BAS70 75- BAS70-05W Phi B SOT323 dual cc BAS70 75 BFQ75 Sie CX SOT173 pnp fT 5GHz 12V 50mA 75 EDZ20B Roh I EMD2 150mW zener 20V 75 VDZ20B Roh I VMD2 150mW zener 20V 7-5 1PS70SB15 Phi B SOT323 dual cc schottky diode 30V 0.2A 7t5 1PS70SB15 Phi B SOT323 dual cc schottky diode 30V 0.2A 75Y BZV49-C75 Phi O SOT89 75V 1W zener 76 RB160M-60 Roh I PMDU schottky diode 1A 60V 76s BAS70-06 Sie A SOT23 dual ca BAS70 76p BAS70-06 Phi A SOT23 dual ca BAS70 76t BAS70-06 Phi A SOT23 dual ca BAS70 76t BAS70-06W Phi A SOT323 dual ca BAS70 76- BAS70-06W Phi A SOT323 dual ca BAS70 76 BFQ76 Sie CX SOT173 pnp fT 5GHz 15V 30mA 76 DTA144WE Rho N EMT3 pnp dtr 47k + 22k 50V 30mA 76 DTA144WUA Rho N SC70 pnp dtr 47k + 22k 50V 30mA 76 DTA144WKA Rho N SC59 pnp dtr 47k + 22k 50V 30mA 7-6 1PS70SB16 Phi A SOT323 dual ca schottky diode 30V 0.2A 7t6 1PS70SB16 Phi A SOT323 dual ca schottky diode 30V 0.2A 77s BAS70-07 Sie S SOT143 dual BAS70 77s BAS70-07 Sie S SOT343 dual BAS70 77 MA4CS101E M/A S SOT143 dual MA4CS101A (73)

http://www.marsport.org.uk/smd/smd7.htm (2 of 4)27/5/2007 18:19:15

Page 46

SMD Codebook Page 7

77 BFQ77 Sie CX SOT173 npn fT 7GHz 15V 20mA 78 MMBT4258 Nat N SOT23 pnp sw fT 700MHz 79 RB1070M-30 Roh I PMDU schottky diode 1.5A 30V 701 2N7001 Mot M SOT23 n-ch mosfet 702 2N7002 Mot M SOT23 n-ch mosfet 60V 0.11A 703 2N7003 Mot M SOT23 n-ch mosfet 712 NDS7002A Nat M SOT23 n-ch mosfet 60V 0.28A 717 FMMT717 Zet N SOT23 pnp sw 0.625W 2.5A 12V 718 FMMT718 Zet N SOT23 pnp sw 0.625W 1.5A 20V 720 FMMT720 Zet N SOT23 pnp sw 0.625W 1.5A 722 FMMT722 Zet N SOT23 pnp sw 723 FMMT723 Zet N SOT23 pnp sw 751 PZM7.5NB1 Phi C SOT346 7.5V 0.3W zener 752 PZM7.5NB2 Phi C SOT346 7.5V 0.3W zener 753 PZM7.5NB3 Phi C SOT346 7.5V 0.3W zener 7A MMBR901 Mot N SOT23 npn RF MRF901 7A MUN5211DW1 Mot DN SOT363 dual npn dtr 10k+10k 7A5 PZM7.5NB2A Phi A SOT346 dual ca 7.5V 0.3W zener 7B MMBR920 Mot N SOT23 npn RF ?MRF920 7B UMZC6.8N Roh A UMD3 dual ESDca zener 6.8V 0.2W 7B STZC6.8N Roh A SMD3 dual ESDca zener 6.8V 0.2W 7B MUN5212DW1 Mot DN SOT363 dual npn dtr 22k+22k 7C MMBR930 Mot N SOT23 npn RF ?MRF930 7C MUN5213DW1 Mot DN SOT363 dual npn dtr 47k+47k 7D MMBR931 Mot N SOT23 npn RF ?MRF931 7D HD4A Zet A ca dual HD3A 7D UMZC6.2N Roh A UMD3 dual ESDca zener 6.82V 0.2W 7D MUN5214DW1 Mot DN SOT363 dual npn dtr 10k+47k 7E FMMT-A42R Zet R MPSA42 7E MMBR2060 Mot N npn RF fT 1GHz Vce 30V 50mA

7E MUN5215DW1 Mot DN SOT363 dual npn 10k base res 7F MMBR4957 Mot N npn RF fT 1.2GHz 30V 30mA

7F MUN5211DW1 Mot DN SOT363 dual npn dtr R1 4k7 7G MMBR5031 Mot N SOT23 npn RF fT 1GHz 10V 20mA 7G MUN5230DW1 Mot DN SOT363 dual npn dtr 1k0+1k0

http://www.marsport.org.uk/smd/smd7.htm (3 of 4)27/5/2007 18:19:15

Page 47

SMD Codebook Page 7

7H MMBR5179 Mot N SOT23 npn RF 2N5179/BFY90 7H MUN5231DW1 Mot DN SOT363 dual npn dtr 2k2+2k2 7J FMMT38C Zet N SOT23 BCX38C 7J MUN5232DW1 Mot DN SOT363 dual npn dtr 4k7+4k7 7K MMBR2857 Mot N npn RF fT 1GHz Vce 15V 40mA 7K MUN5233DW1 Mot DN SOT363 dual npn dtr 4k7+47k bias 7L MUN5234DW1 Mot DN SOT3636 dual npn dtr 22k+47k bias 7M MUN5235DW1 Mot DN SOT363 dual npn dtr 2k2+47k bias 7M MMBR521L Mot N SOT23 pnp RF MRF521 7M BCW66HR Zet R SOT23R npn 45V 0.8A 7N MMBR941BL Mot N SOT23 npn RF fT 8GHx MRF941 7N BCW68HR Zet R SOT23 pnp 45V 0.8A 7N CMDZ1L8 CSC I SOD323 zener 250mW Iz 0.5mA 1.8V 7P BCW66FR SGS R SOT23R npn 45V 0.8A 350mW 7P MMBR911L Mot N SOT23 npn RF fT 6GHz MRF911 7P CMDZ33L CSC I SOD323 zener 250mW Iz 0.5mA 33V 7R MMBR536 Mot N npn RF MRF536 7T BCW68FR Zet R SOT23R pnp 45V 0.8A 7V5 PZM7.5NB Phi C SOT346 7.5V 0.3W zener 7X MMBR571L Mot N SOT23 npn RF fT 8GHz MRF571 7Y MMBR941L Mot N SOT23 npn RF fT 8GHz MRF941 7Y5 BZV49-C7V5 Phi O SOT89 7.5V 1W zener 7Z MMBR951L Mot N SOT23 npn RF fT7.5GHz MRF951

Last Updated on 01/06/2006 By G4PMK

http://www.marsport.org.uk/smd/smd7.htm (4 of 4)27/5/2007 18:19:15

Page 48

SMD Code Book Page 8

GM4PMK's SMD Codebook

Codes beginning with '8'

Code

Device Manf Base Package Leaded Equivalent/Data

(yellow)

BBY58-03W Sie I SOD323 varicap 8 BB178 Phi I SOD523 VHF varicap 2.5-16pf 81 ZMV831BV2 Zet I SOD523

28V hyperabrupt varicap 15pF

@2V 81A MMBZ5250B Mot C SOT23 20V zener 0.225W 81A PMBZ5250B Phi C SOT23 20V zener 0.225W 81B MMBZ5251B Mot C SOT23 22V zener 0.225W 81B PMBZ5251B Phi C SOT23 22V zener 0.225W 81C MMBZ5252B Mot C SOT23 24V zener 0.225W 81C PMBZ5252B Phi C SOT23 24V zener 0.225W 81D MMBZ5253B Mot C SOT23 25V zener 0.225W 81D PMBZ5253B Phi C SOT23 25V zener 0.225W 81E MMBZ5254B Mot C SOT23 27V zener 0.225W 81E PMBZ5254B Mot C SOT23 27V zener 0.225W 81F MMBZ5255B Mot C SOT23 28V zener 0.225W 81F PMBZ5255B Sie C SOT23 28V zener 0.225W 81G MMBZ5256B Mot C SOT23 30V zener 0.225W 81G PMBZ5256B Phi C SOT23 30V zener 0.225W 81H MMBZ5257B Mot C SOT23 33V zener 0.225W 81H PMBZ5257B Phi C SOT23 33V zener 0.225W 81J MMBZ5258B Vis C SOT23

36V zener 300mW 81K MMBZ5259B

Vis

C SOT23

39V zener 300mW 81M MMBZ5261B Vis C SOT23

47V zener 300mW 81N

MMBZ5262B Vis C SOT23

51V zener 300mW 81P

MMBZ5263B Vis C SOT23

56V zener 300mW 81Q

MMBZ5264B Vis C SOT23

60V zener 300mW 81R

MMBZ5265B Vis C SOT23

62V zener 300mW 81S

MMBZ5266B Vis C SOT23

68V zener 300mW 81T

MMBZ5267B Vis C SOT23

75V zener 300mW

http://www.marsport.org.uk/smd/smd8.htm (1 of 5)27/5/2007 18:19:21

Page 49

SMD Code Book Page 8

82 2SC5009 Nec N

npn RF fT 12GHz @ 3V 5mA 82 ZMV832BV2 Zet I SOD523

28V hyperabrupt varicap 22pF

@2V

82 GDZ4.3B Vis I SOD323 zener 200mW 4.3V 82 EDZ4.3B Roh I EMD2 150mW zener 4.3V 82 VDZ4.3B Roh I VMD2 150mW zener 4.3V

82R S886TR Vis

SOT143R

biased n-ch dg uhf mosfet for TV

12V 82P BFP182T Tfk X

npn RF fT 7.5GHz 10V 35mA 83 MMBT4400 Nat N

npn 2N4400

83 RB160M-90 Roh I PMDU schottky diode 1A 90V

83s BAT68 Sie C SOT23 gp Schottky 8V 130mA 83s BAT68W Sie C SOT323 gp Schottky 8V 130mA

83 2SC5010 Nec N

npn RF fT 12GHz 3V 10mA 83 MA4CS102A M/A C SOT23 schottky diode 8V 30mA

83P BFP183T Tfk X

npn RF fT 7.4GHz 10V 65mA 84s BAT68-04 Sie D SOT23 dual ser gp Schottky 8V 130mA 84s BAT68-04W Sie D SOT323 dual ser gp Schottky 8V 130mA 84 MA4CS102B M/A D SOT23 dual ser schottky diode 8V 30mA 84 DTC114WE Rho N EMT3 npn dtr 10k + 4k7 50V 100mA 84 DTC114WUA Rho N SC70 npn dtr 10k + 4k7 50V 100mA 84 DTC114WKA Rho N SC59 npn dtr 10k + 4k7 50V 100mA 85 MMBD1701 Nat C

Fast Si diode 30V 50mA 85 MA4CS102A M/A B SOT23 dual cc schottky diode 8V 30mA

85 EDZ22B Roh I EMD2 150mW zener 22V 85 VDZ22B Roh I VMD2 150mW zener 22V

85s BAT68-05 Sie B SOT23 gp dual cc Schottky 8V 130mA 85s BAT68-05W Sie B SOT323 gp dual cc Schottky 8V 130mA 86 MMBD1702 Nat K

Fast Si diode 30V 50mA 86 DTC144WE Rho N EMT3 npn dtr 47k + 22k 50V 30mA 86 DTC144WUA Rho N SC70 npn dtr 47k + 22k 50V 30mA 86 DTC144WKA Rho N SC59 npn dtr 47k + 22k 50V 30mA 86s BAT68-06 Sie A SOT23 gp dual ca Schottky 8V 130mA 86s BAT68-06W Sie A SOT323 gp dual ca Schottky 8V 130mA 87 MMBD1703 Nat D

dual ser MMBD1701

http://www.marsport.org.uk/smd/smd8.htm (2 of 5)27/5/2007 18:19:21

Page 50

SMD Code Book Page 8

87 MA4CS102A M/A S SOT143 dual schottky diode 8V 30mA 87s BAT68-07 Sie S SOT143 gp dual schottky 8V 130mA 88 MMBD1704 Nat B

dual cc MMBD1701 89 MMBD1705 Nat A

dual ca MMBD1701 821 PZM8.2NB1 Phi C SOT23 8.2V 0.3W zener 822 PZM8.2NB2 Phi C SOT23 8.2V 0.3W zener 822 S822T Tfk X

npn RF fT 5.2GHz 6V 8mA 823 PZM8.2NB3 Phi C SOT23 8.2V 0.3W zener

849 S849T Vis W SOT143

biased n-ch dg uhf mosfet for TV

12V 852 S852T Tfk N SOT23 npn RF fT 5.2GHz 6V 8mA 887 S887T Tfk W SOT143 n-ch dg uhf mosfet 888 S888T Tfk W SOT142 n-ch dg uhf mosfet 8A NJM78L02A NJR KQ SOT89 78L 2.0V 0.1A regulator 8A MMBZ5226B Mot C SOT23 3.3V zener 0.225W 8A MUN2211 Mot N SOT23 npn dtr 10k +10k 8A MUN5211 Mot N SOT323 npn dtr 10k +10k 8A 2DA1774Q Dio N SOT523 gp pnp 60V 150mA hfe 120-270 8A2 PZM8.2NB2A Phi C SOT23 dual ca 8.2V 0.3W zener 8B NJM78L03A NJR KQ SOT89 78L 3.0V 0.1A regulator 8B MMBZ5227B Mot C SOT23 3.6V zener 0.225W 8B MUN2212 Mot N SOT23 npn dtr 22k+22k 8B MUN5212 Mot N SOT323 npn dtr 22k+22k 8B 2DA1774Q Dio N SOT523 gp pnp 60V 150mA hfe 180-390 8C NJM78L05A NJR KQ SOT89 78L 5.0V 0.1A regulator 8C MMBZ5228B Mot C SOT23 3.9V zener 0.225W 8C MUN2213 Mot N SOT23 npn dtr 47k + 47k 8C MUN5213 Mot N SOT323 npn dtr 47k + 47k 8C 2DA1774S Dio N SOT523 gp pnp 60V 150mA hfe 270-560 8D MUN2214 Mot N SOT23 npn dtr 10k + 47k 8D MUN5214 Mot N SOT323 MUN2214 8D 2DC4617Q Dio N SOT523 gp npn 60V 150mA hfe 120-270 8E NJM78L06A NJR KQ SOT89 78L 6.0V 0.1A regulator 8E FMMT-A92R Zet R SOT23R MPSA92 8E MMBZ5230B Mot C SOT23 4.7V zener 0.225W 8E MUN2215 Mot N SOT23 npn dtr R1 10k

http://www.marsport.org.uk/smd/smd8.htm (3 of 5)27/5/2007 18:19:21

Page 51

SMD Code Book Page 8

8E MUN5215 Mot N SOT323 npn dtr R1 10k 8E 2DC4617R Dio N SOT523 gp npn 60V 150mA hfe 180-390 8F NJM78L07A NJR KQ SOT89 78L 7.0V 0.1A regulator 8F MMBZ5231B Mot C SOT23 5.1V zener 0.225W 8F MUN2216 Mot N SOT23 npn dtr R1 4k7 8F MUN5216 Mot N SOT323 MUN2216 8F 2DC4617S Dio N SOT523 gp npn 60V 150mA hfe 270-560 8G NJM78L08A NJR KQ SOT89 78L 8.0V 0.1A regulator 8G MMBZ5232B Mot C SOT23 5.6V zener 0.225W 8G MUN2230 Mot N SOT23 npn dtr 1k0+1k0 8G MUN5230 Mot N SOT323 npn dtr 1k0+1k0 8H NJM78L09A NJR KQ SOT89 78L 9.0V 0.1A regulator 8H MMBZ5233B Mot C SOT23 6.0V zener 0.225W 8H MUN2231 Mot N SOT23 npn dtr 2k2+2k2 8H MUN5231 Mot N SOT323 npn dtr 2k2+2k2 8J NJM78L10A NJR KQ SOT89 78L 10V 0.1A regulator 8J MMBZ5234B Mot C SOT23 6.2V zener 0.225W 8J MUN2232 Mot N SOT23 npn dtr 4k7+ 4k7 8J MUN5232 Mot N SOT323 npn dtr 4k7+ 4k7 8K NJM78L12A NJR KQ SOT89 78L 12V 0.1A regulator 8K MMBZ5235B Mot C SOT23 6.8V zener 0.225W 8K MUN2233 Mot N SOT23 npn dtr 4k7+ 47k 8K MUN5233 Mot N SOT323 npn dtr 4k7+ 47k 8L NJM78L15A NJR KQ SOT89 78L 15V 0.1A regulator 8L MMBZ5236B Mot C SOT23 7.5V zener 0.225W 8L MUN2234 Mot N SOT23 npn dtr 22k + 47k 8L MUN5234 Mot N SOT323 npn dtr 22k + 47k 8M NJM78L18A NJR KQ SOT89 78L 18V 0.1A regulator 8M MMBZ5237B Mot C SOT23 8.2V zener 0.225W 8N NJM78L20A NJR KQ SOT89 78L 20V 0.1A regulator 8N MMBZ5238B Mot C SOT23 8.7V zener 0.225W

8N CMDZ2L0 CSC I SOD323 zener 250mW Iz 0.5mA 2.0V

8P NJM78L24A NJR KQ SOT89 78L 24V 0.1A regulator 8P MMBZ5239B Mot C SOT23 9.1V zener 0.225W

8P CMDZ36L CSC I SOD323 zener 250mW Iz 0.5mA 36V

http://www.marsport.org.uk/smd/smd8.htm (4 of 5)27/5/2007 18:19:21

Page 52

SMD Code Book Page 8

8Q MMBZ5240B Mot C SOT23 10V zener 0.225W 8R MMBZ5241B Mot C SOT23 11V zener 0.225W 8S MMBZ5242B Mot C SOT23 12V zener 0.225W 8T MMBZ5243B Mot C SOT23 13V zener 0.225W 8U MMBZ5244B Mot C SOT23 14V zener 0.225W 8V MMBZ5245B Mot C SOT23 15V zener 0.225W 8V2 PZM8.2NB Phi C SOT23 8.2V 0.3W zener 8W MMBZ5246B Mot C SOT23 16V zener 0.225W 8X MMBZ5247B Mot C SOT23 17V zener 0.225W 8Y MMBZ5248B Mot C SOT23 18V zener 0.225W 8Y2 BZV49-C8V2 Phi O SOT89 8.2V 1W zener 8Z NJM78L62A NJR KQ SOT89 78L 6.2V 0.1A regulator 8Z MMBZ5249B Mot C SOT23 19V zener 0.225W

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd8.htm (5 of 5)27/5/2007 18:19:21

Page 53

SMD Code Book Page 9

GM4PMK's SMD Codebook

Codes beginning with '9'

Code

Device Manf Base Package Leaded Equivalent/Data

9 BC849 Mot N SOT23 BC 549B

9 BB179 Phi I SOD523 UHF varicap 2-11.5pf

91 ZV931V2 Zet I SOD523 4-13.5pF hyperabrupt varicap 91 DTA113TKA Roh N SC59 pnp dtr R11k0 50V 100mA 91A FMMT591A Zet N SOT23 pnp 40V 1A 0.5W fT 150 MHz 92 ZV932V2 Zet I SOD523 5.5-17pF hyperabrupt varicap

92 GDZ4.7B Vis I SOD323 zener 200mW 4.7V 92 EDZ4.7B Roh I EMD2 150mW zener 4.7V 92 VDZ4.7B Roh I VMD2 150mW zener 4.7V

92V BFP92A Tfk W

npn RF 6GHz 16V 30mA 93 ZV933V2 Zet I SOD523 12-42pF hyperabrupt varicap 93 DTA143TE Roh N EMT3 pnp dtr R1 4k7 50V 100mA 93 DTA143TUA Roh N SC70 pnp dtr R1 4k7 50V 100mA 93 DTA143TKA Roh N SC59 pnp dtr R1 4k7 50V 100mA

93R S593TR Vis UQ SOT143R

biased dg mosfet MOSIC 5V uhf

tv tuners 94 DTA114TE Roh N EMT3 pnp dtr R1 10k 50V 100mA 94 DTA114TUA Roh N SC70 pnp dtr R1 10k 50V 100mA 94 DTA114TKA Roh N SC59 pnp dtr R1 10k 50V 100mA

94R S594TR Vis UQ SOT143R

biased dg mosfet MOSIC 5V uhf

tv tuners 95 DTA124TE Roh N EMT3 pnp dtr R1 22k 50V 100mA 95 DTA124TCA Roh N SOT23 pnp dtr R1 22k 50V 100mA 95 DTA124TKA Roh N SC59 pnp dtr R1 22k 50V 100mA

25 EDZ24B Roh I EMD2 150mW zener 24V 25 VDZ24B Roh I VMD2 150mW zener 24V

95R S595TR Vis UQ SOT143R

biased dg mosfet MOSIC 5V uhf

tv tuners 96 DTA144TE Roh N EMT3 pnp dtr R1 47k 50V 100mA 96 DTA144TUA Roh N SC70 pnp dtr R1 47k 50V 100mA

http://www.marsport.org.uk/smd/smd9.htm (1 of 3)27/5/2007 18:19:25

Page 54

SMD Code Book Page 9

96 DTA144TKA Roh N SC59 pnp dtr R1 47k 50V 100mA 99 DTA115TE Roh N EMT3 pnp dtr R1 100k 50V 100mA 99 DTA115TUA Roh N SC70 pnp dtr R1 100k 50V 100mA 99 DTA115TKA Roh N SC59 pnp dtr R1 100k 50V 100mA

99R

S949TR Vis UQ SOT143R

biased dg uhf mosfet MOSIC for

TV tuners 9V 911 PZM9.1NB1 Phi C SOT346 9.1V 0.3W zener 912 PZM9.1NB2 Phi C SOT346 9.1V 0.3W zener 913 PZM9.1NB3 Phi C SOT346 9.1V 0.3W zener

913 S913T Vis W SOT143

biased dg mosfet MOSIC 9V uhf

tv tuners 949

S949T Vis W SOT143

biased dg uhf mosfet MOSIC for

TV tuners 9V 982 S886T Vis W SOT143

biased dg uhf mosfet MOSIC for

TV tuners 12V 9A FMMT2369AR Zet R SOT23 2N2369A 9A DTA125TUA Roh N SC70 pnp dtr R1 200k 50V 100mA 9A DTA125TKA Roh N SC59 pnp dtr R1 200k 50V 100mA 9A PLVA650A Phi C SOT23 5.0V avalanche reg diode 9A1 PZM9.1NB2A Phi A SOT346 dual ca 9.1V 0.3W zener 9B NJM79L03UA NJR KQR SOT89 79L reg 3.0V 0.1A 9B PLVA653A Phi C SOT23 5.3V avalanche reg diode 9C NJM79L05UA NJR KQR SOT89 79L reg 5.0V 0.1A 9C PLVA656A Phi C SOT23 5.6V avalanche reg diode 9D PLVA659A Phi C SOT23 5.9V avalanche reg diode 9E NJM79L06UA NJR KQR SOT89 79L reg 6.0V 0.1A 9E PLVA662A Phi C SOT23 6.2V avalanche reg diode 9F PLVA665A Phi C SOT23 6.5V avalanche reg diode 9G NJM79L08UA NJR KQR SOT89 79L reg 8.0V 0.1A 9G PLVA668A Phi C SOT23 6.8V avalanche reg diode 9H NJM79L09UA NJR KQR SOT89 79L reg 9.0V 0.1A

9J PLVA2650A Phi A SOT23 dual ca 5.0V reg diode 9K NJM79L12UA NJR KQR SOT89 79L reg 12V 0.1A

9K PLVA2653A Phi A SOT23 dual ca 5.3V reg diode 9L NJM79L15UA NJR KQR SOT89 79L reg 15V 0.1A

9L PLVA2656A Phi A SOT23 dual 5.60V reg diode

http://www.marsport.org.uk/smd/smd9.htm (2 of 3)27/5/2007 18:19:25

Page 55

SMD Code Book Page 9

9M NJM79L18UA NJR KQR SOT89 79L reg 18V 0.1A 9M PLVA2659A Phi A SOT23 dual ca 5.9V reg diode 9N PLVA2662A Phi A SOT23 dual ca 6.2V reg diode

9N CMDZ2L2 CSC I SOD323 zener 250mW Iz 0.5mA 2.2V

9O PLVA2665A Phi A SOT23 dual ca 6.5V reg diode 9P NJM79L24UA NJR KQR SOT89 79L reg 24V 0.1A 9P PLVA2668A Phi A SOT23 dual ca 6.8V reg diode 9P BCX70HR Zet R SOT23 BCX70H

9P CMDZ39L CSC I SOD323 zener 250mW Iz 0.5mA 39V

9R FMMT2369R Zet R SOT23 2N2369 9V1 PZM9.1NB Phi C SOT346 9.1V 0.3W zener 9Y1 BZV49-C9V1 Phi O SOT89 9.1V 1W zener

Last Updated on 01/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smd9.htm (3 of 3)27/5/2007 18:19:25

Page 56

SMD Codebook Page A

GM4PMK's SMD Codebook

Codes beginning with 'A'

Code

Device Manf Base Package Leaded Equivalent/Data

A BA892 Sie I SCD80 35V 100mA pin A 1SS355 Roh I USM 100V 50mA sw A MRF947 Mot N SOT323 npn RF 8 GHz A0 HSMS-2800 HP C SOT23 HP2800 schottky A0 HSMS-280B HP C SOT323 HP2800 schottky A03 VAM-03 MC AQ

modamp MAR 3 Similar

A06 VAM-06 MC AQ

modamp MAR 6 Similar

A07 VAM-07 MC AQ

modamp MAR 7 Similar

A1 HSMS-2801 HP K

HP2800 schottky A1 BAW56W Phi A SOT323 dual ca BAW62 (1N4148) A1 BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1 BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1p BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1t BAW56T Phi A SOT416 dual ca BAW62 (1N4148) A1t BAW56S Phi SOT363 dual ca BAW62 (1N4148) A1s BAW56W Sie A SOT323 dual ca BAW62 (1N4148) A1s BAW56 Sie A SOT23 dual ca BAW62 (1N4148) A1s BAW56U Sie A SC74 dual ca BAW62 (1N4148) A1X MBAW56 Mot A

ditto A2 HSMS-2802 HP D SOT23 dual HP2800 A2 HSMS-280C HP D SOT323 dual HP2800 A2 1N4148W CSC I SOD123 1N4148 A2 BAT18 Phi C SOT23 BA482 A2s BAT18 Sie C SOT23 BA482 A2 MMBD2836 Mot A SOT23 dual ca sw diode 75V A2 CFY30 Sie CQ SOT143 n-ch GaAsfet 6 GHz A2 MBT3906DW1 Mot DO SOT363 dual 2N3906

A2 EDZ5.1B Roh I EMD2 150mW zener 5.1V A2 VDZ5.1B Roh I VMD2 150mW zener 5.1V

http://www.marsport.org.uk/smd/smda.htm (1 of 11)27/5/2007 18:19:35

Page 57

SMD Codebook Page A

A22 BAS21 Phi C SOD27 BAV21 A2X MMBD2836 Mot A SOT23 dual ca sw 75V 100mA 15ns A3 BAP64-03 Phi I SOD323 3 GHz pin diode A3 HSMS-2803 HP D SOT23 HP2800 ser pair A3 MMBD1005 Mot A SOT23 dual ca Si diode low leakage A3 BAS16 Zet C

Si sw 75V 100mA A3 BAT17 Phi C SOT23 BA481 A3 1N4448W CSC I SOD123 1N4448 A3p BAT17 Phi C SOT23 BA481 A3t BAT17 Phi C SOT23 BA481 A3 MBT3906DW Mot N SOT363 dual 2N3906 A3X MMBD2835 Mot A SOT23 dual ca sw 35V 100mA 15nS A4 HSMS-2804 HP B SOT23 dual cc HP2800 schottky A4 1SS383 Tosh DT USQ 2 x 40V 0.1A schottky

A4 1SS383 Tosh DT

SMQ/ SC61

2 x 40V 0.1A schottky A4 1N4150W CSC I SOD123 1N4150

A4s BAV70W Sie B SOT323 dual cc BAW62 A4s BAV70 Sie B SOT23 dual cc BAW62 A4s BAV70T Sie B SOT416 dual cc BAW62 A4s BAV70U Sie B SC74 dual cc BAW62 A4 BAV70W Phi B SOT323 dual cc BAW62 A4p BAV70 Phi B SOT23 dual cc BAW62 A4t BAV70 Phi B SOT23 dual cc BAW62 A4t BAV70 Phi B SOT363 dual cc BAW62 A4X MBAV70 Mot B

ditto A5 BAP51-03 Phi I SOD323 GP RF pin diode A5p BRY61 Phi SOT143 A5t BRY61 Phi SOT143 A5 HSMS-2805 HP S SOT143 dual HP2800 schottky A5 1SS384 Tosh DT USM dua 10V/100ma Schottky A5 1SS391 Tosh DT SC61 dua 10V/100ma Schottky A5 MMBD1010 Mot B SOT23 dual cc Si diodes A5 MMBD2837 Mot B SOT23 dual cc diodes 30V 150mA A5 1N4151W CSC I SOD123 1N4151

A5 EDZ27B Roh I EMD2 150mW zener 27V

http://www.marsport.org.uk/smd/smda.htm (2 of 11)27/5/2007 18:19:35

Page 58

SMD Codebook Page A

A5 VDZ27B Roh I VMD2 150mW zener 27V

A6s BAS16W Sie C SOT323 BAW62 (1N4148) A6s BAS16 Sie C SOT23 BAW62 (1N4148) A6s BAS16U Sie C SC74 BAW62 (1N4148) A6 BAS16W Phi C SOT323 BAW62 (1N4148) A6p BAS16 Phi C SOT23 BAW62 (1N4148) A6t BAS16 Phi C SOT23 BAW62 (1N4148) A6 BAS16T Phi C SOT416 BAW62 (1N4148) A6 BAS216 Phi I SOD110 BAW62 (1N4148) A6 BAS16D CSC I SOD123 BAW62 A6p BAS316 Phi I SOD323 BAW62 (1N4148) A6 MMBD2836 Mot B SOT23 dual sw diode cc 75V A6 HN2S01FU Tosh DV US6 3 x 10V 0.1A schottky A6 HN2S01F Tosh DV SM6 3 x 10V 0.1A schottky A6A MMUN2111 Mot N SOT23 pnp dtr 10k+10k A6B MMUN2112 Mot N SOT23 pnp dtr 22k+22k A6C MMUN2113 Mot N SOT23 pnp dtr 47k+47k A6D MMUN2114 Mot N SOT23 pnp dtr 100k+100k A6E MMUN2115 Mot N SOT23 pnp dtr R1 10k A6F MMUN2116 Mot N SOT23 pnp dtr R1 4k7 A6G MMUN2130 Mot N SOT23 pnp dtr 1k0+1k0 A6H MMUN2131 Mot N SOT23 pnp dtr 2k2+2k2 A6J MMUN2132 Mot N SOT23 pnp dtr 4k7+4k7 A6K MMUN2133 Mot N SOT23 pnp dtr 4k7+47k A6L MMUN2134 Mot N SOT23 pnp dtr 22k+47k A6X MMBD2838 Mot B SOT23 dual sw 50V 100mA A7s BAV99 Sie D SOT23 dual ser BAW92 A7s BAV99W Sie D SOT323 dual ser BAW92 A7s BAV99T Sie D SC75 dual ser BAW92 A7s BAV99U Sie D SC74 dual ser BAW92 A7 BAV99W Phi D SOT323 dual ser BAW92 A7 BAV99 Phi D SOT23 dual ser BAW92 A7 HSMS-2807 HP RQ SOT143 HP2800 ring quad A7 1SS402 Tosh DT USM 2 x 20V 50mA schottky A8 HSMS-2808 HP BQ SOT143 HP2800 bridge quad

http://www.marsport.org.uk/smd/smda.htm (3 of 11)27/5/2007 18:19:35

Page 59

SMD Codebook Page A

A8 BAP50-03 Phi I SOD323 GP RF pin diode A8 BAV19W CSC I SOD123 sw diode BAV19 A8 BAS19 Phi C SOT23 BAV19 A7 HN2S03FU Tosh DT US6 3 x 20V 50mA schottky A7p BFG310W/XR Phi WQ SOT343R npn RF ft 14 GHz 6V 60mW A8 SI2308DS Sil M SOT23 N-ch mosfet, 60V 0.1A A8A MMUN2211 Mot N SOT23 npn dtr 10k +10k A8B MMUN2212 Mot N SOT23 npn dtr 22k +22k A8C MMUN2213 Mot N SOT23 npn dtr 47k+47k A8D MMUN2214 Mot N SOT23 npn dtr 100k+100k A8E MMUN2215 Mot N SOT23 npn dtr R1 10k A8F MMUN2216 Mot N SOT23 npn dtr R1 4k7 A8G MMUN2230 Mot N SOT23 npn dtr 1k0 +1k0 A8H MMUN2231 Mot N SOT23 npn dtr 2k2+2k2 A8J MMUN2232 Mot N SOT23 npn dtr 4k7+4k7 A8K MMUN2233 Mot N SOT23 npn dtr 4k7+47k A8L MMUN2234 Mot N SOT23 npn dtr 22k+47k A9 SI2309DS Sil M SOT23 P-ch mosfet, 60V 0.1A A9 BAV20W CSC I SOD123 sw diode BAV20 A9 HN2S02FU Tosh DV US6 3 x 40 V 0.1A schottky A9 1SS322 Tosh C SC70 40V 0.1A schottky A9 1SS294 Tosh C SC59 40V 0.1A schottky A11 MMBD1501A Fch C SOT23 180V 200mA diode A13 MMBD1503A Fch D SOT23 180V 200mA dual diode series A14 MMBD1504A Fch B SOT23 180V 200mA dual diode cc A15 MMBD1505A Fch A SOT23 180V 200mA dual diode ca A16 ZC934A Zet C SOT23 25-95pF hyperabrupt varicap A17 ZC933A Zet C SOT23 12-42pF hyperabrupt varicap A51 BRY62 Phi SOT143 A61 BAS28 CSC S SOT143 dual fast sw diodes A81 BAS20 Phi C SOT23 BAV20 A82 BAS21 Phi C SOT23 BAV21 A91 BAS17 Phi C SOT23 BA314 AA BCX51 Sie P SOT89 pnp 45V audio comp BCX54

AA BCW60A TT N SOT23 BCY58-vii

http://www.marsport.org.uk/smd/smda.htm (4 of 11)27/5/2007 18:19:35

Page 60

SMD Codebook Page A

AA ZMV829A Zet I SOD323

varicap hyperabrupt 28V

8.2pF@2V

AA BAV21W CSC I SOD123 sw diode BAV21 AAs BCW60A Sie N SOT23 BCY58-vii AAA MMBF4856 Mot F SOT23 2N4856 n-ch chopper jfet

AAG MMBR951AL Mot N SOT23 npn RF 8GHz AAH

MAX6326_R22T

Max ZB SC70 microproc -ve reset gen 2.200V

AAI

MAX6327_R22T

Max ZB SC70 microproc +ve reset gen 2.200V

AAJ

MAX6328_R22T

Max ZB SC70 microproc -ve reset gen 2.200V

AAN MAX809LXR Max ZB SC70 microproc -ve reset gen 5.0V AAO MAX809MXR Max ZB SC70 microproc -ve reset gen 5.0V AAP MAX809TXR Max ZB SC70 microproc -ve reset gen 3.3V AAQ MAX809SXR Max ZB SC70 microproc -ve reset gen 3.3V AAR MAX809RXR Max ZB SC70 microproc -ve reset gen 3.0V AAS MAX803ZXR Max ZB SC70 microproc -ve reset gen 2.5V AAT MAX810LXR Max ZB SC70 microproc +ve reset gen 5.0V AAU MAX810MXR Max ZB SC70 microproc +-ve reset gen 5.0V AAV MAX810TXR Max ZB SC70 microproc +ve reset gen 3.3V AAW MAX810RXR Max ZB SC70 microproc +ve reset gen 3.0V AAX MAX810SXR Max ZB SC70 microproc +ve reset gen 3.3V AAY MAX810ZXR Max ZB SC70 microproc +ve reset gen 2.5V AAZ MAX803LXR Max ZB SC70 microproc -ve reset gen 5.0V AB BCW60B ITT N SOT23 BCY58-viii

AB ZMV830A Zet I SOD323

varicap hyperabrupt 28V

10pF@2V AB 2SC4213

N ABs BCW60B Sie N SOT23 BCY58-viii ABp BCW60B Phi N SOT23 BCY58-viii ABt BCW60B Phi N SOT23 BCY58-viii ABA MAX803TXR Max ZB SC70 microproc -ve reset gen 5.0V ABB MAX803MXR Max ZB SC70 microproc -ve reset gen 3.3V ABC MAX803SXR Max ZB SC70 microproc -ve reset gen 3.3V ABD MAX803RXR Max ZB SC70 microproc -ve reset gen 3.0V

http://www.marsport.org.uk/smd/smda.htm (5 of 11)27/5/2007 18:19:35

Page 61

SMD Codebook Page A

ABE MAX803ZXR Max ZB SC70 microproc -ve reset gen 2.5V ABF

LM4041AIX3-

1.2

Max L SC70 1.225V 0.1% shunt V ref

ABG

LM4041BIX3-

1.2

Max L SC70 1.225V 0.2% shunt V ref

ABH

LM4041DIX3-

1.2

Max L SC70 1.225V 0.5% shunt V ref

ABI

LM4041DIX3-

1.2

Max L SC70 1.225V 1.5% shunt V ref

ABJ

LM4040AIX3-

2.1

Max L SC70 2.048V 0.1% shunt V ref

ABK

LM4040BIX3-

2.1

Max L SC70 2.048V 0.2% shunt V ref

ABL

LM4040CIX3-

2.1

Max L SC70 2.048V 0.5% shunt V ref

ABM

LM4040DIX3-

2.1

Max L SC70 2.048V 1% shunt V ref

ABN

LM4040AIX3-

2.5

Max L SC70 2.5001% shunt V ref

ABO

LM4040BIX3-

2.5

Max L SC70 2.500V 0.2% shunt V ref

ABP

LM4040CIX3-

2.5

Max L SC70 2.500V 0.5% shunt V ref

ABQ

LM4040DIX3-

2.5

Max L SC70 2.500V 1% shunt V ref

ABR

LM4040AIX3-

3.0

Max L SC70 3.000V 0.1% shunt V ref

ABS

LM4040BIX3-

3.0

Max L SC70 3.000V 0.2% shunt V ref

ABT

LM4040CIX3-

3.0

Max L SC70 3.000V 0.5% shunt V ref

ABU

LM4040DIX3-

3.0

Max L SC70 3.000V 1% shunt V ref

ABV

LM4040AIX3-

4.1

Max L SC70 4.096V 0.1% shunt V ref

ABW

LM4040BIX3-

4.1

Max L SC70 4.096V 0.2% shunt V ref

ABX

LM4040CIX3-

4.1

Max L SC70 4.096V 0.5% shunt V ref

http://www.marsport.org.uk/smd/smda.htm (6 of 11)27/5/2007 18:19:35

Page 62

SMD Codebook Page A

ABY

LM4040DIX3-

4.1

Max L SC70 4.096V 1% shunt V ref

ABZ

LM4040AIX3-

5.0

Max L SC70 5.000V 0.1% shunt V ref

AC BCX51-100 Sie P SOT89 45V pnp audio hfe 100 AC BCX51-10 Phi P SOT89 45V pnp audio hfe 100 AC BCW60C Phi N SOT23 BCY58-ix

AC ZMV831A Zet I SOD323

varicap hyperabrupt 28V

15pF@2V ACs BCW60C Sie N SOT23 BCY58-ix ACp BCW60C Phi N SOT23 BCY58-ix ACt BCW60C Phi N SOT23 BCY58-ix

ACA

LM4040BIX3-

5.0

Max L SC70 5.000V 0.2% shunt V ref

ACB

LM4040CIX3-

5.0

Max L SC70 5.000V 0.5% shunt V ref

ACC

LM4040DIX3-

5.0

Max L SC70 5.000V 1% shunt V ref

ACE

MAX6326_R31T

Max ZB SC70 microproc -ve reset gen 3.080V

ACF

MAX6347_R46T

Max ZB SC70 microproc +ve reset gen 4.630V

ACH

MAX6326_R23T

Max ZB SC70 microproc -ve reset gen 2.320V

ACI

MAX6326_R26T

Max ZB SC70 microproc -ve reset gen 2.630V

ACJ

MAX6328_R26T

Max ZB SC70 microproc -ve reset gen 2.630V

ACK

MAX6346_R44T

Max ZB SC70 microproc -ve reset gen 4.380V

ACL

MAX6347_R44T

Max ZB SC70 microproc +ve reset gen 4.380V

ACM

MAX6348_R46T

Max ZB SC70 microproc -ve reset gen 4.630V

ACN

MAX6348_R44T

Max ZB SC70 microproc -ve reset gen 4.380V

ACN 2SC5661 Roh N VMT3 npn HF 18V 50mA 1.5GHz ACN 2SC4725 Roh N EMT3 npn HF 18V 50mA 1.5GHz ACN 2SC4082 Roh N UMT3 npn HF 18V 50mA 1.5GHz

http://www.marsport.org.uk/smd/smda.htm (7 of 11)27/5/2007 18:19:35

Page 63

SMD Codebook Page A

ACN 2SC3837K Roh N SMT3 npn HF 18V 50mA 1.5GHz ACO

MAX6346_R46T

Max ZB SC70 microproc -ve reset gen 4.630V

ACP

MAX6326_R29T

Max ZB SC70 microproc -ve reset gen 2.930V

ACP 2SC5661 Roh N VMT3 npn HF 18V 50mA 1.5GHz ACP 2SC4725 Roh N EMT3 npn HF 18V 50mA 1.5GHz ACP 2SC4082 Roh N UMT3 npn HF 18V 50mA 1.5GHz ACP 2SC3837K Roh N SMT3 npn HF 18V 50mA 1.5GHz

ACQ

MAX6327_R23T

Max ZB SC70 microproc +ve reset gen 2.320V

ACR

MAX6327_R26T

Max ZB SC70 microproc +ve reset gen 2.630V

ACS

MAX6327_R29T

Max ZB SC70 microproc +ve reset gen 2.930V

ACT

MAX6327_R31T

Max ZB SC70 microproc +ve reset gen 3.080V

ACU

MAX6328_R23T

Max ZB SC70 microproc -ve reset gen 2.320V

ACV

MAX6328_R29T

Max ZB SC70 microproc -ve reset gen 2.930V

ACW

MAX6326_R31T

Max ZB SC70 microproc -ve reset gen 3.080V

AD BCX51-160 Sie P SOT89 45V pnp audio hfe 160 AD BCX51-16 Phi P SOT89 45V pnp audio hfe 160 AD BCW60D Phi N SOT23 BCY58-x

AD ZMV832A Zet I SOD323

varicap hyperabrupt 28V

22pF@2V ADs BCW60D Sie N SOT23 BCY58-x ADp BCW60D Phi N SOT23 BCY58-x ADt BCW60D Ph N SOT23 BCY58-x ADN 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADN 2SC4083 Roh N UMT3 npn 11V 3.2GHz TV tuners ADN 2SC4726 Roh N EMT3 npn 11V 3.2GHz TV tuners ADN 2SC5662 Roh N VMT3 npn 11V 3.2GHz TV tuners ADN 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC4043S Roh N SPT npn 11V 3.2GHz TV tuners

http://www.marsport.org.uk/smd/smda.htm (8 of 11)27/5/2007 18:19:35

Page 64

SMD Codebook Page A

ADP 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC4083 Roh N UMT3 npn 11V 3.2GHz TV tuners ADP 2SC4726 Roh N EMT3 npn 11V 3.2GHz TV tuners ADP 2SC5662 Roh N VMT3 npn 11V 3.2GHz TV tuners AE BCX52 Sie P SOT89 pnp 60V audio comp BCX55

AE ZMV833A Zet I SOD323

varicap hyperabrupt 28V

33pF@2V AEN 2SC3839K Roh N

npn 20V 2.0GHz TV tuners

AF ZMV834A Zet I SOD323

varicap hyperabrupt 28V

47pF@2V AFs BCW60FF Sie N SOT23 BCY58

AG ZMV835A Zet I SOD323

varicap hyperabrupt 28V

68pF@2V AG BCX70G Phi N SOT23 BCY59-vii BC107 AGs BCX70G Sie N SOT23 BCY59-vii BC107 AGp BCX70G Phi N SOT23 BCY59-vii BC107 AGt BCX70G Phi N SOT23 BCY59-vii BC107 AG BCX52-10 Sie P SOT89 60V pnp BCX52 hfe 100 AH BCX70H Phi N SOT23 BCY59-viii BC107B AHs BCX70H Sie N SOT23 BCY59-viii BC107B AHp BCX70H Phi N SOT23 BCY59-viii BC107B AHt BCX70H Phi N SOT23 BCY59-viii BC107B AH BCP53 Mot P SOT223 pnp amp 80V 150mA AH BCX53 Sie P SOT89 pnp 80V audio comp BCX56 AH ZMV930 Zet I SOD323 2.9-8.3pF hyperabrupt varicap AJ BCX70J Phi N SOT23 BCY59-ix BC107 AJ s BCX70J Sie N SOT23 BCY59-ix BC107 AJp BCX70J Phi N SOT23 BCY59-ix BC107 AJt BCX70J Phi N SOT23 BCY59-ix BC107 AJ ZMV931 Zet I SOD323 4 -13.5pF hyperabrupt varicap AK BCX70K Phi N SOT23 BCY59-x BC107 AK ZMV932 Zet I SOD323 5.5-17pF hyperabrupt varicap AKs BCX70K Sie N SOT23 BCY59-x BC107 AKp BCX70K Phi N SOT23 BCY59-x BC107 AKp BCX70K Phi N SOT23 BCY59-x BC107 AK BCX53-10 Sie P SOT89 pnp 80V BCX53 hfe 100

http://www.marsport.org.uk/smd/smda.htm (9 of 11)27/5/2007 18:19:35

Page 65

SMD Codebook Page A

AL BCX53-16 Sie P SOT89 80V pnp BCX53 hfe 100 AL MMBTA55L Mot N SOT23 pnp 25V (MPSA55) AL ZMV933 Zet I SOD323 12-42pF hyperabrupt varicap ALs BFP405 Sie MQ SOT343 AM MMBT3904W Mot N SOT323 2N3904 AM BCX52-16 Sie P SOT89 pnp 60V BCX52 hfe 160 AMs BFP420 Sie MQ SOT343 npn fT 25GHz 4.5V 35mA AM BSS64 Mot N SOT23 npn 80V 0.1A fT 60MHz AMs BSS64 Sie N SOT23 npn 80V 0.1A fT 60MHz AMp BSS64 Phi N SOT23 npn 80V 0.1A fT 60MHz AMt BSS64 Phi N SOT23 npn 80V 0.1A fT 60MHz AM ZMV933A Zet I SOD323 12-42pF hyperabrupt varicap AN BCW60FN Sie N SOT23 gp npn 35V 0.2A ANs BFP450 Sie MQ SOT343 npn fT 25GHz 4.5V 100mA AN ZMV934 Zet I SOD323 25-95pF hyperabrupt varicap AN 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AN 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AN 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AN 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz AO BCW60AR ITT R SOT23R BCY58-vii AO ZMV934A Zet I SOD323 25-95pF hyperabrupt varicap AP BCW60BR ITT R SOT23R BCY58-viii AP CMDZ2L4 CSC I SOD323 zener 250mW Iz 0.5mA 2.4V AP 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AP 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AP 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AP 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz AP 2SC2058S Roh N SPT npn HF 25V 50mA 300MHz APs BFP520 Sie MQ SOT343 npn fT 40GHz 2.5V 40mA A-Q 2PD1820AQ Phi N SOT323 gp sw amp 50V npn hfe 85-170 AtQ 2PD1820AQ Phi N SOT323 gp sw amp 50V npn hfe 85-170 AR BCW60CR ITT R SOT23R BCY58-ix AR MSD709R Mot N

pnp gp 25V AR CMDZ43L CSC I SOD323 zener 250mW Iz 0.5mA 43V AR1 BSR40 Phi P SOT89 npn 70V 1A 1.35W hfe 40-120

http://www.marsport.org.uk/smd/smda.htm (10 of 11)27/5/2007 18:19:35

Page 66

SMD Codebook Page A

AR2 BSR41 Phi P SOT89 npn 70V 1A 1.35W hfe 100-300 AR3 BSR42 Phi P SOT89 npn 90V 1A 1.35W hfe 40-120 AR4 BSR43 Phi P SOT89 npn 90V 1A 1.35W hfe 100-300 AQ 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AQ 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AQ 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AQ 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz

A-Q 2PD1820AR Phi N SOT323

gp sw amp 50V npn hfe 120-

240 AtQ 2PD1820AR Phi N SOT323

gp sw amp 50V npn hfe 120-

240 A-S 2PD1820AS Phi N SOT323

gp sw amp 50V npn hfe 170-

340 AtS 2PD1820AS Phi N SOT323

gp sw amp 50V npn hfe 170-

340 AS BCW60DR ITT R SOT23R BCY58-x AS MSD709S Mot N

pnp gp 25V ASs BAT18-05 Sie B SOT23 dual BAT18 RF pin AS1 BST50 Mot P SOT89 npn darlington 0.5A 60V AS2 BST51 Mot P SOT89 npn darlington 0.5A 80V AS3 BST52 Mot P SOT89 npn darlington 0.5A 90V AS3 BSP52 Mot P SOT223 npn darlington 0.5A hfe 2000 ATs BAT18-06 Sie A SOT23 dual ca BAT18 RF pin ATs BFP540 Sie MQ SOT343 npn microwave AUs BAT18-04 Sie D SOT23 dual BAT18 RF pin AU BCW60GR ITT R SOT23R BCY58 AV DAN212K Roh C

80V 100mA sw AW BCW60HR ITT R SOT23R BCY58 AX BCX70JR ITT R SOT23R BCY59-ix AY BCX70KR ITT R SOT23R BCY59-x AY MMBD1000 Mot C SOT23 Si sw diode 30V 0.2A

Last Updated on 10/07/2006 by GM4PMK

http://www.marsport.org.uk/smd/smda.htm (11 of 11)27/5/2007 18:19:35

Page 67

SMD Codebook Page B

GM4PMK's SMD Codebook

Codes beginning with 'B'

Code Device Manf Base Package Leaded Equivalent/Data

B MRF957 Mot N SOT323 npn RF fT 9GHz B BAS16-03W Sie I SOD323 Varicap 18pF 1V B BB555 Sie I SCD80 Varicap 18pF 1V B0 BZX399C4V3 Phi I SOD323 4.3V 0.3W zener B0 HSMS-2810 HP C SOT23 HP2810 schottky B0 HSMS-281B HP C SOT323 HP2810 schottky B08 SST6908 Sil ZQ 2N6908 prot n-ch jfet B09

SST6909

Sil ZQ 2N6909 prot n-ch jfet B1 BZX399C1V8 Phi I SOD323 1.8V 0.3W zener B1 HSMS-2811 HP K SOT23 HP2811 schottky B1 BAS40 Mot C SOT23 schottky sw diode B10 SST6910 Sil ZQ 2N6910 prot n-ch jfet B2 BZX399C2V0 Phi I SOD323 2.0V 0.3W zener B2 BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2p BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2t BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2 HSMS-2812 HP D SOT23 dual HP2810 schottky B2 HSMS-281C HP D SOT323 dual HP2810 schottky B3 BZX399C2V2 Phi I SOD323 2.2V 0.3W zener B3 HSMS-2813 HP A SOT23 dual ca HP2810 schottky B3 MMBD717L Mot A SOT323 dual ca schottky B4 BZX399C2V4 Phi I SOD323 2.4V 0.3W zener B4 BSV52R Phi R SOT23R BSX20

B4 HSMS-2814 HP B SOT23 dual cc HP2810 schottky B5 BZX399C2V7 Phi I SOD323 2.7V 0.3W zener B5 HSMS-2815 HP S SOT143 dual HP2810 schottky B6 BZX399C3V0 Phi I SOD323 3.0V 0.3W zener B6 BAT54A Mot A SOT23 dual ca 30V schottky

http://www.marsport.org.uk/smd/smdb.htm (1 of 6)27/5/2007 18:19:40

Page 68

SMD Codebook Page B

B7 BZX399C3V3 Phi I SOD323 3.3V 0.3W zener B7 HSMS-2817 HP RQ SOT143 HP2810 ring quad B8 BZX399C3V6 Phi I SOD323 3.6V 0.3W zener B8 HSMS-2818 HP BQ SOT143 HP2810 bridge quad B9 BZX399C3V9 Phi I SOD323 3.9V 0.3W zener B9 2SC4617 Mot N SC90 npn gp B26 BF570 Phi SOT23 BA BCX54 Sie P SOT89 npn AF 45V comp BCX51 BA BCW61A Phi N SOT23 BCY78-vii BAp BCW61A Phi N SOT23 BCY78-vii BAt BCW61A Phi N SOT23 BCY78-vii BA DAN217 Roh D 80V 100mA dual BA BZX399C4V7 Phi I SOD323 4.7V 0.3W zener BA 2SB1132 Roh P SC62 pnp sw 0.5A 40V BA 1SS154 Tosh C SC59 UHF to S-Band mixer BB BCW61B Phi N SOT23 BCY78-viii BBs BCW61B Sie N SOT23 BCY78-viii BBp BCW61B Phi N SOT23 BCY78-viii BBt BCW61B Phi N SOT23 BCY78-viii BB BAR81 Sie NQ SOT143 Dual pin shunt switch BB BZX399C5V1 Phi I SOD323 5.1V 0.3W zener BBs BAR81W Sie NQ SOT343 Dual pin shunt switch BB 1SV128 Tosh C SC59 pin attenuator BC BCW61C Phi N SOT23 BCY78-ix

BCs BCW61C Sie N SOT23 BCY78-ix

BC BCX54-10

Sie

Phi P SOT89 npn hfe100

BC BZX399C5V6 Phi I SOD323 5.6V 0.3W zener BCp BCW61C Phi N SOT23 BCY78-ix BCt BCW61C Phi N SOT23 BCY78-ix BD BCW61D Phi N SOT23 BCY78-x BDs BCW61D Sie N SOT23 BCY78-x BDp BCW61D Phi N SOT23 BCY78-x BDt BCW61D Phi N SOT23 BCY78-x

http://www.marsport.org.uk/smd/smdb.htm (2 of 6)27/5/2007 18:19:40

Page 69

SMD Codebook Page B

BD BCX54-16 Sie P SOT89 npn hfe160 comp BCX51-16 BD BZX399C6V2 Phi I SOD323 6.2V 0.3W zener BD ZHCS400 Zet C SOT23 40V 0.4A schottky diode

BD 1SS271 Tosh D SC59

dual series mixer/detector UHF to S-

band BE BAS70 Mot C SOT23 schottky sw diode BE BCX55 Sie P SOT89 npn AF 60V comp BCX52 BE BZX399C6V8 Phi I SOD323 6.8V 0.3W zener BE 1SV252 Tosh D SC59 dual series pin diode attenuator BF BCW61FF Sie N SOT23 low noise BCW61 BF BZX399C7V5 Phi I SOD323 7.5V 0.3W zener BF 2SB1132T P SC62 pnp sw BF 1SS268 Tosh B SC59 dual cc pin sw BF 1SS312 Tosh B SC70 dual cc pin sw BF 1SS364 Tosh B SSM dual cc pin sw BG BCX71G Phi N SOT23 BCY79-vii BGs BCX71G Sie N SOT23 BCY79-vii BGp BCX71G Phi N SOT23 BCY79-vii BGt BCX71G Phi N SOT23 BCY79-vii

BG BCX55-10

Sie

Phi P SOT89 npn hfe 100 BG BZX399C8V2 Phi I SOD323 8.2V 0.3W zener BG 1SS269 Tosh A SC59 dual ca pin sw BG 1SS313 Tosh A SC70 dual ca pin sw BH BCX71H Phi N SOT23 BCY79-viii BHs BCX71H Sie N SOT23 BCY79-viii

BHp BCX71H Phi N SOT23 BCY79-viii BHt BCX71H Phi N SOT23 BCY79-viii BH BCP56 Mot P SOT223 npn amp 80V 150mA BH BCX56 Sie P SOT89 npn AF 80V BH BZX399C9V1 Phi I SOD323 9.1V 0.3W zener i BH 1SS295 Tosh D SC59 dual series mixer/detector UHF BJ BCX71J Phi N SOT23 BCY79-ix BJs BCX71J Sie N SOT23 BCY79-ix

http://www.marsport.org.uk/smd/smdb.htm (3 of 6)27/5/2007 18:19:40

Page 70

SMD Codebook Page B

BJp BCX71J Phi N SOT23 BCY79-ix BJt BCX71J Phi N SOT23 BCY79-ix BJ BZX399C10 Phi I SOD323 10V 0.3W zener BK BCP56-10 Mot P SOT223 npn amp 80V 150mA BK BCX71K Phi N SOT23 BCY79 BKs BCX71K Sie N SOT23 BCY79 BKp BCX71K Phi N SOT23 BCY79 BKt BCX71K Phi N SOT23 BCY79 BK BCX56-10 Sie P SOT89 npn hfe 100 BK BZX399C11 Phi I SOD323 11V 0.3W zener BL MBD54DW Mot DL SOT363 2x schottky detector diodes BL BCP56-16 Mot P SOT223 npn amp 80V 150mA BL BCX56-16 Sie P SOT89 npn hfe 160 BL BZX399C12 Phi I SOD323 12V 0.3W zener BL BGA310 Sie GQ SOT143 MMIC amp 9dB @1GHz BLs BGA420 Sie HQ SOT343 MMIC amp 13 dB @1.8GHz BM BSS63L Mot N SOT23 100v pnp comp BSS64 BMp BSS63 Phi N SOT23 100v pnp comp BSS64 BMt BSS63 Phi N SOT23 100v pnp comp BSS64 BM BCX55-16 Sie P SOT89 npn hfe 160 BM BGA312 Sie GQ SOT143 MMIC amp 11dB @1GHz BM BZX399C13 Phi I SOD323 13V 0.3W zener BMs BG427 Sie HQ SOT343 MMIC amp 18 dB @1.8GHz BNs BCW61FN Sie N SOT23 low noise BCW61

BN BZX399C15 Phi I SOD323 15V 0.3W zener BN BGA318 Sie GQ SOT143 MMIC amp 16dB @1GHz BO BCW61AR Phi N SOT23 BCX78, BCY78-vii BP BCW61BR Phi N SOT23 BCY78-viii BP BZX399C16 Phi I SOD323 16V 0.3W zener BP CMDZ2L5 CSC I SOD323 zener 250mW Iz 0.5mA 2.5V BQ BZX399C18 Phi I SOD323 18V 0.3W zener in SOD323 BQ 2PB709AQ Phi N SC-59 PNP 45V 0.1A hfe 160-260 BQ 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 120-270 BQ 2SC4081 Roh N UMT3 see 2SC2412K above

http://www.marsport.org.uk/smd/smdb.htm (4 of 6)27/5/2007 18:19:40

Page 71

SMD Codebook Page B

BQ 2SC4617 Roh N EMT3 see 2SC2412K above BQ 2SC5658 Roh N VMT3 see 2SC2412K above BR BCW61CR Phi N SOT23 BCY78-ix BQ 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 180-390 BQ 2SC4081 Roh N UMT3 see 2SC2412K above BQ 2SC4617 Roh N EMT3 see 2SC2412K above BQ 2SC5658 Roh N VMT3 see 2SC2412K above BR MSB1218A Mot N SOT323 gp pnp 45V BR BZX399C20 Phi I SOD323 20V 0.3W zener

BR 2PB709AR Phi N SC-59 pnp45V 0.1A hfe 210-340 BR CMDZ47L CSC I SOD323 zener 250mW Iz 0.5mA 47V

BR1 BSR30 Phi P SOT89 pnp 70V 1A 1.35W hfe 40-120 BR2 BSR31 Phi P SOT89 pnp 70V 1A 1.35W hfe 100-300 BR4 BSR33 Phi P SOT89 pnp 90V 1A 1.35W hfe 100-300 BS BCW61DR Phi R SOT23 BCY78-x BS BZX399C22 Phi I SOD323 22V 0.3W zener BS 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 270-560 BS 2SC4081 Roh N UMT3 see 2SC2412K above BS 2SC4617 Roh N EMT3 see 2SC2412K above BS 2SC5658 Roh N VMT3 see 2SC2412K above BS 2PB709AS Phi N SC-59 pnp 45V 0.1A hfe 290-460 BS1 BST60 Mot P SOT89 pnp darlington 0.5A 60V BS2 BST61 Mot P SOT89 pnp darlington 0.5A 80V BS3 BST62 Mot P SOT89 pnp darlington 0.5A 90V

BS3 BSP62 Mot P SOT89 pnp darlington 0.5A hfe 2000 BT BZX399C24 Phi I SOD323 24V 0.3W zener BT2 BSP16 Mot P SOT223 pnp –300V 1A BT2 BST16 Phi P SOT89 pnp –300V 1A BU BCX71GR Phi N SOT23 BCX79-vii BU BZX399C27 Phi I SOD323 27V 0.3W zener BV BZX399C30 Phi I SOD323 30V 0.3W zener BW BCW71HR Phi N SOT23R BCX79-viii BW BZX399C33 Phi I SOD323 33V 0.3W zener BX BCW71JR Phi N SOT23R BCX79-ix

http://www.marsport.org.uk/smd/smdb.htm (5 of 6)27/5/2007 18:19:40

Page 72

SMD Codebook Page B

BX BZX399C36 Phi I SOD323 36V 0.3W zener BY BCW71KR Phi N SOT23R BCX79-x BY BZX399C39 Phi I SOD323 39V 0.3W zener BZ BZX399C43 Phi I SOD323 43V 0.3W zener

Last Updated on 10/07/2006 By GM4PMK

http://www.marsport.org.uk/smd/smdb.htm (6 of 6)27/5/2007 18:19:40

Page 73

SMD Codebook Page C

GM4PMK's SMD Codebook

Codes beginning with 'C'

Code Device Manf Base Package Leaded Equivalent/Data

C BB565 Sie I SCD80 uhf varicap 2-20pF

C BB179B Phi I

SOD 523 UHF Varicap 2-11pF

white BAT165 Sie I 40V 750mA sw Schottky

C RN262CS Roh I VMN2 HF pin diode C KV1832E Tok I URD uhf varicap 4-17pf C0 HSMS-2820 HP C SOT23 HP2835 schottky C0 HSMS-282B HP C SOT323 HP2835 schottky C06 DDX123JU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 2k2/47k C06 DDX123JK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 2k2/47k C07 DDX143TU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A R1 4k7 C07 DDX143TK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A R1 4k7 C1 HSMS-2821 HP K SOT23 HP2835 schottky C1 BCW29 Phi N SOT23 BC178A C1p BCW29 Phi N SOT23 BC178A C1t BCW29 Phi N SOT23 BC178A C1 BFQ51C Phi CX SOT173 pnp BFR90A complement C2 BCW30 Phi N SOT23 BC178B C2p BCW30 Phi N SOT23 BC178B C2t BCW30 Phi N SOT23 BC178B C2 BFQ32C Phi CX SOT173 pnp 4.5GHz 15V 100mA C2 HSMS-2822 HP D SOT23 dual HP2835 schottky C2 HSMS-282C HP D SOT323 dual HP2835 schottky C2 SST112 Tem F SOT23 J112 analog sw n-ch jfet C2 EDZ5.6B Roh I EMD2 150mW zener 5.6V C2 VDZ5.6B Roh I VMD2 150mW zener 5.6V

C2A ZDC833A Zet B SOT23 dual cc 28V varicap 15pF @2V

C3 HSMS-2823 HP A SOT23 dual HP2835 schottky

http://www.marsport.org.uk/smd/smdc.htm (1 of 8)27/5/2007 18:19:47

Page 74

SMD Codebook Page C

C3 BFQ23C Phi CX SOT173 pnp complement BFP91A C3 SMBT4126 Sie N 2N4126 C3 1SS302 B dual cc diode C3 SST113 Tem F SOT23 J113 analog sw jfet

C3T 1PS226 Phi D SOT346 dual series 80V high seed diode

C4 BCW29R Phi R SOT23R BC178A C4 HSMS-2824 HP B SOT23 dual HP2835 schottky C5 MMBA811C5 Mot N 2N5086 pnp hfe 135-270 C5 BCW30R Phi R SOT23R BC178B C5 HSMS-2825 HP S SOT143 dual HP2835 schottky C5 MMSZ5225 Vis I SOD123 zener 300mW 5% 3.0V C5 EDZ30B Roh I EMD2 150mW zener 30V C5 VDZ30B Roh I VMD2 150mW zener 30V C5A ZDC834A Zet B SOT23 dual cc 28V varicap 47pF @2V C6 MMBA811C6 Mot N 2N5086 pnp hfe 200-400 C7 MMBA811C7 Mot N 2N5086 pnp hfe 300-600 C7 HSMS-2827 HP RQ SOT143 HP2835 ring quad C8 HSMS-2828 HP BQ SOT143 HP2835 bridge quad C8 BCF30 SGS N SOT23 BC559B C8 MMBA811C8 Mot N 2N5086 pnp hfe 450-900 C11 SST111 Sil F SOT23 J111 n-ch fet C12 SST112 Sil F SOT23 J112 n-ch fet C12 DDX114TU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A R1 10k C12 DDX114TK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A R1 10k

C13 SST113 Sil F SOT23 J113 n-ch fet C13 DDX114EU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 10k/10k C13 DDX114EK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 10k/10k C14 DDX114YU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 10k/47k C14 DDX114YK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 10k/47k C17 DDX124EU Dio DP SOT363 dual dtr pnp/npn 50V 0.1A 22k/22k C17 DDX124EK Dio DP SOT26 dual dtr pnp/npn 50V 0.1A 22k/22k C20 DDX144EU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 47k/47k C20 DDX144EK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 47k/47k C38 SST5638 Sil F SOT23 2N5638

http://www.marsport.org.uk/smd/smdc.htm (2 of 8)27/5/2007 18:19:47

Page 75

SMD Codebook Page C

C39 SST5639 Sil F SOT23 2N5639 C40 SST5640 Sil F SOT23 2N5640 C41 SST4091 Sil F SOT23 2N4091 C42 SST4092 Sil F SOT23 2N4092 C43 SST4093 Sil F SOT23 2N4093 C48 CMHD4448TR Vis I SOD123 1N4448 sw diode C56 SST4856 Sil F SOT23 2N4856 C57 SST4857 Sil F SOT23 2N4857 C58 SST4858 Sil F SOT23 2N4858 C59 SST4859 Sil F SOT23 2N4859 C60 SST4860 Sil F SOT23 2N4860 C61 SST4861 Sil F SOT23 2N4861 C91 SST4391 Sil F SOT23 2N4391 C92 SST4392 Sil F SOT23 2N4392 C93 SST4393 Sil F SOT23 2N4393 CA BCW61AR Phi R SOT23R BCY78-vii CA BCP68 Mot P SOT223 20V 1A npn CA ZMV829B Zet I SOD323 varicap hyperab 28V 8.2pF@2V CA MMSZ4691 Vis I SOD123 zener 350mW 5% 6.2V CA MMBZ4691 Vis C SOT23 zener 350mW 5% 6.2V CB BCX68-10 Sie P SOT89 npn AF 20V 2A hfe 100 CB BCW61BR Phi R SOT23R BCY78-viii CB ZMV830B Zet I SOD323 varicap hyperabrupt 28V 10pF@2V CC BCW61CR Phi R SOT23R BCY78-ix

CC BCX68-16 Sie P SOT89 npn AF 20V 2A hfe 160 CC ZMV831B Zet I SOD323 varicap hyperabrupt 28V 15pF@2V

CC ZMDC831B Zet B SOT323 dual cc ZMV831B (above) CC1 CMHZ5221B CSC I SOD123 zener 500mW 5% 2.4V

CC2 CMHZ5222B CSC I SOD123 zener 500mW 5% 2.5V CC3 CMHZ5223B CSC I SOD123 zener 500mW 5% 2.7V CC4 CMHZ5224B CSC I SOD123 zener 500mW 5% 2.8V CC5 CMHZ5225B CSC I SOD123 zener 500mW 5% 3.0V CC10 CMPZDC27V CSC B SOT23 zener dual cc 350mW 27V CC11 CMPZDC30V CSC B SOT23 zener dual cc 350mW 30V

http://www.marsport.org.uk/smd/smdc.htm (3 of 8)27/5/2007 18:19:47

Page 76

SMD Codebook Page C

CC12 CMPZDC33V CSC B SOT23 zener dual cc 350mW 33V CC13 CMPZDC36V CSC B SOT23 zener dual cc 350mW 36V CC14 CMPZDC39V CSC B SOT23 zener dual cc 350mW 39V CC15 CMPZDC43V CSC B SOT23 zener dual cc 350mW 43V CC16 CMPZDC47V CSC B SOT23 zener dual cc 350mW 47V CCW3 CMPZDC2V4 CSC B SOT23 zener dual cc 350mW 2.4V CCW4 CMPZDC2V7 CSC B SOT23 zener dual cc 350mW 2.7V CCW5 CMPZDC3V0 CSC B SOT23 zener dual cc 350mW 3.0V CCW6 CMPZDC3V3 CSC B SOT23 zener dual cc 350mW 3.3V CCW7 CMPZDC3V6 CSC B SOT23 zener dual cc 350mW 3.6V CCW8 CMPZDC3V9 CSC B SOT23 zener dual cc 350mW 3.9V CCW9 CMPZDC4V3 CSC B SOT23 zener dual cc 350mW 4.3V CCY1 CMPZDC11V CSC B SOT23 zener dual cc 350mW 11V CCY2 CMPZDC12V CSC B SOT23 zener dual cc 350mW 12V CCY3 CMPZDC13V CSC B SOT23 zener dual cc 350mW 13V CCY4 CMPZDC15V CSC B SOT23 zener dual cc 350mW 15V CCY5 CMPZDC16V CSC B SOT23 zener dual cc 350mW 16V CCY6 CMPZDC18V CSC B SOT23 zener dual cc 350mW 18V CCY7 CMPZDC20V CSC B SOT23 zener dual cc 350mW 20V CCY8 CMPZDC22V CSC B SOT23 zener dual cc 350mW 22V CCY9 CMPZDC24V CSC B SOT23 zener dual cc 350mW 24V CCZ1 CMPZDC4V7 CSC B SOT23 zener dual cc 350mW 4.7V CCZ2 CMPZDC5V1 CSC B SOT23 zener dual cc 350mW 5.1V CCZ3 CMPZDC5V6 CSC B SOT23 zener dual cc 350mW 5.6V

CCZ4 CMPZDC6V2 CSC B SOT23 zener dual cc 350mW 6.2V CCZ5 CMPZDC6V8 CSC B SOT23 zener dual cc 350mW 6.8V CCZ6 CMPZDC7V5 CSC B SOT23 zener dual cc 350mW 7.5V CCZ7 CMPZDC8V2 CSC B SOT23 zener dual cc 350mW 8.2V CCZ8 CMPZDC9V1 CSC B SOT23 zener dual cc 350mW 9.1V CCZ9 CMPZDC10V CSC B SOT23 zener dual cc 350mW 10V CD BCW61DR Phi R SOT23R BCY78-x CD BCX68-25 Sie P SOT89 npn AF 20V 2A hfe 250 CD ZMV832B Zet I SOD323 varicap hyperabrupt 28V 22pF@2V

CD ZMDC832B Zet B SOT323 dual cc ZMV832B (above)

http://www.marsport.org.uk/smd/smdc.htm (4 of 8)27/5/2007 18:19:47

Page 77

SMD Codebook Page C

CDs BSS81B Sie N SOT23 npn sw 35V 0.8A CD1 CMHZ5226B CSC I SOD123 zener 500mW 5% 3.3V CD2 CMHZ5227B CSC I SOD123 zener 500mW 5% 3.6V CD3 CMHZ5228B CSC I SOD123 zener 500mW 5% 3.9V CD4 CMHZ5229B CSC I SOD123 zener 500mW 5% 4.3V CD5 CMHZ5230B CSC I SOD123 zener 500mW 5% 4.7V CE BCP69 Mot P SOT223 20V 1A pnp CE ZMV833B Zet I SOD323 varicap hyperabrupt 28V 33pF@2V CEs BSS79B Sie N SOT23 npn 40V 0.8A hfe 40-120 CE1 CMHZ5231B CSC I SOD123 zener 500mW 5% 5.1V CE2 CMHZ5232B CSC I SOD123 zener 500mW 5% 5.6V CE3 CMHZ5233B CSC I SOD123 zener 500mW 5% 6.0V CE4 CMHZ5234B CSC I SOD123 zener 500mW 5% 6.2V CE5 CMHZ5235B CSC I SOD123 zener 500mW 5% 6.8V CEC BC860 Phi P SOT89 BC369 npn 20V 1A CF BSS79C Sie N SOT23 npn 40V 0.8A hfe 100 min CF BCX69-10 Sie P SOT89 pnp AF 20V 2A hfe 100 CF ZMV834B Zet I SOD323 varicap hyperabrupt 28V 47pF@2V CF MMSZ4681 Vis I SOD123 zener 350mW 5% 2.4V CF MMSZ4681 Vis C SOT23 zener 350mW 5% 2.4V CF1 CMHZ5236B CSC I SOD123 zener 500mW 5% 7.5V CF2 CMHZ5237B CSC I SOD123 zener 500mW 5% 8.2V CF3 CMHZ5238B CSC I SOD123 zener 500mW 5% 8.7V CF4 CMHZ5239B CSC I SOD123 zener 500mW 5% 9.1V

CF5 CMHZ5240B CSC I SOD123 zener 500mW 5% 10V CG BCX71GR Phi R SOT23R BCY79-vii CG BCX69-16 Sie P SOT89 pnp AF 20V 2A hfe 160 CG ZMV835B Zet I SOD323 varicap hyperabrupt 28V 68pF@2V CGs BSS81C Sie N SOT23 npn sw 35V 1A CH MMSZ4682 Vis I SOD123 zener 350mW 5% 2.7V CH MMBZ4682 Vis C SOT23 zener 350mW 5% 2.7V CHs BSS80B Sie N SOT23 pnp 40V 0.8A hfe 40-120 CH BSS82BL Mot N SOT23 pnp 60V CH BCX69-25 Sie N SOT89 pnp AF 20V 2A hfe 250

http://www.marsport.org.uk/smd/smdc.htm (5 of 8)27/5/2007 18:19:47

Page 78

SMD Codebook Page C

CH1 CMHZ5241B CSC I SOD123 zener 500mW 5% 11V CH2 CMHZ5242B CSC I SOD123 zener 500mW 5% 12V CH3 CMHZ5243B CSC I SOD123 zener 500mW 5% 13V CH4 CMHZ5244B CSC I SOD123 zener 500mW 5% 14V CH5 CMHZ5245B CSC I SOD123 zener 500mW 5% 15V CJ MMSZ4683 Vis I SOD123 zener 350mW 5% 3.0V CJ MMBZ4683 Vis C SOT23 zener 350mW 5% 3.0V CJs BSS80C Sie N SOT23 pnp 40V 0.8A hfe 100 min CJ1 CMHZ5246B CSC I SOD123 zener 500mW 5% 16V CJ2 CMHZ5247B CSC I SOD123 zener 500mW 5% 17V CJ3 CMHZ5248B CSC I SOD123 zener 500mW 5% 18V CJ4 CMHZ5249B CSC I SOD123 zener 500mW 5% 19V CJ5 CMHZ5250B CSC I SOD123 zener 500mW 5% 20V CK BCX71JR Phi R SOT23R BCY79-viii CK MMSZ4684 Vis I SOD123 zener 350mW 5% 3.3V CK MMBZ4684 Vis C SOT23 zener 350mW 5% 3.3V CK1 CMHZ5251B CSC I SOD123 zener 500mW 5% 22V CK2 CMHZ5252B CSC I SOD123 zener 500mW 5% 24V CK3 CMHZ5253B CSC I SOD123 zener 500mW 5% 25V CK4 CMHZ5254B CSC I SOD123 zener 500mW 5% 27V CK5 CMHZ5255B CSC I SOD123 zener 500mW 5% 28V CLs BSS82B Sie N SOT23 pnp 60V 0.8A hfe 40-120 CM MMSZ4685 Vis I SOD123 zener 350mW 5% 3.6V CM MMBZ4685 Vis C SOT23 zener 350mW 5% 3.6V

CMs BSS82C Sie N SOT23 pnp 60V 0.8A hfe 100 min CM1 CMHZ5256B CSC I SOD123 zener 500mW 5% 30V CM2 CMHZ5257B CSC I SOD123 zener 500mW 5% 33V CM3 CMHZ5258B CSC I SOD123 zener 500mW 5% 36V CM4 CMHZ5259B CSC I SOD123 zener 500mW 5% 39V CM5 CMHZ5260B CSC I SOD123 zener 500mW 5% 43V CN MMSZ4686 Vis I SOD123 zener 350mW 5% 3.9V CN MMBZ4686 Vis C SOT23 zener 350mW 5% 3.9V CN1 CMHZ5261B CSC I SOD123 zener 500mW 5% 47V CN2 CMHZ5262B CSC I SOD123 zener 500mW 5% 51V

http://www.marsport.org.uk/smd/smdc.htm (6 of 8)27/5/2007 18:19:47

Page 79

SMD Codebook Page C

CN3 CMHZ5263B CSC I SOD123 zener 500mW 5% 56V CN4 CMHZ5264B CSC I SOD123 zener 500mW 5% 60V CN5 CMHZ5265B CSC I SOD123 zener 500mW 5% 62V CO3 CMHD2003TR Vis I SOD123 sw CP MMSZ4687 Vis I SOD123 zener 350mW 5% 4.3V CP MMBZ4687 Vis C SOT23 zener 350mW 5% 4.3V CP CMDZ2L7 CSC I SOD323 zener 250mW Iz 0.5mA 2.7V CP1 CMHZ5266B CSC I SOD123 zener 500mW 5% 68V CP2 CMHZ5267B CSC I SOD123 zener 500mW 5% 75V CP3 CMHZ5268B CSC I SOD123 zener 500mW 5% 82V CP4 CMHZ5269B CSC I SOD123 zener 500mW 5% 87V CP5 CMHZ5270B CSC I SOD123 zener 500mW 5% 91V CQ 2SC2411K Roh N npn darlington CQ MSD710Q Mot N SOT346 pnp gp 25V 150mA CR MSD701R Mot N SOT346 pnp gp 25V 150mA CR1 CMHZ5271B CSC I SOD123 zener 500mW 5% 100V CR2 CMHZ5272B CSC I SOD123 zener 500mW 5% 110V CR3 CMHZ5273B CSC I SOD123 zener 500mW 5% 120V CR4 CMHZ5274B CSC I SOD123 zener 500mW 5% 130V CR5 CMHZ5275B CSC I SOD123 zener 500mW 5% 140V CS1 CMHZ5276B CSC I SOD123 zener 500mW 5% 150V CS2 CMHZ5277B CSC I SOD123 zener 500mW 5% 160V CS3 CMHZ5278B CSC I SOD123 zener 500mW 5% 170V CS4 CMHZ5279B CSC I SOD123 zener 500mW 5% 180V

CS5 CMHZ5280B CSC I SOD123 zener 500mW 5% 190V CT MMSZ4688 Vis I SOD123 zener 350mW 5% 4.7V CT MMBZ4688 Vis C SOT23 zener 350mW 5% 4.7V CT1 CMHZ5281B CSC I SOD123 zener 500mW 5% 200V CU MMSZ4689 Vis I SOD123 zener 350mW 5% 5.1V CU MMBZ4689 Vis CI SOT23 zener 350mW 5% 5.1V CV MMSZ4690 Vis I SOD123 zener 350mW 5% 5.6V CV MMBZ4690 Vis C SOT23 zener 350mW 5% 5.6V CX MMSZ4692 Vis I SOD123 zener 350mW 5% 6.8V CX MMBZ4692 Vis C SOT23 zener 350mW 5% 6.8V

http://www.marsport.org.uk/smd/smdc.htm (7 of 8)27/5/2007 18:19:47

Page 80

SMD Codebook Page C

CY MMSZ4693 Vis I SOD123 zener 350mW 5% 7.5V CY MMBZ4693 Vis C SOT23 zener 350mW 5% 7.5V CZ MMSZ4694 Vis I SOD123 zener 350mW 5% 8.2V CZ MMBZ4694 Vis C SOT23 zener 350mW 5% 8.2V

Last Updated on 10/07/2006 By GM4PMK

http://www.marsport.org.uk/smd/smdc.htm (8 of 8)27/5/2007 18:19:47

Page 81

SMD Codebook Page D

GM4PMK's SMD Codebook

Codes beginning with 'D'

Code Device Manf Base Package Leaded Equivalent/Data

D BB659 Sie I SCD80 2-38p varicap D BAS21-03W Sie I SOD323 D 1SS376 Roh I USM 300V 50mA sw D MRF577 Mot N SOT323 npn RF fT 7GHz D0 HSMP-3800 HP C SOT23 HP3800 pin atten diode D1 BCW31 Phi N SOT23 BC108A D1p BCW31 Phi N SOT23 BC108A D1t BCW31 Phi N SOT23 BC108A D1 HSMP-3801 HP K HP3800 pin atten diode D1 SST211 Tem XQ n-ch mosfet 30V 1nS D1 AZ23C2V7 Dio A SOT23 dual ca zener 2.7V 0.3W D1 MMSZ5226 Vis I SOD123 zener 300mW 5% 3.3V D2 BCW32 Phi N SOT23 BC108B D2 MMSZ5227 Vis I SOD123 zener 300mW 5% 3.6V D2p BCW32 Phi N SOT23 BC108B D2t BCW32 Phi N SOT23 BC108B D2 HSMP-3802 HP D dual HP3800 pin atten diode D2 AZ23C3V0 Dio A SOT23 dual ca zener 3.0V 0.3W D3 MMSZ5228 Vis I SOD123 zener 300mW 5% 3.9V D3 BCW33 Phi N SOT23 BC108C D3 AZ23C3V3 Dio A SOT23 dual ca zener 3.3V 0.3W D3p BCW33 Phi N SOT23 BC108C D3t BCW33 Phi N SOT23 BC108C

D3B RB420D Roh C 25V 100mA schottky D3E RB411D Roh C SOT23 20V 500mA schottky D3J RB420D Roh C 25V 100mA schottky D3L RB706D-40 Roh B dual 45V 30mA schottky D4 BCW31R Phi R SOT23R BC108A

http://www.marsport.org.uk/smd/smdd.htm (1 of 5)27/5/2007 18:19:53

Page 82

SMD Codebook Page D

D4 HSMP-3804 HP B SOT23 dual cc HP3800 pin atten diode D4 AZ23C3V6 Dio A SOT23 dual ca zener 3.6V 0.3W D4 MMSZ5229 Vis I SOD123 zener 300mW 5% 4.3V D5 SST215 Tem XQ n-ch mosfet 20V 1nS D5 BCW32R Phi R SOT23R BC108B D5 AZ23C3V9 Dio A SOT23 dual ca zener 3.9V 0.3W D1 MMSZ5230 Vis I SOD123 zener 300mW 5% 4.7V D6 BCW33R Phi R SOT23R BC108C D6 MMBC1622D6 Mot N MPS3904 hfe 200-400 D6 AZ23C4V3 Dio A SOT23 dual ca zener 4.3V 0.3W D7p BCF32 Phi N SOT23 D7t BCF32 Phi N SOT23 D7 MMBC1622D7 Mot N MPS3904 hfe 300-600 D7 AZ23C4V7 Dio A SOT23 dual ca zener 4.7V 0.3W D7C FTZC6.2N Roh DZ SMD5 quad ESD ca zener 6.82V 0.2W D8 AZ23C5V1 Dio A SOT23 dual ca zener 5.1V 0.3W D8p BCF33 Phi N SOT23 BC146/03 D9 AZ23C5V6 Dio A SOT23 dual ca zener 5.6V 0.3W D9 1SS401 Tosh C USC schottky 20V 0.5A D10 AZ23C6V2 Dio A SOT23 dual ca zener 6.2V 0.3W D11 SST211 Sil XQ n-ch mosfet sw D11 AZZ23C6V8 Dio A SOT23 dual ca zener 6.8V 0.3W D12 AZZ23C7V5 Dio A SOT23 dual ca zener 7.5V 0.3W D13 SST213 Sil XQ n-ch mosfet sw

D13 AZZ23C8V2 Dio A SOT23 dual ca zener 8.2V 0.3W D14 AZZ23C9V1 Dio A SOT23 dual ca zener 9.1V 0.3W D15 AZZ23C10 Dio A SOT23 dual ca zener 10V 0.3W D15 SST215 Sil XQ n-ch mosfet sw D16 AZZ23C11 Dio A SOT23 dual ca zener 11V 0.3W D17 AZZ23C12 Dio A SOT23 dual ca zener 12V 0.3W D18 AZZ23C13 Dio A SOT23 dual ca zener 13V 0.3W D19 AZZ23C15 Dio A SOT23 dual ca zener 15V 0.3W D20 AZZ23C16 Dio A SOT23 dual ca zener 16V 0.3W D21 AZZ23C18 Dio A SOT23 dual ca zener 18V 0.3W

http://www.marsport.org.uk/smd/smdd.htm (2 of 5)27/5/2007 18:19:53

Page 83

SMD Codebook Page D

D22 AZZ23C20 Dio A SOT23 dual ca zener 20V 0.3W D23 AZZ23C22 Dio A SOT23 dual ca zener 22V 0.3W D24 AZZ23C24 Dio A SOT23 dual ca zener 24V 0.3W D25 AZZ23C27 Dio A SOT23 dual ca zener 27V 0.3W D26 AZZ23C30 Dio A SOT23 dual ca zener 30V 0.3W D27 AZZ23C33 Dio A SOT23 dual ca zener 33V 0.3W D28 AZZ23C36 Dio A SOT23 dual ca zener 36V 0.3W D29 AZZ23C39 Dio A SOT23 dual ca zener 39V 0.3W D30 AZZ23C43 Dio A SOT23 dual ca zener 43V 0.3W D31 AZZ23C47 Dio A SOT23 dual ca zener 47V 0.3W D32 AZZ23C51 Dio A SOT23 dual ca zener 51V 0.3W D58 FLLD261 Zet B SOT23 low leakage dual cc Si diode D63 FLLD263 Zet A SOT23 low leakage dual ca Si diode D76 BAR18J SGS I SOD232 schottky 70V 15mA D76 BAR18 SGS C SOT23 schottky 70V 30mA D85 BAT17DS SGS D 2xBA481 D86 BAT54J ST I SOD232 schottky 30V 300mA D86 BAT54 ST C SOT23 schottky 30V 300mA D87 BAT54C ST B SOT23 dual cc schottky 30V 300mA D88 BAT54S ST D SOT23 dual series schottky 30V 300mA D94 BAR42 SGS C SOT23 schottky 30V 100mA D95 BAR43 SGS C SOT23 schottky 30V 100mA D96 BAS70-04 SGS D SOT23 2xBAR18 D97 BAS70-05 SGS B SOT23 2xBAR18

D98 BAS70-06 SGS A SOT23 2xBAR18 DA BCW67A SGS N SOT23 pnp 32V 0.8A hfe 100 min DA BF622 Sie P SOT89 npn 250V video o/p DA MMSZ4708 Vis I SOD123 zener 350mW 5% 22V DA MMBZ4708 Vis C SOT23 zener 350mW 5% 22V DA5 BAR43S SGS D SOT23 2xBAR43 DB BCW67B SGS N SOT23 pnp 32V 0.8A hfe 160 min DB BF623 Sie P SOT89 pnp 250V video o/p DB1 BAR43A SGS A SOT23 2xBAR43 DB2 BAR43C SGS B SOT23 2xBAR43

http://www.marsport.org.uk/smd/smdd.htm (3 of 5)27/5/2007 18:19:53

Page 84

SMD Codebook Page D

DC BCW67C SGS N SOT23 pnp 32V 0.8A hfe 250 min DC BF720 Mot P SOT223 npn 1.5W 300V DC BFN20 Sie P SOT89 npn video o/p 300V comp BFN21 DC MMSZ4695 Vis I SOD123 zener 350mW 5% 8.7V DC MMBZ4695 Vis C SOT23 zener 350mW 5% 8.7V DD BFN16 Sie P SOT89 npn video o/p 250V comp BFN17 DD MMSZ4696 Vis I SOD123 zener 350mW 5% 9.1V DD MMBZ4696 Vis C SOT23 zener 350mW 5% 9.1V DE BFN18 Sie P SOT89 npn video o/p 300Vcomp BFN19 DE MMSZ4697 Vis I SOD123 zener 350mW 5% 10V DE MMBZ4697 Vis C SOT23 zener 350mW 5% 10V DF BCW68F SGS N SOT23 pnp 45V 0.8A hfe 100 min DF BF721 Mot P SOT223 pnp 1.5W 300V DF BFN21 Sie P SOT89 pnp 300V video o/p comp BFN20 DF MMSZ4698 Vis I SOD123 zener 350mW 5% 11V DF MMBZ4698 Vis C SOT23 zener 350mW 5% 11V DG BCW68G SGS N SOT23 pnp 45V 0.8A hfe 160 min DG BFN17 Sie P SOT89 pnp video o/p 250V comp BFN16 DH BCW68H SGS N SOT23 pnp 45V 0.8A hfe 250 min DH BCW68G Mot N SOT23 pnp 45V 0.8A hfe 160 min DH MMBD2000 Mot C SOT323 Si sw diode 20V 0.2A SOT323 DH BFN19 Sie P SOT89 pnp video o/p 300V comp BFN18 DH MMSZ4699 Vis I SOD123 zener 350mW 5% 12V DH MMBZ4699 Vis C SOT23 zener 350mW 5% 12V

DJ MMSZ4700 Vis I SOD123 zener 350mW 5% 13V DJ MMBZ4700 Vis C SOT23 zener 350mW 5% 13V DK BCX42 Sie N SOT23 gp audio pnp 125V comp BCX41 DK MMSZ4701 Vis I SOD123 zener 350mW 5% 14V DK MMBZ4701 Vis C SOT23 zener 350mW 5% 14V DM MMSZ4702 Vis I SOD123 zener 350mW 5% 15V DM MMBZ4702 Vis C SOT23 zener 350mW 5% 15V DN MMSZ4703 Vis I SOD123 zener 350mW 5% 16V DN MMBZ4703 Vis CI SOT23 zener 350mW 5% 16V DP MMBD2010 Mot B SOT323 dual cc MMBD2000

http://www.marsport.org.uk/smd/smdd.htm (4 of 5)27/5/2007 18:19:53

Page 85

SMD Codebook Page D

DP MMSZ4704 Vis I SOD123 zener 350mW 5% 17V DP MMBZ4704 Vis C SOT23 zener 350mW 5% 17V DP CMDZ2L8 CSC I SOD323 zener 250mW Iz 0.5mA 2.8V DQ 2P710AQ Phi N SOT346 gp pnp hfe 85-170 DR 2P710AR Phi N SOT346 gp pnp hfe 120-240 DS 2P710AS Phi N SOT346 gp pnp hfe 170-340 DT BCW67AR SGS R SOT23R pnp 32V 0.8A hfe 100 min DT MMSZ4705 Vis I SOD123 zener 350mW 5% 18V DT MMBZ4705 Vis C SOT23 zener 350mW 5% 18V DU BCW67BR SGS R SOT23R pnp 32V 0.8A hfe 160 min DU MMSZ4706 Vis I SOD123 zener 350mW 5% 19V DU MMBZ4706 Vis C SOT23 zener 350mW 5% 19V DV MMSZ4707 Vis I SOD123 zener 350mW 5% 20V DV MMBZ4707 Vis C SOT23 zener 350mW 5% 20V DW BCW67CR SGS R SOT23R pnp 32V 0.8A hfe 250 min DX BCW68FR SGS R SOT23R pnp 45V 0.8A hfe 100 min DY BCW68GR SGS R SOT23R pnp 45V 0.8A hfe 160 min DY MMSZ4710 Vis I SOD123 zener 350mW 5% 25V DY MMBZ4710 Vis C SOT23 zener 350mW 5% 25V DZ MMSZ4709 Vis I SOD123 zener 350mW 5% 24V DZ MMBZ4709 Vis C SOT23 zener 350mW 5% 24V DZ BCW68HR SGS R SOT23R pnp 45V 0.8A hfe 250 min

Last Updated on 10/07/2006 By GM4PMK

http://www.marsport.org.uk/smd/smdd.htm (5 of 5)27/5/2007 18:19:53

Page 86

SMD Codebook page E

GM4PMK's SMD Codebook

Codes beginning with 'E'

Code Device Manf Base Package Leaded Equivalent/Data

e BAT64-02W Sie I SCD80 E 1SS780 Roh I USM 40V 100mA lo leakage E BB689 Sie I SCD80 2-55pF varicap E0 HSMP-3810 HP C SOT23 HP3810 pin atten diode E0 HSMP-381B HP C SOT323 HP3810 pin atten diode

E01 DTDG14EP Roh P SOT89

npn dtr 60V 1A R2 10k, + c to b zener

E02 DTDG23YP Roh P SOT89

npn dtr 60V 1A 2k2+ 10k, + c to b

zener E1p BFS17 Phi N SOT23 BFY90 BFW92 E1p BFS17W Phi N SOT323 BFY90 BFW92 E1 HSMP-3811 HP K SOT23 HP3810 pin atten diode E1 MMSZ5231 Vis I SOD123 zener 300mW 5% 5.1V

E2 BFS17A Phi N SOT23 npn RF 3GHz 25mA E2 BAL99 Zet C sw diode 75V 100mA E2 HSMP-3812 HP D SOT23 dual series HP3810 pin atten diode E2 MMSZ5232 Vis I SOD123 zener 300mW 5% 5.6V E2 EDZ6.2B Roh I EMD2 150mW zener 6.2V E2 VDZ6.2B Roh I VMD2 150mW zener 6.2V E3 BAR99 Zet C sw diode 75V 100mA E3 HSMP-3813 HP A SOT23 dual HP3810 pin atten diode E3 MMSZ5233 Vis I SOD123 zener 300mW 5% 6.0V E4 BFS17R Phi R BFY90 BFW92 E4 HSMP-3814 HP B SOT23 dual cc HP3810 pin atten diode E4 MMSZ5234 Vis I SOD123 zener 300mW 5% 6.2V E5 BFS17AR Tfk R npn rf 3 GHz 25mA E5 MMSZ52353 Vis I SOD123 zener 300mW 5% 6.8V E5 EDZ33B Roh I EMD2 150mW zener 33V

http://www.marsport.org.uk/smd/smde.htm (1 of 4)27/5/2007 18:19:57

Page 87

SMD Codebook page E

E5 VDZ33B Roh I VMD2 150mW zener 33V E6 ZC2800E Zet C HP2800 E8 ZC2811E Zet C HP2811 E9 ZC5800E Zet C HP5800 E11 DTA113ZE Roh N EMT3 pnp dtr 1k0 + 10k 50V 100mA E11 DTA113ZKA Roh N SC59 pnp dtr 1k0 + 10k 50V 100mA E13 DTA143ZE Roh N EMT3 pnp dtr 4k7 + 47k 50V 100mA E13 DTA143ZKA Roh N SC59 pnp dtr 4k7 + 47k 50V 100mA E23 DTC143ZCA Roh N SOT23 npn dtr 4k7 + 47k 50V 100mA E23 DTC143ZE Roh N EMT3 npn dtr 4k7 + 47k 50V 100mA E23 DTC143ZKA Roh N SC59 npn dtr 4k7 + 47k 50V 100mA E32 DTA123JE Roh N EMT3 pnp dtr 2k2 + 47k 50V 100mA

E32 DTA123JKA Roh N SC59 pnp dtr 2k2 + 47k 50V 100mA E42 DTC123JE Roh N EMT3 npn dtr 2k2 + 47k 50V 100mA E42 DTC123JKA Roh N SC59 npn dtr 2k2 + 47k 50V 100mA E56 DTA144VKA Roh N SC59 pnp dtr 47k + 10k 50V 100mA E66 DTC144VKA Roh N SC59 npn dtr 47k + 10k 50V 100mA EA MMSZ4711 Vis I SOD123 zener 350mW 5% 27V EA MMBZ4711 Vis IC SOT23 zener 350mW 5% 27V EAxx EGF1A Vis I DO214 rectifier ultrafast 50V 1A xx date code EAs BCW65A Sie N SOT23 npn 32V 800mA hfe 100 min EBs BCW65B Sie N SOT23 npn 32V 800mA hfe 160 min EB HSMP-4810 HP J SOT23 0.5-3GHz pin 2 cathode connections EB MSC1022-B Mot H pnp RF 150MHz fT 20V xx date code EBxx EGF1B Vis I DO214 rectifier ultrafast 100V 1A EC MSC1022-C Mot H pnp RF 150MHz fT 20V EC MMSZ4712 Vis I SOD123 zener 350mW 5% 28V EC MMBZ4712 Vis C SOT23 zener 350mW 5% 28V

ECxx EGF1C Vis I DO214

rectifier ultrafast 150V 1A xx date

code

ECs BCW65C Sie N SOT23 npn 32V 800mA hfe 250 min

ED BCV28 Sie P SOT89

pnp darlington 30V 0.8A comp

BCV29

ED MMSZ4713 Vis I SOD123 zener 350mW 5% 30V

http://www.marsport.org.uk/smd/smde.htm (2 of 4)27/5/2007 18:19:57

Page 88

SMD Codebook page E

ED MMBZ4713 Vis C SOT23 zener 350mW 5% 30V

EDxx EGF1D Vis I DO214

rectifier ultrafast 200V 1A xx date

code

EE BCV48 Sie P SOT89

pnp darlington 60V 0.8A comp

BCV49 EE MMSZ4714 Vis I SOD123 zener 350mW 5% 33V EE MMBZ4714 Vis C SOT23 zener 350mW 5% 33V

EF BCV29 Sie P SOT89

npn darlington 30V 0.8A comp

BCV28 EF BCW66F Sie N SOT23 npn 45V 800mA hfe 100 min EF MMSZ4715 Vis I SOD123 zener 350mW 5% 36V EF MMBZ4715 Vis C SOT23 zener 350mW 5% 36V

EG BCV49 Sie P SOT89

npn darlington 60V 0.8A comp

BCV48 EGs BCW66G Sie N SOT23 npn 45V 800mA hfe 160 min EHs BCW66H Sie N SOT23 npn 45V 800mA hfe 240 min

EH MMSZ4716 Vis I SOD123 zener 350mW 5% 39V EH MMVZ4716 Vis C SOT23 zener 350mW 5% 39V

EHAA

MAX6326_R22T Max ZB SOT23 microproc -ve reset gen 2.200V

EIAA

MAX6327_R22-

T Max ZB SOT23 microproc +ve reset gen 2.200V EJ MMSZ4717 Vis I SOD123 zener 350mW 5% 43V EJ MMBZ4717 Vis C SOT23 zener 350mW 5% 43V

EJAA

MAX6328_R22-

T Max ZB SOT23 microproc -ve reset gen 2.200V EKs BCX41 Sie N SOT23 gp npn 125V 1A comp BCX42 EP CMDZ3L0 CSC I SOD323 zener 250mW Iz 0.5mA 3.0V ET BCW65AR Sie R SOT23R npn 32V 800mA hfe 100 min EU BCW65BR Sie R SOT23R npn 32V 800mA hfe 160 min EW BCW65CR Sie R SOT23R npn 32V 800mA hfe 240 min

EWAA

MAX6326_R23-

T Max ZB SOT23 microproc -ve reset gen 2.320V EX BCW65FR Sie R SOT23R npn 45V 800mA hfe 100 min

EXAA

MAX6326_R24-

T Max ZB SOT23 microproc -ve reset gen 2.400V

http://www.marsport.org.uk/smd/smde.htm (3 of 4)27/5/2007 18:19:57

Page 89

SMD Codebook page E

EY BCW65GR Sie R SOT23R npn 45V 800mA hfe 160 min

EYAA

MAX6326_R25-

T Max ZB SOT23 microproc -ve reset gen 2.500V

EZ BCW65HR Sie R SOT23R npn 45V 800mA hfe 240 min

EZAA

MAX6326_R26-

T Max ZB SOT23 microproc -ve reset gen 2.630V

Last Updated on 10/07/2006 by GM4PMK

http://www.marsport.org.uk/smd/smde.htm (4 of 4)27/5/2007 18:19:57

Page 90

SMD Codebook page F

GM4PMK's SMD Codebook

Codes beginning with 'F'

Code Device Manf Base Package Leaded Equivalent/Data

f BAS20-02W Sie I SCD80 F KV1831E Tok I URD uhf varicap 2.5-22pf F MRF927 Mot N SOT323 npn RF fT 8GHz F0 HSMP-3820 HP C SOT23 35V RF pin sw diode F0 CMOZ5V6 CSC I SOD523 zener 350mW 5% 5.6V F02 DTD123TK Roh N SC59 npn dtr R1 2k2 40V 100mA F03 DTD143TK Roh N SC59 npn dtr R1 4k7 40V 100mA F05 TSDF1205 Vis X SOT143 fT 12GHz npn RF 4V 12mA F1 HSMP-3821 HP K SOT23 35V RF pin sw diode F1 BFS18 Phi N SOT23 BF495

F1 MMBC1009F1 Mot N RF npn fT 150MHz hfe30-60 F1 MMSZ52336 Vis I SOD123 zener 300mW 5% 7.5V F1 CMOZ2V4 CSC I SOD523 zener 350mW 5% 2.4V F1A CMOZ2V6 CSC I SOD523 zener 350mW 5% 2.6V F2 HSMP-3822 HP D SOT23 dual series HP3820 pin sw diode F2 BFS19 SGS N SOT23 BF184 BF494 F2 MMSZ52337 Vis I SOD123 zener 300mW 5% 8.2V F2 CMOZ2V7 CSC I SOD523 zener 350mW 5% 2.7V F2 EDZ6.8B Roh I EMD2 150mW zener 6.8V F2 VDZ6.8B Roh I VMD2 150mW zener 6.8V F2p BFS19 Phi N SOT23 BF184 BF494 F2t BFS19 Phi N SOT23 BF184 BF494 F3 MMBC1009F3 Mot N RF npn fT150MHz hfe60-120 F3 MMSZ52338 Vis I SOD123 zener 300mW 5% 8.7V F3 CMOZ3V0 CSC I SOD523 zener 350mW 5% 3.0V F4 BFS18R Phi N BF495 F4 HSMP-3824 HP B SOT23 dual cc HP3820 pin sw diode F4 MMSZ52339 Vis I SOD123 zener 300mW 5% 9.1V

http://www.marsport.org.uk/smd/smdf.htm (1 of 10)27/5/2007 18:20:03

Page 91

SMD Codebook page F

F4 CMOZ3V3 CSC I SOD523 zener 350mW 5% 3.3V

F5 BFS19R Phi N BF184 BF494

F5 MMSZ52340 Vis I SOD123 zener 300mW 5% 10V

F5 EDZ36B Roh I EMD2 150mW zener 36V

F5 VDZ36B Roh I VMD2 150mW zener 36V

F5 CMOZ3V6 CSC I SOD523 zener 350mW 5% 3.6V

F6 CMOZ3V9 CSC I SOD523 zener 350mW 5% 3.9V

F7 CMOZ4V3 CSC I SOD523 zener 350mW 5% 4.3V

F8 CMOZ4V7 CSC I SOD523 zener 350mW 5% 4.7V

F8p BF824 Phi N SOT23

F8t BF824 Phi N SOT23

F8t BF824W Phi N SOT323 F9 CMOZ5V1 CSC I SOD523 zener 350mW 5% 5.1V

F9 1SS321 Tosh B SC59

dualcc schottky 10V 50mA low

leakage F11 DTB113EK Roh N SC59 pnp dtr 1k + 1k 50V 500mA F12 DTB123EK Roh N SC59 pnp dtr 2k2 + 2k2 50V 500mA F13 DTB143EC Roh N SOT23 pnp dtr 4k7+ 4k7 50V 500mA F13 DTB143EK Roh N SC59 pnp dtr 4k7+ 4k7 50V 500mA F14 DTB114EK Roh N SC59 pnp dtr 10k + 10k 50V 500mA F20 TSDF1220 Vis X SOT143 fT 12GHz npn 6V 20mA F21 DTD113EK Roh N SC59 npn dtr 1k + 1k 50V 500mA F22 DTD123EK Roh N SC59 npn dtr 2k2 + 2k2 50V 500mA F23 DTD143EC Roh N SOT23 npn dtr 4k7 + 4k7 50V 500mA F23 DTD143EK Roh N SC59 npn dtr 4k7 + 4k7 50V 500mA F24 DTD114EK Roh N SC59 npn dtr 10k + 10k 50V 500mA F50 TSDF1250 Vis X SOT143 fT 12GHz npn RF 6V 60mA F52 DTB123YC Roh N SOT23 pnp dtr 2k2 + 10k 50V 100mA F52 DTB123YK Roh N SC59 pnp dtr 2k2 + 10k 50V 100mA F62 DTD123YK Roh N SC59 npn dtr 2k2 + 10k 50V 100mA F92 DTB123TK Roh N SC59 pnp dtr R1 2k2 40V 100mA F93 DTB143TK Roh N SC59 pnp dtr R1 4k7 40V 100mA F94 DTB114TK Roh N SC59 pnp dtr R110k 40V 100mA FA HSMP-4820 HP B SOT23 0.5-3GHz cc pin dual anode

http://www.marsport.org.uk/smd/smdf.htm (2 of 10)27/5/2007 18:20:03

Page 92

SMD Codebook page F

FA BFQ17 Phi P SOT89 npn RF 1.5GHz 300mA FA BFP81 Sie X BFQ69 FA BFQ19 Phi P SOT89 npn RF Ft 5.5GHz 100mA

FAAA

MAX6326_R27T Max ZB SOT23 microproc -ve reset gen 2.700V

FB BFP17 Sie X BFW92

FB EDZC6.8B Roh I EMD2

6.8V 150mW zener low c usb surge

prot

FBAA

MAX6328_R31-

T Max ZB SOT23 microproc -ve reset gen 2.800V FC BFQ64 Sie P BFT98T FC BFP29 Sie X BFT97

FCAA

MAX6326_R29-

T Max ZB SOT23 microproc -ve reset gen 2.930V FD BCV26 SGS N SOT23 pnp darlington FDp BCV26 Phi N SOT23 pnp darlington

FDt BCV26 Phi N SOT23 pnp darlington FD BFQ17P Sie P SOT89 BFW16A FD BFP35A Sie X BFR34A

FDAA

MAX6326_R31-

T Max ZB SOT23 microproc -ve reset gen 3.080V FE BCV46 SGS N SOT23 pnp darlington FEp BCV46 Phi N SOT23 pnp darlington FEt BCV46 Phi N SOT23 pnp darlington FEs BFQ19P Sie P SOT89 BFR96 FE BFP93A Sie X SOT143 BFR91A

FEAA

MAX6326_R30-

T Max ZB SOT23 microproc -ve reset gen 3.000V FF BCV27 SGS N SOT23 npn darlington FF BBY65-02V Inf I SC79 hyperabrupt varicap 2.7-30pF FF JDV3C11 Tosh DT SMINI 2 x VHF varicap 70pF FFp BCV27 Phi N SOT23 npn darlington FFt BCV27 Phi N SOT23 npn darlington

FFAA

MAX6327_R23-

T Max ZB SOT23 microproc +ve reset gen 2.320V FG BCV47 Phi N SOT23 npn darlington

http://www.marsport.org.uk/smd/smdf.htm (3 of 10)27/5/2007 18:20:03

Page 93

SMD Codebook page F

FGp BCV47 Phi N SOT23 npn darlington FGt BCV47 Phi N SOT23 npn darlington FG BFQ19S Sie P SOT89 BFR96S

FGAA

MAX6327_R24-

T Max ZB SOT23 microproc +ve reset gen 2.400V

FHs BFN24 Sie N SOT23 npn 250V comp to BFN25

FHAA

MAX6327_R25-

T Max ZB SOT23 microproc +ve reset gen 2.500V

FIAA

MAX6327_R26-

T Max ZB SOT23 microproc +ve reset gen 2.630V

FJ BFN26 Sie N SOT23 npn 300V comp to BFN27

FJAA

MAX6327_R27-

T Max ZB SOT23 microproc +ve reset gen 2.700V

FK BFN25 Sie N SOT23 pnp 250V comp to BFN24

FKAA

MAX6327_R28-

T Max ZB SOT23 microproc +ve reset gen 2.800V

FL BFN27 Sie N SOT23 pnp 300V comp to BFN26

FLAA

MAX6327_R29-

T Max ZB SOT23 microproc +ve reset gen 2.930V

FFMA

MAX6327_R31-

T Max ZB SOT23 microproc +ve reset gen 3.080V

FFNA

MAX6327_R30-

T Max ZB SOT23 microproc +ve reset gen 3.000V

FOAA

MAX6328_R23-

T Max ZB SOT23 microproc -ve reset gen 2.320V FP CMDZ3L3 CSC I SOD323 zener 250mW Iz 0.5mA 3.3V

FPAA

MAX6328_R24-

T Max ZB SOT23 microproc -ve reset gen 2.400V

FQ 2SA1037AK Roh N SMT3

hfe 150@1ma preamp gp pnp hfe

120-270 FQ 2SA1576A Roh N UMT3 see 2SA1037 above FQ 2SA1774 Roh N EMT3 see 2SA1037 above FQ 2SA2029 Roh N VMT3 see 2SA1037 above

F-Q 2PA1576Q Phi N SOT323

gp pnp SC70 hfe 120-270 equ

2SA1037 above FtQ 2PA1576Q Phi N SOT323 gp pnp SC70 hfe 120-270

http://www.marsport.org.uk/smd/smdf.htm (4 of 10)27/5/2007 18:20:03

Page 94

SMD Codebook page F

FQAA

MAX6328_R25T Max ZB SOT23 microproc -ve reset gen 2.500V

FR 2SA1037AK Roh N

hfe 150@1ma preamp gp pnp hfe

180-390

FR 2SA1576A Roh N UMT see 2SA1037K above FR 2SA1577Q N see 2SA1037K above FR 2SA1774 Roh N EM3 see 2SA1037K above F-R 2PA1576R Phi N SOT323 gp pnp hfe 180-390 FtR 2PA1576R Phi N SOT323 gp pnp hfe 180-390

FRAA

MAX6328_R26T Max ZB SOT23 microproc -ve reset gen 2.630V

FS 2SA1037AK Roh N SMT3

hfe 150@1ma preamp gp pnp hfe

270-550

FS 2SA1576A Roh N UMT3 see 2SA1037 above FS 2SA1774 Roh N EMT3 see 2SA1037 above

FS 2SA2029 Roh N VMT3 see 2SA1037 above F-S 2PA1576S Phi N SOT323 gp pnp hfe 270-560 FtS 2PA1576S Phi N SOT323 gp pnp hfe 270-560

FSAA

MAX6328_R27T Max ZB SOT23 microproc -ve reset gen 2.700V

FTAA

MAX6328_R28T Max ZB SOT23 microproc -ve reset gen 2.800V

FUAA

MAX6328_R29T Max ZB SOT23 microproc -ve reset gen 2.930V

FVAA

MAX6328_R31T Max ZB SOT23 microproc -ve reset gen 3.080V

FWAA

MAX6328_R30-

T Max ZB SOT23 microproc -ve reset gen 3.000V FZAP MAX6012A Max ZC SOT23 precision reference 1.247V FZAQ MAX6025A Max ZC SOT23 precision reference 2.500V FZAR MAX6041A Max ZC SOT23 precision reference 4.096V FZAS MAX6045A Max ZC SOT23 precision reference 4.500V FZAT MAX6050A Max ZC SOT23 precision reference 5.000V FZAU MAX6021A Max ZC SOT23 precision reference 2.048V

FZAV

MAX6346_R33-

Max ZB SOT23 micrproc -ve reset gen 3.300V

http://www.marsport.org.uk/smd/smdf.htm (5 of 10)27/5/2007 18:20:03

Page 95

SMD Codebook page F

FZAW

MAX6346_R34-

Max ZB SOT23 micrproc -ve reset gen 3.400V

FZAX

MAX6346_R35-

Max ZB SOT23 micrproc -ve reset gen 3.500V

FZAY

MAX6346_R36-

Max ZB SOT23 micrproc -ve reset gen 3.600V

FZAZ

MAX6346_R37-

Max ZB SOT23 micrproc -ve reset gen 3.700V

FZBA

MAX6346_R38-

Max ZB SOT23 micrproc -ve reset gen 3.800V

FZBB

MAX6346_R39-

Max ZB SOT23 micrproc -ve reset gen 3.900V

FZBC

MAX6346_R40-

Max ZB SOT23 micrproc -ve reset gen 4.0800V

FZBD

MAX6346_R41-

Max ZB SOT23 micrproc -ve reset gen 4.100V

FZBE

MAX6346_R42-

Max ZB SOT23 micrproc -ve reset gen 4.200V

FZBF

MAX6346_R43-

Max ZB SOT23 micrproc -ve reset gen 4.300V

FZBG

MAX6346_R44-

Max ZB SOT23 micrproc -ve reset gen 4.380V

FZBH

MAX6346_R45-

Max ZB SOT23 micrproc -ve reset gen 4.500V

FZBI

MAX6346_R46-

Max ZB SOT23 micrproc -ve reset gen 4.630V

FZBJ

MAX6347_R33-

Max ZB SOT23 micrproc +ve reset gen 3.300V

FZBK

MAX6347_R34-

Max ZB SOT23 micrproc +ve reset gen 3.400V

FZBL

MAX6347_R35-

Max ZB SOT23 micrproc +ve reset gen 3.500V

FZBM

MAX6347_R36-

Max ZB SOT23 micrproc +ve reset gen 3.600V

FZBN

MAX6347_R37-

Max ZB SOT23 micrproc +-ve reset gen 3.700V

FZBO

MAX6347_R38-

Max ZB SOT23 micrproc +ve reset gen 3.800V

http://www.marsport.org.uk/smd/smdf.htm (6 of 10)27/5/2007 18:20:03

Page 96

SMD Codebook page F

FZBP

MAX6347_R39-

Max ZB SOT23 micrproc +ve reset gen 3.900V

FZBQ

MAX6347_R40-

Max ZB SOT23 micrproc +ve reset gen 4.0800V

FZBR

MAX6347_R41-

Max ZB SOT23 micrproc +-ve reset gen 4.100V

FZBS

MAX6347_R42-

Max ZB SOT23 micrproc +ve reset gen 4.200V

FZBT

MAX6347_R43-

Max ZB SOT23 micrproc +ve reset gen 4.300V

FZBU

MAX6347_R44-

Max ZB SOT23 micrproc +-ve reset gen 4.380V

FZBV

MAX6347_R45-

Max ZB SOT23 micrproc +ve reset gen 4.500V

FZBW

MAX6347_R46-

Max ZB SOT23 micrproc +-ve reset gen 4.630V

FZBX

MAX6348_R33-

T Max ZB SOT23 microproc -ve reset gen 3.300V

FZBY

MAX6348_R34-

T Max ZB SOT23 microproc -ve reset gen 3.400V

FZBZ

MAX6348_R35-

T Max ZB SOT23 microproc -ve reset gen 3.500V

FZCA

MAX6348_R36-

T Max ZB SOT23 microproc -ve reset gen 3.600V

FZCB

MAX6348_R37-

T Max ZB SOT23 microproc -ve reset gen 3.700V FZCC MAX6348_R38T Max ZB SOT23 microproc -ve reset gen 3.800V

FZCD

MAX6348_R39-

T Max ZB SOT23 microproc -ve reset gen 3.900V

FZCE

MAX6348_R40-

T Max ZB SOT23 microproc -ve reset gen 4.000V

FZCF

MAX6348_R41-

T Max ZB SOT23 microproc -ve reset gen 4.100V FZCG MAX6348_R42T Max ZB SOT23 microproc -ve reset gen 4.200V

FZCH

MAX6348_R43-

T Max ZB SOT23 microproc -ve reset gen 4.380V

FZCI

MAX6348_R44-

T Max ZB SOT23 microproc -ve reset gen 4.400V

http://www.marsport.org.uk/smd/smdf.htm (7 of 10)27/5/2007 18:20:03

Page 97

SMD Codebook page F

FZCJ

MAX6348_R45-

T Max ZB SOT23 microproc -ve reset gen 4.500V

FZCK

MAX6348_R46-

T Max ZB SOT23 microproc -ve reset gen 4.600V

FZCW MAZ6001UR Max ZC SOT23 1.250V V reference FZCX MAZ6002UR Max L SOT23 2.500V V reference FZCY MAZ6004UR Max L SOT23 4.096V V reference FZCZ MAZ6005UR Max L SOT23 5.000V V reference FZDA MAX6012B Max ZC SOT23 precision reference 1.247V FZDB MAX6025B Max ZC SOT23 precision reference 2.500V FZDC MAX6041B Max ZC SOT23 precision reference 4.096V FZDD MAX6045B Max ZC SOT23 precision reference 4.500V FZdE MAX6050B Max ZC SOT23 precision reference 5.000V

FZDF MAX6021B Max ZC SOT23 precision reference 2.047V FZDK MAZ6003UR Max L SOT23 3.000V V reference FZDW MAX6030A Max ZC SOT23 precision reference 3.000V FZDX MAX6012B Max ZC SOT23 precision reference 3.000V

FZEB

LM4041AIM3-

1.2

Max L SOT23 1.225V 0.1% shunt V ref

FZEC

LM4041BIM3-

1.2

Max L SOT23 1.225V 0.2% shunt V ref

FZED

LM4041DIM3-

1.2

Max L SOT23 1.225V 0.5% shunt V ref

FZEE

LM4041DIM3-

1.2

Max L SOT23 1.225V 1.5% shunt V ref

FZEF

LM4040A IM3-

2.1 Max L SOT23 2.048V shunt reference 0.1%

FZEG

LM4040B IM3-

2.1 Max L SOT23 2.048V shunt reference 0.2 %

FZEH

LM4040C IM3-

2.1 Max L SOT23 2.048V shunt reference 0.5%

FZEI

LM4040D IM3-

2.1 Max L SOT23 2.048V shunt reference 1.0%

FZEJ

LM4040A IM3-

2.5 Max L SOT23 2.500V shunt reference 0.1%

FZEK

LM4040B IM3-

2.5 Max L SOT23 2.500V shunt reference 0.2 %

http://www.marsport.org.uk/smd/smdf.htm (8 of 10)27/5/2007 18:20:03

Page 98

SMD Codebook page F

FZEL

LM4040C IM3-

2.5 Max L SOT23 2.500V shunt reference 0.5%

FZEM

LM4040D IM3-

2.5 Max L SOT23 2.500V shunt reference 1.0%

FZEN

LM4040A IM3-

3.0 Max L SOT23 3.000V shunt reference 0.1%

FZEO

LM4040B IM3-

3.0 Max L SOT23 3.000V shunt reference 0.2 %

FZEP

LM4040C IM3-

3.0 Max L SOT23 3.000V shunt reference 0.5%

FZEQ

LM4040D IM3-

3.0 Max L SOT23 3.000V shunt reference 1.0%

FZER

LM4040A IM3-

4.1 Max L SOT23 4.096V shunt reference 0.1%

FZES

LM4040B IM3-

4.1 Max L SOT23 4.096V shunt reference 0.2 %

FZET

LM4040C IM3-

4.1 Max L SOT23 4.096V shunt reference 0.5%

FZEU

LM4040DIM3-

4.1 Max L SOT23 4.096V shunt reference 1.0%

FZEV

LM4040A IM3-

5.0 Max L SOT23 5.000V shunt reference 0.1%

FZEW

LM4040B IM3-

5.0 Max L SOT23 5.000V shunt reference 0.2 %

FZEX

LM4040C IM3-

5.0 Max L SOT23 5.000V shunt reference 0.5%

FZEY

LM4040D IM3-

5.0 Max L SOT23 5.000V shunt reference 1.0% FZEZ MAZ803LUR Max ZB SOT23 microproc -ve reset gen, 5.0V FZFA MAZ803MUR Max ZB SOT23 microproc -ve reset gen, 5.0V FZFB MAZ803TUR Max ZB SOT23 microproc -ve reset gen, 3.3V FZFC MAZ803SUR Max ZB SOT23 microproc -ve reset gen, 3.3V FZFD MAZ803RUR Max ZB SOT23 microproc -ve reset gen, 3.0V FZGH MAZ6006AUR Max L SOT23 1.250V 0.2% shunt V reference FZGI MAZ6006BUR Max L SOT23 1.250V 0.5% shunt V reference FZGJ MAZ6006CUR Max L SOT23 1.250V 1.0% shunt V reference FZGK MAZ6007AUR Max L SOT23 2.480V 0.2% shunt V reference

http://www.marsport.org.uk/smd/smdf.htm (9 of 10)27/5/2007 18:20:03

Page 99

SMD Codebook page F

FZGL MAZ6007BUR Max L SOT23 2.480V 0.5% shunt V reference FZGM MAZ6007CUR Max L SOT23 2.480V 1.0% shunt V reference FZGN MAZ6008AUR Max L SOT23 2.500V 0.2% shunt V reference FZGO MAZ6008BUR Max L SOT23 2.500V 0.5% shunt V reference FZGP MAZ6008CUR Max L SOT23 2.500V 1.0% shunt V reference FZGQ MAZ6009AUR Max L SOT23 3.000V 0.2% shunt V reference FZGR MAZ6009BUR Max L SOT23 3.000V 0.5% shunt V reference FZGS MAZ6009CUR Max L SOT23 3.000V 1.0% shunt V reference

Last Updated on 13/06/2006 By GM4PMK

http://www.marsport.org.uk/smd/smdf.htm (10 of 10)27/5/2007 18:20:03

Page 100

SMD Codebook page G

GM4PMK's SMD Codebook

Codes beginning with 'G'

Code Device Manf Base Package Leaded Equivalent/Data

G BAR63-02W Sie I SCD80 RF pin to 3GHz G BAR63-03W Sie I SOD323 RF pin to 3GHz G KV1181E Tok I URD uhf varicap 2-16pF G MRF947A Mot N SOT323 npn RF 8GHz G0 HSMP-3890 HP C SOT23 HP3890 pin sw diode G0 HSMP-389B HP C SOT323 HP3890 pin sw diode G08 DTD133HKA Roh N SC59 npn dtr 3k3+10k 50V 500mA G1 BFS20 Phi N SOT23 BF199 G1p BFS20 Phi N SOT23 BF199 G1 BFS20 Phi N SOT23 BF199 G1t HSMP-3891 HP K SOT23 HP3890 pin sw diode G1 MMBT5551 Mot N SOT23 2N5551 npn Vce 140V tG1 PMBT5551 Phi N SOT23 2N5551 npn Vce 140V tG1 PMST5551 Phi N SOT323 2N5551 npn Vce 140V G1E BC847A Rho N SOT23 BC547A G1F BC847B Rho N SOT23 BC547B G1G BC847C Rho N SOT23 BC547C G1J BC848A Rho N SOT23 BC548A G1K BC848B Rho N SC70 BC548B G1K BC848BW Rho N UMT3 BC548B G1K BC848B Rho N SOT23 BC548B G1L BC848C Rho N SOT23 BC548C G2 HSMP-3892 HP D SOT23 dual ser HP3890 pin sw diode G2 CGY50 Sie IQ SOT143 GaAs MMIC amp G3 HSMP-3893 HP A SOT23 dual HP3890 pin sw diode pG3 PMST5551 Phi N SOT323 2N5551 G3 BAR63 Sie C SOT23 single 3GHz pin G3C DTB122JK Roh N SC59 pnp dtr 220R + 470R 50V 500mA

http://www.marsport.org.uk/smd/smdg.htm (1 of 4)27/5/2007 18:20:07
