TEA6360
5-band stereo equalizer circuit
Preliminary specification
File under Integrated Circuits, IC01
May 1991
Page 2
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
FEATURES
• Monolithic integrated 5-band stereo equalizer circuit
• Five filters for each channel
• Centre frequency, bandwidth and maximum boost/cut
defined by external components
• Choise for variable or constant Q-factor via I2C software
• Defeat mode
• All stages are DC-coupled
• I2C-bus control for all functions
• Two different modul addresses programmable.
QUICK REFERENCE DATA
SYMBOL PARAMETER MIN. TYP. MAX. UNIT
V
p
I
p
V
1,32
V
o
supply voltage (pin 14) 7 8.5 13.2 V
supply current − 24.5 − mA
input voltage range − 2.1 to
maximum output signal level (RMS value, pins 13 and 20) 1.1 − V
G
v
total signal gain, all filters linear −0.5 − 0dB
B −1 dB frequency response (linear) 0 to 20 −−kHz
T
amb
operating ambient temperature −40 − 85 °C
GENERAL DESCRIPTION
The 5-band stereo equalizer is an 12C-bus controlled tone
processor for application in car radio sets, TV sets and
music centres. It offers the possibility of sound control as
well as equalization of sound pressure behaviour of
different rooms or loudspeakers, especially in cars.
V
P−1
− V
ORDERING INFORMATION
EXTENDED
TYPE NUMBER
TEA6360
TEA6360/T
(1)
(2)
PINS PIN POSITION MATERIAL CODE
32 shrink DIL plastic SOT232
32 mini-pack plastic SOT287
Notes
1. SOT232; SOT232-1; 1996 August 08.

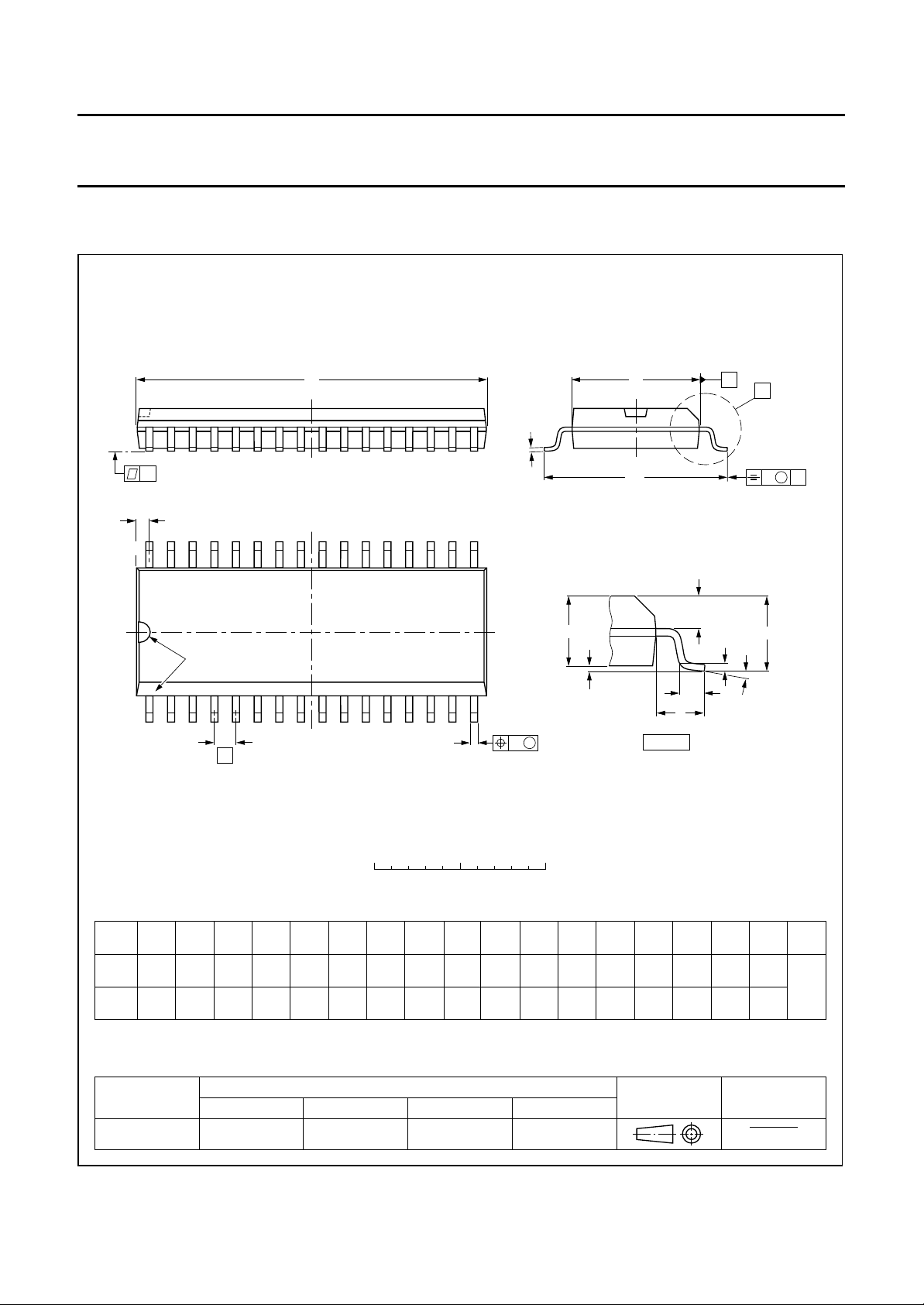

2. SOT287; SOT287-1; 1996 August 08.
May 1991 2
PACKAGE
Page 3
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
May 1991 3
Fig.1 Block diagram, test and application circuit.
Page 4
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
PINNING
SYMBOL PIN DESCRIPTION
V
iL
F1LA 2 connection A for filter 1 LEFT (f = 2.95 kHz)
n.c. 3 not connected
F1LB 4 connection B for filter 1 LEFT (f = 2.95 kHz)
F2LA 5 connection A for filter 2 LEFT (f = 12 kHz)
F2LB 6 connection B for filter 2 LEFT (f = 12 kHz)
F3LA 7 connection A for filter 3 LEFT (f = 790 Hz)
F3LB 8 connection B for filter 3 LEFT (f = 790 Hz)
F4LA 9 connection A for filter 4 LEFT (f = 205 Hz)
F4LB 10 connection B for filter 4 LEFT (f = 205 Hz)
F5LA 11 connection A for filter 5 LEFT (f = 59 Hz)
F5LB 12 connection B for filter 5 LEFT (f = 59 Hz)
V
oL
V
P
SDA 15 I
SCL 16 I
GND2 17 ground 2 (I
MAD 18 modul address
GND1 19 ground 1 (analog ground)
V
oR
F5RB 21 connection B for filter 5 RIGHT (f = 59 Hz)
F5RA 22 connection A for filter 5 RIGHT (f = 59 Hz)
F4RB 23 connection B for filter 4 RIGHT (f = 205 Hz)
F4RA 24 connection A for filter 4 RIGHT (f = 205 Hz)
F3RB 25 connection B for filter 3 RIGHT (f = 790 Hz)
F3RA 26 connection A for filter 3 RIGHT (f = 790 Hz)
F2RB 27 connection B for filter 2 RIGHT (f = 12 kHz)
F2RA 28 connection A for filter 2 RIGHT (f = 12 kHz)
F1RB 29 connection B for filter 1 RIGHT (f = 2.95 kHz)
n.c. 30 not connected
F1RA 31 connection A for filter 1 RIGHT (f = 2.95 kHz)
V
iR
1 audio frequency input LEFT
13 audio frequency output LEFT
14 supply voltage (+8.5 V)
2
C-bus data line
2
C-bus clock line
2
C-bus ground)
20 audio frequency output RIGHT
32 audio frequency input RIGHT
Fig.2 Pin configuration
May 1991 4
Page 5
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
FUNCTIONAL DESCRIPTION
The TEA6360 is performed with two stereo channels
(RIGHT and LEFT), each one consists of five equal filter
amplifiers (Fig.1).
The centre frequencies for the different filters as well as
the bandwidth and the control ranges for boost and cut
depend on the external components. Each filter can have
different external components but for one definite pair of
filters the centre frequency as well as the control range for
boost and cut are the same. That means, they have
symmetrical curves for boost and cut.
The control range (maximum value in dB) is divided into
five steps and one extra step for the linear position.
At maximum gain of 12 dB the typical step resolution is
2.4 dB. The internal resistor chain of each filter amplifier is
optimized for 12 dB maximum gain. Therefore the typical
gain factors for 15 dB application are as follows:
step 1 = 2.7 dB
step 2 = 5.5 dB
step 3 = 8.4 dB
step 4 = 11.6 dB
step 5 = 15.0 dB
The position of the filter in the left channel and that in the
right channel is always the same (stereo).
The position of the boost part and the cut part is
independently controllable (Tables 2 and 3).
The quality factor of the filter has its maximum in the
maximum position (steps 5), if boost (cut on step 0) or cut
(boost on step 0) is used. The quality factor decreases also
with the step number (variable quality factor).
In this mode the control pattern are according to Table 4.
A different control is necessary to achieve a constant
quality factor over the whole control range. For boost with
a constant quality factor over the boost range position +5
is selected and boost control is then performed using cut.
This control technique is applied to the cut range with
position −5 selected and the boost is varied (Table 5).
The cut part has to follow the boost part in each filter for
economic reasons. So the signal is first amplified and then
attenuated. This has to be taken into account for the
internal level diagram in case of constant quality factor.
This may result in a mode between constant Q and
non-constant Q mode; for example for the position +2 it is
not necessary to amplify by step +5 and then attenuate by
−3 step. The combination of step +4 and step −2 to reach
position +2 is a good result (quasi constant quality factor,
Table 6).
The control of the different filters is obtained by selecting
the appropriate subaddress byte (Table 1).
LIMITING VALUES
In accordance with the Absolute Maximum System (IEC 134).
Ground pins 19, 28 and 43 connected together.
SYMBOL PARAMETER MIN. MAX. UNIT
V
P
V
n
P
tot
T
stg
supply voltage (pin 14) 0 13.2 V
voltage on all pins, grounds excluded 0 V
P
V
total power dissipation 0 500 mW
storage temperature range −40 150 °C
storage temperature range −40 150 °C
T
V
amb
ESD
operating ambient temperature range −40 85 °C
electrostatic handling
(1)
for all pins ±500 V
Note
1. Equivalent to discharging a 200 pF capacitor through a 0 Ω series resistor.
May 1991 5
Page 6
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
CHARACTERISTICS
= 8.5 V; fi = 1 kHz (RS = 600 Ω), RL = 10 kΩ, T
V
P
specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
P
I
P
supply voltage. range (pin 14) 7 8.5 13.2 V
supply current (pin 14) VP = 8.5 V − 25.5 − mA
Analog part
R
i
V
1,32
V
13,20
V
o
input resistor (pins 1 and 32) 1 −−MΩ
input voltage range at any stage 2.1 to
output voltage range at any stage 1.0 to
output signal level (RMS value, pins 13 control range 0 to +5,
and 20) variable Q-factor or
R
o
R
L
output resistor (pins 13 and 20) − 100 −Ω
admissable load resistance at outputs
(pins 13 and 20) 2 −−kΩ
C
L
admissable load capacitance at outputs
(pins 13 and 20) −−2.5 nF
G
v
total signal gain (G = Vo / Vi) all filters linear −0.5 − 0dB
B frequency response all filters linear, roll off
minimum value (DC-coupled) 0 −−Hz
maximum value 20 −−kHz
α
Cr
crosstalk attenuation between channels f = 250 to 10000 Hz
all filters linear 60 75 − dB
all filters maximum boost 55 −−dB
all filters maximum cut 55 −−dB
THD distortion (pins 13 and 20) f = 20 to 12500 Hz
V
= 1.1 V all fIlters linear − 0.2 0.5 %
o (rms)
= 0.1 V all fIlters linear − 0.05 0.2 %
V
o (rms)
= 1.1 V all fIlters max. boost − 0.5 1.0 %
V
o (rms)
= 0.1 V all fIlters max. boost − 0.1 0.3 %
V
o (rms)
= 0.1 V all fIlters maximum cut − 0.2 0.5 %
V
o (rms)
= 1 V all fIlters max. boost
V
o (rms)
= 25 °C and measurements taken in Fig.1, unless otherwise
amb
= 12 V − 26.0 − mA
V
P
−1 −−V
V
P
−1 −−V
V
P
quasi constant Q-factor 1.1 −−V
frequency for −1 dB
= 8.5 to 12 V
V
P
f = 1 kHz −−0.35 %
May 1991 6
Page 7
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
N
α
Cr
RR ripple rejection at V
Internal filters of analog part
Q Q-factor dependent on maximum gain
R
tot
∆R
tot
Internal controls of analog part via I
Step number of steps for boost or for cut − 5 −
∆V
o
2
C-bus control SDA and SCL (pins 15 and 16)
I
V
IH
V
lL
I
I
V
ACK
Module address bit (pin 18)
V
IH
V
IL
I
I
Power on reset: When reset is active the DEF-bit (defeat) is set and the I
RESET start of reset increasing V
weighted output noise voltage CCIR 468-3, maximum
(RMS value) gain/filter of 12 dB
defeat mode − 816µV
all filters linear − 23 46 µV
all filters maximum boost − 70 140 µV
all filters maximum cut − 23 46 µV
crosstalk between bus inputs and signal
outputs, 20 log (V
(p-p)/Vo rms) all filters linear − 120 − dB
bus
rms < 200 mV all filters linear
ripple
for f = 100 Hz − 70 − dB
for f = 40 to 12500 Hz − 60 − dB
maximum gain 10 dB 0.1 − 1.2
maximum gain 12 dB 0.1 − 1.4
maximum gain 15 dB 0.1 − 1.8
total resistor of different filter sections 29.6 37.0 44.4 kΩ
tolerance between any filter section −−± 4%
2
C-bus
position for linear − 1 −
step resolution maximum gain 12 dB − 2.4 − dB
step set error − 0.5 − dB
DC offset between any step or
neighbouring step or defeat −−±10 mV
input level HIGH 3 − V
P
V
input level LOW 0 − 1.5 V
input current −−±10 µA
acknowledge voltage on SDA l15 = 3 mA at LOW −−0.4 V
input level HIGH for address 1000 0110 3 − V
p
V
input level LOW for address 1000 0100 0 − 1.5 V
input current −−±10 µA
2
C-bus receiver is in reset position.
−−2.5 V
4.2 5.0 5.8 V
5.2 6.0 6.8 V
decreasing V
end of reset increasing V
P
P
P
May 1991 7
Page 8
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360

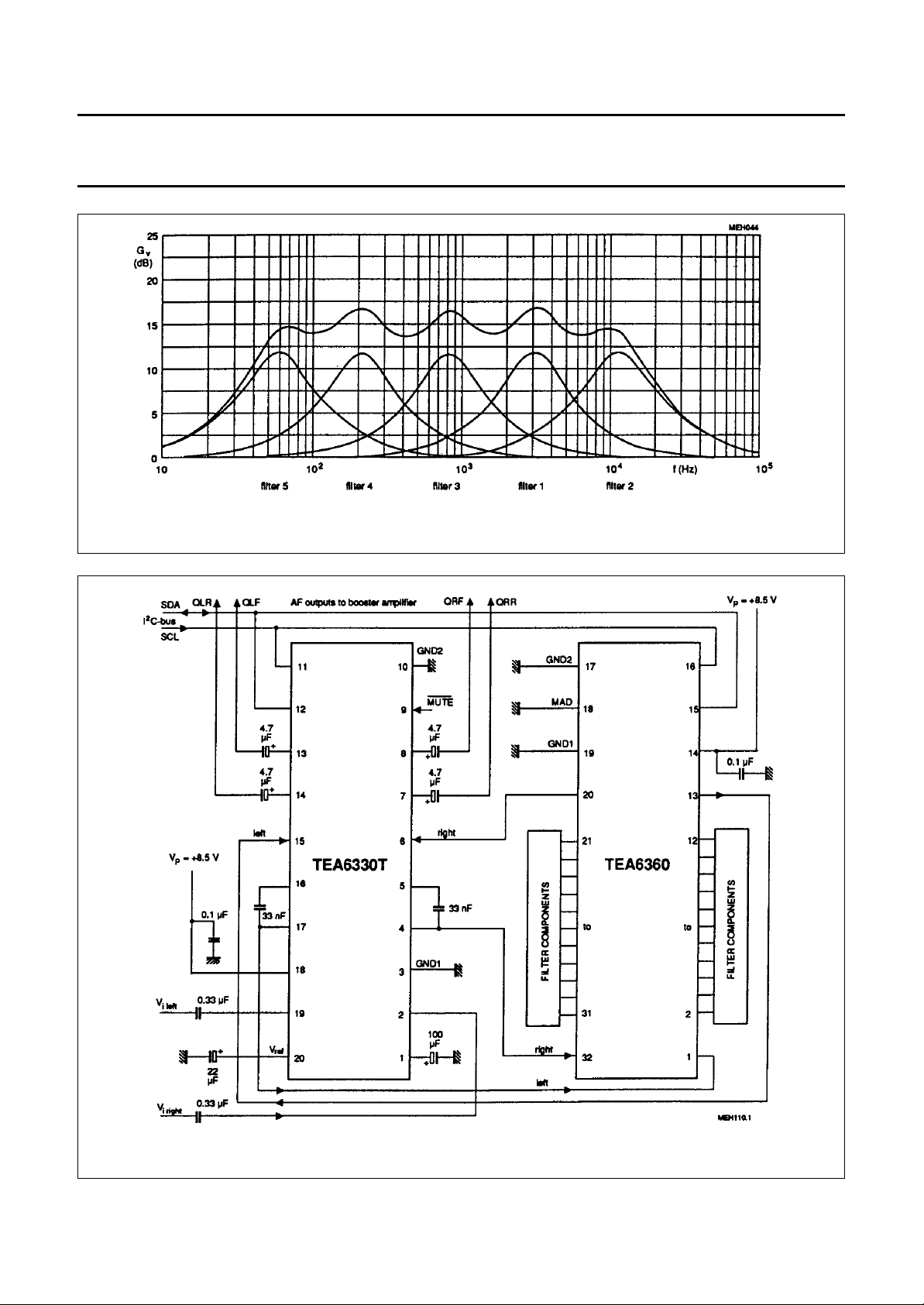

Fig.3 Frequency response for maximum boost of +12 dB according to Fig.1.
For maximum cut the curves are symmetrical to negative gain values.
Fig.4 Application for car radio (Vp < 8.5 V).
May 1991 8
Page 9
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
I2C-BUS PROTOCOL
2
C-bus format
I
S SLAVE ADDRESS A SUBADDRESS A DATA P
S = start condition
SLAVE ADDRESS = 1000 0100 when pin 18 is set LOW
or 1000 0110 when pin 18 is set HIGH or open-circuit
A = acknowledge, generated by the slave
SUBADDRESS = subadress byte, see Table 1
DATA = data byte, see Table 1
P = stop condition
If more than 1 byte DATA are transmitted, then auto-increment of the subaddress is performed.
Byte organisation
Table 1 I
filter 1/defeat 0 0 0 0 0 0 0 0 DEF 1B2 1B1 1B0 0 1C2 1C1 1C0
filter 2 0 0 0 0 0 0 0 1 0 2B2 2B1 2B0 0 2C2 2C1 2C0
filter 3 0 0 0 0 0 0 1 0 0 3B2 3B1 3B0 0 3C2 3C1 3C0
filter 4 0 0 0 0 0 0 1 1 0 4B2 4B1 4B0 0 4C2 4C1 4C0
filter 5 0 0 0 0 0 1 0 0 0 5B2 5B1 5B0 0 5C2 5C1 5C0
Function of the bits of Table 1:
1B0 to 1B2 boost control for filter 1
1B0 to 1B2 cut control for filter 1
2B0 to 2B2 boost control for filter 2
2B0 to 2B2 cut control for filter 2
3B0 to 3B2 boost control for filter 3
3B0 to 3B2 cut control for filter 3
4B0 to 4B2 boost control for filter 4
4B0 to 4B2 cut control for filter 4
5B0 to 5B2 boost control for filter 5
5B0 to 5B2 cut control for filter 5
DEF DEF = 0 (defeat bit): All filters operating.
2
C-bus transmission
FUNCTION SUBADDRESS BYTE
DEF = 1: Linear frequency response, input is directly connected to the output of the
output amplifier. The filter settings are stored but the internal amplification
is controlled to 0 dB, independent on bits nB2 to nB0.
DATA BYTE
D7 D6 D5 D4 D3 D2 D1 D0
May 1991 9
Page 10
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
Table 2 Boost control for filter n
DATA
POSITION nB2 nB1 nB0
step 0 (no boost) 0 0 0
step 1 0 0 1
step 2 0 1 0
step 3 0 1 1
step 4 1 0 0
step 5 (maximum boost) 1 0 1
step 5 (maximum boost) 1 1 0
step 5 (maximum boost) 1 1 1
Table 4 Filter control with variable quality factor
D7 D6 D5 D4 D3 D2 D1 D0
POSITION
X nB2 nB1 nB0 X nC2 nC1 nC0
+5 (maximum boost) 0 1 0 1 0 0 0 0 (+5) + (−0) = +5
+4 01000000(+4) + (−0) = +4
+3 00110000(+3) + (−0) = +3
+2 00100000(+2) + (−0) = +2
+1 00010000(+1) + (−0) = +1
Table 3 Cut control for filter n
DATA
POSITION nB2 nB1 nB0
step 0 (no cut) 0 0 0
step 1 0 0 1
step 2 0 1 0
step 3 0 1 1
step 4 1 0 0
step 5 (maximum cut) 1 0 1
step 5 (maximum cut) 1 1 0
step 5 (maximum cut) 1 1 1
COMMENT
0 (linear) 0 0 0 0 0 0 0 0 (+0) + (−0) = 0
−1 00000001(+0) + (−1) = −1
−2 00000010(+0) + (−2) = −2
−3 00000011(+0) + (−3) = −3
−4 00000100(+0) + (−4) = −4
−5 (maximum cut) 0 0 0 0 0 1 0 1 (+0) + (−5) = −5
May 1991 10
Page 11
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
Table 5 Filter control with constant quality factor
POSITION
+5 (maximum boost) 0 1 0 1 0 0 0 0 (+5) + (−0) = +5
+4 01010001(+5) + (−1) = +4
+3 01010010(+5) + (−2) = +3
+2 01010011(+5) + (−3) = +2
+1 01010100(+5) + (−4) = +1
0 (linear) 0 0 0 0 0 0 0 0 (+0) + (−0) = 0
−1 01000101(+4) + (−5) = -1
−2 00110101(+3) + (−5) = -2
−3 00100101(+2) + (−5) = −3
−4 00010101(+1) + (−5) = −4
−5 (maximum cut) 0 0 0 0 0 1 0 1 (+0) + (−5) = −5
Table 6 Filter control with quasi-constant quality factor
POSITION
+5 (maximum boost) 0 1 0 1 0 0 0 0 (+5) + (−0) = +5
+4 01010001(+5) + (−1) = +4
+3 01010010(+5) + (−2) = +3
+2 01000010(+4) + (−2) = +2
+1 00110010(+3) + (−2) = +1
D7 D6 D5 D4 D3 D2 D1 D0
COMMENT
X nB2 nB1 nB0 X nC2 nC1 nC0
D7 D6 D5 D4 D3 D2 D1 D0
COMMENT
X nB2 nB1 nB0 X nC2 nC1 nC0
0 (linear) 0 0 0 0 0 0 0 0 (+0) + (−0) = 0
−1 00100011(+2) + (−3) = −1
−2 00100100(+2) + (−4) = −2
−3 00100101(+2) + (−5) = −3
−4 00010101(+1) + (−5) = −4
−5 (maximum cut) 0 0 0 0 0 1 0 1 (+0) + (−5) = −5
May 1991 11
Page 12
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360

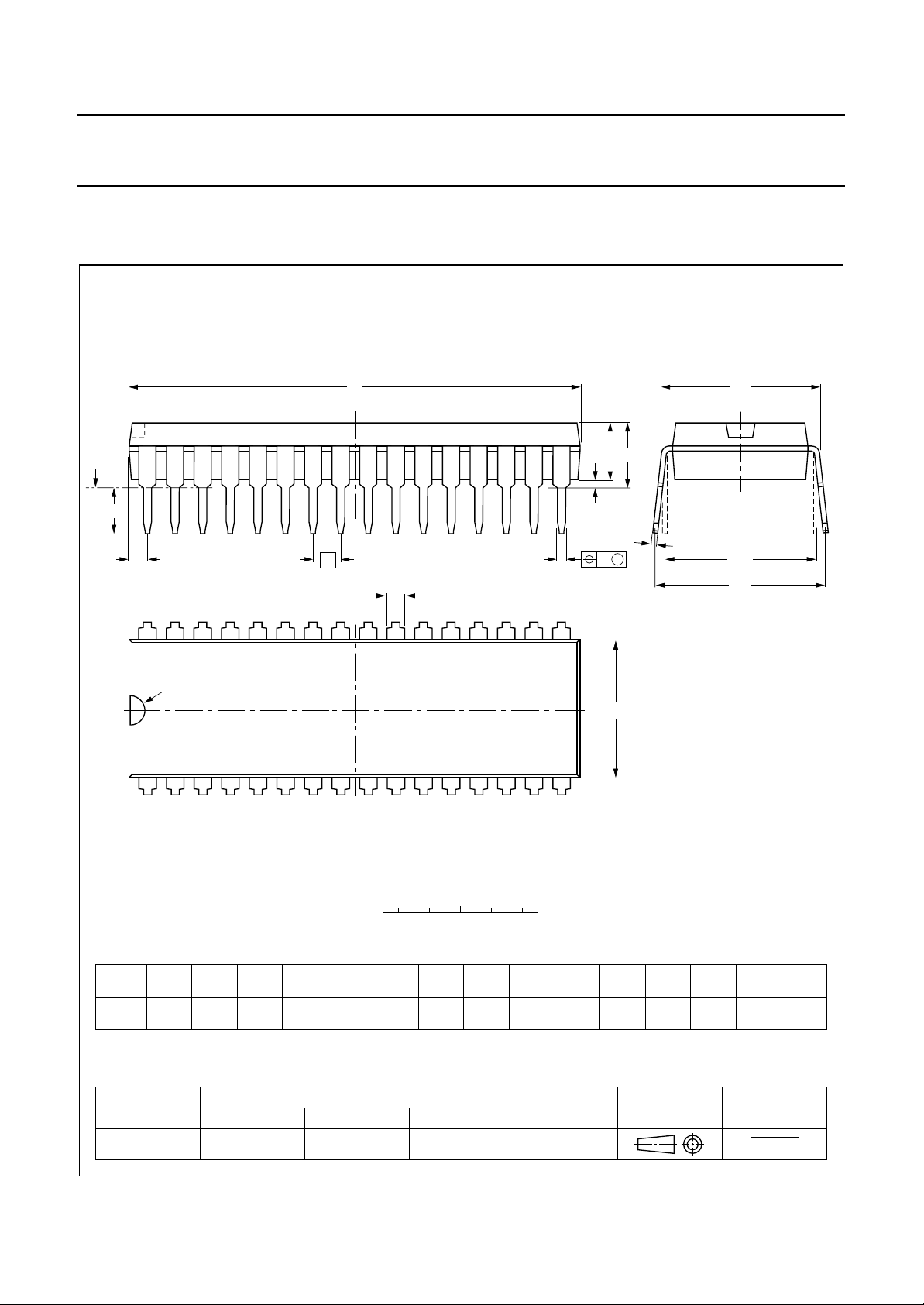

PACKAGE OUTLINES
SDIP32: plastic shrink dual in-line package; 32 leads (400 mil)
D
seating plane
L
Z
32
pin 1 index
e
b
SOT232-1
M
E
A
2
A
A
1
w M
b
1
17
E
c
(e )
M
1
H
1
0 5 10 mm
scale
DIMENSIONS (mm are the original dimensions)
A
A
A
UNIT b
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
mm
OUTLINE
VERSION
SOT232-1
max.
4.7 0.51 3.8
12
min.
max.
IEC JEDEC EIAJ
1.3
0.8
b
1
0.53
0.40
REFERENCES
0.32
0.23
cEe M
(1) (1)
D
29.4
28.5
May 1991 12
9.1
8.7
16
(1)
Z
L
3.2
2.8
EUROPEAN
PROJECTION
M
10.7
10.2
E
12.2
10.5
e
1
w
H
0.181.778 10.16
ISSUE DATE
92-11-17
95-02-04
max.
1.6
Page 13
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
SO32: plastic small outline package; 32 leads; body width 7.5 mm
D
y
Z
32
pin 1 index
1
e
17
16
w M
b
p
SOT287-1
E
c
H
E
A
2
A
1
L
detail X
A
X
v M
A
Q
(A )
L
p
A
3
θ
0 5 10 mm
scale
DIMENSIONS (inch dimensions are derived from the original mm dimensions)
mm
OUTLINE
VERSION
SOT287-1
A
A1A2A3b
max.
0.3
2.65
0.1
0.012
0.10
0.004
p
2.45
2.25
0.096
0.086
IEC JEDEC EIAJ
0.25
0.01
0.49
0.36
0.02
0.01
0.27
0.18
0.011
0.007
UNIT
inches
Note
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.
(1)E(1)
cD
20.7
20.3
0.81
0.80
REFERENCES
7.6
7.4
0.30
0.29
1.27
0.050
May 1991 13
eHELLpQZywv θ
10.65
10.00
0.42
0.39
1.4
0.055
1.1
0.4
0.043
0.016
1.2
1.0
0.047
0.039
0.25 0.1
0.25
0.010.01
EUROPEAN
PROJECTION
0.004
(1)
0.95
0.55
0.037
0.022
ISSUE DATE
92-11-17
95-01-25
o
8
o
0
Page 14
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
SOLDERING
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
“IC Package Databook”
our
(order code 9398 652 90011).
SDIP
OLDERING BY DIPPING OR BY WAVE
S
The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.
The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
stg max
). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.
R
EPAIRING SOLDERED JOINTS
Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.
SO
REFLOW SOLDERING
method. Typical reflow temperatures range from
215 to 250 °C.
Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.
AVE SOLDERING
W
Wave soldering techniques can be used for all SO
packages if the following conditions are observed:
• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.
• The longitudinal axis of the package footprint must be
parallel to the solder flow.
• The package footprint must incorporate solder thieves at
the downstream end.
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
EPAIRING SOLDERED JOINTS
R
Fix the component by first soldering two diagonally-
opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.
Reflow soldering techniques are suitable for all SO
packages.
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
May 1991 14
Page 15
Philips Semiconductors Preliminary specification
5-band stereo equalizer circuit TEA6360
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
2
PURCHASE OF PHILIPS I
C COMPONENTS
2
Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
C components conveys a license under the Philips’ I2C patent to use the
May 1991 15
Loading...
