INTEGRATED CIRCUITS

DATA SH EET

TDA8960

ATSC 8-VSB demodulator and
decoder

Preliminary specification
File under Integrated Circuits, IC02

1999 Jun 14

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

FEATURES
General features

• One-chip Advanced Television Systems Committee
(ATSC)-compliant demodulator and concatenated trellis
(Viterbi)/Reed Solomon decoder with de-interleaver and
de-randomizer

• 0.4 µm process

• 3.3 V device

• 64-lead QFP64 package

• Boundary scan test

• Output format: 8-bit wide bus.

8-VSB demodulator

• On-chip digital circuitry for tuner Automatic Gain Control
(AGC)

• Square root raised cosine filter with 11.5% roll-off factor

• Fully internal carrier recovery loop

• Mostly internal clock recovery and AGC loops with

programmable loop filters

• External indication of demodulator lock.

2

I

C-bus interface

• I2C-bus interface to initialize and monitor the
demodulator and Forward Error Correction (FEC)
decoder. Operation without I2C-bus control is possible
(default).

DOCUMENT REFERENCES

See the ATSC URL on ‘http://www.atsc.com’ for the
following related documents:

“ATSC Digital Television Standard”

•

issued 1995 Sep 16)

•

“Guide to the use of the ATSC Digital Television
Standard”

APPLICATIONS

(document no. A/54, issued 1995 Oct 04).

(document no. A/53,

Adaptive equalizer

• Feed forward including a Decision Feedback Equalizer
(DFE) structure

• Range of −2.3 to +10.5 µs

• Adaptation based on ATSC field sync (trained) and/or

8-VSB data (blind)

• Trellis (Viterbi) decoder

• Rate

Reed Solomon decoder

• (207, 187 and T = 10) Reed Solomon code

• Internal convolutional de-interleaving (I = 52; using

• External indication of uncorrectable error; transport error

• Followed by de-randomizer based on ATSC standard.

ORDERING INFORMATION

2

⁄3 (Rate1⁄2Ungerboeck code based).

internal memory)

indicator bit in Motion Picture Export Group (MPEG)
packet header is also set

TYPE

NUMBER

TDA8960 QFP64 plastic quad flat package; 64 leads (lead length 1.95 mm); body 14 × 20 × 2.8 mm SOT319-2

NAME DESCRIPTION VERSION

• Digital ATSC compliant TV receivers

• Personal computers with digital television capabilities

• Set-top boxes.

PACKAGE

1999 Jun 14 2

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

GENERAL DESCRIPTION

The TDA8960 is an ATSC-compliant demodulator and
forward error correction decoder for reception of 8-VSB
modulated signals for terrestrial and cable applications:

• Terrestrial: reception of 8-VSB modulated signals via
standard 6 MHz VHF/UHF terrestrial TV channels
(TV channels 2 to 69 in the United States)

• Cable: reception of 8-VSB modulated signals via
standard 6 MHz VHF/UHF cable TV channels.

Most of the loop components needed to recover the data
from the received symbols are internal. The only required
external loop components are a low-speed serial D/A
converter and a Voltage Controlled crystal Oscillator
(VCXO) for the symbol timing recovery and an opamp
integrator for the AGC. Loop parameters of the clock and
carrier recovery can be controlled by the I

A tuner converts the incoming RF frequency to a fixed IF
frequency centred at 44 MHz. The output of the tuner is
filtered, followed by a down conversion in an IF block to a
low IF frequency centred at1⁄2 the VSB symbol rate (or a
frequency of approximately 5.38 MHz). The low IF signal is
applied to the A/D converter.

To use its full input span, the A/D converter is located
within what is typically a fine AGC loop which includes a
variable gain stage at the output of the IF block. However,
it is also possible to apply the TDA8960 AGC control
output directly to the tuner. The detector for the TDA8960
AGC output is located after the A/D converter and
determines the peak level of the incoming signals. After
gain control, the low IF signal is sampled at a nominal rate
of twice the VSB symbol frequency, or approximately

21.5 MHz.

2

C-bus.

The carrier recovery is performed completely internally.
This function consists of a digital frequency and Frequency
Phase-Locked Loop (FPLL).

Data shaping is performed with a square root raised cosine
(half Nyquist) filter with roll-off factor of 11.5%.

Symbol timing recovery is performed mostly within the
TDA8960, except that a low cost D/A converter and VCXO
are required externally to generate the nominal 21.52 MHz
clock signal for the A/D converter and TDA8960.

After carrier recovery, half Nyquist filtering and symbol
timing recovery, adaptive equalization is performed based
on the use of the ATSC field sync (trained equalization)
and/or the 8-VSB data itself (blind equalization).
The adaptive equalizer uses a DFE structure.

After trellis decoding, the stream is de-interleaved with a
convolutional de-interleaver (interleaving depth 52).
The memory for de-interleaving is on-chip. The Reed
Solomon decoder is A TSC-compliant with a length of 207
and can correct up to 10 bytes. The decoded stream is
de-randomized using a Pseudo Random Bit Sequence
(PRBS). Finally the data is passed to a First-In, First-Out
(FIFO) register that prevents the appearance of irregular
gaps in the output data.

The output of the TDA8960 is an A TSC-compliant MPEG-2
packet stream together with a clock. Furthermore some
signal flags are provided to indicate the sync bytes and the
valid data bytes. Uncorrected blocks are also indicated.

The 8-bit wide MPEG-2 stream can be applied to an
MPEG-2 transport demultiplexer.

1999 Jun 14 3

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DDD

I

DDD(tot)

f

clk

f

sym

IL implementation loss −−−dB

α

ro

t

acq

T

amb

P

tot

Note

1. This corresponds to 12 training sequences.

digital supply voltage 3.0 3.3 3.6 V
total digital supply current V

= 3.3 V − 300 − mA

DDD

clock frequency − 21.52 − MHz
symbol frequency − 10.76 − Msymbols/s

half Nyquist filter roll-off factor − 11.5 − %
acquisition time note 1 −−290 ms
ambient temperature −20 − +70 °C
total power dissipation − 1.0 − W

1999 Jun 14 4

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

BLOCK DIAGRAM

handbook, full pagewidth

EQLOCKINDIC

LOCKINDIC

LOCK

DETECTORS

SYNCHRO-

NIZATION

AGCOUT

56 1 to 8, 11, 125453

DIGITAL FRONT-END

TRELLIS DECODER

DE-INTERLEAVER

REED SOLOMON DECODER

DE-RANDOMIZER

31 to 33

59

29

35 to 37
39, 40

ADIN0 to ADIN9

(1)

FIFO

22 24 25

RESET

SERIAL

DAC

INTERFACE

TDA8960

BOUNDARY
SCAN TEST

I2C-BUS

INTERFACE

23, 34,
45, 57,
9, 26,
41, 60

30, 38,
49,55,
10, 28,
42, 58

27

RSTAN

61

TRSDO

62

TRSTB

63

TRCS

64

TRLD

17

TDI

21

TDO

20

TRST

18

TMS

19

TCK

13

A0

16

A1

14

SCL

15

SDA

CLK

(1) The digital front-end consists of the following circuits:

- Fine AGC

- Carrier recovery

- Half Nyquist filter

DATACLK

DATA7 to DATA0

ERROR SOP DATAVALID

Fig.1 Block diagram.

1999 Jun 14 5

V

to V

SSD1

V

to V

DDD1

- Symbol timing recovery

- Sync recovery and pilot removal

- Adaptive equalization.

DDD8

SSD8

MGR598

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

PINNING

SYMBOL PIN I/O DESCRIPTION

ADIN0 1 I data input bit 0 from ADC
ADIN1 2 I data input bit 1 from ADC
ADIN2 3 I data input bit 2 from ADC
ADIN3 4 I data input bit 3 from ADC
ADIN4 5 I data input bit 4 from ADC
ADIN5 6 I data input bit 5 from ADC
ADIN6 7 I data input bit 6 from ADC
ADIN7 8 I data input bit 7 from ADC
V

DDD5

V

SSD5

ADIN8 11 I data input bit 8 from ADC
ADIN9 12 I data input bit 9 from ADC
A0 13 I I
SCL 14 I I
SDA 15 I/O I
A1 16 I I
TDI 17 I TAP controller data input; note 1
TMS 18 I TAP controller test mode select; note 1
TCK 19 I TAP controller test clock; note 1
TRST 20 I TAP controller asynchronous reset; note 1
TDO 21 O TAP controller test data output (3-state); note 1
ERROR 22 O transport packet block error signal
V

DDD1

SOP 24 O start of transport packet signal
DATAVALID 25 O transport packet data valid signal
V

DDD6

RSTAN 27 I asynchronous reset
V

SSD6

DATACLK 29 O transport interface data clock
V

SSD1

DATA7 31 O transport packet data output bit 7
DATA6 32 O transport packet data output bit 6
DATA5 33 O transport packet data output bit 5
V

DDD2

DATA4 35 O transport packet data output bit 4
DATA3 36 O transport packet data output bit 3
DATA2 37 O transport packet data output bit 2
V

SSD2

DATA1 39 O transport packet data output bit 1
DATA0 40 O transport packet data output bit 0

9 − digital supply voltage 5 (3.3 V)

10 − digital core ground 5

2

C-bus slave address bit 0

2

C-bus clock

2

C-bus serial data

2

C-bus slave address bit 1

23 − digital supply voltage 1 (3.3 V)

26 − digital supply voltage 6 (3.3 V)

28 − digital ground 6

30 − digital ground 1

34 − digital supply voltage 2 (3.3 V)

38 − digital ground 2

1999 Jun 14 6

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

SYMBOL PIN I/O DESCRIPTION

V

DDD7

V

SSD7

n.c. 43 not connected
n.c. 44 not connected
V

DDD3

n.c. 46 not connected
n.c. 47 not connected
n.c. 48 not connected
V

SSD3

n.c. 50 not connected
n.c. 51 not connected
n.c. 52 not connected
LOCKINDIC 53 O lock indicator of front-end
EQLOCKINDIC 54 O lock indicator of equalizer
V

SSD4

AGCOUT 56 O AGC control signal (3-state)
V

DDD4

V

SSD8

CLK 59 I clock
V

DDD8

TRSDO 61 O serial data to DAC
TRSTB 62 O strobe signal to DAC
TRCS 63 O chip select signal to DAC
TRLD 64 O load signal to DAC

41 − digital supply voltage 7 (3.3 V)
42 − digital ground 7

45 − digital supply voltage 3 (3.3 V)

49 − digital ground 3

55 − digital ground 4

57 − digital supply voltage 4 (3.3 V)
58 − digital ground 8

60 − digital supply voltage 8 (3.3 V)

Note

1. In accordance with the

“IEEE 1149.1”

standard; pads TCK, TDI, TMS and TRST are input pads with an internal

pull-up transistor and pad TDO is a 3-state output pad.

1999 Jun 14 7

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

handbook, full pagewidth

ADIN0
ADIN1
ADIN2
ADIN3
ADIN4
ADIN5
ADIN6
ADIN7

V

DDD5

V

SSD5

ADIN8
ADIN9

SDA

TMS

A0

SCL

A1

TDI

TCK

DDD4

TRCS

TRLD

64
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19

TRSTB

63

62

TRSDO

V

61

DDD8

60

SSD8

V

CLK
59

58

TDA8960

V
57

SSD4

AGCOUT

V

56

55

EQLOCKINDIC
54

n.c.

LOCKINDIC
53

52

51

50
49
48
47
46
45
44
43
42

41
40
39
38
37
36
35
34
33

n.c.
n.c.
V

SSD3

n.c.
n.c.
n.c.
V

DDD3

n.c.
n.c.
V

SSD7

V

DDD7

DATA0
DATA1
V

SSD2

DATA2
DATA3
DATA4
V

DDD2

DATA5

20

21

22

23

24

25

TRST

TDO

ERROR

DDD1

V

SOP

DATAVALID

Fig.2 Pin configuration.

1999 Jun 14 8

26

DDD6

V

27

RSTAN

28

SSD6

V

29

30

SSD1

V

DATACLK

31

DATA7

32

MGR599

DATA6

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

FUNCTIONAL DESCRIPTION

The internal architecture of the TDA8960 consists of
basically two parts:

• The front-end containing the AGC, carrier recovery, half
Nyquist filter, symbol timing recovery, sync recovery and
adaptive equalization

• The back-end containing the trellis decoder,
de-interleaver, the Reed Solomon decoder and
de-randomizer.

AGC

This block controls an analog gain over a range of up to
±20 dB.

The data from the A/D converter (Philips Semiconductors’
TDA8763 is recommended) arrives at the VSB
demodulator via inputs ADIN9 to ADIN0, which is10-bit
wide. The format of the incoming samples can be
programmed using the I

2

C-bus accessible register 08H.
By writing to bit 3 the format can be either twos
complement or binary.

The absolute value of the input signal is averaged over
several samples. The filtered signal is compared to a
threshold. The threshold consist of a 4-bit signed value
which can be programmed using the I2C-bus. The 3-state
output signal charges or discharges an off-chip ideal
integrator and is used to control the gain controller of the
tuner front-end module. The values of the signal are shown
in Table 1.

By default the carrier is present at 2.69 MHz. During carrier
recovery a shift is applied such that the pilot is present at
DC. It can happen that the pilot is present at the higher
edge of the VSB spectrum. In this event the CR_INV bit in
I2C-bus register 08H (see Table 13) can be set to make
sure that after the shift the pilot is at DC.

handbook, halfpage

amplitude

(dB)

5.38 MHz

2.69 5.38 8.07
frequency (MHz)

MGR600

Fig.3 Signal spectrum during carrier recovery.

The carrier recovery is capable of tracking a frequency
offset of up to 100 kHz from the nominal frequency offset
within 100 ms.

By means of I2C-bus read register 03H the current
frequency offset in the carrier recovery can be read.
This value can be used for fine tuning applications.

Table 1 AGC output

PIN AGCOUT COMMENT

1 output of the filter is smaller than the

threshold

0 output of the filter is larger than the

threshold

Z output of the filter is equal to the

threshold

The analog low-pass filter or integrator circuit should be
designed with an 8 ms time constant. The response of the
gain amplifier is linear with respect to the control voltage
over the desired range of operation.

Carrier recovery

This circuit recovers the frequency and phase of the pilot
carrier. The spectrum during the carrier recovery is
displayed in Fig.3.

1999 Jun 14 9

Sync recovery and pilot removal

This block performs several functions including pilot
removal, segment and field sync removal and rescale
AGC based on the segment sync. If this block is able to
find a data segment sync signal, the external pin
LOCKINDIC is asserted. The value of this signal can also
be read through I

2

C-bus control.

Adaptive equalization

The equalizer consists of a forward filter and a feedback
filter section. Demodulated symbols from the
synchronization and pilot removal block are received every
symbol period. The equalizer tries to invert the effects of
the channel on the transmitted symbol stream by filtering
these symbols. The coefficients of the filters are updated
every symbol period using the training sequence. There is
also a provision to perform blind equalization. The filtered
output is available for the next block, the trellis decoder.

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

The equalizer has been designed to correct a maximum
pre-echo of 2.32 µs and a maximum post-echo of

10.50 µs. The equalizer uses an overlapping DFE to
reduce the effects of co-channel interference.
The equalizer has been optimized to have a typical
acquisition time of 12 training sequences, which
corresponds to approximately 290 ms. The acquisition
time has been defined as the time when the output
signal-to-noise ratio reaches the Threshold Of Visibility
(TOV). The ATSC defines a TOV of 14.9 dB for 8-VSB.

Based on the training signal and the output of the equalizer
the Mean Square Error (MSE) signal is generated. This
16-bit value is used to control the channel adaptation
process and is available though I2C-bus control.

Control

The TDA8960 contains a complicated finite state machine.
This state machine controls the sequence of operations
that must be performed when a valid VSB data signal is
detected in order for it to be properly decoded into a
stream of MPEG-2 transport packets. The following steps
have to take place:

1. The external tuner is directed to lock to a specified
channel frequency. A VSB signal is present.

2. The tuner AGC locks to an acceptable signal gain.

3. The coarse AGC of the TDA8960 locks to acceptable
A/D converter gain.

4. The timing and carrier recovery loops lock to the
symbol clock and the carrier frequency.

5. The segment sync pattern is detected. The segment
sync lock is acquired.

6. The fine AGC locks.

7. The field sync pattern is detected. The MSE of the
received field sync training sequence is determined.

8. The equalizer uses subsequent training sequences to
adapt itself to the channel conditions.

9. The equalizer adapts to the point that the MSE of the
training sequence is sufficiently small. The trellis
decoding, convolutional de-interleaving and Reed
Solomon decoding processes all begin.

10. Valid MPEG-2 transport packets are generated.

S

TATE 0: CHANNEL ACQUISITION

In this state either no channel signal is present or a
channel signal is being acquired. The AGC, timing
recovery and carrier recovery loops must first lock onto it.
If the segment sync lock is lost, pin LOCKINDIC is LOW,
or a hardware reset is applied to the VSB demodulator, the
finite state machine returns to state 0.

S

TATE 1: EQUALIZER TRAINING

The finite state machine remains in state 1 until the MSE
of the equalized training sequence falls below a certain
threshold. It should be noted that in state 1 the back-end is
continuously reset to make sure that after the demodulator
has locked onto a signal, the trellis decoder and following
processing blocks begin at the start of the next complete
data field. By means of I2C-bus registers 01H and 02H the
MSE value of the equalizer can be read. This value can be
used for applications such as antenna pointing.

S

TATE 2: NORMAL OPERATION

Normally the state machine would remain in state 2 as
long as no synchronization error occurs. If the MSE of the
equalized training sequence is exceeded for more than
100 ms, the equalizer is reset for one symbol period and
the adaptation process starts again. If the demodulator is
in this state, the EQLOCKINDIC pin signal goes up.
The value of this signal can also be read through the
I2C-bus.

The finite state machine consists of three states. After a
reset has been applied, the state machine starts in state 0.

1999 Jun 14 10

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

DAC interface

The TDA8960 D/A interface connects to an external off-chip serial D/A converter. It supports four different serial modes.

E

XTERNAL INTERFACE

The DAC interface consists of pins 61 to 64; see Table 2.

Table 2 DAC interface

PIN FUNCTION

TRSDO serial data output
TRSTB strobe signal which can be used by the DAC to shift in serial data
TRCS chip select signal for DAC is also used by some DACs to load serially shifted data in the internal

parallel register on the positive edge

TRLD load signal used by some DACs to load serially shifted data in the internal parallel latches

O

UTPUT MODES

Table 3 shows which DACs can be used in the different output modes.

Table 3 DAC serial interface modes and DAC types

OUTPUT MODE POLARITY SET-UP TIME (ns) EXAMPLE DEVICE

0 +dF/dV 67 Maxim

MAX531, MAX538, MAX539, MAX504 and MAX515
Texas Instruments TLC5615
Sipex SP9500 and SP960

Linear Technology TLC1451
1 +dF/dV 45 Analog Devices AD7943
2 +dF/dV 45 Analog Devices DAC8512
3 −dF/dV 67 same types as mode 0

The operating mode is programmed by means of the I

2

C-bus interface. Bits 4 and 5 of registers 09H control the mode;

see Table 13.
The timing diagrams of the different serial modes are shown in Fig.4. Modes 0 and 3 do not use the load signal available

at pin TRLD. In mode 3 the output of the timing recovery low-pass filter is inverted to control VCXOs which have a
negative dF/dV. Modes 0 and 3 can provide up to 67 ns of the serial data set-up time from the moment the TRSDO output
has a new data bit until the start of the TRSTB pulse.

In mode 1 the TRCS pin is not used.

1999 Jun 14 11

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

handbook, full pagewidth

handbook, full pagewidth

TRCS

TRSTB

TRSDO

TRSTB

TRSDO

TRLD

D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

MGR601

a. Modes 0 and 3

D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

MGR602

b. Mode 1

handbook, full pagewidth

TRCS

TRSTB

TRSDO

TRLD

D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

c. Mode 2

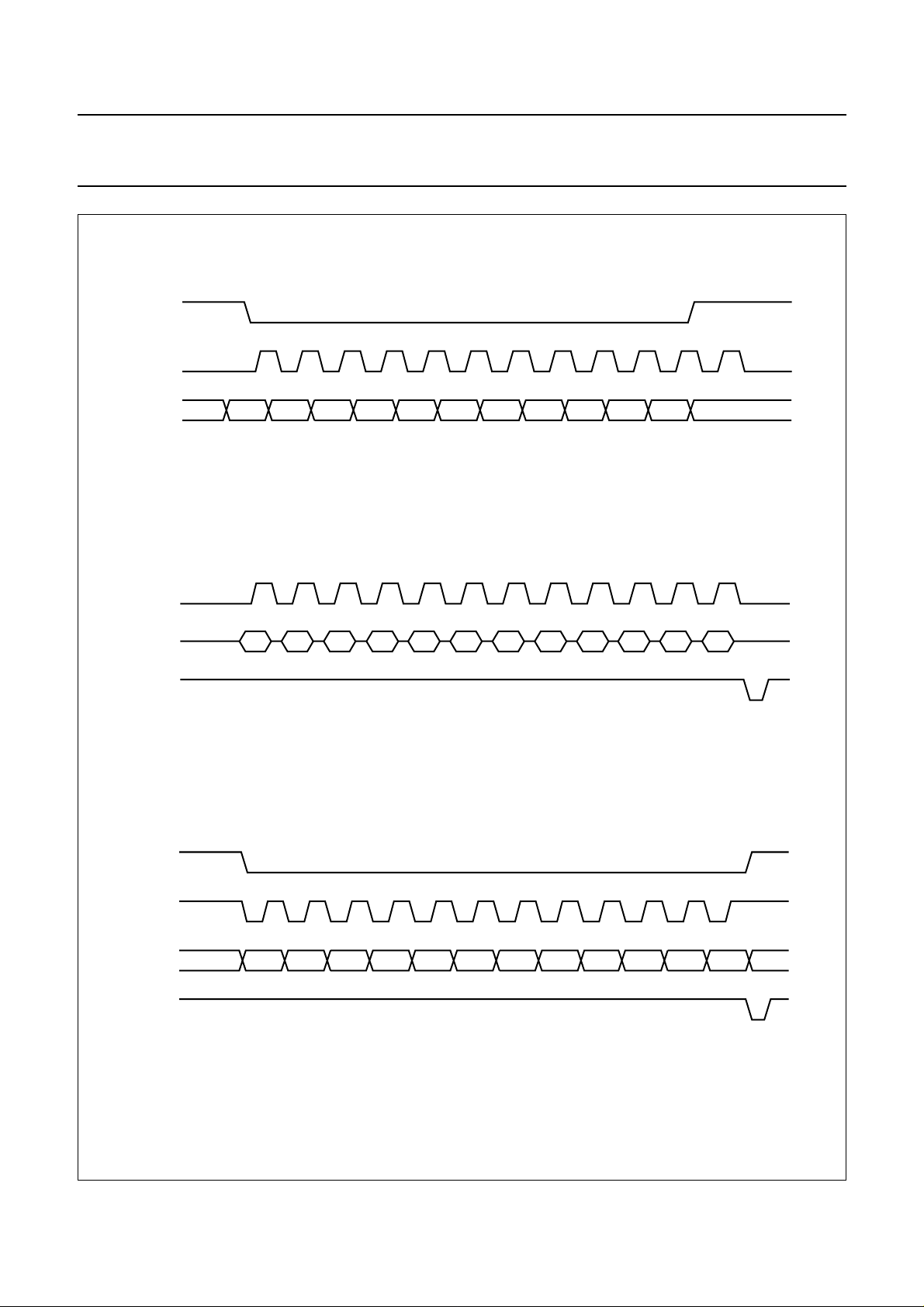

Fig.4 Timing diagrams of the different DAC serial interface modes.

1999 Jun 14 12

MGR603

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Transport stream interface

The transport stream interface provides an output of 8-bit
parallel MPEG-2 transport packets at a data rate of

5.38 Mbytes/s.

I

MPLEMENTATION

The transport interface consists of a FIFO, which has two
tasks:

1. Removal of the field sync segment from the generation
of output data

2. Increase of the data rate of the de-randomizer from

2.69 to 5.38 MHz.

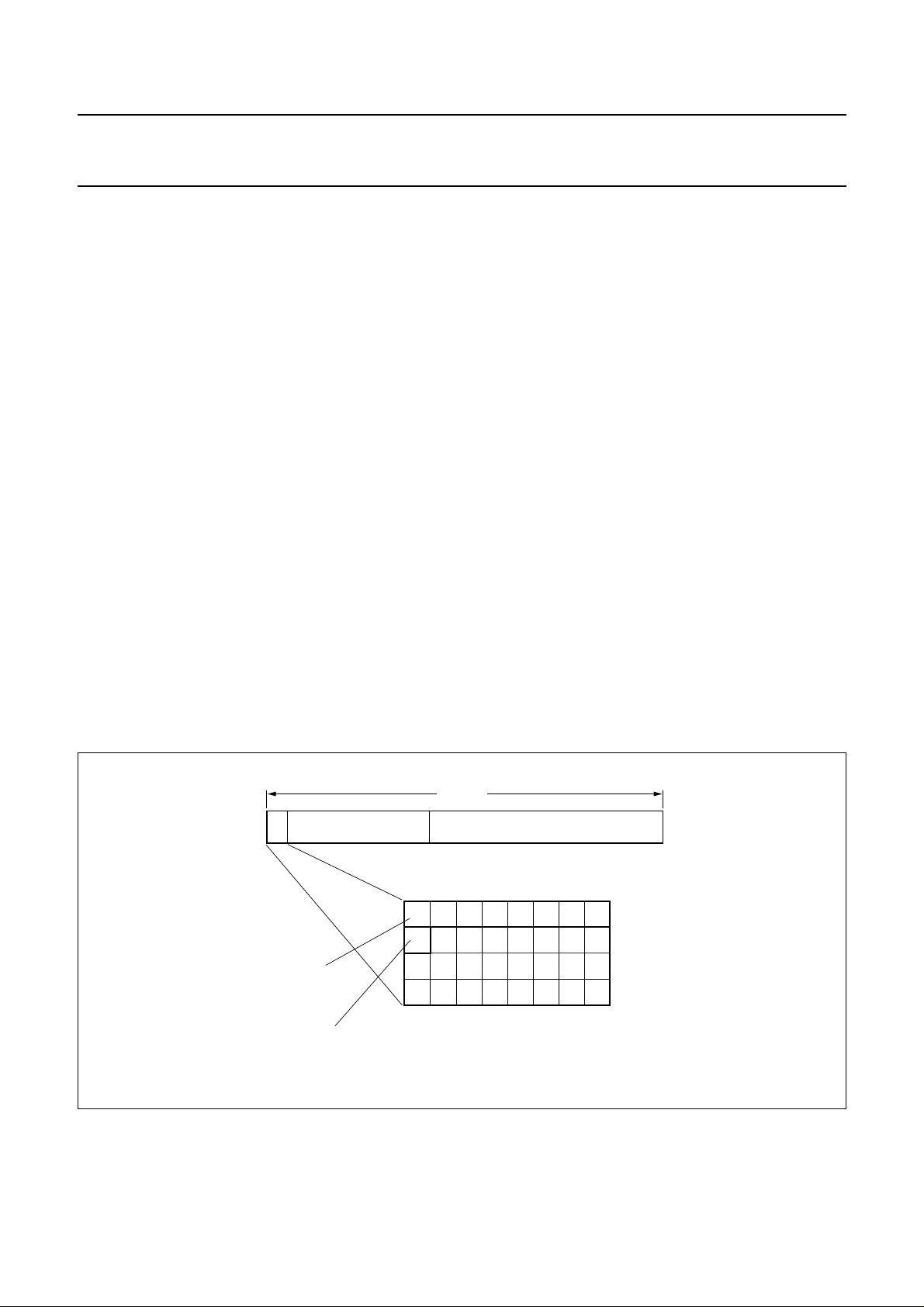

Basically the 208 bytes of a field segment (187 data bytes,
20 error correcting bytes and one segment sync byte) are
distributed over the remaining 312 data segments.
The FIFO has a depth of two data segments. As the output
data rate is 5.38 MHz we have to distribute 416 bytes, or
two field sync data segments over 312 data segments.
Every MPEG-2 transport packet corresponding to a data
segment gets a delay equal to one 5.38 MHz clock cycle.
Further, every third MPEG-2 transport packet gets an
extra delay of one 5.38 MHz transport packet.

E

XTERNAL INTERFACE

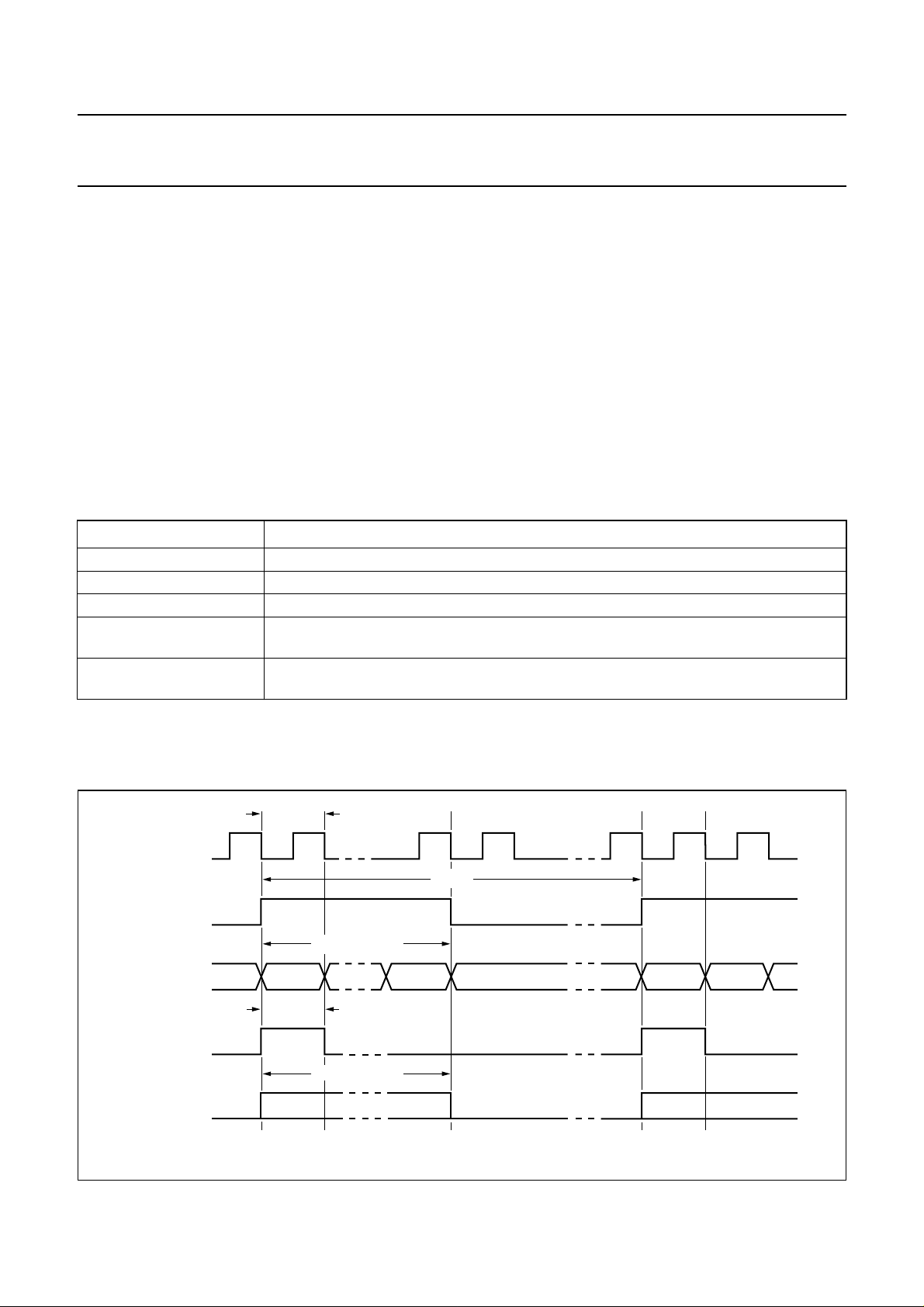

The transport stream consists of four signals and one data
bus as shown in Table 4.

Table 4 Transport stream interface

NAME FUNCTION

DATACLK output clock
DATAVALID valid demodulator output data or one valid MPEG transport packet
DATA[7 to 0] output data stream (8-bit wide output bus)
SOP indicates the start of a packet. It goes HIGH at the start of a packet and remains HIGH

during the first byte of the packet, the so called sync byte

ERROR a transport packet error indicator, which is HIGH for each 188 byte transport packet in

which the Reed Solomon decoder found more errors than it could correct

FUNCTIONAL DESCRIPTION
The timing of the transport stream interface signals is shown in Fig.5.

00H

185.9 ns

MPEG-2

sync byte

185.9 ns

77.5 µs

188 bytes/34.9 µs

188 bytes/34.9 µs

handbook, full pagewidth

DATACLK

DATAVALID

DATA7 to DATA0

SOP

ERROR

Fig.5 Timing diagram of the transport interface (normal mode).

00H

sync

MGR604

1999 Jun 14 13

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

The DATACLK signal is the 5.38 MHz demodulator output
clock. It is derived from the system clock of 21.52 MHz.
A few remarks can be made about the DATACLK signal:

• If a reset is applied, DATACLK becomes LOW; it

remains LOW until reset is released and the symbol
timing recovery block has detected the synchronization
signals

• After a channel change the DATACLK signal stops; it

starts again after the system has been locked on to a
valid signal

• If the Reed Solomon decoder produces an invalid

transport packet and the ERROR signal is asserted the
DATACLK signal continues to change state

• If the sync recovery block is not able to detect the field

sync or data segment sync, DATACLK will not change.

The DATAVALID signal indicates valid demodulator output
data or one valid MPEG-2 transport packet. It is active
HIGH for 188 bytes, or 34.9 µs. The zero bytes to be sent
after the 188 valid bytes of the transport packet can be
considered to be zeroed parity bytes.

SOP or start of packet signal is HIGH during the first byte
of the packet.

The ERROR signal indicates that the transport packet
contains uncorrectable output. The ERROR signal
becomes HIGH in the following situations:

• If the Reed Solomon decoder is unable to correct all
errors in a transport packet

• After a reset has been applied, the ERROR signal is
asserted; it remains HIGH until a valid transport packet
is produced by the demodulator

• If the demodulator is out of sync, thus can not detect the
field sync and segment sync in the incoming data
stream.

The ERROR signal can be asserted in the middle of a
transport packet.

Sync byte and transport error indicator

The structure of a transport packet header is shown in
Fig.6. For the VSB demodulator only the first two bytes of
the so called transport packet header are important.

The first byte in each header of a transport packet is the so
called MPEG-2 packet synchronization byte (sync byte).
As specified in the MPEG-2 standard, this sync byte must
have the same value for all packets. The VSB demodulator
IC sets this byte for each outgoing transport packet to 47H.

The MSB of the second byte in the transport packet is the
transport_error_indicator bit. It indicates that the Reed
Solomon decoder was not able to correct all errors and the
transport packet has invalid data.

handbook, full pagewidth

adaptation field

(if present)

sync byte

transport_error_indicator

188 bytes

transport packet header

00

1 0 0 0 1 1 1

MSB

Fig.6 The structure of a transport packet header.

1999 Jun 14 14

payload

(if present)

1st byte

4th byte

LSB

MGR605

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Boundary scan interface

The TDA8960 Test Access Port (TAP) conforms to

“IEEE 1149.1 Joint Test Action Group (JTAG)”

the

standard.
It is used for board level testing of integrated circuits and
for testing the internals of an integrated circuit. The JTAG
standard defines on-chip test logic, which consists of an
instruction register, a group of test data registers including

a bypass register and a boundary scan register, four
dedicated pins collectively called the Test Access Port
(TAP) and a TAP controller.

INSTRUCTION REGISTER
The instruction register consists of four bits without parity.

There are five defined public instructions; see Table 5.

Table 5 Public instruction codes

INSTRUCTION CODE SELECTED DATA REGISTER

(4)

(1)

(3)

(5)

(2)

1111 bypass (initialized state)
0001 boundary scan
0000 boundary scan
0011 boundary scan
0010 identification or bypass

BYPASS
SAMPLE
EXTEST
INTEST
IDCODE

Notes

1. The bypass instruction provides a minimum length (1-bit) serial path between the TDI and TDO pins when no test
operation is required.

2. This instruction can be used to take a sample of the inputs and outputs during normal operation of the component.
It can also be used to preload data values into the latched outputs of the boundary scan register.

3. This instructions allows testing off-chip circuitry and board level interconnections.

4. This instruction allows low speed, static testing of the on-chip logic. It can also be used after the chip is mounted on
a printed circuit board.

5. This instruction will return the manufacturer ID, part number code and version code. For the TDA8960 the
manufacturer ID is ‘B00000010101’, the part number code is ‘SVSB’ and the version code is ‘D1’.

In addition three private instructions are implemented to control different test modes; see Table 6.

Table 6 Private instruction codes

INSTRUCTION CODE TEST MODE

SCAN_TEST 1000 test on-chip scan chains

BIST_TEST 1001 BIST test of de-interleaver RAM
RAM_TEST 1010 scan test of the on-chip memories

CHAR_MODE 1011 characterization mode

In the characterization mode the IC is scan-testable in the
same way as in the scan test mode. However the outputs
are not switched to the scan chain outputs. The outputs

XTERNAL INTERFACE

E
The TAP consists of five pins as shown in Table 7.

retain their functionality. It is now possible to scan test
pattern through the logic and to verify if the timing
constrains at the outputs are met.

1999 Jun 14 15

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Table 7 TAP external interface

SIGNAL TYPE DESCRIPTION

TMS I test mode select
TCK I test clock

TDI I test data input

TDO O test data output

TRST I test asynchronous reset

OPERATION
The TAP controller is a finite state machine. It selects a

JTAG instruction or a data register to store the input based
on the TMS signal, receives instructions and data on the
TDI pin, executes the instruction when triggered by TMS,
and shifts data out of TDO.

TCK provides the clock signal for the test logic required by
the standard. TCK is asynchronous to the system clock.
Stored devices in the JTAG controller must retain their
state indefinitely when TCK is stopped at logic 0.

handbook, halfpage

I2C-BUS

MASTER

SCL

SDA

TDA8960

V

DD

R

pu

R

pu

MGR606

The signal received at TMS is decoded by the TAP
controller to control test functions. The logic is required to
sample TMS at the rising edge of TCK.

Serial test instructions and test data are received at TDI.
The TDI signal is required to be sampled at the rising edge
of TCK. When test data is shifted from TDI to TDO, the
data must appear without inversion at TDO after a number
of rising and falling edges of TCK, determined by the
length of the instruction or test data register selected.

TDO is the serial output for test instructions and data from
the TAP controller. Changes in the state of TDO must
occur after the falling edge of TCK. This is because
devices connected to TDO are required to sample TDO at
the rising edge of TCK. The TDO driver must be in an
inactive state (i.e. TDO line must be flat) except when the
scanning of data is in progress.

2

C-bus interface

I

The I2C-bus interface is used to write control information to
and read low-speed diagnostic information from the

2

TDA8960. The key features of the I

C-bus interface are:

• I2C-bus data rate up to 400 kbits/s

• Support for only 7-bit addressing and the possibility of

modifying the slave address externally.

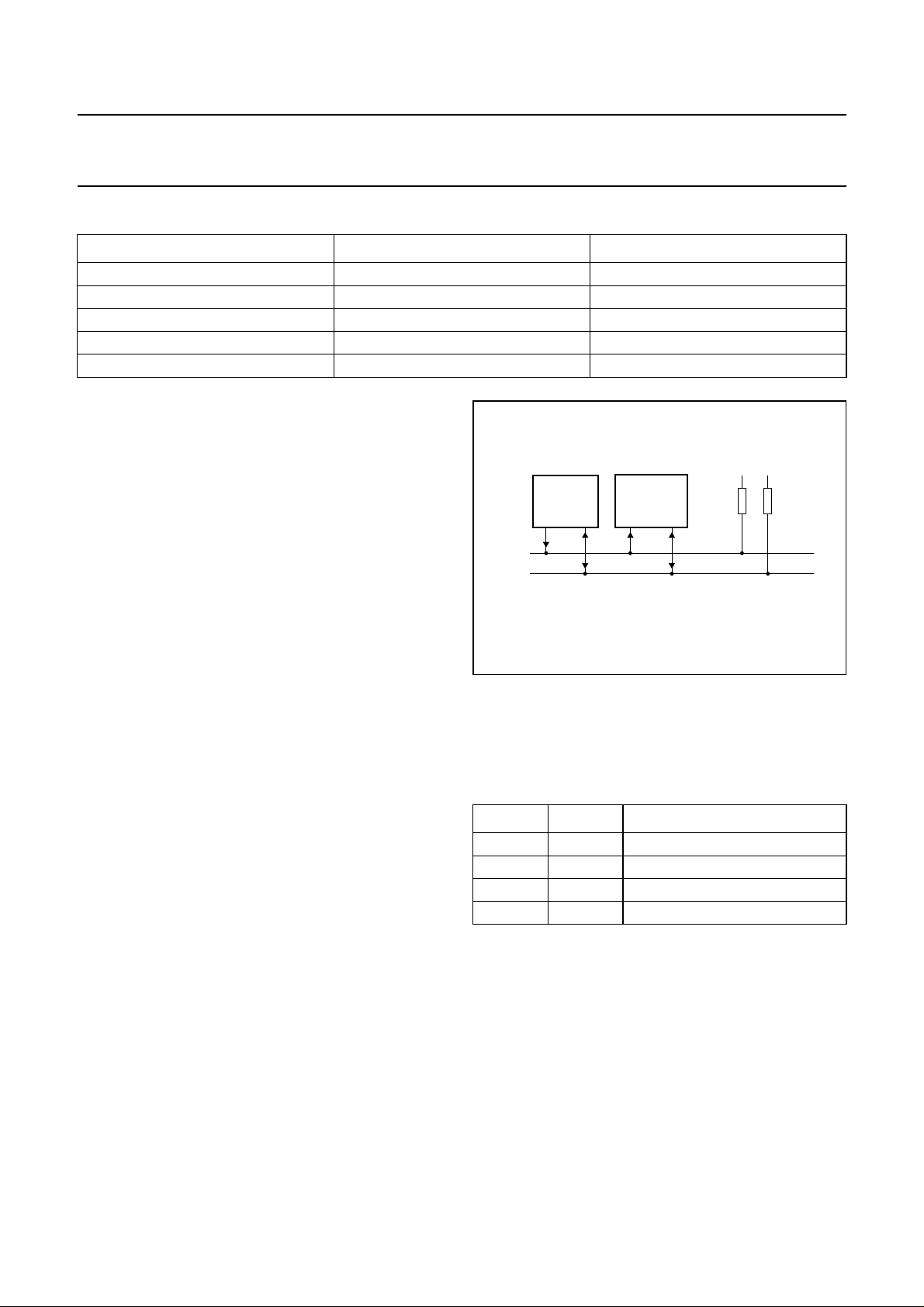

Fig.7 Typical I2C-bus system implementation.

E

XTERNAL INTERFACE

The I2C-bus interface consists of four signals as shown in
Table 8.

2

Table 8 I

C-bus external interface

SIGNAL TYPE DESCRIPTION

2

C-bus serial data

SDA I/O
SCL I I

A0 I I
A1 I I

I

2

C-bus clock

2

C-bus slave address bit 0

2

C-bus slave address bit 1

The TDA8960 has 3.3 V I/O and I2C-bus pins. Therefore,
in a complete system some circuitry might be necessary to
allow ICs with different supply voltages to communicate
and be controlled. This has been described in an
application report available from Philips Semiconductors
(application report

“AN97055”

, issued 1997 Aug 04).

A typical system using the I2C-bus interface is illustrated in
Fig.7. The TDA8960 is connected as a slave to a master
through SCL and SDA. Note that the bus has one pull-up
resistor for each of the clock and data lines.

1999 Jun 14 16

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

ADDRESSING THE DEVICE
Addressing the VSB demodulator over the system the

I2C-bus requires that the 7-bit slave address (A6 to A0) of

The slave address of the device is shown in Table 9. Bits
0 to 6 are predefined, but bits 0 and 1 can be set using the
external pins A0 and A1.

the device is sent over the bus in accordance with the
protocols, together with the R/W bit equal to logic 1 or 0 to
write or read data respectively.

Table 9 Slave address

A6 A5 A4 A3 A2 A1 A0 R/W

00011A1A00=write

handbook, full pagewidth

(1)(2) (1)(3) (4)(5) (1) (4)(5) (4)(5)(6)(1) (1)(7)(1)

S A DATA A

R/W A/A

DATA PSLAVE ADDRESS

(8)

MGR607

1 = read

(1) From master to slave
(2) S = START condition
(3) Logic 0 (write)
(4) From slave to master

Fig.8 A master-transmitter addresses a slave receiver with a 7-bit address (write access).

A write operation is shown in Fig.8. After the START
condition, the slave address followed by the R/W bit is
transmitted. The receiver, the TDA8960, sends an
acknowledge and the transmitter starts sending the
register values. After each received byte, the TDA8960
sends an acknowledge. The transfer stops if the TDA8960
does not acknowledge the transfer and/or the master
sends a STOP condition.

If register 08H has to be written to, eight consecutive bytes
are written. The first corresponds to register 01H, the
second to 02H and so on. The TDA8960 will
auto-increment the accessed address automatically. Up to
ten consecutive addresses can be written.

1999 Jun 14 17

(5) A = acknowledge (SDA LOW)
(6) A = not acknowledge (SDA HIGH)
(7) P = STOP condition
(8) Data transferred (n bytes + acknowledge).

In Table 11 the default values are given for a number of
reserved addresses and reserved bits of certain
addresses. These correct default values have to be written
in order to prevent unexpected behaviour of the IC.

Figure 9 shows a read operation. The master sends a
START condition followed by the slave address and the
R/W bit is set to logic 1. The slave returns an acknowledge
followed by the value of the first address. The master
sends another acknowledge and the next value of the
address is returned. If the master transmits a STOP
condition after the acknowledge, the transfer is stopped.
Up to three consecutive addressed (00H to 03H) can be
read.

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

handbook, full pagewidth

(1) From master to slave.
(2) S = START condition.
(3) Logic 1 (read).
(4) From slave to master.

(1)(2) (1)(3) (4)(5) (4) (1)(5) (1)(6)(4) (1)(7)(1)

S A DATA A

R/W A

(5) A = acknowledge (SDA LOW).
(6) A = not acknowledge (SDA HIGH).
(7) P = STOP condition.
(8) Data transferred (n bytes + acknowledge).

DATA PSLAVE ADDRESS

(8)

MGR608

Fig.9 A master-transmitter addresses a slave receiver with a 7-bit address (read access).

Table 10 I2C-bus control register overview (write); note 1

FUNCTION ADDRESS D7 D6 D5 D4 D3 D2 D1 D0

Operation 00H GNRL_RST INITIAL_RST
Reserved 01H
Reserved 02H
Operation 03H AGC_THRES
Reserved 04H
Reserved 05H
Reserved 06H
Reserved 07H
Carrier recovery 08H AD_FMT CR_INV
Timing recovery 09H INTMOD

Note

1. Do not write past address 09H.

2

Table 11 I

C-bus control registers (default settings after reset)

FUNCTION ADDRESS D7 D6 D5 D4 D3 D2 D1 D0

Operation 00H 00000000
Reserved 01H 00000000
Reserved 02H 00000100
Operation 03H 00000000
Reserved 04H 00000010
Reserved 05H 10000000
Reserved 06H 00000000
Reserved 07H 11001010
Carrier recovery 08H 00000100
Timing recovery 09H 00000000

1999 Jun 14 18

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Table 12 I2C-bus diagnostic registers overview (read); note 1

FUNCTION ADDRESS D7 D6 D5 D4 D3 D2 D1 D0

Operation 00H LOCK_INDICATOR EQ_LOCK_INDICATOR
Equalizer 01H MSE[15 to 8]

02H MSE[7 to 0]

Carrier
recovery

Note

1. Do not read past address 03H.

2

Table 13 I

ADDRESS FUNCTION COMMENTS BIT FIELD NAME VALUE

C-bus control registers (write); notes 1 and 2

00H operation reserved 7 to 2

03H operation reserved 7 to 4

08H carrier

09H timing

03H CR_OFFSET[7 to 0]

recovery

recovery

general reset
(note 1)

initial reset
(note 2)

AGC threshold
value

reserved 7 to 4
A/D input

format
inverted

spectrum
reserved 1 to 0

reserved 7 to 6
DAC interface

mode

reserved 3 to 0

1 GNRL_RESET 0 = disable

1 = enable

0 INITIAL_RESET 0 = disable

1 = enable

3 to 0 AGC_THRES

3 AD_FMT 0 = twos complement

1 = binary

2 CR_INV 0 = pilot at 8.07 MHz

1 = pilot at 2.69 MHz

5 to 4 INT_MOD 00 = mode 0 (TRLD not used)

01 = mode 1 (TRCS not used)
10 = mode 2 (TRCS and TRLD are used)
1 1 = mode 3 (TRLD not used; negative dF/dV

Notes

1. Operating modes and control parameters are reset to their initial values.

2. Operating modes and control parameters are not affected.

1999 Jun 14 19

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Table 14 I2C-bus diagnostic registers (read)

ADDRESS FUNCTION COMMENTS BIT FIELD NAME

00H operation reserved 7 to 3

sync recovery lock indicator 2 LOCK_INDICATOR
equalizer lock indicator 1 EQ_LOCK_INDICATOR

reserved 0
01H equalizer equalizer mean square error value 15 to 8 MSE
02H 7 to 0 MSE
03H carrier recovery carrier recovery offset 7to 0 CR_OFFSET

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DDD

V

I

I

I

I

O

T

j

T

stg

T

amb

P

tot

V

es

digital supply voltage 3.0 3.3 3.6 V
input voltage on any pin with respect

to digital ground (V

SSD

)

−0.5 − V

DDD

+ 0.5 V

DC current into any input −−tbf mA
DC current out of any output −−tbf mA
junction temperature 0 − 105 °C
storage temperature −−−°C
ambient temperature −20 +25 +70 °C
total power dissipation − 1.0 − W
electrostatic handling note 1 −3000 − +3000 V

note 2 −300 − +300 V

Notes

1. Human body model: C = 100 pF; R = 1.5 kΩ; 3 zaps positive and 3 zaps negative.

2. Machine model: C = 200 pF; L = 0.5 µH; R = 10 Ω; 3 zaps positive and 3 zaps negative.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 55 K/W

1999 Jun 14 20

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

DC CHARACTERISTICS

V

= 3.3 V; V

DDD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

DDD

I

DDD

Inputs

V

IL

V

IH

I

LI

C

i

Output

V

OL

V

OH

I

OL

3-state output, pin AGCOUT

I

O(Z)

C

O(Z)

2

C-bus, pins SDA and SCL

I

V

IL

V

IH

V

OL

V

OH

I

OL

I

L

C

i

SSD

= 0 V; T

=25°C; unless otherwise specified; note 1.

amb

digital supply voltage 3.0 3.3 3.6 V
digital supply current − 300 − mA

LOW-level input voltage −−0.8 V
HIGH-level input voltage 2.0 −−V
input leakage current −−1µA
input capacitance 8 − 25 pF

LOW-level output voltage −−0.4 V
HIGH-level output voltage 2.4 −−V
LOW-level output current −−4mA

high-impedance output current −−1µA
high-impedance output

−−100 pF

capacitance

LOW-level input voltage −0.5 − 0.3V
HIGH-level input voltage 0.7V

DDD

− V

DDD

DDD

V

+ 0.5 V
LOW-level output voltage 0 − 0.4 V
HIGH-level output voltage note 2 −−3.3 V
LOW-level output current VOL= 0.4 V 3 −−mA
leakage current VI=V
input capacitance VI=V

SSD
SSD

or V

−−±10 µA

DDD

−−8pF

Notes

1. All supply connections must be made to the same external power supply unit.

2. Open-drain output, determined by V

via an external pull-up resistor.

DDD

1999 Jun 14 21

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

AC CHARACTERISTICS

V

= 3.3 V; V

DDD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

System clock (pin CLK)

f

clk(sys)

t

CLKH

t

CLKL

A/D interface (pins ADIN[9 to 0])

t

su(A/D)

t

h(A/D)

DAC interface (pins TRSDO, TRCS, TRLD and TRSTB); see Fig.13
t

su(D/A)

t

h(D/A)

Transport stream interface (pins DATA[7 to 0], SOP, ERROR and DATAVALID); see Fig.14
t

su(D)

t

h(D)

t

DATACLKL

t

DATACLKH

t

DATCLKW

t

DAT-VAL

2

C-bus (pins SDA and SCL); see Fig.10

I

f

SCL

t

BUF

t

HD;STA

t

LOW

t

HIGH

t

SU;STA

t

SU;STO

t

HD;DAT

t

SU;DAT

t

SP

t

r

SSD

= 0 V; T

=25°C; unless otherwise specified.

amb

system clock frequency − 21.52 − MHz
system clock HIGH time − 21.23 − ns
system clock LOW time note 1 − 21.23 − ns

A/D interface set-up time 5 −−ns
A/D interface hold time 5 −−ns

D/A interface set-up time − 40 − ns
D/A interface hold time − 0 − ns

transport interface data set-up time 5 −−ns
transport interface data hold time 5 −−ns
transport interface DATACLK LOW

180 −−ns

time
transport interface DATACLK HIGH

180 −−ns

time
transport interface DATACLK period 371.7 −−ns
transport interface DATA to

0 −−ns

DATAVALID, ERROR and SOP

SCL clock frequency 0 − 400 kHz
bus free time between a STOP and

1.3 −−µs

START condition
hold time (repeated) START

0.6 −−µs
condition; after this period the first
clock pulse is generated

LOW period of the SCL clock 1.3 −−µs
HIGH period of the SCL clock 0.6 −−µs
set-up time for a repeated START

0.6 −−µs
condition

set-up time for STOP condition 0.6 −−µs
data hold time 0 − 0.9 µs
data set-up time 100 −−ns
pulse width of spikes which must be

tbf − tbf ns

suppressed by the input filter
rise time of both SDA and SCL

note 2 20 + 0.1Cb− 300 ns

signals

1999 Jun 14 22

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

t

f

fall time of both SDA and SCL
signals

C

b

capacitive load for each bus line −−400 pF

JTAG interface (pins TDO, TDI, TCK, TMS and TRST); see Fig.11
t

d(TCK-TDO)

t

su(i)(TCK)

t

h(i)(TCK)

pin TCK to TDO valid delay 2 − 10 ns
input set-up time to TCK 10 −−ns
input hold time from TCK 2 −−ns

Reset (pin RSTAN)

t

su(PO)L

power-on set-up time LOW 23 −−ns

Notes

1. The chip clock (CLK) comes from a VXCO controlled by the external DAC. The control loop keeps the clock signal
constant at a frequency twice the symbol rate.

2. Cb= total capacitance of one bus line in pF.

note 1 20 + 0.1Cb− 300 ns

1999 Jun 14 23

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1999 Jun 14 24

SDA

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

SCL

t

BUF

P

S

t

LOW

t

HD;STA

t

r

t

HD;DAT

t

HIGH

t

f

t

SU;DAT

t

SU;STA

Sr

t

HD;STA

t

SP

t

SU;STO

MBC611

P

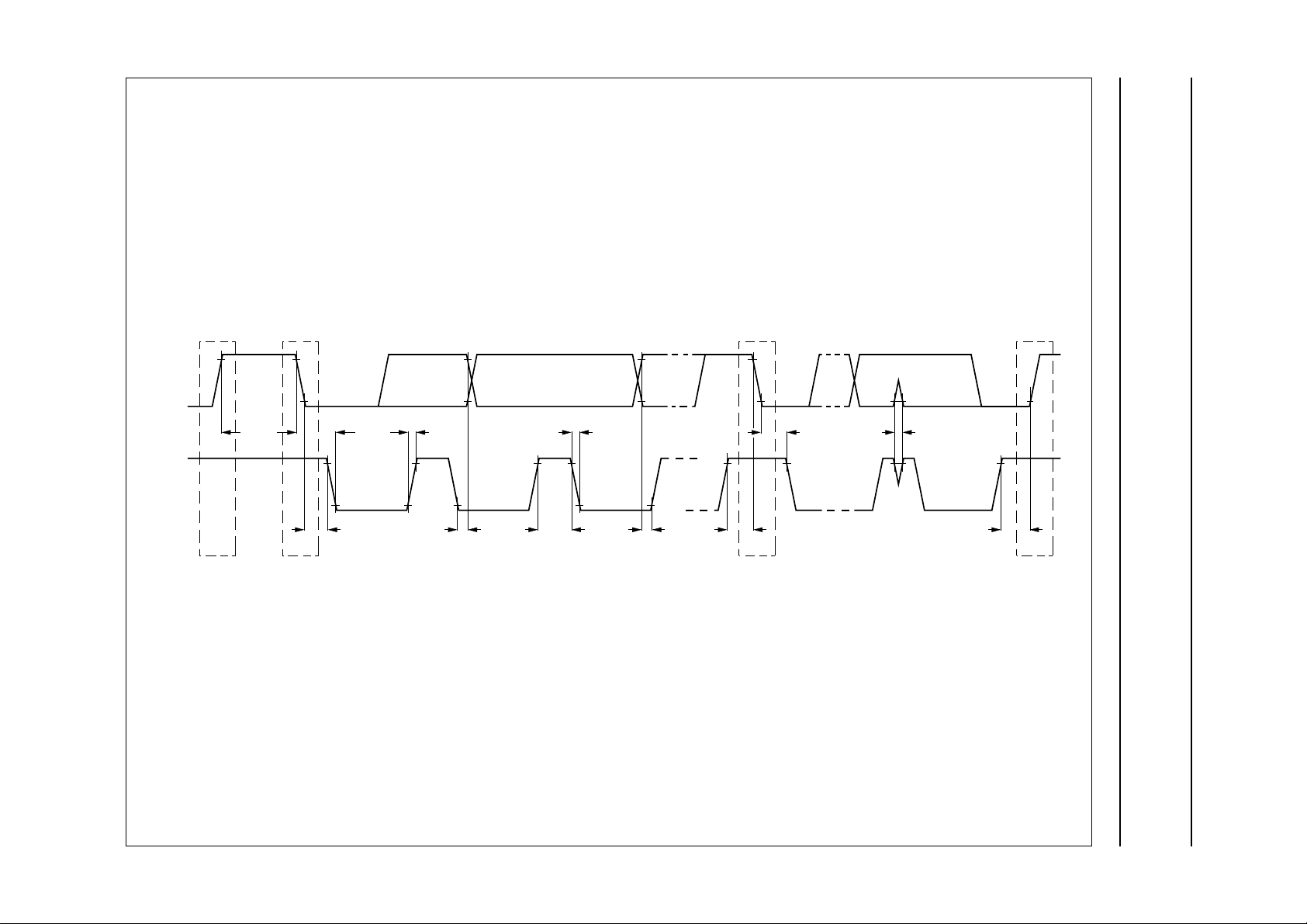

Fig.10 I2C-bus timing diagram.

handbook, full pagewidth

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

handbook, full pagewidth

handbook, full pagewidth

TCK

TDO

CLK

ADIN9 to ADIN0

t

d(TCK-TDO)

t

su(i)(TCK)

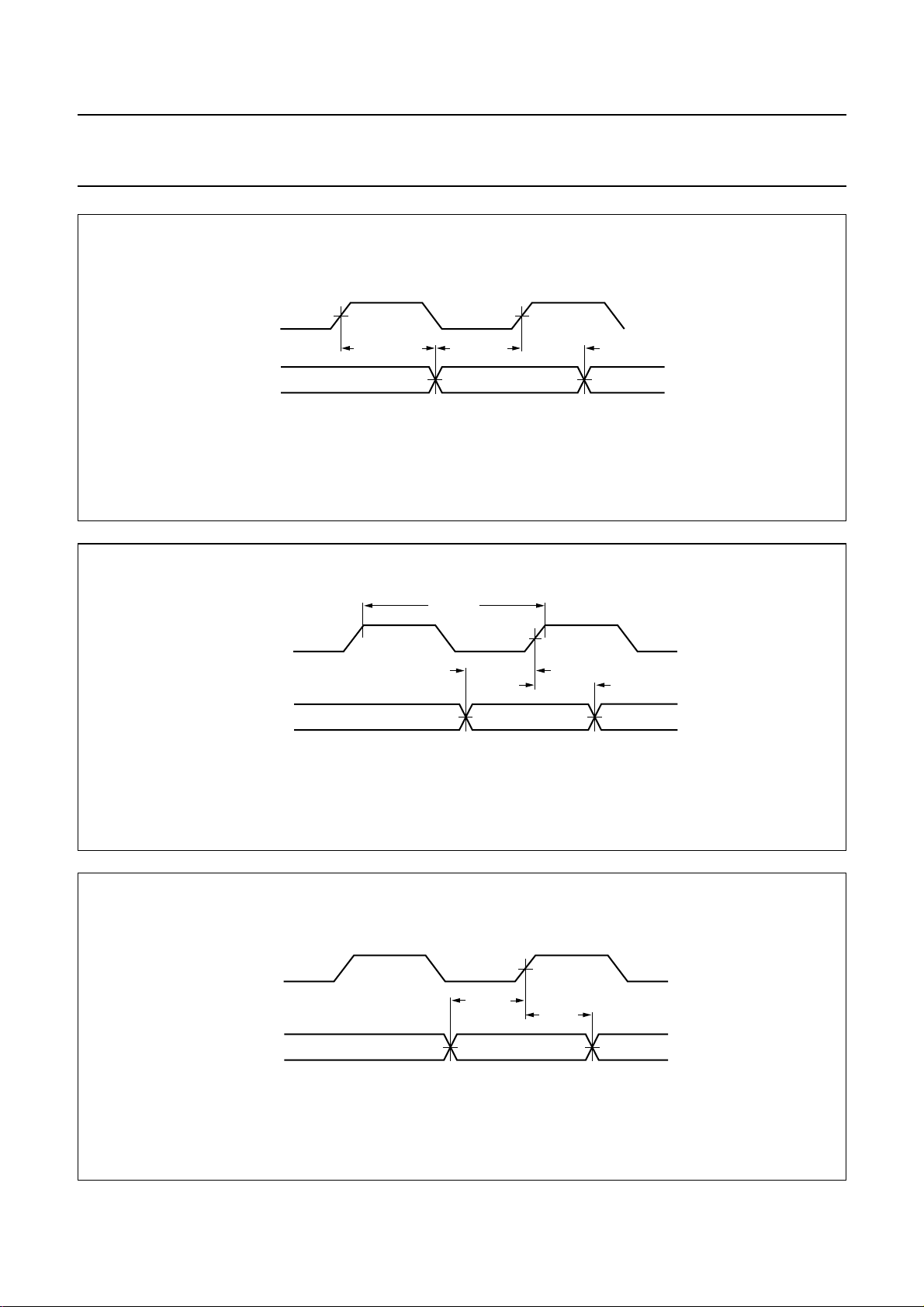

Fig.11 JTAG I/O timing.

T

cy(CLK)

valid

t

su(ADIN)

t

h(i)(TCK)

valid

t

h(ADIN)

MGR609

MGR610

T

= 46.47 ns.

cy(clk)

Fig.12 Input timing.

handbook, full pagewidth

TRSTB

TRSDO

Fig.13 Serial D/A converter interface I/O timing.

1999 Jun 14 25

t

su(D/A)

valid

t

h(D/A)

MGR611

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

handbook, full pagewidth

DATACLK

DATA7 to DATA0

ERROR

VALID

SOP

t

DATCLKW

t

DATACLKH

t

DATACLKL

t

su(D)

t

DAT-VAL

t

valid

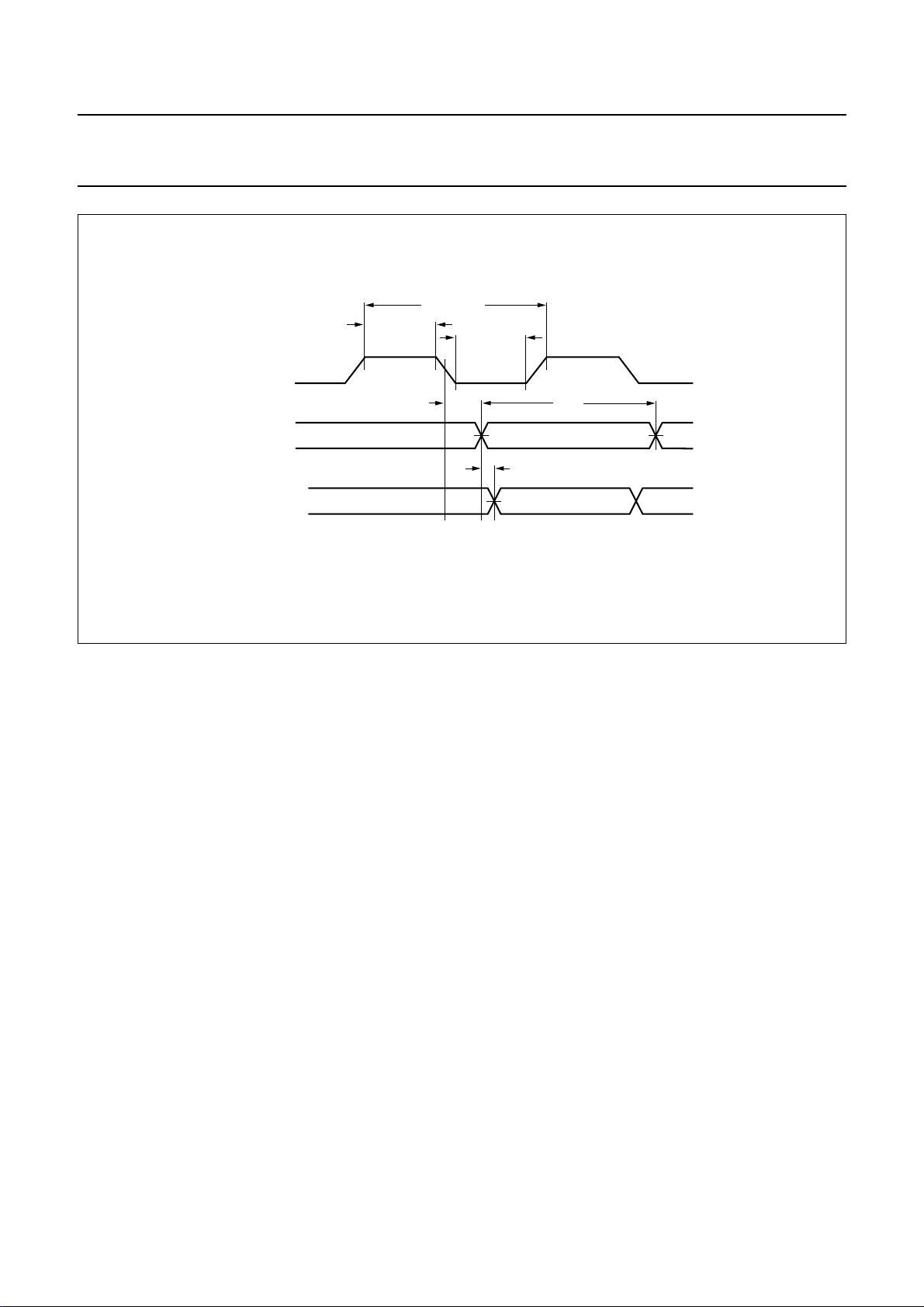

Fig.14 Transport interface timing.

h(D)

valid

MGR612

1999 Jun 14 26

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

APPLICATION INFORMATION

handbook, full pagewidth

terrestial/cable

UHF/VHF

AGC

TUNER

2

I

LOW

IF

C-bus

A/D

CONVERTER

21.52 MHz

VCXO

CONVERTER

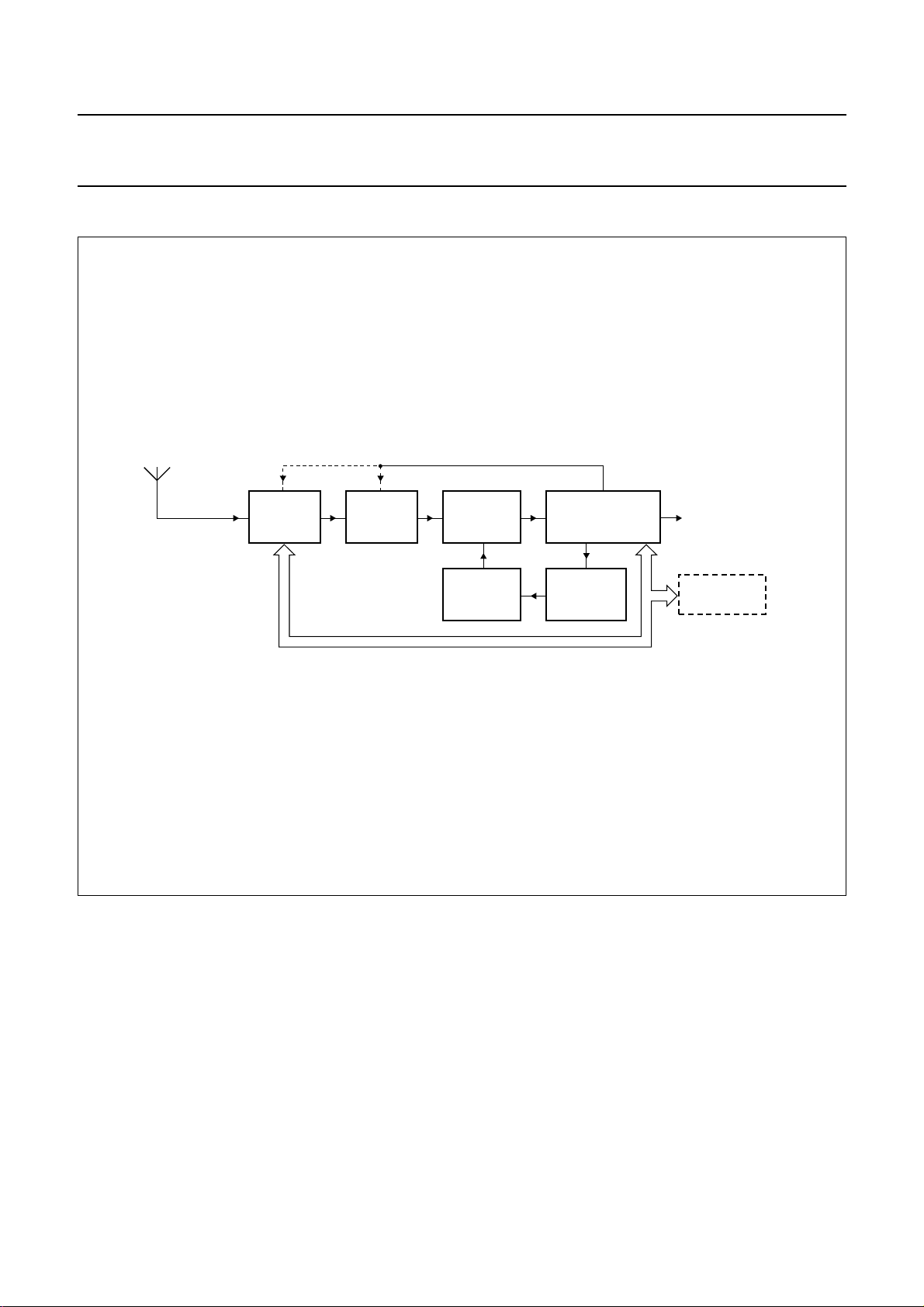

Fig.15 Front-end unit for reception of 8-VSB signals.

TDA8960

D/A

MPEG
transport stream

I2C-BUS

CONTROLLER

MGR597

1999 Jun 14 27

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

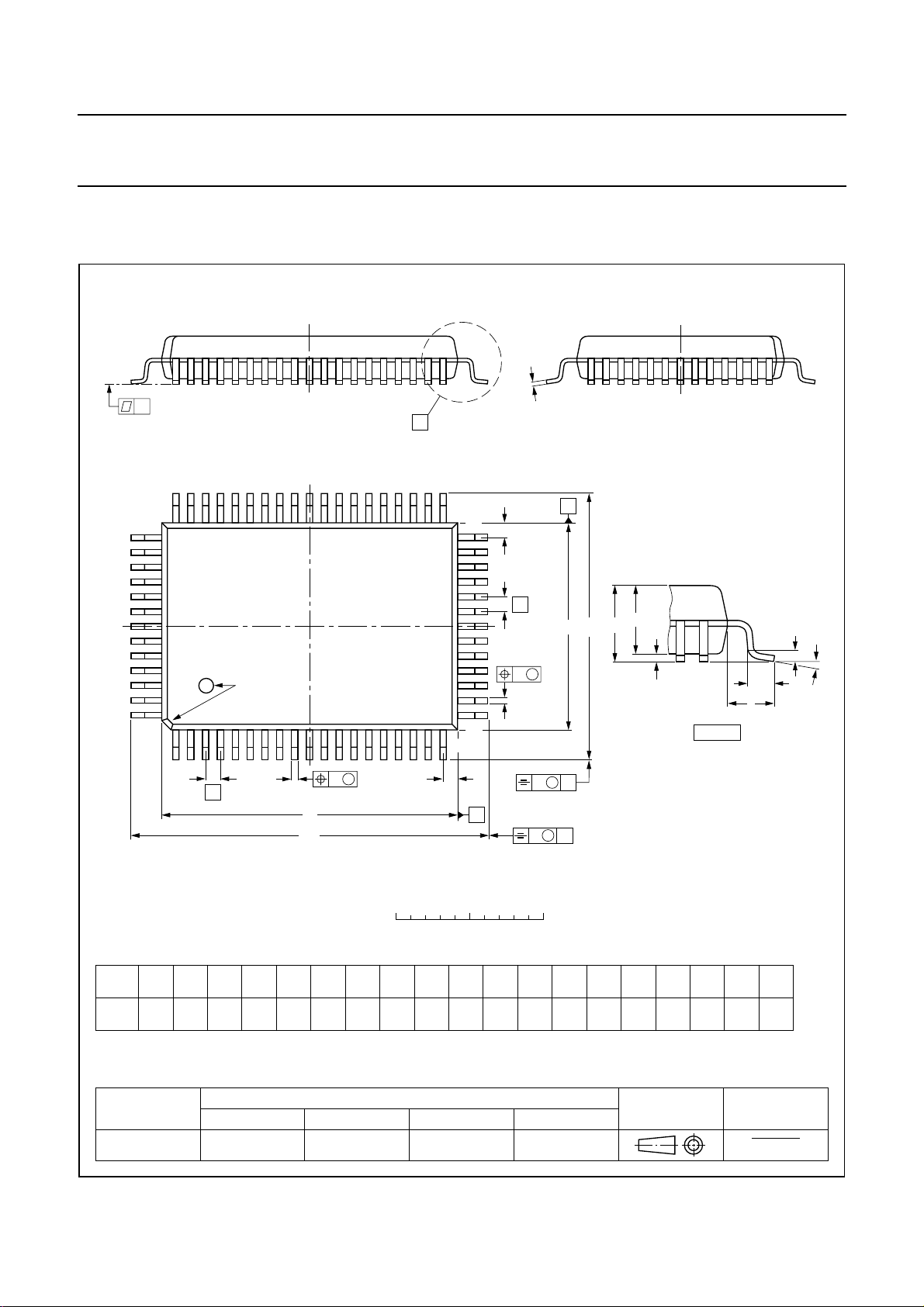

PACKAGE OUTLINE

QFP64: plastic quad flat package; 64 leads (lead length 1.95 mm); body 14 x 20 x 2.8 mm

c

y

X

51 33

52

pin 1 index

64

1

32

Z

e

w M

b

p

20

19

A

E

A

H

E

2

A

E

A

1

detail X

SOT319-2

L

p

L

(A )

3

θ

w M

b

e

p

Z

D

D

H

D

0 5 10 mm

DIMENSIONS (mm are the original dimensions)

mm

A

max.

3.20

0.25

0.05

2.90

2.65

0.25

0.50

0.35

0.25

0.14

UNIT A1A2A3bpcE

(1)

(1) (1)(1)

D

20.1

19.9

eH

14.1

13.9

24.2

1

23.6

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

IEC JEDEC EIAJ

REFERENCES

SOT319-2

1999 Jun 14 28

scale

H

D

B

E

18.2

17.6

v M

A

v M

B

LL

p

1.0

0.6

0.2 0.10.21.95

EUROPEAN

PROJECTION

Z

D

1.2

0.8

Zywv θ

E

o

1.2

7

o

0.8

0

ISSUE DATE

95-02-04
97-08-01

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

SOLDERING
Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Wave soldering

Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Jun 14 29

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

Suitability of surface mount IC packages for wave and reflow soldering methods

PACKAGE

WAVE REFLOW

(1)

BGA, SQFP not suitable suitable

SOLDERING METHOD

HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(3)

PLCC

, SO, SOJ suitable suitable
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended

(2)

(3)(4)
(5)

suitable

suitable
suitable

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

1999 Jun 14 30

Philips Semiconductors Preliminary specification

ATSC 8-VSB demodulator and decoder TDA8960

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C components conveys a license under the Philips’ I2C patent to use the

1999 Jun 14 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

1999 66

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 545004/01/pp32 Date of release: 1999 Jun 14 Document order number: 9397 750 04248
