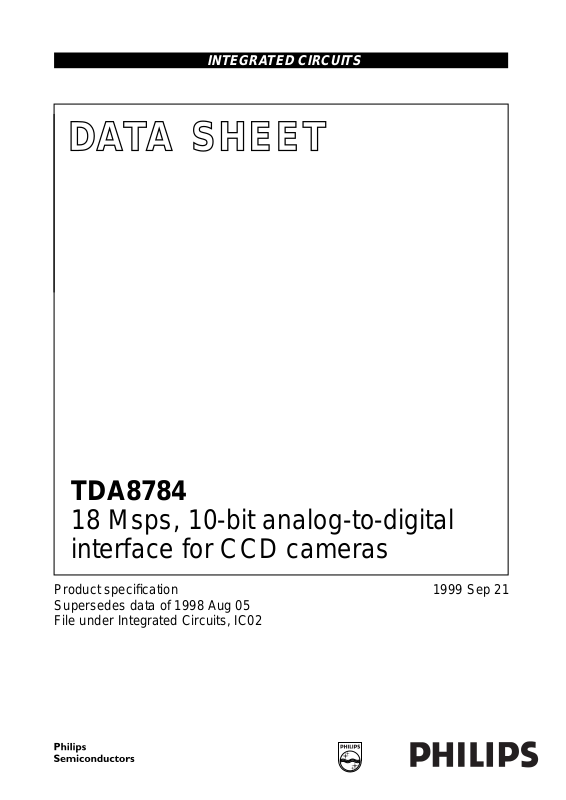

Datasheet tda8784 DATASHEETS (Philips)

INTEGRATED CIRCUITS

DATA SH EET

TDA8784

18 Msps, 10-bit analog-to-digital
interface for CCD cameras

Product specification
Supersedes data of 1998 Aug 05
File under Integrated Circuits, IC02

1999 Sep 21

Philips Semiconductors Product specification

18 Msps, 10-bit analog-to-digital
interface for CCD cameras

FEATURES

• Correlated Double Sampling (CDS), AGC, 10-bit ADC
and reference regulator included,adjustable bandwidth
(CDS and AGC)

• Fully programmable via a 3-wire serial interface

• Sampling frequency up to 18 MHz

• AGC gain from 4.5 to 34.5 dB (in 0.1 dB steps)

• CDS programmable bandwidth from 4 to 120 MHz

• AGC programmable bandwidth from 4 to 54 MHz

• Standby mode available for each block for power saving

applications (20 mW typical)

• 6 dB fixed gain analog output for analog iris control

• 8-bit and 10-bit DAC included for analog settings

• Low power consumption of only 483 mW typical

• 5 V operation and 2.5 to 5.25 V operation for the digital

outputs

• TTL compatible inputs, TTL and CMOS compatible
outputs.

TDA8784

APPLICATIONS

• CCD camera systems.

GENERAL DESCRIPTION

The TDA8784 is a 10-bit analog-to-digital interface for
CCD cameras. The device includes a correlated double
sampling circuit, AGC and a low-power 10-bit
Analog-to-Digital Converter (ADC) together with its
reference voltage regulator.

The AGC and CDS have a bandwidth circuit controlled by
on-chip DACs via a serial interface.

A 10-bit DAC controls the ADC input clamp level.
An additional 8-bit DAC is provided for additional system

controls; its output voltage range is 1.4 V (p-p) which is
available at pin OFDOUT.

ORDERING INFORMATION

TYPE

NUMBER

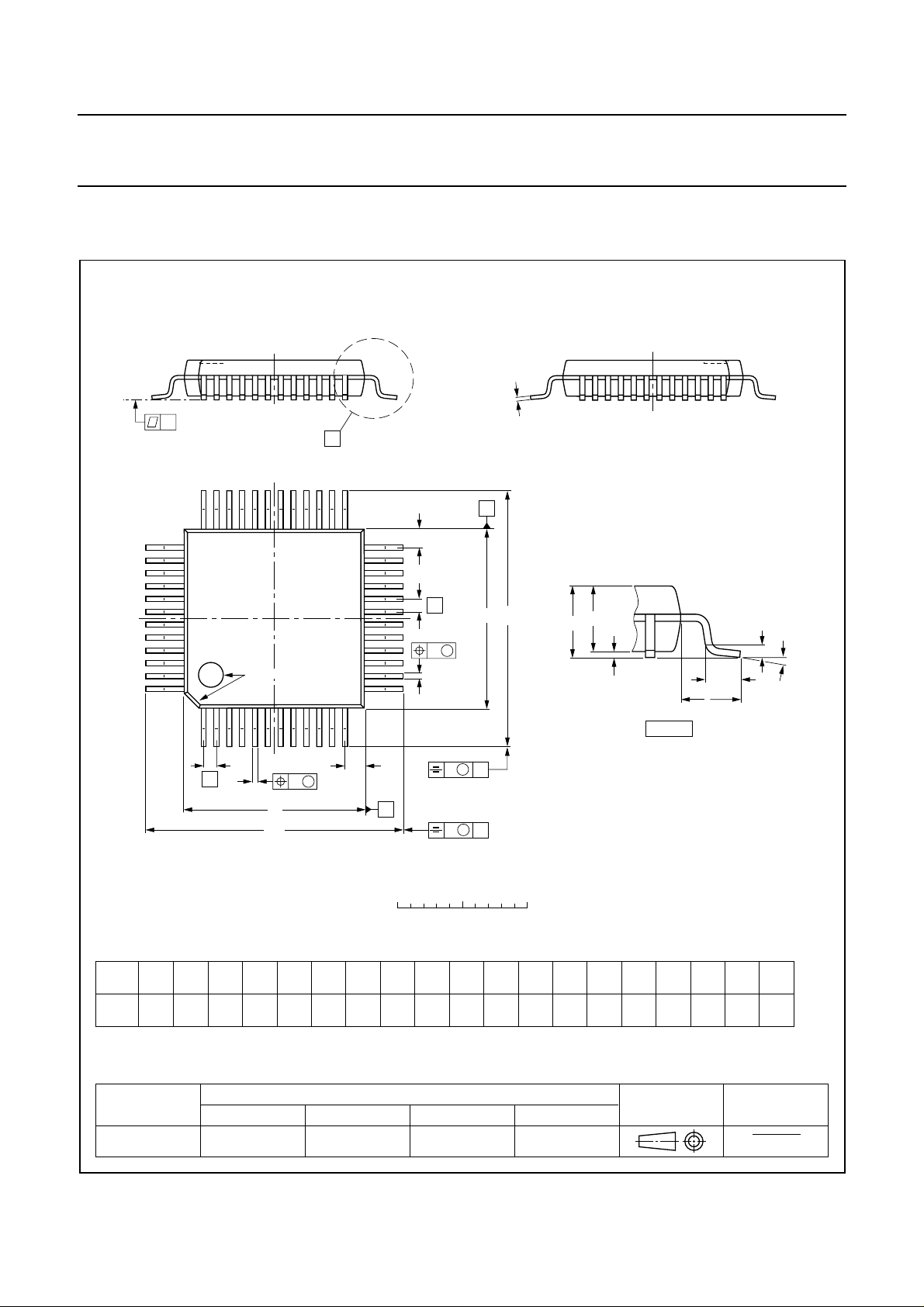

TDA8784HL LQFP48 plastic low profile quad flat package; 48 leads; body 7 × 7 × 1.4 mm SOT313-2

NAME DESCRIPTION VERSION

PACKAGE

1999 Sep 21 2

Philips Semiconductors Product specification

18 Msps, 10-bit analog-to-digital

TDA8784

interface for CCD cameras

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CCA

V

CCD

V

CCO

I

CCA

I

CCD

I

CCO

ADC

res

V

i(CDS)(p-p)

G

CDS

f

CLK(max)

AGC

dyn

N

tot(rms)

E

in(rms)

P

tot

analog supply voltage 4.75 5 5.25 V
digital supply voltage 4.75 5 5.25 V
digital outputs supply voltage 2.5 3 5.25 V
analog supply current − 78 85 mA
digital supply current − 18 20 mA
digital outputs supply current f

= 18 MHz;

CLK

− 1 − mA

CL= 20 pF; ramp input
ADC resolution − 10 − bits
CDS input voltage (peak-to-peak value) − 400 1200 mV
CDS output amplifier gain − 6 − dB
maximum clock frequency f

cut(CDS)

f

cut(AGC)

= 120 MHz;
= 54 MHz

18 −−MHz

AGC dynamic range − 30 − dB
total output noise from CDS input to

ADC output (RMS value)

gain = 4.5 dB;

f

cut(CDS)

f

cut(AGC)

= 120 MHz;
= 40 MHz

− 0.125 − LSB

equivalent input noise (RMS value) gain = 34.5 dB − 125 −µV
total power consumption − 483 550 mW

1999 Sep 21 3

Philips Semiconductors Product specification

18 Msps, 10-bit analog-to-digital
interface for CCD cameras

BLOCK DIAGRAM

V

handbook, full pagewidth

CPCDS
AGND1

IND INP AGND3 SHD SHP CLPDM CLK

47

TRACK-

AND-HOLD

8
5

4-BIT DAC

CUT-OFF

CCA3

454846

TRACK-

AND-HOLD

TRACK-

AND-HOLD

CLAMP

CLAMP

ref1

CLPOB

1

DGND2

CLOCK

GENERATOR

V

CCD2

OE

TDA8784

V

CCO

3738394041424344

36

35

34

33

32

OGND

D9

D8

D7

D6

AMPOUT

AGND4

AGCOUT

V

CCA1

AGND5

ADCIN

V

ref

CLPADC

31

30

29

28

27

26

25

3

D5

D4

D3

D2

D1

D0

DGND1

OFDOUT

MGM505

4
2

6 dB

10-BIT ADC

OUTPUTS

BUFFER

TDA8784

7

6
9
10

12

11

1

1

4-BIT DAC

CUT-OFF

10-BIT DAC

14

13 15 16 17 18

AGND2

V

CCA2

DACOUT

AGC

9-BIT DAC

REGULATOR

V

RT

V

RB

DEC1

STDBY

INTERFACE

2319

SENAGND6

SERIAL

21

22

SDATA

SCLK

20

8-BIT DAC

V

CCD1

24

Fig.1 Block diagram.

1999 Sep 21 4

Philips Semiconductors Product specification

18 Msps, 10-bit analog-to-digital

TDA8784

interface for CCD cameras

PINNING

SYMBOL PIN DESCRIPTION

CLPOB 1 clamp pulse input at optical black
AGND4 2 analog ground 4
OFDOUT 3 analog output of the additional 8-bit control DAC (controlled via the serial interface)
AMPOUT 4 CDS amplifier output (fixed gain = 6 dB)
AGND1 5 analog ground 1
V

CCA1

AGCOUT 7 AGC amplifier signal output
CPCDS 8 clamp storage capacitor pin
AGND5 9 analog ground5
ADCIN 10 ADC analog signal input from AGCOUT via a short circuit
CLPADC 11 clamp control input for ADC analog input signal clamp (used with a capacitor from V
V

ref

DACOUT 13 DAC output for ADC clamp level
AGND2 14 analog ground 2
V

CCA2

V

RB

V

RT

DEC1 18 decoupling 1 (decoupled to ground via a capacitor)
AGND6 19 analog ground 6
SDATA 20 serial data input for the 4 control DACs (9-bit DAC for AGC gain, 8-bit DAC for frequency cut-off;

SCLK 21 serial clock input for the control DACs and their serial interface; see Table 1
SEN 22 enable input for the serial interface shift register (active when SEN = logic 0); see Table 1
STDBY 23 standby control pin (active HIGH); all the output bits are logic 0 when standby is enabled
V

CCD1

DGND1 25 digital ground 1
D0 26 ADC digital output 0 (LSB)
D1 27 ADC digital output 1
D2 28 ADC digital output 2
D3 29 ADC digital output 3
D4 30 ADC digital output 4
D5 31 ADC digital output 5
D6 32 ADC digital output 6
D7 33 ADC digital output 7
D8 34 ADC digital output 8
D9 35 ADC digital output 9 (MSB)
OGND 36 digital output ground
V

CCO

6 analog supply voltage 1

to ground)

ref

12 ADC input clamp reference voltage (normally connected to pin VRB or DACOUT, or shorted to

ground via a capacitor)

15 analog supply voltage 2
16 ADC reference voltage (BOTTOM) code 0
17 ADC reference voltage (TOP) code 1023

additional 8-bit DAC for OFD output voltage; 10-bit DACforADC clamp level and the standby mode
per block and edge pulse control); see Table 1

24 digital supply voltage 1

37 digital output supply voltage

1999 Sep 21 5

Philips Semiconductors Product specification

18 Msps, 10-bit analog-to-digital

TDA8784

interface for CCD cameras

SYMBOL PIN DESCRIPTION

OE 38 output enable (active LOW: digital outputs active; active HIGH: digital outputs high impedance)
V

CCD2

DGND2 40 digital ground 2
CLK 41 ADC clock input
CLPDM 42 clamp pulse input at dummy pixel
SHP 43 pre-set sample-and-hold pulse input
SHD 44 data sample-and-hold pulse input
V

CCA3

INP 46 pre-set input signal from CCD
IND 47 data input signal from CCD
AGND3 48 analog ground 3

39 digital supply voltage 2

45 analog supply voltage 3

CLPOB

AGND4
OFDOUT
AMPOUT

AGND1

V

CCA1

AGCOUT

CPCDS
AGND5

ADCIN

CLPADC

V

ref

CCA3

INP

IND
47

46

14

15

V

AGND2

CCA2

V

SHD

45

44

TDA8784H

16

17

RT

RB

V

V

AGND3
48

1
2
3
4
5
6
7
8

9
10
11
12

13

DACOUT

SHP
43

18

DEC1

CLK

CLPDM

42

41

19

20

AGND6

DGND2
40

21

SCLK

SDATA

CCD2

V

39

22

SEN

OE

V

38

24 37

23

STDBY

V

CCO

CCD1

36
35
34
33
32
31
30
29
28
27
26
25

MGM506

OGND
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
DGND1

Fig.2 Pin configuration.
