Datasheet TDA8768H-5-C1, TDA8768H-4-C1, TDA8768AH-7-C1, TDA8768AH-5-C1, TDA8768AH-4-C1 Datasheet (Philips)

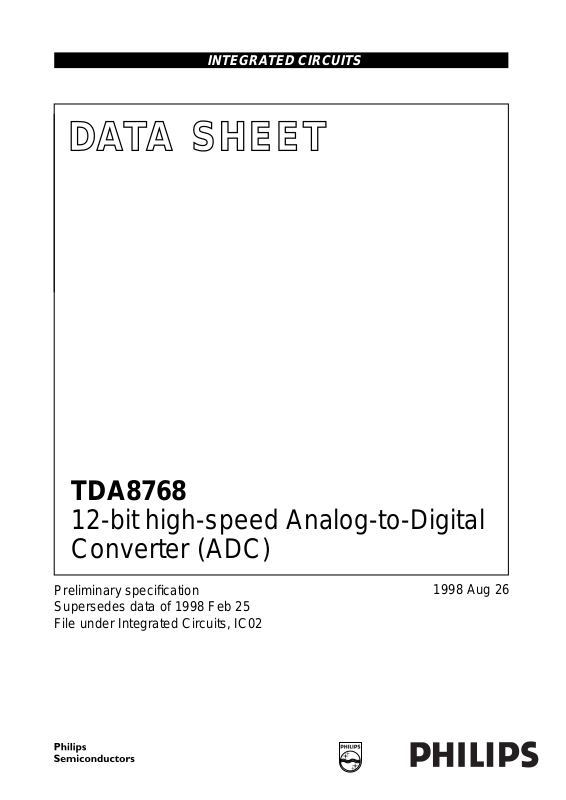

DATA SH EET

Preliminary specification
Supersedes data of 1998 Feb 25
File under Integrated Circuits, IC02

1998 Aug 26

INTEGRATED CIRCUITS

TDA8768

12-bit high-speed Analog-to-Digital
Converter (ADC)

1998 Aug 26 2

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

FEATURES

• 12-bit resolution

• Sampling rate up to 55 MHz

•−3 dB bandwidth of 190 MHz

• 5 V power supplies

• Binary or twos-complement CMOS outputs

• In-range CMOS-compatible output

• TLL-CMOS compatible static digital inputs

• 3 to 5 V CMOS-compatible digital outputs

• Differential clock input; Positive Emitter Coupled Logic

(PECL)-compatible

• Power dissipation 325 mW (typical)

• Low analog input capacitance (typical 2 pF), no buffer

amplifier required

• Integrated sample-and-hold amplifier

• Differential analog input

• External amplitude range control

• Voltage controlled regulator included.

APPLICATIONS

• High-speed analog-to-digital conversion for
– Video signal digitizing
– High Definition TV (HDTV)
– Imaging (camera scanner)
– Medical imaging
– Telecommunication
– Base-station receiver.

GENERAL DESCRIPTION

The TDA8768 is a bipolar 12-bit Analog-to-Digital
Converter (ADC) optimized for telecommunications and
professional imaging. It converts the analog input signal
into 12-bit binary coded digital words at a maximum
sampling rate of 55 MHz. All static digital inputs (SH,

CE
and OTC) are TTL and CMOS compatible and all outputs
are CMOS compatible. A sine wave clock input signal can
also be used.

QUICK REFERENCE DATA

ORDERING INFORMATION

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CCA

analog supply voltage 4.75 5.0 5.25 V

V

CCD

digital supply voltage 4.75 5.0 5.25 V

V

CCO

output supply voltage 3.0 3.3 5.25 V

I

CCA

analog supply current − 33 tbf mA

I

CCD

digital supply current − 30 tbf mA

I

CCO

output supply current f

CLK

= 4 MHz; fi= 400 kHz − 3.2 tbf mA

INL integral non-linearity f

CLK

= 4 MHz; fi= 400 kHz −±2.0 ±4.5 LSB

DNL differential non-linearity f

CLK

= 4 MHz; fi= 400 kHz −±0.6 ±1.0 LSB

f

CLK(max)

maximum clock frequency

TDA8768H/4 40 −−MHz
TDA8768H/5 55 −−MHz

P

tot

total power dissipation − 325 tbf mW

TYPE

NUMBER

PACKAGE

SAMPLING

FREQUENCY (MHz)

NAME DESCRIPTION VERSION

TDA8768H/4

QFP44

plastic quad flat package; 44 leads
(lead length 1.3 mm); body 10 × 10 × 1.75 mm

SOT307-2

40

TDA8768H/5 55

1998 Aug 26 3

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

BLOCK DIAGRAM

Fig.1 Block diagram.

V

I

handbook, full pagewidth

MGR470

D11

MSB

data outputs

19

21

D1022
D923
D824
D725
D626
D527
D4
D3

28
29

43
42

39

11

1, 5 to 8, 12 to 14, 16

V

ref

SH

n.c.

D230
D131
D0

LSB

32

V

CCO

33

IR

34

20

18

CMOS

OUTPUTS

LATCHES

ANALOG-TO-DIGITAL

CONVERTER

CLOCK DRIVER

15

V

CCD2

37

V

CCD1

41

V

CCA4

3

V

CCA3

9

V

CCA2

2

V

CCA1

36

CLK

35

CLK

CMOS

OUTPUT

OGND

OVERFLOW/

UNDERFLOW

LATCH

CEOTC

AMP

sample-

and-hold

TDA8768

17

DGND2

38

DGND1

40

AGND4

4

AGND3

10

AGND2

44

AGND1

V

I

1998 Aug 26 4

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

PINNING

SYMBOL PIN DESCRIPTION

n.c. 1 not connected
V

CCA1

2 analog supply voltage 1 (+5 V)

V

CCA3

3 analog supply voltage 3 (+5 V)
AGND3 4 analog ground 3
n.c. 5 not connected
n.c. 6 not connected
n.c. 7 not connected
n.c. 8 not connected
V

CCA2

9 analog supply voltage 2 (+5 V)
AGND2 10 analog ground 2
V

ref

11 reference voltage input
n.c. 12 not connected
n.c. 13 not connected
n.c. 14 not connected
V

CCD2

15 digital supply voltage 2 (+5 V)
n.c. 16 not connected
DGND2 17 digital ground 2
OTC 18 control input twos complement

output; active HIGH

CE 19 chip enable input

(CMOS level; active LOW)
IR 20 in-range output
D11 21 data output; bit 11 (MSB)
D10 22 data output; bit 10

D9 23 data output; bit 9
D8 24 data output; bit 8
D7 25 data output; bit 7
D6 26 data output; bit 6
D5 27 data output; bit 5
D4 28 data output; bit 4
D3 29 data output; bit 3
D2 30 data output; bit 2
D1 31 data output; bit 1
D0 32 data output; bit 0 (LSB)
V

CCO

33 output supply voltage (3 to 5.25 V)
OGND 34 output ground
CLK 35 complementary clock input; active

LOW
CLK 36 clock input
V

CCD1

37 digital supply voltage 1 (+5 V)
DGND1 38 digital ground 1
SH 39 sample-and-hold enable input

(CMOS level; active HIGH)
AGND4 40 analog ground 4
V

CCA4

41 analog supply voltage 4 (+5 V)

V

I

42 positive analog input voltage

V

I

43 negative analog input voltage

AGND1 44 analog ground 1

SYMBOL PIN DESCRIPTION

1998 Aug 26 5

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Fig.2 Pin configuration.

handbook, full pagewidth

TDA8768H

MGR469

1
2
3
4
5
6
7
8

9
10
11

33
32
31
30
29
28
27
26
25
24
23

12

13

14

15

16

17

18

19

20

21

22

44

43

42

41

40

39

38

37

36

35

34

n.c.

n.c.
n.c.

n.c.
n.c.

V

CCA1

V

CCA3

V

CCA2

V

ref

AGND3

AGND2

n.c.

n.c.

n.c.

n.c.

IR

D11

D10

DGND2

V

CCD2

CE

OTC

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

OGND

DGND1

AGND4

AGND1

V

CCD1

V

CCA4

CLK

V

CCO

CLK

SH

VIV

I

1998 Aug 26 6

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Note

1. The supply voltages V

CCA

, V

CCD

and V

CCO

may have any value between −0.3 V and +7.0 V provided that the supply

voltage differences ∆VCC are respected.

HANDLING

Inputs and outputs are protected against electrostatic discharges in normal handling. However, to be totally safe, it is
desirable to take normal precautions appropriate to handling integrated circuits.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

CCA

analog supply voltage note 1 −0.3 +7.0 V

V

CCD

digital supply voltage note 1 −0.3 +7.0 V

V

CCO

output supply voltage note 1 −0.3 +7.0 V

∆V

CC

supply voltage difference

V

CCA

− V

CCD

−1.0 +1.0 V

V

CCD

− V

CCO

−1.0 +4.0 V

V

CCA

− V

CCO

−1.0 +4.0 V

V

I

input voltage at pins 42 and 43 referenced to AGND 0.3 V

CCA

V

V

i(p-p)

input voltage at pins 35 and 36 for
differential clock drive (peak-to-peak
value)

− V

CCD

V

I

O

output current − 10 mA

T

stg

storage temperature −55 +150 °C

T

amb

operating ambient temperature −10 +85 °C

T

j

junction temperature − 150 °C

SYMBOL PARAMETER CONDITION VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 75 K/W

1998 Aug 26 7

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

CHARACTERISTICS

V

CCA=V2

to V44, V9to V10, V3to V4 and V41to V40= 4.75 to 5.25 V; V

CCD=V37

to V38and V15to V17= 4.75 to 5.25 V;

V

CCO=V33

to V34= 3.0 to 5.25 V; AGND and DGND shorted together; T

amb

= 0 to 70 °C; typical values measured at

V

CCA=VCCD

= 5 V and V

CCO

= 3.3 V, T

amb

=25°C, V

I(p-p)

− V

I(p-p)

= 2.0 V and CL= 10 pF; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

CCA

analog supply voltage 4.75 5.0 5.25 V

V

CCD

digital supply voltage 4.75 5.0 5.25 V

V

CCO

output supply voltage 3.0 3.3 5.25 V

I

CCA

analog supply current − 33 45 mA

I

CCD

digital supply current − 30 37 mA

I

CCO

output supply current f

CLK

= 4 MHz; fi= 400 kHz − 3.2 tbf mA

f

CLK

= 40 MHz; fi= 4.43 MHz − 11 tbf mA

Inputs

CLK

AND CLK (REFERENCED TO DGND)

V

IL

LOW-level input voltage V

CCD

= 5 V; note 1 3.19 − 3.52 V

V

IH

HIGH-level input voltage V

CCD

= 5 V; note 1 3.83 − 4.12 V

I

IL

LOW-level input current V

CLK

or V

CLK

= 3.19 V −10 −− µA

I

IH

HIGH-level input current V

CLK

or V

CLK

= 3.83 V −−10 µA

Z

i

input impedance f

CLK

= 40 MHz 2 −− kΩ

C

i

input capacitance f

CLK

= 40 MHz −−2pF

∆V

CLK(p-p)

differential AC input voltage
(peak-to-peak value) for
switching (V

CLK

− V

CLK

)

DC voltage level = 2.5 V 0.5 − 2.0 V

OTC, SH AND CE (REFERENCED TO DGND); see Tables 1 and 2
V

IL

LOW-level input voltage 0 − 0.8 V

V

IH

HIGH-level input voltage 2.0 − V

CCD

V

I

IL

LOW-level input current VIL= 0.8 V −20 −− µA

I

IH

HIGH-level input current VIH= 2.0 V −−+20 µA

V

I

AND V

I

(REFERENCED TO AGND); V

REF

=V

CCA

− 1.825 V; see Table 1

I

IL

LOW-level input current − 10 −µA

I

IH

HIGH-level input current − 10 −µA

R

i

input resistance fi= 4.43 MHz 100 −− kΩ

C

i

input capacitance fi= 4.43 MHz −−2pF

V

I(CM)

common mode input voltage VI= VI; output code 2047

V

CCA

= 5 V tbf 3.6 tbf V

V

CCA

= 4.75 V tbf 3.35 tbf V

V

CCA

= 5.25 V tbf 3.85 tbf V

1998 Aug 26 8

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Voltage controlled regulator input V

ref

(referenced to AGND); note 2

V

ref(FS)

full-scale fixed voltage V

CCA

=5V − 3.175 − V

I

ref

input current − 0.5 10 µA

V

I(p-p)

− V

I(p-p)

input voltage amplitude
(peak-to-peak value)

V

ref=VCCA

− 1.825 V − 2.0 − V

Outputs (referenced to OGND)

D

IGITAL OUTPUTS D11 TO D0 AND IR (REFERENCED TO OGND)

V

OL

LOW-level output voltage IOL= 2 mA 0 − 0.5 V

V

OH

HIGH-level output voltage IOH= −0.4 mA V

CCO

− 0.5 − V

CCO

V

I

o

output current in 3-state output level between 0.5 V

and V

CCO

−20 − +20 µA

Switching characteristics

C

LOCK FREQUENCY f

CLK

; see Fig.3

f

CLK(min)

minimum clock frequency SH = HIGH −−2 MHz

f

CLK(max)

maximum clock frequency

TDA8768H/4 40 −− MHz
TDA8768H/5 55 −− MHz

t

CLKH

clock pulse width HIGH 8.5 −− ns

t

CLKL

clock pulse width LOW 8.5 −− ns

Analog signal processing; 50% clock duty factor; V

I

− VI= 2.0 V; V

ref=VCCA

− 1.825 V; see Table 1

L

INEARITY

INL integral non-linearity f

CLK

= 4 MHz; fi= 400 kHz −±2.0 ±4.5 LSB

DNL differential non-linearity f

CLK

= 4 MHz; fi= 400 kHz;

no missing code

−±0.6 ±1.0 LSB

E

offset

offset error V

CCA=VCCD=VCCO

=5V;

T

amb

=25°C; VI= VI;

output code = 2047

tbf −11 tbf mV

E

G(FS)

gain error amplitude
(full scale); spread from
device to device

V

CCA=VCCD=VCCO

=5V;

T

amb

=25°C;

V

I(p-p)

− V

I(p-p)

= 2.0 V

−5 − +5 %

BANDWIDTH (f

CLK

= 55 MHz); note 3
B analog bandwidth −3 dB; full scale input tbf 190 − MHz
H

ARMONICS (f

CLK

= 40 MHz)
h

fund(FS)

fundamental harmonics
(full scale)

fi= 4.43 MHz −−0dB

h

tot(FS)

harmonics (full scale);
all components

fi= 4.43 MHz

second harmonic −−75 − dB
third harmonic −−70 − dB

THD total harmonic distortion f

i

= 4.43 MHz; note 4 −−66 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1998 Aug 26 9

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

THERMAL NOISE
N

th(rms)

thermal noise (RMS value) grounded input;

f

CLK

= 40 MHz

− 0.25 tbf LSB

SPURIOUS FREE DYNAMIC RANGE
DR

sf

spurious free dynamic range fi= 4.43 MHz tbf 69 − dB

f

i

= 10 MHz tbf tbf − dB

f

i

= 20 MHz tbf tbf − dB
SIGNAL-TO-NOISE RATIO; note 5
S/N signal-to-noise ratio without harmonics;

f

CLK

= 40 MHz; fi= 4.43 MHz

− 67 − dB

EFFECTIVE NUMBER OF BITS; note 5
N

bit

effective number of bits
TDA8768H/4 (f

CLK

= 40 MHz)

fi= 4.43 MHz − 10.3 − bits
f

i

=10MHz − tbf − bits

f

i

=15MHz − tbf − bits

effective number of bits
TDA8768H/5 (f

CLK

= 55 MHz)

fi= 4.43 MHz − 9.9 − bits
f

i

=10MHz − tbf − bits

f

i

=15MHz − tbf − bits

f

i

=20MHz − tbf − bits
INTERMODULATION; note 6
TTIR two-tone intermodulation

rejection

f

CLK

= 40 MHz tbf 66 − dB

d

3

third order intermodulation
distortion

f

CLK

= 40 MHz tbf 67 − dB

BIT ERROR RATE
BER bit error rate f

CLK

= 40 MHz;
fi= 4.43 MHz;
VI= ±16 LSB at code 2047

− 10

−15

tbf times/

sample

Timing (C

L

= 10 pF); see Fig.3 and note 7

t

d(s)

sampling delay time −−2ns

t

h

output hold time 4 −− ns

t

d

output delay time V

CCO

= 5.25 V − 10 15 ns

V

CCO

= 3.0 V 13 18 ns
3-state output delay times; see Fig.4
t

dZH

enable HIGH − 14 18 ns

t

dZL

enable LOW − 16 20 ns

t

dHZ

disable HIGH − 16 20 ns

t

dLZ

disable LOW − 14 18 ns

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1998 Aug 26 10

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Notes

1. The circuit has two clock inputs: CLK and CLK. There are four modes of operation:
a) PECL mode 1: (DC level varies 1 : 1 with V

CCD

) CLK and CLK inputs are at differential PECL levels.

b) PECL mode 2: (DC level varies 1 : 1 with V

CCD

) CLK input is at PECL level and sampling is taken on the falling
edge of the clock input signal. A DC level of 3.65 V has to be applied on CLK decoupled to GND via a 100 nF
capacitor.

c) PECL mode 3: (DC level varies 1 : 1 with V

CCD

) CLK input is at PECL level and sampling is taken on the rising
edge of the clock input signal. A DC level of 3.65 V has to be applied on CLK decoupled to GND via a 100 nF
capacitor.

d) AC driving mode 4: when driving the CLK input directly and with any AC signal of minimum 0.5 V (peak-to-peak

value) and with a DC level of 2.5 V, the sampling takes place at the falling edge of the clock signal.
When driving the CLK input with the same signal, sampling takes place at the rising edge of the clock signal. It is
recommended to decouple the CLK or CLK input to DGND via a 100 nF capacitor.

2. It is possible with an external reference connected to pin V

ref

to adjust the ADC input range. This voltage has to be

referenced to V

CCA

. For V

CCA

− 1.825 V, the differential input voltage amplitude is 2 V (peak-to-peak value).

3. The −3 dB analog bandwidth is determined by the 3 dB reduction in the reconstructed output, the input being a
full-scale sine wave.

4. THD (total harmonic distortion) is obtained with the addition of the first five harmonics:

where F is the fundamental harmonic referenced at 0 dB for a full-scale sine wave input.

5. Effective number of bits are obtained via a Fast Fourier Transform (FFT). The calculation takes into account all
harmonics and noise up to half of the clock frequency (Nyquist frequency). Conversion to SNR:
SNR = N

bit

× 6.02 + 1.76 dB.

6. Intermodulation measured relative to either tone with analog input frequencies of 4.43 and 4.53 MHz. The two input
signals have the same amplitude and the total amplitude of both signals provides full-scale to the converter (−6dB
below full-scale for each input signal).
d3 is the ratio of the RMS value of either input tone to the RMS value of the worst case third order intermodulation
product.

7. Output data acquisition: the output data is available after the maximum delay of td.

THD 20 log

F

(2nd)2(3rd)2(4th)2(5th)2(6th)

2

++++

---------------------------------------------------------------------------------------------------------------=

1998 Aug 26 11

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Table 1 Output coding with differential inputs (typical values to AGND); V

I(p-p)

− V

I(p-p)

= 2.0 V; V

ref=VCCA

− 1.825 V

Table 2 Mode selection

Note

1. X = don’t care.

Table 3 Sample-and-hold selection

CODE V

I(p-p)

V

I(p-p)

IR

BINARY OUTPUTS

TWOS COMPLEMENT

OUTPUTS

D11 TO D0 D11 TO D0

Underflow <3.1 >4.1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0

0 3.1 4.1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 00
1 −−1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 1

↓−−↓ ↓ ↓

2047 3.6 3.6 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

↓−−↓ ↓ ↓

4094 −−1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 0
4095 4.1 3.1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1

Overflow >4.1 <3.1 0 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1

OTC

CE D0 TO D11 AND IR

0 0 binary; active
1 0 twos complement; active

X

(1)

1 high impedance

SH SAMPLE-AND-HOLD

1 active
0 inactive; tracking mode

1998 Aug 26 12

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Fig.3 Timing diagram.

handbook, full pagewidth

sample N + 1

sample N

CLK

MGR472

sample N + 2

V

I

DATA
D0 to D11

t

h

t

d

t

ds

t

CLKH

t

CLKL

HIGH

LOW

50 %

HIGH

LOW

50 %

DATA

N + 1

DATA

N

DATA
N − 1

DATA

N − 2

Fig.4 Timing diagram and test conditions of 3-state output delay time.

fCE= 100kHz.

handbook, full pagewidth

MBG856

50 %

50 %

HIGH

LOW

t

dZH

t

dHZ

50 %

HIGH

LOW

t

dZL

t

dLZ

10 %

90 %

output
data

0 V

V

CCD

output
data

3.3 kΩ

15 pF

S1

V

CCD

TDA8768

CE

CE

TEST

dLZ

t

dZL

t

dHZ

t

dZH

S1

CCD

V

CCD

V

DGND
DGND

t

1998 Aug 26 13

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

APPLICATION INFORMATION

Fig.5 Application diagram.

The analog, digital and output supplies should be separated and decoupled.
(1) Single-ended clock signals can be applied if required.
(2) R1 and R2 must be determined in order to obtain a middle voltage of 3.6 V; see common mode input voltage.

In addition, to ensure a sufficient analog input stability, the minimum current into these resistors must be approximately 1 mA.

(3) V

ref

must be decoupled to V

CCA

.

handbook, full pagewidth

MGR471

1
2

3
4
5
6
7
8
9
10
11

12

n.c.

n.c.

n.c. n.c.

13 14 15 16 17 18 19 20 21 22

IR

D11

(MSB)

D10

TDA8768

44 43 42 41 40 39 38 37 36 35 34

33
32
31
30
29
28

26
25
24
23

27

D2

D1

D0 (LSB)

5 V

D3
D4
D5
D6
D7
D8
D9

100 nF

5 V

100

nF

100

nF

100

nF

output format select

chip select input

5 V

100

nF

V

ref

(3)

5 V

n.c.

n.c.

n.c.

n.c.

n.c.

CLK

CLK

100 nF

100 nF

5 V5 V SH

mode

(2)

(1)

V

I

V

I

100 Ω 100 Ω

R1

V

CCA

R2

4.7 µF

10
nF

220 nF

input

1 : 1

1998 Aug 26 14

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

Fig.6 Application diagram for differential clock input (PECL-compatible) using a TTL to PECL translator.

If the clock lines are more than 1 inch long they must be matched. In fact, the 27 Ω resistor will be changed
by the series connection of R1 and R2, with R1 = Z

o

placed close to pins CLK and CLK.

(1) 50 Ω matched line (Zo, L).

handbook, full pagewidth

MGL474

TDA8768

TRANSLATOR

PECL

CLK

CLK

35

36

D

(1)

270 Ω

270 Ω

100 nF

100 nF

Z0 = 50 Ω

Z0 = 50 Ω

R1

500 Ω

R1
500 Ω

R2
220 Ω

R2

220 Ω

TTL

input

Fig.7 Application diagram for differential clock input (PECL-compatible) using a TTL to PECL translator

and Thevenin parallel terminations.

The value of R1 and R2 must be chosen in order to meet the following relations:

and

(1) 50 Ω matched line (Z

o

, L).

3V

V

CCD

R2×

R1 R2+

---------------------------- -

= Z0

R1 R2×
R1 R2+

----------------------

=

handbook, full pagewidth

MGL473

TDA8768

TRANSLATOR

PECL

CLK

CLK

35

36

D

V

CCD

(1)

R2

120 Ω

R2
120 Ω

100 nF

R1
82 Ω

R1

82 Ω

TTL

input

1998 Aug 26 15

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

PACKAGE OUTLINE

UNIT A1A2A3bpcE

(1)

eH

E

LL

p

Zywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.25

0.05

1.85

1.65

0.25

0.40

0.20

0.25

0.14

10.1

9.9

0.8 1.3

12.9

12.3

1.2

0.8

10

0

o

o

0.15 0.10.15

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

0.95

0.55

SOT307-2

95-02-04
97-08-01

D

(1) (1)(1)

10.1

9.9

H

D

12.9

12.3

E

Z

1.2

0.8

D

e

E

B

11

c

E

H

D

Z

D

A

Z

E

e

v M

A

X

1

44

34

33 23

22

12

y

θ

A

1

A

L

p

detail X

L

(A )

3

A

2

pin 1 index

D

H

v M

B

b

p

b

p

w M

w M

0 2.5 5 mm

scale

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm

SOT307-2

A

max.

2.10

1998 Aug 26 16

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(order code 9398 652 90011).

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For details,
refer to the Drypack information in the

“Data Handbook
IC26; Integrated Circuit Packages; Section: Packing
Methods”

.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

CAUTION

Wave soldering is NOT applicable for all QFP
packages with a pitch (e) equal or less than 0.5 mm.

If wave soldering cannot be avoided, for QFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1998 Aug 26 17

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1998 Aug 26 18

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

NOTES

1998 Aug 26 19

Philips Semiconductors Preliminary specification

12-bit high-speed Analog-to-Digital
Converter (ADC)

TDA8768

NOTES

Internet: http://www.semiconductors.philips.com

Philips Semiconductors – a worldwide company

© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone]

Printed in The Netherlands 545104/750/02/pp20 Date of release: 1998 Aug 26 Document order number: 9397 750 03378
