INTEGRATED CIRCUITS

DATA SH EET

TDA8511J

4 × 13 W single-ended power
amplifiers

Preliminary specification
Supersedes data of 1999 Jun 14
File under Integrated Circuits, IC01

2000 Mar 10

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

FEATURES

• Requires very few external components

• High output power

APPLICATIONS

The device is primarily developed for multi-media
applications and active speaker systems.

• Fixed gain

• Diagnostic facility (distortion, short-circuit and

temperature detection)

• Good ripple rejection

• Mode select switch (operating, mute and standby)

• AC and DC short-circuit safe to ground and to V

P

GENERAL DESCRIPTION

The TDA8511Jis an integrated class-B output amplifier in
a 17-lead DIL-bent-SIL power package. It contains
4 × 13 W single-ended amplifiers.

• Low power dissipation in any short-circuit condition

• Thermally protected

• Reverse polarity safe

• Electrostatic discharge protection

• No switch-on/switch-off plop

• Flexible leads

• Low thermal resistance

• Identical inputs.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

ORM

I

q(tot)

I

stb

P

o

supply voltage 6 15 18 V
repetitive peak output current −−4A
total quiescent current − 80 − mA
standby current − 0.1 100 µA
output power THD = 10%

R

=4Ω−7−W

L

R

=2Ω−13 − W

L

SVRR supply voltage ripple rejection 46 −−dB
V

n(o)

Z

 input impedance 50 −−kΩ

i

noise output voltage Rs=0Ω−50 −µV

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

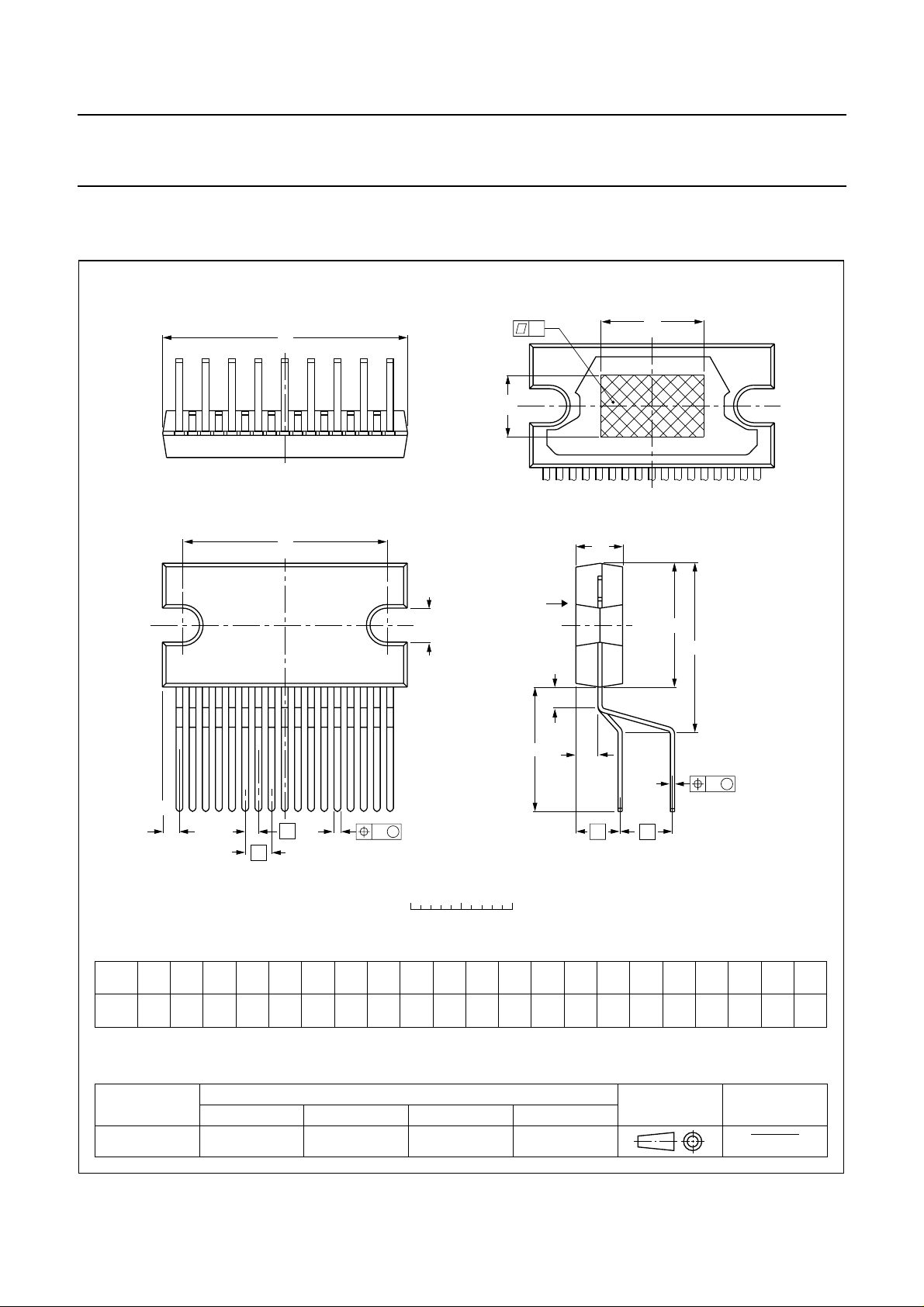

TDA8511J DBS17P plastic DIL-bent-SIL power package; 17 leads (lead length 12 mm) SOT243-1

2000 Mar 10 2

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

BLOCK DIAGRAM

V

V

P1

handbook, full pagewidth

input 1

1

60
kΩ

2

kΩ

mute switch

VA

C

m

5

TDA8511J

P2

13

6

output 1

input 2

supply voltage

ripple rejection

input 3

18 kΩ

mute switch

60
kΩ

3

2

kΩ

x1

4

15

60
kΩ

2

kΩ

18 kΩ

stand-by

switch

VA

15 kΩ

15 kΩ

VA

V

P

mute switch

VA

C

m

PROTECTIONS

thermal

short-circuit

mute
reference
voltage

C

power stage

8

output 2

power stage

mode

14

select

stand-by
reference
voltage

mute
switch

m

switch

16

diagnostic

output

10

output 3

18 kΩ

input 4

mute switch

60
kΩ

17

2

kΩ

input
reference
voltage

2711

ground
(signal)

VA

18 kΩ

9

not connected

C

GND1 GND2

Fig.1 Block diagram.

2000 Mar 10 3

power stage

m

12

output 4

power stage

MGL497

power ground (substrate)

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

PINNING

SYMBOL PIN DESCRIPTION

IN1 1 input 1
SGND 2 signal ground
IN2 3 input 2
RR 4 supply voltage ripple rejection
V

P1

5 supply voltage
OUT1 6 output 1
GND1 7 power ground 1
OUT2 8 output 2
n.c. 9 not connected
OUT3 10 output 3
GND2 11 power ground 2
OUT4 12 output 4
V

P2

13 supply voltage
MODE 14 mode select switch input
IN3 15 input 3
V

DIAG

16 diagnostic output
IN4 17 input 4

handbook, halfpage

IN1

SGND

IN2

RR

V

OUT1

GND1

OUT2

n.c.

OUT3

GND2

OUT4

V

MODE

IN3

V

DIAG

IN4

P1

P2

1
2
3
4
5
6
7
8
9

TDA8511J

10
11
12
13
14
15
16
17

MGL498

FUNCTIONAL DESCRIPTION

The TDA8511J contains four identical amplifiers and can
be used for single-ended applications. The gain of each
amplifier is fixed at 20 dB. Special features of the device
are:

• Mode select switch (pin 14)

• Diagnostic output (pin 16).

Mode select switch (pin 14)

• Low standby current (<100 µA)

• Low switching current (low cost supply switch)

• Mute facility.

Toavoidswitch-onplops,itisadvisedtokeeptheamplifier
in the mute mode during ≥100 ms (charging of the input
capacitors at pin 1, 3, 15 and pin 17).

2000 Mar 10 4

Fig.2 Pin configuration.

This can be achieved by:

• Microprocessor control

• External timing circuit (see Fig.7).

Diagnostic output (pin 16)

DYNAMIC DISTORTION DETECTOR (DDD)
At the onset of clipping of one or more output stages, the

dynamic distortion detector becomes active and pin 16
goes LOW. This information can be used to drive a sound
processor or DC volume control to attenuate the input
signal and thus limit the distortion. The output level of
pin 16 is independent of the number of channels that are
clipping (see Fig.3).

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

SHORT-CIRCUIT PROTECTION
When a short-circuit occurs at one or more outputs to

ground or to the supply voltage, the output stages are
switched off until the short-circuit is removed and the
device is switched on again, with a delay of approximately
20 ms, after removal of the short-circuit. During this
short-circuit condition, pin 16 is continuously LOW.

When a short-circuit across the load of one or more
channels occurs the output stages are switched off during
approximately 20 ms. After that time it is checked during
approximately 50 µs to see whether the short-circuit is still
present. Due to this duty cycle of 50 µs/20 ms the average
current consumption during this short-circuit condition is
very low (approximately 40 mA).

During this short-circuit condition, pin 16 is LOW for 20 ms
and HIGH for 50 µs (see Fig.4).

handbook, halfpage

V

O

0

V

16

V

P

0

MGA706

t

The power dissipation in any short-circuit condition is very
low.

TEMPERATURE DETECTION
When the virtual junction temperature Tvjreaches 150 °C,

pin 16 will be active LOW.

handbook, full pagewidth

current

in

output

stage

V

16

short-circuit over the load

V

P

Fig.3 Distortion detector waveform.

OPEN COLLECTOR OUTPUT
Pin 16 is an open collector output, which allows that more

devices can be connected together (pins 16).

MGL508

t

20 ms

50 µs

Fig.4 Short-circuit waveform.

2000 Mar 10 5

t

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

LIMITING VALUES

In accordance with the absolute maximum system (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

I

OSM

I

ORM

V

psc

V

pr

P

tot

T

stg

T

amb

T

vj

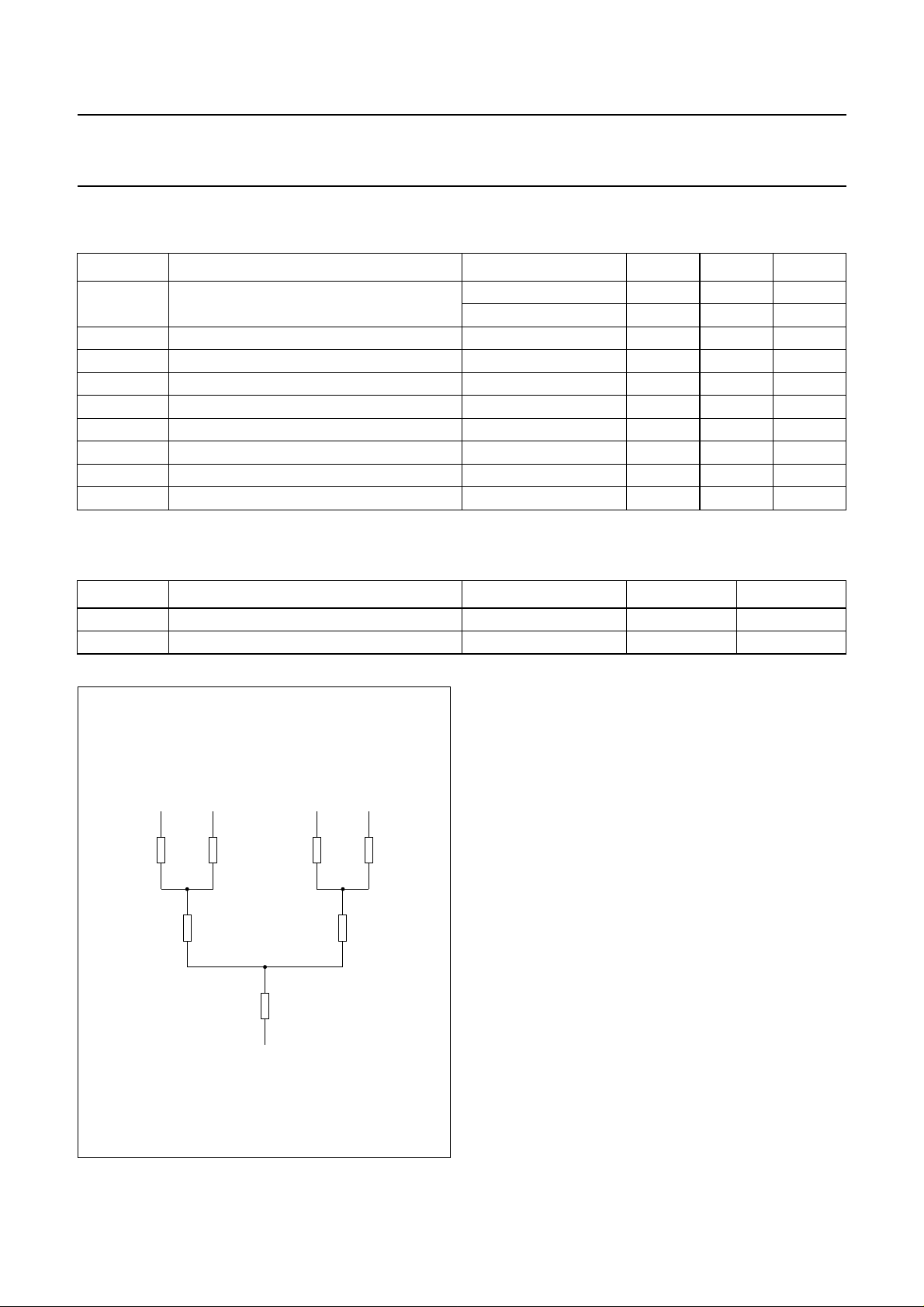

THERMAL CHARACTERISTICS

In accordance with IEC 747-1.

supply voltage operating − 18 V

no signal − 20 V
non-repetitive peak output current − 6A
repetitive peak output current − 4A
AC and DC short-circuit safe voltage − 18 V
reverse polarity − 6V
total power dissipation − 60 W
storage temperature −55 +150 °C
operating ambient temperature −40 +85 °C
virtual junction temperature − 150 °C

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

R

th(j-c)

handbook, halfpage

3.0 K/W

thermal resistance from junction to ambient in free air 40 K/W
thermal resistance from junction to case see Fig.5 1.3 K/W

virtual junction

output 1 output 2

3.0 K/W

0.7 K/W

0.2 K/W

output 3 output 4

3.0 K/W

0.7 K/W

3.0 K/W

MEA860 - 2

case

Fig.5 Equivalent thermal resistance network.

2000 Mar 10 6

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

DC CHARACTERISTICS

VP= 15 V; T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

I

P

V

O

Mode select switch

V

on

MUTE CONDITION
V

mute

V

O

STANDBY CONDITION
V

stb

I

stb

I

sw(on)

Diagnostic output (pin 16)

V

DIAG

=25°C; measured in Fig.6; unless otherwise specified.

amb

supply voltage note 1 6 15 18 V
quiescent current − 80 160 mA
DC output voltage − 6.9 − V

switch-on voltage level 8.5 −−V

mute voltage 3.3 − 6.4 V
output voltage in mute position V

i(max)

standby voltage 0 − 2V
standby current −−100 µA
switch-on current − 12 40 µA

diagnostic output voltage any short-circuit or clipping −−0.6 V

= 1 V; f = 1 kHz −−2mV

Note

1. The circuit is DC adjusted at V

= 6 to 18 V and AC operating at VP= 8.5 to 18 V.

P

2000 Mar 10 7

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

AC CHARACTERISTICS

VP= 15 V; RL=4Ω; f = 1 kHz; T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

P

O

output power note 1

THD total harmonic distortion P
P

O

f

l

f

h

G

v

output power RL=2Ω; note 1

low frequency roll-off at −1 dB; note 2 − 25 − Hz
high frequency roll-off at −1dB 20 −−kHz
closed loop voltage gain 19 20 21 dB

SVRR supply voltage ripple rejection note 3

Z

 input impedance 50 60 75 kΩ

i

V

n(o)

α

CS

∆G

 channel unbalance −−1dB

v

noise output voltage

channel separation Rs=10kΩ 40 60 − dB

Dynamic distortion detector

THD total harmonic distortion V

=25°C; measured in Fig.6; unless otherwise specified.

amb

THD = 0.5% 4 5.5 − W
THD = 10% 5.5 7 − W

=1W − 0.06 − %

O

THD = 0.5% − 10 − W
THD = 10% − 13 − W

on 48 −−dB
mute 46 −−dB
standby 80 −−dB

on; R

=0Ω; note 4 − 50 −µV

s

on; R

=10kΩ; note 4 − 70 100 µV

s

mute; notes 4 and 5 − 50 −µV

≤ 0.6 V;

16

no short-circuit

− 10 − %

Notes

1. Output power is measured directly at the output pins of the IC.

2. Frequency response externally fixed.

3. Ripple rejection measured at the output with a source-impedance of 0 Ω, maximum ripple amplitude of 2 V (p-p) and
at a frequency between 100 Hz and 10 kHz.

4. Noise measured in a bandwidth of 20 Hz to 20 kHz.

5. Noise output voltage independent of R

(Vi= 0 V).

s

2000 Mar 10 8

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

TEST/APPLICATION INFORMATION

V

handbook, full pagewidth

mode

switch

diagnostic

10

kΩ

100

nF

P

2200

µF

220 nF

input 1

input 2

ground (signal)

supply
voltage
ripple
rejection

input 3

input 4

220 nF

220 nF

220 nF

100

µF

1

3
2

4

V /2

p

15

17

14

TDA8511J

60
kΩ

60
kΩ

60
kΩ

16 5 13

reference

voltage

60

kΩ

711

6

8

9

10

12

MGL499

1000 µF

R

L

1000 µF

R

L

not connected

1000 µF

R

L

1000 µF

R

L

power ground (substrate)

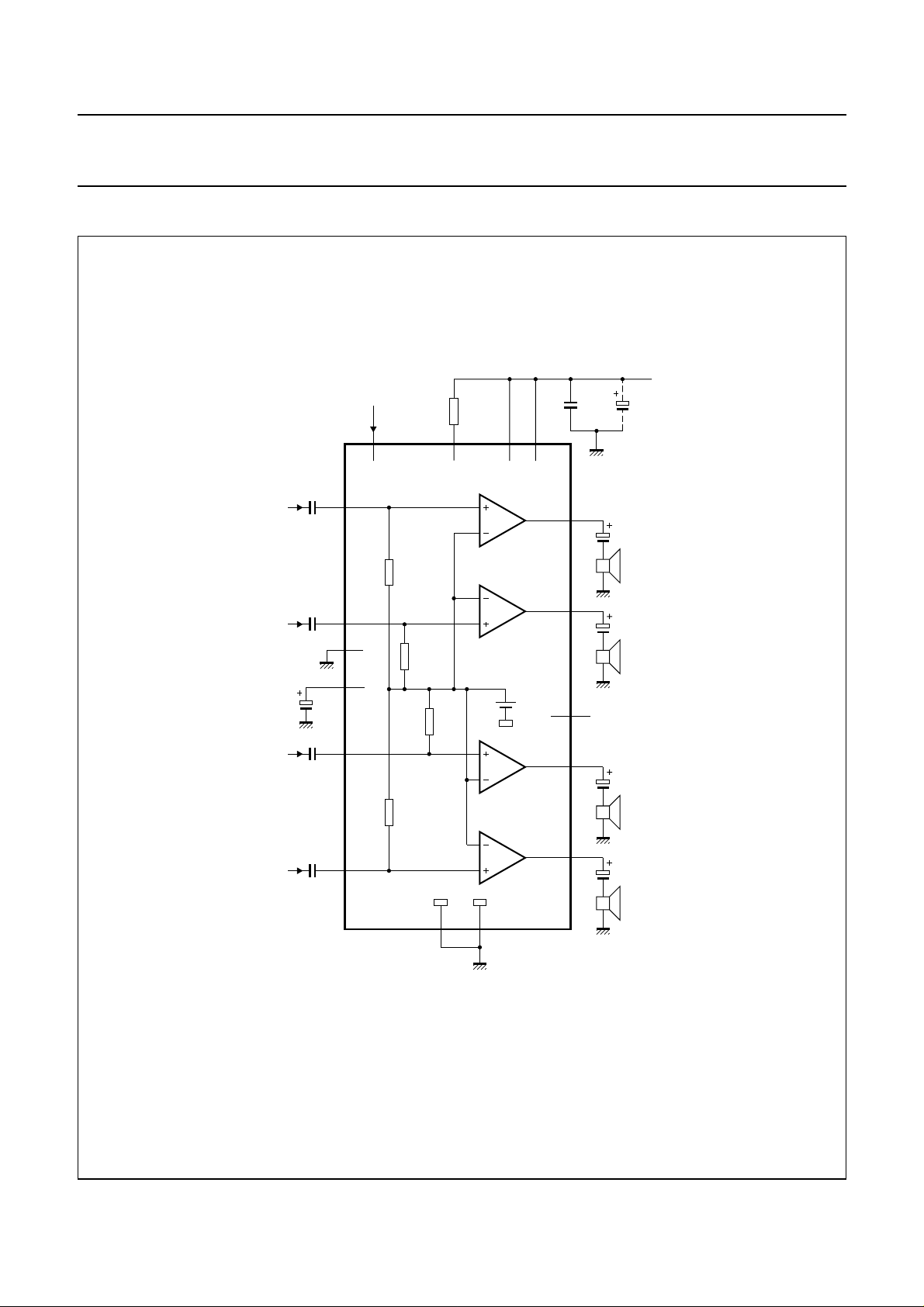

Fig.6 Application diagram.

2000 Mar 10 9

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

Mode select switch

Toavoidswitch-onplops,itisadvisedtokeeptheamplifier
in the mute mode during >100 ms (charging of the input
capacitors at pins 1, 3, 15 and 17.

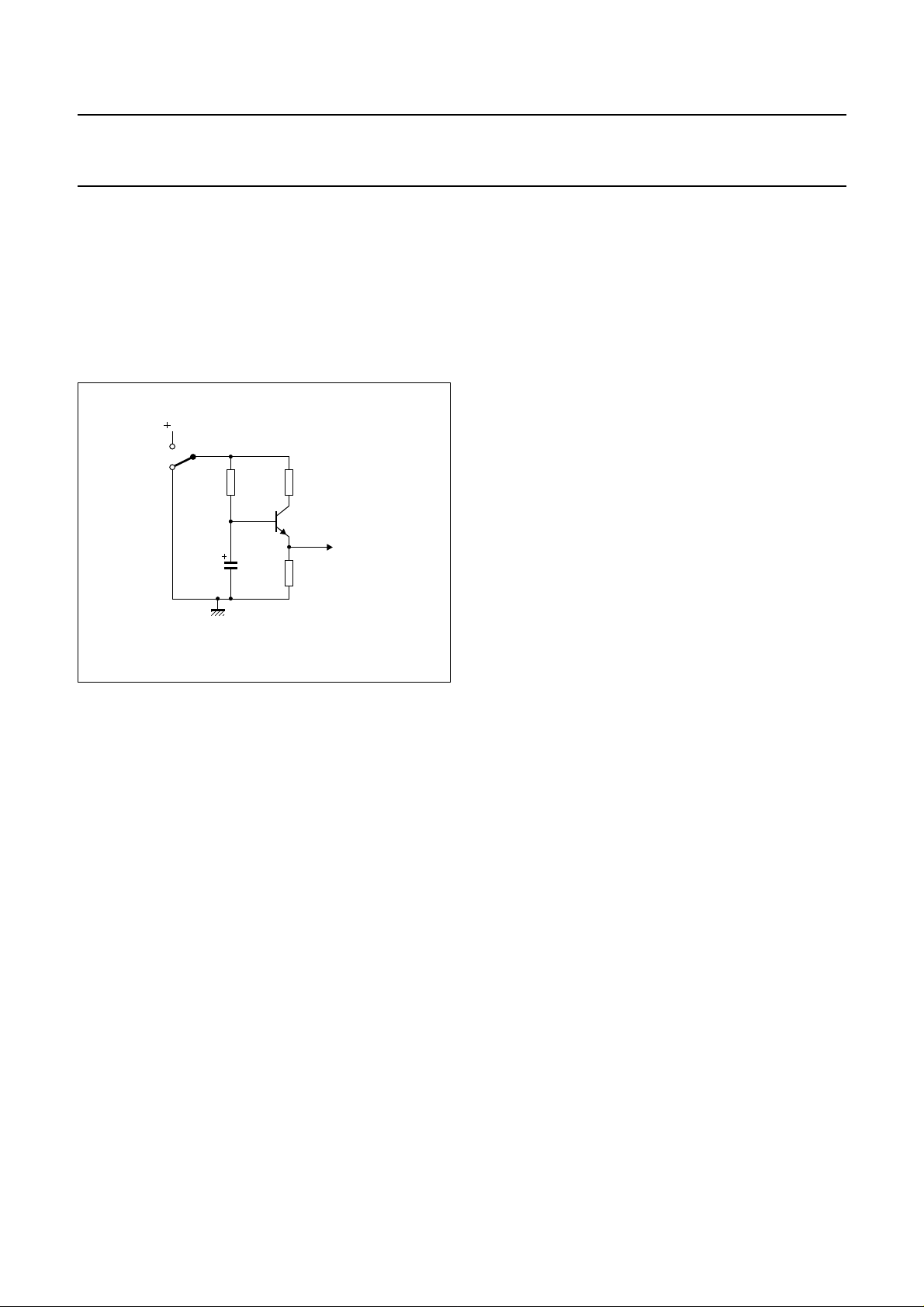

The circuit in Fig.7 slowly ramps up the voltage at the
mode select switch pin when switching on and results in
fast muting when switching off.

V

handbook, halfpage

P

10 kΩ 100 Ω

47 µF

mode
select
switch

100 kΩ

MGA708

Fig.7 Mode select switch circuitry.

2000 Mar 10 10

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

PACKAGE OUTLINE

DBS17P: plastic DIL-bent-SIL power package; 17 leads (lead length 12 mm)

SOT243-1

non-concave

D

d

j

x

E

h

view B: mounting base side

A

B

L

3

L

Q

D

h

2

E

A

117

e

Z

DIMENSIONS (mm are the original dimensions)

UNIT A e

mm

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

SOT243-1

A2bpcD

17.0

4.6

4.4

0.75

0.60

15.5

0.48

0.38

IEC JEDEC EIAJ

1

e

(1)

deD

24.0

20.0

23.6

19.6

w M

b

p

(1)

E

h

12.2

10 2.54

11.8

REFERENCES

0 5 10 mm

scale

1

1.27

2000 Mar 10 11

e

5.08

c

2.4

4.3

1.6

EUROPEAN

PROJECTION

e

2

m

E

2

h

6

LL3m

3.4

12.4

3.1

11.0

2.1

1.8

v M

(1)

v

Qj

0.8

0.4w0.03

ISSUE DATE

97-12-16
99-12-17

Z

x

2.00

1.45

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

SOLDERING
Introduction to soldering through-hole mount

packages

This text gives a brief insight to wave, dip and manual
soldering.Amorein-depthaccountofsolderingICscanbe
found in our

Packages”

Wave soldering is the preferred method for mounting of
through-hole mount IC packages on a printed-circuit
board.

Soldering by dipping or by solder wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joints for more than 5 seconds.

Suitability of through-hole mount IC packages for dipping and wave soldering methods

DBS, DIP, HDIP, SDIP, SIL suitable suitable

“Data Handbook IC26; Integrated Circuit

(document order number 9398 652 90011).

PACKAGE

Thetotalcontacttimeofsuccessivesolder waves must not
exceed 5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Manual soldering

Apply the soldering iron (24 V or less) to the lead(s) of the
package, either below the seating plane or not more than
2 mm above it. If the temperature of the soldering iron bit
is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between
300 and 400 °C, contact may be up to 5 seconds.

SOLDERING METHOD

DIPPING WAVE

(1)

stg(max)

). If the

Note

1. For SDIP packages, the longitudinal axis must be parallel to the transport direction of the printed-circuit board.

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

2000 Mar 10 12

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

NOTES

2000 Mar 10 13

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

NOTES

2000 Mar 10 14

Philips Semiconductors Preliminary specification

4 × 13 W single-ended power amplifiers TDA8511J

NOTES

2000 Mar 10 15

Philips Semiconductors – a w orldwide compan y

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PTPhilips DevelopmentCorporation, SemiconductorsDivision,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS,Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable andmaybechanged
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

2000

Internet: http://www.semiconductors.philips.com

69

Printed in The Netherlands 753503/03/pp16 Date of release: 2000 Mar 10 Document order number: 9397 750 06921
