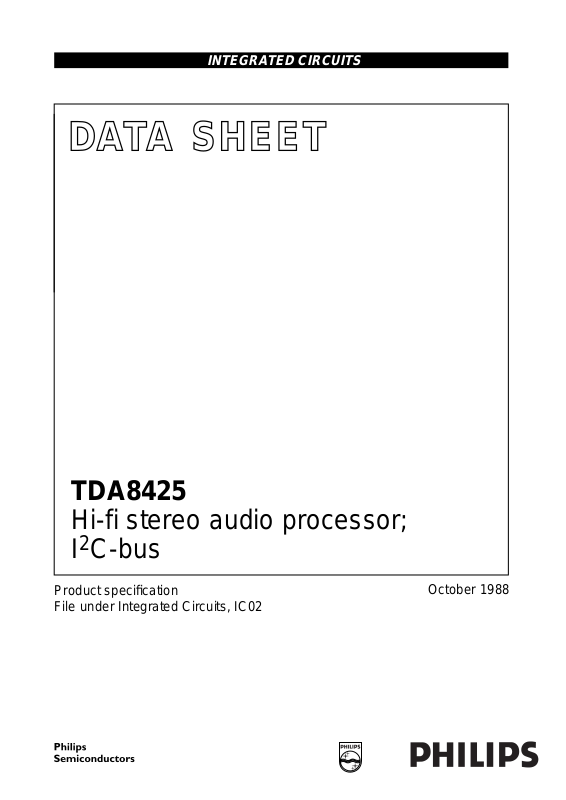

DATA SH EET

Product specification
File under Integrated Circuits, IC02

October 1988

INTEGRATED CIRCUITS

TDA8425

Hi-fi stereo audio processor;
I

2

C-bus

October 1988 2

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

GENERAL DESCRIPTION

The TDA8425 is a monolithic bipolar integrated stereo sound circuit with a loudspeaker channel facility, digitally
controlled via the I2C-bus for application in hi-fi audio and television sound.

Feature:

• Source and mode selector for two stereo channels

• Pseudo stereo, spatial stereo, linear stereo and forced mono switch

• Volume and balance control

• Bass, treble and mute control

• Power supply with power-on reset

QUICK REFERENCE DATA

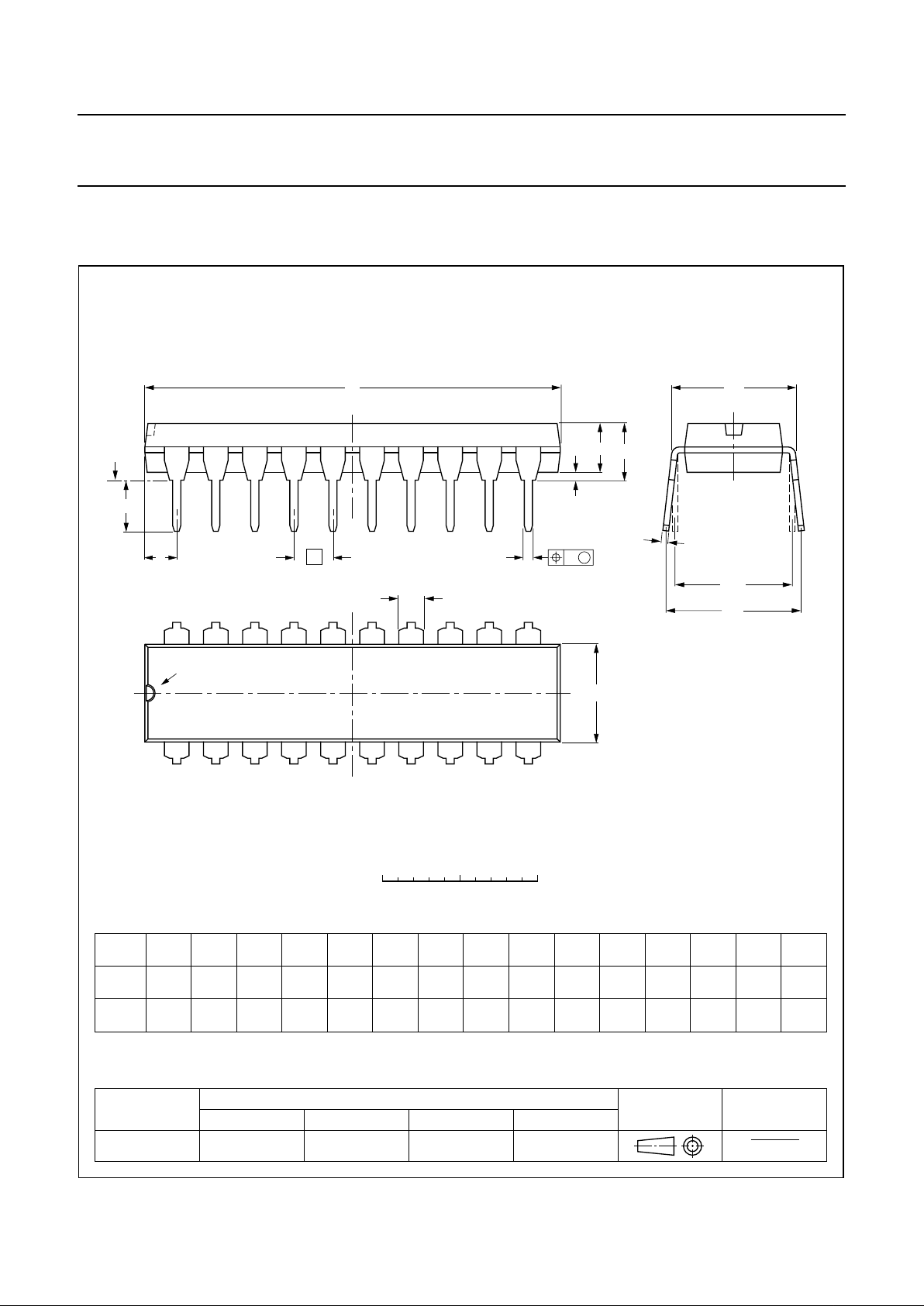

PACKAGE OUTLINE

20-lead dual in-line; plastic (SOT146); SOT146-1; 1996 November 26.

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Supply voltage (pin 4) V

CC

10.8 12.0 13.2 V

Input signal handling V

l

2 −− V

Input sensitivity

full power at the output stage V

i

− 300 − mV
Signal plus noise-to-noise ratio (S+N)/N − 86 − dB
Total harmonic distortion THD − 0.05 − %
Channel separation α−80 − dB
Volume control range G −64 − 6dB
Treble control range G −12 − 12 dB
Bass control range G −12 − 15 dB

October 1988 3

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.1 Block diagram.

October 1988 4

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

PINNING

FUNCTIONAL DESCRIPTION
Source selector

The input to channel 1 (CH1) and channel 2 (CH2) is determined by the source selector. The selection is made from the
following AF input signals:

• IN 1 L (pin 18); IN1 R (pin 20)
or

• IN2 L (pin 1); IN2 R (pin 3)

Mode selector

The mode selector selects between stereo, sound A and sound B (in the event of bilingual transmission) for OUT R and
OUT L.

Volume control and balance

The volume control consists of two stages (left and right). In each part the gain can be adjusted between +6 dB and

−64 dB in steps of 2 dB. An additional step allows an attenuation of ≥ 80 dB. Both parts can be controlled independently

over the whole range, which allows the balance to be varied by controlling the volume of left and right output channels.

Linear stereo, pseudo stereo, spatial stereo and forced mono mode

(1)

It is possible to select four modes: linear stereo, pseudo stereo, spatial stereo or forced mono. The pseudo stereo mode
handles mono transmissions, the spatial stereo mode handles stereo transmissions and the forced mono can be used
in the event of stereo signals.

(1) During forced mono mode the pseudo stereo mode cannot be used.

Fig.2 Pinning diagram.

October 1988 5

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

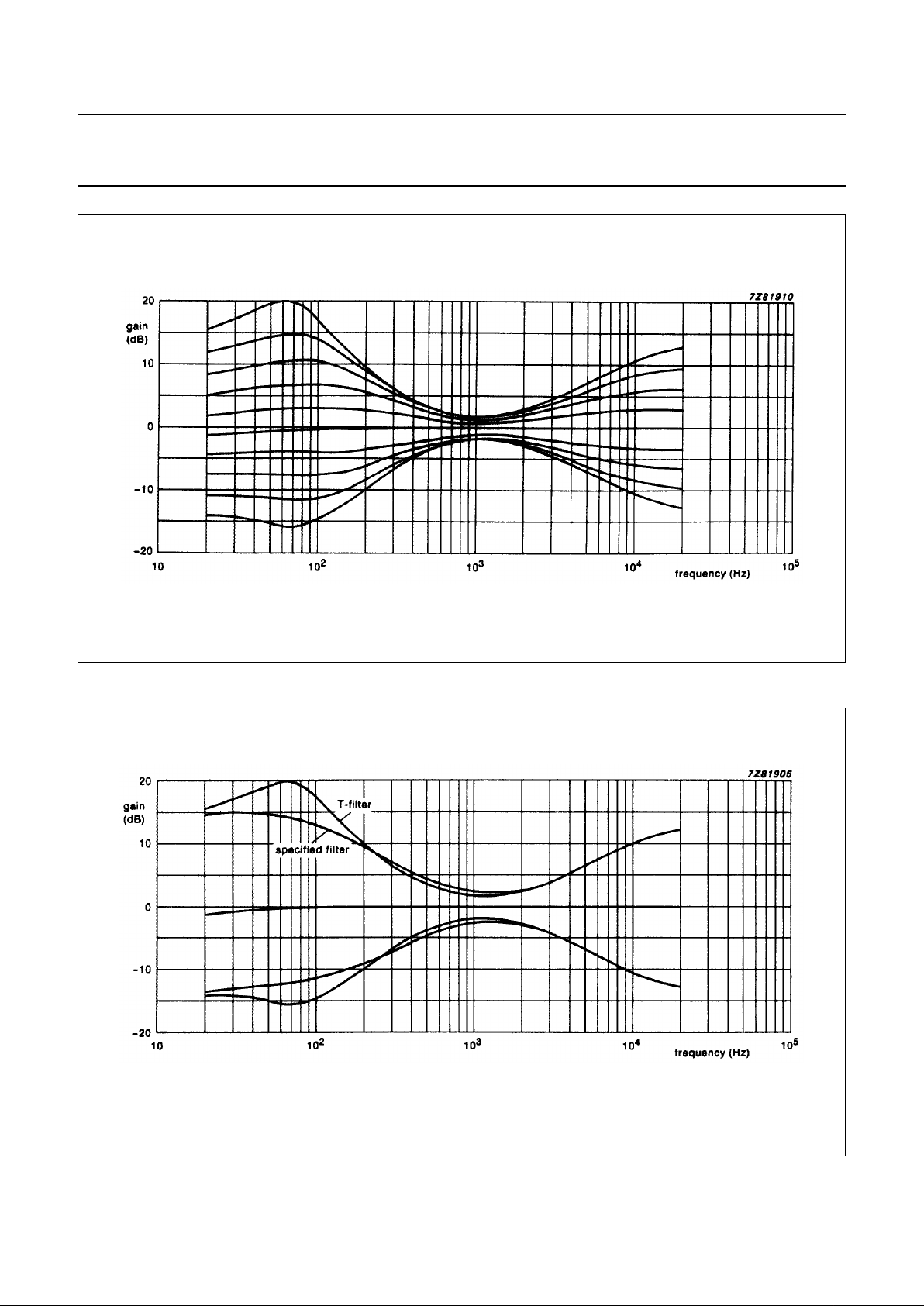

Bass control

The bass control stage can be switched from an emphasis of 15 dB to an attenuation of 12 dB for low frequencies in
steps of 3 dB.

Treble control

The treble control stage can be switched from +12 dB to −12 dB in steps of 3 dB.

Bias and power supply

The TDA8425 includes a bias and power supply stage, which generates a voltage of 0.5 × V

CC

with a low output

impedance and injector currents for the logic part.

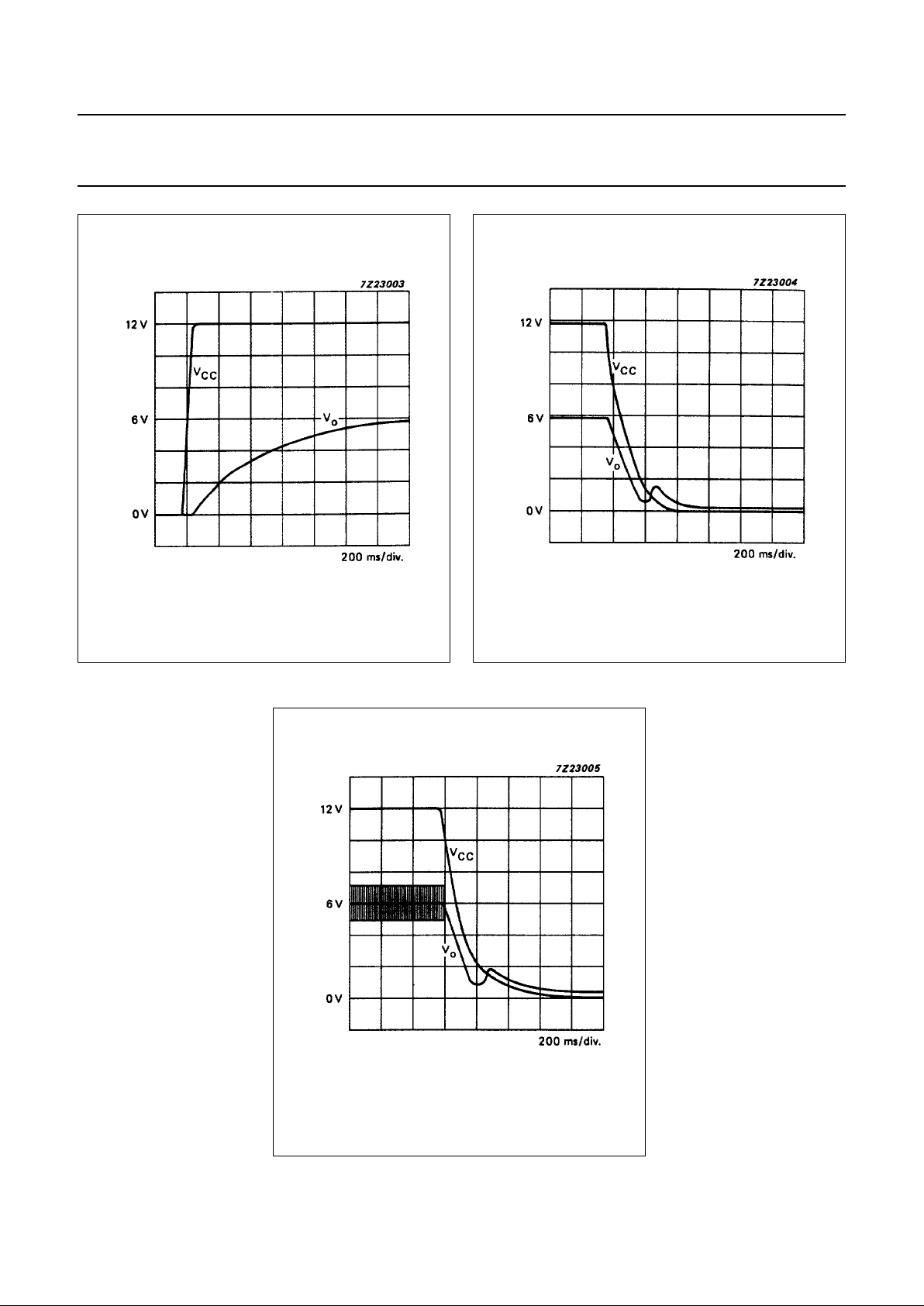

Power-on reset

The on-chip power-on reset circuit sets the mute bit to active, which mutes both parts of the treble amplifier. The muting
can be switched by transmission of the mute bit.

I

2

C-bus receiver and data handling

Bus specification
The TDA8425 is controlled via the 2-wire I2C-bus by a microcomputer.

The two wires (SDA − serial data, SCL− serial clock) carry information between the devices connected to the bus. Both
SDA and SCL are bidirectional lines, connected to a positive supply voltage via a pull up resistor.
When the bus is free both lines are HIGH.
The data on the SDA line must be stable during the HIGH period of the clock. The HIGH or LOW state of the data line
can only change when the clock signal on the SCL line is LOW. The set up and hold times are specified in AC
CHARACTERISTICS.

A HIGH-to-LOW transition of the SDA line while SCL is HIGH is defined as a start condition.
A LOW-to-HIGH transition of the SDA line while SCL is HIGH is defined as a stop condition.
The bus receiver will be reset by the reception of a start condition. The bus is considered to be busy after the start
condition.
The bus is considered to be free again after a stop condition.

Module address

Data transmission to the TDA8425 starts with the module address MAD.

Fig.3 TDA8425 module address.

October 1988 6

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Subaddress

After the module address byte a second byte is used to select the following functions:

• Volume left, volume right, bass, treble and switch functions

The subaddress SAD is stored within the TDA8425. Table 1 defines the coding of the second byte after the module
address MAD.

Table 1 Second byte after module address MAD

The automatic increment feature of the slave address enables a quick slave receiver initialization, within one
transmission, by the I

2

C-bus controller (see Fig.5).

Definition of 3rd byte

A third byte is used to transmit data to the TDA8425. Table 2 defines the coding of the third byte after module address
MAD and subaddress SAD.

Table 2 Third byte after module address MAD and subaddress SAD

function

128 64 32 16 8 4 2 1
MSB LSB
76543210

volume left 0 0 0 0 0 0 0 0
volume right 0 0 0 0 0 0 0 1
bass 0 0 0 0 0 0 1 0
treble 0 0 0 0 0 0 1 1
switch functions 0 0 0 0 1 0 0 0

subaddress SAD

function

MSB LSB
76543210

volume left VL 1 1 V05 V04 V03 V02 V01 V00
volume right VR 1 1 V15 V14 V13 V12 V11 V10
bass BA 1 1 1 1 BA3 BA2 BA1 BA0
treble TR 1 1 1 1 TR3 TR2 TR1 TR0
switch functions S1 1 1 MU EFL STL ML1 ML0 IS

October 1988 7

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Truth tables

Truth tables for the switch functions

Table 3 Source selector

Table 4 Pseudo stereo/spatial stereo/linear stereo/forced mono

Table 5 Mute

Notes

1. Pseudo stereo function is not possible in this mode.

2. Where: POR = Power-ON Reset.

Truth tables for the volume, bass and treble controls
Table 6 Volume control

function ML1 ML0 IS channel

stereo 1 1 0 1
stereo 1 1 1 2
sound A 0 1 0 1
sound B 1 0 0 1
sound A 0 1 1 2
sound B 1 0 1 2

choice STL EFL

spatial stereo 1 1
linear stereo 1 0
pseudo stereo 0 1
forced mono

(1)

00

mute MU

active; automatic

after POR

(2)

1

not active 0

2 dB/step

(dB)

V × 5V×4V×3V×2V×1V×0

6 1 1 1111
4 1 1 1110

−62 0 1 1101

−64 0 1 1100

≤−80 0 1 1011

≤−80 0 0 0000

October 1988 8

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Table 7 Bass control

Table 8 Treble control

3 dB/step

(dB)

BA3 BA2 BA2 BA0

15 1111

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

15 1011
12 1010

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

0 0110

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

−12 0010
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

−12 0000

3 dB/step

(dB)

TR3 TR2 TR2 TR0

12 1111

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

12 1010

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

0 0110

⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

−12 0010
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅
⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅ ⋅⋅

−12 0000

October 1988 9

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Sequence of data transmission

After a power-on reset all five functions have to be adjusted with five data transmissions. It is recommended that data
information for switch functions are transmitted last because all functions have to be adjusted when the muting is
switched off. The sequence of transmission of other data information is not critical.

The order of data transmission is shown in Figures 4 and 6. The number of data transmissions is unrestricted but before
each data byte the module address MAD and the correct subaddress SAD is required.

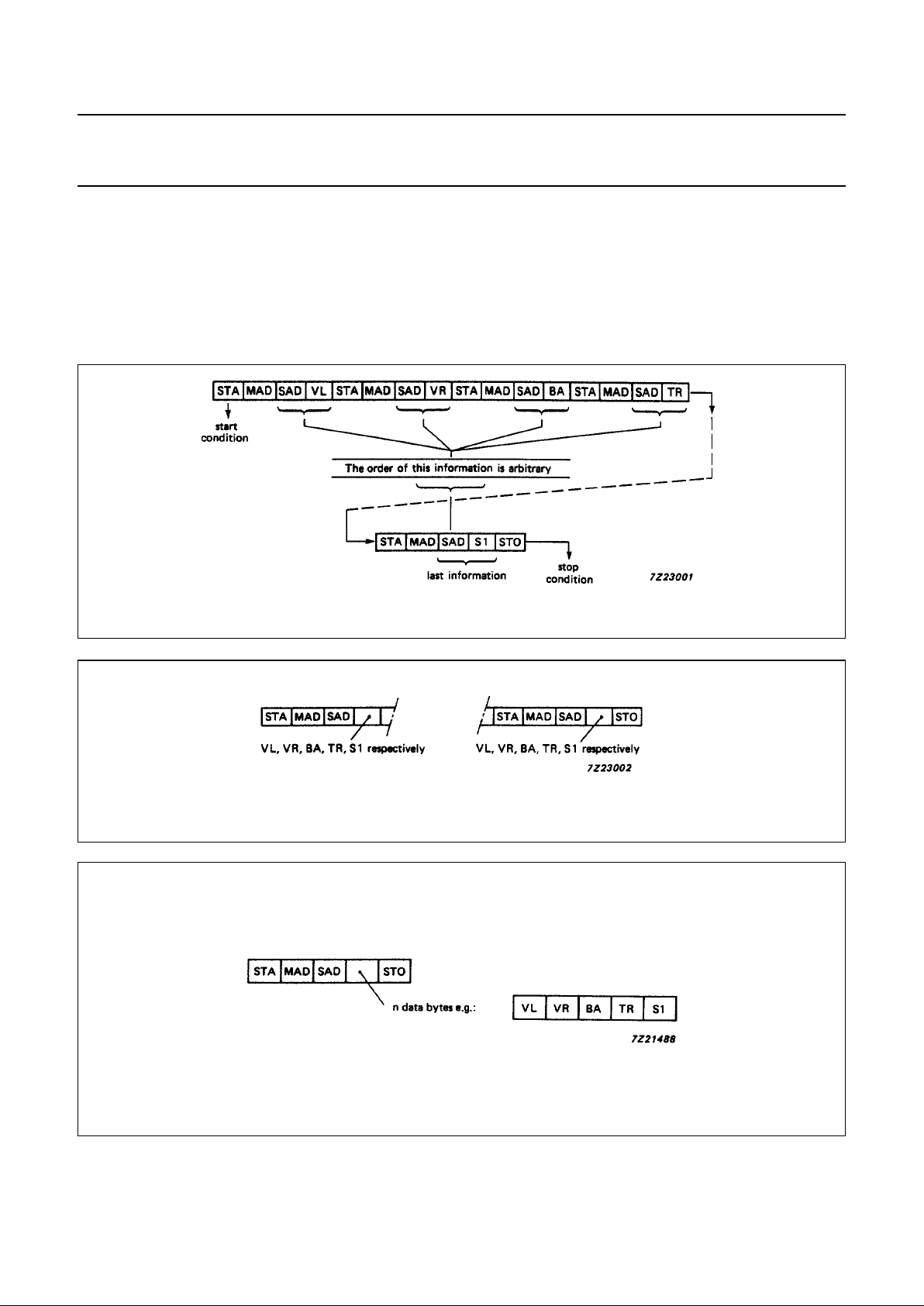

Fig.4 Data transmission after a power-on reset.

Fig.5 Data transmission after a power-on reset with auto increment.

Fig.6 Data transmission except after power-on reset.

October 1988 10

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

RATINGS

Limiting values in accordance with the Absolute Maximum System (IEC 134)

Note

1. Human body model: C = 100 pF, R = 1.5 kΩ and V ≥ 4 kV;
charge device model: C = 200 pF, R = 0 Ω and V ≥ 500 V.

DC CHARACTERISTICS

V

CC

= 12 V; T

amb

=25°C; unless otherwise specified

PARAMETER SYMBOL MIN. MAX. UNIT

Supply voltage V

CC

016V

Voltage range for pins with external capacitors V

cap

0VCCV

Voltage range for pins 11 and 12 V

SDA, SCL

0VCCV

Voltage range at pins 1, 3, 9, 11, 12, 13, 18 and 20 V

I/O

0VCCV

Output current at pins 9 and 13 I

O

− 45 mA

Total power dissipation at T

amb

< 70 °CP

tot

− 450 mW

Operating ambient temperature range T

amb

070°C

Storage temperature range T

stg

−25 +150 °C

Electrostatic handling, classification A

(1)

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Supply voltage V

CC

10.8 12.0 13.2 V

Supply current

at VCC= 12 V I

CC

− 26 35 mA

Internal reference voltage V

ref

5.4 0.5 × V

CC

6.6 V

Internal voltage

at pins 1, 3, 18 and 20
DC voltage internally generated;

capacitive coupling recommended V

l

− V

REF

− V

Internal voltage

at pins 9 and 13 V

O

− V

REF

− V

SDA; SCL (pins 11 and 12)

input voltage HIGH V

IH

3.0 − V

CC

V

input voltage LOW V

IL

−0.3 − 1.5 V

input current HIGH I

IH

−− +10 µA

input current LOW I

IL

−10 −−µA

Output voltage at pins

with external capacitors
pins 6 to 8, 14 to 17, 19, V

cap.n

− V

REF

− V

pin 2 V

cap.2

− VCC−0.3 − V

October 1988 11

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

AC CHARACTERISTICS

(1)

VCC= 12 V; bass/treble in linear position; pseudo and spatial stereo off; RL > 10 kΩ; CL< 1000 pF;
T

amb

=25°C; unless otherwise specified

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

I

2

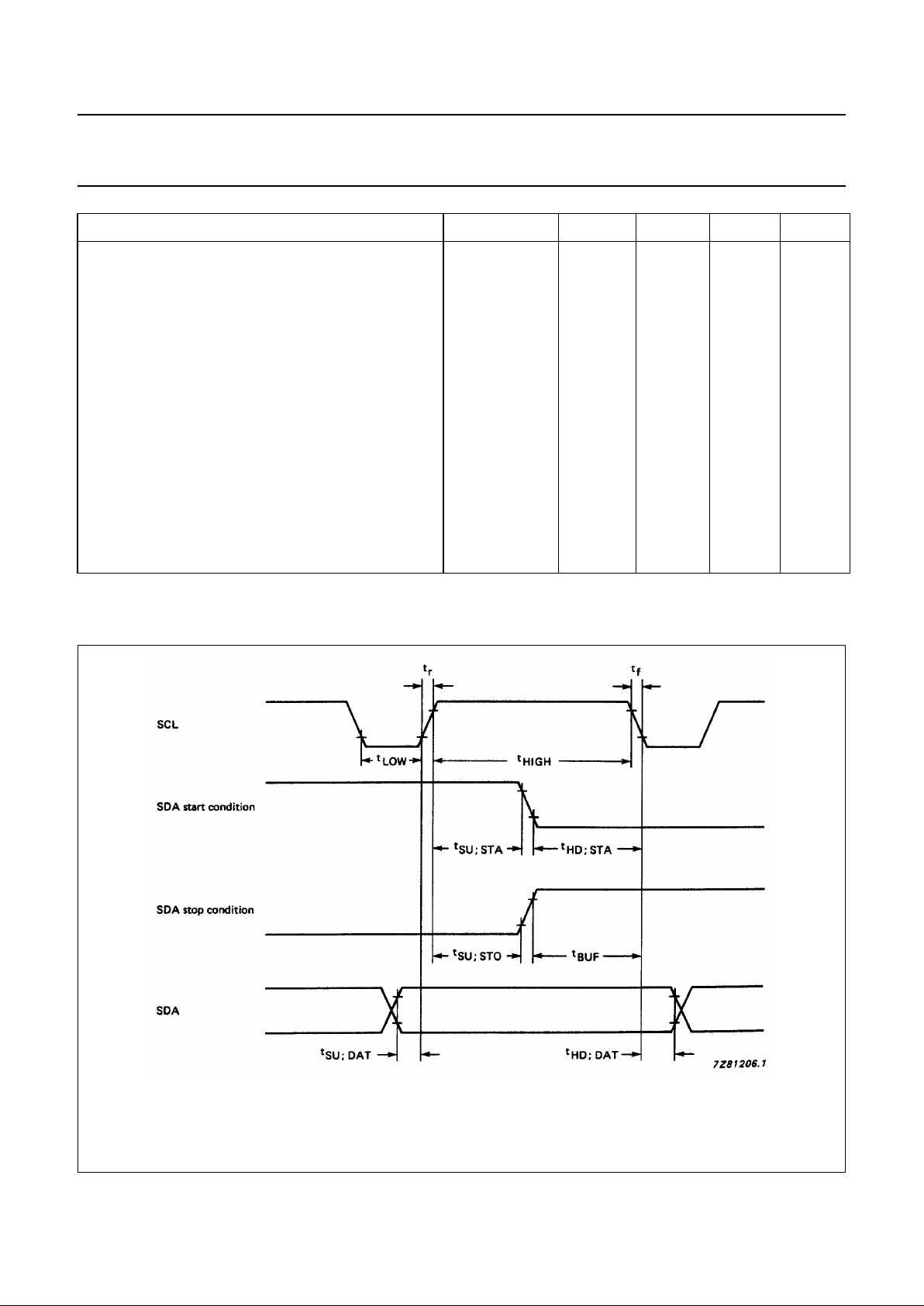

C bus timing (see Fig.7)

SDA, SCL (pin 11 and 12)
Clock frequency range f

SCL

0 − 100 kHz

The HIGH period of the clock t

HIGH

4 −−µs

The LOW period of the clock t

LOW

4.7 −−µs

SCL rise time t

r

−−1µs

SCL fall time t

f

−−0.3 µs

Set-up time for start condition t

SU; STA

4.7 −−µs

Hold time for start condition t

HD; STA

4 −−µs

Set-up time for stop condition t

SU; STO

4.7 −−µs

Time bus must be free before

a new transmission can start t

BUF

4.7 −−µs

Set-up time DATA t

SU; DAT

250 −−ns

INPUTS

IN1 L (pin 18) IN1 R (pin 20);
IN2 L (pin 1) IN2 R (pin 3)
Input signal handling (RMS value)

at V

u

= −12 dB; THD ≤ 0.5% V

i(rms)

2 −−V

Input resistance R

i

20 30 40 kΩ

Frequency response (−0,5 dB)

bass and treble in linear position;
stereo mode; effects off f 20 − 20 000 Hz

OUTPUTS

OUT R (pin 9); OUT L (pin 13)
Output voltage range (rms value)

at THD ≤ 0.7%; V

i(max)

≤ 2 V V

o(rms)

0.6 −−V

Load resistance R

L

10 −−kΩ

Output impedance Z

O

−−100 Ω

Signal plus noise-to-noise ratio (weighted

according to CCIR 468-2); V

O

= 600 mV
gain = 6 dB (S+N)/N − 78 − dB
gain = 0 dB (S+N)/N − 86 − dB
gain = ≤−20 dB (S+N)/N − 68 − dB

Crosstalk between inputs at gain = 0 dB;

1 kHz; opposite inputs grounded (50 Ω);
IN1L (pin 18) to IN2L (pin1) or
IN1R (pin 20) to IN2R (pin 3) α

cr

− 100 − dB

October 1988 12

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

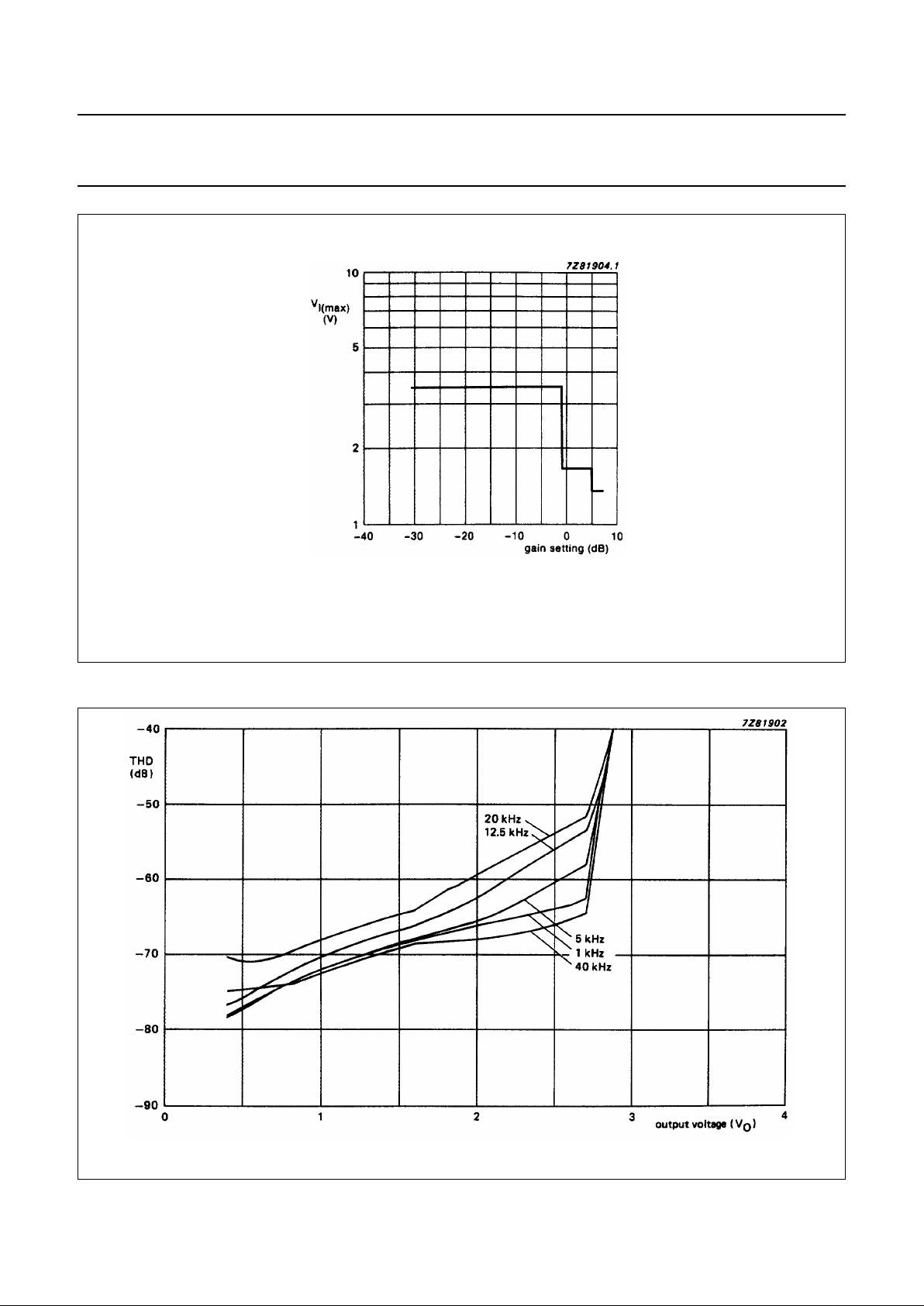

Total harmonic distortion

(f = 20 Hz to 12.5 kHz)
for V

i(rms)

= 0.3 V;

gain = +6 dB to −40 dB THD − 0.05 − %
for V

i(rms)

= 0.6 V;

gain = 0 dB to −40 dB THD − 0.07 0.4 %
for V

i(rms)

= 2.0 V;

gain = −12 dB to −40 dB THD − 0.1 − %

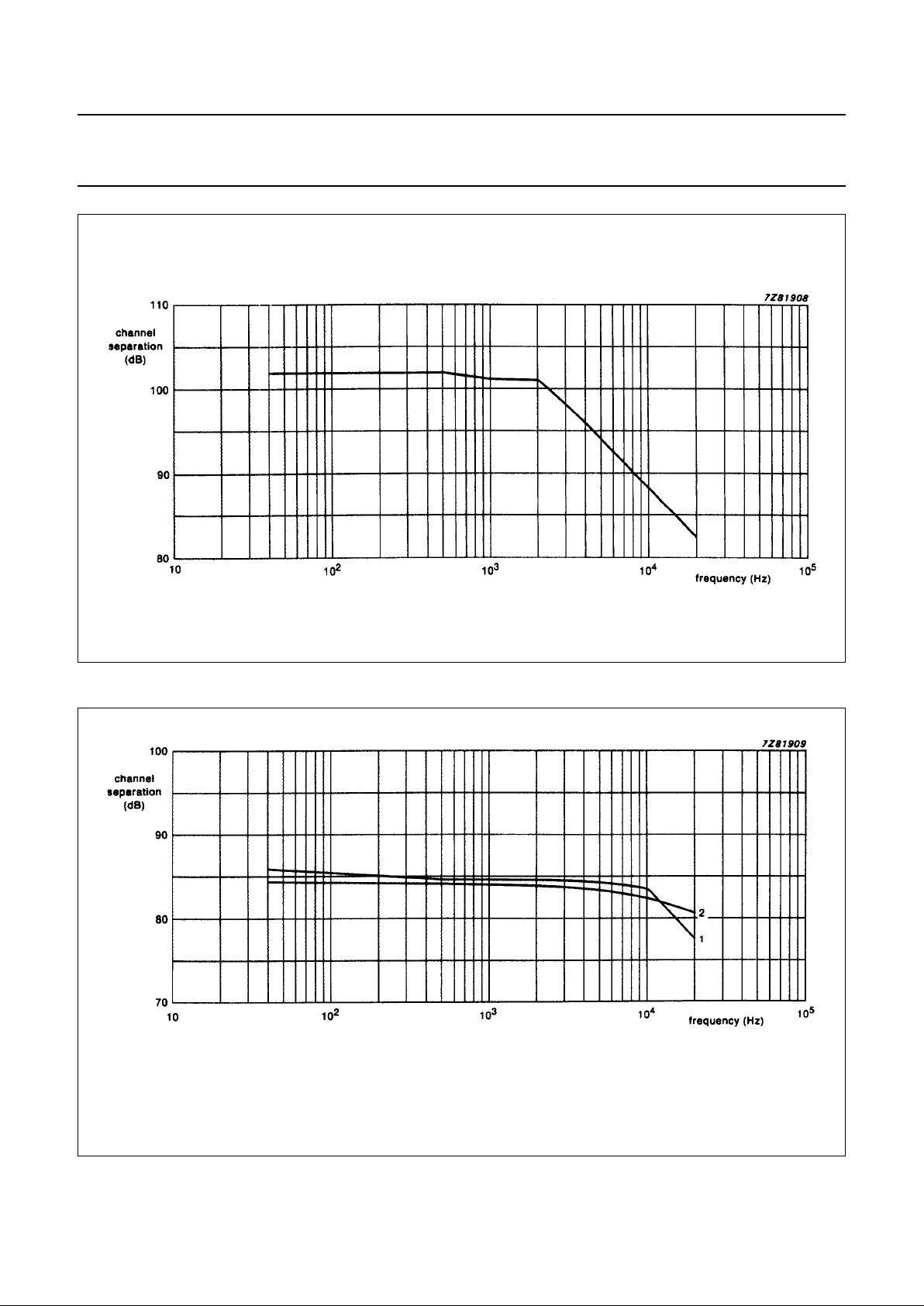

Channel separation at 10 kHz

gain = 0 dB α

cs

− 80 − dB

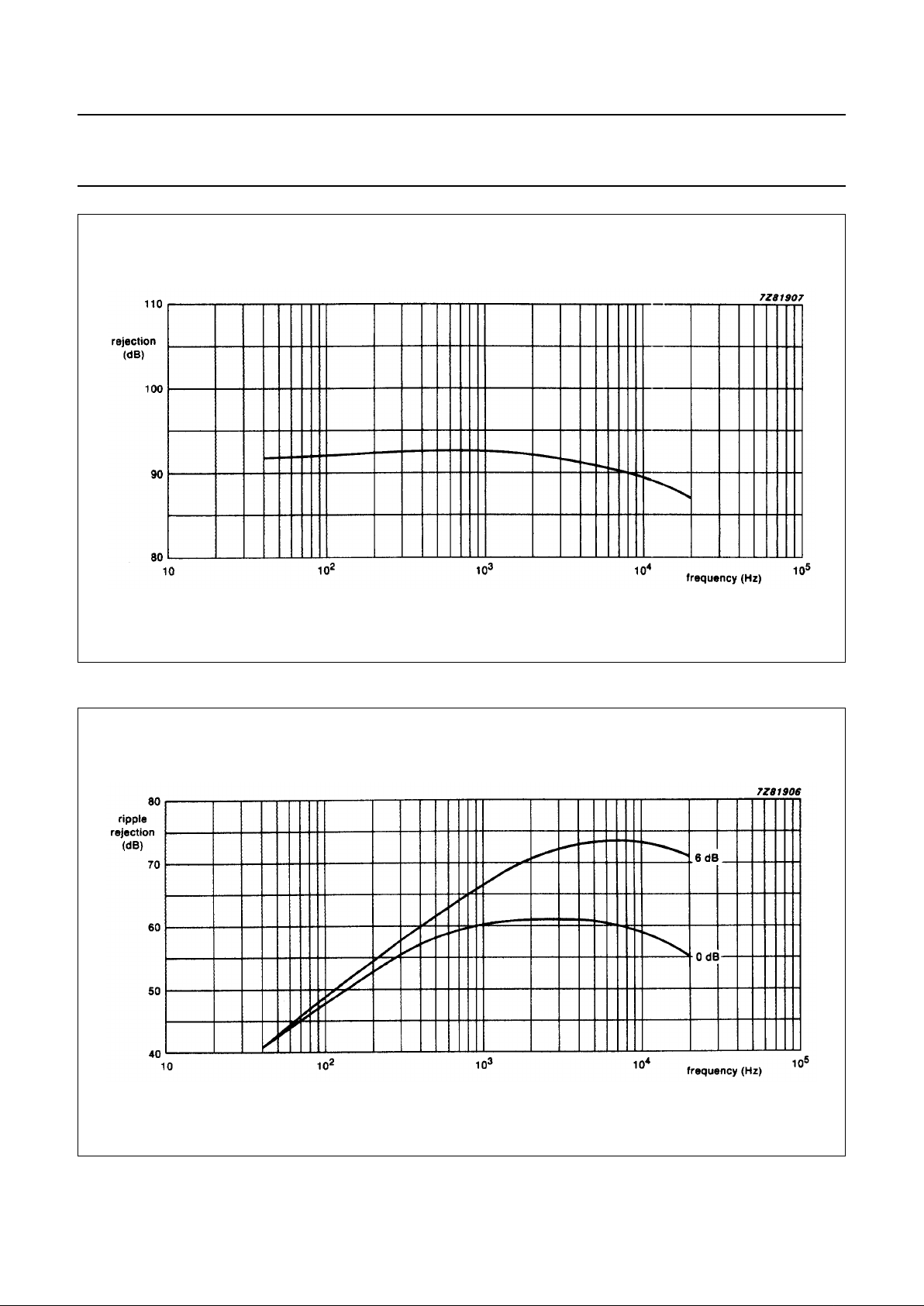

Ripple rejection (gain = 0 dB;

bass and treble in linear position)
f

ripple

= 100 Hz RR

100

− 50 − dB

Crosstalk attenuation from logic

inputs to AF outputs (gain = 0 dB;
bass and treble in linear position) α

L

− 100 − dB

VOLUME CONTROL

For truth table see Table 6
Control range at f = 1 kHz (36 steps)

maximum voltage gain (6 dB step) G

max

56−dB

minimum voltage gain (−64 dB step) G

min

−63 −64 − dB

mute position G

mute

−80 −90 − dB
Gain tracking error; balance in mid-position G −−2dB
Step resolution

gain from 6 dB to −40 dB G

step

1.5 2.0 2.5 dB/step

gain from −42 dB to −64 dB G

step

1.0 2.0 3.0 dB/step

TREBLE CONTROL

For truth table see Table 8
Control range

for C

8-5

; C

14-5

= 5.6 nF

Maximum emphasis at 15 kHz with

respect to linear position G 11 12 13 dB

Maximum attenuation at 15 kHz with

respect to linear position G 11 12 13 dB

Resolution G

step

2.5 3.0 3.5 dB/step

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

October 1988 13

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Note to the AC characteristics

1. Balance is realized via software by different volume settings in both channels (left and right).

BASS CONTROL

For truth table see Table 7
Control range

for C

6-7

; C

15-16

= 33 nF

Maximum emphasis at 40 Hz with

respect to linear position G 14 15 16 dB

Maximum attenuation at 40 Hz with

respect to linear position G 11 12 13 dB

Resolution G

step

2.5 3.0 3.5 dB/step

SPATIAL AND PSEUDO FUNCTION

Spatial:
Antiphase crosstalk α−52 − %
Pseudo:
Phase shift (see Fig.8)

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Fig.7 Timing requirements for I2C-bus.

t

SU; STA

= start code set-up time.

t

HD; STA

= start code hold time.

t

SU; STO

= stop code set-up time.

t

BUF

= bus free time.

t

SU; DAT

= data set-up time.

t

HD; DAT

= data hold time.

October 1988 14

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.8 Pseudo (phase in degrees) as a function of

frequency (left output).

curve

pin 17

(nF)

pin 19

(nF)

effect

1 15 15 normal
2 5.6 47 intensified
3 5.6 68 more intensified

Fig.9 Input signal handling capability; gain = −10 dB; RS= 600 Ω; RL= 10kΩ; bass/treble = 0 dB; VCC= 12 V.

October 1988 15

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.10 Input signal handling capability plotted against gain setting; THD = −60 dB; f = 1 kHz; RS= 600 Ω;

RL= 10 kΩ; bass/treble = 0 dB; VCC= 12 V.

Fig.11 Output signal handling capability; gain = 6 dB; RS= 600 Ω; RL= 10 kΩ, bass/treble = 0 dB, VCC= 12 V.

October 1988 16

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.12 Source selector separation (channel 2 and channel 1); gain = 0 dB; Vi1= 0 V; Vi2= 1 V, RS=0Ω;

RL= 10 kΩ; bass/treble = 0 dB; VCC= 12 V.

Fig.13 Stereo channel separation as a function of frequency; RS=0Ω, RL= 10 kΩ; bass/treble = 0 dB;

VCC= 12 V.

(1) gain = 0 dB; Vi= 1.0 V.
(2) gain = 6 dB; Vi= 0.5 V.

October 1988 17

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.14 Mute signal rejection as a function of frequency; gain = 0 dB; Vi= 1.0 V; RS=0Ω; RL= 10 kΩ;

bass/treble = 0 dB; VCC= 12 V.

Fig.15 Ripple rejection as a function of frequency; voltage ripple = 0.3 V (rms); RS=0Ω; RL= 10 kΩ;

bass/treble = 0 dB; VCC= 12 V.

October 1988 18

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.16 Noise output voltage as a function of gain; weighted CCIR468 quasi peak gain, + 6 dB to −64 dB;

Vi= 0 V, RS=0Ω; RL= 10 kΩ; bass/treble = 0 dB; VCC= 12 V.

Fig.17 Frequency response of bass and treble control; bass and treble gain settings = −12 to +15 dB;

gain is 0 dB; Vi= 0.1 V; RS9= 600 Ω; RL= 10 kΩ; VCC= 12 V.

October 1988 19

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.18 Tone control with T-filter.

Fig.19 Tone control.

October 1988 20

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

Fig.20 Turn-on behaviour; C = 2.2 µF; RL= 10 kΩ. Fig.21 Turn-off behaviour; without modulation.

Fig.22 Turn-off behaviour; with modulation

(shaded area).

October 1988 21

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

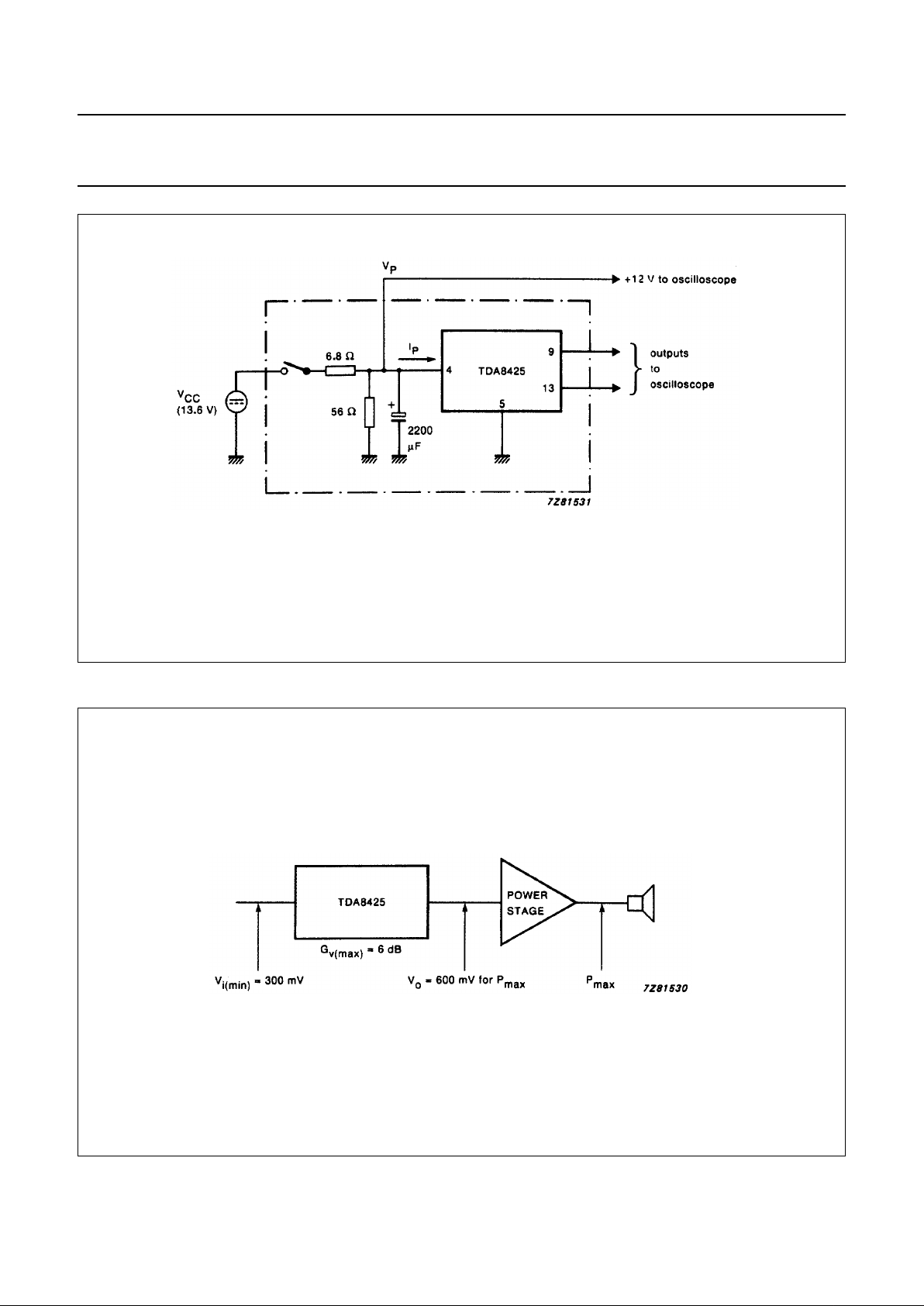

Fig.23 Turn-on/off power supply circuit diagram.

ICC=25mA
I

load

= 239 mA

t

on

=15ms

t

off

= 110 ms

Fig.24 Level diagram.

October 1988 22

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

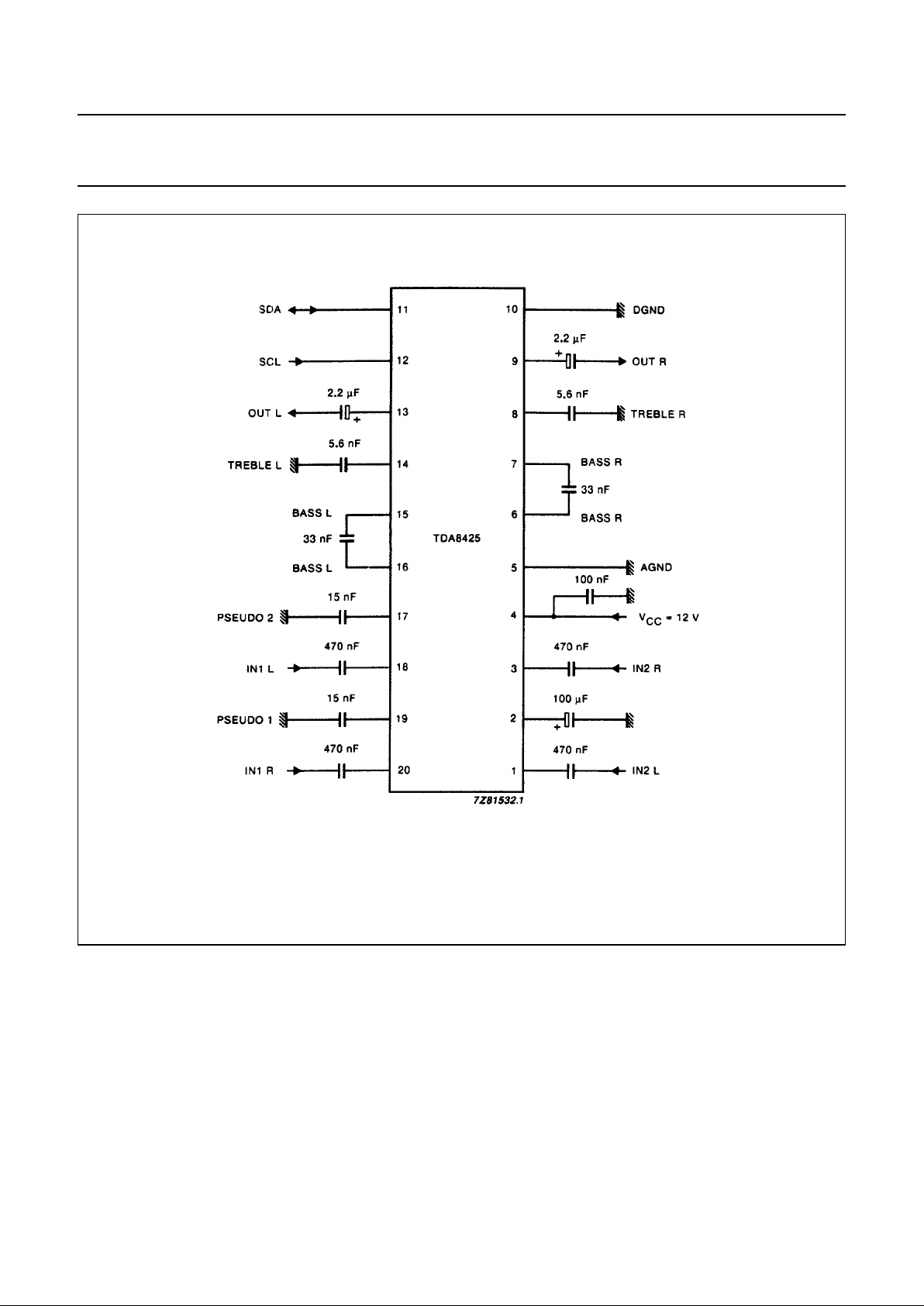

Fig.25 Test and application circuit diagram.

October 1988 23

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

PACKAGE OUTLINE

UNIT

A

max.

1 2

b

1

cD E e M

H

L

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

SOT146-1

92-11-17
95-05-24

A

min.

A

max.

b

Z

max.

w

M

E

e

1

1.73

1.30

0.53

0.38

0.36

0.23

26.92

26.54

6.40

6.22

3.60

3.05

0.2542.54 7.62

8.25

7.80

10.0

8.3

2.04.2 0.51 3.2

0.068

0.051

0.021

0.015

0.014

0.009

1.060

1.045

0.25

0.24

0.14

0.12

0.010.10 0.30

0.32

0.31

0.39

0.33

0.0780.17 0.020 0.13

SC603

M

H

c

(e )

1

M

E

A

L

seating plane

A

1

w M

b

1

e

D

A

2

Z

20

1

11

10

b

E

pin 1 index

0 5 10 mm

scale

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

(1)

(1) (1)

DIP20: plastic dual in-line package; 20 leads (300 mil)

SOT146-1

October 1988 24

Philips Semiconductors Product specification

Hi-fi stereo audio processor; I2C-bus

TDA8425

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact

with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T

stg max

). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

Purchase of Philips I

2

C components conveys a license under the Philips’ I2C patent to use the
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
