INTEGRATED CIRCUITS

DATA SH EET

TDA8424

Hi-Fi stereo audio processor;

2

I

C-bus

Product specification
File under Integrated Circuits, IC02

September 1992

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

FEATURES

• Mode selector

• Spatial stereo, stereo and forced mono switch

• Volume and balance control

• Bass, treble and mute control

• Power supply with power-on reset

GENERAL DESCRIPTION

The TDA8424 is monolithic bipolar integrated stereo
sound circuit with a loudspeaker channel facility, digitally
controlled via the I
television sound.

2

C-bus for application in hi-fi audio and

TDA8424

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

CC

V

I

V

i

positive supply voltage (pin 4) 10.8 12.0 13.2 V
input signal handling 2 −−V
input sensitivity with full power at the output

− 300 − mV

stage
(S+N)/N signal plus noise-to-noise ratio − 86 − dB
THD total harmonic distortion − 0.05 − %

α

cs

G

vol

G

tre

G

bass

channel separation − 80 − dB

volume control range −64 −+6dB

treble control range −12 −+12 dB

bass control range −12 −+15 dB

ORDERING INFORMATION

EXTENDED TYPE

NUMBER

PINS PIN POSITION MATERIAL CODE

PACKAGE

TDA8424 20 DIL plastic SOT146

Note

1. SOT146-1; 1996 December 3.

(1)

September 1992 2

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

September 1992 3

Fig.1 Block diagram.

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

PINNING

Fig.2 Pin configuration.

TDA8424

SYMBOL PIN DESCRIPTION

IN L 1 left channel input
V

CAP

IN R 3 right channel input
V

CC

AGND 5 analog ground
BASS R 6 right channel bass control
BASS R 7 right channel bass control
TREBLE R 8 right channel treble control
OUT R 9 right channel output
DGND 10 digital ground
SDA 11 serial data input/output
SCL 12 serial clock input
OUT L 13 left channel output
TREBLE L 14 left channel treble control
BASS L 15 left channel bass control
BASS L 16 left channel bass control
n.c. 17 not connected
n.c. 18 not connected
n.c. 19 not connected
n.c. 20 not connected

2 decoupling capacitor

4 positive supply voltage

September 1992 4

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

FUNCTIONAL DESCRIPTION
Mode selector

The mode selector selects between stereo, sound A and
sound B (in the event of bi-lingual transmission) for OUT R
and OUT L.

Volume control and balance

The volume control consists of two stages (left and right).
In each part the gain can be adjusted between +6 dB and

−64 dB in steps of 2 dB. An additional step allows an
attenuation of ≥ 80 dB. Both parts can be controlled
independently over the whole range, which allows the
balance to be varied by controlling the volume of left and
right output channels.

Stereo, spatial stereo and forced mono mode

It is possible to select three modes: stereo, spatial stereo
or forced mono. The spatial stereo mode handles stereo
transmissions and the forced mono can be used in the
event of stereo signals.

TDA8424

positive supply voltage via a pull-up resistor.
When the bus is free both lines are HIGH.
The data on the SDA line must be stable during the HIGH
period of the clock. The HIGH or LOW state of the data line
can only change when the clock on the SCL line is LOW.

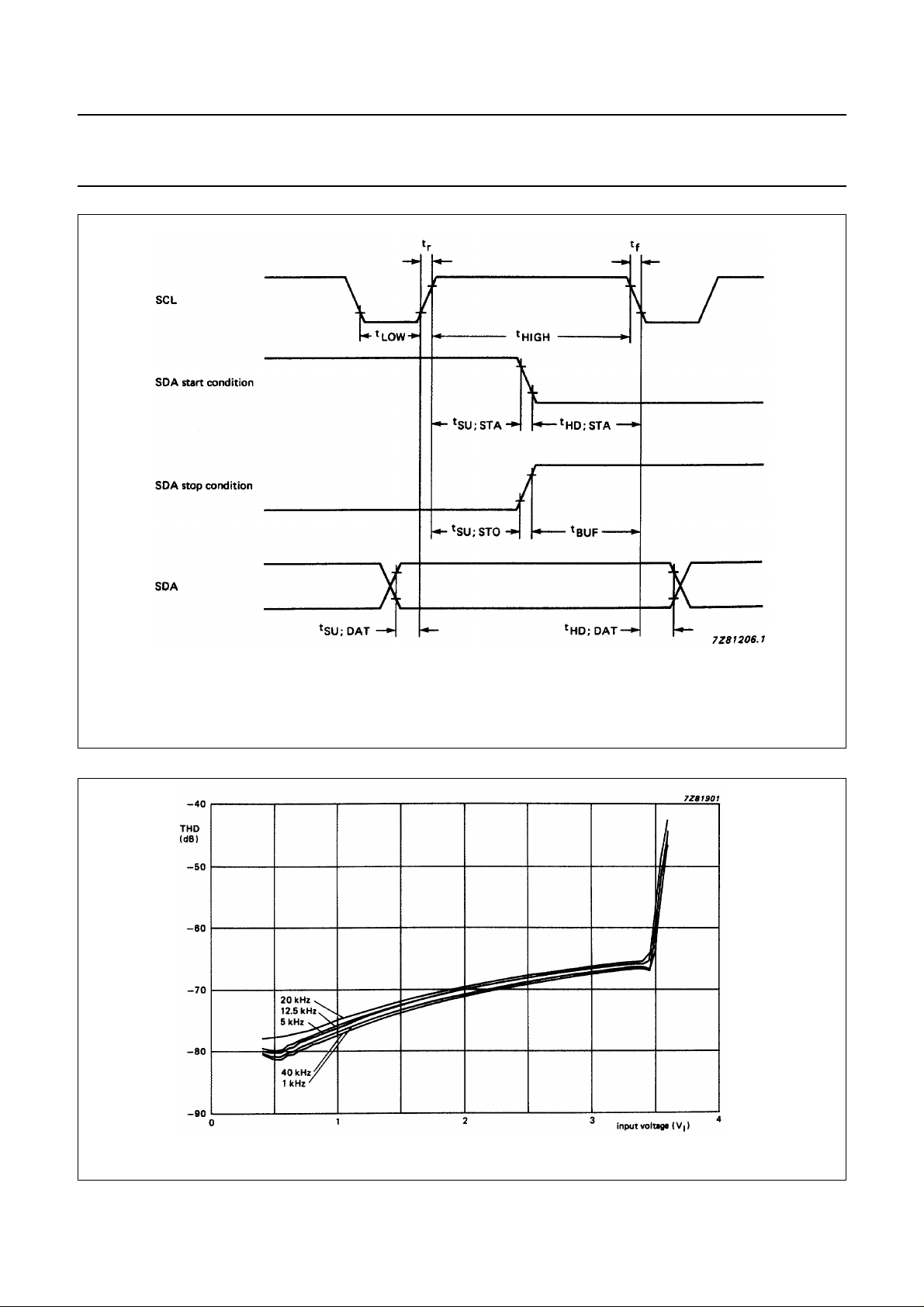

The set-up and hold times are specified in the AC
CHARACTERISTICS.
A HIGH-to-LOW transition of the SDA line while SCL is
HIGH is defined as a start condition.
A LOW-to-HIGH transition of the SDA line while SCL is
HIGH is defined as a stop condition.
The bus receiver will be reset by the reception of a start
condition. The bus is considered to be busy after the start
condition.
The bus is considered free again after a stop condition.

Module address

Data transmission to the TDA8424 starts with the module
address MAD.

Bass control

The bass control can be switched from an emphasis of
15 dB to an attenuation of 12 dB for low frequencies in
steps of 3 dB.

Treble control

The treble control stage can be switched
from +12 dB to −12 dB in steps of 3 dB.

Bias and power supply

The TDA8424 includes a bias and power supply stage,
which generates a voltage of 0.5 V
impedance and injector currents for the logic part.

Power-on reset

The on-chip power-on reset circuit sets the mute bit to
active, which mutes both parts of the treble amplifier. The
muting can be switched by transmission of the mute bit.

2

I

C-bus receiver and data handling

US SPECIFICATION

B
The TDA8424 is controlled via the 2-wire I2C-bus by a

microcontroller.
The two wires (SDA - serial data, SCL - serial clock) carry
information between the devices connected to the bus.
Both SDA and SCL are bi-directional lines, connected to a

with a low output

CC

Fig.3 TDA8424 module address.

Subaddress

After the module address byte a second byte is used to
select the following functions:

• Volume left, volume right, bass, treble and switch
functions

The subaddress SAD is stored within the TDA8424. Table
1 defines the coding of the second byte after the module
address MAD.

The automatic increment feature of the slave address
enables a quick slave receiver initialization, within one
transmission, by the I

2

C-bus controller (see Fig.5).

September 1992 5

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Table 1 Second byte after module address MAD

128 64 32 16 8 4 2 1

MSB LSB

FUNCTION

Volume left 0 0 0 0 0 0 0 0
Volume right 0 0 0 0 0 0 0 1
Bass 0 0 0 0 0 0 1 0
Treble 0 0 0 0 0 0 1 1

Switch functions 0 0 0 0 1 0 0 0

Definition of 3rd byte

A third byte is used to transmit data to the TDA8424. Table 2 defines the coding of the third byte after module address
MAD and subaddress SAD.

76543210

00000000
00000000
00000000
00000000

subaddress SAD

TDA8424

Table 2 Third byte after module address MAD and subaddress SAD

MSB LSB

FUNCTION 7 6 5 4 3 2 1 0

Volume left VL 1 1 V05 V04 V03 V02 V01 V00
Volume right VR 1 1 V15 V14 V13 V12 V11 V10
Bass BA 1 1 1 1 BA3 BA2 BA1 BA0
Treble TR 1 1 1 1 TR3 TR2 TR1 TR0

1111111 1
1111111 1
1111111 1
1111111 1

Switch functions S1 1 1 MU EFL STL ML1 ML0 1

Truth tables

Tables 3, 4 and 5 are truth tables for the switch functions

Table 3 Mode selector

FUNCTION ML1 ML0 IS

Stereo 1 1 1
Sound A 0 1 1
Sound B 1 0 1

(1)
(1)
(1)

Note

1. Must be set to logic 1

September 1992 6

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Table 4 Stereo/spatial stereo/forced mono

CHOICE STL EFL

Spatial stereo 1 1
Stereo 10
Forbidden status 0 1
Forced mono 0 0

Table 5 Mute (see note 1)

MUTE MU

Active; automatic after POR 1
Not active 0

Note

1. POR = Power-on reset.

Tables 6, 7 and 8 are truth tables for the volume, bass and treble controls
Table 6 Volume control

TDA8424

2 dB/STEP (dB) V × 5V×4V×3V×2V×1V×0

6 111111
4 111110
2 111101
0 111100

−2 111011

−4 111010

−6 111001

−8 111000

−10 110111

−20 110010

−30 101101

−40 101000

−50 100011

−60 011110

−62 011101

−64 011100

−80 011011

September 1992 7

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Table 7 Bass control

3 dB/STEP (dB) BA3 BA2 BA1 BA0

15 1011
12 1010

9 1001
6 1000
3 0111
0 0110

−3 0101

−6 0100

−9 0011

−12 0010

Table 8 Treble control

3 dB/STEP (dB) TR3 TR2 TR1 TR0

12 1010

9 1001
6 1000
3 0111
0 0110

−3 0101

−6 0100

−9 0011

−12 0010

TDA8424

September 1992 8

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

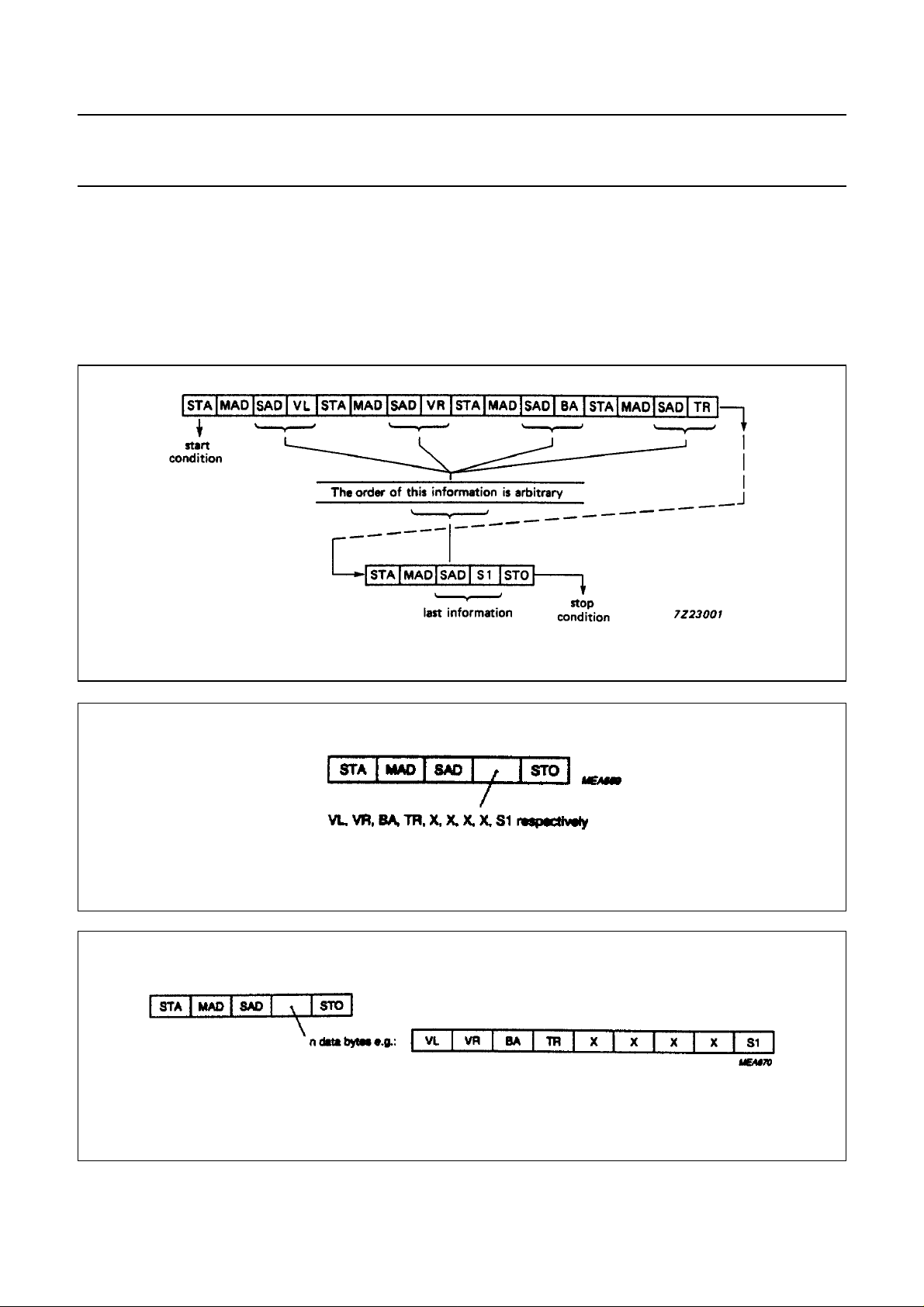

Sequence of data transmission

After a power-on reset all five functions have to be adjusted with five data transmissions. It is recommended that data
information for switch functions are transmitted last because all functions have to be adjusted when the muting is
switched off. The sequence of transmission of other data information is not critical.

The order of data transmission is shown in Figures 4 and 6. The number of data transmissions is unrestricted but before
each data byte the module address MAD and the correct subaddress SAD is required.

TDA8424

Fig.4 Data transmission after a power-on reset.

Fig.5 Data transmission after a power-on reset with auto increment.

Fig.6 Data transmission except after a power-on reset.

September 1992 9

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

LIMITING VALUES

In accordance with Absolute Maximum System (IEC 134)

SYMBOL PARAMETER MIN. MAX. UNIT

V

CC

V

cap

V

SDA, SCL

V

I/O

I

O

P

tot

T

amb

T

stg

V

stat

supply voltage 0 16 V
voltage range for pins with external capacitors 0 V
voltage range for pins 11 and 12 0 V
voltage range at pins 1, 3, 9, 11, 12 and 13 0 V

CC
CC
CC

output current at pins 9 and 13 − 45 mA
total power dissipation at T

< 70 °C − 450 mW

amb

operating ambient temperature range 0 +70 °C
storage temperature range −25 +150 °C
electrostatic handling see note 1

Note

1. Electrostatic handling Human body model: C = 100 pF, R = 1.5 kΩ and V ≥ 3 kV; charge device model:
C = 200 pF, R = 0 Ω and V ≥ 400 V.

DC CHARACTERISTICS

V

CC

= 12 V; T

= 25 °C; unless otherwise specified

amb

V
V
V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

CC

I

CC

V

ref

V

I

supply voltage range 10.8 12.0 13.2 V
supply current at VCC = 12 V − 26 35 mA
internal reference voltage 5.4 0.5V
internal voltage at pins 1 and 3 DC voltage internally

− V

ref

CC

6.6 V

− V
generated;
capacitive coupling
recommended

V

O

internal voltage at pins 9 and

− V

ref

− V

13

SDA; SCL (pins 11 and 12)

V

IH

V

IL

I

IH

I

IL

HIGH level input voltage 3.0 − V

CC

V
LOW level input voltage −3.0 − 1.5 V
HIGH level input current −−+10 µA
LOW level input current −10 −−µA
output voltage at pins with

external capacitors

V
V

cap.n
cap.2

pins 6 to 8, 14 to 16 − V

ref

− V

pin 2 − VCC−0.3 − V

September 1992 10

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

AC CHARACTERISTICS

= 12 V; bass/treble in linear position; stereo mode; spatial stereo off; RL> 10 kΩ;CL<1000 pF; T

V

CC

amb

=25°C;

unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

2

C-bus timing (see Fig.7)

I

SDA, SCL (PINS 11 AND 12)
f

SCL

t

HIGH

t

LOW

t

r

t

f

t

SU;STA

t

HD;STA

t

SU;STO

t

BUF

clock frequency range 0 − 100 kHz
clock HIGH period 4 −−µs
clock LOW period 4.7 −−µs
SCL rise time −−1µs
SCL fall time −−0.3 µs
set-up time for start condition 4.7 −−µs
hold time for start condition 4 −−µs
set-up time for stop condition 4.7 −−µs
time bus must be free before

4.7 −−µs

a new transmission can start

t

SU;DAT

data set-up time 250 −−ns

Inputs

INL(

PIN 1) IN R (PIN 3)

V

i(RMS)

R

i

input signal handling
(RMS value)

input resistance 20 30 40 kΩ

at Vu = −12 dB;
THD ≤ 0.5%

2 −−V

f frequency response (0.5 dB) 20 − 20 000 Hz

Outputs

OUTR(
V

R
Z

PIN 9) OUT L (PIN 13)

o(RMS)

output voltage range
(RMS value)

L
O

load resistance 10 −−kΩ
output impedance −−100 Ω

at V

i(max)

≤ 2V;

THD ≤ 0.7%

0.6 −−V

(S+N)/N signal plus noise-to-noise ratio weighted in accordance

with CCIR 468-2;

= 600 mV

V

o

gain = 6 dB − 78 − dB
gain = 0 dB − 86 − dB
gain ≤−20 dB − 68 − dB

THD total harmonic distortion f = 20 Hz to 12.5 kHz

gain = +6dBto−40 dB V
gain = 0 dB to −40 dB V
gain = −12 dB to −40 dB V

= 0.3 V − 0.05 − %

i(RMS)

= 0.6 V − 0.07 0.4 %

i(RMS)

= 2.0 V − 0.1 − %

i(RMS)

September 1992 11

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Outputs

α

RR

cs

100

channel separation at 10 kHz gain = 0 dB − 80 − dB
ripple rejection f

ripple

V

r(RMS)

= 100 Hz;

< 200 mV

− 50 − dB

gain = 0 dB

α

L

crosstalk attenuation from logic

gain = 0 dB − 100 − dB

inputs to AF outputs

Volume control (see Table 6)

control range (36 steps) f = 1 kHz
G
G
G
G

max
min
mute
err

maximum voltage gain 6 dB step 5 6 − dB
minimum voltage gain −64 dB step −63 −64 − dB
mute position −80 −90 − dB

gain tracking error;

−−2dB

balance in mid-position
G

step

step resolution

gain from +6dBto−40 dB 1.5 2.0 2.5 dB/step
gain from −42 dB to −64 dB 1.0 2.0 3.0 dB/step

Treble control (see Table 8)

control range C
G

emp

maximum emphasis at 15 kHz

8-5

; C

= 5.6 nF

14-5

11 12 13 dB

with respect to linear position

G

att

maximum attenuation at

11 12 13 dB

15 kHz

with respect to linear position

G

step

resolution 2.5 3.0 3.5 dB/step

Bass control (see Table 7)

control range C
G

emp

maximum emphasis at 40 Hz

6-7

; C

15-16

= 33 nF

14 15 16 dB

with respect to linear position

G

att

maximum attenuation at 40Hz

11 12 13 dB

with respect to linear position

G

step

resolution 2.5 3.0 3.5 dB/step

Spatial function

α antiphase crosstalk − 52 − %

Note to the characteristics

1. Balance is obtained via software by different volume settings in both channels (left and right).

September 1992 12

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

t

= start code set-up time.

SU; STA

= start code hold time.

t

HD; STA

= stop code set-up time.

t

SU; STO

Fig.7 Timing requirements for I2C-bus.

t

= bus free time.

BUF

= data set-up time.

t

SU; DAT

= data hold time.

t

HD; DAT

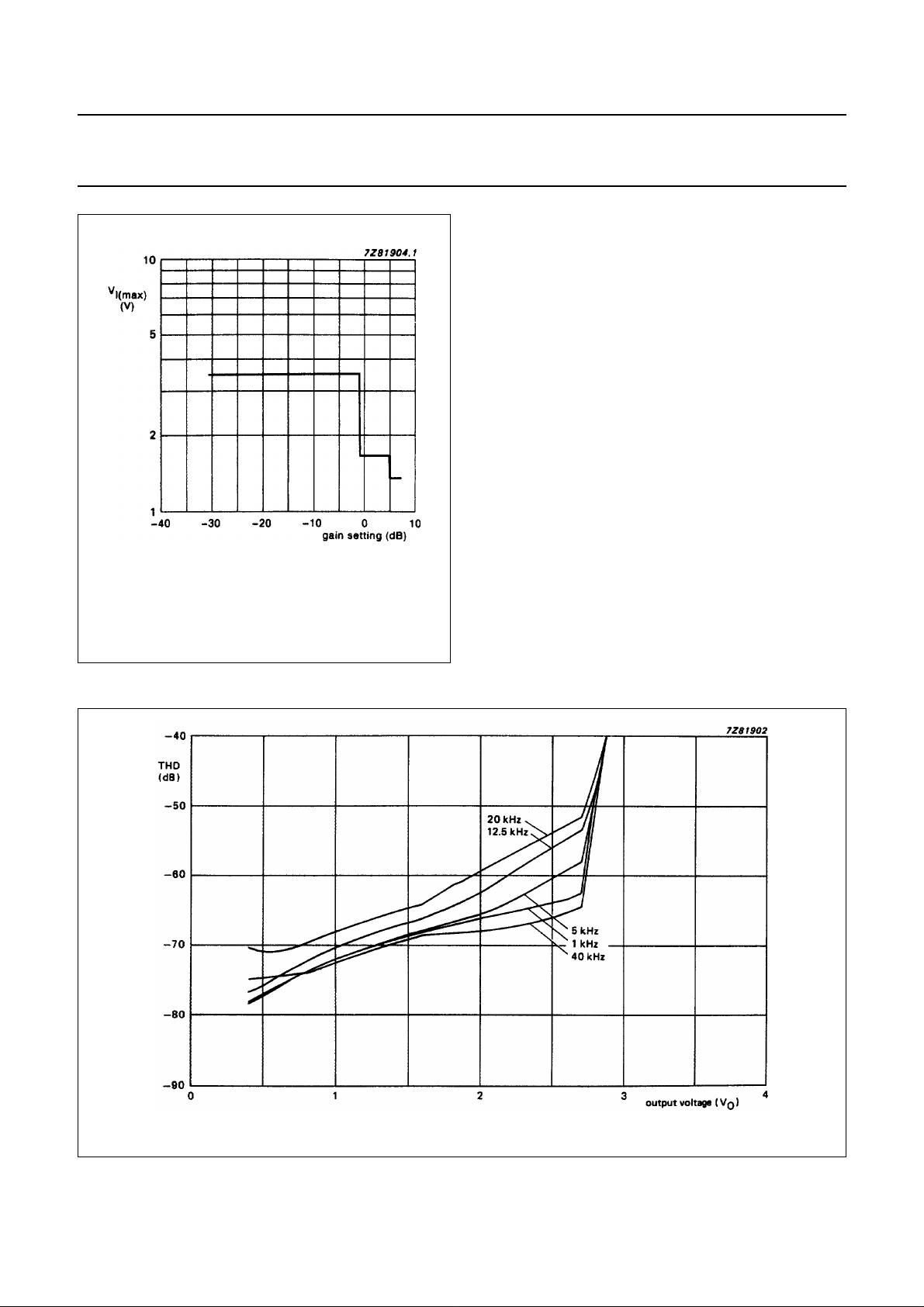

Fig.8 Input signal handling capability; gain = −10 dB; RS = 600 Ω;RL = 10 kΩ; bass/treble = 0 dB; VCC = 12 V.

September 1992 13

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Fig.9 Input signal handling capability plotted

against gain setting; THD = −60 dB;
f = 1 kHz; RS= 600 Ω; RL=10kΩ;
bass/treble = 0 dB; VCC=12V.

TDA8424

Fig.10 Output signal handling capability; gain = 6 dB; RS = 600 Ω;RL = 10 kΩ; bass/treble = 0 dB; VCC = 12 V.

September 1992 14

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

(1) gain = 0 dB; Vi= 1.0 V.
(2) gain = 6 dB; Vi= 0.5 V.

TDA8424

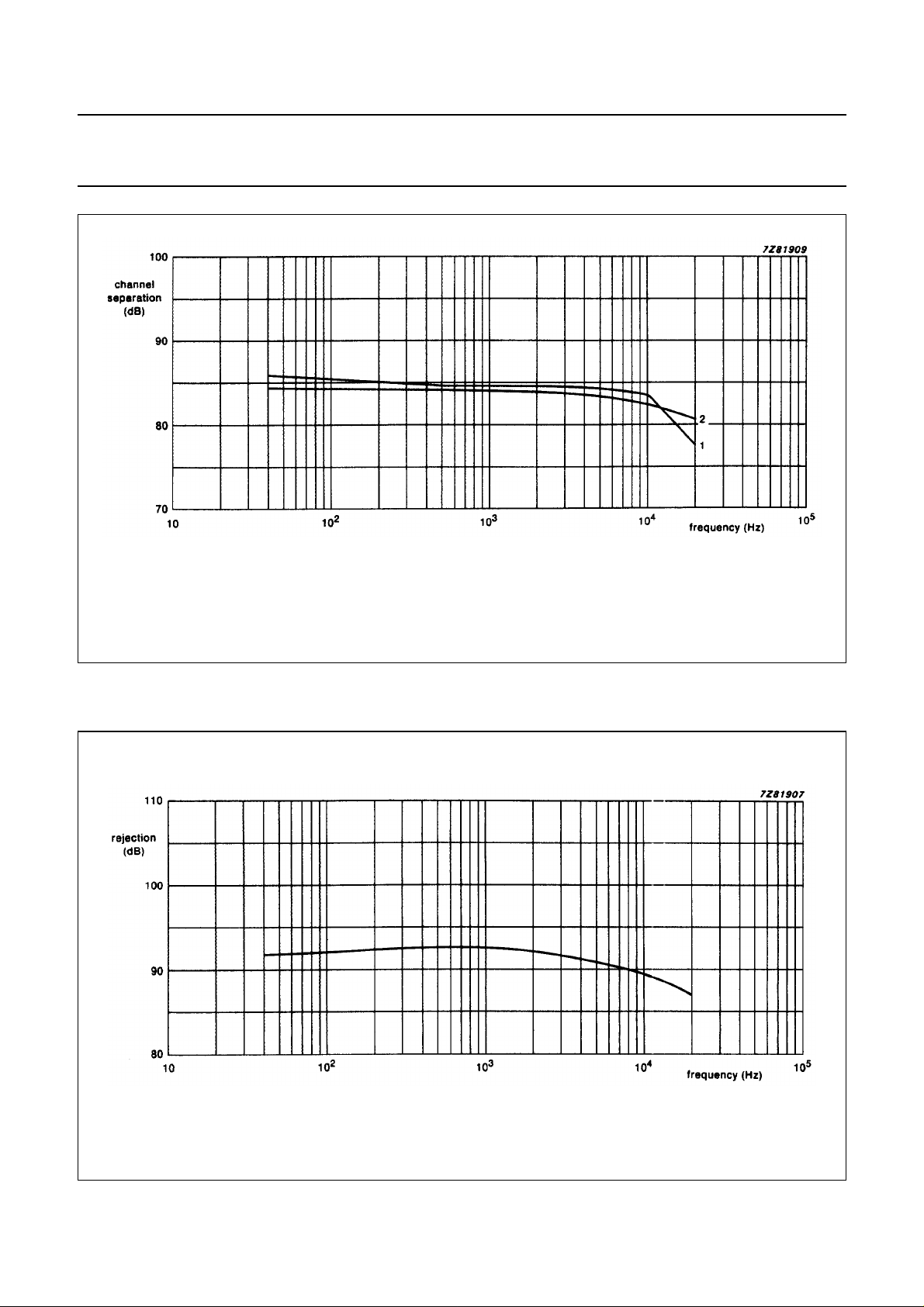

Fig.11 Stereo channel separation as a function of frequency; RS = 0 Ω;RL = 10 kΩ;

bass/treble = 0 dB; VCC = 12 V.

Fig.12 Mute signal rejection as a function of frequency; gain = 0 dB; Vi = 1.0 V; RS = 0 Ω;RL=10kΩ;

bass/treble = 0 dB; VCC = 12 V.

September 1992 15

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Fig.13 Ripple rejection as a function of frequency; V

bass/treble = 0 dB; VCC=12V.

= 0.3 V (RMS); RS = 0 Ω;RL =10kΩ;

ripple

TDA8424

Fig.14 Noise output voltage as a function of gain; weighted CCIR 468 quasi peak gain, +6dBto−64 dB;

Vi= 0 V; RS=0Ω;RL = 10 kΩ; bass/treble = 0 dB; VCC = 12 V.

September 1992 16

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

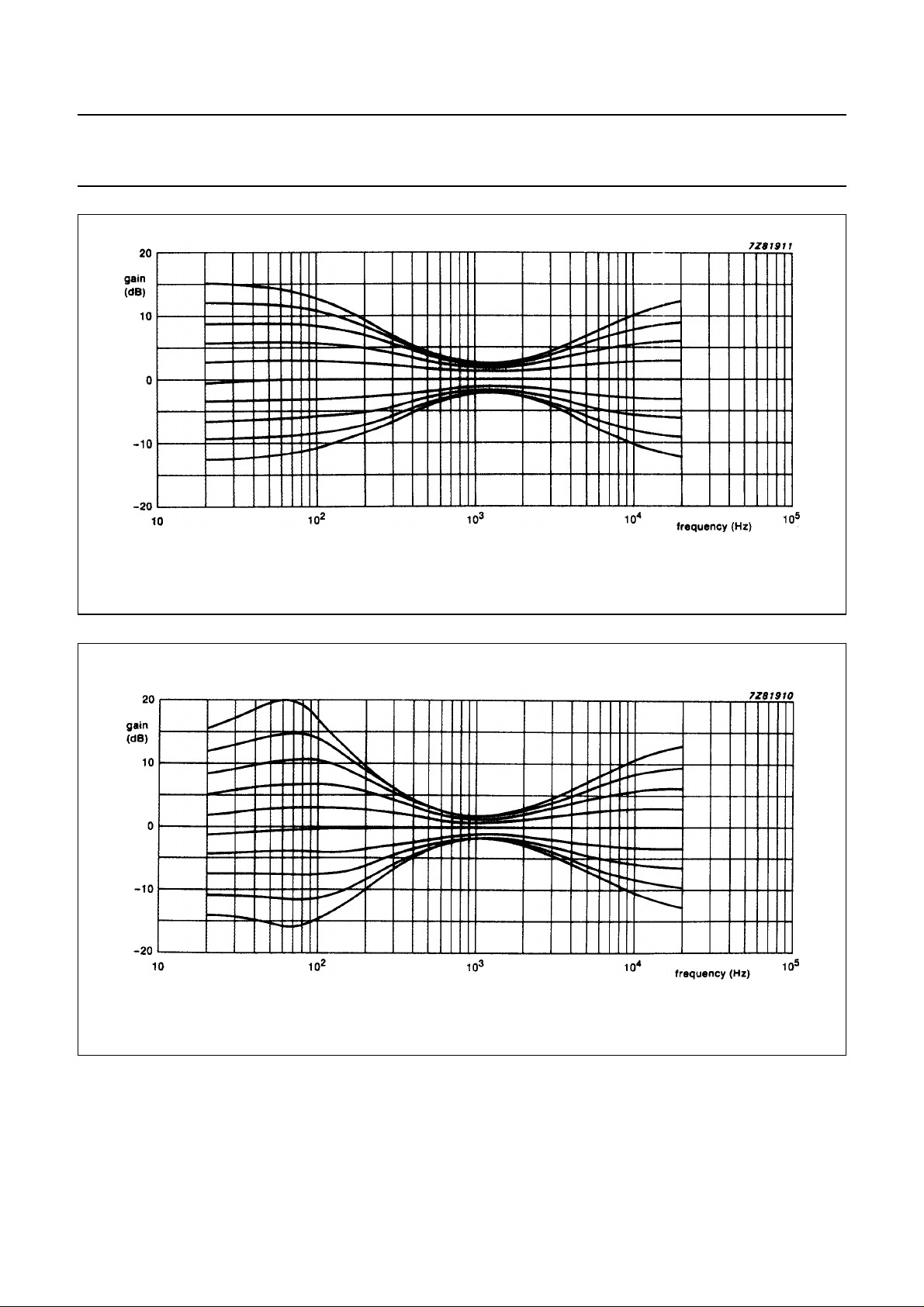

Fig.15 Frequency response of bass and treble control; bass and treble gain settings = −12 dB to +15 dB;

gain = 0 dB; Vi= 0.1 V; RS = 600 Ω;RL = 10 kΩ;VCC = 12 V.

TDA8424

Fig.16 Tone control with T-filter.

September 1992 17

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

Fig.17 Tone control.

TDA8424

September 1992 18

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

Fig.18 Turn-on behaviour; C = 2.2 µF; RL = 10 kΩ. Fig.19 Turn-off behaviour; without modulation.

Fig.20 Turn-off behaviour; with modulation

(shaded area).

September 1992 19

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

ICC = 25 mA
I

= 239 mA

load

ton = 15 ms
t

= 110 ms

off

TDA8424

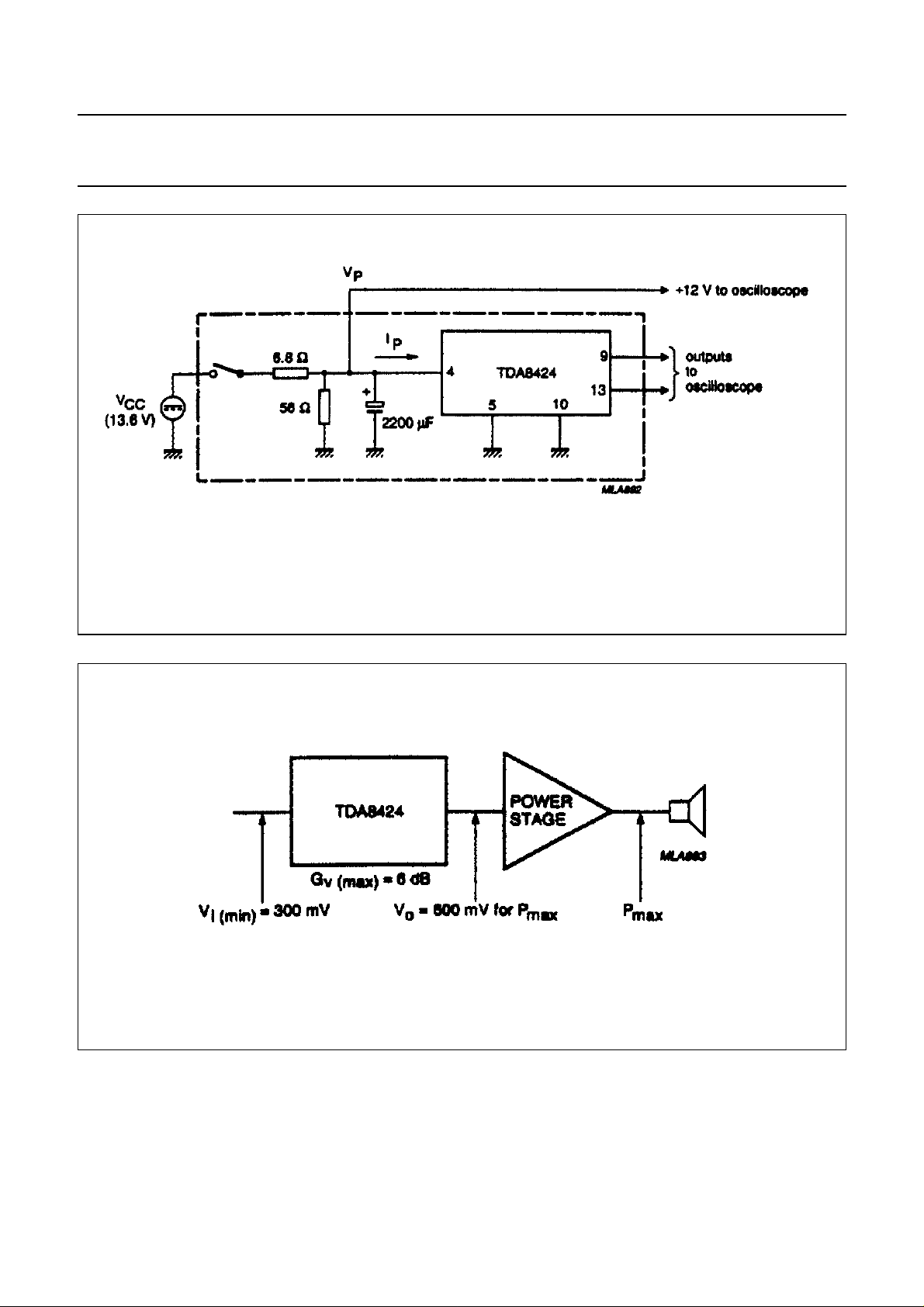

Fig.21 Turn-on/off power supply circuit diagram.

Fig.22 Level diagram.

September 1992 20

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

TDA8424

Fig.23 Test and application circuit diagram.

September 1992 21

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

PACKAGE OUTLINE

DIP20: plastic dual in-line package; 20 leads (300 mil)

D

seating plane

L

Z

20

e

b

TDA8424

SOT146-1

M

E

A

2

A

A

1

w M

b

1

11

c

(e )

1

M

H

pin 1 index

1

0 5 10 mm

scale

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

A

A

A

UNIT

inches

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

max.

mm

OUTLINE
VERSION

SOT146-1

1 2

min.

max.

1.73

1.30

0.068

0.051

IEC JEDEC EIAJ

b

b

1

0.53

0.38

0.021

0.015

0.014

0.009

REFERENCES

cD E e M

0.36

0.23

(1) (1)

26.92

26.54

1.060

1.045

SC603

6.40

6.22

0.25

0.24

E

10

(1)

M

e

L

1

3.60

3.05

0.14

0.12

E

8.25

7.80

0.32

0.31

EUROPEAN

PROJECTION

H

10.0

8.3

0.39

0.33

0.2542.54 7.62

0.010.10 0.30

ISSUE DATE

w

92-11-17
95-05-24

Z

max.

2.04.2 0.51 3.2

0.0780.17 0.020 0.13

September 1992 22

Philips Semiconductors Product specification

Hi-Fi stereo audio processor; I2C-bus

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact

DEFINITIONS

(order code 9398 652 90011).

TDA8424

with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

2

PURCHASE OF PHILIPS I

C COMPONENTS

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

September 1992 23

2

C components conveys a license under the Philips’ I2C patent to use the
