Page 1
INTEGRATED CIRCUITS
DATA SH EET
TDA7053
2 x 1 W portable/mains-fed stereo
power amplifier
Product specification
File under Integrated Circuits, IC01
February 1994
Page 2
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
TDA7053
power amplifier
GENERAL DESCRIPTION
The TDA7053 is an integrated class-B stereo power amplifier in a 16-lead dual-in-line (DIL) plastic package. The device,
consisting of two BTL amplifiers, is primarily developed for portable audio applications but may also be used in mains-fed
applications.
Features
• No external components
• No switch-ON/OFF clicks
• Good overall stability
• Low power consumption
• Short-circuit-proof.
QUICK REFERENCE DATA
PARAMETER CONDITIONS SYMBOL MIN. TYP. MAX. UNIT
Supply voltage range V
Total quiescent current R
Output power R
= ∞ I
L
= 8 Ω;
L
V
= 6 V P
P
Internal voltage gain G
Total harmonic distortion P
= 0.1 W THD − 0.2 1.0 %
O
P
tot
O
v
3 6 18 V
− 916mA
− 1.2 − W
38 39 40 dB
PACKAGE OUTLINE
16-lead DIL; plastic (SOT38); SOT38-1; 1996 July 24.
February 1994 2
Page 3
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
TDA7053
Fig.1 Block diagram.
February 1994 3
Page 4
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
TDA7053
power amplifier
PINNING
1. SGND1 signal ground 1 9. OUT2A output 2 (positive)
2. IN1 input 1 10. GND2 power ground 2
3. n.c. not connected 11. n.c. not connected
4. n.c. not connected 12. OUT2B output 2 (negative)
5. V
P
6. IN2 input 2 14. GND1 power ground 1
7. SGND2 signal ground 2 15. n.c. not connected
8. n.c. not connected 16. OUT1A output 1 (positive)
Note
The information contained within the parentheses refer to the polarity of the loudspeaker terminal to which the output
must be connected.
FUNCTIONAL DESCRIPTION
The TDA7053 is a stereo output amplifier, with an internal gain of 39 dB, which is primarily for use in portable audio
applications but may also be used in mains-fed applications. The current trends in portable audio application design is
to reduce the number of batteries which results in a reduction of output power when using conventional output stages.
The TDA7053 overcomes this problem by using the Bridge-Tied-Load (BTL) principle and is capable of delivering 1.2 W
into an 8 Ω load (V
supply voltage 13. OUT1B output 1 (negative)
= 6 V). The load can be short-circuited under all input conditions.
P
February 1994 4
Page 5
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
PARAMETER CONDITIONS SYMBOL MIN. MAX. UNIT
Supply voltage V
Non-repetitive peak output current I
Total power dissipation P
Crystal temperature T
Storage temperature range T
THERMAL RESISTANCE
From junction to ambient R
Power dissipation
Assuming: V
The maximum sinewave dissipation is 1.8 W, therefore T
= 6 V and RL = 8 Ω:
P
amb(max.)
P
OSM
tot
c
stg
th j-a
= 150 − (50 x 1.8) = 60 °C.
TDA7053
− 18 V
− 1.5 A
see Fig.2
−+150 °C
−55 + 150 °C
50 K/W
Fig.2 Power derating curve.
February 1994 5
Page 6
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
TDA7053
power amplifier
CHARACTERISTICS
V
= 6 V; RL = 8 Ω; T
P
PARAMETER CONDITIONS SYMBOL MIN. TYP. MAX. UNIT
Supply voltage range V
Total quiescent current R
Input bias current I
Supply voltage ripple rejection note 2 SVRR 40 50 − dB
Input impedance Z
DC output offset voltage note 3 ∆V
Noise output voltage
(RMS value) note 4 V
Output power THD = 10% P
Total harmonic distortion P
Internal voltage gain G
Channel balance ∆G
Channel separation note 3 α 40 −−dB
Frequency response f − 0.02 to 20 − kHz
= 25 °C; unless otherwise specified; measured from test circuit, Fig.7.
amb
P
= ∞; note 1 I
L
note 5 V
= 0.1 W THD − 0.2 1.0 %
O
tot
bias
I
13-16
∆V
12-9
no(rms)
no(rms)
O
v
v
3 6 18 V
− 916mA
− 100 300 nA
− 100 − kΩ
−−100 mV
−−100 mV
− 150 300 µV
− 60 −µV
− 1.2 − W
38 39 40 dB
−−1dB
Notes to the characteristics
1. With a practical load the total quiescent current depends on the offset voltage.
2. Ripple rejection measured at the output with R
= 0Ωand f = 100 Hz to 10 kHz. The ripple voltage (200 mV) is applied
S
to the positive supply rail.
3. RS = 5 kΩ.
4. The noise output voltage (RMS value) is measured with RS= 5 kΩ, unweighted and a bandwidth of 60 Hz to 15 kHz.
5. The noise output voltage (RMS value) is measured with RS = 0 Ω and f = 500 kHz with 5 kHz bandwidth. If RL= 8 Ω
and LL= 200 µH the noise output current is only 100 nA.
February 1994 6
Page 7
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
APPLICATION INFORMATION
TDA7053

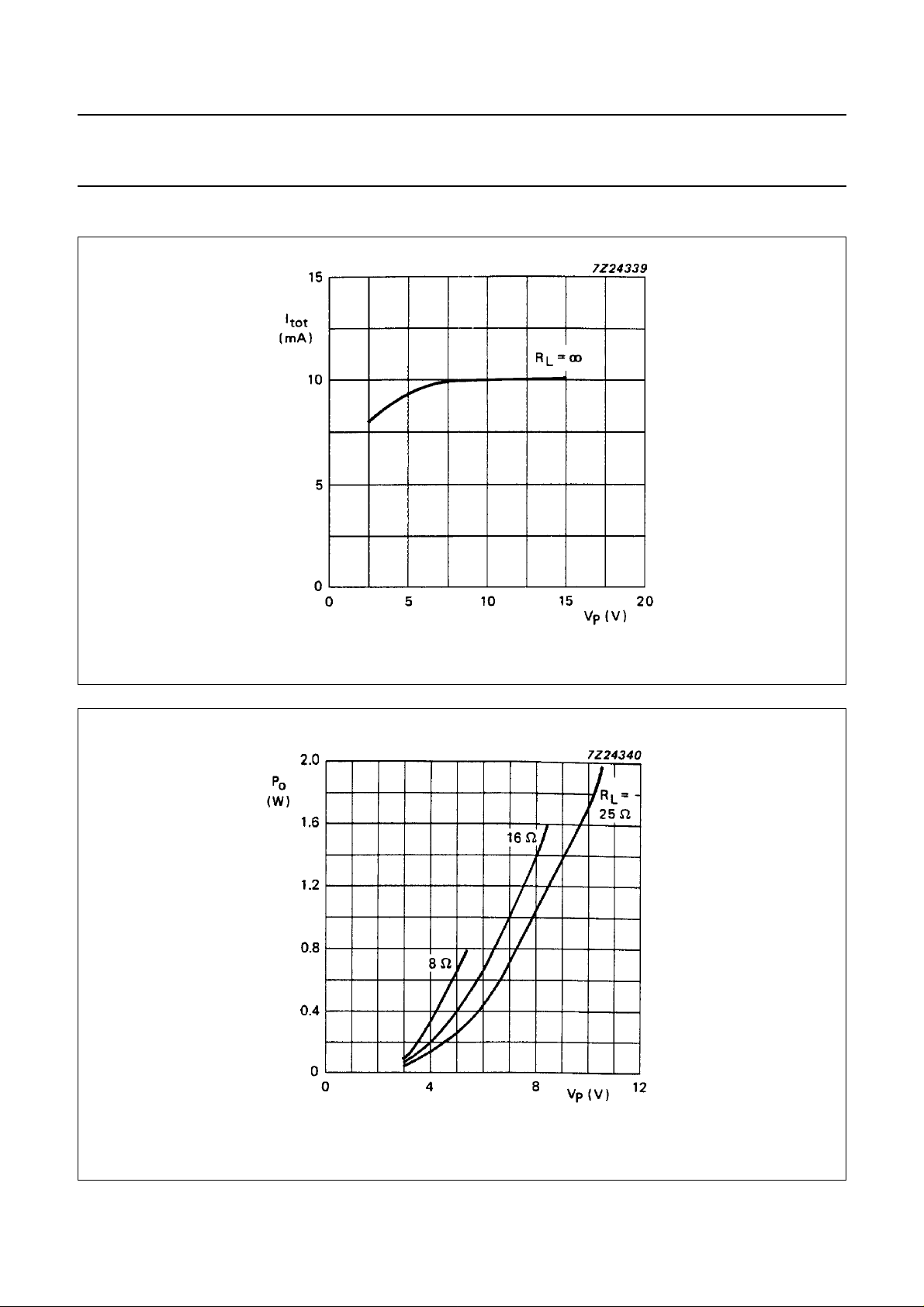

Fig.3 Quiescent current as a function of voltage supply (VP); T
amb
= 60 °C.
Fig.4 Output power as a function of voltage supply (VP); THD = 10%; f = 1 kHz; T
February 1994 7
amb
= 60 °C.
Page 8
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
TDA7053

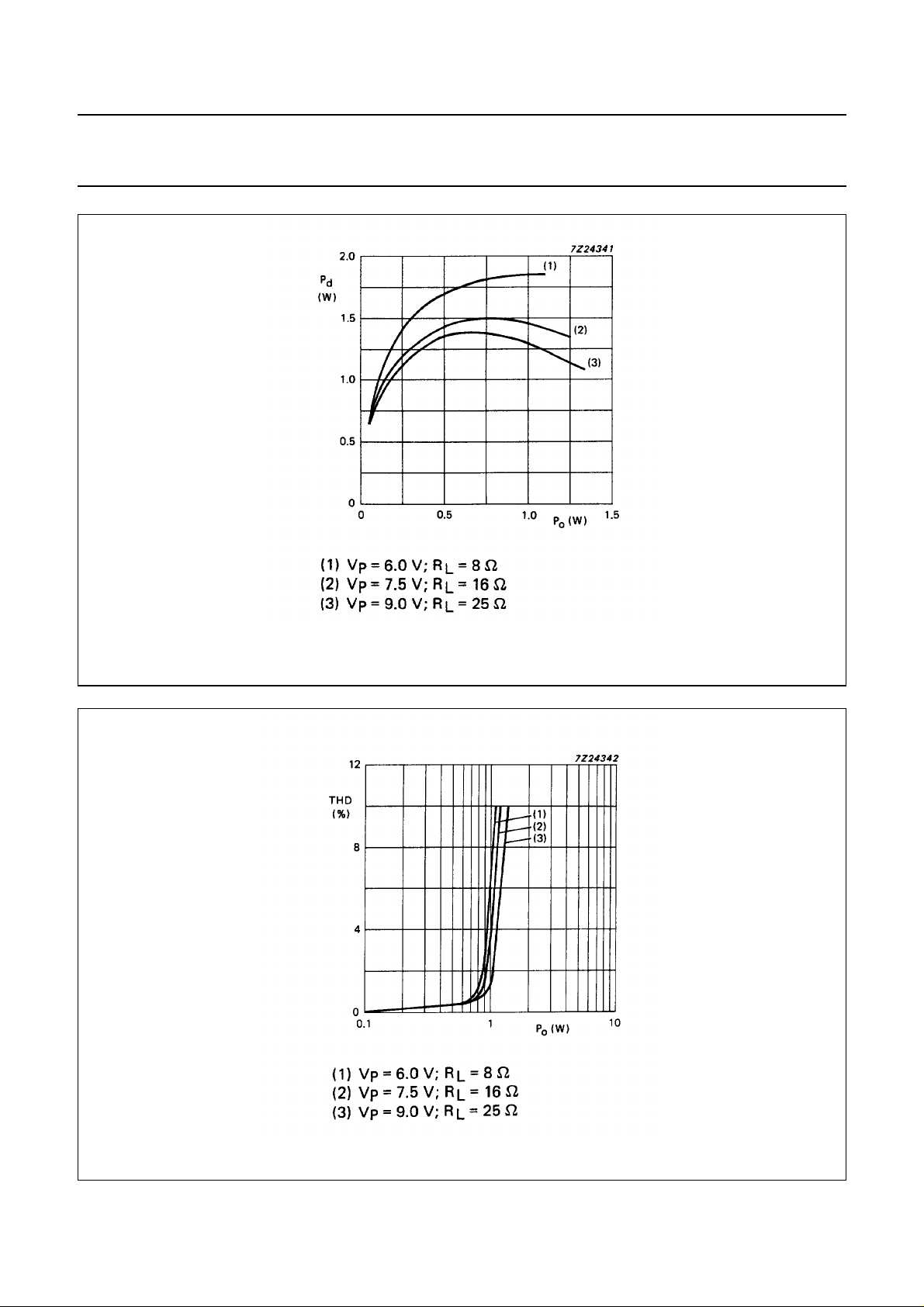

Fig.5 Power dissipation as a function of output power; f = 1 kHz; T
amb
= 60 °C.
Fig.6 Total harmonic distortion as a function of output power; f = 1 kHz; T
February 1994 8
amb
= 60 °C.
Page 9
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
TDA7053

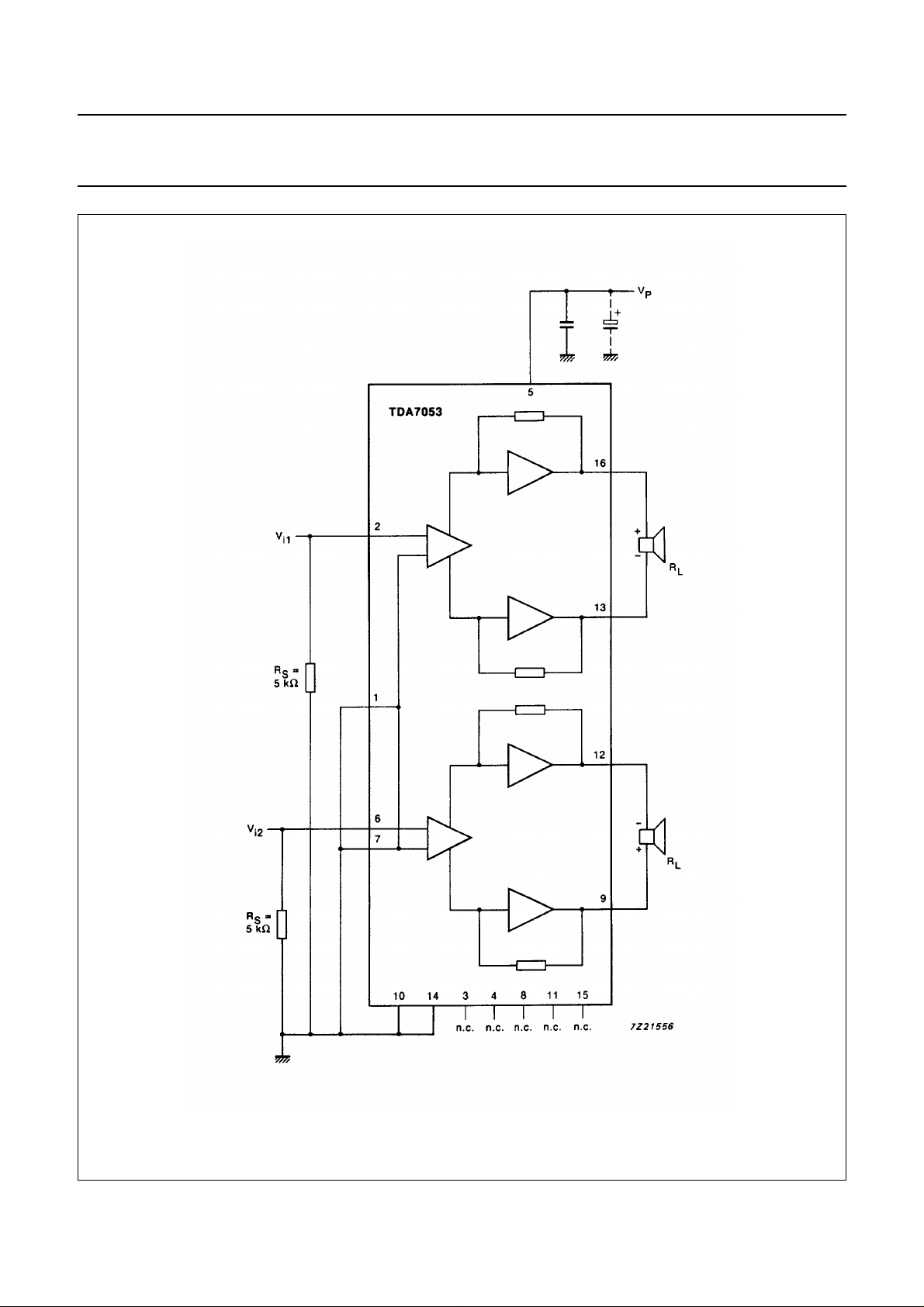

Fig.7 Test and application circuit diagram.
February 1994 9
Page 10
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
TDA7053
Fig.8 Printed-circuit board, track side.
Fig.9 Printed-circuit board, component side.
February 1994 10
Page 11
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
PACKAGE OUTLINE
DIP16: plastic dual in-line package; 16 leads (300 mil); long body
D
seating plane
L
Z
16
e
b
b
1
9
A
1
w M
TDA7053
SOT38-1
M
E
A
2
A
c
(e )
1
M
H
pin 1 index
1
0 5 10 mm
DIMENSIONS (inch dimensions are derived from the original mm dimensions)
A
UNIT
mm
inches
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
A
max.
4.7 0.51 3.7
OUTLINE
VERSION
SOT38-1
min.
A
1 2
max.
0.15
IEC JEDEC EIAJ
050G09 MO-001AE
b
1.40
1.14
0.055
0.045
b
0.53
0.38
0.021
0.015
1
cEe M
0.32
0.23
0.013
0.009
REFERENCES
D
21.8
21.4
0.86
0.84
8
scale
(1) (1)
6.48
6.20
0.26
0.24
E
(1)
Z
e
0.30
1
0.15
0.13
M
L
3.9
3.4
E
8.25
7.80
0.32
0.31
EUROPEAN
PROJECTION
9.5
8.3
0.37
0.33
w
H
0.2542.54 7.62
0.010.100.0200.19
ISSUE DATE
92-10-02
95-01-19
max.
2.2
0.087
February 1994 11
Page 12
Philips Semiconductors Product specification
2 x 1 W portable/mains-fed stereo
power amplifier
SOLDERING
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our
“IC Package Databook”
Soldering by dipping or by wave
The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.
(order code 9398 652 90011).
TDA7053
The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.
Repairing soldered joints
Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.
stg max
). If the
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
February 1994 12
