INTEGRATED CIRCUITS

DATA SH EET

TDA6404; TDA6405; TDA6405A

5 V mixer/oscillator-PLL
synthesizers for hyperband tuners

Product specification
Supersedes data of 1998 Jan 19
File under Integrated Circuits, IC02

1999 Jan 13

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers
for hyperband tuners

FEATURES

• Single chip 5 V mixer/oscillator-PLL synthesizer for
hyperband tuners

• I2C-bus protocol

• 3 PNP band switch buffers (25 mA)

• 33 V tuning voltage output

• In-lock detector

• 5-level Analog-to-Digital Converter (ADC)

• 15-bit programmable divider

• Programmable reference divider ratio

(512, 640 or 1024)

• Programmable charge pump current

• Balanced mixer with a common emitter input for VHF

(single input)

• Balanced mixer with a common base input for UHF
(double input)

• 4-pin common emitter oscillator for VHF

• 4-pin common emitter oscillator for UHF

• IF amplifier with a low output impedance to drive a SAW
filter directly (≈2kΩ load)

• Low power, low radiation, small size

APPLICATIONS

• Hyperband tuners for Europe using a 2-band
mixer/oscillator in a switched concept.

GENERAL DESCRIPTION

The TDA6404, TDA6405 and TDA6405A are
programmable 2-band mixer/oscillator-PLL synthesizers
intended for VHF/UHF and hyperband tuners (see Fig.1).

The devices include two double balanced mixers and two
oscillators for the VHF and UHF band, an IF amplifier and
a PLL synthesizer. With proper oscillator application and
by using a switchable inductor to split the VHF band into
two sub-bands (the full VHF/UHF and hyperband) the TV
bands can be covered.

TDA6404; TDA6405;

TDA6405A

The PLL synthesizer consists of a divide-by-eight
prescaler, a 15-bit programmable divider, a 4 MHz crystal
oscillator and its programmable reference divider and a
phase comparator combined with a charge pump which
drives the tuning amplifier, including 33 V output.

Depending on the reference divider ratio (512, 640
or 1024), the phase comparator operates at 7.8125 kHz,

6.25 kHz or 3.90625 kHz.

2

The devices are controlled according to the I
format. The in-lock detector bit FL is set to logic 1 when the
loop is locked and is read on the SDA line (status byte)
during a read operation. The ADC input is available for
digital Automatic Frequency Control (AFC). The ADC code
is read during a read operation on the I2C-bus
(see Table 9). In test mode, pin ADC is used as a test
output for f

When the charge pump current switch mode is activated
and the loop is phase-locked the charge pump current
value is automatically switched to LOW. This is to improve
carrier-to-noise ratio. The status of this feature can be read
in the ACPS flag during a read operation on the I2C-bus
(see Table 7).

Five serial bytes (including address byte) are required for
the I2C-bus format to address the devices, select the VCO
frequency, program the three PNP ports, set the charge
pump current and to set the reference divider ratio.
The devices have four independent I2C-bus addresses
which can be selected by applying a specific voltage on the
AS input (see Table 4).

REF

and1⁄2f

DIV

.

C-bus

Two pins are available between the mixer output and the
IF amplifier input to enable IF filtering for improved signal
handling. Three PNP ports are provided for band
switching. Band selection is made according to the band
switch bits VHFL, VHFH and UHF.

1999 Jan 13 2

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC

I

CC

f

XTAL

I

o(PNP)

T

stg

T

amb

f

(i)RF

supply voltage operating 4.5 5 5.5 V
supply current all PNP ports are ‘OFF’ − 78 − mA
crystal oscillator frequency R

= 25 to 150 Ω 3.2 4.0 4.48 MHz

XTAL

PNP port output current −−25 mA
IC storage temperature −40 − +150 °C
operating ambient temperature −20 − +85 °C
RF input frequency VHF band 45.25 − 399.25 MHz

UHF band 407.25 − 855.25 MHz

G

V

voltage gain VHF band − 27 − dB

UHF band − 38 − dB

F noise figure VHF band − 8 − dB

UHF band − 8.5 − dB

V

o

output voltage causing 1% cross
modulation in channel

VHF band − 119 − dBµV
UHF band − 118 − dBµV

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

TDA6404TS;
TDA6405TS;

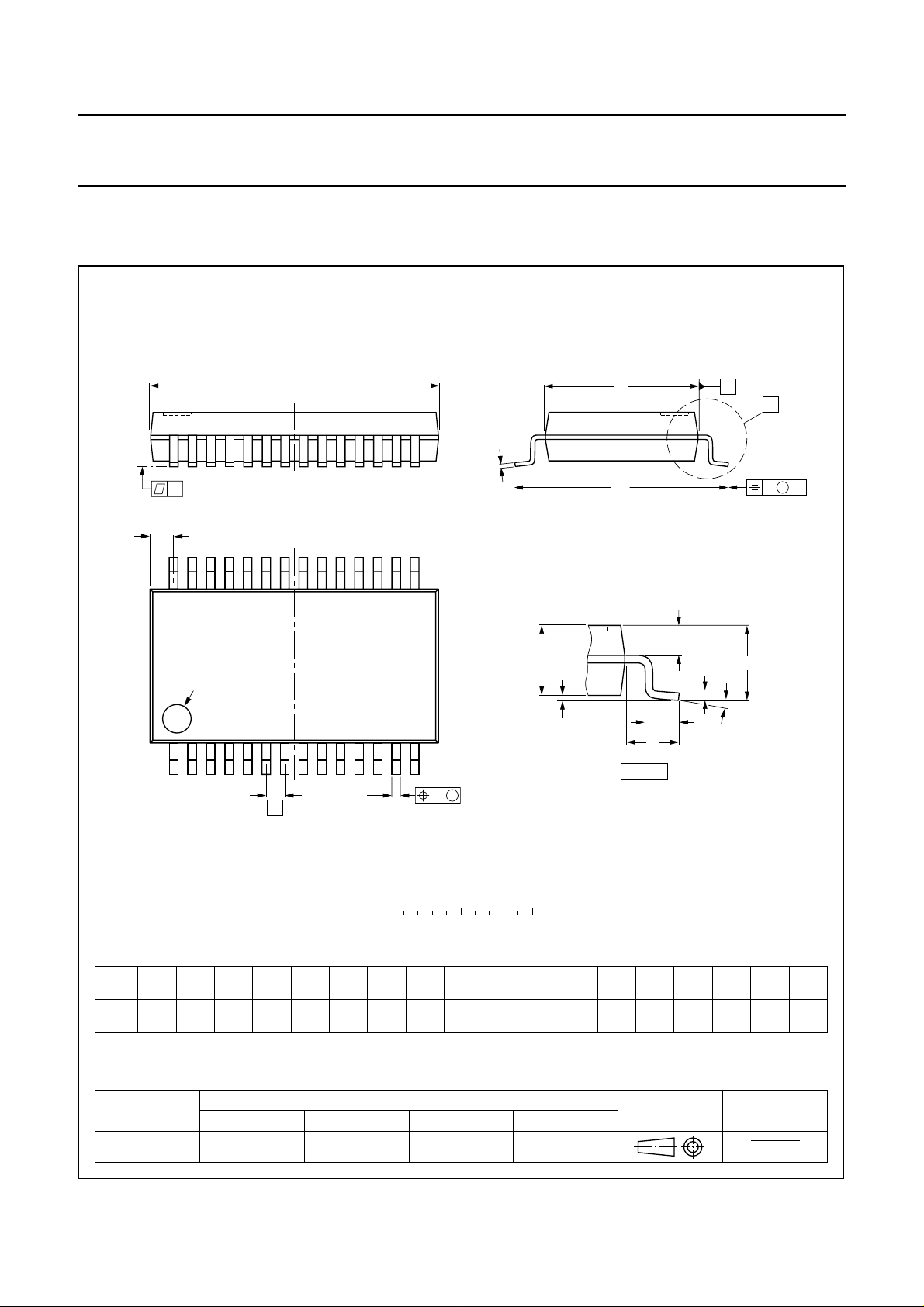

SSOP28 plastic shrink small outline package; 28 leads; body width 5.3 mm SOT341-1

TDA6405ATS

PACKAGE

1999 Jan 13 3

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

BLOCK DIAGRAM

IFFIL1

handbook, full pagewidth

XTAL

3 (26)

4 (25)

1 (28)
2 (27)

16 (13)

VHFIN

RFGND

UHFIN1
UHFIN2

BS

RF INPUT

VHF

BSVHF

ELECTRONIC

BAND SWITCH

BSUHF

RF INPUT

UHF

XTAL

OSCILLATOR

4 MHz

IFFIL2

5 (24) 17 (12)

6 (23)

VHF

MIXER

UHF

MIXER

f

REFERENCE

DIVIDER

512, 640, 1024

REF

DIGITAL

PHASE

COMPARATOR

TDA6404; TDA6405;

TDA6405A

V

CC

BSVHF

BSUHF

CHARGE

PUMP

VHF

OSCILLATOR

IF

AMPLIFIER

UHF

OSCILLATOR

TUNING
AMPLIFIER

(4) 25
(3) 26
(2) 27
(1) 28

(11) 18

(10) 19

(5) 24
(6) 23
(7) 22
(8) 21

(15) 14

(14) 15

VHFOSCIB1
VHFOSCOC1
VHFOSCOC2
VHFOSCIB2

IFOUT1

IFOUT2

UHFOSCIB2
UHFOSCOC2
UHFOSCOC1
UHFOSCIB1

CP

VT

f

DIV

1/2f

DIV

f

1/2f

REF

DIV

GATE

13 (16) 7 (22) 8 (21) 9 (20)

ADC

SCL

SDA

AS

12 (17)
11 (18)
10 (19)

PRESCALER

DIVIDE BY 8

POWER-ON

RESET

SCL
SDA
AS

5-LEVEL A/D

CONVERTER

RSA

15-BIT

PROGRAMMABLE

DIVIDER

15-BIT

FREQUENCY

REGISTER

FL

I2C-BUS

TRANSCEIVER

RSB

FL

The pin numbers in parenthesis represent the TDA6405 and TDA6405A.

IN-LOCK

DETECTOR

FL

T2, T1, T0

T2, T1, T0

CHP

TDA6404
TDA6405

TDA6405A

7-BIT CONTROL

T2 T1 T0 RSA RSB OSCHP

3-BIT BAND SWITCH

VHFL VHFH UHF

V

CC

PVHFL

OS

REGISTER

REGISTER

PVHFH

LOGIC

PUHF

BS

(9) 20

MGK813

GND

Fig.1 Block diagram.

1999 Jan 13 4

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for

TDA6404; TDA6405;

hyperband tuners

PINNING

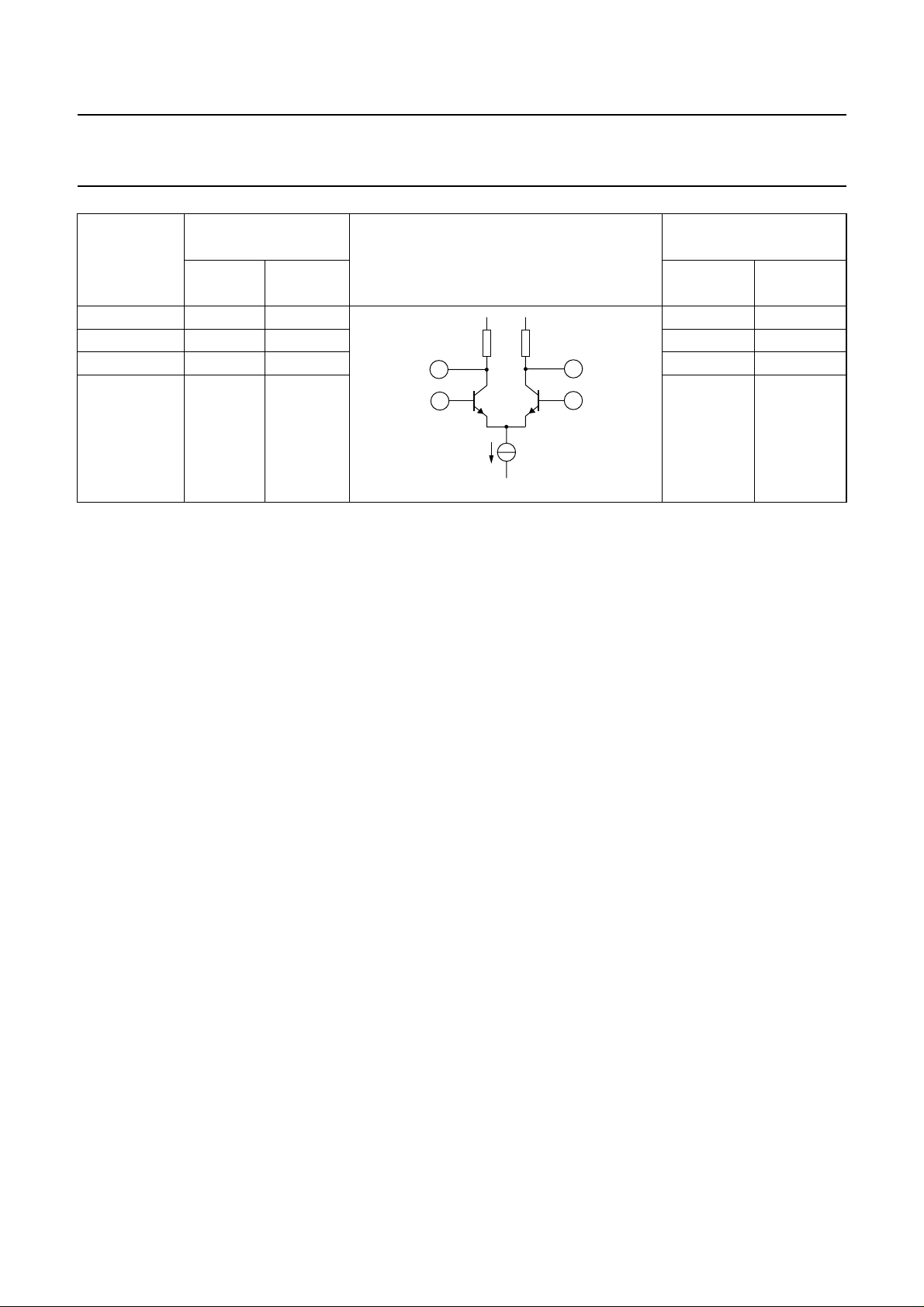

PIN

SYMBOL

UHFIN1 1 28 UHF input 1
UHFIN2 2 27 UHF input 2
VHFIN 3 26 VHF input
RFGND 4 25 RF ground
IFFIL1 5 24 IF filter output 1
IFFIL2 6 23 IF filter output 2
PVHFL 7 22 PNP port output for VHF low band
PVHFH 8 21 PNP port output for VHF high band
PUHF 9 20 PNP port output for UHF band
AS 10 19 address selection input
SDA 11 18 serial data input/output (I
SCL 12 17 serial clock input (I
ADC 13 16 Analog-to-Digital Converter input/output
CP 14 15 charge pump output
VT 15 14 tuning output
XTAL 16 13 crystal oscillator input
V

CC

IFOUT1 18 11 IF amplifier output 1
IFOUT2 19 10 IF amplifier output 2
GND 20 9 ground
UHFOSCIB1 21 8 UHF oscillator base input 1
UHFOSCOC1 22 7 UHF oscillator collector output 1
UHFOSCOC2 23 6 UHF oscillator collector output 2
UHFOSCIB2 24 5 UHF oscillator base input 2
VHFOSCIB1 25 4 VHF oscillator base input 1
VHFOSCOC1 26 3 VHF oscillator collector output 1
VHFOSCOC2 27 2 VHF oscillator collector output 2
VHFOSCIB2 28 1 VHF oscillator base input 2

TDA6404

17 12 supply voltage

TDA6405;

TDA6405A

DESCRIPTION

2

2

C-bus)

C-bus)

TDA6405A

1999 Jan 13 5

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

handbook, halfpage

UHFIN1
UHFIN2

VHFIN

RFGND

IFFIL1
IFFIL2

PVHFL

PVHFH

PUHF

AS

SDA

SCL

ADC

CP

1
2
3
4
5
6
7
8

9
10
11
12
13

TDA6404

MGK830

VHFOSCIB2

28

VHFOSCOC2

27

VHFOSCOC1

26

VHFOSCIB1

25

UHFOSCIB2

24
23

UHFOSCOC2
UHFOSCOC1

22
21

UHFOSCIB1
GND

20

IFOUT2

19

IFOUT1

18

V

17

CC

XTAL

16
1514

VT

handbook, halfpage

VHFOSCIB2
VHFOSCOC2
VHFOSCOC1

VHFOSCIB1

UHFOSCIB2
UHFOSCOC2
UHFOSCOC1

UHFOSCIB1

GND
IFOUT2
IFOUT1

V

CC

XTAL

VT

TDA6404; TDA6405;

TDA6405A

1
2
3
4
5
6
7

TDA6405

TDA6405A

8

9
10
11
12
13

MGK831

28
27
26
25
24
23
22
21
20
19
18
17
16
1514

UHFIN1
UHFIN2
VHFIN
RFGND
IFFIL1
IFFIL2
PVHFL
PVHFH
PUHF
AS
SDA
SCL
ADC
CP

Fig.2 Pin configuration for TDA6404.

FUNCTIONAL DESCRIPTION

The devices are controlled via the I2C-bus.
For programming, there is one module address (7 bits)
and the R/W bit for selecting the read or write mode.

Write mode

Data bytes can be sent to the devices after the address
transmission (first byte) by setting the R/

W bit to logic 0.
Four data bytes are needed to fully program the devices.
The I2C-bus transceiver has an auto-increment facility
which permits the programming of the devices within one
single transmission (address + 4 data bytes).

The devices can also be partially programmed, providing
that the first data byte following the address is divider
byte 1 (DB1) or control byte (CB). The bits in the data
bytes are defined in Tables 1 and 2.

Fig.3 Pin configuration for TDA6405(A)

The first bit of the data byte transmitted indicates whether
frequency data (first bit = 0) or control and band switch
data (first bit = 1) will follow. Until an I

2

C-bus STOP
condition is sent by the controller, additional data bytes
can be entered without the need to re-address the devices.
The frequency register is loaded after the 8th clock pulse
of the second divider byte (DB2). The control register is
loaded after the 8th clock pulse of the CB. The band switch
register is loaded after the 8th clock pulse of the band
switch byte (BB).

1999 Jan 13 6

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

Table 1 I2C-bus mode, write data format for the TDA6404 and TDA6405

NAME BYTE

Address byte ADB 11000MA1MA0R/
Divider byte 1 DB1 0 N14 N13 N12 N11 N10 N9 N8 A
Divider byte 2 DB2 N7 N6 N5 N4 N3 N2 N1 N0 A
Control byte CB 1 CHP T2 T1 T0 RSA RSB OS A
Band-switch byte BB XXXXXUHFVHFH VHFL A

2

Table 2 I

Address byte ADB 11000MA1MA0R/
Divider byte 1 DB1 0 N14 N13 N12 N11 N10 N9 N8 A
Divider byte 2 DB2 N7 N6 N5 N4 N3 N2 N1 N0 A
Control byte CB 1 CHP T2 T1 T0 RSA RSB OS A
Band-switch byte BB XXXXUHFXVHFH VHFL A

C-bus mode, write data format for the TDA6405A

NAME BYTE

MSB LSB

MSB LSB

BITS

BITS

TDA6404; TDA6405;

TDA6405A

W=0 A

W=0 A

ACK

ACK

2

C-bus address selection

I

The module address contains programmable address bits (MA1 and MA0) which offer the possibility of having several
synthesizers (up to 4) in one system by applying a specific voltage on the AS input. The relationship between MA1 and
MA0 and the input voltage applied to the AS input is given in Table 4.

Table 3 Description of symbols used in Tables 1 and 2

SYMBOL DESCRIPTION

A acknowledge
MA1 and MA0 programmable address bits (see Table 4)
N14 to N0 programmable divider bits; N = N14 × 2
CHP charge pump current bit:

CHP = 0; ICP=60µA

CHP = 1; I
T2, T1 and T0 test bits (see Table 5)
RSA and RSB reference divider ratio select bits (see Table 6)
OS tuning amplifier control bit:

OS = 0; normal operation; tuning voltage is ‘ON’

OS = 1; tuning voltage is ‘OFF’ (high-impedance)
UHF, VHFH and VHFL PNP ports control bits:

bit = 0; buffer n is ‘OFF’ (default)

bit = 1; buffer n is ‘ON’
X don’t care bit: may be a logic 0 or a logic 1

= 280 µA (default)

CP

14

+ N13 × 213+ ... + N1 × 21+N0

1999 Jan 13 7

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

Table 4 Address selection I2C-bus

MA1 MA0 VOLTAGE APPLIED ON AS INPUT

0 0 0 to 0.1V
0 1 open or 0.2VCCto 0.3V
1 0 0.4VCCto 0.6V
1 1 0.9VCCto 1.0V

Table 5 Test mode

T2 T1 T0 TEST MODES

0 0 0 automatic charge pump off
0 0 1 automatic charge pump on; note 1
0 1 X charge pump is ‘OFF’
1 1 0 charge pump is sinking current
1 1 1 charge pump is sourcing current
100f
101

CC

REF

1

⁄

2

CC
CC
CC

is available on pin ADC; note 2

f

is available on pin ADC; note 2

DIV

TDA6404; TDA6405;

TDA6405A

Notes

1. This is the default mode at Power-on reset.

2. The ADC input cannot be used when these test modes are active.

Table 6 Reference divider ratio select bits

RSA RSB REFERENCE DIVIDER RATIO FREQUENCY STEP (kHz)

X 0 640 6.25
0 1 1024 3.90625
1 1 512 7.8125

Read mode

Data can be read from the devices by setting the R/W bit
to logic 1 (see Tables 7 and 8). After the slave address
has been recognized, the devices generate an
acknowledge pulse and the first data byte (status byte) is
transferred on the SDA line (MSB first). Data is valid on the
SDA line during a HIGH-level of the SCL clock signal.
A second data byte can be read from the devices if the

The ACPS flag is LOW when the automatic charge pump
switch mode is ‘ON’ and the loop is locked. In other
conditions, ACPS = 1. When ACPS = 0, the charge pump
current is forced to the LOW value.

A built-in ADC is available on ADC pin. This converter can
be used to apply AFC information to the controller from the
IF section of the television. The relationship between the

bits A2, A1 and A0 is given in Table 9.
processor generates an acknowledge on the SDA line
(master acknowledge). End of transmission will occur if no
master acknowledge occurs. The devices will then release
the data line to allow the processor to generate a STOP
condition. The POR flag is set to logic 1 at power-on.
The flag is reset when an end-of-data is detected by the
devices (end of a read sequence). Control of the loop is
made possible with the in-lock flag FL which indicates
when the loop is locked (FL = 1).

1999 Jan 13 8

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

Table 7 Read data format

BITS

NAME BYTE

Address byte ADB 1 1000MA1MA0R/

MSB

(1)

LSB

W=1 A

Status byte SB POR FL ACPS 1 1 A2 A1 A0 −

Note

1. MSB is transmitted first.

Table 8 Description of symbols used in Table 7

SYMBOL DESCRIPTION

A acknowledge
POR Power-on reset flag (POR = 1 at power-on)
FL in-lock flag (FL = 1 when the loop is locked)
ACPS automatic charge pump switch flag:

ACPS = 0; active
ACPS = 1; not active

A2, A1 and A0 digital outputs of the 5-level ADC (see Table 9)

ACK

Table 9 Analog-to-digital converter levels; note 1

A2 A1 A0 VOLTAGE APPLIED ON ADC INPUT

1 0 0 0.60V
0 1 1 0.45VCCto 0.60V
0 1 0 0.30VCCto 0.45V
0 0 1 0.15VCCto 0.30V
0 0 0 0 to 0.15V

Note

1. Accuracy is ±0.03V

CC

.

Power-on reset

The power-on detection threshold voltage V

POR

is set to
VCC= 2 V at room temperature. Below this threshold, the
device is reset to the power-on state.

At power-on state, the charge pump current is set to
280 µA, the tuning voltage output is disabled, the test
bits T2, T1 and T0 are set to logic 001 (automatic charge
pump switch ‘ON’) and RSB is set to logic 1.

to 1.00V

CC

CC
CC
CC
CC

CC

PUHF is ‘OFF’, which means that the UHF oscillator and
the UHF mixer are switched off. Consequently, the VHF
oscillator and the VHF mixer are switched on. PVHFL and
PVHFH are ‘OFF’, which means that the VHF tank circuit
is working in the VHF I sub-band. The tuning amplifier is
switched off until the first transmission. In that case, the
tank circuit in VHF I is supplied with the maximum tuning
voltage. The oscillator is therefore working at the end of
the VHF I sub-band.

1999 Jan 13 9

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

Table 10 Default bits at Power-on reset

BITS

NAME BYTE

MSB LSB

Address byte ADB 11000MA1MA0X
Divider byte 1 DB1 0 XXXXXXX
Divider byte 2 DB2 XXXXXXXX
Control byte CB 11001X10
Band-switch byte BB XXXX0000

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134) (note 1).

SYMBOL PARAMETER MIN. MAX. UNIT

V

CC

V

O(n)

I

O(n)

V

O(CP

V

O(VT)

V

I/O(ADC)

V

I(SCL)

V

I/O(SDA)

I

O(SDA)

V

I(AS)

V

I(XTAL)

I

O(n)

supply voltage −0.3 +6 V
output voltage on pins PVHFL, PVHFH and PUHF −0.3 +6 V
output current on pins PVHFL, PVHFH and PUHF −1 +30 mA

) charge pump output voltage −0.3 +6 V

tuning output voltage −0.3 +35 V
ADC input/output voltage −0.3 +6 V
serial clock input voltage −0.3 +6 V
serial data input/output voltage −0.3 +6 V
data output current −1 +10 mA
address selection input voltage −0.3 +6 V
crystal oscillator input voltage −0.3 +6 V
output current of each pin to ground:

for TDA6404, pins 1 to 6 and 17 to 28 −−10 mA
for TDA6405 and TDA6405A, pins 1 to 12 and 23 to 28 −−10 mA

t

sc(max)

T

stg

T

amb

T

j

maximum short-circuit time (all pins to VCC and all pins to GND, RFGND) − 10 s
IC storage temperature −40 +150 °C
operating ambient temperature −20 +85 °C
junction temperature − 150 °C

Note

1. Maximum ratings can not be exceeded, not even momentarily without causing irreversible IC damage.

Maximum ratings can not be accumulated.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS TYPICAL UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 85 K/W

1999 Jan 13 10

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (T

V

CC

I

CC

=25°C)

amb

supply voltage 4.5 5 5.5 V
supply current at VCC= 5 V all PNP ports are ‘OFF’ − 78 86 mA

one PNP port is ‘ON’, sourcing 25 mA − 110 121 mA

PLL Synthesizer part (V

F

UNCTIONAL RANGE

V

POR

Power-on reset voltage below this supply voltage Power-on

= 4.5 to 5.5 V; T

CC

= −20 to +85 °C; unless otherwise specified)

amb

1.5 2.0 − V

reset becomes active; see Table 10
D/D divider ratio 15-bit frequency word 256 − 32767
f

XTAL

Z

XTAL

crystal oscillator frequency R

 input impedance f

= 25 to 150 Ω 3.2 4 4.48 MHz

XTAL

= 4 MHz 600 1200 −Ω

XTAL

PNP PORTS
I

L(off)

V

O(sat)

leakage current VCC= 5.5 V; V

=0 −10 −−µA

PNPn

output saturation voltage one PNP port is ‘ON’, sourcing 25 mA;

V

PNPn(sat)=VCC

− V

PNPn

− 0.25 0.4 V

ADC INPUT
V

I

I

IH

I

IL

ADC input voltage see Table 9 0 − V
HIGH-level input current V
LOW-level input current V

ADC=VCC

=0 −10 −−µA

ADC

−−10 µA

CC

V

ADDRESS SELECTION INPUT (AS)
V

IL

V

IH

I

IH

I

IL

LOW-level input voltage 0 − 1.5 V
HIGH-level input voltage 3 − 5.5 V
HIGH-level input current VAS= 5.5 V −−10 µA

LOW-level input current VAS=0 −10 −−µA
SCL AND SDA INPUTS
V

IL

V

IH

I

IH

I

IL

f

SCL

LOW-level input voltage 0 − 1.5 V

HIGH-level input voltage 3.0 − 5.5 V

HIGH-level input current V

LOW-level input current V

= 5.5 V; VCC=0 −−10 µA

bus

V

= 5.5 V; VCC= 5.5 V −−10 µA

bus

= 1.5 V; VCC=0 −−10 µA

bus

V

= 0; VCC= 5.5 V −10 −−µA

bus

serial clock frequency − 100 150 kHz
SDA OUTPUT
I

L

V

O

leakage current V

output voltage I

= 5.5 V −−10 µA

SDA

= 3 mA (sink current) −−0.4 V

SDA

1999 Jan 13 11

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

CHARGE PUMP OUTPUT (CP)

 HIGH-level input current CHP = 1 − 280 −µA

I

IH

I

 LOW-level input current CHP = 0 − 60 −µA

IL

V

O

I

L(off)

output voltage PLL is locked; T

=25°C − 1.95 − V

amb

off-state leakage current T2 = 0; T1 = 1 −15 −0.5 +15 nA
TUNING VOLTAGE OUTPUT (VT)
I

L(off)

V

O

Mixer/oscillator part (V

IF

AMPLIFIER

S

22

R

s

L

s

off-state leakage current OS = 1; tuning supply = 33 V −−10 µA

output voltage when the

loop is closed

=5V; T

CC

OS = 0; T2 = 0; T1 = 0; T0 = 1;

0.2 − 32.7 V

RL=27kΩ; tuning supply = 33 V

=25°C; unless otherwise specified); measured in Fig.11

amb

output reflection coefficient magnitude at 36.15 MHz; Zo=50Ω− −12.5 − dB

phase at 36.15 MHz; Z

=50Ω−1.41 − deg

o

real part of Zo=Rs+jωLsRs at 36.15 MHz − 81 −Ω

imaginary part of

Zo=Rs+jωL

s

Ls at 36.15 MHz − 9.5 − nH

VHF MIXER (INCLUDING IF AMPLIFIER)
f

i(RF)

F noise figure f

g

os

g

i

C

i

V

o

V

i

RF input frequency picture carrier frequency 45.25 − 399.25 MHz

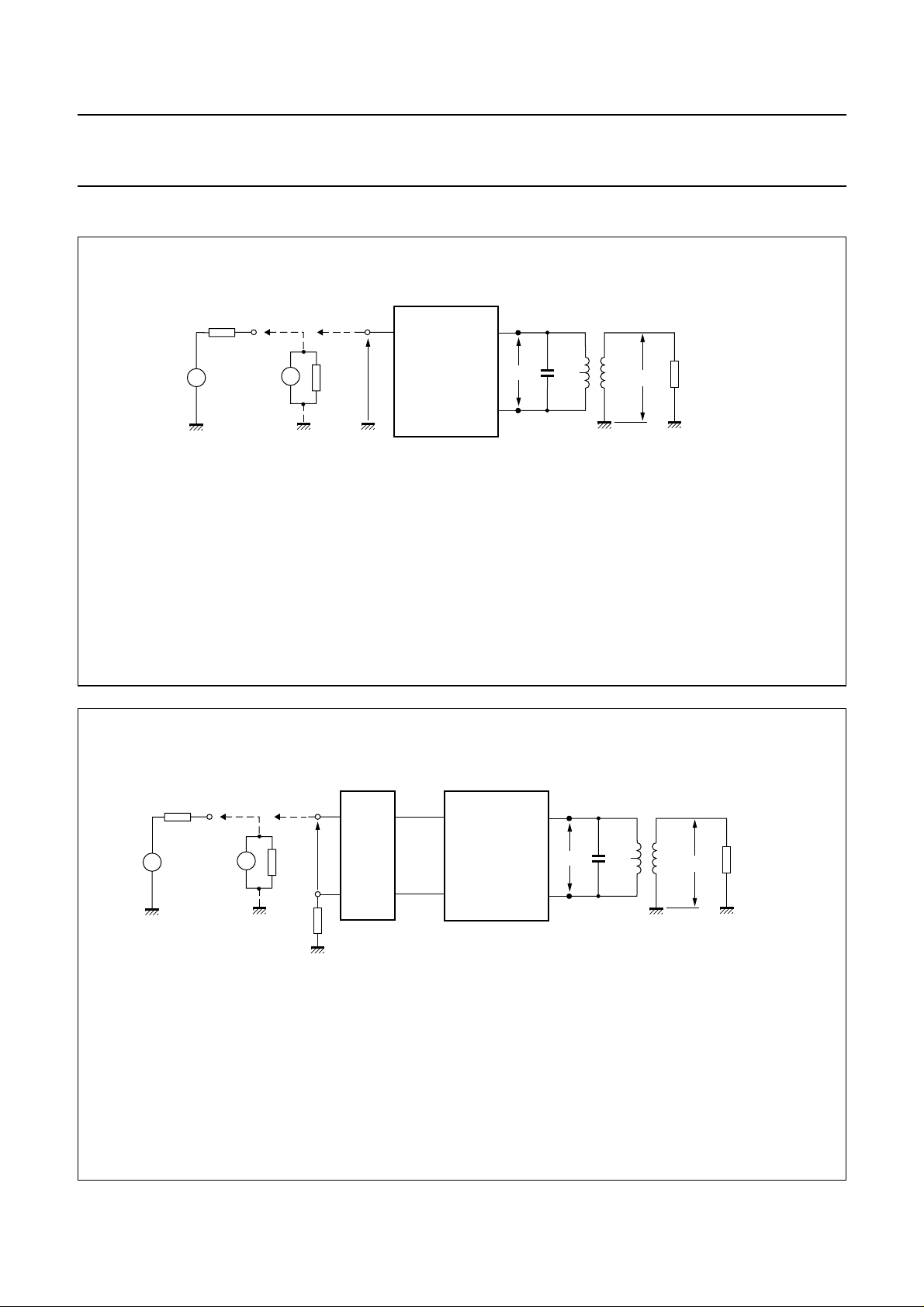

= 50 MHz; see Figs 8 and 9 − 79dB

RF

f

= 150 MHz; see Figs 8 and 9 − 810dB

RF

= 300 MHz; − 911dB

f

RF

optimum source

conductance for noise

figure

fRF= 50 MHz − 0.7 − mS
f

= 150 MHz − 0.9 − mS

RF

= 300 MHz − 1.5 − mS

f

RF

input conductance fRF= 45.25 MHz − 0.25 − mS

f

= 399.25 MHz − 0.5 − mS

RF

input capacitance fRF= 45.25 to 399.25 MHz − 2 − pF

output voltage causing 1%

cross modulation in

channel

input voltage causing

fRF= 45.25 MHz; see Fig.6 116 119 − dBµV

= 399.25 MHz; see Fig.6 116 119 − dBµV

f

RF

fRF= 399.25 MHz; note 1 − 88 − dBµV

pulling in channel (750 Hz)
G

V

voltage gain fRF= 45.25 MHz; see Fig.4 24.5 27 29.5 dB

f

= 399.25 MHz; see Fig.4 24.5 27 29.5 dB

RF

VHF OSCILLATOR
f

∆f

osc

osc(V)

oscillator frequency 84.15 − 438.15 MHz

oscillator frequency shift

with supply voltage

∆VCC= 5%; worst case in the frequency
range; note 2

∆V

= 10%; worst case in the

CC

− 100 200 kHz

− 200 − kHz

frequency range; note 2

1999 Jan 13 12

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

∆f

osc(T)

∆f

osc(t)

Φ

osc

RSC

oscillator frequency drift

with temperature

oscillator frequency drift

with time

phase noise, carrier to

noise sideband

ripple susceptibility of V

(p-p)

(peak-to-peak value)

∆T=25°C with compensation; worst
case in the frequency range; note 3

with compensation; worst case in the
frequency range; note 4

±100 kHz frequency offset; worst case
in the frequency range

VCC= 5 V; worst case in the frequency

CC

range; ripple frequency 500 kHz; note 5

− 1300 2000 kHz

− 600 900 kHz

− 106 − dBc/Hz

15 40 − mV

UHF MIXER (INCLUDING IF AMPLIFIER)
f

i(RF)

F noise figure f

RF input frequency picture carrier frequency 407.25 − 855.25 MHz

= 407.25 MHz; not corrected for

RF

− 810dB

image; see Fig.10
f

= 855.25 MHz; not corrected for

RF

− 911dB

image; see Fig.10

R

s

L

s

V

o

V

i

real part of Zi=Rs+jωLsfRF= 407.25 MHz − 30 −Ω

= 855.25 MHz − 38 −Ω

f

RF

imaginary part of

Zi=Rs+jωL

s

output voltage causing 1%

cross modulation in

channel

input voltage causing

fRF= 407.25 MHz − 9 − nH
f

= 855.25 MHz − 6 − nH

RF

fRF= 407.25 MHz; see Fig.7 116 119 − dBµV
f

= 855.25 MHz; see Fig.7 114 117 − dBµV

RF

fRF= 855.25 MHz; note 1 − 78 − dBµV

pulling in channel (750 Hz)
G

V

voltage gain fRF= 407.25 MHz; see Fig.5 35 38 41 dB

f

= 855.25 MHz; see Fig.5 35 38 41 dB

RF

UHF OSCILLATOR
f

∆f

osc

osc(V)

oscillator frequency 446.15 − 894.15 MHz

oscillator frequency shift

with supply voltage

∆VCC= 5%; worst case in the frequency
range; note 2

= 10%; worst case in the

∆V

CC

− 30 80 kHz

− 80 − kHz

frequency range; note 2

∆f

osc(T)

∆f

osc(t)

Φ

osc

RSC

oscillator frequency drift

with temperature

oscillator frequency drift

with time

phase noise, carrier to

noise sideband

ripple susceptibility of V

(p-p)

(peak-to-peak value)

∆T=25°C; with compensation; worst
case in the frequency range; note 3

with compensation; worst case in the
frequency range; note 4

±100 kHz frequency offset; worst case
in the frequency range

VCC= 5 V; worst case in the frequency

CC

range; ripple frequency 500 kHz; note 5

− 600 1000 kHz

− 200 400 kHz

− 106 − dBc/Hz

15 20 − mV

1999 Jan 13 13

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

R

EJECTION AT THE IF AMPLIFIER OUTPUT

INT

DIF

level of divider

note 6 − 20 − dBµV
interferences in the IF
signal

INTR

crystal oscillator

XTAL

note 7 60 −−dBc
interferences rejection

INTRF

reference frequency

REF

note 8 50 −−dBc
rejection

INT
INT

CHX
S02

channel x beat note 9 60 −−dBc
S02 beat note 10 66 −−dBc

Notes

1. This is the level of the RF signal (100% amplitude modulated with 11.89 kHz) that causes a 750 Hz frequency
deviation on the oscillator signal; it produces sidebands 30 dB below the level of the oscillator signal.

2. The frequency shift is defined as the change of the oscillator frequency when the supply voltage varies from
VCC= 5 to 4.75 V (4.5 V) or from VCC= 5 to 5.25 V (5.5 V). The oscillator is free-running during this measurement.

3. The frequency drift is defined as the change of the oscillator frequency when the ambient temperature varies from
T

=25to0°C or from T

amb

=25to50°C. The oscillator is free-running during this measurement.

amb

4. The switching on drift is defined as the change of the oscillator frequency between 5 seconds and 15 minutes after
switching on. The oscillator is free-running during this measurement.

5. The ripple susceptibility is measured for a 500 kHz ripple at the IF amplifier output using the measurement circuit;
the level of the ripple signal is increased until a difference of 53.5 dB between the IF carrier set at 100 dBµV and the
sideband components is reached.

6. This is the level of divider interferences close to the IF frequency. For example:
Ch S1: f
Ch S2: f
Ch S14: f

= 144.15 MHz and1⁄4f

osc

= 151.15 MHz and1⁄4f

osc

= 291.15 MHz and1⁄8f

osc

= 36.0375 MHz.

osc

= 37.7875 MHz.

osc

= 36.39375 MHz.

osc

The VHF RF input must be left open (i.e. not connected to any load or cable).
The UHF RF inputs are connected to a hybrid.

7. Crystal oscillator interference means the 4 MHz sidebands caused by the crystal oscillator.
The rejection should be >60 dB for an IF output signal of 100 dBµV.

8. The reference frequency rejection is the level of reference frequency sidebands related to the sound subcarrier.
The rejection should be >50 dB for an IF output signal of 100 dBµV, f

= 7.8125 kHz.

REF

9. Channel x beat: picture carrier frequency (69.25 MHz) and sound carrier frequency (74.75 MHz) both at 80 dBµV,
f

at 108.15 MHz. The rejection of the interfering product RF picture carrier frequency + RF sound carrier

osc

frequency − f

10. Channel S02: picture carrier frequency is 76.25 MHz at 80 dBµV, f
The rejection of f

at 35.85 MHz should be >60 dB.

osc

− 2 × fIF= 37.35 MHz should be >66 dB.

osc

= 115.15 MHz.

osc

1999 Jan 13 14

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TEST AND APPLICATION INFORMATION

handbook, full pagewidth

(1) N1 is 2 × 5 turns
(2) N2 is 2 turns
Z

>> 50 Ω⇒Vi=2×V

i

V

=V’

o

G

v

+ 16 dB (transformer ratio and transformer loss)

meas

V

=20log

o

-----­V

i

e

50 Ω

V

; Vi=80dBµV

meas

signal
source

meas

V

RMS

voltmeter

N1

------- ­N2

50 Ω

5=

VHFIN IFOUT1

V

i

D.U.T.

IFOUT2

TDA6404; TDA6405;

TDA6405A

T

(1)N1(2)

V

C

o

N2

V'

meas

spectrum
analyzer

50 Ω

MGK828

Fig.4 Voltage gain (Gv) measurement in the VHF band.

handbook, full pagewidth

e

(1) N1 is 2 × 5 turns
(2) N2 is 2 turns
V

V

G

; Vi=70dBµV

i=Vmeas

=V’

o

meas

= 20 log +1 dB (1 dB = correction for hybrid loss)

v

signal
source

50 Ω

V

V

RMS

voltmeter

50 Ω

50 Ω

N1

------- ­N2

meas

+ 16 dB (transformer ratio and transformer loss)
V

o

-----­V

i

V

5=

i

A

HYBRID

B

(1)N1(2)

C

T

N2

V'

meas

spectrum
analyzer

50 Ω

MGK829

C

D

UHFIN1 IFOUT1

D.U.T.

IFOUT2UHFIN2

V

o

Fig.5 Voltage gain (Gv) measurement in the UHF band.

1999 Jan 13 15

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

handbook, full pagewidth

V

meas

unwanted

signal

source

50 Ω

AM = 30%

e

u

50 Ω

e

w

(1) N1 is 2 × 5 turns
(2) N2 is 2 turns

>> 50 Ω⇒Vi=2×V

Z

i

Wanted input signal V
Measured level of the unwanted output signal V
unwanted f

RF

wanted

= 50.75 MHz (404.75 MHz); Vou=V’

AC

HYBRID

BD

signal

source

; V’

meas

meas=Vo

=80dBµV at wanted fRF= 45.25 MHz (399.25 MHz).

i

−16 dB (transformer ratio and transformer loss)

V

50 Ω

RMS

voltmeter

VHFIN IFOUT1

V

i

50 Ω

causing 0,3% AM modulation in the wanted output signal;

ou

meas

+16dB.

D.U.T.

IFOUT2

N1

------- ­N2

TDA6404; TDA6405;

TDA6405A

V'

meas

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MGL275

18 dB

T

(1)

N1

V

o

C

5=

N2

attenuator

(2)

V

RMS

voltmeter

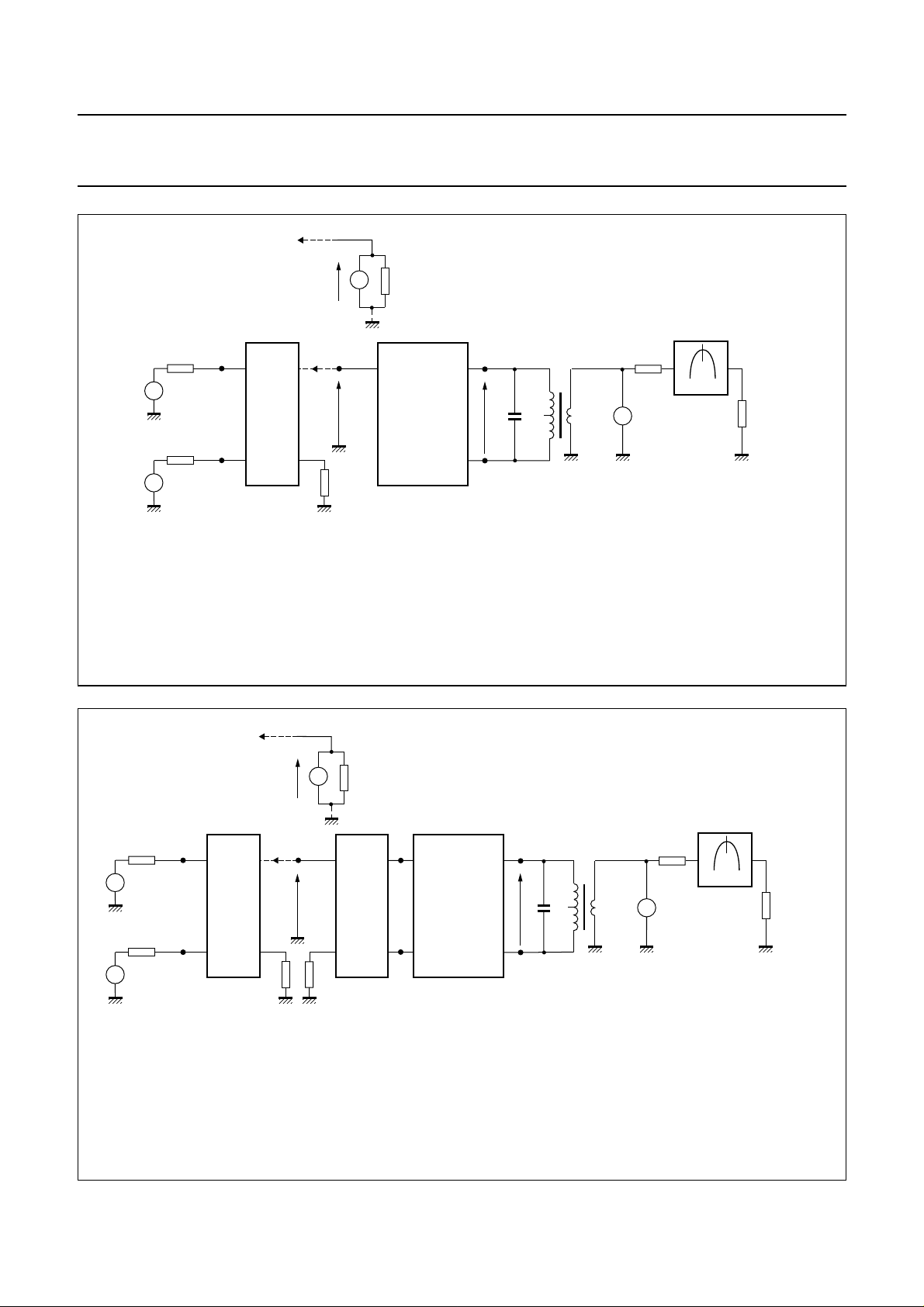

Fig.6 Cross modulation measurement in the VHF band.

handbook, full pagewidth

V

meas

unwanted

signal

source

50 Ω

AM = 30%

e

u

50 Ω

e

w

(1) N1 is 2 × 5 turns
(2) N2 is 2 turns

V

i=Vmeas

Wanted input signal V
Measured level of the unwanted output signal V
unwanted f

wanted

source

; V’

meas=Vo

RF

AC

HYBRID

BD

signal

−16 dB (transformer ratio and transformer loss)

=70dBµV at fRF= 407.25 MHz (855.25 MHz).

i

= 412.75 MHz (860.75 MHz); Vou=V’

50

Ω

V

50 Ω

RMS

voltmeter

5=

+16dB.

UHFIN1 IFOUT1

D.U.T.

IFOUT2UHFIN2

V

o

AC

HYBRID

V

i

BD

50

Ω

N1

------- ­N2

causing 0,3% AM modulation in the wanted output signal;

ou

meas

18 dB

T

(1)

N1

C

attenuator

(2)

N2

V

RMS

voltmeter

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MGL276

Fig.7 Cross modulation measurement in the UHF band.

1999 Jan 13 16

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

handbook, full pagewidth

C1

BNC BNC

L1 C2

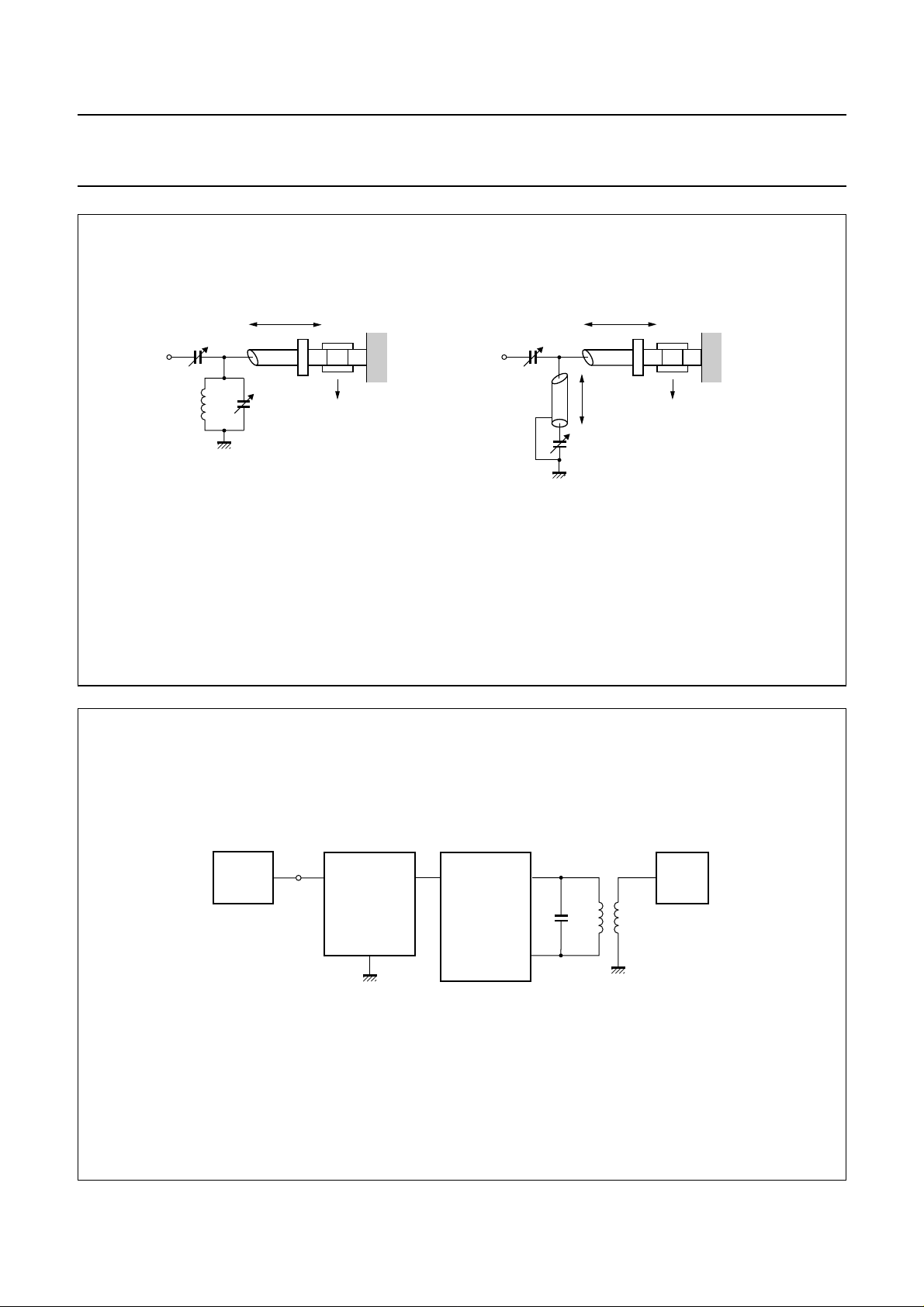

(a) For fRF= 50 MHz:
VHF mixer frequency response measured = 57 MHz;
loss = 0 dB.
Image suppression = 16 dB.
C1 = 9 pF;C2=
L1 = 7 turns (Ø 5.5 mm; wire Ø = 0.5 mm).
I1 = semi rigid cable (RIM): 5 cm long.
(semi rigid cable (RIM); 33 dB/100 m;

15 pF.

I1

RIM-RIM

PCB

plug plug

(a) (b)

50 Ω; 96 pF/m)

.

TDA6404; TDA6405;

TDA6405A

I3

C3

I2

C4

(b) For fRF= 150 MHz:
VHF mixer frequency response measured = 150.3 MHz;
loss = 1.3 dB.
Image suppression = 13 dB.
C3 = 5 pF; C4 = 25 pF.
I2 = semi rigid cable (RIM): 30 cm long.
I3 = semi rigid cable (RIM): 5 cm long
(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

RIM-RIM

PCB

MBE286 - 1

handbook, full pagewidth

Fig.8 Input circuit for optimum noise figure in the VHF band.

NOISE

SOURCE

BNC

RIM

INPUT

CIRCUIT

VHFIN

IFOUT1

D.U.T.

IFOUT2

T

C

NOISE

FIGURE

METER

MGL277

F=F

− loss (of input circuit) (dB).

meas

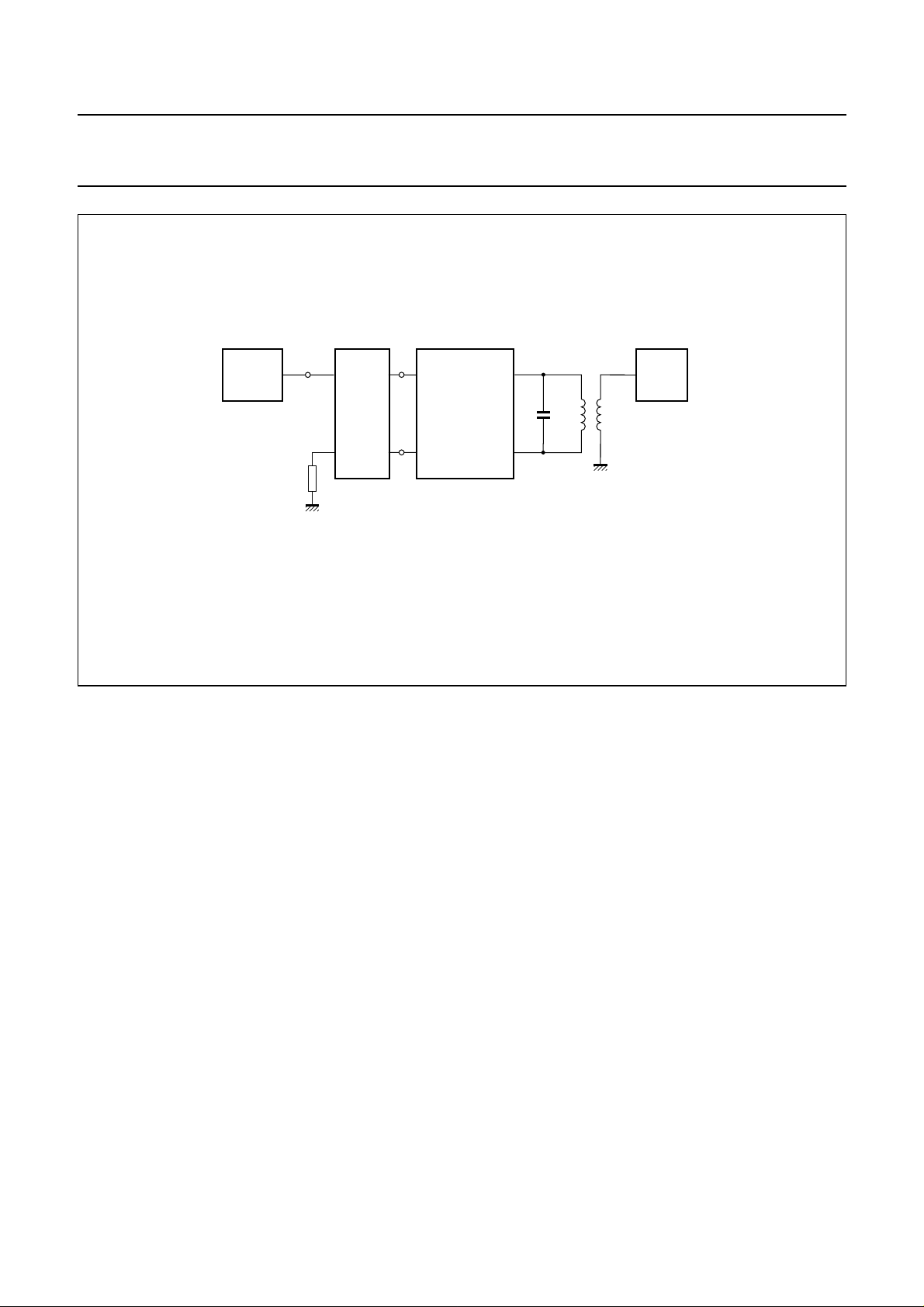

Fig.9 Noise figure (F) measurement in the VHF band.

1999 Jan 13 17

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

handbook, full pagewidth

NOISE

SOURCE

50 Ω

A

HYBRID

B

UHFIN1

C

D

UHFIN2

D.U.T.

IFOUT2

IFOUT1

TDA6404; TDA6405;

TDA6405A

T

C

NOISE

FIGURE

METER

MGL278

Loss (in hybrid) = 1 dB.
F=F

− loss (in hybrid).

meas

Fig.10 Noise figure (F) measurement in the UHF band.

1999 Jan 13 18

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

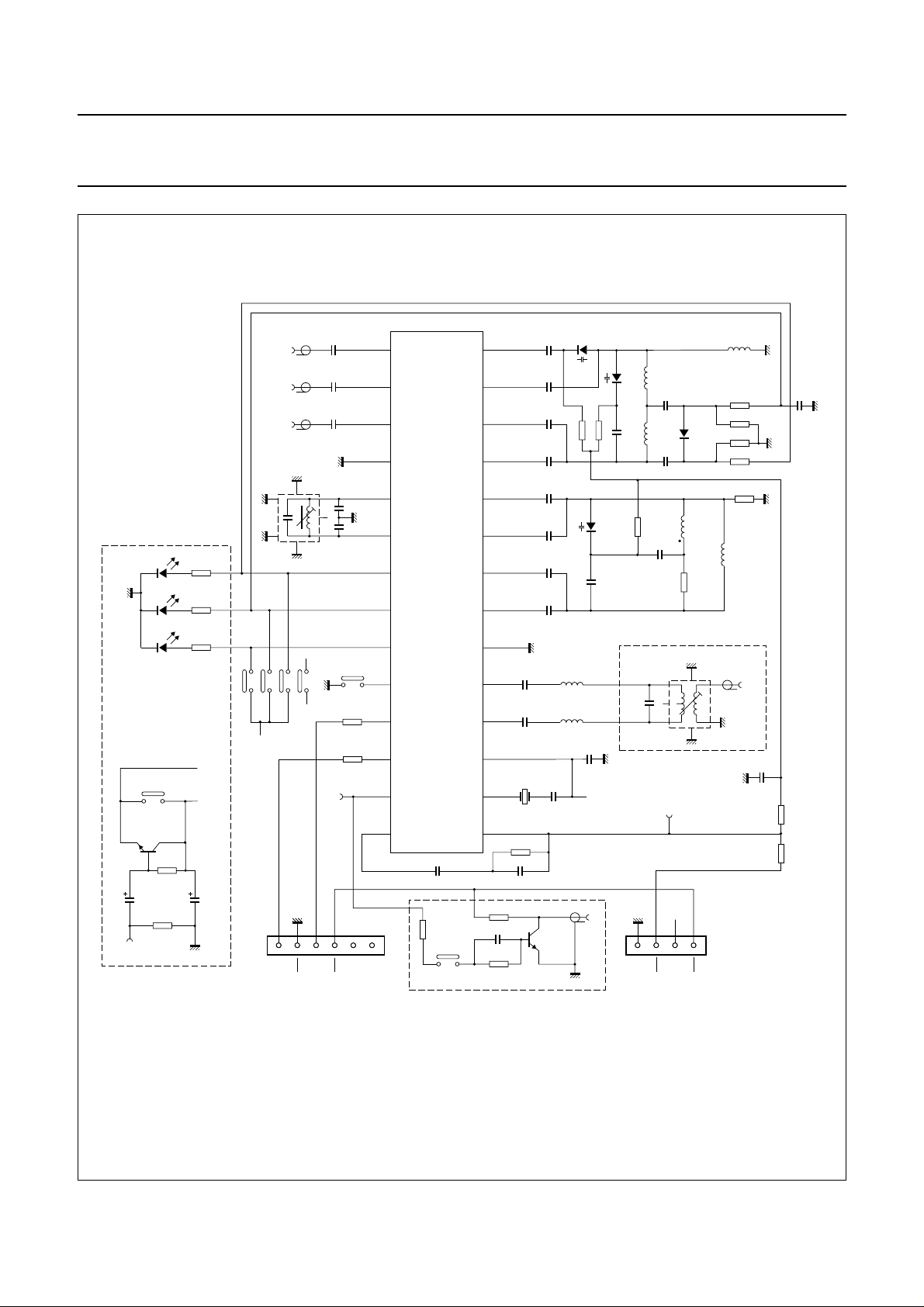

andbook, full pagewidth

C1P1

UHFIN1

J7

UHFIN2

VHFIN

RFGND

IFFIL1

IFFIL2

PVHFL

PVHFH

PUHF

SDA

SCL

ADC

1 (28)

2 (27)

3 (26)

4 (25)

5 (24)

6 (23)

7 (22)

TDA6404

(TDA6405)

(TDA6405A)

8 (21)

9 (20)

AS

10 (19)

11 (18)

12 (17)

13 (16)

CP

14 (15)

C25

100 nF

R19
330 Ω

D5

VHFL

LED-3R

VHFH

D6

LED-3Y

D7

UHF

LED-3G

for test purpose only

J5

TR1

BC847B

R17

1.2 kΩ

10 µF

C27 C28

(16 V)

R22

50 Ω

P9

V

ripple

R8

330 Ω

R10

330 Ω

R11

330 Ω

V

CC

+V

CC

10 µF
(16 V)

UHF1

UHF2

VHF

L3

TOKO 7 km

L value/C value

6

4

J1

J2

J3

J4

UHF

VHFL

VHFH

V

CC

123456

P7

SCL

GND

1 nF

P2

C3

1 nF

P3

C6

1 nF

7

15 pF

1

C11

2

C13

3

15 pF

8

PLL

R12

330 Ω

R13

330 Ω

P5

SDA

+5 V

(1) 28

(2) 27

(3) 26

(4) 25

(5) 24

(6) 23

(7) 22

(8) 21

(9) 20

(10) 19

(11) 18

(12) 17

(13) 16

(14) 15

J6

for test purpose only

VHFOSCIB2

VHFOSCOC2

VHFOSCOC1

VHFOSCIB1

UHFOSCIB2

UHFOSCOC2

UHFOSCOC1

UHFOSCIB1

GND

IFOUT2

IFOUT1

V

CC

XTAL

VT

R15 33 kΩ

R18 1 kΩ

C29 10 nF

R20 68 kΩ

C19

1 nF
C20

1 nF

4 MHz

C26

2.2 nF

X1

C2D1BB149

150 pF

C4

2.2 pF
C7

R21 R2

2.2 pF
C8

2.2 pF

C12

1 pF
C14

1 pF
C16

1 pF
C17

1 pF

80 nH

80 nH

C23

18 pF

TR2
BC847B

TDA6404; TDA6405;

TDA6405A

L1

1 µH

L2

D2

30 nH

BB152

C5

4.7 nF

C9

L4

100

80 nH

pF

22

22

kΩ

kΩ

D4
BB149

C18
10 pF

L9

L8

C22

10 nF

V

CC

P10

f

REF

C10

4.7 nF

R6
22 kΩ

C15

47 pF

for test purpose only

1
2

C21
18 pF

3
L7

P6

+V

1234

+V

AGND

+33 V

CC

R1 1.5 kΩ

R3 22 kΩ

D3

R4 1.5 kΩ

BA792

R5 2.7 kΩ

R7

22 kΩ

L5
16 nH

L6
30 nH

R9

4.7 kΩ

P4

7

6

OUT

4

8

CC

P8

+5 V

MGK812

VHFL

IF

C24

10 nF

VHFH

C30

4.7 nF

R14
22 kΩ

R16
22 kΩ

The pin numbers in parenthesis represent the TDA6405 and TDA6405A.

Fig.11 Measurement circuit.

1999 Jan 13 19

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

Component values for measurement circuit
Table 11 Capacitors (all SMD and NP0 unless otherwise

specified)

COMPONENT VALUE

C1 1 nF
C2 150 pF
C3 1 nF
C4 2.2 pF (N750)
C5 4.7 nF
C6 1 nF
C7 2.2 pF (N750)
C8 2.2 pF (N750)
C9 100 pF (N750)
C10 4.7 nF
C11 15 pF
C12 1 pF (N750)
C13 15 pF
C14 1 pF (N750)
C15 47 pF
C16 1 pF (N750)
C17 1 pF (N750)
C18 10 pF (N750)
C19 1 nF
C20 1 nF
C21 18 pF
C22 10 nF
C23 18 pF
C24 10 nF
C25 100 nF
C26 2.2 nF
C27 10 µF (16 V; electrolytic)
C28 10 µF (16 V; electrolytic)
C29 10 nF
C30 4.7 nF

TDA6404; TDA6405;

TDA6405A

Table 12 Resistors (all SMD)

COMPONENT VALUE

R1 1.5 kΩ
R2 22 kΩ
R3 22 kΩ
R4 1.5 kΩ
R5 2.7 kΩ
R6 22 kΩ
R7 22 kΩ
R8 330 Ω
R9 4.7 kΩ
R10 330 Ω
R11 330 Ω
R12 330 Ω
R13 330 Ω
R14 22 kΩ
R15 33 kΩ
R16 22 kΩ
R17 1.2 kΩ
R18 1 kΩ
R19 330 Ω
R20 68 kΩ
R21 22 kΩ
R22 50 Ω

1999 Jan 13 20

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

Table 13 Diodes and ICs

COMPONENT VALUE

D1 BB149
D2 BB152
D3 BA792
D4 BB149
D5 LED-3R
D6 LED-3Y
D7 LED-3G
IC TDA6404; TDA6405;

TDA6405A

Table 14 Coils

COMPONENT VALUE

L1 1 µH (inductor)
L2 30 nH
L4 80 nH
L5 16 nH
L6 30 nH
L8 80 nH
L9 80 nH

TDA6404; TDA6405;

TDA6405A

Table 15 Transformer

COMPONENT VALUE

L3 23 turns

(TOKO, wire 0.07 mm)

L7 N1 = 2 × 5 turns

N2 = 2 turns
(TOKO, wire 0.09 mm)

Table 16 Crystal

COMPONENT VALUE

X1 4 MHz

Table 17 Transistors

COMPONENT VALUE

TR1 BC847B
TR2 BC847B

1999 Jan 13 21

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

TDA6404; TDA6405;

TDA6405A

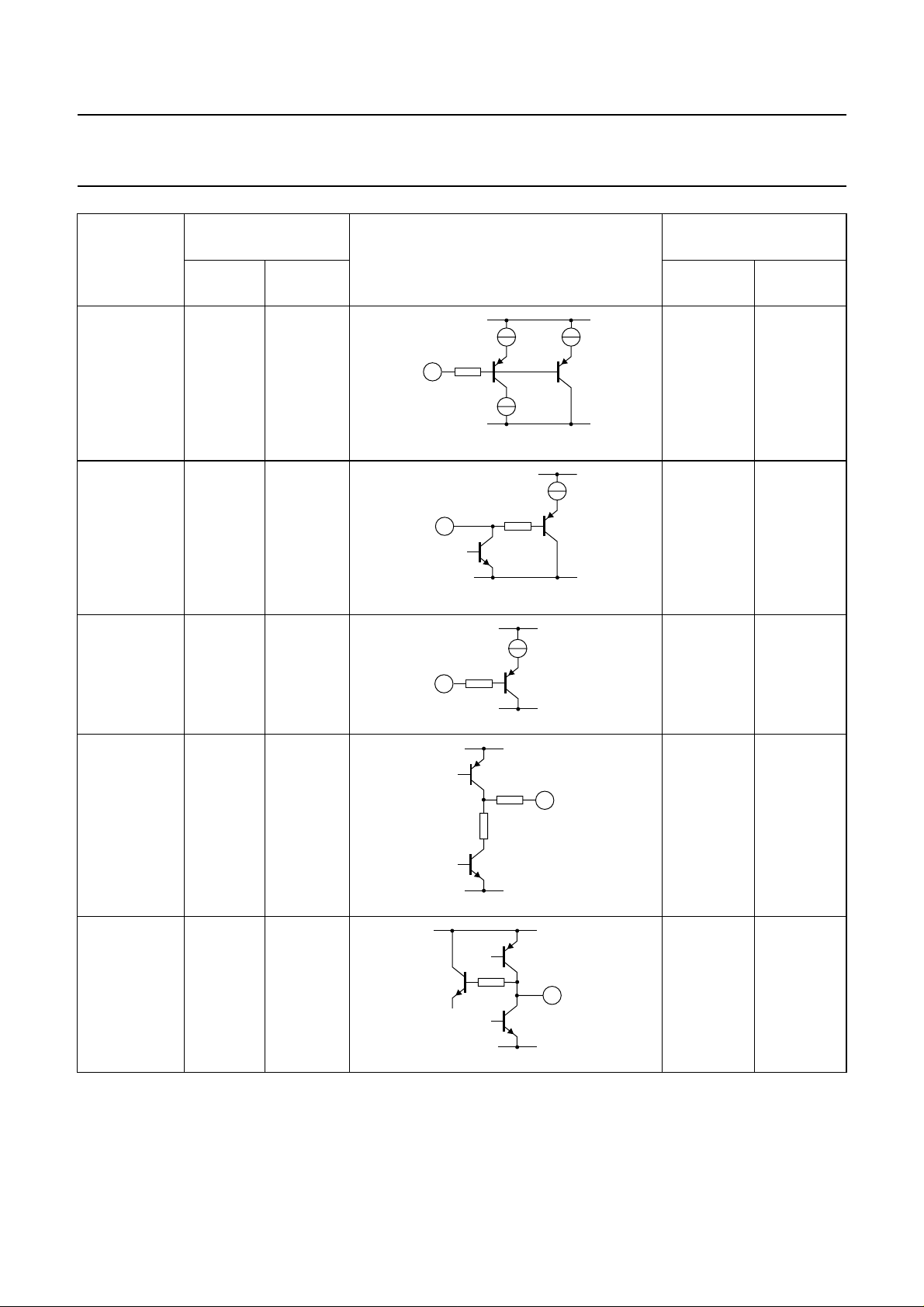

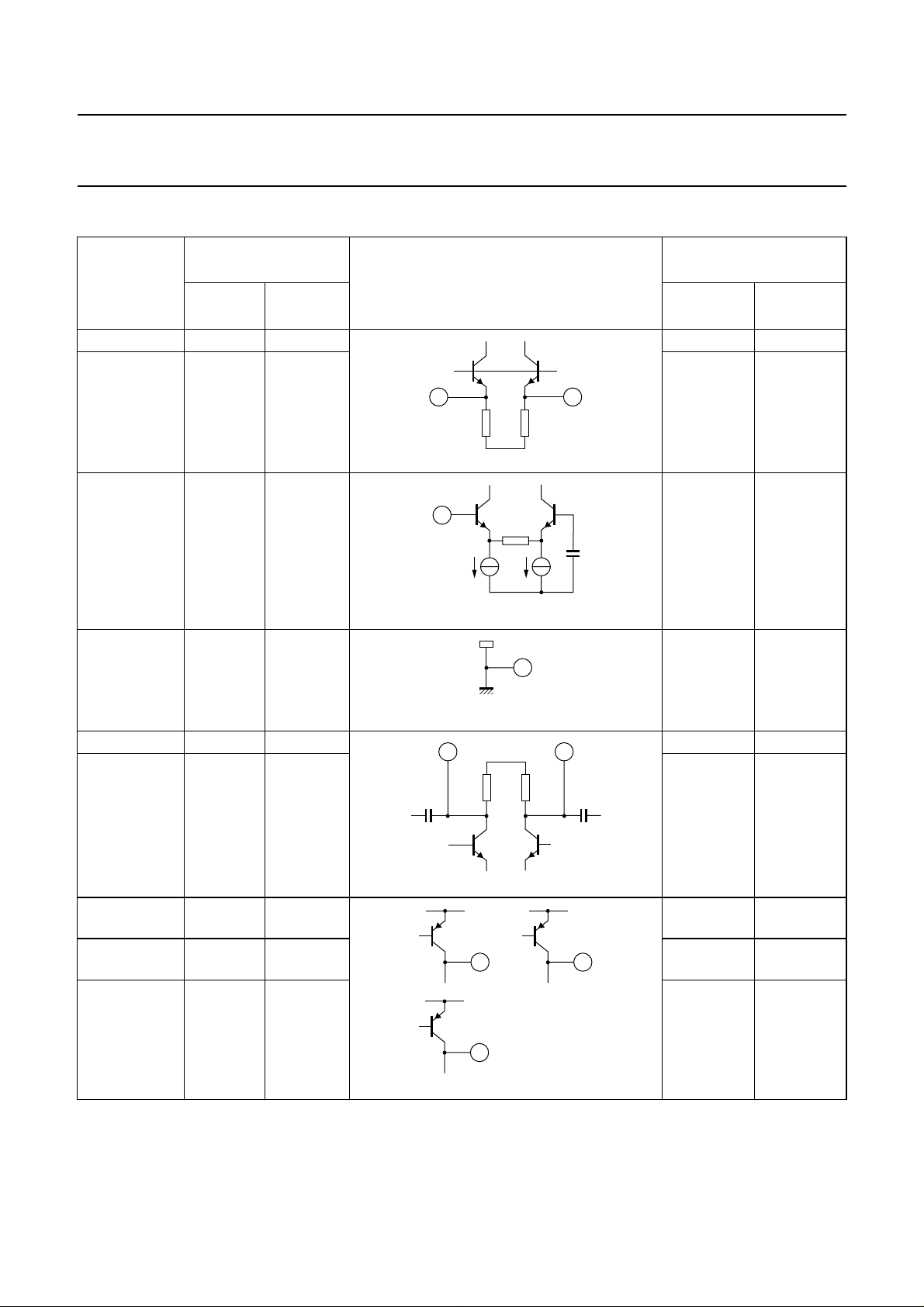

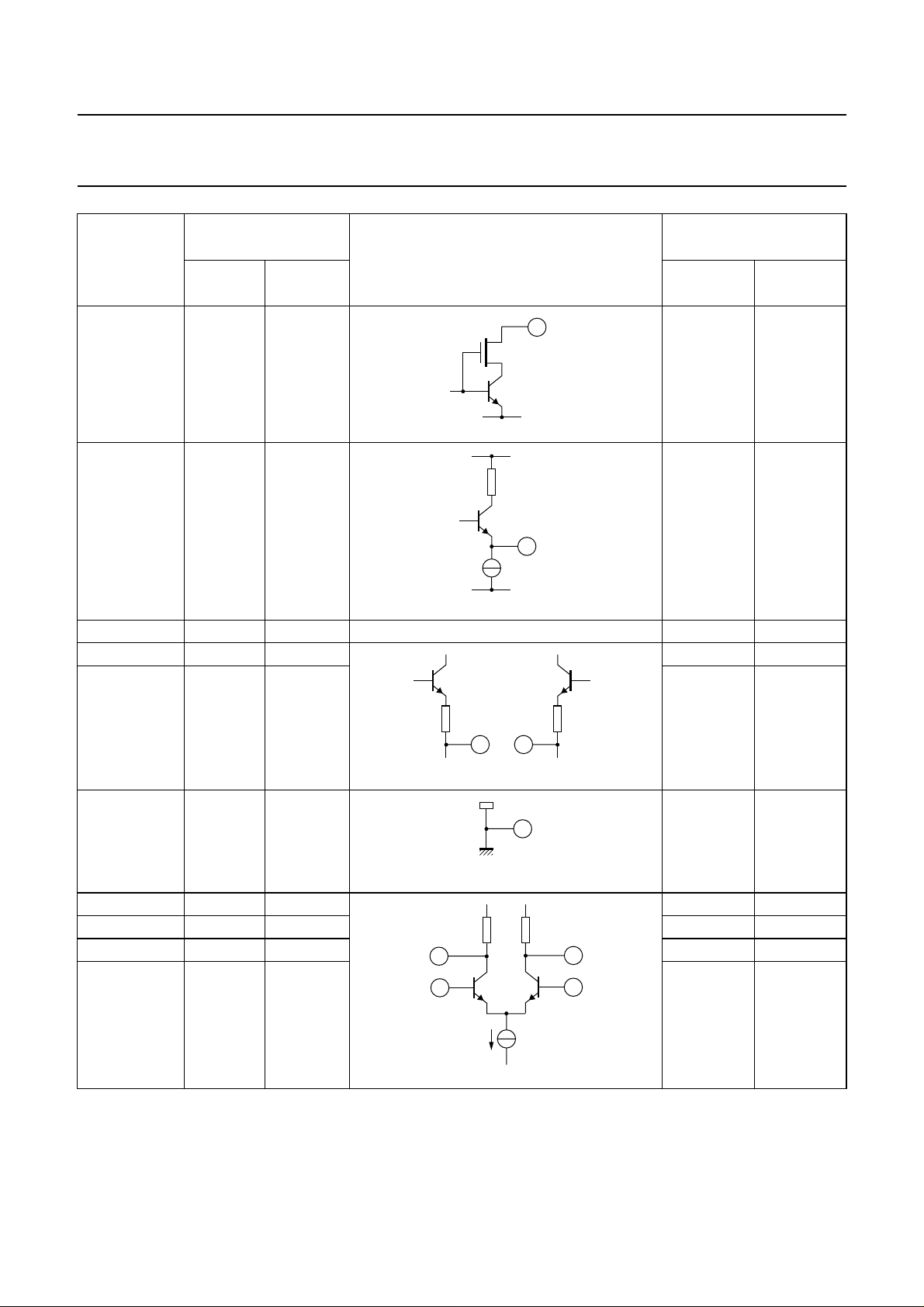

INTERNAL PIN CONFIGURATION

A VERAGE DC VOL TAGE

(V)

VHF UHF

SYMBOL

TDA6404

PIN

TDA6405:

TDA6405A

CONFIGURATION

(1)

UHFIN1 1 28 note 2 1.0
UHFIN2 2 27 note 2 1.0

1

(28)

2

(27)

MGE704

VHFIN 3 26 1.9 note 2

3

(26)

MGE705

RFGND 4 25 0.0 0.0

4

(25)

MGE706

IFFIL1 5 24 3.4 3.4

65 (23)(24)

IFFIL2 6 23 3.4 3.4

MGD617

PVHFL 7 22 0.0 or

(V

− VCE)

CC

PVHFH 8 21 (V

PUHF 9 20 0.0 (V

(22)

7

8

(21)

CC

or 0.0

− VCE)

0.0

0.0

CC

− VCE)

1999 Jan 13 22

9

(20)

MGK814

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

PIN

SYMBOL

TDA6404

TDA6405:

TDA6405A

CONFIGURATION

AS 10 19 V

10

(19)

(1)

MGK815

TDA6404; TDA6405;

TDA6405A

A VERAGE DC VOL TAGE

(V)

VHF UHF

AS

V

AS

SDA 11 18 note 2 note 2

11

(18)

MGK816

SCL 12 17 note 2 note 2

12

(17)

MGK817

ADC 13 16 1.9 1.9

13

(16)

MGK818

CP 14 15 1.9 1.9

14

(15)

MGK819

1999 Jan 13 23

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

PIN

SYMBOL

TDA6404

TDA6405:

TDA6405A

CONFIGURATION

VT 15 14 V

(1)

15

(14)

MGK820

TDA6404; TDA6405;

TDA6405A

A VERAGE DC VOL TAGE

(V)

VHF UHF

VT

V

XTAL 16 13 3.0 3.0

16

(13)

MGK821

VT

V

CC

17 12 supply voltage 5.0 5.0
IFOUT1 18 11 2.2 2.2
IFOUT2 19 10 2.2 2.2

18

(11)19(10)

MGK822

GND 20 9 0.0 0.0

20
(9)

MGK823

UHFOSCIB1 21 8 note 2 1.9
UHFOSCOC1 22 7 note 2 2.5
UHFOSCOC2 23 6 note 2 2.5

(6)
23

(7)

22

UHFOSCIB2 24 5 note 2 1.9

21

(8)

24
(5)

MGK824

1999 Jan 13 24

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

PIN

SYMBOL

TDA6404

TDA6405:

TDA6405A

CONFIGURATION

(1)

TDA6404; TDA6405;

TDA6405A

A VERAGE DC VOL TAGE

(V)

VHF UHF

VHFOSCIB1 25 4 2.0 note 2
VHFOSCOC1 26 3 2.7 note 2
VHFOSCOC2 27 2 2.7 note 2

(2)
27

(3)

26

VHFOSCIB2 28 1 2.0 note 2

25

(4)

28
(1)

MGK825

Notes

1. The pin numbers in parenthesis represent the TDA6405 and TDA6405A.

2. Not applicable.

1999 Jan 13 25

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

PACKAGE OUTLINE

SSOP28: plastic shrink small outline package; 28 leads; body width 5.3 mm

D

c

y

Z

28 15

TDA6404; TDA6405;

TDA6405A

SOT341-1

E

H

E

A

X

v M

A

pin 1 index

114

w M

b

e

DIMENSIONS (mm are the original dimensions)

mm

A

max.

2.0

0.21

0.05

1.80

1.65

0.25

b

0.38

0.25

p

cD

0.20

0.09

3

UNIT A1A2A

Note

1. Plastic or metal protrusions of 0.20 mm maximum per side are not included.

p

0 2.5 5 mm

scale

(1)E(1) (1)

10.4

10.0

eHELLpQZywv θ

5.4

0.65 1.25

5.2

7.9

7.6

Q

A

2

A

1

detail X

1.03

0.9

0.63

0.7

(A )

L

p

L

0.13 0.10.2

A

3

θ

1.1

0.7

o

8

o

0

OUTLINE

VERSION

SOT341-1 MO-150AH

IEC JEDEC EIAJ

REFERENCES

1999 Jan 13 26

EUROPEAN

PROJECTION

ISSUE DATE

93-09-08
95-02-04

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

SOLDERING
Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

TDA6404; TDA6405;

TDA6405A

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Wave soldering

Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Jan 13 27

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

Suitability of surface mount IC packages for wave and reflow soldering methods

PACKAGE

BGA, SQFP not suitable suitable
HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(3)

PLCC
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is

, SO, SOJ suitable suitable

temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

The package footprint must incorporate solder thieves downstream and at the side corners.

it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

WAVE REFLOW

(2)

(3)(4)
(5)

SOLDERING METHOD

TDA6404; TDA6405;

TDA6405A

(1)

suitable

suitable
suitable

.

1999 Jan 13 28

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

TDA6404; TDA6405;

TDA6405A

PURCHASE OF PHILIPS I

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C COMPONENTS

2

C components conveys a license under the Philips’ I2C patent to use the

1999 Jan 13 29

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

NOTES

TDA6404; TDA6405;

TDA6405A

1999 Jan 13 30

Philips Semiconductors Product specification

5 V mixer/oscillator-PLL synthesizers for
hyperband tuners

NOTES

TDA6404; TDA6405;

TDA6405A

1999 Jan 13 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1999 SCA61
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 545004/750/02/pp32 Date of release: 1999 Jan 13 Document order number: 9397 750 04901
