Datasheet tda5636b, tda56 37b DATASHEETS (Philips)

INTEGRATED CIRCUITS

DATA SH EET

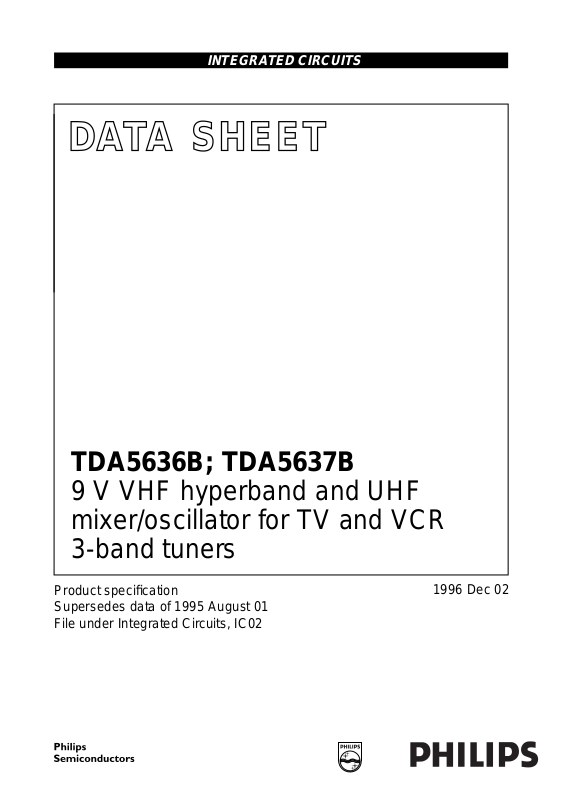

TDA5636B; TDA5637B

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR
3-band tuners

Product specification
Supersedes data of 1995 August 01
File under Integrated Circuits, IC02

1996 Dec 02

Philips Semiconductors Product specification

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR 3-band

TDA5636B; TDA5637B

FEATURES

• Balanced mixer with a common emitter input for band A
(single input)

• 2-pin oscillator for bands A and B

• Balanced mixer with a common base input for bands B

and C (balanced input)

• 4-pin oscillator for band C

• Local oscillator buffer output for external prescaler

• SAW filter preamplifier with a low output impedance to

drive the SAW filter directly

• Band gap voltage stabilizer for oscillator stability

• Electronic band switch

• External IF filter between the mixer output and the IF

amplifier input

• Pin-to-pin compatible with TDA5636; TDA5637 family
(same function with asymmetrical IF output).

APPLICATIONS

• 3-band all channel TV and VCR tuners

• Any standard.

GENERAL DESCRIPTION

The TDA5636B and TDA5637B are monolithic integrated
circuits that perform the mixer/oscillator functions for
bands A, B and C in TV and VCR tuners. These low-power
mixer/oscillators require a power supply of 9 V and are
available in a very small package.

The devices give the designer the capability to design an
economical and physically small 3-band tuner.

They are suitable for European standards, as illustrated in
Fig.17, with the following RF bands:

• 48.25 to 168.25 MHz

• 175.25 to 447.25 MHz

• 455.25 to 855.25 MHz.

With an appropriate tuned circuit, they are also suitable for
NTSC all channel tuners (USA and Japan). The tuner
development time can be drastically reduced by using
these devices.

These circuits belong to the TDA5636/TDA5737 family
which has exactly the same function with an IF amplifier
having an asymmetrical IF output to drive a 75 Ω load. It is
possible to build tuners with either an asymmetrical or a
symmetrical IF output with one main tuner lay-out.

1996 Dec 02 2

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

P

f

RF

G

v

NF noise figure band A − 7.5 − dB

V

o

supply voltage − 9.0 − V
supply current band A − 43 − mA

band B − 39 − mA
band C − 42 − mA

frequency range RF input; band A; note 1 45 − 180 MHz

RF input; band B; note 1 160 − 470 MHz
RF input; band C; note 1 430 − 860 MHz

voltage gain band A − 25 − dB

band B − 36 − dB
band C − 36 − dB

band B − 6 − dB
band C − 7 − dB

output voltage to get 1% cross
modulation in channel

band A − 121 − dBµV
band B − 120 − dBµV
band C − 119 − dBµV

Note

1. The limits are related to the tank circuits used in Fig.17 and the intermediate frequency. Frequency bands may be

adjusted by the choice of external components.

ORDERING INFORMATION

TYPE

NUMBER

TDA5636BT

NAME DESCRIPTION VERSION

(1)

SO24
TDA5636BM SSOP24
TDA5637BT SO24
TDA5637BM SSOP24

plastic small outline package; 24 leads; body width 7.5 mm
plastic shrink small outline package; 24 leads; body width 5.3 mm
plastic small outline package; 24 leads; body width 7.5 mm
plastic shrink small outline package; 24 leads; body width 5.3 mm

PACKAGE

SOT137-1
SOT340-1
SOT137-1
SOT340-1

Note

1. The TDA5636BT is available on request.

1996 Dec 02 3

Philips Semiconductors Product specification

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR 3-band

TDA5636B; TDA5637B

IF outputs

input

band switch

GND2

tuned circuit

band B oscillator

tuned circuit

band B oscillator

tuned circuit

band C oscillator

band C

oscillator

tuned circuit

13

(12)

(11)

(10)

(9)

(8)

(6)

(7)
(5)

(4)

(2)

IF

AMPLIFIER

ELECTRONIC

BAND SWITCH

BAND B

OSCILLATOR

BAND C

OSCILLATOR

TDA5636B

TDA5637B

MIXERMIXERMIXER

LOCAL

AMPLIFIER

OSCILLATOR

DC

STABILIZER

STAGE

BAND B

STAGE

BAND C

14

15

16

17

19

18
20

21

23

MGC504

12

(13)

11

(14)

local oscillator

10

(15)

9

(16)

8

(17)

7

(18)

5

(20)

4

(21)

3

(22)

2

(23)

1

(24)

amplifier output

GND1

mixers output

P

band B input

RF

GND

band C input

handbook, full pagewidth

Fig.1 Block diagram.

tuned circuit

band C oscillator

22

(3)

tuned circuit

band A oscillator

(1)

BAND A

OSCILLATOR

24

tuned circuit

band A oscillator

BLOCK DIAGRAM

1996 Dec 02 4

STAGE

BAND A

6

(19)

band A input V

The numbers given in parenthesis represent the TDA5637B.

The TDA5636B and TDA5637B are pin compatible with the TDA5636 and TDA5637 respectively.

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

PINNING

SYMBOL

CIN1 1 24 band C input 1
CIN2 2 23 band C input 2
RFGND 3 22 ground for RF inputs
BIN1 4 21 band B input 1
BIN2 5 20 band B input 2
AIN 6 19 band A input
V

P

MIXOUT1 8 17 mixers output 1
MIXOUT2 9 16 mixers output 2
GND1 10 15 ground 1 (0 V)
LOOUT1 11 14 local oscillator amplifier output 1
LOOUT2 12 13 local oscillator amplifier output 2
IFOUT1 13 12 IF amplifier output 1
IFOUT2 14 11 IF amplifier output 2
BS 15 10 electronic band switch input
GND2 16 9 ground 2 (0 V)
BOSCOC 17 8 band B oscillator output collector
COSCIB1 18 7 band C oscillator input base 1
BOSCIB 19 6 band B oscillator input base
COSCOC1 20 5 band C oscillator output collector 1
COSCOC2 21 4 band C oscillator output collector 2
AOSCOC 22 3 band A oscillator output collector
COSCIB2 23 2 band C oscillator input base 2
AOSCIB 24 1 band A oscillator input base

TDA5636B TDA5637B

PIN

DESCRIPTION

7 18 supply voltage

1996 Dec 02 5

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

handbook, halfpage

MIXOUT1
MIXOUT2

1

CIN1 AOSCIB

2

CIN2

BIN1
BIN2

AIN

V

GND1

P

3
4
5
6

TDA5636B

7
8

9
10
11
12

RFGND

LOOUT1
LOOUT2

24
23
22
21
20
19
18
17
16
15
14
13

MGC502

COSCIB2
AOSCOC
COSCOC2
COSCOC1
BOSCIB
COSCIB1
BOSCOC
GND2
BS
IFOUT2
IFOUT1

handbook, halfpage

TDA5636B; TDA5637B

AOSCIB CIN1
COSCIB2
AOSCOC

COSCOC2
COSCOC1

BOSCIB

1
2
3
4
5
6

TDA5637B

GND2

BS

7
8

9
10
11
12

COSCIB1
BOSCOC

IFOUT2
IFOUT1

24
23
22
21
20
19
18
17
16
15
14
13

MGC503

CIN2
RFGND
BIN1
BIN2
AIN
V

P

MIXOUT1
MIXOUT2
GND1
LOOUT1
LOOUT2

Fig.2 Pin configuration (TDA5636B).

1996 Dec 02 6

Fig.3 Pin configuration (TDA5637B).

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER MIN. MAX. UNIT

V

P

V

SW

I

O

t

sc(max)

T

stg

T

amb

T

j

HANDLING

Human Body Model:

• For TDA5636B GND (10) (16), RFGND (3), and V

• For TDA5637B GND (9) (15), RFGND (22), and VP(18) are separate.

All pins withstand 2000 V in accordance with the
category B (2000 V); R = 1500 Ω; C = 100 pF.

supply voltage −0.3 +10.5 V
switching voltage 0 +10.5 V
output current of each pin to ground −−10 mA
maximum short-circuit time (all pins) − 10 s
IC storage temperature −55 +150 °C
operating ambient temperature −10 +80 °C
junction temperature − +150 °C

(7) are separate.

P

“UZW-B0/FQ-A302”

specification equivalent to the

“MIL-STD-883C”

Machine Model:

• For TDA5636B GND (10) (16), RFGND (3), and VP(7) are separate.

• For TDA5637B GND (9) (15), RFGND (22), and VP(18) are separate.

All pins withstand 175 V in accordance with the

“UZW-B0/FQ-A302”

specification (date of issue: Nov 6th, 1990); R = 0 Ω;

C = 200 pF.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air

SSOP24 120 K/W
SO24 75 K/W

1996 Dec 02 7

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

CHARACTERISTICS

=9V; T

V

P

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

I

P

V

SW

I

SW

Band A mixer (including IF amplifier)

f

RF

G

v

NF noise figure f

V

o

V

i

g

os

Y

i

C

i

Band A oscillator

f

OSC

f

shift

f

drift

=25°C; measured in circuit of Fig.17; unless otherwise specified.

amb

supply voltage 8.1 9.0 9.9 V
supply current band A − 43 48 mA

band B − 39 44 mA
band C − 42 47 mA

switching voltage band A 0 − 1.1 V

band B 1.6 − 2.4 V
band C 3.0 − V

V

P

switching current band A −−2µA

band B −−5µA
band C; V

=5V −−10 µA

SW(C)

RF frequency note 1 45 − 180 MHz
voltage gain f

output voltage 1% cross modulation in channel;

50 MHz; see Fig.4; note 2 22.5 25.0 27.5 dB

RF =

f

180 MHz; see Fig.4; note 2 22.5 25.0 27.5 dB

RF =

= 50 MHz; see Figs 5 and 6 − 7.5 9.5 dB

RF

f

= 180 MHz; see Figs 5 and 6 − 7.5 9.5 dB

RF

118 121 − dBµV

fRF= 50 MHz; see Fig.7
1% cross modulation in channel;

f

= 180 MHz; see Fig.7

RF

input voltage 10 kHz pulling in channel;

119 122 − dBµV

− 104 − dBµV

fRF= 180 MHz; note 3

optimum source
conductance

fRF= 50 MHz − 0.5 − mS

= 180 MHz − 1 − mS

f

RF

input admittance see Fig.12 −−−mS
input capacitance fRF= 50 to 180 MHz; see Fig.12 − 2 − pF

oscillator frequency note 4 80 − 216 MHz
frequency shift ∆Vp= 10%; note 5 −−200 kHz
frequency drift ∆T=25°C with no compensation; NP0

−−600 kHz

capacitors; note 6
5 s to 15 min after switch on; note 7 −−200 kHz

1996 Dec 02 8

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Band B mixer (including IF amplifier)

f

RF

G

v

NF noise figure

V

o

V

i

Z

i

Band B oscillator

f

OSC

f

shift

f

drift

RF frequency note 1 160 − 470 MHz
voltage gain fRF= 170 MHz; see Fig.8; note 2 33 36 39 dB

f

= 470 MHz; see Fig.8; note 2 33 36 39 dB

RF

f

= 170 MHz; see Fig.9 − 6.0 8.0 dB

RF

(not corrected for image)
output voltage 1% cross modulation in channel;

= 470 MHz; see Fig.9 − 7.0 9.0 dB

f

RF

118 121 − dBµV

fRF= 170 MHz; see Fig.10
1% cross modulation in channel;

f

= 470 MHz; see Fig.10

RF

input voltage 10 kHz pulling in channel;

117 120 − dBµV

− 91 − dBµV

fRF= 470 MHz; note 3

input voltage N+5−1 MHz pulling; f

= 430 MHz; see

RF

− 77 − dBµV

Fig.11

input impedance (Rs+jLsω)fRF= 170 to 470 MHz; see Fig.13 − 30 −Ω

f

= 170 to 470 MHz; see Fig.13 − 10 − nH

RF

oscillator frequency note 4 200 − 500 MHz
frequency shift ∆VP= 10%; note 5 −−400 kHz
frequency drift ∆T=25°C with no compensation; NP0

−−2 MHz

capacitors; note 6
5 s to 15 min. after switch on; note 7 −−300 kHz

Band C mixer (including IF amplifier)

f

RF

G

v

RF frequency note 1 430 − 860 MHz
voltage gain fRF= 430 MHz; see Fig.8; note 2 33 36 39 dB

NF noise figure

(not corrected for image)

V

o

V

i

output voltage 1% cross modulation in channel;

input voltage 10 kHz pulling in channel;

input voltage N+5−1 MHz pulling; f

Z

i

input impedance
(Rs+jLsω)

f

= 860 MHz; see Fig.8; note 2 33 36 39 dB

RF

f

= 430 MHz; see Fig.9 − 7.0 9.0 dB

RF

= 860 MHz; see Fig.9 − 8.0 10.0 dB

f

RF

116 119 − dBµV

fRF= 430 MHz; see Fig.10
1% cross modulation in channel;

f

= 860 MHz; see Fig.10

RF

116 119 − dBµV

− 103 − dBµV

fRF= 860 MHz; note 3

= 820 MHz;

RF

− 79 − dBµV

see Fig.11
fRF= 430 to 860 MHz; see Fig.14 − 40 −Ω

= 430 to 860 MHz; see Fig.14 − 10 − nH

f

RF

1996 Dec 02 9

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Band C oscillator

f

OSC

f

shift

f

drift

LO output

S

22

Y

o

V

o

SRF spurious signal on LO output

HLO LO signal harmonics with

oscillator frequency note 4 470 − 900 MHz
frequency shift ∆VP= 10%; note 5 −−500 kHz
frequency drift ∆T=25°C with compensation; note 6 −−1400 kHz

5 s to 15 min. after switch on; note 7 −−400 kHz

output reflection coefficient see Fig.16 −−−
output admittance

(YP+jωCP)

see Fig.16 − 400 −Ω
see Fig.16 − 1.0 − pF

output voltage RL=50Ω 83 91 100 dBµV

R

=50Ω; note 8 −−−10 dBc

L

with respect to LO output
signal

R

=50Ω −−−10 dBc

L

respect to LO signal

IF amplifier characteristics

S

22

output reflection coefficient magnitude; through 1 nF; see Fig.15 −−21.3 − dB

phase; through 1 nF; see Fig.15 − 49 − deg

Z

o

output impedance
(Rs+jLsω)

Rs; through 1 nF − 110 −Ω
L

; through 1 nF − 65 − nH

s

Notes

1. The RF frequency range is defined by the oscillator frequency range and the intermediate frequency.

2. The gain is defined as the transducer gain (measured in Fig.17) plus the voltage transformation ratio of L6 to L7
(10 : 2, 15.4 dB including transformer loss).

3. The input level causing 10 kHz frequency detuning at the LO output; f

osc=fRF

+ 33.4 MHz.

4. Limits are related to the tank circuits used in Fig.17. Frequency bands may be adjusted by the choice of external
components.

5. The frequency shift is defined as the change in oscillator frequency when the supply voltage varies from
VP= 9 to 8.1 V and from VP= 9 to 9.9 V.

6. The frequency drift is defined as the change in oscillator frequency when the ambient temperature varies from
T

=25to0°C and from T

amb

= 25 to 50 °C.

amb

7. Switch on drift is defined as the change in oscillator frequency between 5 s and 15 min after switch on.

8. SRF: spurious signal on LO with respect to LO output signal:

RF level = 120 dBµV at fRF< 180 MHz
RF level = 107.5 dBµV at fRF= 180 to 225 MHz
RF level = 97 dBµV at fRF= 225 to 860 MHz.

1996 Dec 02 10

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

handbook, full pagewidth

e

Zi(AIN) >>50 Ω⇒Vi=2×V
Vi=V

V

G

=V’

o

= 20 log

v

+ 6dB.

meas

50 27+



× + 15.4 dB (transformer ratio N1/N2 = 5 and transformer loss).

-------------------

meas



50

V

o

-----­V

i

50 Ω

V

meas

signal
source

meas

.

V

RMS

voltmeter

50 Ω

RFA

V

i

D.U.T.

GND

IF

out

V

IF

out

o

2 x 5
turns

TDA5636B; TDA5637B

V'

2
turns

N1/N2 = 5

27 Ω

meas

spectrum

analyzer

50 Ω

MGC507

TR

Fig.4 Band A gain measurement.

handbook, full pagewidth

C1

BNC BNC

L1 C2

(a) For fRF= 50 MHz:

mixer A frequency response measured = 57 MHz, loss = 0 dB
image suppression = 16 dB
C1 = 9 pF
C2 = 15 pF
L1 = 7 turns (diameter = 5.5 mm, wire diameter = 0.5 mm)
l1 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

I1

RIM-RIM

(a) (b)

C4

I3

I2

RIM-RIM

PCB

MBE286 - 1

PCB

C3

plug plug

(b) For fRF= 150 MHz:

mixer A frequency response measured = 150.3 MHz, loss = 1.3 dB
image suppression = 13 dB
C3 = 5 pF
C4=25pF
l2 = semi rigid cable (RIM): 30 cm long
l3 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

Fig.5 Input circuit for optimum noise figure in band A.

1996 Dec 02 11

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

handbook, full pagewidth

NOISE

SOURCE

BNC RIM

INPUT

CIRCUIT

(see Fig. 5)

AIN

GND

IFOUT1

D.U.T.

IFOUT2

TDA5636B; TDA5637B

TR

2 x 5
turns

N1/N2 = 5

MBH046

NOISE

METER

2
turns

(1) NF = NF

− loss (input circuit) dB.

meas

Fig.6 Noise figure measurement in band A.

unwanted

handbook, full pagewidth

e

u

e

w

V’

meas=Vo

Wanted output signal at f
We measure the level of the unwanted signal Vou causing 0.3% AM modulation in the wanted output signal; f

Vou=V’
The cross modulation measurements are done at these frequencies:

- f

RFW

- f

RFW

Filter characteristics: fc= 38.9 MHz, f

×−15.4 dB (transformer ratio = 5 and transformer loss).

meas

= 50.0 MHz; f
= 180.0 MHz; f

signal

source

50 Ω

AM = 30%

50 Ω

wanted

signal

source

50 27+



-------------------



50

50 27+



-------------------

× + 15.4 dB.



50

RFU

RFU

AC

HYBRID

BD

= 180 MHz: Vow=104 dBµV.

RFW

= 55.5 MHz; f

= 185.5 MHz; f

= 88.9 MHz

osc

osc

−3dBBW

V

IMA

50

Ω

N1

------- ­N2

= 218.9 MHz.

= 1.2 MHz, f

RFA

−30dBBW

D.U.T.

= 2.64 MHz.

IF

out

IF

out

V

o

2 x 5

turns

27 Ω

2
turns

N1/N2 = 5

18 dB

attenuator

V

RMS

voltmeter

V'

meas

= 185.5 MHz.

RFU

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MGC508

Fig.7 Cross modulation measurement in band A.

1996 Dec 02 12

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

handbook, full pagewidth

e

Vi=V

Voltage gain for band B and C = 20log + loss
loss

(hybrid)

meas ;Vo

= 1 dB.

=V’

signal
source

50 Ω

V

meas

V

50 Ω

RMS

voltmeter

50 27+



× + 15.4 dB (transformer ratio and transformer loss).

meas

-------------------



50

50 Ω

V

o

-----­V

i

V

i

(hybrid).

AC

HYBRID

BD

N1

------- ­N2

RFB
(RFC)

RFB
(RFC)

D.U.T.

IF

out

IF

out

TDA5636B; TDA5637B

2
turns

N1/N2 = 5

27 Ω

V'

meas

spectrum

analyzer

50 Ω

MGC506

TR

V

o

2 x 5

turns

handbook, full pagewidth

Loss of the hybrid: 1 dB.
NF = NF

− loss of the hybrid.

meas

NOISE

SOURCE

Fig.8 Gain measurement in bands B and C.

AC

HYBRID

BD

50 Ω

CIN1

CIN2

IFOUT1

D.U.T.

IFOUT2

2 x 5

turns

N1/N2 = 5

TR

NOISE

METER

2
turns

MBH049

Fig.9 Noise figure measurement in bands B and C.

1996 Dec 02 13

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

unwanted

handbook, full pagewidth

e

u

e

w

V’

meas=Vo

Wanted output signal at f
We measure the level of the unwanted signal Vou causing 0.3% AM modulation in the wanted output signal.

=V’

V

ou

f

RFU=fRFW

Filter characteristics: fc= 38.9 MHz, f

signal

source

50 Ω

AM = 30%

50 Ω

wanted
source

×−15.4 dB (transformer ratio = 5 and transformer loss).

× + 15.4 dB.

meas

+ 5.5 MHz; f

AC

HYBRID

BD

signal

50 27+



-------------------



50

RFW:Vow

50 27+



-------------------



50

osc=fRF

50

Ω

=104 dBµV.

+ 38.9 MHz.

−3dBBW

V

IMB

(V

)

IMC

50

Ω

= 1.2 MHz, f

AC

HYBRID

BD

N1

------- ­N2

−30dBBW

RFB
(RFC)

D.U.T.

RFB
(RFC)

= 2.64 MHz.

out

out

IF

V

o

2 x 5
turns

IF

N1/N2 = 5

TDA5636B; TDA5637B

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MGC509

27 Ω

2
turns

18 dB

attenuator

V

RMS

voltmeter

Fig.10 Cross modulation measurement in bands B and C.

handbook, full pagewidth

Loss of the hybrid: 1 dB.
In band B: f
In band B: f
In band B: f
We measure the level of the unwanted signal Viu causing fm sidebands 30 dB below the oscillator carrier at the LO output.
Viu=V

meas

unwanted
signal

50 Ω

source

e

u

V

meas

= 391 MHz (in band C: f

RFW

= 429.9 MHz (in band C: f

osc

= 430 MHz = f

RFU

− loss of the hybrid.

RFW

AC

V

50 Ω

50 Ω

= 781 MHz). These wanted signals are not used during the measurement.

RFW

= 819.9 MHz).

osc

+5×8 MHz − 1 MHz. (in band C: f

HYBRID

BD

CIN1

V

i

CIN2

= 820 MHz = f

RFU

D.U.T.

LO1

LO2

+5×8 MHz − 1 MHz).

RFW

AC

HYBRID

BD

50 Ω

spectrum
analyzer

50 Ω

MBH051

Fig.11 N+5-1 MHz pulling measurement in bands B and C.

1996 Dec 02 14

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

handbook, full pagewidth

2

5

10

∞

10

5

2

1

TDA5636B; TDA5637B

0.5

0.2

0.20.512510

200 MHz

0.5

40 MHz

– j

0

+ j

0.2

handbook, full pagewidth

1

MBH055

Fig.12 Input admittance (S11) of the band A mixer input (40 to 200 MHz); Yo= 20 mS.

1

0.5

0.2

+ j

0

– j

0.2

480 MHz

150 MHz

0.5 10.2 1052

2

5

10

∞

10

5

0.5

Fig.13 Input impedance (S11) of the band B mixer input (150 to 480 MHz); Zo= 100 Ω.

1996 Dec 02 15

2

1

MBE308

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator for
TV and VCR 3-band tuners

handbook, full pagewidth

0.5

0.2
420 MHz

+ j

0

– j

0.2

0.5

0.5 10.2 1052

1

880 MHz

TDA5636B; TDA5637B

2

5

10

∞

10

5

2

handbook, full pagewidth

1

MBE309

Fig.14 Input impedance (S11) of the band C mixer input (420 to 880 MHz); Zo= 100 Ω.

1

0.5

0.2

+ j

0

– j

0.2

0.5 10.2 105

60 MHz

20 MHz

2

5

10

∞

10

5

0.5

Fig.15 Output impedance (S22) of the IF amplifier (20 to 60 MHz); Zo= 100 Ω.

1996 Dec 02 16

2

1

MBE306 - 1

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

handbook, full pagewidth

2

5

10

∞

10

5

2

1

910 MHz

TDA5636B; TDA5637B

0.5

0.2

0.20.512510

0.5

50 MHz

– j

0

+ j

0.2

1

MBH474

Fig.16 Output admittance (S22) of the LO amplifier (50 to 910 MHz); Yo=20mS.

1996 Dec 02 17

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

APPLICATION INFORMATION

handbook, full pagewidth

V

R14

t

C11

R6

R3

C4

C29C28

D2

L2

C10

C3

D1

C1 C5 C2 C6 C7

24
(1)

R2

L1

22

23

(3)

(2)

R4C9

20

21

(5)

(4)

L3

R5

C12

C15

C8

19
(6)18(7)

TDA5636B; TDA5637B

K only open for switch

current measurement

C

15
(10)

5 V

BA

R10

K

R7

C14

D3

C13

17
(8)

R8

L4

16
(9)

C16R9

C17

spectrum
analyzer

50 Ω

R11

L7

L6

C31

C30

14
(11)13(12)

BAND A

OSCILLATOR

BAND A

STAGE

BAND C

OSCILLATOR

BAND C

STAGE

1
(24)

C27 C26 C25 C24 C23

HYBRID

ANZAC-183-4

50 Ω 50 Ω 50 Ω

The numbers in parenthesis represent the TDA5637B.

2
(23)

3
(22)

BAND B

OSCILLATOR

MIXERMIXERMIXER

BAND B

STAGE

4
(21)

5
(20)

ELECTRONIC

BAND SWITCH

TDA5636B
TDA5637B

DC

STABILIZER

6

7

(19)

(18)

C21

C22

IF

AMPLIFIER

LOCAL

OSCILLATOR

AMPLIFIER

8
(17)9(16)10(15)11(14)12(13)

C19 C18

C20

L5

9 V

MGC505

R12

HYBRID

ANZAC-183-4

50 Ω

50 Ω

output

spectrum

analyzer

Fig.17 Measurement and application circuit.

1996 Dec 02 18

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

Application diagram component values (see Fig.17) Table 1 Capacitors

(all SMD and NP0 except C5 to C9 and C29)

NUMBER VALUE

C1 2 pF
C2 2 pF
C3 82 pF
C4 2.2 nF
C5 1 pF (N750)
C6 1 pF (N750)
C7 1 pF (N750)
C8 1 pF (N750)
C9 6 pF (N470)
C10 100 pF
C11 2.2 nF
C12 2 pF
C13 4 pF
C14 150 pF
C15 2.2 nF
C16 1.2 nF
C17 1 nF
C18 1 nF
C19 1 nF
C20 18 pF
C21 18 pF
C22 1 nF
C23 1 nF
C24 1 nF
C25 1 nF
C26 1 nF
C27 1 nF
C28 2.2 nF
C29 1 µF (electrolytic)
C30 1 nF
C31 18 pF

Table 2 Resistors (all SMD)

R2 22 Ω
R3 47 kΩ
R4 2.2 kΩ
R5 22 kΩ
R6 47 kΩ
R7 47 kΩ
R8 12 Ω
R9 15 kΩ
R10 33 kΩ
R11 27 Ω
R12 100 Ω
R14 47 kΩ

Table 3 Diodes, coils and transformers

Diodes

D1 BB132
D2 BB134
D3 BB146

Coils

L1 8 turns (∅ 3 mm)
L2 2 turns (∅ 2.5 mm)
L3 3 turns (∅ 2.5 mm)
L4 2 turns (∅ 4 mm)

Transformers

L5 2 × 6 turns
L6 2 × 5 turns
L7 2 turns

Notes

1. Wire size for L1 to L4 is 0.4 mm.

2. Coil type: TOKO 7kN; material: 113kN, screw core

TDA5636B; TDA5637B

NUMBER VALUE

NUMBER VALUE

(1)

(2)

03-0093, pot core 04-0026.

1996 Dec 02 19

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

INTERNAL PIN CONFIGURATION

A VERAGE DC VOL TAGE

SYMBOL

PIN

DESCRIPTION

(1)

TDA5636B TDA5637B BAND A BAND B BAND C

CIN1 1 24 0 0 2.2

CIN2 2 23 0 0 2.2

RFGND 3 22 0 0 0

1

(24) (23)

lfpage

3

(22)

MLD109

2

MLD104

BIN1 4 21 0 2.2 0

(2)

IN (V)

BIN2 5 20 0 2.2 0

4

(21) (20)

5

MLD103

AIN 6 19 2.2 1.2 1.2

6

(19)

MLD099

V

P

7 18 supply voltage 9.0 9.0 9.0

MIXOUT1 8 17 9.0 9.0 9.0

98

(17) (16)

MIXOUT2 9 16 9.0 9.0 9.0

MLD107

1996 Dec 02 20

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

A VERAGE DC VOL TAGE

12

SYMBOL

PIN

DESCRIPTION

(1)

TDA5636B TDA5637B BAND A BAND B BAND C

GND1 10 15 0 0 0

10

(15) (9)

GND2 16 9 0 0 0

16

MLD106

LOOUT1 11 14 5.6 5.6 5.6

11

(14) (13)

LOOUT2 12 13 5.6 5.6 5.6

(2)

IN (V)

MLD110

IFOUT1 13 12 4.4 4.4 4.4

IFOUT2 14 11 4.4 4.4 4.4

1314

(11) (12)

BS 15 10 V

MLD108

(10)

15

MLD105

SW(A)

V

SW(B)

V

BOSCOC 17 8 5.8 3.4 5.8

17
(8)

BOSCIB 19 6 1.2 2.3 1.2

19

(6)

SW(C)

1996 Dec 02 21

MLD113

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator

TDA5636B; TDA5637B

for TV and VCR 3-band tuners

A VERAGE DC VOL TAGE

18
(7)(2)

22

(3)

SYMBOL

PIN

DESCRIPTION

(1)

TDA5636B TDA5637B BAND A BAND B BAND C

COSCIB1 18 7 1.4 1.4 2.3

COSCOC1 20 5 5.8 5.8 4.2

20

(5) (4)

23

21

COSCOC2 21 4 5.8 5.8 4.2

COSCIB2 23 2 1.4 1.4 2.3

MLD112

AOSCOC 22 3 3.8 5.8 5.8

AOSCIB 24 1 2.1 1.0 1.0

24

(1)

(2)

IN (V)

Notes

1. The pin numbers in parenthesis represent the TDA5637B.

2. Average DC voltage measured in circuit of Fig.17.

MLD111

1996 Dec 02 22

Philips Semiconductors Product specification

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR 3-band

PACKAGE OUTLINES

TDA5636B; TDA5637B

SO24: plastic small outline package; 24 leads; body width 7.5 mm

D

c

y

Z

24

pin 1 index

1

e

13

12

w M

b

p

SOT137-1

E

H

E

Q

A

2

A

1

L

p

L

detail X

(A )

A

X

v M

A

A

3

θ

0 5 10 mm

scale

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

UNIT

mm

inches

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

A

max.

2.65

0.10

OUTLINE
VERSION

SOT137-1

A1A2A

0.30

2.45

0.10

2.25

0.012

0.096

0.004

0.089

IEC JEDEC EIAJ

075E05 MS-013AD

0.25

0.01

b

3

p

0.49

0.32

0.36

0.23

0.019

0.013

0.014

0.009

(1)E(1) (1)

cD

15.6

7.6

7.4

0.30

0.29

1.27

0.050

15.2

0.61

0.60

REFERENCES

1996 Dec 02 23

eHELLpQ

10.65

10.00

0.419

0.394

1.4

0.055

1.1

0.4

0.043

0.016

1.1

1.0

0.043

0.039

PROJECTION

0.25

0.25 0.1

0.01

0.01

EUROPEAN

ywv θ

Z

0.9

0.4

0.035

0.004

0.016

ISSUE DATE

95-01-24
97-05-22

o

8

o

0

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

SSOP24: plastic shrink small outline package; 24 leads; body width 5.3 mm

D

c

y

Z

24 13

TDA5636B; TDA5637B

SOT340-1

E

H

E

A

X

v M

A

pin 1 index

112

w M

b

e

DIMENSIONS (mm are the original dimensions)

UNIT A1A2A

mm

Note

1. Plastic or metal protrusions of 0.20 mm maximum per side are not included.

A

max.

2.0

0.21

0.05

1.80

1.65

0.25

b

3

p

0.38

0.25

p

0 2.5 5 mm

cD

0.20

8.4

0.09

8.0

scale

(1)E(1) (1)

eHELLpQZywv θ

5.4

0.65 1.25

5.2

7.9

7.6

Q

A

2

A

1

detail X

1.03

0.9

0.63

0.7

(A )

L

p

L

A

3

θ

0.13 0.10.2

0.8

0.4

o

8

o

0

OUTLINE
VERSION

SOT340-1 MO-150AG

IEC JEDEC EIAJ

REFERENCES

1996 Dec 02 24

EUROPEAN

PROJECTION

ISSUE DATE

93-09-08
95-02-04

Philips Semiconductors Product specification

9 V VHF hyperband and UHF mixer/oscillator
for TV and VCR 3-band tuners

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Reflow soldering

Reflow soldering techniques are suitable for all SO and
SSOP packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

(order code 9398 652 90011).

SSOP
Wave soldering is not recommended for SSOP packages.

This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The longitudinal axis of the package footprint must

be parallel to the solder flow and must incorporate
solder thieves at the downstream end.

Even with these conditions, only consider wave
soldering SSOP packages that have a body width of

4.4 mm, that is SSOP16 (SOT369-1) or
SSOP20 (SOT266-1).

METHOD (SO AND SSOP)
During placement and before soldering, the package must

be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

TDA5636B; TDA5637B

SO
Wave soldering techniques can be used for all SO

packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

1996 Dec 02 25

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Philips Semiconductors Product specification

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR 3-band

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

TDA5636B; TDA5637B

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1996 Dec 02 26

Philips Semiconductors Product specification

9 V VHF hyperband and UHF
mixer/oscillator for TV and VCR 3-band

NOTES

TDA5636B; TDA5637B

1996 Dec 02 27

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1996 SCA52
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 537021/1200/02/pp28 Date of release: 1996 Dec 02 Document order number: 9397 750 01545
