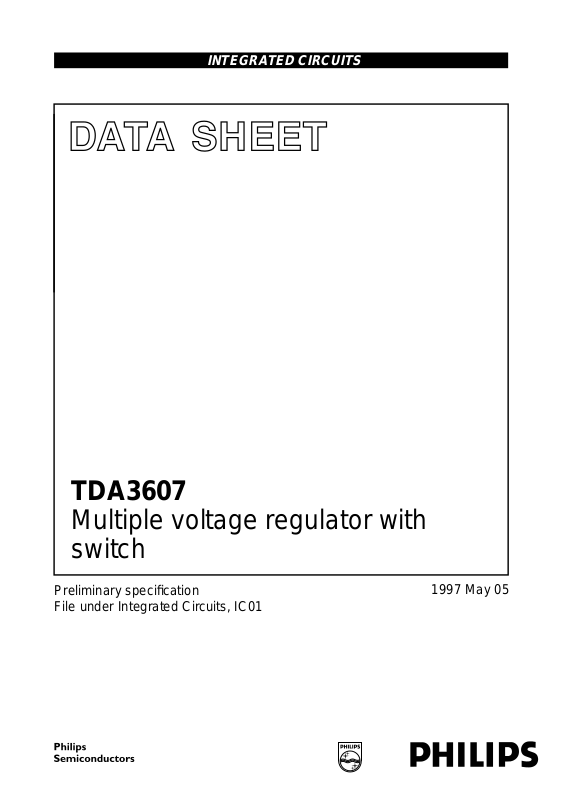

Datasheet tda3607 DATASHEETS (Philips)

INTEGRATED CIRCUITS

DATA SH EET

TDA3607

Multiple voltage regulator with
switch

Preliminary specification
File under Integrated Circuits, IC01

1997 May 05

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

FEATURES

• Three VP-state controlled regulators (regulator 1,
regulator 2 and regulator 3)

• Separate control pins for switching regulators 1, 2 and 3

• Supply voltage range from −18 to +50 V

• Low quiescent current (when regulators 1, 2 and 3 are

switched off)

• High ripple rejection.

PROTECTIONS

• Reverse polarity safe (down to −18 V without high
reverse current)

• Able to withstand voltages up to 18 V at the outputs
(supply line may be short-circuited)

• ESD protected on all pins

• Thermal protection

• Load dump protection

• Foldback current limit protection for

regulators 1, 2 and 3

• DC short-circuit safe to ground and V

for all regulator

P

outputs.

GENERAL DESCRIPTION

The TDA3607 is a multiple output voltage regulator with
three independent regulators. It contains:

1. Three fixed voltage regulators with foldback current
protection (regulators 1, 2 and 3)

2. A supply pin which can withstand load dump pulses
and negative supply voltages

3. Independant enable inputs for regulators 1, 2 and 3

4. Local temperature protection for regulator 3.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

supply voltage

operating 11 14.4 18 V
jump start t ≤ 10 minutes −−30 V

≥ 2.5 ms −−50 V

r

I

q(tot)

T

j

load dump protection during 50 ms; t
total quiescent current standby mode − 140µA
junction temperature −−150 °C

Voltage regulators

V
V

REG1
REG2

output voltage regulator 1 0.5 mA ≤ I
output voltage regulator 2 0.5 mA ≤ I

≤ 1.3 A 8.55 9.0 9.45 V

REG1
REG2

≤ 150 mA;

4.75 5.0 5.25 V

VP= 14.4 V

V

REG3

output voltage regulator 3 0.5 mA ≤ I

≤ 400 mA 4.75 5.0 5.25 V

REG3

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

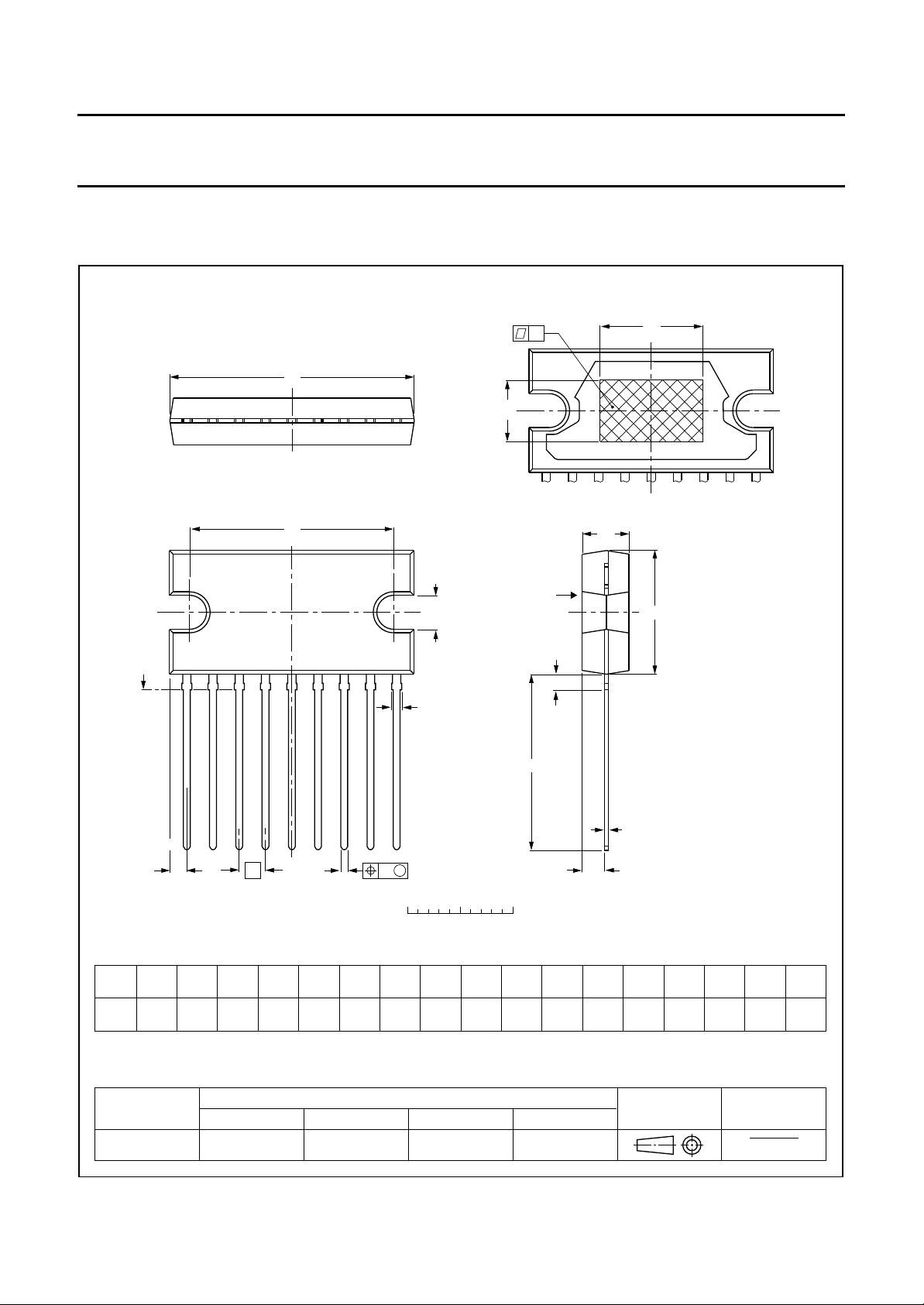

TDA3607 SIL9P

plastic single in-line power package; 9 leads

PACKAGE

SOT131-2

1997 May 05 2

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

BLOCK DIAGRAM

handbook, full pagewidth

V

DEC

V

en1

V

en2

V

en3

(14.4 V)

P

3

7

2

9

1

TEMPERATURE

LOAD DUMP

PROTECTION

&

&

&

REGULATOR 1

REGULATOR 2

REGULATOR 3

8

GND

TDA3607

MBG718


4

(9 V/1.3 A)

(5 V/150 mA)

6

(5 V/400 mA)

5

REG1

REG2

REG3

Fig.1 Block diagram.

PINNING

SYMBOL PIN DESCRIPTION

V

en3

V

en1

V

P

1 enable input regulator 3
2 enable input regulator 1

3 supply voltage
REG1 4 regulator 1 output
REG3 5 regulator 3 output
REG2 6 regulator 2 output
DEC 7 decoupling capacitor
GND 8 ground
V

en2

9 enable input regulator 2

1997 May 05 3

handbook, halfpage

1

V

en3

2

V

en1

3

V

P

4

REG1

5

REG3
REG2

DEC

GND

V

en2

TDA3607

6
7
8
9

MBG717

Fig.2 Pin configuration.

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

FUNCTIONAL DESCRIPTION

The TDA3607 is a multiple output voltage regulator with
three independent switchable regulators. When the supply
voltage (VP> 4.5 V) is available, regulators 1, 2 and 3 can
be operated by means of 3 independent enable inputs.

Schmitt-trigger functions are included to switch-off the
regulators at low battery voltage (VP< 4 V). A hysteresis is
included to avoid random switching.

handbook, full pagewidth

V

enable

regulator 1

regulator 1

enable

regulator 2

regulator 2

enable

regulator 3

regulator 3

18.0 V

9.4 V

P

4.5 V

4.0 V

≥2.2 V
≤2.0 V

9.0 V

0 V

≥2.2 V
≤2.0 V

5.0 V

0 V

≥2.2 V
≤2.0 V

5.0 V

0 V

load dump

All output pins are fully protected. The regulators are
protected against load dump (regulators will switch-off at
supply voltages higher than 20 V) and short-circuit
(foldback current protection).

The total timing of a semi on/off logic set is shown in Fig.3.

MBG720

Fig.3 Timing diagrams.

1997 May 05 4

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

LIMITING VALUES

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

V

P

P

tot

T

stg

T

amb

T

j

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th j-c

R

th j-a

supply voltage

operating − 18 V
jump start t ≤ 10 minutes − 30 V
load dump protection during 50 ms; t

≥ 2.5 ms − 50 V

r

reverse battery voltage non-operating −−18 V
total power dissipation − 62 W
storage temperature range non-operating −55 +150 °C
ambient temperature range operating −40 +85 °C
junction temperature operating − 150 °C

thermal resistance from junction to case regulator and switch-on 2 K/W
thermal resistance from junction to ambient in free air 50 K/W

QUALITY SPECIFICATION

In accordance with

Handbook”

. The handbook can be ordered using the code 9397 750 00192.

“SNW-FQ-611-E”

. The number of the quality specification can be found in the

“Quality Reference

CHARACTERISTICS

= 14.4 V; T

V

P

=25°C; measured in test circuit of Fig.5; unless otherwise specified.

amb

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

P

supply voltage

operating 11 14.4 18 V
REGn on note 1 6 14.4 18 V
jump start t ≤ 10 minutes −−30 V
load dump protection during 50 ms; t

I

q

quiescent current VP= 12.4 V; note 2 − 140µA

= 14.4 V; note 2 − 1 −µA

V

P

≥ 2.5 ms −−50 V

r

Schmitt-trigger power supply for regulators 1, 2 and 3

V

thr

V

thf

V

hys

rising voltage threshold Ven=3V − 4.5 − V
falling voltage threshold Ven=3V − 4.1 − V
hysteresis − 0.4 − V

1997 May 05 5

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Schmitt-trigger for enable input (regulators 1, 2 and 3)

V

thr

V

thf

V

hys

I

LI

Regulator 1 (I

V

REG1(off)

V

REG1

∆V

REG1

∆V

REGL1

I

qREG1

SVRR1 supply voltage ripple

V

REGd1

I

REGm1

I

REGsc1

α

ct

Regulator 2 (I

V

REG2(off)

V

REG2

∆V

REG2

∆V

REGL2

I

qREG2

SVRR2 supply voltage ripple

V

REGd2

I

REGm2

I

REGsc2

α

ct

rising voltage threshold 1.7 2.2 2.7 V
falling voltage threshold 1.5 2.0 2.5 V
hysteresis 0.1 0.2 0.5 V
input leakage current Ven= 5 V 5 30 50 µA

= 5 mA)

REG1

output voltage off − 1 400 mV
output voltage 1 mA ≤ I

10.5 V ≤ V

≤ 1.3 A 8.55 9.0 9.45 V

REG1

≤ 18 V 8.55 9.0 9.45 V

P

line regulation 10.5 V ≤ VP≤ 18 V −−50 mV
load regulation 1 mA ≤ I
quiescent current I

= 1.3 A − 45 110 mA

REG1

f= 3 kHz; V

≤ 1.3 A −−100 mV

REG1

=2V 60 70 − dB

i(p-p)

rejection
drop-out voltage I
current limit V

= 1.3 A; note 3 − 0.5 1.3 V

REG1

> 7.5 V; note 4 1.3 −−A

REG1

short-circuit current RL≤ 0.5 Ω; note 5 250 900 − mA
cross talk noise note 6 − 25 150 µV

= 5 mA)

REG2

output voltage off − 1 400 mV
output voltage 0.5 mA ≤ I

7V≤V

P

≤ 150 mA 4.75 5.0 5.25 V

REG2

≤18 V 4.75 5.0 5.25 V
line regulation 7 V ≤ VP≤ 18 V −−50 mV
load regulation 0.5 mA ≤ I
quiescent current I

= 0.15 A − 515mA

REG2

f= 3 kHz; V

≤ 150 mA −−50 mV

REG2

=2V 60 70 − dB

i(p-p)

rejection
drop-out voltage I

= 100 mA; VP=5V;

REG2

− 0.15 1.5 V

note 3

current limit V

> 4 V; note 4 0.3 0.9 − A

REG2

short-circuit current RL≤ 0.5 Ω; note 5 20 250 − mA
cross talk noise note 6 − 25 100 µV

1997 May 05 6

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Regulator 3 (I

V

REG3(off)

V

REG3

∆V

REG3

∆V

REGL3

I

qREG3

SVRR3 supply voltage ripple

= 5 mA)

REG3

output voltage off − 1 400 mV
output voltage 1 mA ≤ I

7V≤V

≤ 400 mA 4.75 5.0 5.25 V

REG3

≤18 V 4.75 5.0 5.25 V

P

line regulation 7 V ≤ VP≤ 18 V −−50 mV
load regulation 1 mA ≤ I
quiescent current I

= 0.4 A − 10 40 mA

REG3

f= 3 kHz; V

≤ 400 mA − 20 50 mV

REG3

=2V 60 70 − dB

i(p-p)

rejection

V

REGd3

drop-out voltage I

= 400 mA; VP=9V;

REG3

− 0.45 1.5 V

note 3

I

REGm3

I

REGsc3

α

ct

current limit V
short circuit current RL≤ 0.5 Ω; note 5 100 300 − mA
cross talk noise note 6 − 25 100 µV

> 4 V; note 4 0.45 0.9 − A

REG3

Notes

1. Minimum operating voltage, only if VP has exceeded 4.5 V.

2. The quiescent current is measured in the standby mode. So, the enable inputs of regulator 1, 2 and 3 are LOW
(Ven< 1 V).

3. The drop-out voltage of regulators 1, 2 and 3 is measured between VP and V

4. At current limit, I

is held constant (see Fig.4 for behaviour of I

REGmn

REGmn

).

REGn

.

5. The foldback current protection limits the dissipated power at short-circuit (see Fig.4).

6. Perform the load regulation test with sine wave load of 10 kHz on the regulator output under test. Measure the RMS
ripple voltage on each of the remaining regulator outputs, using a 80 kHz low-pass filter.

1997 May 05 7

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

handbook, halfpage

9 V

V

REG1

2 V

MGB755

handbook, halfpage

V

REG2

5.0 V

1 V

I

REG1

I

REGm1

I

REGsc2

≥50 mA

I

REGsc1

≥300 mA

a. Regulator 1. b. Regulator 2.

handbook, halfpage

V

REG3

5.0 V

1 V

I

REGsc3

≥200 mA

I

REG3

MGB757

I

REGm3

c. Regulator 3.

I

REG2

MGB756

I

REGm2

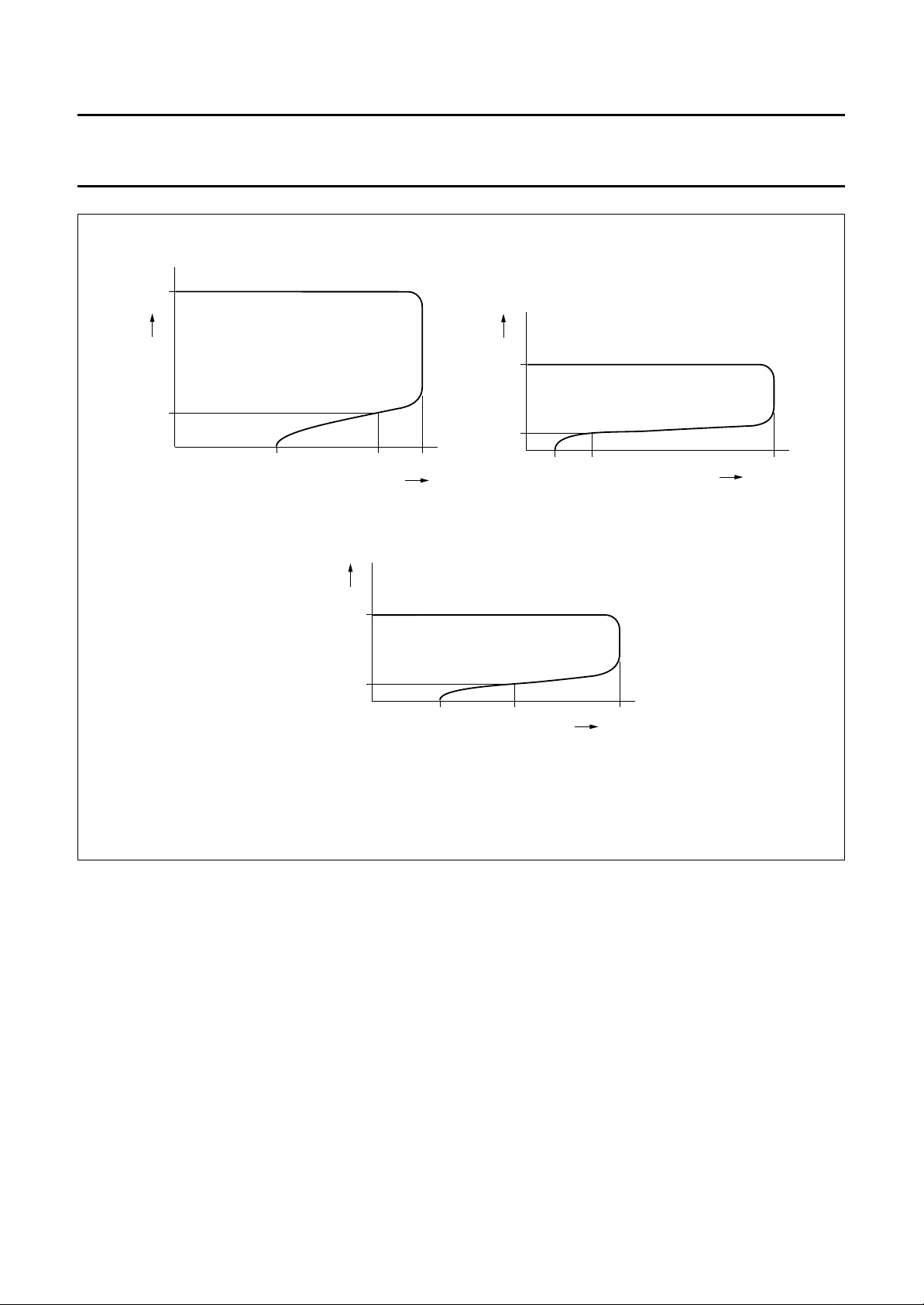

Fig.4 Foldback current protection for regulators 1, 2 and 3.

1997 May 05 8

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

TEST AND APPLICATION INFORMATION
Test information

handbook, full pagewidth

(1)

V

P

V

en2

V

en3

V

en1

(1) Capacitor not required for stability.

C1

220 nF

enable input regulator 2

enable input regulator 3

enable input regulator 1

Application information

N

OISE

Table 1 Noise figures

NOISE FIGURE (µV)

REGULATOR

at OUTPUT CAPACITOR (µF)

10 47 100

1 − 150 −
2 − 150 −
3 − 200 −

Note

1. Measured at a bandwidth of 200 kHz.

V

P

3

9

1

2

TDA3607

8

GND

regulator 2

6

regulator 3

5

regulator 1

4

MBG719


C2
47 µF

C3
47 µF

C4
47 µF

5 V

5 V

9 V

R

L(REG2)

1 kΩ

R

L(REG3)

1 kΩ

R

L(REG1)

1 kΩ

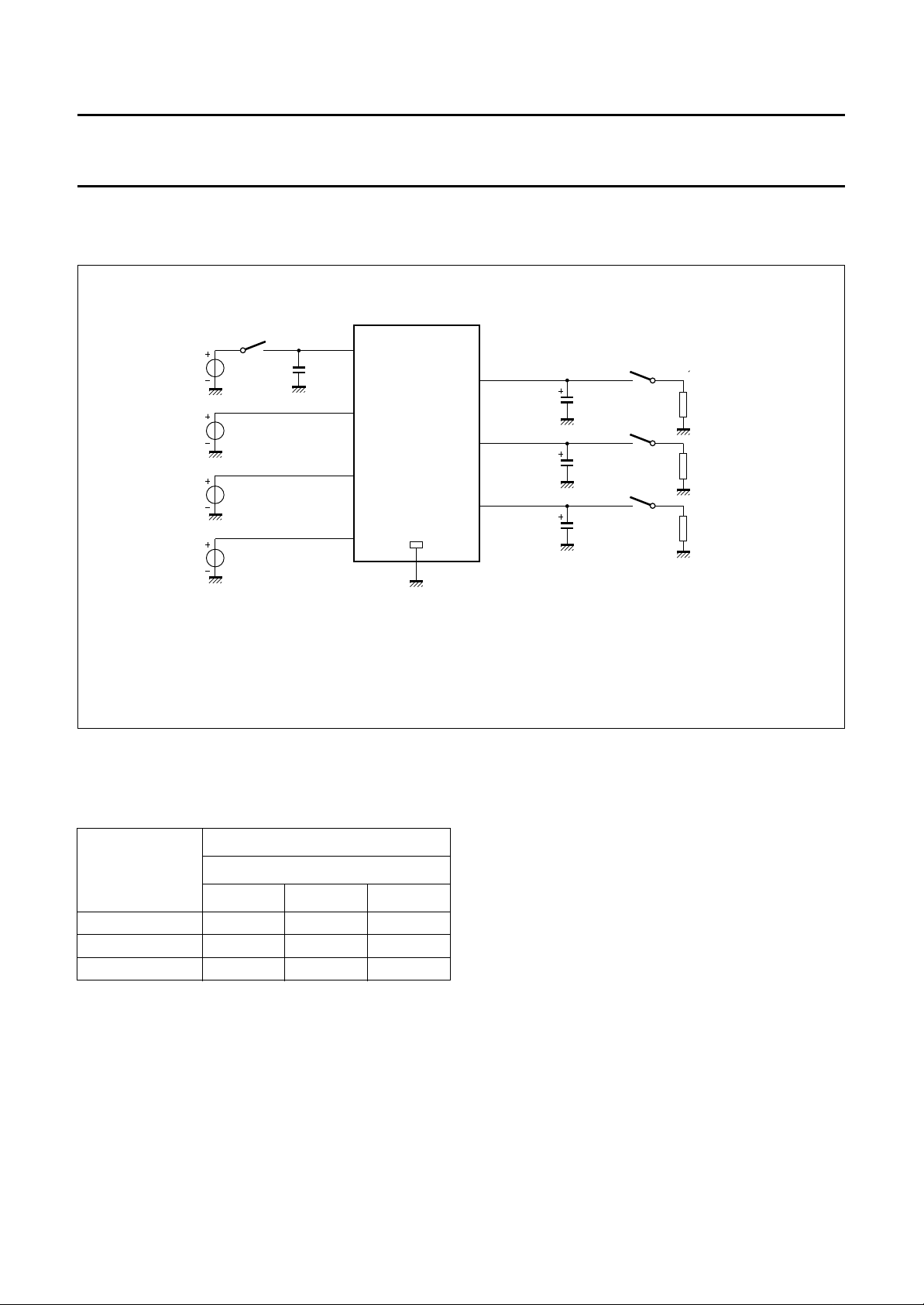

Fig.5 Test circuit.

When a high frequency capacitor of 220 nF in parallel with
an electrolytic capacitor of 100 µF is connected directly to
pins 3 and 8 (supply and ground) the noise is minimal.

TABILITY

(1)

S
The regulators are made stable with the externally

connected output capacitors. The value of the output
capacitors can be selected by referring to the graphs
illustrated in Figs 6 and 7.

When an electrolytic capacitor is used the temperature
behaviour of this output capacitor can cause oscillations at
cold temperature.

The following two examples explain how an output
capacitor value is selected.

The noise on the supply line depends on the value of the
supply capacitor and is caused by a current noise (output
noise of the regulators is translated into a current noise by
means of the output capacitors).

1997 May 05 9

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

Example 1

Regulator 1 is made stable with an electrolytic output
capacitor of 68 µF (ESR = 0.5 Ω), at −30 °C the capacitor
value is decreased to 22 µF and the ESR is increased to

3.5 Ω. The regulator will remain stable at −30 °C.

Example 2

Regulator 2 is made stable with a 10 µF electrolytic
capacitor (ESR = 3.3 Ω), at −30 °C the capacitor value is
decreased to 3 µF and the ESR is increased to 23.1 Ω.
The regulator will be unstable at −30 °C (see Fig.7).

handbook, halfpage

(Ω)

5

R

4

3

maximum ESR

Solution

Use a tantalum capacitor of 10 µF or a large electrolytic
capacitor. The use tantalum capacitors is recommended to
avoid problems with stability at cold temperatures.

handbook, halfpage

(Ω)

5

R

4

3

maximum ESR

2

1

0.22

stable region

minimum ESR

110

C (µF)

100

MGL138

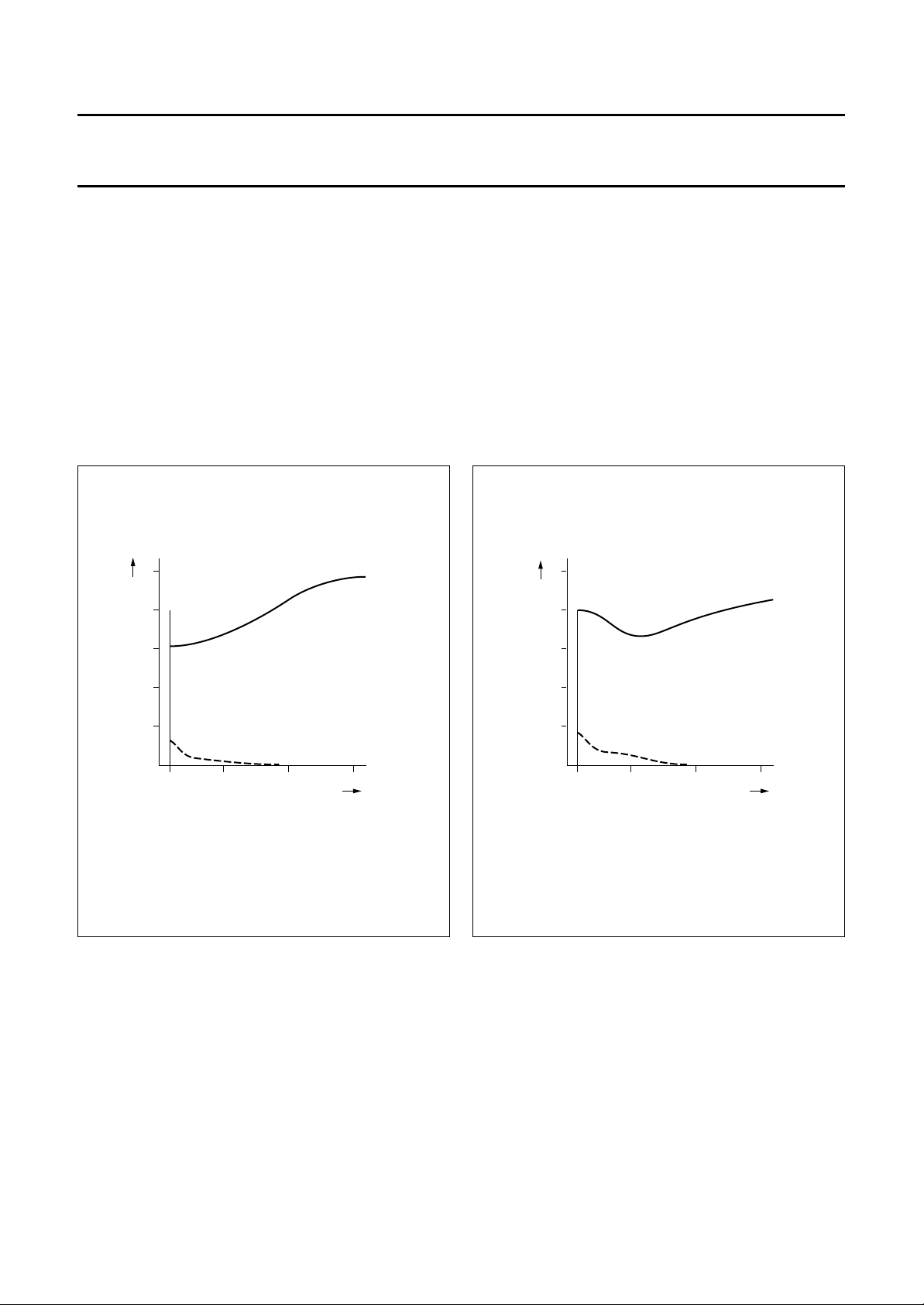

Fig.6 Curve for selecting the value of output

capacitor for regulator 1.

2

1

0.22

stable region

minimum ESR

110

C (µF)

100

MGL139

Fig.7 Curve for selecting the value of output

capacitor for regulators 2 and 3.

1997 May 05 10

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

PACKAGE OUTLINE

SIL9P: plastic single in-line power package; 9 leads

D

d

seating plane

b

SOT131-2

non-concave

x

E

h

view B: mounting base side

A

B

j

A

1

D

h

2

E

19

Z

DIMENSIONS (mm are the original dimensions)

A

UNIT A

mm

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

1

max.

2.0

OUTLINE

VERSION

SOT131-2

4.6

4.2

e

b

b

cD

max.

1.1

p2

0.75

0.48

0.60

0.38

IEC JEDEC EIAJ

b

p

(1)

24.0

23.6

REFERENCES

w M

0 5 10 mm

scale

deD

h

20.0

10 2.54

19.6

1997 May 05 11

E

12.2

11.8

L

c

Q

(1)

E

h

6

3.4

3.1

Lj

Q

17.2

2.1

16.5

1.8

EUROPEAN

PROJECTION

0.25w0.03

ISSUE DATE

92-11-17
95-03-11

(1)

Z

x

2.00

1.45

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

(order code 9398 652 90011).

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1997 May 05 12

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

NOTES

1997 May 05 13

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

NOTES

1997 May 05 14

Philips Semiconductors Preliminary specification

Multiple voltage regulator with switch TDA3607

NOTES

1997 May 05 15

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA54
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 547027/1200/01/pp16 Date of release: 1997 May 05 Document order number: 9397 750 02272
