Page 1
INTEGRATED CIRCUITS
DATA SH EET
TDA2654
Vertical deflection circuit
Product specification File under Integrated Circuits, IC02
November 1982
Page 2
Vertical deflection circuit TDA2654
DESCRIPTION
The TDA2654 is a monolithic integrated circuit for vertical deflection in monochrome and tiny-vision colour television receivers.
The circuit incorporates the following functions:
• Oscillator
• Synchronization circuit
• Blanking pulse generator
• Sawtooth generator
• S-correction and linearity circuit
• Comparator and drive circuit
• Output stage
• Flyback dissipation limiting circuit
• Supply for pre-stages via internal voltage divider
• Thermal protection circuit
• Controlled switch-on
QUICK REFERENCE DATA
Supply voltage range (ref. to tab = ground) V Output current (peak-to-peak value) I Total power dissipation P Operating junction temperature T Thermal resistance from junction to tab R
PACKAGE OUTLINE
9-lead SIL; plastic (SOT110B); SOT110-1; 1996 November 20.
P
9(p-p)
tot j th j-tab
10 to 35 V max. 2 A max. 5 W max. 150 °C =12°C/W
November 1982 2
Page 3
Vertical deflection circuit TDA2654
November 1982 3

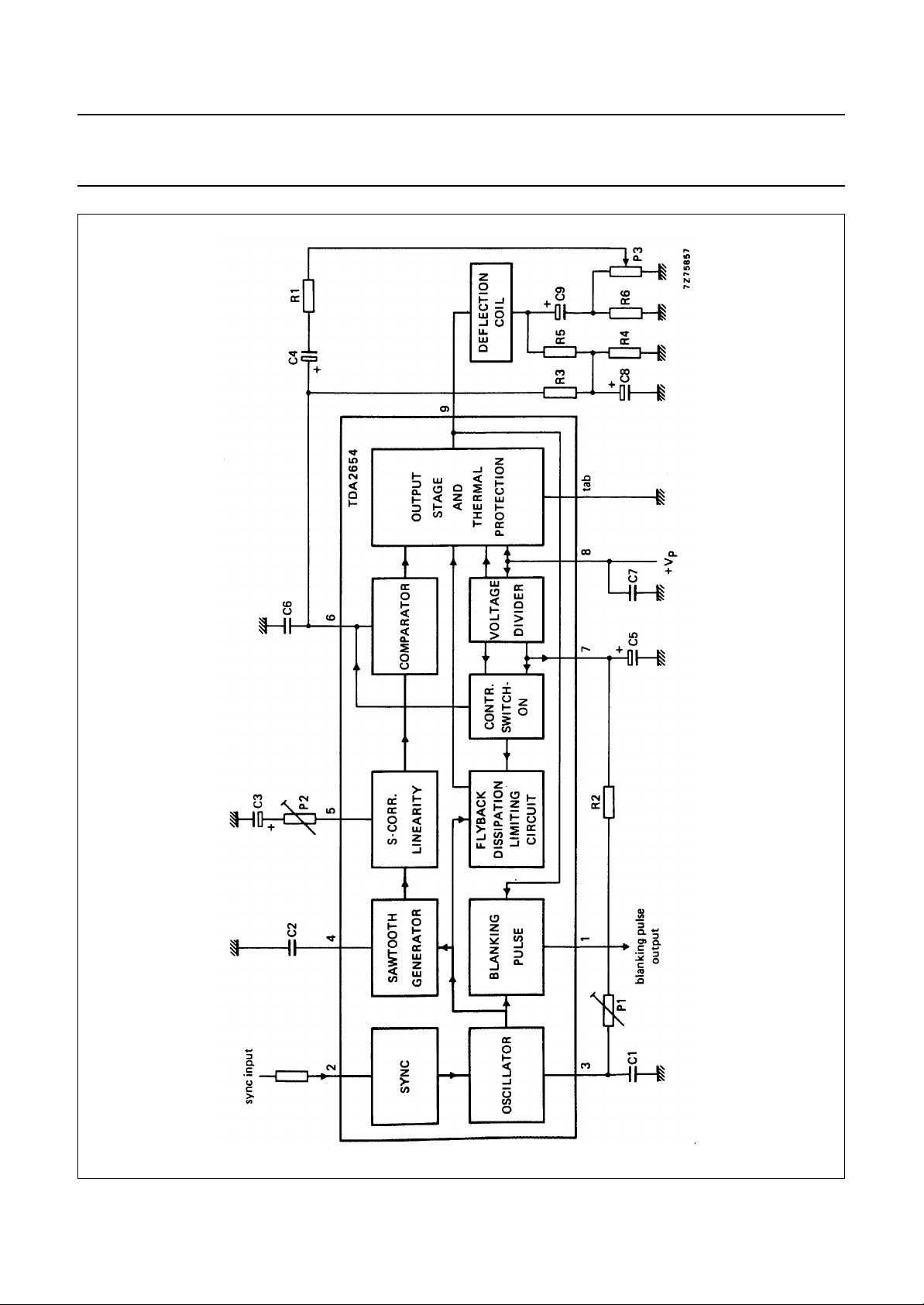

Fig.1 Block diagram.
Page 4
Vertical deflection circuit TDA2654
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134) All voltages and currents refer to the tab (ground) connection.
Voltages
Pin 2 V Pin 3 V Pin 4 V Pin 5 V Pin 6 V Pin 7 V Pin 8 V
Currents
Pin 1 +I
Pin 2 I Pin 3 I Pin 4 I Pin 5 ±I Pin 6 ±I Pin 9 (repetitive) ±I Pin 9 (non-repetitive) ±I Total power dissipation (see also Fig.2) P Storage temperature T Operating junction temperature T
2 3 4 5 6 7
) max. 35 V
8(VP
1
−I
1 2 3 4
5
6
9
9
tot stg j
max. 5 V max. 17 V max. 17 V max. 6 V max. 13 V max. 18 V
max. 1 mA max. 5 mA max. 2,5 mA max. 30 mA max. 30 mA max. 1 mA max. 3 mA max. 1 A max. 1,5 A max. 5 W
−25 to + 150 °C max. 150 °C
November 1982 4
Page 5
Vertical deflection circuit TDA2654

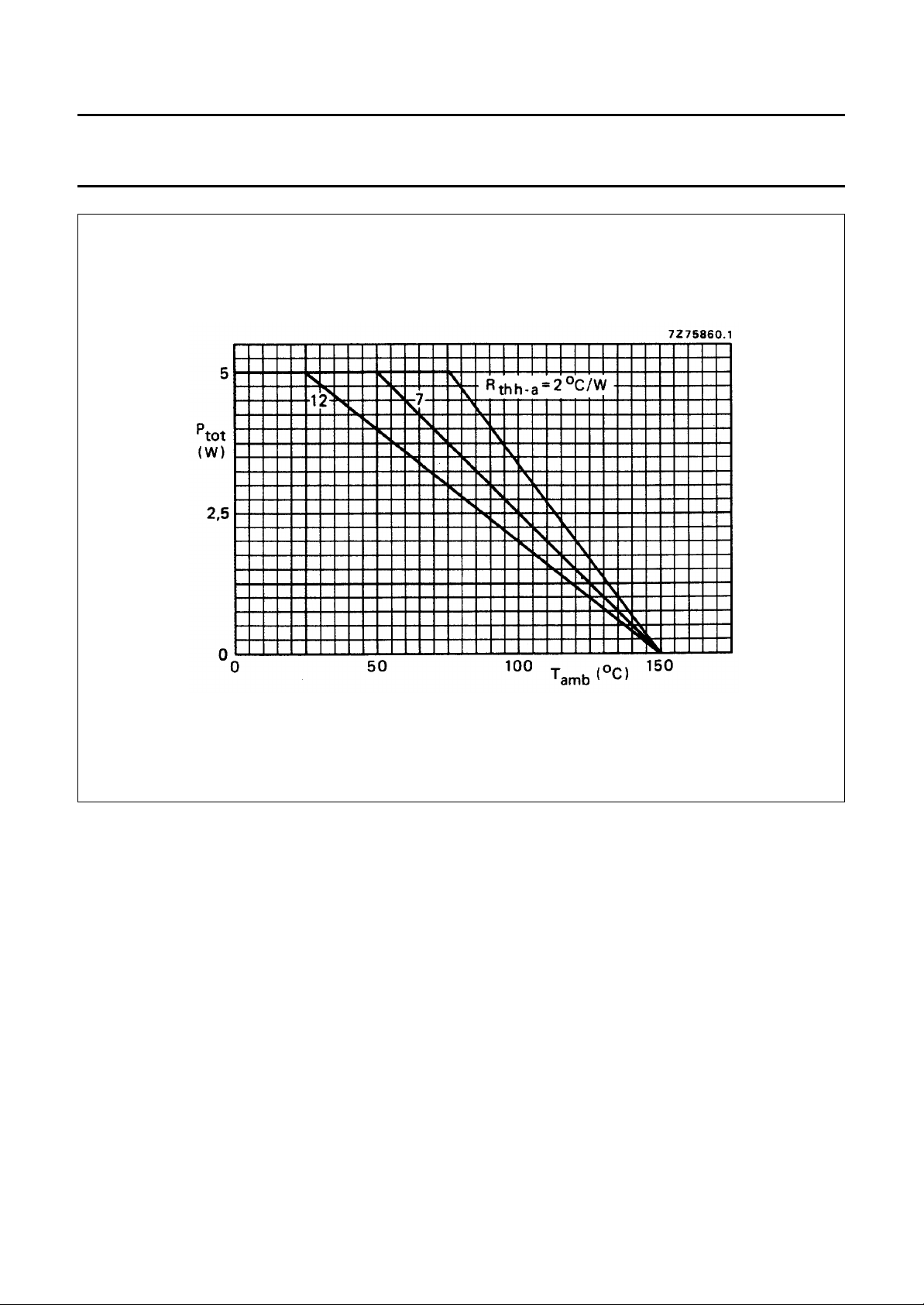

Fig.2 Total power dissipation. The graph takes into account an R
the tab is connected to a heatsink with one 3 mm bolt, without using heatsink compound. R
= 1 °C/W which is to be expected when
th tab-h
th j-tab
= 12 °C/W.
November 1982 5
Page 6
Vertical deflection circuit TDA2654
CHARACTERISTICS
=25°C unless otherwise specified; voltages and currents ref. to tab (ground)
T
amb
monochrome tiny-vision
(Fig.3) colour (Fig.4) Supply voltage (pin 8) V Supply current (pin 8) I Total power dissipation P Output voltage (peak-to-peak value) V Blanking pulse; I
= 1 mA V
1
Blanking pulse duration t D.C. input voltage (pin 6) V Deflection current (peak-to-peak value) I
P
P
tot 9(p-p) 1
p
6
9(p-p)
Flyback time t typ. 1,3 1,32 ms Free running oscillator frequency f
osc
Oscillator thermal drift typ. −0,01 −0,01 Hz/°C Oscillator voltage shift typ. −0,13 −0,12 Hz/V Tracking range oscillator typ. 18 18 % Synchronization input voltage V Voltage divider ratio V Input resistance pin 7 R
2 7/V8 7
Recommended thermal resistance
of heatsink for T
up to 70 °CR
amb
th h-a
typ. 25 31 V typ. 165 150 mA typ. 3,1 3,5 W typ. 22 28 V typ. 11,5 14,5 V typ. 1,3 1,4 ms typ. 3,4 4,4 V typ. 1,1 0,92 A
typ. 46 46 Hz
> 11 V typ. 0,52 0,52 typ. 2,8 2,8 kΩ
< 13 10 °C/W
PINNING
1. Blanking pulse output
2. Synchronization input
3. Oscillator timing network
4. Sawtooth generator
5. S-correction and linearity control
6. Feedback input
7. Voltage divider
8. Positive supply
9. Output Tab. Negative supply (ground)
November 1982 6
Page 7
Vertical deflection circuit TDA2654
APPLICATION INFORMATION (see alsoFig.1) The function is described against the corresponding pin number
1. Blanking pulse output When the IC is adjusted on a free running frequency of 46 Hz the internal blanking pulse generator delivers a blanking
pulse with a duration between 1,2 ms and 1,5 ms. The circuit is, however, made such that when the flyback time of the deflection current is longer, the blanking pulse corresponds to the flyback time. The output voltage is also high when the voltage at pin 9 is lower than nominal 5 V. An external blanking circuit is recommended when tiny-vision receivers are operated from a car-battery.
2. Synchronization input The oscillator has to be synchronized by a positive-going pulse. The circuit is made such that synchronization is
inhibited during the flyback time.
3. Oscillator The oscillator frequency is set by the potentiometer P1 and resistor R2 between pins 3 and 7 and capacitor C1
between pin 3 and ground. For 50 Hz systems the free running frequency is preferably adjusted to 46 Hz.
4. Sawtooth generator This pin supplies the charging and discharging currents of the capacitor between pin 4 and ground (C2).
5. S-correction and linearity control The amount of S-correction can be set by the value of C3. For 110° deflection coils, e.g. AT1040/15, a capacitor of
15 µF will give the right value for S-correction. For 90° deflection systems (e.g. AT1235/00) a nearly linear deflection current is required, this can be achieved by increasing C3 to 100 µF. The linearity can be adjusted by potentiometer P2.
6. Output current feedback To this pin is applied a part of the output current measured across R6 and superimposed on a d.c. voltage derived
from the voltage across the output coupling capacitor. This signal is compared with the internal reference sawtooth. The internal reference sawtooth has an amplitude of about 0,6 V peak to peak and a d.c. level of about 3,4 V, for a supply voltage of 25 V at pin 8.
7. Internal voltage divider decoupling The voltage on this pin is about half the supply voltage at pin 8 and is applied to the bases of emitter followers
supplying the pre-stages of the IC. This voltage controls the amplitude of the internal reference sawtooth. In this way tracking with the line deflection system is achieved when the supply voltage at pin 8 is derived from the line output transformer.
8. Positive supply The value depends on the deflection coil.
9. Output The deflection coil is connected to ground via coupling capacitor C9 and current sensing resistor R6. The line
frequency superimposed on the output voltage may be too high due to the current feedback system. The line frequency ripple can be decreased by connecting a resistor across the deflection coil. The flyback time can be influenced by the resistor divider (R4, R5) for the d.c. feedback to pin 6. It should be noted that the output voltage shows a negative swing of about 1 V during the first (positive current) part of the flyback.
November 1982 7
Page 8
Vertical deflection circuit TDA2654
Tab The tab is used as negative supply (ground) connection. Therefore, the tab should be well connected to the negative side
of the power supply. Controlled switch-on This feature is achieved by charging the a.c. coupling capacitor (C4; connected to pin 6) from an internal current source
of about 2 mA (voltage limited to maximum 15 V) for a short period after switch-on. The charging time can be influenced by the value of C5 (connected to pin 7). Discharging of C4 results in a slowly increasing deflection current after a delay of about 1 second. The blanking voltage at pin 1 is high during this delay.
November 1982 8
Page 9
Vertical deflection circuit TDA2654
November 1982 9
Fig.3 Monochrome 110° vertical deflection system.
Page 10
Vertical deflection circuit TDA2654
November 1982 10

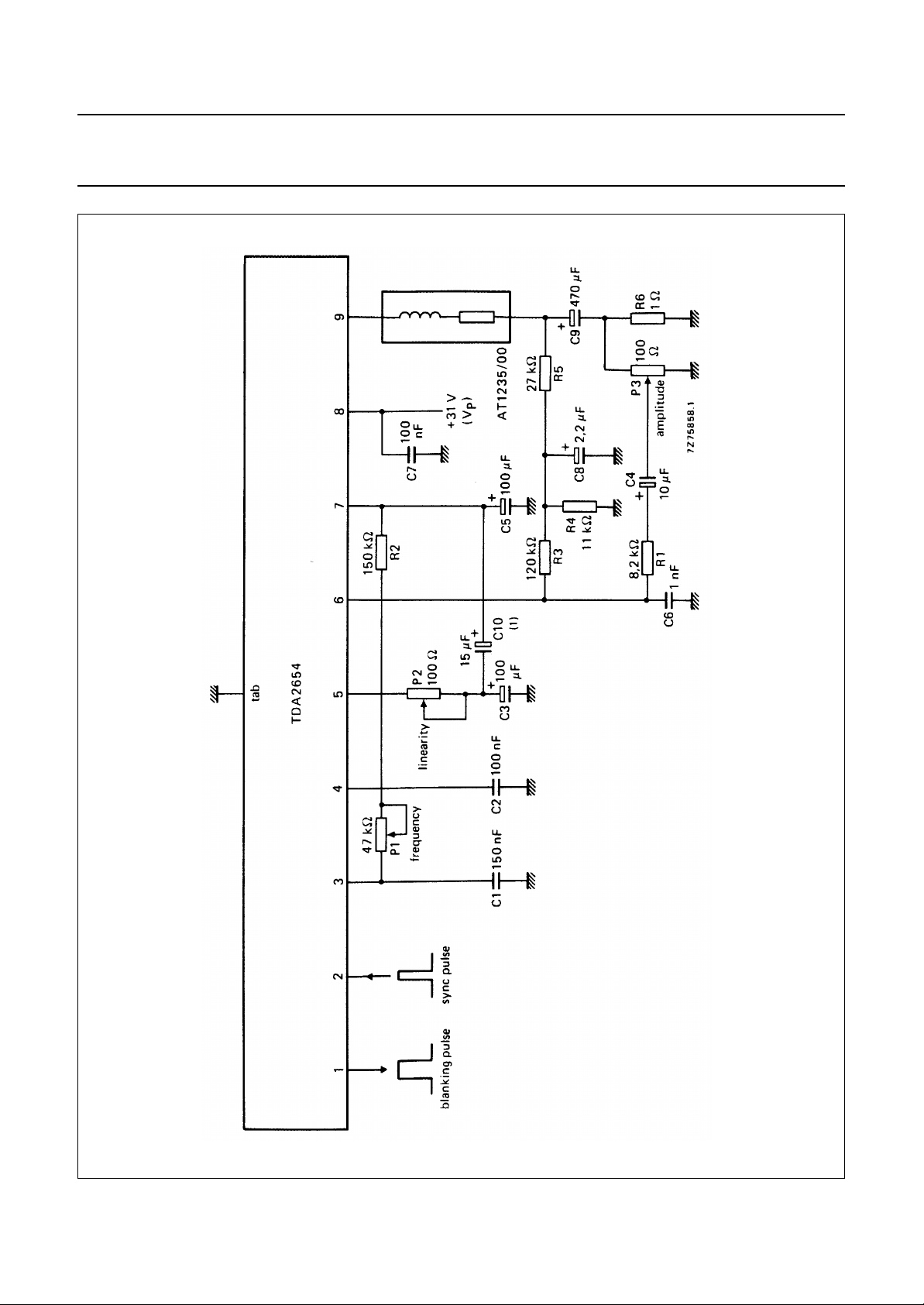

Fig.4 Colour 90° vertical deflection system.
(1) Only required when rapid variations in the supply voltage are expected.
Page 11
Vertical deflection circuit TDA2654

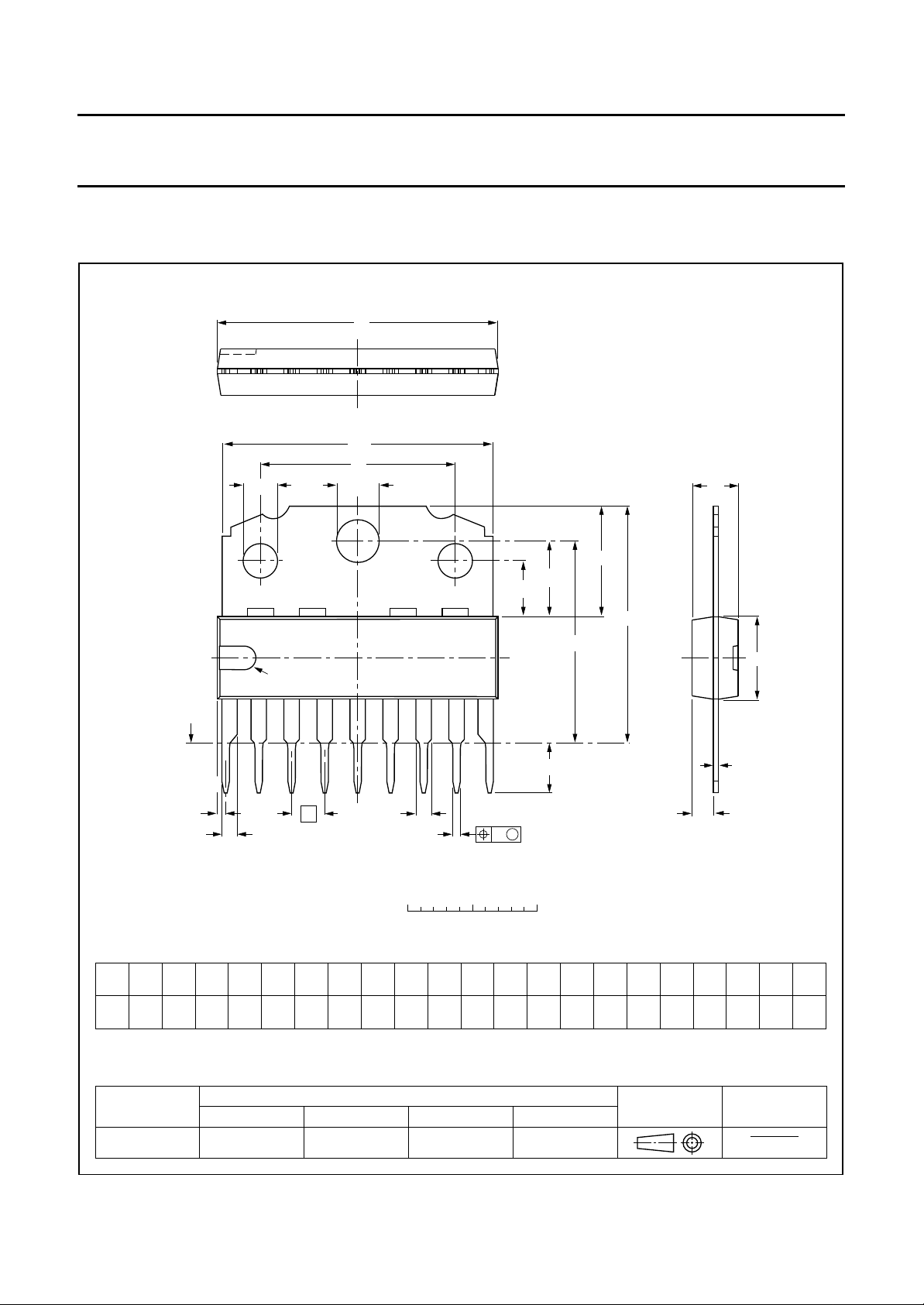

PACKAGE OUTLINE
SIL9MPF: plastic single in-line medium power package with fin; 9 leads
D
D
1
q
P
pin 1 index
P
1
q
2
q
1
SOT110-1
A
2
A
3
A
A
4
E
seating plane
19
Z
b
e
2
b
b
1
0 5 10 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
mm
A
18.5
17.8
max.
3.7
2
A
8.7
8.0
A
3
4
15.8
15.4
b
0.67
0.50
b
1
2
1.40
1.14
bcD
1.40
1.14
0.48
0.38
21.8
21.4
(1)
D
1
21.4
20.7
A
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE VERSION
IEC JEDEC EIAJ
REFERENCES
SOT110-1
w M
(1)
E
eLPP
6.48
6.20
2.54
3.9
3.4
L
c
Q
(1)
w
0.25
Z
max.
1.0
2.75
2.50
1
3.4
3.2
q
Q
1.75
15.1
1.55
14.9
EUROPEAN
PROJECTION
q1q
2
5.9
4.4
5.7
4.2
ISSUE DATE
92-11-17 95-02-25
November 1982 11
Page 12
Vertical deflection circuit TDA2654
SOLDERING Introduction
There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our
“IC Package Databook”
Soldering by dipping or by wave
The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact with the joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.
The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the specified maximum storage temperature (T be necessary immediately after soldering to keep the temperature within the permissible limit.
(order code 9398 652 90011).
). If the printed-circuit board has been pre-heated, forced cooling may
stg max
Repairing soldered joints
Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to 10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
November 1982 12
