TA8710S
r
r
y
t
y
r

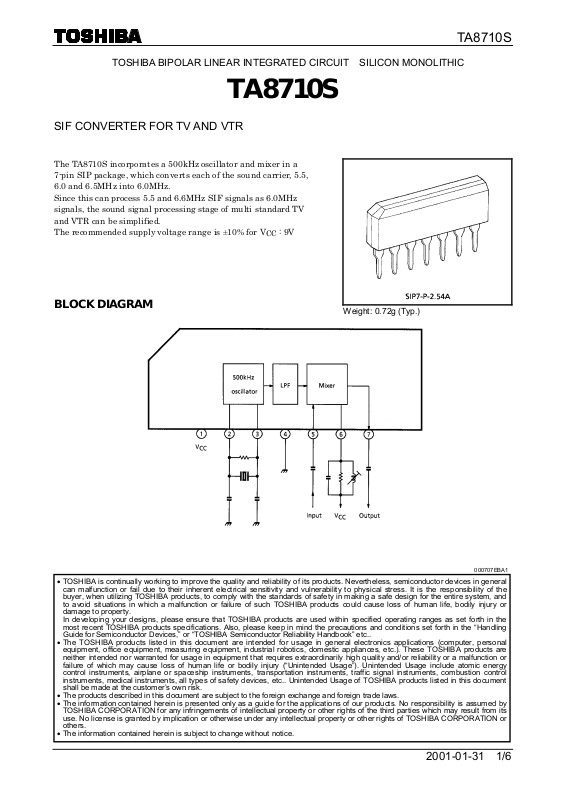

TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC
TA8710S
SIF CONVERTER FOR TV AND VTR
The TA8710S incorporates a 500kHz oscillator and mixer in a
7-pin SIP package, which converts each of the sound carrier, 5.5,
6.0 and 6.5MHz into 6.0MHz.
Since this can process 5.5 and 6.6MHz SIF signals as 6.0MHz
signals, the sound signal processing stage of multi standard TV
and VTR can be simplified.
The recommended supply voltage range is ±10% for V
CC
: 9V
BLOCK DIAGRAM
Weight: 0.72g (Typ.)
000707EBA1
· TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general
can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the
buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and
to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury o
damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the
most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling
Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc..
· The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal
equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are
neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction o
failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energ
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control
instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this documen
shall be made at the customer’s own risk.
· The products described in this document are subject to the foreign exchange and foreign trade laws.
· The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed b
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION o
others.
· The information contained herein is subject to change without notice.
2001-01-31 1/6
Page 2
TERMINAL FUNCTION
TA8710S
PIN
No.
PIN NAME FUNCTION INTERFACE CIRCUIT
1 VCC V
500kHz
2
oscillator
500kHz
3
oscillator
4 GND ― ―
5 Mixer input
= 9V (Typ.) ―
CC
Connect a 500kHz Ceramic resonator between this
pin and pin 3.
Connect a 500kHz Ceramic resonator between this
pin and pin 2.
This is an SIF signal input terminal of 5.5, 6.0 and
6.5MHz signals.
This will be mixed with a 500kHz oscillator output and
converted to 6.0MHz signal.
6MHz tuning
6
coil
7 Mixer output
This is a 6.0MHz tuning coil connection terminal for
converters.
This will output an SIF signal converted to 6.0MHz by
converter.
2001-01-31 2/6
Page 3
TA8710S
MAXIMUM RATINGS
CHARACTERISTIC SYMBOL RATING UNIT
Supply Voltage VCC 15.0 V
Input Pin Voltage Vin GND − 0.3~V
Input Pin Voltage ein 3.0 V
Power Dissipation PD (Note 1) 0.4 W
Operating Temperature T
Storage Temperature T
(Ta = 25°C)
+ 0.3 V
CC
p-p
−20~65 °C
opr
−55~150 °C
stg
Note 1: When using the device at above Ta = 25°C, decrease the power dissipation by 4mW for each increase of
1°C.
Note 2: Handle with care as this product is weak at surge voltage.
ELECTRICAL CHARACTERISTICS
DC CHARACTERISTICS
CHARACTERISTIC SYMBOL
Supply Voltage ICC 1
Pin Voltage
(Unless otherwise specified, VCC = 9V, Ta = 25°C)
TEST
CIR-
CUIT
V2 ― 4.0 4.4 4.8
V3 ― 3.9 4.3 4.7
V5 ― 3.4 3.7 4.0
V
7
1
TEST CONDITION MIN TYP. MAX UNIT
Total current consumption of
pins 1 and 6.
― 6.4 6.8 7.3
5.0 7.1 9.3 mA
V
2001-01-31 3/6
Page 4
AC CHARACTERIST ICS
(When using the specified parts, unless otherwise specified, VCC = 9V, Ta = 25°C)
TEST
CHARACTERISTIC SYMBOL
500kHz Oscillation Level V
500kHz Oscillation Total Harmonic
Level
500kHz Oscillation Supply Voltage
Drift
OSC
I
OSC
∆f
500kHz Oscillation Temperature Drift ∆fθ 2
CUR-
CUIT
2
2
2
V
TEST CONDITION MIN TYP. MAX UNIT
Measure amplitude of pin 3
oscilla-tion waveform.
0.9 1.2 1.5 V
(1)Measure pin 3 by spectrum
analyzer.
(2)Calculate the difference
― 40 35 dB
between 500kHz oscillation
level and total harmonic level.
(1)Measure the frequency drift by
using the frequency counter
and the buffer amplifier, which
is connected with pin 3.
― 0.002 0.5 kHz / V
(2)Calculate the amount varied
when changing V
10~6V.
CC
from
(1)Measure the frequency drift by
using the frequency counter
and the buffer amplifier, which
is connected with pin 3.
― 0.023 0.063 kHz/ °C
(2)Calculate the amount varied
when changing temperature
from −10~60°C
TA8710S
p-p
SIF Converter
Conversion Ratio
5.5MHz G
6.0MHz G
6.5MHz G
22 27 32
m5.5
24 28 31
m6.0
m6.5
2
MIX Total Harmonic Level Im 2
MIX Input Dynamic Range Vim 2
MIX Input Impedance R
2
in 5
(1)V
MIX
: 36mV
rms
(2)Measure pin 7 by spectrum
analyzer.
(3)Calculate the 6.0MHz output
gain when each 5.5, 6.0 and
6.5MHz is input.
(1)V
MIX
: 6MHz, 36mV
rms
(2)Measure pin 7 by spectrum
analyzer.
(3)Calculate the input level of
which the total harmonic level
against 6MHz output level.
(1)V
: 6MHz
MIX
(2)Measure pin 7 by spectrum
analyser.
(3)Calculate the input level of
which the total harmonic level
against 6MHz output level will
be bigger than −40dB.
Measure the MIX input (pin 5) by
impedance meter.
dB
22 27 32
― ― 40 dB
100 ― ― mV
p-p
2.1 3.0 3.9 kΩ
2001-01-31 4/6
Page 5

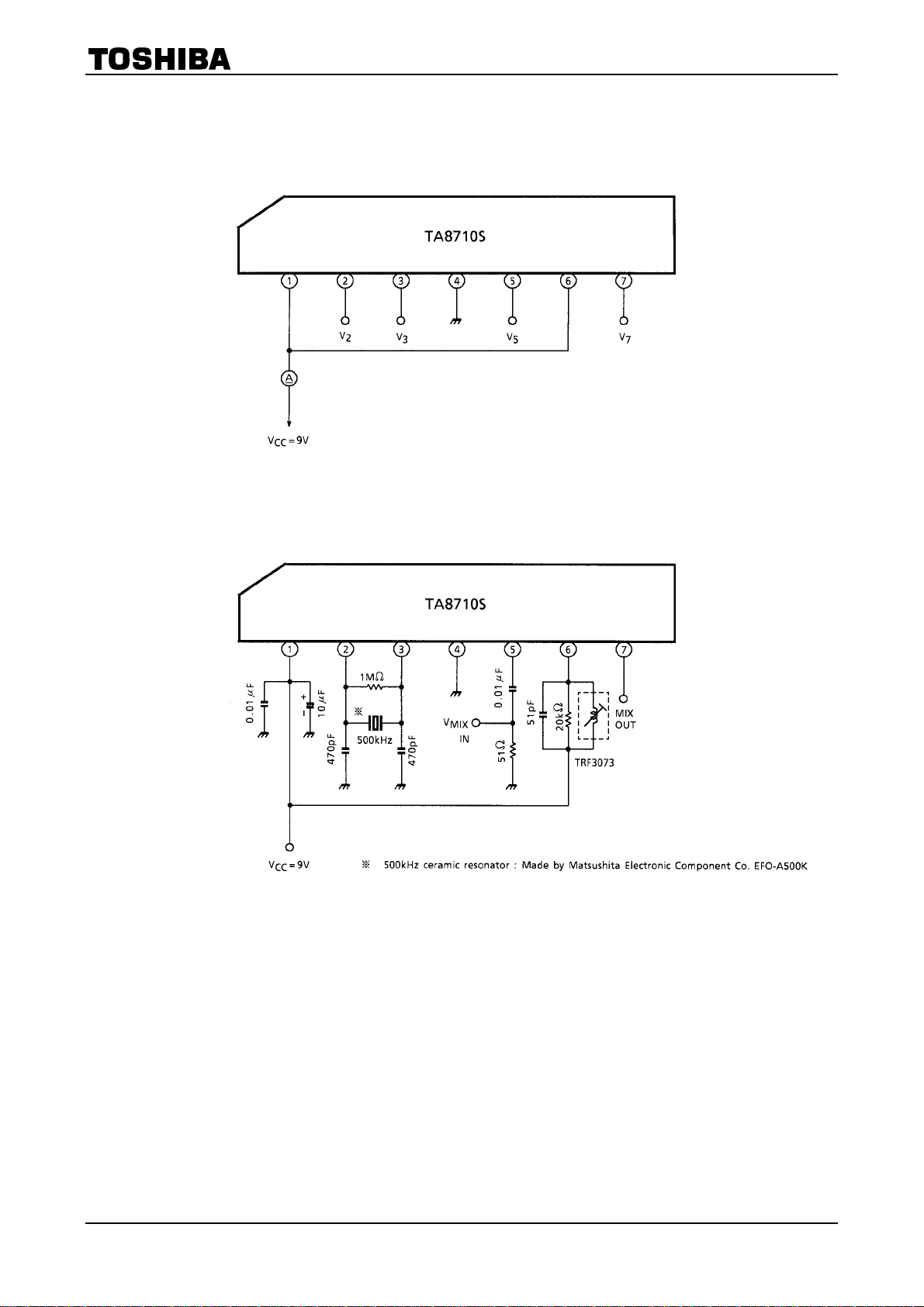

TEST CIRCUIT 1
DC characteristics
TEST CIRCUIT 2
TA8710S
AC characteristics
2001-01-31 5/6
Page 6
TA8710S

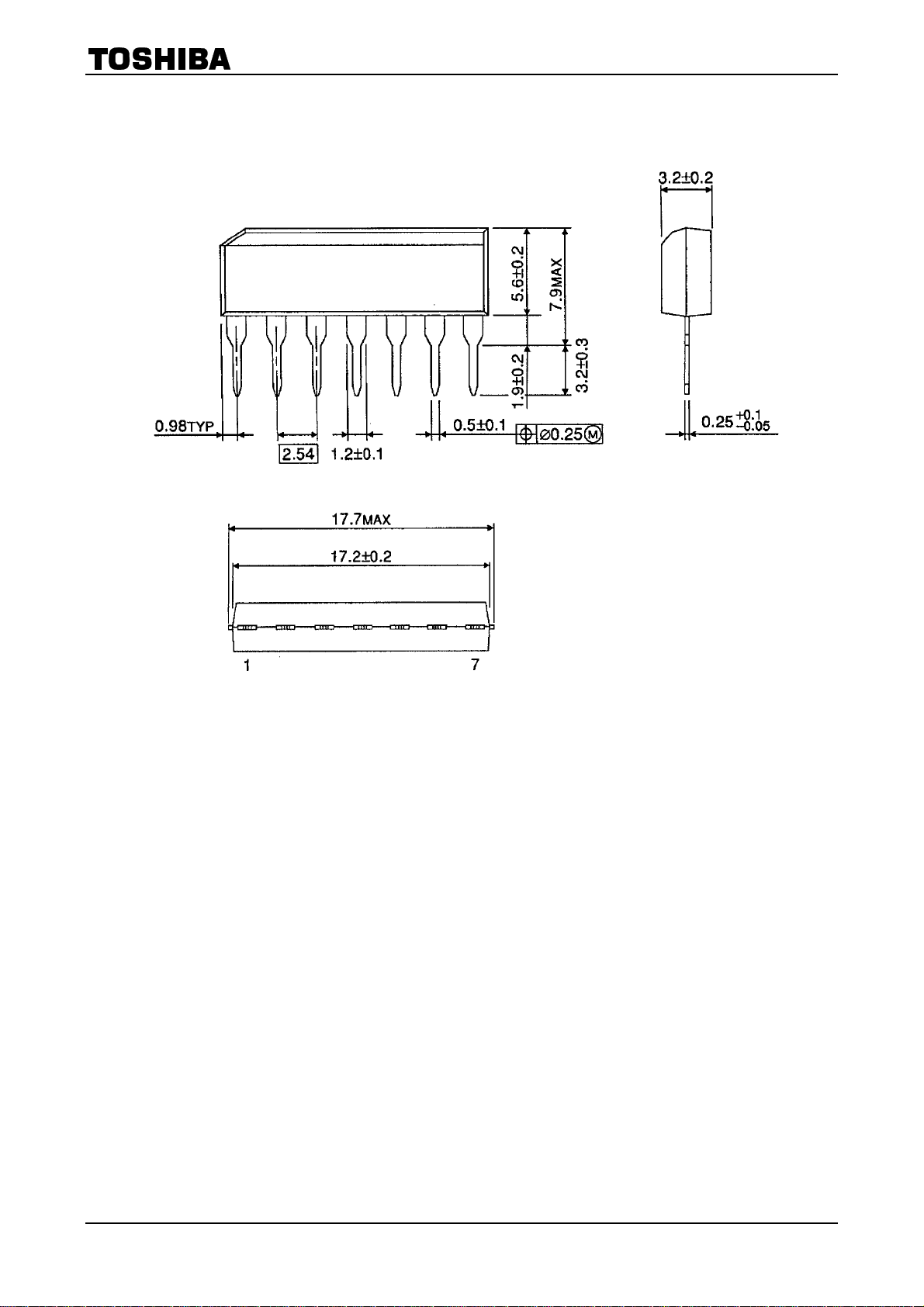

PACKAGE DIMENSIONS
SIP7-P-2.54A Unit : mm
Weight: 0.72g (Typ.)
2001-01-31 6/6
