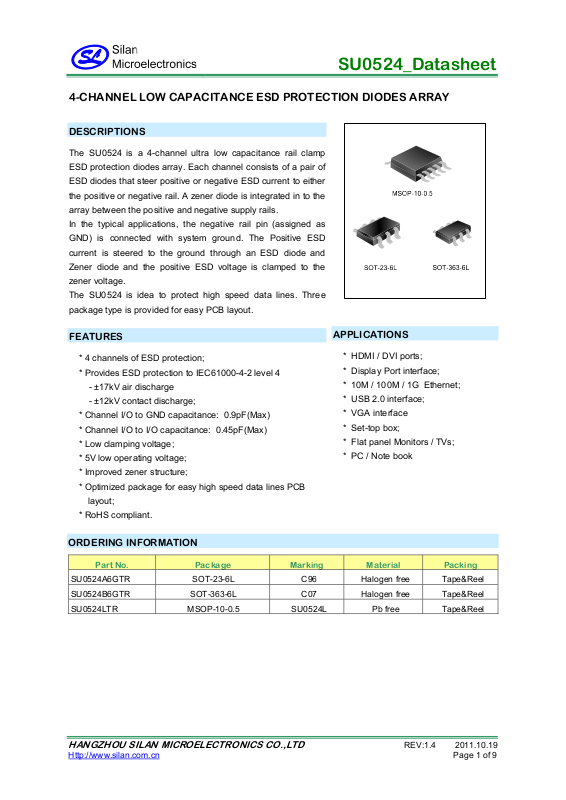

Page 1
SU0524_Datasheet
4-CHANNEL LOW CAPACITANCE ESD PROTECTION DIODES ARRAY
DESCRIPTIONS
The SU0524 is a 4-channel ultra low capacitance rail clamp
ESD protection diodes array. Each channel consists of a pair of
ESD diodes that steer positive or negative ESD current to either
the positive or negative rail. A zener diode is integrated in to the
array between the positive and negative supply rails.
In the typical applications, the negative rail pin (assigned as
GND) is connected with system ground. The Positive ESD
current is steered to the ground through an ESD diode and
Zener diode and the positive ESD voltage is clamped to the
zener voltage.
The SU0524 is idea to protect high speed data lines. Three
package type is provided for easy PCB layout.
FEATURES
* 4 channels of ESD protection;
* Provides ESD protection to IEC61000-4-2 level 4
- ±17kV air discharge
- ±12kV contact discharge;
* Channel I/O to GND capacitance: 0.9pF(Max)
* Channel I/O to I/O capacitance: 0.45pF(Max)
* Low clamping voltage;
* 5V low operating voltage;
* Improved zener structure;
* Optimized package for easy high speed data lines PCB
layout;
* RoHS compliant.
APPLICATIONS
* HDMI / DVI ports;
* Display Port interface;
* 10M / 100M / 1G Ethernet;
* USB 2.0 interface;
* VGA interface
* Set-top box;
* Flat panel Monitors / TVs;
* PC / Note book
ORDERING INFORMATION
Part No. Package Marking Material Packing
SU0524A6GTR SOT-23-6L C96 Halogen free Tape&Reel
SU0524B6GTR SOT-363-6L C07 Halogen free Tape&Reel
SU0524LTR MSOP-10-0.5 SU0524L Pb free Tape&Reel
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 1 of 9
REV:1.4 2011.10.19
Page 2
SU0524_Datasheet
PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS
Characteristics Symbol Ratings Unit
Peak Pulse Power(8/20μs) P 150 W
Peak Pulse Current(8/20μs) I 5 A
ESD per IEC 61000-4-2(Air) V ±17 kV
ESD per IEC 61000-4-2(Contact) V ±12 kV
Operating Temperature Range T
Storage Temperature Range T
PP
PP
ESD1
ESD2
-55 ~ +125 °C
opr
-55 ~ +150 °C
stg
ELECTRICAL CHARACTERISTICS(Tamb=25°C)
Characteristics Symbol Test Conditions Min. Typ. Max. Unit
Reverse Working
Voltage
Reverse Breakdown
Voltage
Reverse Leakage
Current
Positive Clamping
Voltage
Negative Clamping
Voltage
Junction Capacitance
Between Channel
Junction Capacitance
Between I/O And GND
V
RWM
V 6 -- -- V
BR
I -- -- 1 μA
R
V
C1
V
C2
C -- 0.35 0.45 pF
J1
C -- -- 0.9 pF
J2
Any I/O pin to GND -- -- 5 V
It =1mA;
Any I/O pin to GND
V =5V, T=25°C;
RWM
Any I/O pin to GND
I
=1A, t =8/20Μs;
PP
P
Positive pulse; -- 8.5 12.0 V
Any I/O pin to GND
I
=1A, t =8/20μS;
PP
P
Negative pulse; -- 1.8 -- V
Any I/O pin to GND
VR=0V, f=1MHz;
Between I/O pins
VR=0V, f=1MHz;
Any I/O pin to GND
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
REV:1.4 2011.10.19
Http://www.silan.com.cn Page 2 of 9
Page 3
TYPICAL ELECTRICAL CHARACTERISTICS CURVE
SU0524_Datasheet
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 3 of 9
REV:1.4 2011.10.19
Page 4

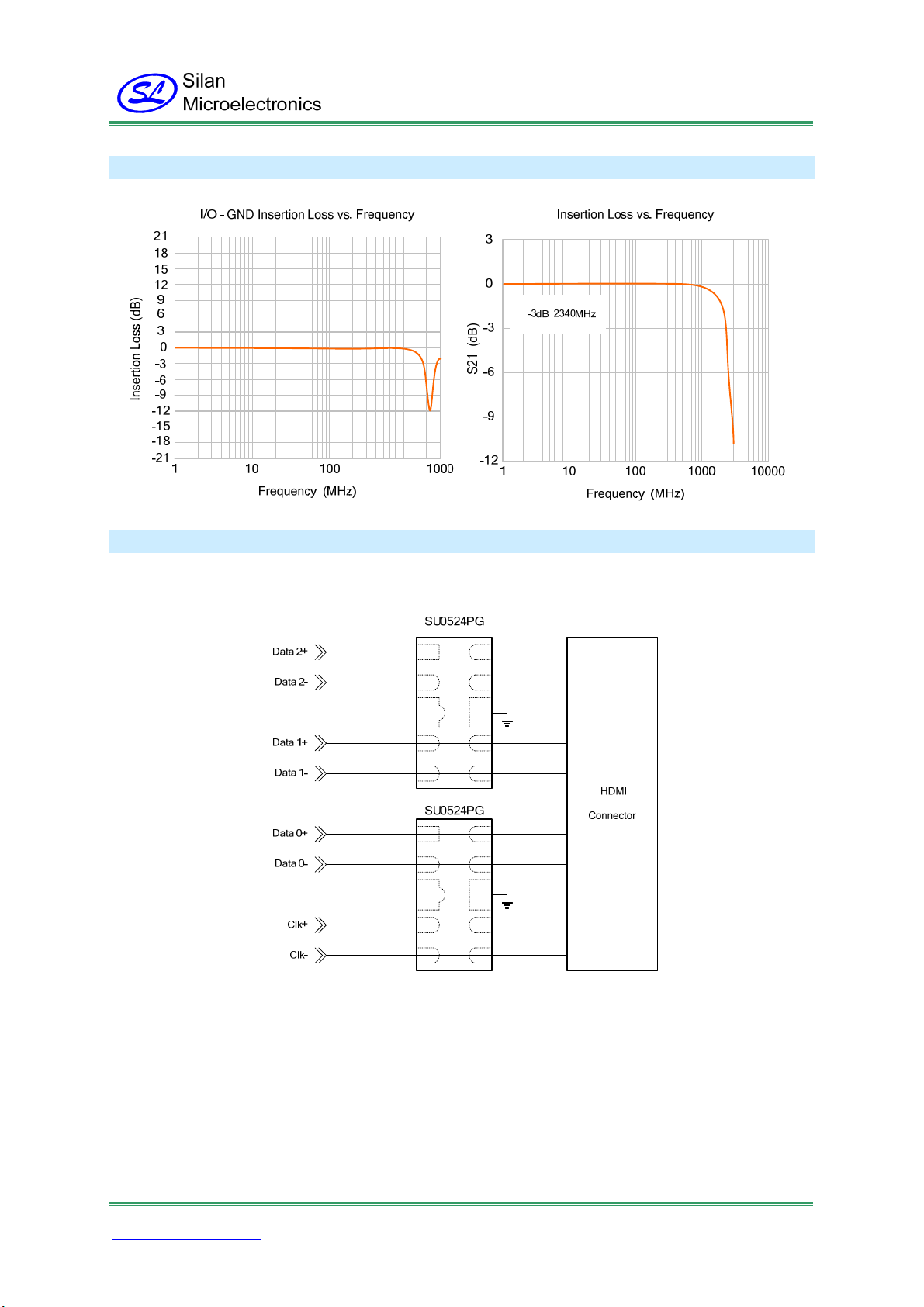

TYPICAL ELECTRICAL CHARACTERISTICS CURVE
TYPICAL APPLICATIONS
SU0524_Datasheet
1. HDMI Port Application
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 4 of 9
REV:1.4 2011.10.19
Page 5

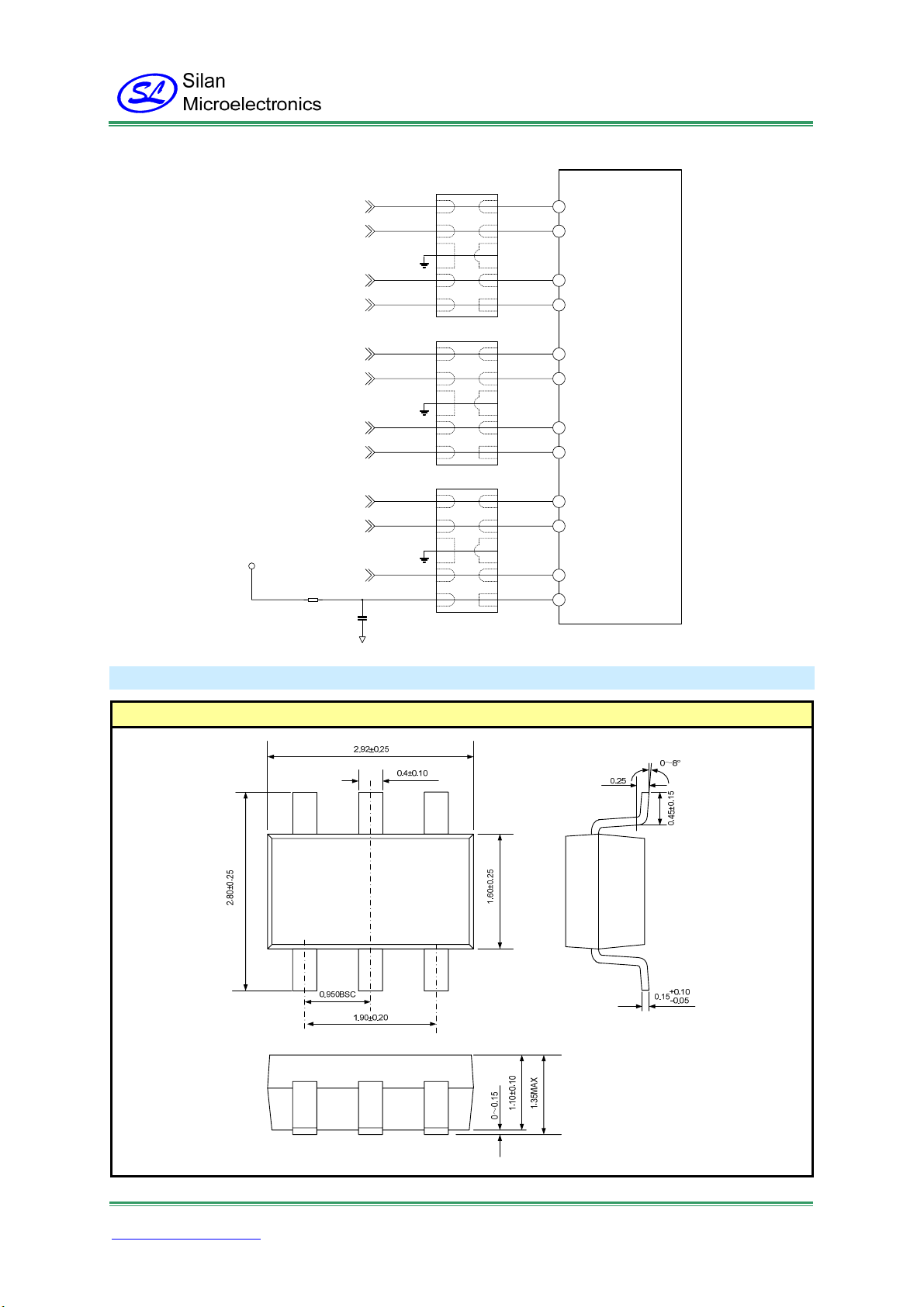

2. Display Port Application
DIFF100_TX0P_DP
DIFF100_TX0N_DP
DIFF100_TX1P_DP
DIFF100_TX1N_DP
DIFF100_TX2P_DP
DIFF100_TX2N_DP
DIFF100_TX3P_DP
DIFF100_TX3N_DP
DIFF100_AUXP_DP
DIFF100_AUXN_DP
V5
HP_DET_9801_5V
R1
600W
500mA
SU0524PG
SU0524PG
SU0524PG
C1
10µF
SU0524_Datasheet
1
D0P
3
D0N
GND
4
D1P
6
D1N
7
D2P
9
D2N
Display Port
GND
Connector
10
D3P
12
D3N
15
AUXP
17
AUXN
GND
18
HP_DET
20
PWR
PACKAGE OUTLINE
SOT-23-6L UNIT: mm
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 5 of 9
REV:1.4 2011.10.19
Page 6
SU0524_Datasheet

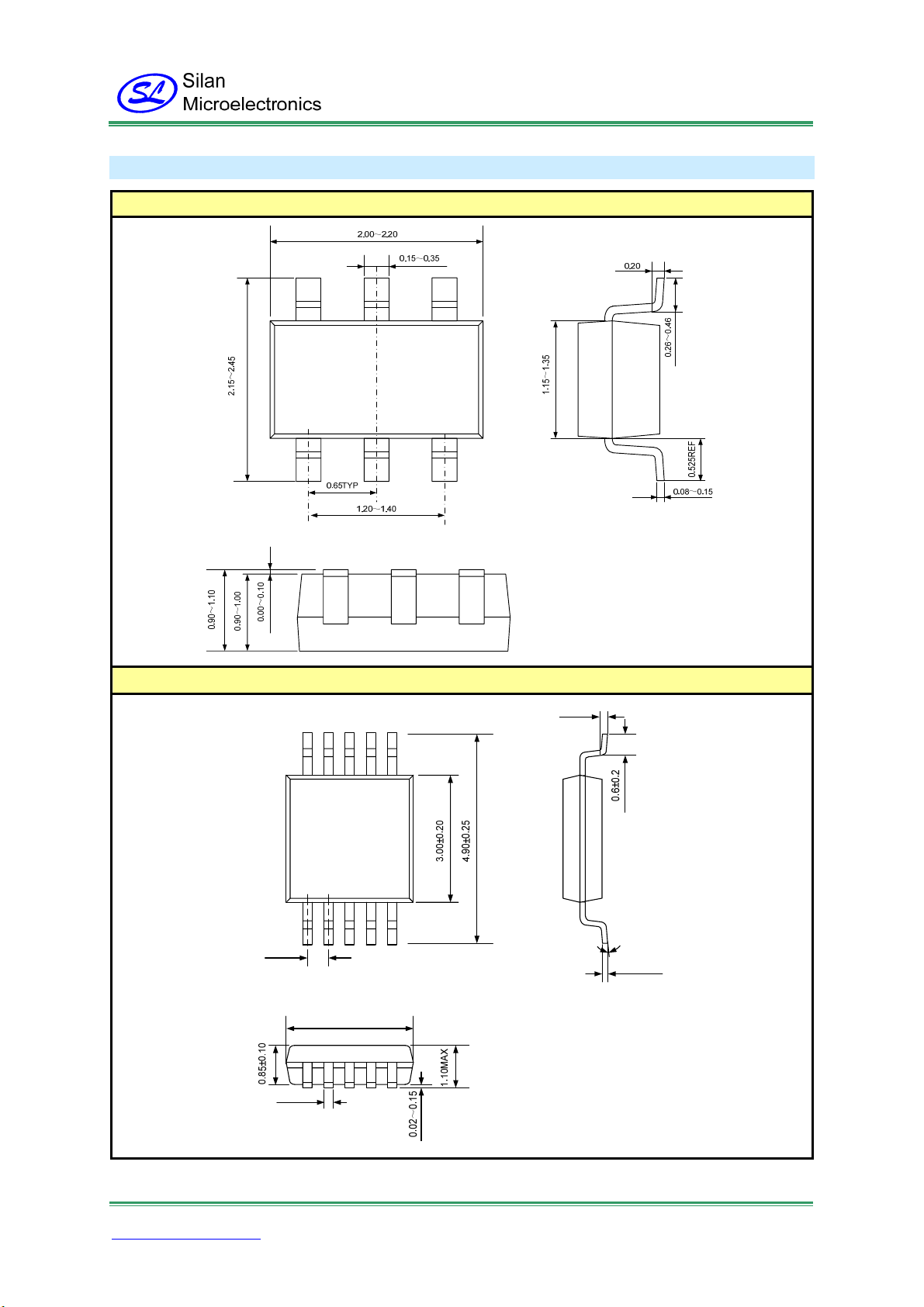

PACKAGE OUTLINE (Continued)
SOT-363-6L UNIT: mm
MSOP-10-0.5 UNIT: mm
0.25BSC
0.50BSC
3.00±0.20
0.18～0.30
0°～8°
0.09～0.23
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 6 of 9
REV:1.4 2011.10.19
Page 7

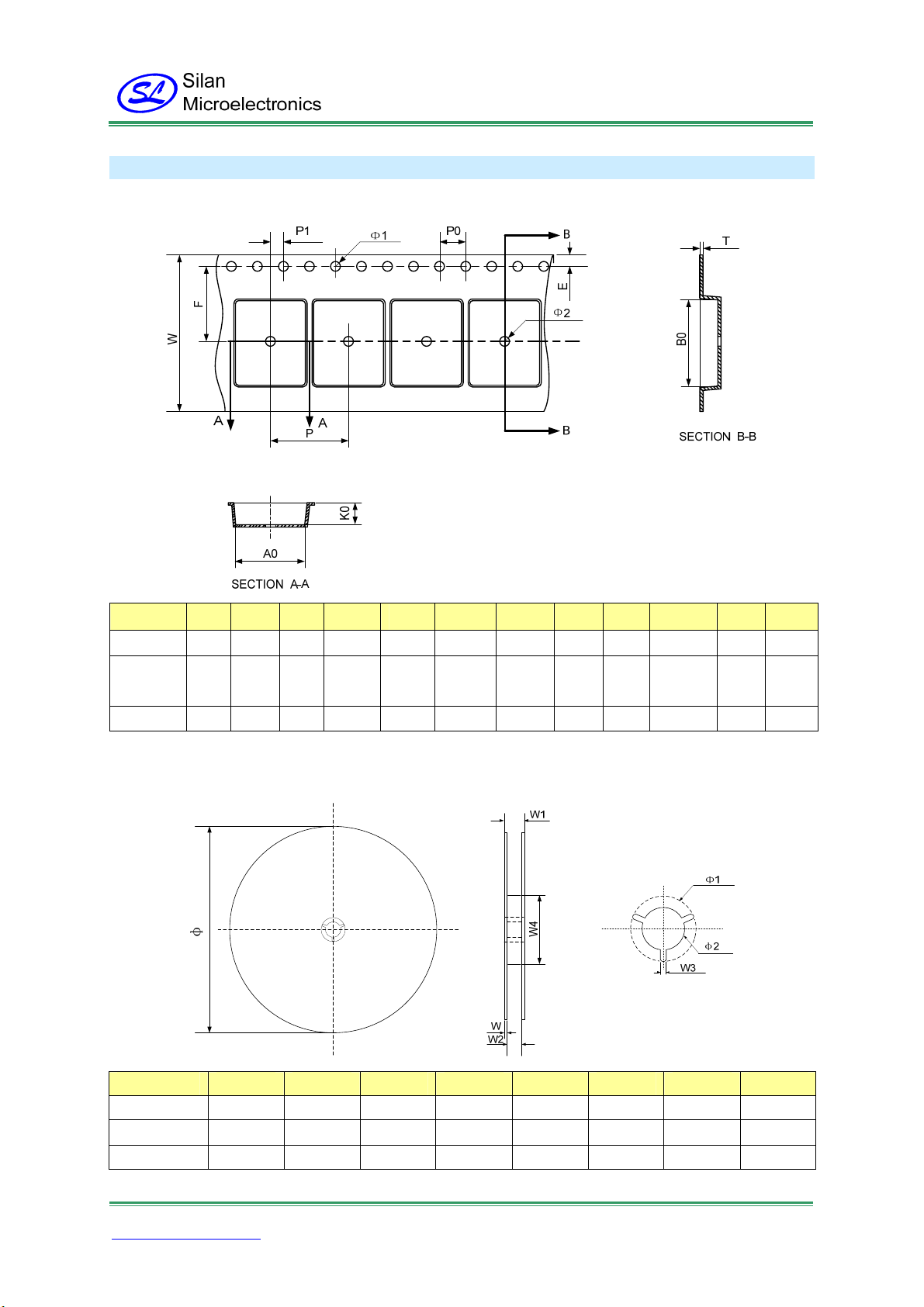

PACKING TYPE
Tape
SU0524_Datasheet
Package P0 P1 P A0 B0 W T K0 E F
SOT-23-6L
SOT-363-6L
MSOP-10-0.5
Reel
4.0±0.1 2.0±0.1 4.0±0.1 3.17±0.1 3.23±0.1 8.0±0.3 0.25±0.02 1.37±0.1 1.50min 1.00±0.25 1.75±0.1 3.50±0.10
4.0±0.1 2.0±0.05 4.0±0.1 2.25±0.1 2.55±0.1 8.0 0.254±0.02 1.20±0.1 1.50min 1.0 1.75±0.1 3.50±0.05
4.0±0.1 2.0±0.1 8.0±0.1
5.15～5.40
3.40±0.1 12.0±0.3 0.30±0.05 1.40±0.1 1.50min 1.40~1.75 1.75±0.1 5.50±0.10
+0.3 +0.25
-0.1 -0
Φ1
Φ2
Package Ф Ф1 Ф2 W W1 W2 W3 W4
SOT-23-6L
SOT-363-6L
MSOP-10-0.5
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 7 of 9
180±3.0 18.3min 13±0.5 1.5±0.3 12.3±1.0 9.5±1.0 2.3±0.3 60±1.0
178±1.0 18.7±0.4 13±0.2 1.4±0.2 12.3±1.0 9.5±1.0 2.3±0.1 54.4±0.4
330±3.0 / 13±0.5 2.6±0.3 17.6±1.0 12.4±1.0 1.9±0.5 100±1.0
REV:1.4 2011.10.19
Page 8

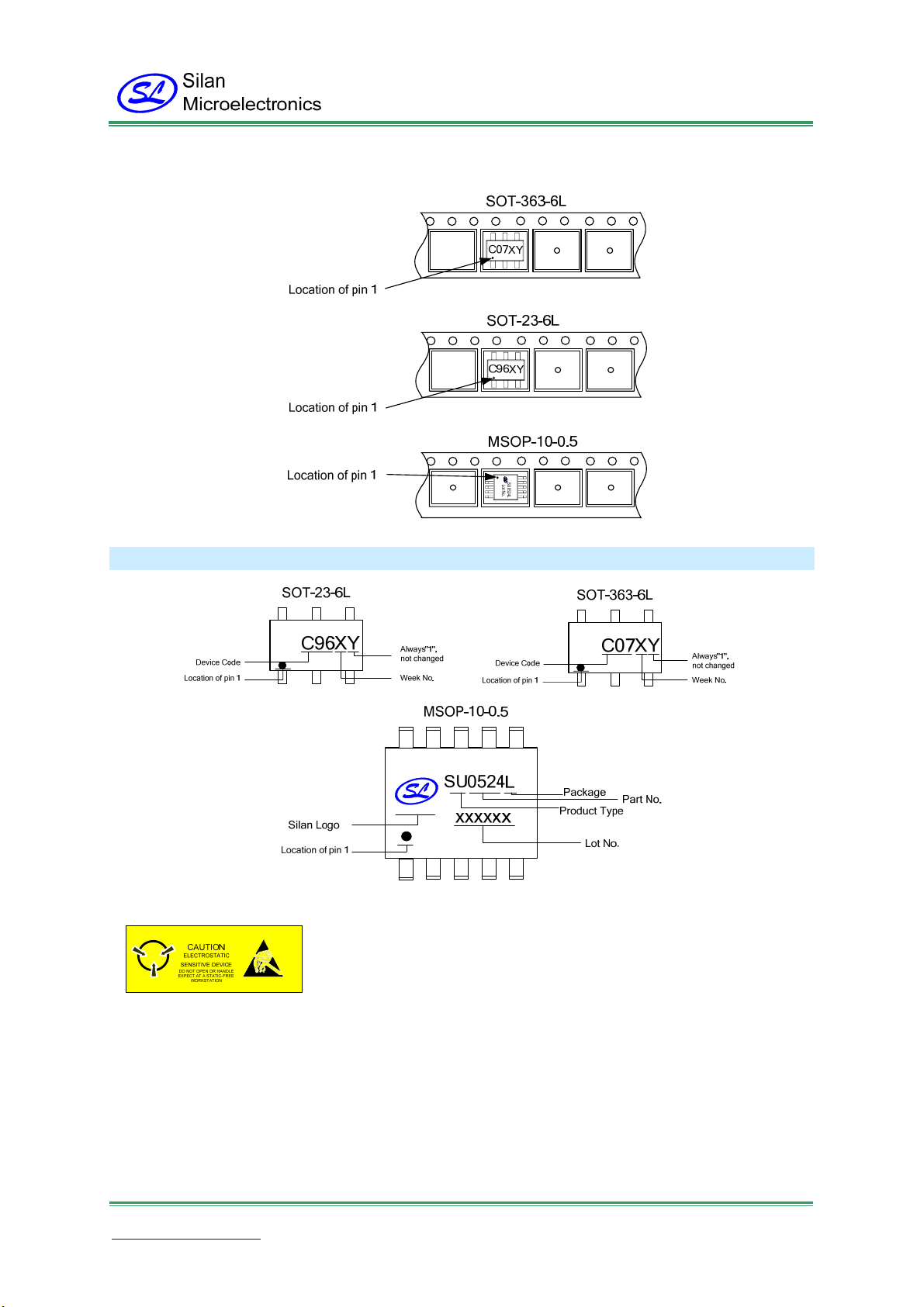

IC position in the tape
SU0524_Datasheet
SEAL GRAPHICS
MOS DEVICES OPERATE NOTES:
Electrostatic charges may exist in many things. Please take following preventive measures to prevent effectively
the MOS electric circuit as a result of the damage which is caused by discharge:
z The operator must put on wrist strap which should be earthed to against electrostatic.
z Equipment cases should be earthed.
z All tools used during assembly, including soldering tools and solder baths, must be earthed.
z MOS devices should be packed in antistatic/conductive containers for transportation.
HANGZHOU SILAN MICROELECTRONICS CO.,LTD
Http://www.silan.com.cn Page 8 of 9
REV:1.4 2011.10.19
Page 9
Disclaimer:
• Silan reserves the right to make changes to the information herein for the improvement of the design and
performance without further notice! Customers should obtain the latest relevant information before placing
orders and should verify that such information is complete and current..
• All semiconductor products malfunction or fail with some probability under special conditions. When using
Silan products in system design or complete machine manufacturing, it is the responsibility of the buyer to
comply with the safety standards strictly and take essential measures to avoid situations in which a
malfunction or failure of such Silan products could cause loss of body injury or damage to property.
• Silan will suppl y the best possible product for customers!
SU0524_Datasheet
ATTACHMENT
Revision History
Date REV Description Page
2010.09.09 1.0 Original
2010.10.15 1.1 Modify “ORDERING INFORMATION”
2010.10.22 1.2 Modify the template of datasheet
2011.08.10 1.3 Modify ”ORDERING INFORMATION”, “SEAL GRAPHICS”
2011.10.19 1.4 Delete the package of DFN-10-2.5x1.0x0.6-0.5
