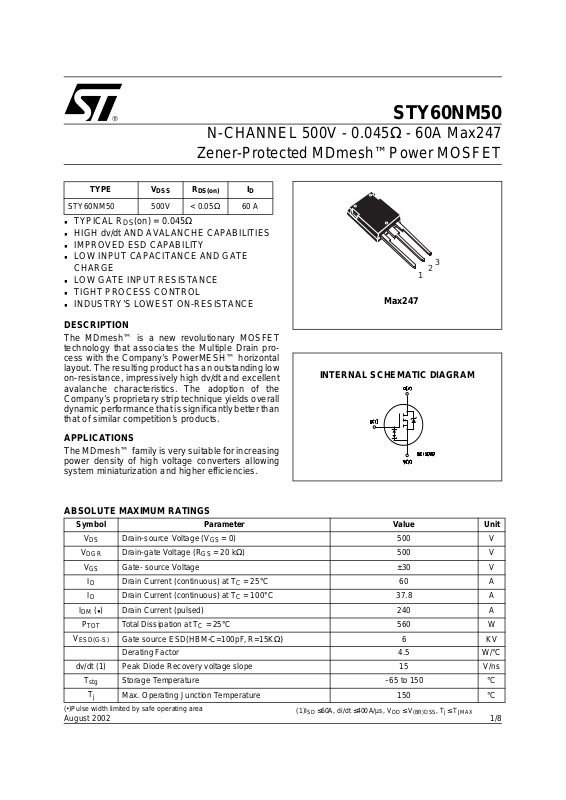

STY60NM50

N-CHANNEL 500V - 0.045Ω - 60A Max247

Zener-Protected MDmesh™Power MOSFET

TYPE V

DSS

R

DS(on)

I

D

STY60NM50 500V < 0.05Ω 60 A

n

TYPICAL RDS(on) = 0.045Ω

n

HIGH dv/dt AND AVALANCHE CAPABILITIES

n

IMPROVED ESD CAPABILITY

n

LOW INPUT CAPACITANCE AND GATE
CHARGE

n

LOW GATE INPUT RESIST ANC E

n

TIGHT PROCESS CONTRO L

n

INDUSTRY’S LOWEST ON-RESISTANCE

DESCRIPTION

The MDmesh™

is a new revolutionary MOSFET

technology that associates the Multiple Drain pro­cess with the Company’s PowerMESH™ horizontal
layout. The resulting product has an outstanding low
on-resistance, impressively high dv/dt and excellent
avalanche characteristics. The adoption of the
Company’s proprietary strip technique yields overall
dynamic performance that is significantly better than
that of similar competition’s products.

APPLICATIONS

The MDmesh™ family is very suitable for increasing
power density of high voltage converters allowing
system miniaturization and higher efficiencies.

3

2

1

Max247

INTERNAL SCHEMATIC DIAGRAM

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

DS

V

DGR

V

GS

I

D

I

D

I

DM

P

TOT

V

ESD(G-S)

dv/dt (1) Peak Diode Recovery voltage slope 15 V/ns

T

stg

T

j

(•)Pu l se width limite d by safe operating area

Drain-source Voltage (VGS = 0)
Drain-gate Voltage (RGS = 20 kΩ)

500 V
500 V

Gate- source Voltage ±30 V

Drain Current (continuous) at TC = 25°C
Drain Current (continuous) at TC = 100°C

(l)

Drain Current (pulsed) 240 A
Total Dissipation at TC = 25°C

60 A

37.8 A

560 W
Gate source ESD(HBM-C=100pF, R=15KΩ) 6KV
Derating Factor 4.5 W/°C

Storage Temperature –65 to 150 °C
Max. Operating Junction Temperature 150 °C

(1)ISD ≤60A, di/dt ≤400A/µs, VDD ≤ V

(BR)DSS

, Tj ≤ T

JMAX

1/8August 2002

STY60NM50

THERMA L D ATA

Rthj-case Thermal Resistance Junction-case Max 0.22 °C/W

Rthj-amb Thermal Resistance Junction-ambient Max 30 °C/W

T

l

AVALANCHE CHARACTERISTICS

Symbol Parameter Max Value Unit

I

AR

E

AS

ELECTRICAL CHARACTERISTICS (TCASE = 25 °C UNLESS OTHERWISE SPECIFIED)
OFF

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

Maximum Lead Temperature For Soldering Purpose 300 °C

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T

max)

j

Single Pulse Avalanche Energy
(starting T

Drain-source

= 25 °C, ID = IAR, VDD = 35 V)

j

ID = 250 µA, VGS = 0 500 V

30 A

1.4 J

Breakdown Voltage
Zero Gate Voltage

Drain Current (V

GS

Gate-body Leakage
Current (V

DS

= 0)

= 0)

V

= Max Rating

DS

VDS = Max Rating, TC = 125 °C
V

= ± 20V ± 10 µA

GS

10 µA

100 µA

ON

(1)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

GS(th)

R

DS(on)

Gate Threshold Voltage
Static Drain-source On

V

= VGS, ID = 250µA

DS

VGS = 10V, ID = 30A

345V

0.045 0.05 Ω

Resistance

DYNAMIC

Symbol Parameter Test Conditions Min. Typ. Max. Unit

(1) Forward Transconductance VDS > I

g

fs

C

iss

C

oss

C

rss

Input Capacitance
Output Capacitance 980 pF
Reverse Transfer

I

D

V

Capacitance

R

G

Gate Input Resistance f=1 MHz Gate DC Bias = 0

Test Signal Level = 20mV
Open Drain

Note: 1. Pulsed: Pu l se duration = 300 µs, duty cyc l e 1.5 %.

= 30A

DS

D(on)

x R

DS(on)max,

= 25V, f = 1 MHz, VGS = 0

35 S

7500 pF

200 pF

1.5 Ω

2/8

STY60NM50

ELECTRICAL CHARACTERISTICS (CONTINUED)

SWITCHING ON

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

t

d(on)

Q

Q

Q

t

r

g

gs

gd

Turn-on Delay Time
Rise Time 58 ns
Total Gate Charge

Gate-Source Charge 53 nC
Gate-Drain Charge 97 nC

SWITCHING OFF

Symbol Param eter Test Conditions Min. Typ. Max. Unit

t

r(Voff)

t

t

f

c

Off-voltage Rise Time
Fall Time 46 ns
Cross-over Time 108 ns

SOURCE DRAIN DIODE

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

VSD (1)

t

rr

Q

rr

I

RRM

t

rr

Q

rr

I

RRM

Note: 1. Pulsed: Pulse duration = 300 µs, duty cycle 1 .5 %.

2. Pulse width limi ted by safe operating area .

(2)

Source-drain Current 60 A
Source-drain Current (pulsed) 240 A
Forward On Voltage
Reverse Recovery Time

Reverse Recovery Charg e
Reverse Recovery Curren t

Reverse Recovery Time
Reverse Recovery Charg e
Reverse Recovery Curren t

= 250V, ID = 30A

DD

RG= 4.7Ω VGS = 10V
(see test circuit, Figure 3)

V

= 400V, ID = 60A,

DD

V

= 10V

GS

V

= 400V, ID = 60A,

DD

RG= 4.7Ω, V

GS

= 10V

(see test circuit, Figure 5)

ISD = 60A, VGS = 0

= 60A, di/dt = 100A/µs,

I

SD

V

= 100 V, Tj = 25°C

DD

(see test circuit, Figure 5)

= 60A, di/dt = 100A/µs,

I

SD

VDD = 100 V, Tj = 150°C
(see test circuit, Figure 5)

51 ns

190 266 nC

51 ns

1.5 V

532

9.9
37

636

13.4
42

ns

µC

A

ns

µC

A

Safe Operating Area Thermal Impedance

3/8

STY60NM50

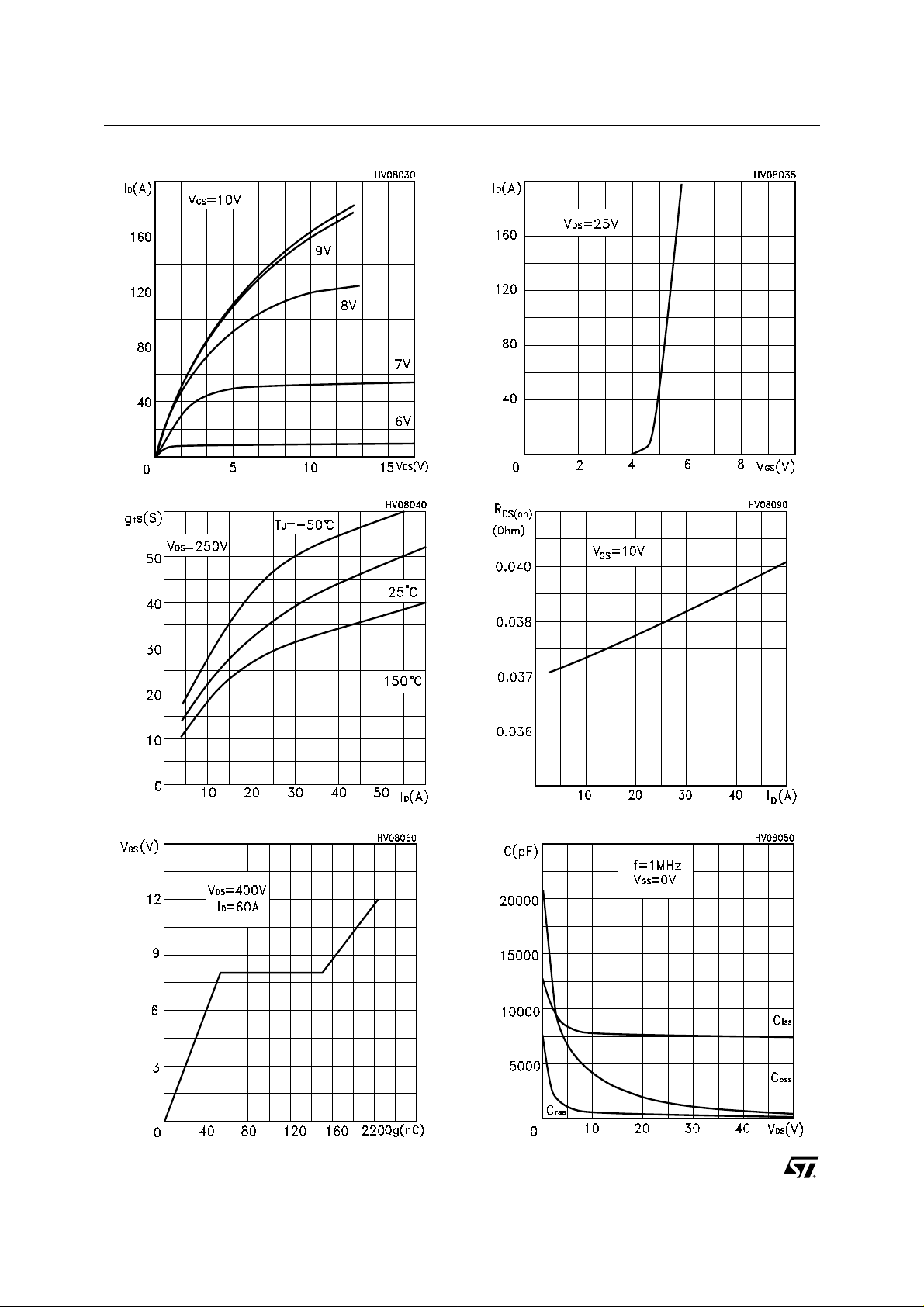

Output Characteristics

Transconductance

Transfer Characteristics

Static Drain-source On Resistance

Gate Charge vs Gate-source Voltage Capacitance Variation s

4/8

STY60NM50

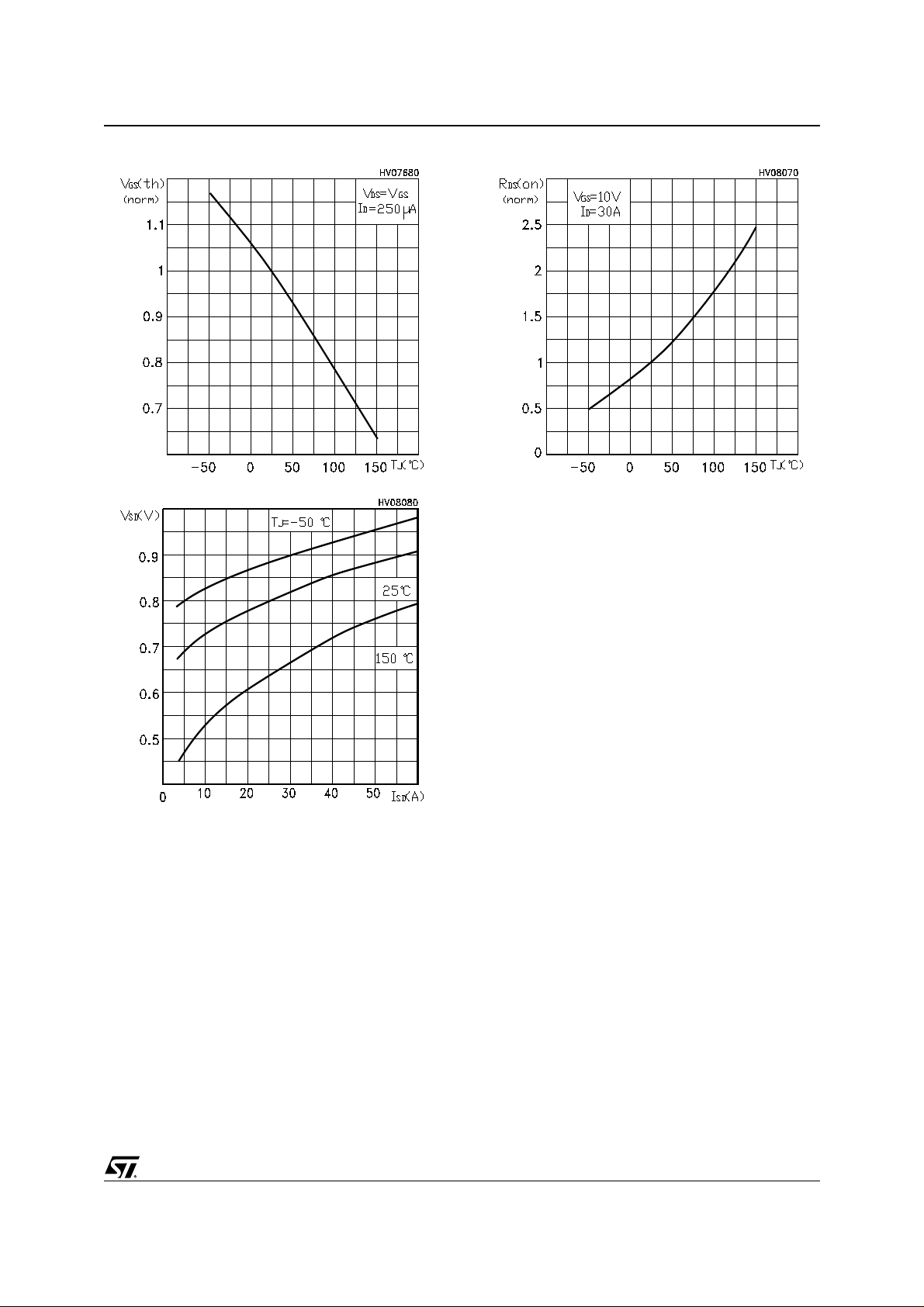

Normalized Gate Threshold Volta ge vs Temp.

Source-drain Diode Forward Characteristics

Normalized On Resistance vs Temperatur e

5/8

STY60NM50

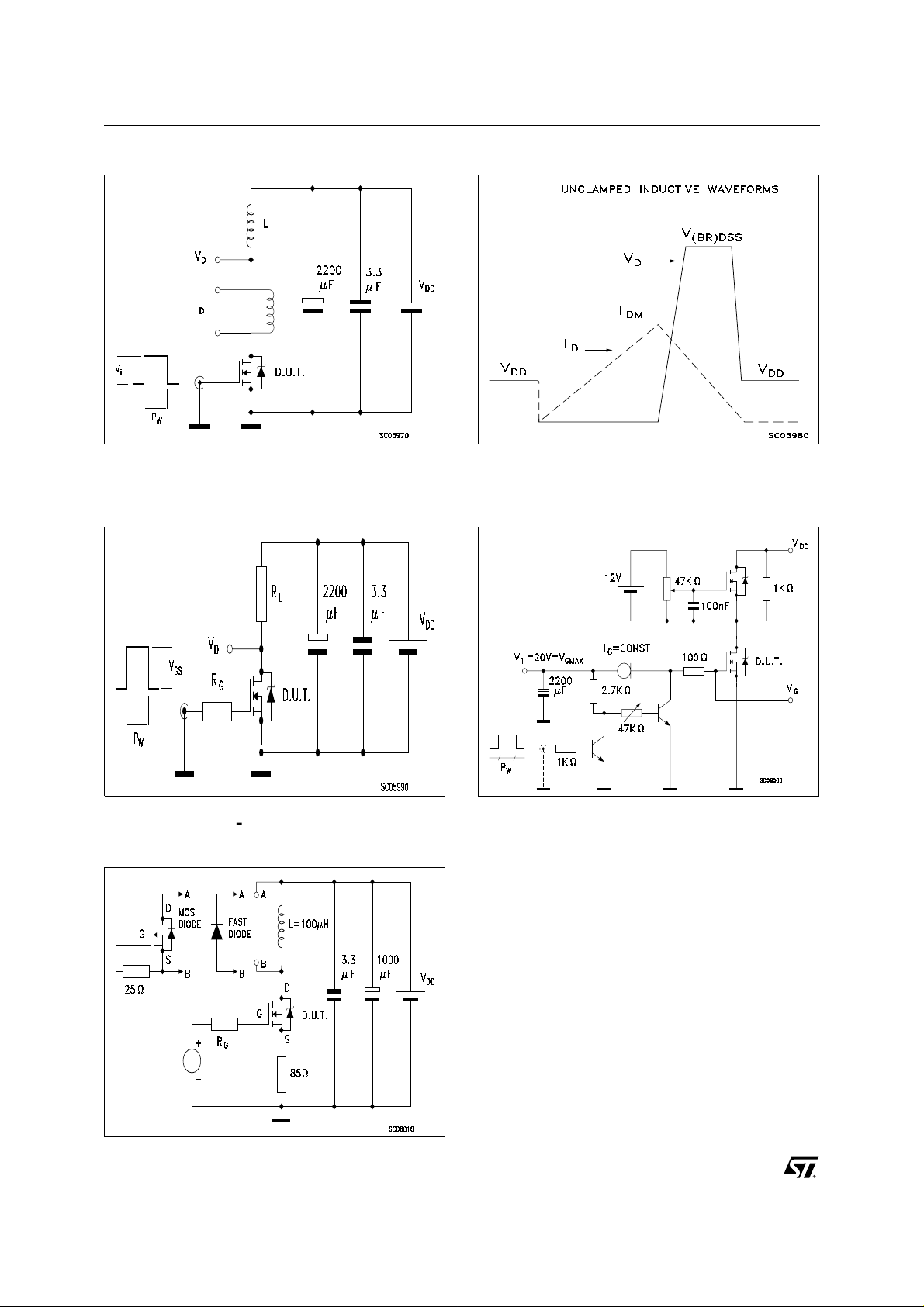

Fig. 2: Unclamped Inductive WaveformFig. 1: Unclamped Inductive Load Test Circuit

Fig. 3: Switching Times Test Circuit For

Resistive Load

Fig. 5: Test Circuit For Inductive Load Switching
And Diode Recovery Times

Fig. 4: Gate Charge test Circuit

6/8

Max247 MECHANICAL DATA

STY60NM50

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 4.70 5.30

A1 2.20 2.60

b 1.00 1.40
b1 2.00 2.40
b2 3.00 3.40

c 0.40 0.80
D 19.70 20.30
e 5.35 5.55
E 15.30 15.90
L 14.20 15.20

L1 3.70 4.30

mm inch

P025Q

7/8

STY60NM50
