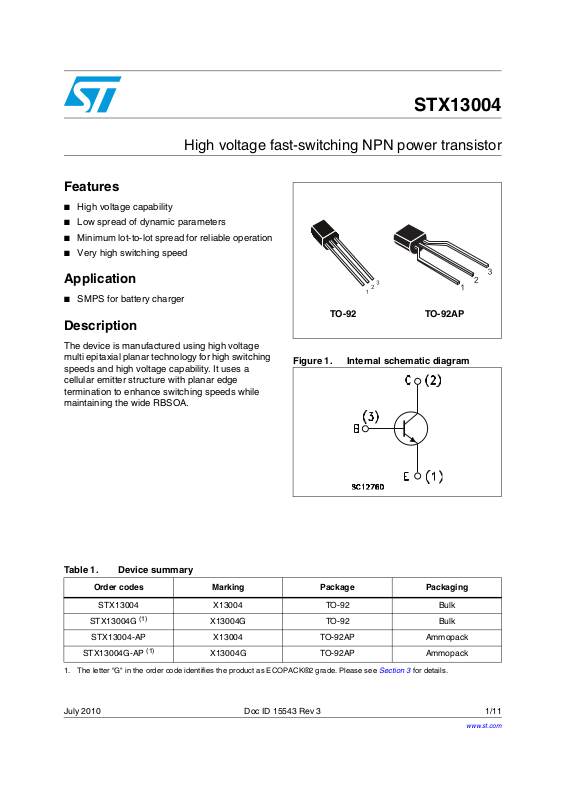

Page 1
High voltage fast-switching NPN power transistor
Features
■ High voltage capability
■ Low spread of dynamic parameters
■ Minimum lot-to-lot spread for reliable operation
■ Very high switching speed
Application
■ SMPS for battery charger
Description
STX13004
TO-92 TO-92AP
The device is manufactured using high voltage
multi epitaxial planar technology for high switching
speeds and high voltage capability. It uses a
cellular emitter structure with planar edge
termination to enhance switching speeds while
maintaining the wide RBSOA.
Table 1. Device summary
Order codes Marking Package Packaging
STX13004 X13004 TO-92 Bulk
STX13004G
(1)
X13004G TO-92 Bulk
Figure 1. Internal schematic diagram
STX13004-AP X13004 TO-92AP Ammopack
STX13004G-AP
1. The letter "G" in the order code identifies the product as ECOPACK®2 grade. Please see Section 3 for details.
July 2010 Doc ID 15543 Rev 3 1/11
(1)
X13004G TO-92AP Ammopack
www.st.com
11
Page 2
Electrical ratings STX13004
1 Electrical ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
V
P
T
CES
CEO
EBO
I
I
CM
I
I
BM
TOT
STG
T
Collector-emitter voltage (VBE = 0) 700 V
Collector-emitter voltage (IB = 0) 400 V
Collector-base voltage (IC = 0, IB = 1 A, tP < 10 ms) V
Collector current 2 A
C
(BR)EBO
Collector peak current (tP < 5 ms) 4 A
Base current 1 A
B
Base peak current (tP < 5 ms) 2 A
Total dissipation at Tc = 25 °C 2.5 W
Storage temperature -65 to 150
Max. operating junction temperature 150
J
Table 3. Thermal data
Symbol Parameter Value Unit
R
R
thJC
thJA
Thermal resistance junction-case max 50 °C/W
Thermal resistance junction-ambient max 150 °C/W
V
°C
2/11 Doc ID 15543 Rev 3
Page 3
STX13004 Electrical characteristics
2 Electrical characteristics
T
= 25 °C; unless otherwise specified.
case
Table 4. Electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
CES
I
CEO
V
(BR)EBO
V
CEO(sus)
V
CE(sat)
V
BE(sat)
h
Collector cut-off current
(VBE = 0)
Collector cut-off current
(IB = 0)
Emitter-base breakdown
voltage (IC = 0)
Collector-emitter sustaining
(1)
voltage (I
Collector-emitter saturation
(1)
B
= 0)
voltage
Base-emitter saturation
(1)
voltage
FE
DC current gain
Resistive load
f
Storage time
Fall time
t
s
t
V
= 700 V 10 µA
CE
V
= 400 V 1 mA
CE
= 10 mA 9 18 V
I
E
= 10 mA 400 V
I
C
= 1 A IB = 200 mA
I
C
= 2 A IB = 500 mA
I
C
= 1 A IB = 200 mA
I
C
= 2 A IB = 500 mA
I
C
I
= 0.5 mA V
C
= 400 mA V
I
C
= 1 A V
I
C
IC = 2 A V
= 2 A __ _ tp = 30 µs
I
C
I
= -I
B(on)
= 1 25 V V
V
CC
B(off)
= 400 mA
BB(off)
CE
CE
CE
CE
= -5 V
(see Figure 12)
= 2 V
= 2 V
= 5 V
= 5 V
15
26
10
6
0.51V
1.2
1.6VV
35
30
16
1.1
300
V
µs
ns
= 1 A V
I
Inductive load
f
Storage time
Fall time
t
s
t
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %.
C
I
B(on)
C
snubber
(see Figure 13)
Doc ID 15543 Rev 3 3/11
= 250 mA V
= 1 nF R
clamp
BB(off)
BB(off)
= 300 V
= -5 V
= 0
2.4
200
µs
ns
Page 4
Electrical characteristics STX13004

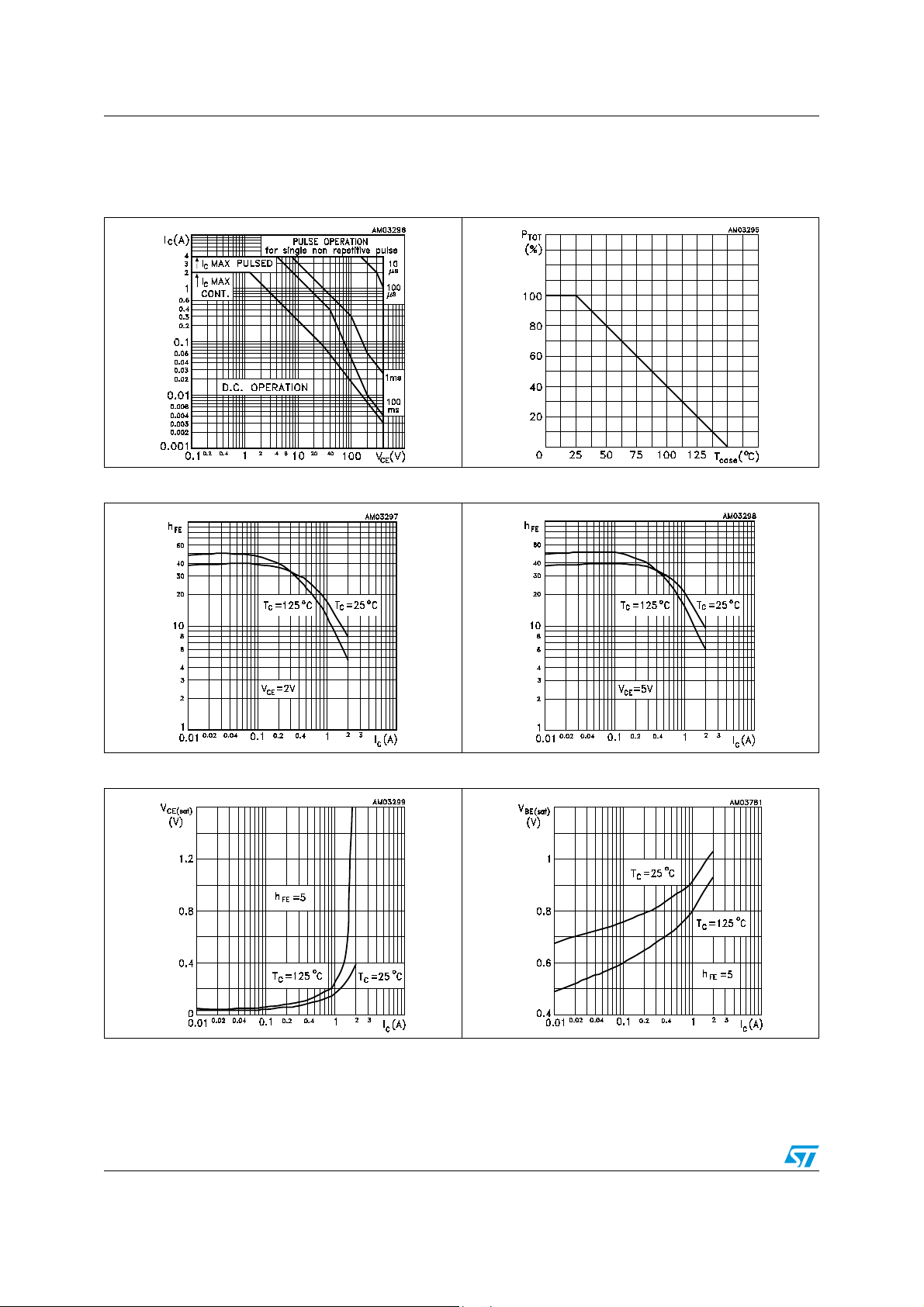

2.1 Electrical characteristics (curves)
Figure 2. Safe operating area Figure 3. Derating curve
Figure 4. DC current gain @VCE = 2 V Figure 5. DC current gain @VCE = 5 V
Figure 6. Collector-emitter saturation voltage Figure 7. Base-emitter saturation voltage
4/11 Doc ID 15543 Rev 3
Page 5
STX13004 Electrical characteristics

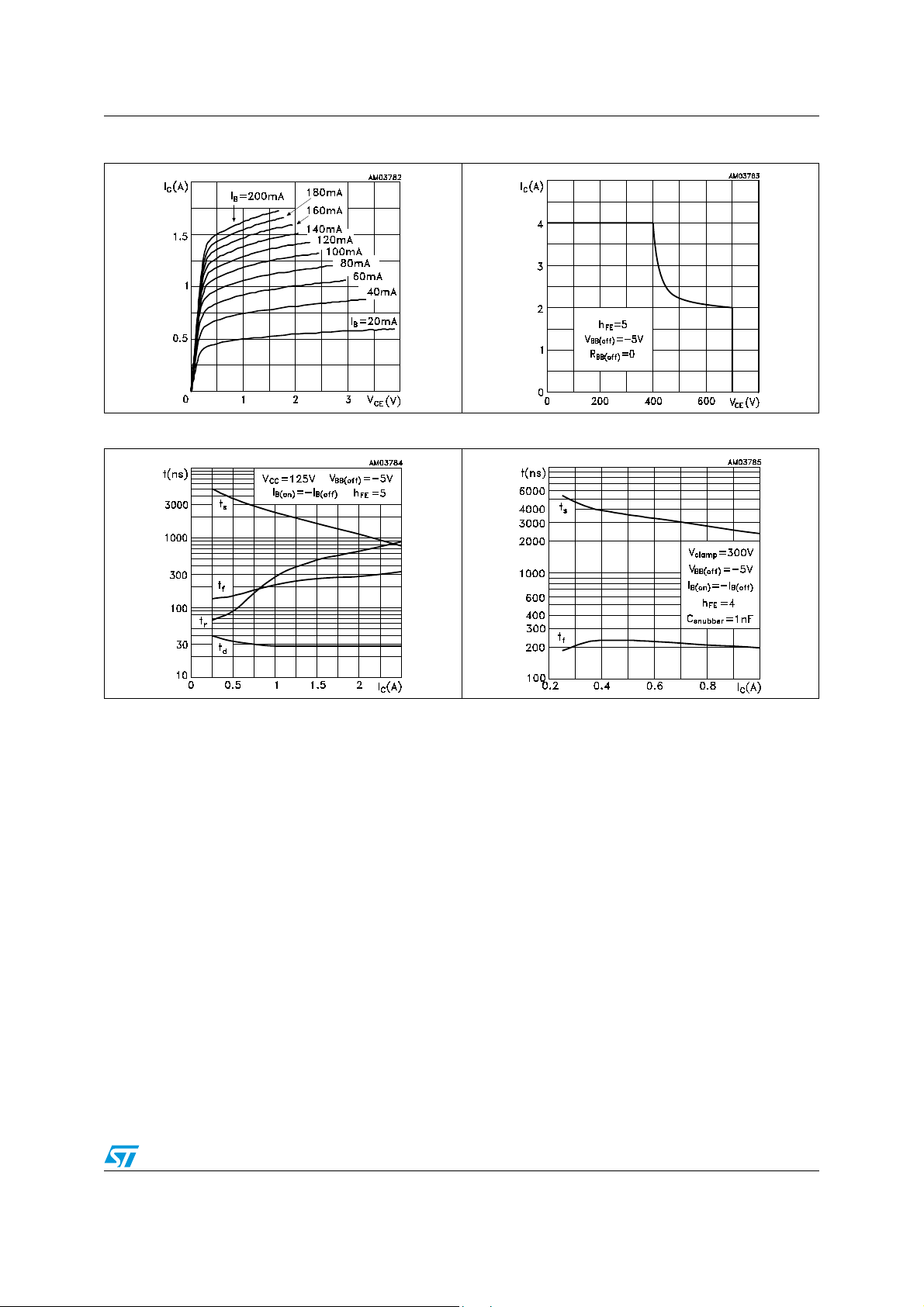

Figure 8. Output characteristics Figure 9. Reverse biased SOA
Figure 10. Resistive load switching times Figure 11. Inductive load switching times
Doc ID 15543 Rev 3 5/11
Page 6
Electrical characteristics STX13004

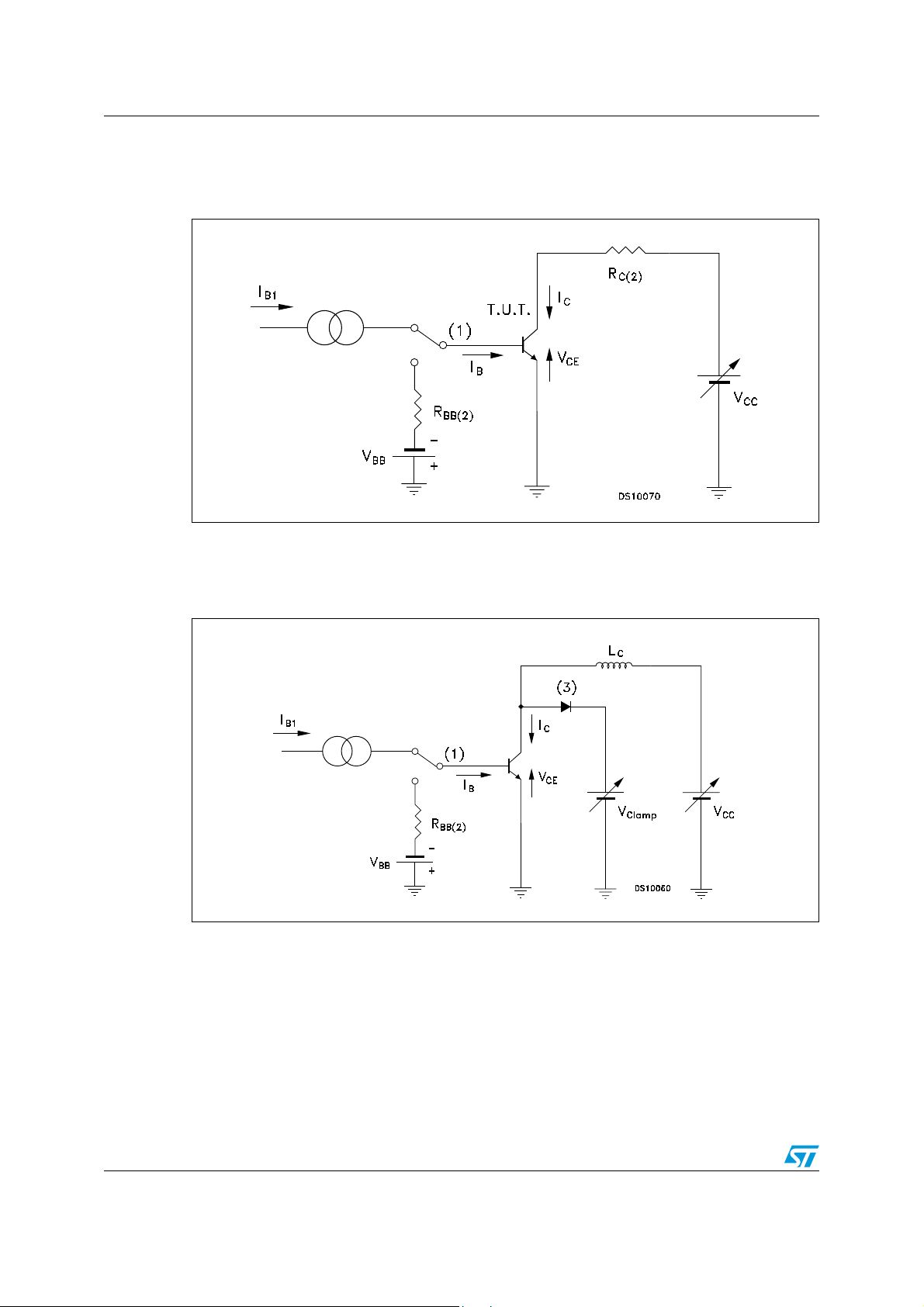

2.2 Test circuits
Figure 12. Resistive load switching test circuit
1. Fast electronic switch
2. Non-inductive resistor
Figure 13. Inductive load switching test circuit
1. Fast electronic switch
2. Non-inductive resistor
3. Fast recovery rectifier
6/11 Doc ID 15543 Rev 3
Page 7
STX13004 Package mechanical data
3 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
Doc ID 15543 Rev 3 7/11
Page 8
Package mechanical data STX13004
TO-92 bulk shipment mechanical data
DIM.
MIN. TYP MAX.
mm.
A4.32 4.95
b 0.36 0.51
D 4.45 4.95
E 3.30 3.94
e 2.41 2.67
e1 1.14 1.40
L 12.70 15.49
R 2.16 2.41
S1 0.92 1.52
W 0.41 0.56
V5
o
8/11 Doc ID 15543 Rev 3
0102782 D
Page 9
STX13004 Package mechanical data
TO-92 ammopack shipment (suffix”-AP”) mechanical data
Dim.
A1 4.80
T 3.80
T1 1.60
T2 2.30
d 0.48
P0 12.50 12.70 12.90
P2 5.65 6.35 7.05
F1,F2 2.44 2.54 2.94
F3 4.98 5.08 5.48
delta H -2.00 2.00
W17.50 18.00 19.00
W0 5.70 6.00 6.30
W1 8.509.009.25
W2 0.50
H18.50 20.50
H3 0.5 1 1.5
H0 15.50 16.00 16.50
H1 25.00
D0 3.80 4.00 4.20
t 0.90
L 11.00
I1 3.00
delta P -1.00 1.00
Min Typ Max
mm
0050910S
Doc ID 15543 Rev 3 9/11
Page 10
Revision history STX13004
4 Revision history
Table 5. Document revision history
Date Revision Changes
01-Apr-2009 1 First release.
21-Apr-2010 2 Updated hFE specification Table 4 on page 3.
06-Jul-2010 3
Added R
value Table 4 on page 3.
value Table 3 on page 2 and updated I
thJA
maximum
CES
10/11 Doc ID 15543 Rev 3
