STWH13009
3
High voltage fast-switching NPN power transistor
Features
■ High voltage capability
■ Low spread of dynamic parameters
■ Very high switching speed
Applications
■ Switching mode power supplies
Description
The device is manufactured using high voltage
Multi Epitaxial Planar technology for high
switching speeds anh high voltage capability.
It uses a Hollow Emitter structure to enhance
switching speeds.
.
2
1

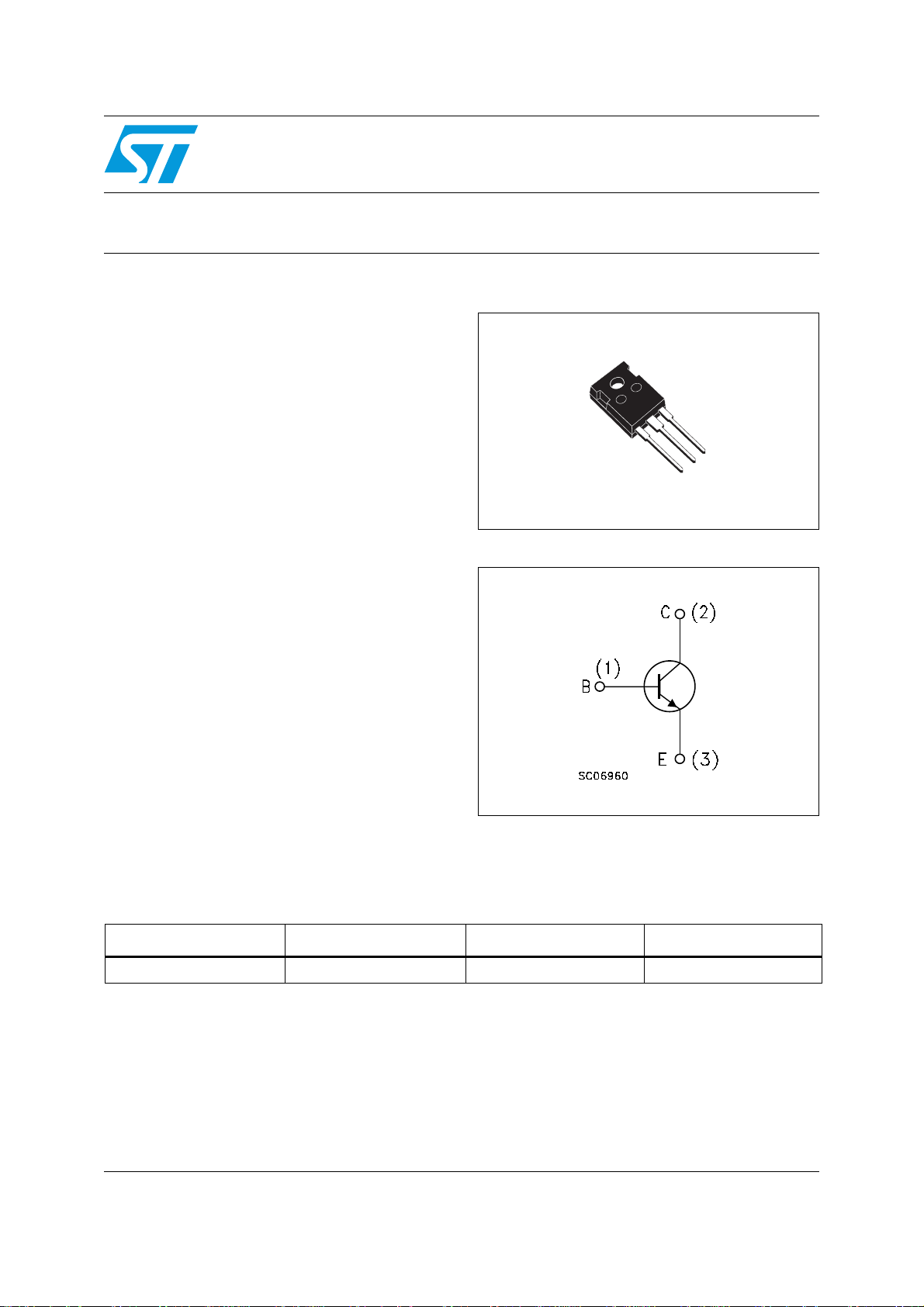

TO-247

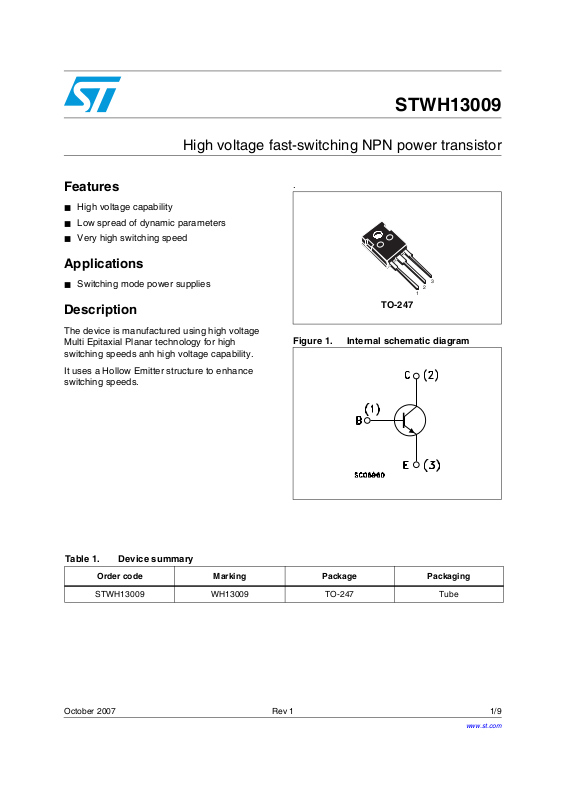

Figure 1. Internal schematic diagram
Table 1. Device summary
Order code Marking Package Packaging
STWH13009 WH13009 TO-247 Tube
October 2007 Rev 1 1/9
www.st.com
9
Page 2
Absolute maximum ratings STWH13009
1 Absolute maximum ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
V
I
I
P
T
Collector-emitter voltage (VBE = -1.5V) 700 V
CEV
Collector-emitter voltage (IB = 0) 400 V
CEO
Emitter-base voltage (IC = 0) 12 V
EBO
I
Collector current 12 A
C
Collector peak current (tp < ms) 24 A
CM
I
Base current 6 A
B
Base peak current (tp < ms) 12 A
BM
Total dissipation at T
TOT
Storage temperature -65 to 150 °C
stg
T
Max. operating junction temperature 150 °C
J
= 25°C 125 W
case
Table 3. Thermal data
Symbol Parameters Value Unit
R
thj-case
Thermal resistance junction-case __max 1 °C/W
2/9
Page 3
STWH13009 Electrical characteristics
2 Electrical characteristics
(T
= 25°C; unless otherwise specified)
case
Table 4. Electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
= 700 V
I
CEV
I
EBO
Collector cut-off current
= -1.5V)
(V
BE
Emitter cut-off current
= 0)
(I
C
Collector-emitter
(1)
V
CEO(sus)
V
CE(sat)
V
BE(sat)
h
FE
sustaining voltage
= 0)
(I
B
Collector-emitter
(1)
saturation voltage
Base-emitter saturation
(1)
voltage
(1)
DC current gain
Inductive load
t
s
t
f
1. Pulsed duration = 300 ms, duty cycle ≥1.5%.
Storage time
Fall time
V
CE
= 700 V TC = 100°C
V
CE
= 10 V
V
EB
I
= 10 mA
C
I
= 4 A __ IB = 0.8 A
C
I
= 5 A __ IB = 1 A
C
= 8 A __ IB = 1.6 A
I
C
= 12 A _ IB = 2.4 A
I
C
I
= 5 A __ IB = 1 A
C
= 8 A __ IB = 1.6 A
I
C
= 5 A _ V
I
C
I
= 8 A _ V
C
= 250 V IC = 5A
V
CC
= 1 A I
I
B1
CE
CE
B2
= -2 A
L = 200 µH
=5 V
=5 V
µA
10
500
µA
10 µA
400 V
0.2
0.5
0.25
0.35
0.6
0.6
1
2
1.2
1.6VV
1.7
30
23
2.5
140µsns
18
11
100
V
V
V
V
3/9
Page 4
Electrical characteristics STWH13009
2.1 Electrical characteristic (curves)

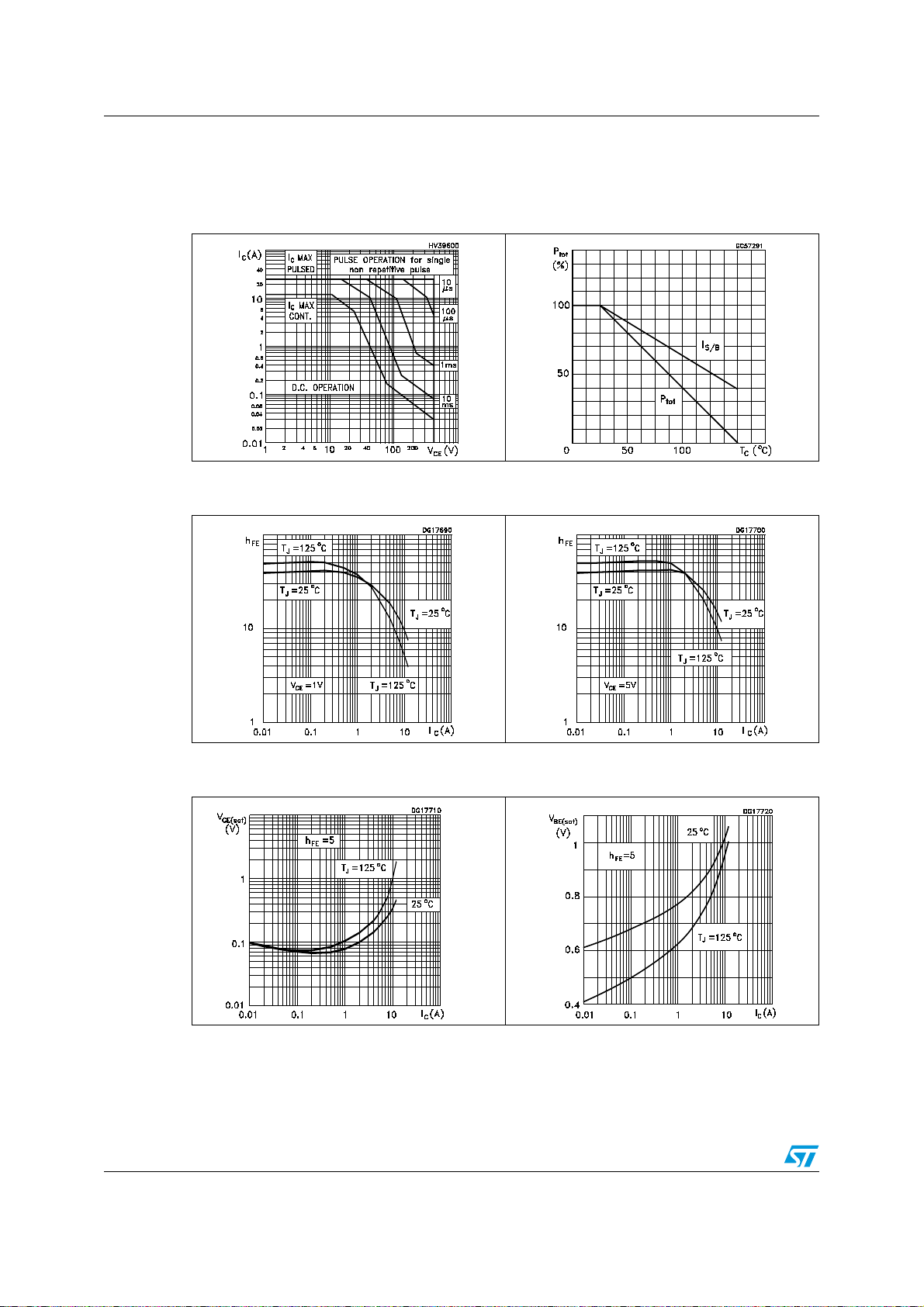

Figure 2. Safe operating area Figure 3. Derating curve
Figure 4. DC current gain Figure 5. DC current gain
Figure 6. Collector-emitter saturation
4/9
voltage
Figure 7. Base-emitter saturation
voltage
Page 5
STWH13009 Electrical characteristics

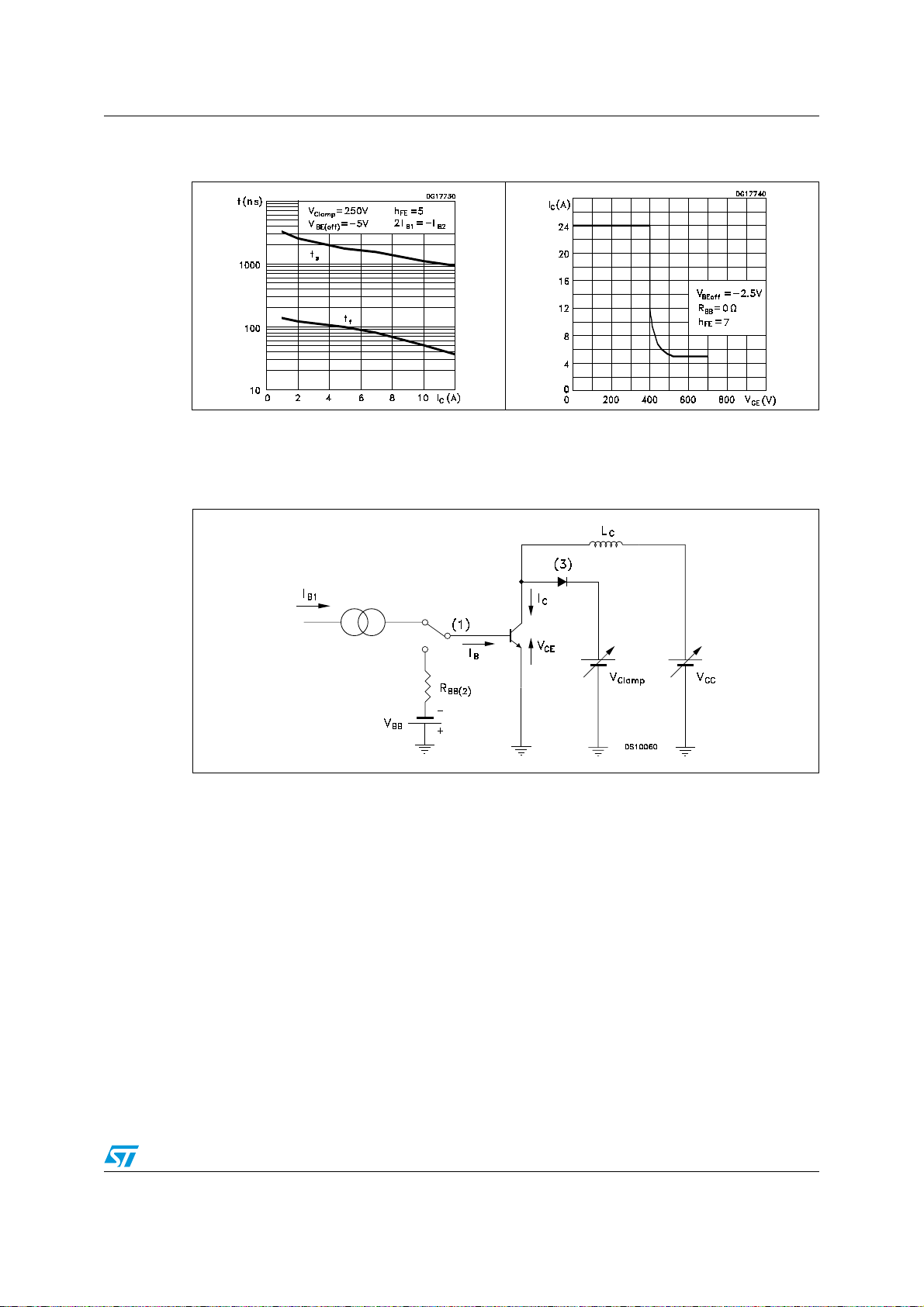

Figure 8. Inductive load switching time Figure 9. Reverse biased safe
operating area
2.2 Test circuit
Figure 10. Inductive load switching test circuit
1) Fast electronic switch
2) Non-inductive resistor
5/9
Page 6
Package mechanical data STWH13009
3 Package mechanical data
In order to meet environmental requirements, ST offers these devices in
ECOPACK® packages. These packages have a Lead-free second level
interconnect . The category of second level interconnect is marked on the
package and on the inner box label, in compliance with JEDEC Standard JESD97.
The maximum ratings related to soldering conditions are also marked on the inner
box label. ECOPACK is an ST trademark. ECOPACK specifications are available
at: www.st.com
6/9
Page 7
STWH13009 Package mechanical data

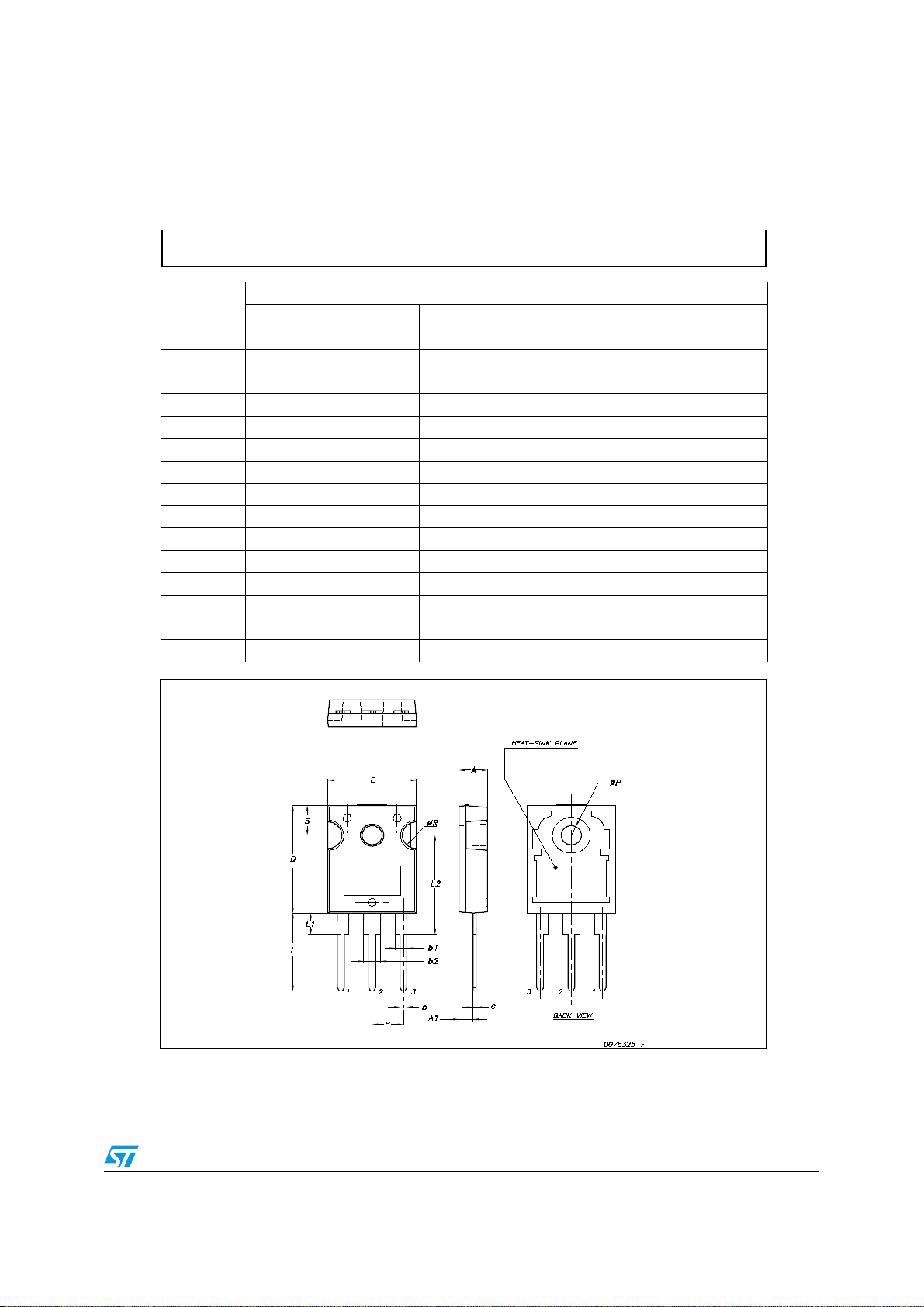

TO-247 Mechanical data
Dim.
Min. Typ Max.
A4.85 5.15
A1 2.20 2.60
b 1.0 1.40
b1 2.0 2.40
b2 3.0 3.40
c0.40 0.80
D 19.85 20.15
E 15.45 15.75
e5.45
L 14.20 14.80
L1 3.70 4.30
L2 18.50
øP 3.55 3.65
øR 4.50 5.50
S5.50
mm.
7/9
Page 8
Revision history STWH13009
4 Revision history
Table 5. Document revision history
Date Revision Changes
19-Oct-2007 1 Initial Release
8/9
Page 9
STWH13009
y
y
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at an
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection a nd use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service d escribed herein and shall not create or extend in any manner whatsoever, an
liability of ST.
ST and the ST logo a re trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2007 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Swede n - Switzerland - United Kingdom - United States of America
www.st.com
9/9
