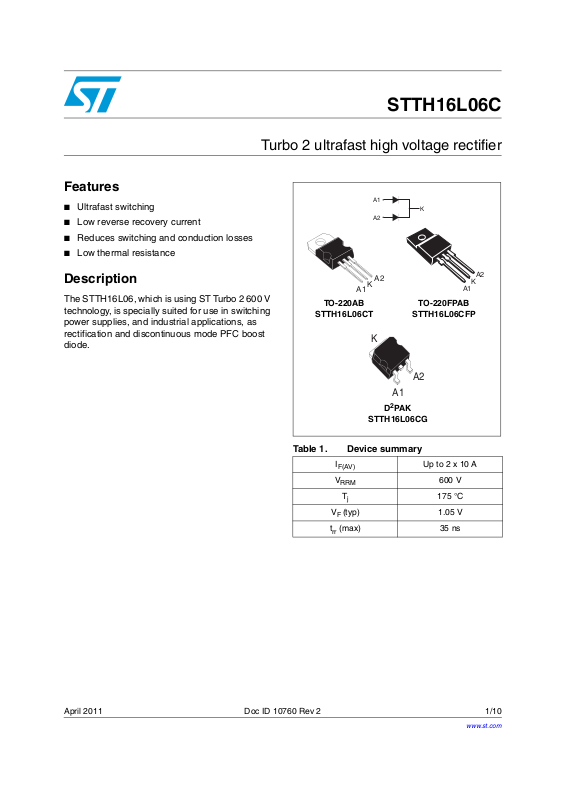

Datasheet STTH16L06C Datasheet (ST)

Features

■ Ultrafast switching

■ Low reverse recovery current

■ Reduces switching and conduction losses

■ Low thermal resistance

STTH16L06C

Turbo 2 ultrafast high voltage rectifier

A1

K

A2

Description

The STTH16L06, which is using ST Turbo 2 600 V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode.

A2

K

A1

TO-220AB

STTH16L06CT

STTH16L06CFP

K

A2

A1

2

PAK

D

STTH16L06CG

Table 1. Device summary

I

F(AV)

V

RRM

T

j

V

(typ) 1.05 V

F

(max) 35 ns

t

rr

TO-220FPAB

Up to 2 x 10 A

600 V

175 °C

A1

A2

K

April 2011 Doc ID 10760 Rev 2 1/10

www.st.com

10

Characteristics STTH16L06C

1 Characteristics

Table 2. Absolute ratings (limiting values)

Symbol Parameter Value Unit

V

I

F(RMS)

I

F(AV)

I

T

Table 3. Thermal resistance

Repetitive peak reverse voltage 600 V

RRM

Forward rms current 30 A

Tc = 140 °C

= 135 °C

TO-220AB /

2

PA K

Average forward current

D

δ = 0.5

TO-220FPAB

Surge non repetitive forward current tp = 10 ms sinusoidal 120 A

FSM

Storage temperature range -65 to + 175 °C

stg

T

Maximum operating junction temperature 175 °C

j

T

c

= 130 °C

T

c

Tc = 120 °C

= 110 °C

T

c

= 80 °C

T

c

Per diode Per device Per diode Per device

Per diode Per device

8 16 10 20

8 16

Symbol Parameter Maximum Unit

2

PAK Per diode 2.5

2

PAK Total 1.6

R

th(j-c)

Junction to case

TO-220AB / D

TO-220FPAB Per diode 5

TO-220AB / D

TO-220FPAB Total 3.8

2

PA K 0 .7

R

th(c)

Coupling

TO-220AB / D

TO-220FPAB 2.5

A

°C/ W

When the diodes 1 and 2 are used simultaneously:

Δ T

j (diode1)

Table 4. Static electrical characteristics

Symbo

l

(1)

I

R

V

F

1. Pulse test: tp = 5 ms, δ < 2 %

2. Pulse test: tp = 380 µs, δ < 2 %

= P

(diode1)

Parameter Test conditions Min. Typ Max. Unit

Reverse leakage current

(2)

Forward voltage drop

x R

th(j-c) (per diode)

+ P

(diode2)

= 25 °C

T

j

T

= 150 °C 25 240

j

T

= 25 °C

j

= 150 °C 1.05 1.35

T

j

Tj = 25 °C

T

= 150 °C 1.28 1.64

j

To evaluate the maximum conduction losses use the following equation: P = 1.06 x I

2/10 Doc ID 10760 Rev 2

F(AV)

+ 0.036 I

F2(RMS)

x R

V

= V

R

= 8 A

I

F

= 16 A

I

F

th(c)

RRM

8

1.8

2.08

µA

V

STTH16L06C Characteristics

Table 5. Dynamic electrical characteristics

Symbol Parameter

Reverse recovery time Tj = 25 °C

t

rr

I

V

Reverse recovery current Tj = 125 °C

RM

Forward recovery time

t

fr

Forward recover y voltage 3.5 V

FP

= 25 °C

T

j

Figure 1. Conduction losses versus average

current

P(W)

15

10

5

0

0246810

δ = 0.05

δ = 0.1

I (A)

F(AV)

δ = 0.2

δ = 0.5

δ

δ = 1

=tp/T

Figure 3. Relative variation of thermal

impedance junction to case versus pulse duration (TO-220AB, D

Z/R

th(j-c) th(j-c)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

Single pulse

0.0

1.E-03 1.E-02 1.E-01 1.E+00

t (s)

p

Test conditions

I

F

I

F

VR = 30 V

I

F

VR = 400 V

I

F

V

T

tp

2

PAK)

Min. Typ Max. Unit

= 0.5 A, Irr = 0.25 A, IR = 1 A 35

= 1 A, dIF/dt = 50 A/µs,

= 8 A, dIF/dt = 100 A/µs,

= 8 A dIF/dt = 100 A/µs

= 1.1 x V

FR

Fmax

40 55

4.5 6.5 A

200 ns

Figure 2. Forward voltage drop versus

forward current

I (A)

FM

100

90

80

70

60

50

40

30

20

10

0

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

T=150°C

j

(typical values)

T=150°C

j

(maximum values)

V (V)

FM

(maximum values)

Figure 4. Relative variation of thermal

impedance junction to case versus pulse duration (TO-220FPAB)

Z/R

th(j-c) th(j-c)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

Single pulse

0.2

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00 1.E+01

t (s)

p

T=25°C

j

ns

Doc ID 10760 Rev 2 3/10

Characteristics STTH16L06C

Figure 5. Peak reverse recovery current

versus dI

/dt (typical values, per

F

Figure 6. Reverse recovery time versus dI

(typical values, per diode)

F

/dt

diode)

I (A)

RM

18

V =400V

R

T=125°C

j

16

14

I =0.5 x I

12

10

8

6

4

2

0

0 50 100 150 200 250 300 350 400 450 500

F F(AV)

dI /dt(A/µs)

F

I=I

F F(AV)

I =2 x I

F F(AV)

Figure 7. Reverse recovery charges versus

dI

/dt (typical values, per diode)

F

t (ns)

rr

400

350

300

250

200

150

100

50

0

I =2 x I

F F(AV)

I=I

F F(AV)

0 50 100 150 200 250 300 350 400 450 500

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

V =400V

R

T=125°C

j

Figure 8. Reverse recovery softness factor

versus dIF/dt (typical values, per diode)

Q (nC)

rr

800

V =400V

R

750

T=125°C

j

700 650 600 550 500 450 400 350 300 250 200 150 100

50

0

0 100 200 300 400 500

I =2 x I

F F(AV)

I=I

F F(AV)

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

Figure 9. Relative variations of dynamic

parameters versus junction temperature

1.4

1.2

1.0

0.8

0.6

t

rr

I

RM

0.4

0.2

0.0

25 50 75 100 125

S factor

I=I

F F(AV)

V =400V

R

Q

RR

T (°C)

j

Reference:T =125°C

j

S factor

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

0 50 100 150 200 250 300 350 400 450 500

dI /dt(A/µs)

F

I < 2 x I

F F(AV)

V =400V

R

T=125°C

j

Figure 10. Transient peak forward voltage

versus dI

/dt (typical values, per

F

diode)

V (V)

FP

16 15

I=I

F F(AV)

T=125°C

j

14 13 12 11 10

9 8 7 6 5 4 3 2 1 0

0 50 100 150 200 250 300 350 400 450 500

dI /dt(A/µs)

F

4/10 Doc ID 10760 Rev 2

STTH16L06C Characteristics

Figure 11. Forward recovery time versus dIF/dt

(typical values, per diode)

Figure 12. Junction capacitance versus

reverse voltage applied (typical values, per diode)

t (ns)

fr

180

160

140

120

100

80

60

40

20

0

0 100 200 300 400 500

dI /dt(A/µs)

F

Figure 13. Thermal resistance junction to ambient versus copper surface under tab (epoxy

FR4, copper thickness = 35 µm) (D

R (°C/W)

th(j-a)

80

70

60

50

40

30

20

10

0

0 5 10 15 20 25 30 35 40

I=I

F F(AV)

V =1.1 x V max.

FR F

T=125°C

j

2

PAK)

S (cm²)

CU

C(pF)

100

10

V (V)

1

1 10 100 1000

R

F=1MHz

V =30mV

OSC RMS

T=25°C

j

Doc ID 10760 Rev 2 5/10

Package mechanical data STTH16L06C

2 Package mechanical data

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque value: 0.4 to 0.6 N·m

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK

Table 6. TO-220AB dimensions

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

H2

Dia

A

C

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027

L2

F2

F1

L5

L6

L9

L4

F

G1

L7

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

F2 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

D

G1 2.40 2.70 0.094 0.106

H2 10 10.40 0.393 0.409

L2 16.4 typ. 0.645 typ.

M

E

L4 13 14 0.511 0.551

L5 2.65 2.95 0.104 0.116

G

L6 15.25 15.75 0.600 0.620

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

6/10 Doc ID 10760 Rev 2

M 2.6 typ. 0.102 typ.

Diam. 3.75 3.85 0.147 0.151

STTH16L06C Package mechanical data

Table 7. TO-220FPAB dimensions

dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.4 4.6 0.173 0.181

A

H

B

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.018 0.027

Dia

L6

L2

L3

L5

F1

L4

F2

F

G1

G

D

L7

E

F 0.75 1 0.030 0.039

F1 1.15 1.70 0.045 0.067

F2 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 Typ. 0.63 Typ.

L3 28.6 30.6 1.126 1.205

L4 9.8 10.6 0.386 0.417

L5 2.9 3.6 0.114 0.142

L6 15.9 16.4 0.626 0.646

L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

Doc ID 10760 Rev 2 7/10

Package mechanical data STTH16L06C

m

D

Table 8. D

L2

L

L3

2

PAK dimensions

E

A1

B2

B

G

* FLAT ZONE NO LESS THAN 2m

dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

A

C2

A1 2.49 2.69 0.098 0.106

A2 0.03 0.23 0.001 0.009

B 0.70 0.93 0.027 0.037

B2 1.14 1.70 0.045 0.067

C 0.45 0.60 0.017 0.024

C2 1.23 1.36 0.048 0.054

C

R

D 8.95 9.35 0.352 0.368

E 10.00 10.40 0.393 0.409

A2

G 4.88 5.28 0.192 0.208

L 15.00 15.85 0.590 0.624

M

*

V2

L2 1.27 1.40 0.050 0.055

L3 1.40 1.75 0.055 0.069

M 2.40 3.20 0.094 0.126

Figure 14. Footprint (dimensions in mm)

16.90

10.30

8.90

R 0.40 typ. 0.016 typ.

V2 0° 8° 0° 8°

5.08

1.30

3.70

8/10 Doc ID 10760 Rev 2

STTH16L06C Ordering information

3 Ordering information

Table 9. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STTH16L06CT STTH16L06CT TO-220AB 2.23 g 50 Tube

STTH16L06CG STTH16L06CG D2PAK 1.48 g 50 Tube

2

STTH16L06CG-TR STTH16L06CG D

STTH16L06CFP STTH16L06CFP TO-220FPAB 1.70 g 50 Tube

PAK 1.48 g 1000 Tape and reel
