Datasheet STTH12S06 Datasheet (ST)

Download

Page 1

Table 1. Main product characteristics

F(AV)

RRM

RM (typ.)

j (max)

F (typ)

rr (typ)

12 A

600 V

6 A

175 °C

1.5 V

14 ns

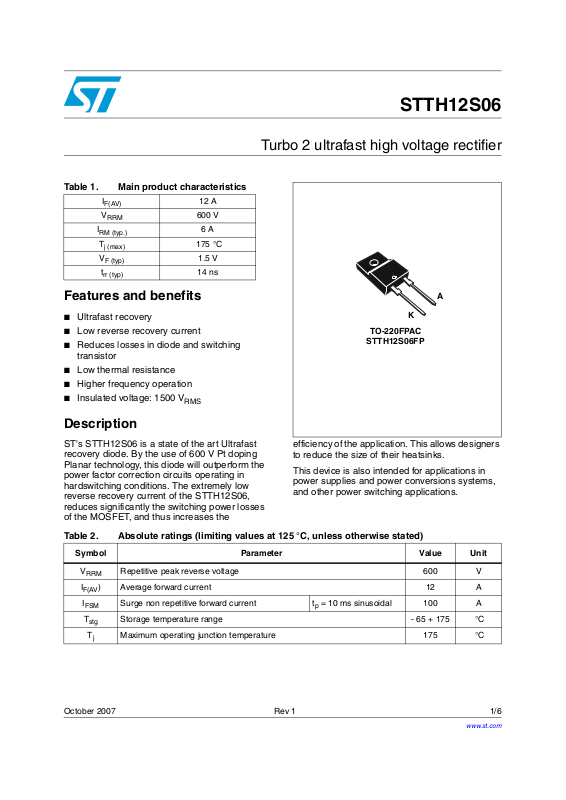

STTH12S06

Turbo 2 ultrafast high voltage rectifier

Features and benefits

■ Ultrafast recovery

■ Low reverse recovery current

■ Reduces losses in diode and switching

TO-220FPAC

STTH12S06FP

transistor

■ Low thermal resistance

■ Higher frequency operation

■ Insulated voltage: 1500 V

RMS

Description

ST's STTH12S06 is a state of the art Ultrafast recovery diode. By the use of 600 V Pt doping Planar technology, this diode will outperform the power factor correction circuits operating in hardswitching conditions. The extremely low reverse recovery current of the STTH12S06, reduces significantly the switching power losses of the MOSFET, and thus increases the

Table 2. Absolute ratings (limiting values at 125 °C, unless otherwise stated)

Symbol Parameter Value Unit

F(AV

FSM

RRM

stg

Repetitive peak reverse voltage 600 V

) Average forward current 12 A

Surge non repetitive forward current tp = 10 ms sinusoidal 100 A

Storage temperature range - 65 + 175 °C

Maximum operating junction temperature 175 °C

efficiency of the application. This allows designers to reduce the size of their heatsinks.

This device is also intended for applications in power supplies and power conversions systems, and other power switching applications.

October 2007 Rev 1 1/6

www.st.com

Page 2

Characteristics STTH12S06

1 Characteristics

Table 3. Thermal resistances

Symbol Parameter Value Unit

Rth (j-c) Junction to case 4.6 °C/W

Table 4. Static electrical characteristics

Symbol Parameter Tests conditions Min. Typ. Max. Unit

Table 5. Dynamic electrical characteristics

Reverse leakage current VR = 600 V

Forward voltage drop IF = 12 A

Symbol Tests conditions Min. Typ. Max. Unit

IF = 1 A dIF/dt = - 200 A/µs VR = 30 V 14 21 ns

VR = 400 V IF = 12A dIF/dt = - 200 A/µs

VR = 200 V IF = 12A

/dt = - 200 A/µs

S factor

Figure 1. Conduction losses versus

average current

P(W)

34 32 30 28 26 24 22 20 18 16 14 12 10

8 6 4 2 0

0 2 4 6 8 10 12 14 16

δ=0.05

δ=0.1

δ=0.2

(A)

F(AV)

δ=0.5

=tp/T

Tj = 125 °C

δ=1

Tj = 25 °C 30

= 125 °C 35 400

= 25 °C 3.4

= 150 °C 1.5 1.9

6.0 8.0 A

0.3

160 nC

Figure 2. Forward voltage drop versus

forward current

IFM(A)

100

Tj=150°C

01234567

Tj=150°C

(Maximum values)

Tj=150°C

(Typical values)

Tj=25°C

(Maximumvalues)

VFM(V)

µA

2/6

Page 3

STTH12S06 Characteristics

Figure 3. Relative variation of thermal

impedance, junction to case, versus pulse duration

)/R

th(j-c

th(j-c)

1.0

Single pulse

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00 1.E+01

tp(s)

Figure 5. Reverse recovery time versus

/dt (typical values)

tRR(ns)

120

100

0 50 100 150 200 250 300 350 400 450 500 550 600

Tj=125°C

Tj=25°C

dIF/dt(A/µs)

IF= 12 A V

=400V

Figure 4. Peak reverse recovery current

versus dI

IRM(A)

IF= 12 A

=400V

10 100 1000

/dt (typical values)

Tj=125°C

Tj=25°C

dIF/dt(A/µs)

Figure 6. Reverse recovery charges versus

dIF/dt (typical values)

QRR(nC)

260

IF= 12 A

240

=400V

220

200

180

160

140

120

100

10 100 1000

Tj=125°C

Tj=25°C

dIF/dt(A/µs)

Figure 7. Junction capacitance versus

reverse voltage applied (typical values)

C(pF)

100

VR(V)

1 10 100 1000

F=1MHz

=30mV

osc

Tj=25°C

RMS

3/6

Page 4

Package information STTH12S06

2 Package information

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque value: 0.55 Nm

● Maximum torque value: 0.7 Nm

In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.

Table 6. TO-220FPAC dimensions

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.4 4.6 0.173 0.181

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.018 0.027

Dia

F 0.75 1 0.030 0.039

F1 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 Typ. 0.63 Typ.

L3 28.6 30.6 1.126 1.205

L4 9.8 10.6 0.386 0.417

L5 2.9 3.6 0.114 0.142

L6 15.9 16.4 0.626 0.646

L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

4/6

Page 5

STTH12S06 Ordering information

3 Ordering information

Table 7. Ordering information

Part number Marking Package Weight Base qty Delivery mode

STTH12S06FP STTH12S06FP TO-220FPAC 1.64 50 Tube

4 Revision history

Table 8. Revision history

Date Revision Changes

02-Oct-2007 1 Initial release.
